Agriweld ASL User manual

1
ASL

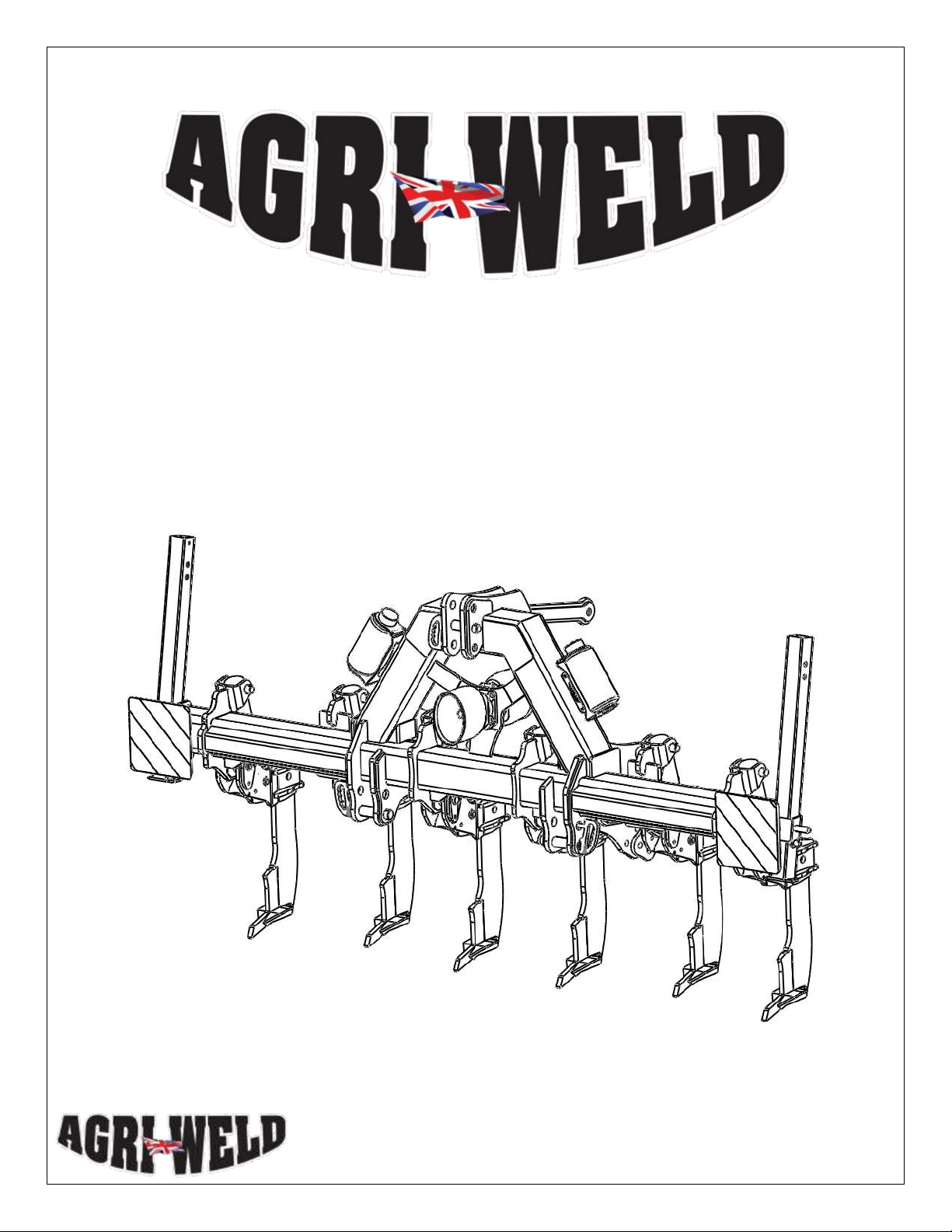

Agriweld Soil Loosener
Operator Manual

2
Contents
s
Page 3
Technical Information
Page 4
User Information, Qualification & Training
Page 5
Think Safety, Operation & Adjustment
Page 6
Rules Of Conduct for Operation
Page 7
Auto Reset Hydraulic Circuit
Page 8
Hydraulic System & Re-charging Oil Pressure
Page 9
Replacing the points
Page 10
Wearing Parts & Disposal of worn part/oil
Page 11
Transport & Maintenance
Page 12

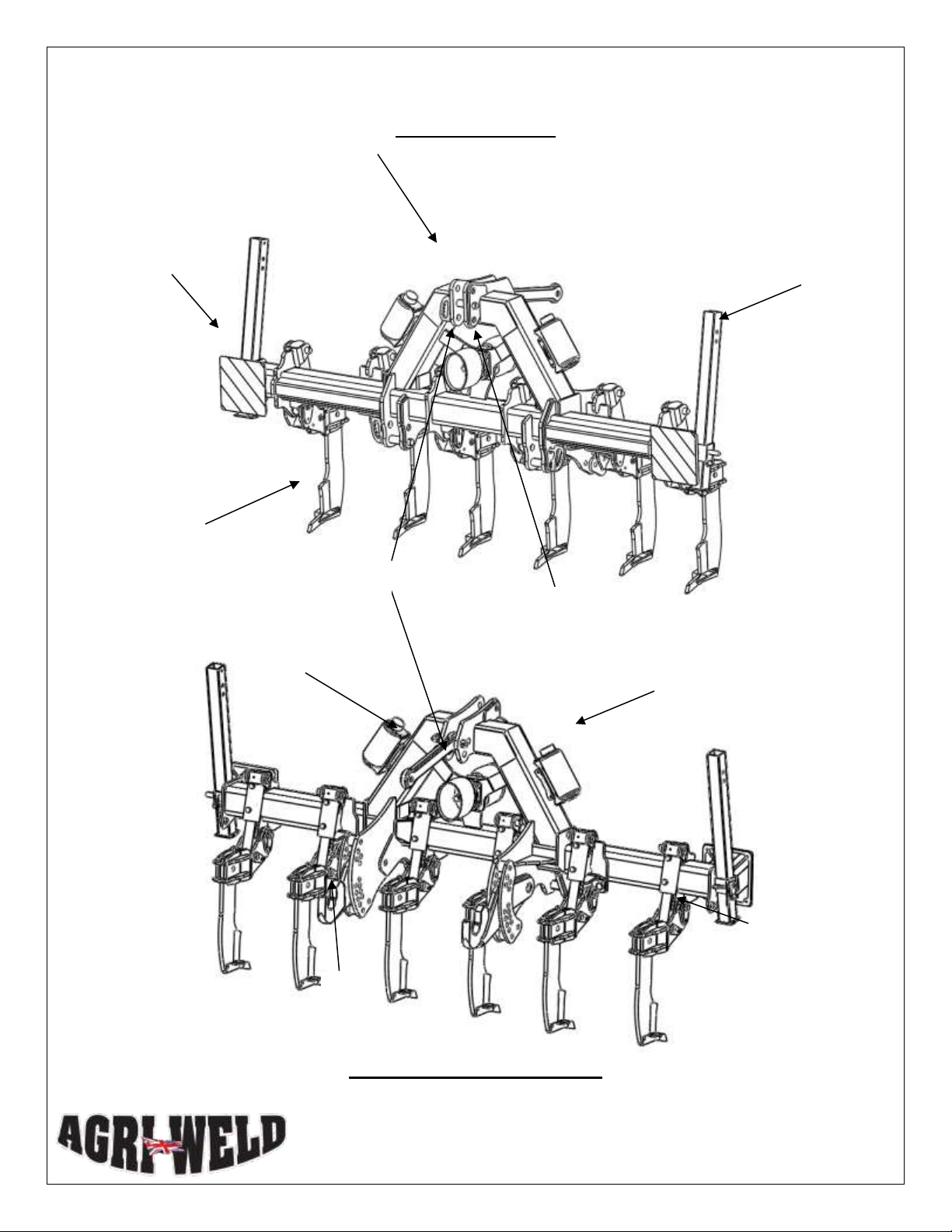

Main Assembly
Page 13
Main Assembly Parts List
Page 14
Point Assembly
Page 15
Leg & Socket Assembly
Page 16
Leg & Socket Components
Page 17 & 18
Leg & Socket Assembly Parts List
Page 19
Rams
Page 20

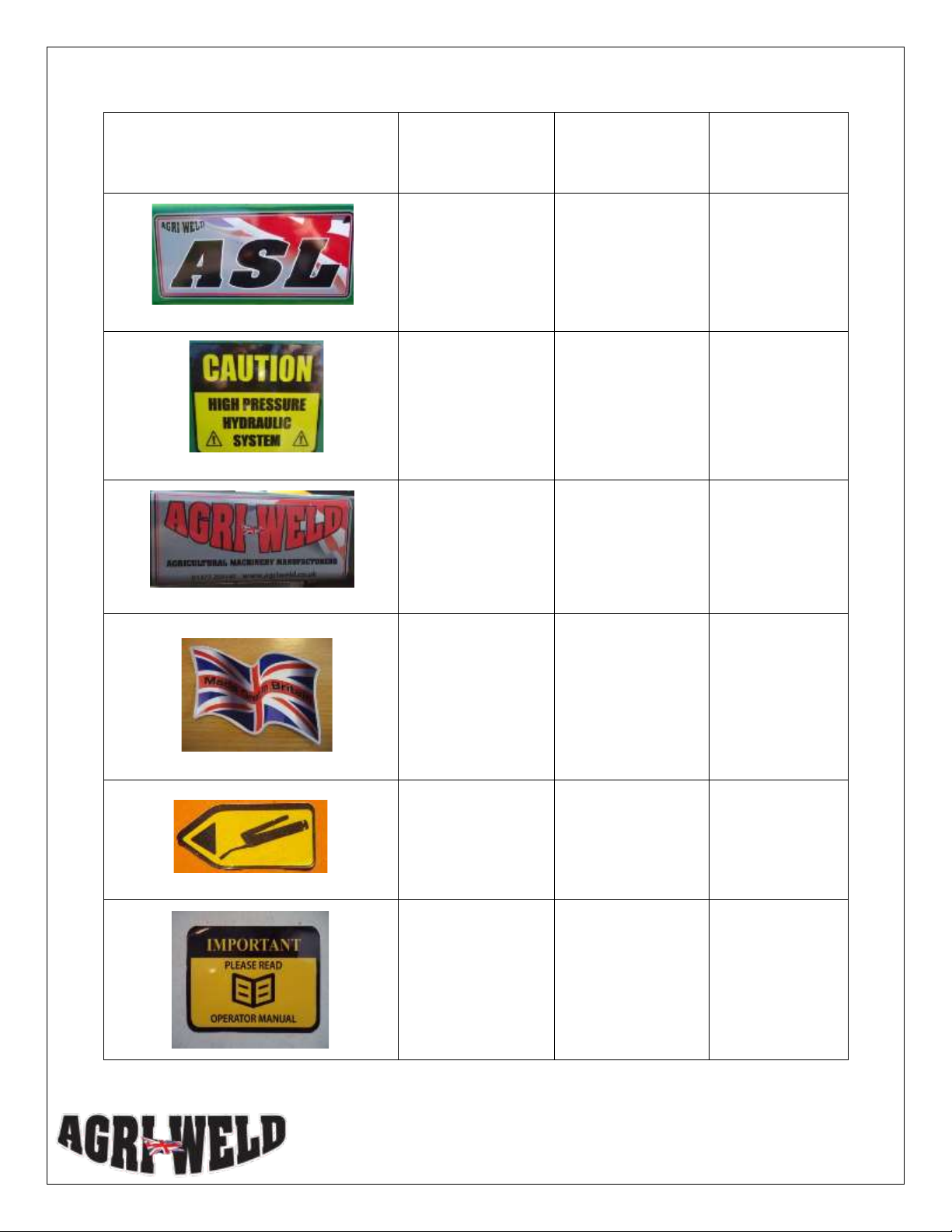

Stickers
Page 21
Warranty
Page 22-24
Risk Assessment
Page 25
CE Declaration of Conformity
Page 26
Notes

3
Technical Information
Leg Number
Leg Spacing’s (mm)
Working width mm
(outsides)
6
500
3000
8
500
4000
Gross Weight: 950Kg –3M
1150Kg –4M
Linkage to Power Harrow:
CAT 3 Linkage Points
CAT 3 heavy duty top link to attach to Power Harrow. CAT 3 Walterscheid Hooks to
attach to lower linkage points on Power Harrow.
Linkage to Tractor:
CAT 3 / 3-point linkage
Pressure:
Pre-set to 7 bar. Pressure gauge fitted for auto reset legs. It is your responsibility to
ensure the pressure is adjusted each use of the machine, so no damage is caused to
the machine. This will require adjustments to your conditions BEFORE each use. See
instructions enclosed within.
MAX PRESSURE (RESISTANCE TO TRIP) SHOULD BE SET AT REASONABLE LIMITS –We
recommend that this is kept as low as possible for your working conditions. Better to trip
too often than not at all and cause damage!
Legs:
20mm Hardox (or equivalent grade)

4
USER INFORMATION
This manual contains basic advice, which should be observed during setting-up,
operation and maintenance. It must be read by personnel concerned prior to starting
up and using the machine and be available at all times, to all operators.
If safety instructions are not complied with, it can lead to the risk of injury to yourself and
others as well as damage to the environment or the machine. Non-compliance to the
safety instructions can also lead to claims for damages becoming invalid.
New equipment - be careful!
It is very important to be careful when new equipment is to be used for the first time.
Incorrect mounting of equipment and operational errors can lead to expensive repair
work and operational losses.
Your warranty with Agriweld is not valid if the instructions in this operating manual are
not followed correctly.
QUALIFICATION AND TRAINING
•*Experienced or trained personnel may only perform any work on, or with the
machine. Statutory minimum age limits must be observed.
•Only *experienced/trained or instructed staff should operate, set up and
maintain this machine. Individual responsibilities of personnel concerning
operation, setting up, maintenance and repair must be clearly established.
•Define the machine operator’s responsibilities – also with regard to observing
traffic regulations. The operator must have the authority to refuse any instructions
issued by third parties, which contravene safety.
•Persons undergoing training or instruction should not be allowed to work on or
with the machine unless they are under the constant supervision of an
experienced person.
•The use of spare parts, accessories and ancillary equipment not supplied and/or
not approved by Agriweld could have detrimental effects to this machine or its
functions and hence impair the active and/or passive driving and/or operational
safety (accident prevention).
•Agriweld shall not be responsible for any damage caused by the use of spare
parts, accessories and ancillary equipment not supplied and/or approved by
Agriweld.
•Conversions of, or modifications to the machine may only be carried out after
consultation with Agriweld.

5
THINK SAFETY!
Read the instruction manual and follow the instructions given.
Take care when hitching up or unhitching the machine to and from the tractor.
It is forbidden to allow any persons to sit or ride on the implement at any time.
The tractor should be fitted with enough front-end weights for stability and to maintain
secure steering.
Driving, steering and braking characteristics are influenced by mounted machines and
ballast weights. The operator must ensure adequate steering and braking ability.
Use the tractor’s position control when coupling the implement to the tractor.
Do not stand between tractor and implement while it is being raised.
The tractor's lower link arms should be stabilised before driving on a public road so that
the implement and tractor lower link arms do not touch the tyres during transport.
Make sure that all nuts and bolts are always fully tightened.
NEVER stand or work beneath a suspended load unless supported by chocks or stands
capable of carrying the implements weight and bulk.
The user is responsible for ensuring the implement complies with the law when driving on
public roads and to check the lighting units are in full working order.
Always lower the implement attached to a tractor whilst parked.
OPERATION AND ADJUSTMENT
1. Attach the Toolbar to the tractor using the 3-point linkage.
2. Adjust the lower Tractors lower linkage arms to ensure the Toolbar is running level
to allow optimum soil disturbance and to prolong the lifespan of the wearing
parts.
3. Please ensure that the implement is mounted correctly and locked into position.
4. Ensure that the relevant tractor spool is disengaged and couple the hydraulic
hose to the relevant hydraulic spool on your tractor. Check that the hydraulic
hose is free from damage and not in a position to fowl when lifting and lowering
the Toolbar on the tractor’s linkage.
5. Check that all nuts and bolts are firmly tightened.
6. Set the toolbars leg height as required.
7. Set the auto reset “trip” pressure to the relevant soil/environmental conditions
applicable for each use.

6
RULES OF CONDUCT FOR OPERATION
The following points must always be observed before the machine is started up and
during operation:
- Never leave the machine unattended.
- Check the machine regularly for oil leakage. Replace defective components
immediately.
- Do not use if any parts are found defective.
- Check the machine for dirt accumulation and keep the unit clean at all times.
- Perform regular maintenance checks to ensure faults are noticed.
- Perform a regular greasing routine. The machine needs to be well greased at
all times. The greasing points are clearly visible and marked on the toolbar.
*Experienced persons are classed as those individuals who have been trained, know
current knowledge and skills, or have participated in the use of the type of activity and
equipment for several years.

7
AUTO RESET HYDRAULIC CIRCUIT
The auto reset pressure is set at 7 bar for dispatch. You will need to adjust this setting to
your own conditions. In order for the auto reset mechanism to be effective, you will
need to set this relative to the types of conditions/weather/ working depth /soil type
etc. If you find that the legs trip too easily the pressure can easily be increased. If the
legs do not trip the pressure must be decreased to prevent damage to the machine.
Please see Charging Oil Pressure below for instructions.
PLEASE NOTE: The pressure will also need adjusting for different working locations as soil
conditions can vary. Agriweld accepts no liability for the incorrect setting of the auto
reset pressures and you must take responsibility for this yourself.
Prior to use, the pressure should be visually checked to ensure that it has not reduced or
whether adjustment is required. The pressure gauge is situated on top of the hydraulic
block and is clearly visible for your convenience. If for any reason the pressure has
reduced, the machine can still be operated but excessive tripping of the legs may
occur, and it will need re-charging from the tractor.

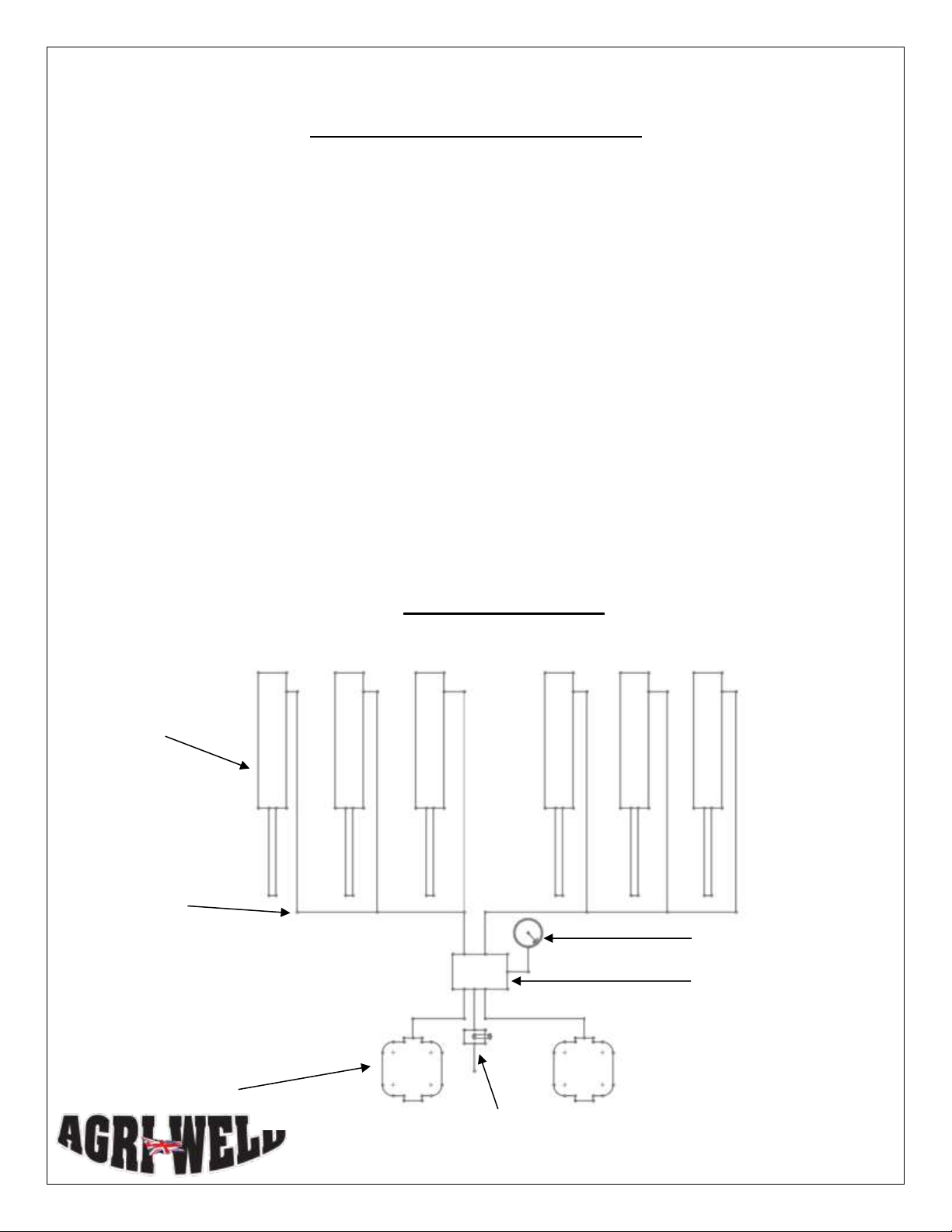

HYDRAULIC SYSTEM
Ram
Accumulators
Hydraulic
Pipes
Pressure Gauge
Valve Block
Ball Valve Tap

8
HYDRAULIC SYSTEM SAFETY
The hydraulic system is working under high pressure and is therefore hot and potentially
very dangerous. It is very important that all hoses and connections are checked
frequently for leakage and external damage.
The hydraulic hoses should not be connected to or removed from the hydraulic system
on the tractor unless the oil pressure in both the tractor and implement has been
released.
Porous and defective hoses must always be replaced immediately.
Oil leakage from damaged hoses and connections can cause fatal injury and possible
fire risk.
Always seek medical treatment immediately following any injury.
RE-CHARGING OIL PRESSURE
*Experienced and / or qualified individuals only should perform this operation.
Connect the hydraulic pipe situated on the headstock and attached to the valve
block, to the relevant tractor spool. Open the tap on the feed pipe and operate the
tractor spool to pump oil into the system until the gauge needle reaches the required
pressure (bars). The pressure can be dropped by operating the spool the other way to
let the oil back out. Once desired pressure is reached turn tap back to lock the
pressure. The feed pipe can stay connected.

9
REPLACING THE POINTS
Always replace the points on solid ground e.g. cement/tarmac, to avoid the risk of
sinking and potential injuries whilst changing the points. The implement must be raised
on the tractor linkage and the tractor engine turned off. Remember to use the parking
brake and/or wheel chocks to ensure that the tractor is held stable. It is important to
support the Toolbars weight with stands/chocks in the event of failure of the tractor
hydraulics. Remember it is forbidden to work under a suspended load without the
adequate support.
Once you are confident that you have met the safety standards required you can
proceed;
•Unbolt the single fixing (M10 x 50mm long bolt) from the worn point to free the
point. A new point can then be replaced into the same position using the same
size fixing. Ensure the bolt is fully tightened.
•When you have finished replacing the points, remove the supports/chocks in
order to proceed.
•Please see page 11 for Point Assembly.

10
WEARING PARTS
The wearing parts used on the Toolbar can vary although as standard we fit a one
piece point. Parts can be obtained through Agriweld Ltd directly or through your local
dealer.
Please quote the details on the type plate(s) as well as the machine’s serial no. on
every order for spare parts or accessories, or for enquiries of a technical nature.
The use of spare parts not supplied by Agriweld must be of the same type and style as
fitted to the machine from new to ensure problem free operation. Original spare parts
and accessories authorised by the manufacturer ensure safe and reliable operation.
The use of other parts may invalidate the liability of the manufacturer for any
consequences arising from such use.
Disposing of replaced parts/oil
The following points should be observed before replacing or disposing of parts.
- Replaced parts, which still function, should be cleaned and stored in an orderly
manner.
- Machine parts, which cannot be repaired should only be disposed of at
appropriate collecting points or be collected by a scrap metal dealer.
- So-called “valuable” materials should be disposed of in a proper way, i.e.
plastics, rubber, scrap metal, etc. should be recycled.
- Collect and dispose of old oil in accordance with the current regulations.

11
ROAD TRANSPORT REGULATIONS
In accordance with The Road Vehicles Order 2003
No. 1998 Part 3 SPECIAL TYPES FOR AGRICULTURE
The Department of Transport required the maximum width of an agricultural machine to be
2.55m or less. Under special circumstances, agricultural machines wider than 2.55m are
permitted to use public roads. The Road Vehicles Order 2003 permits the road use of agricultural
vehicles that are up to 4.3m in width, subject to terms and conditions.
The key T & C are as follows:
*WIDTH BETWEEN 2.55m and 3m: Speed must not exceed 20mph
*WIDTH BETWEEN 3m and 3.5m: Speed must not exceed 20mph. If the journey is over 5
miles or the speed limit of the road is 40mph or lower, the operator must notify the Police 24 hrs in
advance of the journey OR you obtain a dispensation letter from the same police authority.
Lights are required during reduced visibility or during the hours of darkness.
*WIDTH BETWEEN 3.5m and 4.3m: Speed must not exceed 12mph. The Police must be notified
OR you need to obtain a dispensation letter. The vehicle must be accompanied by an
attendant (escort) who may ride ahead in a different vehicle to ensure no danger is caused to
the vehicle or other road users. The police, following notification, may place restrictions on the
use of the vehicle in the interest of road safety or to avoid undue traffic congestion. All
extremities of the vehicle must be clearly marked. Lights are required during reduced visibility or
during the hours of darkness.
*WIDTH’S STATED ABOVE MUST INCLUDE: Any lateral projections or projections of any load carried
by the vehicle.
MAINTENANCE
The following areas must be kept greased at all times:
•AUTO RESET LEG PIVOT POINTS x 6 (one on each leg socket)
•AUTO RESET HYDRAULIC RAM POINTS x 12 (2 on each hydraulic ram –top and bottom)
•PTO INTERMEDIATE SHAFT BEARING x 2
ALL GREASING POINTS ARE CLEARLY MARKED AND VISIBLE ON THE TOOLBAR
•Check all bolts and fastenings prior to use for tightness and to ensure none are missing.
•Replace wearing parts before excessive wear causes poor performance and damage to
the leg.
•Replace wearing points before damage occurs to the leg and for best cultivation results
•Periodically check all welds are intact and there is no damage to the steelwork of the
machine. Address any damage immediately. Only allow suitably qualified
welders/fabricators to perform repairs or contact the manufacturer for advice.

12
Main Assembly
Main Assembly Parts List
1
2
7
8
10
3
4
9
5
6

13
Item Number
Part Number
Description
Quantity per
Assembly
1
Toolbar head
stock
Headstock
1
2
HOSL_Leg_10
Low
Disturbance
leg
6/8
3
70x70_Leg_02
Machine Stand
2
4
AW_CHEV_BOARD
Chevron
Marker Board
2
5
AR_HOSL_001
Auto Reset
Socket
Assembly
6/8
6
3PL_Low_Arms
Rear 3 Point
Linkage Arms
2
7
PTO_INT_SHAFT
PTO
Intermediate
Shaft
1
8
DB_TL_001
Solid Top Link
1
9
LA115
Hydraulic
Accumulator
2
10
90000526
PTO Guard
2

14
Point Assembly
Item Number
Part Number
Description
Quantity per
point
1
M10 Bolt
M10x60
1
2
GLS_Point
Low
Disturbance
Point
1
3
M10_Nut
Nylon Insert Nut
1
1
2
3

15
Leg & Socket Assembly
2
1
3
4
5

16
Leg & Socket Components
5
4
12
13
18
6
2
7
8
9
1
3
10
14
11
15
15
16
17
19

17
Item Number
Part Number
Description
Quantity Per
Assembly
1
704-100
Hydraulic Ram
1
2
AR_HOSL_002
Upper Socket
Assembly
1
3
AR_HOSL_001
Lower Socket
Assembly
1
4
AR_HOSL_LEG
Low
Disturbance
Leg
1
5
GLS_POINT
Low
Disturbance
Point
1
6
30x40x25_OB
Oilitie Bush
2
7
M24_NY_NUT
M30 Nylon Nut
2
8
M24_Washer
M30 Washer
4
9
M24_BOLT_80
M24 x 80mm
Bolt
2
10
M30_Washer
M30 Washer
1
11
Z325074KR
Leg Pin
1
12
AR_Ram_Upper_002
Upper Ram Pin
1
13
AR_Pivot_Pin
Socket Pivot
Pin
1
14
AR_Ram_Lower_002
Lower Ram Pin
1
15
LP8KR
8mm Linch pin
2

18
16
M12_50mm_Bolt
M12 x 50mm
Bolt
1
17
M12_40mm_Bolt
M12 x 40mm
Bolt
1
18
M12_Washer
M12 Washer
4
19
M12_Ny_Nut
M12 Nylock
Nut
2

19
Rams
Item Number
Part Number
Description
Quantity Per
Machine
1
704-100
Hydraulic
6

20
Description
Part No
Quantity
Per
Machine
Agriweld ASL
Sticker
AW_ASL_17
2
High Pressure
hydraulic
system
warning
2
Agriweld
2
Great Britain
2
Grease
Nipple
18 on 6 leg
12 on 4 leg
Operator
manual
AW_OM
1
