aidacare ASPIRE 200S User manual

www.aspirecare.com.au
1300 133 120
200S PATIENT STANDER STEEL
USER MANUAL

2 3
www.aidacarelifters.com.au 1300 133 120
TABLE OF CONTENTS
1. Overview ____________________ 3
2. Safety Precautions ____________ 4
3. Parts Glossary ________________ 6
4. Assembly ____________________ 7
5. Preliminary Checks ____________ 9
6. Stander Operation_____________ 9
7. Standing Guide _______________ 13
8. Sling Compatibility ____________ 14
9. Care & Maintenance ___________ 15
10. Warranty & Service ____________ 16
11. Troubleshooting ______________ 17
12. Specifications_________________ 18
13. Service Log Book _____________ 20
1. OVERVIEW
The ASPIRE 200S is an ergonomically designed mobile stander with a
generous safe working load (SWL) of 200kg.
This mobile stander is ideally suited as a familiar and reliable solution for
institutional and aged care environments.
The ASPIRE 200S stander allows patients to be transferred from sitting
to standing and vice versa with comfort and safety.
The proven bull horn shape yoke oers versatility in patient grip points
and multiple sling hooks to meet various user and carer needs. The height
and width adjustable knee pads oer lower leg comfort and security
during the lift.
The ASPIRE range of patient handling solutions feature industry leading
LINAK Jumbo Care electronics and have been designed and tested to
comply with AS/NZS ISO 10535:2011.
IMPORTANT:
DO NOT use the ASPIRE 200S Lifter without having first read this manual.

4 5
www.aidacarelifters.com.au 1300 133 120
INTENDED USE OF THE PRODUCT
The ASPIRE 200S Stander has been
designed to stand and transfer human
patients with the assistance of one carer
or attendant.
All ASPIRE patient standers should ONLY
be used with Aidacare approved patient
slings, which have been chosen and
assessed by a competent trained health
professional. For a complete list of all
compliant lifting slings please contact
Aidacare on 1300 133 120.
IMPORTANT – only approved slings and
accessories are compatible with this
stander. If you are unsure please contact
Aidacare on 1300 133 120.
The correct and appropriate use of the
ASPIRE 200S Stander reduces the risks
associated with manual patient handling.
The transferring of patients should
always be assessed and planned by a
trained health professional.
SAFETY CONSIDERATIONS
ALWAYS ensure that attendants have
read this guide before operating this
patient stander.
ALWAYS use slings that are assessed
and considered suitable by a trained
healthcare professional.
ALWAYS ensure the area around
the stander and patient is clear of
obstructions.
ALWAYS minimize the distance over
which the patient is being transferred by
positioning support surfaces as close as
possible.
DO NOT operate the stander without
training in the safe operation of standers
and slings. IF IN DOUBT DO NOT USE .
DO NOT use the stander where any
doubt exists regarding the safety of the
stander including but not limited to wear
or damage with particular importance
to be placed on the yoke and sling
attachment points.
DO NOT use the stander with slings
showing any signs of wear or damage,
including fraying.
DO NOT exceed the 200kg safe working
load of the ASPIRE 200S Stander.
DO NOT use the stander as a means of
transportation over distances in excess
of 3 metres. It is not designed as a
transportation device.
2. SAFETY PRECAUTIONS

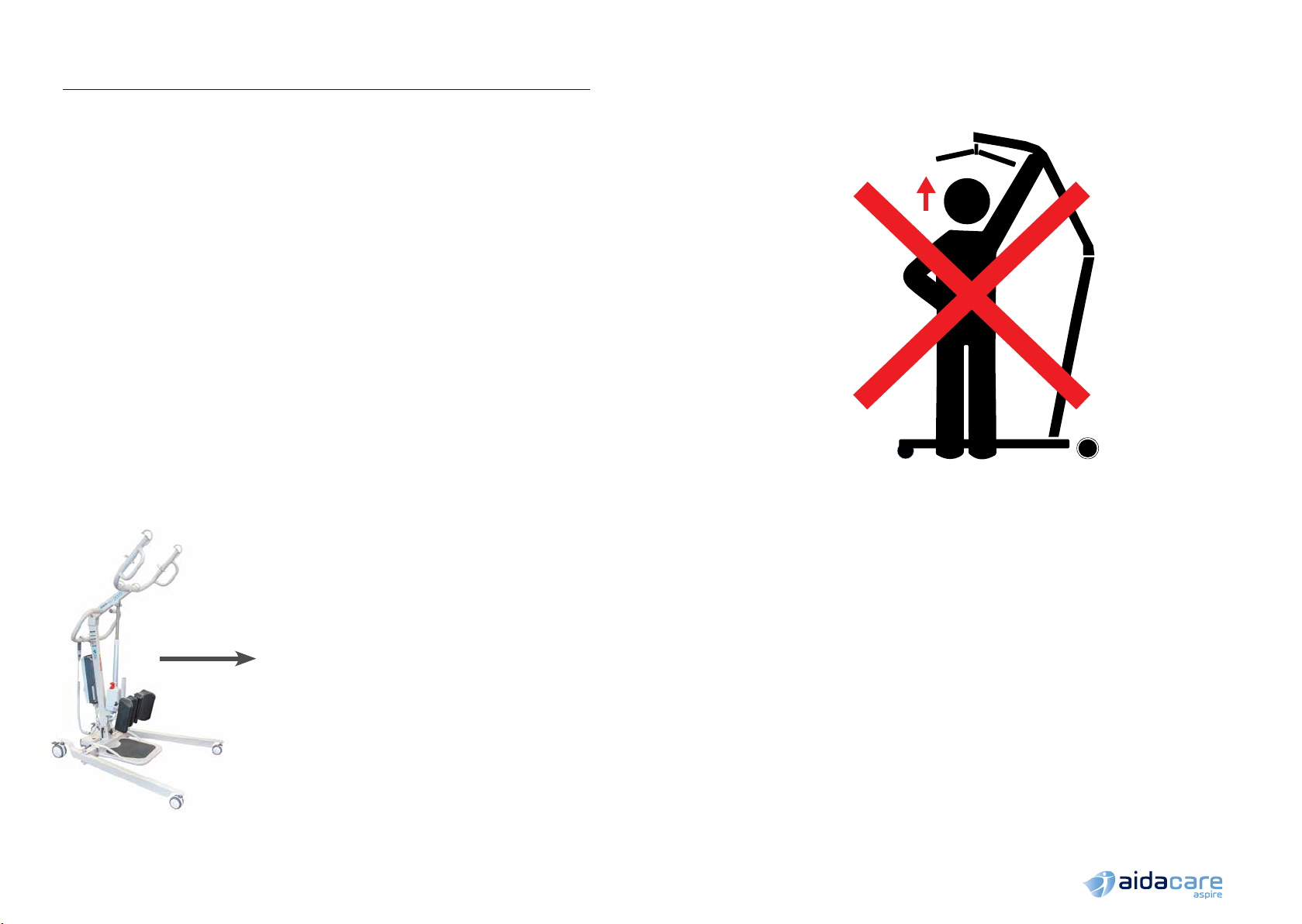

This is the direction of travel for which
this stander has been designed.
FORWARD
INTENDED USE OF THE PRODUCT
WARNING: DO NOT manually lift the
boom of the lifters.
How to Use Correctly:
The boom of the lifter is designed to be
lifted only by an electric actuator.
Aidacare Lifters and Standers do not
pull downwards during lowering. This
safety spline feature is designed to avoid
entrapment and crush injuries.
This safety feature means that it is
physically possible to raise the lifter
boom by hand on some models with
LA31 actuators fitted.
NEVER raise the lifter boom by hand or
any other means except under direct
drive from the electric actuator fitted to
the lifter.
Raising the boom can cause it to become
stuck in an elevated position. Under load
this can result in patient free fall and risk
catastrophic injury to the patient and/or
carer.
ALWAYS use the handset or control unit
buttons to raise and lower the boom of
the lifter. This will ensure correct and safe
functioning at all times.

6 7
www.aidacarelifters.com.au 1300 133 120
4. ASSEMBLY
4. Mount handle
Mount push handle onto mast in
position shown and fasten screws
with Allen key.
1. Unpack
Remove all parts from carton.
2. Attach the mast
Insert the mast into the base, ensuring
the holes align and secure with base
fastening lever bolt.
3. PARTS GLOSSARY
9
12
11
10
8
3
2
1
4
14
5
6
7
13
1Boom
2Sling Bar / Yoke
3Lift Actuator
4Mast
5Battery
6Cover for Leg Actuator
7Leg Spread Actuator
8Handset
9Push Handle
10 Adjustable Knee Pads
11 Rear Castors with Brake
12 Foot Platform
13 Front Castors
14 Base Fastening Lever
15 Emergency Lowering Function
16 Emergency Stop Button
15
16
3. Apply thread locker / loctite
a) Locate actuator
mounting hardware.
b) Install actuator hardware.
A few drops of medium strength
thread locker / loctite must be
applied to the bolt threads.

8 9
www.aidacarelifters.com.au 1300 133 120
6. STANDER OPERATION
5. PRELIMINARY CHECKS
After charging the battery these checks should be completed prior to initially
using the stander:
1. Check handset functionality is correct.
2. Check to see that all indicator lights are functioning.
3. Check that the emergency stop button causes the stander to stop.
4. Check emergency lowering function.
5. Check that all leads are inserted, fastened and clear of the rear castors.
Handset
Features:
1. Raise / Lower Function Buttons
Press to move the lifter up and down. Release to stop
movement. Always ensure the environment is free of
obstacles that may impede movement.
2. Leg Spread Function Buttons
Press to open and close the lifter’s legs. Release
to stop movement. This allows you to fit the lifter
around furniture, such as chairs. Always ensure the
environment is free of obstacles that may impede
movement.
3. Battery Charge Indicators
Battery charge indicators will flash when battery
reaches maximum recommended discharge of 18 volts,
while the lifter is under load.
4. Service Indicator
This will illuminate to show that a service is required.
This is usually after 12 months or 8,000 lift cycles -
whichever comes first. You do not have to stop using
your lifter when this illuminates, simply contact your
Aspire dealer to arrange a service.
6. Connecting the actuator
a) Connect grey actuator lead
into port (1) located on base of
the control unit.
b) Connect the other end
into the female lead from the
actuator.
7. Connecting the handset
Connect grey handset lead into port
located on base of control unit.
8. Connecting the Leg Spread Actuator
Connect black actuator lead port (2) on
base of control unit.
5. Attach the knee pads
Position the knee pads onto the mount
point located toward the base of the
lifter. Attach with four fixing bolts
(supplied)
1
2
1
2
3 4

10 11
www.aidacarelifters.com.au 1300 133 120
Charging the battery
The ASPIRE 200S Stander is supplied with
a LINAK external wall mount charger and is
compatible with standard Australian power
outlets.
The following steps should be completed
to recharge the battery pack correctly:
a) Remove the battery pack from the
stander via the top mounted release lever.
b) Connect the battery pack to the charger.
c) Charger will automatically
activate the charging sequence
and a light will illuminate to
show charging has commenced.
CHARGING INDICATOR DISPLAY
GREEN LIGHT indicates
mains power is connected to
240 v power supply.
ORANGE LIGHT indicates
battery is charging, and will
turn o automatically when
battery is fully charged.
6. STANDER OPERATION CONT.
Emergency Lowering
To activate emergency lowering lift up red
tab located on top of actuator.
This allows the patient to be fully lowered
in the event of a fault in the lifter or
discharged batteries.
Kneepad Adjustment
Using the kneepad height adjuster, set the kneepads at the desired height. Using the
kneepad width adjuster, set the distance between the pads for desired width.
• Press and hold the raise / lower or leg spread (if applicable) function buttons to
activate. Release to deactivate. Beware of obstacles at all times to ensure boom and
legs can move freely.
• Battery charge indictors will flash when battery reaches maximum recommended
discharge of 18 volts, while the lifter is under load.
• Service indicator will illuminate when lifter has reached recommended service
interval, either 12 months since last service or 8000 lift cycles. At this time the lifter
needs to be serviced for safety and to maintain applicable warranty.
A full load test should be completed at least every 12 months by an Aidacare
service technician.
d) When fully charged, place the battery back onto the lifter, ensuring that you hear a
click. This indicates the battery is sitting correctly in the lifter.

12 13
www.aidacarelifters.com.au 1300 133 120
7. STANDING GUIDE
It is important that carers are familiar with manual handling techniques along with
any sling instructions prior to completing any patient lifts. All patients should have
the correct sling and transfer techniques assessed by a qualified health professional.
Explaining the lift process to the patient is important to ensure patient comfort
and confidence and whenever possible two carers should conduct patient lifts for
additional safety.
1. Patient sling positioning
Ensure that the patient is ready and lean
them forward. Slide the sling down behind
the patient until the underarm pads are just
below the axilla (arm pit). Pull the straps and
loops through under the patient’s arms and
fasten the chest strap in place.
2. Attaching the sling to the yoke
Ensure that the stander legs are open to the
maximum width and slowly position it as
close to the front of the chair as possible –
be careful to keep the boom and yoke clear
of the patient during this process.
The patient’s feet should be positioned on
the foot platform shoulder width apart. The
patient should grip the handles on the sling
bar for stability.
Once the yoke is at chest height on the
patient the sling loops can be attached. For
chair lifts the rear brake castors should not
be used to ensure the stander can locate its
centre of gravity easily.
3. Lifting the patient
Raise the yoke until the loops of the sling
pull tight. Check that the patient is still
comfortable and that the sling is correctly
positioned. Ask the patient to lean back into
the sling and straighten their legs as the lifter
rises. Raise the patient slowly until the patient
is in a standing position.
1
2
3
Charging Dos & Don’ts:
ALWAYS
• Charge the battery whenever possible, to maximize battery life. Allowing batteries
to fully discharge can reduce the useful life of a battery.
• Always inspect all cables particularly the mains power cable on the charger for any
damage; replace if any signs of damage or wear are visible.
• Always stow the handset, charger and mains power cable when transporting the
stander to prevent loss and or damage.
• Always clean the actuators, control box, charger, battery and handset at regular
intervals to remove dust/dirt.
NEVER
• Never allow the battery to fully discharge before recharging. Allowing batteries to
fully discharge can reduce the useful life of a battery.
Castors
To engage the castor brakes place
your foot on the brake pedal and apply
sucient downward force to move it into
the lock position.
Emergency Stop
To engage the emergency stop press the
red button located on the control unit until
it sits flush and remains in position.
To disengage the emergency stop
function twist the red button clockwise
until it pops out
To disengage the castor brake simply
place the point of your toe underneath the
brake pedal and lift-up.

14 15
www.aidacarelifters.com.au 1300 133 120
9. CARE & MAINTENANCE
To prolong the working life of the stander and for trouble free operation
it is recommended that periodic inspections should be performed
routinely by a person who is suitably qualified and well acquainted with
the design, use and care of patient standers.
If inspection reveals that the safety of the stander is jeopardized in any
way the stander should be IMMEDIATELY WITHDRAWN FROM SERVICE,
tagged as such and the owner notified.
MAINTENANCE GUIDE & CHECK LIST
• Check castors are fastened securely to the frame
• Castors should run and swivel smoothly - if hair or other fibres have
built up within the castor this should be removed
• Check that the brakes on the rear castors function normally
• Clean surfaces with a pH neutral detergent - chlorine and phenol
based detergents should not be used as these may damage stander
components
• All moving parts and pivot points should be checked for fatigue and
lubricated if necessary
• All electrical components should be checked for normal function
including battery and battery charger
• The actuator shaft should only be wiped with a cloth. DO NOT
lubricate, contact Aidacare maintenance 1300 133 120.
AS A MINIMUM A FULL SERVICE SHOULD BE COMPLETED EVERY
6 MONTHS AND THE LOAD TEST EVERY 12 MONTHS TO MAINTAIN
WARRANTY.
ELECTRICAL TEST & TAG – WHERE LIFTERS ARE IN USE IN A
COMMERCIAL ENVIRONMENT THEN THE TESTING REGIME APPLIED
SHOULD ALIGN WITH THE RISK ASSESSMENT MADE BY THE OWNER
FOR SAFETY AND OTHER COMPLIANCE REQUIREMENTS.
TO MAINTAIN AUSTRALIAN STANDARDS COMPLIANCE UNDER AS
ISO 10535-2011 A FULL SWL TEST MUST BE COMPLETED EVERY 12
MONTHS.

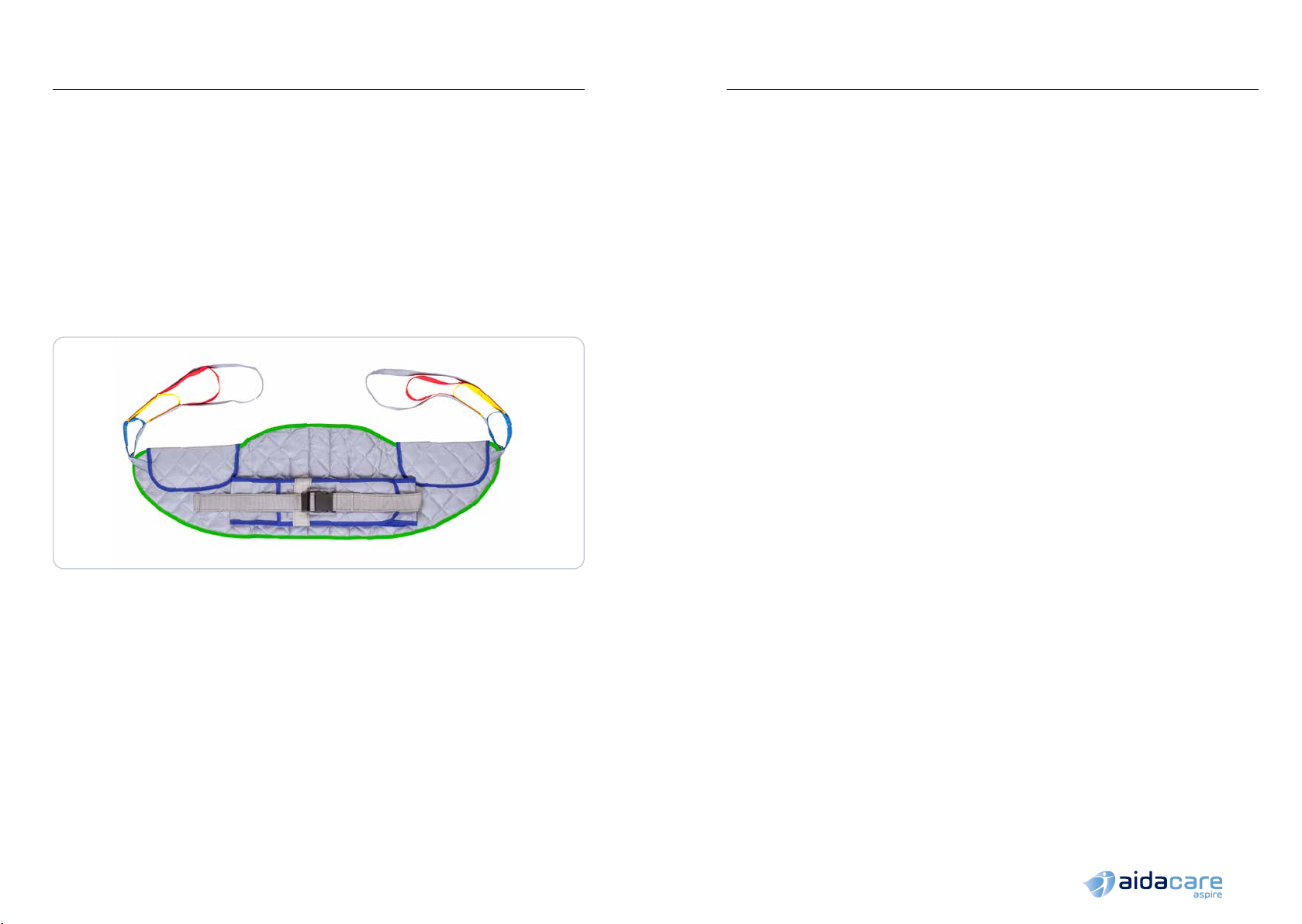

8. SLING COMPATIBILITY
The Deluxe Padded Standing Sling has been developed to work seamlessly with the
Aidacare range of standing lifters.
This stander may also be suitable for use with other brands of slings. To confirm if a
sling is compatible with any of the ASPIRE range of patient lifting systems contact
AIDACARE on 1300 133 120.
Deluxe Padded Standing Sling

16 17
www.aidacarelifters.com.au 1300 133 120
11. TROUBLESHOOTING
WARNING: TROUBLESHOOTING SHOULD ONLY BE CARRIED OUT BY AIDACARE
AUTHORISED SERVICE TECHNICIANS WHO ARE TRAINED IN SERVICING THE
ELECTRICAL AND MECHANICAL FEATURES OF THE PATIENT STANDER.
The following is a guideline only to general troubleshooting.
Before carrying out any troubleshooting:
• CHECK TO ENSURE the RED emergency stop button is NOT pushed in.
• CHECK TO ENSURE maintenance procedures have been followed.
• CHECK TO ENSURE all lead connections are secure.
• CHECK TO ENSURE the battery is fully charged.
PROBLEM POTENTIAL FAULT ACTION
Warning alarm can be heard
in control unit
Battery is discharged
Battery may be faulty
Recharge battery
Replace battery
Power LED on charger does
not illuminate
Not connected to power
Fuse blown
Faulty Charger
Check plugged in to power
point and switched on
Replace fuse
Repair or replace charger
Actuator not running/no click
heard from control unit when
buttons pressed
Faulty control unit
Faulty handset
Repair or replace control unit
Actuator not running but
control unit clocks when
buttons pressed
Actuator plug not inserted
fully into control unit
Faulty actuator
Faulty control unit
Check plugs are completely
inserted into control unit ports
Repair or replace actuator and
or control unit
Actuator not lifting properly or
running slowly
Discharged or faulty battery
Weight in excess of safe
working load (SWL)
Faulty actuator
Recharge or replace battery
Repair or replace actuator
No clicking in control box
when buttons pressed
Emergency stop button
pressed
Battery completely discharged
Battery fuse faulty
Faulty control unit
Release emergency stop
button
Recharge battery
Repair or replace control unit
Actuator only works in one
direction
Faulty handset
Faulty control unit
Emergency lower release
activated
Repair or replace handset
Repair or replace control unit
Check emergency actuator
release is reset
10. WARRANTY & SERVICE
STANDER AND ELECTRONICS
AIDACARE warrants its products to be free from defects in materials and
workmanship under normal use and service and will within the period stated below,
from the date of purchase, repair or replace without cost to the original customer, any
part assembly or portion thereof which shall be returned to AIDACARE and from OUR
inspection shows to be defective.
1. Patient Stander Frame – 5 years
2. LINAK Actuator and LINAK Controller – 3 years (excluding Battery Pack)
3. LINAK Battery Pack – 12 month manufacturer’s warranty subject to stringent fair
wear and tear clauses (please contact AIDACARE for a copy of this information)
WARRANTY IS CONTINGENT UPON ANNUAL SERVICING BEING COMPLETED FOR
THE LENGTH OF THE WARRANTY PERIOD.
AIDACARE cannot be held responsible for any personal injury, damage to the stander
or damage to property as a result of the improper or unsafe use of the product.
No warranty claim shall apply where the product or any part thereof has been
modified, varied, altered or damaged either accidentally or through improper or
negligent use.
No warranty claim shall apply where the stander is repaired or serviced by parties
other than those accredited and or approved by Aidacare.
Warranty does not extend to items or components which may require replacement
due to normal wear and tear (e.g. castors, plastic molded components, foam padding
(where fitted) and painted surfaces) for which AIDACARE nor its distributors can be
held responsible.
BATTERIES
Batteries carry a limited warranty from the original manufacturer which is subject to
a stringent wear and tear clause. Battery faults due to defect in original manufacture
typically become apparent within the first two months of use.
Any gradual deterioration in performance after this period is typically associated with
fair wear and tear, misuse and accidental damage, and as such is not covered by the
LINAK manufacturer’s warranty.
ALL WARRANTIES MADE ARE BACK TO BASE WARRANTIES MEANING THAT ANY
PARTS OR WHOLE STANDERS REQUIRING REPAIR NEED TO BE RETURNED TO THE
NEAREST AIDACARE SERVICE CENTRE AT THE CUSTOMER’S EXPENSE – PLEASE
CONTACT AIDACARE FOR A CURRENT LIST OF SERVICE CENTRE LOCATIONS.

18 19
www.aidacarelifters.com.au 1300 133 120
12. SPECIFICATIONS (CONT.)
Product Code LSS390650
Safe Working Load (SWL) 200kg
Base Length 1277mm
External Base Width 665-1203mm
Internal Base Width 561-1103mm
Base Width Adjustment Electric
Base Height / Under Bed Clearance 110mm
Minimum Height of Spreader Bar 857mm
Maximum Height of Spreader Bar 1777mm
Stander Weight 40kg
Warranty
Frame: 5 Years
Electronics: 3 Years
Battery Pack: 1 Year
Under Base Height 50mm
Maximum Overall Height 1832mm
Front Castor Diameter 75mm
Rear Locking Castor Diameter 100mm
Turning Diameter 1361mm
Weight Of Heaviest Part (Base
Assembly) 19.6kg
Handle Height 1045mm
Sound Level <40Db@ 1m
Electrical Approval EN 60601-1-2:2007; EN 61000-3-2:2006;
EN 6100-3-3:2008
Box Contains: Base with 4 castor wheels, mast and boom with yoke, LINAK handset,
LINAK battery charger, LINAK battery, LINAK controller, push handle. Screws, bolts,
nuts, washers, plastic caps and tool kit.

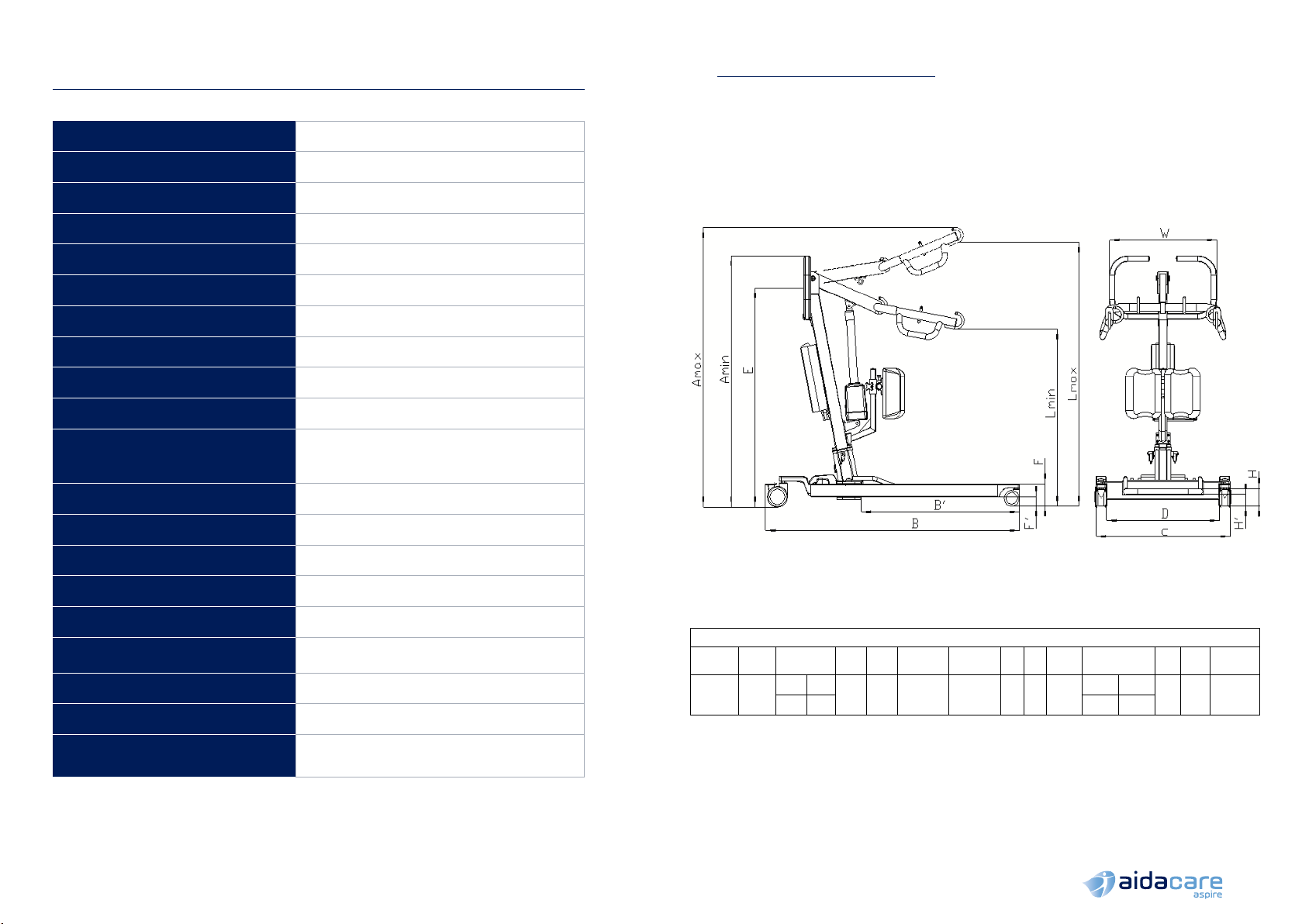

12. SPECIFICATIONS
Max. Load and Net Weight in kg, the rest of the measurments are in cm (unmarked tolerance +/- 1cm)
Item No. Max.
Load A B B’ C D F F’ E L W N.W Turning Diameter
7203 200
Max. Min
127.7 79
66.5-120.3
(tolerance
+/_ 2 cm)
56.1-110.3
(tolerance
+/_ 2 cm)
11 5104.5
Max. Min.
53 25 136.1
183.2 121.2 177.7 85.7

20 21
www.aidacarelifters.com.au 1300 133 120
YEAR 4
Service Type: _______________________________________________________
Condition Report: ___________________________________________________
___________________________________________________________________
Inspected by: ____________________ Signature: _________________________
Action taken: _______________________________________________________
___________________________________________________________________
____________________________________ Date: _________________________
YEAR 5
Service Type: _______________________________________________________
Condition Report: ___________________________________________________
___________________________________________________________________
Inspected by: ____________________ Signature: _________________________
Action taken: _______________________________________________________
___________________________________________________________________
____________________________________ Date: _________________________
Date: _________________________
Date: _________________________
SPARE PARTS
SPARE PARTS LIST AVAILABLE UPON REQUEST FROM AIDACARE ON
1300 130 122 or www.aidacarelifters.com.au
13. SERVICE LOG BOOK
YEAR 1
Service Type: _______________________________________________________
Condition Report: ___________________________________________________
___________________________________________________________________
Inspected by: ____________________ Signature: _________________________
Action taken: _______________________________________________________
___________________________________________________________________
____________________________________ Date: _________________________
YEAR 2
Service Type: _______________________________________________________
Condition Report: ___________________________________________________
___________________________________________________________________
Inspected by: ____________________ Signature: _________________________
Action taken: _______________________________________________________
___________________________________________________________________
____________________________________ Date: _________________________
YEAR 3
Service Type: _______________________________________________________
Condition Report: ___________________________________________________
___________________________________________________________________
Inspected by: ____________________ Signature: _________________________
Action taken: _______________________________________________________
___________________________________________________________________
____________________________________ Date: _________________________
Date: _________________________
Date: _________________________
Date: _________________________

22 23
www.aidacarelifters.com.au 1300 133 120
EVOKE 2 LITE TRANSITREHAB RX TRANSIT 2ASSIST 2
WHEELCHAIR
RANGE
aspire for...
Comfort
Posture
Mobility
www.aspirecare.com.au
1300 133 120
DANISH
DESIGN
ASSOCIATED RANGE OVERVIEWS
Aidacare Sling Auditing
Old Slings? Don’t risk it.
An old, worn out or faulty sling
could be a signicant safety
risk for your organisation
130 0 133 120
www.aidacare.com.au
Aidacare’s Sling Audit Program can
assist you to ensure your sling inventory
is in safe working order at all times.
Periodic sling audits are now a
mandatory accreditation requirement.
Ask us how we can help you manage
the risk in this area of your business.
www.aidacare.com.au
1300 133 120
SLING FITTING &
SAFE USE GUIDE
For Sling Selection & User
Application
aspire for...
Comfort
Safety
Support
NOTES

AIDACARE PTY LTD
BUILDING 3A/1 MOOREBANK Ave,
MOOREBANK NSW 2170
1300 133 120
www.aidacare.com.au
MADE IN PRC
ASUM05.29 160223
