Aim MyChron Light TG User manual

MyChron Light TG
User Manual

MyChron Light TG
User Manual
Release 1.06
1
www.aim-sportline.com

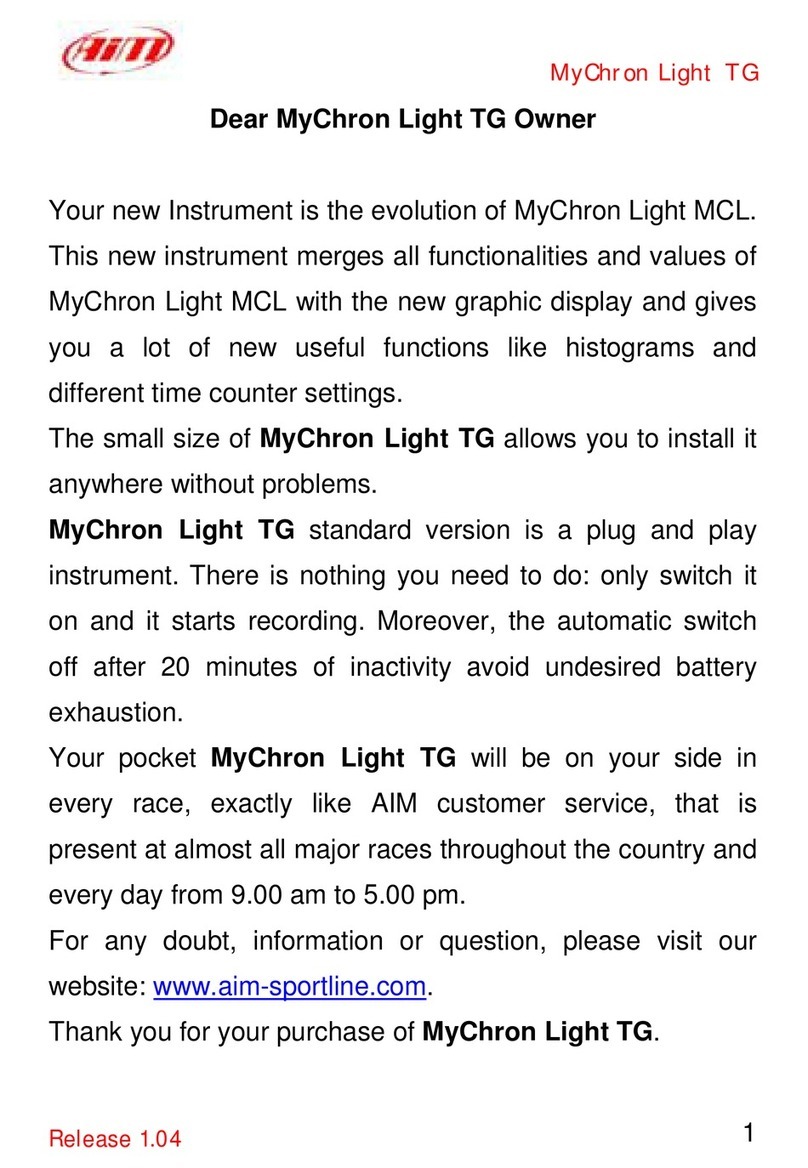

MyChron Light TG, the new AIM lap timer, is the evolution of the well known MyChron
Light MCL. This new logger merges all functionalities and good qualities of its forefather
with the new graphic display and adds a lot of other useful functions, like the visualisation
of sampled data as histograms and the different working and sampling modes.
MyChron Light TG reduced dimensions, moreover, makes it easy to install and use in any
situation without problems.
MyChron Light TG is available in two versions: internally and externally powered.
Internally powered thanks to the batteries supplied with the kit, can be used Plug&Play
both fixing it with a simple strip of Velcro®, to be easy displaced and installing it more
steadily through the four anti-vibration mounting placed back on the logger. In both cases it
is sufficient to switch MyChron Light TG on, configure it and its starts sampling.
Externally powered on the contrary, it is to be connected to an external 7-15 V power
source and automatic switch off after 20 minutes of inactivity avoids undesired battery
exhaustion.

MyChron Light TG
User Manual
Release 1.06
2
www.aim-sportline.com
INDEX
Chapter 1 – MyChron Light TG: kits and optional ..........................................................3
1.1 – MyChron Light TG with internal power kit....................................................................................... 3
1.2 – MyChron Light TG with external power kit...................................................................................... 4
1.3 – Optional to MyChron Light TG kits................................................................................................... 4
Chapter 2 – Installation and powering.............................................................................5
2.1 – MyChron Light TG with internal power............................................................................................ 5
2.2 – MyChron Light TG with external power........................................................................................... 5
2.3 – How to install and power the infrared receiver............................................................................... 6
2.4 – The lap transmitter: installation, powering, working mode........................................................... 6
2.5 – How to change MyChron Light TG batteries................................................................................... 7
Chapter 3 – MyChron Light TG quick configuration.......................................................8
3.1 – Track name ......................................................................................................................................... 8
3.2 – Session mode..................................................................................................................................... 9
3.3 – Obscuring time................................................................................................................................... 9
3.4 – Split times visualisation .................................................................................................................. 10
3.4.1 – Elapsed Vs. and SectionVs. mode ............................................................................................. 10
3.4.2 – What shows the display when a lap or a split time is recorded.................................................. 11
3.5 – Clear test data................................................................................................................................... 11
Chapter 4 – Other configuration function......................................................................12
4.1 – Set Time/Date.................................................................................................................................... 12
4.2 – Racer ................................................................................................................................................. 12
4.3 – Display setup.................................................................................................................................... 13
4.4 – System Information.......................................................................................................................... 13
Chapter 5 – How to change MyChron Light TG language............................................14
Chapter 6 – The memory and the data recall.................................................................16
6.1 – What is “Best Rolling” and “Theoretical best”............................................................................. 17
Capitolo 7 – Software, driver, data download and maintenance .................................18
7.1 – LightAnalyzer software.................................................................................................................... 18
7.2 – TG Picture Manager software ......................................................................................................... 19
Chapter 8 – Technical notes...........................................................................................20

MyChron Light TG
User Manual
Release 1.06
3
www.aim-sportline.com
0Chapter 1 – MyChron Light TG: kits and optional
MyChron Light TG is available in four different kits depending if internally or externally
powered.
81.1 – MyChron Light TG with internal power kit
MyChron Light TG with internal power basic kit: code X04MYC40TGST
•MyChron Light TG with internal power (1)
•Infrared receiver for lap times detection (2)
•User manual (3)
MyChron Light TG with internal power complete kit: X04MYC40TG
•MyChron Light TG with internal power (1)
•Infrared receiver for lap times detection (2)
•User manual (3)
•Infrared transmitter with external power cable (4).

MyChron Light TG
User Manual
Release 1.06
4
www.aim-sportline.com
201.2 – MyChron Light TG with external power kit
MyChron Light TG with external power basic kit: code X04MYC40TGLST
•MyChron Light TG with external power (5)
•Infrared receiver for lap times detection (6)
•User manual (3)
MyChron Light TG with external power complete kit: code X04MYC40TGL
•MyChron Light TG with external power (5)
•Infrared receiver for lap times detection (6)
•User manual (3)
•Infrared transmitter with external power cable (4)
Please note: MyChron Light TG with external power has a blue backlight that
cannot be disabled.
91.3 – Optional to MyChron Light TG kits
•Data download kit: USB cable (7) + CD including LightAnalyzer and TG Picture
Manager software (8): code X04MYC40PC00
•Infrared split transmitter with external power cable (9): code X02TXSPLIT0.

MyChron Light TG
User Manual
Release 1.06
5
www.aim-sportline.com
1Chapter 2 – Installation and powering
MyChron Light TG installation depends on the version.
102.1 – MyChron Light TG with internal power
To install MyChron Light TG internally powered stick a strip of bi-adhesive Velcro®on the
product rear. This way the logger can be used on more vehicles. It is also possible to use
the four anti-vibration mounting placed back on the logger. This last installation needs a
flat surface and 4 Silent Block not included in the kit.
MyChron Light TG is powered by two 3 Volts round batteries type CR 2430 included in
the infrared receiver. To change the batteries see the chapter concerning MyChron Light
TG maintenance.
112.2 – MyChron Light TG with external power
MyChron Light TG with external power can be installed exactly as the one internally
powered except for the fact that it needs an external power source connection (the vehicle
battery).
This MyChron Light TG version has two cables out coming from the logger bottom:
connect the red cable to the battery positive pole and the black one to the negative pole.

MyChron Light TG
User Manual
Release 1.06
6
www.aim-sportline.com
212.3 – How to install and power the infrared receiver
The lap receiver is connected to the logger through a cable. It has to “see” the transmitter
installed on the side of the track. Install it with the eye, highlighted here below, looking to
the transmitter.
Ensure that the receiver has a straight line towards the transmitter on the right side of the
vehicle. The receiver is powered like the system.
122.4 – The lap transmitter: installation, powering, working mode
AIM produces and sells two kind of transmitters: the lap transmitter (image below on the
left) and the split transmitter (below on the right). The two devices emits different signals
and MyChron Light TG can distinguish and manage them.
Both can be internally or externally powered:
•internally: with 8 AA batteries (placed in the transmitter case); when the batteries
are flat power led starts blinking each second (1 Hz);
•externally: with an external 12V power cable; when the battery is flat the led starts
blinking each second.
The transmitter has two working mode:
•low power mode: for circuits less than 10m (30 ft) wide;
•high power mode: for circuit more than 10m (30 ft) wide; in this second case an
external 12V power source is needed and both led switches on when the transmitter
is powered on.

MyChron Light TG
User Manual
Release 1.06
7
www.aim-sportline.com
To enable high/low power mode it is necessary to open the transmitter case as shown
here below on the left.
Images here above on the right shows the different working options. The transmitter
comes set on low power mode: images top on the right. To set high power mode insert
both clips in the jumper: image bottom on the right.
It is suggested to check the number of transmitter installed on the circuit before
installing one’s own. It is in fact possible that transmitters additional to the one
placed on the start/finish line are installed on the track. The simplest way to record
correct lap times is to use the same transmitter(s) for all drivers.
Use obscuring time function (paragraph 3.2) to be sure that MyChron Light TG reads only
the desired transmitter(s).
132.5 – How to change MyChron Light TG batteries
MyChron Light TG batteries are inserted in the receiver case. To change them unscrew
the four screws that fasten the two parts of the case and change the batteries.
MyChron Light TG uses two 3V round batteries code CR2430. The code is generally
stamped on the batteries.

MyChron Light TG
User Manual
Release 1.06
8
www.aim-sportline.com
2Chapter 3 – MyChron Light TG quick configuration
MyChron Light TG needs to be configured. Here follows explanation of the steps to be
performed for a quick configuration. Other configuration options are deepened after. Here
below is MyChron Light TG keyboard. Functions associated are shown by the display in
correspondence to each button.
Pressing twice “1” MyChron Light TG main menu, shown here below is activated.
143.1 – Track name
From the main menu select “Track”. The related menu is shown here below.
The track name to be set can be chosen among these stored (“Select”) or inserting a new
one (“Enter names”). In both cases the system enters available tracks list, shown here
below on the left (in case no tracks are stored all names are set on “NONAME #X”).
If the track is stored in the logger memory (“Select”) just select it, if not (“Enter Names”)
place the slider on an empty position (or the system overwrites the one stored) and press
“OK”. “Enter track name” page opens. Once the name composed press “OK”. The system
asks for confirmation, press “Yes”. The system can store up to 50 circuits.

MyChron Light TG
User Manual
Release 1.06
9
www.aim-sportline.com
223.2 – Session mode
From the main menu select “Session mode”. The related menu is shown here below.
Available options are:
•Lap Counter: the lap timer is set as lap counter;
•Qualify: fill in the session duration in minutes (range from 5 to 60);
•Race: fill in the “race distance” to say the number of laps (range from 3 to 2000).
233.3 – Obscuring time
Obscuring time is a time period during which the lap receiver installed on the vehicle, after
having stored a lap signal is “blind” (does not record signals). This function is to be used to
manage split times on circuits where more optical transmitter are set: to record split times
set obscuring time on a low value; not to record split times set obscuring time on a value
lower than best lap time and higher than the time elapsed between the last split and
start/finish line. Accepted range is: 3-180.
From the main menu select “Obscuring Time”. Its menu is shown here below.
Use “DEC-“ and “INC+” to set obscuring time and press “OK”.

MyChron Light TG
User Manual
Release 1.06
10
www.aim-sportline.com
243.4 – Split times visualisation
From the main menu select “Configuration”. The related page is shown here below.
Select “Split”. The related under menu shows all possible split visualisation modes.
MyChron Light TG offers eight different split visualisation modes:
•None: records splits but do not show them;
•Elapsed Vs...: see paragraph 3.4.1;
•Section Vs...: see paragraph 3.4.1;
•+/- Previous: compares actual split time with the same split of the previous lap and
shows the gap top right on the display;
•Actual: shows the actual split central on the display;
•Accumulative: shows the time elapsed from start/finish line central on the display;
•Running lap time: shows running lap time top right on the display.
283.4.1 – Elapsed Vs. and SectionVs. mode
The two “Vs” modes compares two times.
In both cases an under menu opens: it is possible to compare lap time with the best lap in
the session or with the best lap recorded on that track (Vs Best Lap in memor...). In this
second case it is necessary to have previously set the track.

MyChron Light TG
User Manual
Release 1.06
11
www.aim-sportline.com
293.4.2 – What shows the display when a lap or a split time is recorded.
No matter what split visualisation mode is set, when the logger records a lap or a split time
it shows different data. The table here below shows what appears on the display in the
different situations.
Split Mode Central display row (2) Display top right row (1)
Recorded Split Recorded Lap Recorded Split Recorded Lap
None Lap time Lap time Best Lap Best Lap
Elapsed Vs... Split time Lap time Lap time Split time
Section Vs... Split time Lap time Lap time Split time
+/- Prev. lap Split time Lap time Lap time Split time
Actual Split time Lap time Lap time Split time
Accumulative Split time Lap time Lap time Best Lap
Running lapTime Lap time Lap time Running Lap time Running Lap time
153.5 – Clear test data
From the main menu select “Clear test data” and confirm. This function clears all data from
the logger memory.

MyChron Light TG
User Manual
Release 1.06
12
www.aim-sportline.com
3Chapter 4 – Other configuration function
Additional to the quick configuration parameters MyChron Light TG offers a lot of other
configuration function.
From the main menu select “Configure”. This menu appears.
164.1 – Set Time/Date
From configuration menu select this voice ant the related menu appears.
•Set Time/Date sets date and time
•Time Format: possible options:
o12h;
o24h
•Date Format: available options:
oDD/MM/YY;
oMM/DD/YY;
oYY/MM/DD.
174.2 – Racer
From configuration menu select this voice and “Enter Racer’s Name” page appears.

MyChron Light TG
User Manual
Release 1.06
13
www.aim-sportline.com
254.3 – Display setup
From the configuration menu select this voice and the related menu appears.
Available options are:
•Reverse: reverses display background and texts colours;
•Set Contrast: manages the display contrast (range -10/+10);
•Rolling numbers: shows rolling digits on the display;
•Screensaver: enables a screensaver after 5 minutes inactivity. It shows some
demo pages: a custom image can be uploaded and inserted in this sequence using
TG Picture Manager software freely downloadable from www.aim-sportline.com,
download software area. See chapter 7 for further information.
184.4 – System Information
From configuration menu select this voice and the related page appears.
The display shows:
•on top the logger name (AIM MyChron TG);
•central on the display firmware version actually installed on the logger (V 19.16);
•bottom logger serial number (S.N. 0000014050).

MyChron Light TG
User Manual
Release 1.06
14
www.aim-sportline.com
4Chapter 5 – How to change MyChron Light TG language
MyChron Light TG can show menus in different languages. To modify the language it is
necessary to perform a firmware upgrade. Visit www.aim-sportline.com, download
firmware area, download the last available firmware version and run it.
The panel here on the right appears.
Press “Run”.
The panel here on the right appears.
Follow the instructions given by the
upgrade panel.
Select the desired language and press
“OK”.

MyChron Light TG
User Manual
Release 1.06
15
www.aim-sportline.com
The system starts upgrading the firmware.
In case the logger firmware is already
updated the system shows the message
here on the right.
Since the language can be changed only
through this procedure press “Yes”.
Wait until the panel here on the right
appears and press “Exit”.
The language has been modified.

MyChron Light TG
User Manual
Release 1.06
16
www.aim-sportline.com
5Chapter 6 – The memory and the data recall
MyChron Light TG can store up to 2000 laps and has a round memory: when lap number
2001 is stored the first one is deleted and so on.
Once the session is over it is possible to recall stored data on MyChron Light TG display
pressing “MEM” and then in sequence:
“MEM”
“MEM” <“VIEW”
“MEM” <“VIEW” <“VIEW”
“MEM” <“VIEW” <“VIEW” <“VIEW”

MyChron Light TG
User Manual
Release 1.06
17
www.aim-sportline.com
266.1 – What is “Best Rolling” and “Theoretical best”
Lap
Number Lap Time Time Start/Finish line-Split 1 Time Split 1-Split 2 Time Split 2- Start/Finish line
1 1’23” 30” 18” 35”
2 1’22” 28” 20” 34”
3 1’21” 26” 19” 36”
“Theoretical best” (1”18’) is the lap time obtained summing up the best session split
times. It’s called theoretical because it adds non consecutive splits belonging to different
laps. In the table the best theoretical comes adding:
•Lap 3 Start/Finish line-Split 1: 26”
•Lap 1 Split 1-Split 2: 18”
•Lap 2 Split 2- Start/Finish line: 34”
•Theoretical best: 1’18”
“Best Rolling” (1’19”) is the lap time obtained adding the best consecutives split times
really recorded. It’s a “rolling” time because is not calculated within one only lap but is
based on the fact that these best splits are consecutives. In the table above the theoretical
best comes adding:
•Lap 3 Start/Finish line-Split 1’26”
•Lap 3 Split 1-Split 2: 19”
•Lap 2 Split 2-Start/Finish line: 34”
•Best Rolling: 1’19”

MyChron Light TG
User Manual
Release 1.06
18
www.aim-sportline.com
6Capitolo 7 – Software, driver, data download and maintenance
MyChron Light TG connects easily to a PC thanks to the USB cable included in the
download kit (optional – code X04MYC40PC00). USB input is covered by a rubber cap on
the left side of the logger.
Please note: for the PC to see MyChron Light TG it is necessary to have data stored
in the logger memory.
The kit includes Light Analyzer and TG Picture manager software too, to:
•download data stored by MyChron Light TG and analyze them (LightAnalyzer –
refer to the software user manual for further information);
•upload images on MyChron Light TG (TG Picture Manager – paragraph 7.2);
•make snapshots of MyChron Light TG pages and save them on a PC (TG Picture
Manager – paragraph 7.2).
MyChron Light TG does no need any special maintenance. Once it is handled with care
the only suggested maintenance is a periodical software/firmware upgrade.
To update MyChron Light TG firmware visit www.aim-sportline.com download firmware
area and check if a new firmware version has been released. Download and run it
following the instruction that appears on the PC monitor.
To upgrade LightAnalyzer and TG Picture Manager software visit AIM corporate website
at www.aim-sportline.com, download software area and check if new releases have been
published. Download and install them.
197.1 – LightAnalyzer software
LightAnalyzer is the software properly developed by AIM to analyze data downloaded
from MyChron Light TG. This software user manual is included in the download kit and
can be downloaded from www.aim-sportline.com download software area.

MyChron Light TG
User Manual
Release 1.06
19
www.aim-sportline.com
277.2 – TG Picture Manager software
TG Picture Manager – available only in English – allows to:
•upload some images .bmp 128*64 pixel format on MyChron Light TG to be used
also as screensaver. The software converts each image in greyscale and makes it
possible to manage the black threshold;
•make snapshot of MyChron Light TG pages and save them as two colours .bmp
format images.
Running the software this page appears.
Please note: TG Picture Manager software can perform operations only one by one.
It is thereby necessary to close and re-run it to perform another operation.
