Airaya AI108 Series User manual

- 1 -
Quick Install Guide
AI108 Series Wireless Bridge
with External Antennas (ordered separately)
Model# AI108-2-050
AI108-2-150
AI108-2-300
For Professional Installers
Revision 1.17P
OCT 2002

- 2 -
AIRAYA is a trademark of AIRAYA Corp. Other trademarks or brand names mentioned
herein are trademarks or registered trademarks of their respective companies.
International Headquarters
637 Adair Court
Morgan Hill, CA 95037
Tel: [phone]
Fax [phone]
Internet: [email protected]
Copyright © 2002 by AIRAYA Corp. All rights reserved.
No part of this document may be copied or reproduced in any form or by any means
without the prior written consent of AIRAYA Corp.
AIRAYA makes no warranties with respect to this documentation and disclaims any
implied warranties of merchantability, quality, or fitness for any particular purpose.
The information in this document is subject to change without notice. AIRAYA reserves
the right to make revisions to this publication without obligation to notify any person
or entity of any such changes.
AI108
AI108-1-R01
P/N: AI108.2.D

- 3 -
Limited Warranty
AIRAYA CORP
Limited Warranty: AIRAYA warrants all its products to be free of manufacturing
defects in workmanship and materials, under normal use and service, for the
applicable warranty term. All AIRAYA products carry a standard 90-day limited
warranty from the date of purchase from AIRAYA or its Authorized Reseller. AIRAYA
may, at its own discretion, repair or replace any product not operating as warranted
with a similar or functionally equivalent product, during the applicable warranty term.
The standard limited warranty can be upgraded to a two-year warranty by registering
new products within 30 days of purchase from AIRAYA or its Authorized Reseller.
Registration can be accomplished via the enclosed product registration card or online
via the AIRAYA web site. Failure to register will not affect the standard limited
warranty. The two-year warranty covers a product during the Life of that Product,
which is defined as the period of time during which the product is an ‘Active’ AIRAYA
product. A product is considered to be ‘Active’ while it is listed on the current AIRAYA
price list. As new technologies emerge, older technologies become obsolete and
AIRAYA will, at its discretion, replace an older product in its product line with one that
incorporates these newer technologies. At that point, the obsolete product is
discontinued and is no longer an ‘Active’ AIRAYA product.
All products that are replaced become the property of AIRAYA. Replacement products
may be either new or reconditioned. Any replaced or repaired product carries either a
30-day limited warranty or the remainder of the initial warranty, whichever is longer.
AIRAYA is not responsible for any custom software or firmware, configuration
information, or memory data of Customer contained in, stored on, or integrated with
any products returned to AIRAYA pursuant to any warranty. Products returned to
AIRAYA should have any customer-installed accessory or add-on components removed
prior to returning the product for replacement. AIRAYA is not responsible for these
items if they are returned with the product.
Customers must contact AIRAYA for a Return Material Authorization number prior to
returning any product to AIRAYA. Proof of purchase may be required. Any product
returned to AIRAYA without a valid Return Material Authorization (RMA) number
clearly marked on the outside of the package will be returned to customer at
customer’s expense. Customers are responsible for all shipping charges from their
facility to AIRAYA. AIRAYA is responsible for return shipping charges from AIRAYA to
customer.

- 4 -
Limited Warranty
WARRANTIES EXCLUSIVE: IF AN AIRAYA PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, CUSTOMER'S SOLE REMEDY SHALL BE REPAIR OR
REPLACEMENT OF THE PRODUCT IN QUESTION, AT AIRAYA’S OPTION. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL
OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY
OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR
CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
AIRAYA NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR
IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF ITS PRODUCTS. AIRAYA SHALL NOT BE LIABLE UNDER
THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED
DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR
ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING,
UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE
OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: IN NO EVENT, (INCLUDING NEGLIGENCE), SHALL AIRAYA
BE LIABLE FOR INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY
KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS
ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS
PRODUCTS, EVEN IF AIRAYA OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR
THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER
PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM
STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR
STATUTORY RIGHTS.
* AIRAYA will provide warranty service for up to three years following discontinuance
from the active AIRAYA price list. Under the two-year warranty, internal and external
power supplies, and fans are covered by a standard one-year warranty from date of
purchase.

- 5 -
Regulatory Information
FCC and Industry Canada Guidelines
The radiated output power of the AI108 wireless bridge is far below the FCC radio
frequency exposure limits. Nevertheless, the device shall be used in such a manner
that the potential for human contact during normal operation is minimized. It is the
responsibility of the installer and users of the AI108 wireless bridge to guarantee that
the antenna is operated at least 20 centimeters (8 inches) from any person. This is
necessary to insure that the product is operated in accordance with the RF Guidelines
for Human Exposure, which have been adopted by the Federal Communications
Commission.
The built-in antennas used on the AI108 may NOT be replaced at any time. They are
designed to comply with the maximum EIRP limits specified by the FCC and Industry
Canada. Modifications to the AI108, unless expressly approved by AIRAYA, could void
the user's authority to operate the equipment.
The AI108 wireless bridge operates in the frequency range of 5.25 to 5.35 GHz. High
power radar systems in both Canada and the United States are allocated as primary
users of this spectrum. These radars can cause interference and/or damage to
devices such as the AI108 wireless bridge when used outdoors.
The term “IC:” before the radio certification number only signifies that Industry
Canada technical specifications were met.
NOTE: This device must be professionally installed
Class A Digital Compliance
NOTE: This equipment has been tested and found to comply with the limits for a Class A
digital device , pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.

- 6 -
Contents
Introduction ......................................................................................................... 7
Package Checklist.................................................................................................. 7
Hardware Description............................................................................................. 8
Ethernet Compatibility ........................................................................................ 8
Radio Characteristics .......................................................................................... 8
Antenna Type .................................................................................................... 8
Enclosure.......................................................................................................... 8
Cabling ............................................................................................................. 8
Remote Power ................................................................................................... 8
System Requirements .......................................................................................... 10
Hardware Installation........................................................................................... 11
Connecting the Indoor Unit................................................................................ 11
Front Panel View........................................................................................... 11
Installing and Aligning the Outdoor Units ............................................................. 13
Software Configuration......................................................................................... 16
Getting Started................................................................................................ 16
Logging in to the AI108 Web Server ................................................................... 16
Current Settings Tab ........................................................................................ 17
Link Setup Tab ................................................................................................ 19
Link Security Tab ............................................................................................. 21
System Password Tab....................................................................................... 23
Download Updates Tab ..................................................................................... 24
Help Tab ......................................................................................................... 25
Specifications...................................................................................................... 26
Models and Ordering Information........................................................................... 27
Where to Get Help ............................................................................................... 28
Worldwide Web Support.................................................................................... 28
Contacting AIRAYA ........................................................................................... 28

- 7 -
Introduction
AIRAYA’s AI108 series of wireless bridges have been designed to provide transparent,
high-speed data communications between two wired networks.
This solution offers fast, reliable wireless connectivity with considerable cost savings
over wired alternatives. Utilizing proprietary 5 GHz technology, the AI108 can easily
replace an Ethernet or T1 connection or seamlessly integrate into a newer 10/100
Mbps Ethernet LAN.
Package Checklist
The AI108 comes in one carton and contains the following components:
Please complete the warranty registration card and return to AIRAYA, or register
online at: http://www.airaya.com in the support | product registration section of our
website.
Please inform your dealer if there are any incorrect, missing or damaged parts. If
possible, retain the carton, including the original packing materials. Use them again to
repack the product if there is a need to return it for repair.

- 8 -
Hardware Description
Ethernet Compatibility
The AI108 wireless bridge can attach directly to 10Base-T/100Base-TX (twisted-pair)
Ethernet LAN segments. These segments must conform to the IEEE 802.3
specification.
The AI108 appears as an Ethernet node and performs a bridging function by moving
packets from the wired LAN in one building to a wired LAN in a different building.
Radio Characteristics
The AI108 wireless bridge employs a radio modulation technique known as Orthogonal
Frequency Division Multiplexing (OFDM), operating in the 5 GHz Unlicensed National
Information Infrastructure (U-NII) band. Data is transmitted over a half-duplex radio
channel at up to 108 Mbps speed.
Antenna Type – Purchase of external antennas is required for this product.
AI108-2-xxx wireless bridges contain N-Type connectors for attaching external
antennas. Available antenna options include a 18.4 dBi patch antenna - maximum
operating range of 1 mile (1.6km) or a 23.9 dBi patch antenna - maximum operating
range of 2.5 miles (4km) under FCC and Industry Canada rules. For international
markets other antennas options (both integrated and external) may be available
based on local regulations. Please contact AIRAYA for additional antenna options.
Enclosure
The molded fiberglass polyester enclosure of the AI108 outdoor unit has been
designed for maximum weatherability and durability in outdoor settings. It is
watertight and meets the NEMA/EEMAC Type 4, 4X, 12, and 13 specification.
Cabling
The AI108 wireless bridge includes a Category 5E cabling solution designed for
outdoor applications and with support for IEEE 802.3af (draft) DC power over Ethernet
to allow for ease of installation.
Remote Power
Power over Ethernet is an integral part of the AI108. The AI108 indoor unit is capable
of providing power to the outdoor unit at the full distance specified by the IEEE 802.3
specification (100 meters).

- 9 -
AI108 Architecture and Topology
The following diagram illustrates a typical usage scenario of an AI108 wireless bridge
to interconnecting two local area networks.

- 10 -
System Requirements
Before you install the AI108 wireless bridge, be sure you have the following items on-
hand:
• An AC power outlet (100 to 240 V, 50 to 60 Hz) which will supply power to the
indoor units on both sides of the wireless connection
• An outdoor unit mast with a diameter of 1.9 inches (50 mm) to 4.5 inches (115
mm)
• An available RJ-45 (UTP) port on a 10/100Mbps Ethernet hub or switch
• Web browser for software configuration
The AI108 wireless bridge has been designed to withstand normal handling
procedures, but reasonable precautions should be exercised during the installation,
particularly with regard to static discharge.
• Make sure that you are adequately grounded by touching the bare metal
surface on the back of a computer or networking device before installing the
indoor and outdoor units.
• Avoid moving around the work area in order to eliminate static charge buildup.
• If possible, do not work on a carpeted area.

- 11 -
Hardware Installation
Connecting the Indoor Unit
Front Panel View
The indoor unit connects your company network to the AI108 and delivers both data
and power to the outdoor unit. The indoor unit features the following LED status
indicators:
LED Indication
Detect (green) Compatible load detected and Ethernet link established between
indoor and outdoor units.
Fuse blown (yellow) The unit includes a fuse to help protect the attached equipment
from power surges and lightning damage. A lit LED indicates
that the fuse needs to be replaced.
Power (green) External power applied
48V out (green) Power over Ethernet is active
Before you mount the indoor unit to a fixed location, consider the following
requirements to determine the optimal placement:
• The cable length from the Ethernet network to the indoor unit must not exceed
320 ft (100 meters).
• The distance from the indoor unit to the outdoor unit must not exceed the
length of the Category 5E cable included with the AI108 wireless bridge
(between 50 and 300 ft, specified by part number1).
• Placement must allow for easy access to disconnect the indoor unit from the AC
outlet if necessary.
1Refer to section Models and Ordering Information for details

- 12 -

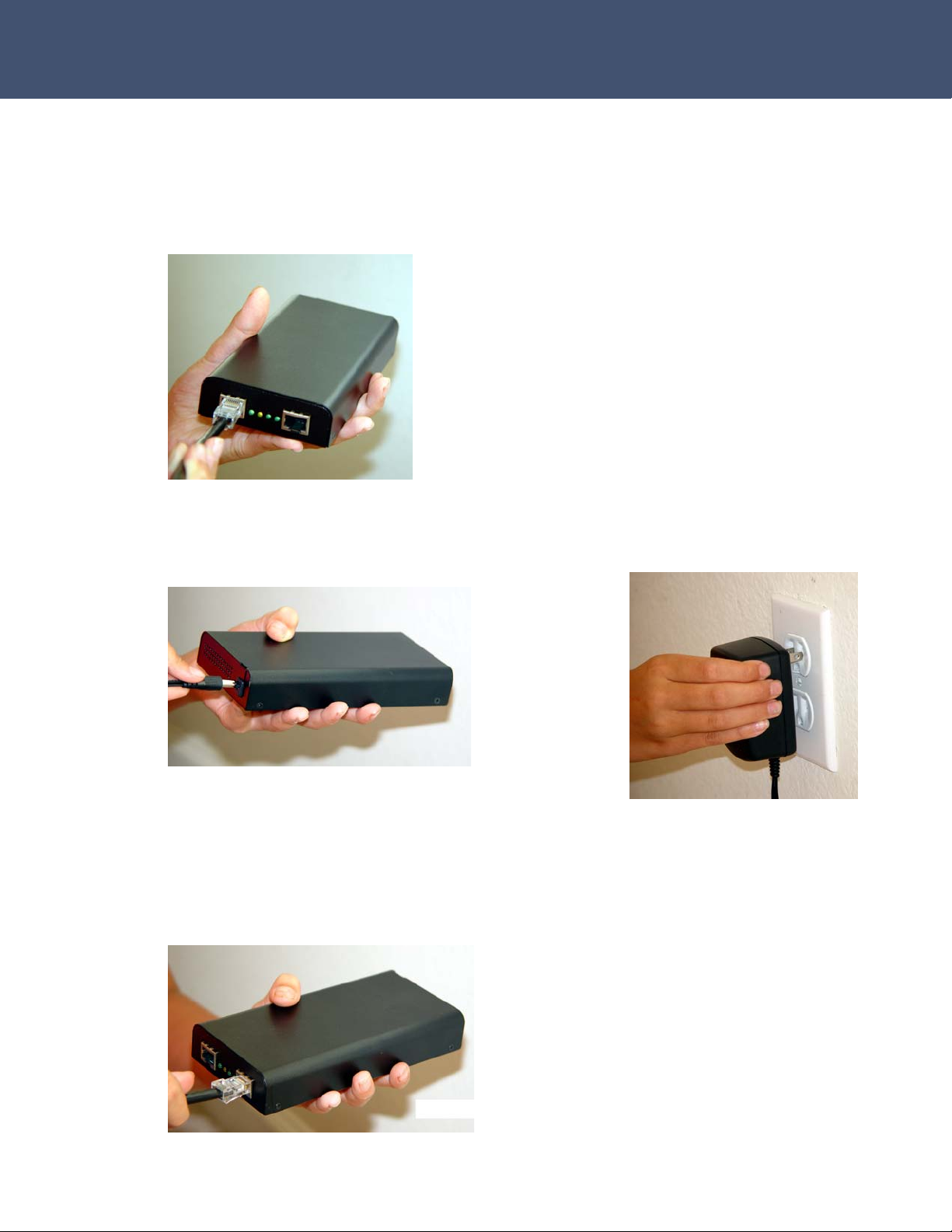

Follow these steps to install the indoor unit:
1. Connect the DATA port to your 10/100 Mbps Ethernet hub or switch using a
straight-through category 5 UTP cable.
2. Connect the power cable to the 12 VDC power socket on the rear panel, and
plug the power adapter into the wall outlet. Warning: Use only the power
adapter supplied with the AI108 wireless bridge in order to prevent damage.
3. You are now ready to apply power to the outdoor unit. Connect the DATA/PWR
port to the outdoor unit using the included Category 5E cable that came
attached to the outdoor unit. The DETECT and 48 V OUT LEDs will light to
indicate that the outdoor unit is connected to your network and receiving
power.

- 13 -
Installing and Aligning the External Antennas
To ensure maximum performance and stability of your wireless connection, it is crucial
that you determine the right locations for the external antennas based on the
following two criteria:
1. Establish a good signal path, ideally with visual line of sight, between the two
end points.
2. Minimize the distance between the two end points.
Pole mast mounting of the external antennas and outdoor units can be accomplished
using the included mounting brackets with full elevation adjustment, as illustrated in
the figure to the right.
Follow these steps to install the outdoor units and external antennas:
1. Attach the outdoor unit to the mast using the two included pole mounting
clamps. Attach the external antennas using the same technique.

- 14 -
2. Align the external antenna horizontally. Loosen the pole mounting clamps just
enough to visually aim the external antenna at the remote end point. Set the
appropriate horizontal angle and tighten the pole mounting clamps so that the
angle is locked in place.
3. Align the external antenna vertically. Loosen the elevation control bolts on the
mounting bracket and point the antenna towards the remote end point.

- 15 -
4. Set the appropriate elevation angle and tighten the bolts so that the angle is
locked in place. The bracket design allows for up to 20°tilt of the antenna.
5. Secure both the cable between the external antenna and the outdoor unit, and
the Category 5E cable between the outdoor unit and the indoor unit to the mast
using UV-rated tie-wraps (4 are included). Note: It is recommended that you
secure the entire cable length to the mast every 10 feet.
6. Repeat steps one through five for the second outdoor unit in the remote
location.
7. If necessary, use the AI108 antenna alignment tool to fine tune your received
signal strength (RSS). Loosen the pole mounting clamps and elevation control
bolts again, and rotate the antenna slowly around its mast. As the antenna
slews towards the remote device, the RSS indicator will show an increase. Keep
rotating the unit until the maximum strength signal has been obtained, then
tighten all fasteners and bolts to secure the assembly.
8. Repeat step seven for the second external antenna.

- 16 -
Software Configuration
The network and security parameters of your wireless bridge pair are configured by
using the built-in AI108 web server. The AI108 web server greatly simplifies the
configuration process by allowing the user to access all parameters and settings
through a single, consistent user interface.
Note: For added security, this configuration utility is only accessible within two
minutes of power-up. This utility is not available during normal bridge operation.
Getting Started
The factory default IP address and port number of the AI108 wireless bridge is
192.168.1.70:8080. Type that string into the address field of your browser and press
the Return key to load the AI108 web server. You will be prompted for a user name
and password at that point. Note: See section Logging in to the AI108 Web Server
below for information on default settings.
Logging in to the AI108 Web Server
The AI108 requires you to enter a user name and password to gain access to the
configuration utility. The default value for the fields User Name and Password is
“Airaya”.

- 17 -
Once you are logged in to the AI108 web server, you will have access to all
configuration options available in the AI108. The web interface is organized into tabs
that facilitate different categories of parameters and functions, including Current
Settings, Link Setup, Link Security, System Password, Download Updates, and Help.
The first screen you see is the Current Settings tab.
Current Settings Tab
The Current Settings tab allows you to view, but not change, the system information
and current setup of your AI108 unit.

- 18 -
The following parameters can be viewed from the Current Settings tab:
• Software Version - Current software (firmware) version installed and
running on the bridge you are working with. This value is formatted as a
date code.
• Hardware Version - Current hardware revision of the local bridge.
• IP Address - Current IP address of the local bridge you are working with.
• Subnet Mask - Current subnet mask of the local bridge you are working
with.
• Gateway Address - Current gateway address of the local bridge you are
working with.
For a detailed description of the IP Address, Subnet Mask, and Gateway Address
parameters, please refer to section Link Setup Tab.
• Local Bridge MAC Address - MAC address of the local bridge you are
working with.
• Remote Bridge MAC Address - MAC address of the remote bridge this
local bridge is currently paired with.
For additional information on the Bridge MAC Address parameters, please refer
to MAC Address Authentication in section Link Setup Tab.
• Active Encryption Key - WEP key currently providing data encryption over
the wireless link.
• Active Encryption Key Length -Length of the encryption key currently
being utilized on this pair of bridges.
For a detailed description of the WEP protocol and related parameters, please
refer to section Link Security Tab.

- 19 -
Link Setup Tab
The Link Setup screen is used to enter parameters related to the configuration of your
network, radio channel, and data rate of the AI108.
The following parameters can be accessed and modified from the Link Setup tab:
• IP Address - The IP address for each AI108 wireless bridge must be unique, so
please check with the network administrator for the correct IP address to be
assigned to this device. The format of an IP address is a 32-bit numeric address
written as four numbers separated by periods. Each number can be zero to 255.
Note: The updated IP address will replace the default IP address listed in the
Getting Started section. After activating your changes with the Restart or Start
Bridge command, you can access the AI108 web interface by specifying the
updated IP address and port number.

- 20 -
• Subnet Mask - The subnet mask allows networking software to determine which
parts of the IP address specify the network address and which parts specify the
host address. If your device is using the wrong subnet mask for the network to
which you are attached, it will therefore not be able to communicate with all
users on that network. The factory programmed subnet mask of the AI108
wireless bridge is 255.255.255.0.
Gateway Address - IP packets destined for other subnets are automatically sent to the
default gateway, which routes the traffic to the correct network. The gateway address
must be specified following the same convention as the IP address.
Antenna Alignment Tool - The antenna alignment tool displays your current
connection status based on received signal strength (RSS). The RSS indicator is a
useful diagnostic tool for you to test the transmission quality between the local and
remote AI108 bridge unit and to optimize antenna alignment. Please refer to section
Installing and Aligning the Outdoor Units for detailed instructions on antenna
alignment.
Note: Remember to save your new configuration settings before selecting another tab
by pressing the Submit button. If you are finished making changes to the local bridge
configuration, press the Restart button to save the new configuration settings and
reboot the local bridge, activating all new settings. You can also use the Start Bridge
button to activate the new settings and immediately put the unit in bridging mode,
without re-entering the configuration utility.
Note: If settings are modified inadvertently, the Restore System Defaults button can
be used to return to the factory default settings of all networking, radio, and security
parameters. All modified data will be lost.
