TDT1000 will not turn on
• Make sure unit has been fully charged.
• Conrm charging light is lit.
• It may take a full charge cycle before the unit will power on.
SensorCheck app cannot nd/connect to the TDT1000
• Make sure Bluetooth is LE. Older phones may not have Bluetooth LE.
• Only one app/Bluetooth device can connect to TDT1000 at a time. Make sure
no other devices are already connected. Power o the TDT1000 and restart the
Bluetooth search.
Test results indicate the transducer is out of range, but I am not sure it is.
• Consult the Owner’s Guide. Results may vary based on the test environment.
• Vary the test environment and see if the results bring the transducer into range.
• Verify that you are using the correct adapter cable.
• If using the test block, ensure there is no air between block and transducer.
Training and support services can be found at the following:
Gemeco (USA) Airmar EMEA (Europe, Middle East, Africa)
Tel: 803-693-0777 Tel: +33.(0)2.23.52.06.48
email: sales@gemeco.com email: sales@airmar-emea.com
Troubleshooting
Download SensorCheck on the
App Store or Google Play
At the completion of the test, one of
two screens will appear. If the results are
In Range, email results tothe boat owner,
dealer, and/or installer (Screen A).
If the results are Out of Range, email test
results with your contact information to
tdt1000@airmar.com before removing or
replacing the transducer (Screen B).
Step 3
Review your results Screen BScreen A
TDT1000
Transducer Diagnostic Tester
QUICK START GUIDE
Kit Includes
• TDT1000
• Adapter cable with terminal box for transducers with NO connector
• Power charger with USB to Micro USBadapter
• Carrying case
• International wall-plug adapter kit
(UK, Australia, and Europe)
• OEM adapter cables
(if purchased)
• TDT Test Block
1. Power on the TDT1000. The LED will glow green.
2. Open the SensorCheck app on your device and connect
to the TDT1000 via Bluetooth.
3. Press the Start Test icon on the SensorCheck app
to begin the test.
NOTE: If the SensorCheck app does not connect to TDT1000, see
the back panel of this Quick Start Guide, Troubleshooting.
Step 2
Start the test

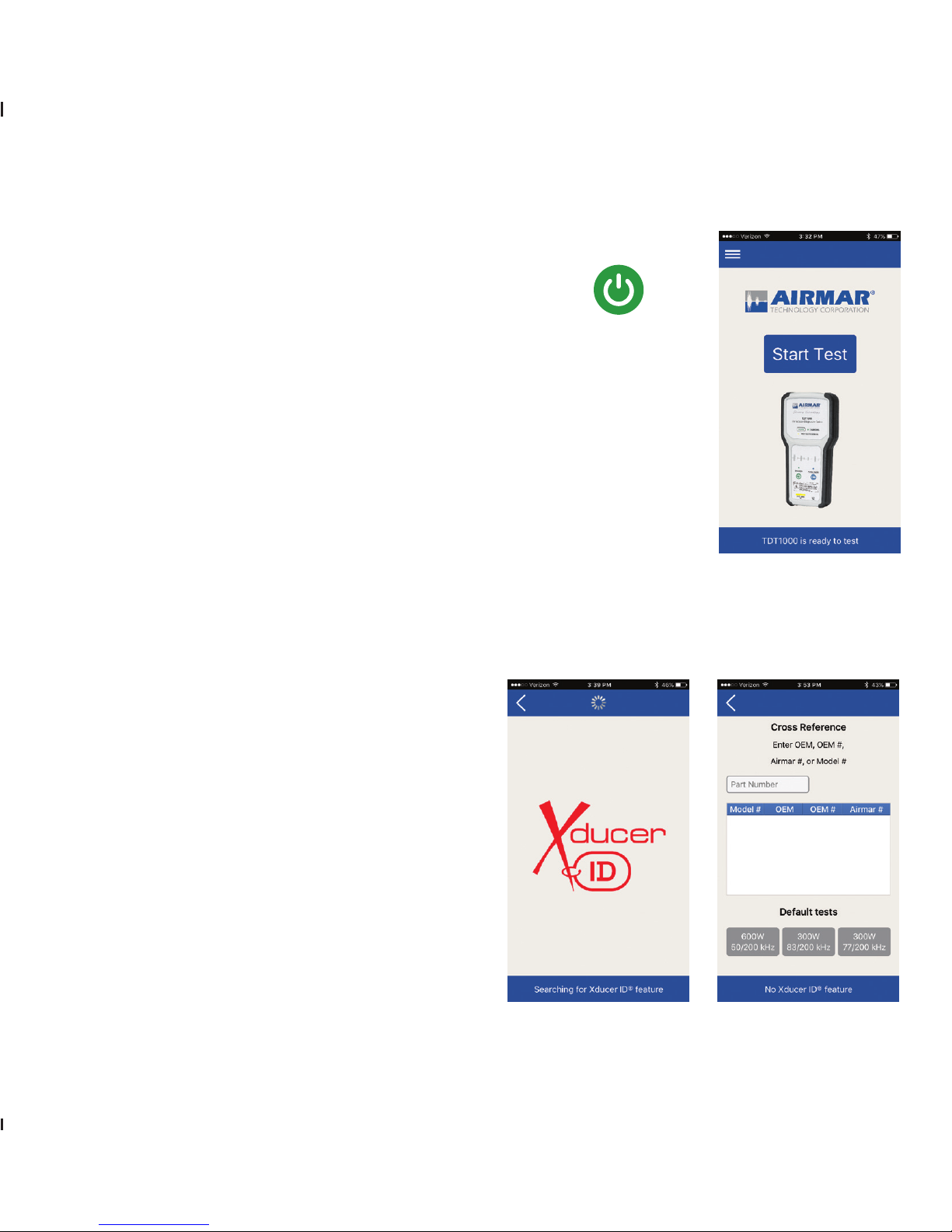

4. SensorCheck automatically checks for
Xducer ID® (Screen A). If found, the test
will begin.
If not found, youwill haveto enter the
information requested onthe screen
(Screen B).
1. Read the entire Owner’s Guide, review product specications,
andregister your product at www.airmar.com/tdt1000.
2. The SensorCheck™ app must be installed on a Bluetooth®
LE-enabled iOS or Android device to connect to the TDT1000.
CAUTION: The transducer must be connected to the TDT1000
through an OEM adapter cable. Do not connect the transducer directly to the TDT1000.
CAUTION: The transducer and OEM adapter cable must be connected to the
TDT1000 before starting a test. Do not connect or disconnect a transducer while
testing is in progress. Doing so may damage the TDT1000.
Before you start

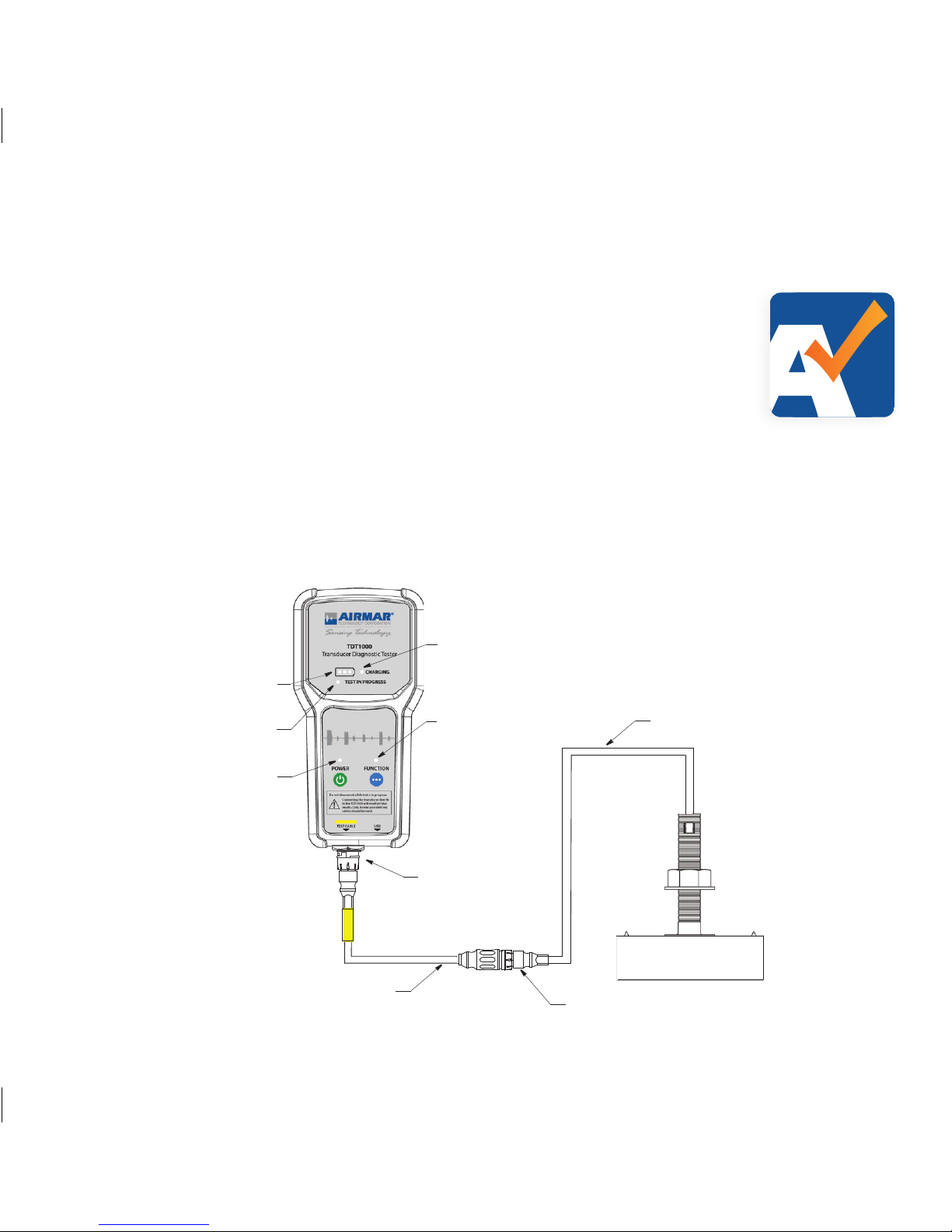

Diagram 1
Screen BScreen A
transducer
battery-status
light (3)
Te
st in Progress
indicator light
Charging
indicator light
Power
indicator light
Function
indicator light
test cable
port
transducer
connector
transducer
adapter cable
(purchased separately)
cable
1. The transducer being tested must be done one of the following ways:
• Installed in a boat while the boat is in the water.
• Tested utilizing the TDT tester block.
2. Utilizing the correct OEM adapter cable (sold separately), connect the TDT1000 to the
transducer cable (Diagram 1). If the transducer does not have a connector, it must
be connected through the terminal box. Follow the color-coded instructions on the
terminal box.
Step 1
Prepare the transducer for testing
Available OEM Adapter Cables: Part Number
Furuno Adapter Cable, 10M - FU connector 33-1328-01
Furuno/Si-tex Adapter Cable, 8M - F (Fuji) connector 33-1327-01
Garmin Adapter Cable, 6M - A connector 33-1324-01
Garmin Adapter Cable, 8M - G connector 33-1325-01
Garmin Adapter Cable, 12M - G connector 33-1326-01
Koden Adapter Cable, 8M - A connector 33-1338-01
Lowrance Chirp Adapter Cable, dual 7FB - LR connector 33-1333-01
Lowrance Conventional Adapter Cable, 7FB - LR connector 33-1332-01
Mix & Match Adapter Cable, 1kW, 9F - A connector 33-1323-01
Mix & Match Adapter Cable, 600W, 5F - A connector 33-1389-01
Mix & Match Chirp Adapter Cable, 12M - MM connector 33-1390-01
Navico Adapter Cable, dual 9F - A connectors 33-1388-01
Navman Adapter Cable, 6M - A connector 33-1335-01
Simrad Adapter Cable, 7M - A connector 33-1334-01
Si-tex Adapter Cable, 8F - A connector 33-1337-01
Raymarine Adapter Cable, 6/9F - A connector 33-1330-01/1310-01 (Sense Resistor Ident.)
Raymarine Adapter Cable, 11M - LTW connector 33-1331-01/1312-01 (Sense Resistor Ident.)
Raymarine Adapter Cable, 8M - RR connector 33-1329-01/1311-01 (Sense Resistor Ident.)
Visit AIRMAR.COM/TDT1000 for the most updated OEM Adapter list.
