AirSense ModuLaser User manual

ModuLaser Modular
Aspirating Smoke Detector
Installation Manual
P/N 04-4001-501-1003-08 • 01FEB19

Copyright
©
2019 UTC Fire & Security. All rights reserved.
Trademarks and
patents
ModuLaser
is a trademark of UTC Fire & Security.
Other trade names used in this document may be trademarks or
registered
trademarks of the manufacturers or vendors of the
respective products.
Manufacturer
UTC CCS Manufacturing Polska Sp.
Z o.o.
Ul. Kolejowa 24.
39-100 Ropczyce, Poland.
Authorized EU manufacturing representative:
UTC Fire & Security B.V. Kelvinstraat 7,
NL-6003 DH, Weert, The
Netherlands.
Version
REV
08
Certification
European Union
directives
2004/108/EC (EMC directive).
Hereby, UTC Fire &
Security declares
that this device is in compliance with the essential requirements and
other relevant provi
nsions of Directive 2004/108/EC.
2012/19/EU
(WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
.
IEC 60825
-1 This product is a Class I Laser product. The unit
incorporates a Class 3B embedded laser which must not be removed
fr
om the detector.
Contact information
For contact information, see
firesecurityproducts.com.

ModuLaser Modular Aspirating Smoke Detector Installation Manual i
Content
Important information ii
Chapter 1 Introduction 1
System overview 2
Module overview 5
Chapter 2 Installation 11
Electrical safety 12
Installation 12
Connections 20
Chapter 3 Configuration and Commissioning 35
Introduction 36
Access level 1 user operation 41
Access level 2 user operation and configuration 41
Access level 3 user operation and configuration 54
Access level 4 user operation and configuration 70
Commissioning 73
Chapter 4 Maintenance and troubleshooting 79
Maintenance 80
Troubleshooting83
Chapter 5 Technical specifications 87
Appendix A APIC installation 91
Appendix B Regulatory information 93
Index 96

ii ModuLaser Modular Aspirating Smoke Detector Installation Manual
Important information
Introduction
This is the installation and operation manual for the ModuLaser Modular
Aspirating Smoke Detector. Read these instructions and all related
documentation entirely before installing or operating this product.
Limitation of liability
To the maximum extent permitted by applicable law, in no event will UTCFS be
liable for any lost profits or business opportunities, loss of use, business
interruption, loss of data, or any other indirect, special, incidental, or
consequential damages under any theory of liability, whether based in contract,
tort, negligence, product liability, or otherwise. Because some jurisdictions do not
allow the exclusion or limitation of liability for consequential or incidental
damages the preceding limitation may not apply to you. In any event the total
liability of UTCFS shall not exceed the purchase price of the product. The
foregoing limitation will apply to the maximum extent permitted by applicable law,
regardless of whether UTCFS has been advised of the possibility of such
damages and regardless of whether any remedy fails of its essential purpose.
Installation in accordance with this manual, applicable codes, and the instructions
of the authority having jurisdiction is mandatory.
While every precaution has been taken during the preparation of this manual to
ensure the accuracy of its contents, UTCFS assumes no responsibility for errors
or omissions.
Product warnings and disclaimers
THESE PRODUCTS ARE INTENDED FOR SALE TO AND INSTALLATION BY
QUALIFIED PROFESSIONALS. UTC FIRE & SECURITY CANNOT PROVIDE
ANY ASSURANCE THAT ANY PERSON OR ENTITY BUYING ITS
PRODUCTS, INCLUDING ANY “AUTHORIZED DEALER” OR “AUTHORIZED
RESELLER”, IS PROPERLY TRAINED OR EXPERIENCED TO CORRECTLY
INSTALL FIRE AND SECURITY RELATED PRODUCTS.
For more information on warranty disclaimers and product safety information,
please check https://firesecurityproducts.com/policy/product-warning/ or scan the
QR code:

ModuLaser Modular Aspirating Smoke Detector Installation Manual iii
Advisory messages
Advisory messages alert you to conditions or practices that can cause unwanted
results. The advisory messages used in this document are shown and described
below.
WARNING: Warning messages advise you of hazards that could result in injury
or loss of life. They tell you which actions to take or to avoid in order to prevent
injury or loss of life.
Caution: Caution messages advise you of possible equipment damage. They tell
you which actions to take or to avoid in order to prevent damage.
Note: Note messages advise you of the possible loss of time or effort. They
describe how to avoid the loss. Notes are also used to point out important
information that you should read.

iv ModuLaser Modular Aspirating Smoke Detector Installation Manual

ModuLaser Modular Aspirating Smoke Detector Installation Manual 1
Chapter 1
Introduction
Summary
This chapter provides an introduction to your detector, the main controls, and the
indicators.
Content
System overview 2
Introduction 2
Clusters 3
Connectivity 3
ClassiFire 3
Software 4
Module overview 5
Display modules 5
Detector module 7
TFT display, controls, and indicators 8

Chapter 1: Introduction
2 ModuLaser Modular Aspirating Smoke Detector Installation Manual
System overview
Introduction
The ModuLaser Modular Aspirating Smoke Detector (ASD) is a highly
sophisticated next generation high sensitivity smoke detection system that
provides all the benefits of air sampling high sensitivity smoke detection,
including very early warning.
The system comprises the following:
• A backplane
• A minimum, standard, or command display module
• A detector module
See “Module overview” on page 5 for more information on each module.

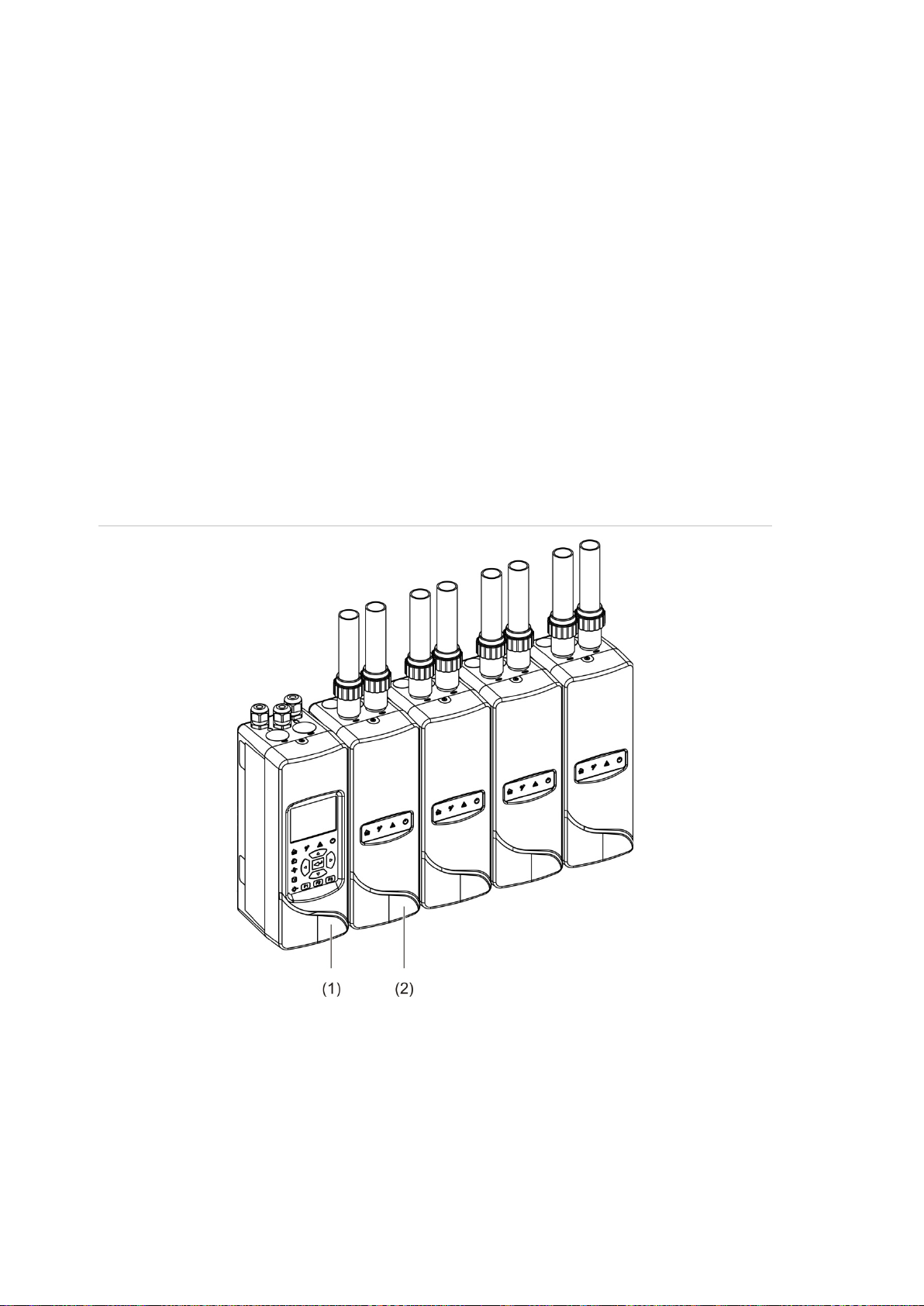

Figure 1: Display and detector modules
1. Display module
2. Detector module

Chapter 1: Introduction
ModuLaser Modular Aspirating Smoke Detector Installation Manual 3
Clusters
Each ModuLaser high sensitivity smoke detection system consists of a group of
modules known as a cluster.
A cluster consists of one minimum or standard display module and from one
(minimum) to eight (maximum) detector modules.
Caution: A command display module cannot replace or substitute a minimum or
standard display module in a cluster configuration.
The display module is connected to the detector modules via the SenseNET+
RS-485 interface. The display module can be positioned anywhere within the
cluster.
The display module and up to four detector modules can be installed in a single
location (non-distributed cluster) or in separate locations (distributed cluster).
Additional detector modules in the same cluster must be installed in a separate
location. See “Connecting modules” on page 21 for more information on cluster
connections.
Each device in a cluster is identified by a unique 7-bit address in the range 1 to
127. Multiple clusters can be connected to create a SenseNET network.
Connectivity
The following network interfaces are used:
• An APIC card is used for communication between the aspirating smoke
detector and a fire alarm control panel via an addressable loop.
• SenseNET+ is used for communication between display modules and
detector modules in the same cluster.
• SenseNET is used for communication between a command display module,
multiple ModuLaser clusters, and other compatible ASD units.
ClassiFire
ClassiFire is the patented artificial intelligence system for aspirating smoke
detectors that continually monitors the environment and internal contamination
and automatically adjusts sensitivity to the optimum level.
ClassiFire automatically adjusts sensitivity to suit day/night levels with no need
for external input.
ClassiFire automatically sets up the detector to the normal working environment
so the detector sensitivity is optimized for its surroundings.

Chapter 1: Introduction
4 ModuLaser Modular Aspirating Smoke Detector Installation Manual
The ClassiFire automatic calibration process is as follows:
1. FastLearn: This stage lasts approximately 15 minutes. During FastLearn the
detector is not fully operational (accurate detection is not guaranteed).
2. Intermediate learn: This stage lasts approximately 24 hours. During
intermediate learn the detector is operational but is still fine tuning the
detection algorithm.
3. Normal: Normal indicates that initial environmental learning has ended and
that the detector is operating normally.
Note: Demo mode skips the intermediate learn mode and jumps from FastLearn
to normal mode. While active, Demo mode is indicated by the Warning LED and
on the display module LCD.
Software
The following software applications are available:
• PipeCAD: Models and verifies the performance of the pipe network design.
All pipework designs must be validated using PipeCAD.
• Remote: Configures modules during installation and during system
maintenance.
Contact your local distributor for more details on these applications.

Chapter 1: Introduction
ModuLaser Modular Aspirating Smoke Detector Installation Manual 5
Module overview
The product range includes three display modules and a detector module.
Note: Display modules and detector modules also incorporate a backplane (for
inputs, outputs, and field wiring, etc.). See Chapter 2 “Installation” on page 11 for
more information on the backplane.
Figure 2: Module overview
1. Minimum display module
2. Standard or command display module
3. Detector module
Display modules
The following display modules are available.
Minimum display module
The minimum display module provides LED status indicators only – it has no TFT
display or user controls. LED status indicators display the status of detector
modules in the same cluster.
The module provides connections to integrate the cluster into a SenseNET
network. A PC connection is provided for configuring and monitoring the module
and associated detector modules.

Chapter 1: Introduction
6 ModuLaser Modular Aspirating Smoke Detector Installation Manual
Standard display module
The standard display module provides LED status indicators, as well as a colour
TFT display and user controls. LED status indicators display the status of
detector modules in the same cluster. The TFT display provides additional status
information and configuration menus.
The module provides connections to integrate the cluster into a SenseNET
network. User controls and a PC connection are provided for configuring and
monitoring the module and associated detector modules.
Command display module
The command display module provides LED status indicators, as well as a colour
TFT display and user controls.
The command display module is used as a central control and monitoring point
for detectors in a SenseNET network. The command display module is
compatible with ModuLaser clusters and legacy ASD devices compatible with
SenseNET.
User controls and a PC connection are provided for configuring and monitoring
any device connected to the SenseNET network.

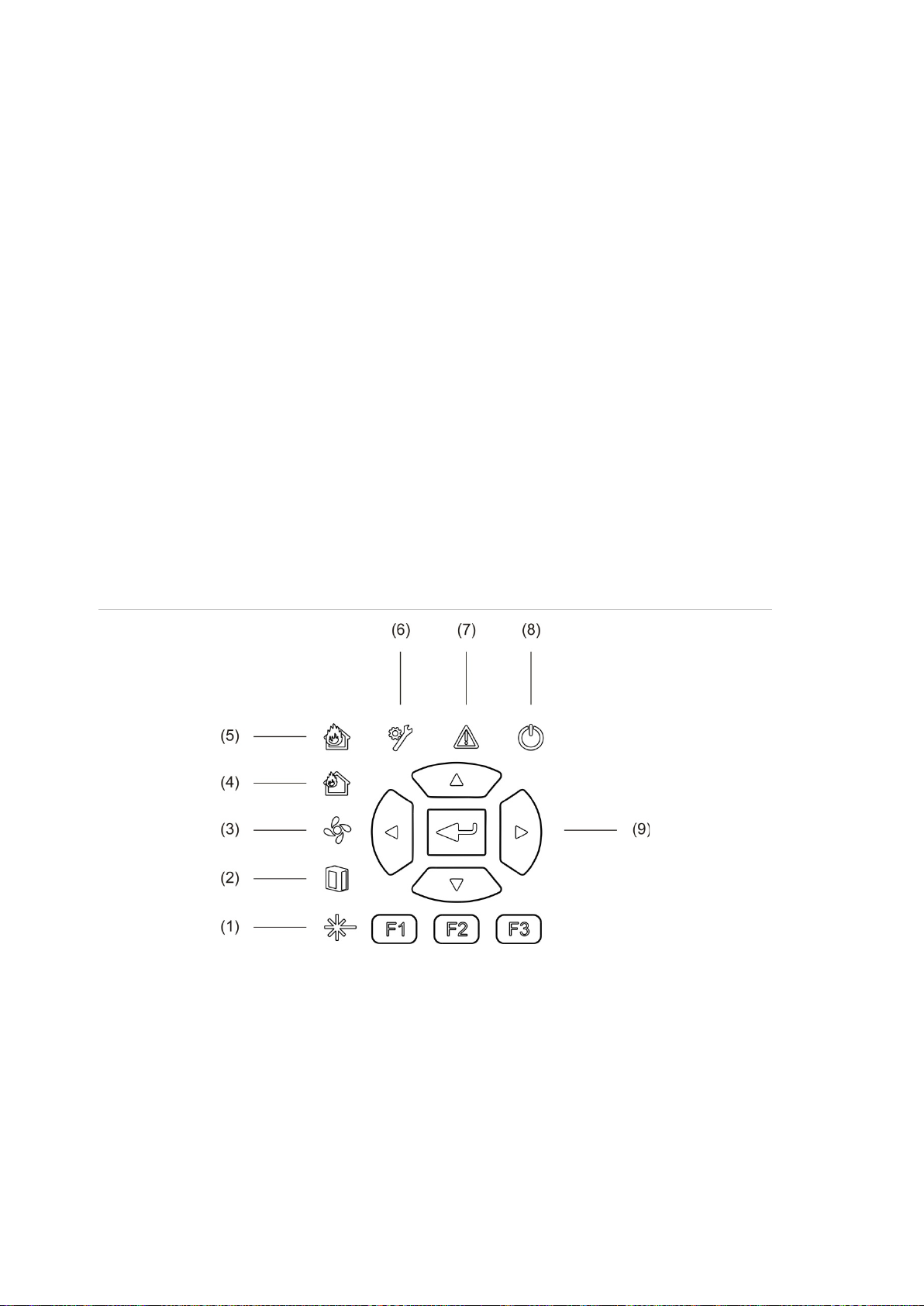

Figure 3 : Display module LED indicators
1
. Laser fault LED
2
. Filter fault LED
3
. Flow fault LED
4
. Prealarm LED
5. Fire alarm LED
6. General fault LED
7. Warning LED
8. Power LED
9. Navigation and configuration controls
Note: The minimum display module does not include the navigation and
configuration controls.

Chapter 1: Introduction
ModuLaser Modular Aspirating Smoke Detector Installation Manual 7
Display module interfacing
All display modules provide the following connectors:
• USB type A (host)
• USB type B (device)
• APIC
Detector module
The detector module is an aspirating smoke detector and must be used with
either a minimum or standard display module. It consists of a fan, a dust filter,
and a laser head with the corresponding sensors to measure air flow,
temperature, and obscuration.
The detector module uses the ClassiFire algorithms to determine alarm
conditions and keeps a record of event logs and samples.
Up to eight detector modules can be connected to a minimum or standard display
module to form a cluster.
Figure 4 : Detector module LED indicators
1
. Prealarm and Fire alarm LED
2. General fault LED
3. Warning LED
4. Power LED

Chapter 1: Introduction
8 ModuLaser Modular Aspirating Smoke Detector Installation Manual
TFT display, controls, and indicators
TFT display and controls
The TFT display and controls are shown below.

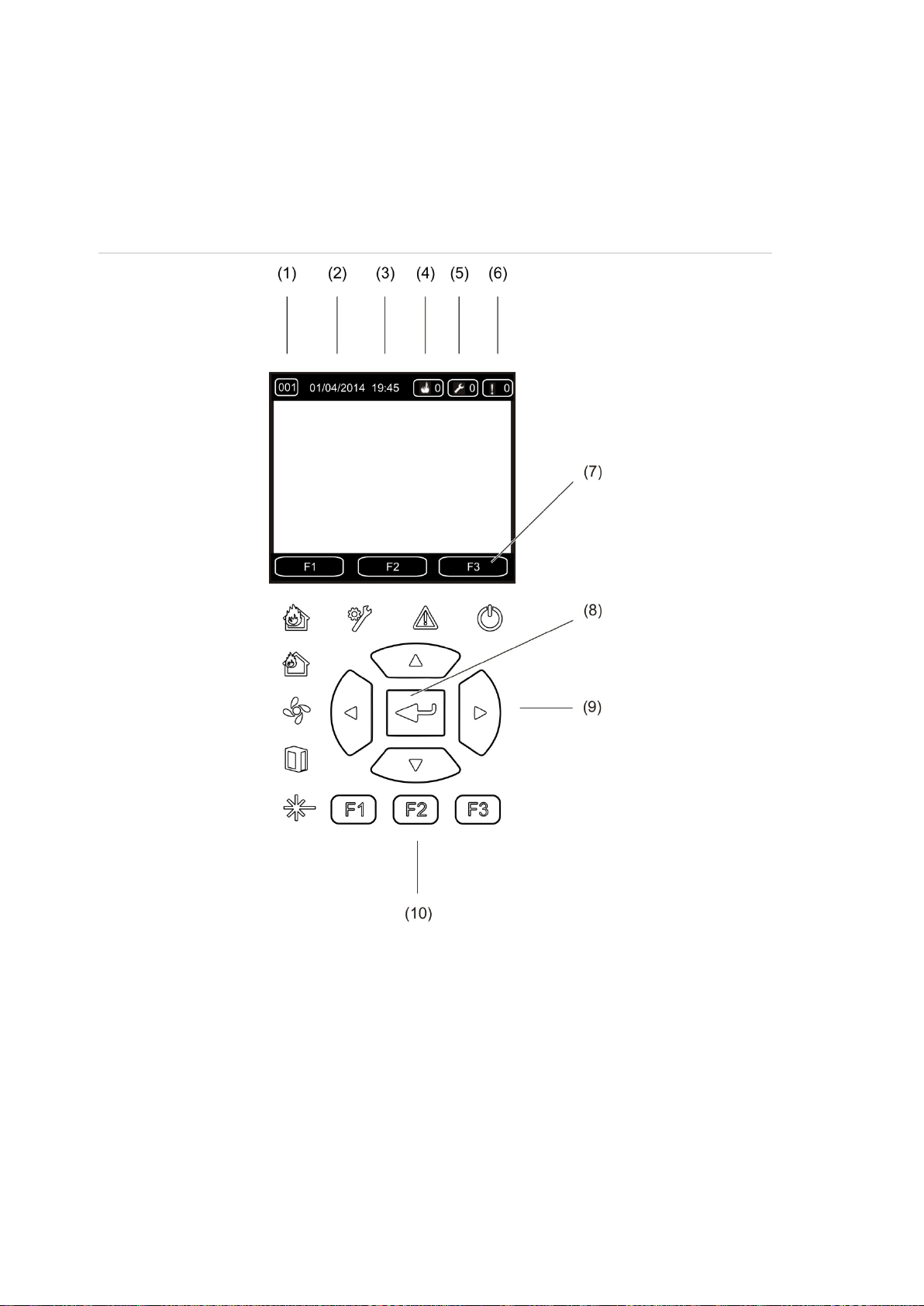

Figure 5: TFT display and controls
1
. Address
2
. System date (home screen only)
3
. System time (home screen only)
4
. Current alarm counter
5
. Current fault counter
6. Current warning counter
7. F1, F2, and F3 TFT display soft keys
(linked to F1, F2, and F3 TFT buttons)
8. Enter button
9. Navigation controls (up, down, left, right)
10. F1, F2, and F3 buttons (linked to F1, F2,
and F3 TFT display soft keys)

Chapter 1: Introduction
ModuLaser Modular Aspirating Smoke Detector Installation Manual 9
Notes:
If configuring a detector, the address displayed is the detector address. If not, it is
the display address.
The minimum display module does not include the TFT display, Enter button,
navigation controls, or F1-F3 function buttons shown above.
LED indications
The LED indications are shown below.
Table 1: LED indications
LED
Colour Indication Description
Yellow Laser fault [1] A steady LED indicates a laser fault in one or more
detector modules in the cluster (minimum or
standard display) or network (command display).
Yellow Filter fault [1] A steady LED indicates a filter fault in one or more
detector modules in the cluster (minimum or
standard display) or network (command display).
Yellow Flow fault [1] A steady LED indicates a flow fault or a fan fault in
one or more detector modules in the cluster
(minimum or standard display) or network
(command display).
Red Prealarm [1] A steady LED indicates a prealarm condition in one
or more detector modules in the cluster (minimum
or standard display) or network (command display).
Red Fire alarm A steady LED on a display module indicates a fire
alarm condition in one or more detector modules in
the cluster (minimum or standard display) or
network (command display).
A steady LED on a detector module indicates a fire
alarm condition for the detector.
A flashing LED on a detector module indicates a
prealarm condition for the detector.
Yellow General fault A steady LED on a display module indicates a
general fault condition in one or more modules in
the cluster (minimum or standard display) or
network (command display).
A steady LED on a detector module indicates a
general fault condition for the detector.

Chapter 1: Introduction
10 ModuLaser Modular Aspirating Smoke Detector Installation Manual
LED
Colour Indication Description
Yellow Warning A steady or flashing LED indicates the following:
A steady LED indicates that detection is aborted
due to a fault (detector cover removed, fan motor,
filter removed, or critical temperature), that there is
a flow high/low range fault, that the module is
disabled, or that the module is in power save mode.
A fast flashing LED indicates that at least one
detector module is in FastLearn mode, that the
module is starting up, or that pipe calibration is in
process.
A slow flashing LED indicates that one or more
devices or features are in test mode or that a
detector is in demo mode.
Green Power A steady LED indicates that the module is powered
up correctly.
[1] Display modules only.
Note: If alarms or faults are latched, then an alarm or fault indication remains
active until a system reset, even if the condition that caused the indication has
ended. If alarms or faults are not latched, the indication disappears when the
corresponding condition ends.

ModuLaser Modular Aspirating Smoke Detector Installation Manual 11
Chapter 2
Installation
Summary
This chapter provides detailed installation and connection information for your
detector.
Caution: This product must be installed and maintained by qualified personnel
adhering to all local or national installation requirements and any other applicable
regulations.
Content
Electrical safety 12
Installation 12
Overview 12
Module and PCB layout 14
Backplane installation 17
Connections 20
Recommended cables 20
Connecting modules 21
Connecting pipes 32
Connecting to a PC 33

Chapter 2: Installation
12 ModuLaser Modular Aspirating Smoke Detector Installation Manual
Electrical safety
WARNING: Electrocution hazard. To avoid personal injury or death from
electrocution, remove all sources of power and allow stored energy to discharge
before installing or removing equipment.
Caution: Equipment damage hazard. This product is sensitive to electrostatic
discharge (ESD). To avoid damage, follow accepted ESD handling procedures.
Installation
Overview
To install the detection system, follow these steps:
1. Fix the backplane to the wall.
See “Installing the backplane” on page 17.
2. Connect all field wiring to the backplane.
See “Connections” on page 20.
3. Place the display or detector module (without the cover) onto the backplane.
See “Installing the display and detector modules” on page 31.
4. Install piping.
See “Connecting pipes” on page 32.
5. Place the front cover onto the display or detector module.

Chapter 2: Installation
ModuLaser Modular Aspirating Smoke Detector Installation Manual 13
General guidelines
Follow these general guidelines to ensure correct placement, connection, and
configuration of your product.
Table 2: Installation guidelines
DO
DON’T
DO ensure that the power and signal cables
are
correctly connected before powering up.
Incorrect connections may damage the
module.
DO ensure that an appropriate cable is used
for interconnection.
DO
ensure that all screws for wiring
connections are firmly tightened.
DO place sampling points so that th
e detector
module is able to detect smoke at the earliest
opportunity.
DO ensure that the detector module exhaust
is not impeded and is in an area with the
same atmospheric pressure as the sample
pipes (either by placing the detector module
physically in t
he protected area or by leading
a pipe from the detector module exhaust to
the protected area).
DO ensure that the ambient conditions
(humidity, temperature) of the protected area
are suitable for the module.
DO set the appropriate ClassiFire alarm factor
for the area to be protected.
DO set the appropriate alarm level for the
area to be protected.
DO set the appropriate fan speed for the area
to be protected.
DO set the module addresses correctly to
avoid duplicate addresses.
DO ensure that the display and
detector
modules are secured to the backplane.
DO ensure that all front covers are secured to
the modules.
DON’T drop the detector or display modules.
DON’T install detector and display modules in
damp or exposed areas.
DON’T remove or connect PCBs when the
module is powered up.
DON’T reuse dust filter cartridges once they
are removed.
DON’T attempt to adjust or alter detector
settings other than via the user-
programmable
functions.
DON’T place the modules close to any
equipment that may generate high radio
frequency levels (such as radio alarms) or
units generating high levels of electrical
energy (such as large electric motors or
generators).
DON’T install the module in hard to reach
areas or so close to other equipment that
access and maintenance of the module is
difficult.
DON’T use excessive force when fitting
sampling pipes (this may damage the detector
module).
DON’T overtighten the mounting screws.

Chapter 2: Installation
14 ModuLaser Modular Aspirating Smoke Detector Installation Manual
Module and PCB layout
Backplane
The backplane is used to distribute power and communications to all modules in
the cluster. It also provides connections for inputs, outputs, and to legacy
devices. All field wiring is connected to the backplane via the cable knockouts on
the top, bottom, or back of the housing.

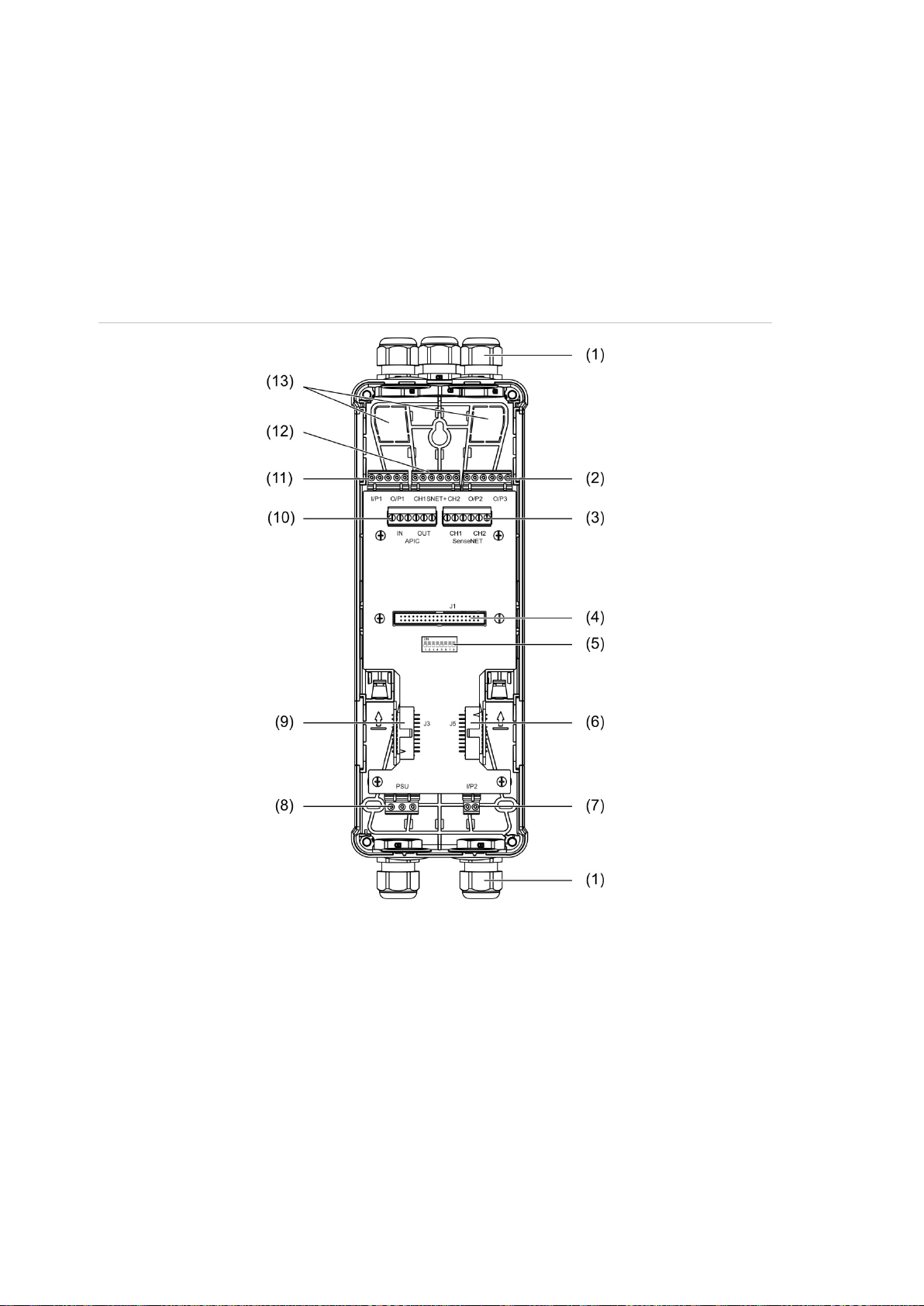

Figure 6: Backplane layout
1
. Cable glands (not supplied)
2
. O/P2 and O/P3 output connectors
3
. CH1 and CH2 SenseNET connectors for
bus or loop configuration
4
. J1 display and detector module connector
5
. Address DIP switch
6
. J5 SenseNET+ connector for adjacent
backplanes
7. I/P2 input connector
8. Power supply connector
9. J3 SenseNET+ connector for adjacent
backplanes
10. APIC connector (used for connecting an
addressable loop)
11. I/P1 input and O/P1 output connectors
12. SenseNET+ connectors for bus or loop
configuration
13. Rear cable knockouts
Note: The SenseNET and APIC connectors are only used in display modules.
