Airwell AWSI-HDDE009-H11 User manual

HDDE009/012/018/024
Indoor Units
Outdoor Units
AWSI-HDDE009-H11
AWAU-YDDE009-H11
AWSI-HDDE012-H11
AWAU-YDDE012-H11
AWSI-HDDE018-H11
AWAU-YDDE018-H11
AWSI-HDDE024-H11
AWAU-YDDE024-H11
REFRIGERANT
R410A HEAT PUMP
SM HDDE 1-A.1 GB MAY-2013
Version:1

LIST OF EFFECTIVE PAGES
SM HDDE 1-A.1 GB
A
LIST OF EFFECTIVE PAGES
Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page
(when none indicates no changes in the relevant page). All pages in the following list represent
effected/ non effected pages divided by chapters.
Dates of issue for original and changed pages are:
Original ....... 01 ........
22-May-2013
Total number of pages in this publication is 74 consisting of the following:
Page
Revision
Page
Revision
Page
Revision
No.
No. #
No.
No. #
No.
No. #
* Zero in this column indicates an original page.

SM HDDE 1-A.1 G
i
Table of Contents
TABLE OF CONTENTS
1. INTRODUCTION............................................................................................................................. 1-1
2. PRODUCT DATA SHEET............................................................................................................... 2-1
3. RATING CONDITIONS................................................................................................................... 3-1
4. OUTLINE DIMENSION ................................................................................................................... 4-1
5. PERFORMANCE DATA ................................................................................................................. 5-1
6. PRESSURE CURVES..................................................................................................................... 6-1
7. SOUND LEVEL CHARACTERISTICS ........................................................................................... 7-1
8. ELECTRICAL DATA....................................................................................................................... 8-1
9. WIRING DIAGRAM......................................................................................................................... 9-1
10. REFRIGERATION DIAGRAMS...................................................................................................... 10-1
11. TUBING CONNECTIONS............................................................................................................... 11-1
12. CONTROL SYSTEM....................................................................................................................... 12-1
13. TROUBLESHOOTING.................................................................................................................... 13-1
14. CHARACTERISTICS OF SENSOR................................................................................................ 14-1
15. EXPLODED VIEW & SPARE PART LIST...................................................................................... 15-1
16. SERVICING..................................................................................................................................... 16-1

INTRODUCTIONINTRODUCTION
1-1
SM HDDE 1-A.1 GB
1. INTRODUCTION
1.1 General
HDDE series is a mono-split DCI inverter air conditioner. This high-wall mounted
type indoor are mainly designed for residential buildings.
The ODU YDDE product is a DC inverter outdoor with high technology. By using
DC compressor sine wave torque control technology, this product provides more
comfort and economical operating.
The whole series includes 4 models 09/12/18/24 in cooling capacity.
1.2 Main Features
The unit benefits from the most advanced technological innovations, namely:
• DC inverter technology.
• R410A models
• Microprocessor control and indoor LED display
• High SEER/SCOP , A/A level with Average climate.
• Torque control for compressor running in lower Frequency but with low vibration
and little sound.
• Max allowing tubing distance of 25m(Model HDDE024).
• Up to 10 m vertical high between indoor and outdoor units
• Cooling operation at outdoor temperature up to 46ºC.
• Heating operation at outdoor temperature down to -15ºC.
• Easy installation and service.
• Sleep mode from remote control to save energy
• ON/OFF timer and clock display
• Vertical auto swing with motorized flap (any position stop)
• Intelligent Deicing
• Memory from power failure
• Rapid cooling/heating
• I-Feel function
• Cold air prevention in heating
• Clean function (Blow dry)
• Self diagnostic (Error indications) for ease of maintenance

INTRODUCTIONINTRODUCTION
1-2
SM HDDE 1-A.1 GB
1.3 Indoor Unit
The indoor unit is wall mounted, and can be easily fitted to many types of residential
locations. It includes:
• LED display
• Variable speed with PG motor
• Motorized flap
• High efficiency filtration to ensure a best Air Quality : Advanced filtering combine
mechanical, Photo-catalytic + Bi-anti bacterial and observe bad gaseous and
smokes.
1.4 Control
The microprocessor indoor controller, and an infrared remote control, supplied as
standard, provide complete operating function and programming.
Remote control RC 8A：
Compact and economically design, it offers excellent user comfort. Combining modern
design with high technology, the RC8A remote control offers powerful functions of real
considering of user comfort and energy saving of air-conditioner.
For detail of functions, please refer to Appendix 1

INTRODUCTIONINTRODUCTION
1-3
SM HDDE 1-A.1 GB
1.5 Outdoor Unit
The outdoor units can be installed as floor or wall mounted units by using a wall
supporting bracket. The metal sheets are protected by anti- corrosion paintwork
allowing long life resistance. All outdoor units are pre-charged. For further information
please refer to the Product Data Sheet, Chapter 2.
It includes:
• Compressor mounted in a soundproofed compartment :
• Axial fan.
• Outdoor coil with hydrophilic louver fins for RC units.
• Outlet air fan grill.
• Interconnecting wiring terminal block.
1.6 Tubing Connections
Flare type interconnectingtubing to be produced on site.
For further details please refer to the Installation Manual.
1.7 Inbox Documentation
Each unit is supplied with its own installation, operation and remote control manuals.

INTRODUCTIONINTRODUCTION
1-4
SM HDDE 1-A.1 GB

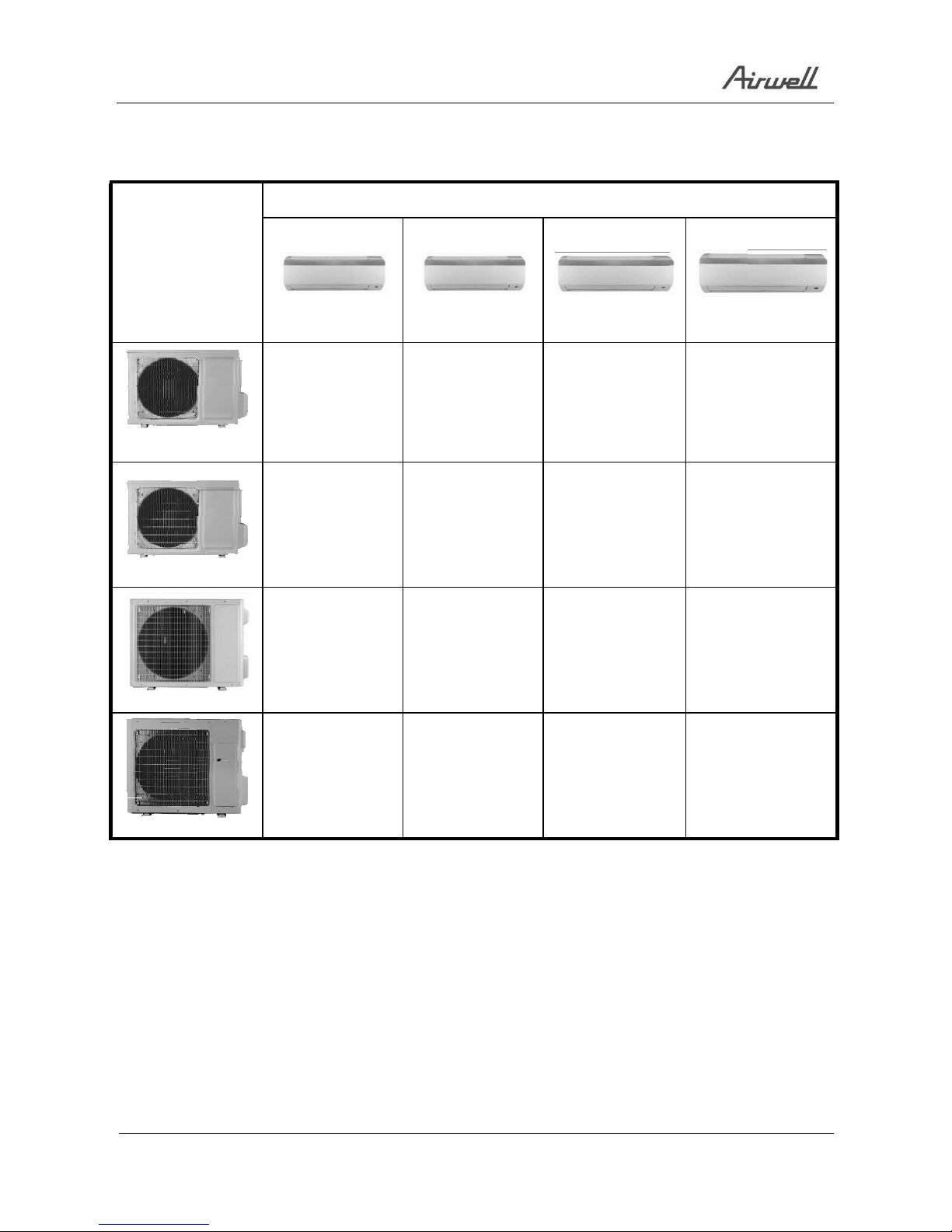

1.8 Matching Table
INDOOR UNITS
OUTDOOR UNITS
AWSI-HDDE009-H11 AWSI-HDDE012-H11 AWSI-HDDE018-H11 AWSI-HDDE024-H11

AWAU-YDDE009-H11

AWAU-YDDE012-H11

AWAU-YDDE018-H11

AWAU-YDDE024-H11

RATING CONDITIONS
INTRODUCTION
2-1
SM HDDE 1-A.1 GB
2. PRODUCT DATA SHEET
Model Indoor Unit
AWAU-HDDE009-N11
Model Outdoor Unit
AWAU-YDDE009-H11
Installation Method of Pipe
F lared
Characteristics
Units
Cooling
Heatin g
Average
Warmer
Capacity (1)
kW
2,6 (0,45-3,23)
3,0 (0,45-4,1)
Pdesign
kW
2,6
2,6
2,8
SEER / SCOP (2)
W/W
5,6
3,8
4,4
Energy efficiency class
A+
A
A+
Annual energy consumption
kWh
163
958
891
Tbiv
oC
N/A
-7
??
Tol
oC
N/A
-15
-10
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
16
INDOOR
Fan type & quantity
Cross flow fan x1
Fan speeds
H/M/L
RPM
1350/1100/900/700
1350/1140/980/820
Air flow (3)
H/M/L
m3/hr
600/520/370/280
600/520/370/280
External static
pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
55/48/40/34
Sound pressure level (5)
H/M/L
dB(A)
43/38/30/24
Moisture removal
l/hr
0,8
Condensate drain tube I.D
mm
16
Dimensions
WxHxD
mm
770x283x201
Weight
kg
8
Package dimensions
WxHxD
mm
855x280x360
Packaged weight
kg
11
Units per pallet
units
21 units per pallet
Stacking height
units
7 levels
OUTDOOR
Refrigerant control
EEV
Compressor type, model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
850
Air flow
H/L
m3/hr
1800
Sound power level(4)
H/L
dB(A)
62
Sound pressure level(5)
H/L
dB(A)
51
Dimensions
WxHxD
mm
776x540x320
Weight
kg
36
Package dimensions
WxHxD
mm
851x595 x363
Packaged weight
kg
41
Units per pallet
Units
9 units per palle t
Stacking height
units
3 levels
Refrigerant type
R410 A
Refrigerant charge (standard connecting
tubing length)
kg(5m)
0.8
Additional charge per 1 meter
gr / 1m
5m<L<15m 20g/m
Connections
between units
Liquid line
In.(mm)
1/4"(6.35)
Suction line
In.(mm)
3/8"(9.53)
Max.tubing length
m.
Max . 15
Max.height difference
m.
Max.10
Operation control type
Remote control
Heating elements
kW
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) SEER / SCOP calculation accordance with EN14825.

PRODUCT DATA SHEET
2-2
SM HDDE 1-A.1 GB
OUTDOOR
INDOOR
Model Indoor Unit AWAU-HDDE012-N11
Model Outdoor Unit AWAU-YDDE012-H11
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Avera g e Warmer
Capacity (1) kW 3,5 (0,6-3,96) 3,8 (0,6-5,13)
Pdesign kW 3,5 2,7 3,5
SEER / SCOP (2) W/W 5,1 3,8 4,2
Energy efficiency class A A A+
Annual energy consumption kWh 240 995 1149
Tbiv oC N/A -7 ??
Tol oC N/A -15 -10
Power supply V/Ph/Hz 220-240V/Single/50Hz
Circuit breaker rating A 16
Fan type & quantity Cross flow fan x1
Fan speeds H/M/L RPM 1350/1150/950/750 1350/1190/1020/850
Air flow (3) H/M/L m3/hr 680/560/410/300 680/560/410/300
External static
pressure Min-Max Pa 0
Sound power level (4) H/M/L dB(A) 56/49/41/35
Sound pressure level (5) H/M/L dB(A) 44/39/31/25
Moisture removal l/hr 1,4
Condensate drain tube I.D mm 16
Dimensions WxHxD mm 770x283x201
Weight kg 9
Package dimensions WxHxD mm 855x280x360
Packaged weight kg 12
Units per pallet units 21 units per pallet
Stacking height units 7 levels
Refrigerant control EEV
Compressor type, model Rotary DC Inverter
Fan type & quantity Axial x 1
Fan speeds H/L RPM 900
Air flow H/L m3/hr 1800
Sound power level(4) H/L dB(A) 62
Sound pressure level(5) H/L dB(A) 53
Dimensions WxHxD mm 848x540x320
Weight kg 40
Package dimensions WxHxD mm 881x595 x363
Packaged weight kg 45
Units per pallet Units 9 units per pallet
Stacking height units 3 levels
Refrigerant type R410A
Refrigerant charge (standard connecting
tubing length) kg(5m) 1.0
Additional charge per 1 meter gr / 1m 5m<L<20m 20g/m
Liquid line In.(mm) 1/4"(6.35)
Connections
between units Suction line In.(mm) 3/8"(9.53)
Max.tubing length m. Max.20
Max.height difference m. Max.10
Operation control type Remote control
Heating elements kW
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) SEER / SCOP calculation accordance with EN14825.

RATING CONDITIONS
INTRODUCTION
2-3
SM HDDE 1-A.1 GB
OUTDOOR
INDOOR
Model Indoor Unit AWAU-HDDE018-N11
Model Outdoor Unit AWAU-YDDE018-H11
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Avera g e Warmer
Capacity (1) kW 5,3 (1,2-6,3) 5,6 (1,1-6,4)
Pdesign kW 5,3 4,8 5,3
SEER / SCOP (2) W/W 5,4 3,8 4,6
Energy efficiency class A A A++
Annual energy consumption kWh 345 1768 1611
Tbiv oC N/A -7 ??
Tol oC N/A -15 -10
Power supply V/Ph/Hz 220-240V/Single/50Hz
Circuit breaker rating A 25
Fan type & quantity Cross flow fan x1
Fan speeds H/M/L RPM 1350/1100/950/800 1400/1200/1050/900
Air flow (3) H/M/L m3/hr 800/680/560/460 800/680/560/460
External static
pressure Min-Max Pa 0
Sound power level (4) H/M/L dB(A) 60/55/51/46
Sound pressure level (5) H/M/L dB(A) 49/44/40/35
Moisture removal l/hr 1,8
Condensate drain tube I.D mm 16
Dimensions WxHxD mm 865x305x215
Weight kg 12
Package dimensions WxHxD mm 948x310x383
Packaged weight kg 15
Units per pallet units 18 units per pallet
Stacking height units 6 levels
Refrigerant control Capillary
Compressor type, model Twin Rotary DC Inverter
Fan type & quantity Axial x 1
Fan speeds H/L RPM 750
Air flow H/L m3/hr 3200
Sound power level(4) H/L dB(A) 65
Sound pressure level(5) H/L dB(A) 55
Dimensions WxHxD mm 955x700x396
Weight kg 46
Package dimensions WxHxD mm 1029x750x458
Packaged weight kg 50
Units per pallet Units 6 units per pallet
Stacking height units 2 levels
Refrigerant type R410A
Refrigerant charge (standard connecting
tubing length) kg(5m) 1.3
Additional charge per 1 meter gr / 1m 5m<L<25m 20g/m
Liquid line In.(mm) 1/4"(6.35)
Connections
between units Suction line In.(mm) 1/2"(12.7)
Max.tubing length m. Max.25
Max.height difference m. Max.10
Operation control type Remote control
Heating elements kW
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) SEER / SCOP calculation accordance with EN14825.

PRODUCT DATA SHEET
2-4
SM HDDE 1-A.1 GB
OUTDOOR
INDOOR
Model Indoor Unit AWAU-HDDE024-N11
Model Outdoor Unit AWAU-YDDE024-H11
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Avera g e Warmer
Capacity (1) kW 6,45 (2,53-6,55) 7,0 (2,53-7,6)
Pdesign kW 6,45 5,8 6,2
SEER / SCOP (2) W/W 5,4 3,8 4,6
Energy efficiency class A A A++
Annual energy consumption kWh 439 2137 1852
Tbiv oC N/A -7 ??
Tol oC N/A -15 -10
Power supply V/Ph/Hz 220-240V/Single/50Hz
Circuit breaker rating A 25
Fan type & quantity Cross flow fan x1
Fan speeds H/M/L RPM 1350/1150/950/850 1400/1200/1000/900
Air flow (3) H/M/L m3/hr 1000/800/700/550 1000/800/700/550
External static
pressure Min-Max Pa 0
Sound power level (4) H/M/L dB(A) 63/57/52/49
Sound pressure level (5) H/M/L dB(A) 51/47/42/39
Moisture removal l/hr 2
Condensate drain tube I.D mm 16
Dimensions WxHxD mm 1008X319X221
Weight kg 14,5
Package dimensions WxHxD mm 1076X328 X398
Packaged weight kg 17,5
Units per pallet units 18 units per pallet
Stacking height units 6 levels
Refrigerant control Capillary
Compressor type, model Twin Rotary DC Inverter
Fan type & quantity Axial x 1
Fan speeds H/L RPM
Air flow H/L m3/hr 4000
Sound power level(4) H/L dB(A) 68
Sound pressure level(5) H/L dB(A) 58
Dimensions WxHxD mm 980X790X427
Weight kg 55,5
Package dimensions WxHxD mm 1083X488X855
Packaged weight kg 60,5
Units per pallet Units 6 units per pallet
Stacking height units 2 levels
Refrigerant type R410A
Refrigerant charge (standard connecting
tubing length) kg(5m) 1.8
Additional charge per 1 meter gr / 1m 5m<L<25m 50g/m
Liquid line In.(mm) 1/4"(6.35)
Connections
between units Suction line In.(mm) 5/8"(15.88)
Max.tubing length m. Max.25
Max.height difference m. Max.10
Operation control type Remote control
Heating elements kW
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) SEER / SCOP calculation accordance with EN14825.

RATING CONDITIONS
INTRODUCTION
3-1
SM HDDE 1-A.1 GB
3. RATING CONDITIONS
Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
Cooling:
Indoor: 27oC DB 19oC WB
Outdoor: 35oC DB
Heating:
Indoor: 20oC DB
Outdoor: 7oC DB 6oC WB
3.1 Operating
Limits
R410A
Indoor
Outdoor
Cooling
Upper limit
32oC DB 23oC WB
46oC DB
Lower limit
21oC DB 15oC WB
10oC DB (HDDE009/012)
5oC DB (HDDE018/024)
Heating
Upper limit
27oC DB
24oC DB 18oC WB
Lower limit
10oC DB
-15oC DB -16oC WB
Voltage
1-PH 50Hz 198 –264 V

OUTLINE DIMENSION
4-1
SM HDDE 1-A.1 GB
4. OUTLINE DIMENSION

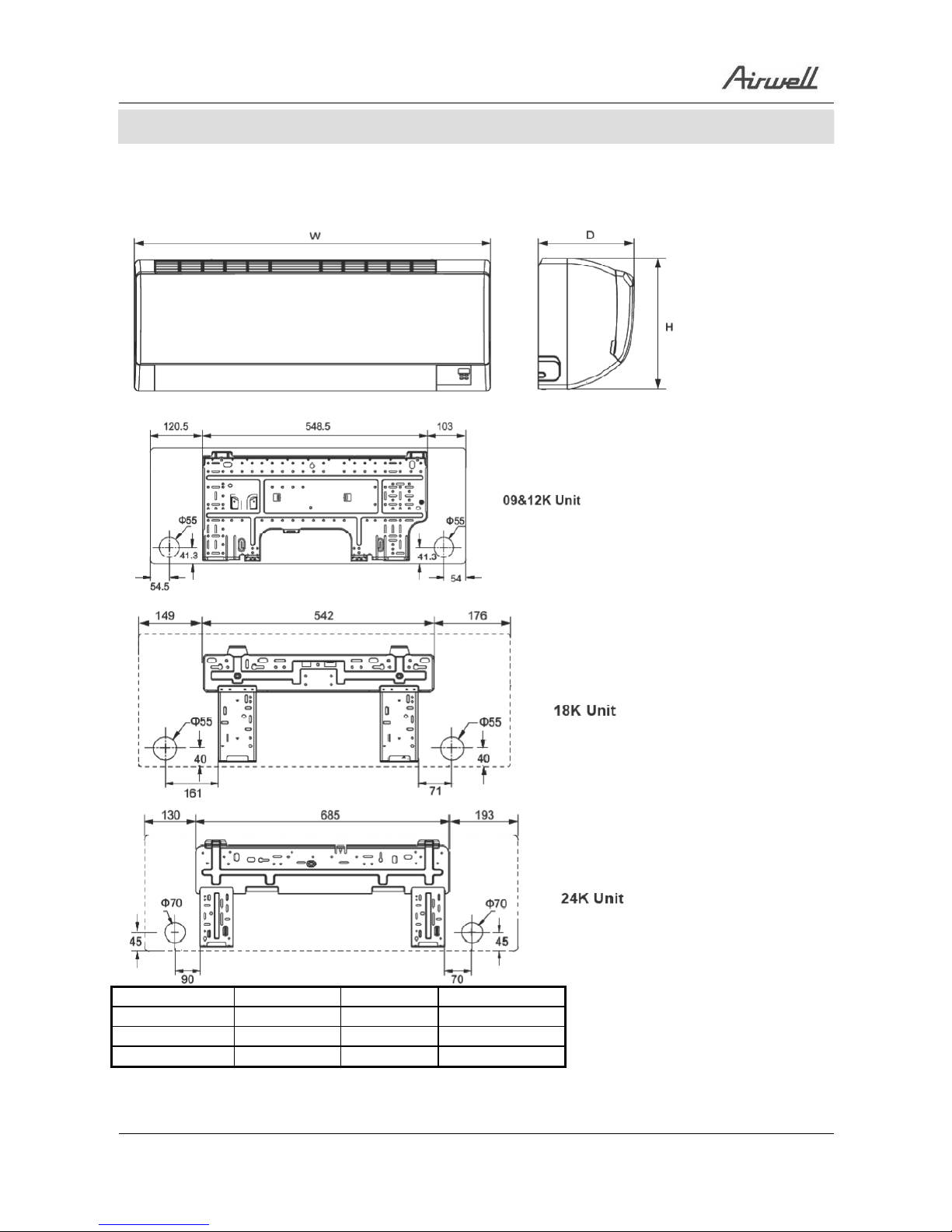

4.1 Indoor: HDDE009, HDDE012, HDDE018, HDDE024
Models
W
H
D
HDDE009/012
770
283
201
HDDE018
867
305
215
HDDE024
1008
319
221

OUTLINE DIMENSION
SM HDDE 1-A.1 GB
4-2

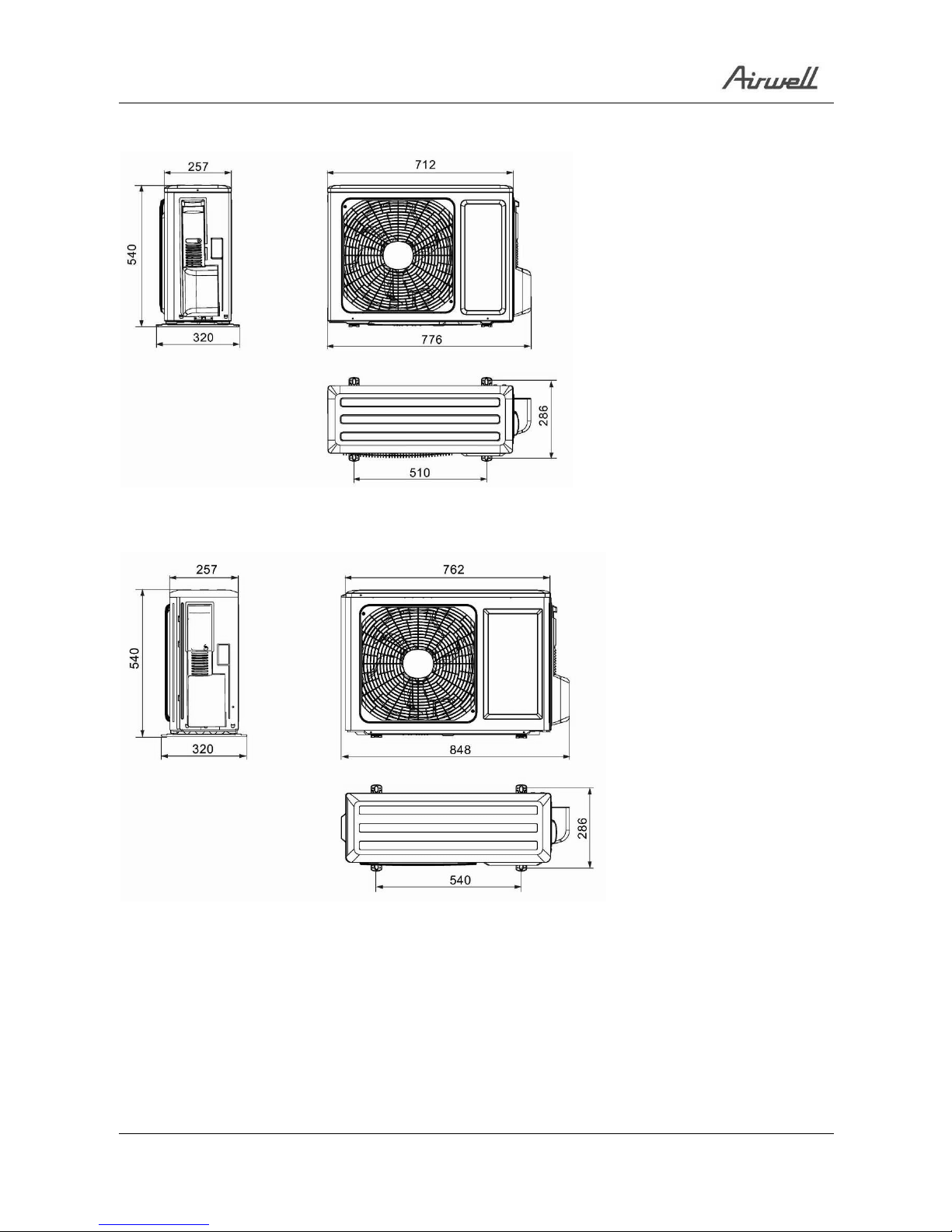

4.2 Outdoor: YDDE009
4.3 Outdoor: YDDE012

4-3
SM HDDE 1-A.1 GB
SOUND LEVEL CHARACTERISTICS
4.4 Outdoor: YDDE018
4.5 Outdoor: YDDE024

PERFORMANCE DATA
SM HDDE 1-A.1 GB
5 -1
5. PERFORMANCE DATA

SOUND LEVEL CHARACTERISTICS
SM HDDE 1-A.1 GB
6-1
6. PRESSURE CURVES

SOUND LEVEL CHARACTERISTICS
SM HDDE 1-A.1 GB
7 -1
7. SOUND LEVEL
CHARACTERISTICS
7.1
Sound Pressure Level

SOUND LEVEL CHARACTERISTICS
HDDE 1-A.1 GB
7-2

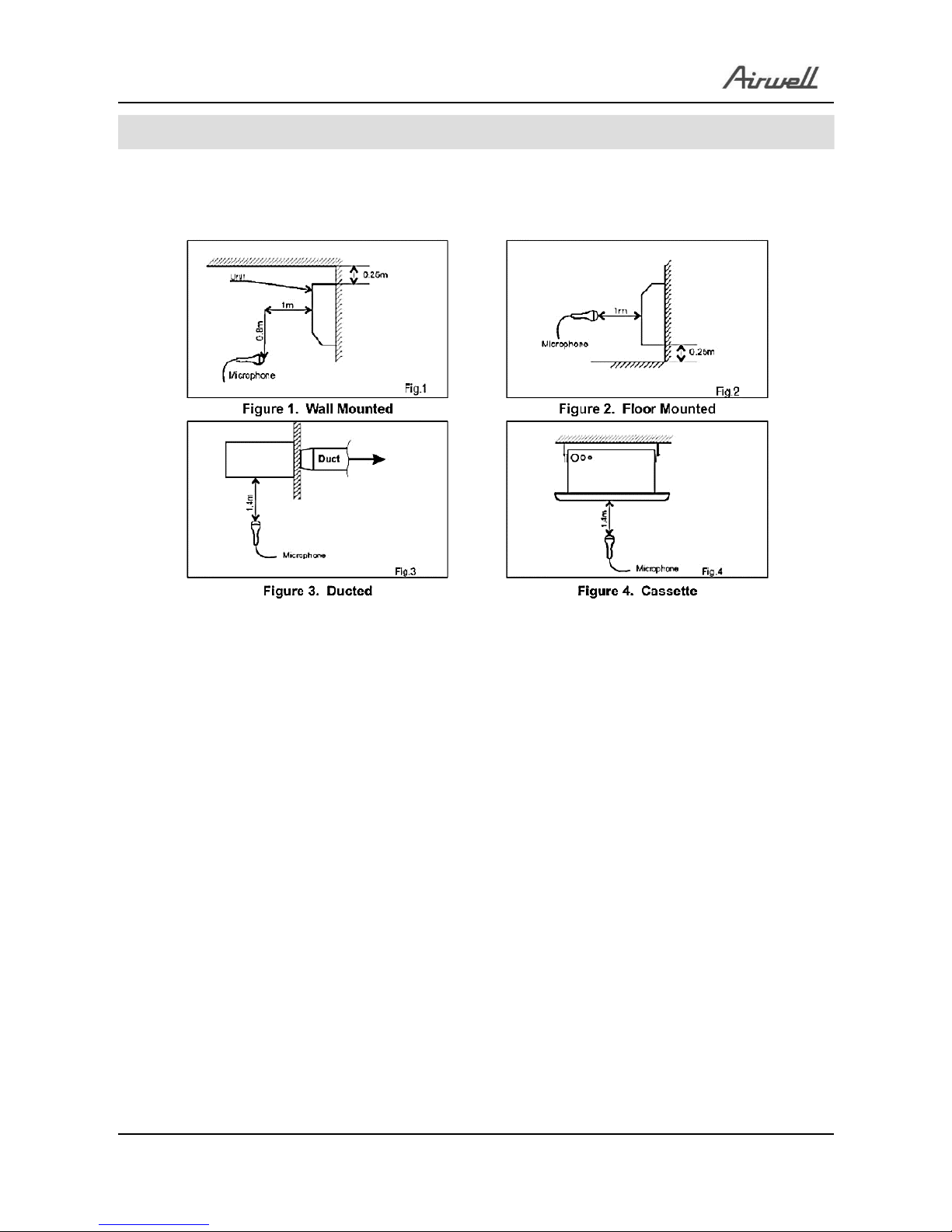

7.2 Sound Pressure Level Spectrum (Measured as Figure 1)

SM HDDE 1-A.1 GB
8-1
ELECTRICAL DATA
8. ELECTRICAL DATA
MODEL
YDDE009
YDDE012
YDDE018
YDDE024
Power Supply
To indoor
1PH-220-240V-50Hz
Max Current, A
6.9A
7.3A
11.8A
12.4A
Circuit Breaker,A
16A
16A
25A
25A
Power Supply Wiring No. X Cross Section
mm2
2
3x1.5 mm
2
3x1.5 mm
2
3x2.5 mm
3x2.5 mm2
InterconnectingCable Model No. X Cross
Section mm2
2
4x1.5 mm
2
4x1.5 mm
2
4x2.5 mm
4x2.5 mm2
NOTE
Power wiring cord should comply with local laws and electrical regulations requirements.
