Aiwa CT-X418 User manual

S E R V I C E M A N U A L
SIMPLE MANUAL
• Replace this Service Manual with ”Revision Publishing” when it is issued.
CT-X418
CT-X218
CT-X208
• TYPE: YZ(418,218,208),YV(418,218)
S/M Code No. 09–985–277–50A
STEREO CAR CASSETTE RECEIVER

MAIN PARTS LIST - 1(CT-X418)
NOTE: The characters in the suffix column indicate the part usage.
X418YZ .................XX....................................C.................
X418YV .................XX.....................................D................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-010-377-010 CAP,E 3300UF-16V A...................
87-010-866-010 CAP,E 10UF-63V A...................
87-054-089-010 BADGE(AIWA LOGO) ABCD................
87-A20-876-010 IC,HA13158 AB..................
87-A20-877-010 IC,TC9321F-015 AB..................
88-KT3-004-010 BTN-HRABS LO ABCD................
88-KTA-012-010 BTN-HRABS U/D ABCD................
88-KTA-013-010 BTN-HRABS CAP,AME ABCD................
88-KTD-006-010 BTN-HRABS DISP ABCD................
S0-0X8-KT1-001 PANEL,F ABCD................
S0-128-88K-125 TRANS EI-28 CHOKE 1MH ABCD................
S0-2X8-KT1-000 PANEL,REAR ABCD................
S0-650-651-014 SCREW,10-M5-10 ABCD................
S0-9X6-KT1-000 PANEL,CASE ABCD................
S1-1X8-KT1-003 TAPE DOOR ABCD................
S1-850-031-520 SCREW,5-15 ABCD................
S2-050-654-091 NUT M5 ABCD................
S2-0X8-KT1-000 DECK,HOLDER ABCD................
S2-2X5-KT4-000 BRACKET REAR MOUNTING ABCD................
S2-2X8-KT1-000 HOLDER HALF ABCD................
S2-2X8-KT2-000 RELEASE KEY ABCD................
S2-8X8-KT4-000 BASE LOCK ABCD................
S2-9X8-KT1-000 STOPPER DFP ABCD................
S2-9X8-KT2-000 STOPPER DFP A ABCD................
S2-9X8-KT3-000 JOINT DFP L ABCD................
S2-9X8-KT4-000 JOINT DFP R ABCD................
S2-9X8-KT5-001 RING,TUNE ABCD................
S3-0X8-KT1-000 BASE(BLK) ABCD................
S3-309-005-203 SPR,WASHER M5 ABCD................
S3-350-994-D84 IC,PST994D AB..................
S3-410-005-003 PLANE WASHER 10-5-0.5 ABCD................
S3-580-08K-TKA LCD,DISPLAY AB..................
S3-9X8-KT1-000 FILTER & FUSE BASE BOX ABCD................
S3-9X8-KT2-000 FILTER & FUSE LID ABCD................
S5-8X7-KTF-002 BTN,EJECT (LONG) ABCD................
S5-8X8-KT1-001 LCD,CASE ABCD................
S5-8X8-KT2-001 BTN,+/- ABCD................
S5-8X8-KT3-001 BTN,SEL ABCD................
S5-8X8-KT4-001 BTN,PRESET1 ABCD................
S5-8X8-KT5-001 BTN,PRESET 3 ABCD................
S5-8X8-KT6-001 BTN,PRESET 5 ABCD................
S5-8X8-KT7-001 BTN,OVAL CD ABCD................
S5-8X8-KTC-001 BTN,BAND/CR ABCD................
S5-8X8-KTD-001 BTN,SS - ABCD................
S5-8X8-KTE-001 BTN,SS - ABCD................
S5-8X8-KTF-001 BTN,FF ABCD................
S5-9X8-KT1-000 JOINT LOCK ABCD................
S6-0X8-KT1-003 LCD,WIN PC CLEAR SPY A...................
S6-0X8-KT1-001 LCD WIN-PC CLEAR .BCD................
S6-1DA-E44-2V5 JACK,RCA 4P A...................
S6-3X8-KT1-000 SPR,HALF LOCK ABCD................
S6-6FC-31T-000 CLIPS FUSE ABCD................
S6-8X8-KT1-000 HOLDER LENS ABCD................
S7-0X8-134-101 INSTRUCTION BOOK .B..................
S7-0X8-136-301 INSTRUCTION BOOK A...................
S7-0X8-146-801 INSTRUCTION BOOK(E/G/F/S/I/D/C ..C.................
S7-0X8-146-901 INSTRUCTION BOOK ENG/RUSSIS ...D................
S7-1C8-181-000 SPR,DOOR 0.25MM ABCD................
S7-1X5-KT5-100 SPR,BTN (B) ABCD................
S7-1X8-KT1-000 SPR-T,P-UP ABCD................
S7-28X-8KT-100 HOLDER IC ABCD................
S7-28X-8KT-200 HOLDER TR ABCD................
S7-28X-8KT-300 HOLDER WIRE ISO ..CD................
S7-7X6-KT1-000 SPR,DETACHABLE ABCD................
S7-7X6-KT3-000 SPR,E P-UP ABCD................
S8-2AT-C10-0BU A-FUSE 10A .BCD................
S8-2AT-C15-0BU A-FUSE 10A (ATC-10) A...................
S9-08K-TA1-200 JACK,AUX PCB ABCD................
S9-0X8-KT1-000 LENS,MAIN ABCD................
S9-0X8-KT2-000 LENS,LCD ABCD................
S9-18K-T01-2M0 HOUSING ASSY,12P AB..................
S9-18K-T05-0P0 CONN,ISO 8P 500M(BLK) ..CD................
S9-18K-T05-0S0 CONN,ISO 8P 500M(WHT) ..CD................
S9-1X8-KT1-000 COVER,TOP ABCD................
S9-58X-8KT-100 BTN,PWR/BASS ABCD................
1-HEAT 87-581-094-410 SCREW TAP 3-6 S/T/B ABCD................
1-ST.D S2-8X8-KT2-000 SPEC SCREW 2.0-4.2-2.0 ABCD................
2-BASE S2-8X8-KT3-000 SCREW,2.6M-4 THIN ABCD................
C10 87-010-234-070 CAP,E 47-16V ABCD................
C10 87-010-495-040 CAP,E 2.2UF-50V ABCD................
C105,1 87-010-234-070 CAP,E 47-16V ABCD................
C107 87-010-495-040 CAP,E 2.2UF-50V ABCD................
C20 87-010-378-040 CAP,E 10-16V ABCD................
C20 87-010-555-010 CAP,E 100-10V ABCD................
C203,2 87-010-378-040 CAP,E 10-16V ABCD................

C205,2 87-010-555-010 CAP,E 100-10V ABCD................
C50 87-010-053-080 CAP,E 1-50V ABCD................
C50 87-010-866-010 CAP,E 10UF-63V .BCD................
C501,5 87-010-053-080 CAP,E 1-50V ABCD................
C509 87-010-866-010 CAP,E 10UF-63V .BCD................
C51 87-010-298-010 CAP,E 3300UF-16V .BCD................
C60 87-010-112-040 CAP,E 100-16V ABCD................
C60 87-010-248-040 CAP,E 220-10V ABCD................
C60 87-010-552-080 CAP,E 22-16V ABCD................
C602 87-010-552-080 CAP,E 22-16V ABCD................
C603 87-010-248-040 CAP,E 220-10V ABCD................
C604 87-010-112-040 CAP,E 100-16V ABCD................
C75 87-015-698-080 CAP,E 4.7-50V ABCD................
C752 87-015-698-080 CAP,E 4.7-50V ABCD................
COD S9-103-8K2-0NT HOUSING 3PIN 2.0PITCH ABCD................
COD231 S9-103-8K2-0NT HOUSING 3PIN 2.0PITCH ABCD................
CON S6-040-825-5NT PITCH WAFER 8P ABCD................
CON S6-051-5B6-7M1 CONN,DET 15P ABCD................
CON S6-051-5B6-8M1 CONN,DET 15 ABCD................
CON231 S6-040-825-5NT PITCH WAFER 8P ABCD................
CON801 S6-051-5B6-7M1 CONN,DET 15P ABCD................
CON831 S6-051-5B6-8M1 CONN,DET 15 ABCD................
D10 87-020-465-080 DIODE,1SS133VR=35V ABCD................
D101,1 87-020-465-080 DIODE,1SS133VR=35V ABCD................
D60 82-596-799-080 DIODE,1N4002 ABCD................
D60 87-017-932-080 ZENER,MTZJ6.2B ABCD................
D60 87-070-334-010 ZENER,MTZ10B ABCD................
D601,6 82-596-799-080 DIODE,1N4002 ABCD................
D603,7 87-017-932-080 ZENER,MTZJ6.2B ABCD................
D604 87-070-334-010 ZENER,MTZ10B ABCD................
D62 87-070-136-080 ZENER,MTZJ5.1B ABCD................
D621 87-070-136-080 ZENER,MTZJ5.1B ABCD................
D70 S3-051-012-400 LED,LAMP 3MM(RED) ABCD................
D701 S3-051-012-400 LED,LAMP 3MM(RED) ABCD................
D80 87-017-779-080 DIODE,1SS355 ABCD................
D80 S3-040-806-2UD C-ZENERR,DIODE ABCD................
D801,8 S3-040-806-2UD C-ZENERR,DIODE ABCD................
D804,8 87-017-779-080 DIODE,1SS355 ABCD................
FOR 87-067-643-010 SCREW,2-10 B/T ABCD................
FOR 87-251-034-410 SCREW,M2-5 B/M ABCD................
FOR 87-251-096-410 SCREW,3-10 B/M ABCD................
FOR 87-253-072-410 SCREW,M2.6-5 PH ABCD................
FOR 87-255-073-410 SCREW,M2.6-6 B/M ABCD................
FOR 87-265-071-410 SPECIAL SCREW FH M2.6-4 ABCD................
FOR 87-341-037-010 SCREW,3-10 B/T ABCD................
FOR 87-353-034-210 SCREW,2-5 P/T ABCD................
FOR 87-741-094-410 SCREW,3-6 B/T/B ABCD................
FOR S2-8X8-KT1-000 SPEC SCREW 5.0-4.0 ABCD................
FOR BA 87-251-034-410 SCREW,M2-5 B/M ABCD................
FOR DE 87-265-071-410 SPECIAL SCREW FH M2.6-4 ABCD................
FOR FR 87-067-643-010 SCREW,2-10 B/T ABCD................
FOR HE 87-255-073-410 SCREW,M2.6-6 B/M ABCD................
FOR HE 87-741-094-410 SCREW,3-6 B/T/B ABCD................
FOR IC 87-251-096-410 SCREW,3-10 B/M ABCD................
FOR LO S2-8X8-KT1-000 SPEC SCREW 5.0-4.0 ABCD................
FOR MA 87-253-072-410 SCREW,M2.6-5 PH ABCD................
FOR PL 87-341-037-010 SCREW,3-10 B/T ABCD................
FOR RI 87-353-034-210 SCREW,2-5 P/T ABCD................
IC2 S3-320-622-564 IC,KIA6225S ABCD................
IC2 1 S3-320-622-564 IC,KIA6225S ABCD................
IC3 S3-375-373-E16 IC,LC75373E ABCD................
IC3 1 S3-375-373-E16 IC,LC75373E ABCD................
IC6 S3-32B-A09-T18 IC,BA09T ABCD................
IC631 S3-32B-A09-T18 IC,BA09T ABCD................
IC8 88-KTD-602-010 IC,TC9297F ABCD................
IC8 1 88-KTD-602-010 IC,TC9297F ABCD................
J10 S8-48K-T67-900 ANT,SOCKET ABCD................
J101 S8-48K-T67-900 ANT,SOCKET ABCD................
J45 S6-1DA-E24-2V5 JACK,RCA RCA JACK V-TYPE .BCD................
J451 S6-1DA-E24-2V5 JACK,RCA RCA JACK V-TYPE .BCD................
J80 S6-1MO-JB3-2B0 JACK,AUX ABCD................
J801 S6-1MO-JB3-2B0 JACK,AUX ABCD................
L10 87-003-143-080 COIL,4.7UH 2X4MM ABCD................
L101 87-003-143-080 COIL,4.7UH 2X4MM ABCD................
L70 87-003-149-070 COIL,47UH ABCD................
L70 87-003-383-010 COIL,1UH ABCD................
L701,7 87-003-149-070 COIL,47UH ABCD................
L702 87-003-383-010 COIL,1UH ABCD................
LC8 S3-6X6-KT1-000 CAP,LAMP ABCD................
LC8 S3-6X8-KT1-006 CAP,LAMP ABCD................
LC8 1, S3-6X8-KT1-006 CAP,LAMP ABCD................
LC8 3, S3-6X6-KT1-000 CAP,LAMP ABCD................
PL8 S8-790-653-602 PILOT LAMP 9V ABCD................
PL8 1, S8-790-653-602 PILOT LAMP 9V ABCD................
Q10 87-026-464-080 NPN BR-TR DTC114TS ABCD................
Q10 87-026-610-080 TR,KTC3198-Y ABCD................
Q10 87-A30-197-080 TR,KTA-1267-Y ABCD................
Q101,1 87-026-464-080 NPN BR-TR DTC114TS ABCD................
Q102,1 87-026-610-080 TR,KTC3198-Y ABCD................
Q103,1 87-A30-197-080 TR,KTA-1267-Y ABCD................
Q23 87-026-311-010 PNP TR,DTB123YS ABCD................
Q231 87-026-311-010 PNP TR,DTB123YS ABCD................
Q60 S3-147-320-325 TR,KTC 35V 0.8A 0.6W ABCD................
MAIN PARTS LIST - 2(CT-X418)

Q60 S3-1KT-A16-58Y TR,KTA1658Y ABCD................
Q60 S3-1KT-C43-69Y TR,KTC4369Y ABCD................
Q601 S3-147-320-325 TR,KTC 35V 0.8A 0.6W ABCD................
Q604,6 S3-1KT-A16-58Y TR,KTA1658Y ABCD................
Q606 S3-1KT-C43-69Y TR,KTC4369Y ABCD................
Q75 87-026-572-080 PNP BR-TR DTA114TS ABCD................
Q75 S3-1DT-C36-3TS TR,DTC363TS SPT ABCD................
Q752 87-026-572-080 PNP BR-TR DTA114TS ABCD................
Q753,7 S3-1DT-C36-3TS TR,DTC363TS SPT ABCD................
SW8 S4-711-015-0K1 SW,TACT 2P ABCD................
SW8 S4-711-0S5-0K1 SW,TACT SMD 2P ABCD................
SW8 1- S4-711-015-0K1 SW,TACT 2P ABCD................
SW810, S4-711-0S5-0K1 SW,TACT SMD 2P ABCD................
SW9 S4-1SK-Y12-002 SW,SLIDE MINI 1P2T ABCD................
SW9 1 S4-1SK-Y12-002 SW,SLIDE MINI 1P2T ABCD................
TUN S0-3FA-E34-001 TUNER PACK FAE340-A02 ABC.................
TUN S0-3FA-E34-0P1 TUNER PACK FAE340-P01 ...D................
TUN101 S0-3FA-E34-001 TUNER PACK FAE340-A02 ABC.................
TUN101 S0-3FA-E34-0P1 TUNER PACK FAE340-P01 ...D................
X70 S3-772-000-013 X’TAL,7.2 MHZ ABCD................
X701 S3-772-000-013 X’TAL,7.2 MHZ ABCD................
MAIN PARTS LIST - 3(CT-X418)

NOTE: The characters in the suffix column indicate the part usage.
X218YZ .................XX....................................C.................
X218YV .................XX.....................................D................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
S CORD,POWER ASSY ....................
S0-0X8-KT1-001 PANEL,F ABCD................
S0-124-B7K-T25 PT,EI-24 ABCD................
S0-2X8-KT1-000 PANEL,REAR ABCD................
S0-650-651-014 SCREW,10-M5-10 ABCD................
S0-9X6-KT1-000 PANEL,CASE ABCD................
S1-1X8-KT1-003 TAPE DOOR ABCD................
S1-850-031-520 SCREW,5-15 ABCD................
S2-050-654-091 NUT M5 ABCD................
S2-0X8-KT1-000 DECK,HOLDER ABCD................
S2-2X5-KT4-000 BRACKET REAR MOUNTING ABCD................
S2-2X8-KT1-000 HOLDER HALF ABCD................
S2-2X8-KT2-000 RELEASE KEY ABCD................
S2-8X8-KT4-000 BASE LOCK ABCD................
S2-9X8-KT1-000 STOPPER DFP ABCD................
S2-9X8-KT2-000 STOPPER DFP A ABCD................
S2-9X8-KT3-000 JOINT DFP L ABCD................
S2-9X8-KT4-000 JOINT DFP R ABCD................
S2-9X8-KT5-001 RING,TUNE ABCD................
S2-9X8-KT6-000 SPACER EJECT ..CD................
S3-0X8-KT1-000 BASE(BLK) ABCD................
S3-309-005-203 SPR,WASHER M5 ABCD................
S3-410-005-003 PLANE WASHER 10-5-0.5 ABCD................
S3-9X6-KT1-200 FILTER & FUSE BOX ABCD................
S5-8X7-KTF-002 BTN,EJECT (LONG) ABCD................
S5-8X8-130-303 CORD POWER ASSY AB..................
S5-8X8-KT1-001 LCD,CASE ABCD................
S5-8X8-KT2-001 BTN,+/- ABCD................
S5-8X8-KT3-001 BTN,SEL ABCD................
S5-8X8-KT4-001 BTN,PRESET1/ ABCD................
S5-8X8-KT5-001 BTN,PRESET 3 ABCD................
S5-8X8-KT6-001 BTN,PRESET 5 ABCD................
S5-8X8-KT7-001 BTN,OVAL CD ABCD................
S5-8X8-KT8-001 BTN,U/ ABCD................
S5-8X8-KT9-001 BTN,CA ABCD................
S5-8X8-KTA-001 BTN,CA ABCD................
S5-8X8-KTB-001 BTN,CA ABCD................
S5-8X8-KTC-001 BTN,BAND/CR ABCD................
S5-8X8-KTD-001 BTN,SS - ABCD................
S5-8X8-KTE-001 BTN,SS - ABCD................
S5-8X8-KTF-001 BTN,FF ABCD................
S5-9X8-KT1-000 JOINT LOCK ABCD................
S6-0X8-KT1-005 LCD WIN PC CLEAR SPY AB..................
S6-0X8-KT1-006 LCD WIN PC CLEAR SPY ..CD................
S6-3X8-KT1-000 SPR,HALF LOCK ABCD................
S6-694-326-2ES SPK AB..................
S6-8X8-KT1-000 HOLDER LENS ABCD................
S7-0X8-146-901 INSTRUCTION BOOK ENG/RUSSIS ...D................
S7-0X8-147-001 INSTRUCTION BOOK ENG/SPA/PORTU AB..................
S7-1C8-181-000 SPR,DOOR 0.25MM ABCD................
S7-1X5-KT5-100 SPR,BTN (B) ABCD................
S7-1X8-KT1-000 SPR-T,P-UP ABCD................
S7-28X-8KT-300 HOLDER WIRE ISO ..CD................
S7-7X6-KT1-000 SPR,DETACHABLE ABCD................
S7-7X6-KT3-000 SPR,E P-UP ABCD................
S8-17K-T02-700 FUSE ASSY 10A AB..................
S8-6X5-KT1-101 BADGE(AIWA LOGO) ABCD................
S9-08K-TA1-200 JACK,AUX PCB ABCD................
S9-0X8-KT1-000 LENS,MAIN ABCD................
S9-0X8-KT2-000 LENS,LCD ABCD................
S9-17K-T05-0P1 CONN ISO 8P ..CD................
S9-18K-T01-2M0 HOUSING ASSY,12P AB..................
S9-18K-T05-0S0 CONN,ISO 8P 500M(WHT) ..CD................
S9-1X8-KT1-000 COVER,TOP ABCD................
S9-58X-8KT-100 BTN,PWR/BASS ABCD................
SC-TAX-201-8Y0 DFP ASSY A...................
SC-TAX-205-8Y0 DFP ASSY .B..................
1-HEAT 87-581-094-410 SCREW TAP 3-6 S/T/B ABCD................
1-ST.D S2-8X8-KT2-000 SPEC SCREW 2.0-4.2-2.0 ABCD................
2-BASE 87-265-071-410 SCREW,2.6M-4 THIN ABCD................
C10 87-010-234-070 CAP,E 47-16V ABCD................
C10 87-010-495-040 CAP,E 2.2UF-50V ABCD................
C105,1 87-010-234-070 CAP,E 47-16V ABCD................
C107 87-010-495-040 CAP,E 2.2UF-50V ABCD................
C20 87-010-378-040 CAP,E 10-16V ABCD................
C20 87-010-555-010 CAP,E 100-10V ABCD................
C203,2 87-010-378-040 CAP,E 10-16V ABCD................
C205,2 87-010-555-010 CAP,E 100-10V ABCD................
C50 87-010-053-080 CAP,E 1-50V ABCD................
C50 87-010-866-010 CAP,E 10UF-63V ABCD................
C501,5 87-010-053-080 CAP,E 1-50V ABCD................
C509 87-010-866-010 CAP,E 10UF-63V ABCD................
C51 87-010-298-010 CAP,E 3300UF-16V ABCD................
C60 87-010-112-040 CAP,E 100-16V ABCD................
C60 87-010-248-040 CAP,E 220-10V ABCD................
C60 87-010-552-080 CAP,E 22-16V ABCD................
MAIN PARTS LIST - 1(CT-X218)

C602 87-010-552-080 CAP,E 22-16V ABCD................
C603 87-010-248-040 CAP,E 220-10V ABCD................
C604 87-010-112-040 CAP,E 100-16V ABCD................
C75 87-015-698-080 CAP,E 4.7-50V ABCD................
C752 87-015-698-080 CAP,E 4.7-50V ABCD................
COD S9-103-8K2-0NT HOUSING 3PIN 2.0PITCH ABCD................
COD231 S9-103-8K2-0NT HOUSING 3PIN 2.0PITCH ABCD................
CON S6-040-825-5NT PITCH WAFER 8P ABCD................
CON S6-051-5B6-7M1 CONN,DET 15P ABCD................
CON S6-051-5B6-8M1 CONN,DET 15 ABCD................
CON S9-16K-T01-2M0 SOCKET 12P AB..................
CON231 S6-040-825-5NT PITCH WAFER 8P ABCD................
CON601 S9-16K-T01-2M0 SOCKET 12P AB..................
CON801 S6-051-5B6-7M1 CONN,DET 15P ABCD................
CON831 S6-051-5B6-8M1 CONN,DET 15 ABCD................
D10 87-020-465-080 DIODE,1SS133VR=35V ABCD................
D101,1 87-020-465-080 DIODE,1SS133VR=35V ABCD................
D60 82-596-799-080 DIODE,1N4002 ABCD................
D60 87-017-932-080 ZENER,MTZJ6.2B ABCD................
D60 87-070-334-010 ZENER,MTZ10B ABCD................
D601,6 82-596-799-080 DIODE,1N4002 ABCD................
D603,7 87-017-932-080 ZENER,MTZJ6.2B ABCD................
D604 87-070-334-010 ZENER,MTZ10B ABCD................
D62 87-070-136-080 ZENER,MTZJ5.1B ABCD................
D621 87-070-136-080 ZENER,MTZJ5.1B ABCD................
D70 S3-051-012-400 LED,LAMP 3MM(RED) ABCD................
D701 S3-051-012-400 LED,LAMP 3MM(RED) ABCD................
D80 87-017-779-080 DIODE,1SS355 ABCD................
D80 S3-040-806-2UD C-ZENERR,DIODE ABCD................
D801,8 S3-040-806-2UD C-ZENERR,DIODE ABCD................
D804,8 87-017-779-080 DIODE,1SS355 ABCD................
FOR 87-067-643-010 SCREW,2-10 B/T ABCD................
FOR 87-251-034-410 SCREW,M2-5 B/M ABCD................
FOR 87-251-096-410 SCREW,3-10 B/M ABCD................
FOR 87-253-072-410 SCREW,M2.6-5 PH ABCD................
FOR 87-255-073-410 SCREW,M2.6-6 B/M ABCD................
FOR 87-265-071-410 SPECIAL SCREW FH M2.6-4 ABCD................
FOR 87-341-037-010 SCREW,3-10 B/T ABCD................
FOR 87-353-034-210 SCREW,2-5 P/T ABCD................
FOR 87-741-094-410 SCREW,3-6 B/T/B ABCD................
FOR S2-8X8-KT1-000 SPEC SCREW 5.0-4.0 ABCD................
FOR BA 87-251-034-410 SCREW,M2-5 B/M ABCD................
FOR DE 87-265-071-410 SPECIAL SCREW FH M2.6-4 ABCD................
FOR FR 87-067-643-010 SCREW,2-10 B/T ABCD................
FOR HE 87-255-073-410 SCREW,M2.6-6 B/M ABCD................
FOR HE 87-741-094-410 SCREW,3-6 B/T/B ABCD................
FOR IC 87-251-096-410 SCREW,3-10 B/M ABCD................
FOR LO S2-8X8-KT1-000 SPEC SCREW 5.0-4.0 ABCD................
FOR MA 87-253-072-410 SCREW,M2.6-5 PH ABCD................
FOR PL 87-341-037-010 SCREW,3-10 B/T ABCD................
FOR RI 87-353-034-210 SCREW,2-5 P/T ABCD................
IC2 S3-320-622-564 IC,KIA6225S ABCD................
IC2 1 S3-320-622-564 IC,KIA6225S ABCD................
IC3 S3-375-373-E16 IC,LC75373E ABCD................
IC3 1 S3-375-373-E16 IC,LC75373E ABCD................
IC5 87-A20-599-010 IC,HA13154A ABCD................
IC5 1 87-A20-599-010 IC,HA13154A ABCD................
IC6 S3-32B-A09-T18 IC,BA09T ABCD................
IC6 S3-350-994-D84 IC,PST994D ABCD................
IC621 S3-350-994-D84 IC,PST994D ABCD................
IC631 S3-32B-A09-T18 IC,BA09T ABCD................
IC7 87-A20-877-010 IC,TC9321F-015 ABCD................
IC7 1 87-A20-877-010 IC,TC9321F-015 ABCD................
IC8 88-KTD-602-010 IC,TC9297F ABCD................
IC8 1 88-KTD-602-010 IC,TC9297F ABCD................
J10 S8-48K-T67-900 ANT,SOCKET ABCD................
J101 S8-48K-T67-900 ANT,SOCKET ABCD................
J45 S6-1DA-E24-2V5 JACK,RCA RCA JACK V-TYPE ABCD................
J451 S6-1DA-E24-2V5 JACK,RCA RCA JACK V-TYPE ABCD................
J80 S6-1MO-JB3-2B0 JACK,AUX ABCD................
J801 S6-1MO-JB3-2B0 JACK,AUX ABCD................
L10 87-003-143-080 COIL,4.7UH 2X4MM ABCD................
L101 87-003-143-080 COIL,4.7UH 2X4MM ABCD................
L70 87-003-149-070 COIL,47UH ABCD................
L70 87-003-383-010 COIL,1UH ABCD................
L701,7 87-003-149-070 COIL,47UH ABCD................
L702 87-003-383-010 COIL,1UH ABCD................
LC8 S3-6X6-KT1-000 CAP,LAMP ABCD................
LC8 S3-6X8-KT1-006 CAP,LAMP ABCD................
LC8 1, S3-6X8-KT1-006 CAP,LAMP ABCD................
LC8 3, S3-6X6-KT1-000 CAP,LAMP ABCD................
LCD S3-580-08K-TKA LCD,DISPLAY ABCD................
LCD801 S3-580-08K-TKA LCD,DISPLAY ABCD................
PL8 S8-790-653-602 PILOT LAMP 9V ABCD................
PL8 1, S8-790-653-602 PILOT LAMP 9V ABCD................
Q10 87-026-464-080 NPN BR-TR DTC114TS ABCD................
Q10 87-026-610-080 TR,KTC3198-Y ABCD................
Q10 87-A30-197-080 TR,KTA-1267-Y ABCD................
Q101,1 87-026-464-080 NPN BR-TR DTC114TS ABCD................
Q102,1 87-026-610-080 TR,KTC3198-Y ABCD................
Q103,1 87-A30-197-080 TR,KTA-1267-Y ABCD................
Q23 87-026-311-010 PNP TR,DTB123YS ABCD................
Q231 87-026-311-010 PNP TR,DTB123YS ABCD................
MAIN PARTS LIST - 2(CT-X218)

Q60 S3-147-320-325 TR,KTC 35V 0.8A 0.6W ABCD................
Q60 S3-1KT-A16-58Y TR,KTA1658Y ABCD................
Q60 S3-1KT-C43-69Y TR,KTC4369Y ABCD................
Q601 S3-147-320-325 TR,KTC 35V 0.8A 0.6W ABCD................
Q604,6 S3-1KT-A16-58Y TR,KTA1658Y ABCD................
Q606 S3-1KT-C43-69Y TR,KTC4369Y ABCD................
Q75 87-026-572-080 PNP BR-TR DTA114TS ABCD................
Q75 S3-1DT-C36-3TS TR,DTC363TS SPT ABCD................
Q752 87-026-572-080 PNP BR-TR DTA114TS ABCD................
Q753,7 S3-1DT-C36-3TS TR,DTC363TS SPT ABCD................
SW8 S4-711-015-0K1 SW,TACT 2P ABCD................
SW8 S4-711-0S5-0K1 SW,TACT SMD 2P ABCD................
SW8 1- S4-711-015-0K1 SW,TACT 2P ABCD................
SW810, S4-711-0S5-0K1 SW,TACT SMD 2P ABCD................
SW9 S4-1SK-Y12-002 SW,SLIDE MINI 1P2T ABCD................
SW9 1 S4-1SK-Y12-002 SW,SLIDE MINI 1P2T ABCD................
TUN S0-3FA-E34-001 TUNER PACK FAE340-A02 ABC.................
TUN S0-3FA-E34-0P1 TUNER PACK FAE340-P01 ...D................
TUN101 S0-3FA-E34-001 TUNER PACK FAE340-A02 ABC.................
TUN101 S0-3FA-E34-0P1 TUNER PACK FAE340-P01 ...D................
X70 S3-772-000-013 X’TAL,7.2 MHZ ABCD................
X701 S3-772-000-013 X’TAL,7.2 MHZ ABCD................
MAIN PARTS LIST - 3(CT-X218)

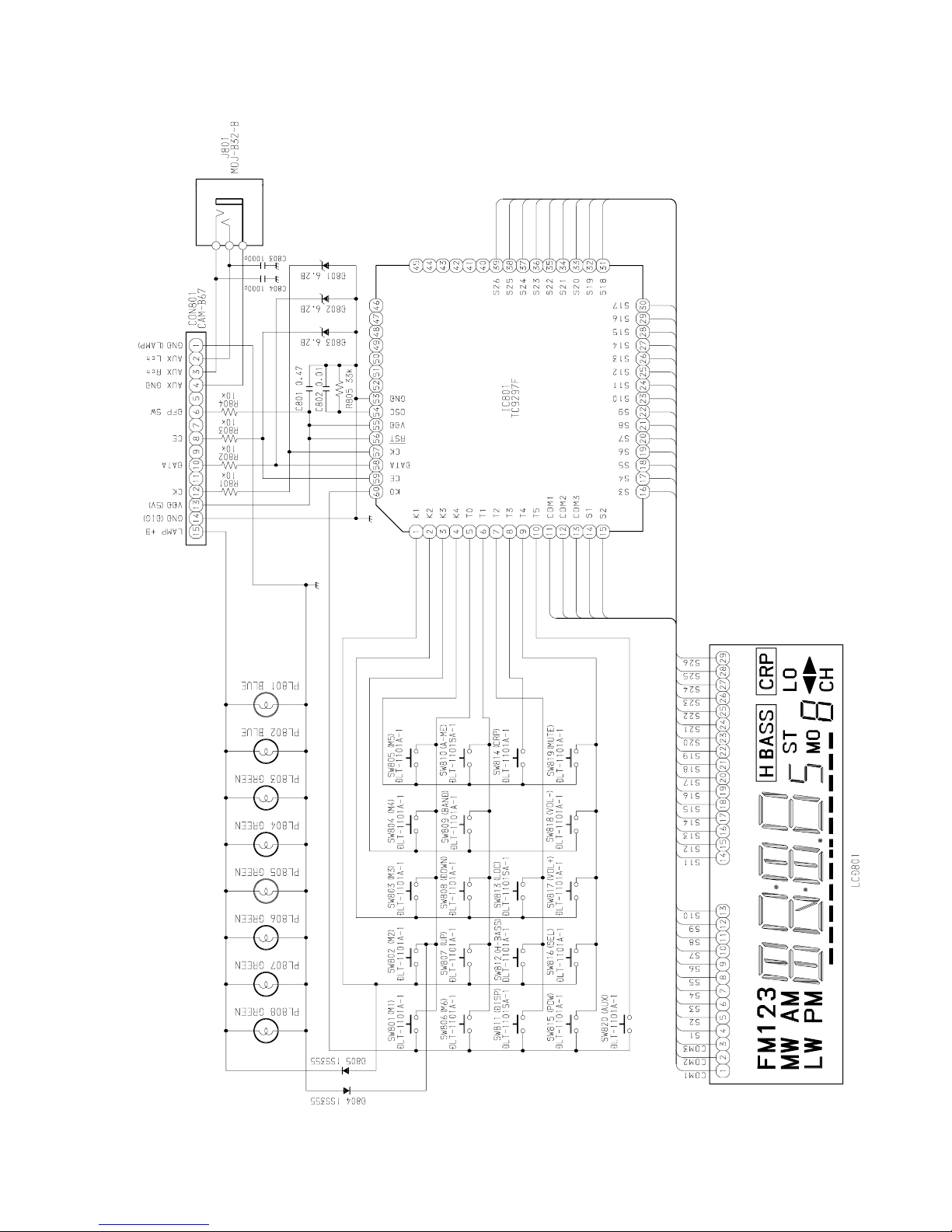

SCHEMATIC DIAGRAM _2 (FRONT)

SCHEMATIC DIAGRAM _1 (MAIN)

Printed in Singapore
Tokyo Japan
4
931261
