Aiwa HS-PS211 User manual
SERVICE MANUAL
DATA
HS-PS211
Y
SIMPLE
S/M Code No. 09-00A-438-1T1
• Replace this Service manual with “Revision Publishing” when it is issued.
STEREO CASSETTE PLAYER
-2-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
O ACCESSORY 87-B30-431-010 -- HEADPHONE,HP-M029(BL) Y1BLC HS-PS211
O ACCESSORY 87-B30-431-010 -- HEADPHONE,HP-M029(BL) Y1LC HS-PS211
O ACCESSORY 87-B30-434-010 -- HEADPHONE,HP-M029(DG) Y1SC HS-PS211
O ACCESSORY 8B-HRL-046-010 -- CLIP,BELT J034N Y1BLC HS-PS211
O ACCESSORY 8B-HRL-046-010 -- CLIP,BELT J034N Y1LC HS-PS211
O ACCESSORY 8B-HRL-046-010 -- CLIP,BELT J034N Y1SC HS-PS211
X CABITY 8B-HKA-002-010 -- PANEL,SBASS Y1SC HS-PS211
O CABITY 8B-HKA-004-010 -- LID,BATT Y1SC HS-PS211
O CABITY 8B-HKA-006-010 -- CABI,REAR YZ Y1SC HS-PS211
O CABITY 8B-HKA-007-010 -- LID,CASS YZ Y1SC HS-PS211
O CABITY 8B-HKA-008-010 -- LID,CASS BLU YZ Y1BLC HS-PS211
O CABITY 8B-HKA-008-010 -- LID,CASS BLU YZ Y1LC HS-PS211
O CABITY 8B-HKA-012-010 -- PANEL,SBASS BLU Y1BLC HS-PS211
O CABITY 8B-HKA-012-010 -- PANEL,SBASS BLU Y1LC HS-PS211
O CABITY 8B-HKA-015-010 -- CABI,REAR BLU YZ Y1BLC HS-PS211
O CABITY 8B-HKA-015-010 -- CABI,REAR BLU YZ Y1LC HS-PS211
O CABITY 8B-HKA-026-010 -- LID,BATT BLU Y1BLC HS-PS211
O CABITY 8B-HKA-026-010 -- LID,BATT BLU Y1LC HS-PS211
O CABITY 8B-HRL-002-010 -- FRAME,CENTER Y1BLC HS-PS211
O CABITY 8B-HRL-002-010 -- FRAME,CENTER Y1LC HS-PS211
O CABITY 8B-HRL-002-010 -- FRAME,CENTER Y1SC HS-PS211
O CABITY 8B-HRL-007-010 -- BTN,PLAY Y1BLC HS-PS211
O CABITY 8B-HRL-007-010 -- BTN,PLAY Y1LC HS-PS211
O CABITY 8B-HRL-007-010 -- BTN,PLAY Y1SC HS-PS211
O KNOB 8B-HRL-006-010 -- KNOB,SL SBASS Y1BLC HS-PS211
O KNOB 8B-HRL-006-010 -- KNOB,SL SBASS Y1LC HS-PS211
O KNOB 8B-HRL-006-010 -- KNOB,SL SBASS Y1SC HS-PS211
X LBL,POP 8B-HRM-970-010 -- LBL,POP 18H Y Y1LC HS-PS211
X LBL,POP 8B-HRM-970-010 -- LBL,POP 18H Y Y1SC HS-PS211
X LBL,POP 8B-HRM-974-010 -- LBL,POP Y1 HP Y1LC HS-PS211
O OTHERS 86-HRM-205-010 0E SPR-T,CLICK Y1BLC HS-PS211
O OTHERS 86-HRM-205-010 0E SPR-T,CLICK Y1LC HS-PS211
O OTHERS 86-HRM-205-010 0E SPR-T,CLICK Y1SC HS-PS211
O OTHERS 8A-HKA-201-010 0E BAT-CONTACT,(+) Y1BLC HS-PS211
O OTHERS 8A-HKA-201-010 0E BAT-CONTACT,(+) Y1LC HS-PS211
O OTHERS 8A-HKA-201-010 0E BAT-CONTACT,(+) Y1SC HS-PS211
O OTHERS 8A-HR8-214-010 0E SPR-P,CASS Y1BLC HS-PS211
O OTHERS 8A-HR8-214-010 0E SPR-P,CASS Y1LC HS-PS211
O OTHERS 8A-HR8-214-010 0E SPR-P,CASS Y1SC HS-PS211
X OTHERS 8B-HRL-201-010 -- SH,SBASS BLK Y1BLC HS-PS211
X OTHERS 8B-HRL-201-010 -- SH,SBASS BLK Y1LC HS-PS211
X OTHERS 8B-HRL-201-010 -- SH,SBASS BLK Y1SC HS-PS211
X OTHERS 8B-HRL-202-010 -- SH,SBASS COLOR Y1BLC HS-PS211
X OTHERS 8B-HRL-202-010 -- SH,SBASS COLOR Y1LC HS-PS211
X OTHERS 8B-HRL-202-010 -- SH,SBASS COLOR Y1SC HS-PS211
O OTHERS 8B-HRL-203-010 -- PLATE,BTN Y1BLC HS-PS211
O OTHERS 8B-HRL-203-010 -- PLATE,BTN Y1LC HS-PS211
O OTHERS 8B-HRL-203-010 -- PLATE,BTN Y1SC HS-PS211
O OTHERS 8B-HRL-204-010 -- PLATE,HEAD Y1BLC HS-PS211
O OTHERS 8B-HRL-204-010 -- PLATE,HEAD Y1LC HS-PS211
O OTHERS 8B-HRL-204-010 -- PLATE,HEAD Y1SC HS-PS211
O OTHERS 8Z-HKA-201-010 0E HLDR,JACK Y1BLC HS-PS211
O OTHERS 8Z-HKA-201-010 0E HLDR,JACK Y1LC HS-PS211
O OTHERS 8Z-HKA-201-010 0E HLDR,JACK Y1SC HS-PS211
O OTHERS 8Z-HKA-205-010 0E BAT-CONTACT,(-) Y1BLC HS-PS211
O OTHERS 8Z-HKA-205-010 0E BAT-CONTACT,(-) Y1LC HS-PS211
O OTHERS 8Z-HKA-205-010 0E BAT-CONTACT,(-) Y1SC HS-PS211
X OTHERS 8Z-HRL-203-010 0E SH, 16-16-0.2 W/ADH Y1BLC HS-PS211
X OTHERS 8Z-HRL-203-010 0E SH, 16-16-0.2 W/ADH Y1LC HS-PS211
X OTHERS 8Z-HRL-203-010 0E SH, 16-16-0.2 W/ADH Y1SC HS-PS211
X PACKING DU 84-529-999-010 1A BUBBLE SHEET Y1BLC HS-PS211
X PACKING DU 87-056-762-010 0E LBL,COLOR M SIL Y1SC HS-PS211
X PACKING DU 87-056-868-010 0E LBL,COLOR M BLU Y1BLC HS-PS211
X PACKING DU 87-056-868-010 0E LBL,COLOR M BLU Y1LC HS-PS211
X PACKING DU 87-B40-118-010 0E SH,FOAMED-MAT 0.31-400-135 Y1LC HS-PS211
X PACKING DU 87-B40-118-010 0E SH,FOAMED-MAT 0.31-400-135 Y1SC HS-PS211
X PACKING DU 87-B40-154-010 0E LBL,BAR-CODE CU Y1BLC HS-PS211
X PACKING DU 87-B40-154-010 0E LBL,BAR-CODE CU Y1LC HS-PS211
X PACKING DU 87-B40-154-010 0E LBL,BAR-CODE CU Y1SC HS-PS211
X PACKING DU 87-B40-281-010 0E LBL,BAR-CODE A 35X8 Y1BLC HS-PS211
-3-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
X PACKING DU 87-B40-281-010 0E LBL,BAR-CODE A 35X8 Y1LC HS-PS211
X PACKING DU 87-B40-281-010 0E LBL,BAR-CODE A 35X8 Y1SC HS-PS211
X PACKING DU 8B-HKA-851-010 -- BD,PRINTED Y1BSC Y1BLC HS-PS211
X PACKING DU 8B-HKA-856-010 -- CTN,INNER Y1BLC Y1BLC HS-PS211
X PACKING DU 8B-HKA-857-010 -- CTN,OUTER Y1BLC Y1BLC HS-PS211
X PACKING DU 8B-HKA-860-010 -- CTN,PRINTED Y1SC Y1LC HS-PS211
X PACKING DU 8B-HKA-860-010 -- CTN,PRINTED Y1SC Y1SC HS-PS211
X PACKING DU 8B-HKA-863-010 -- CTN,INNER Y1LC Y1LC HS-PS211
X PACKING DU 8B-HKA-864-010 -- CTN,OUTER Y1LC Y1LC HS-PS211
X PACKING DU 8B-HKA-865-010 -- CTN,INNER Y1SC Y1SC HS-PS211
X PACKING DU 8B-HKA-866-010 -- CTN,OUTER Y1SC Y1SC HS-PS211
X PACKING DU 8B-HKB-852-010 -- COVER,BOT C Y1BLC HS-PS211
X PACKING DU 8B-HRL-851-010 -- COVER, TOP C Y1BLC HS-PS211
X PACKING DU 8Z-HJ9-870-010 -- CUSH,SUBMECHA Y1BLC HS-PS211
X PACKING DU 8Z-HJ9-870-010 -- CUSH,SUBMECHA Y1LC HS-PS211
X PACKING DU 8Z-HJ9-870-010 -- CUSH,SUBMECHA Y1SC HS-PS211
X PACKING DU 8Z-HJ9-872-010 -- LBL,CAUTION MECHA E Y1BLC HS-PS211
X PACKING DU 8Z-HJ9-872-010 -- LBL,CAUTION MECHA E Y1LC HS-PS211
X PACKING DU 8Z-HJ9-872-010 -- LBL,CAUTION MECHA E Y1SC HS-PS211
X PACKING DU 8Z-HJ9-888-010 0E CUSH,MECHA ASSY E Y1BLC HS-PS211
X PACKING DU 8Z-HJ9-888-010 0E CUSH,MECHA ASSY E Y1LC HS-PS211
X PACKING DU 8Z-HJ9-888-010 0E CUSH,MECHA ASSY E Y1SC HS-PS211
X PLATE 8B-HKA-023-010 -- LBL,SPEC YZ Y1BLC HS-PS211
X PLATE 8B-HKA-023-010 -- LBL,SPEC YZ Y1LC HS-PS211
X PLATE 8B-HKA-023-010 -- LBL,SPEC YZ Y1SC HS-PS211
X PRE-MAIN AMP 87-610-042-210 0E WIRE,B0-4-2 Y1BLC HS-PS211
X PRE-MAIN AMP 87-610-042-210 0E WIRE,B0-4-2 Y1LC HS-PS211
X PRE-MAIN AMP 87-610-042-210 0E WIRE,B0-4-2 Y1SC HS-PS211
X PRE-MAIN AMP 87-612-042-210 0E WIRE,B2-4-2 Y1BLC HS-PS211
X PRE-MAIN AMP 87-612-042-210 0E WIRE,B2-4-2 Y1LC HS-PS211
X PRE-MAIN AMP 87-612-042-210 0E WIRE,B2-4-2 Y1SC HS-PS211
X PRE-MAIN AMP 8B-HKA-603-010 -- WIRE, FLAT 2P Y1BLC HS-PS211
X PRE-MAIN AMP 8B-HKA-603-010 -- WIRE, FLAT 2P Y1LC HS-PS211
X PRE-MAIN AMP 8B-HKA-603-010 -- WIRE, FLAT 2P Y1SC HS-PS211
X PRE-MAIN AMP 8B-HKA-604-010 -- WIRE,100MM SHIELD Y1BLC HS-PS211
X PRE-MAIN AMP 8B-HKA-604-010 -- WIRE,100MM SHIELD Y1LC HS-PS211
X PRE-MAIN AMP 8B-HKA-604-010 -- WIRE,100MM SHIELD Y1SC HS-PS211
O PRE-MAIN AMP C 0001 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1BLC HS-PS211
O PRE-MAIN AMP C 0001 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1LC HS-PS211
O PRE-MAIN AMP C 0001 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1SC HS-PS211
O PRE-MAIN AMP C 0002 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1BLC HS-PS211
O PRE-MAIN AMP C 0002 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1LC HS-PS211
O PRE-MAIN AMP C 0002 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1SC HS-PS211
O PRE-MAIN AMP C 0003 87-012-284-080 0E C-CAP,U 6800P-50 K B GRM Y1BLC HS-PS211
O PRE-MAIN AMP C 0003 87-012-284-080 0E C-CAP,U 6800P-50 K B GRM Y1LC HS-PS211
O PRE-MAIN AMP C 0003 87-012-284-080 0E C-CAP,U 6800P-50 K B GRM Y1SC HS-PS211
O PRE-MAIN AMP C 0004 87-012-284-080 0E C-CAP,U 6800P-50 K B GRM Y1BLC HS-PS211
O PRE-MAIN AMP C 0004 87-012-284-080 0E C-CAP,U 6800P-50 K B GRM Y1LC HS-PS211
O PRE-MAIN AMP C 0004 87-012-284-080 0E C-CAP,U 6800P-50 K B GRM Y1SC HS-PS211
O PRE-MAIN AMP C 0005 87-015-674-040 0E CAP,E 22-6.3 M 7L SRA Y1BLC HS-PS211
O PRE-MAIN AMP C 0005 87-015-674-040 0E CAP,E 22-6.3 M 7L SRA Y1LC HS-PS211
O PRE-MAIN AMP C 0005 87-015-674-040 0E CAP,E 22-6.3 M 7L SRA Y1SC HS-PS211
O PRE-MAIN AMP C 0006 87-015-674-040 0E CAP,E 22-6.3 M 7L SRA Y1BLC HS-PS211
O PRE-MAIN AMP C 0006 87-015-674-040 0E CAP,E 22-6.3 M 7L SRA Y1LC HS-PS211
O PRE-MAIN AMP C 0006 87-015-674-040 0E CAP,E 22-6.3 M 7L SRA Y1SC HS-PS211
O PRE-MAIN AMP C 0007 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1BLC HS-PS211
O PRE-MAIN AMP C 0007 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1LC HS-PS211
O PRE-MAIN AMP C 0007 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1SC HS-PS211
O PRE-MAIN AMP C 0008 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1BLC HS-PS211
O PRE-MAIN AMP C 0008 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1LC HS-PS211
O PRE-MAIN AMP C 0008 87-012-277-080 0E C-CAP,U 1800P-50 K B GRM Y1SC HS-PS211
O PRE-MAIN AMP C 0009 87-012-274-080 0E C-CAP,U 1000P-50 K B Y1BLC HS-PS211
O PRE-MAIN AMP C 0009 87-012-274-080 0E C-CAP,U 1000P-50 K B Y1LC HS-PS211
O PRE-MAIN AMP C 0009 87-012-274-080 0E C-CAP,U 1000P-50 K B Y1SC HS-PS211
O PRE-MAIN AMP C 0010 87-012-274-080 0E C-CAP,U 1000P-50 K B Y1BLC HS-PS211
O PRE-MAIN AMP C 0010 87-012-274-080 0E C-CAP,U 1000P-50 K B Y1LC HS-PS211
O PRE-MAIN AMP C 0010 87-012-274-080 0E C-CAP,U 1000P-50 K B Y1SC HS-PS211
O PRE-MAIN AMP C 0011 87-A10-489-040 0E CAP,E 220-4 7L SR Y1BLC HS-PS211
O PRE-MAIN AMP C 0011 87-A10-489-040 0E CAP,E 220-4 7L SR Y1LC HS-PS211
O PRE-MAIN AMP C 0011 87-A10-489-040 0E CAP,E 220-4 7L SR Y1SC HS-PS211
-4-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
O PRE-MAIN AMP C 0012 87-A10-489-040 0E CAP,E 220-4 7L SR Y1BLC HS-PS211
O PRE-MAIN AMP C 0012 87-A10-489-040 0E CAP,E 220-4 7L SR Y1LC HS-PS211
O PRE-MAIN AMP C 0012 87-A10-489-040 0E CAP,E 220-4 7L SR Y1SC HS-PS211
O PRE-MAIN AMP C 0014 87-015-681-040 0E CAP,E 10-16 7L SRA Y1BLC HS-PS211
O PRE-MAIN AMP C 0014 87-015-681-040 0E CAP,E 10-16 7L SRA Y1LC HS-PS211
O PRE-MAIN AMP C 0014 87-015-681-040 0E CAP,E 10-16 7L SRA Y1SC HS-PS211
O PRE-MAIN AMP C 0015 87-010-831-080 0E C-CAP,U 0.1-16 Z F Y1BLC HS-PS211
O PRE-MAIN AMP C 0015 87-010-831-080 0E C-CAP,U 0.1-16 Z F Y1LC HS-PS211
O PRE-MAIN AMP C 0015 87-010-831-080 0E C-CAP,U 0.1-16 Z F Y1SC HS-PS211
O PRE-MAIN AMP C 0017 87-A11-056-080 0E C-CAP,U 1-10 Z F Y1BLC HS-PS211
O PRE-MAIN AMP C 0017 87-A11-056-080 0E C-CAP,U 1-10 Z F Y1LC HS-PS211
O PRE-MAIN AMP C 0017 87-A11-056-080 0E C-CAP,U 1-10 Z F Y1SC HS-PS211
O PRE-MAIN AMP C 0018 87-A11-056-080 0E C-CAP,U 1-10 Z F Y1BLC HS-PS211
O PRE-MAIN AMP C 0018 87-A11-056-080 0E C-CAP,U 1-10 Z F Y1LC HS-PS211
O PRE-MAIN AMP C 0018 87-A11-056-080 0E C-CAP,U 1-10 Z F Y1SC HS-PS211
O PRE-MAIN AMP C 0019 87-A11-056-080 0E C-CAP,U 1-10 Z F Y1BLC HS-PS211
O PRE-MAIN AMP C 0019 87-A11-056-080 0E C-CAP,U 1-10 Z F Y1LC HS-PS211
O PRE-MAIN AMP C 0019 87-A11-056-080 0E C-CAP,U 1-10 Z F Y1SC HS-PS211
O PRE-MAIN AMP C 0051 87-015-695-040 0E CAP,E 1-50 7L SRA Y1BLC HS-PS211
O PRE-MAIN AMP C 0051 87-015-695-040 0E CAP,E 1-50 7L SRA Y1LC HS-PS211
O PRE-MAIN AMP C 0051 87-015-695-040 0E CAP,E 1-50 7L SRA Y1SC HS-PS211
S PRE-MAIN AMP D 0051 87-A40-965-040 0E C-DIODE,MMBD-2838LT1 Y1BLC HS-PS211
S PRE-MAIN AMP D 0051 87-A40-965-040 0E C-DIODE,MMBD-2838LT1 Y1LC HS-PS211
S PRE-MAIN AMP D 0051 87-A40-965-040 0E C-DIODE,MMBD-2838LT1 Y1SC HS-PS211
S PRE-MAIN AMP IC 0001 87-A21-684-040 1C C-IC,TA2145AF Y1BLC HS-PS211
S PRE-MAIN AMP IC 0001 87-A21-684-040 1C C-IC,TA2145AF Y1LC HS-PS211
S PRE-MAIN AMP IC 0001 87-A21-684-040 1C C-IC,TA2145AF Y1SC HS-PS211
O PRE-MAIN AMP J 0001 85-HRL-623-010 0E JACK,3.5 BLK ST BLK Y1BLC HS-PS211
O PRE-MAIN AMP J 0001 85-HRL-623-010 0E JACK,3.5 BLK ST BLK Y1LC HS-PS211
O PRE-MAIN AMP J 0001 85-HRL-623-010 0E JACK,3.5 BLK ST BLK Y1SC HS-PS211
X PRE-MAIN AMP JR 0001 88-108-000-080 0E C-JUMPER,U Y1BLC HS-PS211
X PRE-MAIN AMP JR 0001 88-108-000-080 0E C-JUMPER,U Y1LC HS-PS211
X PRE-MAIN AMP JR 0001 88-108-000-080 0E C-JUMPER,U Y1SC HS-PS211
X PRE-MAIN AMP JR 0002 88-108-000-080 0E C-JUMPER,U Y1BLC HS-PS211
X PRE-MAIN AMP JR 0002 88-108-000-080 0E C-JUMPER,U Y1LC HS-PS211
X PRE-MAIN AMP JR 0002 88-108-000-080 0E C-JUMPER,U Y1SC HS-PS211
X PRE-MAIN AMP JR 0003 88-108-000-080 0E C-JUMPER,U Y1BLC HS-PS211
X PRE-MAIN AMP JR 0003 88-108-000-080 0E C-JUMPER,U Y1LC HS-PS211
X PRE-MAIN AMP JR 0003 88-108-000-080 0E C-JUMPER,U Y1SC HS-PS211
S PRE-MAIN AMP Q 0001 87-A30-490-040 0E C-TR,KRC107S Y1BLC HS-PS211
S PRE-MAIN AMP Q 0001 87-A30-490-040 0E C-TR,KRC107S Y1LC HS-PS211
S PRE-MAIN AMP Q 0001 87-A30-490-040 0E C-TR,KRC107S Y1SC HS-PS211
X PRE-MAIN AMP R 0001 88-108-274-080 0E C-RES,U 270K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0001 88-108-274-080 0E C-RES,U 270K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0001 88-108-274-080 0E C-RES,U 270K-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0002 88-108-274-080 0E C-RES,U 270K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0002 88-108-274-080 0E C-RES,U 270K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0002 88-108-274-080 0E C-RES,U 270K-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0003 88-108-223-080 0E C-RES,U 22K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0003 88-108-223-080 0E C-RES,U 22K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0003 88-108-223-080 0E C-RES,U 22K-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0004 88-108-223-080 0E C-RES,U 22K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0004 88-108-223-080 0E C-RES,U 22K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0004 88-108-223-080 0E C-RES,U 22K-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0005 88-108-561-080 0E C-RES,U 560-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0005 88-108-561-080 0E C-RES,U 560-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0005 88-108-561-080 0E C-RES,U 560-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0006 88-108-561-080 0E C-RES,U 560-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0006 88-108-561-080 0E C-RES,U 560-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0006 88-108-561-080 0E C-RES,U 560-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0007 88-108-183-080 0E C-RES,U 18K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0007 88-108-183-080 0E C-RES,U 18K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0007 88-108-183-080 0E C-RES,U 18K-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0008 88-108-183-080 0E C-RES,U 18K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0008 88-108-183-080 0E C-RES,U 18K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0008 88-108-183-080 0E C-RES,U 18K-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0013 88-108-562-080 0E C-RES,U 5.6K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0013 88-108-562-080 0E C-RES,U 5.6K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0013 88-108-562-080 0E C-RES,U 5.6K-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0014 88-108-000-080 0E C-JUMPER,U Y1BLC HS-PS211
-5-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
X PRE-MAIN AMP R 0014 88-108-000-080 0E C-JUMPER,U Y1LC HS-PS211
X PRE-MAIN AMP R 0014 88-108-000-080 0E C-JUMPER,U Y1SC HS-PS211
X PRE-MAIN AMP R 0016 88-108-330-080 0E C-RES,U 33-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0016 88-108-330-080 0E C-RES,U 33-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0016 88-108-330-080 0E C-RES,U 33-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0017 88-108-330-080 0E C-RES,U 33-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0017 88-108-330-080 0E C-RES,U 33-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0017 88-108-330-080 0E C-RES,U 33-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0018 88-108-000-080 0E C-JUMPER,U Y1BLC HS-PS211
X PRE-MAIN AMP R 0018 88-108-000-080 0E C-JUMPER,U Y1LC HS-PS211
X PRE-MAIN AMP R 0018 88-108-000-080 0E C-JUMPER,U Y1SC HS-PS211
X PRE-MAIN AMP R 0021 88-108-183-080 0E C-RES,U 18K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0021 88-108-183-080 0E C-RES,U 18K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0021 88-108-183-080 0E C-RES,U 18K-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0022 88-108-183-080 0E C-RES,U 18K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0022 88-108-183-080 0E C-RES,U 18K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0022 88-108-183-080 0E C-RES,U 18K-1/16W J Y1SC HS-PS211
O PRE-MAIN AMP R 0051 87-A00-530-080 0E C-RES,S 180-1/10W F Y1BLC HS-PS211
O PRE-MAIN AMP R 0051 87-A00-530-080 0E C-RES,S 180-1/10W F Y1LC HS-PS211
O PRE-MAIN AMP R 0051 87-A00-530-080 0E C-RES,S 180-1/10W F Y1SC HS-PS211
X PRE-MAIN AMP R 0053 88-108-182-080 0E C-RES,U 1.8K-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0053 88-108-182-080 0E C-RES,U 1.8K-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0053 88-108-182-080 0E C-RES,U 1.8K-1/16W J Y1SC HS-PS211
X PRE-MAIN AMP R 0054 88-108-221-080 0E C-RES,U 220-1/16W J Y1BLC HS-PS211
X PRE-MAIN AMP R 0054 88-108-221-080 0E C-RES,U 220-1/16W J Y1LC HS-PS211
X PRE-MAIN AMP R 0054 88-108-221-080 0E C-RES,U 220-1/16W J Y1SC HS-PS211
O PRE-MAIN AMP SFR0051 87-024-197-010 0E SFR,1K H VZ066L3 Y1BLC HS-PS211
O PRE-MAIN AMP SFR0051 87-024-197-010 0E SFR,1K H VZ066L3 Y1LC HS-PS211
O PRE-MAIN AMP SFR0051 87-024-197-010 0E SFR,1K H VZ066L3 Y1SC HS-PS211
O PRE-MAIN AMP SW 0001 87-A90-133-110 0E SW,LEAF LSA1120JAU Y1BLC HS-PS211
O PRE-MAIN AMP SW 0001 87-A90-133-110 0E SW,LEAF LSA1120JAU Y1LC HS-PS211
O PRE-MAIN AMP SW 0001 87-A90-133-110 0E SW,LEAF LSA1120JAU Y1SC HS-PS211
O PRE-MAIN AMP VR 0001 87-A91-581-110 0E VR,RTRY 20KBX1 Y1BLC HS-PS211
O PRE-MAIN AMP VR 0001 87-A91-581-110 0E VR,RTRY 20KBX1 Y1LC HS-PS211
O PRE-MAIN AMP VR 0001 87-A91-581-110 0E VR,RTRY 20KBX1 Y1SC HS-PS211
X PRINTED MATTERS 87-056-168-010 0E SH,CAUTION INF-WARR(EC) Y1BLC HS-PS211
X PRINTED MATTERS 87-056-168-010 0E SH,CAUTION INF-WARR(EC) Y1LC HS-PS211
X PRINTED MATTERS 87-056-168-010 0E SH,CAUTION INF-WARR(EC) Y1SC HS-PS211
X PRINTED MATTERS 87-B50-065-010 0E LIST,FACILITY(S)-TOKYO Y1BLC HS-PS211
X PRINTED MATTERS 87-B50-065-010 0E LIST,FACILITY(S)-TOKYO Y1LC HS-PS211
X PRINTED MATTERS 87-B50-065-010 0E LIST,FACILITY(S)-TOKYO Y1SC HS-PS211
O PRINTED MATTERS 8B-HKA-901-010 -- IB,Y (EGFSI)-C Y1BLC HS-PS211
O PRINTED MATTERS 8B-HKA-901-010 -- IB,Y (EGFSI)-C Y1LC HS-PS211
O PRINTED MATTERS 8B-HKA-901-010 -- IB,Y (EGFSI)-C Y1SC HS-PS211
O PRINTED MATTERS 8B-HKA-902-010 -- IB,Y (EDPOHCZ)-C Y1BLC HS-PS211
O PRINTED MATTERS 8B-HKA-902-010 -- IB,Y (EDPOHCZ)-C Y1LC HS-PS211
O PRINTED MATTERS 8B-HKA-902-010 -- IB,Y (EDPOHCZ)-C Y1SC HS-PS211
X PWB,A 8B-HKA-610-010 -- PWB,COMB 4M Y1BLC HS-PS211
X PWB,A 8B-HKA-610-010 -- PWB,COMB 4M Y1LC HS-PS211
X PWB,A 8B-HKA-610-010 -- PWB,COMB 4M Y1SC HS-PS211
X PWB,A 8B-HKA-611-010 -- PWB,MAIN Y1BLC HS-PS211
X PWB,A 8B-HKA-611-010 -- PWB,MAIN Y1LC HS-PS211
X PWB,A 8B-HKA-611-010 -- PWB,MAIN Y1SC HS-PS211
X PWB,A 8B-HKA-612-010 -- PWB,FRONT Y1BLC HS-PS211
X PWB,A 8B-HKA-612-010 -- PWB,FRONT Y1LC HS-PS211
X PWB,A 8B-HKA-612-010 -- PWB,FRONT Y1SC HS-PS211
O SCREW 87-067-384-010 0E VT2+1.4-3.5 SWCH HL Y1BLC HS-PS211
O SCREW 87-067-384-010 0E VT2+1.4-3.5 SWCH HL Y1LC HS-PS211
O SCREW 87-067-384-010 0E VT2+1.4-3.5 SWCH HL Y1SC HS-PS211
O SCREW 87-067-732-010 0E VT2+1.4-3 CR BLK HL Y1BLC HS-PS211
O SCREW 87-067-732-010 0E VT2+1.4-3 CR BLK HL Y1LC HS-PS211
O SCREW 87-067-732-010 0E VT2+1.4-3 CR BLK HL Y1SC HS-PS211
O SCREW 87-067-732-010 0E VT2+1.4-3 CR BLK HL Y1BLC HS-PS211
O SCREW 87-067-732-010 0E VT2+1.4-3 CR BLK HL Y1LC HS-PS211
O SCREW 87-067-732-010 0E VT2+1.4-3 CR BLK HL Y1SC HS-PS211
O SCREW 87-264-525-310 0E V+1.7-2.5 CR Y1BLC HS-PS211
O SCREW 87-264-525-310 0E V+1.7-2.5 CR Y1LC HS-PS211
O SCREW 87-264-525-310 0E V+1.7-2.5 CR Y1SC HS-PS211
O SUPER BASS C 0401 87-A10-025-080 0E C-CAP,U 0.22-16 Z F Y1BLC HS-PS211
O SUPER BASS C 0401 87-A10-025-080 0E C-CAP,U 0.22-16 Z F Y1LC HS-PS211
-6-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
PARTS LIST
O SUPER BASS C 0401 87-A10-025-080 0E C-CAP,U 0.22-16 Z F Y1SC HS-PS211
O SUPER BASS C 0402 87-A10-025-080 0E C-CAP,U 0.22-16 Z F Y1BLC HS-PS211
O SUPER BASS C 0402 87-A10-025-080 0E C-CAP,U 0.22-16 Z F Y1LC HS-PS211
O SUPER BASS C 0402 87-A10-025-080 0E C-CAP,U 0.22-16 Z F Y1SC HS-PS211
O SUPER BASS C 0403 87-010-831-080 0E C-CAP,U 0.1-16 Z F Y1BLC HS-PS211
O SUPER BASS C 0403 87-010-831-080 0E C-CAP,U 0.1-16 Z F Y1LC HS-PS211
O SUPER BASS C 0403 87-010-831-080 0E C-CAP,U 0.1-16 Z F Y1SC HS-PS211
X SUPER BASS R 0401 88-108-123-080 0E C-RES,U 12K-1/16W J Y1BLC HS-PS211
X SUPER BASS R 0401 88-108-123-080 0E C-RES,U 12K-1/16W J Y1LC HS-PS211
X SUPER BASS R 0401 88-108-123-080 0E C-RES,U 12K-1/16W J Y1SC HS-PS211
X SUPER BASS R 0402 88-108-123-080 0E C-RES,U 12K-1/16W J Y1BLC HS-PS211
X SUPER BASS R 0402 88-108-123-080 0E C-RES,U 12K-1/16W J Y1LC HS-PS211
X SUPER BASS R 0402 88-108-123-080 0E C-RES,U 12K-1/16W J Y1SC HS-PS211
X SUPER BASS R 0403 88-108-103-080 0E C-RES,U 10K-1/16W J Y1BLC HS-PS211
X SUPER BASS R 0403 88-108-103-080 0E C-RES,U 10K-1/16W J Y1LC HS-PS211
X SUPER BASS R 0403 88-108-103-080 0E C-RES,U 10K-1/16W J Y1SC HS-PS211
O SUPER BASS S 0401 87-A92-020-010 -- C-SW,SL 1-1-2 L0NG(NC) Y1BLC HS-PS211
O SUPER BASS S 0401 87-A92-020-010 -- C-SW,SL 1-1-2 L0NG(NC) Y1LC HS-PS211
O SUPER BASS S 0401 87-A92-020-010 -- C-SW,SL 1-1-2 L0NG(NC) Y1SC HS-PS211
X TAPE TRANSPORT M8-4ZM-281-070 -- 4ZM-2 P17NC Y1BLC HS-PS211
X TAPE TRANSPORT M8-4ZM-281-070 -- 4ZM-2 P17NC Y1LC HS-PS211
X TAPE TRANSPORT M8-4ZM-281-070 -- 4ZM-2 P17NC Y1SC HS-PS211
– 7 –

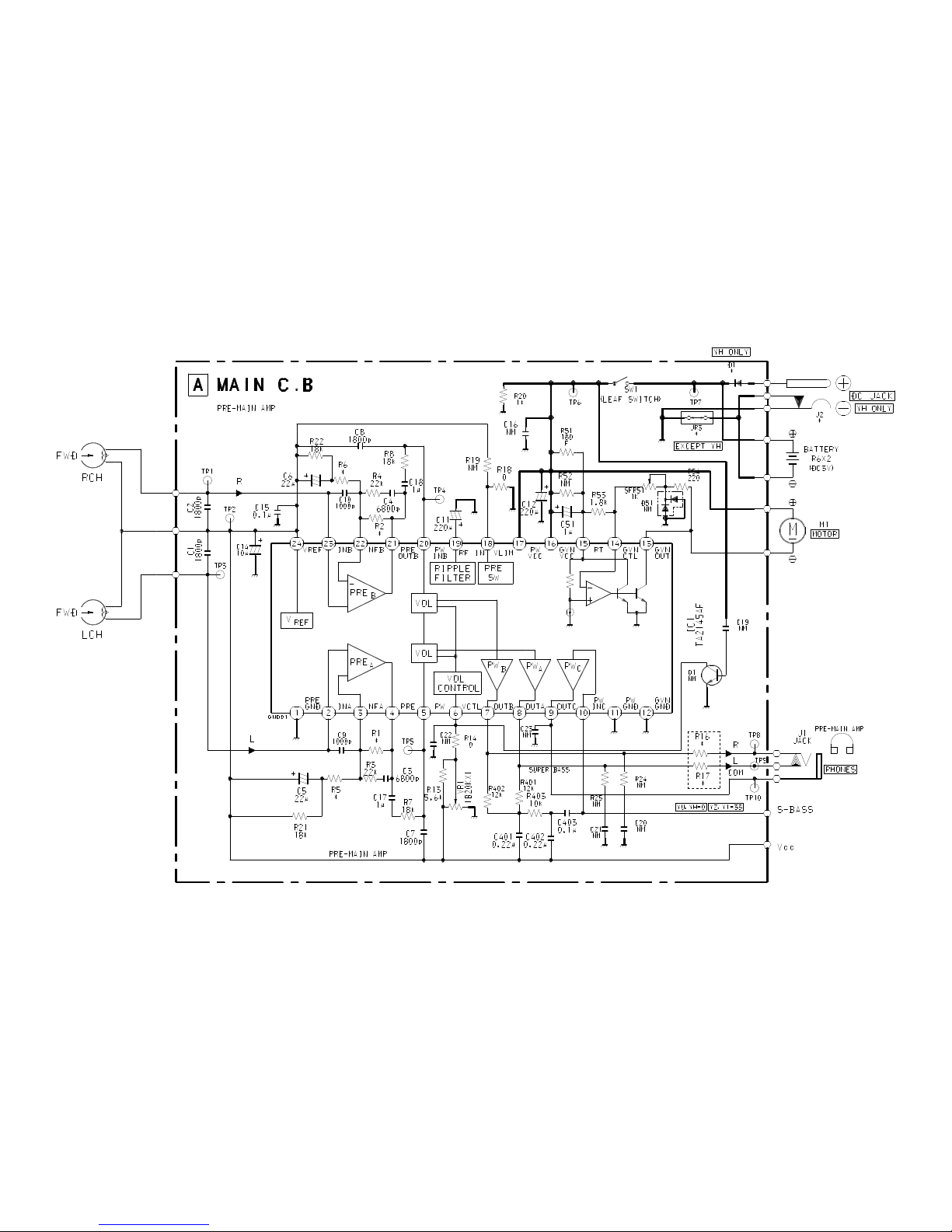

SCHEMATIC DIAGRAM – 1 (MAIN)
– 8 –

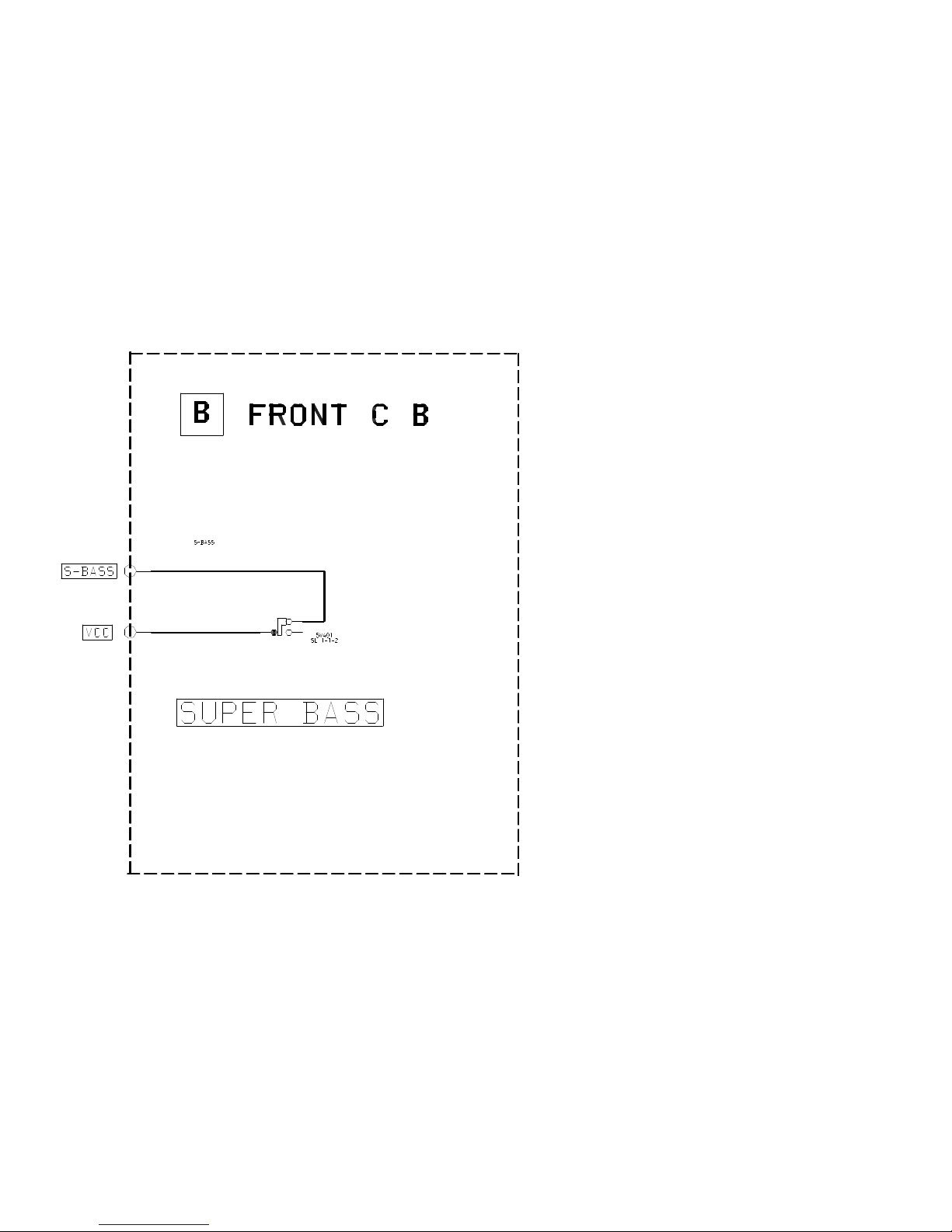

SCHEMATIC DIAGRAM – 2 (FRONT)
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
Printed in Singapore2000068
Other manuals for HS-PS211
2
Table of contents
Other Aiwa Cassette Player manuals
