SERVICE MANUAL

DATA

HS-RX500

YH,AH

SIMPLE

S/M Code No. 09-004-432-3T1

• Replace this Service manual with “Revision Publishing” when it is issued.

STEREO RADIO

CASSETTE PLAYER BASIC TAPE MECHANISM: 7ZM-1 P4NF

www.freeservicemanuals.info

9/17/2017

Digitized in Heiloo Netherland

ELECTRICAL MAIN PARTS LIST - 1/3

NOTE: The characters in the suffix column indicate the part usage.

YH .....................XX..................................A...................

AH .....................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 109 87-010-828-080 CHIP CAPACITOR,U 0.033-25F AB..................

C 101 87-012-273-080 C-CAP,U 820P-50 B AB..................

C 102 87-012-273-080 C-CAP,U 820P-50 B AB..................

C 103 87-012-273-080 C-CAP,U 820P-50 B AB..................

C 104 87-012-273-080 C-CAP,U 820P-50 B AB..................

C 108 87-012-286-080 CAP, U 0.01-25 AB..................

C 107 87-012-286-080 CAP, U 0.01-25 AB..................

C 106 87-A10-952-080 C-CAP,TN 22-4 M A MCM AB..................

C 105 87-A10-952-080 C-CAP,TN 22-4 M A MCM AB..................

C 110 87-010-828-080 CHIP CAPACITOR,U 0.033-25F AB..................

C 114 87-010-828-080 CHIP CAPACITOR,U 0.033-25F AB..................

C 112 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 116 87-010-851-080 C-CAP,47-4 AB..................

C 117 87-010-851-080 C-CAP,47-4 AB..................

C 113 87-012-274-080 CHIP CAP,U 1000P-50B AB..................

C 111 87-016-462-080 C-CAP,S 1-16 F AB..................

C 118 87-A10-707-080 C-CAP,U 0.47U-16 F Z AB..................

C 119 87-A10-707-080 C-CAP,U 0.47U-16 F Z AB..................

C 122 87-010-424-080 CAPACTOR,TANTAL 4.7-4 AB..................

C 128 87-010-784-080 C-CAP,U 0.012-25 B AB..................

C 127 87-010-784-080 C-CAP,U 0.012-25 B AB..................

C 129 87-016-462-080 C-CAP,S 1-16 F AB..................

C 123 87-016-462-080 C-CAP,S 1-16 F AB..................

C 126 87-A10-025-080 C-CAP,U 0.22-16Z F AB..................

C 125 87-A10-025-080 C-CAP,U 0.22-16Z F AB..................

C 120 87-A10-707-080 C-CAP,U 0.47U-16 F Z AB..................

C 135 87-010-424-080 CAPACTOR,TANTAL 4.7-4 AB..................

C 130 87-016-462-080 C-CAP,S 1-16 F AB..................

C 136 87-A10-025-080 C-CAP,U 0.22-16Z F AB..................

C 133 87-A10-827-080 C-CAP,U 0.47-6.3 K B AB..................

C 134 87-A10-827-080 C-CAP,U 0.47-6.3 K B AB..................

C 132 87-A11-058-080 C-CAP,U 0.22-10 K B AB..................

C 139 87-A11-797-080 C-CAP,S 2.2-16 Z F AB..................

C 137 87-A11-812-080 C-CAP,E 220-4 MVS(4.6MAX) AB..................

C 138 87-A11-812-080 C-CAP,E 220-4 MVS(4.6MAX) AB..................

C 141 87-016-317-080 C-CAP,TN 2.2-6.3 AB..................

C 145 87-016-462-080 C-CAP,S 1-16 F AB..................

C 146 87-016-462-080 C-CAP,S 1-16 F AB..................

C 143 87-A10-952-080 C-CAP,TN 22-4 M A MCM AB..................

C 144 87-A11-056-080 C-CAP,U 1-10 Z F AB..................

C 140 87-A11-797-080 C-CAP,S 2.2-16 Z F AB..................

C 150 87-A11-812-080 C-CAP,E 220-4 MVS(4.6MAX) AB..................

IC 101 87-A21-179-040 C-IC,TA2123AF AB..................

J 101 87-A60-272-010 JACK,3.5 ST 4P AB..................

L 105 87-A50-322-080 C-COIL,S BK2125 LM252 AB..................

L 107 87-A50-322-080 C-COIL,S BK2125 LM252 AB..................

L 104 87-A50-322-080 C-COIL,S BK2125 LM252 AB..................

L 103 87-A50-322-080 C-COIL,S BK2125 LM252 AB..................

L 101 87-A50-367-080 C-COIL, 10UH LQG21F AB..................

L 108 87-A50-582-080 C-COIL,S 0.22UH K FCI2012C AB..................

Q 101 87-026-414-080 C-TR RN1307 AB..................

Q 103 87-026-481-080 TR,RN4607 (0.3W) AB..................

Q 102 87-A30-085-040 C-TR,CSA1362GR AB..................

VR 101 87-A91-750-010 VR,RTRY 20KCX2 XV0107 AB..................

C 404 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 408 87-012-286-080 CAP, U 0.01-25 AB..................

C 409 87-012-286-080 CAP, U 0.01-25 AB..................

C 401 87-012-286-080 CAP, U 0.01-25 AB..................

C 406 87-A10-707-080 C-CAP,U 0.47U-16 F Z AB..................

C 405 87-A10-707-080 C-CAP,U 0.47U-16 F Z AB..................

C 402 87-A11-057-080 C-CAP,U 0.1-16 K B AB..................

C 403 87-A11-796-080 C-CAP,S 4.7-10 Z F AB..................

C 410 87-A11-056-080 C-CAP,U 1-10 Z F AB..................

IC 401 87-A20-961-040 C-IC,MM1279XV AB..................

Q 403 87-A30-085-040 C-TR,CSA1362GR AB..................

Q 402 87-A30-085-040 C-TR,CSA1362GR AB..................

Q 401 87-A30-085-040 C-TR,CSA1362GR AB..................

Q 404 89-333-266-080 CHIP TR,2SC3326B AB..................

Q 405 89-333-266-080 CHIP TR,2SC3326B AB..................

SFR 401 87-A91-465-040 C-SFR,K 6.8K H RH03AEC AB..................

TH 401 87-A00-695-080 M-RES,M/F 3.9K-1/8W J 3000PPM AB..................

PS 501 87-A90-440-010 SNSR,PHOTO GP2S24N2- AB..................

Q 502 87-026-414-080 C-TR RN1307 AB..................

Q 501 89-341-165-080 CHIP TRANSISTOR 2SC4116GR AB..................

IC 801 87-A21-691-040 C-IC,PST9009NL AB..................

R 801 87-022-236-080 C-RES,U 7.5K-1/16W F AB..................

C 701 87-016-426-080 C-CAP,E 47-4 5.5N AB..................

D 701 87-A40-666-040 C-DIODE,HN2S01F AB..................

BPF 201 81-HW1-628-080 CHIP BAND PASE FILTER AB..................

C 209 87-012-193-080 C-CAP,U 82P-50 CH AB..................

www.freeservicemanuals.info

9/17/2017

Digitized in Heiloo Netherland

ELECTRICAL MAIN PARTS LIST - 2/3

C 203 87-012-196-080 C-CAP,U 120P-50 CH AB..................

C 201 87-012-274-080 CHIP CAP,U 1000P-50B AB..................

C 207 87-012-286-080 CAP, U 0.01-25 AB..................

C 202 87-012-286-080 CAP, U 0.01-25 AB..................

C 206 87-012-286-080 CAP, U 0.01-25 AB..................

C 204 87-012-286-080 CAP, U 0.01-25 AB..................

C 208 87-A10-039-080 C-CAP,U 470P-50 J CH AB..................

C 205 87-A10-262-080 C-CAP,U 1-10 ZF AB..................

C 217 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 216 87-012-162-080 C-CAP,U 1P-50 CK AB..................

C 212 87-012-162-080 C-CAP,U 1P-50 CK AB..................

C 215 87-012-195-080 C-CAP,U 100P-50CH AB..................

C 213 87-012-286-080 CAP, U 0.01-25 AB..................

C 218 87-012-286-080 CAP, U 0.01-25 AB..................

C 214 87-012-286-080 CAP, U 0.01-25 AB..................

C 210 87-012-286-080 CAP, U 0.01-25 AB..................

C 211 87-A10-262-080 C-CAP,U 1-10 ZF AB..................

C 220 87-012-274-080 CHIP CAP,U 1000P-50B AB..................

IC 201 87-001-815-040 C-IC,TA7371AF AB..................

L 201 87-A50-245-080 C-COIL,S 0.1UH G AB..................

L 202 87-A50-246-080 C-COIL,S 0.12UH G AB..................

L 203 87-A50-583-080 C-COIL,S 2.2UH K FCI2012H AB..................

Q 201 89-115-884-080 CHIP -TRANSISTER 2SA1588Y AB..................

Q 202 89-342-153-080 TR,2SC4215 AB..................

Q 203 89-342-153-080 TR,2SC4215 AB..................

Q 205 89-342-153-080 TR,2SC4215 AB..................

TC 203 87-A91-183-080 C-TRIMMER,CER 10P TZC03 AB..................

TC 202 87-A91-185-080 C-TRIMMER,CER 30P TZC03 AB..................

VC 202 87-A40-655-080 C-VARI-CAP,HVU200A AB..................

VC 201 87-A40-655-080 C-VARI-CAP,HVU200A AB..................

C 224 87-010-787-080 CAP, U 0.022-25 AB..................

C 222 87-012-172-080 CAPACITOR CHIP U 10P CH AB..................

C 221 87-012-184-080 C-CAP,U 33P-50 CH AB..................

C 227 87-012-188-080 C-CAP,U 47P-50 CH AB..................

C 223 87-012-247-080 C-CAP,U 18P-50JUJ AB..................

C 225 87-012-273-080 C-CAP,U 820P-50 B AB..................

C 226 87-012-286-080 CAP, U 0.01-25 AB..................

C 229 87-A10-262-080 C-CAP,U 1-10 ZF AB..................

C 228 87-A10-703-080 C-CAP,TN 47-2.5 M A AB..................

C 230 87-010-424-080 CAPACTOR,TANTAL 4.7-4 AB..................

C 238 87-010-829-080 CAP, U 0.047-16 AB..................

C 237 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 232 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 231 87-012-274-080 CHIP CAP,U 1000P-50B AB..................

C 234 87-012-284-080 CAP, U 6800P-50 AB..................

C 233 87-012-284-080 CAP, U 6800P-50 AB..................

C 239 87-A10-915-080 C-CAP,U 1000P-25 J CH AB..................

C 248 87-010-198-080 CAP, CHIP 0.022 AB..................

C 247 87-010-198-080 CAP, CHIP 0.022 AB..................

C 241 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 240 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 249 87-012-282-080 CAP, U 4700P-50 AB..................

C 245 87-012-286-080 CAP, U 0.01-25 AB..................

C 244 87-012-286-080 CAP, U 0.01-25 AB..................

C 243 87-012-336-080 CAP, CHIP SS 3300 SL AB..................

C 242 87-A10-025-080 C-CAP,U 0.22-16Z F AB..................

C 246 87-A10-703-080 C-CAP,TN 47-2.5 M A AB..................

C 251 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 254 87-012-198-080 CAP 180P AB..................

C 250 87-012-282-080 CAP, U 4700P-50 AB..................

C 253 87-A10-039-080 C-CAP,U 470P-50 J CH AB..................

C 252 87-A10-262-080 C-CAP,U 1-10 ZF AB..................

CF 254 87-A90-456-080 C-FLTR,PFWCC 450J3 AB..................

CF 252 87-A91-321-080 C-FLTR,SFECV10.7 MA-5-A-TC AB..................

CF 251 87-A91-321-080 C-FLTR,SFECV10.7 MA-5-A-TC AB..................

CF 253 87-A91-441-080 C-FLTR,CDACV10.7 MG50-A-TC AB..................

IC 251 87-A20-076-040 C-IC,TA2022AFN AB..................

L 252 87-003-247-080 C-COIL,100UH AB..................

L 253 87-005-788-080 C-IFT,AM (450K) AB..................

L 251 8A-HR5-606-010 BAR-ANT,MW AB..................

Q 252 87-026-425-080 C-TR,RN2307 AB..................

Q 257 87-026-425-080 C-TR,RN2307 AB..................

Q 253 87-026-481-080 TR,RN4607 (0.3W) AB..................

Q 255 89-342-153-080 TR,2SC4215 AB..................

Q 251 89-342-153-080 TR,2SC4215 AB..................

Q 256 89-342-153-080 TR,2SC4215 AB..................

Q 254 89-342-153-080 TR,2SC4215 AB..................

SFR 251 87-A91-466-040 C-SFR,K 22K H RH03AEC AB..................

TC 251 87-A91-185-080 C-TRIMMER,CER 30P TZC03 AB..................

VC 251 87-A40-799-040 C-VARI-CAP,KV1610S AB..................

C 306 87-010-787-080 CAP, U 0.022-25 AB..................

C 307 87-010-787-080 CAP, U 0.022-25 AB..................

C 302 87-012-286-080 CAP, U 0.01-25 AB..................

C 309 87-016-462-080 C-CAP,S 1-16 F AB..................

C 301 87-016-462-080 C-CAP,S 1-16 F AB..................

C 305 87-016-462-080 C-CAP,S 1-16 F AB..................

C 303 87-A11-282-080 C-CAP,S 1-16 K B AB..................

www.freeservicemanuals.info

9/17/2017

Digitized in Heiloo Netherland

ELECTRICAL MAIN PARTS LIST - 3/3

C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

D 301 87-001-166-080 DIODE,1SS301 AB..................

D 302 87-001-166-080 DIODE,1SS301 AB..................

D 303 87-A40-883-040 C-ZENER,02DZ13-Y AB..................

L 302 87-A50-367-080 C-COIL, 10UH LQG21F AB..................

L 301 87-A50-631-080 C-COIL, DD-CONV AB..................

Q 301 87-A30-085-040 C-TR,CSA1362GR AB..................

Q 303 89-413-284-080 TR,2SD1328T AB..................

Q 302 89-413-284-080 TR,2SD1328T AB..................

C 601 87-010-805-080 CAP, S 1-16 AB..................

C 602 87-010-829-080 CAP, U 0.047-16 AB..................

C 609 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 608 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 607 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 606 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 603 87-012-176-080 CAP 15P AB..................

C 604 87-012-176-080 CAP 15P AB..................

C 605 87-A10-949-080 C-CAP,TN 10-10 M A AB..................

C 614 87-010-787-080 CAP, U 0.022-25 AB..................

C 615 87-010-800-080 C-CAP TN 1-10(A2) AB..................

C 613 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 616 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 612 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 610 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 611 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 617 87-010-831-080 C-CAP,U,0.1-16F AB..................

C 618 87-012-274-080 CHIP CAP,U 1000P-50B AB..................

C 650 87-016-436-080 C-CAP,TN 47-4(B2) AB..................

IC 602 87-A20-755-080 C-IC,AK93C45AF AB..................

IC 601 87-A21-686-030 C-IC,TC9328AF-001 AB..................

IC 604 87-A21-690-040 C-IC,PST9008NL AB..................

IC 603 87-A21-690-040 C-IC,PST9008NL AB..................

L 602 87-A50-367-080 C-COIL, 10UH LQG21F AB..................

L 601 87-A50-505-080 C-COIL, 4.7UH LQG21F AB..................

LCD 601 8A-HR5-604-010 LCD,AIW4227(AHR-5) AB..................

Q 606 87-026-417-080 TR,RN1310 AB..................

Q 602 87-026-417-080 TR,RN1310 AB..................

Q 603 87-026-418-080 TR,RN1311 (0.1W) AB..................

Q 605 87-A30-085-040 C-TR,CSA1362GR AB..................

Q 601 87-A30-085-040 C-TR,CSA1362GR AB..................

Q 608 89-341-165-080 CHIP TRANSISTOR 2SC4116GR AB..................

Q 607 89-508-804-080 CHIP FET 2SK880Y AB..................

R 608 87-022-251-080 C-RES,U 33K-1/16W F AB..................

R 615 87-022-245-080 C-RES U 18K-1/16WF AB..................

R 617 87-022-253-080 C-RES U39K-1/16WF AB..................

R 619 87-022-253-080 C-RES U39K-1/16WF AB..................

S 608 87-036-379-180 C-SW,SL1-1-2 SS350 AB..................

S 607 87-A90-004-080 C-SW,SL1-1-3 MHT(NC) AB..................

S 606 87-A91-780-080 C-SW,TACT LS15B3T AB..................

S 601 87-A91-780-080 C-SW,TACT LS15B3T AB..................

S 602 87-A91-780-080 C-SW,TACT LS15B3T AB..................

S 603 87-A91-780-080 C-SW,TACT LS15B3T AB..................

S 605 87-A91-780-080 C-SW,TACT LS15B3T AB..................

S 604 87-A91-780-080 C-SW,TACT LS15B3T AB..................

S 609 8A-HR5-605-010 SW,LEAF 7ZM-1 P4 AB..................

S 611 87-036-237-080 CHIP SWICH PUSH AB..................

S 610 87-A91-780-080 C-SW,TACT LS15B3T AB..................

X 601 87-A70-187-010 VIB,XTAL 75KHZ CFV206 AB..................

www.freeservicemanuals.info

9/17/2017

Digitized in Heiloo Netherland

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

YH .....................XX..................................A...................

AH .....................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-HK5-003-010 WINDOW,CASS AB..................

8A-HR5-001-010 LID,CASS ASSY AB..................

87-HK5-237-010 S-SCREW,1.4-2 CR NL AB..................

8Z-HK4-206-110 HLDR,ARM ASSY AB..................

8Z-HK4-228-010 SPR-P,LID AB..................

* 8A-HK5-206-010 HLDR,LID AB..................

8A-HR5-003-010 FRAME,CTR AB..................

8A-HR5-004-010 FRAME,JACK AB..................

8A-HR5-006-010 LID,BATT AB..................

8A-HR5-012-010 CABI ASSY,REAR AB..................

8A-HK5-009-010 KNOB,SL OPEN AB..................

8A-HK5-011-010 KNOB,SL HOLD AB..................

8A-HR5-008-010 KEY,CONT AB..................

8A-HR5-009-010 KEY,SET AB..................

8A-HR5-010-010 KEY,RADIO AB..................

8A-HR5-011-010 KNOB,SL UP-DOWN AB..................

87-067-430-010 VT1.4-5 BLK AB..................

87-067-511-010 SCREW,V+1.4-2 BK AB..................

87-067-706-010 S-SCREW +1.4-1.8 (BLK) AB..................

87-067-734-010 SCREW 1.4-1.4 BLK N AB..................

87-078-153-010 SCRW,1.4-2.5 CR AB..................

* 87-067-596-010 SCREW,V+1.4-3 AB..................

* 88-HJ3-220-010 S-SCREW,+1.4-0.7-1 BLK NL AB..................

* 8A-HR5-205-010 S-SCREW,+1.4-7.3 SWCH CR E AB..................

* 8A-HR5-206-010 S-SCREW,+1.4-4 SWCH CR HL AB..................

8A-HJ2-224-010 SPR-T,LOCK AB..................

8A-HK5-204-010 BASE,LOCK AB..................

8A-HK5-207-010 LEVER,EJECT AB..................

8A-HK5-209-010 SPR-P,CASS AB..................

8A-HK5-210-010 SPR-C,OPEN AB..................

8A-HR5-207-010 BAT-CONTACT,(-) AB..................

8A-HR5-208-010 BAT-CONTACT,BOX(-) AB..................

8A-HR5-209-010 SHAFT,ASSY AB..................

8A-HR5-212-010 SPR-T,TUN AB..................

8A-HR5-215-010 CAP,PWB FW AB..................

8Z-HK4-210-010 NUT, B-BOX AB..................

8Z-HK4-212-010 BAT-CONTACT,(+) AB..................

8Z-HR5-205-010 JOINT,LCD AB..................

* 8A-HK5-205-010 PLATE,OPEN AB..................

* 8A-HK5-221-010 PLATE,LOCK K5 AB..................

* 8A-HR5-201-010 HLDR,BAT AB..................

* 8A-HR5-202-010 HLDR,CONT AB..................

* 8A-HR5-203-010 HLDR,JACK AB..................

* 8A-HR5-204-010 HLDR,LCD AB..................

* 8Z-HR5-204-010 GUIDE,LCD AB..................

www.freeservicemanuals.info

9/17/2017

Digitized in Heiloo Netherland

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

YH .....................XX..................................A...................

AH .....................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-HR5-902-010 IB,H(ECC)S .B..................

8A-HR5-903-010 IB,YHS(EC)S A...................

87-B30-298-010 BAT,NB-5G(S) AB..................

87-B30-341-010 CHARGER,RB-107 H (L) .B..................

87-B30-390-010 HEADPHONE,HP-M041(S) S AB..................

8A-HR5-951-010 RC UNIT,RC500 AB..................

8Z-HK4-090-010 BOX,BAT ASSY SIL AB..................

www.freeservicemanuals.info

9/17/2017

Digitized in Heiloo Netherland

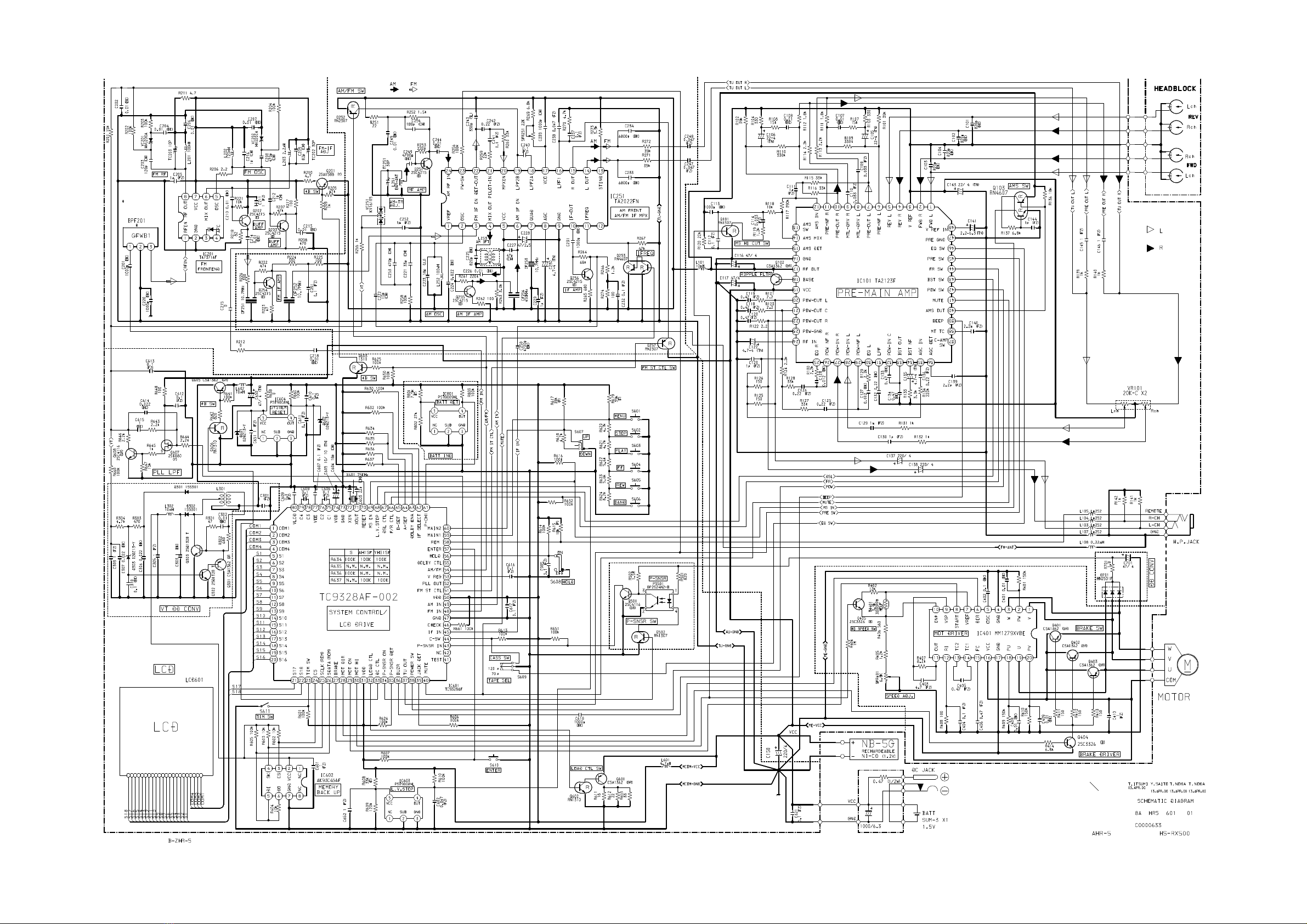

SCHEMATIC DIAGRAM

www.freeservicemanuals.info

9/17/2017

Digitized in Heiloo Netherland

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111

Printed in Singapore9630469

www.freeservicemanuals.info

9/17/2017

Digitized in Heiloo Netherland

Other manuals for HS-RX500

Table of contents

Popular Cassette Player manuals by other brands

Ahuja

Ahuja CPA-360 Operation manual

Sony

Sony Pressman TCS-60DV Specifications

Philips

Philips AQ6485/14 Product information

Sony

Sony TCM-200DV - Cassette Recorder operating instructions

Nakamichi

Nakamichi BX-300 Service manual

Panasonic

Panasonic RQ-E25V operating instructions

Yamaha

Yamaha MT8X Operation manual

Sherwood

Sherwood Newcastle D-480 operating instructions

Manta

Manta MA408 user manual

GPO

GPO W0162B user guide

Marantz

Marantz CP230 Service manual

Sony

Sony HST-471 Service manual

Sharp

Sharp JC-AV1 Operation manual

Pioneer

Pioneer CT-W103 Service manual

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder operating instructions

Sony

Sony WMFS220 - Portable Sports AM/FM Cassette... operating instructions

Sanyo

Sanyo MCD-ZX700F Service manual

Sony

Sony Pressman TCM-465V operating instructions

Aiwa HS-RX500 User manual

Popular Cassette Player manuals by other brands
