Aiwa Cs-130 User manual

S E R V I C E M A N U A L

SIMPLE MANUAL

• Replace this Service Manual with ”Revision Publishing” when it is issued.

CS-130

• TYPE:

S/M Code No. 09–993–327–20A

STEREO RADIO CASSETTE

RECORDER

HJB,HJW(207)

HRJS,EZS(130)

EZB(131)

• BASIC TAPE MECHANISM:TN21ZVC-1727

CS-131

ELECTRICAL MAIN PARTS LIST - 1

NOTE: The characters in the suffix column indicate the part usage.

HRJC ...................XX..................................A...................

1EZC ...................XX...................................B..................

EZSC ...................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 308 87-010-374-080 0E CAP, ELECT 47-10V ABC.................

C 309 87-010-374-080 0E CAP, ELECT 47-10V ABC.................

C 303 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 302 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 301 87-010-545-080 0E CAP, ELECT 0.22-50V ABC.................

C 307 87-018-109-080 0E CAP, CER 22P-50V ABC.................

C 306 87-018-109-080 0E CAP, CER 22P-50V ABC.................

C 304 87-018-198-080 0E CAP,TC-U 2700P-16 X ABC.................

C 305 87-018-198-080 0E CAP,TC-U 2700P-16 X ABC.................

C 317 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 310 87-010-378-080 0E CAP, ELECT 10-16V ABC.................

C 311 87-010-378-080 0E CAP, ELECT 10-16V ABC.................

C 318 87-010-391-080 0E CAP,E 10-35 SME ABC.................

C 316 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 319 87-018-205-080 0E CAP, CERA-SOL 0.022 ABC.................

C 325 87-010-101-080 0E CAP, ELECT 220-16 ABC.................

C 322 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 321 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 324 87-018-127-080 0E CAP, CER 470P-50V ABC.................

C 327 87-018-202-080 0E CAP.CERAM.6800PF ABC.................

C 323 87-018-205-080 0E CAP, CERA-SOL 0.022 ABC.................

C 320 87-018-205-080 0E CAP, CERA-SOL 0.022 ABC.................

C 326 87-018-208-080 0E CAP 0.047-50F ABC.................

C 329 87-018-209-080 0E CAP, CER 0.1-50V ABC.................

C 328 87-A10-772-080 0E CAP,M 5600P-50 J ABC.................

C 330 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 331 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 332 87-010-391-080 0E CAP,E 10-35 SME ABC.................

CN 305 8Z-CS3-613-010 CONN,2P PLAY SW. ABC.................

CN 303 8Z-CS3-615-010 CONN,6P MOTOR ABC.................

CN 301 8Z-CS3-617-010 CONN,5P HEAD ABC.................

CN 302 8Z-CS3-619-010 CONN,2P MIC ABC.................

CNA 303 8Z-CS3-616-010 CONN ASSY,6P MOTOR ABC.................

CNA 301 8Z-CS3-618-010 CONN ASSY,5P HEAD ABC.................

D 305 87-017-092-080 0E ZENER,HZS5C2 ABC.................

D 306 87-017-097-080 0E ZENER,HZS6B1 ABC.................

D 301 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 304 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 303 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 302 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

IC 302 87-017-916-010 1A IC,BU4066BC ABC.................

IC 301 87-A20-569-010 1C IC,BA3308 ABC.................

L 302 87-003-152-080 0E COIL, 100UH ABC.................

L 301 8Z-CS3-612-010 COIL, BIAS OSC ABC.................

MIC 1 8Z-CS3-628-010 MIC, ZCS-3 ABC.................

Q 305 87-CD7-603-080 0E TR,SS8050 ABC.................

Q 304 89-318-155-080 0E TR,2SC1815 (0.4W) ABC.................

Q 302 89-318-155-080 0E TR,2SC1815 (0.4W) ABC.................

Q 303 89-318-155-080 0E TR,2SC1815 (0.4W) ABC.................

Q 301 89-318-155-080 0E TR,2SC1815 (0.4W) ABC.................

R 342 8Z-CS3-663-010 RES,9.1K-1/8W J ABC.................

R 341 8Z-CS3-663-010 RES,9.1K-1/8W J ABC.................

SW 202 8Z-CS3-610-010 SW, BEAT CUT ABC.................

SW 301 8Z-CS3-609-010 SW, PB/REC ABC.................

SW 302 8Z-CS3-611-010 SW, FUNCTION ABC.................

C 408 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

ELECTRICAL MAIN PARTS LIST - 2

C 405 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 406 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 401 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 402 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 403 87-010-545-080 0E CAP, ELECT 0.22-50V ABC.................

C 404 87-010-545-080 0E CAP, ELECT 0.22-50V ABC.................

C 409 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................

C 419 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 418 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 416 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 410 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 411 87-010-408-080 0E CAP, ELECT 47-50V ABC.................

C 417 87-018-127-080 0E CAP, CER 470P-50V ABC.................

C 412 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................

C 415 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................

C 413 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................

C 414 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABC.................

C 420 87-018-127-080 0E CAP, CER 470P-50V ABC.................

C 470 87-010-260-080 0E CAP, ELECT 47-25V ABC.................

IC 401 87-A20-946-040 1D C-IC,MM1434XF ABC.................

Q 401 89-318-155-080 0E TR,2SC1815 (0.4W) ABC.................

Q 402 89-318-155-080 0E TR,2SC1815 (0.4W) ABC.................

SW 401 8Z-CS3-600-010 SW, Q SOUND ABC.................

C 505 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 507 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 506 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 508 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 509 87-010-235-080 0E CAP,E 470-16 SME ABC.................

C 502 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 501 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 513 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 514 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 510 87-010-235-080 0E CAP,E 470-16 SME ABC.................

C 606 87-015-997-010 1A CAP, ELECT 2200UF-16V ABC.................

C 601 87-018-205-080 0E CAP, CERA-SOL 0.022 ABC.................

C 603 87-018-205-080 0E CAP, CERA-SOL 0.022 ABC.................

C 602 87-018-205-080 0E CAP, CERA-SOL 0.022 ABC.................

C 604 87-018-205-080 0E CAP, CERA-SOL 0.022 ABC.................

C 605 87-018-205-080 0E CAP, CERA-SOL 0.022 ABC.................

CN 501 8Z-CS3-604-010 CONN,3P V SP ABC.................

CN 601 8Z-CS3-607-010 CONN,2P V POWER ABC.................

D 501 8Z-CS3-602-010 DIODE, 1N4004 ABC.................

D 605 87-A40-248-080 0E LED,SEL2210STP7 RED ABC.................

D 604 8Z-CM1-656-010 DIODE, 1N4001 ABC.................

D 601 8Z-CM1-656-010 DIODE, 1N4001 ABC.................

D 602 8Z-CM1-656-010 DIODE, 1N4001 ABC.................

D 603 8Z-CM1-656-010 DIODE, 1N4001 ABC.................

IC 501 87-CD7-602-010 1B IC,TA8227P ABC.................

J 1 8Z-CS3-603-010 JACK, ST W/SW HP ZCS-3 ABC.................

VR 501 8Z-CS3-601-010 VR,RTRY 50K MAIN ABC.................

BPF 1 8Z-CS3-673-010 FLTR,ANT BPF-V ....................

C 207 87-A10-129-010 0E CAP,CER 3P-50 K CH ABC.................

C 208 87-A10-129-010 0E CAP,CER 3P-50 K CH .BC.................

C 209 87-A10-131-010 0E CAP,CER 5P-50 K CH ABC.................

C 208 87-A10-136-010 0E CAP,CER 10P-50K CH A...................

C 204 87-A10-136-010 0E CAP,CER 10P-50K CH .BC.................

C 203 87-A10-136-010 0E CAP,CER 10P-50K CH .BC.................

C 201 87-A10-136-010 0E CAP,CER 10P-50K CH ....................

C 202 87-A10-136-010 0E CAP,CER 10P-50K CH .BC.................

C 205 87-A10-165-010 CAP,CER 120P-50 K SL ....................

C 205 87-A10-168-010 CAP,CER 220P-50 K B ....................

C 205 87-A10-177-010 0E CAP,CER 1500P-50 M D A...................

C 207 87-A10-179-010 0E CAP,CER 3300P-50 M E ....................

C 209 87-A10-180-010 0E CAP,CER 4700P M E ....................

ELECTRICAL MAIN PARTS LIST - 3

C 205 87-A10-356-010 CAP,CER 25P-50 J CH .BC.................

C 201 87-A10-356-010 CAP,CER 25P-50 J CH .BC.................

C 206 8Z-CS3-629-010 CAP,CER 300P-50 K SL ABC.................

C 217 87-010-378-080 0E CAP, ELECT 10-16V ....................

C 213 87-010-378-080 0E CAP, ELECT 10-16V ....................

C 210 87-010-378-080 0E CAP, ELECT 10-16V ABC.................

C 218 87-010-400-080 0E CAP, ELECT 0.47-50V ABC.................

C 214 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 217 87-010-401-080 0E CAP, ELECT 1-50V ....................

C 219 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 217 87-018-151-010 0E CAP,TC U 20P-50 J CH UP050 ABC.................

C 215 87-A10-129-010 0E CAP,CER 3P-50 K CH ....................

C 212 87-A10-129-010 0E CAP,CER 3P-50 K CH ....................

C 210 87-A10-129-010 0E CAP,CER 3P-50 K CH ....................

C 214 87-A10-129-010 0E CAP,CER 3P-50 K CH ....................

C 211 87-A10-131-010 0E CAP,CER 5P-50 K CH ....................

C 212 87-A10-131-010 0E CAP,CER 5P-50 K CH ....................

C 216 87-A10-131-010 0E CAP,CER 5P-50 K CH ....................

C 211 87-A10-136-010 0E CAP,CER 10P-50K CH ....................

C 214 87-A10-170-010 0E CAP,CER 330P-50 K B ....................

C 218 87-A10-176-010 0E CAP,CER 1000P-50 M D ....................

C 211 87-A10-176-010 0E CAP,CER 1000P-50 M D ABC.................

C 215 87-A10-356-010 CAP,CER 25P-50 J CH A...................

C 218 87-A10-356-010 CAP,CER 25P-50 J CH ....................

C 227 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 225 87-010-400-080 0E CAP, ELECT 0.47-50V ....................

C 221 87-010-400-080 0E CAP, ELECT 0.47-50V ....................

C 221 87-010-401-080 0E CAP, ELECT 1-50V ....................

C 226 87-010-404-080 0E CAP, ELECT 4.7-50V ....................

C 227 87-010-404-080 0E CAP, ELECT 4.7-50V ....................

C 222 87-010-404-080 0E CAP, ELECT 4.7-50V ....................

C 223 87-018-151-010 0E CAP,TC U 20P-50 J CH UP050 ....................

C 220 87-018-151-010 0E CAP,TC U 20P-50 J CH UP050 ....................

C 229 87-A10-163-010 0E CAP,CER 82P-50 K SL A...................

C 222 87-A10-356-010 CAP,CER 25P-50 J CH ....................

C 236 87-010-112-080 0E CAP, ELECT 100-16V ....................

C 231 87-010-404-080 0E CAP, ELECT 4.7-50V ....................

C 230 87-010-404-080 0E CAP, ELECT 4.7-50V ....................

C 233 87-A10-129-010 0E CAP,CER 3P-50 K CH ....................

C 230 87-A10-161-010 CAP,CER 56P-50 K SL ....................

C 641 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 640 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

D 202 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 201 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 205 87-020-605-080 0E DIODE,1SS135 ....................

D 204 87-020-605-080 0E DIODE,1SS135 ....................

D 203 87-020-605-080 0E DIODE,1SS135 ....................

D 203 87-CD7-615-080 DIODE,SD116 ....................

FC 2 87-008-261-010 1A FILTER, SFE10.7MA5-A ABC.................

FC 3 87-008-261-010 1A FILTER, SFE10.7MA5-A ABC.................

FC 1 87-008-582-010 1A FLTR,SFU455B ABC.................

IC 201 87-A20-851-040 1C C-IC,TA2111F ABC.................

L 3 8Z-CS3-655-010 COIL,MW OSC .BC.................

L 209 87-005-673-080 COIL,1.2UH K LF5.0S A...................

L 209 8Z-CS3-650-010 COIL,IFT AM ....................

L 208 8Z-CS3-650-010 COIL,IFT AM ABC.................

L 205 8Z-CS3-651-010 COIL,FM RF ABC.................

L 207 8Z-CS3-651-010 COIL,FM RF ....................

L 208 8Z-CS3-652-010 COIL,FM OSC ....................

L 206 8Z-CS3-652-010 COIL,FM OSC A...................

L 207 8Z-CS3-653-010 COIL,FM ANT ABC.................

L 209 8Z-CS3-653-010 COIL,FM ANT ....................

L 203 8Z-CS3-654-010 COIL,SW2 ANT ....................

L 204 8Z-CS3-655-010 COIL,MW OSC A...................

ELECTRICAL MAIN PARTS LIST - 4

L 203 8Z-CS3-656-010 COIL,SW OSC A...................

L 205 8Z-CS3-657-010 COIL,SW1 OSC ....................

L 206 8Z-CS3-658-010 COIL,SW2 OSC ....................

L 206 8Z-CS3-666-010 COIL,FM2 RF ....................

L 205 8Z-CS3-667-010 COIL,FM1 RF ....................

L 206 8Z-CS3-669-010 COIL,FM OSC-EZ .BC.................

L 207 8Z-CS3-670-010 COIL,FM1 OSC ....................

L 208 8Z-CS3-671-010 COIL,FM2 OSC ....................

L 204 8Z-CS3-672-010 COIL,LW OSC .BC.................

L 211 87-005-673-080 COIL,1.2UH K LF5.0S ....................

L 210 87-005-673-080 COIL,1.2UH K LF5.0S ....................

L 210 8Z-CS3-650-010 COIL,IFT AM ....................

SW 201 8Z-CS3-659-010 SW, TU-3BAND ABC.................

SW 201 8Z-CS3-660-010 SW, TU-4BAND ....................

VC 201 8Z-CS3-640-010 TUN-CAP, SH ....................

VC 201 8Z-CS3-641-010 TUN-CAP, H A...................

VC 201 8Z-CS3-642-010 TUN-CAP, EZ .BC.................

VC 201 8Z-CS3-644-010 TUN-CAP, V ....................

VR 201 8Z-CS3-662-010 VR,RTRY 100 FINE TUNE ....................

MECHANICAL PARTS LIST - 1

NOTE: The characters in the suffix column indicate the part usage.

HRJC ...................XX..................................A...................

1EZC ...................XX...................................B..................

EZSC ...................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-CS3-004-010 BOX,CASS A.C.................

8Z-CS3-007-010 POINTER,TU ABC.................

8Z-CS3-008-010 LID,BATT A.C.................

8Z-CS3-016-010 HANDL, ..C.................

8Z-CS3-019-010 GRILLE,SP L A.C.................

8Z-CS3-020-010 GRILLE,SP R A.C.................

8Z-CS3-033-010 WINDOW,TU EZ .BC.................

8Z-CS3-035-010 WINDOW,TU HR A...................

8Z-CS3-036-010 WINDOW,TU SH ....................

8Z-CS3-038-010 ARM,HANDL L A...................

8Z-CS3-039-010 ARM,HANDL R A...................

8Z-CS3-040-010 HANDL,BAR A...................

8Z-CS4-001-010 WINDOW,DIR A.C.................

8Z-CS4-003-010 LID,CASS A.C.................

8Z-CS4-004-010 WINDOW,CASS ABC.................

8Z-CS4-006-010 CABI,FR EX A.C.................

8Z-CS4-007-010 CABI,FR B EX .B..................

8Z-CS4-013-010 CABI,REAR EZ ..C.................

8Z-CS4-015-010 CABI,REAR HR A...................

8Z-CS4-016-010 CABI,REAR SH ....................

8Z-CS4-017-010 CABI,REAR B EZ .B..................

8Z-CS4-018-010 CABI,REAR B V ....................

8Z-CS4-030-010 LID,CASS B .B..................

8Z-CS4-031-010 BOX,CASS B .B..................

8Z-CS4-032-010 LID,BATT B .B..................

8Z-CS4-036-010 HANDL,B .B..................

8Z-CS4-037-010 COVER, HANDL B .B..................

8Z-CS4-038-010 GRILLE,SP L B .B..................

8Z-CS4-039-010 GRILLE,SP R B .B..................

8Z-CS4-040-010 WINDOW,DIR B .B..................

8Z-CS4-042-010 WINDOW,TU V B ....................

8Z-CS3-009-010 KNOB,RTRY TU A.C.................

8Z-CS3-010-010 KNOB,RTRY FINE ....................

8Z-CS3-011-010 KNOB,SL ABC.................

8Z-CS3-012-010 BTN,QSOUND ABC.................

8Z-CS3-013-010 KNOB,RTRY VOL ABC.................

8Z-CS4-002-010 KEY,CASS A.C.................

8Z-CS4-033-010 KNOB,RTRY TU B .B..................

8Z-CS4-035-010 KEY,CASS B .B..................

8Z-CS3-043-010 PLATE,TOP EZ .BC.................

8Z-CS3-044-010 PLATE,TOP V ....................

8Z-CS3-045-010 PLATE,TOP HR A...................

8Z-CS3-046-010 PLATE,TOP SH ....................

8Z-CS3-203-010 GUIDE,POINTER A ABC.................

8Z-CS3-204-010 GUIDE,POINTER B ABC.................

8Z-CS3-205-010 HLDR,BAR ANT ABC.................

8Z-CS4-201-010 LEVER,REC 1WAY ABC.................

87-261-034-410 0E V+2-5 ABC.................

87-624-096-410 QT1+3-10 CR ABC.................

87-651-076-410 0E VT1+2.6-12 ZN ABC.................

87-651-095-410 0E VT1+3-8 GLD ABC.................

87-651-102-410 0E VT1 3-20 GLD ABC.................

87-661-097-410 0E TAPPING SCREW, VFT1+3-12 ABC.................

8Z-CS3-606-010 SPKR, 4OHM ZCS-3/4 ABC.................

8Z-CS3-624-010 PT,H ZCS-3/4 A...................

8Z-CS3-626-010 SW,AC SELECT A...................

MECHANICAL PARTS LIST - 2

ANT 0 8Z-CS3-627-010 ANT,ROD ZCS-3/4 ABC.................

L 0 8Z-CS3-645-010 BAR-ANT,MW/SW A...................

L 0 8Z-CS3-646-010 BAR-ANT,SH ....................

L 0 8Z-CS3-647-010 BAR-ANT,MW/LW .BC.................

L 0 8Z-CS3-648-010 BAR-ANT,MW ....................

PT 0 8Z-CS3-625-010 PT,EZ ZCS-3/4 .BC.................

ACCESSORIES LIST - 1

NOTE: The characters in the suffix column indicate the part usage.

HRJC ...................XX..................................A...................

1EZC ...................XX...................................B..................

EZSC ...................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-CS3-907-010 IB,SH(ECA)B A...................

8Z-CS4-908-010 IB,EZ(9L)B .BC.................

8Z-CS4-910-010 IB,V(ER)B ....................

87-099-789-010 1B PLUG,ADPTR IR44 A...................

87-A80-081-010 1C AC CORD SET ASSY,EZ BLK ABC.................

Printed in Singapore

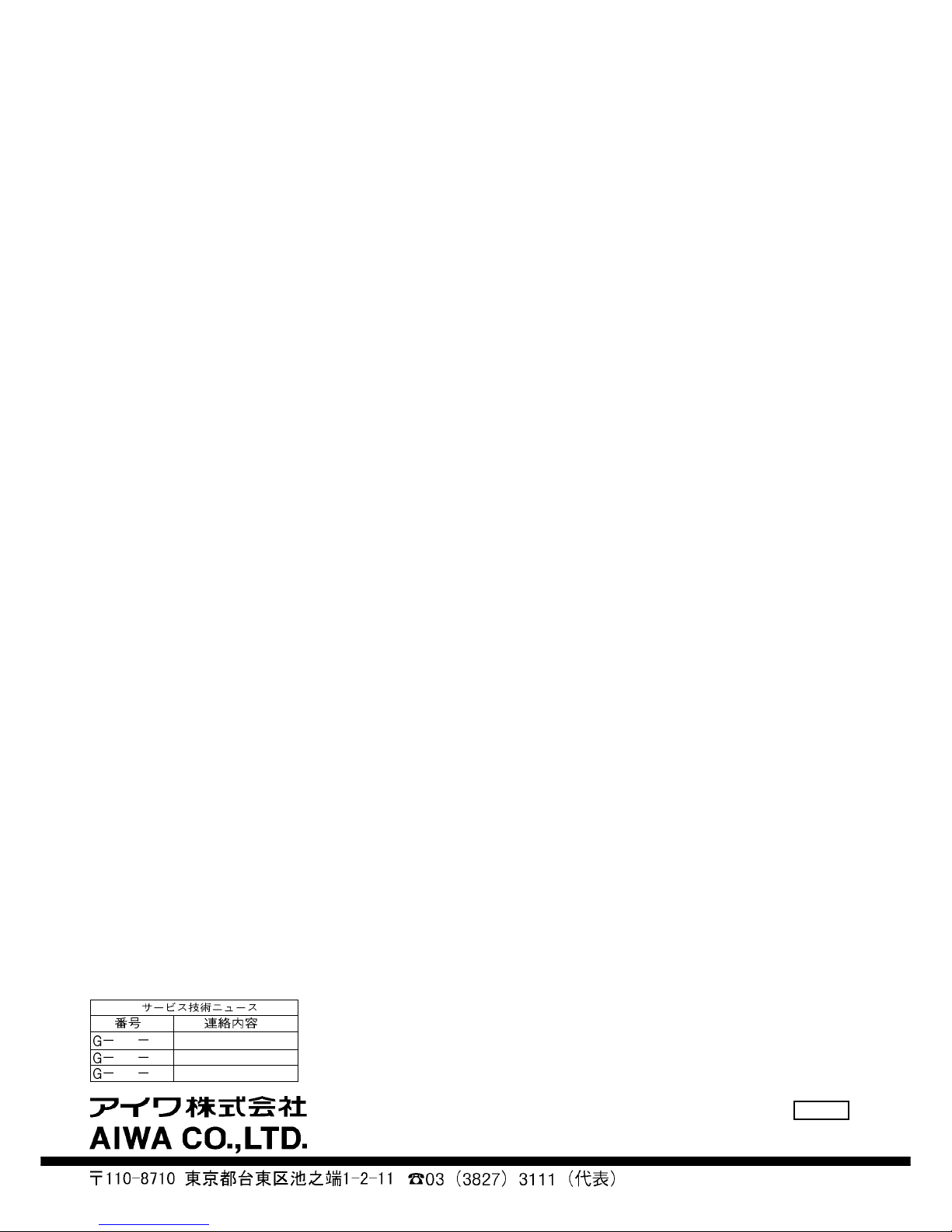

Tokyo Japan

737004

Other manuals for CS-130

This manual suits for next models

Table of contents

Popular Cassette Player manuals by other brands

Ahuja

Ahuja CPA-360 Operation manual

Sony

Sony Pressman TCS-60DV Specifications

Philips

Philips AQ6485/14 Product information

Sony

Sony TCM-200DV - Cassette Recorder operating instructions

Nakamichi

Nakamichi BX-300 Service manual

Panasonic

Panasonic RQ-E25V operating instructions

Yamaha

Yamaha MT8X Operation manual

Sherwood

Sherwood Newcastle D-480 operating instructions

Manta

Manta MA408 user manual

GPO

GPO W0162B user guide

Marantz

Marantz CP230 Service manual

Sony

Sony HST-471 Service manual

Sharp

Sharp JC-AV1 Operation manual

Pioneer

Pioneer CT-W103 Service manual

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder operating instructions

Sony

Sony WMFS220 - Portable Sports AM/FM Cassette... operating instructions

Sanyo

Sanyo MCD-ZX700F Service manual

Sony

Sony Pressman TCM-465V operating instructions

Aiwa CS-130 User manual

Popular Cassette Player manuals by other brands
