S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
HS-TA283
• BASIC TAPE MECHANISM: 4ZM-2 P1NC • TYPE: YZ,YK,YVJ
S/M Code No. 09–982–243–7FP
STEREO RADIO CASETTE PLAYER
ELECTRICAL MAIN PARTS LIST
NOTE: The characters in the suffix column indicate the part usage.
KBNC ...................XX.......................................F..............
VJ1B ...........1........XX........................................G.............
Z1BC ...................XX................................................O.....
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-610-062-210 WIRE,B0-6-2 ABCDEFGHIJKLMNO.....
87-612-042-210 WIRE B2-4-2 ABCDEFGHIJKLMNO.....
C 6 87-010-502-040 CAP ELECT GAS 100/4 ABCDEFGHIJKLMNO.....
C 5 87-010-502-040 CAP ELECT GAS 100/4 ABCDEFGHIJKLMNO.....
C 9 87-A10-409-010 CAP,CER 1500P-25 K SR ABCDEFGHIJKLMNO.....
C 2 87-A10-409-010 CAP,CER 1500P-25 K SR ABCDEFGHIJKLMNO.....
C 1 87-A10-409-010 CAP,CER 1500P-25 K SR ABCDEFGHIJKLMNO.....
C 7 87-A10-410-010 CAP,CER 0.015-25 K SR ABCDEFGHIJKLMNO.....
C 8 87-A10-410-010 CAP,CER 0.015-25 K SR ABCDEFGHIJKLMNO.....
C 4 87-A10-509-010 CAP,SC 1000P-25 K SR ABCDEFGHIJKLMNO.....
C 3 87-A10-509-010 CAP,SC 1000P-25 K SR ABCDEFGHIJKLMNO.....
C 12 87-010-491-040 CAP,E 0.22-50 GAS ABCDEFGHIJKLMNO.....
C 11 87-010-491-040 CAP,E 0.22-50 GAS ABCDEFGHIJKLMNO.....
C 18 87-010-498-040 CAP,E 10-16 GAS ABCDEFGHIJKLMNO.....
C 15 87-010-503-010 CAP,E 220-4 GAS ABCDEFGHIJKLMNO.....
C 16 87-015-681-040 E/CAP 10-16 ABCDEFGHIJKLMNO.....
C 14 87-015-681-040 E/CAP 10-16 ABCDEFGHIJKLMNO.....
C 10 87-A10-409-010 CAP,CER 1500P-25 K SR ABCDEFGHIJKLMNO.....
C 19 87-A10-509-010 CAP,SC 1000P-25 K SR ABCDEFGHIJKLMNO.....
C 17 87-A10-512-010 CAP,SC 0.01-25 M SR ABCDEFGHIJKLMNO.....
C 13 87-A10-512-010 CAP,SC 0.01-25 M SR ..CDE.GHIJK.MN......
C 21 87-010-419-040 CAP,E 4.7-16 5L ABCDEFGHIJKLMNO.....
C 22 87-010-490-040 CAP, ELECT 0.1-50 ABCDEFGHIJKLMNO.....
C 20 87-010-494-040 CAP,E 1-50 GAS ABCDEFGHIJKLMNO.....
C 30 87-A10-512-010 CAP,SC 0.01-25 M SR ABCDEFGHIJKLMNO.....
IC 1 87-A20-461-040 IC,MM1336DF ABCDEFGHIJKLMNO.....
J 1 85-HRL-623-010 JACK,3.5 ST BLK ABCDEFGHIJKLMNO.....
J 2 87-A60-122-010 JACK,DC 3.8 ABCDEFGHIJKLMNO.....
L 1 87-A50-167-010 COIL,RF CHOKE3.0UH ABCDEFGHIJKLMNO.....
Q 2 87-026-287-080 TR,DTC143ES ABCDEFGHIJKLMNO.....
Q 1 89-110-484-080 TR,2SA1048Y ABCDEFGHIJKLMNO.....
R 17 87-022-657-080 RES,K34G 0.68 ABCDEFGHIJKLMNO.....
SFR 1 87-024-197-010 SEMI-FIXED RESISTOR, 1K ABCDEFGHIJKLMNO.....
SW 3 87-A90-050-010 SW, SL 2-2-2 NS (BLK) ABCDEFGHIJKLMNO.....
SW 1 87-A90-133-010 SW LEAF LSA1120JAU ABCDEFGHIJKLMNO.....
SW 2 87-A90-216-010 SW SL 2-2-3 SK230 ABCDEFGHIJKLMNO.....
TH 1 87-026-256-090 THERMISTOR, HT-100 ABCDEFGHIJKLMNO.....
VR 1 83-HRC-609-010 VOL 20KAX2 ABCDEFGHIJKLMNO.....
C 313 87-010-501-040 E/CAP GAS 47-4 ABCDEFGHIJKLMNO.....
C 314 87-010-503-040 CAP,E 220-4 GAS ABCDEFGHIJKLMNO.....
C 502 87-010-490-040 CAP, ELECT 0.1-50 AB...F.....L..O.....
C 501 87-010-498-040 CAP,E 10-16 GAS AB...F.....L..O.....
C 503 87-A10-509-010 CAP,SC 1000P-25 K SR ABCDEFGHIJKLMNO.....
SW 501 87-036-145-010 C-SW,SLIDE 1-1-3 AB...F.....L..O.....
BPF 101 87-A90-336-010 FLTR,GFEB4 ......G.............
BPF 101 87-A90-749-010 FLTR,GFMB5 ABCDEF.HIJKLMNO.....
C 107 87-010-491-040 CAP,E 0.22-50 GAS ABCDEFGHIJKLMNO.....
C 109 87-010-494-040 CAP,E 1-50 GAS ABCDEFGHIJKLMNO.....
C 108 87-A10-509-010 CAP,SC 1000P-25 K SR ABCDEFGHIJKLMNO.....
C 105 87-A10-512-010 CAP,SC 0.01-25 M SR ABCDEFGHIJKLMNO.....
C 103 88-254-232-010 CAP CERA 27P NPO ...DE..HIJK.MN......
C 118 87-010-500-040 CAPE 33-4 ABCDEFGHIJKLMNO.....
C 116 87-010-503-010 CAP,E 220-4 GAS ABCDEFGHIJKLMNO.....
C 111 87-015-691-040 CAP,E0.1-50 SRA ABCDEFGHIJKLMNO.....
C 110 87-015-691-040 CAP,E0.1-50 SRA ABCDEFGHIJKLMNO.....
C 117 87-A10-411-010 CAP,CER 0.047-16 K SR ABCDEFGHIJKLMNO.....
C 119 87-A10-509-010 CAP,SC 1000P-25 K SR ABCDEFGHIJKLMNO.....
C 112 87-A10-734-010 CAP,CER 3900P-25 K SR ABCDEFGHIJKLMNO.....
C 113 87-A10-734-010 CAP,CER 3900P-25 K SR ABCDEFGHIJKLMNO.....
C 120 87-015-694-040 E/CAP 0.47-50 ABCDEFGHIJKLMNO.....
C 133 87-010-146-080 CHIP CAP 2PF ..C.................
CF 102 87-A90-812-010 FLTR,KIT ABCDEFGHIJKLMNO.....
CF 101 87-A90-840-010 FLTR,AM IF PFS455A6 ABCDEFGHIJKLMNO.....
IC 101 87-A20-851-040 C-IC,TA2111F ...D...H.J..M.......
L 2 87-005-730-080 COIL,10UH J SP02 ABCDEFGHIJKLMNO.....
L 104 87-A50-187-010 COIL,AM OSC270UH ABCDEFGHIJKLMNO.....
L 105 87-A90-663-010 IFT,MW 5L H6.4 ABCDEFGHIJKLMNO.....
L 102 87-HRL-605-010 COIL,RF FM EX ABCDEF.HIJKLMNO.....
L 101 87-HRL-610-010 BAR-ANT,MWS1 ABCDEFGHIJKLMNO.....
L 102 87-HRM-605-010 COIL,RF FM V ......G.............
L 103 87-HRM-606-010 COIL,OSC FM V ......G.............
L 103 88-HRJ-604-010 COIL,OSC FM ABCDEF.HIJKLMNO.....
VC 101 87-A90-097-010 TUN-CAP,20-160 16X16 ABCDEF.HIJKLMNO.....
VC 101 87-A90-415-010 TUN-CAP,40P-160P 16X ......G.............
C 301 87-010-184-080 CHIP CAPACITOR 3300P(K) ABCDEFGHIJKLMNO.....
C 302 87-010-184-080 CHIP CAPACITOR 3300P(K) ABCDEFGHIJKLMNO.....
C 309 87-010-189-080 C-CAP,S 8200P-50 B ABCDEFGHIJKLMNO.....
C 308 87-010-195-080 C-CAP,S 0.068-25 F ABCDEFGHIJKLMNO.....
C 307 87-010-195-080 C-CAP,S 0.068-25 F ABCDEFGHIJKLMNO.....
C 303 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNO.....
C 304 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNO.....
C 305 87-016-462-080 C-CAP,S 1-16 F ABCDEFGHIJKLMNO.....
C 306 87-016-462-080 C-CAP,S 1-16 F ABCDEFGHIJKLMNO.....
C 312 87-010-188-080 CAP,CHIP 6800P ABCDEFGHIJKLMNO.....
C 311 87-010-188-080 CAP,CHIP 6800P ABCDEFGHIJKLMNO.....
C 310 87-010-189-080 C-CAP,S 8200P-50 B ABCDEFGHIJKLMNO.....
C 317 87-016-462-080 C-CAP,S 1-16 F ABCDEFGHIJKLMNO.....
C 316 87-016-462-080 C-CAP,S 1-16 F ABCDEFGHIJKLMNO.....
C 318 87-016-462-080 C-CAP,S 1-16 F ABCDEFGHIJKLMNO.....
C 315 87-016-462-080 C-CAP,S 1-16 F ABCDEFGHIJKLMNO.....
D 301 87-020-027-080 CHIP-DIODE 1SS184 ABCDEFGHIJKLMNO.....
Q 304 87-026-264-080 C-TR,RN1411 ABCDEFGHIJKLMNO.....
Q 303 87-026-264-080 C-TR,RN1411 ABCDEFGHIJKLMNO.....
Q 301 87-026-264-080 C-TR,RN1411 ABCDEFGHIJKLMNO.....
Q 302 87-026-264-080 C-TR,RN1411 ABCDEFGHIJKLMNO.....
Q 307 89-327-125-080 CHIP TR,2SC2712GR ABCDEFGHIJKLMNO.....
Q 306 89-327-125-080 CHIP TR,2SC2712GR ABCDEFGHIJKLMNO.....
Q 308 89-327-125-080 CHIP TR,2SC2712GR ABCDEFGHIJKLMNO.....
Q 305 89-327-125-080 CHIP TR,2SC2712GR ABCDEFGHIJKLMNO.....
SW 301 87-036-146-080 C-SLIDE SWITCH 1-1-4 ABCDEFGHIJKLMNO.....
C 451 87-016-462-080 C-CAP,S 1-16 F ABCDEFGHIJKLMNO.....
IC 451 87-017-643-080 IC,MM1206XF ABCDEFGHIJKLMNO.....
LED 453 87-017-827-070 C-LED,SEC 1201C RED ...D...H.J..M.......
LED 451 87-017-828-070 C-LED,SEL 1401C GRN ...D...H.J..M.......
LED 452 87-017-829-070 C-LED,SEC 1901C ORN ...D...H.J..M.......
MECHANICAL PARTS LIST
NOTE: The characters in the suffix column indicate the part usage.
KBNC ...................XX.......................................F..............
VJ1B ...................XX........................................G.............
Z1BC ...................XX................................................O.....
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
86-HRM-005-110 WINDOW,TUN ABCDEFGHIJKLMNO.....
86-HRM-009-110 POINTER,TUN ABCDEFGHIJKLMNO.....
88-HRJ-001-010 LID,CASS EGS .....F.....L..O.....
88-HRJ-002-010 WINDOW,MSP ABCDEFGHIJKLMNO.....
88-HRJ-004-010 LID,CASS YU ..C.................
88-HRJ-005-010 LID,CASS YVJ ......G.............
88-HRJ-006-010 LID,CASS YJ ...DE..HI...........
88-HRJ-008-010 LID,CASS SI YH .........JK.MN......
88-HRJ-009-010 LID,CASS SI YZ A...................
88-HRJ-012-010 LID,CASS BU YZ .B..................
88-HRJ-003-010 KNOB,RTRY MSP ABCDEFGHIJKLMNO.....
87-067-527-010 SCREW,VT+1.4-2.5(B) ABCDEFGHIJKLMNO.....
88-HRJ-201-010 GEAR,MSP ABCDEFGHIJKLMNO.....
87-HRL-005-010 LID,BAT ..CDEFGHI..L..O.....
87-HRL-024-010 CABI,REAR YZC .....F.....L..O.....
87-HRL-035-010 CABI,REAR ..CDE.GHI...........
87-HRR-015-010 CABI,REAR BLUE .B..................
87-HRR-017-010 LID,BATT BLUE .B..................
87-HRR-020-010 FRAME,CENTRE GRAY .BCDEFGHI..L..O.....
87-HRR-034-010 LID,CASS SIL A........JK.MN......
87-HRR-036-010 FRAME,CENTRE J034 A........JK.MN......
88-HRL-024-010 CABI,REAR YZ SIL A...................
86-HRM-006-010 KNOB,RTRY TUN ABCDEFGHIJKLMNO.....
87-HRL-014-010 KNOB,SL EGS .....F.....L..O.....
87-HRR-019-010 KNOB,SL EGS BLUE .B..................
88-HRL-031-010 KNOB,SL EGS SIL A...................
88-HRJ-021-010 LBL,SPEC YU ..C.................
88-HRJ-022-010 LBL,SPEC YVJ ......G.............
88-HRJ-025-010 LBL,SPEC YZ AB...F.....L..O.....
87-067-691-010 SCREW VT+1.7-6 ABCDEFGHIJKLMNO.....
87-B10-044-010 V+1.7-6.5 ABCDEFGHIJKLMNO.....
81-HK9-208-210 SPR-P,CASS A ABCDEFGHIJKLMNO.....
86-HRM-202-010 BAT-CONTACT,(+) ABCDEFGHIJKLMNO.....
86-HRM-203-010 BAT-CONTACT,(-) ABCDEFGHIJKLMNO.....
86-HRM-205-010 SPR-T,CLICK ABCDEFGHIJKLMNO.....
87-HRM-201-010 PLATE,HEAD GRAY .BCDEFGHI...........
87-HRR-206-010 PLATE,HEAD J034 A........JKLMNO.....
ACCESSORIES / PACKAGE LIST
NOTE: The characters in the suffix column indicate the part usage.
KBNC ...................XX.......................................F..............
VJ1B ...................XX........................................G.............
Z1BC ...................XX................................................O.....
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-B40-064-010 LBL,L ALCO ..........K.........
88-HRJ-852-010 CTN,OUTER WYUBBNC ..C.................
88-HRJ-853-010 CTN,INNER WYUBBNC ..C.................
88-HRJ-856-010 BD,PRINTED YZ1BBNC ...........L........
88-HRJ-857-010 CTN,PRINTED YKBNC .....F..............
88-HRJ-858-010 CTN,PRINTED YVJ1BNC ......G.............
88-HRJ-859-010 CTN,PRINTED YL1BNC ........I...........
88-HRJ-860-010 CTN,PRINTED YH1SNC ..........K.........
88-HRJ-861-010 CTN,PRINTED YJ1SNC .............N......
88-HRJ-862-010 CTN,PRINTED YZ1BNC ..............O.....
88-HRL-857-010 CTN,INNER YZBNC .....F..............
88-HRL-858-010 CTN,OUTER YZBNC ....................
88-HRL-865-010 CTN,INNER YJ1BNC ........I.K..N......
88-HRL-866-010 CTN,OUTER YJ1BNC ....................
88-HRL-868-010 CTN,OUTER YL1BNC ....................
88-HRL-870-010 CTN,INNER YVJ1BNC ......G.............
88-HRL-871-010 CTN,OUTER YVJ1BNC ....................
88-HRL-873-010 CTN,INNER YZ1BNC ..............O.....
88-HRL-874-010 CTN,OUTER YZ1BNC ....................
88-HRL-875-010 CTN,OUTER YH1SNC ....................
88-HRM-858-010 CTN,INNER YL1BBNC ....E...............
88-HRM-859-010 CTN,OUTER YL1BBNC ....E...............
88-HRM-862-010 CTN,INNER YZBBNC AB.........L........
88-HRM-863-010 CTN,OUTER YZBBNC AB.........L........
87-056-177-010 LIST,FACILITY-A3 AB...FG..JKLMNO.....
88-HRJ-901-010 IB,YU (ESF)-C ..C.................
88-HRJ-903-010 IB,YL (ESP)-C ....E...I...........
88-HRJ-904-010 IB,YJ (ESC)-C ..........K..N......
88-HRJ-905-010 IB,Y (EGFSID)-C .....F.....L..O.....
88-HRJ-906-010 IB,YV (ERPOHCZ)-C ......G.............
88-HRJ-907-010 IB,Y (EDPOHCZ)-C ...........L..O.....
88-HRJ-908-010 IB,YZF (EF)-C AB..................
88-HRJ-911-010 IB,YL (ESP)-I ...D...H............
88-HRJ-912-010 IB,YJ (ESC)-I .........J..M.......
84-447-019-310 CLIP,BELT ABCDEFGHIJKLMNO.....
87-B30-080-010 HEADPHONE,HP-M009(F) ..C..F..............
87-B30-139-010 HEADPHONE,HP-M007(TL) AB.DE.GHIJKLMNO.....
IC 101 87-A20-851-040 C-IC,TA2111F ABC.EFG.I.KL.NO.....
LED 453 87-017-827-070 C-LED,SEC 1201C RED ABC.EFG.I.KL.NO.....
LED 451 87-017-828-070 C-LED,SEL 1401C GRN ABC.EFG.I.KL.NO.....
LED 452 87-017-829-070 C-LED,SEC 1901C ORN ABC.EFG.I.KL.NO.....
X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align

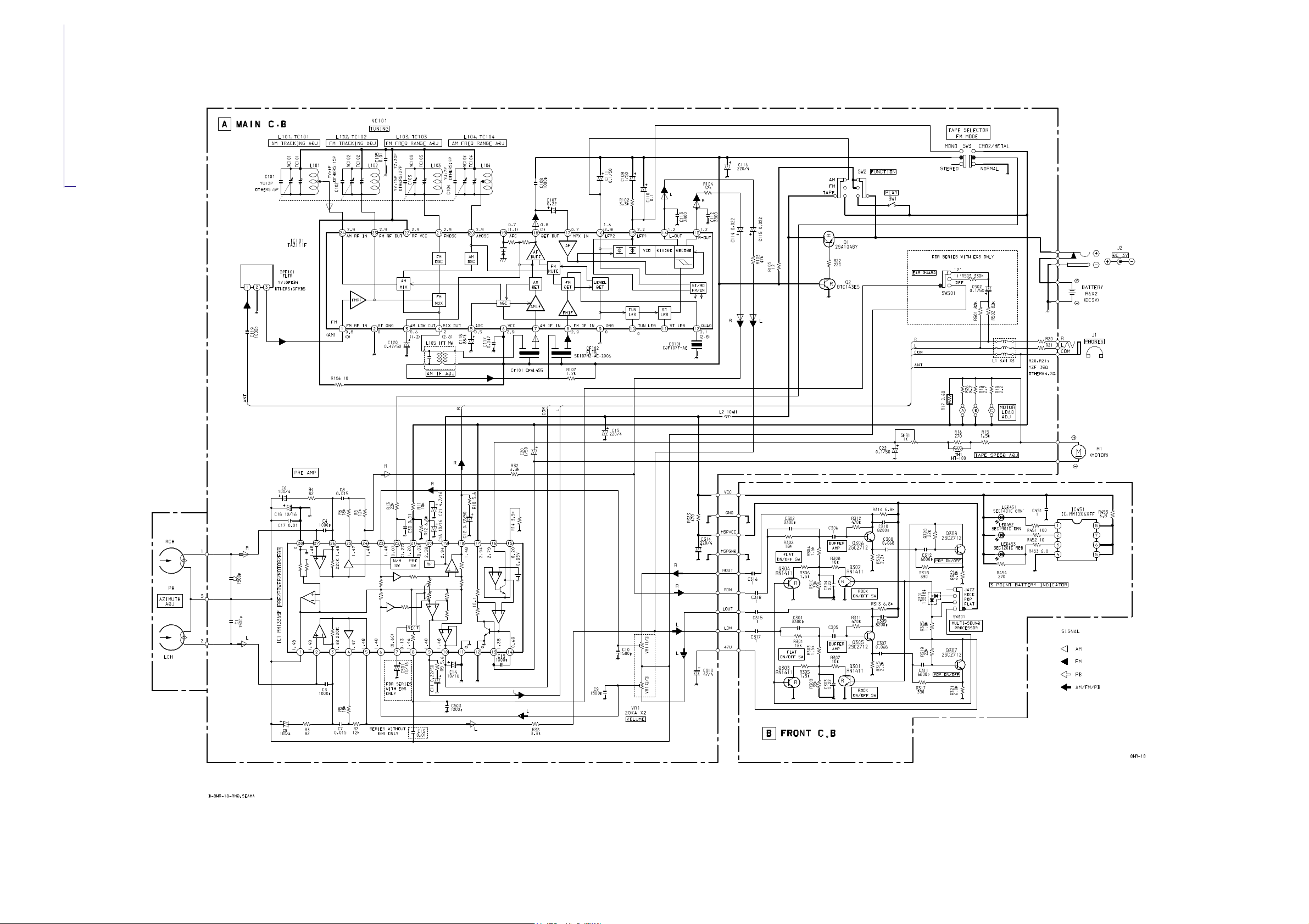

SCHEMATIC DIAGRAM
PrintedinSingapore
Tokyo Japan
4
9630472
Table of contents
Other Aiwa Cassette Player manuals
