SERVICE MANUAL
HS-TA293 YH,YL,YZ,YJ
STEREO RADIO
CASSETTE PLAYER BASIC TAPE MECHANISM : 4ZM-2
(P3N,P3NC2)
S/M Code No. 09-991-404-9R1
REVISION

• Design and specifications are subject to change without
notice.
SPECIFICATIONS
Frequency range: FM: 87.5 – 108 MHz
AM: 530 – 1,605 kHz <YZ,YH,YJ>
AM: 530 – 1,710 kHz <YL>
Maximum output: 4 mW + 4 mW (EIAJ/16Ω)<YZ>
15 mW + 15 mW (EIAJ/32Ω)<YH,YJ,YL>
Power source: DC 3V using two R6 (size AA) batteries
AC house current using an optional AC adaptor
AIWA AC – D302
Maximum dimensions: 92 (W) x 116.4 (H) x 39.4 (D) mm (35/8 x 45/8 x 19/16 in.)
Weight Approx.132g (5 oz) (excluding batteries)
2

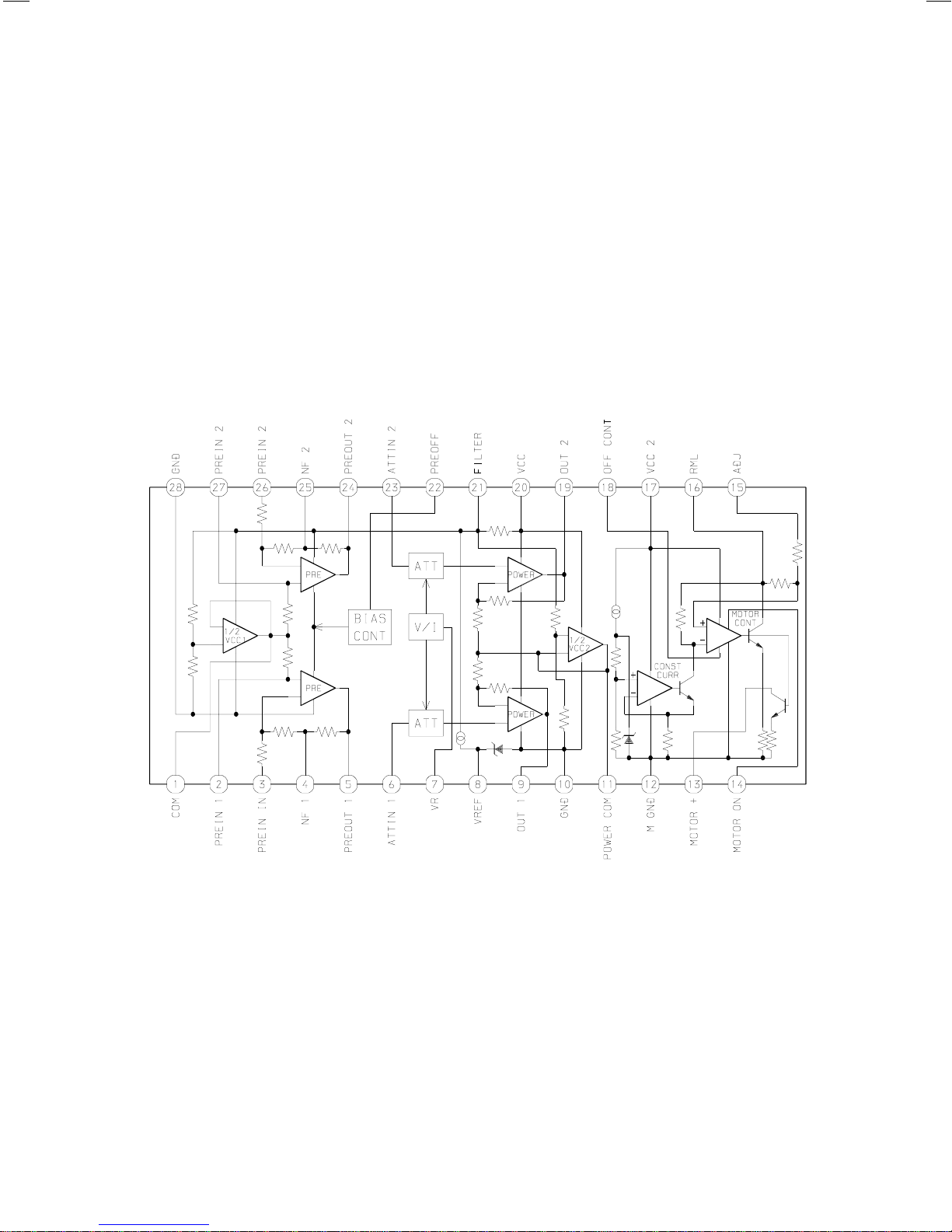

ICBLOCKDIAGRAM
IC,LAG668FT2/FTF

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. KANRI
NO.
REF.NO. DESCRIPTIONPARTNO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
4
ELECTRICAL MAIN PARTS LIST
IC
87-A21-235-080 C-IC,LAG668FTF<YL,YH,YZ>
87-A20-851-040 C-IC,TA2111F
87-017-643-080 IC,MM1206XF
87-A20-852-040 C-IC,LAG668-FT2<YJ>
TRANSISTOR
87-A30-159-080 C-TR,KTA1298Y
87-026-261-080 CHIP-TR,RN1404
87-026-264-080 C-TR,RN1411
87-026-262-080 C-TR,RN1407
89-327-125-080 CHIP TR,2SC2712GR
DIODE
87-020-027-080 CHIP-DIODE 1SS184
MAIN C.B
BPF101 87-A90-749-010 FLTR,GFMB5
C1 87-010-181-080 CAP,CHIP S 1800P
C2 87-010-181-080 CAP,CHIP S 1800P
C3 87-010-501-040 E/CAP GAS 47-4
C4 87-010-501-040 E/CAP GAS 47-4
C5 87-012-365-080 C-CAP,S 0.027-25 KB
C6 87-012-365-080 C-CAP,S 0.027-25 KB
C7 87-010-196-080 CHIP CAPACITOR,0.1-25
C8 87-010-196-080 CHIP CAPACITOR,0.1-25
C9 87-010-198-080 C-CAP,S 0.022-25 KB
C10 87-010-198-080 C-CAP,S 0.022-25 KB
C11 87-010-503-040 CAP,E 220-4 GAS
C12 87-010-196-080 CHIP CAPACITOR,0.1-25
C13 87-010-503-040 CAP,E 220-4 GAS
C14 87-010-178-080 CHIP CAP 1000P
C15 87-010-496-040 CAP,E 3.3-50 GAS
C16 87-010-498-040 CAP,E 10-16 GAS
C17 87-010-175-080 CAP 560P
C18 87-010-175-080 CAP 560P
C19 87-010-178-080 CHIP CAP 1000P
C20 87-010-178-080 CHIP CAP 1000P
C21 87-010-197-080 CAP, CHIP 0.01 DM
C22 87-010-498-040 CAP,E 10-16 GAS
C23 87-016-462-080 C-CAP,S 1-16 F
C24 87-010-503-040 CAP,E 220-4 GAS
C101 87-010-147-080 C-CAP,S 3P-50 CH<YL>
C101 87-010-149-080 C-CAP,S 5P-50 CH<EXCEPT YL>
C102 87-012-150-080 C-CAP ,S 20P-50 J CH
C103 87-010-315-080 C-CAP,S 27P-50 CH<YL,YH,YJ>
C103 87-012-149-080 C-CAP,S 30P-50 CH<YZ1B,YZ1>
C104 87-010-147-080 C-CAP,S 3P-50 C CH<YL>
C104 87-010-150-080 C-CAP,S 6P-50 D CH<EXCEPT YL>
C105 87-010-197-080 CAP, CHIP 0.01 DM
C107 87-016-462-080 C-CAP,S 1-16 F
C108 87-010-178-080 CHIP CAP 1000P
C109 87-016-462-080 C-CAP,S 1-16 F
C110 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-010-196-080 CHIP CAPACITOR,0.1-25
C112 87-010-426-080 C-CAP,S 0.012-25 KB
C113 87-010-426-080 C-CAP,S 0.012-25 KB
C114 87-010-194-080 CAP, CHIP 0.047
C115 87-010-194-080 CAP, CHIP 0.047
C116 87-010-503-040 CAP,E 220-4 GAS
C117 87-010-452-080 CAPACITOR,1-16
C118 87-010-497-040 CAP,E 4.7-35 GAS
C119 87-010-178-080 CHIP CAP 1000P
C120 87-016-461-080 C-CAP,S 0.47-16F
C126 87-012-154-080 C-CAP,S 150P-50 J CH
C128 87-010-178-080 CHIP,CAP 1000P
C131 87-010-146-080 C-CAP,S 150P-50 J CH<YH,YJ>
C140 87-012-154-080 C-CAP,S 150P-50 J CH
C301 87-010-184-080 CHIP CAPACITOR 3300P(K)
C302 87-010-184-080 CHIP CAPACITOR 3300P(K)
C303 87-010-196-080 CHIP CAPACITOR,0.1-25
C304 87-010-196-080 CHIP CAPACITOR,0.1-25
C305 87-016-462-080 C-CAP,S 1-16 F
C306 87-016-462-080 C-CAP,S 1-16 F
C307 87-010-195-080 C-CAP,S 0.068-25 F
C308 87-010-195-080 C-CAP,S 0.068-25 F
C309 87-010-189-080 C-CAP,S 8200P-50 B
C310 87-010-189-080 C-CAP,S 8200P-50 B
C311 87-010-188-080 CAP,CHIP 6800P
C312 87-010-188-080 CAP,CHIP 6800P
C313 87-010-501-040 E/CAP GAS 47-4
C314 87-010-503-040 CAP,E 220-4 GAS
C315 87-012-365-080 C-CAP,S 0.027-25VBK
C316 87-012-365-080 C-CAP,S 0.027-25VBK
C317 87-016-462-080 C-CAP,S 1-16 F
C318 87-016-462-080 C-CAP,S 1-16 F
C319 87-016-462-080 C-CAP,S 1-16 F
C320 87-016-462-080 C-CAP,S 1-16 F
CF101 87-A91-030-010 FLTR,CFAL 450KHZ LB
CF102 87-A90-812-010 FLTR,KIT
J1 85-HRL-623-010 JACK,3.5 ST BLK
J2 87-A60-849-010 JACK,DC DIA 2.75 BLK
L1 87-A50-038-010 COIL,RF CHOKE
L2 87-005-849-080 COIL,10UH(CECS)
L101 8Z-HRJ-603-010 BAR-ANT,MW(CECS)
L102 8Z-HRJ-604-010 COIL,FM RF
L103 8Z-HRJ-607-010 COIL,FM OSC
L104 87-A50-279-010 COIL,AM OSC
L105 87-A91-088-010 IFT,AM 45OKHZ 5PYH6.2
R16 87-A00-330-080 RES,M/F 220-1/8W 3900PPM
SFR1 87-A90-775-010 SFR 3K H VZ066L3
SW1 87-A90-133-010 SW LEAF LSA1120JAU
SW2 87-A90-216-010 SW SL 2-2-3 SK230
SW3 87-A90-050-010 SW, SL 2-2-2 NS (BLK
TH1 87-026-256-090 THERMISTOR, HT-100
VC101 87-A91-029-010 TUN-CAP,20P-160P 450KHZ<YL,YH,YJ>
VC101 87-A91-082-010 TUN-CAP,20P-160P A450KHZ<YZ1B,YZ1>
VR1 87-A90-981-010 VR,RTRY 20KBX1
FRONT C.B
C321 87-016-462-080 C-CAP,S 1-16 F
C322 87-016-462-080 C-CAP,S 1-16 F
C451 87-016-462-080 C-CAP,S 1-16 F
LED451 87-A90-278-080 C-LED,SML-210VT RED
LED452 87-A90-711-080 C-LED,SML-210YTT YEL
LED453 87-A90-276-080 C-LED,SML-210MT GRN
SW301 87-036-146-080 C-SLIDE SWITCH 1-1-4
3
88
1608
2125
3216
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
:A
:A
0.55
Resistor
Dimensions
CHIP RESISTOR PART CODE
Chip Resistor Part Coding
A
Resistor Code Figure
Value of resistor
Chip resistor
Wattage
1/16W
1/10W
1/8W
Type Tolerance
5%
5%
5%
Symbol
CJ
CJ
CJ
Form
Lt
W
L
W
t
BE
C
2SC2712
KTA1298Y
RN1411
RN1407
RN1404
TRANSISTOR ILLUSTRATION

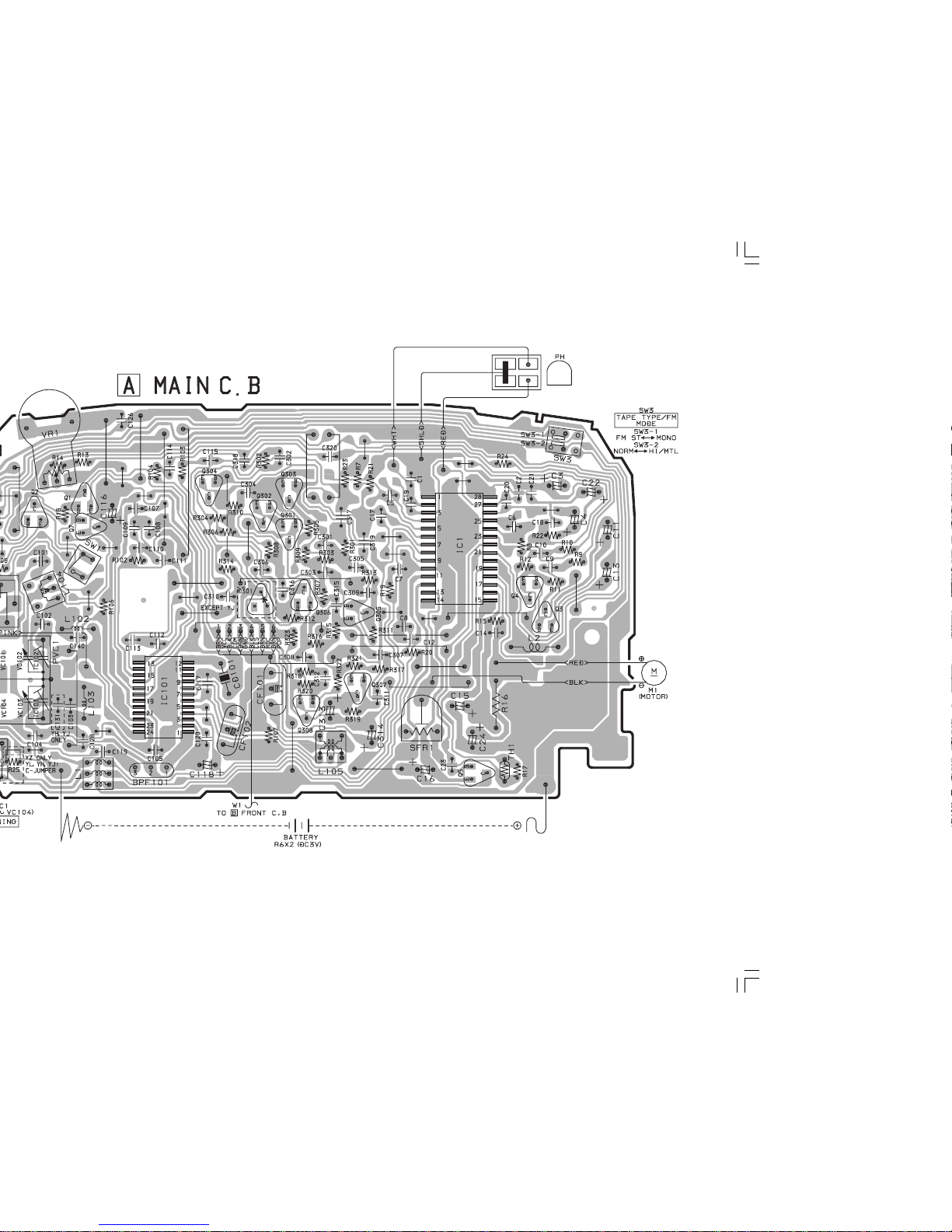

WIRING - 1 (MAIN)
65

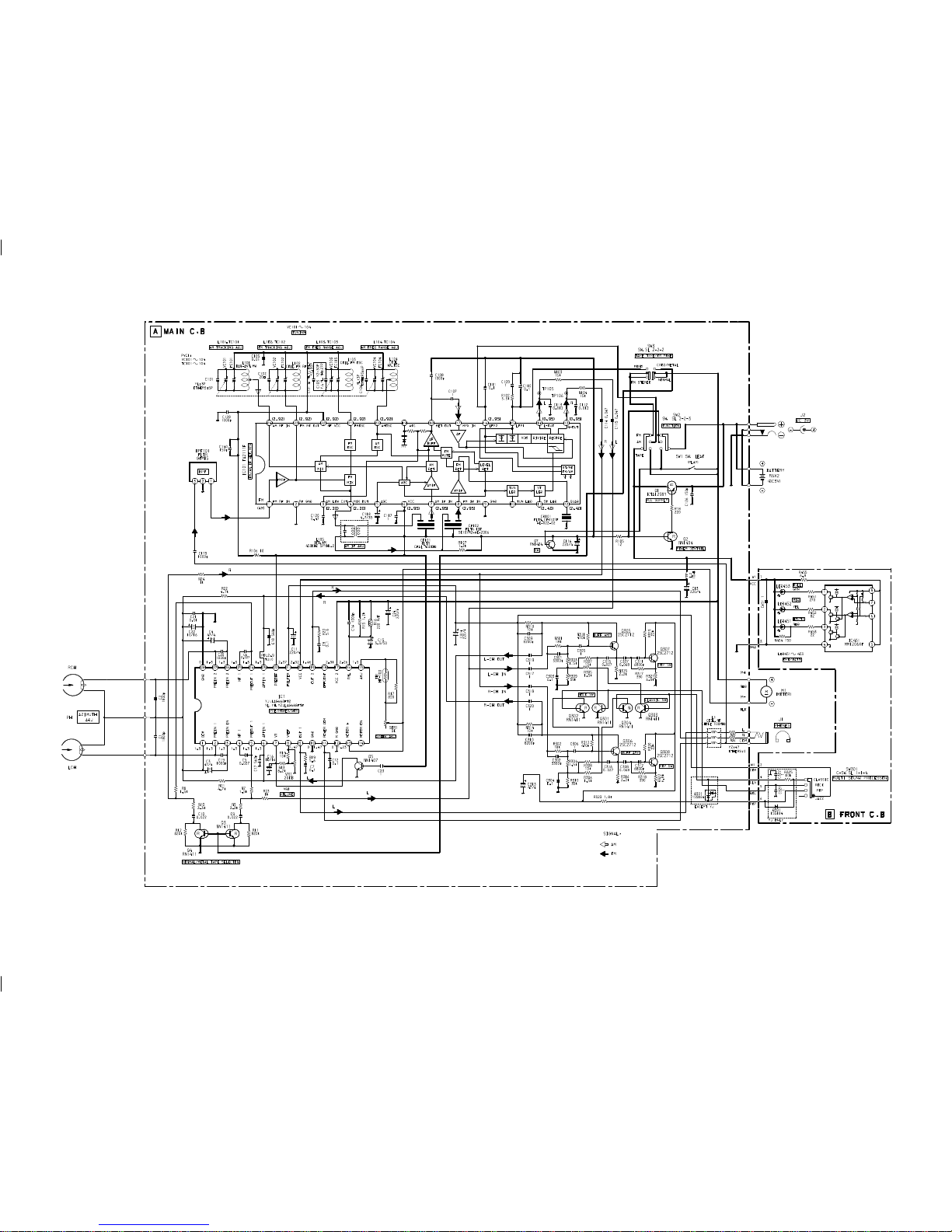

SCHEMATIC DIAGRAM - 1 (MAIN)
87

ADJUSTMENT
<TUNER SECTION>
1. AM IF Adjustment
L105........................................... 450kHz
2. AM Frequency Range Adjustment
L104................................ 517kHz±5kHz(YL only)
L104................................ 515kHz±5kHz(YH,YJ,YZ)
TC104.......................... 1775kHz±10kHz(YL only)
TC104......................... 1670kHz±10kHz(YH,YJ,YZ)
3. AM Tracking Adjustment
L101........................................... 600kHz
TC101...................................... 1400kHz
4. FM Frequency Range Adjustment
L103......................... 87.0MHz±0.1MHz(YL,YH,YJ)
L103......................... 87.4MHz±0.1MHz(YZ only)
TC103.................... 109.0MHz±0.1MHz(YL,YH,YJ)
TC103.................... 108.3MHz±0.1MHz(YZonly)
5. FM Tracking Adjustment
L102........................................ 88.0MHz
TC102 ................................... 108.0MHz
<TAPE PLAYER SECTION>
6. Tape Speed Adjustment
Settings: • MSP : Classic
•Tape/radio: Tape
• Tape select : NORM
•Volume: Non–clip (Max–10dB)
• Test tape : TTA–100 (Tape center)
• Test point : Phones Jack (J1)
• Adjustment location : SFR1
Method : Play back the test tape and adjust SFR1 so that
the frequency becomes 3000Hz±10Hz.
Then confirm WOW is less than 0.50%.
7. Azimuth adjustment
Setting: • Test point : Phones Jack (J1)
• MSP : Classic
•Tape/radio: Tape
•Tapeselect: NORM
• Volume : MAX
• Test tape : TTA–330/TTA–420
Method : Play back the 8KHz sigual of the test tape and
adjust screw so that the output becomes maximum.
VR1
VOLUME
TC101
TC102
TC103
TC104
PVC1
L104
L102
L103
PHONES
J1
SFR 1
L105
BAR ANT
L101
P HEAD
FWD
7
1
5
4
2
6
3
2
3
45
AMAIN C.B
6
7
WIRING - 2 (FRONT) <YJ>
109
WIRING - 2 (FRONT) <YL,YH,YZ>

PRACTICAL SERVICE FIGURE
<TUNER SECTION>
Sensitivity :
(IHF, THD 3%) FM Less than 17dB [at 88.0MHz]
Less than 17dB [at 98.0MHz]
Less than 18dB [at 108.0MHz]
(S/N 10dB) AM Less than 58dB [at 600kHz]
Less than 56dB [at 1000kHz]
Less than 56dB [at 1400kHz]
Intermediate frequency : FM 10.7MHz ± 0.1MHz
AM 450kHz ± 3kHz
FM stereo separation : More than 16dB [at 98.0MHz]
<TAPE SECTION>
Tape speed : 3000Hz ± 60Hz
Wow & flutter : Less than 0.5% (RMS)
Take-up torque : 35 ~ 50g-cm (FWD)
F.F torque : More than 36g-cm
Rew torque : 60~ 170g-cm
Back tension : 1.5 ~ 4.5g-cm (FWD)
S/N ratio : More than 43dB
Distortion : Less than 3.0%
Noiselevel : Less than7.0mV(YH,YJ,YL),4mV(YZ)
(Vol MAX, without tape)
Lessthan 0.5mV(YH,YJ,YL),0.3mV(YZ)
(Vol MIN, without tape)
Frequency response : 63Hz + 1/– 6dB ~ 8kHz + 4/– 4dB
(NORM)
63Hz + 1/– 6dB ~ 10kHz + 4/– 4dB
(METAL)
Test tape : TTA– 100
TTA– 210
TTA– 310 (METAL)
TTA– 320 (NORM)
11

MECHANICAL EXPLODED VIEW 1/1
12

DESCRIPTIONREF. NO. KANRI
NO.
PARTNO. KANRI
NO.
REF. NO. DESCRIPTIONPARTNO.
MECHANICAL PARTS LIST 1/1
13
1 8Z-HRJ-002-010 WINDOW,MSP
2 8Z-HRJ-003-010 KNOB,RTRY MSP
3 86-HRM-205-010 SPR-T,CLICK
4 8Z-HRJ-001-010 LID,CASS<YL>
4 8Z-HRJ-007-010 LID,CASS YH SIL<YH,YJ>
4 8Z-HRJ-005-010 LID,CASS YZ SIL<YZ>
5 8Z-HRJ-201-010 GEAR,MSP
6 86-HRM-005-110 WINDOW,TUN
7 81-HK9-208-210 SPR-P,CASS A
8 87-HRR-206-010 PLATE,HEAD J034
9 88-HRJ-038-010 FRAME,CENTER J034<EXCEPT YJ>
9 88-HKA-033-010 FRAME,CENTER J034<YJ>
10 86-HRM-009-210 POINTER,TUN
11 86-HRM-006-010 KNOB,RTRY TUN
12 86-HRM-202-010 BAT-CONTACT,(+)
13 8Z-HRM-205-010 BAT CONTACT (-)
14 8Z-HRL-008-010 CABI,REAR<YJ>
14 8Z-HRL-032-010 CABI,REAR ASSY<YL,YH>
14 8Z-HRL-037-010 CABI,REAR YZ ASSY SI<YZ>
15 8Z-HRL-010-010 LID,BATT<YJ>
A 87-067-732-010 TAPPING SCREW, VT1.4-3
B 87-B10-044-010 V+1.7-6.5
C 87-067-691-010 SCREW VT+1.7-6

TAPE MECHANIISM EXPLODED VIEW 1/1
30
29
1
28
26
27
25
24
23
22
21
20
19
18
16
2
3
4
17
5
6
15
11
10
7
9
8
12
13
14
FRAME,CENTER
A
14
