SERVICE MANUAL
DATA
DVD PLAYER
XD-PG700
S/M Code No. 09-027-362-1R1
U(S)
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-027-362-1T1).
BASIC DVD/CD MECHANISM: DP-5 R/R -SH
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-2-
TABLE OF CONTENTS -1/1
SPECIFICATIONS ..................................................................................................................................................................................... 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
.........................................................................................................4
ACCESSORIES PARTS LIST ................................................................................................................................................................... 5
DISASEMBRY ........................................................................................................................................................................................ 6-7
ELECTRICAL PARTS LIST .................................................................................................................................................................. 8-16

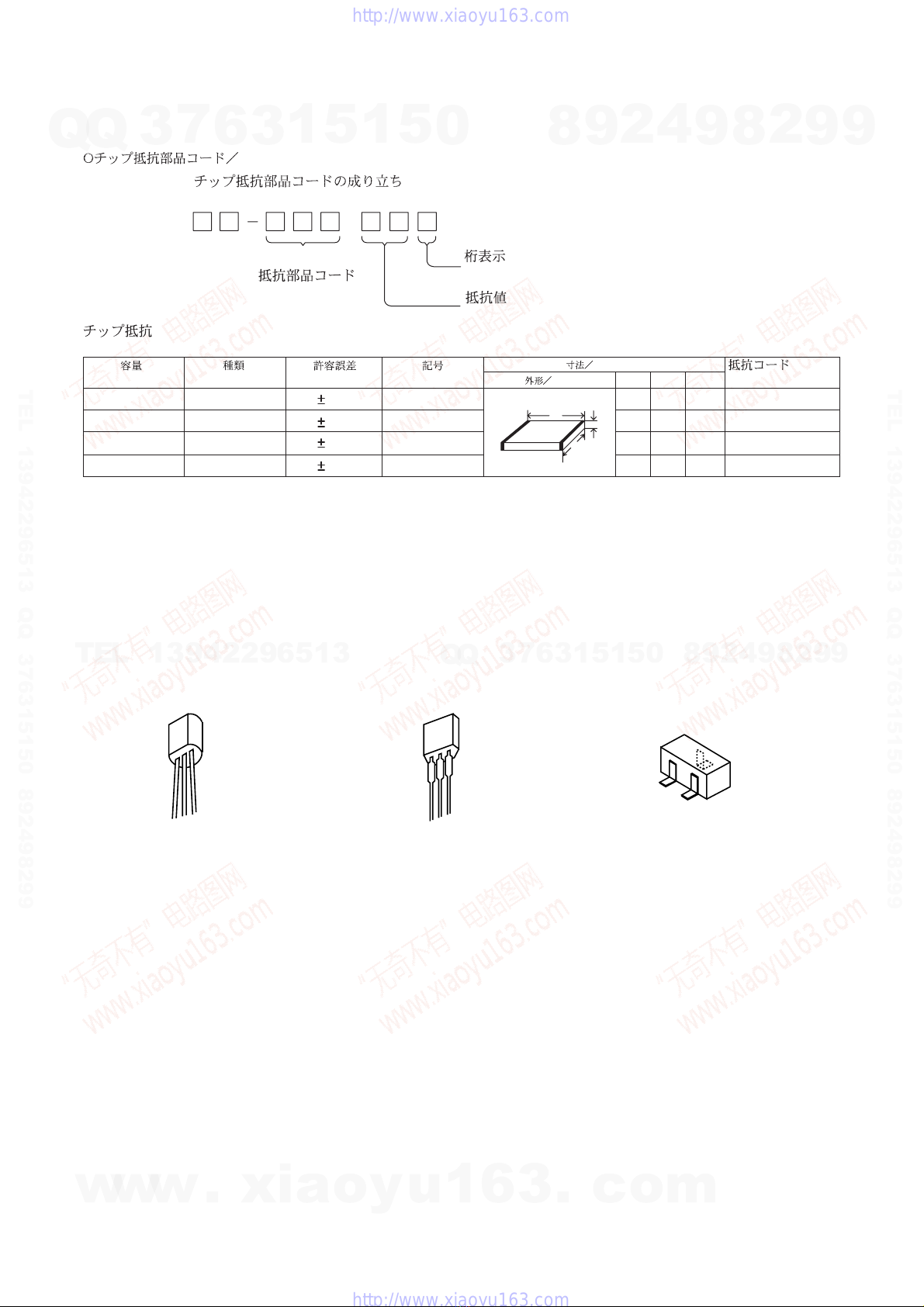

TRANSISTOR ILLUSTRATION ................................................................................................................................................................16

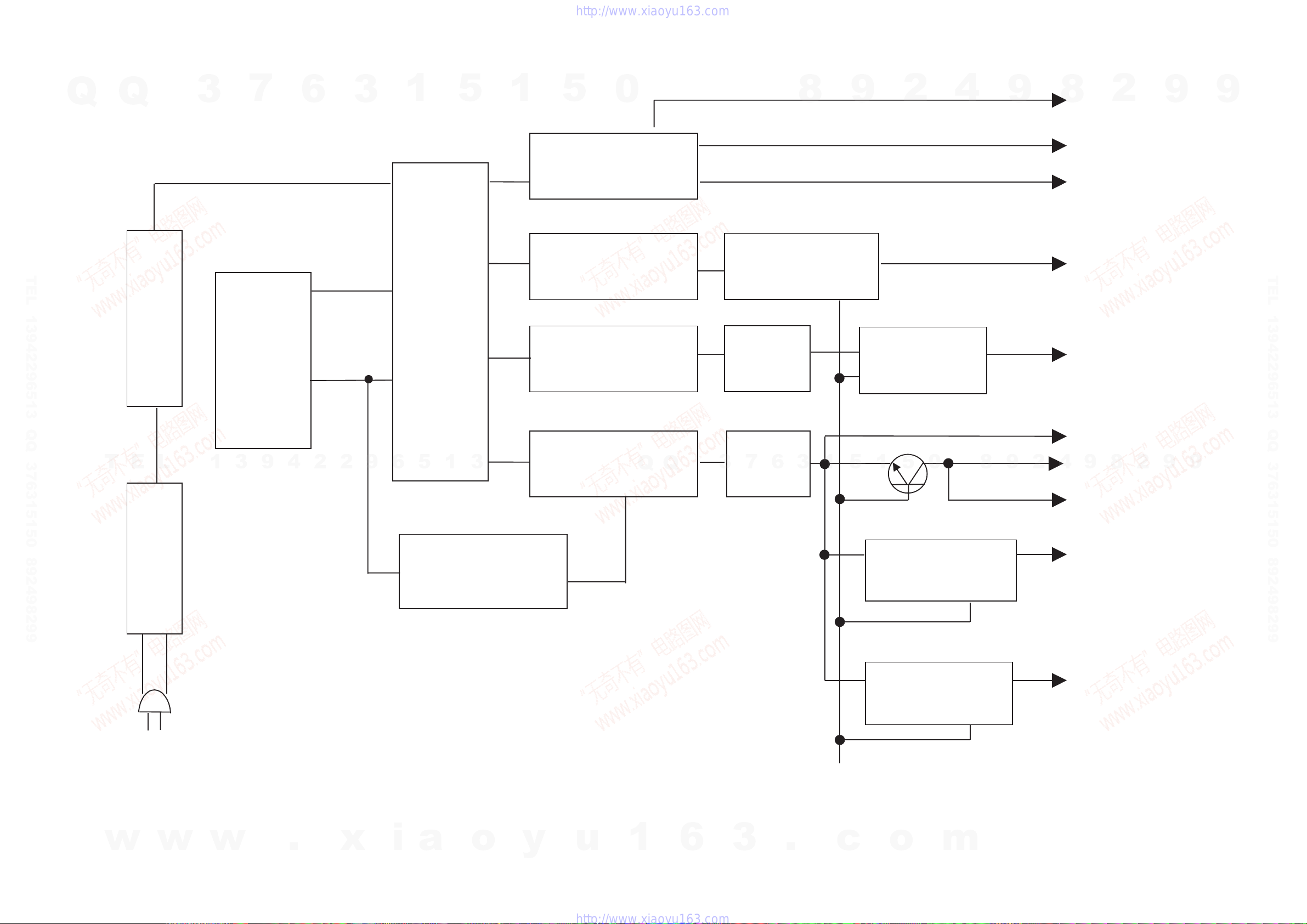

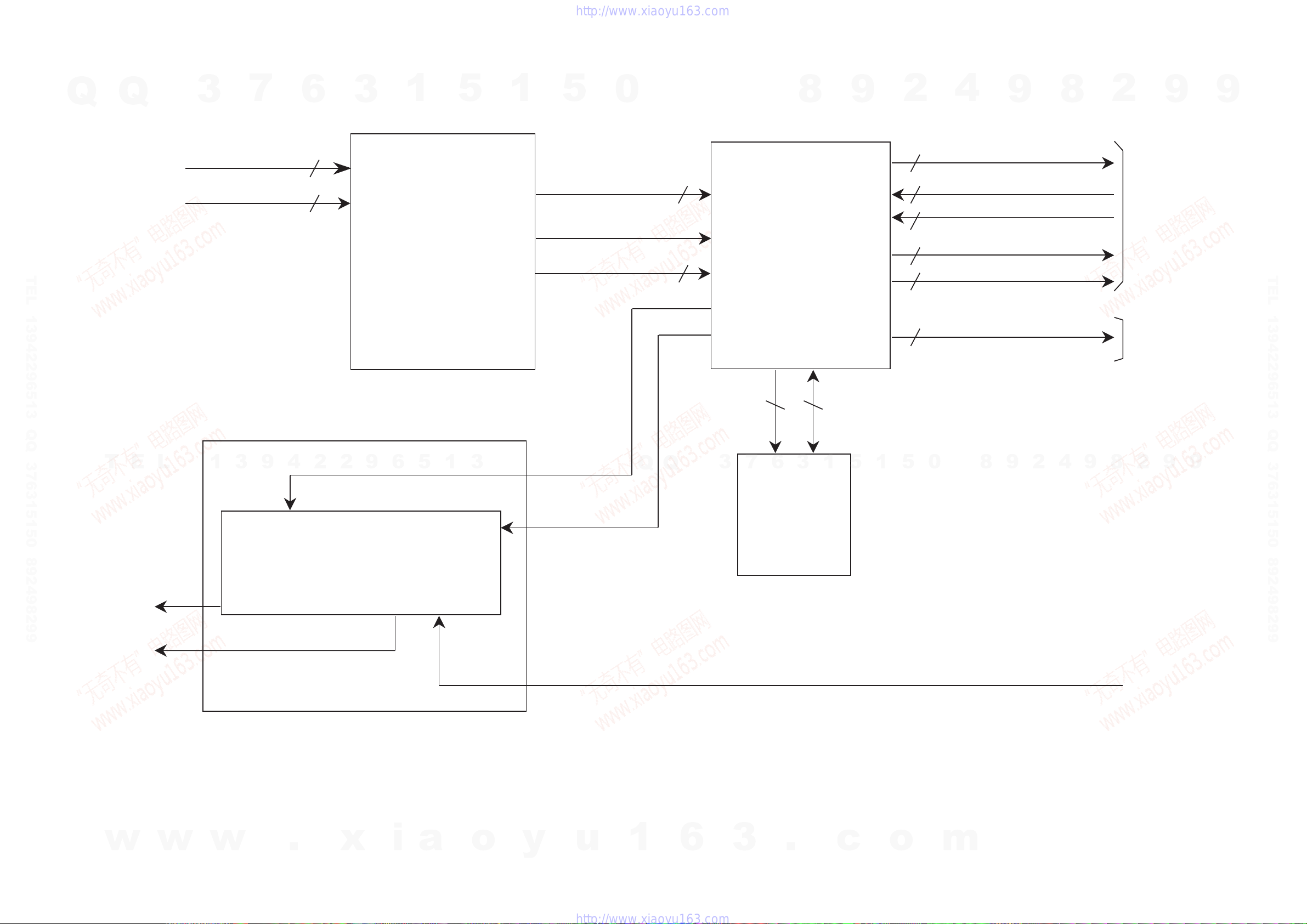

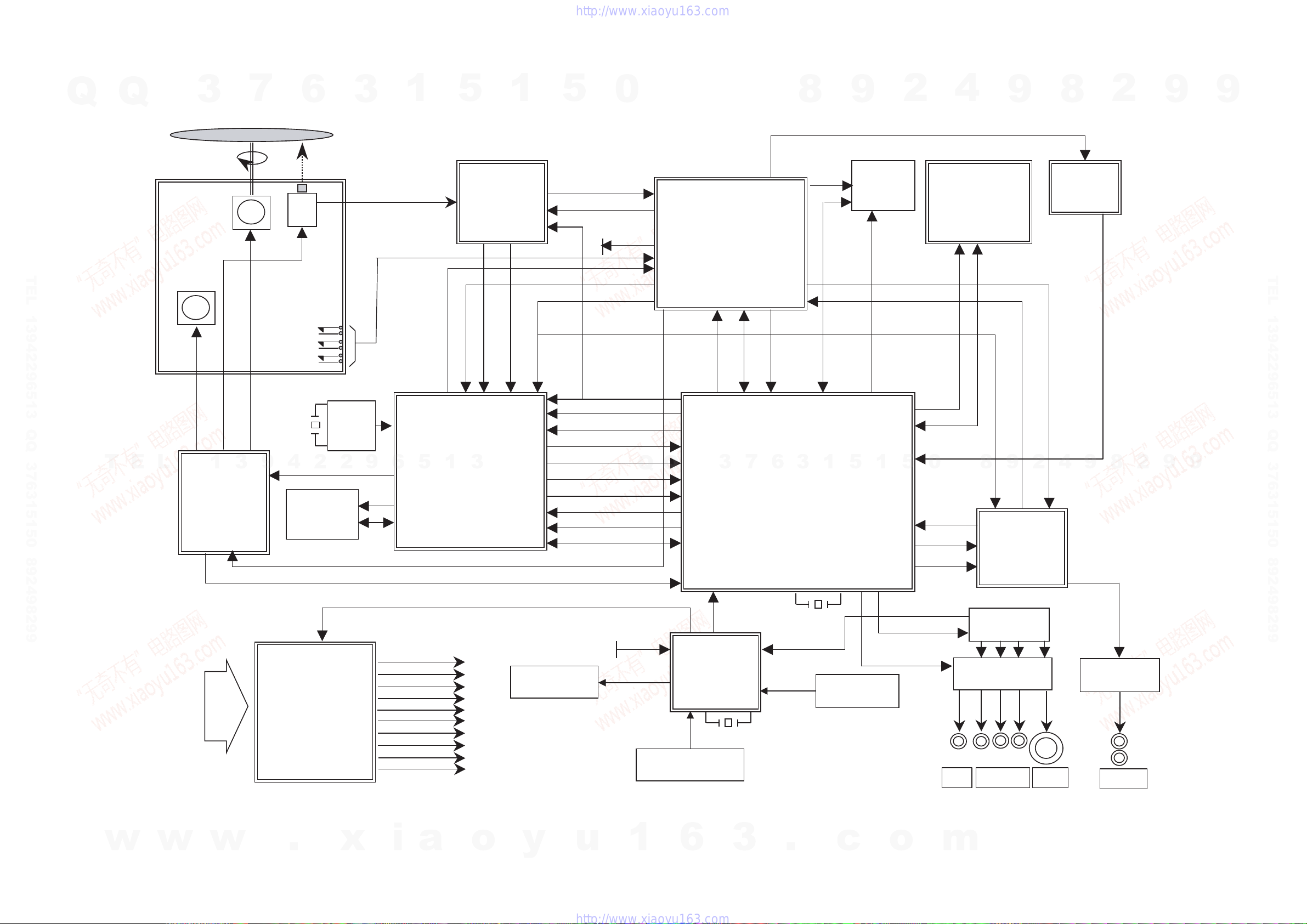

BLOCK DIAGRAM................................................................................................................................................................................17-20
SCHEMATIC DIAGRAM-1/9 (DRIVE & RF SECTION) ........................................................................................................................... 21
SCHEMATIC DIAGRAM-2/9 (DVD DSP SECTION) ................................................................................................................................22
SCHEMATIC DIAGRAM-3/9 (MEMORY SECTION) ............................................................................................................................... 23
SCHEMATIC DIAGRAM-4/9 (MPEG SECTION) ..................................................................................................................................... 24
WIRING-1/5 (DVD C.B) -Top View-.......................................................................................................................................................... 25
WIRING-2/5 (DVD C.B) -Bottom View-.....................................................................................................................................................26
SCHEMATIC DIAGRAM-5/9 (AUDIO SECTION) .................................................................................................................................... 27
SCHEMATIC DIAGRAM-6/9 (JACK SECTION) .......................................................................................................................................28
SCHEMATIC DIAGRAM-7/9 (DIGITRON SECTION) .............................................................................................................................. 29
SCHEMATIC DIAGRAM-8/9 (POWER SECTION) .................................................................................................................................. 30
WIRING-3/5 (MAIN C.B) ..........................................................................................................................................................................31
WIRING-4/5 (KEY C.B) ............................................................................................................................................................................32
SCHEMATIC DIAGRAM-9/9 (SLED/LOADING MOTOR SECTION) .......................................................................................................33
WIRING-5/5 (SLED/LOADING MOTOR C.B) .......................................................................................................................................... 33
WAVEFORMS .................................................................................................................................................................................... 34-35
VOLTAGE CHART .............................................................................................................................................................................. 36-38
LCD DISPLAY ..........................................................................................................................................................................................39
IC BLOCK DIAGRAMS ...................................................................................................................................................................... 40-41
IC DESCRIPTIONS............................................................................................................................................................................ 42-60
MECHANICAL EXPLODED VIEW ...........................................................................................................................................................61
DVD MECHANISM EXPLODED VIEW (DP-5 R/RW-SH) ....................................................................................................................... 62
MECHANICAL & DVD MECHANISM PARTS LIST.................................................................................................................................. 63
COLOR NAME TABLE ............................................................................................................................................................................ 63
ELECTRICAL TROUBLESHOOTING GUIDE .................................................................................................................................... 64-73
DECK MECHANISM PARTS LOCATION ................................................................................................................................................ 74
DECK MECHANISM DISASSEMBLY .................................................................................................................................................75-77
OTHER PARTS LIST ............................................................................................................................................................................... 78
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-3-
SPECIFICATIONS -1/1
Power supply 120 V AC, 60 Hz
Power consumption 14 W
Power consumption in standby mode
2.4 W
Weight 2.9 kg (6.6 lbs)
External dimensions 430 ×75 ×245 mm
(17 1/8×3 ×9 3/4inches)
(w ×h ×d)
Laser Semiconductor laser, wavelength:
650/780 nm
Signal format NTSC
Supported discs DVD video discs: 12 cm (single-
sided single layer, single-
sided double layer, double-
sided double layer), 8 cm
(single-sided single layer,
single-sided double layer,
double-sided double layer)
Compact discs (CD-DA, MP3):
12 cm and 8 cm
Component video output
Y output: 1.0 Vp-p
(75 ohms, sync negative)
CR, CBoutputs: 0.7 Vp-p
(75 ohms)
RCA jacks (CR/CB/Y) ×1
S-video output Y output: 1.0 Vp-p (75 ohms,
sync negative)
C output: 0.3 Vp-p
4-pin mini DIN jack ×1
Composite video output1.0 Vp-p (75 ohms, sync
negative)
RCA jack ×1
Audio output Digital output: 0.5 Vp-p
(75 ohms), RCA jack ×1
0.5 Vp-p (75 ohms), Fiber
optical connector ×1
Analog output: 2.0 Vrms
(1 kHz, 0 dB, 330 ohms),
RCA jacks (L/R) ×1
Audio output characteristics
Signal-to-noise ratio: More than
95 dB (EIAJ)
Dynamic range: More than 90 dB
(EIAJ)
Harmonic distortion: 0.008%
Frequency response:
CD: 4 Hz to 20 kHz
DVD: 4 Hz to 22 kHz (48-kHz
sampling), 4 Hz to 44 kHz
(96-kHz sampling)
Operating temperatures5°C to 35°C (41°F to 95°F)
Specifications are subject to change without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-4-
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING -1/1
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin laser diode
in the optical block. Be sure ground body and workbench,
and use care the clothes do not touch the diode.
Solder short for
laser diode
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-5-
ACCESSORIES PARTS LIST -1/1
XD-PG700
USC
O AS1001 S8-35R-S00-34W IB,DVA5024N_HA1UAA a
O AS1002 S7-11R-1N0-86A RC UNIT,RC-CVL53 a
O AS1003 S6-11R-1G0-01A PLUG ASSY 1WAY YELLOW GLOBAL a
O AS1004 S6-11R-2G0-01A PLUG ASSY 2WAY RED/WHITE a
O AS1005 S8-51R-P00-03N CABLE ASSY,RF DVD CABLE ASSY, a
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-6-

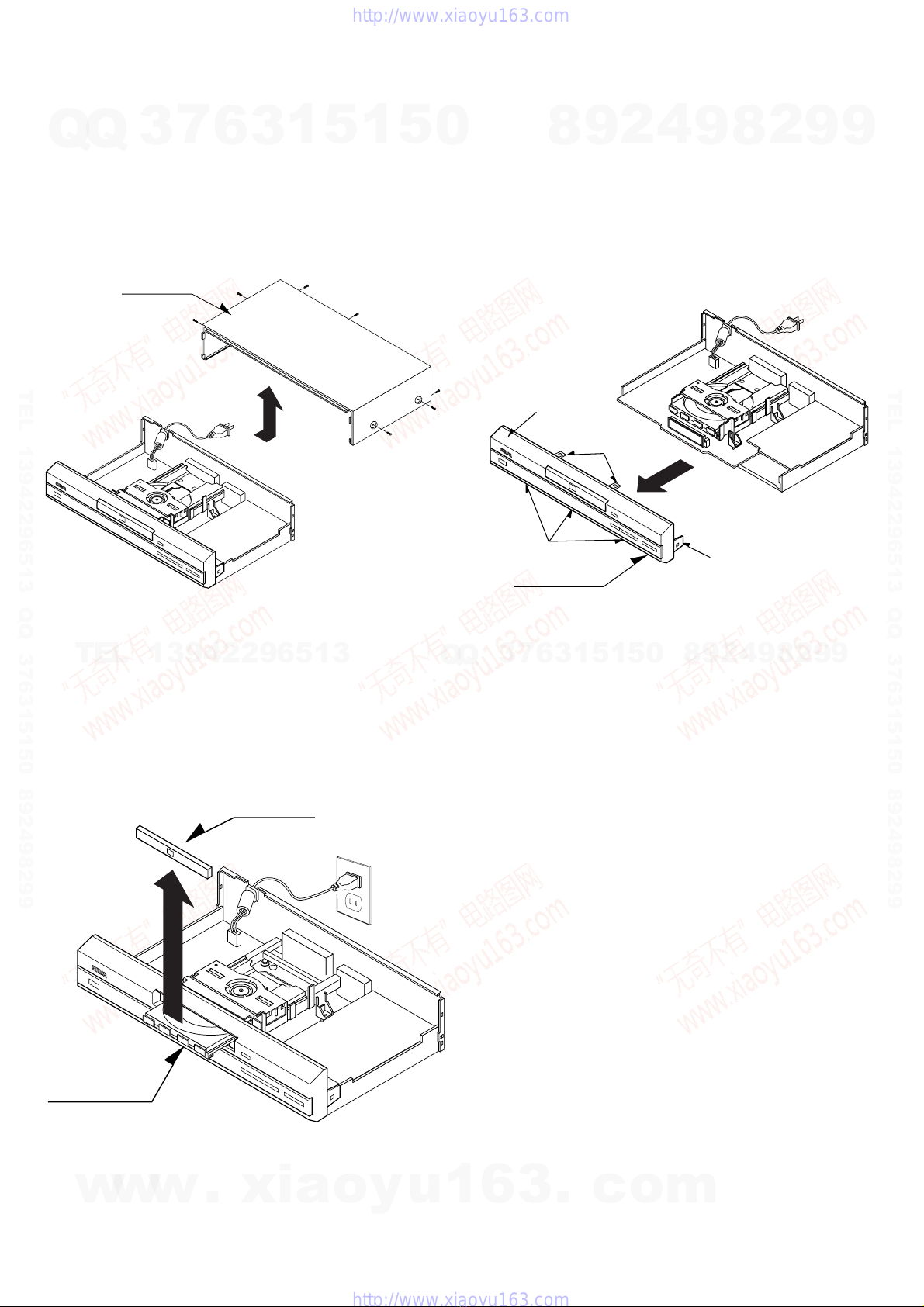

3. Front Panel
1.Eject the disc tray. (See Fig.2-2)
2.Remove the tray door. (See Fig.2-2)
3.Pull the front panel toward you while pressing
seven stoppers to disengage and remove the
front panel. (See Fig.2-3)
1. Top Case
1.Release seven screws(A). (See Fig.2-1)
2.Lift the top case with holding the back of it and
remove it in the direction of the arrow.
2. Tray Door
1.Eject the disc tray.
2.Lift up the tray door in the direction of the arrow.
DISASSEMBRY -1/2
(A)
(A) (A)
(A)
(A)
Top Case
(A)
(A)
Tray Door
Disc Tray
Stopper
Stopper
Stopper
Front Panel
Stopper
Fig.2-1
Fig.2-2
Fig.2-3
CABINET DISASSEMBLY
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-7-
1.Disassembling of DVD Circuit Board and Main
Circuit Board.
1.Remove the top case.(See Fig.2-1)
2.Remove eleven screws (B).
3.Remove two FF-cables (PMD02, PMD03) from
DVD Circuit Board, and remove the DVD
Mechanism.
4.Remove two connectors (P5402, P5901), and
remove DVD Circuit Board from Main Circuit
Board.
5.Remove two screws (C).
6.Remove Main Circuit Board from the chassis.
2. Disassembling of Key Circuit Board
1.Remove the front panel.(See Fig. 2-3)
2.Release three screws (D), and remove the Key
circuit board.
P5402
PMD02
PMD03
P5901
(B)
(B)
(B)
(B)
(B)
(B)
(B)
(B)
(B) (B)
(B)
(C)
(C)
DVD Mechanism
DVD
Circuit Board
Main
Circuit Board
Key
Circuit Board
(D) (D)
(D)
(D)
Stopper
DISASSEMBRY -2/2
Fig.2-4
Fig.2-5
CIRCUIT BOARD DISASSEMBLY
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-8-
ELECTRICAL PARTS LIST -1/9
XD-PG700
USC
DVD X C 201 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 202 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 203 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 204 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 205 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 206 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 207 SC-H11-05D-942 C-CAP,CER 1UF-10V a
DVD X C 208 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 209 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 210 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 211 87-015-681-080 CAP,E 10-16V a
DVD O C 212 87-015-681-080 CAP,E 10-16V a
DVD O C 213 87-015-681-080 CAP,E 10-16V a
DVD X C 214 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 215 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 216 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 224 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 225 SC-H11-05D-942 C-CAP,CER 1UF-10V a
DVD X C 226 SC-H11-05D-942 C-CAP,CER 1UF-10V a
DVD X C 229 SC-H11-04K-942 C-CAP,0.1UF 50V a
XD-PG700
USC
DVD X C 230 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 231 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 232 87-015-681-080 CAP,E 10-16V a
DVD X C 238 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 239 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 240 SC-H12-22K-562 C-CAP,2200F-50V a
DVD X C 242 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 245 SC-H11-05D-942 C-CAP,CER 1UF-10V a
DVD X C 251 SC-H11-05D-942 C-CAP,CER 1UF-10V a
DVD X C 252 SC-H41-00K-112 C-CAP,10P-50V a
DVD X C 253 SC-H11-05D-942 C-CAP,CER 1UF-10V a
DVD X C 254 SC-H11-05D-942 C-CAP,CER 1UF-10V a
DVD X C 255 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 258 SC-H11-05D-942 C-CAP,CER 1UF-10V a
DVD O C 261 87-015-681-080 CAP,E 10-16V a
DVD O C 262 87-015-681-080 CAP,E 10-16V a
DVD O C 263 87-015-681-080 CAP,E 10-16V a
DVD O C 264 87-015-681-080 CAP,E 10-16V a
DVD O C 265 87-015-681-080 CAP,E 10-16V a
DVD O C 272 87-015-684-080 CAP,E 47-16V a
XD-PG700
USC
DVD X C 273 SC-H12-25F-944 C-CAP,2.2UF-16V a
DVD O C 274 87-015-684-080 CAP,E 47-16V a
DVD O C 278 87-015-681-080 CAP,E 10-16V a
DVD O C 279 87-015-681-080 CAP,E 10-16V a
DVD O C 280 87-015-681-080 CAP,E 10-16V a
DVD O C 281 87-015-681-080 CAP,E 10-16V a
DVD O C 284 87-015-684-080 CAP,E 47-16V a
DVD O C 285 87-015-681-080 CAP,E 10-16V a
DVD X C 286 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 287 87-015-681-080 CAP,E 10-16V a
DVD O C 288 87-015-681-080 CAP,E 10-16V a
DVD X C 290 SC-H41-80K-412 CAP,CER 18PF-50V a
DVD X C 291 SC-H41-80K-412 CAP,CER 18PF-50V a
DVD X C 292 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 293 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 294 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 295 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 296 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 2A0 87-015-684-080 CAP,E 47-16V a
DVD X C 2A3 SC-H11-04K-942 C-CAP,0.1UF 50V a
XD-PG700
USC
DVD O C 2A4 87-015-681-080 CAP,E 10-16V a
DVD X C 2A5 SC-H16-83F-942 CAP,CER 0.068-16 a
DVD X C 2A6 SC-H11-02K-562 C-CAP,1000PF 50V 10% a
DVD X C 2A7 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2A8 SC-H11-52K-562 CAP,CER 1500P-50 a
DVD X C 2A9 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2B3 SC-H13-92K-562 C-CAP,3900PF-50V a
DVD X C 2B4 SC-H16-83F-942 CAP,CER 0.068-16 a
DVD X C 2B5 SC-H13-33K-562 C-CAP,CER 0.033UF-50V a
DVD X C 2B9 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2C1 SC-H11-03K-562 C-CAP,0.01UF 50V 10% a
DVD O C 2C2 87-015-681-080 CAP,E 10-16V a
DVD X C 2C4 SC-H11-02K-562 C-CAP,1000PF 50V 10% a
DVD X C 2C5 SC-H13-32K-562 C-CAP,3300P-50V a
DVD X C 2C6 SC-H11-02K-562 C-CAP,1000PF 50V 10% a
DVD X C 2C8 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 2C9 87-015-681-080 CAP,E 10-16V a
DVD O C 2D0 87-015-684-080 CAP,E 47-16V a
DVD O C 2D1 87-015-684-080 CAP,E 47-16V a
DVD X C 2D2 SC-H11-04K-942 C-CAP,0.1UF 50V a
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-9-
ELECTRICAL PARTS LIST -2/9
XD-PG700
USC
DVD X C 2D3 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 2D4 87-015-684-080 CAP,E 47-16V a
DVD O C 2D5 87-015-681-080 CAP,E 10-16V a
DVD X C 2D6 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2D7 SC-H11-52K-562 CAP,CER 1500P-50 a
DVD X C 2D9 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 2M1 87-010-060-080 CAP,E 100-16V a
DVD X C 2M2 SC-H16-82K-562 C-CAP,CER 6800P-50V a
DVD X C 2M3 SC-H14-72K-562 C-CAP,4700F-50V a
DVD X C 2M4 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2M5 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2M6 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2M7 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2M8 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2M9 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2N1 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 2N3 SC-H12-23K-942 C-CAP,0.022UF-50V a
DVD X C 2N4 SC-H12-25F-944 C-CAP,2.2UF-16V a
DVD X C 301 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 302 SC-H12-25F-944 C-CAP,2.2UF-16V a
XD-PG700
USC
DVD X C 303 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 304 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 305 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 306 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 307 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 308 87-015-684-080 CAP,E 47-16V a
DVD X C 309 SC-H12-25F-944 C-CAP,2.2UF-16V a
DVD X C 314 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 316 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 317 87-015-684-080 CAP,E 47-16V a
DVD X C 318 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 319 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 320 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 3F1 SC-H12-25F-944 C-CAP,2.2UF-16V a
DVD X C 3F2 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 501 87-015-684-080 CAP,E 47-16V a
DVD X C 503 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD O C 504 87-015-681-080 CAP,E 10-16V a
DVD X C 506 SC-H12-25F-944 C-CAP,2.2UF-16V a
DVD O C 507 87-015-684-080 CAP,E 47-16V a
XD-PG700
USC
DVD X C 508 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 509 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 510 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 511 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 512 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 513 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 514 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 515 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 516 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 517 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 518 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 519 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 520 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 521 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 522 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 523 SC-H12-25F-944 C-CAP,2.2UF-16V a
DVD X C 525 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 526 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 527 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 528 SC-H11-04K-942 C-CAP,0.1UF 50V a
XD-PG700
USC
DVD X C 529 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 530 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 531 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 532 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 533 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 534 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 535 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 536 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 537 SC-H42-21K-412 C-CAP,220P-50V a
DVD X C 538 SC-H12-25F-944 C-CAP,2.2UF-16V a
DVD X C 540 SC-H41-80K-412 CAP,CER 18PF-50V a
DVD X C 541 SC-H42-70K-412 C-CAP,CER 27PF-50V a
DVD X C 542 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 543 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 544 SC-H12-25F-944 C-CAP,2.2UF-16V a
DVD X C 546 SC-H42-21K-412 C-CAP,220P-50V a
DVD X C 548 SC-H42-21K-412 C-CAP,220P-50V a
DVD X C 549 SC-H42-21K-412 C-CAP,220P-50V a
DVD X C 550 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 553 SC-H42-21K-412 C-CAP,220P-50V a
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-10-
ELECTRICAL PARTS LIST -3/9
XD-PG700
USC
DVD X C 554 SC-H11-04K-942 C-CAP,0.1UF 50V a
DVD X C 555 SC-H41-01K-412 C-CAP,100P-50V a
DVD X C 556 SC-H41-01K-412 C-CAP,100P-50V a
DVD X C 557 SC-H42-70K-412 C-CAP,CER 27PF-50V a
DVD O D 2A1 SD-S20-200-9CA DIODE,DAN202K a
DVD O D 2A2 SD-S20-200-9CA DIODE,DAN202K a
DVD O D 2A3 SD-S20-200-9CA DIODE,DAN202K a
DVD S IC 201 SI-LNR-HY0-02B IC,HDC25D811B a
DVD S IC 203 SI-EB1-216-16B IC,M12L16161A-7T-L a
DVD O IC 206 SI-TO7-040-00F IC,TC7W04FU a
DVD S IC 2A1 SI-LNR-HI0-03A IC,HD153702TF a
DVD O IC 2A2 SI-JR3-414-00C IC,NJM3414AM-TE1,3K/REEL a
DVD S IC 2A4 SI-KE3-930-00G IC,KIA393F-EL a
DVD S IC 2M1 SI-LNR-FA0-13A IC,FAN8004 a
DVD O IC 301 SI-CTM-HY0-11A IC,HS353106 a
DVD S IC 305 SI-MMR-HY0-25A IC,HY57643220CT-7I a
DVD O IC 3F1 S9-57R-018-BB0 PROGRAM DVA5024N HA1UAA a
DVD S IC 501 SI-NS8-601-00A IC,NDV8601 a
DVD S IC 502 SI-MMR-AL0-12A IC,AT93C56-10SC(SI)-2.7-8S1 a
DVD S IC 503 SI-FA7-424-40F IC,MM74HCT244SJ a
XD-PG700
USC
DVD S IC 506 SI-PMG-RH0-03A IC,BA18BC0FP-E2 a
DVD O L 201 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 203 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 206 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 207 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 2A1 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 2A2 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 301 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 302 SR-H02-21D-622 C-RES,M 2.2-1/10W a
DVD O L 3F1 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 502 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 503 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 504 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O L 505 S2-00H-JC1-02A CER,FILTER HB-1M2012-102JT a
DVD O P 3301 S6-30X-E00-115 F-CABLE,04-6232-015-010-000 E a
DVD O P 5402 S6-30R-BE0-340 CONN,BOAR2254-30S-T a
DVD O P 5901 S6-30R-BE0-340 CONN,BOAR2254-30S-T a
DVD O PMD02 S6-30R-FB0-2W0 CONN,04-6232-123-008-80 a
DVD O PMD03 S6-30X-E00-111 CONN,FFC/FPC 04-6232-011-010- a
DVD O Q 2A1 ST-R10-370-9BB C-TR,2SA1037K-Q a
XD-PG700
USC
DVD O Q 2A2 ST-R10-370-9BB C-TR,2SA1037K-Q a
DVD S Q 2A5 ST-R38-820-9AA C-TR,KTC3882 a
DVD S Q 2A6 ST-R38-820-9AA C-TR,KTC3882 a
DVD S Q 2M1 ST-R12-400-9AP TR,DTC124EK TP a
DVD X R 201 SR-H00-00C-622 RES,0-1/16W a
DVD X R 202 SR-H00-00C-622 RES,0-1/16W a
DVD X R 203 SR-H10-01C-622 RES,1K-1/16W a
DVD X R 204 SR-H10-01C-622 RES,1K-1/16W a
DVD X R 205 SR-H10-01C-622 RES,1K-1/16W a
DVD X R 207 SR-H10-04C-622 C-RES,1M-1/16W a
DVD X R 217 SR-H01-02C-622 RES,10-1/16W a
DVD X R 218 SR-H47-00C-622 RES,470-1/16W a
DVD X R 219 SR-H10-02C-622 RES,10K 1/16W a
DVD X R 220 SR-H10-02C-622 RES,10K 1/16W a
DVD X R 230 SR-H10-00C-622 RES,100-1/16W a
DVD X R 231 SR-H10-00C-622 RES,100-1/16W a
DVD X R 232 SR-H10-00C-622 RES,100-1/16W a
DVD X R 233 SR-H10-00C-622 RES,100-1/16W a
DVD X R 234 SR-H10-00C-622 RES,100-1/16W a
DVD X R 235 SR-H10-00C-622 RES,100-1/16W a
XD-PG700
USC
DVD X R 236 SR-H10-00C-622 RES,100-1/16W a
DVD X R 237 SR-H10-00C-622 RES,100-1/16W a
DVD X R 239 SR-H00-00C-622 RES,0-1/16W a
DVD X R 240 SR-H00-00C-622 RES,0-1/16W a
DVD X R 241 SR-H00-00C-622 RES,0-1/16W a
DVD X R 242 SR-H00-00C-622 RES,0-1/16W a
DVD X R 243 SR-H00-00C-622 RES,0-1/16W a
DVD X R 252 SR-H00-00C-622 RES,0-1/16W a
DVD O R 273 SR-H15-01C-622 C-RES,M 1.5K-1/16W a
DVD X R 274 SR-H62-00C-622 RES,620-1/16W a
DVD O R 275 SR-H15-01C-622 C-RES,M 1.5K-1/16W a
DVD X R 276 SR-H91-00C-622 RES,910-1/16W a
DVD X R 277 SR-H15-00C-622 RES,150 1/16W a
DVD X R 278 SR-H00-00C-622 RES,0-1/16W a
DVD X R 279 SR-H00-00C-622 RES,0-1/16W a
DVD X R 281 SR-H00-00C-622 RES,0-1/16W a
DVD X R 290 SR-H00-00C-622 RES,0-1/16W a
DVD X R 291 SR-H00-00C-622 RES,0-1/16W a
DVD X R 2A1 SR-H09-12C-622 C-RES,91-1/16W a
DVD X R 2A2 SR-H00-00C-622 RES,0-1/16W a
