Aiwa AV-D55 Instructions for use
S E R V I C E M A N U A L
SIMPLE MANUAL
• Replace this Service Manual with ”Revision Publishing” when it is issued.
AV-D55
• TYPE:U<B>
S/M Code No. 09–994-329-7T1
STEREO AV RECEIVER
ELECTRICAL MAIN PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
UB .....................XX..................................A...................
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-NF6-205-010 GUIDE,FL 40-150- 9 A...................
C 109 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 107 87-016-526-080 C-CAP,S 0.47-16 BK A...................
C 108 87-016-526-080 C-CAP,S 0.47-16 BK A...................
C 105 87-016-526-080 C-CAP,S 0.47-16 BK A...................
C 112 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 113 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 115 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 110 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 114 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 118 87-010-498-040 CAP,E 10-16 GAS A...................
C 116 87-015-699-040 CAP,E 10-50 7L A...................
C 111 87-015-699-040 CAP,E 10-50 7L A...................
C 117 87-016-526-080 C-CAP,S 0.47-16 BK A...................
C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 129 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 120 87-015-694-040 E/CAP 0.47-50 A...................
C 124 87-015-699-040 CAP,E 10-50 7L A...................
C 122 87-015-699-040 CAP,E 10-50 7L A...................
C 126 87-016-459-040 CAP,E 470-10 SMG A...................
C 128 87-016-459-040 CAP,E 470-10 SMG A...................
C 121 87-016-526-080 C-CAP,S 0.47-16 BK A...................
C 127 87-016-526-080 C-CAP,S 0.47-16 BK A...................
C 134 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 130 87-010-198-080 CAP, CHIP 0.022 A...................
C 137 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 139 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 138 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 131 87-010-408-080 CAP, ELECT 47-50V A...................
C 132 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 136 87-016-526-080 C-CAP,S 0.47-16 BK A...................
C 133 87-016-526-080 C-CAP,S 0.47-16 BK A...................
C 144 87-010-178-080 CHIP CAP 1000P A...................
C 140 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 142 87-010-198-080 CAP, CHIP 0.022 A...................
C 143 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 141 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 149 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 145 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 147 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 146 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 148 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 157 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 150 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 155 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 154 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 158 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 153 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 156 87-015-699-040 CAP,E 10-50 7L A...................
C 160 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 170 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 171 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 240 87-016-526-080 C-CAP,S 0.47-16 BK A...................
C 407 87-010-178-080 CHIP CAP 1000P A...................
C 408 87-010-178-080 CHIP CAP 1000P A...................
C 403 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 404 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 409 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 406 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 405 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 402 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 412 87-010-178-080 CHIP CAP 1000P A...................
C 411 87-010-322-080 C-CAP,S 100P-50 CH A...................
CN 202 87-A60-039-010 CONN,32P V 9604S-32C A...................
CN 201 87-A60-053-010 CONN,17P V 9604S-17C A...................
CN 202 87-A60-553-010 CONN,35P V 9604S-35C ....................
D 104 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 108 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 105 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 103 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 107 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 106 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 102 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 101 87-A40-344-080 ZENER,MTZJ6.2C A...................
D 103 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
D 107 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
D 105 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
D 102 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
D 109 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
D 114 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 116 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 113 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 111 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 111 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
D 113 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
D 117 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
ELECTRICAL MAIN PARTS LIST - 2
D 115 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
D 121 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 122 87-020-465-080 DIODE,1SS133 (110MA) A...................
FL 101 8Z-AR1-602-010 FL,BJ691 GK A...................
IC 102 87-017-915-080 IC,BU4094BCF A...................
IC 101 87-017-915-080 IC,BU4094BCF A...................
IC 104 87-070-083-010 IC,GP1U281X A...................
IC 103 8Z-AR3-610-010 C-IC,UPD780228GF A...................
LED 108 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 106 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 101 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 104 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 116 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 110 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 112 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 114 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 119 87-A40-317-080 LED,SLR-342VCT31 RED A...................
Q 106 87-A30-071-080 C-TR,RT1N 144C A...................
Q 104 87-A30-073-080 C-TR,RT1N 141C A...................
Q 101 87-A30-073-080 C-TR,RT1N 141C A...................
Q 108 87-A30-073-080 C-TR,RT1N 141C A...................
Q 102 87-A30-073-080 C-TR,RT1N 141C A...................
Q 103 87-A30-073-080 C-TR,RT1N 141C A...................
Q 105 89-112-965-080 TR,2SA1296 (0.75W) A...................
Q 116 87-026-263-080 C-TR,RN1410 A...................
Q 119 87-A30-071-080 C-TR,RT1N 144C A...................
Q 117 87-A30-071-080 C-TR,RT1N 144C A...................
Q 110 87-A30-073-080 C-TR,RT1N 141C A...................
Q 112 87-A30-073-080 C-TR,RT1N 141C A...................
Q 114 87-A30-073-080 C-TR,RT1N 141C A...................
Q 115 87-A30-073-080 C-TR,RT1N 141C A...................
Q 113 87-A30-074-080 C-TR,RT1P 141C A...................
Q 111 87-A30-087-080 C-FET,2SK2158 A...................
Q 120 87-A30-071-080 C-TR,RT1N 144C A...................
S 105 87-A90-095-080 SW,TACT EVQ11G04M ....................
S 101 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 107 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 109 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 108 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 104 87-A90-095-080 SW,TACT EVQ11G04M ....................
S 106 87-A90-095-080 SW,TACT EVQ11G04M ....................
S 111 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 113 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 112 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 114 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 116 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 115 87-A90-095-080 SW,TACT EVQ11G04M A...................
SW 101 87-A90-535-010 SW,RTRY EC16B24304 A...................
SW 102 87-A90-950-010 SW,RTRY EC12E12504 ENCORDER A...................
X 101 87-A70-075-080 VIB,CER 4.19MHZ CRHF A...................
C 502 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 501 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 504 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 503 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 519 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 518 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 517 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 514 87-010-260-080 CAP, ELECT 47-25V A...................
C 513 87-010-260-080 CAP, ELECT 47-25V A...................
C 515 87-010-370-080 CAP,E 330-6.3 SME A...................
C 516 87-010-370-080 CAP,E 330-6.3 SME A...................
C 512 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 511 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 520 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 531 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 539 87-010-401-080 CAP, ELECT 1-50V A...................
C 535 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 536 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 532 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 533 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A...................
C 542 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 541 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 540 87-010-401-080 CAP, ELECT 1-50V A...................
C 547 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 548 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 549 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 559 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 554 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 556 87-010-221-080 CAP, ELECT 470-10V A...................
C 557 87-010-263-080 CAP, ELECT 100-10V A...................
C 555 87-010-405-080 CAP, ELECT 10-50V A...................
C 550 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 566 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 565 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 562 87-012-140-080 CAP 470P A...................
C 561 87-012-140-080 CAP 470P A...................
CN 501 87-A60-039-010 CONN,32P V 9604S-32C A...................
CN 503 87-A60-057-010 CONN,11P V 9604S-11C A...................
CN 506 87-A60-063-010 CONN,04P V 9604S-04C ....................
CN 501 87-A60-553-010 CONN,35P V 9604S-35C ....................
CN 702 87-099-568-010 CONN,11P TUC-P11P-B1 A...................
D 503 87-070-274-080 DIODE,1N4003 SEM A...................
D 501 87-A40-438-080 ZENER,MTZJ4.7A A...................
ELECTRICAL MAIN PARTS LIST - 3
D 502 87-A40-438-080 ZENER,MTZJ4.7A A...................
IC 501 87-017-022-080 IC,NJM2068M-D(T1) A...................
IC 502 87-017-726-080 IC,BU4052 BCF A...................
IC 503 87-A21-202-040 C-IC,M62445AFP A...................
J 501 87-099-609-010 JACK,PIN 4P KM EARTH A...................
J 502 87-099-609-010 JACK,PIN 4P KM EARTH A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 101 87-010-235-080 CAP,E 470-16 SME A...................
C 102 87-010-235-080 CAP,E 470-16 SME A...................
C 105 87-010-247-080 CAP, ELECT 100-50V A...................
C 107 87-010-263-080 CAP, ELECT 100-10V A...................
C 104 87-010-382-080 CAP, ELECT 22-25V A...................
C 103 87-010-384-080 CAP, ELECT 100-25V A...................
C 106 87-010-384-080 CAP, ELECT 100-25V A...................
C 108 87-012-140-080 CAP 470P A...................
C 109 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 112 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 116 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 115 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 118 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 111 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 110 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 117 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 114 87-016-658-090 CAP,E 4700-35 SMG A...................
C 113 87-016-658-090 CAP,E 4700-35 SMG A...................
C 119 87-A10-416-090 CAP,E 6800-80 SMG VB A...................
C 127 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 121 87-010-260-080 CAP, ELECT 47-25V A...................
C 126 87-010-263-080 CAP, ELECT 100-10V A...................
C 124 87-010-384-080 CAP, ELECT 100-25V A...................
C 123 87-010-384-080 CAP, ELECT 100-25V A...................
C 122 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 120 87-A10-416-090 CAP,E 6800-80 SMG VB A...................
C 125 87-A10-417-080 CAP,E 47-63 M SME A...................
CN 110 87-009-032-010 CONNECTOR,4P YEL A...................
D 107 87-A40-115-060 DIODE,RS603M A...................
D 101 87-A40-345-080 ZENER,MTZJ10C A...................
D 108 87-A40-468-080 C-DIODE,HSM2836CTR A...................
D 102 87-A40-468-080 C-DIODE,HSM2836CTR A...................
D 109 87-A40-469-080 C-DIODE,HSM2838CTR A...................
D 110 87-A40-004-080 ZENER,MTZJ16A A...................
D 112 87-A40-335-080 ZENER,MTZJ11C T-72 A...................
D 126 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 125 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 122 87-070-274-080 DIODE,1N4003 SEM A...................
D 123 87-070-274-080 DIODE,1N4003 SEM A...................
D 121 87-A40-224-010 DIODE,GBU8D A...................
D 124 87-A40-435-080 ZENER,MTZJ30D A...................
PR 104 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 107 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 101 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 108 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 104 87-026-691-080 FUSE,10A 125V 251 A...................
PR 108 87-026-691-080 FUSE,10A 125V 251 A...................
PR 101 87-026-691-080 FUSE,10A 125V 251 A...................
PR 107 87-026-691-080 FUSE,10A 125V 251 A...................
Q 107 87-026-610-080 TR,KTC3198GR A...................
Q 105 87-A30-075-080 C-TR,2SA1235F A...................
Q 106 87-A30-076-080 C-TR,2SC3052F A...................
Q 103 87-A30-083-080 TR,CSD1489B A...................
Q 101 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
Q 109 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 108 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 102 89-213-750-010 TR,2SB1375 (25W) A...................
Q 118 87-026-609-080 TR,KTA1266GR A...................
Q 117 87-026-609-080 TR,KTA1266GR A...................
Q 113 87-A30-075-080 C-TR,2SA1235F A...................
Q 115 87-A30-075-080 C-TR,2SA1235F A...................
Q 116 87-A30-076-080 C-TR,2SC3052F A...................
Q 112 87-A30-076-080 C-TR,2SC3052F A...................
Q 114 87-A30-076-080 C-TR,2SC3052F A...................
R 109 87-029-060-080 RES,FUSE 33-1/4 W A...................
R 143 87-A00-261-080 RES,M/F 0.56-1W J A...................
W 3 8Z-AR1-642-010 F-CABLE,9P 2.5 400MM A...................
WH 101 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 203 87-010-179-080 CAP,CHIP S B1200P A...................
C 204 87-010-179-080 CAP,CHIP S B1200P A...................
C 205 87-010-405-080 CAP, ELECT 10-50V ....................
C 206 87-010-405-080 CAP, ELECT 10-50V ....................
C 209 87-010-406-080 CAP, ELECT 22-50 A...................
C 208 87-016-299-080 CAP,E 10-100 SME A...................
C 210 87-010-406-080 CAP, ELECT 22-50 A...................
C 219 87-010-805-080 CAP, S 1-16 A...................
C 211 87-012-140-080 CAP 470P A...................
C 212 87-012-140-080 CAP 470P A...................
C 218 87-A10-516-080 C-CAP,S 100P-200 J CH A...................
C 217 87-A10-516-080 C-CAP,S 100P-200 J CH A...................
C 215 87-A10-897-080 CAP,E 100-25 BP SME A...................
C 216 87-A10-897-080 CAP,E 100-25 BP SME A...................
C 227 87-010-178-080 CHIP CAP 1000P A...................
C 228 87-010-178-080 CHIP CAP 1000P A...................
C 225 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
ELECTRICAL MAIN PARTS LIST - 4
C 226 87-010-384-080 CAP, ELECT 100-25V A...................
C 229 87-010-384-080 CAP, ELECT 100-25V A...................
C 224 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 223 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 220 87-010-805-080 CAP, S 1-16 A...................
C 222 87-010-805-080 CAP, S 1-16 A...................
C 221 87-010-805-080 CAP, S 1-16 A...................
C 285 87-010-186-080 CAP,CHIP 4700P A...................
C 289 87-010-190-080 S CHIP F 0.01 A...................
C 288 87-010-190-080 S CHIP F 0.01 A...................
C 287 87-010-190-080 S CHIP F 0.01 A...................
C 288 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 289 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 287 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 290 87-010-190-080 S CHIP F 0.01 A...................
C 290 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 294 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 297 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 298 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 295 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 296 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 292 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 293 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 291 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 303 87-010-181-080 CAP,CHIP S 1800P A...................
C 304 87-010-181-080 CAP,CHIP S 1800P A...................
C 306 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 305 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 309 87-010-406-080 CAP, ELECT 22-50 A...................
C 308 87-016-299-080 CAP,E 10-100 SME A...................
C 310 87-010-406-080 CAP, ELECT 22-50 A...................
C 312 87-012-140-080 CAP 470P A...................
C 311 87-012-140-080 CAP 470P A...................
C 317 87-A10-516-080 C-CAP,S 100P-200 J CH A...................
C 318 87-A10-516-080 C-CAP,S 100P-200 J CH A...................
C 316 87-A10-897-080 CAP,E 100-25 BP SME A...................
C 315 87-A10-897-080 CAP,E 100-25 BP SME A...................
C 328 87-010-178-080 CHIP CAP 1000P A...................
C 327 87-010-178-080 CHIP CAP 1000P A...................
C 325 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 324 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 323 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 321 87-010-805-080 CAP, S 1-16 A...................
C 322 87-010-805-080 CAP, S 1-16 A...................
C 334 87-A10-918-080 CAP,E 100-16 SMG A...................
C 335 87-A10-918-080 CAP,E 100-16 SMG A...................
C 385 87-010-186-080 CAP,CHIP 4700P A...................
C 395 87-010-190-080 S CHIP F 0.01 A...................
C 396 87-010-190-080 S CHIP F 0.01 A...................
C 396 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 395 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 391 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 392 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 398 87-012-368-080 C-CAP,S 0.1-50 F ....................
C 394 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 397 87-012-368-080 C-CAP,S 0.1-50 F ....................
C 393 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 402 87-010-181-080 CAP,CHIP S 1800P A...................
C 403 87-010-405-080 CAP, ELECT 10-50V ....................
C 405 87-010-406-080 CAP, ELECT 22-50 A...................
C 406 87-012-140-080 CAP 470P A...................
C 409 87-A10-516-080 C-CAP,S 100P-200 J CH A...................
C 408 87-A10-897-080 CAP,E 100-25 BP SME A...................
C 414 87-010-178-080 CHIP CAP 1000P A...................
C 413 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 412 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 410 87-010-805-080 CAP, S 1-16 A...................
C 411 87-010-805-080 CAP, S 1-16 A...................
C 416 87-016-299-080 CAP,E 10-100 SME A...................
C 485 87-010-186-080 CAP,CHIP 4700P A...................
C 493 87-010-190-080 S CHIP F 0.01 A...................
C 493 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 494 87-012-368-080 C-CAP,S 0.1-50 F ....................
C 492 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 491 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 746 87-012-368-080 C-CAP,S 0.1-50 F ....................
C 745 87-012-368-080 C-CAP,S 0.1-50 F A...................
D 209 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 215 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 219 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 210 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 216 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 218 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 217 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 213 87-070-136-080 ZENER,MTZJ5.1B A...................
D 214 87-070-136-080 ZENER,MTZJ5.1B A...................
D 211 87-A40-646-010 DIODE,FMB-G16L A...................
D 212 87-A40-646-010 DIODE,FMB-G16L A...................
D 225 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 226 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 224 87-020-465-080 DIODE,1SS133 (110MA) A...................
ELECTRICAL MAIN PARTS LIST - 5
D 227 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 223 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 220 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 221 87-070-274-080 DIODE,1N4003 SEM A...................
D 243 87-A40-345-080 ZENER,MTZJ10C A...................
D 241 87-A40-488-080 DIODE,1SS244 A...................
D 242 87-A40-488-080 DIODE,1SS244 A...................
D 281 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 309 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 316 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 310 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 317 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 318 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 315 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 319 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 314 87-070-136-080 ZENER,MTZJ5.1B A...................
D 313 87-070-136-080 ZENER,MTZJ5.1B A...................
D 311 87-A40-646-010 DIODE,FMB-G16L A...................
D 312 87-A40-646-010 DIODE,FMB-G16L A...................
D 324 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 323 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 325 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 320 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 321 87-070-274-080 DIODE,1N4003 SEM A...................
D 345 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 346 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 343 87-A40-345-080 ZENER,MTZJ10C A...................
D 341 87-A40-488-080 DIODE,1SS244 A...................
D 342 87-A40-488-080 DIODE,1SS244 A...................
D 405 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 401 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 408 87-070-136-080 ZENER,MTZJ5.1B A...................
D 409 87-070-136-080 ZENER,MTZJ5.1B A...................
D 407 87-A40-646-010 DIODE,FMB-G16L A...................
D 406 87-A40-646-010 DIODE,FMB-G16L A...................
D 414 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 411 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 412 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 410 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 413 87-070-274-080 DIODE,1N4003 SEM A...................
D 425 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 423 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 420 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 433 87-A40-345-080 ZENER,MTZJ10C A...................
D 441 87-A40-488-080 DIODE,1SS244 A...................
D 481 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 801 87-020-465-080 DIODE,1SS133 (110MA) A...................
J 201 87-A60-199-010 TERMINAL,SP 8P CJ-9034-07 V0 A...................
J 301 87-A60-200-110 TERMINAL,SP 6P CJ-9033 A...................
J 715 87-A60-244-010 JACK,PIN 1P BLK A...................
L 292 87-003-383-010 COIL,1UH-S A...................
L 291 87-003-383-010 COIL,1UH-S A...................
L 293 87-003-383-010 COIL,1UH-S A...................
L 294 87-003-383-010 COIL,1UH-S A...................
L 391 87-003-383-010 COIL,1UH-S A...................
L 392 87-003-383-010 COIL,1UH-S A...................
L 491 87-003-383-010 COIL,1UH-S A...................
PR 202 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 201 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 202 87-026-691-080 FUSE,10A 125V 251 A...................
PR 201 87-026-691-080 FUSE,10A 125V 251 A...................
PR 301 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 302 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 302 87-026-691-080 FUSE,10A 125V 251 A...................
PR 301 87-026-691-080 FUSE,10A 125V 251 A...................
PR 401 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 402 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 401 87-026-691-080 FUSE,10A 125V 251 A...................
PR 402 87-026-691-080 FUSE,10A 125V 251 A...................
Q 208 87-A30-076-080 C-TR,2SC3052F A...................
Q 207 87-A30-076-080 C-TR,2SC3052F A...................
Q 209 87-A30-076-080 C-TR,2SC3052F A...................
Q 205 87-A30-107-070 C-TR,CMBT5401 A...................
Q 206 87-A30-107-070 C-TR,CMBT5401 A...................
Q 204 87-A30-107-070 C-TR,CMBT5401 A...................
Q 203 87-A30-107-070 C-TR,CMBT5401 A...................
Q 202 87-A30-257-080 C-TR,2SD1306E A...................
Q 201 87-A30-257-080 C-TR,2SD1306E A...................
Q 210 87-A30-076-080 C-TR,2SC3052F A...................
Q 213 87-A30-097-010 TR,FN 1016 A...................
Q 214 87-A30-097-010 TR,FN 1016 A...................
Q 216 87-A30-098-010 TR,FP 1016 A...................
Q 215 87-A30-098-010 TR,FP 1016 A...................
Q 217 87-A30-106-070 C-TR,CMBT5551 A...................
Q 218 87-A30-106-070 C-TR,CMBT5551 A...................
Q 219 87-A30-162-010 FET,2SK2937 A...................
Q 212 87-A30-190-080 TR,CC5551 A...................
Q 211 87-A30-190-080 TR,CC5551 A...................
Q 228 87-026-232-080 TR,DTA144WK A...................
Q 226 87-026-236-080 TR,DTC124E,K A...................
Q 221 87-A30-072-080 C-TR,RT1P 144C A...................
ELECTRICAL MAIN PARTS LIST - 6
Q 223 87-A30-074-080 C-TR,RT1P 141C ....................
Q 225 87-A30-075-080 C-TR,2SA1235F A...................
Q 227 87-A30-075-080 C-TR,2SA1235F A...................
Q 222 87-A30-076-080 C-TR,2SC3052F A...................
Q 224 87-A30-107-070 C-TR,CMBT5401 ....................
Q 220 87-A30-162-010 FET,2SK2937 A...................
Q 231 87-A30-076-080 C-TR,2SC3052F A...................
Q 233 87-A30-076-080 C-TR,2SC3052F A...................
Q 230 87-A30-076-080 C-TR,2SC3052F A...................
Q 232 87-A30-076-080 C-TR,2SC3052F A...................
Q 240 87-A30-107-070 C-TR,CMBT5401 A...................
Q 308 87-A30-076-080 C-TR,2SC3052F A...................
Q 309 87-A30-076-080 C-TR,2SC3052F A...................
Q 307 87-A30-076-080 C-TR,2SC3052F A...................
Q 304 87-A30-107-070 C-TR,CMBT5401 A...................
Q 305 87-A30-107-070 C-TR,CMBT5401 A...................
Q 303 87-A30-107-070 C-TR,CMBT5401 A...................
Q 306 87-A30-107-070 C-TR,CMBT5401 A...................
Q 302 87-A30-257-080 C-TR,2SD1306E A...................
Q 301 87-A30-257-080 C-TR,2SD1306E A...................
Q 310 87-A30-076-080 C-TR,2SC3052F A...................
Q 313 87-A30-097-010 TR,FN 1016 A...................
Q 314 87-A30-097-010 TR,FN 1016 A...................
Q 315 87-A30-098-010 TR,FP 1016 A...................
Q 316 87-A30-098-010 TR,FP 1016 A...................
Q 317 87-A30-106-070 C-TR,CMBT5551 A...................
Q 318 87-A30-106-070 C-TR,CMBT5551 A...................
Q 319 87-A30-162-010 FET,2SK2937 A...................
Q 311 87-A30-190-080 TR,CC5551 A...................
Q 312 87-A30-190-080 TR,CC5551 A...................
Q 326 87-026-236-080 TR,DTC124E,K A...................
Q 321 87-A30-072-080 C-TR,RT1P 144C A...................
Q 323 87-A30-074-080 C-TR,RT1P 141C ....................
Q 325 87-A30-075-080 C-TR,2SA1235F A...................
Q 327 87-A30-075-080 C-TR,2SA1235F A...................
Q 322 87-A30-076-080 C-TR,2SC3052F A...................
Q 324 87-A30-107-070 C-TR,CMBT5401 ....................
Q 320 87-A30-162-010 FET,2SK2937 A...................
Q 331 87-A30-076-080 C-TR,2SC3052F A...................
Q 332 87-A30-076-080 C-TR,2SC3052F A...................
Q 330 87-A30-076-080 C-TR,2SC3052F A...................
Q 333 87-A30-076-080 C-TR,2SC3052F A...................
Q 340 87-A30-107-070 C-TR,CMBT5401 A...................
Q 405 87-A30-076-080 C-TR,2SC3052F A...................
Q 404 87-A30-076-080 C-TR,2SC3052F A...................
Q 407 87-A30-097-010 TR,FN 1016 A...................
Q 408 87-A30-098-010 TR,FP 1016 A...................
Q 409 87-A30-106-070 C-TR,CMBT5551 A...................
Q 402 87-A30-107-070 C-TR,CMBT5401 A...................
Q 403 87-A30-107-070 C-TR,CMBT5401 A...................
Q 406 87-A30-190-080 TR,CC5551 A...................
Q 401 87-A30-257-080 C-TR,2SD1306E A...................
Q 417 87-026-236-080 TR,DTC124E,K A...................
Q 412 87-A30-072-080 C-TR,RT1P 144C A...................
Q 414 87-A30-074-080 C-TR,RT1P 141C ....................
Q 418 87-A30-075-080 C-TR,2SA1235F A...................
Q 416 87-A30-075-080 C-TR,2SA1235F A...................
Q 413 87-A30-076-080 C-TR,2SC3052F A...................
Q 415 87-A30-107-070 C-TR,CMBT5401 ....................
Q 410 87-A30-162-010 FET,2SK2937 A...................
Q 411 87-A30-162-010 FET,2SK2937 A...................
Q 421 87-A30-076-080 C-TR,2SC3052F A...................
Q 420 87-A30-076-080 C-TR,2SC3052F A...................
Q 440 87-A30-107-070 C-TR,CMBT5401 A...................
R 212 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 211 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 234 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 232 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 233 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 231 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 283 87-A00-373-050 RES,M/F 270-1W J VTP A...................
R 281 87-A00-373-050 RES,M/F 270-1W J VTP A...................
R 282 87-A00-373-050 RES,M/F 270-1W J VTP A...................
R 284 87-A00-373-050 RES,M/F 270-1W J VTP A...................
R 333 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 334 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 332 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 331 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 417 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 416 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 424 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 590 87-A00-418-010 RES,M/F 0.15-3W J A...................
R 611 87-A00-418-010 RES,M/F 0.15-3W J A...................
RY 281 87-A90-143-010 RELAY,DG12D-OS(M) A...................
RY 481 87-A90-143-010 RELAY,DG12D-OS(M) A...................
RY 801 87-A90-143-010 RELAY,DG12D-OS(M) A...................
S 291 87-A90-174-010 SW,PUSH 2-2-2 A...................
S 292 87-A90-174-010 SW,PUSH 2-2-2 A...................
TH 202 87-A91-081-080 C-THMS,100K-K 20P ....................
TH 201 87-A91-081-080 C-THMS,100K-K 20P ....................
TH 302 87-A91-081-080 C-THMS,100K-K 20P ....................
TH 301 87-A91-081-080 C-THMS,100K-K 20P ....................
TH 401 87-A91-081-080 C-THMS,100K-K 20P ....................
ELECTRICAL MAIN PARTS LIST - 7
C 605 87-010-405-080 CAP, ELECT 10-50V A...................
C 606 87-010-405-080 CAP, ELECT 10-50V A...................
C 701 87-010-260-080 CAP, ELECT 47-25V A...................
C 702 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 709 87-012-195-080 C-CAP,U 100P-50CH A...................
C 704 87-012-286-080 CAP, U 0.01-25 A...................
C 703 87-012-286-080 CAP, U 0.01-25 A...................
C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 711 87-010-263-080 CAP, ELECT 100-10V A...................
C 715 87-012-195-080 C-CAP,U 100P-50CH ....................
C 719 87-012-286-080 CAP, U 0.01-25 A...................
C 714 87-012-286-080 CAP, U 0.01-25 A...................
C 717 87-012-286-080 CAP, U 0.01-25 A...................
C 713 87-012-286-080 CAP, U 0.01-25 A...................
C 727 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 728 87-010-248-080 CAP, ELECT 220-10V A...................
C 721 87-012-176-080 CAP 15P A...................
C 722 87-012-176-080 CAP 15P A...................
C 720 87-012-195-080 C-CAP,U 100P-50CH ....................
C 723 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 725 87-012-274-080 CHIP CAP,U 1000P-50B A...................
D 721 87-A40-234-080 ZENER,MTZJ5.6A A...................
IC 721 87-070-127-110 IC,LC72131 D A...................
Q 711 87-A30-196-080 TR,2SC4115SRS A...................
X 721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A...................
C 758 87-012-167-080 C-CAP,U 5P-50 CH A...................
C 757 87-012-188-080 C-CAP,U 47P-50 CH A...................
C 753 87-012-195-080 C-CAP,U 100P-50CH ....................
C 756 87-012-286-080 CAP, U 0.01-25 A...................
C 755 87-012-286-080 CAP, U 0.01-25 A...................
C 761 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 769 87-010-260-080 CAP, ELECT 47-25V A...................
C 763 87-010-829-080 CAP, U 0.047-16 A...................
C 762 87-012-286-080 CAP, U 0.01-25 ....................
C 765 87-012-286-080 CAP, U 0.01-25 A...................
C 766 87-012-286-080 CAP, U 0.01-25 A...................
C 768 87-012-286-080 CAP, U 0.01-25 ....................
C 764 87-012-337-080 C-CAP,U 56P-50 CH A...................
C 773 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 774 87-010-263-080 CAP, ELECT 100-10V A...................
C 771 87-010-383-080 CAP, ELECT 33-25V A...................
C 777 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 779 87-010-401-080 CAP, ELECT 1-50V A...................
C 778 87-010-401-080 CAP, ELECT 1-50V A...................
C 775 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 770 87-010-829-080 CAP, U 0.047-16 A...................
C 772 87-010-829-080 CAP, U 0.047-16 A...................
C 776 87-012-286-080 CAP, U 0.01-25 A...................
C 773 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ....................
C 780 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 782 87-010-405-080 CAP, ELECT 10-50V A...................
C 781 87-010-405-080 CAP, ELECT 10-50V A...................
C 785 87-010-805-080 CAP, S 1-16 A...................
C 786 87-010-805-080 CAP, S 1-16 A...................
C 789 87-012-275-080 C-CAP,U 1200P-50 B A...................
C 788 87-012-280-080 CAP, U 3300P-50 A...................
C 787 87-012-280-080 CAP, U 3300P-50 A...................
C 788 87-012-282-080 CAP, U 4700P-50 ....................
C 787 87-012-282-080 CAP, U 4700P-50 ....................
C 783 87-012-286-080 CAP, U 0.01-25 A...................
C 784 87-012-286-080 CAP, U 0.01-25 A...................
C 796 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 791 87-010-405-080 CAP, ELECT 10-50V A...................
C 794 87-010-406-080 CAP, ELECT 22-50 A...................
C 795 87-010-596-080 CAP, S 0.047-16 A...................
C 799 87-010-829-080 CAP, U 0.047-16 A...................
C 795 87-010-829-080 CAP, U 0.047-16 ....................
C 793 87-012-273-080 C-CAP,U 820P-50 B A...................
C 790 87-012-275-080 C-CAP,U 1200P-50 B A...................
C 798 87-012-276-080 CAP, CHIP SS 1500 PBK ....................
C 793 87-012-276-080 CAP, CHIP SS 1500 PBK ....................
C 797 87-012-276-080 CAP, CHIP SS 1500 PBK ....................
C 797 87-012-278-080 C-CAP,U 2200P-50 B A...................
C 798 87-012-278-080 C-CAP,U 2200P-50 B A...................
CN 601 87-099-028-010 CONN,11P 6216 H A...................
D 773 87-020-465-080 DIODE,1SS133 (110MA) A...................
IC 771 87-A20-913-010 IC,LA1837NL A...................
L 771 87-A50-266-010 COIL,FM DET-2N(TOK) A...................
L 772 87-A90-733-010 FLTR,PCFAZH-450 (TOK) A...................
L 781 87-005-847-080 COIL,2.2UH(CECS) A...................
L 792 87-A50-027-010 COIL,1 POLE MPX(TOK) ....................
L 791 87-A50-027-010 COIL,1 POLE MPX(TOK) ....................
L 791 87-A50-209-010 COIL,1POLE MPX(MIT) A...................
L 792 87-A50-209-010 COIL,1POLE MPX(MIT) A...................
C 859 87-012-286-080 CAP, U 0.01-25 ....................
C 865 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 864 87-010-405-080 CAP, ELECT 10-50V ....................
C 866 87-010-405-080 CAP, ELECT 10-50V ....................
C 869 87-012-180-080 C-CAP,U 22P-50 CH ....................
C 868 87-012-184-080 C-CAP,U 33P-50 CH ....................
C 861 87-012-199-080 CAP 220P ....................
C 862 87-012-199-080 CAP 220P ....................
C 863 87-012-270-080 CAP, U 470P-50 ....................
ELECTRICAL MAIN PARTS LIST - 8
C 867 87-012-286-080 CAP, U 0.01-25 ....................
CN 602 87-099-211-010 CONN,4P 6216V ....................
IC 851 87-A20-440-040 C-IC,BU1920FS ....................
L 851 87-005-847-080 COIL,2.2UH(CECS) ....................
Q 853 87-A30-076-080 C-TR,2SC3052F ....................
X 851 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 ....................
C 813 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 819 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 812 87-012-286-080 CAP, U 0.01-25 A...................
C 814 87-012-286-080 CAP, U 0.01-25 A...................
C 829 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 828 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 820 87-010-260-080 CAP, ELECT 47-25V A...................
C 823 87-012-286-080 CAP, U 0.01-25 A...................
C 822 87-012-286-080 CAP, U 0.01-25 A...................
C 821 87-012-286-080 CAP, U 0.01-25 A...................
C 942 87-012-172-080 CAPACITOR CHIP U 10P CH ....................
C 947 87-012-286-080 CAP, U 0.01-25 ....................
C 940 87-012-286-080 CAP, U 0.01-25 ....................
C 949 87-A10-039-080 C-CAP,U 470P-50 J CH ....................
C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 958 87-012-286-080 CAP, U 0.01-25 ....................
C 952 87-012-286-080 CAP, U 0.01-25 ....................
C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 962 87-010-401-080 CAP, ELECT 1-50V ....................
C 961 87-012-174-080 CAP CHIP CERA SS 12P CHJ A...................
CF 802 82-785-747-010 CF MS2 GHY R ....................
CF 802 87-008-261-010 FILTER, SFE10.7MA5-A A...................
CF 801 87-008-261-010 FILTER, SFE10.7MA5-A A...................
CF 801 87-008-423-010 CERAMIC FILTER, SFE10.7 ....................
D 942 87-A40-270-080 C-DIODE,MC2838 ....................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM ....................
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM A...................
J 802 87-033-241-010 TERMINAL,ANT AJ-2039 ....................
J 801 87-A60-657-010 TERMINAL,4P HSP-154V5-02 A...................
L 832 87-005-847-080 COIL,2.2UH(CECS) A...................
L 942 87-A50-019-010 COIL,OSC LW(COI) ....................
L 941 87-A50-020-010 COIL,ANT LW(COI) ....................
L 981 87-NF4-650-010 COIL,AM PACK 4N(TOK) A...................
L 981 87-NF4-651-110 COIL,AM PACK2N(TOM) ....................
Q 806 87-A30-072-080 C-TR,RT1P 144C A...................
Q 805 89-327-143-080 TR,2SC2714 (0.1W) A...................
Q 948 87-A30-086-070 C-TR,CSD1306E ....................
Q 947 89-503-602-080 C-FET,2SK360E ....................
Q 951 87-A30-074-080 C-TR,RT1P 141C ....................
Q 952 87-A30-086-070 C-TR,CSD1306E ....................
TC 942 87-011-164-010 CAPACITOR,TRIMMER 30P ....................
C 802 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 801 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 807 87-010-401-080 CAP, ELECT 1-50V A...................
C 808 87-010-401-080 CAP, ELECT 1-50V A...................
C 804 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ A...................
C 805 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ A...................
C 803 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ A...................
C 806 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ A...................
C 809 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 810 87-010-112-080 CAP, ELECT 100-16V A...................
C 819 87-010-188-080 CAP,CHIP 6800P A...................
C 817 87-010-221-080 CAP, ELECT 470-10V A...................
C 813 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 814 87-010-401-080 CAP, ELECT 1-50V A...................
C 812 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 811 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 818 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 815 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 816 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 828 87-010-166-080 C-CAP,S 100P-50 SL A...................
C 827 87-010-166-080 C-CAP,S 100P-50 SL A...................
C 826 87-010-166-080 C-CAP,S 100P-50 SL A...................
C 823 87-010-263-080 CAP, ELECT 100-10V A...................
C 820 87-010-374-080 CAP, ELECT 47-10V A...................
C 824 87-010-374-080 CAP, ELECT 47-10V A...................
C 829 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 821 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 825 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 822 87-A10-804-080 C-CAP,S 0.1-25 J B A...................
C 839 87-010-401-080 CAP, ELECT 1-50V A...................
C 830 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 831 87-010-971-080 C-CAP,S 4700P-50 B J A...................
C 837 87-010-971-080 C-CAP,S 4700P-50 B J A...................
C 838 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 832 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 840 87-010-401-080 CAP, ELECT 1-50V A...................
C 846 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 847 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 849 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 848 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 845 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 844 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 843 87-A10-229-080 C-CAP,S 0.68-10 K W5 A...................
C 841 87-A10-799-080 C-CAP,S 5600P-16 J B CM A...................
C 853 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 854 87-016-081-080 C-CAP,S 0.1-16 RK A...................
ELECTRICAL MAIN PARTS LIST - 9
C 857 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 850 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 856 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................
C 855 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................
C 869 87-010-166-080 C-CAP,S 100P-50 SL A...................
C 862 87-010-263-080 CAP, ELECT 100-10V A...................
C 864 87-010-263-080 CAP, ELECT 100-10V A...................
C 866 87-010-749-080 CAP,S 0.047-25 B A...................
C 865 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 863 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 861 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 868 87-A10-060-080 C-CAP,S 0.18-16 K B A...................
C 867 87-A10-201-080 C-CAP,S0.33-16 KB A...................
C 871 87-010-166-080 C-CAP,S 100P-50 SL A...................
C 870 87-010-166-080 C-CAP,S 100P-50 SL A...................
C 878 87-010-401-080 CAP, ELECT 1-50V A...................
C 893 87-010-401-080 CAP, ELECT 1-50V A...................
C 891 87-010-401-080 CAP, ELECT 1-50V A...................
C 892 87-010-401-080 CAP, ELECT 1-50V A...................
CN 801 87-099-556-010 CONN,10P TUC-P10X-B1 A...................
CN 802 87-099-559-010 CONN,13P TUC-P13X-B1 A...................
D 802 87-070-136-080 ZENER,MTZJ5.1B A...................
D 804 87-A40-438-080 ZENER,MTZJ4.7A A...................
D 803 87-A40-438-080 ZENER,MTZJ4.7A A...................
D 801 87-A40-442-080 ZENER,MTZJ9.1A A...................
IC 801 87-A21-097-040 C-IC,M62463AFP A...................
IC 831 87-A21-015-040 C-IC,M62491FP A...................
Q 834 87-A30-076-080 C-TR,2SC3052F A...................
R 807 87-022-365-080 C-RES,S 100K-1/10W F A...................
C 702 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 701 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
IC 701 87-020-784-080 IC,TC4053BF A...................
C 907 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 906 87-010-260-080 CAP, ELECT 47-25V A...................
C 909 87-010-371-080 CAP, ELECT 470-6.3V A...................
C 908 87-010-387-080 CAP,E 470-25 SME A...................
C 902 87-010-406-080 CAP, ELECT 22-50 A...................
C 901 87-010-406-080 CAP, ELECT 22-50 A...................
C 904 87-010-406-080 CAP, ELECT 22-50 A...................
C 905 87-010-406-080 CAP, ELECT 22-50 A...................
C 903 87-010-406-080 CAP, ELECT 22-50 A...................
C 914 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 913 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 912 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 911 87-010-371-080 CAP, ELECT 470-6.3V A...................
C 910 87-010-371-080 CAP, ELECT 470-6.3V A...................
C 954 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 953 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 952 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 951 87-010-322-080 C-CAP,S 100P-50 CH ....................
D 902 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 901 87-070-136-080 ZENER,MTZJ5.1B A...................
D 903 87-A40-291-080 DIODE,1N4148 (CPT) A...................
IC 902 87-017-917-080 IC,BU4066BCF A...................
IC 901 87-A20-820-010 IC,BA7625 A...................
J 903 87-099-911-010 JACK,PIN 3P YEL A...................
J 901 87-099-911-010 JACK,PIN 3P YEL A...................
J 904 87-099-911-010 JACK,PIN 3P YEL A...................
J 905 87-099-911-010 JACK,PIN 3P YEL A...................
J 902 87-099-912-010 JACK,PIN 3P YEL W/E A...................
L 901 87-003-152-080 COIL, 100UH A...................
Q 906 87-A30-074-080 C-TR,RT1P 141C A...................
Q 902 87-A30-075-080 C-TR,2SA1235F A...................
Q 903 87-A30-075-080 C-TR,2SA1235F A...................
Q 907 87-A30-075-080 C-TR,2SA1235F A...................
Q 901 87-A30-075-080 C-TR,2SA1235F A...................
Q 905 87-A30-076-080 C-TR,2SC3052F A...................
Q 904 87-A30-076-080 C-TR,2SC3052F A...................
C 102 87-010-186-080 CAP,CHIP 4700P A...................
C 504 87-010-188-080 CAP,CHIP 6800P A...................
C 503 87-010-188-080 CAP,CHIP 6800P A...................
C 507 87-018-209-080 CAP, CER 0.1-50V A...................
C 501 87-018-209-080 CAP, CER 0.1-50V A...................
C 502 87-018-209-080 CAP, CER 0.1-50V A...................
C 651 87-010-178-080 CHIP CAP 1000P ....................
C 652 87-010-178-080 CHIP CAP 1000P ....................
CN 401 87-099-758-010 CONN,17P H 9604 A...................
D 506 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 502 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 505 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 503 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 504 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 501 87-020-465-080 DIODE,1SS133 (110MA) A...................
FB 501 87-008-372-080 FILTER, EMI BL OIRNI A...................
FB 602 87-008-372-080 FILTER, EMI BL OIRNI A...................
J 501 87-A60-606-010 JACK,PIN 3P R/W/Y W/O SW H A...................
J 603 87-A60-550-010 JACK,DIA6.3 BLK ST W/SW KM A...................
LED 401 87-A40-317-080 LED,SLR-342VCT31 RED A...................
S 403 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 401 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 402 87-A90-095-080 SW,TACT EVQ11G04M A...................
SW 401 87-A91-373-010 SW,RTRY EC16B1220408 A...................
C 724 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
ELECTRICAL MAIN PARTS LIST - 10
C 720 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 722 87-010-260-080 CAP, ELECT 47-25V A...................
C 723 87-010-401-080 CAP, ELECT 1-50V A...................
C 721 87-010-401-080 CAP, ELECT 1-50V A...................
C 725 87-010-401-080 CAP, ELECT 1-50V A...................
C 726 87-010-401-080 CAP, ELECT 1-50V A...................
IC 720 87-017-726-080 IC,BU4052 BCF A...................
Q 721 87-A30-086-070 C-TR,CSD1306E A...................
Q 722 87-A30-087-080 C-FET,2SK2158 A...................
Q 720 87-A30-087-080 C-FET,2SK2158 A...................
CN 504 87-099-567-010 CONN,10P TUC-P10P-B1 A...................
CN 505 87-099-570-010 CONN,13P TUC-P13P-B1 A...................
C 712 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 713 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 714 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 711 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 710 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 715 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 750 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
J 750 87-A60-660-010 JACK,PIN 6P W/R,W/R, B/O(G) A...................
C 133 87-010-378-080 CAP, ELECT 10-16V A...................
C 131 87-010-378-080 CAP, ELECT 10-16V A...................
C 136 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 135 87-012-368-080 C-CAP,S 0.1-50 F A...................
IC 101 87-017-888-080 IC,NJM4558MD A...................
C 758 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 759 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 766 87-010-181-080 CAP,CHIP S 1800P A...................
C 764 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 769 87-010-188-080 CAP,CHIP 6800P A...................
C 765 87-010-194-080 CAP, CHIP 0.047 A...................
C 762 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 761 87-010-198-080 CAP, CHIP 0.022 A...................
C 767 87-010-198-080 CAP, CHIP 0.022 A...................
C 768 87-010-994-080 C-CAP,S 680P-50 CH A...................
C 776 87-010-181-080 CAP,CHIP S 1800P A...................
C 771 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 778 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 777 87-010-194-080 CAP, CHIP 0.047 A...................
C 775 87-010-198-080 CAP, CHIP 0.022 A...................
C 774 87-010-994-080 C-CAP,S 680P-50 CH A...................
C 770 87-012-145-080 CAP, CHIP S 270P CH A...................
C 772 87-012-145-080 CAP, CHIP S 270P CH A...................
C 782 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 780 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 783 87-010-198-080 CAP, CHIP 0.022 A...................
C 788 87-010-260-080 CAP, ELECT 47-25V A...................
C 789 87-010-260-080 CAP, ELECT 47-25V A...................
C 786 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 787 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 790 87-010-260-080 CAP, ELECT 47-25V A...................
C 798 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 799 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 797 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 791 87-010-405-080 CAP, ELECT 10-50V A...................
C 792 87-010-405-080 CAP, ELECT 10-50V A...................
C 793 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 794 87-012-368-080 C-CAP,S 0.1-50 F A...................
CN 701 87-099-557-010 CONN,11P TUC-P11X-B1 A...................
D 722 87-A40-002-080 ZENER,MTZJ5.1C A...................
D 723 87-A40-344-080 ZENER,MTZJ6.2C A...................
D 721 87-A40-344-080 ZENER,MTZJ6.2C A...................
IC 701 87-A20-437-010 C-IC,M62431FP A...................
R 773 87-010-188-080 CAP,CHIP 6800P A...................
C 1 87-010-387-010 CAP, ELECT 25-470SME A...................
C 2 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 3 87-018-209-080 CAP, CER 0.1-50V A...................
C 5 87-018-209-080 CAP, CER 0.1-50V A...................
C 4 87-018-209-080 CAP, CER 0.1-50V A...................
C 1 87-A10-831-080 CAP,E 1000-25 M SMG A...................
C 7 87-A10-922-090 CAP,CER 0.01-250 M F KH A...................
C 141 87-012-368-080 C-CAP,S 0.1-50 F ....................
C 141 87-018-209-080 CAP, CER 0.1-50V ....................
CN 103 87-A60-851-010 CONN,9P V VH A...................
D 4 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 1 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 7 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 6 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 3 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 5 87-020-465-080 DIODE,1SS133 (110MA) A...................
F 1 87-A91-276-080 FUSE,125MA 125V F 251 A...................
FC 101 87-A90-160-080 FUSE CLAMP,FC 51F A...................
FC 102 87-A90-160-080 FUSE CLAMP,FC 51F A...................
PR 105 87-026-691-080 FUSE,10A 125V 251 A...................
PR 106 87-026-691-080 FUSE,10A 125V 251 A...................
PR 105 87-A90-195-080 PROTECTOR 7A 125V 49 ....................
PR 106 87-A90-195-080 PROTECTOR 7A 125V 49 ....................
PR 116 87-A90-195-080 PROTECTOR 7A 125V 49 ....................
PR 115 87-A90-195-080 PROTECTOR 7A 125V 49 ....................
PT 2 8Z-NF8-661-010 PT,SUB ZNF-8(U) A...................
PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) ....................
Q 2 87-018-209-080 CAP, CER 0.1-50V A...................
Q 2 87-026-245-080 TR,DTC114ES A...................
Q 1 87-A30-197-080 TR,KTA1267GR A...................
Q 3 87-A30-198-080 TR,KTC3199GR A...................
RY 1 87-A90-977-010 RELAY,AC12V DG12D1-O(M) A...................
T 2 87-A60-317-010 TERMINAL, 1P MSC A...................
T 1 87-A60-317-010 TERMINAL, 1P MSC A...................
C 1 87-010-387-010 CAP, ELECT 25-470SME ....................
C 2 87-010-403-080 CAP, ELECT 3.3-50V ....................
C 5 87-018-209-080 CAP, CER 0.1-50V ....................
C 4 87-018-209-080 CAP, CER 0.1-50V ....................
C 3 87-018-209-080 CAP, CER 0.1-50V ....................
C 7 87-A10-922-090 CAP,CER 0.01-250 M F KH ....................
C 8 87-A10-922-090 CAP,CER 0.01-250 M F KH ....................
CN 103 87-A60-851-010 CONN,9P V VH ....................
D 2 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 1 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 3 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 7 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 5 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 6 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 4 87-020-465-080 DIODE,1SS133 (110MA) ....................
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) ....................
Q 2 87-026-245-080 TR,DTC114ES ....................
Q 1 87-A30-197-080 TR,KTA1267GR ....................
Q 3 87-A30-198-080 TR,KTC3199GR ....................
RY 1 87-A90-454-010 RELAY,12V DJ12D2-O(M) ....................
FC 102 87-033-147-010 FUSE CLAMP ....................
FC 104 87-033-147-010 FUSE CLAMP ....................
FC 101 87-033-147-010 FUSE CLAMP ....................
FC 103 87-033-147-010 FUSE CLAMP ....................
SW 101 87-A90-165-010 SW,SL 1-2-3 SWS2301 ....................
T 101 87-A60-317-010 TERMINAL, 1P MSC ....................
T 102 87-A60-317-010 TERMINAL, 1P MSC ....................
ELECTRICAL MAIN PARTS LIST - 11
NOTE: The characters in the suffix column indicate the part usage.
UB .....................XX..................................A...................
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-AR3-902-010 IB,LH(ESP)M ....................
8Z-AR3-903-010 IB,U(ESF)M A...................
8Z-AR3-906-010 IB,EZ(9L)M ....................
87-006-225-010 AM LOOP ANT NC2 A...................
87-043-106-010 WIRE, FM ANT (Z) ....................
87-043-115-010 ANT,FEEDER FM A...................
88-AR2-654-010 RC UNIT,RC-8AR03 A...................
ACCESSORIES LIST
’•‹L: ƒTƒtƒBƒbƒNƒX—“‚̃Aƒ‹ƒtƒ@ƒxƒbƒg‚Í•”•i‚ð•g—p‚µ‚Ä‚¢‚é•–‚𕦂µ‚Ä‚¢‚Ü‚·•B
NOTE: The characters in the suffix column indicate the part usage.
UB .....................XX..................................A...................
¶ÝØ
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N A...................
8Z-AR1-002-010 PANEL,FR A...................
8Z-AR1-003-010 CABI,STEEL A...................
8Z-AR1-020-010 RING,FOOT SIL A...................
8Z-AR1-021-010 FOOT,REAR A...................
8Z-AR3-001-010 PANEL,REAR UBNM A...................
8Z-AR3-002-010 PANEL,REAR EZBNM ....................
8Z-AR3-006-010 PANEL,REAR LHBNM ....................
8Z-AR3-007-010 CABI,FR U A...................
8Z-AR3-009-010 CABI,FR EZ ....................
8Z-AR3-015-010 CABI,FR LH ....................
8Z-AR3-016-010 PANEL,FR LH ....................
8Z-AR1-004-010 KEY,POWER A...................
8Z-AR1-005-010 KEY,GEQ A...................
8Z-AR1-006-010 KEY,DIGITAL A...................
8Z-AR1-007-010 KEY,ENTER A...................
8Z-AR1-010-010 BTN,SP A...................
8Z-AR1-011-010 KNOB,RTRY VOL A...................
8Z-AR1-012-010 KNOB,RTRY FUN A...................
8Z-AR1-013-010 KNOB,RTRY JOG A...................
8Z-AR1-019-010 KEY,MONITOR A...................
8Z-AR1-030-010 KEY,RDS ....................
8Z-AR1-031-010 KEY,BALANCE A...................
8Z-AR1-015-010 REFLECTOR,FUN A...................
8Z-AR1-016-010 REFLECTOR,ECO A...................
8Z-AR1-017-010 RING,VOL A...................
8Z-AR3-005-010 WINDOW,DISPLAY 5.1CH A...................
87-033-209-010 TERMINAL, EARTH A...................
88-AR1-203-010 HLDR,TU A...................
88-AR1-211-110 HLDR,AC SW ....................
88-AR1-218-010 HLDR,PWB H8.9 A...................
88-AR2-205-110 HLDR,PWB OSD A...................
8Z-AR1-205-010 HLDR,HT-SINK A...................
8Z-AR1-210-010 HLDR,PT PWB A...................
8Z-AR1-219-010 HLDR,PWB PRO A...................
87-067-581-010 TAPPING SCREW, BVT2+3-15 A...................
87-067-584-010 TAPPING SCREW, BVT2+3-6 A...................
87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-975-010 S-SCREW,IT+4-8 A...................
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) A...................
87-050-079-010 AC-CORD ASSY,E ....................
87-085-185-010 BUSHING, AC CORD (E) ....................
87-085-189-010 BUSHING, CORD (U) A...................
87-A80-110-010 AC CORD ASSY,U SPT-2W A...................
88-904-181-110 FF-CABLE,4P 1.25 ....................
88-911-161-110 FF-CABLE,11P 1.25 A...................
88-917-101-110 FF-CABLE, 17P 1.25 A...................
8Z-AR1-603-010 FF-CABLE, 32P 1.25 400MM A...................
8Z-AR1-604-010 FF-CABLE, 35P 1.25 400MM ....................
8Z-AR3-601-010 PT,ZAR-3(U) A...................
8Z-AR3-603-010 PT,ZAR-3(EZ) ....................
8Z-AR3-609-010 PT,ZAR-3(LH) ....................
F 102 87-035-370-010 FUSE, 6.3A 250V ....................
F 101 87-035-370-010 FUSE, 6.3A 250V ....................
F 101 87-035-494-010 FUSE,10A 125V T 237 A...................
PR 116 87-A90-195-080 PROTECTOR 7A 125V 49 ....................
PR 115 87-A90-195-080 PROTECTOR 7A 125V 49 ....................
88-NF6-205-010 GUIDE,FL 40-150- 9 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
W 3 8Z-AR1-642-010 F-CABLE,9P 2.5 400MM A...................
WH 101 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
MECHANICAL PARTS LIST - 1

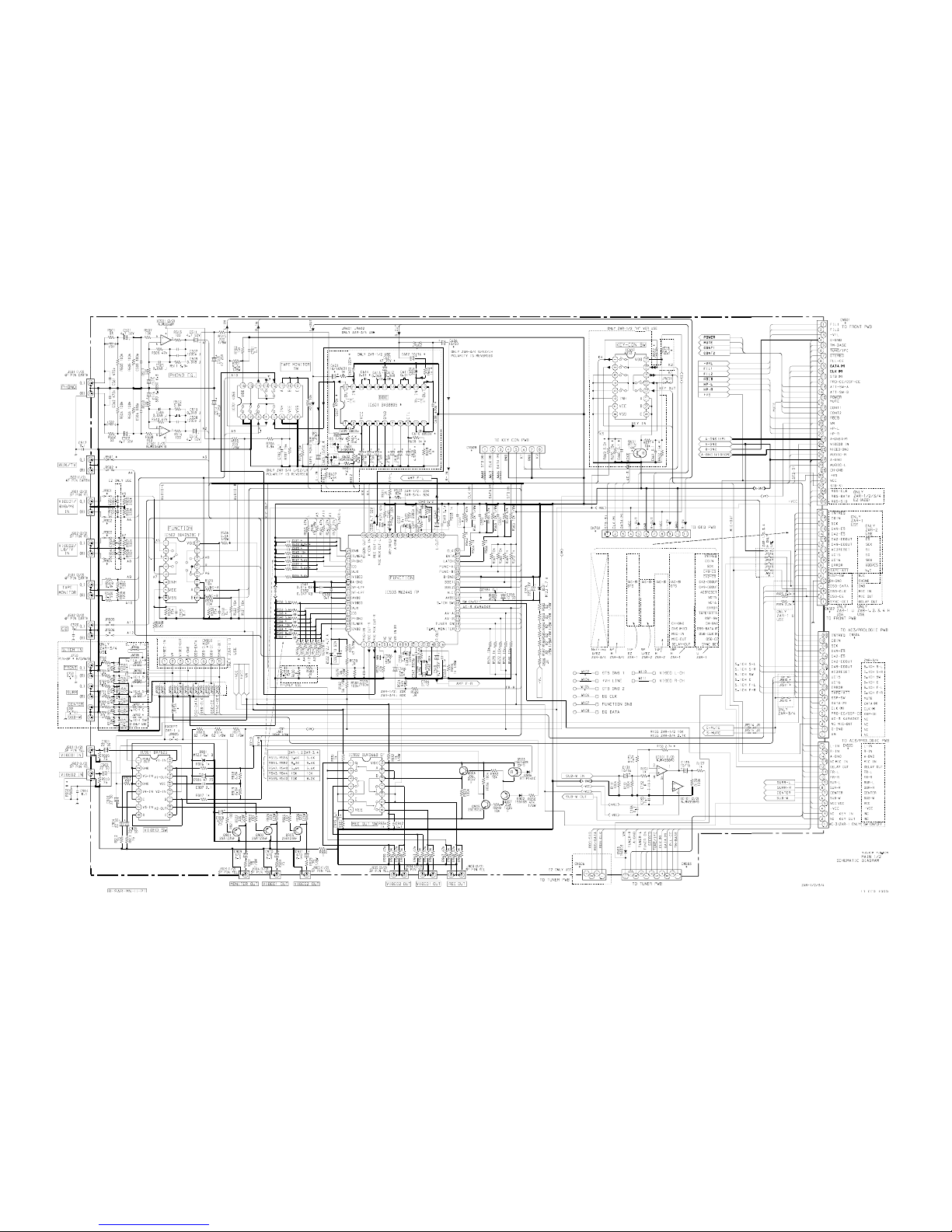

SCHEMATIC DIAGRAM _1 (MAIN 1/2)
SCHEMATIC DIAGRAM _2 (MAIN 2/2)

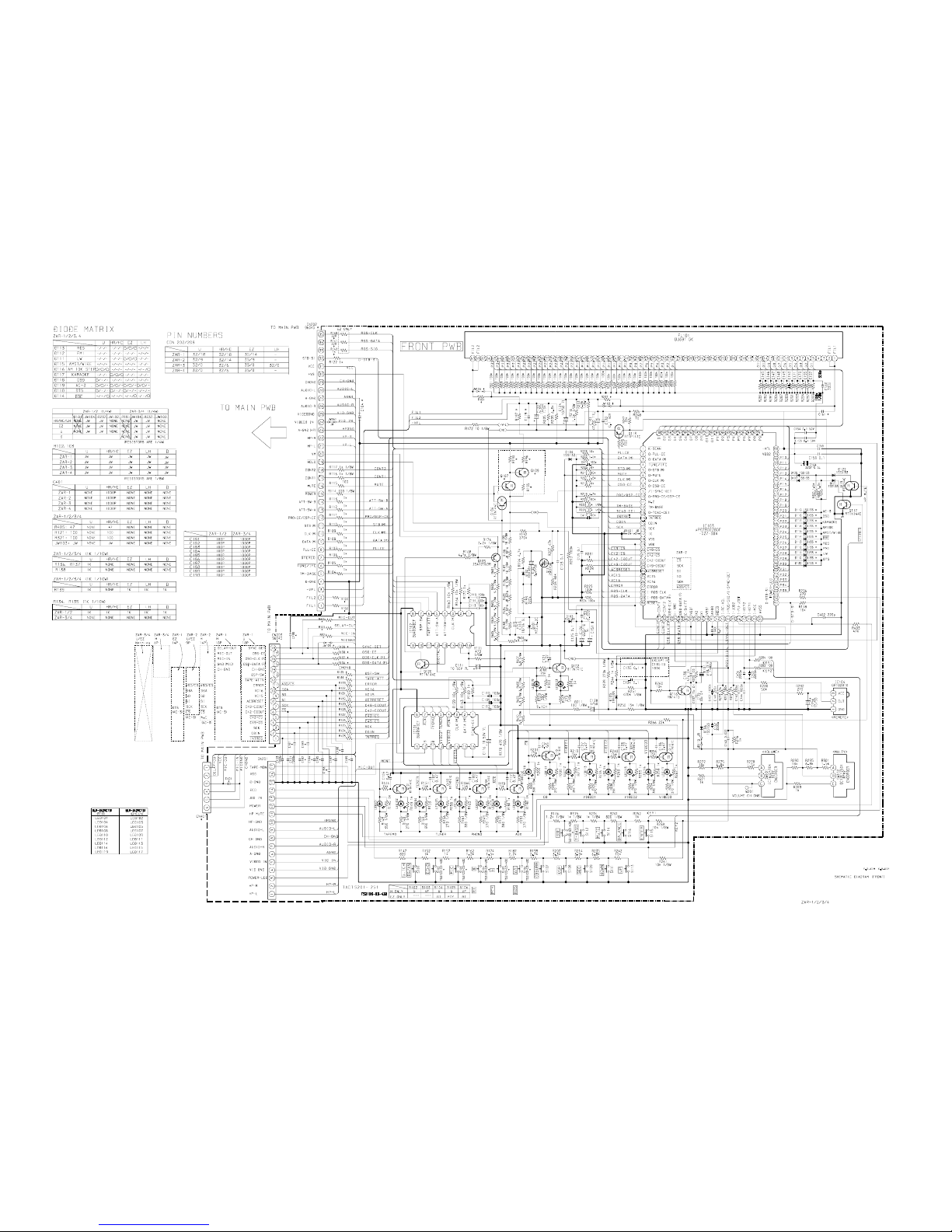

SCHEMATIC DIAGRAM _3 (FRONT)
SCHEMATIC DIAGRAM _4 (PRO LOGIC)
SCHEMATIC DIAGRAM _5 (HP)
SCHEMATIC DIAGRAM _6 (PT)
Printed in Singapore
Tokyo Japan
4
931196
Other manuals for AV-D55
3
Table of contents
Other Aiwa Receiver manuals
Popular Receiver manuals by other brands
Altinex
Altinex INTERA DS801-111 Special application
NuTone
NuTone LA-203RWH Installation and operating instructions
Sony
Sony STR-DA5200ES - Fm Stereo/fm-am Receiver operating instructions
Harman Kardon
Harman Kardon 230A instruction manual
Gold Alliance Electronics Co., Ltd.
Gold Alliance Electronics Co., Ltd. W618 Operation & instruction manual
Ubiquiti
Ubiquiti airFiber AF 60 quick start guide
