SERVICE MANUAL
DATA
STEREO AV RECEIVER
AV-D77 HC
S/M Code No. 09-00B-429-6S1
SUPPLEMENT
• This Service Manual is the “Supplement” and replaces “Simple Manual”
(S/M Code No. 09-00A-429-6T3).
• This Service Manual contains information about the difference between
AV-D77 (HC) and AV-D77 (EZ). If requiring other information, see Service
Manual of AV-D77 (U,EZ), (S/M Code No. 09-007-429-6R2).

– 2 –
FM tuner section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
AM tuner section
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
Amplifier section
Power output [Stereo Mode]
Front
Rated: 140 W + 140 W
(8 ohms, T.H.D. 1 %, 1 kHz)
Reference: 180 W + 180 W
(8 ohms, T.H.D. 10 %, 1 kHz)
[Dolby Digital Surround or Dolby
Pro Logic Mode]
Front
Rated: 95 W + 95 W
(8 ohms, T.H.D. 1 %, 1 kHz)
Reference: 120 W + 120 W
(8 ohms, T.H.D. 10 %, 1 kHz)
Rear (Surround)
Rated: 95 W + 95 W
(8 ohms, T.H.D. 1 %, 1 kHz)
Reference: 120 W + 120 W
(8 ohms, T.H.D. 10 %, 1 kHz)
Center
Rated: 95 W
(8 ohms, T.H.D. 1 %, 1 kHz)
Reference: 120 W
(8 ohms, T.H.D. 10 %, 1 kHz)
Total harmonic distortion 0.08 % (80 W, 1 kHz, 8 ohms, Front)
Inputs AUDIO IN
PHONO: 2.5 mV,
adjustable (47 kohms)
CD, VIDEO 1/DVD/MD, VIDEO 2/
LD/TV, VIDEO 3: 300 mV,
adjustable (47 kohms)
TAPE MONITOR: 350 mV,
adjustable (47 kohms)
AUX: 250 mV,
adjustable (47 kohms)
DIGITAL IN
COAXIAL (VIDEO 2) :
OPTICAL (VIDEO 1) :
OPTICAL (VIDEO 3) :
accept linear PCM signals
and bit stream of Dolby Digital
Surround (32 kHz, 44.1 kHz and
48 kHz and 96 kHz)
VIDEO IN : 1 Vp-p (75 ohms)
SPECIFICATIONS
Outputs AUDIO OUT (REC OUT): 300 mV
(1 kohm)
VIDEO OUT (MONITOR): 1 Vp-p
(75 ohms)
SUB WOOFER: 5.0 V
FRONT SPEAKERS IMP: 8 / 4 ohms
selectable (front speakers A and B ):
with the SPEAKER IMPEDANCE
SELECTOR set to 4 ohms, accepts
speakers of 4 ohms.
with the SPEAKER IMPEDANCE
SELECTOR set to 8 ohms, accepts
speakers of 8 ohms or more
SURROUND SPEAKERS IMP: 8 ohms
(surround speakers): accepts
speakers of 8 ohms or more
CENTER SPEAKER IMP: 8 / 4 ohms
selectable with the SPEAKER
IMPEDANCE SELECTOR set to 4
ohms, accepts speakers of 4 ohms.
with the SPEAKER IMPEDANCE
SELECTOR set to 8 ohms, accepts
speakers of 8 ohms or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
Muting -20 dB
General
Power requirements 120/220-230/240 V AC, switchable
50/60 Hz
Power consumption 290 W
Power consumption in ECO OFF: 48 W
standby mode ECO ON: 1.5 W
Dimensions 430 x 155 x 402 mm
(W xH xD)
Weight 12.4 kg
• Design and specifications are subject to change without notice.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-017-888-080 C-IC,NJM4558MD
87-A21-501-010 C-IC,YSS902
87-A21-503-010 C-IC,AK4527VQ
87-020-903-010 IC,NJM7805FA
87-017-022-080 C-IC,NJM2068M-D(T1)
87-020-784-040 C-IC,TC4053BF
87-A21-504-010 IC,GP1F37R1
87-001-604-080 C-IC,TC74HCU04M
87-002-298-080 C-IC,TC74HC00AF
87-A20-736-010 IC,BA033ST
87-A21-499-040 C-IC,SN74HC153A
87-A20-437-010 C-IC,M62431FP
87-A20-715-010 IC,M62439SP
87-017-726-080 C-IC,BU4052BCF
87-A21-202-040 C-IC,M62445AFP
87-A21-481-040 C-IC,HD74HC4051FP
87-017-915-080 C-IC,BU4094BCF
8A-AR3-601-110 C-IC,UPD780228GF-071
87-070-083-010 IC,GP1U281X
87-A20-820-010 IC,BA7625
87-017-917-080 C-IC,BU4066BCF
87-A20-056-010 IC,BA3880S
87-A21-502-010 C-IC,YSD917
87-A20-913-010 IC,LA1837NL
87-A21-928-010 IC,LC72131D-N
87-A20-561-040 C-IC,M65847AFP
87-A21-018-040 C-IC,M65849BFP631D
87-A21-844-040 C-IC,KIA4558F
TRANSISTOR
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
89-110-372-080 C-TR,2SA1037K(R)
87-A30-071-080 C-TR,RT1N 144C
89-213-702-010 TR,2SB1370E
87-A30-083-080 TR,CSD1489B
87-A30-075-080 C-TR,2SA1235F
87-A30-076-080 C-TR,2SC3052F
87-A30-074-080 C-TR,RT1P 141C
87-026-610-080 TR,KTC3198GR
87-A30-073-080 C-TR,RT1N 141C
87-A30-086-070 C-TR,CSD1306E
87-026-609-080 TR,KTA1266GR
87-A30-257-080 C-TR,2SD1306E
87-A30-107-070 C-TR,CMBT5401
87-A30-190-080 TR,CC5551
87-A30-106-070 C-TR,CMBT5551
87-A30-186-010 FET,2SK3053
87-A30-072-080 C-TR,RT1P 144C
89-112-965-080 TR,2SA1296GR
87-A30-087-080 C-FET,2SK2158
89-327-143-080 TR,2SC2714O
87-A30-196-080 TR,2SC4115SRS
87-A30-097-010 TR,FN1016
87-A30-098-010 TR,FP1016
87-A30-268-040 C-TR,2SA1514K(S)
87-A30-454-040 C-TR,DTA144WKA
87-A30-273-040 C-TR,DTC124EKA
87-A30-429-040 C-TR,DTC123JKA
DIODE
87-020-465-080 DIODE,1SS133
87-A40-291-080 DIODE,1N4148M (CPT)
87-A40-345-080 ZENER,MTZJ10C
87-A40-269-080 C-DIODE,MC2836
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-270-080 C-DIODE,MC2838
87-A40-004-080 ZENER,MTZJ16A
87-A40-335-080 ZENER,MTZJ11C T-72
87-070-274-080 DIODE,1N4003 SEM
87-A40-435-080 ZENER,MTZJ30D
87-A40-347-080 ZENER,MTZJ2.2B
87-A40-341-080 ZENER,MTZJ36A
87-A40-646-010 DIODE,FMB-G16L
87-070-136-080 ZENER,MTZJ5.1B
87-A40-344-080 ZENER,MTZJ6.2C
87-A40-488-080 DIODE,1SS244
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-438-080 ZENER,MTZJ4.7A
87-017-931-080 ZENER,MTZJ5.6B
87-A40-003-080 ZENER,MTZJ4.3A
87-027-686-080 ZENER,HZ12A1
87-A40-115-060 DIODE,RS603M
87-A40-224-010 DIODE,GBU8DL
87-017-148-080 ZENER,HZS6A1L
MAIN C.B
C101 87-010-235-080 CAP,E 470-16 M SME
C102 87-010-235-080 CAP,E 470-16 M SME
C103 87-010-384-080 CAP,E 100-25 M 11L SME
C104 87-016-128-080 CAP,E 22-25 M 105 SME
C105 87-010-247-080 CAP,E 100-50 M SME
C106 87-010-384-080 CAP,E 100-25 M 11L SME
C108 87-012-140-080 C-CAP,S 470P-50 J CH
C109 87-012-368-080 C-CAP,S 0.1-50 Z F
C110 87-012-368-080 C-CAP,S 0.1-50 Z F
C111 87-012-368-080 C-CAP,S 0.1-50 Z F
C112 87-012-368-080 C-CAP,S 0.1-50 Z F
C113 87-A12-300-010 CAP,E 3900-35 LXZ
C114 87-A12-300-010 CAP,E 3900-35 LXZ
C115 87-012-368-080 C-CAP,S 0.1-50 Z F
C116 87-012-368-080 C-CAP,S 0.1-50 Z F
C117 87-012-368-080 C-CAP,S 0.1-50 Z F
C118 87-012-368-080 C-CAP,S 0.1-50 Z F
C119 87-A11-991-090 CAP,E 7500-85 105 KMG
C120 87-A11-991-090 CAP,E 7500-85 105 KMG
C121 87-010-260-080 CAP,E 47-25 M 11L SME
C122 87-010-403-080 CAP,E 3.3-50 M 11L SME
C123 87-010-393-080 CAP,E 100-35 M SME
C124 87-A12-079-080 CAP,E 100-35 SMG
C125 87-A10-417-080 CAP,E 47-63 SME
C126 87-010-263-080 CAP,E 100-10 M 11L SME
C127 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C131 87-010-404-080 CAP,E 4.7-50 M 11L SME
C133 87-010-401-080 CAP,E 1-50 M 11L SME
C135 87-012-368-080 C-CAP,S 0.1-50 Z F
C136 87-012-368-080 C-CAP,S 0.1-50 Z F
C143 87-A10-712-080 C-CAP,S 0.22-50 Z F
C144 87-A10-712-080 C-CAP,S 0.22-50 Z F
C149 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C150 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C153 87-010-401-080 CAP,E 1-50 M 11L SME
C154 87-010-401-080 CAP,E 1-50 M 11L SME
C155 87-010-196-080 C-CAP,S 0.1-25 Z F
C156 87-010-196-080 C-CAP,S 0.1-25 Z F
C157 87-010-408-080 CAP,E 47-50 M 11L SME
C158 87-010-248-080 CAP,E 220-10 M 11L SME
C159 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C169 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C170 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C171 87-010-196-080 C-CAP,S 0.1-25 Z F
C172 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C173 87-010-405-080 CAP,E 10-50 M 11L SME
C174 87-010-401-080 CAP,E 1-50 M 11L SME
C175 87-010-196-080 C-CAP,S 0.1-25 Z F

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C203 87-010-178-080 C-CAP,S 1000P-50 K B
C204 87-010-178-080 C-CAP,S 1000P-50 K B
C205 87-010-405-080 CAP,E 10-50 M 11L SME
C206 87-010-405-080 CAP,E 10-50 M 11L SME
C209 87-010-406-080 CAP,E 22-35 M 11L SME
C210 87-010-406-080 CAP,E 22-35 M 11L SME
C211 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C212 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C215 87-A10-897-080 CAP,E 100-25 BP SME
C216 87-A10-897-080 CAP,E 100-25 BP SME
C217 87-A12-313-080 C-CAP,S 150P-200 J CH
C218 87-A12-313-080 C-CAP,S 150P-200 J CH
C221 87-016-460-080 C-CAP,S 0.22-16 KB
C222 87-016-460-080 C-CAP,S 0.22-16 KB
C223 87-010-402-080 CAP,E 2.2-50 M 11L SME
C224 87-010-402-080 CAP,E 2.2-50 M 11L SME
C225 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C226 87-016-251-080 CAP,E 220-16 M SMG
C227 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C228 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C229 87-016-251-080 CAP,E 220-16 M SMG
C230 87-A10-354-080 C-CAP,S 0.047-50 K B
C231 87-A10-354-080 C-CAP,S 0.047-50 K B
C233 87-A12-314-080 CAP,CER 47P-500 J SL
C234 87-A12-314-080 CAP,CER 47P-500 J SL
C285 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C291 87-012-368-080 C-CAP,S 0.1-50 Z F
C292 87-012-368-080 C-CAP,S 0.1-50 Z F
C293 87-012-368-080 C-CAP,S 0.1-50 Z F
C294 87-012-368-080 C-CAP,S 0.1-50 Z F
C295 87-012-368-080 C-CAP,S 0.1-50 Z F
C296 87-012-368-080 C-CAP,S 0.1-50 Z F
C297 87-012-368-080 C-CAP,S 0.1-50 Z F
C298 87-012-368-080 C-CAP,S 0.1-50 Z F
C303 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C304 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C305 87-010-405-080 CAP,E 10-50 M 11L SME
C306 87-010-405-080 CAP,E 10-50 M 11L SME
C308 87-016-299-080 CAP,E 10-100 M SME
C309 87-010-406-080 CAP,E 22-50 M 11L SME
C310 87-010-406-080 CAP,E 22-50 M 11L SME
C311 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C312 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C315 87-A10-897-080 CAP,E 100-25 BP SME
C316 87-A10-897-080 CAP,E 100-25 BP SME
C317 87-A12-313-080 C-CAP,S 150P-200 J CH
C318 87-A12-313-080 C-CAP,S 150P-200 J CH
C321 87-016-526-080 C-CAP,S 0.47-16 BK
C322 87-016-526-080 C-CAP,S 0.47-16 BK
C323 87-010-402-080 CAP,E 2.2-50 M 11L SME
C324 87-010-402-080 CAP,E 2.2-50 M 11L SME
C325 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C327 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C328 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C330 87-A10-354-080 C-CAP,S 0.047-50 K B
C331 87-A10-354-080 C-CAP,S 0.047-50 K B
C334 87-A10-918-080 CAP,E 100-16 SMG
C335 87-A10-918-080 CAP,E 100-16 SMG
C336 87-A12-314-080 CAP,CER 47P-500 J SL
C385 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C391 87-012-368-080 C-CAP,S 0.1-50 Z F
C392 87-012-368-080 C-CAP,S 0.1-50 Z F
C393 87-012-368-080 C-CAP,S 0.1-50 Z F
C394 87-012-368-080 C-CAP,S 0.1-50 Z F
C402 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C403 87-010-405-080 CAP,E 10-50 M 11L SME
C405 87-010-406-080 CAP,E 22-50 M 11L SME
C406 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C408 87-A10-897-080 CAP,E 100-25 BP SME
C409 87-A10-516-080 C-CAP,S 100P-200 J CH
C411 87-016-526-080 C-CAP,S 0.47-16 BK
C412 87-010-402-080 CAP,E 2.2-50 M 11L SME
C413 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C414 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C416 87-A11-937-080 CAP,E 10-100 M SME
C420 87-A10-354-080 C-CAP,S 0.047-50 K B
C421 87-A12-314-080 CAP,CER 47P-500 J SL
C422 87-A12-314-080 CAP,CER 47P-500 J SL
C485 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C491 87-012-368-080 C-CAP,S 0.1-50 Z F
C492 87-012-368-080 C-CAP,S 0.1-50 Z F
C501 87-010-404-080 CAP,E 4.7-50 M 11L SME
C502 87-010-404-080 CAP,E 4.7-50 M 11L SME
C503 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C504 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C511 87-010-404-080 CAP,E 4.7-50 M 11L SME
C512 87-010-404-080 CAP,E 4.7-50 M 11L SME
C513 87-010-260-080 CAP,E 47-25 M 11L SME
C514 87-010-260-080 CAP,E 47-25 M 11L SME
C515 87-010-370-080 CAP,E 330-6.3 M SME
C516 87-010-370-080 CAP,E 330-6.3 M SME
C517 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C518 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C519 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C520 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C531 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C532 87-010-992-080 C-CAP,S 0.047-25 K B MK212
C533 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C535 87-010-404-080 CAP,E 4.7-50 M 11L SME
C536 87-010-404-080 CAP,E 4.7-50 M 11L SME
C539 87-010-401-080 CAP,E 1-50 M 11L SME
C540 87-010-401-080 CAP,E 1-50 M 11L SME
C541 87-010-185-080 C-CAP,S 3900P-50 K B
C542 87-010-185-080 C-CAP,S 3900P-50 K B
C547 87-010-404-080 CAP,E 4.7-50 M 11L SME
C548 87-010-404-080 CAP,E 4.7-50 M 11L SME
C549 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C550 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C554 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C555 87-010-405-080 CAP,E 10-50 M 11L SME
C556 87-010-248-080 CAP,E 220-10 M 11L SME
C557 87-010-405-080 CAP,E 10-50 M 11L SME
C559 87-010-180-080 C-CAP,S 1500P-50 K B
C560 87-012-368-080 C-CAP,S 0.1-50 Z F
C561 87-012-140-080 C-CAP,S 470P-50 J CH
C562 87-012-140-080 C-CAP,S 470P-50 J CH
C565 87-010-404-080 CAP,E 4.7-50 M 11L SME
C566 87-010-404-080 CAP,E 4.7-50 M 11L SME
C601 87-010-378-080 CAP,E 10-16 M 11L SME
C602 87-010-378-080 CAP,E 10-16 M 11L SME
C603 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C604 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C605 87-010-405-080 CAP,E 10-50 M 11L SME
C606 87-010-405-080 CAP,E 10-50 M 11L SME
C607 87-012-140-080 C-CAP,S 470P-50 J CH
C608 87-012-140-080 C-CAP,S 470P-50 J CH
C609 87-010-188-080 C-CAP,S 6800P-50 K B
C610 87-010-188-080 C-CAP,S 6800P-50 K B
C611 87-010-197-080 C-CAP,S 0.01-25 K B
C612 87-010-195-080 C-CAP,S 0.068-25 Z F
C613 87-010-195-080 C-CAP,S 0.068-25 Z F
C614 87-010-197-080 C-CAP,S 0.01-25 K B
C615 87-010-404-080 CAP,E 4.7-50 M 11L SME
C616 87-010-404-080 CAP,E 4.7-50 M 11L SME
C617 87-010-404-080 CAP,E 4.7-50 M 11L SME
C618 87-010-404-080 CAP,E 4.7-50 M 11L SME
C619 87-010-404-080 CAP,E 4.7-50 M 11L SME
C620 87-010-101-080 CAP,E 220-16 M SME
C621 87-010-260-080 CAP,E 47-25 M 11L SME
C660 87-010-196-080 C-CAP,S 0.1-25 Z F

– 5 –
C661 87-010-196-080 C-CAP,S 0.1-25 Z F
C700 87-018-203-080 CAP,TC U 8200P
C701 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C702 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C723 87-010-401-080 CAP,E 1-50 M 11L SME
C726 87-010-401-080 CAP,E 1-50 M 11L SME
C745 87-010-190-080 C-CAP,S 0.01-50 Z F
C746 87-012-368-080 C-CAP,S 0.1-50 Z F
C747 87-A11-148-080 CAP,TC-U 0.1-50
C901 87-010-406-080 CAP,E 22-50 M 11L SME
C902 87-010-406-080 CAP,E 22-50 M 11L SME
C903 87-010-406-080 CAP,E 22-50 M 11L SME
C904 87-010-406-080 CAP,E 22-50 M 11L SME
C905 87-010-406-080 CAP,E 22-50 M 11L SME
C906 87-010-260-080 CAP,E 47-25 M 11L SME
C907 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C908 87-010-387-080 CAP,E 470-25 M SME
C909 87-010-371-080 CAP,E 470-6.3 M SME
C910 87-010-371-080 CAP,E 470-6.3 M SME
C911 87-010-371-080 CAP,E 470-6.3 M SME
C912 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C913 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C914 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C915 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
CN110 87-A60-621-010 CONN,4P V 2MM JMT
CN501 87-A60-039-010 CONN,32P V 9604S-32C
CN502 87-A60-052-010 CONN,18P V 9604S-18C
CN503 87-A60-056-010 CONN,12P V 9604S-12C
CN504 87-099-574-010 CONN,20P TUC-P20P-B1
CN505 87-A60-189-010 CONN,16P V TUC-P16P-B1
CN509 87-099-667-010 CONN,8P H TUC-P08P-B1
CN601 87-A60-627-010 CONN,10P V 2MM JMT
CN702 87-099-668-010 CONN,9P TUC-P 9P-B1
CN901 87-A60-619-010 CONN,2P V 2MM JMT
CNA201 8Z-AR4-606-010 CONN ASSY,8P VH
CNA202 8Z-AR4-605-010 CONN ASSY,6P VH
FC501 8A-AR3-643-010 FF-CABLE,32P 430MM
FFC510 88-904-121-110 FFC,4P 1.25 120MM
FB501 87-008-372-080 FLTR,EMI BL01 RN1
FB602 87-008-372-080 FLTR,EMI BL01 RN1
J501 87-A60-947-010 JACK,PIN 4P W/R GLD
J502 87-A60-947-010 JACK,PIN 4P W/R GLD
J715 87-A61-059-010 JACK,PIN 1P BLK W/O SW GOLD
J901 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J902 87-A60-950-010 JACK,PIN 3P R/W/Y W/E GLD
J903 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J904 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J905 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
JW614 87-A11-148-080 CAP,TC U 0.1-50 ZF
L291 87-A50-610-010 COIL,1UH K (MDEC)
L292 87-A50-610-010 COIL,1UH K (MDEC)
L293 87-A50-610-010 COIL,1UH K (MDEC)
L294 87-A50-610-010 COIL,1UH K (MDEC)
L391 87-A50-610-010 COIL,1UH K (MDEC)
L392 87-A50-610-010 COIL,1UH K (MDEC)
L491 87-A50-610-010 COIL,1UH K (MDEC)
L901 87-005-239-080 COIL,100UH K LAL03
PR101 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR104 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR107 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR108 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR201 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR202 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR301 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR302 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR401 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR402 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
Q102 8Z-NFT-604-110 CONN ASSY,3P SURR
Q108 8Z-AR1-670-010 CONN ASSY,3P VM
R109 87-029-060-080 RES,FUSE 33-1/4W J
R176 87-A00-401-050 RES,M/F 390-1W J VTP
R179 87-A00-373-050 RES,M/F 270-1W J VTP
R180 87-A00-403-080 RES,M/F 560-1W J T52L25.5
R211 87-A00-598-010 RES,M/F 0.15-3W JRZ
R212 87-A00-598-010 RES,M/F 0.15-3W JRZ
R231 87-A00-598-010 RES,M/F 0.15-3W JRZ
R232 87-A00-598-010 RES,M/F 0.15-3W JRZ
R233 87-A00-598-010 RES,M/F 0.15-3W JRZ
R234 87-A00-598-010 RES,M/F 0.15-3W JRZ
R281 87-A00-373-050 RES,M/F 270-1W J VTP
R282 87-A00-373-050 RES,M/F 270-1W J VTP
R283 87-A00-373-050 RES,M/F 270-1W J VTP
R284 87-A00-373-050 RES,M/F 270-1W J VTP
R331 87-A00-598-010 RES,M/F 0.15-3W JRZ
R332 87-A00-598-010 RES,M/F 0.15-3W JRZ
R333 87-A00-598-010 RES,M/F 0.15-3W JRZ
R334 87-A00-598-010 RES,M/F 0.15-3W JRZ
R416 87-A00-598-010 RES,M/F 0.15-3W JRZ
R417 87-A00-598-010 RES,M/F 0.15-3W JRZ
R424 87-A00-598-010 RES,M/F 0.15-3W JRZ
R587 87-A00-126-080 RES,M/F 220-1W J VTP
R590 87-A00-598-010 RES,M/F 0.15-3W JRZ
R611 87-A00-598-010 RES,M/F 0.15-3W JRZ
R902 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
R905 87-010-317-080 C-CAP,S 39P-50 J CH
RY101 87-A90-454-010 RELAY,12V DJ12D2-O(M)
RY102 87-A90-454-010 RELAY,12V DJ12D2-O(M)
S101 86-SP8-611-010 SW,SL 1-1-2
S291 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
S292 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
TH201 87-A91-081-080 C-THMS,100K-K 20P
TH202 87-A91-081-080 C-THMS,100K-K 20P
TH301 87-A91-081-080 C-THMS,100K-K 20P
TH302 87-A91-081-080 C-THMS,100K-K 20P
TH401 87-A91-081-080 C-THMS,100K-K 20P
W3 8A-AR3-654-010 CONN ASSY,9P VH
WH101 87-A90-510-010 HLDR,WIRE 2.5-9P
FRONT C.B
C700 87-018-203-080 CAP,TC U 8200P
C707 87-010-382-040 CAP,E 22-25 M 11L SME
C708 87-010-382-040 CAP,E 22-25 M 11L SME
C709 87-010-382-040 CAP,E 22-25 M 11L SME
C710 87-010-382-040 CAP,E 22-25 M 11L SME
C711 87-010-263-040 CAP,E 100-10 M 11L SME
C712 87-010-382-040 CAP,E 22-25 M 11L SME
C713 87-012-368-080 C-CAP,S 0.1-50 Z F
C714 87-010-560-040 CAP,E 10-50 M 5L MA
C715 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C716 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C717 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C718 87-015-699-040 CAP,E 10-50 M 7L SRA
C719 87-015-699-040 CAP,E 10-50 M 7L SRA
C720 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C721 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C722 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C723 87-010-405-040 CAP,E 10-50 M 11L SME
C801 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C802 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C803 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C805 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C806 87-010-400-040 CAP,E 0.47-50 M 11L SME
C807 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C808 87-010-498-040 CAP,E 10-16 M 5L SRE
C809 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C810 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C811 87-A10-189-040 CAP,E 220-10 M 5L
C812 87-A10-189-040 CAP,E 220-10 M 5L
C813 87-010-401-040 CAP,E 1-50 M 11L SME
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO.KANRI
NO.
KANRI
NO.
!
!
!
!
!
!
!
!
!
!

– 6 –
C814 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C815 87-010-196-080 C-CAP,S 0.1-25 Z F
C816 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C817 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C818 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C819 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C820 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C821 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C822 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C823 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C824 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C825 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C826 87-010-405-040 CAP,E 10-50 M 11L SME
C827 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C828 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C829 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C830 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C831 87-A10-189-040 CAP,E 220-10 M 5L
C832 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C833 87-012-368-080 C-CAP,S 0.1-50 Z F
C834 87-012-368-080 C-CAP,S 0.1-50 Z F
C835 87-012-368-080 C-CAP,S 0.1-50 Z F
C836 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C837 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C838 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C839 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C840 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C841 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C842 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C843 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C844 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C845 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C846 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C847 87-015-699-040 CAP,E 10-50 M 7L SRA
C848 87-010-405-040 CAP,E 10-50 M 11L SME
C849 87-012-368-080 C-CAP,S 0.1-50 Z F
C850 87-010-408-040 CAP,E 47-50 M 11L SME
C852 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C853 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C854 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C855 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C856 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C857 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C858 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C859 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C860 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C861 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C862 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C863 87-010-178-080 C-CAP,S 1000P-50 K B
C864 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C866 87-012-140-080 C-CAP,S 470P-50 J CH
C867 87-012-368-080 C-CAP,S 0.1-50 Z F
CN801 87-A60-079-010 CONN,08P H 9604S-08F
CN802 87-A60-064-010 CONN,32P H 9604S-32F
CN803 87-A60-075-010 CONN,18P H 9604S-18F
CN805 87-A60-075-010 CONN,18P H 9604S-18F
FC801 88-908-101-110 FF-CABLE,8P 100MM
FC803 8A-AR1-645-010 FF-CABLE,8P 380MM
FC805 88-918-101-110 FF-CABLE,18P 100MM
FL801 8A-AR1-602-010 FL,BJ759GK
L801 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED703 87-A40-317-010 LED,SLR-342VCT31 RED
LED704 87-A40-317-080 LED,SLR-342VCT31 RED
LED705 87-A40-317-080 LED,SLR-342VCT31 RED
LED706 87-A40-317-080 LED,SLR-342VCT31 RED
LED707 87-A40-317-080 LED,SLR-342VCT31 RED
LED708 87-A40-317-080 LED,SLR-342VCT31 RED
LED709 87-A40-317-080 LED,SLR-342VCT31 RED
LED710 87-A40-317-080 LED,SLR-342VCT31 RED
LED711 87-A40-317-080 LED,SLR-342VCT31 RED
LED712 87-A40-317-080 LED,SLR-342VCT31 RED
S801 87-A90-095-080 SW,TACT EVQ11G04M
S802 87-A90-095-080 SW,TACT EVQ11G04M
S803 87-A90-095-080 SW,TACT EVQ11G04M
S804 87-A90-095-080 SW,TACT EVQ11G04M
S805 87-A90-095-080 SW,TACT EVQ11G04M
S806 87-A90-095-080 SW,TACT EVQ11G04M
S807 87-A90-095-080 SW,TACT EVQ11G04M
S808 87-A90-095-080 SW,TACT EVQ11G04M
S809 87-A90-095-080 SW,TACT EVQ11G04M
S810 87-A90-095-080 SW,TACT EVQ11G04M
S811 87-A90-095-080 SW,TACT EVQ11G04M
S812 87-A90-095-080 SW,TACT EVQ11G04M
S813 87-A90-095-080 SW,TACT EVQ11G04M
S814 87-A90-095-080 SW,TACT EVQ11G04M
S815 87-A90-095-080 SW,TACT EVQ11G04M
S816 87-A90-095-080 SW,TACT EVQ11G04M
S817 87-A90-095-080 SW,TACT EVQ11G04M
SW801 87-A91-646-010 SW,RTRY EC12E12204
SW802 87-A91-647-010 SW,RTRY EC12E12504
DIGITAL C.B
C100 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C101 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C102 87-010-374-080 CAP,E 47-10 M 11L SME
C105 87-012-140-080 C-CAP,S 470P-50 J CH
C106 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C107 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C108 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C109 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C110 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C111 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C112 87-010-404-080 CAP,E 4.7-50 M 11L SME
C113 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C114 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C115 87-010-374-080 CAP,E 47-10 M 11L SME
C118 87-010-402-080 CAP,E 2.2-50 M 11L SME
C119 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C120 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C121 87-010-263-080 CAP,E 100-10 M 11L SME
C122 87-010-311-080 C-CAP,S 12P-50 J CH GRM
C123 87-010-313-080 C-CAP,S 18P-50 J CH GRM
C125 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C126 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C127 87-010-101-080 CAP,E 220-16 M SME
C128 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C129 87-010-101-080 CAP,E 220-16 M SME
C130 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C131 87-010-263-080 CAP,E 100-10 M 11L SME
C132 87-010-263-080 CAP,E 100-10 M 11L SME
C133 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C135 87-010-101-080 CAP,E 220-16 M SME
C136 87-010-263-080 CAP,E 100-10 M 11L SME
C137 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C138 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C139 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C140 87-010-552-040 CAP,E 22-16 M 5L SRE
C141 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C142 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C143 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C144 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C145 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C146 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C147 87-010-405-080 CAP,E 10-50 M 11L SME
C148 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C149 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C150 87-010-405-080 CAP,E 10-50 M 11L SME
C151 87-010-405-080 CAP,E 10-50 M 11L SME
C152 87-010-405-080 CAP,E 10-50 M 11L SME
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO. KANRI
NO.
KANRI
NO.

– 7 –
C153 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C154 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C155 87-A10-369-080 C-CAP,S 0.47-16 K B
C156 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C157 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C158 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C159 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C160 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C161 87-010-405-080 CAP,E 10-50 M 11L SME
C162 87-010-405-080 CAP,E 10-50 M 11L SME
C163 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C164 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C165 87-A10-369-080 C-CAP,S 0.47-16 K B
C166 87-010-405-080 CAP,E 10-50 M 11L SME
C167 87-010-405-080 CAP,E 10-50 M 11L SME
C168 87-010-401-080 CAP,E 1-50 M 11L SME
C169 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C170 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C171 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C172 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C173 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C174 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C175 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C176 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C177 87-A10-369-080 C-CAP,S 0.47-16 K B
C178 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C179 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C180 87-010-405-080 CAP,E 10-50 M 11L SME
C181 87-010-405-080 CAP,E 10-50 M 11L SME
C182 87-010-405-080 CAP,E 10-50 M 11L SME
C183 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C184 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C185 87-010-405-080 CAP,E 10-50 M 11L SME
C186 87-010-405-080 CAP,E 10-50 M 11L SME
C187 87-016-083-080 C-CAP,S 0.15-16 K R
C188 87-016-083-080 C-CAP,S 0.15-16 K R
C189 87-016-083-080 C-CAP,S 0.15-16 K R
C190 87-010-405-080 CAP,E 10-50 M 11L SME
C191 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C192 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C193 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C194 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C195 87-010-405-080 CAP,E 10-50 M 11L SME
C196 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C197 87-010-405-080 CAP,E 10-50 M 11L SME
C198 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C199 87-A10-369-080 C-CAP,S 0.47-16 K B
C200 87-A11-132-080 CAP,TU C 0.01
C201 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C202 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C203 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C204 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C205 87-A10-369-080 C-CAP,S 0.47-16 K B
C206 87-010-401-080 CAP,E 1-50 M 11L SME
C207 87-010-405-080 CAP,E 10-50 M 11L SME
C208 87-010-405-080 CAP,E 10-50 M 11L SME
C209 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C210 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C211 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C212 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C213 87-A10-369-080 C-CAP,S 0.47-16 K B
C214 87-010-405-080 CAP,E 10-50 M 11L SME
C215 87-010-405-080 CAP,E 10-50 M 11L SME
C216 87-010-405-080 CAP,E 10-50 M 11L SME
C219 87-010-993-080 C-CAP,S 0.056-25 K B MK212
C220 87-A10-369-080 C-CAP,S 0.47-16 K B
C221 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C222 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C223 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C224 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C225 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C226 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C227 87-010-405-080 CAP,E 10-50 M 11L SME
C228 87-010-405-080 CAP,E 10-50 M 11L SME
C230 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C232 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C233 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C234 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C235 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C236 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C237 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C238 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C239 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C240 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C241 87-010-405-080 CAP,E 10-50 M 11L SME
C242 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C245 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C253 87-010-263-080 CAP,E 100-10 M 11L SME
C255 87-010-378-080 CAP,E 10-16 M 11L SME
C268 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C272 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C273 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C275 87-010-263-080 CAP,E 100-10 M 11L SME
C278 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C280 87-010-401-080 CAP,E 1-50 M 11L SME
C295 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C292 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C301 87-010-401-080 CAP,E 1-50 M 11L SME
C302 87-010-248-080 CAP,E 220-10 M 11L SME
C317 87-016-462-080 C-CAP,S 1-16 Z F
C318 87-016-462-080 C-CAP,S 1-16 Z F
C336 87-010-405-080 CAP,E 10-50 M 11L SME
C337 87-010-405-080 CAP,E 10-50 M 11L SME
C338 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C339 87-010-405-080 CAP,E 10-50 M 11L SME
C340 87-010-405-080 CAP,E 10-50 M 11L SME
C341 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C342 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C343 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C344 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C402 87-010-196-080 C-CAP,S 0.1-25 Z F
C403 87-010-401-080 CAP,E 1-50 M 11L SME
C404 87-018-131-080 CAP,TC U 1000P-50 K B
C406 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C407 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C410 87-010-197-080 C-CAP,S 0.01-25 K B
CN101 87-099-563-010 CONN,20P TUC-P20X-B1
CN102 87-A60-190-010 CONN,16P H TUC-P16X-B1
CN103 8Z-AR1-635-010 CONN ASSY,4P (DTS,AC-3)
CN105 87-A60-060-010 CONN,07P V 9604S-07C
FB103 87-008-372-080 FLTR,EMI BL01 RN1
FB104 87-008-372-080 FLTR,EMI BL01 RN1
FB105 87-008-474-080 F-BEAD, BL02RN1-R62T2 EMI
FB108 87-008-474-080 F-BEAD, BL02RN1-R62T2 EMI
FB110 87-008-372-080 FLTR,EMI BL01 RN1
FB111 87-008-372-080 FLTR,EMI BL01 RN1
FB112 87-005-212-080 COIL,220UH K EL0606
J101 87-A61-143-010 JACK,PIN 1P ORN GLD
JR121 87-010-178-080 C-CAP,S 1000P-50 K B C2012
JW177 87-008-372-080 FLTR,EMI BL01 RN1
L102 87-A50-095-010 COIL,68UH RCR875D
L103 87-005-274-080 COIL,68UH K LAL03
L104 87-008-501-080 FLTR, DSS306-55
L106 87-008-372-080 FLTR,EMI BL01 RN1
L107 87-008-501-080 FLTR, DSS306-55
L108 87-008-501-080 FLTR, DSS306-55
X102 87-A70-243-010 VIB,XTAL 24.576
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO. KANRI
NO.
KANRI
NO.

– 8 –
VOLUME C.B
C601 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C602 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C603 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C604 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C605 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C606 87-010-805-080 C-CAP,S 1-16 Z F
C607 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C608 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C609 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C610 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C611 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C612 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C613 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C614 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C615 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C616 87-010-183-080 C-CAP,S 2700P-50 KB GRM
C617 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C618 87-010-404-080 CAP,E 4.7-50 M 11L SME
C619 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C620 87-010-183-080 C-CAP,S 2700P-50 KB GRM
C621 87-010-545-080 CAP,E 0.22-50 M 11L SME
C622 87-010-177-080 C-CAP,S 820P-50 J SL
C623 87-016-669-080 C-CAP,S 0.1-25 K B
C624 87-010-404-080 CAP,E 4.7-50 M 11L SME
C625 87-010-374-080 CAP,E 47-10 M 11L SME
C626 87-010-184-080 C-CAP,S 3300P-50 K B
C627 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C628 87-010-263-080 CAP,E 100-10 M 11L SME
C629 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C630 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C631 87-010-184-080 C-CAP,S 3300P-50 K B
C632 87-010-177-080 C-CAP,S 820P-50 J SL
C633 87-016-669-080 C-CAP,S 0.1-25 K B
C634 87-010-374-080 CAP,E 47-10 M 11L SME
CN601 87-A60-075-010 CONN,18P H 9604S-18F
CN602 87-009-371-010 CONN,6P V BLK BTMK
CN603 87-A60-080-010 CONN,07P H 9604S-07F
FC603 88-907-401-110 FF-CABLE,7P 400MM
S601 87-A90-095-080 SW,TACT EVQ11G04M
S602 87-A90-095-080 SW,TACT EVQ11G04M
SW601 87-A91-645-010 SW,RTRY EC12E24304NON-CLICK
VIDEO C.B
C501 87-A11-148-080 CAP,TC U 0.1-50 Z F
C502 87-A11-148-080 CAP,TC U 0.1-50 Z F
C503 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C504 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C507 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN604 87-099-201-010 CONN,8P H BLK 6216
CN605 8A-AR3-652-110 CONN ASSY,2P -VIDEO 3
J501 87-A60-948-010 JACK,PIN 3P R/W/Y GLD
J603 87-A60-550-010 JACK,DIA6.3 BLK ST W/SW KM
PT C.B
C1 87-010-237-080 CAP,E 1000-16 M SME
C2 87-010-403-080 CAP,E 3.3-50 M 11L SME
C3 87-A11-148-080 CAP,TC U 0.1-50 Z F
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C7 87-A10-922-090 CAP,CER 0.01-250 M F KH
C8 87-A10-922-090 CAP,CER 0.01-250 M F KH
C13 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN101 88-805-042-690 CONN ASSY,4P
CN103 87-A61-057-010 CONN,9P V THL-P09P-A1
PR105 87-026-682-080 PROTECTOR,10A 491SERIES 60V
PR106 87-026-682-080 PROTECTOR,10A 491SERIES 60V
PR115 87-026-682-080 PROTECTOR,10A 491SERIES 60V
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO.
PR116 87-026-682-080 PROTECTOR,10A 491SERIES 60V
PT2 8Z-NF8-663-010 PT,SUB ZNF-8(H)
PT101 8A-AR1-608-110 PT,AAR-1 HC (KAM1)
RY1 87-A90-454-010 RELAY,12V DJ12D2-O(M)
TUNER C.B
C1 87-A11-148-080 CAP,TC-U 0.1-50
C701 87-010-260-080 CAP, ELECT 47-25V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-012-286-080 C-CAP, U 0.01-25
C704 87-012-286-080 C-CAP, U 0.01-25
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-263-080 CAP, ELECT 100-10V
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-012-286-080 C-CAP, U 0.01-25
C714 87-012-286-080 C-CAP, U 0.01-25
C717 87-012-286-080 C-CAP, U 0.01-25
C719 87-012-286-080 C-CAP, U 0.01-25
C721 87-012-176-080 C-CAP,U 15P-50 J CH
C722 87-012-176-080 C-CAP,U 15P-50 J CH
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C755 87-012-286-080 CAP, U 0.01-25
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C765 87-012-286-080 CAP, U 0.01-25
C769 87-010-260-080 CAP, ELECT 47-25 M 11L
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25 M 11L
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-012-286-080 CAP, U 0.01-25
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-805-080 C-CAP, S 1-16
C786 87-010-805-080 C-CAP, S 1-16
C787 87-012-280-080 CAP, U 3300P-50
C788 87-012-280-080 CAP, U 3300P-50
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-194-080 C-CAP,S 0.047-25 ZF
C796 87-010-403-080 CAP, ELECT 3.3-50V
C797 87-012-276-080 CAP, U 1500P-50
C798 87-012-276-080 CAP, U 1500P-50
C799 87-010-829-080 CAP, U 0.047-16
C812 87-012-286-080 C-CAP, U 0.01-25
C813 87-010-197-080 CHIP CAPACITOR,0.01-25
C814 87-012-286-080 C-CAP, U 0.01-25
C819 87-010-197-080 CAP, CHIP 0.01-25 K B
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 C-CAP, U 0.01-25
C822 87-012-286-080 C-CAP, U 0.01-25
KANRI
NO.
KANRI
NO.
!
!
!
!
!
!
!
!
!

– 9 –
C823 87-012-286-080 C-CAP, U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-170-080 C-CAP,U 8P-50 CH
CF801 87-008-261-010 FILTER, SFE10.7MA5
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN601 87-099-029-010 CONN,12P H BLK 6216
FFC601 88-912-161-110 FF-CABLE,12P 160MM
FFE801 A8-6ZA-199-170 6ZA-1 FEENC
J801 87-A60-657-010 TERMINAL,4P HSP-154V5-02
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-733-010 FLTR,PCFAZH-450(TOK)
L781 87-005-847-080 COIL,2.2UH K CECS
L791 87-A50-027-010 COIL,1 POLE MPX(TOK)
L792 87-A50-027-010 COIL,1 POLE MPX(TOK)
L832 87-005-847-080 COIL,2.2UH K CECS
L981 87-NF4-650-010 COIL,AM PACK4N(TOK)
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
GEQ C.B
C758 87-010-404-080 CAP, ELECT 4.7-50V
C759 87-012-368-080 C-CAP,S 0.1-50 F
C761 87-010-198-080 CAP, CHIP 0.022
C762 87-010-197-080 CAP, CHIP 0.01 DM
C764 87-010-185-080 C-CAP,S 3900P-50 B
C765 87-010-194-080 CAP, CHIP 0.047
C766 87-010-181-080 CAP,CHIP S 1800P
C767 87-010-198-080 CAP, CHIP 0.022
C768 87-010-994-080 C-CAP,S 680P-50 CH
C769 87-010-188-080 CAP,CHIP 6800P
C770 87-012-145-080 CAP, CHIP S 270P CH
C771 87-010-183-080 C-CAP,S 2700P-50 B
C772 87-012-145-080 CAP, CHIP S 270P CH
C773 87-010-188-080 CAP,CHIP 6800P
C774 87-010-994-080 C-CAP,S 680P-50 CH
C775 87-010-198-080 CAP, CHIP 0.022
C776 87-010-181-080 CAP,CHIP S 1800P
C777 87-010-194-080 CAP, CHIP 0.047
C778 87-010-185-080 C-CAP,S 3900P-50 B
C780 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-183-080 C-CAP,S 2700P-50 B
C783 87-010-198-080 CAP, CHIP 0.022
C786 87-010-402-080 CAP, ELECT 2.2-50V
C787 87-010-402-080 CAP, ELECT 2.2-50V
C788 87-010-260-080 CAP, ELECT 47-25V
C789 87-010-260-080 CAP, ELECT 47-25V
C790 87-010-260-080 CAP, ELECT 47-25V
C791 87-010-405-080 CAP, ELECT 10-50V
C792 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-368-080 C-CAP,S 0.1-50 F
C794 87-012-368-080 C-CAP,S 0.1-50 F
C797 87-010-322-080 C-CAP,S 100P-50 CH
C798 87-010-322-080 C-CAP,S 100P-50 CH
C799 87-010-322-080 C-CAP,S 100P-50 CH
CN701 87-099-670-010 CONN,9P TUC-P9X-B1
CN702 8A-AR3-653-010 CONN ASSY,10P (GEQ)
AC-SW C.B
F101 87-035-370-010 FUSE,6.3A 250V T
F102 87-035-370-010 FUSE,6.3A 250V T
FC101 87-033-147-010 FUSE CLAMP,MT 20
FC102 87-033-147-010 FUSE CLAMP,MT 20
FC103 87-033-147-010 FUSE CLAMP,MT 20
FC104 87-033-147-010 FUSE CLAMP,MT 20
SW101 87-A90-165-010 SW,SL 1-2-3 SWS2301
T101 87-A60-317-010 TERMINAL, 1P MSC
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
!
!
!
T102 87-A60-317-010 TERMINAL, 1P MSC
SPKR C.B
C1 87-010-190-080 C-CAP,S 0.01-50 Z F
C2 87-010-190-080 C-CAP,S 0.01-50 Z F
C4 87-010-190-080 C-CAP,S 0.01-50 Z F
C5 87-010-190-080 C-CAP,S 0.01-50 Z F
C6 87-010-190-080 C-CAP,S 0.01-50 Z F
C8 87-010-190-080 C-CAP,S 0.01-50 Z F
C9 87-010-190-080 C-CAP,S 0.01-50 Z F
C12 87-010-190-080 C-CAP,S 0.01-50 Z F
C13 87-010-190-080 C-CAP,S 0.01-50 Z F
C16 87-010-190-080 C-CAP,S 0.01-50 Z F
CN201 87-099-799-010 CONN,8P V B 8P-VH
CN202 87-009-663-010 CONN,6P V VH
J901 87-033-210-010 TERMINAL,SPKR 8P LTS0810-1002
J902 87-A61-172-010 TERMINAL,SPKR 6P LTS0610-1002
MIC C.B
C601 87-010-196-080 C-CAP,S 0.1-25 ZF
C602 87-010-560-040 CAP,E 10-50 M 5L MA
C603 87-010-491-040 CAP,E 0.22-50 M 5L SRE
C604 87-A10-189-040 CAP,E 220-10 M 5L
C605 87-010-322-080 C-CAP,S 100P-50 J CH
C606 87-010-321-080 C-CAP,S 82P-50 J CH
C607 87-010-196-080 C-CAP,S 0.1-25 ZF
C608 87-010-186-080 C-CAP,S 4700P-50 KB
C609 87-010-188-080 C-CAP,S 6800P-50 KB
C610 87-010-560-040 CAP,E 10-50 M 5L MA
C611 87-010-322-080 C-CAP,S 100P-50 J CH
C612 87-010-177-080 C-CAP,S 820P-50 J SL
C613 87-010-552-040 CAP,E 22-16 M 5L SRE
C614 87-016-462-080 C-CAP,S 1-16 ZF
CN601 87-009-362-010 CONN,6P H BLK BTMK
J601 87-A60-188-010 JACK,6.3 BLK MONO W/SW MIC
J602 87-A60-188-010 JACK,6.3 BLK MONO W/SW MIC
KEY CON C.B
C652 87-010-196-080 C-CAP,S 0.1-25 Z F
C653 87-012-154-080 C-CAP,S 150P-50 J CH
C654 87-010-183-080 C-CAP,S 2700P-50 KB
C655 87-010-196-080 C-CAP,S 0.1-25 ZF
C656 87-012-154-080 C-CAP,S 150P-50 J CH
C657 87-010-183-080 C-CAP,S 2700P-50 KB
C658 87-012-145-080 C-CAP,S 270P-50 J CH
C659 87-010-177-080 C-CAP,S 820P-50 K SL
C670 87-012-145-080 C-CAP,S 270P-50 J CH
C671 87-010-177-080 C-CAP,S 820P-50 K SL
C672 87-010-196-080 C-CAP,S 0.1-25 ZF
C674 87-010-196-080 C-CAP,S 0.1-25 ZF
C675 87-010-263-080 CAP,E 100-10 M 11L SME
C676 87-010-374-080 CAP,E 47-10 M 11L SME
CN508 87-099-669-010 CONN,8P H TUC-08PX-B1
VCC2 C.B
CN998 87-049-919-010 CONN,3P V WHT EH
VCC3 C.B
CN997 87-049-919-010 CONN,3P V WHT EH
!

– 10 –
88
A

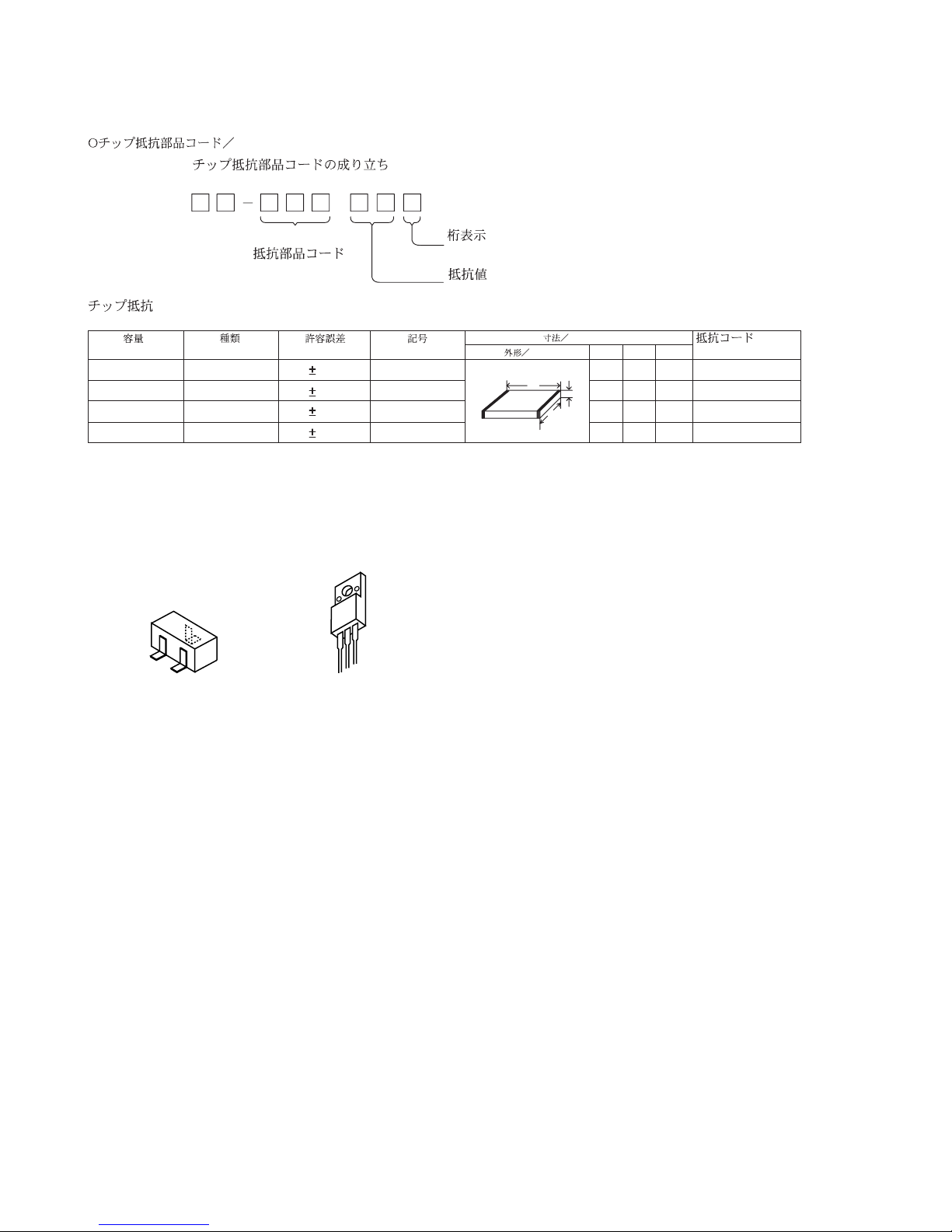

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
FN1016
FP1016
B C E
E
B
C
2SA1514
DTA144WKA
DTC123JKA
DTC124EKA

WIRING – 1 (MAIN / VCC2 / VCC3)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 11 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

 12 
SCHEMATIC DIAGRAM  1 (MAIN 1/2)

 13 
SCHEMATIC DIAGRAM  2 (MAIN 2/2 / VCC2 / VCC3)

WIRING – 2 (FRONT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 14 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

 15 
SCHEMATIC DIAGRAM  3 (FRONT)

WIRING – 3 (DIGITAL)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 16 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

 17 
SCHEMATIC DIAGRAM  4 (DIGITAL)

WIRING – 4 (VOLUME / VIDEO / GEQ)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 18 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

 19 
SCHEMATIC DIAGRAM  5 (VOLUME / VIDEO / GEQ)

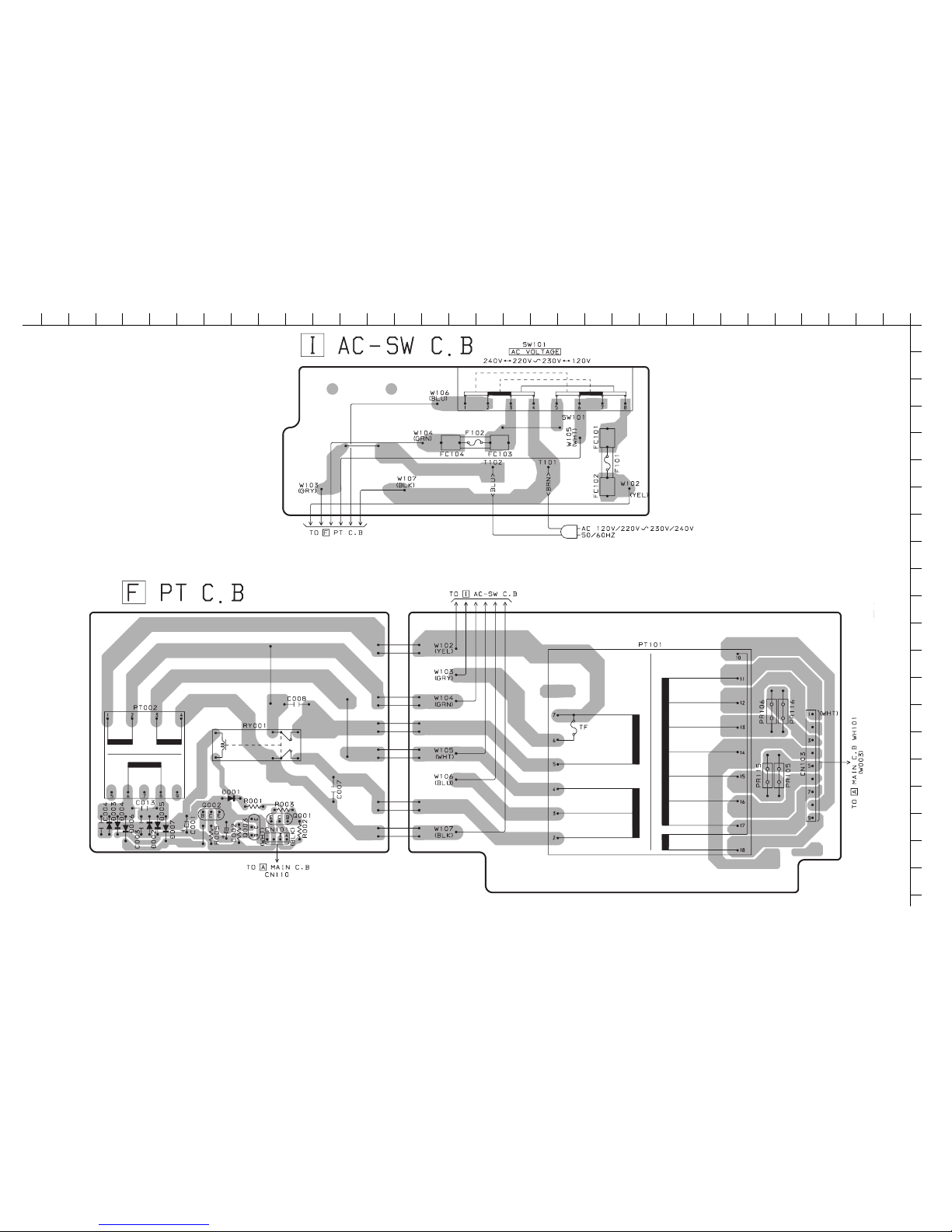

WIRING – 5 (PT / AC – SW)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 20 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
