Aiwa AV-D55 User manual

STEREO AV RECEIVER
AV-D55
S/M Code No. 09-994-329-7R1
U(B)
SERVICE MANUAL
REVISION
This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
(S/M Code No.09-994-329-7T1) .
DATA

2
SPECIFICATIONS
•
Design and specifications are subject to change without
notice.
•
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol and “PRO LOGIC”
are trademarks of Dolby Laboratories Licensing
Corporation.
Laboratories Licensing Corporation.

3
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-A21-097-040 C-IC,M62463AFP
87-A21-015-040 C-IC,M62491FP
87-017-022-080 IC,NJM2068M-D(T1)
87-020-784-080 IC,TC4053BF
87-017-915-080 IC,BU4094BCF
87-017-888-080 IC,NJM4558MD
87-020-903-010 IC,NJM7805FA
8Z-AR3-610-010 C-IC,UPD780228GF
87-070-083-010 IC,GP1U281X
87-A20-870-010 IC,GP1F37R
87-017-726-080 IC,BU4052 BCF
87-A21-202-040 C-IC,M62445AFP
87-A20-820-010 IC,BA7625
87-017-917-080 IC,BU4066BCF
87-A20-437-010 C-IC,M62431FP
87-070-127-110 IC,LC72131 D
87-A20-913-010 IC,LA1837NL
TRANSISTOR
87-A30-071-080 C-TR,RT1N 144C
87-A30-074-080 C-TR,RT1P 141C
87-A30-073-080 C-TR,RT1N 141C
87-A30-086-070 C-TR,CSD1306E
87-A30-076-080 C-TR,2SC3052F
87-026-608-080 C-TR,DTC 123 JK
87-A30-197-080 TR,KTA1267GR
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
89-110-372-080 TR,2SA1037(140MHZ 200MW)
89-213-750-010 TR,2SB1375 (25W)
87-A30-083-080 TR,CSD1489B
87-A30-075-080 C-TR,2SA1235F
89-112-965-080 TR,2SA1296 (0.75W)
87-026-610-080 TR,KTC3198GR
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-072-080 C-TR,RT1P 144C
87-A30-087-080 C-FET,2SK2158
87-026-263-080 C-TR,RN1410
87-026-609-080 TR,KTA1266GR
87-A30-257-080 C-TR,2SD1306E
87-A30-107-070 C-TR,CMBT5401
87-A30-190-080 TR,CC5551
87-A30-097-010 TR,FN 1016
87-A30-098-010 TR,FP 1016
87-A30-106-070 C-TR,CMBT5551
87-A30-162-010 FET,2SK2937
87-026-236-080 TR,DTC124E,K
87-026-232-080 TR,DTA144WK
87-A30-196-080 TR,2SC4115SRS
89-327-143-080 TR,2SC2714 (0.1W)
DIODE
87-A40-234-080 ZENER,MTZJ5.6A
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-344-080 ZENER,MTZJ6.2C
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-291-080 DIODE,1N4148 (CPT)
87-A40-345-080 ZENER,MTZJ10C
87-A40-468-080 C-DIODE,HSM2836CTR
87-027-686-080 ZENER,HZ-12A1
87-A40-115-060 DIODE,RS603M
87-A40-469-080 C-DIODE,HSM2838CTR
87-A40-004-080 ZENER,MTZJ16A
87-A40-335-080 ZENER,MTZJ11C T-72
87-A40-224-010 DIODE,GBU8D
87-070-274-080 DIODE,1N4003 SEM
87-A40-435-080 ZENER,MTZJ30D
87-A40-347-080 ZENER,MTZJ2.2B
87-A40-646-010 DIODE,FMB-G16L
87-070-136-080 ZENER,MTZJ5.1B
87-A40-488-080 DIODE,1SS244
87-017-931-080 ZENER,MTZJ5.6B
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-438-080 ZENER,MTZJ4.7A
MAIN C.B
C101 87-010-235-080 CAP,E 470-16 SME
C102 87-010-235-080 CAP,E 470-16 SME
C103 87-010-384-080 CAP, ELECT 100-25V
C104 87-016-128-080 CAP,E 22-25 105
C105 87-010-247-080 CAP, ELECT 100-50V
C106 87-010-384-080 CAP, ELECT 100-25V
C107 87-010-263-080 CAP, ELECT 100-10V
C108 87-012-140-080 CAP 470P
C109 87-012-368-080 C-CAP,S 0.1-50 F
C110 87-012-368-080 C-CAP,S 0.1-50 F
C111 87-012-368-080 C-CAP,S 0.1-50 F
C112 87-012-368-080 C-CAP,S 0.1-50 F
C113 87-016-658-090 CAP,E 4700-35 SMG
C114 87-016-658-090 CAP,E 4700-35 SMG
C115 87-012-368-080 C-CAP,S 0.1-50 F
C116 87-012-368-080 C-CAP,S 0.1-50 F
C117 87-012-368-080 C-CAP,S 0.1-50 F
C118 87-012-368-080 C-CAP,S 0.1-50 F
C119 87-A10-416-090 CAP,E 6800-80 SMG VB
C120 87-A10-416-090 CAP,E 6800-80 SMG VB
C121 87-010-260-080 CAP, ELECT 47-25V
C122 87-010-403-080 CAP, ELECT 3.3-50V
C123 87-010-384-080 CAP, ELECT 100-25V
C124 87-010-384-080 CAP, ELECT 100-25V
C125 87-A10-417-080 CAP,E 47-63 M SME
C126 87-010-263-080 CAP, ELECT 100-10V
C127 87-010-197-080 CAP, CHIP 0.01 DM
C131 87-010-378-080 CAP, ELECT 10-16V
C133 87-010-378-080 CAP, ELECT 10-16V
C136 87-012-368-080 C-CAP,S 0.1-50 F
C143 87-A10-712-080 C-CAP,S 0.22-50 Z F
C144 87-A10-712-080 C-CAP,S 0.22-50 Z F
C203 87-010-176-080 C-CAP,S 680P-50 SL
C204 87-010-176-080 C-CAP,S 680P-50 SL
C207 87-016-299-080 CAP,E 10-100 SME
C208 87-016-299-080 CAP,E 10-100 SME
C209 87-010-392-080 CAP, ELECT 33-50
C210 87-010-392-080 CAP, ELECT 33-50
C211 87-010-322-080 C-CAP,S 100P-50 CH
C212 87-010-322-080 C-CAP,S 100P-50 CH
C215 87-A10-897-080 CAP,E 100-25 BP SME
C216 87-A10-897-080 CAP,E 100-25 BP SME
C217 87-A10-516-080 C-CAP,S 100P-200 J CH
C218 87-A10-516-080 C-CAP,S 100P-200 J CH
C219 87-010-805-080 CAP, S 1-16
C220 87-010-805-080 CAP, S 1-16
C221 87-010-805-080 CAP, S 1-16
C222 87-010-805-080 CAP, S 1-16
C223 87-010-402-080 CAP, ELECT 2.2-50V
C224 87-010-402-080 CAP, ELECT 2.2-50V
C225 87-010-196-080 CHIP CAPACITOR,0.1-25
C226 87-010-101-080 CAP, ELECT 100-16V
C227 87-010-178-080 CHIP CAP 1000P
C228 87-010-178-080 CHIP CAP 1000P
C229 87-010-101-080 CAP, ELECT 100-16V
C230 87-010-992-080 C-CAP,S 0.047-25 K B
C231 87-010-992-080 C-CAP,S 0.047-25 K B
C285 87-010-186-080 CAP,CHIP 4700P
C287 87-010-190-080 S CHIP F 0.01

4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C288 87-010-190-080 S CHIP F 0.01
C289 87-010-190-080 S CHIP F 0.01
C290 87-010-190-080 S CHIP F 0.01
C291 87-012-368-080 C-CAP,S 0.1-50 F
C292 87-012-368-080 C-CAP,S 0.1-50 F
C293 87-012-368-080 C-CAP,S 0.1-50 F
C294 87-012-368-080 C-CAP,S 0.1-50 F
C295 87-012-368-080 C-CAP,S 0.1-50 F
C296 87-012-368-080 C-CAP,S 0.1-50 F
C297 87-012-368-080 C-CAP,S 0.1-50 F
C298 87-012-368-080 C-CAP,S 0.1-50 F
C303 87-010-179-080 CAP,CHIP S 1200P
C304 87-010-179-080 CAP,CHIP S 1200P
C305 87-010-406-080 CAP, ELECT 22-50
C306 87-010-406-080 CAP, ELECT 22-50
C307 87-016-299-080 CAP,E 10-100 SME
C308 87-016-299-080 CAP,E 10-100 SME
C309 87-010-260-080 CAP, ELECT 47-25V
C310 87-010-260-080 CAP, ELECT 47-25V
C311 87-010-322-080 C-CAP,S 100P-50 CH
C312 87-010-322-080 C-CAP,S 100P-50 CH
C315 87-A10-897-080 CAP,E 100-25 BP SME
C316 87-A10-897-080 CAP,E 100-25 BP SME
C317 87-A10-516-080 C-CAP,S 100P-200 J CH
C318 87-A10-516-080 C-CAP,S 100P-200 J CH
C319 87-010-545-080 CAP, ELECT 0.22-50V
C321 87-010-805-080 CAP, S 1-16
C322 87-010-805-080 CAP, S 1-16
C323 87-010-402-080 CAP, ELECT 2.2-50V
C324 87-010-402-080 CAP, ELECT 2.2-50V
C325 87-010-196-080 CHIP CAPACITOR,0.1-25
C327 87-010-178-080 CHIP CAP 1000P
C328 87-010-178-080 CHIP CAP 1000P
C330 87-010-992-080 C-CAP,S 0.047-25 K B
C331 87-010-992-080 C-CAP,S 0.047-25 K B
C334 87-A10-918-080 CAP,E 100-16 SMG
C335 87-A10-918-080 CAP,E 100-16 SMG
C385 87-010-186-080 CAP,CHIP 4700P
C391 87-012-368-080 C-CAP,S 0.1-50 F
C392 87-012-368-080 C-CAP,S 0.1-50 F
C393 87-012-368-080 C-CAP,S 0.1-50 F
C394 87-012-368-080 C-CAP,S 0.1-50 F
C395 87-010-190-080 S CHIP F 0.01
C396 87-010-190-080 S CHIP F 0.01
C402 87-010-181-080 CAP,CHIP S 1800P
C404 87-010-178-080 CHIP CAP 1000P
C405 87-010-406-080 CAP, ELECT 22-50
C406 87-010-322-080 C-CAP,S 100P-50 CH
C408 87-A10-897-080 CAP,E 100-25 BP SME
C409 87-A10-516-080 C-CAP,S 100P-200 J CH
C410 87-010-805-080 CAP, S 1-16
C411 87-010-805-080 CAP, S 1-16
C412 87-010-402-080 CAP, ELECT 2.2-50V
C413 87-010-196-080 CHIP CAPACITOR,0.1-25
C414 87-010-178-080 CHIP CAP 1000P
C415 87-016-299-080 CAP,E 10-100 SME
C416 87-016-299-080 CAP,E 10-100 SME
C485 87-010-186-080 CAP,CHIP 4700P
C491 87-012-368-080 C-CAP,S 0.1-50 F
C492 87-012-368-080 C-CAP,S 0.1-50 F
C493 87-010-190-080 S CHIP F 0.01
C501 87-010-404-080 CAP, ELECT 4.7-50V
C502 87-010-404-080 CAP, ELECT 4.7-50V
C503 87-012-157-080 C-CAP,S 330P-50 CH
C504 87-012-157-080 C-CAP,S 330P-50 CH
C511 87-010-404-080 CAP, ELECT 4.7-50V
C512 87-010-404-080 CAP, ELECT 4.7-50V
C513 87-010-260-080 CAP, ELECT 47-25V
C514 87-010-260-080 CAP, ELECT 47-25V
C515 87-010-370-080 CAP,E 330-6.3 SME
C516 87-010-370-080 CAP,E 330-6.3 SME
C517 87-010-196-080 CHIP CAPACITOR,0.1-25
C518 87-010-196-080 CHIP CAPACITOR,0.1-25
C519 87-010-196-080 CHIP CAPACITOR,0.1-25
C520 87-010-196-080 CHIP CAPACITOR,0.1-25
C523 87-010-182-080 C-CAP,S 2200P-50 B
C524 87-010-182-080 C-CAP,S 2200P-50 B
C531 87-010-213-080 C-CAP,S 0.015-50 B
C532 87-010-992-080 C-CAP,S 0.047-25 B
C533 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C535 87-010-404-080 CAP, ELECT 4.7-50V
C536 87-010-404-080 CAP, ELECT 4.7-50V
C539 87-010-401-080 CAP, ELECT 1-50V
C540 87-010-401-080 CAP, ELECT 1-50V
C541 87-010-185-080 C-CAP,S 3900P-50 B
C542 87-010-185-080 C-CAP,S 3900P-50 B
C547 87-010-404-080 CAP, ELECT 4.7-50V
C548 87-010-404-080 CAP, ELECT 4.7-50V
C549 87-016-081-080 C-CAP,S 0.1-16 RK
C550 87-016-081-080 C-CAP,S 0.1-16 RK
C554 87-010-196-080 CHIP CAPACITOR,0.1-25
C555 87-010-405-080 CAP, ELECT 10-50V
C556 87-010-248-080 CAP, ELECT 220-10V
C557 87-010-405-080 CAP, ELECT 10-50V
C559 87-010-183-080 C-CAP,S 2700P-50 B
C561 87-012-140-080 CAP 470P
C562 87-012-140-080 CAP 470P
C565 87-010-404-080 CAP, ELECT 4.7-50V
C566 87-010-404-080 CAP, ELECT 4.7-50V
C605 87-010-405-080 CAP, ELECT 10-50V
C606 87-010-405-080 CAP, ELECT 10-50V
C701 87-010-260-080 CAP, ELECT 47-25V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C723 87-010-401-080 CAP, ELECT 1-50V
C726 87-010-401-080 CAP, ELECT 1-50V
C745 87-012-368-080 C-CAP,S 0.1-50 F
C750 87-010-196-080 CHIP CAPACITOR,0.1-25
C766 87-012-286-080 CAP, U 0.01-25
C901 87-010-406-080 CAP, ELECT 22-50
C902 87-010-406-080 CAP, ELECT 22-50
C903 87-010-406-080 CAP, ELECT 22-50
C904 87-010-406-080 CAP, ELECT 22-50
C905 87-010-406-080 CAP, ELECT 22-50
C906 87-010-260-080 CAP, ELECT 47-25V
C907 87-010-196-080 CHIP CAPACITOR,0.1-25
C908 87-010-387-080 CAP,E 470-25 SME
C909 87-010-371-080 CAP, ELECT 470-6.3V
C910 87-010-371-080 CAP, ELECT 470-6.3V
C911 87-010-371-080 CAP, ELECT 470-6.3V
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-196-080 CHIP CAPACITOR,0.1-25
C914 87-010-196-080 CHIP CAPACITOR,0.1-25
CN110 87-009-032-010 CONNECTOR,4P YEL
CN501 87-A60-039-010 CONN,32P V 9604S-32C
CN503 87-A60-057-010 CONN,11P V 9604S-11C
CN504 87-099-567-010 CONN,10P TUC-P10P-B1
CN505 87-099-570-010 CONN,13P TUC-P13P-B1
CN702 87-099-568-010 CONN,11P TUC-P11P-B1
J201 87-A60-199-010 TERMINAL,SP 8P CJ-9034-07 V0
J301 87-A60-200-110 TERMINAL,SP 6P CJ-9033
J501 87-A60-606-010 JACK,PIN 3P R/W/Y W/O SW H
J502 87-099-609-010 JACK,PIN 4P KM EARTH
J715 87-A60-244-010 JACK,PIN 1P BLK
J750 87-A60-660-010 JACK,PIN 6P W/R,W/R, B/O(G)
J901 87-099-911-010 JACK,PIN 3P YEL
J902 87-099-912-010 JACK,PIN 3P YEL W/E
J903 87-099-911-010 JACK,PIN 3P YEL
J904 87-099-911-010 JACK,PIN 3P YEL
J905 87-099-911-010 JACK,PIN 3P YEL
L107 87-008-501-080 FLTR,DSS306-B101

5
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
L291 87-003-383-010 COIL,1UH-S
L292 87-003-383-010 COIL,1UH-S
L293 87-003-383-010 COIL,1UH-S
L294 87-003-383-010 COIL,1UH-S
L391 87-003-383-010 COIL,1UH-S
L392 87-003-383-010 COIL,1UH-S
L491 87-003-383-010 COIL,1UH-S
L901 87-003-152-080 COIL, 100UH
! PR104 87-026-691-080 FUSE,10A 125V 251
! PR107 87-026-691-080 FUSE,10A 125V 251
! PR108 87-026-691-080 FUSE,10A 125V 251
! PR201 87-026-691-080 FUSE,10A 125V 251
! PR202 87-026-691-080 FUSE,10A 125V 251
! PR301 87-026-691-080 FUSE,10A 125V 251
! PR302 87-026-691-080 FUSE,10A 125V 251
! PR401 87-026-691-080 FUSE,10A 125V 251
! PR402 87-026-691-080 FUSE,10A 125V 251
R211 87-A00-418-010 RES,M/F 0.15-3W J
R212 87-A00-418-010 RES,M/F 0.15-3W J
R231 87-A00-418-010 RES,M/F 0.15-3W J
R232 87-A00-418-010 RES,M/F 0.15-3W J
R233 87-A00-418-010 RES,M/F 0.15-3W J
R234 87-A00-418-010 RES,M/F 0.15-3W J
R331 87-A00-418-010 RES,M/F 0.15-3W J
R332 87-A00-418-010 RES,M/F 0.15-3W J
R333 87-A00-418-010 RES,M/F 0.15-3W J
R334 87-A00-418-010 RES,M/F 0.15-3W J
R416 87-A00-418-010 RES,M/F 0.15-3W J
R417 87-A00-418-010 RES,M/F 0.15-3W J
R424 87-A00-418-010 RES,M/F 0.15-3W J
R590 87-A00-418-010 RES,M/F 0.15-3W J
R611 87-A00-418-010 RES,M/F 0.15-3W J
RY281 87-A90-143-010 RELAY,DG12D-OS(M)
RY481 87-A90-143-010 RELAY,DG12D-OS(M)
RY801 87-A90-143-010 RELAY,DG12D-OS(M)
S291 87-A90-174-010 SW,PUSH 2-2-2
S292 87-A90-174-010 SW,PUSH 2-2-2
W3 8Z-AR2-606-010 CONN ASSY,9P VH
WH101 87-A90-510-010 HLDR,WIRE 2.5-9P
PROLOGIC C.B
C801 87-010-176-080 C-CAP,S 680P-50 SL
C802 87-010-176-080 C-CAP,S 680P-50 SL
C803 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ
C804 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ
C805 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ
C806 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ
C807 87-010-405-080 CAP, ELECT 10-50V
C808 87-010-405-080 CAP, ELECT 10-50V
C809 87-016-081-080 C-CAP,S 0.1-16 RK
C810 87-010-112-080 CAP, ELECT 100-16V
C811 87-010-402-080 CAP, ELECT 2.2-50V
C812 87-010-401-080 CAP, ELECT 1-50V
C814 87-010-401-080 CAP, ELECT 1-50V
C815 87-010-546-080 CAP, ELECT 0.33-50V
C816 87-010-546-080 CAP, ELECT 0.33-50V
C817 87-010-221-080 CAP, ELECT 470-10V
C818 87-010-404-080 CAP, ELECT 4.7-50V
C819 87-010-188-080 CAP,CHIP 6800P
C820 87-010-374-080 CAP, ELECT 47-10V
C821 87-016-081-080 C-CAP,S 0.1-16 RK
C822 87-016-083-080 C-CAP,S 0.15-16 RK
C823 87-010-263-080 CAP, ELECT 100-10V
C824 87-010-374-080 CAP, ELECT 47-10V
C825 87-016-081-080 C-CAP,S 0.1-16 RK
C826 87-010-166-080 C-CAP,S 100P-50 SL
C827 87-010-166-080 C-CAP,S 100P-50 SL
C828 87-010-166-080 C-CAP,S 100P-50 SL
C829 87-010-544-080 CAP, ELECT 0.1-50V
C830 87-010-546-080 CAP, ELECT 0.33-50V
C831 87-010-971-080 C-CAP,S 4700P-50 B J
C832 87-012-349-080 C-CAP,S 1000P-50 CH
C837 87-010-971-080 C-CAP,S 4700P-50 B J
C838 87-012-349-080 C-CAP,S 1000P-50 CH
C839 87-010-401-080 CAP, ELECT 1-50V
C840 87-010-401-080 CAP, ELECT 1-50V
C841 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C842 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C843 87-A10-229-080 C-CAP,S 0.68-10 K W5
C844 87-012-393-080 C-CAP,S 0.22-16 R K
C845 87-012-393-080 C-CAP,S 0.22-16 R K
C846 87-010-404-080 CAP, ELECT 4.7-50V
C847 87-010-404-080 CAP, ELECT 4.7-50V
C848 87-012-393-080 C-CAP,S 0.22-16 R K
C849 87-012-393-080 C-CAP,S 0.22-16 R K
C850 87-016-081-080 C-CAP,S 0.1-16 RK
C851 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C852 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C853 87-016-081-080 C-CAP,S 0.1-16 RK
C854 87-016-081-080 C-CAP,S 0.1-16 RK
C855 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C856 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C857 87-016-081-080 C-CAP,S 0.1-16 RK
C861 87-016-081-080 C-CAP,S 0.1-16 RK
C862 87-010-263-080 CAP, ELECT 100-10V
C863 87-016-081-080 C-CAP,S 0.1-16 RK
C864 87-010-263-080 CAP, ELECT 100-10V
C865 87-012-393-080 C-CAP,S 0.22-16 R K
C867 87-A10-201-080 C-CAP,S0.33-16 KB
C868 87-A10-060-080 C-CAP,S 0.18-16 K B
C869 87-010-166-080 C-CAP,S 100P-50 SL
C870 87-010-166-080 C-CAP,S 100P-50 SL
C871 87-010-166-080 C-CAP,S 100P-50 SL
C878 87-010-401-080 CAP, ELECT 1-50V
C891 87-010-401-080 CAP, ELECT 1-50V
C892 87-010-401-080 CAP, ELECT 1-50V
C893 87-010-401-080 CAP, ELECT 1-50V
CN801 87-099-556-010 CONN,10P TUC-P10X-B1
CN802 87-099-559-010 CONN,13P TUC-P13X-B1

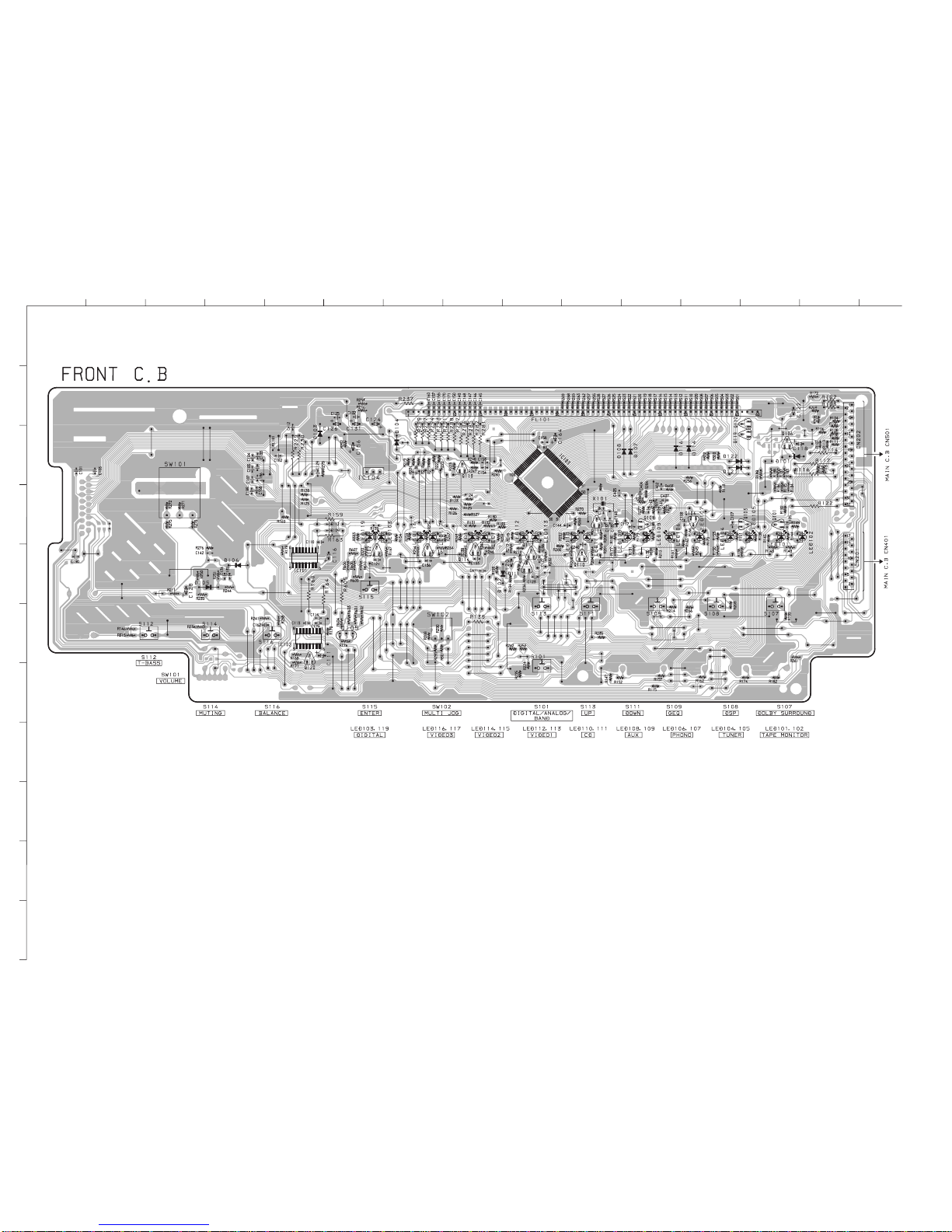

FRONT C.B
C101 87-018-131-080 CAP, CER 1000P-50V
C103 87-010-178-080 CHIP CAP 1000P
C105 87-016-526-080 C-CAP,S 0.47-16 BK
C107 87-016-526-080 C-CAP,S 0.47-16 BK
C108 87-016-526-080 C-CAP,S 0.47-16 BK
C109 87-010-322-080 C-CAP,S 100P-50 CH
C110 87-010-322-080 C-CAP,S 100P-50 CH
C111 87-015-699-040 CAP,E 10-50 7L
C112 87-010-322-080 C-CAP,S 100P-50 CH
C113 87-010-322-080 C-CAP,S 100P-50 CH
C114 87-010-322-080 C-CAP,S 100P-50 CH
C115 87-010-322-080 C-CAP,S 100P-50 CH
C116 87-015-699-040 CAP,E 10-50 7L
C117 87-016-526-080 C-CAP,S 0.47-16 BK
C118 87-010-498-040 CAP,E 10-16 GAS
C120 87-015-694-040 E/CAP 0.47-50
C121 87-016-526-080 C-CAP,S 0.47-16 BK
C122 87-015-699-040 CAP,E 10-50 7L
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C124 87-015-699-040 CAP,E 10-50 7L
C125 87-010-196-080 CHIP CAPACITOR,0.1-25
C126 87-A10-189-040 CAP,E 220-10
C127 87-016-526-080 C-CAP,S 0.47-16 BK
C128 87-015-695-040 E/CAP 1UF 50V TAPG
C129 87-010-196-080 CHIP CAPACITOR,0.1-25
C130 87-010-198-080 CAP, CHIP 0.022
C131 87-010-408-080 CAP, ELECT 47-50V

6
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C132 87-012-368-080 C-CAP,S 0.1-50 F
C133 87-016-526-080 C-CAP,S 0.47-16 BK
C134 87-010-196-080 CHIP CAPACITOR,0.1-25
C135 87-012-368-080 C-CAP,S 0.1-50 F
C136 87-016-526-080 C-CAP,S 0.47-16 BK
C137 87-010-312-080 C-CAP,S 15P-50 CH
C138 87-010-318-080 C-CAP,S 47P-50 CH
C139 87-010-316-080 C-CAP,S 33P-50 CH
C140 87-010-196-080 CHIP CAPACITOR,0.1-25
C141 87-012-156-080 C-CAP,S 220P-50 CH
C142 87-010-198-080 CAP, CHIP 0.022
C143 87-012-156-080 C-CAP,S 220P-50 CH
C144 87-010-178-080 CHIP CAP 1000P
C145 87-012-157-080 C-CAP,S 330P-50 CH
C146 87-012-157-080 C-CAP,S 330P-50 CH
C147 87-012-157-080 C-CAP,S 330P-50 CH
C148 87-012-157-080 C-CAP,S 330P-50 CH
C149 87-012-157-080 C-CAP,S 330P-50 CH
C150 87-012-157-080 C-CAP,S 330P-50 CH
C153 87-012-368-080 C-CAP,S 0.1-50 F
C154 87-012-368-080 C-CAP,S 0.1-50 F
C155 87-012-157-080 C-CAP,S 330P-50 CH
C156 87-015-699-040 CAP,E 10-50 7L
C157 87-012-157-080 C-CAP,S 330P-50 CH
C158 87-012-368-080 C-CAP,S 0.1-50 F
C160 87-012-157-080 C-CAP,S 330P-50 CH
C162 87-010-182-080 C-CAP,S 2200P-50 B
C164 87-A10-189-040 CAP,E 220-10
C170 87-012-157-080 C-CAP,S 330P-50 CH
C171 87-012-157-080 C-CAP,S 330P-50 CH
C181 87-010-178-080 CHIP CAP 1000P
C182 87-010-178-080 CHIP CAP 1000P
C183 87-010-178-080 CHIP CAP 1000P
C184 87-010-178-080 CHIP CAP 1000P
C185 87-010-178-080 CHIP CAP 1000P
C186 87-010-178-080 CHIP CAP 1000P
C187 87-010-178-080 CHIP CAP 1000P
C188 87-010-178-080 CHIP CAP 1000P
C189 87-010-178-080 CHIP CAP 1000P
C190 87-010-178-080 CHIP CAP 1000P
C240 87-016-526-080 C-CAP,S 0.47-16 BK
C402 87-012-156-080 C-CAP,S 220P-50 CH
C403 87-010-401-080 CAP, ELECT 1-50V
C405 87-010-182-080 C-CAP,S 2200P-50 B
C406 87-010-182-080 C-CAP,S 2200P-50 B
C407 87-010-178-080 CHIP CAP 1000P
C411 87-010-322-080 C-CAP,S 100P-50 CH
C412 87-010-322-080 C-CAP,S 100P-50 CH
CN201 87-A60-053-010 CONN,17P V 9604S-17C
CN202 87-A60-039-010 CONN,32P V 9604S-32C
FL101 8Z-AR1-602-010 FL,BJ691 GK
LED101 87-A40-317-080 LED,SLR-342VCT31 RED
LED102 87-A40-496-040 LED,SLR-342MCT31 GRN
LED103 87-A40-496-040 LED,SLR-342MCT31 GRN
LED104 87-A40-317-080 LED,SLR-342VCT31 RED
LED105 87-A40-496-040 LED,SLR-342MCT31 GRN
LED106 87-A40-317-080 LED,SLR-342VCT31 RED
LED107 87-A40-496-040 LED,SLR-342MCT31 GRN
LED108 87-A40-317-080 LED,SLR-342VCT31 RED
LED109 87-A40-496-040 LED,SLR-342MCT31 GRN
LED110 87-A40-317-080 LED,SLR-342VCT31 RED
LED111 87-A40-496-040 LED,SLR-342MCT31 GRN
LED112 87-A40-317-080 LED,SLR-342VCT31 RED
LED113 87-A40-496-040 LED,SLR-342MCT31 GRN
LED114 87-A40-317-080 LED,SLR-342VCT31 RED
LED115 87-A40-496-040 LED,SLR-342MCT31 GRN
LED116 87-A40-317-080 LED,SLR-342VCT31 RED
LED117 87-A40-496-040 LED,SLR-342MCT31 GRN
LED119 87-A40-317-080 LED,SLR-342VCT31 RED
S101 87-A90-095-080 SW,TACT EVQ11G04M
S107 87-A90-095-080 SW,TACT EVQ11G04M
S108 87-A90-095-080 SW,TACT EVQ11G04M
S109 87-A90-095-080 SW,TACT EVQ11G04M
S111 87-A90-095-080 SW,TACT EVQ11G04M
S112 87-A90-095-080 SW,TACT EVQ11G04M
S113 87-A90-095-080 SW,TACT EVQ11G04M
S114 87-A90-095-080 SW,TACT EVQ11G04M
S115 87-A90-095-080 SW,TACT EVQ11G04M
S116 87-A90-095-080 SW,TACT EVQ11G04M
SW101 87-A90-535-010 SW,RTRY EC16B24304
X101 87-A70-075-080 VIB,CER 4.19MHZ CRHF
GEQ C.B
C758 87-010-404-080 CAP, ELECT 4.7-50V
C759 87-012-368-080 C-CAP,S 0.1-50 F
C761 87-010-198-080 CAP, CHIP 0.022
C762 87-010-197-080 CAP, CHIP 0.01 DM
C764 87-010-185-080 C-CAP,S 3900P-50 B
C765 87-010-194-080 CAP, CHIP 0.047
C766 87-010-181-080 CAP,CHIP S 1800P
C767 87-010-198-080 CAP, CHIP 0.022
C768 87-010-994-080 C-CAP,S 680P-50 CH
C769 87-010-188-080 CAP,CHIP 6800P
C770 87-012-145-080 CAP, CHIP S 270P CH
C771 87-010-183-080 C-CAP,S 2700P-50 B
C772 87-012-145-080 CAP, CHIP S 270P CH
C773 87-010-188-080 CAP,CHIP 6800P
C774 87-010-994-080 C-CAP,S 680P-50 CH
C775 87-010-198-080 CAP, CHIP 0.022
C776 87-010-181-080 CAP,CHIP S 1800P
C777 87-010-194-080 CAP, CHIP 0.047
C778 87-010-185-080 C-CAP,S 3900P-50 B
C780 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-183-080 C-CAP,S 2700P-50 B
C783 87-010-198-080 CAP, CHIP 0.022
C786 87-010-402-080 CAP, ELECT 2.2-50V
C787 87-010-402-080 CAP, ELECT 2.2-50V
C788 87-010-260-080 CAP, ELECT 47-25V
C789 87-010-260-080 CAP, ELECT 47-25V
C790 87-010-260-080 CAP, ELECT 47-25V
C791 87-010-405-080 CAP, ELECT 10-50V
C792 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-368-080 C-CAP,S 0.1-50 F
C794 87-012-368-080 C-CAP,S 0.1-50 F
C797 87-010-322-080 C-CAP,S 100P-50 CH
C798 87-010-322-080 C-CAP,S 100P-50 CH
C799 87-010-322-080 C-CAP,S 100P-50 CH
CN701 87-099-557-010 CONN,11P TUC-P11X-B1
TUNER C.B
C701 87-010-196-080 CHIP CAPACITOR,0.1-25
C702 87-010-196-080 CHIP CAPACITOR,0.1-25
C703 87-012-286-080 CAP, U 0.01-25
C704 87-012-286-080 CAP, U 0.01-25
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-263-080 CAP, ELECT 100-10V
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-012-286-080 CAP, U 0.01-25
C714 87-012-286-080 CAP, U 0.01-25
C717 87-012-286-080 CAP, U 0.01-25
C719 87-012-286-080 CAP, U 0.01-25
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C755 87-012-286-080 CAP, U 0.01-25

7
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C765 87-012-286-080 CAP, U 0.01-25
C769 87-010-260-080 CAP, ELECT 47-25V
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25V
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-012-286-080 CAP, U 0.01-25
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-805-080 CAP, S 1-16
C786 87-010-805-080 CAP, S 1-16
C787 87-012-280-080 CAP, U 3300P-50
C787 87-012-282-080 CAP, U 4700P-50
C788 87-012-282-080 CAP, U 4700P-50
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-596-080 CAP, S 0.047-16
C796 87-010-403-080 CAP, ELECT 3.3-50V
C797 87-012-278-080 C-CAP,U 2200P-50 B
C798 87-012-278-080 C-CAP,U 2200P-50 B
C799 87-010-829-080 CAP, U 0.047-16
C812 87-012-286-080 CAP, U 0.01-25
C813 87-010-197-080 CAP, CHIP 0.01 DM
C814 87-012-286-080 CAP, U 0.01-25
C819 87-010-197-080 CAP, CHIP 0.01 DM
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 CAP, U 0.01-25
C822 87-012-286-080 CAP, U 0.01-25
C823 87-012-286-080 CAP, U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-170-080 C-CAP,U 8P-50 CH
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN601 87-099-028-010 CONN,11P 6216 H
CN601 87-099-028-010 CONN,11P 6216 H
FFE801 A8-8ZA-190-030 8ZA-1 FEUNM
J801 87-A60-657-010 TERMINAL,4P HSP-154V5-02
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-733-010 FLTR,PCFAZH-450 (TOK)
L781 87-005-847-080 COIL,2.2UH(CECS)
L791 87-A50-209-010 COIL,1POLE MPX(MIT)
L792 87-A50-209-010 COIL,1POLE MPX(MIT)
L832 87-005-847-080 COIL,2.2UH(CECS)
L981 87-NF4-650-010 COIL,AM PACK 4N(TOK)
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
HP VIDEO C.B
C101 87-010-178-080 CHIP CAP 1000P
C102 87-010-186-080 CAP,CHIP 4700P
CN401 87-099-758-010 CONN,17P H 9604
LED401 87-A40-317-080 LED,SLR-342VCT31 RED
S401 87-A90-095-080 SW,TACT EVQ11G04M
S402 87-A90-095-080 SW,TACT EVQ11G04M
S403 87-A90-095-080 SW,TACT EVQ11G04M
SW401 87-A91-373-010 SW,RTRY EC16B1220408
HPJ VIDEO C.B
C501 87-018-209-080 CAP, CER 0.1-50V
C502 87-018-209-080 CAP, CER 0.1-50V
C503 87-010-188-080 CAP,CHIP 6800P
C504 87-010-188-080 CAP,CHIP 6800P
C507 87-018-209-080 CAP, CER 0.1-50V
FB501 87-008-372-080 FILTER, EMI BL OIRNI
FB602 87-008-372-080 FILTER, EMI BL OIRNI
J501 87-099-609-010 JACK,PIN 4P KM EARTH
J603 87-A60-550-010 JACK,DIA6.3 BLK ST W/SW KM
AC 1 C.B
! 87-A90-160-080 FUSE CLAMP,FC 51F
C1 87-010-387-010 CAP, ELECT 25-470SME
C2 87-010-403-080 CAP, ELECT 3.3-50V
C3 87-018-209-080 CAP, CER 0.1-50V
C4 87-018-209-080 CAP, CER 0.1-50V
C5 87-018-209-080 CAP, CER 0.1-50V
C7 87-A10-922-090 CAP,CER 0.01-250 M F KH
! F101 87-A91-276-080 FUSE,125MA 125V F 251
! PR101 87-026-691-080 FUSE,10A 125V 251
! PT2 8Z-NF8-661-010 PT,SUB ZNF-8(U)
RY1 87-A90-977-010 RELAY,AC12V DG12D1-O(M)
PT C.B
! 87-A90-160-080 FUSE CLAMP,FC 51F
CN103 87-A60-851-010 CONN,9P V VH
! T1 87-A60-317-010 TERMINAL, 1P MSC
! T2 87-A60-317-010 TERMINAL, 1P MSC
! PR105 87-026-691-080 FUSE,10A 125V 251
! PR106 87-026-691-080 FUSE,10A 125V 251
! PT101 8Z-AR4-601-010 PT,ZAR-4(U)

8
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
88
A

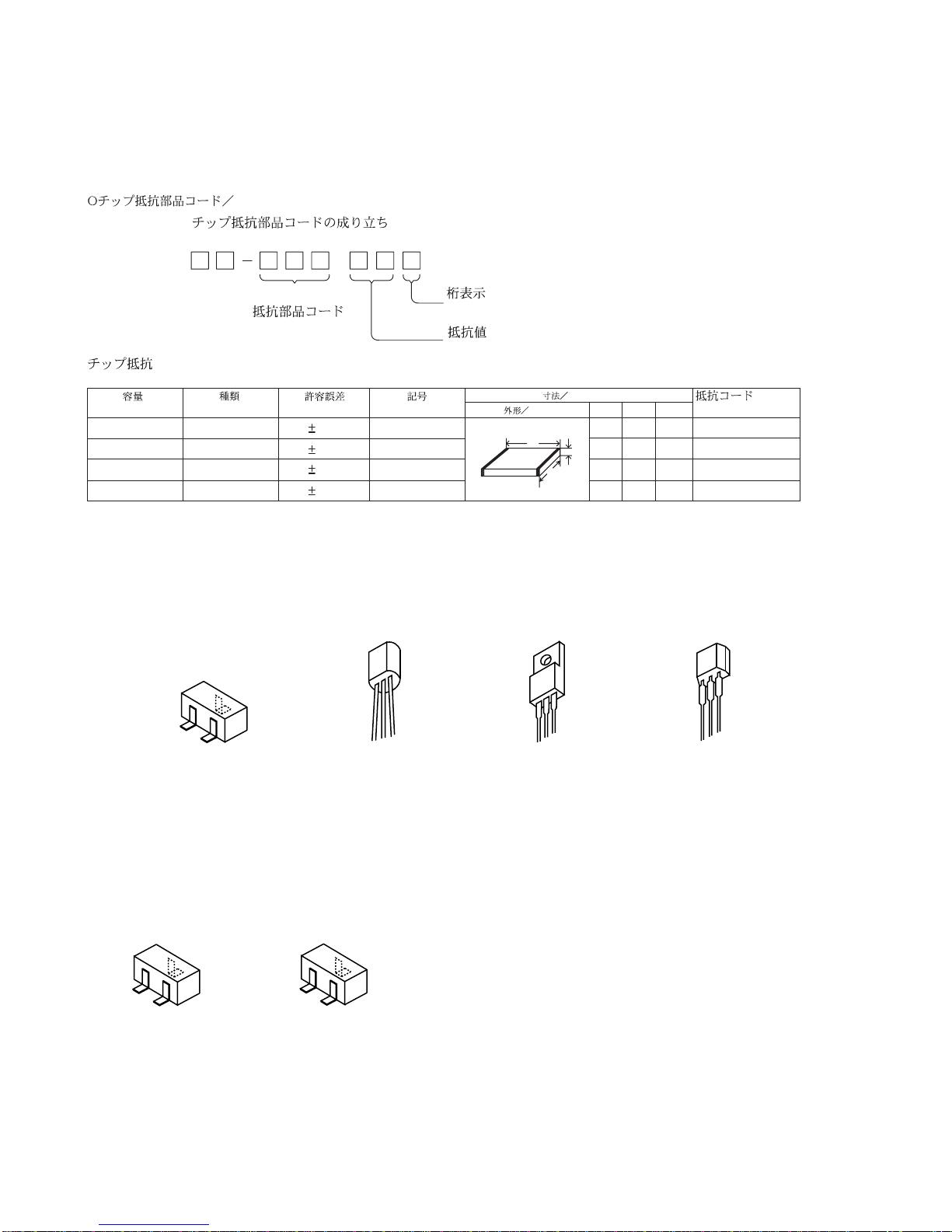

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
E C B
2SC4115
E C B
2SA1296
CC5551
DTC114ES
KTA1266GR
KTC3198GR
BCE
2SB1370
2SB1375
KTC3199GR
GS
D
2SK2158
2SK2937
SG
D
2SK360E
BE
C
2SA1037
2SA1235
2SC2714
2SC3052
2SD1306
CMBT5551
DTA144WK
DTC124EK
RT1N141C
RT1N144C
RT1P141C
RT1P144C

109
BLOCK DIAGRAM
TUNER C.B
FM
AM
TUNER BLOCK
PLL
IC721
LC72131D
IF/DET MPX
IC771
LA1837
ST
TUNE/IFC
PLL-CE
TM-BASS
DATA
CLK
TUNER L
MAIN C.B
PHONO
J501 (1/2)
CD
AUX
J502
J901 (1/2)
VIDEO 1
DVD/MD IN
J902 (1/2)
VIDEO 2
LD/TV IN
FUNCTION
IC502
BU4052BCF
PHONO EQ
IC501
NJM2068MD
B
FUNCTION
IC503
M62445AFP
L OUT
TUNER
PHONO
CD
AUX
VIDEO
DATA
CLK
LATCH(STB)
R OUT
VR IN (L)
J501 (2/2)
TAPE
MONITOR
J901 (2/2)
VIDEO 1
DVD/MD IN
J902 (2/2)
VIDEO 2
LD/TV IN
J501
VIDEO 3
VIDEO/AUDIO
IN
H/P C.B (1/2)
J904 (1/2)
VIDEO 1
DVD OUT
J905 (1/2)
VIDEO 2
LD/TV OUT
J904 (2/2)
VIDEO 1
DVD/MD OUT
J905 (2/2)
VIDEO 2
LD/TV OUT
Q902
Q903
J903 (1/2)
MONITOR
VIDEO OUT
Q901
J903 (2/2)
MONITOR
REC OUT
REC OUT SW
IC902
BU4066BCF
VIDEO SW
IC901
BA7625
AV-A AV-B
AV-A
AV-B
AV-A AV-B
A
AV-B
REC OUT
MIC OUT
TAPE
MONITOR SW
IC701
TC4053BF
GRAPHIC
EQUALIZER
IC701
M62431AFP
GEQ C.B
STB 31
CLK
DATA
L IN L OUT
BBE
IC601
BA3880S
PROLOGIC C.B
IC101
NJM4558MD
Q401
MUTE
MUTE
Q721
Q301
MUTE
MUTE
Q304
SURROUND
AMP
CENTER
AMP
Q402~417
Q420,421,440
Q303~326
Q330~333,340
Q201
MUTE
MUTE
Q202
FRONT
AMP
Q203~228
Q230~233,240
R-CH BA
S292 S291
OFF
ON
H/P C.B (2/2)
PHONES
J603
SW401
FUNCTION
LFRONT
SPEAKER A
4Ω/8Ω
R
SURROUND
SPEAKER
8Ω
J301
CENTER
SPEAKER
4Ω/8Ω
J715
FRONT
SPEAKER B
4Ω/8Ω
J201
L
R
SUPER
WOOFER
µCON
IC103
µPD780028GF-027-3BA
ST
TUNE/IFC
PLL-CE
T-BASE
DATA
CLK
STB
STB-31
ADO/CS
SDA
CS
SCK
SI
SO
PRO-CE
SW102
MULTI
SW101
VOLUME
RE
JOG2
JOG1
HP MUTE
KEY
MATRIX
S101,107~109
S111,113,401,402
KEY
MATRIX
S110,112,114~116
S403
RE
KEY2
KEY1
LED
DRIVER
IC101,102
BU4049BLF
FL101
(DISPLAY)
FRONT C.B
AC IN
PT002D002-004
RY001
VS
POWER C.B
PT101
T.F
FIL1
FIL2
F101
+VH
-VH
+VL
-VL
D107
D121
VM
REG
Q107~109
15W
CUTOFF
Q105,106
-VFL
REG
Q118
-VCC
REG
Q102
-VCC
CONT
Q101
+VCC
REG
Q103
DC
DET
Q112,113
2 TIMES
DET
Q117
Q114,115
RESET
Q116
-VFL
HOLD
VM
+VCC
-VCC
FRONT/
SURROUND/
CENTER AMP
FRONT/
SURROUND/
CENTER AMP
DC DET
IC106
POWER SYNC DET
IC106
VD
POWER
DATA
CLK
PRO-CE
L IN
DOLBY PROLOGIC
SURROUND DECODER
IC801
M62463 AFP
DATA
CLK
PRO-CE
SELECTOR
IC831
ML2491FP
C OUT S OUT
L OUT
S VOL (L)
FRONT
J750
5.1 CH
INPUT
SURR
CENTER
SUB-W R-CH
JR726
JR727
JR728
AC
DET
JW121
JW120
VM
RY281
RY481
RY801
VM
VM

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
1211
WIRING-1 (MAIN)
OFF
ON
OFF
ON
A
B
Q219
Q220
14
85
CD IN AUX IN PHONO
IN IN INOUT INOUT
REC
OUT
MONITOR
VIDEO
OUT
VIDEO 2
/LD/TV
IN
SUB
WOOFER IN
CENTER
IN
VIDEO 2
/LD/TV
OUT
VIDEO 1
/DVD IN
VIDEO 1
/DVD OUT
VIDEO 2/LD/TV 5.1 INPUTVIDEO 1/DVD/MD
SURROUND
OUT
SURROUND
IN
S
G
D
S
G
D
C320
C307
C 415
C410
JR538
C524
C523
PR107
PR108
C207
C220
C219
R285
R286
R287
RY281
R481
R482
R483
RY481
D481
D86
R801
R802
R803
RY801
C143
C144
R805
R804
R473

1413
SCHEMATIC DIAGRAM-1 (MAIN 1/2)
RY281
DG12D2-
OS
D281
1SS133
R285
12 R286
12 R287
12
MUTE
MUTE
Q303,305,307,309,311,
Q313,345,330,331
POWER AMP
Q319,321,322
PROTECT
PROTECT
PROTECT
Q320,325
PROTECT
Q326
PROTECT
Q401
MUTE
BUFFER
Q402-408,420,421
POWER AMP
Q409,417
PROTECT
Q411, 416 PROTECT
Q440,
Q415,
Q414
PROTECT
Q410,412,413
PROTECT
MUTE
Q202
MUTE
Q203,205,207,209
Q213,215,230,231
POWER AMP
PROTECT
BUFFER
Q204,206,208,210
Q214,216,232,233
POWER AMP
Q218
PROTECT
Q220,225
PROTECT
Q223,224,240
PROTECT
1.5
1.5
Q117,118
–VFL REG.
Q112–116
PROTECT
+VCC REG.
Q101,102
–VCL REG.
Q105,106
CURRENT PROTECT
Q107–109
SWITCH
2
2
22
22
100p
5
2547
2547
5
100p
100p
680
244
C410 1µ
C307
10/100
6.2c
100p
680
33/35
680
100p
3W
C220 1µ
3W
3W
C219 1µ
3W
3W
3W
80 80
PR108
10A 125V
PR107
10A 125V
RY481
DG12D2-OS
R482
12 R483
12
R481
12
D481
1SS133
R801 12 R802
12 R803
12 D801
1SS133
RY801
DG12D2
-OS
C207
10/100
Q219,221,222
PROTECT

1615
1234567
A
B
C
D
E
F
G
H
I
J
K
WIRING-2 (AC/PT)
1 9
PT101
AC 120V 60Hz
TO/FROM MAIN C.B
CN110
1
4
TO/FROM MAIN C.B WH101
9
10
17
SCHEMATIC DIAGRAM-2 (AC/PT)
Q002,003
AC IN DETECT/RESET
Q001
RELAY DRIVER

1817
SCHEMATIC DIAGRAM-3 (MAIN 2/2)
VIDEO IN
SELECT
BUFFER BUFFER BUFFER
INPUT
SELECT
Q904-906
SELECT LOGIC
AMP
CN701
CN601
C523 2200p
C524 2200p
SIGNAL
: PB
CN201

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
2019
WIRING-3 (FRONT)

2221
SCHEMATIC DIAGRAM-4 (FRONT)
0.58
0.58
100
IC102
DECORDER
IC101
DECORDER
INV.
+VM SWITCH
BUFFER
Q111
2SK2158
RESET
LED DRIVER
Q101,103,104,108
LED DRIVER
Q110,112,114,115
LED DRIVER
2.2
SWITCH
SWITCH
INV.
INV.
1000p
10k
10k 10k
100

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
2423
WIRING-4 (TUNER)
1
1
1213
1114
1015
9
16
3
4
5
6
7
7
8
34 5

2625
SCHEMATIC DIAGRAM-5 (TUNER)
FM B+
SWITCH
3300p
3300p

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
2827
WIRING-5 (PROLOGIC)

3029
SCHEMATIC DIAGRAM-6 (PROLOGIC)
BUFFER
10/50
10/50
SIGNAL
: PB

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
3231
WIRING-6 (HP VIDEO/GEQ)
LED401
(INDICATOR)
S402
ECO
S401
POWER
J501
VIDEO3
J603
PHONES
TO/FROM MAIN C.B
CN702
TO/FROM FRONT C.B
CN201
SW401
FUNCTION
S403
TAPE MONITOR
AUDIO IN
VIDEO IN
R L
11
1
ABC
R507
R508
