SERVICE MANUAL
DATA
STEREO AV RECEIVER
AV-D57 U
S/M Code No. 09-005-427-9R1
REVISION
• This Service Manual is the “Revision Publishing” and replaces
“Simple Manual”, (S/M Code No. 09-002-427-9T1).

– 2 –
SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Power output [Stereo Mode]
Front
100 watts per channel, Min. RMS at
8 ohms, from 40 Hz to 20 kHz, with no
more than 0.9% Total Harmonic
Distortion
[Dolby Digital Surround or Dolby
Pro Logic Mode]
Front
70 watts per channel, Min. RMS at
8 ohms, from 40 Hz to 20 kHz, with no
more than 0.9% Total Harmonic
Distortion
Rear (Surround)
70 watts per channel, Min. RMS at
8 ohms, 1 kHz, with no more than 0.9%
Total Harmonic Distortion
Center
70 watts, Min. RMS at 8 ohms, 1 kHz,
with no more than 0.9% Total Harmonic
Distortion
Total harmonic distortion 0.08% (50 W, 1 kHz, 8 ohms, Front)
Inputs AUDIO IN
PHONO: 2.5 mV, adjustable
(47 kohms)
VIDEO 1/DVD/MD, VIDEO 2/
LD/TV, VIDEO 3, CD: 300 mV,
adjustable (47 kohms)
TAPE MONITOR: 350 mV,
adjustable (47 kohms)
AUX: 250 mV, adjustable
(47 kohms)
DIGITAL IN
COAXIAL (VIDEO 2):
OPTICAL (VIDEO 1):
accept linear PCM (32 kHz,
44.1 kHz and 48 kHz) signals
and bit stream of Dolby Digital
Surround
VIDEO IN: 1 Vp-p (75 ohms)
Outputs AUDIO OUT (REC OUT): 300 mV
(1 kohm)
VIDEO OUT (MONITOR): 1 Vp-p
(75 ohms)
SUPER WOOFER: 5.0 V
FRONT SPEAKERS IMP: 8 ohms
(front speakers A and B): accepts
speakers of 8 ohms or more
SURROUND SPEAKERS IMP: 8 ohms
(surround speakers): accepts speakers
of 8 ohms or more
CENTER SPEAKER IMP: 8 ohms
(accepts speakers of 8 ohms or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
Muting -20 dB
<General>
Power requirements 120 V AC, 60 Hz
Power consumption 160 W
Power consumption in standby mode
ECO OFF: 33.5 W
ECO ON: 1.3 W
Dimensions of main unit 430 x 155 x 392.5 mm
(W xH xD) (17 x 161/8x 151/2in.)
Weight of main unit 10.2 kg (22 lb 8 oz.)
• Design and specifications are subject to change without notice.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are trademarks
of Dolby Laboratories Licensing Corporation.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-AR3-903-010 IB,U(ESF)M
2 87-043-115-010 ANT,FEEDER FM
3 8A-AR2-701-010 RC UNIT,RC-AAR02 BLK
4 87-006-225-010 AM LOOP ANT NC2

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-501-010 C-IC,YSS902
87-A21-503-010 C-IC,AK4527VQ
87-020-903-010 IC,NJM7805FA
87-017-022-080 C-IC,NJM2068M-D(T1)
87-020-784-080 C-IC,TC4053BF
87-A20-870-010 IC,GP1F37R
87-001-604-080 C-IC,TC74HCU04M
87-002-298-080 C-IC,TC74HC00AF
87-A20-736-010 IC,BA033ST
87-A21-499-040 C-IC,SN74HC153A
87-A21-502-010 C-IC,YSD917
87-A20-715-010 IC,M62439SP
87-017-726-080 C-IC,BU4052BCF
87-A21-202-040 C-IC,M62445AFP
87-A21-481-040 C-IC,HD74HC4051FP
87-017-915-080 C-IC,BU4094BCF
8A-AR3-601-110 C-IC,UPD780228GF-071
87-070-083-010 IC,GP1U281X
87-A20-820-010 IC,BA7625
87-017-917-080 C-IC,BU4066BCF
87-A20-913-010 IC,LA1837NL
87-070-127-110 IC,LC72131D
TRANSISTOR
87-A30-197-080 TR,KTA1267GR
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
89-110-372-080 C-TR,2SA1037K(R)
87-A30-071-080 C-TR,RT1N 144C
89-213-702-010 TR,2SB1370E
87-A30-083-080 TR,CSD1489B
87-A30-085-040 C-TR,CSA1362GR
87-A30-075-080 C-TR,2SA1235F
87-A30-076-080 C-TR,2SC3052F
87-A30-074-080 C-TR,RT1P 141C
87-026-610-080 TR,KTC3198GR
87-A30-073-080 C-TR,RT1N 141C
87-A30-086-070 C-TR,CSD1306E
87-026-609-080 TR,KTA1266GR
87-A30-257-080 C-TR,2SD1306E
87-A30-107-070 C-TR,CMBT5401
87-A30-190-080 TR,CC5551
87-A30-097-010 TR,FN1016
87-A30-098-010 TR,FP1016
87-A30-106-070 C-TR,CMBT5551
87-A30-186-010 FET,2SK3053
87-A30-072-080 C-TR,RT1P 144C
87-026-236-080 C-TR,DTC124EK
87-026-232-080 C-TR,DTA144WK
87-026-608-080 C-TR,DTC123JK
89-112-965-080 TR,2SA1296GR
87-A30-087-080 C-FET,2SK2158
89-327-143-080 TR,2SC2714O
87-A30-196-080 TR,2SC4115SRS
DIODE
87-020-465-080 DIODE,1SS133
87-A40-291-080 DIODE,1N4148M (CPT)
87-A40-345-080 ZENER,MTZJ10C
87-A40-269-080 C-DIODE,MC2836
87-A40-115-060 DIODE,RS603M
87-A40-270-080 C-DIODE,MC2838
87-A40-004-080 ZENER,MTZJ16A
87-A40-335-080 ZENER,MTZJ11C T-72
87-A40-224-010 DIODE,GBU8DL
87-070-274-080 DIODE,1N4003 SEM
87-A40-435-080 ZENER,MTZJ30D
87-A40-347-080 ZENER,MTZJ2.2B
87-A40-646-010 DIODE,FMB-G16L
87-070-136-080 ZENER,MTZJ5.1B
87-A40-344-080 ZENER,MTZJ6.2C
87-A40-488-080 DIODE,1SS244
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-438-080 ZENER,MTZJ4.7A
87-017-931-080 ZENER,MTZJ5.6B
87-017-148-080 ZENER,HZS6A1L

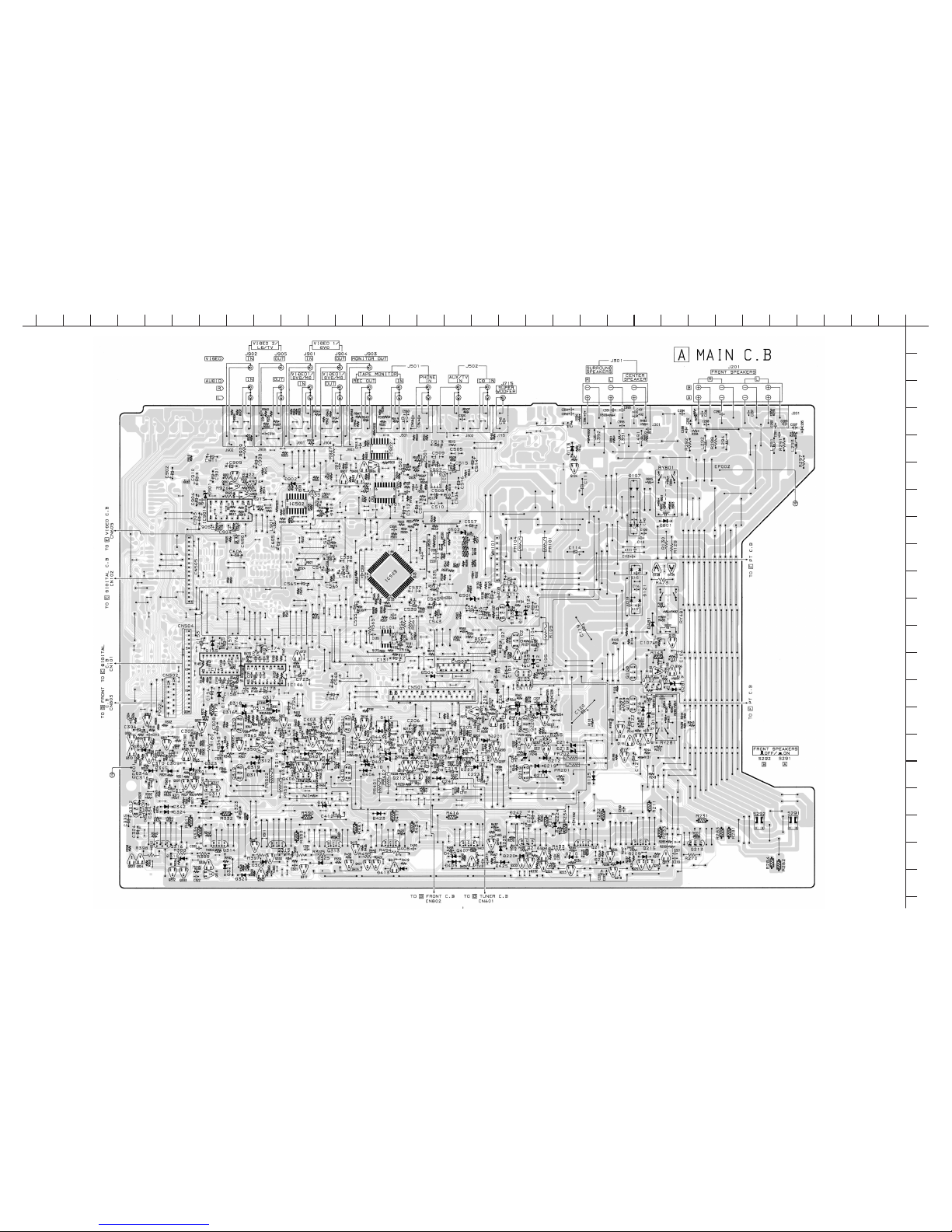

MAIN C.B
C101 87-010-235-080 CAP,E 470-16 M SME
C102 87-010-235-080 CAP,E 470-16 M SME
C103 87-010-384-080 CAP,E 100-25 M 11L SME
C104 87-010-382-080 CAP,E 22-25 M 11L SME
C105 87-010-247-080 CAP,E 22-25 M 11L SME
C106 87-010-384-080 CAP,E 100-25 M 11L SME
C107 87-010-263-080 CAP,E 100-10 M 11L SME
C108 87-012-140-080 C-CAP,S 470P-50 J CH
C109 87-012-368-080 C-CAP,S 0.1-50 Z F
C110 87-012-368-080 C-CAP,S 0.1-50 Z F
C111 87-012-368-080 C-CAP,S 0.1-50 Z F
C112 87-012-368-080 C-CAP,S 0.1-50 Z F
C113 87-016-658-090 CAP,E 4700-35 M SMG
C114 87-016-658-090 CAP,E 4700-35 M SMG
C115 87-012-368-080 C-CAP,S 0.1-50 Z F
C116 87-012-368-080 C-CAP,S 0.1-50 Z F
C117 87-012-368-080 C-CAP,S 0.1-50 Z F
C118 87-012-368-080 C-CAP,S 0.1-50 Z F
C119 87-A10-461-090 CAP,E 6800-71 SMG VB
C120 87-A10-461-090 CAP,E 6800-71 SMG VB
C121 87-010-260-080 CAP,E 47-25 M 11L SME
C122 87-010-403-080 CAP,E 3.3-50 M 11L SME
C123 87-010-385-080 CAP,E 220-25 M SME
C124 87-010-385-080 CAP,E 220-25 M SME
C125 87-010-247-080 CAP,E 100-50 M SME
C126 87-010-263-080 CAP,E 100-10 M 11L SME
C127 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C128 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C131 87-010-544-080 CAP,E 0.1-50 M 11L SME
C133 87-010-404-080 CAP,E 4.7-50 M 11L SME
C135 87-012-368-080 C-CAP,S 0.1-50 Z F
C136 87-012-368-080 C-CAP,S 0.1-50 Z F
C143 87-A10-712-080 C-CAP,S 0.22-50 Z F
C144 87-A10-712-080 C-CAP,S 0.22-50 Z F
C149 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C150 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C153 87-010-401-080 CAP,E 1-50 M 11L SME
C154 87-010-401-080 CAP,E 1-50 M 11L SME
C155 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C156 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C157 87-010-408-080 CAP,E 47-50 M 11L SME
C158 87-010-248-080 CAP,E 220-10 M 11L SME
C159 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C169 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C170 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C171 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C172 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C173 87-010-405-080 CAP,E 10-50 M 11L SME
C174 87-010-401-080 CAP,E 1-50 M 11L SME
C175 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C203 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C204 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C205 87-010-405-080 CAP,E 10-50 M 11L SME
C206 87-010-405-080 CAP,E 10-50 M 11L SME
C209 87-010-406-080 CAP,E 22-50 M 11L SME
C210 87-010-406-080 CAP,E 22-50 M 11L SME
C211 87-010-322-080 C-CAP,S 100P-50 J CH GRM

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C212 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C215 87-A10-897-080 CAP,E 100-25 BP SME
C216 87-A10-897-080 CAP,E 100-25 BP SME
C217 87-A10-516-080 C-CAP,S 100P-200 J CH
C218 87-A10-516-080 C-CAP,S 100P-200 J CH
C221 87-016-526-080 C-CAP,S 0.47-16 BK
C222 87-016-526-080 C-CAP,S 0.47-16 BK
C223 87-010-402-080 CAP,E 2.2-50 M 11L SME
C224 87-010-402-080 CAP,E 2.2-50 M 11L SME
C225 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C226 87-016-251-080 CAP,E 220-16 M SMG
C227 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C228 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C229 87-016-251-080 CAP,E 220-16 M SMG
C230 87-A10-354-080 C-CAP,S 0.047-50 K B
C231 87-A10-354-080 C-CAP,S 0.047-50 K B
C285 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C287 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C288 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C289 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C290 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C291 87-012-368-080 C-CAP,S 0.1-50 Z F
C292 87-012-368-080 C-CAP,S 0.1-50 Z F
C293 87-012-368-080 C-CAP,S 0.1-50 Z F
C294 87-012-368-080 C-CAP,S 0.1-50 Z F
C295 87-012-368-080 C-CAP,S 0.1-50 Z F
C296 87-012-368-080 C-CAP,S 0.1-50 Z F
C297 87-012-368-080 C-CAP,S 0.1-50 Z F
C298 87-012-368-080 C-CAP,S 0.1-50 Z F
C303 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C304 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C305 87-010-404-080 CAP,E 4.7-50 M 11L SME
C306 87-010-404-080 CAP,E 4.7-50 M 11L SME
C308 87-016-299-080 CAP,E 10-100 M SME
C309 87-010-406-080 CAP,E 22-50 M 11L SME
C310 87-010-406-080 CAP,E 22-50 M 11L SME
C311 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C312 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C315 87-A10-897-080 CAP,E 100-25 BP SME
C316 87-A10-897-080 CAP,E 100-25 BP SME
C317 87-A10-516-080 C-CAP,S 100P-200 J CH
C318 87-A10-516-080 C-CAP,S 100P-200 J CH
C321 87-016-526-080 C-CAP,S 0.47-16 BK
C322 87-016-526-080 C-CAP,S 0.47-16 BK
C323 87-010-402-080 CAP,E 2.2-50 M 11L SME
C324 87-010-402-080 CAP,E 2.2-50 M 11L SME
C325 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C327 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C328 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C330 87-A10-354-080 C-CAP,S 0.047-50 K B
C331 87-A10-354-080 C-CAP,S 0.047-50 K B
C334 87-A10-918-080 CAP,E 100-16 SMG
C335 87-A10-918-080 CAP,E 100-16 SMG
C336 87-A12-314-080 CAP,CER 47P-500 J SL
C385 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C391 87-012-368-080 C-CAP,S 0.1-50 Z F
C392 87-012-368-080 C-CAP,S 0.1-50 Z F
C393 87-012-368-080 C-CAP,S 0.1-50 Z F
C394 87-012-368-080 C-CAP,S 0.1-50 Z F
C395 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C396 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C402 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C403 87-010-405-080 CAP,E 10-50 M 11L SME
C405 87-010-406-080 CAP,E 22-50 M 11L SME
C406 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C408 87-A10-897-080 CAP,E 100-25 BP SME
C409 87-A10-516-080 C-CAP,S 100P-200 J CH
C411 87-016-526-080 C-CAP,S 0.47-16 BK
C412 87-010-402-080 CAP,E 2.2-50 M 11L SME
C413 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C414 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C416 87-016-299-080 CAP,E 10-100 M SME
C420 87-A10-354-080 C-CAP,S 0.047-50 K B
C421 87-A12-314-080 CAP,CER 47P-500 J SL
C422 87-A12-314-080 CAP,CER 47P-500 J SL
C485 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C491 87-012-368-080 C-CAP,S 0.1-50 Z F
C492 87-012-368-080 C-CAP,S 0.1-50 Z F
C493 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C501 87-010-404-080 CAP,E 4.7-50 M 11L SME
C502 87-010-404-080 CAP,E 4.7-50 M 11L SME
C503 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C504 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C511 87-010-404-080 CAP,E 4.7-50 M 11L SME
C512 87-010-404-080 CAP,E 4.7-50 M 11L SME
C513 87-010-260-080 CAP,E 47-25 M 11L SME
C514 87-010-260-080 CAP,E 47-25 M 11L SME
C515 87-010-370-080 CAP,E 330-6.3 M SME
C516 87-010-370-080 CAP,E 330-6.3 M SME
C517 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C518 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C519 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C520 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C531 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C532 87-010-992-080 C-CAP,S 0.047-25 K B MK212
C533 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C535 87-010-404-080 CAP,E 4.7-50 M 11L SME
C536 87-010-404-080 CAP,E 4.7-50 M 11L SME
C539 87-010-401-080 CAP,E 1-50 M 11L SME
C540 87-010-401-080 CAP,E 1-50 M 11L SME
C541 87-010-185-080 C-CAP,S 3900P-50 K B
C542 87-010-185-080 C-CAP,S 3900P-50 K B
C547 87-010-404-080 CAP,E 4.7-50 M 11L SME
C548 87-010-404-080 CAP,E 4.7-50 M 11L SME
C549 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C550 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C554 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C555 87-010-405-080 CAP,E 10-50 M 11L SME
C556 87-010-248-080 CAP,E 220-10 M 11L SME
C557 87-010-405-080 CAP,E 10-50 M 11L SME
C559 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C560 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C561 87-012-140-080 C-CAP,S 470P-50 J CH
C562 87-012-140-080 C-CAP,S 470P-50 J CH
C565 87-010-404-080 CAP,E 4.7-50 M 11L SME
C566 87-010-404-080 CAP,E 4.7-50 M 11L SME
C605 87-010-405-080 CAP,E 10-50 M 11L SME
C606 87-010-405-080 CAP,E 10-50 M 11L SME
C701 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C702 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C723 87-010-401-080 CAP,E 1-50 M 11L SME
C726 87-010-405-080 CAP,E 10-50 M 11L SME
C745 87-012-368-080 C-CAP,S 0.1-50 Z F
C746 87-012-368-080 C-CAP,S 0.1-50 Z F
C901 87-010-406-080 CAP,E 22-50 M 11L SME
C902 87-010-406-080 CAP,E 22-50 M 11L SME
C903 87-010-406-080 CAP,E 22-50 M 11L SME
C904 87-010-406-080 CAP,E 22-50 M 11L SME
C905 87-010-406-080 CAP,E 22-50 M 11L SME
C906 87-010-260-080 CAP,E 47-25 M 11L SME
C907 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C908 87-010-387-080 CAP,E 470-25 M SME
C909 87-010-371-080 CAP,E 470-6.3 M SME
C910 87-010-371-080 CAP,E 470-6.3 M SME
C911 87-010-371-080 CAP,E 470-6.3 M SME
C912 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C913 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C914 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C915 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
CN110 87-A60-621-010 CONN,4P V 2MM JMT

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
CN501 87-A60-039-010 CONN,32P V 9604S-32C
CN502 87-A60-054-010 CONN,14P V 9604S-14C
CN503 87-A60-056-010 CONN,12P V 9604S-12C
CN504 87-099-574-010 CONN,20P TUC-P20P-B1
CN505 87-A60-189-010 CONN,16P V TUC-P16P-B1
CN901 87-A60-619-010 CONN,2P V 2MM JMT
J201 87-A60-199-010 TERMINAL,SP 8P CJ-9034-07 V0
J301 87-A60-200-110 TERMINAL,SP 6P CJ-9033-21-3 V0
J501 87-099-609-010 JACK,PIN 4P BLK W/O SW
J502 87-099-609-010 JACK,PIN 4P BLK W/O SW
J715 87-A60-244-010 JACK,PIN 1P BLK W/O SW
J901 87-099-911-010 JACK,PIN 3P YEL W/O SW
J902 87-099-912-010 JACK,PIN 3P YEL W/O SW W/E
J903 87-099-911-010 JACK,PIN 3P YEL W/O SW
J904 87-099-911-010 JACK,PIN 3P YEL W/O SW
J905 87-099-911-010 JACK,PIN 3P YEL W/O SW
L291 87-003-383-010 COIL,1UH K
L292 87-003-383-010 COIL,1UH K
L293 87-003-383-010 COIL,1UH K
L294 87-003-383-010 COIL,1UH K
L391 87-003-383-010 COIL,1UH K
L392 87-003-383-010 COIL,1UH K
L491 87-003-383-010 COIL,1UH K
L901 87-005-239-080 COIL,100UH K LAL03
PR101 87-026-691-080 FUSE,10A 125V 251
PR104 87-026-691-080 FUSE,10A 125V 251
PR201 87-026-691-080 FUSE,10A 125V 251
PR202 87-026-691-080 FUSE,10A 125V 251
PR301 87-026-691-080 FUSE,10A 125V 251
PR302 87-026-691-080 FUSE,10A 125V 251
PR401 87-026-691-080 FUSE,10A 125V 251
PR402 87-026-691-080 FUSE,10A 125V 251
R109 87-029-060-080 RES,FUSE 33-1/4W J
R143 87-A00-261-080 RES,M/F 0.56-1W J
R176 87-A00-401-050 RES,M/F 390-1W J VTP
R179 87-A00-402-050 RES,M/F 560-1W J VTP
R211 87-A00-571-050 RES,M/F 0.15-2W J RZ
R212 87-A00-571-050 RES,M/F 0.15-2W J RZ
R231 87-A00-571-050 RES,M/F 0.15-2W J RZ
R232 87-A00-571-050 RES,M/F 0.15-2W J RZ
R233 87-A00-571-050 RES,M/F 0.15-2W J RZ
R234 87-A00-571-050 RES,M/F 0.15-2W J RZ
R281 87-A00-373-050 RES,M/F 270-1W J VTP
R282 87-A00-373-050 RES,M/F 270-1W J VTP
R283 87-A00-373-050 RES,M/F 270-1W J VTP
R284 87-A00-373-050 RES,M/F 270-1W J VTP
R331 87-A00-571-050 RES,M/F 0.15-2W J RZ
R332 87-A00-571-050 RES,M/F 0.15-2W J RZ
R333 87-A00-571-050 RES,M/F 0.15-2W J RZ
R334 87-A00-571-050 RES,M/F 0.15-2W J RZ
R416 87-A00-571-050 RES,M/F 0.15-2W J RZ
R417 87-A00-571-050 RES,M/F 0.15-2W J RZ
R424 87-A00-571-050 RES,M/F 0.15-2W J RZ
R590 87-A00-571-050 RES,M/F 0.15-2W J RZ
R611 87-A00-571-050 RES,M/F 0.15-2W J RZ
R902 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
R905 87-010-317-080 C-CAP,S 39P-50 J CH
RY281 87-A91-686-010 RELAY, G5PA-28(OMRON)
RY481 87-A91-686-010 RELAY, G5PA-28(OMRON)
RY801 87-A91-686-010 RELAY, G5PA-28(OMRON)
S291 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
S292 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
TH201 87-A91-081-080 C-THMS,100K-K 20P
TH202 87-A91-081-080 C-THMS,100K-K 20P
TH301 87-A91-081-080 C-THMS,100K-K 20P
TH302 87-A91-081-080 C-THMS,100K-K 20P
TH401 87-A91-081-080 C-THMS,100K-K 20P
W3 8A-AR3-654-010 CONN ASSY,9P VH
WH101 87-A90-510-010 HLDR,WIRE 2.5-9P

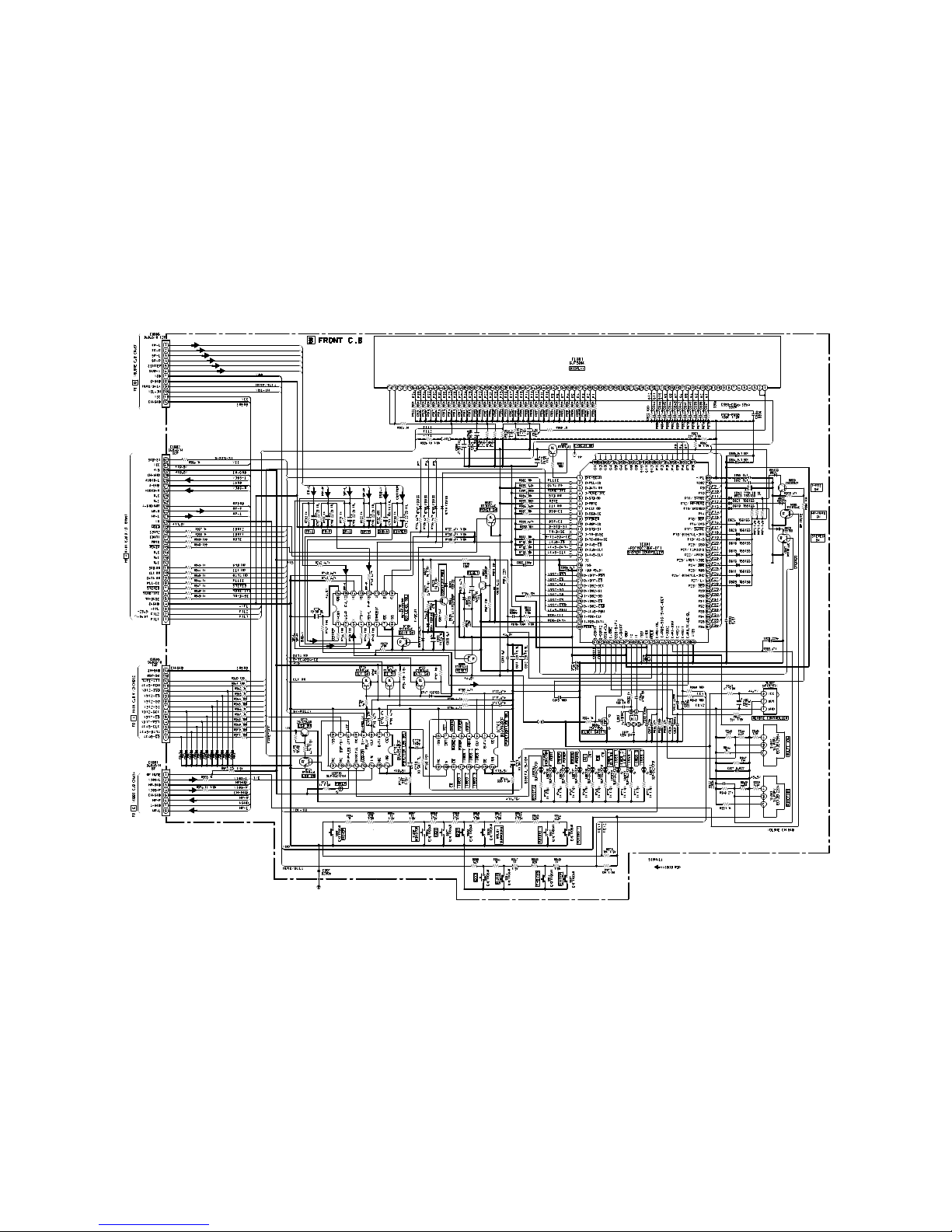

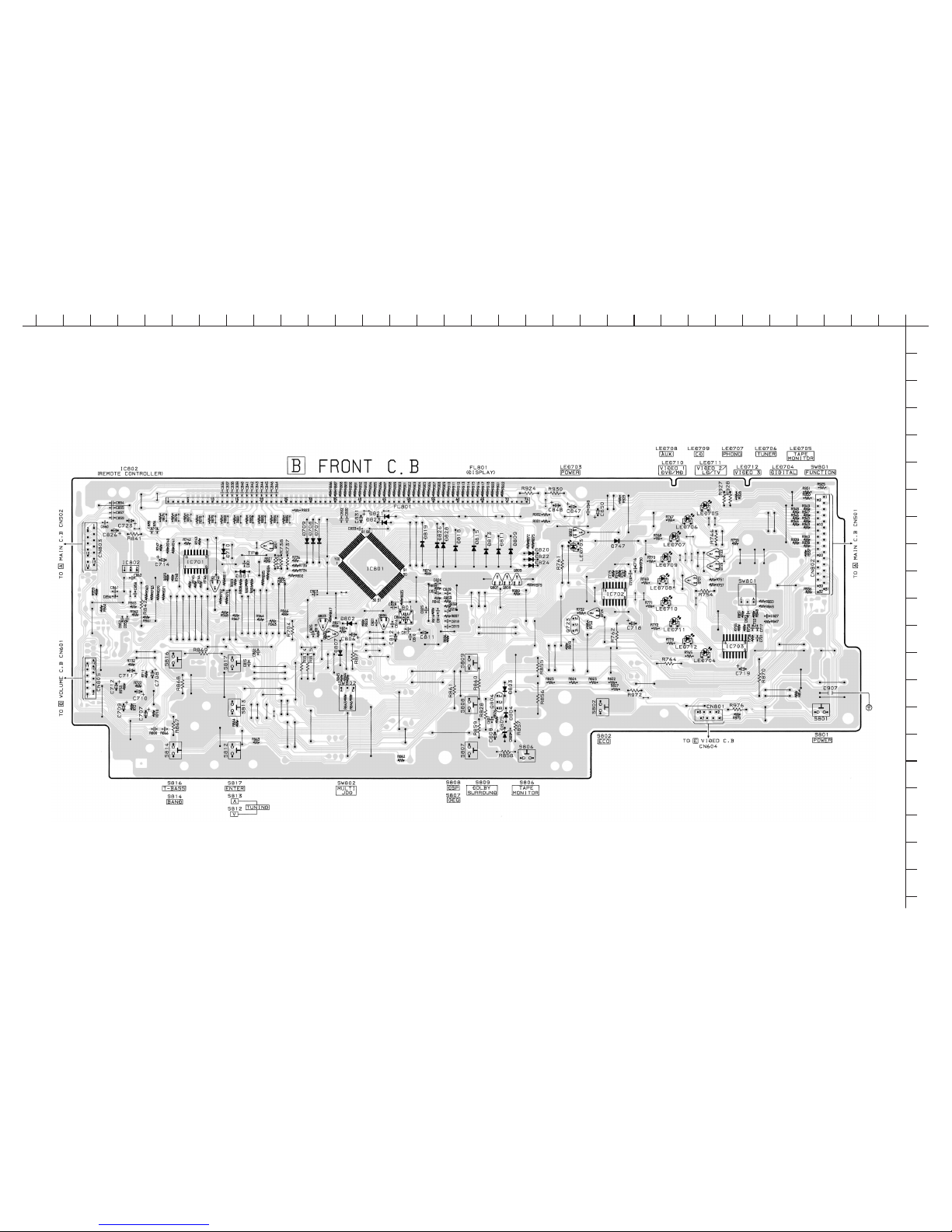

FRONT C.B
C707 87-010-382-040 CAP,E 22-25 M 11L SME
C708 87-010-382-040 CAP,E 22-25 M 11L SME
C709 87-010-382-040 CAP,E 22-25 M 11L SME
C710 87-010-382-040 CAP,E 22-25 M 11L SME
C711 87-010-263-040 CAP,E 100-10 M 11L SME
C712 87-010-382-040 CAP,E 22-25 M 11L SME
C714 87-010-560-040 CAP,E 10-50 M 5L MA
C715 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C716 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C717 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C718 87-015-699-040 CAP,E 10-50 M 7L SRA
C719 87-015-699-040 CAP,E 10-50 M 7L SRA
C720 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C721 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C722 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C723 87-010-405-040 CAP,E 10-50 M 11L SME
C801 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C802 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C803 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C805 87-012-141-080 C-CAP,S 0.22-16 Z F C2012
C806 87-010-400-040 CAP,E 0.47-50 M 11L SME
C807 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C808 87-010-498-040 CAP,E 10-16 M 5L SRE
C809 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C810 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C811 87-A10-189-040 CAP,E 220-10 M 5L
C812 87-A10-189-040 CAP,E 220-10 M 5L
C814 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C816 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C817 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C818 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C819 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C820 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C821 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C822 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C823 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C824 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C825 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C826 87-010-405-040 CAP,E 10-50 M 11L SME
C827 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C828 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C829 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C830 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C831 87-A10-189-040 CAP,E 220-10 M 5L
C832 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C833 87-012-368-080 C-CAP,S 0.1-50 Z F
C834 87-012-368-080 C-CAP,S 0.1-50 Z F
C835 87-012-368-080 C-CAP,S 0.1-50 Z F
C836 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C837 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C838 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C839 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C840 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C841 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C842 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C843 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C844 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C845 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C846 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C849 87-012-368-080 C-CAP,S 0.1-50 Z F
C850 87-010-408-040 CAP,E 47-50 M 11L SME
C852 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C853 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C854 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C855 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C856 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C857 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C858 87-010-322-080 C-CAP,S 100P-50 J CH GRM
!
!
!
!
!
!
!
!

– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C859 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C860 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C861 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C862 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C864 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C866 87-012-140-080 C-CAP,S 470P-50 J CH
C901 87-018-203-080 CAP,TC U 8200P-16 N Y UP050
CN801 87-A60-079-010 CONN,08P H 9604S-08F
CN801 88-908-101-110 FF-CABLE, 8P 1.25 100MM
CN802 87-A60-064-010 CONN,32P H 9604S-32F
CN802 8A-AR3-643-010 FF-CABLE,32P 1.25 430MM
CN803 87-099-755-010 CONN,14P H 9604
CN803 8A-AR2-645-010 FF-CABLE,14P 1.25 380MM
CN805 87-A60-076-010 CONN,12P H 9604S-12F
CN805 88-912-101-110 FF-CABLE, 12P 1.25 100MM
FL801 8A-AR1-602-010 FL,BJ759GK
L801 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED703 87-A40-317-010 LED,SLR-342VCT31 RED
LED704 87-A40-317-080 LED,SLR-342VCT31 RED
LED705 87-A40-317-080 LED,SLR-342VCT31 RED
LED706 87-A40-317-080 LED,SLR-342VCT31 RED
LED707 87-A40-317-080 LED,SLR-342VCT31 RED
LED708 87-A40-317-080 LED,SLR-342VCT31 RED
LED709 87-A40-317-080 LED,SLR-342VCT31 RED
LED710 87-A40-317-080 LED,SLR-342VCT31 RED
LED711 87-A40-317-080 LED,SLR-342VCT31 RED
LED712 87-A40-317-080 LED,SLR-342VCT31 RED
S801 87-A90-095-080 SW,TACT EVQ11G04M
S802 87-A90-095-080 SW,TACT EVQ11G04M
S806 87-A90-095-080 SW,TACT EVQ11G04M
S807 87-A90-095-080 SW,TACT EVQ11G04M
S808 87-A90-095-080 SW,TACT EVQ11G04M
S809 87-A90-095-080 SW,TACT EVQ11G04M
S812 87-A90-095-080 SW,TACT EVQ11G04M
S813 87-A90-095-080 SW,TACT EVQ11G04M
S814 87-A90-095-080 SW,TACT EVQ11G04M
S816 87-A90-095-080 SW,TACT EVQ11G04M
S817 87-A90-095-080 SW,TACT EVQ11G04M
SW801 87-A91-646-010 SW,RTRY EC12E12204
SW802 87-A91-647-010 SW,RTRY EC12E12504

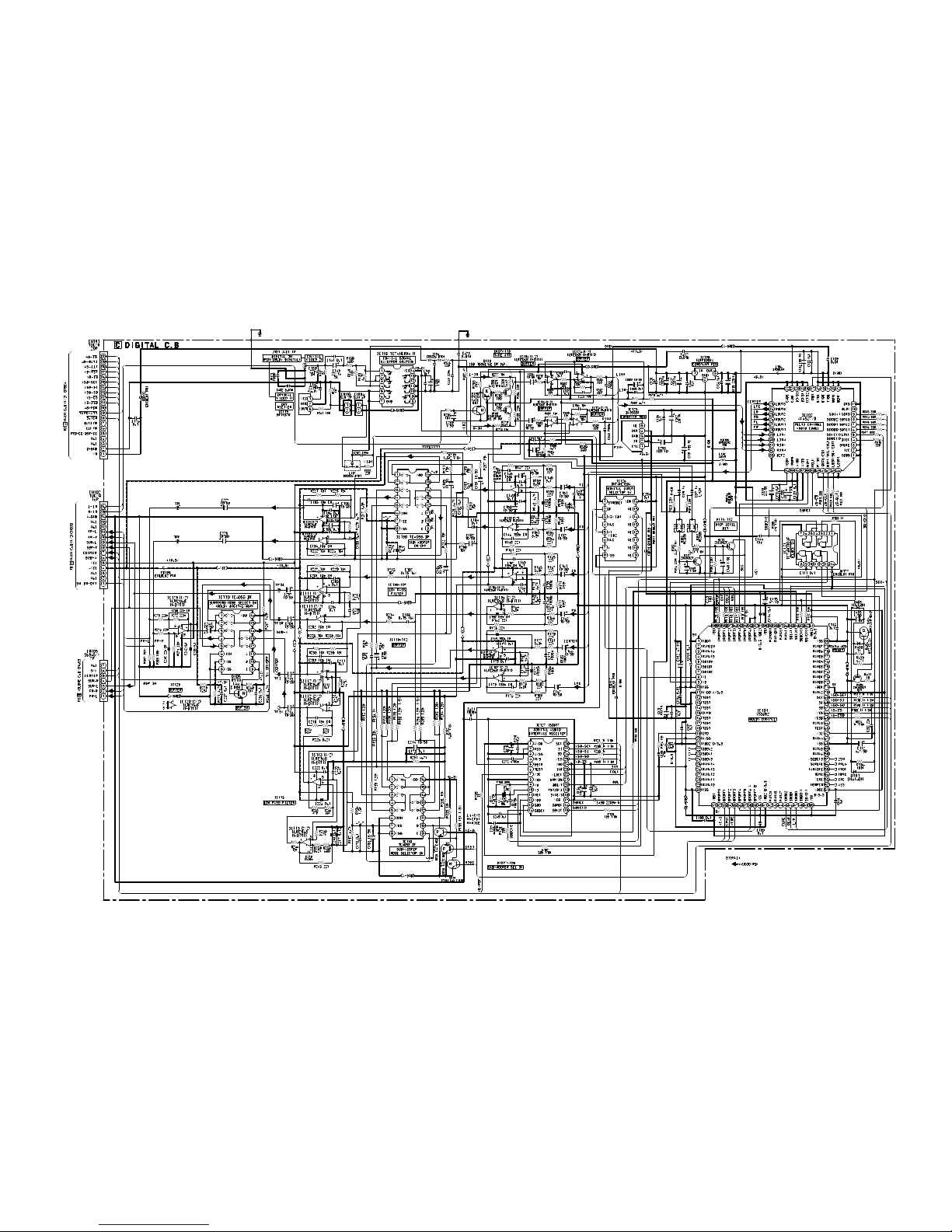

DIGITAL C.B
C100 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C101 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C102 87-010-374-080 CAP,E 47-10 M 11L SME
C105 87-012-140-080 C-CAP,S 470P-50 J CH
C106 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C107 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C108 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C109 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C110 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C111 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C112 87-010-404-080 CAP,E 4.7-50 M 11L SME
C113 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C114 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C115 87-010-374-080 CAP,E 47-10 M 11L SME
C118 87-010-402-080 CAP,E 2.2-50 M 11L SME
C119 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C120 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C121 87-010-263-080 CAP,E 100-10 M 11L SME
C122 87-010-311-080 C-CAP,S 12P-50 J CH GRM
C123 87-010-313-080 C-CAP,S 18P-50 J CH GRM
C125 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C126 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C127 87-010-101-080 CAP,E 220-16 M SME
C128 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C129 87-010-101-080 CAP,E 220-16 M SME
C131 87-010-263-080 CAP,E 100-10 M 11L SME
C132 87-010-263-080 CAP,E 100-10 M 11L SME
C133 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C135 87-010-101-080 CAP,E 220-16 M SME
C136 87-010-263-080 CAP,E 100-10 M 11L SME
C137 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C138 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C139 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C140 87-010-552-040 CAP,E 22-16 M 5L SRE
C141 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C142 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C143 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C144 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C145 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C146 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C147 87-010-405-080 CAP,E 10-50 M 11L SME
C148 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C149 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C150 87-010-405-080 CAP,E 10-50 M 11L SME
C151 87-010-405-080 CAP,E 10-50 M 11L SME
C152 87-010-405-080 CAP,E 10-50 M 11L SME
C153 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C154 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C155 87-A10-369-080 C-CAP,S 0.47-16 K B
C156 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C157 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C158 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C159 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C160 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C161 87-010-405-080 CAP,E 10-50 M 11L SME
C162 87-010-405-080 CAP,E 10-50 M 11L SME
C163 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C164 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C165 87-A10-369-080 C-CAP,S 0.47-16 K B
C166 87-010-405-080 CAP,E 10-50 M 11L SME
C167 87-010-405-080 CAP,E 10-50 M 11L SME
C168 87-010-401-080 CAP,E 1-50 M 11L SME
C169 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C170 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C171 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C172 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C173 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C174 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C175 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C176 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C177 87-A10-369-080 C-CAP,S 0.47-16 K B
C178 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C179 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C180 87-010-405-080 CAP,E 10-50 M 11L SME
C181 87-010-405-080 CAP,E 10-50 M 11L SME
C182 87-010-405-080 CAP,E 10-50 M 11L SME
C183 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C184 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C185 87-010-405-080 CAP,E 10-50 M 11L SME
C186 87-010-405-080 CAP,E 10-50 M 11L SME
C187 87-016-083-080 C-CAP,S 0.15-16 K R
C188 87-016-083-080 C-CAP,S 0.15-16 K R
C189 87-016-083-080 C-CAP,S 0.15-16 K R
C190 87-010-405-080 CAP,E 10-50 M 11L SME
C191 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C192 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C193 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C194 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C195 87-010-405-080 CAP,E 10-50 M 11L SME
C196 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C197 87-010-405-080 CAP,E 10-50 M 11L SME
C198 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C199 87-A10-369-080 C-CAP,S 0.47-16 K B
C201 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C202 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C203 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C204 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 7 –
C205 87-A10-369-080 C-CAP,S 0.47-16 K B
C206 87-010-401-080 CAP,E 1-50 M 11L SME
C207 87-010-405-080 CAP,E 10-50 M 11L SME
C208 87-010-405-080 CAP,E 10-50 M 11L SME
C209 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C210 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C211 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C212 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C213 87-A10-369-080 C-CAP,S 0.47-16 K B
C214 87-010-405-080 CAP,E 10-50 M 11L SME
C215 87-010-405-080 CAP,E 10-50 M 11L SME
C216 87-010-405-080 CAP,E 10-50 M 11L SME
C219 87-010-993-080 C-CAP,S 0.056-25 K B MK212
C220 87-A10-369-080 C-CAP,S 0.47-16 K B
C221 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C222 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C223 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C224 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C227 87-010-405-080 CAP,E 10-50 M 11L SME
C228 87-010-405-080 CAP,E 10-50 M 11L SME
C233 87-A12-314-080 CAP,CER 47P-500 J SL
C234 87-A12-314-080 CAP,CER 47P-500 J SL
C236 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C237 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C238 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C239 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C240 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C241 87-010-405-080 CAP,E 10-50 M 11L SME
C242 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C243 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C245 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C253 87-010-263-080 CAP,E 100-10 M 11L SME
C255 87-010-378-080 CAP,E 10-16 M 11L SME
C268 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C272 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C273 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C275 87-010-263-080 CAP,E 100-10 M 11L SME
C278 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C280 87-010-401-080 CAP,E 1-50 M 11L SME
C281 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C282 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C292 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C301 87-010-401-080 CAP,E 1-50 M 11L SME
C302 87-010-762-080 CAP,E 220-10 M SME
C317 87-016-462-080 C-CAP,S 1-16 Z F
C318 87-016-462-080 C-CAP,S 1-16 Z F
C336 87-010-405-080 CAP,E 10-50 M 11L SME
C337 87-010-405-080 CAP,E 10-50 M 11L SME
C338 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C339 87-010-405-080 CAP,E 10-50 M 11L SME
C340 87-010-405-080 CAP,E 10-50 M 11L SME
C341 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C342 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C343 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C344 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C402 87-018-211-080 CAP,TC U 0.01-50 Z F SA
C403 87-010-401-080 CAP,E 1-50 M 11L SME
C406 87-018-119-080 CAP,TC U 100P-50 K B UP050
C407 87-018-119-080 CAP,TC U 100P-50 K B UP050
C408 87-018-132-080 CAP,TC U 2200P-16 N X UP050
C409 87-018-132-080 CAP,TC U 2200P-16 N X UP050
C411 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C412 87-A10-207-080 CAP,TC U 0.01-50 K B UP050
C413 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C847 87-015-699-040 CAP,E 10-50 M 7L SRA
C848 87-010-405-040 CAP,E 10-50 M 11L SME
CN101 87-099-563-010 CONN,20P TUC-P20X-B1
CN102 87-A60-190-010 CONN,16P H TUC-P16X-B1
CN103 88-AR1-658-010 CONN ASSY,2P (AC-3)
CN105 87-A60-060-010 CONN,07P V 9604S-07C
FB103 87-008-372-080 FLTR,EMI BL01 RN1
FB104 87-008-372-080 FLTR,EMI BL01 RN1
FB105 87-008-474-080 F-BEAD, BL02RN1-R62T2 EMI
FB108 87-008-474-080 F-BEAD, BL02RN1-R62T2 EMI
FB110 87-008-372-080 FLTR,EMI BL01 RN1
FB111 87-008-372-080 FLTR,EMI BL01 RN1
FB112 87-005-212-080 COIL,220UH K EL0606
J101 87-A60-573-010 JACK,PIN 1P ORN
JR121 87-010-178-080 C-CAP,S 1000P-50 K B C2012
JW177 87-008-372-080 FLTR,EMI BL01 RN1
L102 87-A50-095-010 COIL,68UH RCR875D
L104 87-008-501-080 FLTR, DSS306-55
L106 87-008-372-080 FLTR,EMI BL01 RN1
L107 87-008-501-080 FLTR, DSS306-55
X102 87-A70-243-010 VIB,XTAL 24.576MHZ

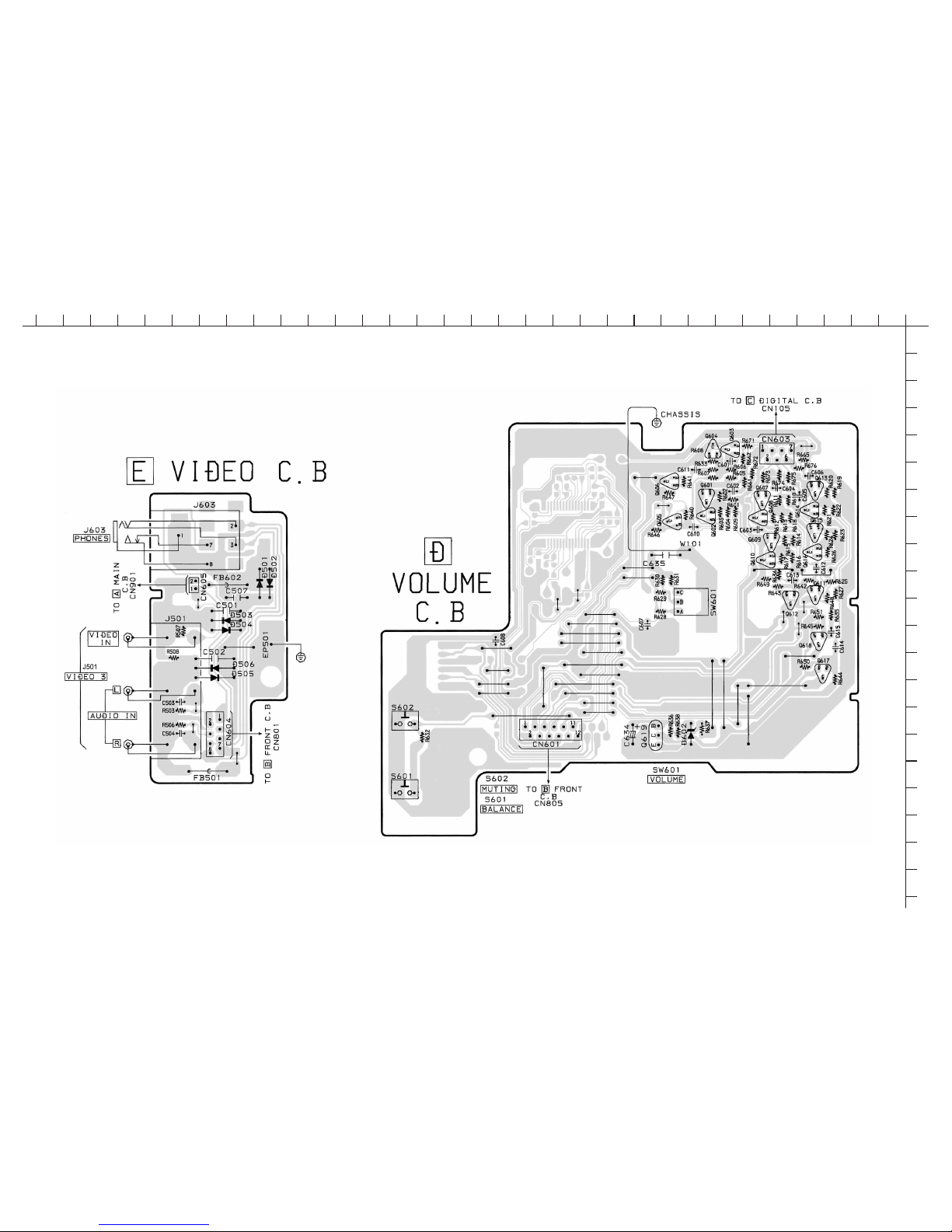

VOLUME C.B
C601 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C602 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C603 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C604 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C605 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C606 87-010-805-080 C-CAP,S 1-16 Z F
C607 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C608 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C610 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C611 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C612 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C613 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C614 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C615 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C634 87-010-374-080 CAP,E 47-10 M 11L SME
C635 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN601 87-A60-076-010 CONN,12P H 9604S-12F
CN601 88-912-161-110 FF-CABLE,12P 1.25 160MM
CN603 87-A60-080-010 CONN,07P H 9604S-07F
CN603 88-907-401-110 FF-CABLE, 7P 1.25 400MM
S601 87-A90-095-080 SW,TACT EVQ11G04M
S602 87-A90-095-080 SW,TACT EVQ11G04M
SW601 87-A91-645-010 SW,RTRY EC12E24304NON-CLICK
VIDEO C.B
C501 87-A11-148-080 CAP,TC U 0.1-50 Z F
C502 87-A11-148-080 CAP,TC U 0.1-50 Z F
C503 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C504 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C507 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN604 87-099-201-010 CONN,8P H BLK 6216
CN605 8A-AR3-652-010 CONN ASSY,2P -VIDEO 3
FB501 87-008-372-080 FLTR,EMI BL01 RN1
FB602 87-008-372-080 FLTR,EMI BL01 RN1
J501 87-A60-606-010 JACK,PIN 3P R/W/Y W/O SW H
J603 87-A60-550-010 JACK,DIA6.3 BLK ST W/SW KM

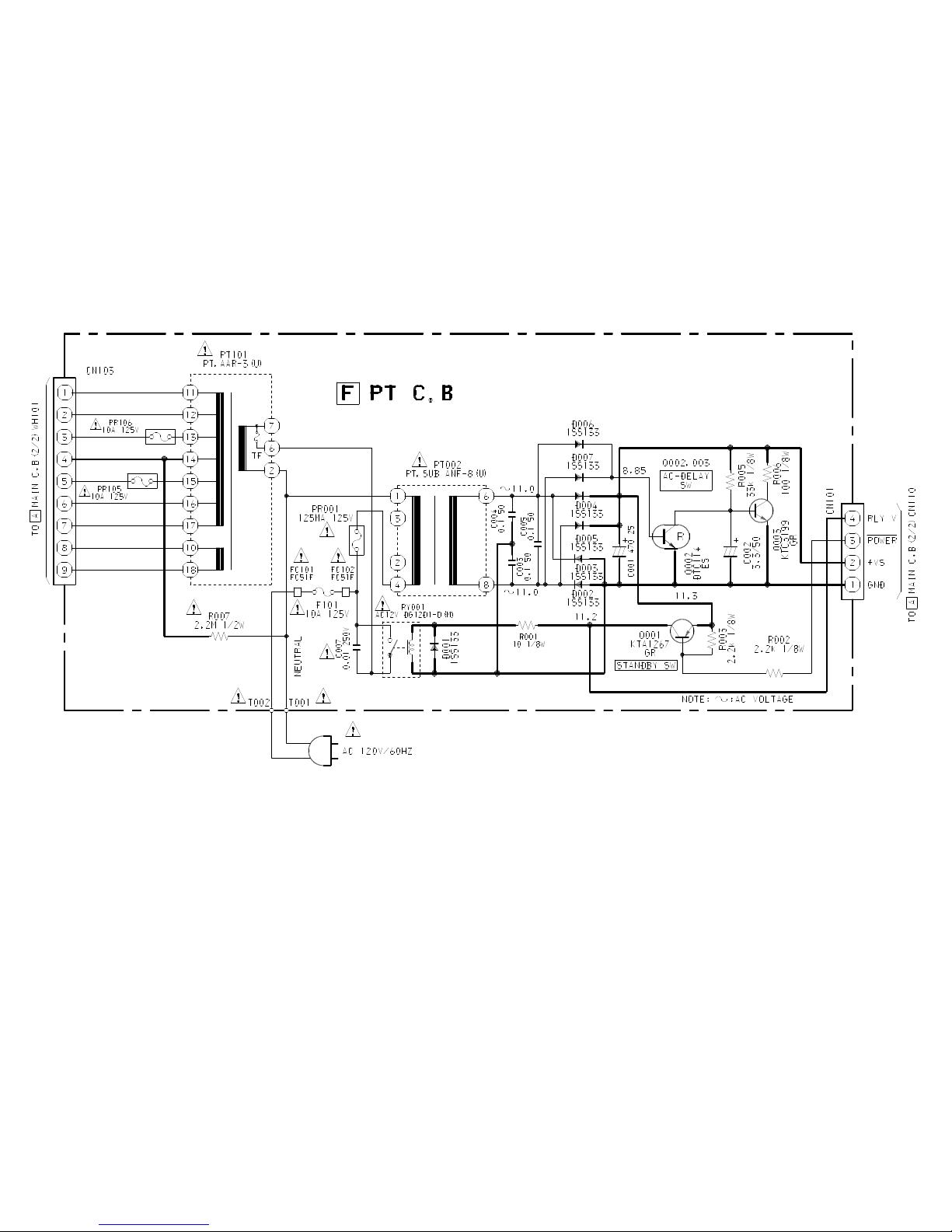

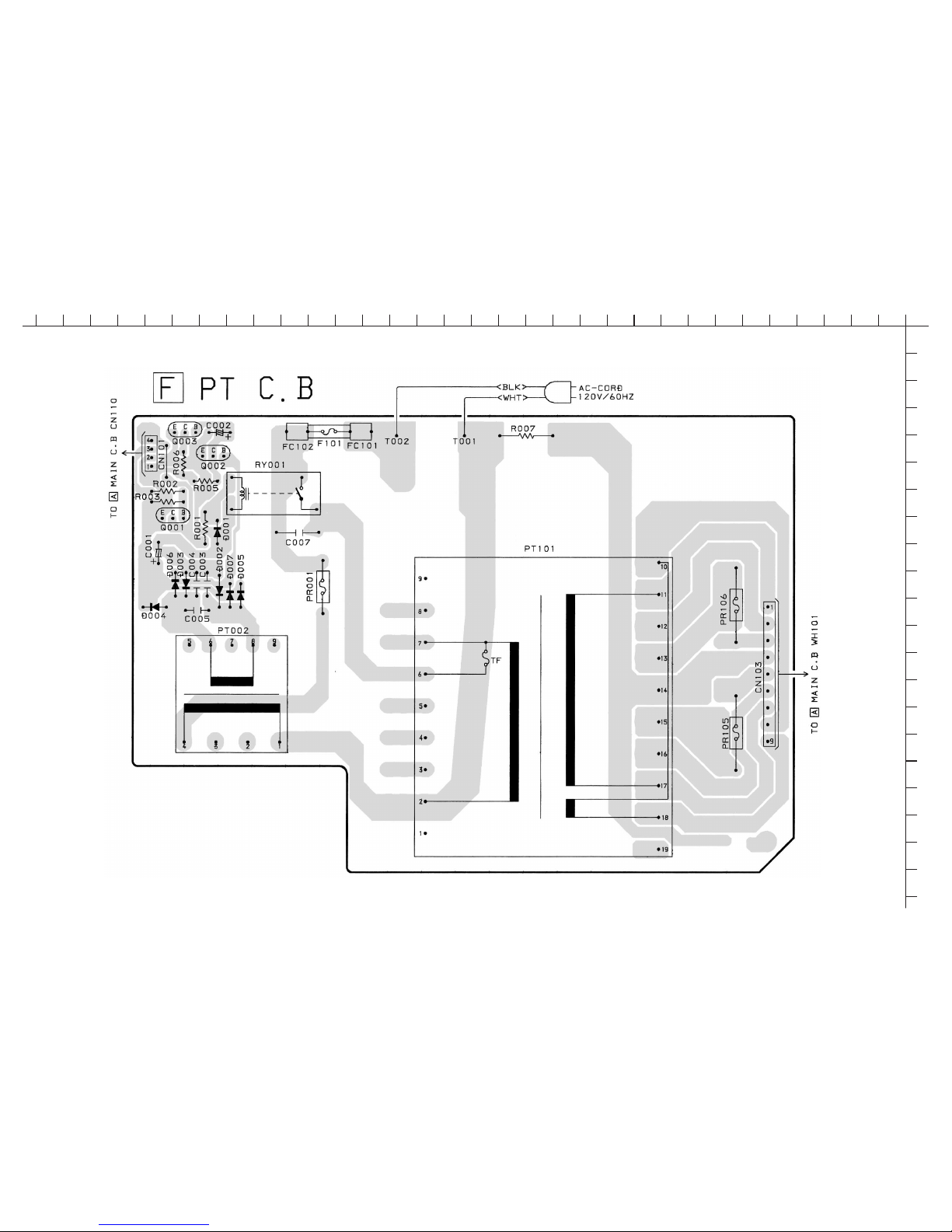

PT C.B
C1 87-010-387-080 CAP,E 470-25 M SME
C2 87-010-403-080 CAP,E 3.3-50 M 11L SME
C3 87-A11-148-080 CAP,TC U 0.1-50 Z F
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C7 87-A10-922-090 CAP,CER 0.01-250 M F KH
CN101 88-805-042-690 CONN ASSY,4P
CN103 87-A61-057-010 CONN,9P V THL-P09P-A1
F101 87-035-494-010 FUSE,10A 125V T 237
FC101 87-A90-160-080 FUSE CLAMP,FC 51F
FC102 87-A90-160-080 FUSE CLAMP,FC 51F
PR1 87-A91-276-080 FUSE,125MA 125V F 251
!
!
!
!
!
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 8 –
PR105 87-026-691-080 FUSE,10A 125V 251
PR106 87-026-691-080 FUSE,10A 125V 251
PT2 8Z-NF8-661-010 PT,SUB ZNF-8(U)
PT101 8A-AR3-605-010 PT,AAR-3(U)
RY1 87-A90-977-010 RELAY,AC12V DG12D1-O(M)
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
TUNER C.B
C701 87-010-260-080 CAP, ELECT 47-25V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-012-286-080 CAP, U 0.01-25
C704 87-012-286-080 CAP, U 0.01-25
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-263-080 CAP, ELECT 100-10V
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-012-286-080 CAP, U 0.01-25
C714 87-012-286-080 CAP, U 0.01-25
C717 87-012-286-080 CAP, U 0.01-25
C719 87-012-286-080 CAP, U 0.01-25
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C755 87-012-286-080 CAP, U 0.01-25
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C765 87-012-286-080 CAP, U 0.01-25
C769 87-010-408-080 CAP, ELECT 47-50 M 11L
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25 M 11L
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-012-286-080 CAP, U 0.01-25
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-805-080 CAP, S 1-16
C786 87-010-805-080 CAP, S 1-16
C787 87-012-280-080 CAP, U 3300P-50
C788 87-012-280-080 CAP, U 3300P-50
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-194-080 C-CAP,S 0.047-25 ZF
C796 87-010-403-080 CAP, ELECT 3.3-50V
C797 87-012-278-080 CAP, U 2200P-50
C798 87-012-278-080 CAP, U 2200P-50
C799 87-010-829-080 CAP, U 0.047-16
C812 87-012-286-080 CAP, U 0.01-25
C813 87-010-196-080 CHIP CAPACITOR,0.1-25
C814 87-012-286-080 CAP, U 0.01-25
C819 87-010-197-080 CAP, CHIP 0.01 DM
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 CAP, U 0.01-25
C822 87-012-286-080 CAP, U 0.01-25
C823 87-012-286-080 CAP, U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-170-080 C-CAP,U 8P-50 CH
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN601 87-099-028-010 CONN,11P 6216 H
FFE801 A8-8ZA-190-030 8ZA-1 FEUNM
J801 87-A60-657-010 TERMINAL,4P HSP-154V5-02
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-733-010 FLTR,PCFAZH-450
L781 87-005-847-080 COIL,2.2UH(CECS)
L791 87-A50-209-010 COIL,1 POLE MPX(MIT)
L792 87-A50-209-010 COIL,1 POLE MPX(MIT)
L832 87-005-847-080 COIL,2.2UH(CECS)
L981 87-NF4-650-010 COIL,AM PACK4N(TOK)
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
!
!
!
!
!
!
!
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 9 –

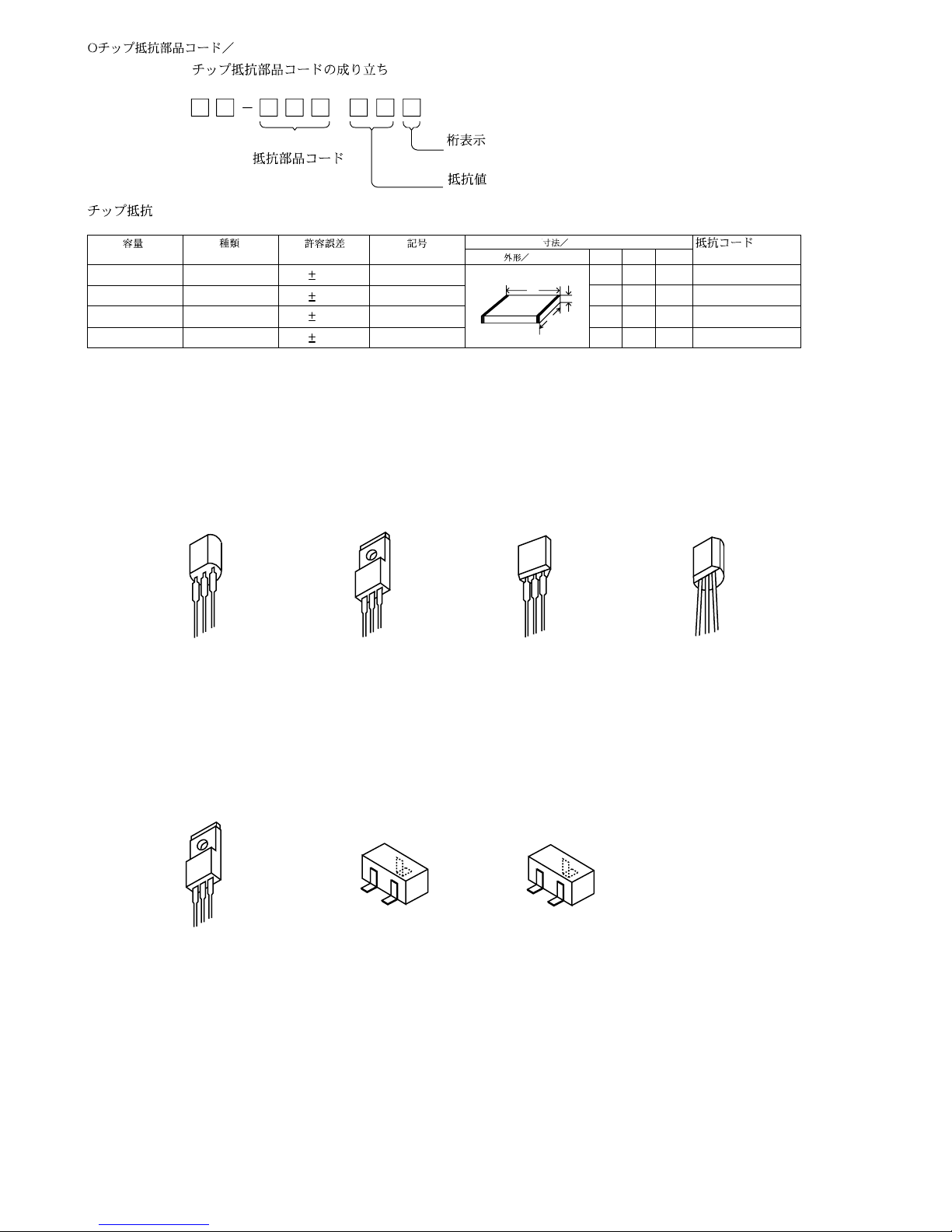

TRANSISTOR ILLUSTRATION
E C B
2SA1296
CC5551
KTA1266
KTC3198
2SB1370
FN1016
FP1016
2SC4115
DTC114ES
KTA1267
KTC3199
B C E E C B E C B
DGS
2SK3053
E
B
C
2SA1037
2SA1235
2SC2714
2SC3052
2SD1306
CMBT5401
CMBT5551
CSA1362
2SK2158
S
D
G
CSD1489
CSD1306
DTA144WK
DTC123JK
DTC124EK
RT1N141C
RT1N144C
RT1P141C
RT1P144C
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

WIRING – 1 (MAIN)
– 10 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 11 –
SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2)

– 12 –
SCHEMATIC DIAGRAM – 2 (MAIN 2 / 2)

WIRING – 2 (FRONT)
– 13 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 14 –
SCHEMATIC DIAGRAM – 3 (FRONT)

WIRING – 3 (DIGITAL)
– 15 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 16 –
SCHEMATIC DIAGRAM – 4 (DIGITAL)

WIRING – 4 (VOLUME / VIDEO)
– 17 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 18 –
SCHEMATIC DIAGRAM – 5 (VOLUME / VIDEO)

WIRING – 5 (PT)
– 19 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 20 –
SCHEMATIC DIAGRAM – 6 (PT)
