STEREO AV RECEIVER
AV-DV75
S/M Code No. 09-994-324-8N3
HC
SERVICE MANUAL
DATA

2
SPECIFICATIONS
•
Design and specifications are subject to change without
notice.
•
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol and “PRO LOGIC”
are trademarks of Dolby Laboratories Licensing
Corporation.
Laboratories Licensing Corporation.
•
The word “BBE” and the “BBE symbol” are trademarks
of BBE Sound,Inc.
Under license from BBE Sound,Inc.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES/PACKAGE LIST
1 8Z-AR2-901-010 IB,H(EC-K)M
2 87-006-225-010 AM LOOP ANT NC2
3 87-043-115-010 ANT,FEEDER FM
4 8Z-AR1-702-010 RC UNIT,RC-ZAR01
! 5 87-099-789-010 PLUG,ADPTR IR44

3
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-017-915-080 IC,BU4094BCF
87-A20-823-010 C-IC,YSS248
87-017-888-080 IC,NJM4558MD
87-A20-824-010 C-IC,CS4226
8Z-AR2-610-010 C-IC,UPD780228GF-048
87-020-903-010 IC,NJM7805FA
87-070-083-010 IC,GP1U281X
87-017-022-080 C-IC,NJM2068M-D(T1)
87-020-784-080 C-IC,TC4053BF
87-A20-870-010 IC,GP1F37R
87-A21-018-040 C-IC,M65849BFP631D
87-001-604-080 C-IC,TC74HCU04M
87-002-298-080 C-IC,TC74HC00AF
87-A20-715-010 IC,M62439SP
87-017-726-080 IC,BU4052 BCF
87-A21-202-040 C-IC,M62445AFP
87-A20-056-010 IC,BA3880S
87-A20-561-040 C-IC,M65847AFP
87-A20-437-010 C-IC,M62431FP
87-070-127-110 IC,LC72131 D
87-A20-820-010 IC,BA7625
87-017-917-080 IC,BU4066BCF

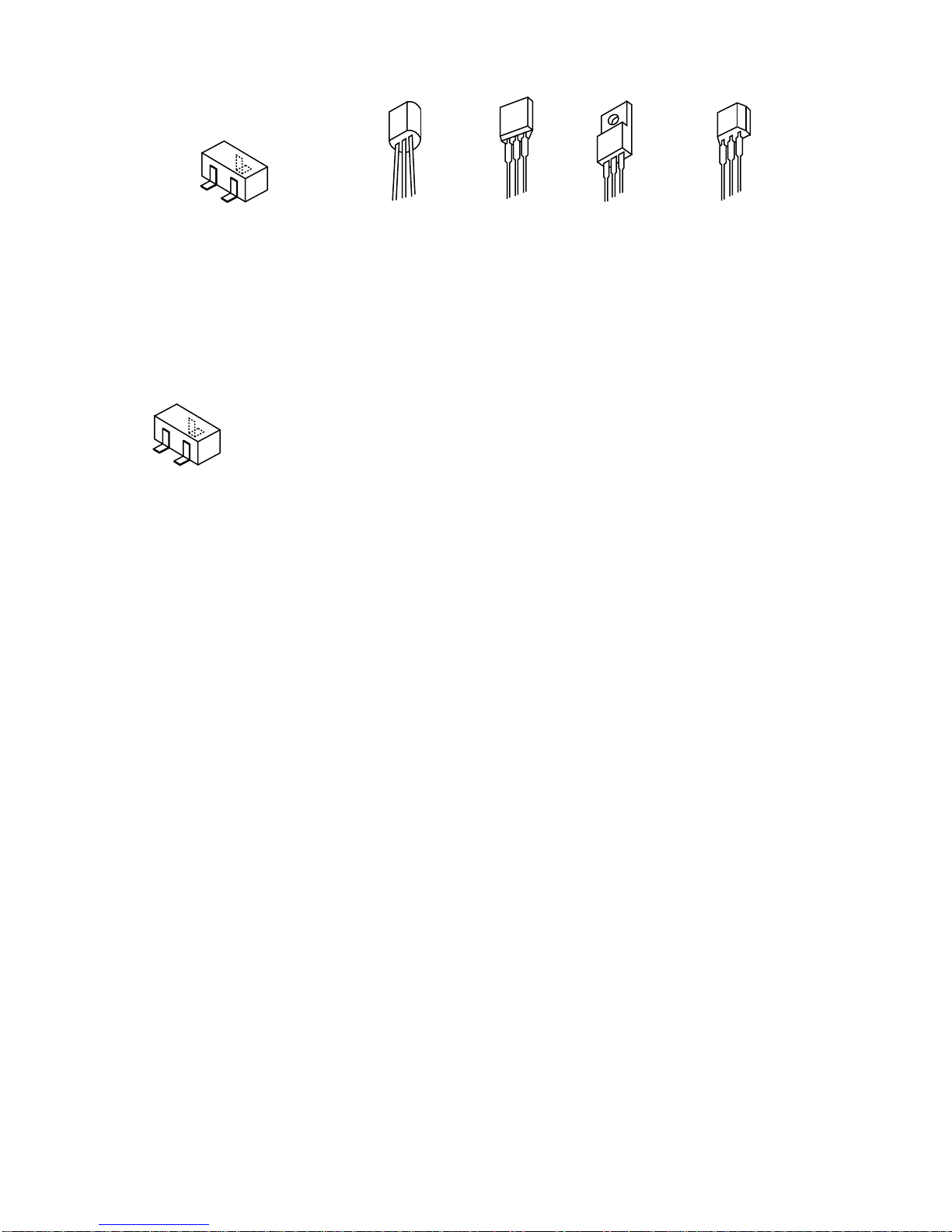

TRANSISTOR
87-A30-197-080 TR,KTA1267GR
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-073-080 C-TR,RT1N 141C
87-A30-071-080 C-TR,RT1N 144C
89-110-372-080 TR,2SA1037(140MHZ 200MW)
89-213-750-010 TR,2SB1375 (25W)
87-A30-083-080 TR,CSD1489B
87-A30-075-080 C-TR,2SA1235F
89-112-965-080 TR,2SA1296 (0.75W)
87-A30-076-080 C-TR,2SC3052F
87-A30-074-080 C-TR,RT1P 141C
87-026-610-080 TR,KTC3198GR
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-086-070 C-TR,CSD1306E
87-A30-072-080 C-TR,RT1P 144C
87-A30-087-080 C-FET,2SK2158
87-A30-065-080 TR,2SC2785FE
87-026-263-080 C-TR,RN1410
87-026-609-080 TR,KTA1266GR
87-A30-257-080 C-TR,2SD1306E
87-A30-107-070 C-TR,CMBT5401
87-026-214-080 TR,DTA114YS (0.3W)
87-A30-190-080 TR,CC5551
87-A30-097-010 TR,FN 1016
87-A30-098-010 TR,FP 1016
87-A30-106-070 C-TR,CMBT5551
87-A30-162-010 FET,2SK2937
87-026-236-080 TR,DTC124E,K
87-026-232-080 TR,DTA144WK
87-026-608-080 C-TR,DTC123JK
87-A30-196-080 TR,2SC4115SRS
89-327-143-080 TR,2SC2714 (0.1W)
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-291-080 DIODE,1N4148 (CPT)
87-A40-345-080 ZENER,MTZJ10C
87-A40-344-080 ZENER,MTZJ6.2C
87-A40-468-080 C-DIODE,HSM2836CTR
87-070-136-080 ZENER,MTZJ5.1B
87-027-686-080 ZENER,HZ-12A1
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-115-060 DIODE,RS603M
87-A40-469-080 C-DIODE,HSM2838CTR
87-A40-004-080 ZENER,MTZJ16A
87-A40-335-080 ZENER,MTZJ11C T-72
87-A40-224-010 DIODE,GBU8D
87-070-274-080 DIODE,1N4003 SEM
87-A40-435-080 ZENER,MTZJ30D
87-A40-347-080 ZENER,MTZJ2.2B
87-A40-646-010 DIODE,FMB-G16L
87-A40-488-080 DIODE,1SS244
87-017-931-080 ZENER,MTZJ5.6B
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-438-080 ZENER,MTZJ4.7A
87-A40-234-080 ZENER,MTZJ5.6A

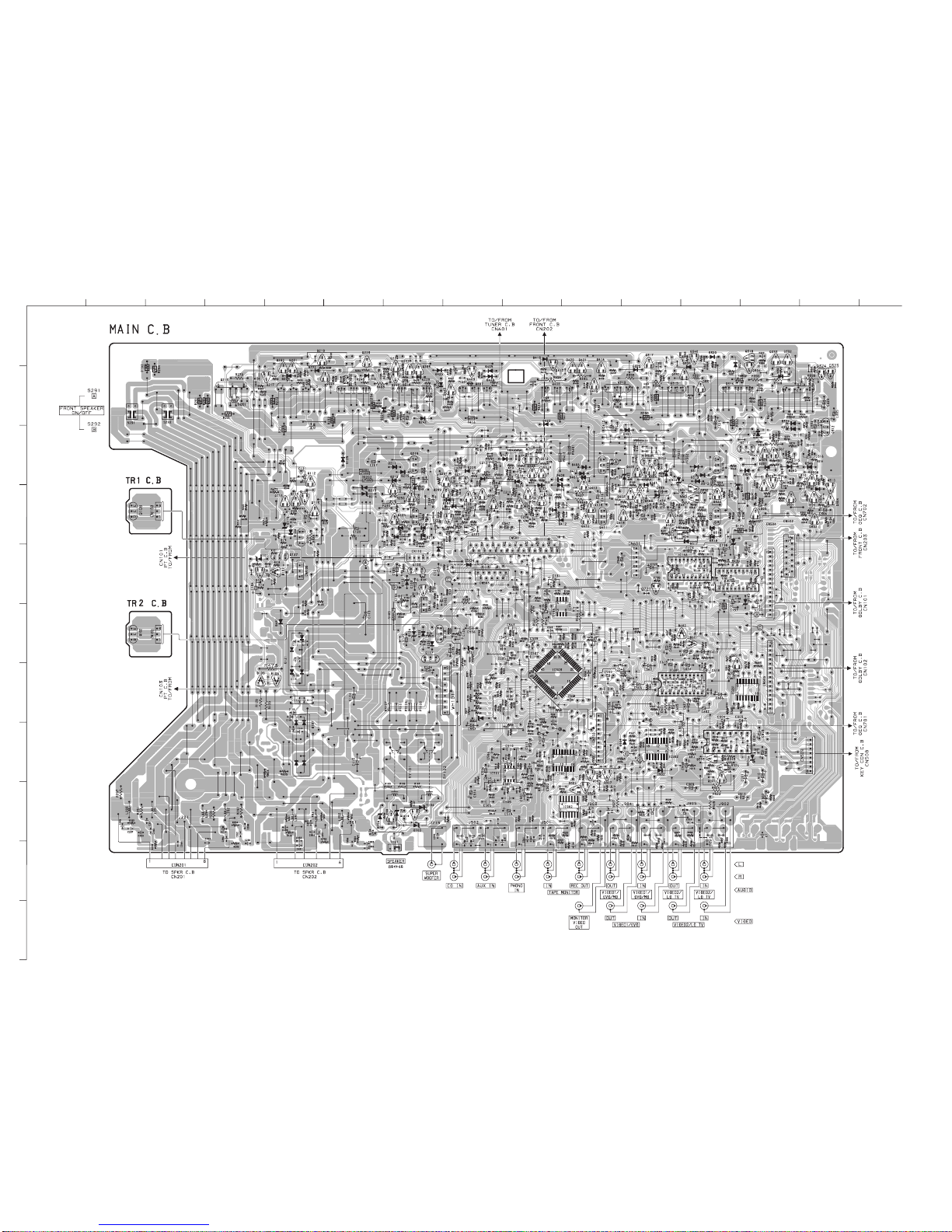

MAIN C.B
C101 87-010-235-080 CAP,E 470-16 SME
C102 87-010-235-080 CAP,E 470-16 SME
C103 87-010-384-080 CAP, ELECT 100-25V
C104 87-016-128-080 CAP,E 22-25 105
C105 87-010-247-080 CAP, ELECT 100-50V
C106 87-010-384-080 CAP, ELECT 100-25V
C108 87-012-140-080 CAP 470P
C109 87-012-368-080 C-CAP,S 0.1-50 F
C110 87-012-368-080 C-CAP,S 0.1-50 F
C111 87-012-368-080 C-CAP,S 0.1-50 F
C112 87-012-368-080 C-CAP,S 0.1-50 F
C113 87-016-658-090 CAP,E 4700-35 SMG
C114 87-016-658-090 CAP,E 4700-35 SMG
C115 87-012-368-080 C-CAP,S 0.1-50 F
C116 87-012-368-080 C-CAP,S 0.1-50 F
C117 87-012-368-080 C-CAP,S 0.1-50 F
C118 87-012-368-080 C-CAP,S 0.1-50 F
C119 87-A11-316-090 CAP,E 8200-85
C120 87-A11-316-090 CAP,E 8200-85
C121 87-010-260-080 CAP, ELECT 47-25V
C122 87-010-403-080 CAP, ELECT 3.3-50V
C123 87-010-384-080 CAP, ELECT 100-25V
C124 87-010-384-080 CAP, ELECT 100-25V
C125 87-A10-417-080 CAP,E 47-63 M SME
C126 87-010-263-080 CAP, ELECT 100-10V
C127 87-010-197-080 CAP, CHIP 0.01 DM
C131 87-010-544-080 CAP, ELECT 0.1-50V
C133 87-010-404-080 CAP, ELECT 4.7-50V
C135 87-012-368-080 C-CAP,S 0.1-50 F
C136 87-012-368-080 C-CAP,S 0.1-50 F
C143 87-A10-712-080 C-CAP,S 0.22-50 Z F
C144 87-A10-712-080 C-CAP,S 0.22-50 Z F
C149 87-010-154-080 CAP CHIP 10P
C150 87-010-154-080 CAP CHIP 10P
C153 87-010-401-080 CAP, ELECT 1-50V
C154 87-010-401-080 CAP, ELECT 1-50V
C155 87-010-196-080 CHIP CAPACITOR,0.1-25
C156 87-010-196-080 CHIP CAPACITOR,0.1-25
C157 87-010-408-080 CAP, ELECT 47-50V
C158 87-010-248-080 CAP, ELECT 220-10V
C159 87-010-154-080 CAP CHIP 10P
C169 87-010-154-080 CAP CHIP 10P
C170 87-010-154-080 CAP CHIP 10P
C171 87-010-196-080 CHIP CAPACITOR,0.1-25
C172 87-010-154-080 CAP CHIP 10P
C173 87-010-405-080 CAP, ELECT 10-50V
C174 87-010-401-080 CAP, ELECT 1-50V
C175 87-010-196-080 CHIP CAPACITOR,0.1-25
C203 87-010-178-080 CHIP CAP 1000P
C204 87-010-178-080 CHIP CAP 1000P
C205 87-010-405-080 CAP, ELECT 10-50V
C206 87-010-405-080 CAP, ELECT 10-50V

4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C208 87-016-299-080 CAP,E 10-100 SME
C209 87-010-406-080 CAP, ELECT 22-50
C210 87-010-406-080 CAP, ELECT 22-50
C211 87-010-322-080 C-CAP,S 100P-50 CH
C212 87-010-322-080 C-CAP,S 100P-50 CH
C215 87-A10-897-080 CAP,E 100-25 BP SME
C216 87-A10-897-080 CAP,E 100-25 BP SME
C217 87-A10-516-080 C-CAP,S 100P-200 J CH
C218 87-A10-516-080 C-CAP,S 100P-200 J CH
C221 87-010-805-080 CAP, S 1-16
C222 87-010-805-080 CAP, S 1-16
C223 87-010-402-080 CAP, ELECT 2.2-50V
C224 87-010-402-080 CAP, ELECT 2.2-50V
C225 87-010-196-080 CHIP CAPACITOR,0.1-25
C227 87-010-178-080 CHIP CAP 1000P
C228 87-010-178-080 CHIP CAP 1000P
C230 87-A10-354-080 C-CAP,S 0.047-50 K B
C231 87-A10-354-080 C-CAP,S 0.047-50 K B
C232 87-A10-946-080 C-CAP,S 220P-100 J CH
C285 87-010-186-080 CAP,CHIP 4700P
C287 87-010-190-080 S CHIP F 0.01
C288 87-010-190-080 S CHIP F 0.01
C289 87-010-190-080 S CHIP F 0.01
C290 87-010-190-080 S CHIP F 0.01
C291 87-012-368-080 C-CAP,S 0.1-50 F
C292 87-012-368-080 C-CAP,S 0.1-50 F
C293 87-012-368-080 C-CAP,S 0.1-50 F
C294 87-012-368-080 C-CAP,S 0.1-50 F
C295 87-012-368-080 C-CAP,S 0.1-50 F
C296 87-012-368-080 C-CAP,S 0.1-50 F
C297 87-012-368-080 C-CAP,S 0.1-50 F
C298 87-012-368-080 C-CAP,S 0.1-50 F
C303 87-010-179-080 CAP,CHIP S B1200P
C304 87-010-179-080 CAP,CHIP S B1200P
C305 87-010-405-080 CAP, ELECT 10-50V
C306 87-010-405-080 CAP, ELECT 10-50V
C308 87-016-299-080 CAP,E 10-100 SME
C309 87-010-406-080 CAP, ELECT 22-50V
C310 87-010-406-080 CAP, ELECT 22-50V
C311 87-010-322-080 C-CAP,S 100P-50 CH
C312 87-010-322-080 C-CAP,S 100P-50 CH
C315 87-A10-897-080 CAP,E 100-25 BP SME
C316 87-A10-897-080 CAP,E 100-25 BP SME
C317 87-A10-516-080 C-CAP,S 100P-200 J CH
C318 87-A10-516-080 C-CAP,S 100P-200 J CH
C320 87-A10-946-080 C-CAP,S 220P-100 J CH
C321 87-010-805-080 CAP, S 1-16
C322 87-010-805-080 CAP, S 1-16
C323 87-010-402-080 CAP, ELECT 2.2-50V
C324 87-010-402-080 CAP, ELECT 2.2-50V
C325 87-010-196-080 CHIP CAPACITOR,0.1-25
C327 87-010-178-080 CHIP CAP 1000P
C328 87-010-178-080 CHIP CAP 1000P
C330 87-A10-354-080 C-CAP,S 0.047-50 K B
C331 87-A10-354-080 C-CAP,S 0.047-50 K B
C334 87-A10-918-080 CAP,E 100-16 SMG
C335 87-A10-918-080 CAP,E 100-16 SMG
C385 87-010-186-080 CAP,CHIP 4700P
C391 87-012-368-080 C-CAP,S 0.1-50 F
C392 87-012-368-080 C-CAP,S 0.1-50 F
C393 87-012-368-080 C-CAP,S 0.1-50 F
C394 87-012-368-080 C-CAP,S 0.1-50 F
C395 87-010-190-080 S CHIP F 0.01
C396 87-010-190-080 S CHIP F 0.01
C402 87-010-181-080 CAP,CHIP S 1800P
C403 87-010-405-080 CAP, ELECT 10-50V
C405 87-010-408-080 CAP, ELECT 47-50V
C406 87-010-322-080 C-CAP,S 100P-50 CH
C408 87-A10-897-080 CAP,E 100-25 BP SME
C409 87-A10-516-080 C-CAP,S 100P-200 J CH
C411 87-010-805-080 CAP, S 1-16
C412 87-010-402-080 CAP, ELECT 2.2-50V
C413 87-010-196-080 CHIP CAPACITOR,0.1-25
C414 87-010-178-080 CHIP CAP 1000P
C416 87-016-299-080 CAP,E 10-100 SME
C417 87-A10-946-080 C-CAP,S 220P-100 J CH
C430 87-A10-354-080 C-CAP,S 0.047-50 K B
C485 87-010-186-080 CAP,CHIP 4700P
C491 87-012-368-080 C-CAP,S 0.1-50 F
C492 87-012-368-080 C-CAP,S 0.1-50 F
C493 87-010-190-080 S CHIP F 0.01
C501 87-010-404-080 CAP, ELECT 4.7-50V
C502 87-010-404-080 CAP, ELECT 4.7-50V
C503 87-012-157-080 C-CAP,S 330P-50 CH
C504 87-012-157-080 C-CAP,S 330P-50 CH
C511 87-010-404-080 CAP, ELECT 4.7-50V
C512 87-010-404-080 CAP, ELECT 4.7-50V
C513 87-010-260-080 CAP, ELECT 47-25V
C514 87-010-260-080 CAP, ELECT 47-25V
C515 87-010-370-080 CAP,E 330-6.3 SME
C516 87-010-370-080 CAP,E 330-6.3 SME
C517 87-010-196-080 CHIP CAPACITOR,0.1-25
C518 87-010-196-080 CHIP CAPACITOR,0.1-25
C519 87-010-196-080 CHIP CAPACITOR,0.1-25
C520 87-010-196-080 CHIP CAPACITOR,0.1-25
C531 87-010-213-080 C-CAP,S 0.015-50 B
C532 87-010-992-080 C-CAP,S 0.047-25 B
C533 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C535 87-010-404-080 CAP, ELECT 4.7-50V
C536 87-010-404-080 CAP, ELECT 4.7-50V
C539 87-010-401-080 CAP, ELECT 1-50V
C540 87-010-401-080 CAP, ELECT 1-50V
C541 87-010-185-080 C-CAP,S 3900P-50 B
C542 87-010-185-080 C-CAP,S 3900P-50 B
C547 87-010-404-080 CAP, ELECT 4.7-50V
C548 87-010-404-080 CAP, ELECT 4.7-50V
C549 87-016-081-080 C-CAP,S 0.1-16 RK
C550 87-016-081-080 C-CAP,S 0.1-16 RK
C554 87-010-196-080 CHIP CAPACITOR,0.1-25
C555 87-010-405-080 CAP, ELECT 10-50V
C556 87-010-248-080 CAP, ELECT 220-10V
C557 87-010-405-080 CAP, ELECT 10-50V
C558 87-010-992-080 C-CAP,S 0.047-25 B
C559 87-010-183-080 C-CAP,S 2700P-50 B
C561 87-012-140-080 CAP 470P
C562 87-012-140-080 CAP 470P
C565 87-010-404-080 CAP, ELECT 4.7-50V
C566 87-010-404-080 CAP, ELECT 4.7-50V
C601 87-010-378-080 CAP, ELECT 10-16V
C602 87-010-378-080 CAP, ELECT 10-16V
C603 87-012-156-080 C-CAP,S 220P-50 CH
C604 87-012-156-080 C-CAP,S 220P-50 CH
C605 87-010-405-080 CAP, ELECT 10-50V
C606 87-010-405-080 CAP, ELECT 10-50V
C607 87-012-140-080 CAP 470P
C608 87-012-140-080 CAP 470P
C609 87-010-188-080 CAP,CHIP 6800P
C610 87-010-188-080 CAP,CHIP 6800P
C611 87-010-197-080 CAP, CHIP 0.01 DM
C612 87-010-195-080 C-CAP,S 0.068-25 F
C613 87-010-195-080 C-CAP,S 0.068-25 F
C614 87-010-197-080 CAP, CHIP 0.01 DM
C615 87-010-404-080 CAP, ELECT 4.7-50V
C616 87-010-404-080 CAP, ELECT 4.7-50V
C617 87-010-404-080 CAP, ELECT 4.7-50V
C618 87-010-404-080 CAP, ELECT 4.7-50V
C619 87-010-404-080 CAP, ELECT 4.7-50V
C620 87-010-101-080 CAP, ELECT 220-16
C621 87-010-260-080 CAP, ELECT 47-25V
C660 87-010-196-080 CHIP CAPACITOR,0.1-25

5
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C661 87-010-196-080 CHIP CAPACITOR,0.1-25
C745 87-012-368-080 C-CAP,S 0.1-50 F
C746 87-012-368-080 C-CAP,S 0.1-50 F
C901 87-010-406-080 CAP, ELECT 22-50
C902 87-010-406-080 CAP, ELECT 22-50
C903 87-010-406-080 CAP, ELECT 22-50
C904 87-010-406-080 CAP, ELECT 22-50
C905 87-010-406-080 CAP, ELECT 22-50
C906 87-010-260-080 CAP, ELECT 47-25V
C907 87-010-196-080 CHIP CAPACITOR,0.1-25
C908 87-010-387-080 CAP,E 470-25 SME
C909 87-010-371-080 CAP, ELECT 470-6.3V
C910 87-010-371-080 CAP, ELECT 470-6.3V
C911 87-010-371-080 CAP, ELECT 470-6.3V
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-196-080 CHIP CAPACITOR,0.1-25
C914 87-010-196-080 CHIP CAPACITOR,0.1-25
CN110 87-A60-621-010 CONN,4P V 2MM JMT
CN110 87-009-032-010 CONNECTOR,4P YEL
CN501 87-A60-039-010 CONN,32P V 9604S-32C
CN502 87-A60-054-010 CONN,14P V 9604S-14C
CN503 87-A60-057-010 CONN,11P V 9604S-11C
CN504 87-099-572-010 CONN,15P TUC-P15P-B1
CN505 87-099-572-010 CONN,15P TUC-P15P-B1
CN509 87-099-667-010 CONN,8P TUC-P8P-B1
CN702 87-099-568-010 CONN,11P TUC-P11P-B1
CNA201 8Z-AR4-606-010 CONN ASSY,8P VH
CNA202 8Z-AR4-605-010 CONN ASSY,6P VH
J501 87-A60-947-010 JACK,PIN 4P W/R GLD
J502 87-A60-947-010 JACK,PIN 4P W/R GLD
J715 87-A60-244-010 JACK,PIN 1P BLK
J901 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J902 87-A60-950-010 JACK,PIN 3P R/W/Y W/E GLD
J903 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J904 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J905 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
L291 87-003-383-010 COIL,1UH-S
L292 87-003-383-010 COIL,1UH-S
L293 87-003-383-010 COIL,1UH-S
L294 87-003-383-010 COIL,1UH-S
L391 87-003-383-010 COIL,1UH-S
L392 87-003-383-010 COIL,1UH-S
L491 87-003-383-010 COIL,1UH-S
L901 87-003-152-080 COIL, 100UH
P001 86-NFZ-222-010 PIN,DIA1-5.6
! PR101 87-026-682-080 PROTECTOR,10A 60V491
! PR104 87-026-682-080 PROTECTOR,10A 60V491
! PR107 87-026-682-080 PROTECTOR,10A 60V491
! PR108 87-026-682-080 PROTECTOR,10A 60V491
! PR201 87-026-682-080 PROTECTOR,10A 60V491
! PR202 87-026-682-080 PROTECTOR,10A 60V491
! PR301 87-026-682-080 PROTECTOR,10A 60V491
! PR302 87-026-682-080 PROTECTOR,10A 60V491
! PR401 87-026-682-080 PROTECTOR,10A 60V491
! PR402 87-026-682-080 PROTECTOR,10A 60V491
R109 87-029-060-080 RES,FUSE 33-1/4 W
R176 87-A00-401-050 RES,M/F 390-1W J VTP
R179 87-A00-373-050 RES,M/F 270-1W J VTP
R180 87-A00-403-080 RES,M/F 560-1W J T52L25.5
R211 87-A00-418-010 RES,M/F 0.15-3W J
R212 87-A00-418-010 RES,M/F 0.15-3W J
R231 87-A00-418-010 RES,M/F 0.15-3W J
R232 87-A00-418-010 RES,M/F 0.15-3W J
R233 87-A00-418-010 RES,M/F 0.15-3W J
R234 87-A00-418-010 RES,M/F 0.15-3W J
R281 87-A00-126-080 RES M/F 220-1/WJ VIP
R282 87-A00-126-080 RES M/F 220-1/WJ VIP
R283 87-A00-126-080 RES M/F 220-1/WJ VIP
R284 87-A00-126-080 RES M/F 220-1/WJ VIP
R331 87-A00-418-010 RES,M/F 0.15-3W J
R332 87-A00-418-010 RES,M/F 0.15-3W J
R333 87-A00-418-010 RES,M/F 0.15-3W J
R334 87-A00-418-010 RES,M/F 0.15-3W J
R416 87-A00-418-010 RES,M/F 0.15-3W J
R417 87-A00-418-010 RES,M/F 0.15-3W J
R424 87-A00-418-010 RES,M/F 0.15-3W J
R590 87-A00-418-010 RES,M/F 0.15-3W J
R611 87-A00-418-010 RES,M/F 0.15-3W J
R905 87-010-317-080 C-CAP,S 39P-50 CH
RY101 87-A90-454-010 RELAY,12V DJ12D2-O(M)
RY102 87-A90-454-010 RELAY,12V DJ12D2-O(M)
S101 86-SP8-611-010 SW,SL 1-1-2
S291 87-A90-174-010 SW,PUSH 2-2-2
S292 87-A90-174-010 SW,PUSH 2-2-2
TH201 87-A91-081-080 C-THMS,100K-K 20P
TH202 87-A91-081-080 C-THMS,100K-K 20P
TH301 87-A91-081-080 C-THMS,100K-K 20P
TH302 87-A91-081-080 C-THMS,100K-K 20P
TH401 87-A91-081-080 C-THMS,100K-K 20P
W3 8Z-AR2-606-010 CONN ASSY,9P VH
WH101 87-A90-510-010 HLDR,WIRE 2.5-9P

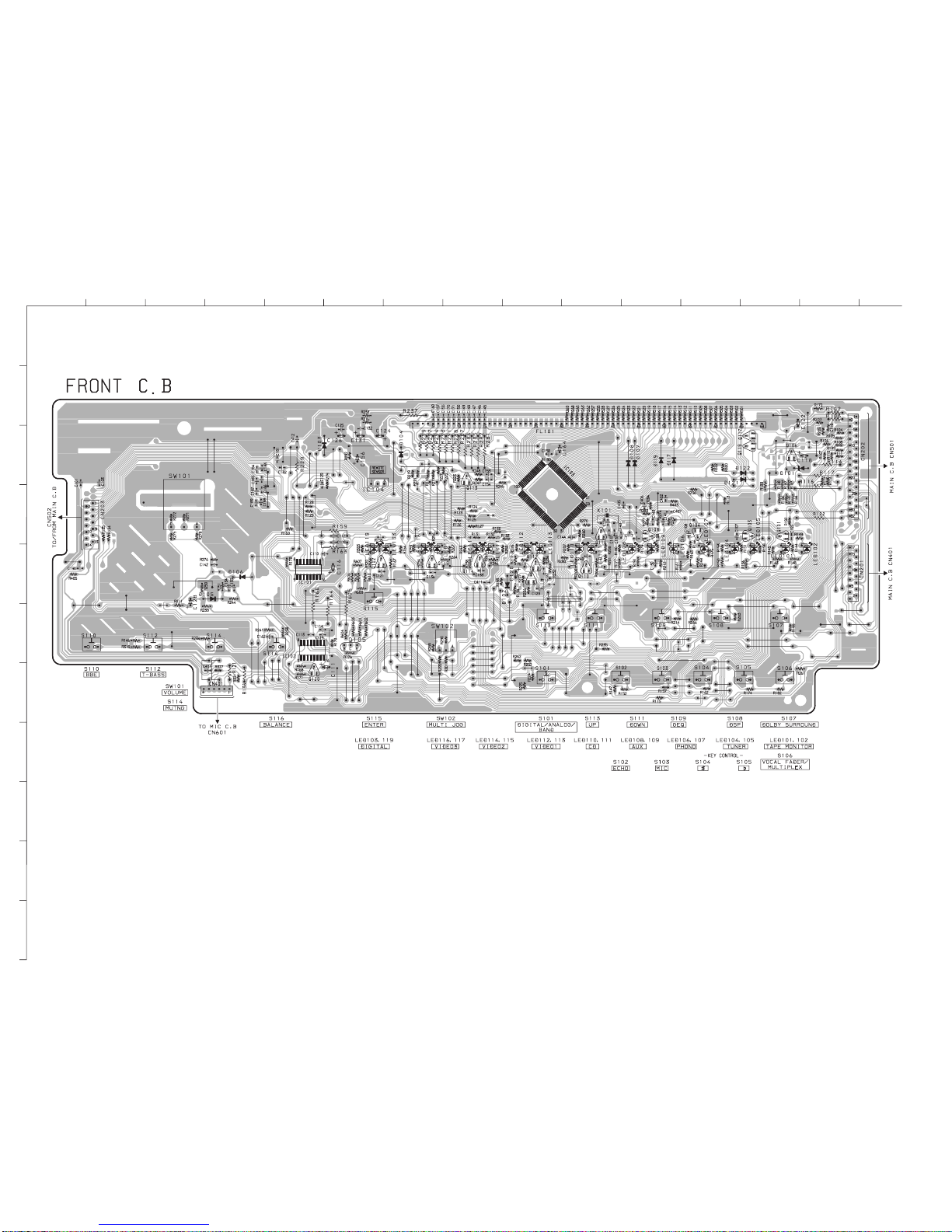

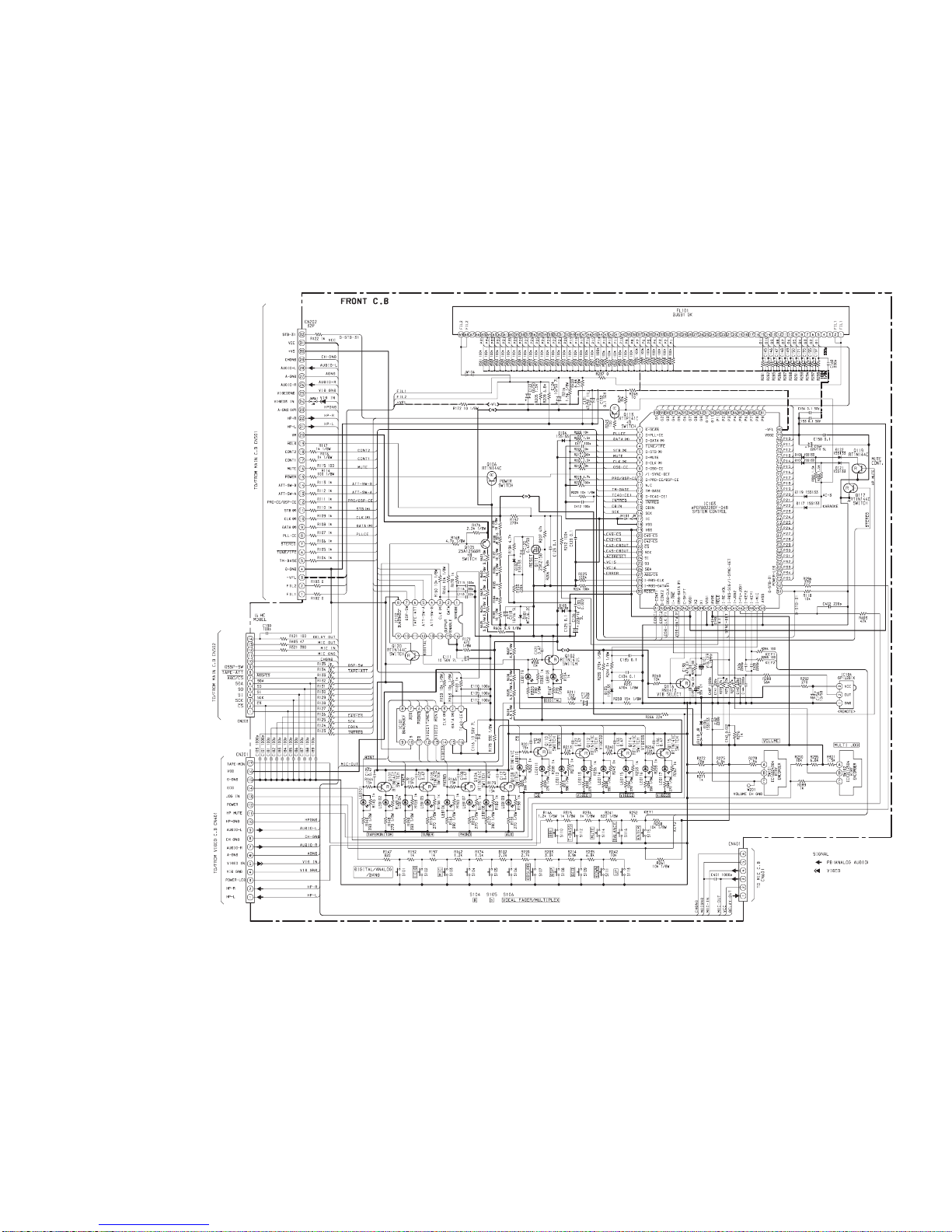

FRONT C.B
C101 87-010-178-080 CHIP CAP 1000P
C103 87-010-178-080 CHIP CAP 1000P
C105 87-016-526-080 C-CAP,S 0.47-16 BK
C107 87-016-526-080 C-CAP,S 0.47-16 BK
C108 87-016-526-080 C-CAP,S 0.47-16 BK
C109 87-010-322-080 C-CAP,S 100P-50 CH
C110 87-010-322-080 C-CAP,S 100P-50 CH
C111 87-015-699-040 CAP,E 10-50 7L
C112 87-010-322-080 C-CAP,S 100P-50 CH
C113 87-010-322-080 C-CAP,S 100P-50 CH
C114 87-010-322-080 C-CAP,S 100P-50 CH
C115 87-010-322-080 C-CAP,S 100P-50 CH
C116 87-015-699-040 CAP,E 10-50 7L
C117 87-016-526-080 C-CAP,S 0.47-16 BK
C118 87-010-498-040 CAP,E 10-16 GAS
C120 87-015-694-040 E/CAP 0.47-50
C121 87-016-526-080 C-CAP,S 0.47-16 BK
C122 87-015-699-040 CAP,E 10-50 7L
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C124 87-015-699-040 CAP,E 10-50 7L
C125 87-010-196-080 CHIP CAPACITOR,0.1-25
C126 87-A10-189-040 CAP,E 220-10
C127 87-016-526-080 C-CAP,S 0.47-16 BK
C129 87-010-196-080 CHIP CAPACITOR,0.1-25
C130 87-010-198-080 CAP, CHIP 0.022
C131 87-010-408-080 CAP, ELECT 47-50V
C132 87-012-368-080 C-CAP,S 0.1-50 F
C133 87-016-526-080 C-CAP,S 0.47-16 BK
C134 87-010-196-080 CHIP CAPACITOR,0.1-25
C135 87-010-196-080 CHIP CAPACITOR,0.1-25
C136 87-016-526-080 C-CAP,S 0.47-16 BK
C137 87-010-312-080 C-CAP,S 15P-50 CH
C138 87-010-318-080 C-CAP,S 47P-50 CH
C139 87-010-316-080 C-CAP,S 33P-50 CH
C140 87-010-196-080 CHIP CAPACITOR,0.1-25
C141 87-012-156-080 C-CAP,S 220P-50 CH
C142 87-010-198-080 CAP, CHIP 0.022
C143 87-012-156-080 C-CAP,S 220P-50 CH
C144 87-010-178-080 CHIP CAP 1000P
C145 87-012-157-080 C-CAP,S 330P-50 CH
C146 87-012-157-080 C-CAP,S 330P-50 CH
C147 87-012-157-080 C-CAP,S 330P-50 CH
C148 87-012-157-080 C-CAP,S 330P-50 CH
C149 87-012-157-080 C-CAP,S 330P-50 CH
C150 87-012-157-080 C-CAP,S 330P-50 CH

6
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C153 87-012-368-080 C-CAP,S 0.1-50 F
C154 87-012-368-080 C-CAP,S 0.1-50 F
C155 87-012-157-080 C-CAP,S 330P-50 CH
C156 87-015-699-040 CAP,E 10-50 7L
C157 87-012-157-080 C-CAP,S 330P-50 CH
C158 87-012-368-080 C-CAP,S 0.1-50 F
C160 87-012-157-080 C-CAP,S 330P-50 CH
C162 87-010-182-080 C-CAP,S 2200P-50 B
C164 87-A10-189-040 CAP,E 220-10
C170 87-012-157-080 C-CAP,S 330P-50 CH
C171 87-012-157-080 C-CAP,S 330P-50 CH
C181 87-010-322-080 C-CAP,S 100P-50 CH
C182 87-010-322-080 C-CAP,S 100P-50 CH
C183 87-010-322-080 C-CAP,S 100P-50 CH
C184 87-010-322-080 C-CAP,S 100P-50 CH
C185 87-010-322-080 C-CAP,S 100P-50 CH
C186 87-010-322-080 C-CAP,S 100P-50 CH
C187 87-010-322-080 C-CAP,S 100P-50 CH
C188 87-010-322-080 C-CAP,S 100P-50 CH
C189 87-010-322-080 C-CAP,S 100P-50 CH
C190 87-010-322-080 C-CAP,S 100P-50 CH
C240 87-016-526-080 C-CAP,S 0.47-16 BK
C401 87-010-178-080 CHIP CAP 1000P
C402 87-012-156-080 C-CAP,S 220P-50 CH
C405 87-010-182-080 C-CAP,S 2200P-50 B
C406 87-010-182-080 C-CAP,S 2200P-50 B
C407 87-010-178-080 CHIP CAP 1000P
C409 87-010-196-080 CHIP CAPACITOR,0.1-25
C411 87-010-322-080 C-CAP,S 100P-50 CH
C412 87-010-322-080 C-CAP,S 100P-50 CH
CN201 87-A60-053-010 CONN,17P V 9604S-17C
CN202 87-A60-039-010 CONN,32P V 9604S-32C
CN203 87-A60-054-010 CONN,14P V 9604S-14C
CN401 87-009-371-010 CONNECTOR, 6P
D102 87-A40-496-040 LED,SLR-342MCT31 GRN
D103 87-A40-496-040 LED,SLR-342MCT31 GRN
D105 87-A40-496-040 LED,SLR-342MCT31 GRN
D107 87-A40-496-040 LED,SLR-342MCT31 GRN
D109 87-A40-496-040 LED,SLR-342MCT31 GRN
D111 87-A40-496-040 LED,SLR-342MCT31 GRN
D113 87-A40-496-040 LED,SLR-342MCT31 GRN
D115 87-A40-496-040 LED,SLR-342MCT31 GRN
D117 87-A40-496-040 LED,SLR-342MCT31 GRN
FL101 8Z-AR1-602-010 FL,BJ691 GK
LED101 87-A40-317-080 LED,SLR-342VCT31 RED
LED104 87-A40-317-080 LED,SLR-342VCT31 RED
LED106 87-A40-317-080 LED,SLR-342VCT31 RED
LED108 87-A40-317-080 LED,SLR-342VCT31 RED
LED110 87-A40-317-080 LED,SLR-342VCT31 RED
LED112 87-A40-317-080 LED,SLR-342VCT31 RED
LED114 87-A40-317-080 LED,SLR-342VCT31 RED
LED116 87-A40-317-080 LED,SLR-342VCT31 RED
LED119 87-A40-317-080 LED,SLR-342VCT31 RED
S101 87-A90-095-080 SW,TACT EVQ11G04M
S102 87-A90-095-080 SW,TACT EVQ11G04M
S103 87-A90-095-080 SW,TACT EVQ11G04M
S104 87-A90-095-080 SW,TACT EVQ11G04M
S105 87-A90-095-080 SW,TACT EVQ11G04M
S106 87-A90-095-080 SW,TACT EVQ11G04M
S107 87-A90-095-080 SW,TACT EVQ11G04M
S108 87-A90-095-080 SW,TACT EVQ11G04M
S109 87-A90-095-080 SW,TACT EVQ11G04M
S110 87-A90-095-080 SW,TACT EVQ11G04M
S111 87-A90-095-080 SW,TACT EVQ11G04M
S112 87-A90-095-080 SW,TACT EVQ11G04M
S113 87-A90-095-080 SW,TACT EVQ11G04M
S114 87-A90-095-080 SW,TACT EVQ11G04M
S115 87-A90-095-080 SW,TACT EVQ11G04M
S116 87-A90-095-080 SW,TACT EVQ11G04M
SW101 87-A90-535-010 SW,RTRY EC16B24304
SW102 87-A90-950-010 SW,RTRY EC12E12504 ENCORDER
X101 87-A70-075-080 VIB,CER 4.19MHZ CRHF

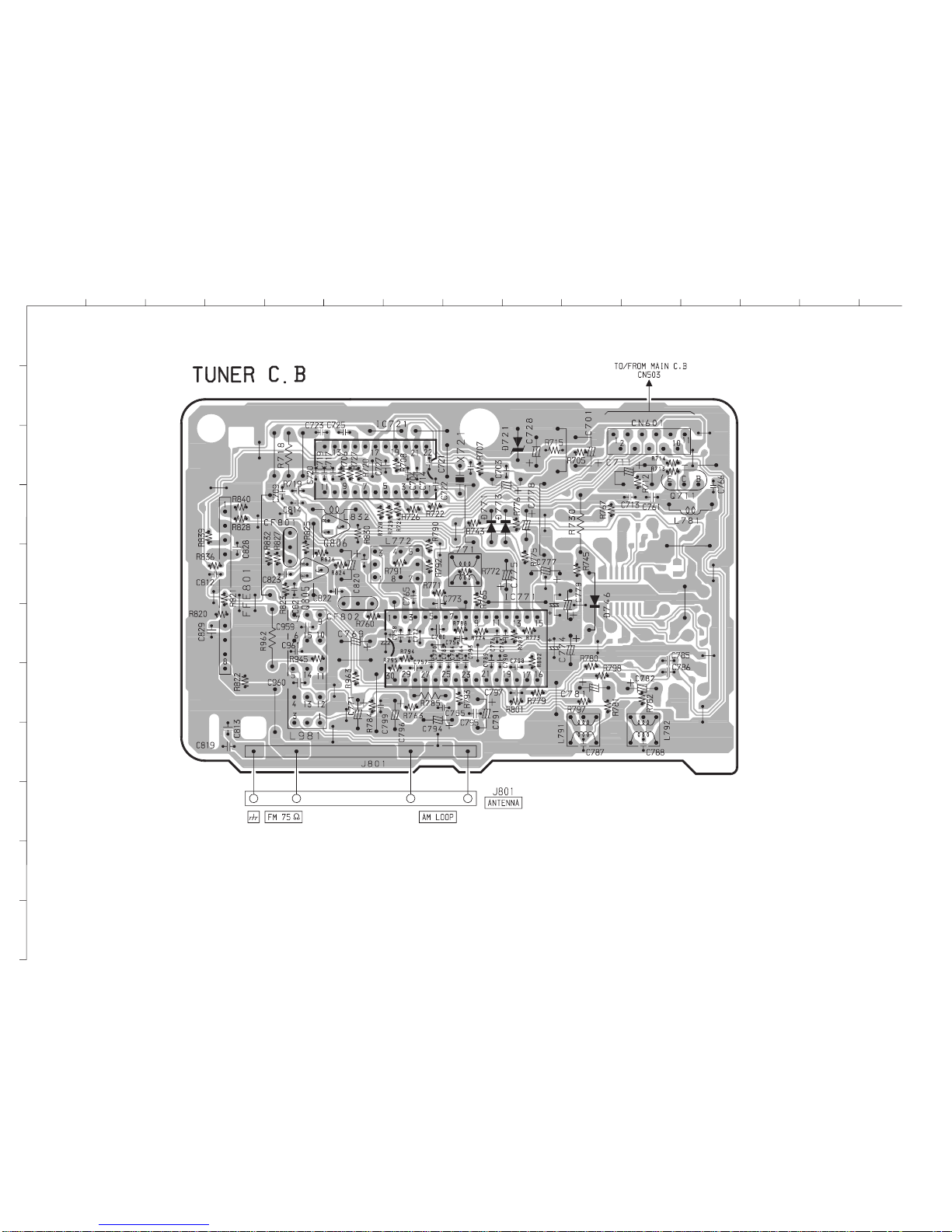

TUNER C.B
C701 87-010-260-080 CAP, ELECT 47-25V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-012-286-080 CAP, U 0.01-25
C704 87-012-286-080 CAP, U 0.01-25
C711 87-010-263-080 CAP, ELECT 100-10V
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-012-286-080 CAP, U 0.01-25
C714 87-012-286-080 CAP, U 0.01-25
C717 87-012-286-080 CAP, U 0.01-25
C719 87-012-286-080 CAP, U 0.01-25
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C723 87-010-401-080 CAP, ELECT 1-50V
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C726 87-010-405-080 CAP, ELECT 10-50V
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C755 87-012-286-080 CAP, U 0.01-25
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C765 87-012-286-080 CAP, U 0.01-25
C766 87-012-286-080 CAP, U 0.01-25
C769 87-010-260-080 CAP, ELECT 47-25V
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25V
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-012-286-080 CAP, U 0.01-25
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-805-080 CAP, S 1-16
C786 87-010-805-080 CAP, S 1-16
C787 87-012-280-080 CAP, U 3300P-50
C788 87-012-280-080 CAP, U 3300P-50
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-596-080 CAP, S 0.047-16
C796 87-010-403-080 CAP, ELECT 3.3-50V
C797 87-012-276-080 CAP, CHIP SS 1500 PBK
C798 87-012-276-080 CAP, CHIP SS 1500 PBK
C799 87-010-829-080 CAP, U 0.047-16
C812 87-012-286-080 CAP, U 0.01-25
C813 87-010-197-080 CAP, CHIP 0.01 DM
C814 87-012-286-080 CAP, U 0.01-25
C819 87-010-197-080 CAP, CHIP 0.01 DM
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 CAP, U 0.01-25
C822 87-012-286-080 CAP, U 0.01-25
C823 87-012-286-080 CAP, U 0.01-25

7
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-170-080 C-CAP,U 8P-50 CH
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN601 87-099-028-010 CONN,11P 6216 H
FFE801 A8-8ZA-190-030 8ZA-1 FEUNM
J801 87-A60-657-010 TERMINAL,4P HSP-154V5-02
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-733-010 FLTR,PCFAZH-450 (TOK)
L781 87-005-847-080 COIL,2.2UH(CECS)
L791 87-A50-027-010 COIL,1 POLE MPX(TOK)
L792 87-A50-027-010 COIL,1 POLE MPX(TOK)
L832 87-005-847-080 COIL,2.2UH(CECS)
L981 87-NF4-650-010 COIL,AM PACK 4N(TOK)
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
DOLBY DIGITAL C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-010-374-080 CAP, ELECT 47-10V
C103 87-010-314-080 C-CAP,S 22P-50V
C104 87-010-313-080 CAP, CHIP 18P
C105 87-010-196-080 CHIP CAPACITOR,0.1-25
C106 87-010-197-080 CAP, CHIP 0.01 DM
C107 87-010-196-080 CHIP CAPACITOR,0.1-25
C108 87-010-196-080 CHIP CAPACITOR,0.1-25
C109 87-010-196-080 CHIP CAPACITOR,0.1-25
C110 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-010-196-080 CHIP CAPACITOR,0.1-25
C112 87-010-404-080 CAP, ELECT 4.7-50V
C113 87-010-196-080 CHIP CAPACITOR,0.1-25
C114 87-010-196-080 CHIP CAPACITOR,0.1-25
C115 87-010-374-080 CAP, ELECT 47-10V
C116 87-012-140-080 CAP 470P
C117 87-010-198-080 CAP, CHIP 0.022
C118 87-010-401-080 CAP, ELECT 1-50V
C119 87-010-196-080 CHIP CAPACITOR,0.1-25
C120 87-010-196-080 CHIP CAPACITOR,0.1-25
C121 87-010-401-080 CAP, ELECT 1-50V
C122 87-010-311-080 CAP 12P
C123 87-010-311-080 CAP 12P
C124 87-010-263-080 CAP, ELECT 100-10V
C125 87-010-196-080 CHIP CAPACITOR,0.1-25
C126 87-010-196-080 CHIP CAPACITOR,0.1-25
C127 87-010-555-040 CAP,E 100-10 GAS
C128 87-010-196-080 CHIP CAPACITOR,0.1-25
C129 87-010-384-080 CAP, ELECT 100-25V
C130 87-010-182-080 C-CAP,S 2200P-50 B
C131 87-010-263-080 CAP, ELECT 100-10V
C132 87-010-401-080 CAP, ELECT 1-50V
C133 87-010-196-080 CHIP CAPACITOR,0.1-25
C134 87-010-196-080 CHIP CAPACITOR,0.1-25
C135 87-010-405-080 CAP, ELECT 10-50V
C136 87-010-405-080 CAP, ELECT 10-50V
C137 87-010-196-080 CHIP CAPACITOR,0.1-25
C138 87-010-196-080 CHIP CAPACITOR,0.1-25
C139 87-010-314-080 C-CAP,S 22P-50V
C140 87-010-552-040 CAP,E 22-16 GAS
C141 87-010-196-080 CHIP CAPACITOR,0.1-25
C142 87-010-182-080 C-CAP,S 2200P-50 B
C143 87-010-196-080 CHIP CAPACITOR,0.1-25
C144 87-010-312-080 C-CAP,S 15P-50 CH
C145 87-012-154-080 C-CAP,S 150P-50 CH
C146 87-012-154-080 C-CAP,S 150P-50 CH
C147 87-010-405-080 CAP, ELECT 10-50V
C148 87-010-196-080 CHIP CAPACITOR,0.1-25
C149 87-010-196-080 CHIP CAPACITOR,0.1-25
C150 87-010-405-080 CAP, ELECT 10-50V
C151 87-010-405-080 CAP, ELECT 10-50V
C152 87-010-405-080 CAP, ELECT 10-50V
C153 87-010-178-080 CHIP CAP 1000P
C154 87-010-178-080 CHIP CAP 1000P
C155 87-A10-369-080 C-CAP,S 0.47-16 K B
C157 87-012-154-080 C-CAP,S 150P-50 CH
C158 87-012-154-080 C-CAP,S 150P-50 CH
C159 87-010-178-080 CHIP CAP 1000P
C160 87-010-178-080 CHIP CAP 1000P
C161 87-010-405-080 CAP, ELECT 10-50V
C162 87-010-405-080 CAP, ELECT 10-50V
C163 87-010-196-080 CHIP CAPACITOR,0.1-25
C164 87-010-196-080 CHIP CAPACITOR,0.1-25
C165 87-A10-369-080 C-CAP,S 0.47-16 K B
C166 87-010-405-080 CAP, ELECT 10-50V
C167 87-010-405-080 CAP, ELECT 10-50V
C169 87-012-154-080 C-CAP,S 150P-50 CH
C170 87-012-154-080 C-CAP,S 150P-50 CH
C171 87-010-178-080 CHIP CAP 1000P
C172 87-010-178-080 CHIP CAP 1000P
C173 87-018-209-080 CAP, CER 0.1-50V
C174 87-010-196-080 CHIP CAPACITOR,0.1-25
C175 87-010-196-080 CHIP CAPACITOR,0.1-25
C176 87-010-196-080 CHIP CAPACITOR,0.1-25
C177 87-A10-369-080 C-CAP,S 0.47-16 K B
C178 87-010-196-080 CHIP CAPACITOR,0.1-25
C179 87-010-196-080 CHIP CAPACITOR,0.1-25
C180 87-010-405-080 CAP, ELECT 10-50V
C181 87-010-405-080 CAP, ELECT 10-50V
C182 87-010-405-080 CAP, ELECT 10-50V
C183 87-010-196-080 CHIP CAPACITOR,0.1-25
C184 87-010-196-080 CHIP CAPACITOR,0.1-25
C185 87-010-405-080 CAP, ELECT 10-50V
C186 87-010-405-080 CAP, ELECT 10-50V
C187 87-016-083-080 C-CAP,S 0.15-16 RK
C188 87-016-083-080 C-CAP,S 0.15-16 RK
C189 87-016-083-080 C-CAP,S 0.15-16 K R
C190 87-010-405-080 CAP, ELECT 10-50V
C191 87-010-196-080 CHIP CAPACITOR,0.1-25
C192 87-010-196-080 CHIP CAPACITOR,0.1-25
C193 87-010-154-080 CAP CHIP 10P
C194 87-010-154-080 CAP CHIP 10P
C195 87-010-405-080 CAP, ELECT 10-50V
C196 87-010-196-080 CHIP CAPACITOR,0.1-25
C197 87-010-405-080 CAP, ELECT 10-50V
C198 87-010-196-080 CHIP CAPACITOR,0.1-25
C199 87-A10-369-080 C-CAP,S 0.47-16 K B
C201 87-010-154-080 CAP CHIP 10P
C202 87-010-154-080 CAP CHIP 10P
C203 87-010-196-080 CHIP CAPACITOR,0.1-25
C204 87-010-196-080 CHIP CAPACITOR,0.1-25
C205 87-A10-369-080 C-CAP,S 0.47-16 K B
C206 87-010-401-080 CAP, ELECT 1-50V
C207 87-010-405-080 CAP, ELECT 10-50V
C208 87-010-405-080 CAP, ELECT 10-50V
C209 87-010-154-080 CAP CHIP 10P
C210 87-010-154-080 CAP CHIP 10P
C211 87-010-196-080 CHIP CAPACITOR,0.1-25
C212 87-010-196-080 CHIP CAPACITOR,0.1-25
C213 87-A10-369-080 C-CAP,S 0.47-16 K B
C214 87-010-405-080 CAP, ELECT 10-50V
C215 87-010-405-080 CAP, ELECT 10-50V
C216 87-010-405-080 CAP, ELECT 10-50V
C219 87-010-993-080 C-CAP,S 0.056-25 B
C220 87-A10-369-080 C-CAP,S 0.47-16 K B
C222 87-010-196-080 CHIP CAPACITOR,0.1-25
C224 87-010-196-080 CHIP CAPACITOR,0.1-25
C225 87-012-155-080 C-CAP 180P-50CH
C226 87-012-155-080 C-CAP 180P-50CH

8
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C227 87-010-405-080 CAP, ELECT 10-50V
C228 87-010-405-080 CAP, ELECT 10-50V
C230 87-010-196-080 CHIP CAPACITOR,0.1-25
C232 87-010-196-080 CHIP CAPACITOR,0.1-25
C234 87-010-196-080 CHIP CAPACITOR,0.1-25
C235 87-010-196-080 CHIP CAPACITOR,0.1-25
C236 87-010-196-080 CHIP CAPACITOR,0.1-25
C237 87-010-196-080 CHIP CAPACITOR,0.1-25
C238 87-010-314-080 C-CAP,S 22P-50V
C239 87-010-196-080 CHIP CAPACITOR,0.1-25
C240 87-010-314-080 C-CAP,S 22P-50V
C241 87-010-405-080 CAP, ELECT 10-50V
C242 87-010-196-080 CHIP CAPACITOR,0.1-25
C243 87-010-322-080 C-CAP,S 100P-50 CH
C244 87-010-196-080 CHIP CAPACITOR,0.1-25
C280 87-010-401-080 CAP, ELECT 1-50V
C301 87-012-393-080 C-CAP,S 0.22-16 R K
C302 87-012-393-080 C-CAP,S 0.22-16 R K
C303 87-010-196-080 CHIP CAPACITOR,0.1-25
C304 87-012-393-080 C-CAP,S 0.22-16 R K
C305 87-010-184-080 CHIP CAPACITOR 3300P(K)
C306 87-010-183-080 C-CAP,S 2700P-50 B
C307 87-016-669-080 C-CAP,S 0.1-25 K B
C308 87-016-669-080 C-CAP,S 0.1-25 K B
C309 87-010-184-080 CHIP CAPACITOR 3300P(K)
C310 87-010-183-080 C-CAP,S 2700P-50 B
C311 87-012-393-080 C-CAP,S 0.22-16 R K
C312 87-010-374-080 CAP, ELECT 47-10V
C315 87-010-404-080 CAP, ELECT 4.7-50V
C316 87-010-404-080 CAP, ELECT 4.7-50V
C317 87-010-183-080 C-CAP,S 2700P-50 B
C318 87-010-183-080 C-CAP,S 2700P-50 B
C319 87-010-545-080 CAP, ELECT 0.22-50V
C320 87-010-196-080 CHIP CAPACITOR,0.1-25
C321 87-010-263-080 CAP, ELECT 100-10V
C401 87-010-196-080 CHIP CAPACITOR,0.1-25
C402 87-010-404-080 CAP, ELECT 4.7-50V
C403 87-010-401-080 CAP, ELECT 1-50V
C404 87-018-131-080 CAP, CER 1000P-50V
C405 87-018-131-080 CAP, CER 1000P-50V
CN101 87-099-561-010 CONN,15P TUC-P15X-B1
CN102 87-099-561-010 CONN,15P TUC-P15X-B1
CN103 8Z-AR1-635-010 CONN ASSY,4P (DTS,AC-3)
FB102 87-008-372-080 FILTER, EMI BL OIRNI
FB104 87-008-372-080 FILTER, EMI BL OIRNI
FB105 87-008-372-080 FILTER, EMI BL OIRNI
FB106 87-008-372-080 FILTER, EMI BL OIRNI
FB107 87-008-474-080 F-BEAD,EMI BL02RN1
FB108 87-008-474-080 F-BEAD,EMI BL02RN1
FB109 87-008-474-080 F-BEAD,EMI BL02RN1
J101 87-A60-573-010 JACK,PIN 1P ORN
JR157 87-005-840-080 C-COIL,BLM21A10
JR160 87-005-840-080 C-COIL,BLM21A10
L102 87-A50-095-010 COIL,68UH RCR875D
L103 87-005-274-080 COIL,68UH K LAL03
L104 87-008-501-080 FLTR,DSS306-B101
L105 87-008-501-080 FLTR,DSS306-B101
L106 87-003-097-080 COIL,1UH
L107 87-005-840-080 C-COIL,BLM21A10
L108 87-008-501-080 FLTR,DSS306-B101
X101 87-A70-116-010 VIB,XTAL 10.00MHZ
X102 87-A70-115-010 VIB,XTAL 12.288MHZ
VIDEO C.B
C101 87-018-131-080 CAP, CER 1000P-50V
C102 87-010-186-080 CAP,CHIP 4700P
C501 87-018-209-080 CAP, CER 0.1-50V
C502 87-018-209-080 CAP, CER 0.1-50V
C503 87-010-188-080 CAP,CHIP 6800P
C504 87-010-188-080 CAP,CHIP 6800P
C507 87-018-209-080 CAP, CER 0.1-50V
CN401 87-099-758-010 CONN,17P H 9604
FB501 87-008-372-080 FILTER, EMI BL OIRNI
FB602 87-008-372-080 FILTER, EMI BL OIRNI
J501 87-A60-948-010 JACK,PIN 3P R/W/Y GLD
J603 87-A60-550-010 JACK,DIA6.3 BLK ST W/SW KM
LED401 87-A40-317-080 LED,SLR-342VCT31 RED
S401 87-A90-095-080 SW,TACT EVQ11G04M
S402 87-A90-095-080 SW,TACT EVQ11G04M
S403 87-A90-095-080 SW,TACT EVQ11G04M
SW401 87-A91-373-010 SW,RTRY EC16B1220408
GEQ C.B
C758 87-010-404-080 CAP, ELECT 4.7-50V
C759 87-012-368-080 C-CAP,S 0.1-50 F
C761 87-010-198-080 CAP, CHIP 0.022
C762 87-010-197-080 CAP, CHIP 0.01 DM
C764 87-010-185-080 C-CAP,S 3900P-50 B
C765 87-010-194-080 CAP, CHIP 0.047
C766 87-010-181-080 CAP,CHIP S 1800P
C767 87-010-198-080 CAP, CHIP 0.022
C768 87-010-994-080 C-CAP,S 680P-50 CH
C769 87-010-188-080 CAP,CHIP 6800P
C770 87-012-145-080 CAP, CHIP S 270P CH
C771 87-010-183-080 C-CAP,S 2700P-50 B
C772 87-012-145-080 CAP, CHIP S 270P CH
C773 87-010-188-080 CAP,CHIP 6800P
C774 87-010-994-080 C-CAP,S 680P-50 CH
C775 87-010-198-080 CAP, CHIP 0.022
C776 87-010-181-080 CAP,CHIP S 1800P
C777 87-010-194-080 CAP, CHIP 0.047
C778 87-010-185-080 C-CAP,S 3900P-50 B
C780 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-183-080 C-CAP,S 2700P-50 B
C783 87-010-198-080 CAP, CHIP 0.022
C786 87-010-402-080 CAP, ELECT 2.2-50V
C787 87-010-402-080 CAP, ELECT 2.2-50V
C788 87-010-260-080 CAP, ELECT 47-25V
C789 87-010-260-080 CAP, ELECT 47-25V
C790 87-010-260-080 CAP, ELECT 47-25V
C791 87-010-405-080 CAP, ELECT 10-50V
C792 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-368-080 C-CAP,S 0.1-50 F
C794 87-012-368-080 C-CAP,S 0.1-50 F
C797 87-010-322-080 C-CAP,S 100P-50 CH
C798 87-010-322-080 C-CAP,S 100P-50 CH
C799 87-010-322-080 C-CAP,S 100P-50 CH
CN701 87-099-557-010 CONN,11P TUC-P11X-B1
R773 87-010-188-080 CAP,CHIP 6800P
OSD/KEY CON C.B
C652 87-010-196-080 CHIP CAPACITOR,0.1-25
C653 87-012-154-080 C-CAP,S 150P-50 CH
C654 87-010-183-080 C-CAP,S 2700P-50 B
C655 87-010-196-080 CHIP CAPACITOR,0.1-25
C656 87-012-154-080 C-CAP,S 150P-50 CH
C657 87-010-183-080 C-CAP,S 2700P-50 B
C658 87-012-145-080 CAP, CHIP S 270P CH
C659 87-010-177-080 C-CAP,S 820P-50 SL
C670 87-012-145-080 CAP, CHIP S 270P CH
C671 87-010-177-080 C-CAP,S 820P-50 SL
C672 87-010-196-080 CHIP CAPACITOR,0.1-25
C674 87-010-196-080 CHIP CAPACITOR,0.1-25
C675 87-010-263-080 CAP, ELECT 100-10V
C676 87-010-374-080 CAP, ELECT 47-10V
CN508 87-099-669-010 CONN,8P TUC-P8X-B1

9
REF. NO PART NO. KANRI DESCRIPTION
NO.
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
88
A

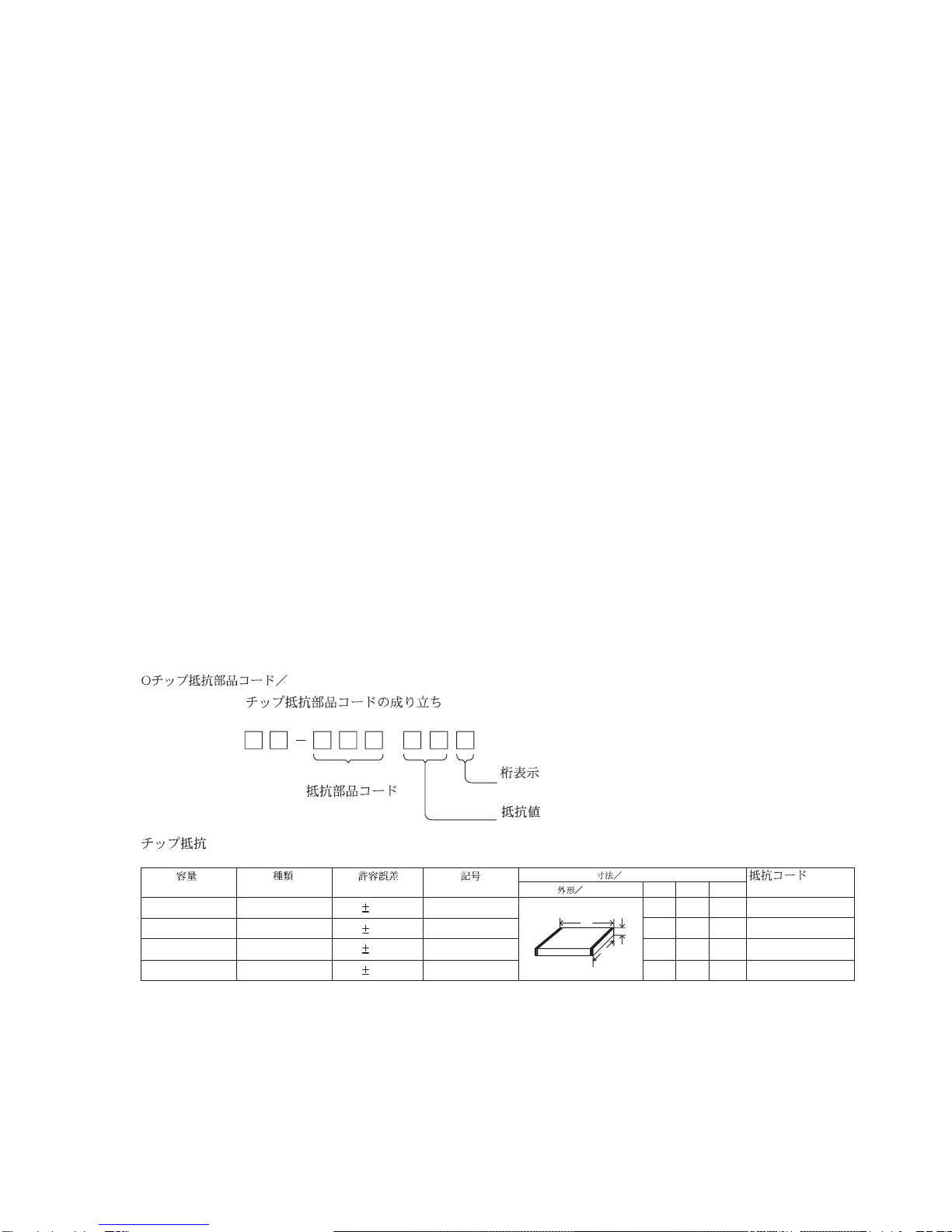

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
D650 87-070-136-080 ZENER,MTZJ5.1B
MIC C.B
C601 87-010-196-080 CHIP CAPACITOR,0.1-25
C602 87-010-560-040 CAP,E 10-50 GAS
C603 87-010-491-040 CAP,E 0.22-50 GAS
C604 87-A10-189-040 CAP,E 220-10
C605 87-010-322-080 C-CAP,S 100P-50 CH
C606 87-010-321-080 CHIP CAPACITOR,82P(J)
C607 87-010-196-080 CHIP CAPACITOR,0.1-25
C608 87-010-186-080 CAP,CHIP 4700P
C609 87-010-188-080 CAP,CHIP 6800P
C610 87-010-560-040 CAP,E 10-50 GAS
C611 87-010-322-080 C-CAP,S 100P-50 CH
C612 87-010-177-080 C-CAP,S 820P-50 SL
C613 87-010-552-040 CAP,E 22-16 GAS
C614 87-015-695-040 E/CAP 1UF 50V TAPG
CN601 87-009-362-010 CONN,6P,BTMK P-1R
J601 87-A60-188-010 JACK,6.3 BLK MONO W/SW MIC
J602 87-A60-188-010 JACK,6.3 BLK MONO W/SW MIC
PT C.B
C1 87-010-387-010 CAP, ELECT 25-470SME
C2 87-010-403-080 CAP, ELECT 3.3-50V
C3 87-018-209-080 CAP, CER 0.1-50V
C4 87-018-209-080 CAP, CER 0.1-50V
C7 87-A10-922-090 CAP,CER 0.01-250 M F KH
C13 87-018-209-080 CAP, CER 0.1-50V
CN101 88-805-042-690 CONN ASSY,4P
CN103 87-A60-851-010 CONN,9P V VH
! PR105 87-A90-195-080 PROTECTOR 7A 125V 49
! PR106 87-A90-195-080 PROTECTOR 7A 125V 49
! PR115 87-A90-195-080 PROTECTOR 7A 125V 49
! PR116 87-A90-195-080 PROTECTOR 7A 125V 49
! PT2 8Z-NF8-663-010 PT,SUB ZNF-8(H)
! PT101 8Z-AR1-610-010 PT,ZAR-1(HR)
! RY1 87-A90-454-010 RELAY,12V DJ12D2-O(M)
AC-SW C.B
! 87-A60-317-010 TERMINAL, 1P MSC
! 87-033-147-010 FUSE CLAMP
! F101 87-035-370-010 FUSE, 6.3A 250V
! F102 87-035-370-010 FUSE, 6.3A 250V
! SW101 87-A90-165-010 SW,SL 1-2-3 SWS2301
SPKR C.B
CN201 87-099-799-010 CONN,8P B8P-VH
CN202 87-009-663-010 CONN,6P VH V
J901 87-033-211-010 TERMINAL, 8P SPKR0820
J902 87-A60-965-010 TERMINAL,SP 6P LTS0620
REF. NO PART NO. KANRI DESCRIPTION
NO.

10
TRANSISTOR ILLUSTRATION
E C B
2SC4115
E C B
2SA1296
CC5551
CSD1489
DTC114ES
KTA1266GR
KTA1267GR
KTC3198GR
BCEBCE
2SB1370
2SB1375
FN 1016
FP 1016
KTC3199GR
GS
D
2SK2158
2SK2937
BE
C
2SA1037
2SA1235
2SC2714
2SC3052
2SD1306
CMBT5401
CMBT5551
CSA1362
DTA144WK
DTC124EK
RN1410
RT1N141C
RT1N144C
RT1P141C
RT1P144C
DTA114YS
