S E R V I C E M A N U A L
SIMPLE MANUAL
• Replace this Service Manual with ”Revision Publishing” when it is issued.
FR-AQ505
• TYPE:
S/M Code No. 09–995–331–9T1
RADIO RECEIVER
HJB,HJW(207)
EZ
FR-A506

ELECTRICAL MAIN PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
AQ505EZ ................XX..................................A...................
A506EZ .................XX...................................B..................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-RU7-619-010 SOCKET,2P BATTERY AB..................
C 101 88-RU7-635-010 CAP,CER 30P-50 J CH AB..................
C 102 88-RU7-635-010 CAP,CER 30P-50 J CH AB..................
C 103 88-RU7-635-010 CAP,CER 30P-50 J CH AB..................
C 109 88-RU7-635-010 CAP,CER 30P-50 J CH AB..................
C 119 87-010-101-010 0E CAP, ELECT 220-16V AB..................
C 116 87-010-380-010 0E CAP,E 47-16 SME AB..................
C 129 87-010-101-010 0E CAP, ELECT 220-16V AB..................
C 127 87-010-101-010 0E CAP, ELECT 220-16V AB..................
C 125 87-010-380-010 0E CAP,E 47-16 SME AB..................
C 134 87-010-380-010 0E CAP,E 47-16 SME AB..................
C 135 88-218-412-010 CAP,CER 100P-50 K YB AB..................
C 136 88-RU7-636-010 CAP,CER 130P-50 K YB AB..................
C 202 87-010-101-010 0E CAP, ELECT 220-16V AB..................
C 203 87-010-378-010 0E CAP, ELECT 10-16SME AB..................
C 214 87-010-235-010 0E ELECTROLYTIC, 470-16 AB..................
C 215 87-010-380-010 0E CAP,E 47-16 SME AB..................
C 213 87-010-401-010 0E CAP, ELECT 1-50V AB..................
C 303 87-010-101-010 0E CAP, ELECT 220-16V A...................
C 304 87-010-101-010 0E CAP, ELECT 220-16V A...................
C 305 87-010-112-010 0E CAP,ELECT 100-16V A...................
C 307 88-254-122-010 0E CAP CERA,NPO,12P A...................
C 401 87-010-379-010 0E CAP ELECT 22-16 SME AB..................
C 704 88-218-462-010 CAP,CER 180P-50 K YB ....................
C 703 88-RU7-635-010 CAP,CER 30P-50 J CH ....................
C 705 88-RU7-637-010 CAP,CER 250P-50 K YB ....................
D 101 87-070-345-080 0E DIODE,IN4148 AB..................
D 102 87-070-345-080 0E DIODE,IN4148 AB..................
D 207 87-070-345-080 0E DIODE,IN4148 AB..................
D 209 87-070-345-080 0E DIODE,IN4148 AB..................
D 206 87-070-345-080 0E DIODE,IN4148 AB..................
D 208 87-070-345-080 0E DIODE,IN4148 AB..................
D 205 87-070-345-080 0E DIODE,IN4148 AB..................
D 204 87-070-345-080 0E DIODE,IN4148 AB..................
D 203 87-A40-398-010 0E DIODE,1N4001 AB..................
D 202 87-A40-398-010 0E DIODE,1N4001 AB..................
D 201 87-A40-475-010 ZENER,MTZJ3.9A AB..................
D 210 87-070-345-080 0E DIODE,IN4148 AB..................
D 213 87-070-345-080 0E DIODE,IN4148 AB..................
D 215 87-A40-398-010 0E DIODE,1N4001 AB..................
D 214 87-A40-398-010 0E DIODE,1N4001 AB..................
D 216 87-A40-398-010 0E DIODE,1N4001 AB..................
D 211 87-A40-398-010 0E DIODE,1N4001 AB..................
D 212 87-A40-476-010 ZENER,MTZJ6.2A AB..................
D 221 87-070-345-080 0E DIODE,IN4148 AB..................
D 222 87-070-345-080 0E DIODE,IN4148 AB..................
D 223 87-070-345-080 0E DIODE,IN4148 AB..................
D 407 87-070-288-010 0E LED,GL380 AB..................
D 401 87-070-345-080 0E DIODE,IN4148 AB..................
D 402 87-070-345-080 0E DIODE,IN4148 AB..................
D 405 87-070-345-080 0E DIODE,IN4148 AB..................
IC 101 87-A20-898-010 IC,TDA1083 AB..................
IC 201 87-A20-899-010 IC,LM8562 AB..................
IC 401 88-RU7-644-010 IC,TC74HC4060 A...................
J 101 87-A60-477-010 JACK,DIA3.6 MONO W TC38-096 AB..................
L 107 87-003-146-080 0E COIL,15UH LAL02 AB..................
L 105 88-RU7-607-010 BAR-ANT,MW A...................

ELECTRICAL MAIN PARTS LIST - 2
L 105 88-RU7-608-010 BAR-ANT,LW-MW ....................
L 101 88-RU7-626-010 COIL,RF 4.5X3.5T AB..................
L 102 88-RU7-626-010 COIL,RF 4.5X3.5T AB..................
L 103 88-RU7-627-010 COIL,RF 3X9.5T AB..................
L 104 88-RU7-628-010 COIL,OSC 4.5X2.5T AB..................
L 108 88-RU7-633-010 COIL,FB-6T AB..................
L 202 88-RU7-641-010 COIL,15UH AB..................
L 201 88-RU7-642-010 COIL,100UH AB..................
L 301 87-003-147-080 0E COIL, 22UH A...................
LED 201 88-RU7-606-010 LED,LY-14055X GRN AB..................
PT 101 88-RU7-616-010 PT,U ....................
PT 101 88-RU7-617-010 PT,EZ AB..................
PT 101 88-RU7-618-010 PT,LH ....................
PT 101 88-RU7-638-010 PT,K ....................
PT 101 88-RU7-643-010 PT,D ....................
Q 102 89-319-233-010 0E TR,2SC1923 (0.1W) AB..................
Q 101 89-319-233-010 0E TR,2SC1923 (0.1W) AB..................
Q 201 89-318-155-010 0E TR,2SC1815(GR) AB..................
Q 303 89-110-155-010 0E TR,2SA1015GR(80MHZ,0.4) A...................
Q 301 89-110-155-010 0E TR,2SA1015GR(80MHZ,0.4) A...................
Q 302 89-110-155-010 0E TR,2SA1015GR(80MHZ,0.4) A...................
Q 304 89-418-580-080 0E TR,2SD1858 TV2 A...................
Q 305 89-418-580-080 0E TR,2SD1858 TV2 A...................
Q 406 87-A30-031-010 1A P-TR,PT380F AB..................
Q 405 89-110-155-010 0E TR,2SA1015GR(80MHZ,0.4) AB..................
Q 401 89-211-821-080 1A CHIP-TR 2SB1182Q AB..................
Q 402 89-211-821-080 1A CHIP-TR 2SB1182Q AB..................
Q 404 89-318-155-010 0E TR,2SC1815(GR) AB..................
Q 403 89-318-155-010 0E TR,2SC1815(GR) AB..................
Q 701 89-319-233-010 0E TR,2SC1923 (0.1W) ....................
S 101 87-036-413-010 0E SW,SL 2-2-2 AB..................
S 101 87-A90-779-010 SW,SL 2-4-3 SSSF143 ....................
S 204 87-036-385-010 0E SW,TACT SKHHLM AB..................
S 203 87-036-385-010 0E SW,TACT SKHHLM AB..................
S 206 87-036-385-010 0E SW,TACT SKHHLM AB..................
S 205 87-036-385-010 0E SW,TACT SKHHLM AB..................
S 201 87-036-385-010 0E SW,TACT SKHHLM AB..................
S 202 87-036-385-010 0E SW,TACT SKHHLM AB..................
S 207 87-A90-779-010 SW,SL 2-4-3 SSSF143 AB..................
S 208 87-A90-780-010 SW,SL 2-2-4 SSSS224 AB..................
S 401 87-A90-778-010 SW,SL 2-2-3 SS-337-B23 AB..................
S 401 88-RU7-632-010 SW,SL 1-1-2 SS12J01M-A-65 ....................
S 501 88-RU7-640-010 SW,SL 1-1-2 SK-12DO2-GA-TA ....................
SP 101 87-RT2-614-010 SPKR,DIA50 16OHM 0.5W AB..................
SP 102 87-RT2-614-010 SPKR,DIA50 16OHM 0.5W AB..................
T 101 88-RU7-610-010 IFT,FM-IF 10MM ORG AB..................
T 102 88-RU7-611-010 IFT,FM-IF 10MM GRN AB..................
T 103 88-RU7-612-010 IFT,AM-IF 10MM YEL AB..................
T 104 88-RU7-613-010 IFT,AM-IF 10MM WHT AB..................
T 105 88-RU7-614-010 IFT,FM-IF 10MM PNK AB..................
T 106 88-RU7-615-010 IFT,AM-OSC 10MM RED AB..................
TC 701 88-RU7-639-010 TRIMMER,30P 6X6 ....................
TC 702 88-RU7-639-010 TRIMMER,30P 6X6 ....................
VC 101 88-RU7-629-010 TUN-CAP,20P-160P 20X20 U ....................
VC 101 88-RU7-631-010 TUN-CAP,20P-140P 20X20 EZ AB..................
VR 101 87-A90-758-010 VR,RTRY 50KA H XV092 AB..................
X 301 88-RU7-645-010 VIB,XTAL 51.2KHZ A...................
IC 101 87-A21-200-010 1D IC,LM8562 AB..................

MECHANICAL PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
AQ505EZ ................XX..................................A...................
A506EZ .................XX...................................B..................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-B10-156-010 VT2+3-8 AB..................
87-B10-158-010 VT2+3-6 AB..................
87-B10-160-010 UT2+2-6 AB..................
87-B10-161-010 U+2.6-5 AB..................
87-B10-162-010 0E VFT2+2-6 AB..................
87-B10-182-010 VFT2+3-18 AB..................
87-B10-192-010 VT2+3-10 W/0 NI AB..................
88-RU7-101-010 CABI,FRONT U B ....................
88-RU7-102-010 CABI,REAR B AB..................
88-RU7-103-010 LID,BATTERY B AB..................
88-RU7-104-010 WINDOW,DIAL U B ....................
88-RU7-105-010 KNOB,RTRY VOL B AB..................
88-RU7-106-010 BTN,SNOOZE B AB..................
88-RU7-107-010 BTN,CLOCK B AB..................
88-RU7-108-010 KNOB,SL ALARM B AB..................
88-RU7-109-010 KNOB,SL POWER B AB..................
88-RU7-110-010 KNOB,SL DEMER B AB..................
88-RU7-111-010 KNOB,RTRY TUN B AB..................
88-RU7-112-010 POINTER,DIAL AB..................
88-RU7-113-010 FOOT,CABI AB..................
88-RU7-114-010 KNOB,SL BAND B AB..................
88-RU7-115-010 WINDOW,SENSOR AB..................
88-RU7-116-010 CABI,FRONT K B ....................
88-RU7-117-010 WINDOW,DIAL K B ....................
88-RU7-118-010 CABI,FRONT EZ B ....................
88-RU7-119-010 WINDOW,DIAL EZ B A...................
88-RU7-120-010 CABI,FRONT LH B ....................
88-RU7-121-010 WINDOW,DIAL LH B ....................
88-RU7-122-010 CABI,FRONT HR B ....................
88-RU7-124-010 CABI,FRONT D B ....................
88-RU7-125-010 WINDOW,DIAL D B ....................
88-RU7-127-010 CABI,FRONT EZ2 B .B..................
88-RU7-128-010 WINDOW,DIAL EZ2 B .B..................
88-RU7-129-010 CABI,REAR D B ....................
88-RU7-130-010 BTN,SNOOZE D B ....................
88-RU7-131-010 CABI,FRONT V A...................
88-RU7-201-010 COVER, BATTERY U B AB..................
88-RU7-202-010 HLDR,POINTER AB..................
88-RU7-203-010 GEAR,POLYVARI AB..................
88-RU7-204-010 GEAR,TUN AB..................
88-RU7-205-010 GEAR,TUN JOINT AB..................
88-RU7-206-010 GEAR,POINTER AB..................
88-RU7-208-010 HLDR,SENSOR AB..................
88-RU7-209-010 GEAR,TUN POINTER AB..................
88-RU7-210-010 COVER, BATTERY LH/HE/HR B ....................
88-RU7-211-010 GUIDE,GEAR POINTER AB..................
88-RU7-619-010 SOCKET,2P BATTERY AB..................

ACCESSORIES LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
AQ505EZ ................XX..................................A...................
A506EZ .................XX...................................B..................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-RU7-917-010 IB,EZ(6L)C A506 .B..................
88-RU7-918-010 IB,EZ(PHNCZ)C A506 .B..................
88-RU7-927-010 IB,EZ(6L)C AQ505 A...................
88-RU7-928-010 IB,EZ(PHNCZ)C AQ505 A...................

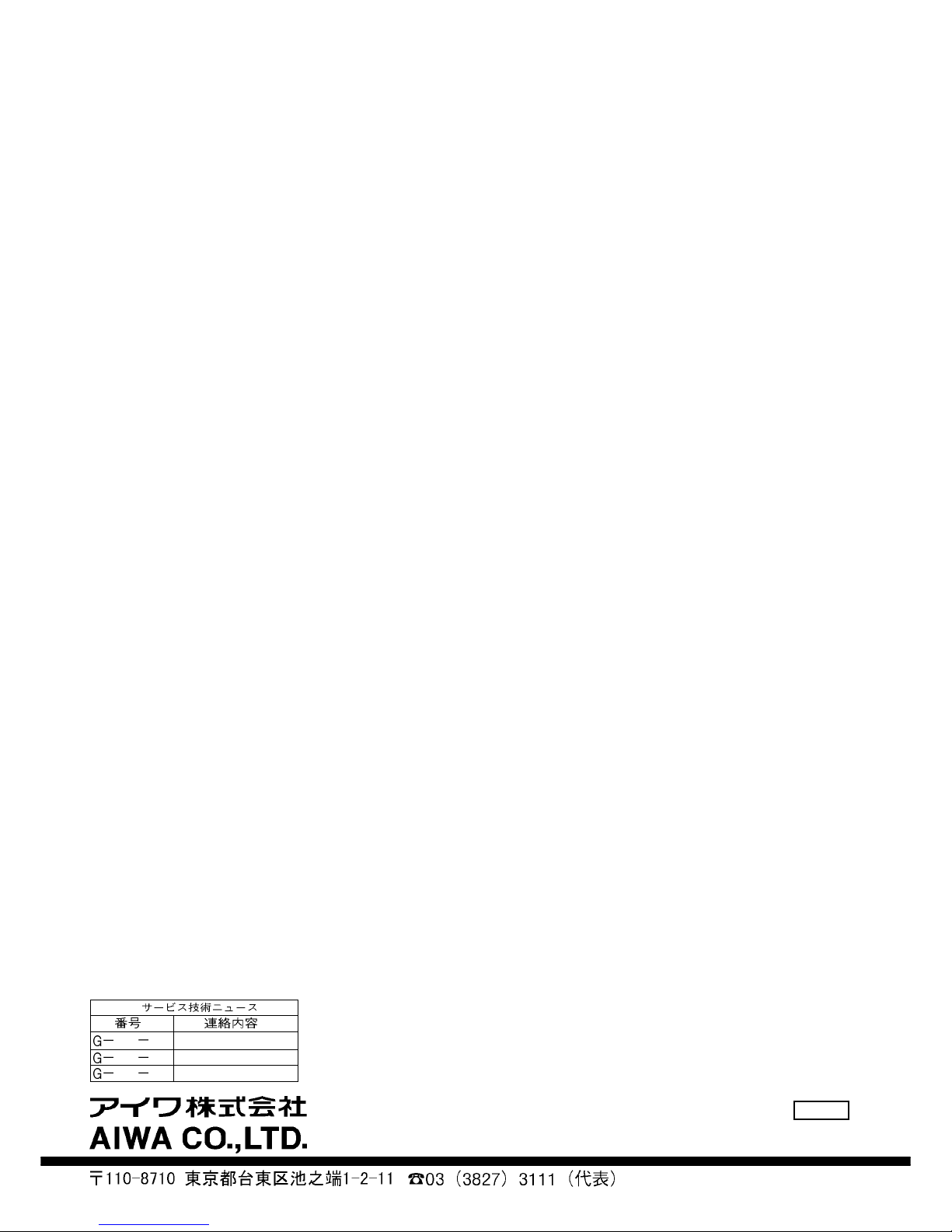

Printed in Singapore
Tokyo Japan
4
737004
