S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

TS-W45

• TYPE: U

S/M Code No. 09–991–403–7T1

ACTIVE SPEAKER

ELECTRICAL MAIN PARTS LIST - 1/2

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 103 87-018-209-080 CAP, CER 0.1-50V A...................

C 102 87-018-209-080 CAP, CER 0.1-50V A...................

C 209 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 201 87-010-246-080 CAP, ELECT 47-35V A...................

C 202 87-010-246-080 CAP, ELECT 47-35V A...................

C 205 87-010-384-080 CAP, ELECT 100-25V A...................

C 204 87-010-384-080 CAP, ELECT 100-25V A...................

C 206 87-010-384-080 CAP, ELECT 100-25V A...................

C 203 87-010-384-080 CAP, ELECT 100-25V A...................

C 207 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 208 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 212 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 211 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 210 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 213 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 214 87-010-406-080 CAP, ELECT 22-50 A...................

C 215 87-010-406-080 CAP, ELECT 22-50 A...................

C 305 87-010-260-080 CAP, ELECT 47-25V A...................

C 301 87-010-401-080 CAP, ELECT 1-50V A...................

C 306 87-010-405-080 CAP, ELECT 10-50V A...................

C 307 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 304 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 402 87-010-385-080 CAP, ELECT 220-25V A...................

C 406 87-010-385-080 CAP, ELECT 220-25V A...................

C 401 87-010-401-080 CAP, ELECT 1-50V A...................

C 405 87-010-401-080 CAP, ELECT 1-50V A...................

C 407 87-010-405-080 CAP, ELECT 10-50V A...................

C 409 87-010-405-080 CAP, ELECT 10-50V A...................

C 408 87-010-405-080 CAP, ELECT 10-50V A...................

C 410 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 411 87-010-405-080 CAP, ELECT 10-50V A...................

C 412 87-010-405-080 CAP, ELECT 10-50V A...................

D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 209 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 210 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 211 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 212 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 215 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 214 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 213 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 402 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 401 87-020-465-080 DIODE,1SS133 (110MA) A...................

FC 101 87-033-213-080 CLAMP, FUSE A...................

FC 102 87-033-213-080 CLAMP, FUSE A...................

PR 102 87-A90-195-080 PROTECTOR 7A 125V 49 ....................

PR 101 87-A90-195-080 PROTECTOR 7A 125V 49 ....................

Q 201 87-026-609-080 TR,KTA1266GR A...................

Q 202 87-026-609-080 TR,KTA1266GR A...................

Q 204 87-026-609-080 TR,KTA1266GR A...................

Q 203 87-026-609-080 TR,KTA1266GR A...................

Q 206 87-026-610-080 TR,KTC3198GR A...................

Q 207 87-026-610-080 TR,KTC3198GR A...................

Q 209 87-026-610-080 TR,KTC3198GR A...................

Q 208 87-026-610-080 TR,KTC3198GR A...................

Q 205 87-026-610-080 TR,KTC3198GR A...................

Q 219 87-026-609-080 TR,KTA1266GR A...................

Q 217 87-026-609-080 TR,KTA1266GR A...................

Q 218 87-026-610-080 TR,KTC3198GR A...................

Q 215 87-026-610-080 TR,KTC3198GR A...................

Q 216 87-026-610-080 TR,KTC3198GR A...................

Q 210 87-026-610-080 TR,KTC3198GR A...................

Q 223 87-A30-076-080 C-TR,2SC3052F A...................

Q 221 87-A30-076-080 C-TR,2SC3052F A...................

Q 222 87-A30-076-080 C-TR,2SC3052F A...................

Q 224 87-A30-076-080 C-TR,2SC3052F A...................

Q 305 87-026-269-080 TR,DTA114ES A...................

Q 302 87-026-609-080 TR,KTA1266GR A...................

Q 301 87-A30-087-080 C-FET,2SK2158 A...................

Q 306 87-A30-087-080 C-FET,2SK2158 A...................

Q 304 87-A30-087-080 C-FET,2SK2158 A...................

Q 303 87-A30-091-080 FET,2SJ460 A...................

Q 403 87-A30-087-080 C-FET,2SK2158 A...................

Q 401 87-A30-087-080 C-FET,2SK2158 A...................

Q 402 87-A30-087-080 C-FET,2SK2158 A...................

R 224 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 223 87-A00-258-080 RES,M/F 0.22-1W J A...................

C 104 87-016-539-090 CAP,E 3300-35 SMG A...................

C 105 87-016-539-090 CAP,E 3300-35 SMG A...................

C 101 87-019-112-010 CAP, 0.01 SPARK-KILLER A...................

CN 101 87-049-919-010 CONN,3P EH V WHT A...................

CN 102 87-099-674-010 CONN,2P VA V A...................

CN 202 87-049-919-010 CONN,3P EH V WHT A...................

CN 201 87-A60-848-010 CONN,4P H BLK TB A...................

CN 301 87-099-043-010 CONN 2P EH A...................

D 101 86-SP2-646-010 151-540235,DIODE IN5402LT A...................

ELECTRICAL MAIN PARTS LIST - 2/2

D 103 86-SP2-646-010 151-540235,DIODE IN5402LT A...................

D 104 86-SP2-646-010 151-540235,DIODE IN5402LT A...................

D 102 86-SP2-646-010 151-540235,DIODE IN5402LT A...................

D 301 86-SP2-630-080 153-DLTL4231,LED 3 GREEN A...................

J 401 87-099-801-010 JACK,PIN 1P BLK A...................

Q 214 87-A30-214-010 TR,2SB1344 A...................

Q 213 87-A30-214-010 TR,2SB1344 A...................

Q 212 87-A30-215-010 TR,2SD2025 A...................

Q 211 87-A30-215-010 TR,2SD2025 A...................

S 102 87-A90-234-010 SW,SL 1-2-2 SW2201 ....................

S 101 87-YP5-626-010 SW,PUSH 1-1-1 SY16-52-3 A...................

S 201 87-A91-148-010 SW,SL 2-2-2 SS22J02G12A A...................

S 301 86-SP2-633-010 SW,SL 1-1-2 A...................

S 401 86-SP2-633-010 SW,SL 1-1-2 A...................

T 102 82-304-743-010 TERMINAL, 1P A...................

T 101 82-304-743-010 TERMINAL, 1P A...................

TM 402 86-SP2-641-110 TERMINAL,SPKR 4P DH A...................

TM 403 86-SP2-641-110 TERMINAL,SPKR 4P DH A...................

VR 401 87-A91-147-010 VR,RTRY 50KX1 H XVO121PHJN20FS A...................

F 101 87-035-485-010 FUSE,2A 125V D UL A...................

PT 101 87-YP4-605-010 200-TSW35UL,PT A...................

PT 101 87-YP4-612-010 PT,LH ....................

PT 101 87-YP4-613-010 200-TSW35EU,PT E ....................

86-SP2-634-010 AC CORD,E ....................

86-SP2-637-010 BUSHING,AC U A...................

87-099-811-010 PLUG,ADPTR CONV(K) ....................

87-YP4-620-010 AC CORD ASSY,U SPT-2W A...................

8Z-YP2-610-010 SPKR,200 8OHM A...................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

87-YP5-225-010 HLDR,TRANS ....................

8Z-YP2-201-010 CASE,SW ....................

8Z-YP2-205-010 FOOT,BOX A...................

8Z-YP2-207-010 PANEL,WOOD A...................

8Z-YP2-212-010 PANEL,WOOD E1 ....................

8Z-YP2-213-010 CASE,SW UL A...................

87-067-566-010 TAPPING SCREW, VFTT+3-6 A...................

87-067-689-010 TAPPING SCREW, BVTT+3-8 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

87-741-074-410 UT2+2.6-8 A...................

87-761-096-410 VFT2+3-10 GLD ....................

87-YP4-211-010 SW+3.5-22 A...................

87-YP4-217-010 BVT1+3.5-12 A...................

8Z-YP2-211-010 SW+3.5-18 A...................

86-SP2-634-010 AC CORD,E ....................

86-SP2-637-010 BUSHING,AC U A...................

87-099-811-010 PLUG,ADPTR CONV(K) ....................

87-YP4-620-010 AC CORD ASSY,U SPT-2W A...................

8Z-YP2-610-010 SPKR,200 8OHM A...................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

87-054-087-010 BADGE,AIWA 40 A...................

87-YP4-011-010 COVER, L A...................

87-YP4-012-010 COVER, R A...................

8Z-YP2-001-010 CABI,REAR HR ....................

8Z-YP2-002-010 PANEL,DUCT ....................

8Z-YP2-003-010 KNOB,RTRY VOL A...................

8Z-YP2-004-010 BTN,POWER A...................

8Z-YP2-005-010 WINDOW,LED A...................

8Z-YP2-006-010 CABI,REAR ....................

8Z-YP2-007-010 CABI,WOOD BOX A...................

8Z-YP2-009-010 CABI,REAR UL A...................

8Z-YP2-014-010 CABI,WOOD BOX E1 GRAY ....................

8Z-YP2-015-010 PANEL,DUCT UL A...................

8Z-YP2-901-010 IB,H(ECA)D ....................

8Z-YP2-902-010 IB,LH(ESP)D ....................

8Z-YP2-903-010 IB,U(ESF)DHM A...................

8Z-YP2-905-010 IB,K(E)D ....................

86-SP2-640-010 PLUG,ADPTR 0701M ....................

87-YP3-632-010 186-C13000,CORD ASSY A...................

SCHEMATIC DIAGRAM _1 (MAIN)

PrintedinSingapore

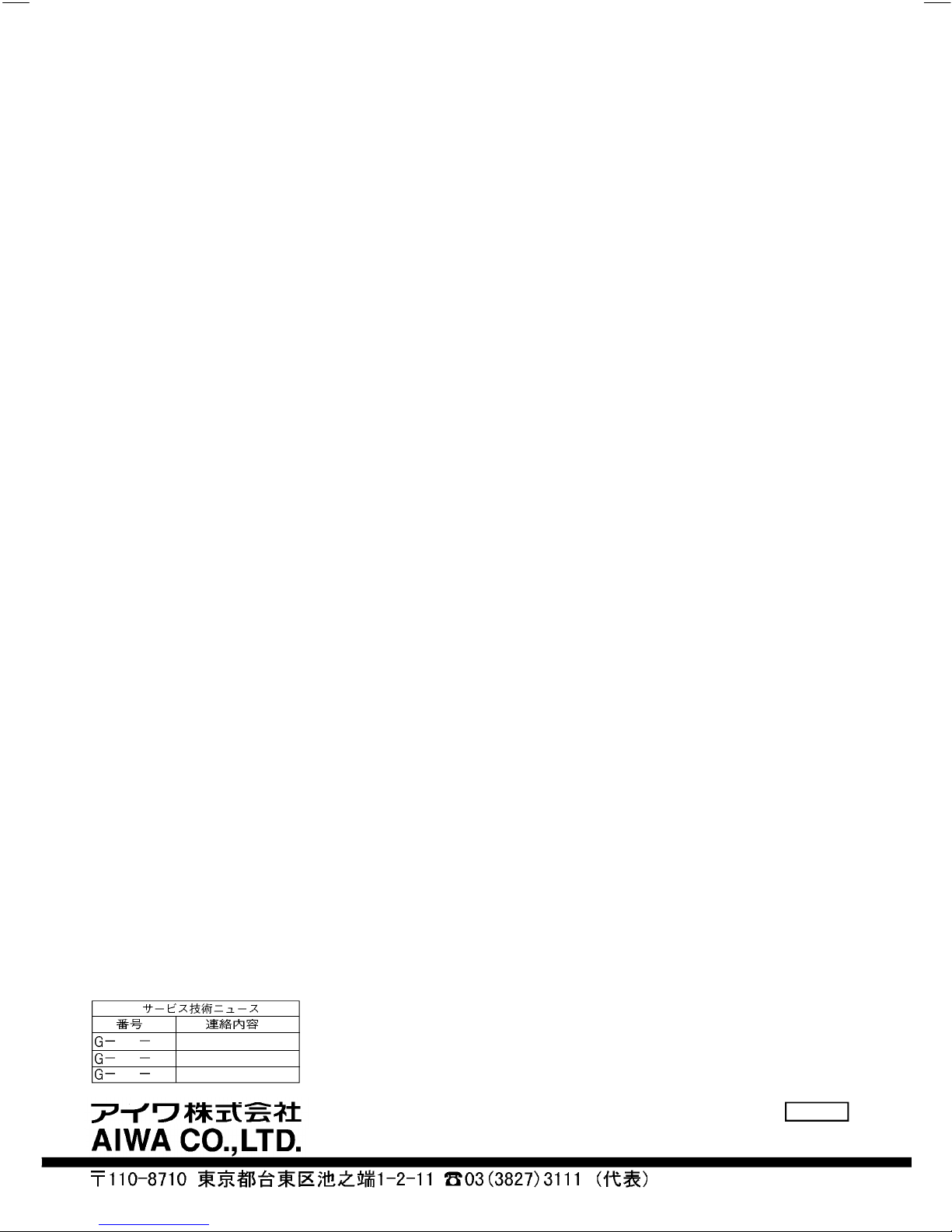

Tokyo Japan

9420208
