S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
TS-W45
• TYPE: EZ, HR
S/M Code No. 09–991–403–7T2
ACTIVE SPEAKER

ELECTRICAL MAIN PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
EZ .....................XX...................................B..................
HR .....................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 103 87-018-209-080 0E CAP, CER 0.1-50V ABC.................
C 102 87-018-209-080 0E CAP, CER 0.1-50V ABC.................
C 209 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................
C 202 87-010-246-080 0E CAP, ELECT 47-35V ABC.................
C 201 87-010-246-080 0E CAP, ELECT 47-35V ABC.................
C 206 87-010-384-080 0E CAP, ELECT 100-25V ABC.................
C 205 87-010-384-080 0E CAP, ELECT 100-25V ABC.................
C 204 87-010-384-080 0E CAP, ELECT 100-25V ABC.................
C 203 87-010-384-080 0E CAP, ELECT 100-25V ABC.................
C 207 87-012-156-080 0E C-CAP,S 220P-50 CH ABC.................
C 208 87-012-156-080 0E C-CAP,S 220P-50 CH ABC.................
C 211 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................
C 210 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................
C 212 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................
C 213 87-010-197-080 0E CAP, CHIP 0.01 DM ABC.................
C 215 87-010-406-080 0E CAP, ELECT 22-50 ABC.................
C 214 87-010-406-080 0E CAP, ELECT 22-50 ABC.................
C 305 87-010-260-080 0E CAP, ELECT 47-25V ABC.................
C 301 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 306 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 307 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................
C 304 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................
C 406 87-010-385-080 0E CAP, ELECT 220-25V ABC.................
C 402 87-010-385-080 0E CAP, ELECT 220-25V ABC.................
C 405 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 401 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 409 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 408 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 407 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 410 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 412 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 411 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
D 402 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................
FC 101 87-033-213-080 0E CLAMP, FUSE A...................
FC 102 87-033-213-080 0E CLAMP, FUSE A...................
PR 101 87-A90-195-080 1A PROTECTOR 7A 125V 49 .BC.................
PR 102 87-A90-195-080 1A PROTECTOR 7A 125V 49 .BC.................
Q 204 87-026-609-080 0E TR,KTA1266GR ABC.................
Q 202 87-026-609-080 0E TR,KTA1266GR ABC.................
Q 203 87-026-609-080 0E TR,KTA1266GR ABC.................
Q 201 87-026-609-080 0E TR,KTA1266GR ABC.................
Q 209 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 205 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 207 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 208 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 206 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 219 87-026-609-080 0E TR,KTA1266GR ABC.................
Q 217 87-026-609-080 0E TR,KTA1266GR ABC.................
Q 215 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 216 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 218 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 210 87-026-610-080 0E TR,KTC3198GR ABC.................
Q 221 87-A30-076-080 0E C-TR,2SC3052F ABC.................
Q 222 87-A30-076-080 0E C-TR,2SC3052F ABC.................
Q 223 87-A30-076-080 0E C-TR,2SC3052F ABC.................
Q 224 87-A30-076-080 0E C-TR,2SC3052F ABC.................
Q 305 87-026-269-080 0E TR,DTA114ES ABC.................
Q 302 87-026-609-080 0E TR,KTA1266GR ABC.................
Q 304 87-A30-087-080 0E C-FET,2SK2158 ABC.................
Q 306 87-A30-087-080 0E C-FET,2SK2158 ABC.................
Q 301 87-A30-087-080 0E C-FET,2SK2158 ABC.................
Q 303 87-A30-091-080 1E FET,2SJ460 ABC.................
Q 401 87-A30-087-080 0E C-FET,2SK2158 ABC.................
Q 402 87-A30-087-080 0E C-FET,2SK2158 ABC.................
Q 403 87-A30-087-080 0E C-FET,2SK2158 ABC.................
R 224 87-A00-258-080 0E RES,M/F 0.22-1W J ABC.................
R 223 87-A00-258-080 0E RES,M/F 0.22-1W J ABC.................
C 105 87-016-539-090 1C CAP,E 3300-35 SMG ABC.................
C 104 87-016-539-090 1C CAP,E 3300-35 SMG ABC.................
C 101 87-019-112-010 1A CAP, 0.01 SPARK-KILLER ABC.................
CN 101 87-049-919-010 0E CONN,3P EH V WHT ABC.................
CN 102 87-099-674-010 0E CONN,2P VA V ABC.................
CN 202 87-049-919-010 0E CONN,3P EH V WHT ABC.................
CN 201 87-A60-848-010 CONN,4P H BLK TB ABC.................
CN 301 87-099-043-010 0E CONN 2P EH ABC.................
D 104 86-SP2-646-010 0E 151-540235,DIODE IN5402LT ABC.................
D 102 86-SP2-646-010 0E 151-540235,DIODE IN5402LT ABC.................
D 103 86-SP2-646-010 0E 151-540235,DIODE IN5402LT ABC.................
D 101 86-SP2-646-010 0E 151-540235,DIODE IN5402LT ABC.................
D 301 86-SP2-630-080 0E 153-DLTL4231,LED 3 GREEN ABC.................
J 401 87-099-801-010 0E JACK,PIN 1P BLK ABC.................
Q 214 87-A30-214-010 1B TR,2SB1344 ABC.................
Q 213 87-A30-214-010 1B TR,2SB1344 ABC.................
Q 212 87-A30-215-010 1B TR,2SD2025 ABC.................
Q 211 87-A30-215-010 1B TR,2SD2025 ABC.................

ELECTRICAL MAIN PARTS LIST - 2/2
S 102 87-A90-234-010 1A SW,SL 1-2-2 SW2201 ..C.................
S 101 87-YP5-626-010 SW,PUSH 1-1-1 SY16-52-3 ABC.................
S 201 87-A91-148-010 SW,SL 2-2-2 SS22J02G12A ABC.................
S 301 86-SP2-633-010 SW,SL 1-1-2 ABC.................
S 401 86-SP2-633-010 SW,SL 1-1-2 ABC.................
T 101 82-304-743-010 0E TERMINAL, 1P ABC.................
T 102 82-304-743-010 0E TERMINAL, 1P ABC.................
TM 402 86-SP2-641-110 TERMINAL,SPKR 4P DH ABC.................
TM 403 86-SP2-641-110 TERMINAL,SPKR 4P DH ABC.................
VR 401 87-A91-147-010 VR,RTRY 50KX1 H XVO121PHJN20FS ABC.................
F 101 87-035-485-010 0E FUSE,2A 125V D UL A...................
PT 101 87-YP4-605-010 2B 200-TSW35UL,PT A...................
PT 101 87-YP4-612-010 PT,LH ..C.................
PT 101 87-YP4-613-010 2P 200-TSW35EU,PT E .B..................
86-SP2-634-010 AC CORD,E .BC.................
86-SP2-637-010 BUSHING,AC U ABC.................
87-099-811-010 1E PLUG,ADPTR CONV(K) ....................
87-YP4-620-010 AC CORD ASSY,U SPT-2W A...................
8Z-YP2-610-010 SPKR,200 8OHM ABC.................

MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
EZ .....................XX...................................B..................
HR .....................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-YP5-225-010 1B HLDR,TRANS ..C.................
8Z-YP2-201-010 CASE,SW .BC.................
8Z-YP2-205-010 FOOT,BOX ABC.................
8Z-YP2-207-010 PANEL,WOOD A.C.................
8Z-YP2-212-010 PANEL,WOOD E1 .B..................
8Z-YP2-213-010 CASE,SW UL A...................
87-067-566-010 0E TAPPING SCREW, VFTT+3-6 AB..................
87-067-689-010 0E TAPPING SCREW, BVTT+3-8 ABC.................
87-067-703-010 0E TAPPING SCREW, BVT2+3-10 ABC.................
87-741-074-410 0E UT2+2.6-8 ABC.................
87-761-096-410 0E VFT2+3-10 GLD ..C.................
87-YP4-211-010 0E SW+3.5-22 ABC.................
87-YP4-217-010 0E BVT1+3.5-12 ABC.................
8Z-YP2-211-010 SW+3.5-18 ABC.................
86-SP2-634-010 AC CORD,E .BC.................
86-SP2-637-010 BUSHING,AC U ABC.................
87-099-811-010 1E PLUG,ADPTR CONV(K) ....................
87-YP4-620-010 AC CORD ASSY,U SPT-2W A...................
8Z-YP2-610-010 SPKR,200 8OHM ABC.................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
EZ .....................XX...................................B..................
HR .....................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-054-087-010 1A BADGE,AIWA 40 ABC.................
87-YP4-011-010 1A COVER, L ABC.................
87-YP4-012-010 1A COVER, R ABC.................
8Z-YP2-001-010 CABI,REAR HR ..C.................
8Z-YP2-002-010 PANEL,DUCT .BC.................
8Z-YP2-003-010 KNOB,RTRY VOL ABC.................
8Z-YP2-004-010 BTN,POWER ABC.................
8Z-YP2-005-010 WINDOW,LED ABC.................
8Z-YP2-006-010 CABI,REAR .B..................
8Z-YP2-007-010 CABI,WOOD BOX A.C.................
8Z-YP2-009-010 CABI,REAR UL A...................
8Z-YP2-014-010 CABI,WOOD BOX E1 GRAY .B..................
8Z-YP2-015-010 PANEL,DUCT UL A...................
8Z-YP2-901-010 IB,H(ECA)D ..C.................
8Z-YP2-902-010 IB,LH(ESP)D ....................
8Z-YP2-903-010 IB,U(ESF)DHM A...................
8Z-YP2-905-010 IB,K(E)D .B..................
86-SP2-640-010 1B PLUG,ADPTR 0701M ..C.................
87-YP3-632-010 1E 186-C13000,CORD ASSY ABC.................

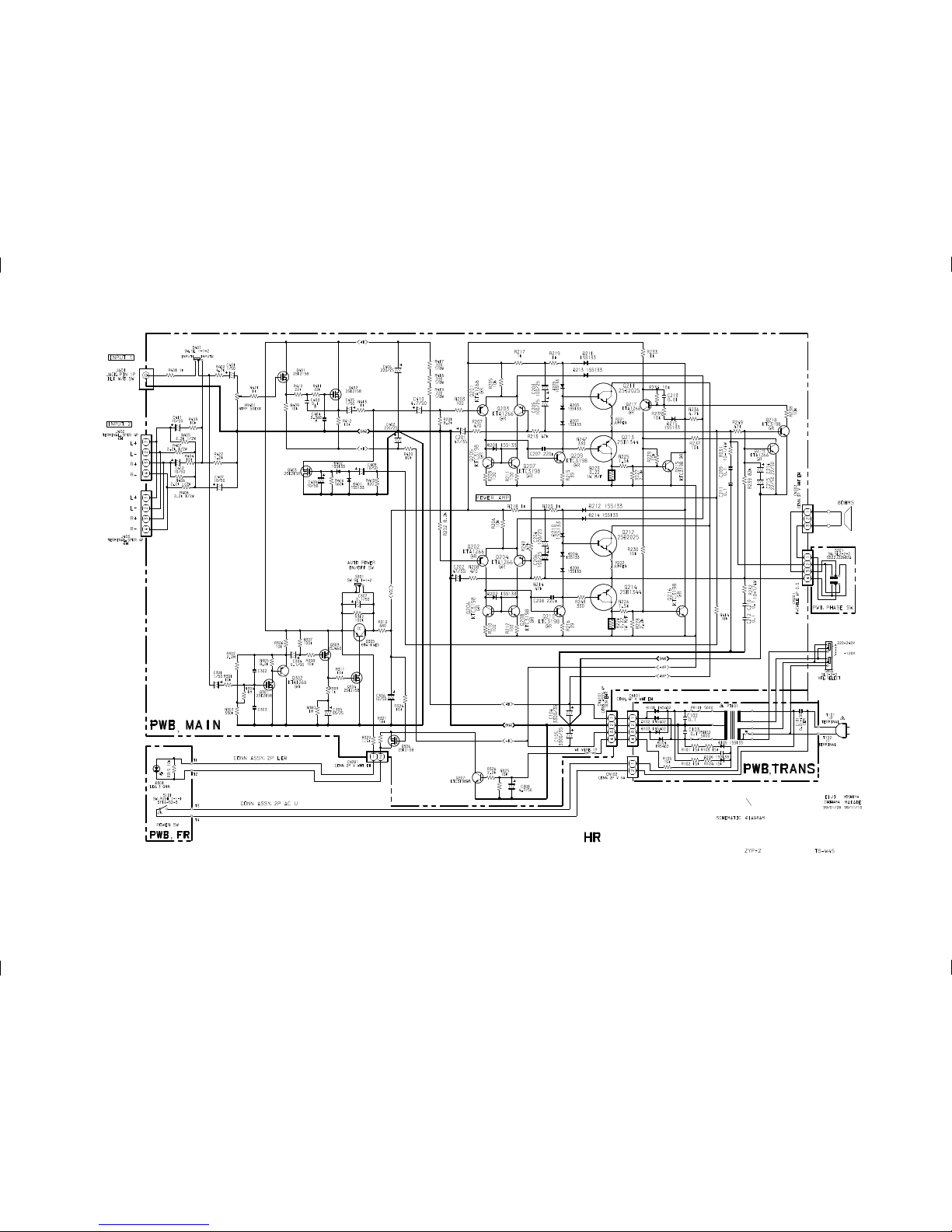

SCHEMATIC DIAGRAM _1 (MAIN: HR)

SCHEMATIC DIAGRAM _2 (MAIN: EZ)

PrintedinSingapore
Tokyo Japan
