Aiwa AV-D35 User manual

8Z-AR4-903-01
9901 15Ac~-y43
ml
ml
T
For assistance and information
call toll free I-800-BUY-AIWA
(United States and Puerto Rico)

/7\IR’SKER%Y”CKI/’ !\
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your unit) in the space
provided below. Please refer to them when you contact your
Aiwa dealer in case of difficulty.
Model No. Serial No. (Lot No.)
AV-D35

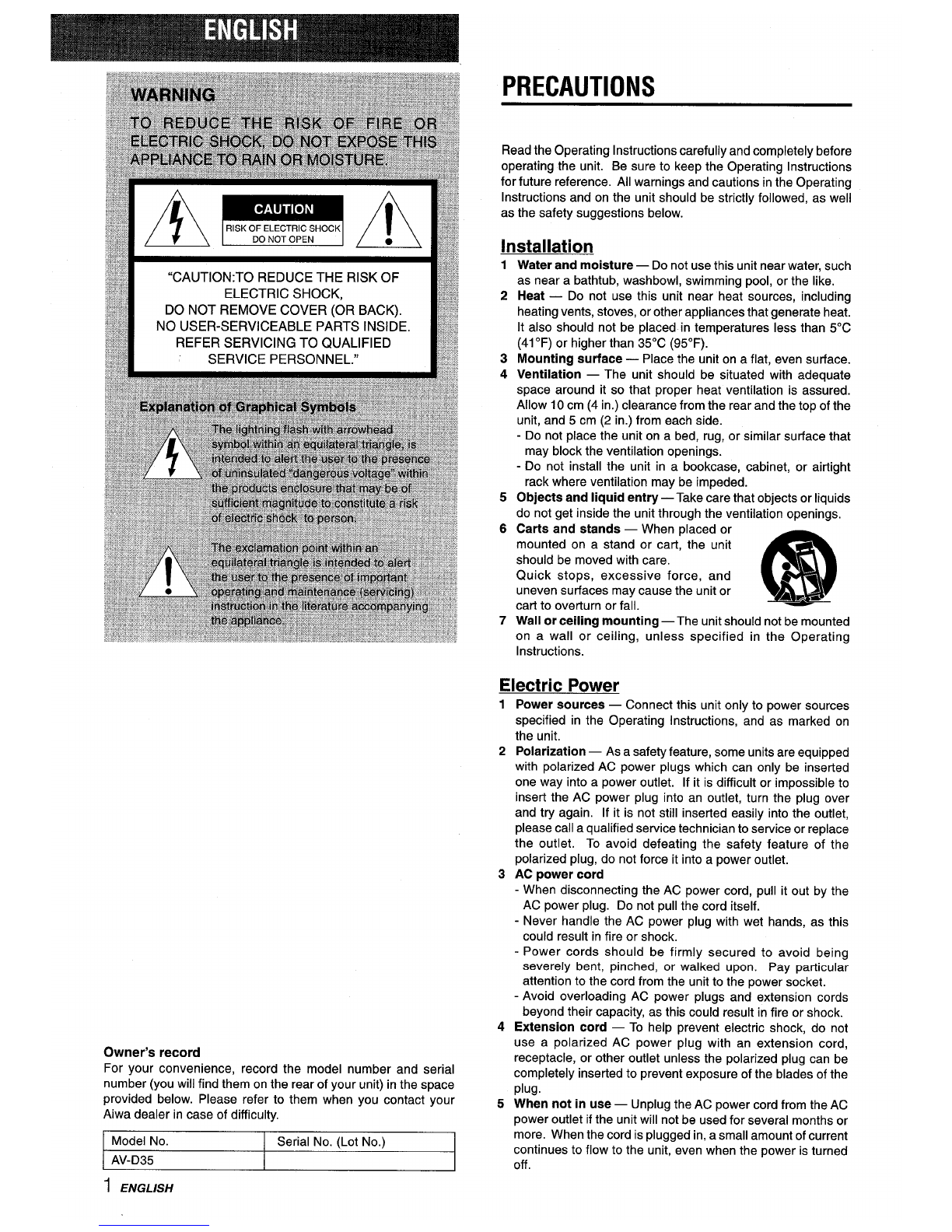

PRECAUTIONS
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
Installation
1
2
3
4
5
6
7
Water and moisture —Do not use this unit near water, such
as near abathtub, washbowl, swimming pool, or the like.
Heat —Do not use this unit near heat sources, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41“F) or higher than 35°C (95”F).
Mounting surface —Place the unit on a flat, even surface.
Ventilation —The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side.
-Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight
rack where ventilation may be impeded.
Objects and liquid entry —Take care that objects or liquids
do not get inside the unit through the ventilation openings.
Carts and stands —When placed or
mounted on a stand or cart, the unit
should be moved with care.
Quick stops, excessive force, and
uneven surfaces may cause the unit or m3
A&~
cart to overturn or fall.
Wall or ceiling mounting —The unit should not be mounted
on a wall or ceiling, unless specified in the Operating
Instructions.
Electric Power
1
2
3
4
5
Power sources —Connect this unit only to power sources
specified in the Operating Instructions, and as marked on
the unit.
Polarization —As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into apower outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over
and try again. If it is not still inserted easily into the outlet,
please call aqualified service technician to service or replace
the outlet. To avoid defeating the safety feature of the
polarized plug, do not force it into apower outlet.
AC power cord
-When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this
could result in fire or shock.
-Power cords should be firmly secured to avoid being
severely bent, pinched, or walked upon. Pay particular
attention to the cord from the unit to the power socket.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
Extension cord —To help prevent electric shock, do not
use apolarized AC power plug with an extension cord,
receptacle, or other outlet unless the polarized plug can be
completely inserted to prevent exposure of the blades of the
plug.
When not in use —Unplug the AC power cord from the AC
power outlet if the unit will not be used for several months or
more. When the cord is plugged in, asmall amount of current
continues to flow to the unit, even when the power is turned
off.
1ENGLISH

Outdoor Antenna
1Power lines —When connecting an outdoor antenna, make
sure it is located away from power lines.
2Outdoor antenna grounding —Be sure the antenna system
is properly grounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, ANS1/NFPA70, provides information
on proper grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of the grounding unit, connection to grounding terminals,
and requirements for grounding terminals themselves.
AntennaGroundingAccordingtotheNationalElectricalCode
)
(NEC ART 250 PART H)
NEC-NATIONALELECTRICALCODE
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
Darnaqe Requirinq Service
Have the unit serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have gotten inside the unit
-The unit has been exposed to rain or water
-The unit does not seem to operate normally
-The unit exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
Check your unit and accessories
AV-D35 Stereo receiver Remote control
FM antenna AM antenna
Operating Instructions, etc.

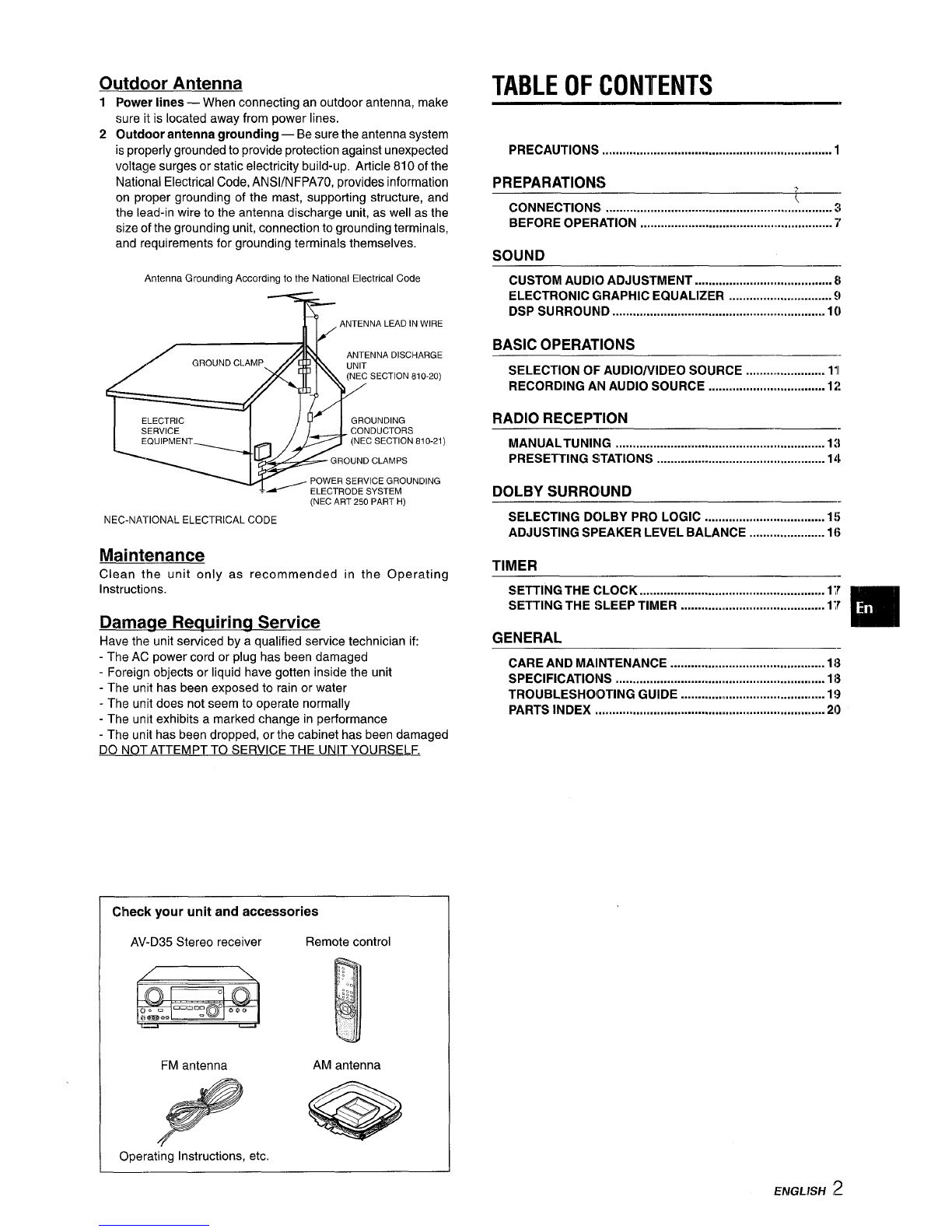

TABLE OF CONTENTS
PRECAUTIONS ...................................................................1
PREPARATIONS
CONNECTIONS ++;
...................................................................
BEFORE OPERATION .........................................................i'
SOUND
CUSTOM AUDI() ADJUSTMENT ....................... .............. 8

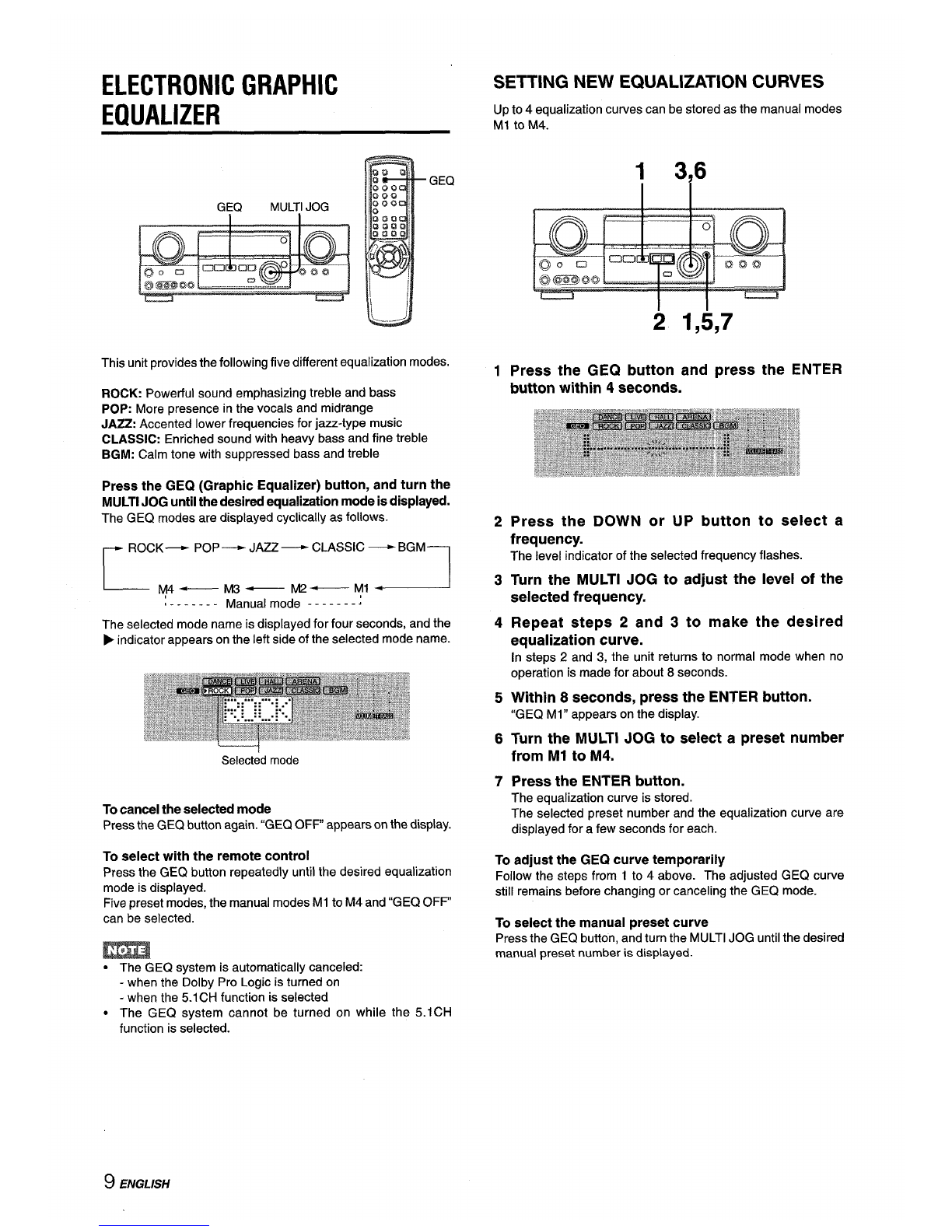

ELECTRONIC GRAPHIC EQUALIZER ............................ $)
DSP SURROUNID ............................................................. 10
BASIC OPERATIONS —— .
SELECTION OF AUDIO/VIDEO SOURCE ...................... Ill

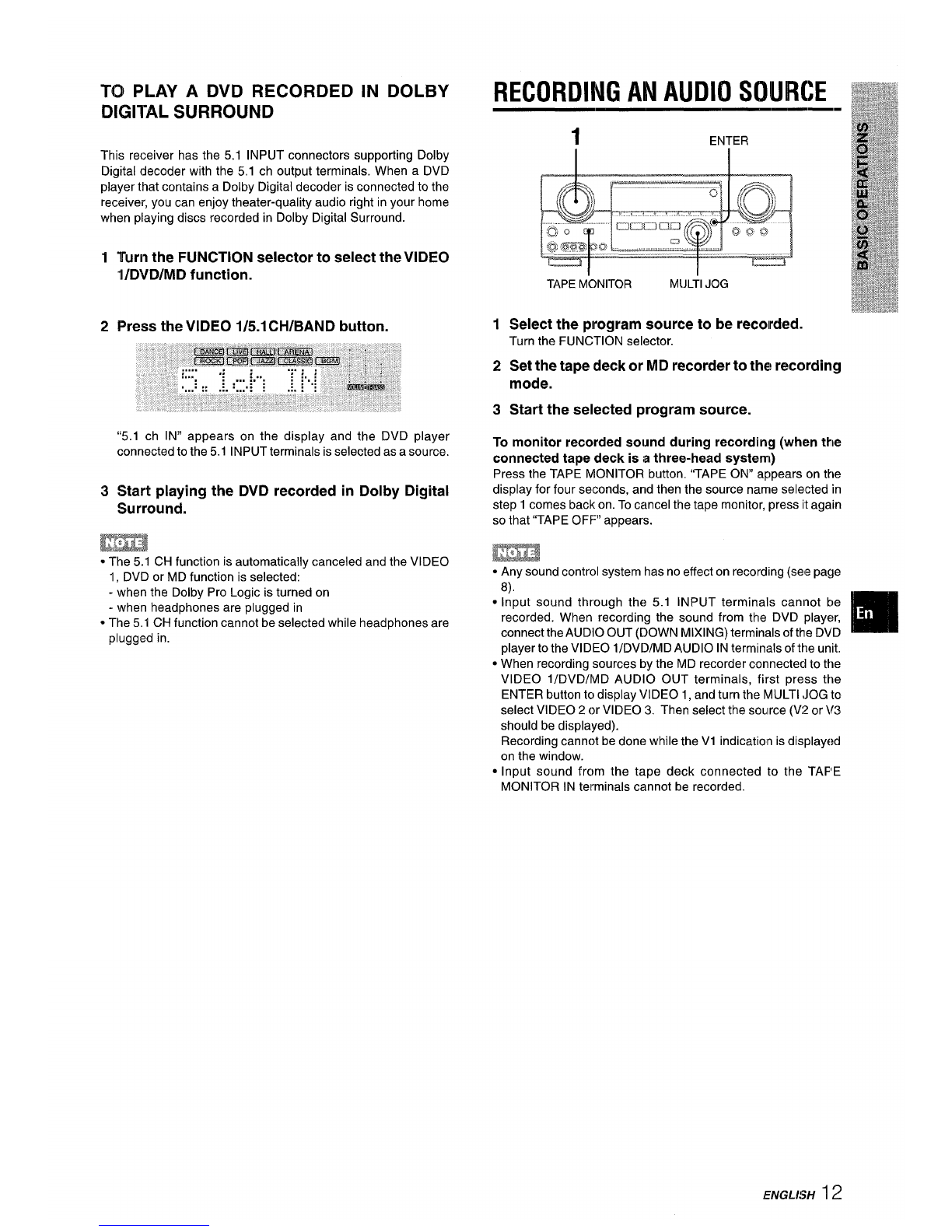

RECORDING AINAUDIO SOURCE ..................................12!
RADIO RECEPTION ——-

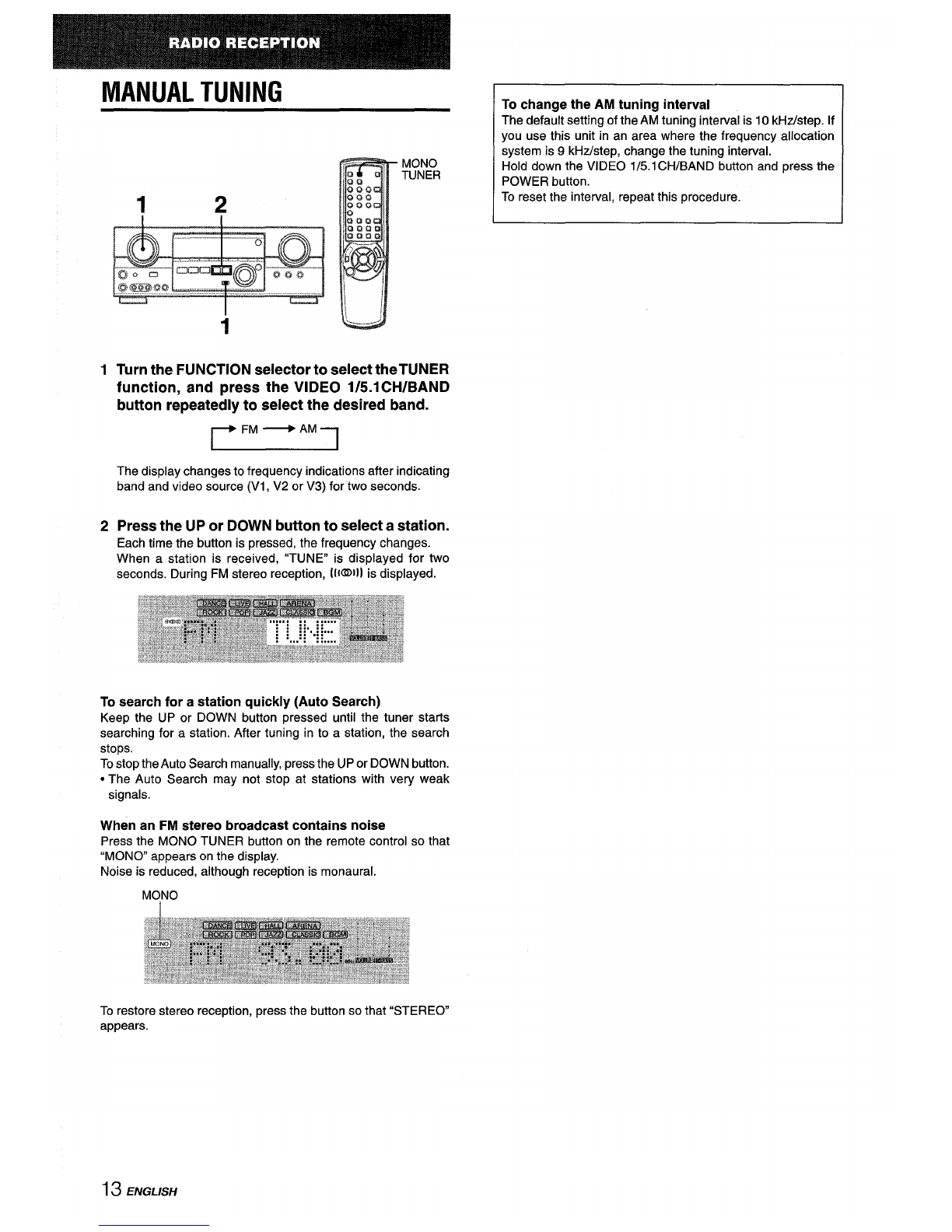

MANUALTUNING .............................................................13
PRESETTING STATIONS .................................................14
DOLBY SURROUND
SELECTING DC)LBY PRO LOGIC ................................... 15
ADJUSTING SPEAKER LEVEL BALANCE ......................16

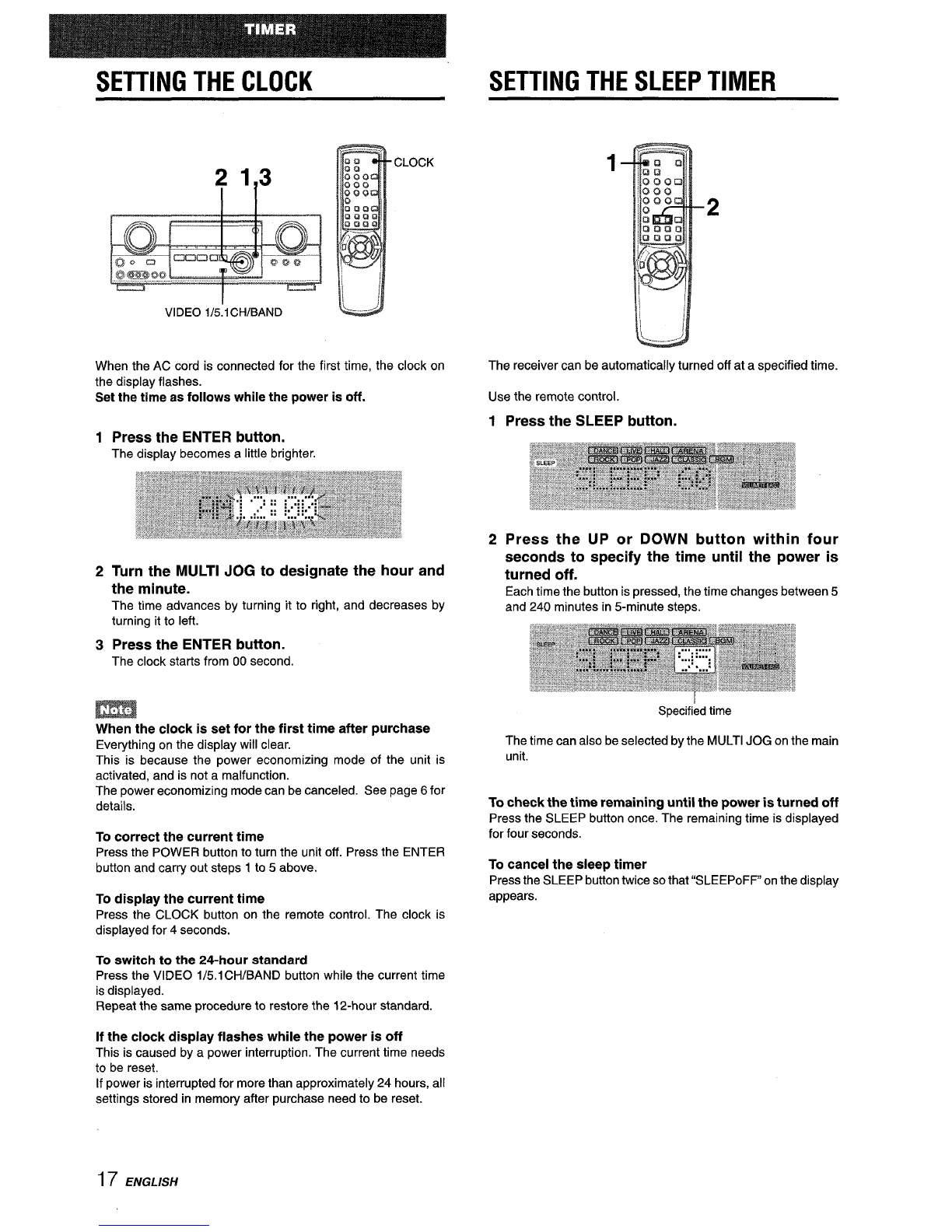

TIMER
SETTING THE CLOCK ................>.....................................17
SETTING THE SLEEP TIMER ..........................................17 m
GENERAL
CARE AND MAINTENANCE .............................................1[3
SPECIFICATIONS .............................................................1[3
TROUBLESHOOTING GUIDE ..........................................1!3
PARTS INDEX .....................................m.............................2{)
ENGLISH 2

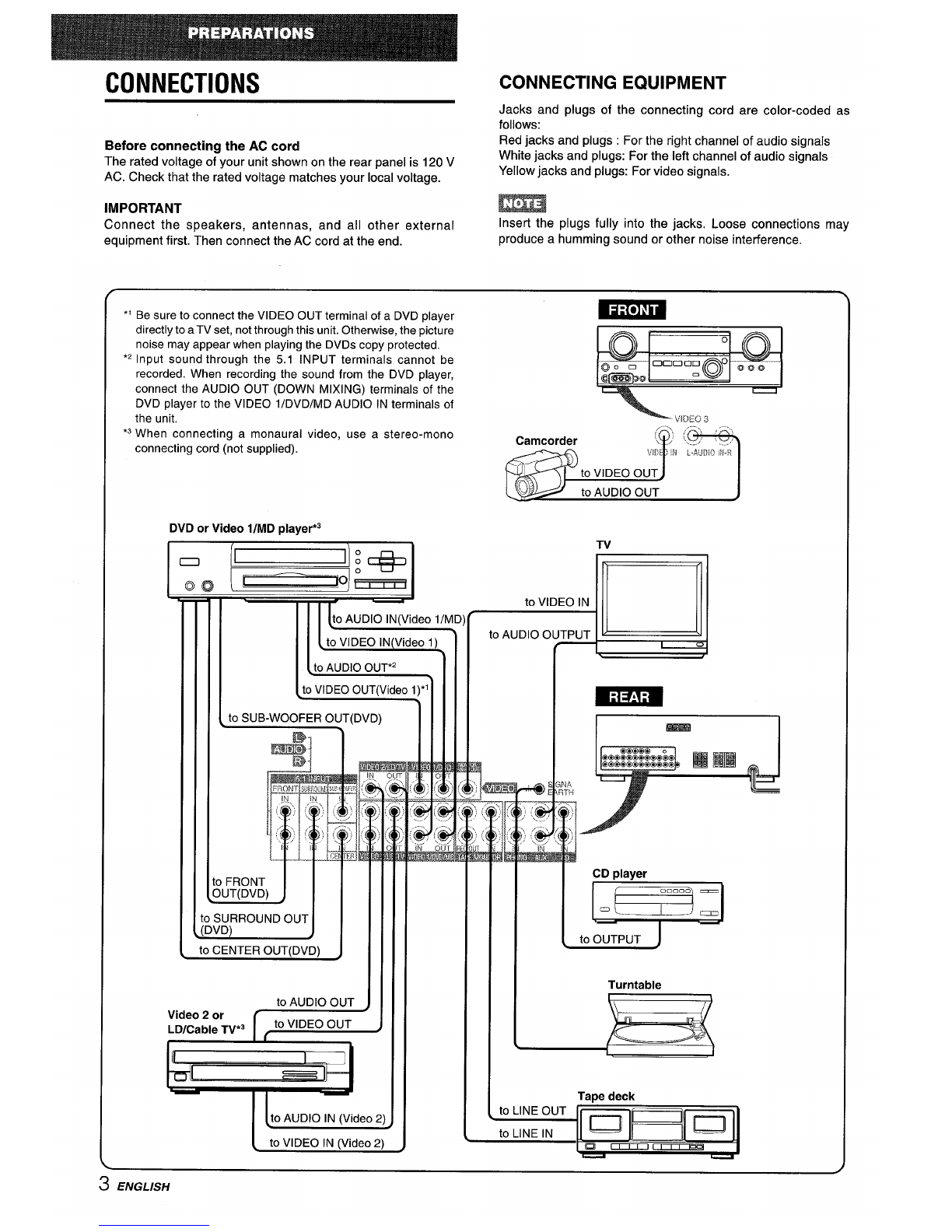

CONNECTIONS CONNECTING EQUIPMENT
Jacks and plugs of the connecting cord are color-coded as
follows:
Before connecting the AC cord Red jacks and plugs :For the right channel of audio signals
The rated voltage of your unit shown on the rear panel is 120 VWhite jacks and plugs: For the left channel of audio signals
AC. Check that the rated voltage matches your local voltage. Yellow jacks and plugs: For video signals.
IMPORTANT m
Connect the speakers, antennas, and all other external Insert the plugs fully into the jacks. Loose connections may
equipment first. Then connect the AC cord at the end. produce ahumming sound or other noise interference.
“Be sure to connect the VIDEO OUT terminal of aDVD player
directly to aTV set, not through this unit. Otherwise, the picture
noise may appear when playing the DVDScopy protected.
F
o0
‘2 Input sound through the 5.1 INPUT terminals cannot be o
@
Onnan o~~~
recorded. When recording the sound from the DVD player, Do 0
@@Zm30 “
connect the AUDIO OUT (DOWN MIXING) terminals of the
DVD player to the VIDEO l/DVD/MD AUDIO IN terminals of
the unit. vlrxo 3
*3When connecting amonaural video, use astereo-mono , ...\ ..,$
~,,.’ ,,”’.,,
Camcorder
connecting cord (not supplied). \ ... ‘..../ ‘y;
!,/IL)E]NL-#,JD10ii.<
I I I [ to SUB-WOOFER OUT(DVD) 11111
II to SURROUND OUT
[n\ln\ I1111 II I I“~m I
r!- vu) J
‘1111 Ill
Lto OUTPUT
to CENTER OUT(DVD) J
1111 Ill Turntable
iDK2ableTV*3_l I
Vldao 2or
II L_ Tape deck
to LINE OUT
to LINE IN lu]~lul
a~~ -
3ENGLISH

@)Surround speakers
—
CONNECTING SPEAKERS @Front speakers
Speaker terminals
Connect front speakers (system Aand/or B), acenter speaker,
surround speakers and sub woofer to the corresponding speaker
terminals on the unit:
-the front speaker cords to the FRONT SPEAKERS terminals
-the center speaker cord to the CENTER SPEAKER terminals
-the surround speaker cords to the SURROUND SPEAKERS
terminals.
-for more powerful bass, the sub woofer (with abuilt-in amplifier)
cord to the SUPER WOOFER diack
Lift up the terminal flap,
insert the speaker cord lead
into the terminal slot, then
close the flap. (Checkthat the
cord is connected securely.
Surround speakers
Speaker impedance
For all speakers, use speakers of 8ohms or more.
Connecting +to +, –to –terminals
To get the proper sound effect, the speaker terminals on the unit
and the speaker should be connected with proper polarity; the +
terminal on the unit should be connected to the +terminal on
the speaker (and –to -).
EEiza
●Be sure to connect the speaker cords correctly as shown in
the illustration on the right column. Improper connections can
cause short circuits in the SPEAKER(S) terminals.
●Do not leave objects generating magnetism near the speakers.
—7r“
~.
Sub woofer
.
~.
Center speaker
ENGLISH ‘$

POSITIONING THE SPEAKERS
Position the speakers to make the most of the Dolby Digital
Surround (5.1 CH), Dolby Pro Logic or DSP effect.
@Front speakers
@Center speaker
Position in the center of the two front speakers. In addition,
position on or below the TV set, if connecting aTV set to the
unit.
@Surround speakers
Place the surround speakers directly to the side of or slightly
behind the listening area. Align them horizontally, about 1
meter (3.2 feet) above ear height.
@Sub woofer
Place the sub woofer in any place between the two front
speakers.
Sound from the surround speakers or center speaker depends
on the setting of the DSP, Dolby Pro Logic and 5.1 CH function.
CONNECTING THE SUPPLIED ANTENNAS @
Connect the FM antenna to the FM 75 Qterminals and the AM
antenna to the AM LOOP terminals,
-=+4
To stand the AM loop antenna on asurface
Fix the claw to the slot as shown in the illustration.
To position the antennas
FM feeder antenna:
Extend this antenna horizontally in aTshape and fix its ends to
the wall.
AM loop antenna:
Position for the best reception.
●Do not bring the FM antenna near metal objects or curtain rails.
●Do not bring the AM antenna near other external equipment,
the unit itself, the AC power cord or speaker cords, as noise
will be picked up.
●Do not unwind the AM loop antenna wire.
CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is
recommended. Connect the outdoor antenna to the FM 75 Cl
terminals.
5ENGLISH

ABOIJTTHEREMOTE CONTROL
inserting batteries
Detach the battery cover on the rear of the remote control and
insert two R6 (size AA) batteries.
R6(AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well.
The SET button functions in the same way as the ENTER button
on the main unit.
●If the unit is not going to be used for an extended period of
time, remove the batteries to prevent possible electrolyte
leakage.
●The remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor in the display window is exposed to intense light, such
as direct sunlight.
-Other remote controls are used nearby (those of television,
etc.)
POWER ECONOMIZING (ECO) MOIDE
13 2.3
l— LJ
LPOWER &3TANDBY/ON indicator
Setting this unit to the ECO mode reduces power consumption
as below.
Initial setting of the ECO mode is ON.
●When the current time is set, the clock display disaploears
immediately.
●While the power is off, all the display lights turn off, anc~only
the POWER &3TANDBY/ON indicator lights in red.
To cancel the ECO mode
1
2
3
Press the ECO button to display ECO MODE while the unit is
turned on.
Within 4seconds, press the ENTER button.
Within 4seconds, turn the MULTI JOG to select ECO OFF,
The mode will be automatically set after 4seconds. It will
also be set if the ENTER button is pressed within 4seconds
after step 3.
ENGL.ISH 6

BEFORE OPERATION
POWER TAPE MONITOR
IIFunction indicators
PHONES IFRONT SPEAKERA,B IENTER
ECO MULTI JOG
To turn the unit on
Press the POWER button.
Operation is possible after four seconds. When the POWER
button is pressed to turn on, the VOL (volume) level or function
name is displayed one after the other.
The selected function indicator lights up in red and the others in
green.
To change the brightness level of the display
1
2
3
Press ECO so that “ECO MODE” is displayed.
Within 4seconds, turn the MULTI JOG to display DIM MODE,
and then press the ENTER button within 4seconds.
Within 4seconds. turn the MULTI JOG to select the dimmer
mode as below.
The mode will be automatically set after 4seconds. It will
also be set if the ENTER button is pressed within 4seconds
after step 3.
DIM OFF *DIMMER 1- DIMMER 2- DIMMER3
DIM-OFF:
DIMMER1:
DIMMER 2:
DIMMER 3:
The normal display.
The illumination of the display is dimmer than
usual.
The illumination of the display is dimmer than
DIMMER 1.
The illumination of the display is dimmer than
DIMMER 2. The function indicators light off.
To select the front speaker system
To use speaker system A: Set the FRONT SPEAKERS Abutton
to wON.
To use speaker system B: Set the FRONT SPEAKERS Bbutton
to wON.
To use both speaker systems: Set both the buttons to sON.
Set the button(s) to IOFF to turn off the speaker system(s).
As the front speaker systems Aand Bare connected in series:
-The sound will be slightly decreased when using both speaker
systems
-No sound can be heard if the FRONT SPEAKERS Aand B
buttons are set to *ON when only one speaker system is
connected
Using the headphones
Connect headphones to the PHONES jack with astandard stereo
plug (06.3 mm, 1/4 inch). Be sure to set the FRONT SPEAKERS
Aand Bbuttons to l.OFF. Otherwise sound is output from the
speakers.
m
The 5.1 CH function, Dolby Pro Logic or DSP system is
automatically canceled when the headphones are plugged in.
To turn the unit off, press the POWER button.
7ENGLISH

CUSTOM AUDIO ADJUSTMENT
VOL
VOWME CONTROL
Turn the VOLUME control on the unit, or press the VOL buttons
on the remote control.
The volume level is shown on the display for four seconds. It can
be adjusted between Oand MAX (50). It flashes when being set
over the level 44.
The volume level remains memorized even after the power is
turned off. However, if the power is turned off when the volume
is set to more than 21, it is automatically set to 20 the next time
the power is turned on.
To adjust the Ieft/right balance of the front speakers
Press the BALANCE button to display “L/R OdB. Then press
the DOWN or UP button repeatedly within four seconds.
Note that the front speakers balance of the 5.1 CH and Dolby
Pro Logic modes is also changed,
(cancel)
m
Low-frequency sound may be distorted when the T-BASS system
is used for adisc or tape in which low-frequency sound is
originally emphasized. In this case, cancel the T-BASS system.
SOUND ADJUSTMENT DURING RECORDING
The output volume and tone of the speakers or headphones may
be freely varied without affecting the level of the recording.
To mute the sound temporarily
Press the MUTING button (–20 dB).
‘(MUTE ON” appears on the display for four seconds. While
muting the sound, the selected function indicator flashes. Press
the MUTING button again to restore the sound.
ENGL.ISH 8

ELECTRONIC GRAPHIC
E(IUALIZER
GEQ
This unit provides the following five different equalization modes.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
CLASSIC: Enriched sound with heavy bass and fine treble
BGM: Calm tone with suppressed bass and treble
Press the GEQ (Graphic Equalizer) button, and turn the
MULTI JOG until the desired equalization mode is displayed.
The GEQ modes are displayed cyclically as follows.
r
ROCK— PoP— JAZZ —CLASSIC
—BGM 1
L-..._M4 —M3— M2— Ml ~
L------- Manual mode -------;
The selected mode name is displayed for four seconds, and the
➤indicator appears on the left side of the selected mode name.
Selected mode
To cancel the selected mode
Press the GEQ button again. “GEQ OFF” appears on the display.
To select with the remote control
Press the GEQ button repeatedly until the desired equalization
mode is displayed.
Five preset modes, the manual modes Ml to M4 and “GEQ OFF
can be selected.
SETTING NEW EQUALIZATION CURVES
Up to 4equalization curves can be stored as the manual modes
Ml to M4.
1
2
3
4
5
6
7
1 3,6
2 1,5,7
Press the GEQ button and press the ENTER
button within 4seconds.
Press the DOWN or UP button to select a
frequency.
The level indicator of the selected frequency flashes.
Turn the MULTI JOG to adjust the level of the
selected frequency.
Repeat steps 2and 3to make the desired
equalization curve.
In steps 2 and 3, the unit returns to normal mode when no
operation is made for about 8seconds.
Within 8seconds, press the ENTER button.
“GEQ Ml” appears on the display.
Turn the MULTI JOG to select apreset number
from Ml to M4.
Press the ENTER button.
The equalization curve is stored.
The selected preset number and the equalization curve are
displayed for afew seconds for each.
To adjust the GEQ curve temporarily
Follow the steps from 1to 4above. The adjusted GEQ curve
still remains before changing or canceling the GEQ mode.
To select the manual preset curve
Press the GEQ button, and turn the MULTI JOG until the desired
manual preset number is displayed.
●The GEQ system is automatically canceled:
-when the Dolby Pro Logic is turned on
-when the 5.1CH function is selected
●The GEQ system cannot be turned on while the 5.ICH
function is selected.
9ENGLISH

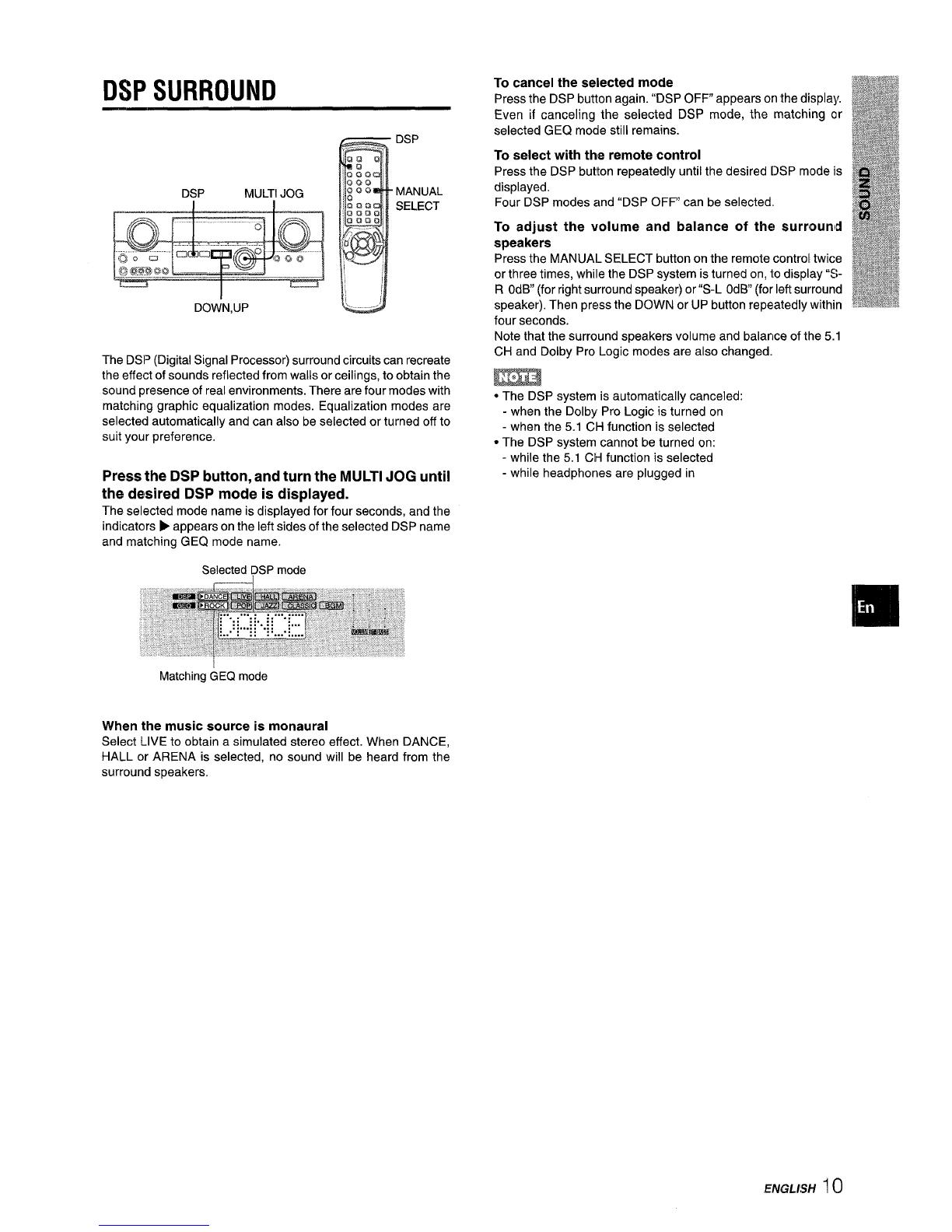

DSPSURROUND
DSP MULTIJOG
DOW”N,UP
DSP
MANUAL
SELECT
The DSP (Digital Signal Processor) surround circuits can recreate
the effect of sounds reflected from walls or ceilings, to obtain the
sound presence of real environments. There are four modes with
matching graphic equalization modes. Equalization modes are
selected automatically and can also be selected or turned off to
suit your preference.
Press the DSP button, and turn the MULTI JOG until
the desired DSP mode is displayed.
The selected mode name is displayed for four seconds, and the
indicators Pappears on the left sides of the selected DSP name
and matching GEQ mode name.
Selected pSP mode
Matching GEQ mode
To cancel the selected mode
Press the DSP button again. “DSP OFF” appears on the display.
Even if canceling the selected DSP mode, the matching or
selected GEQ mode still remains.
To select with the remote control
Press the DSP butiton repeatedly until the desired [)SP mode is
displayed.
Four DSP modes and “DSP OFF can be selected.
To adjust the volume and balance of the! surroumd
speakers
Press the MANUAI- SELEC-r button on the remote control twice
or three times, while the DSP system is turned on, lo display “S-
ROdB”(for right surround speaker) or “S-L OdB (for left surround
speaker). Then press the DOWN or UP button repeatedly within
four seconds.
Note that the surround speakers volume and balance of tlhe 5.1
CH and Dolby Pro Logic modes are also changed.
●The DSP system is automatically canceled:
-when the Dolby Pro Logic is turned on
-when the 5.1 CH function is selected
●The DSP system cannot be turned on:
-while the 5.1 Cl-l functiorl is selected
-while headphones are plugged in
When the music source is monaural
Select LIVE to obtain asimulated stereo effect. When DANCE,
HALL or ARENA is selected, no sound will be heard from the
surround speakers.
,ENGL/!5H II O

SELECTION OF AUDIO/VIDEO
SOURCE
1
2
3
FUNCTION Function indicators ENTER
DOWN~UP IMULTI JOG
VIDEO 1/5.1CH/BAND
Select the program source.
Turn the FUNCTION selector or press the TAPE MONITOR
button. The selected function indicator flashes in red.
IRadio ITUNER I
Record IPHONO
Compact disc ICD
ITelevision, etc. IAUX I
Video VIDEO l/DVD/MD,
VIDEO 2/LD/TV, VIDEO 3
LD or Cable TV VIDEO 2
1
MD or DVD VIDEO l/DVD/MD
To select afunction on the remote control
Press the desired function button directly.
The function to be selected (except PHONO) depend on the
equipment connected to the input terminals on the rear panel
of the unit.
When using aturntable with abuilt-in equalizer amplifier, set
the switch of the equalizer amplifier to off. Seethe instructions
of the turntable for further information.
Start the selected program source.
Adjust the sound.
About the video source to the monitor orTV
Selected video source
VI: VIDEO1 ,V2: VIDE02, V3: VIDE03
To select the video source
1Select one of the functions except TUNER.
2Press the ENTER button to display VIDEO 1.
3Turn the MULTI JOG to select VIDEO 2or VIDEO 3.
To change adisplayed name for the VIDEO
1and VIDEO 2
When the VIDEO 1is selected, VIDEO 1is displayed initially. It
can be changed to DVD or MD.
Press the VIDEO l/5.1 CH/BAND button while pressing the
ENTER button.
To use the 5.1CH function, press the VIDEO 1/5.1CH/BAND
button. The function name will change to “5.1 ch IN” and the
source connected to the 5.1 INPUT terminals is selected.
To resume, press the button again so that the selected function
name is displayed.
The displayed name for VIDEO 2button can be changed to
VIDEO 2, LD orT~ while the VIDEO 2function is selected, press
the VIDEO 1/5.1CH/BAND button while pressing the ENTER
button.
To adjust the sound level of the connected
source
The input sensitivity level of each function (except the TUNER
function) can be adjusted.
When the sound level of the connected source is higher or lower
than that of the TUNER, adjust it as follows.
1Select the function to be adjusted.
Turn the MULTI JOG accordingly and play the source,
2Press the UP or DOWN button repeatedly.
The level can be adjusted between -6dB (MIN) and +8dB (MAX)
in 2dB steps. Adjust the level so that the sound is output at the
same level as the TUNER.
●The input sensitivity level of the TUNER function cannot be
adjusted.
●That of the TAPE MONITOR cannot be adjusted either.
Even if the TAPE MONITOR is selected and the TAPE
MONITOR indicator turns red, pressing the UP or DOWN button
will change the level of the function displayed on the window.
The selected video source is indicated on the display and the
video signal through the MONITOR VIDEO OUT jack is output
on the TV.
:1 ENGLISH

TO PLAY ADVD RECORDED IN DOLBY
DIGITAL SURROUND
This receiver has the 5.1 INPUT connectors supporting Dolby
Digital decoder with the 5.1 ch output terminals. When aDVD
player that contains aDolby Digital decoder is connected to the
receiver, you can enjoy theater-quality audio right in your home
when playing discs recorded in Dolby Digital Surround.
1Turn the FUNCTION selector to select the VIDEO
l/DVD/MD function.
3Start playing the DVD recorded in Dolby Digital
Surround.
EEma
*The 5.1 CH function is automatically canceled and the VIDEO
1, DVD or MD function is selected:
-when the Dolby Pro Logic is turned on
-when headphones are plugged in
●The 5.1 CH function cannot be selected while headphones are
plugged in.
RECORDING AN AUDIO SOURCE
——.
1ENTER
1
2
3
TAPEMC)NITOR MULTIJOG
Select the program source to be recolrded.
Turn the FUNCTION selector.
Set the tape deck or MD recorder to the recording
mode.
Start the selected program source.
To monitor recorded sound during recording (when thle
connected tape deck is athree-head systemk)
Press the TAPE MONITOR button. “TAPE ON” appears on the
display for four seconds, and then the source name selected in
step 1comes back on. To cancel the tape monitor, press it again
so that “TAPE OFF” appears.
m
●Any sound control system has no effect on recording (see page
8).
cInput sound through the 5.1 INPUT terminals cannot be
recorded. When recording the sound from the DVD player,
connect the AUDIO OUT (DOWN MIXING) terminals of the DVD
player to the VIDEO l/DVD/MD AUDIO IN terminids of the unit,
●When recording sources by the MD recorder ccmnectecl to the
VIDEO l/DVD/MD AUDIO OUT terminals, first press the
ENTER button tc)display VIDEO 1, and turn the MULTI ,JOGto
select VIDEO 2or VIDEO 3. Then select the source (W or \/3
should be displayed).
Recording cannot be done while the V1 indication is displayed
on the window.
●Input sound from the tape deck connected to the TAF’E
MONITOR IN terminals cannot be recorded.

MANUAL TUNING
MONO
TUNER
1
2
L—”——i IL--Al
1u
<......>
Turn the FUNCTION selector to select theTUNER
function, and press the VIDEO 1/5.1 CH/BAND
button repeatedly to select the desired band.
~
The display changes to frequency indications after indicating
band and video source (V1, V2 or V3) for two seconds.
Press the UP or DOWN button to select astation.
Each time the button is pressed, the frequency changes.
When astation is received, “TUNE is displayed for two
seconds. During FM stereo reception, 11{~11]is displayed.
To search for astation quickly (Auto Search)
Keep the UP or DOWN button pressed until the tuner starls
searching for astation. After tuning in to astation, the search
stops.
To stop the Auto Search manually, press the UP or DOWN button.
●The Auto Search may not stop at stations with very weak
signals.
When an FM stereo broadcast contains noise
Press the MONO TUNER button on the remote control so that
“MONO appears on the display.
Noise is reduced, although reception is monaural.
MONO
To restore stereo reception, press the button so that “STEREO
appears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation
system is 9kHz/step, change the tuning interval.
Hold down the VIDEO 1/5. 1CH/BAND button and press the
POWER button.
To reset the interval, repeat this procedure.
13 ENGLISH

PRESETTING STATIONS
Numbered
buttons
TUNER
BAND
U
,.......
The unit can store atotal of 32 preset stations. When astation is
stored, apreset number is assigned to the station. Use the preset
number to tune in to apreset station directly.
1
2
3
Turn the FUNCTION selector to select theTUNER
function, and press the VIDEO 1/5.1 CH/BAND
button repeatedly to select the desired band.
Then press the UP or DOWN button to select a
station.
Press the ENTER button to store the station.
Apreset number assigned to the station, beginning from 1in
consecutive order for each band, is displayed for two seconds.
Repeat steps 1and 2.
No more stati&s will be stored if atotal of 32 stations have
already been stored for all the bands.
PRESET NUMBER TUNING
1Turn the FUNCTION selector to select theTUNE[? ;
function, and press the VIDEO 1/5.1 CHIBAN[)
button repeatedly to select aband. .
2Turn the MUILTI JOGI to select apresel number.
To clear apreset station
Select the preset number of the station to be cleared. Then, press
the ENTER button, and press the ENTER button again within
four seconds.
The preset numbers of ail other stations in the band with highf?r
numbers are decrx?ased by one.
When using the remote control
Press the TUNER BAND button to select aband, then press the
numbered buttons to select apreset number.
Example:
To select preset number 25, press 2 and 5.
To select preset number 7, press Oand 7.
When the AM tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
ENGLISH14

This unit is equipped with the Dolby Pro Logic decoder and also
supports the Dolby Digital decoder with the 5.1 ch output
terminals.
The unit and the center and surround speakers (standard) assure
full-scale home theater sound. When playing back discs or video
software that have been recorded in Dolby Pro Logic or Dolby
Digital Surround, astonishingly realistic sound surrounds the
listener to create anew level of audio/visual entertainment.
Independent control of the five channels allows the listener to
enjoy the same type of sound reproduction experienced in movie
theaters. Voices are reproduced in the front and center sound
field, while ambient sounds like cars and crowds are reproduced
on all sides of the listener for an incredibly lifelike audio/video
experience. Please read the following carefully to “tune” the
system’s output to match the characteristics of your listening
space.
Check the following:
●Before enjoying the DOLBY SURROUND sound, adjust the
proper balance of the speaker sound levels (see page 16).
●Make sure the speakers are properly connected and positioned
(see pages 3,4 and 5).
●Make sure the TV set and video unit are properly connected
(see page 3).
●Make sure the disc and video tape, etc., support Dolby Pro
Logic or Dolby Digital Surround.
SELECTING DOLBY PRO LOGIC
The optimal Dolby Pro Logic mode depends on the type and
placement of the speakers. It is recommended that the optional
A]wa speakers should be used for all channels, for example, the
SX-R1 700 for surround speakers, the SX-C1 700 for acenter
speaker and the SX-AV1 700 for front speakers. Check your
current type and placement of the speakers and select the
recommended Dolby Pro Logic mode accordingly.
The recommended mode
Centerspeaker
Larger-size Smaller-size Nospeaker
Surroundspeaker DOLBYPRO DOLBYPRO PHANTOM
(Rearspeaker) LOGIC-WIDE LOGIC-NORMAL
Nosurround 3STEREO- 3STEREO- .
speaker WIDE NORMAL
TO SELECT ADOLBY PRO LOGIC MODE
1.2 1
1Press the DOLBY SURROUND button, and turn
the MULTI JOG to select the appropriate mode.
The mode names are displayed in the order as shown below,
rPRO LOGIC -PHANTOM -3 STEREO 1
1 1
2Press the DOLBY SURROUND button again and
hold it down until the center speaker mode to be
selected appears. (Except the PHANTOM mode.)
“NORMAL” and “WIDE” appear one after the other.
wDepending on the sound source or listening condition, surround
effect may not be obtained even when the Dolby Pro Logic is
set to on.
●The full Dolby Pro Logic effect cannot be obtained when using
the software without 110[~ SIJWIIJ@mark. In this case, use
the DSP surround system instead (see page 10).
●The Dolby Pro Logic system is automatically canceled:
-when the DSP system is turned on
-when the GEQ system is turned on
-when the 5.1 CH function is selected
-when headphones are plugged in
●The Dolby Pro Logic cannot be set to on while headphones
are plugged in.
PHANTOM mode: Select this mode when the center speaker is
not connected. All center channel signals are redistributed to
the left and right channel speakers.
3STEREO mode: Select this mode when the surround speakers
are not connected.
i5ENGLISH

ADJUSTING SPEAKER LEVEL
BALANCE
1
The unit is equipped with abuilt-in test signal generator called a
noise sequencer for easy balance adjustment of all five channels.
The sequencer outputs anoise signal that “travels” from channel
to channel, enabling the simple adjustment of sound level to
achieve the same apparent loudness, at your listening position,
from each channel.
1
2
Select the Dolby Pro Logic mode according to
your current type and placement of the speakers.
(See page 15.)
Press the MANUAL SELECT button on the remote
control and hold it down for about two seconds
until “L’ of “L/R OdB” starts to flash.
Anoise signal is sent to each channel in turn as follows:
DOLBY PRO LOGIC NORMAL or WIDE mode
+====7
+
CEN OdB(Center speaker) I
I
L/R OdB(Right front speaker)* I
4
S-R ~dB (Right surround speaker)* 2
+
S-L OdB(Left surround speaker)* 2I
DOILBY PRO LOGIC PHANTOM mode
~L/ROdB*i -F L/R OdW1l
i-. S-L 0dB’2~ S-R OdB*2~
3STEREO NORMAL or WIDE mode
~L/R 0cii3=+CEN OcfB+LIR OdB’11
*I
*2
l“ or “R” flashes to indicate one of the front speakers from which
the noise signal is output.
The noise signal is output from the Land Rsurround speakers at
the same time.
3
4
Adjust the sound level of the center and surround
speakers.
while ~,CEN~~~~[-
,.>-V or “S-R” flashes in the display, press the
UP or DOWN button on the remote control so that the sound
level of the center or surround speakers matches that of the
front speakers,
The balance of the front speakers can be adjusted as wf?ll
while “L/R” is displayed.
Press the MANUAL SELECT button again to stop
the noise signal.
When adjusting the speakers level balance of the Dolby PIro
Logic, those of the DSP and 5.1 CH modes are also changed.
About the channels
The left and right speakers create the stereo effect,
The center spealker helps achieve precise sound positioning
over abroad sound field.
The rear-mounted surround speakers enhance the “depth” of
the sound field.
To change the surround speakers delay time of the Dolby
Pro Logic mode
The surround speakers reproduce sounds asplit second after
the front speakers. The delay is initially set to 20 ms
(milliseconds).
To change this standard delay time, press the MANUAL SELECT
button on the remote control repeatedly so that “TlME20mS” is
displayed. Then, press the UP or DOWN button. Each time one
of the buttons is pressed, the delay time changes as shown
below.
To adjust the speakers level balance while listening ito
the source (Dollby Pro Logic and 5.1 CH rnoldes)
The speakers level balance can be changed after adjusting it
with the noise sequencer, The balance can be changed
whenever the Dolby Pro Logic system is turned on or the 5.1
CH function is selected.
1
2
3
Play adisc or video software recorded in Dolby Pro Logic or
Dolby Digital Surround,
Press the MANUAL SELECT button on the n?mote control
repeatedly so that “UR, “CEN”, “S-L”, “S-R” or “S-W” (lor
sub woofer in 5.1 CH mode) appears on the display.
Press the UP cwDOWN button while the speaker name to Ibe
adjusted is displayed.
ENGLISH16

SETTING THE CLOCK SETTING THE SLEEP TIMER
213
1
VIDEO 1/5:1CH/BAND
CLOCK
When the AC cord is connected for the first time, the clock on
the display flashes.
Set the time as follows while the power is off.
1
2
3
Press the ENTER button.
The display becomes alittle brighter
Turn the MULTI JOG to designate the hour and
the minute.
The time advances by turning it to right, and decreases by
turning it to left.
Press the ENTER button.
The clock starts from 00 second.
m
When the clock is set for the first time after purchase
Everything on the display will clear.
This is because the power economizing mode of the unit is
activated, and is not amalfunction.
The power economizing mode can be canceled. See page 6 for
details.
To correct the current time
Press the POWER button to turn the unit off. Press the ENTER
button and carry out steps 1to 5above.
To display the current time
Press the CLOCK button on the remote control. The clock is
displayed for 4seconds.
To switch to the 24-hour standard
Press the VIDEO 1/5.1CH/BAND button while the current time
is displayed.
Repeat the same procedure to restore the 12-hour standard.
The receiver can be automatically turned off at aspecified time.
Use the remote control.
1
2
Press the SLEEP button.
Press the UP or DOWN button within four
seconds to specify the time until the power is
turned off.
Each time the button is pressed, the time changes between 5
and 240 minutes in 5-minute steps.
Specified time
The time can also be selected by the MULTI JOG on the main
unit.
To check the time remaining until the power is turned off
Press the SLEEP button once. The remaining time is displayed
for four seconds.
To cancel the sleep timer
Press the SLEEP button twice so that “SLEEPoFF on the display
appears.
If the clock display flashes while the power is off
This is caused by apower interruption. The current time needs
to be reset.
If power is interrupted for more than approximately 24 hours, all
settings stored in memory after purchase need to be reset.
17 ENGLISH

CARE AND MAINTENANCE SPECIFICATIONS
Occasional care and maintenance of the unit is needed to
optimize the performance of your unit.
To clean the cabinet
Use asoft dry cloth.
If the surfaces are extremely dirty, use asoft cloth lightly
moistened with mild detergent solution. Do not use strong
solvents, such as alcohol, benzine or thinner as these could
damage the finish of the unit.
FM tuner’ section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity 13.2 dBf
(IHF)
Antenna terminals, 75 ohms (unbalanced)
AM tuner section
Tuning range 530 kt+z to 1710 kHz (10 kHz step), 531
kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 @//m
Antenna Loop antenna
Amplifier section
Power output [Stereo Mode]
Front
100 watts per channel, Min. IRMSat 8
ohms, from 40 Hz to 20 kl-lz, with no
more than 0.90/. Total Harmonic
Distortion
[Dolby Pro Logic or 5.1 Cl+ Mode]
Front
60 watts per channel, Min. RMS at 8
ohms, from 40 Hz to 20 kHz, with no
more than ().9Y0 Total Harmcmic
Distortion
Rear (Surround)
60 watts per channel, Min. RiMS at 8
ohms, 1kHz, with no more tlhan 0.9%
Total Harmonic Distortion
Center
60 watts, Min. RM.Sat 8ohms, 1kHz,
with no more than 0.9?4. Total Harmonic
Distortion
Total harmonic 0.08 %(40 W, 1kHz, 8ohms, Front)
distortion
Inputs AUDIO IN
PHONO: 2,5 mV, adjustable (47 kohms)
CD, VIDEO l/DVD/MD, VIDEO 2/LD/
TV, VIDEO 3:250 mV, adjustable (47
kohms)
TAPE MONITOR: 350 mV (47
kohms)
AUX: 200 mV, adjustable (47 kohms)
5.1 INPUT
FRONT, CENTER: 400 mV,
adjustable (47 kohms)
SURROUND: 400 mV, adjustable
(47 kohms)
SUB-WOOFER: 400 mV, adjustable
(47 kohms)
VIDEO IN: 1Vp-p (75 ohms)
ENGLISH 18

outputs AUDIO OUT (REC OUT): 200 mV (1
kohm)
VIDEO OUT (MONITOR): 1Vp-p (75
ohms)
SUPER WOOFER: 1.2V
FRONT SPEAKERS IMP: 8L2
(front speakers Aand B): accepts
speakers of 8ohms or more.
SURROUND SPEAKERS IMP: 8Q
(surround speakers): accepts
speakers of 8ohms or more
CENTER SPEAKER IMP: 8Q: accepts
aspeaker of 8ohms or more.
PHONES (stereo jack): accepts
headphones of 32 ohms or more
Muting -20 dB
General
Power requirements 120 VAC, 60 Hz
Power consumption 125 W
Dimensions 430 x 155 x 351 mm
(W XHXD) (17 x6’/8 x137/8 in.)
Weight 10 kg (22 lb 1OZ.)
Specifications and external appearance are subject to change
without notice.
DOLBY PRO LOGIC
Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY” the double-D symbol ❑Oand “PRO LOGIC are
trademarks of Dolby Laboratories Licensing Corporation.
TROUBLESHOOTING GUIDE
If the unit fails to perform as described in these Operating
Instructions, check the following guide.
GENERAL
There is no sound.
●Is the AC cord connected properly?
●Is there an incorrect connection? (+ page 3)
●There may be a short circuit in the speaker terminals.
+Disconnect the AC cord, then correct the speaker
connections.
●Was an incorrect function button pressed?
●Was the TAPE MONITOR button pressed?
cAre the FRONT SPEAKERS Aand Bbuttons set correctly?
(+ page 6)
Sound is emitted from one speaker oniy.
●is the BALANCE set appropriateiy?
●is the other speaker disconnected?
Sound is heard at avery iow volume.
●Has the MUTi NG button been pressed?
An erroneous display or amalfunction occurs.
+Reset the unit as stated below.
TUNER SECTION
There is constant, wave-like static.
●Is the antenna connected properly? (+ page 5)
●Is the FM signai weak?
+Connect an outdoor antenna.
The reception contains noise interference or the sound is
distorted.
●isthe system picking up externai noise or multipath distortion?
+Change the orientation of the antenna.
+Move the unit away from other electrical appliances.
To reset
If an unusual condition in the dispiay window or malfunction
occurs, reset the unit as foiiows.
1Press the POWER button to turn off the power.
2Press the POWER button whiie pressing the ENTER button.
Everything stored in memory after purchase is canceied.
if the power cannot be turned off in step 1because of a
malfunction, reset by disconnecting the AC cord and carry out
step 2.
19 ENGLISH
