Aiwa NSX-AK772 User manual

SERVICE MANUAL
HC NSX-AK772
COMPACT DISC STEREO
CASSETTE RECEIVER BASIC TAPE MECHANISM: 2ZM-3MK2YPR4N
BASIC CD MECHANISM: 4ZG-1 VOS1DSH
If requiring information about the CD mechanism, see Service Manual of 4ZG-1,
S/M Code No.09-985-249-8OT.
S/M Code No. 09-989-293-9OT
REVISION
SYSTEM
NSX-AK772
CD-CASSEIVER
CX-NAK772
SPEAKER
SX-NAV704
SX-CR675
aiwa

TABLE OF CONTENTS
SPECIFICATIONS ................................................................................................................ 3
NOTICE BEFORE STARTING REPAIR ................................................................................. 4,5
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING............................................ 6
PRECAUTION TO REPLACE OPTICAL BLOCK ........................................................................ 6
ELECTRICAL MAIN PARTS LIST ................................................................................... 7 ~ 12
TRANSISTOR ILLUSTRATION .............................................................................................. 13

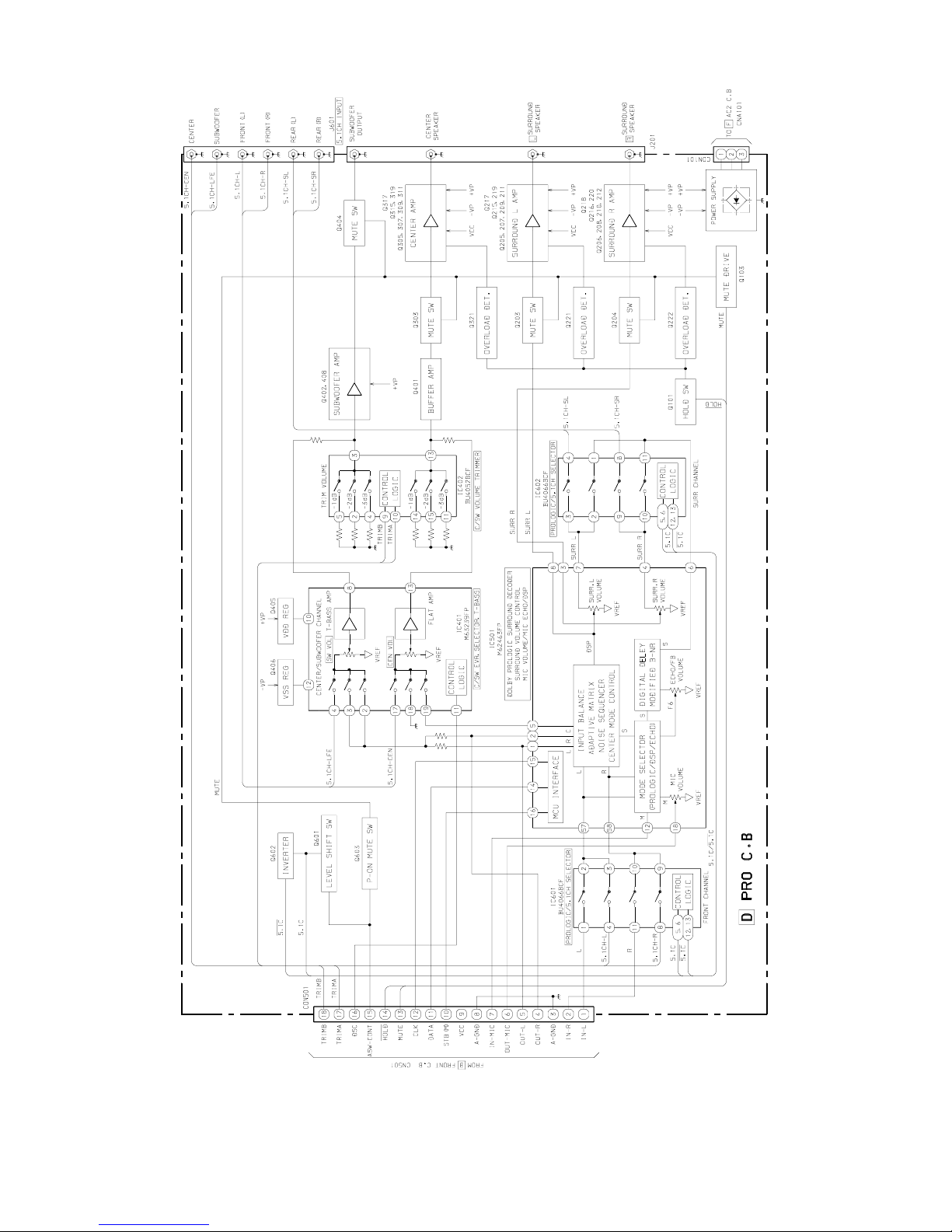

BLOCK DIAGRAM  1 (PRO) .............................................................................................. 14
BLOCK DIAGRAM  2 (MAIN / FRONT) ........................................................................... 15, 16
WIRING  1 (MAIN) ...................................................................................................... 17, 18

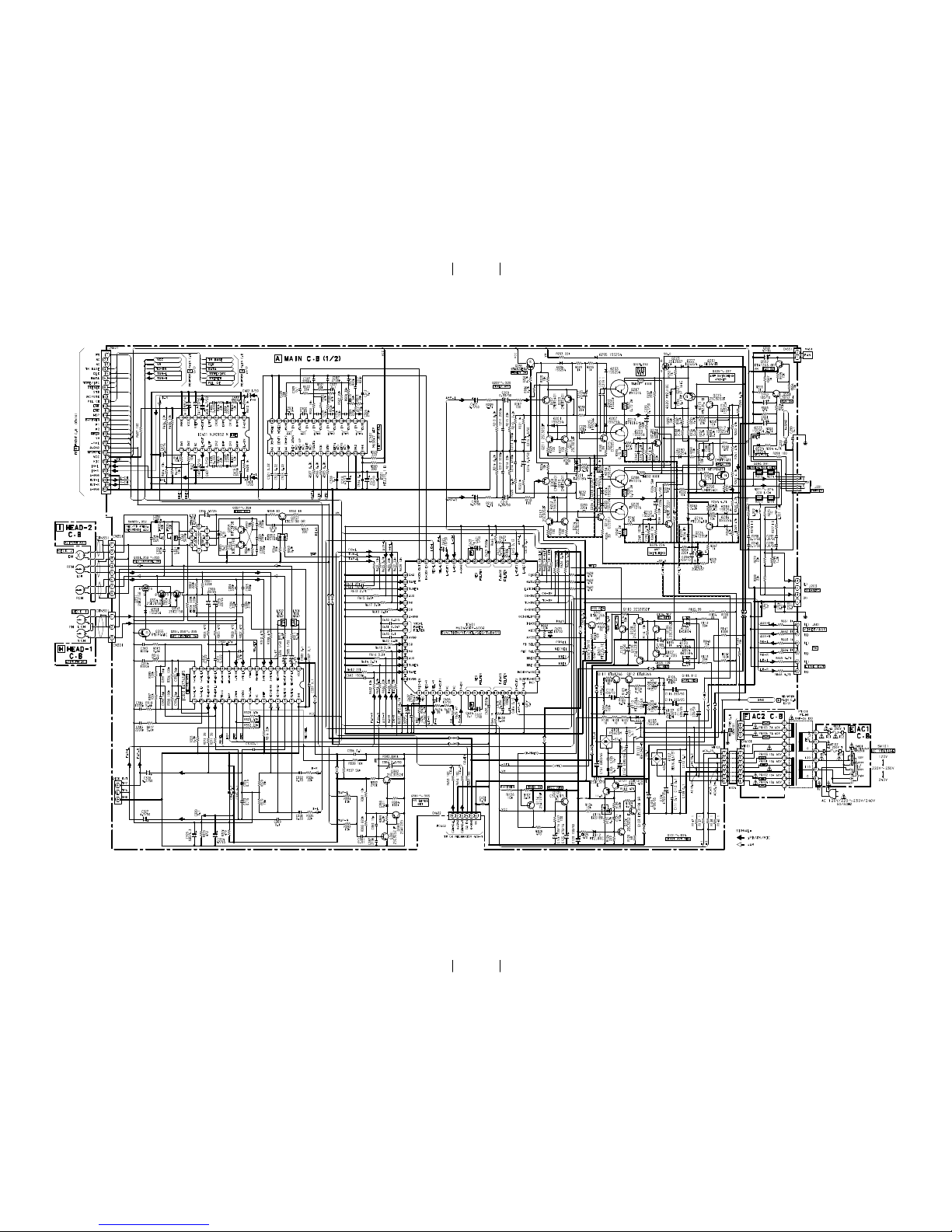

SCHEMATIC DIAGRAM  1 (MAIN 1/2) .......................................................................... 19, 20

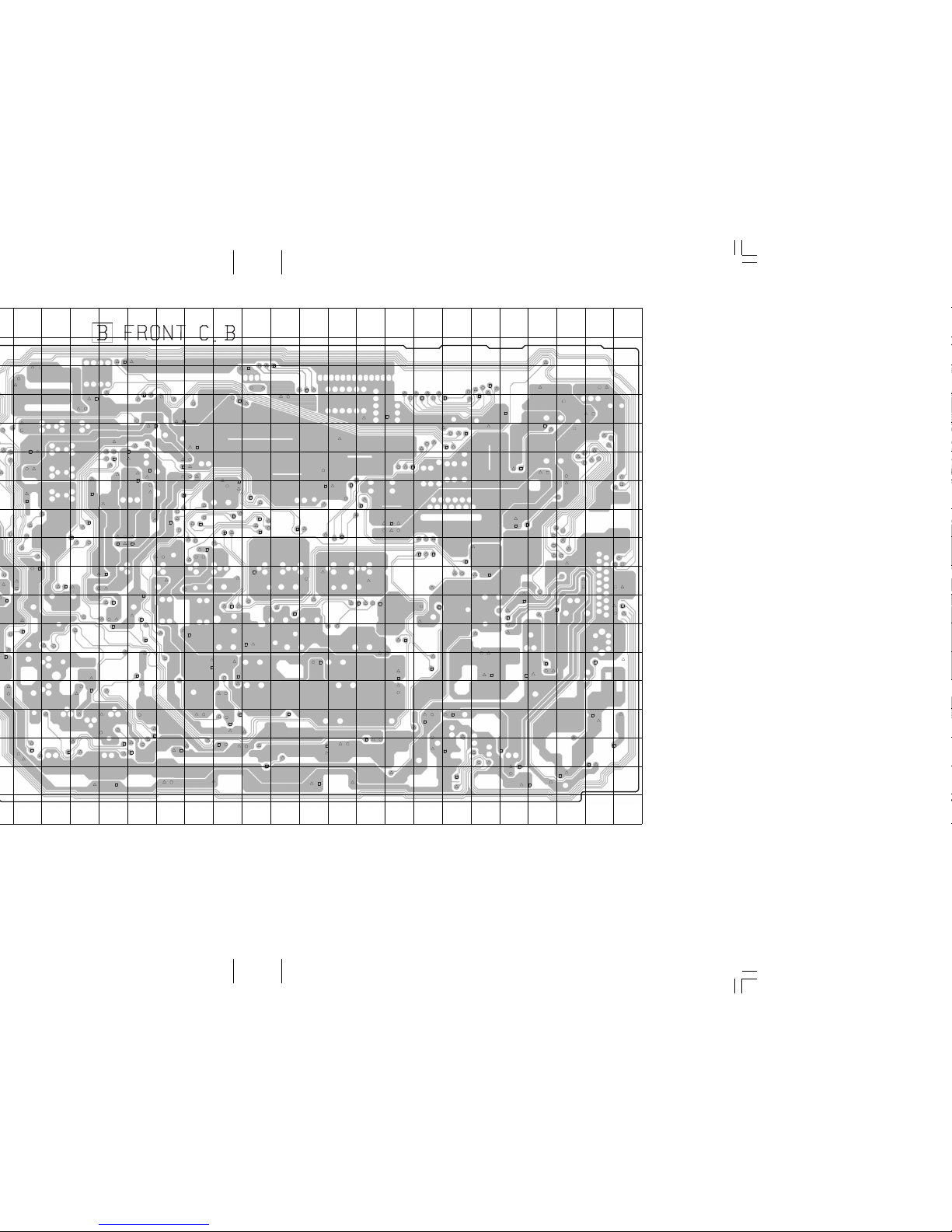

WIRING  2-1 (FRONT) .................................................................................................. 21, 22
WIRING  2-2 (FRONT) .................................................................................................. 23, 24

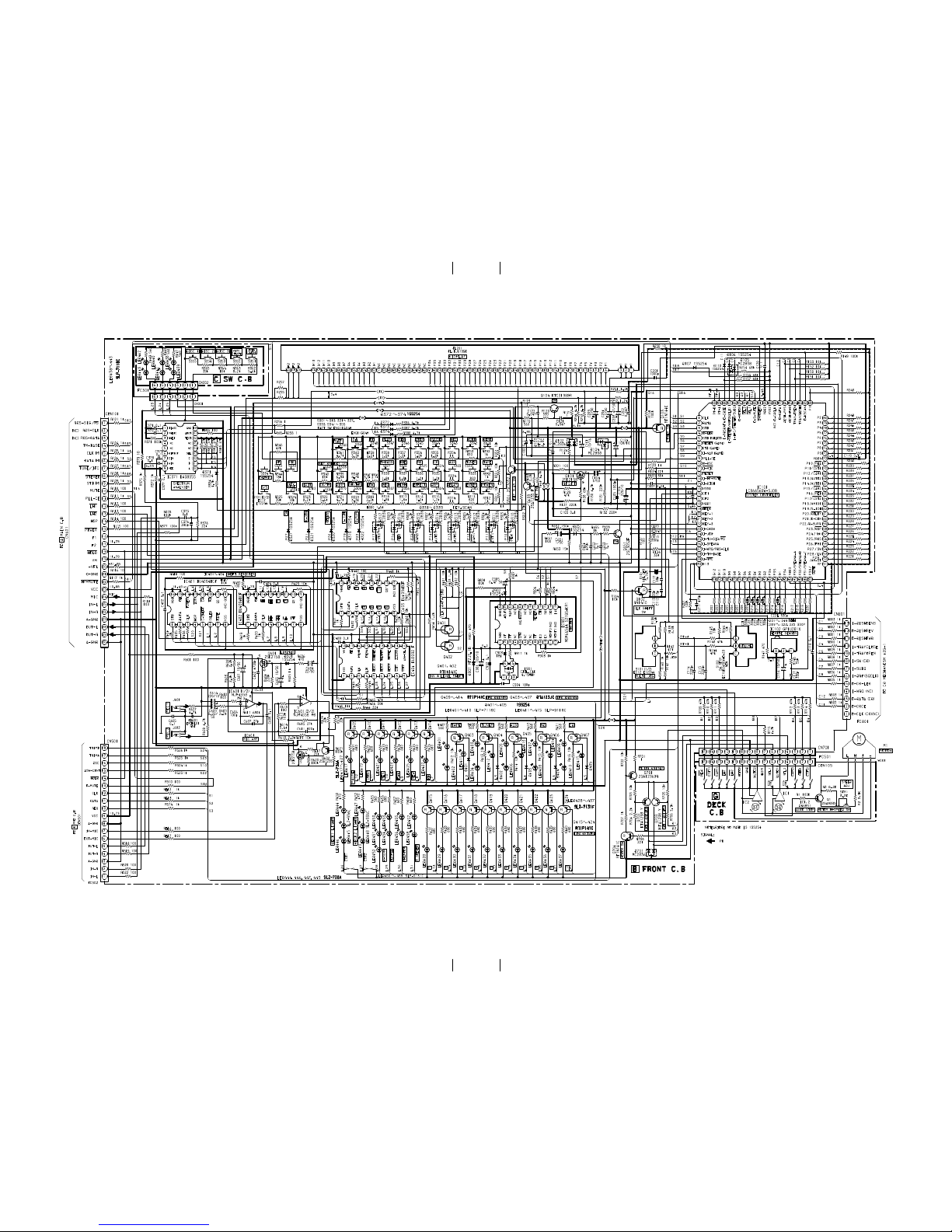

SCHEMATIC DIAGRAM  2 (FRONT) .............................................................................. 25, 26
SCHEMATIC DIAGRAM  3 (MAIN 2/2) .......................................................................... 27, 28
WIRING  3 (PRO) ........................................................................................................ 29, 30
SCHEMATIC DIAGRAM  4 (PRO) .................................................................................. 31, 32
WIRING  4 (SW) .............................................................................................................. 33
WIRING  5 (AC1 / AC2) .................................................................................................... 34
WIRING  6 (DECK) ........................................................................................................... 35
SCHEMATIC DIAGRAM  5 (TUNER FRONT END) .................................................................. 36
IC BLOCK DIAGRAM .................................................................................................. 37 ~ 43
IC DESCRIPTION .......................................................................................................... 44, 45
FL GRID ASSIGNMENT & ANODE CONNECTION................................................................. 46, 47
ADJUSTMENT <TUNER / DECK> .................................................................................... 48, 49
PRACTICAL SERVICE FIGURE ............................................................................................. 50
MECHANICAL EXPLODED VIEW 1 / 1 ............................................................................ 51, 52
MECHANICAL PARTS LIST 1 / 1 ........................................................................................ 53
TAPE MECHANISM EXPLODED VIEW 1 / 1 .................................................................... 54, 55
TAPE MECHANISM PARTS LIST 1 / 1 ................................................................................ 56
SPRING APPLICATION POSITION ....................................................................................... 57
SPEAKER DISASSEMBLY INSTRUCTIONS ............................................................................... 58
SPEAKER PARTS LIST ......................................................................................................... 59
ACCESSORIES / PACKAGE LIST .......................................................................................... 59
REFERENCE NAME LIST ..................................................................................................... 60
2

<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity(IHF) 13.2dBf
Antenna terminals 75 ohms (unbalanced)
<MW Tuner section>
Tuning range 531 kHz to 1602 kHz
(9 kHz step)
530 kHz to 1710 kHz
(10 kHz step)
Usable sensitivity 350uV/m
Antenna Loop antenna
<SW Tuner section>
Tuning range 5.900MHz to17.900 MHz
Antenna Wire antenna
<Amplifier section>
Power output Front
Rated : 80 W + 80 W
(6 ohms, THD 1%, 1 kHz)
Reference : 100 W + 100 W
(6 ohms, THD 10%, 1 kHz)
Rear (Surround)
Rated : 33 W + 33 W
(8 ohms, THD 1%, 1 kHz)
Reference : 40 W + 40 W
(8 ohms, THD 10%, 1 kHz)
Center
Rated : 33 W
(8 ohms, THD 1%, 1 kHz)
Reference : 40 W
(8 ohms, THD 10%, 1 kHz)
Total harmonic distortion 0.05% (50 W, 1 kHz,
6 ohms, DIN AUDIO / Front)
Inputs VIDEO/AUX : 210 mV
(adjustable)
MD : 210mV (adjustable)
MIC1,MIC2 : 1.4mV
(10 kohms)
5.1 CH INPUT
FRONT (L,R) : 560 mV
REAR (L,R) : 320 mV
CENTER : 300 mV
SUB WOOFER : 400 mV
Outputs LINE OUT: 280mV
VIDEO OUT: 1.0 Vp-p
(75 ohms)
SUB WOOFER : 1 V
SPEAKERS: accept
speakers of 6 ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms to
16 ohms
CENTER SPEAKER:
accept speakers of 8 ohms
or more
PHONES (stereo jack) :
accepts headphones of 32
ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape : 50 Hz  16000 Hz
Normaltape : 50 Hz  15000
Hz
Recording system AC bias
Heads Deck 1 : Playback head x 1
Deck 2 : Recording/playback
head x 1/ erase
head x 1
SPECIFICATIONS
<Compact disc player section>
Laser Semiconductor laser
(λ=780nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
Video signal NTSC/PAL color format
(selectable)
Video data MPEG 1
Audio data MPEG 1, LAYER 2
<Speakersystem> SXNAV704
Cabinet type 2 way, bass reflex (magnetic
shielded type)
Speakers Woofer : 160 mm cone type
Tweeter : 80 mm cone type
Impedance 6 ohms
Output sound pressure level87dB/W/m
Dimensions (W xH xD) 235 x 324 x 260 mm
Weight 5.4kg
<General>
Power requirements 120V/220 -230 V/240VAC
switchable,50/60 Hz
Power consumption 210W
Dimensions of main unit 260 x 324 x 348 mm
Weight of main unit 8.9kg
 Design and specifications are subject to change without
notice.
 The word "BBE"and the "BBE symbol" are trademarks of
BBE Sound, Inc.
Under license from BBE Sound,Inc.
 DOLBY NR / DOLBY PRO LOGIC
Manufactured under license from Dolby Laboratories
Licensing Corporation.
"DOLBY", and the double-D symbol and "PRO LOGIC"
are trademarks of Dolby Laboratories Licensing
Corporation.
3

NOTE ON BEFORE STARTING REPAIR
Fig-1
MAIN C.B
D101
C101 C102
22
34
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (ohm)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept
charged across the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this
condition, the secondary defect can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
1Remove the AC power cord.
2Connect a discharging resistor at an end of lead
wire that has clips at both ends. Connector the
other end of the lead wire to metal chassis.
3Contact the other end of the discharging resistor
to the positive (+) side (+VH) of C101. (For two
seconds)
4Contact the same end of the discharging resistor
as step 3to the negative (-) side (-VH) of C102
in the same way. (For two seconds)
5Check that voltage across C101 and C102 has
decreased 1 V or less using a multimeter or an
oscilloscope.
Select a discharging resistor referring to the following table.
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check
the reference numbers of the charging capacitor on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after
confirming that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is H, the MICROCOMPUTER is judged to be
operating correctly. When this terminal is L, the main power cannot be turned on. Therefore, be sure to check the
terminal voltage of the HOLD terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go L when the POWER AMPLIFIER
has any abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to
L.
 Good or no good judgment of the MICROCOMPUTER
1Turn on the AC main power.
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the H
level or not.
3When the HOLD terminal is L level, the abnormality detection circuit is judged to be working correctly and
the MICROCOMPUTER is judged to be good.
4

MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.
Fig-2-2

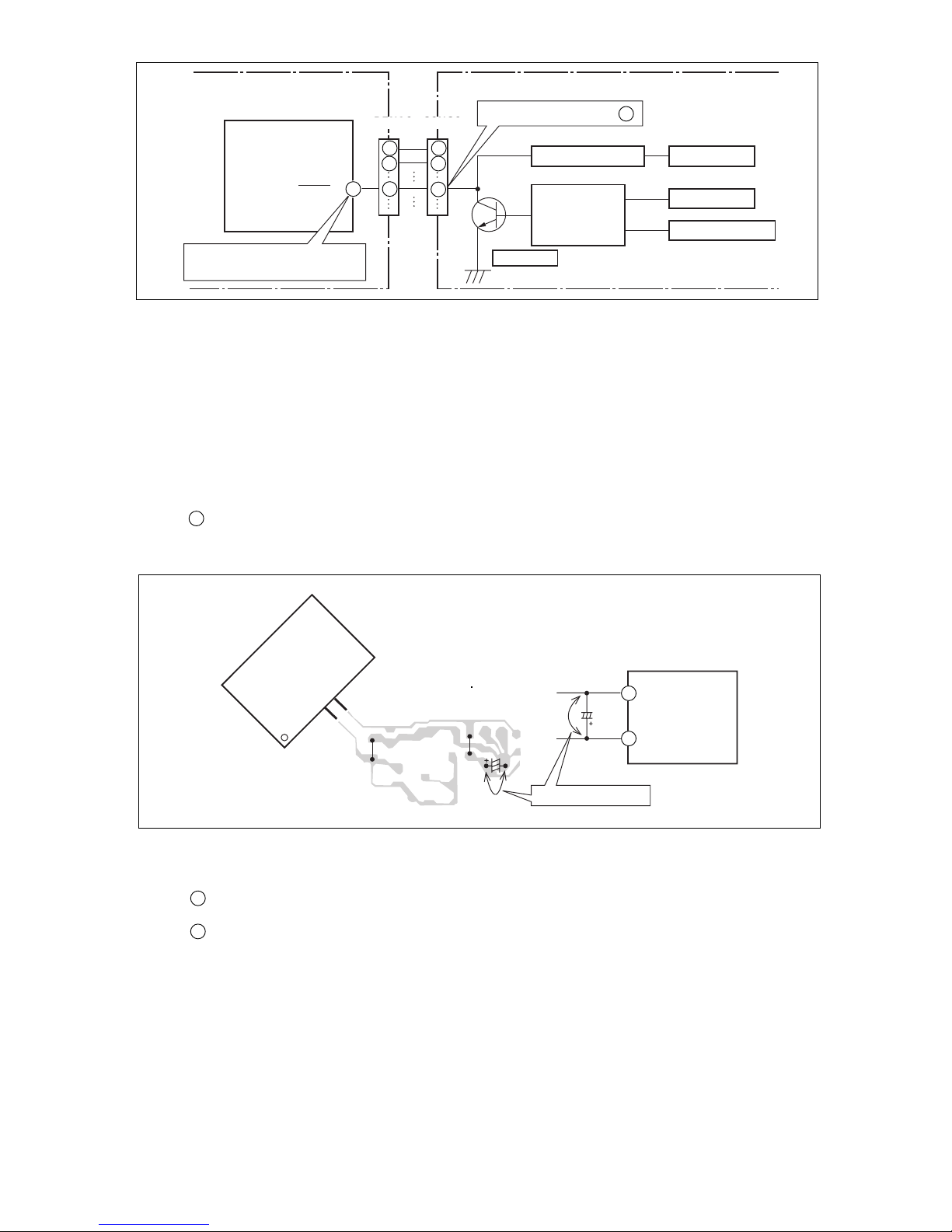

In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or
not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the
AC power cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can leads to wrong judgment as if the MICROCOMPUTER is
defective and to exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following
procedure and check good or no good of the MICROCOMPUTER.
1Remove the AC power cord.
2Short the both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with
tweezers.
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the
MICROCOMPUTER is good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can
change depending on the models. Be sure to check the reference numbers on schematic diagram before starting the
discharging work.
2-3.Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to
exchange the MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the
MICROCOMPUTER itself.
Fig-2-1
MICROCOMPUTER
FRONT C.B MAIN C.B
OVER LOAD DET
DC DET
Q110
POWER AMP
POWER AMP
POWER SUPPLY
HOLD
HOLD SW
(
AC DET
PIN101CON601
1
2
*
1
2
*
In some models, it is PIN (.
PIN number is different
depending upon microprocessor.
5
15
18
19 18 18
1
2
1
2
19 .
PIN101 CON601

6
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
Lutillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når
sikkerhedsafbrydereer ude af funktion. Undgå udsættelse
for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use the
clothes do not touch the diode.
1) After the connection, remove solder
shown in right figure.
Precaution to replace Optical block
Solder
PICK–UP Assy P.C.B.

DESCRIPTION
REF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
IC
88-NF5-615-040 C-IC,MSM6654A-521GS-KR1
88-NH7-630-010 C-IC,LC866560W-5J08
87-070-083-010 IC,GP1U281X
87-A20-783-040 C-IC,BA7762AFS
87-A20-083-010 IC,BA3835S
87-A20-804-040 C-IC,NJM2152M
87-017-915-080 IC,BU4094BCF
87-A21-011-040 C-IC,M62445FP-600D
87-017-888-080 IC,NJM4558MD
87-070-127-110 IC,LC72131D
87-020-454-010 IC,DN6851
87-070-289-040 C-IC,BU2092F
87-A20-913-010 IC,LA1837 NL
87-A20-715-010 IC,M62439SP
87-A20-853-010 C-IC,M62463FP
87-017-726-080 C-IC,BU4052BCF
87-017-917-080 C-IC,BU4066BCF
87-A20-561-040 C-IC,M65847AFP
TRANSISTOR
87-A30-087-080 C-FET,2SK2158
89-213-702-010 TR,2SB1370 (1.8W)
87-026-263-080 C-TR,RN1410
87-A30-071-080 C-TR,RT1N 144C
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-234-080 TR,CSC4115BC
87-A30-075-080 C-TR,2SA1235F
87-026-609-080 TR,KTA1266GR
87-A30-107-070 C-TR,CMBT5401
87-A30-190-080 TR,CC5551
87-A30-097-010 TR,FN 1016
87-A30-098-010 TR,FP 1016
87-A30-106-070 C-TR,CMBT5551
87-A30-072-080 C-TR,RT1P 144C
87-A30-074-080 C-TR,RT1P 141C
87-026-232-080 C-TR,DTA 144WK
87-A30-073-080 C-TR,RT1N 141C
87-A30-105-080 C-TR,RT1P 441C
89-112-965-080 TR,2SA1296 (0.75W)
87-A30-159-080 C-TR,KTA1298Y
89-327-143-080 TR,2SC2714 (0.1W)
87-026-463-080 TR,2SA933SRS
87-A30-162-010 FET,2SK2937
87-026-580-080 C-TR,DTA123JK
87-A30-221-040 C-TR,DTA114WK
87-A30-086-070 C-TR,CSD1306E
89-505-434-540 C-FET,2SK543-TB(4/5)
87-A30-137-010 TR,2SD2494
87-A30-138-010 TR,2SB1625
87-A30-142-040 C-TR,DTA123EKA
87-A30-108-010 TR,2SB1626
87-A30-109-010 TR,2SD2495
87-A30-214-010 TR,2SB1344
87-A30-215-010 TR,2SD2025
87-A30-104-080 C-TR,RT1N441C
87-026-223-080 C-TR,DTC143TK
DIODE
87-A40-470-080 DIODE,1SS254
87-017-654-060 DIODE,GBU6JL 6131
87-A40-505-040 C-DIODE,KDS181
87-A40-509-080 ZENER,MTZJ6.8C
87-070-136-080 ZENER,MTZJ5.1B
87-A40-504-040 C-DIODE,KDS184
87-070-274-080 DIODE,1N4003 SEM
87-A40-341-080 ZENER,MTZJ 36 A
87-A40-004-080 ZENER,MTZJ16A
87-A40-488-080 DIODE,1SS244
87-A40-345-080 ZENER,MTZJ10C
87-A40-184-090 DIODE,RF34
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-438-080 ZENER,MTZJ4.7A
87-A40-234-080 ZENER,MTZJ5.6A
87-A40-115-060 DIODE,RS603M
87-017-931-080 ZENER,MTZJ5.6B
87-A40-370-090 DIODE,RK46-P20
87-017-178-090 DIODE,IN5402-BD54
87-A40-116-060 DIODE,RS403L-D-51
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-442-080 ZENER,MTZJ9.1A
87-A40-269-080 C-DIODE,MC2836
87-A40-270-080 C-DIODE,MC2838
MAIN C.B
C103 87-016-658-090 CAP,E 4700-35 SMG
C104 87-016-658-090 CAP,E 4700-35 SMG
C105 87-012-368-080 C-CAP,S 0.1-50 F
C106 87-012-368-080 C-CAP,S 0.1-50 F
C107 87-012-368-080 C-CAP,S 0.1-50 F
C108 87-012-368-080 C-CAP,S 0.1-50 F
C109 87-010-196-080 CHIP CAPACITOR,0.1-25
C110 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-010-196-080 CHIP CAPACITOR,0.1-25
C112 87-010-196-080 CHIP CAPACITOR,0.1-25
C113 87-010-385-080 CAP, ELECT 220-25V
C114 87-010-385-080 CAP,E 220-25V
C115 87-010-385-080 CAP,E 220-25V
C116 87-010-385-080 CAP, ELECT 220-25V
C117 87-010-430-080 CAP, ELECT 100-63
C118 87-010-263-080 CAP, ELECT 100-10V
C119 87-010-260-080 CAP, ELECT 47-25V
C120 87-010-403-080 CAP, ELECT 3.3-50V
C121 87-012-140-080 CAP 470P
C123 87-010-247-080 CAP, ELECT 100-50V
C124 87-010-112-080 CAP, ELECT 100-16V
C125 87-010-235-080 CAP,E 470-16 SME
C151 87-016-520-090 CAP,E 3300-65
C152 87-016-520-090 CAP,E 3300-65
C204 87-016-299-080 CAP, E 100-10 SME
C205 87-010-805-080 CAP,S 1-16
C206 87-010-805-080 CAP,S 1-16
C209 87-010-546-080 CAP, ELECT 0.33-50V
C210 87-010-546-080 CAP, ELECT 0.33-50V
C211 87-010-182-080 C-CAP,S 2200P-50 B
C212 87-010-182-080 C-CAP,S 2200P-50 B
C213 87-010-186-080 CAP,CHIP 4700P
C214 87-010-186-080 CAP,CHIP 4700P
C215 87-010-403-080 CAP, ELECT 3.3-50V
C216 87-010-403-080 CAP, ELECT 3.3-50V
C217 87-A10-899-080 CAP, ELECT 47-25V BP
C218 87-A10-899-080 CAP, ELECT 47-25V BP
C219 87-010-805-080 CAP,S 1-16
C220 87-010-805-080 CAP,S 1-16
C223 87-010-197-080 CAP,CHIP 0.01 DM
C224 87-010-197-080 CAP,CHIP 0.01 DM
C229 87-A10-812-080 C-CAP,S 220P-200 J CH
C230 87-A10-812-080 C-CAP,S 220P-200 J CH
C233 87-010-544-080 CAP, ELECT 0.1-50V
C234 87-010-544-080 CAP, ELECT 0.1-50V
C235 87-010-196-080 CHIP CAPACITOR,0.1-25
C237 87-012-368-080 C-CAP,S 0.1-50 F
C238 87-012-368-080 C-CAP,S 0.1-50 F
C239 87-012-368-080 C-CAP,S 0.1-50 F
C240 87-012-368-080 C-CAP,S 0.1-50 F
ELECTRICAL MAIN PARTS LIST
7

DESCRIPTION
REF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
C247 87-010-178-080 C-CAP,S 1000P-50 CH
C248 87-010-178-080 C-CAP,S 1000P-50 CH
C280 87-010-188-080 C-CAP,S 6800P-50 B
C301 87-010-318-080 C-CAP,S 47P-50 CH
C302 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-145-080 CAP, CHIP S 270P CH
C306 87-012-145-080 CAP, CHIP S 270P CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022
C312 87-010-198-080 CAP, CHIP 0.022
C313 87-010-178-080 CHIP CAP 1000P
C314 87-010-178-080 CHIP CAP 1000P
C315 87-010-178-080 CHIP CAP 1000P
C316 87-010-178-080 CHIP CAP 1000P
C321 87-016-492-080 C-CAP,S 0.33-16 FZ
C322 87-016-492-080 C-CAP,S 0.33-16 FZ
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP 470P
C352 87-012-140-080 CAP 470P
C354 87-010-175-080 CAP 560P
C355 87-012-349-080 C-CAP,S 1000P-50 CH
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-016-083-080 C-CAP,S 0.15-16 RK
C374 87-016-083-080 C-CAP,S 0.15-16 RK
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C379 87-010-382-080 CAP, ELECT 22-25V
C380 87-010-382-080 CAP, ELECT 22-25V
C381 87-010-197-080 CAP, CHIP 0.01 DM
C382 87-010-312-080 C-CAP,S 15P-50 CH
C383 87-010-197-080 CAP, CHIP 0.01 DM
C384 87-010-402-080 CAP, ELECT 2.2-50V
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-012-145-080 CAP, CHIP S 270P CH
C391 87-010-319-080 C-CAP,S 56P-50 CH
C392 87-010-319-080 C-CAP,S 56P-50 CH
C393 87-010-319-080 C-CAP,S 56P-50 CH
C394 87-010-319-080 C-CAP,S 56P-50 CH
C401 87-010-401-080 CAP, ELECT 1-50V
C402 87-010-401-080 CAP, ELECT 1-50V
C403 87-010-182-080 C-CAP,S 2200P-50 B
C404 87-010-182-080 C-CAP,S 2200P-50 B
C405 87-010-193-080 CHIP CAPACITOR,0.033
C406 87-010-193-080 CHIP CAPACITOR,0.033
C407 87-010-404-080 CAP, ELECT 4.7-50 M SME
C408 87-010-404-080 CAP, ELECT 4.7-50 M SME
C409 87-010-380-080 CAP, ELECT 47-16V
C410 87-010-380-080 CAP, ELECT 47-16V
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-381-080 CAP, ELECT 330-16 SME
C415 87-010-185-080 CHIP CAPACITOR 3900P (K)
C416 87-010-185-080 CHIP CAPACITOR 3900P (K)
C457 87-010-404-080 CAP, ELECT 4.7-50V
C458 87-010-404-080 CAP, ELECT 4.7-50V
C501 87-A10-060-080 C-CAP,S 0.18-16 KB
C502 87-A10-060-080 C-CAP,S 0.18-16 KB
C503 87-012-154-080 C-CAP,S 150P-50 CH
C504 87-012-154-080 C-CAP,S 150P-50 CH
C505 87-012-145-080 CAP,CHIP S 270P CH
C506 87-012-145-080 CAP,CHIP S 270P CH
C507 87-010-183-080 C-CAP,S 2700P-50 B
C509 87-010-196-080 CHIP CAPACITOR,0.1-25
C510 87-010-177-080 C-CAP,S 820P-50 SL
C511 87-010-177-080 C-CAP,S 820P-50 SL
C512 87-010-196-080 CHIP CAPACITOR,0.1-25
C513 87-010-374-080 CAP, ELECT 47-10V
C514 87-010-196-080 CHIP CAPACITOR,0.1-25
C515 87-010-263-080 CAP, ELECT 100-10V
C517 87-010-183-080 C-CAP,S 2700P-50 B
C521 87-016-460-080 C-CAP,S 0.22-16 B
C522 87-016-460-080 C-CAP,S 0.22-16 B
C523 87-016-460-080 C-CAP,S 0.22-16 B
C527 87-010-196-080 CHIP CAPACITOR,0.1-25
C551 87-010-401-080 CAP, ELECT 1-50V
C552 87-010-263-080 CAP, ELECT 100-10V
C553 87-010-380-080 CAP, ELECT 47-16V
C601 87-010-180-080 C-CER 1500P
C602 87-010-180-080 C-CER 1500P
C613 87-016-081-080 C-CAP,S 0.1-16 RK
C614 87-016-081-080 C-CAP,S 0.1-16 RK
C619 87-010-185-080 C-CAP,S 3900P-50 B
C620 87-010-185-080 C-CAP,S 3900P-50 B
C621 87-010-401-080 CAP, ELECT 1-50V
C622 87-010-401-080 CAP, ELECT 1-50V
C625 87-010-405-080 CAP, ELECT 10-50V
C626 87-010-405-080 CAP, ELECT 10-50V
C629 87-010-405-080 CAP, ELECT 10-50V
C630 87-010-213-080 CAP, CHIP 0.015-25 KB GRM
C631 87-010-992-080 CHIP-CAP,S 0.047-25B
C632 87-010-263-080 CAP, ELECT 100-10V
C633 87-010-263-080 CAP, ELECT 100-10V
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-010-196-080 CHIP CAPACITOR,0.1-25
C636 87-010-194-080 CAP, CHIP 0.047
C637 87-010-183-080 C-CAP,S 2700P-50 B
C641 87-010-196-080 CHIP CAPACITOR,0.1-25
C651 87-010-197-080 CHIP CAPACITOR,0.01 DM
C667 87-010-196-080 CHIP CAPACITOR,0.1-25
C701 87-010-381-080 CAP, ELECT 330-16V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-010-197-080 CAP, CHIP 0.01 DM
C704 87-010-197-080 CAP, CHIP 0.01 DM
C709 87-010-322-080 C-CAP,S 100P-50 CH
C711 87-010-263-080 CAP, ELECT 100-10V
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-010-197-080 CAP, CHIP 0.01 DM
C714 87-010-197-080 CAP, CHIP 0.01 DM
C721 87-010-312-080 C-CAP,S 15P-50 CH
C722 87-010-312-080 C-CAP,S 15P-50 CH
C723 87-010-178-080 CHIP CAP 1000P
C725 87-010-178-080 CHIP CAP 1000P
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C755 87-010-197-080 CAP, CHIP 0.01 DM
C756 87-010-197-080 CAP, CHIP 0.01 DM
C757 87-010-318-080 C-CAP,S 47P-50 CH
C758 87-010-149-080 C-CAP,S 5P-50 CH
C759 87-012-154-080 C-CAP,S 150P-50 CH
C760 87-012-154-080 C-CAP,S 150P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C762 87-010-197-080 CAP, CHIP 0.01 DM
C763 87-010-194-080 CAP, CHIP 0.047
C764 87-010-319-080 C-CAP,S 56P-50 CH
8

DESCRIPTION
REF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
C765 87-010-197-080 CAP, CHIP 0.01 DM
C766 87-010-197-080 CAP, CHIP 0.01 DM
C767 87-010-405-080 CAP, ELECT 10-50V
C768 87-010-197-080 CAP, CHIP 0.01 DM
C769 87-010-408-080 CAP, ELECT 47-50V
C770 87-015-821-080 C-CAP 0.047
C771 87-010-407-080 CAP, ELECT 33-50V
C772 87-010-194-080 CAP, CHIP 0.047
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-010-197-080 CAP, CHIP 0.01 DM
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-015-819-080 CAPACITOR,0.01
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-403-080 CAP, ELECT 3.3-50V
C786 87-010-403-080 CAP, ELECT 3.3-50V
C789 87-010-179-080 CAP,CHIP S B1200P
C790 87-010-179-080 CAP,CHIP S B1200P
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-010-177-080 C-CAP,S 820P-50 SL
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-596-080 CAP, S 0.047-16
C796 87-010-403-080 CAP, ELECT 3.3-50V
C797 87-010-179-080 C-CAP,S 1200P BK
C798 87-010-179-080 C-CAP,S 1200P BK
C799 87-010-194-080 CAP, CHIP 0.047
C812 87-010-197-080 CAP, CHIP 0.01 DM
C814 87-010-197-080 CAP, CHIP 0.01 DM
C820 87-010-408-080 CAP, ELECT 47-50V
C821 87-010-197-080 CAP, CHIP 0.01 DM
C822 87-010-197-080 CAP, CHIP 0.01 DM
C823 87-010-197-080 CAP, CHIP 0.01 DM
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C940 87-010-197-080 C-CAP,S 0.01 BK
C941 87-010-314-080 C-CAP,S 22P-50V
C943 87-010-197-080 C-CAP,S 0.01 BK
C944 87-014-051-080 CAP,PP 560P
C945 87-010-197-080 C-CAP,S 0.01 BK
C947 87-010-197-080 C-CAP,S 0.01 BK
C950 87-014-073-080 CAP,PP 4700P-100J
C952 87-010-197-080 C-CAP,S 0.01 BK
C953 87-010-197-080 C-CAP,S 0.01 BK
C954 87-010-400-080 CAP,E 0.47-50V
C956 87-010-263-080 CAP,E 100-10V
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C962 87-010-401-080 CAP,E 1-50V
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN301 87-099-827-010 CONN,3P S2M-3W
CN351 87-099-832-010 CONN,8P S2M-8W
CN551 87-A60-109-010 CONN,2P V S2M-2W
CN601 87-099-719-010 CONN,30P TYK-B (X)
CN602 87-A60-131-010 CONN,6P V FE
FB601 87-A50-190-080 C-COIL,S BLM21A102S
FC602 88-906-241-110 FF-CABLE,6P 1.25
FFE801 A8-8ZA-193-070 8ZA-1 YFEUNC
J201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J203 87-033-240-010 TERMINAL,SP 4P32SV1-05
J601 87-A60-426-010 JACK,PIN 6P YKC21-3835
J801 87-033-239-010 TERMINAL,HSP-154V-2
J940 81-754-629-010 CONNECTOR XH 2P (UL)
L201 87-003-383-010 COIL,1UH-S
L202 87-003-383-010 COIL,1UH-S
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-052-010 FLTR,CFMT-450A (TOK)
L781 87-005-847-080 COIL,2.2UH(CECS)
L832 86-NFZ-694-080 COIL,2.2UH K CECS
L941 87-A50-022-010 COIL,ANT SW (COI)7.96MHZ
L942 87-A50-173-010 COIL,OSC SW-N(COI)
L943 87-005-372-080 COIL,S 1MHM
L944 87-A50-159-010 COIL,10MH K C2B
L981 88-NF8-625-010 COIL,AM PACK 3N(TOK)
M451 87-A90-796-010 FAN,F614R-12MC-15-30MM
R237 87-A00-262-080 RES,M/F 0.15-2W J
R238 87-A00-262-080 RES,M/F 0.15-2W J
R239 87-A00-262-080 RES,M/F 0.15-2W J
R240 87-A00-262-080 RES,M/F 0.15-2W J
RY101 87-A90-464-010 RELAY, DG12D2-0(M)
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
TC941 87-011-220-080 TRIMMER,CAP 20P VTC
TC943 87-011-221-080 CAP,TRIMMER 30P
TH201 87-A90-221-080 C-THMS,100K
TH202 87-A90-221-080 C-THMS,100K
W102 87-A90-460-010 HLDR,WIRE 2.5-7P
W104 85-NF5-628-010 F-CABLE 7P-2.5
WH102 87-A90-460-010 HLDR,WIRE 2.5-7P
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
X771 87-030-354-010 VIB,CER 450.0KHZ BFU C
FRONT C.B
C101 87-010-075-040 CAP,E 10-16 5L
C102 87-010-196-080 CHIP CAPACITOR,0.1-25
C103 87-010-196-080 CHIP CAPACITOR,0.1-25
C104 87-010-494-040 CAP,E 1-50 GAS
C105 87-010-178-080 CHIP CAP 1000P
C106 87-A10-189-040 CAP,E 220-10
C107 87-010-197-080 CAP, CHIP 0.01 DM
C108 87-010-196-080 CHIP CAPACITOR,0.1-25
C109 87-010-194-080 CAP, CHIP 0.047
C110 87-012-157-080 C-CAP,S 330P-50 CH
C111 87-010-320-080 CHIP CAP 68P
C112 87-010-312-080 C-CAP,S 15P-50 CH
C113 87-010-316-080 C-CAP,S 33P-50 CH
C114 87-010-182-080 C-CAP,S 2200P-50 B
C115 87-010-182-080 C-CAP,S 2200P-50 B
C116 87-010-405-040 CAP,E 10-50
C117 87-012-157-080 C-CAP,S 330P-50 CH
C118 87-010-196-080 CHIP CAPACITOR,0.1-25
C119 87-010-196-080 CHIP CAPACITOR,0.1-25
C120 87-010-196-080 CHIP CAPACITOR,0.1-25
C121 87-010-194-080 CAP, CHIP 0.047
C122 87-010-194-080 CAP, CHIP 0.047
C125 87-010-196-080 CHIP CAPACITOR,0.1-25
C151 87-010-197-080 CAP, CHIP 0.01 DM
C201 87-010-178-080 CHIP CAP 1000P
C202 87-010-194-080 CAP, CHIP 0.047
C203 87-010-408-040 CAP,E 47-50 SME
C204 87-010-404-040 CAP,E 4.7-50 SME
C205 87-010-404-040 CAP,E 4.7-50 SME
C211 87-012-140-080 C-CAP,S 470P
C219 87-012-157-080 C-CAP,S 330P-50 CH
C220 87-012-157-080 C-CAP,S 330P-50 CH
C221 87-012-157-080 C-CAP,S 330P-50 CH
C222 87-012-157-080 C-CAP,S 330P-50 CH
C225 87-012-157-080 C-CAP,S 330P-50 CH
C371 87-010-196-080 CHIP CAPACITOR,0.1-25
C372 87-010-196-080 CHIP CAPACITOR,0.1-25
9

DESCRIPTION
REF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
C373 87-010-196-080 CHIP CAPACITOR,0.1-25
C375 87-010-196-080 CHIP CAPACITOR,0.1-25
C376 87-012-158-080 C-CAP,S 390P-50 CH
C377 87-010-196-080 CHIP CAPACITOR,0.1-25
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C404 87-010-196-080 CHIP CAPACITOR,0.1-25
C406 87-010-196-080 CHIP CAPACITOR,0.1-25
C408 87-010-196-080 CHIP CAPACITOR,0.1-25
C601 87-010-405-040 CAP,E 10-50
C602 87-010-186-080 CAP,CHIP 4700P
C603 87-010-405-040 CAP,E 10-50
C604 87-010-406-040 CAP,E 22-50 SME
C605 87-010-196-080 CHIP CAPACITOR,0.1-25
C606 87-010-322-080 C-CAP,S 100P-50 CH
C607 87-010-315-080 C-CAP,S 27P-50 CH
C608 87-010-196-080 CHIP CAPACITOR,0.1-25
C609 87-010-545-040 CAP,E 0.22-50 SME
C611 87-010-177-080 C-CAP,S 820P-50 SL
C614 87-010-248-040 CAP,E 220-10 SME
C651 87-010-401-040 CAP,E 1-50 SME
C652 87-010-196-080 CHIP CAPACITOR,0.1-25
C653 87-010-196-080 CHIP CAPACITOR,0.1-25
C901 87-010-263-040 CAP,E 100-10
C902 87-010-196-080 CHIP CAPACITOR,0.1-25
C903 87-010-313-080 CAP, CHIP 18P
C904 87-012-155-080 C-CAP 180P-50CH
C905 87-010-400-040 CAP,E 0.47-50
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN301 87-A60-131-010 CONN,6P V FE
CN501 87-A60-143-010 CONN,18P V FE
CN701 87-A60-140-010 CONN,15P V FE
CN801 87-A60-138-010 CONN,13P V FE
FB601 87-008-372-080 FILTER, EMI BL OIRNI
FC301 85-NF5-617-010 CABLE,FFC 6P-1.25
FC501 88-915-221-110 FF-CABLE,15P-1.25 220MM
FC502 88-918-251-110 FF-CABLE,18P-1.25 250MM
FC801 85-NF5-618-010 CABLE,FFC 13P-1.25
FL201 88-NF6-611-010 FL,BJ610GK
J601 87-A60-651-010 JACK,3.5MONO
J602 87-A60-651-010 JACK,3.5MONO
L901 87-007-340-010 COIL,CLOCK 4.19MHZ
LED401 87-070-197-080 LED,SLP7118C-51-S-T1
LED402 87-070-197-080 LED,SLP7118C-51-S-T1
LED403 87-070-197-080 LED,SLP7118C-51-S-T1
LED404 87-070-197-080 LED,SLP7118C-51-S-T1
LED405 87-070-197-080 LED,SLP7118C-51-S-T1
LED406 87-070-197-080 LED,SLP7118C-51-S-T1
LED407 87-070-197-080 LED,SLP7118C-51-S-T1
LED408 87-070-197-080 LED,SLP7118C-51-S-T1
LED409 87-070-197-080 LED,SLP7118C-51-S-T1
LED410 87-070-197-080 LED,SLP7118C-51-S-T1
LED411 87-070-201-080 LED,SLP9118C-51-S-T1
LED412 87-070-201-080 LED,SLP9118C-51-S-T1
LED413 87-070-201-080 LED,SLP9118C-51-S-T1
LED414 87-070-201-080 LED,SLP9118C-51-S-T1
LED415 87-070-201-080 LED,SLP9118C-51-S-T1
LED417 87-070-281-080 LED,SLZ736A-25-S-T1
LED419 87-070-281-080 LED,SLZ736A-25-S-T1
LED421 87-070-281-080 LED,SLZ736A-25-S-T1
LED423 87-070-281-080 LED,SLZ736A-25-S-T1
LED425 87-070-281-080 LED,SLZ736A-25-S-T1
LED427 87-070-281-080 LED,SLZ736A-25-S-T1
LED428 87-A40-448-080 LED,SLR-56PTT31 GRN
LED429 87-A40-448-080 LED,SLR-56PTT31 GRN
LED430 87-A40-448-080 LED,SLR-56PTT31 GRN
LED431 87-A40-448-080 LED,SLR-56PTT31 GRN
LED432 87-A40-448-080 LED,SLR-56PTT31 GRN
LED433 87-A40-448-080 LED,SLR-56PTT31 GRN
LED434 87-A40-448-080 LED,SLR-56PTT31 GRN
LED435 87-A40-448-080 LED,SLR-56PTT31 GRN
LED436 87-A40-448-080 LED,SLR-56PTT31 GRN
LED437 87-A40-448-080 LED,SLR-56PTT31 GRN
LED444 87-070-278-010 LED,SLZ-738A-24-S
LED445 87-070-290-010 LED,SLZ 936-30-S
LED446 87-070-278-010 LED,SLZ-738A-24-S
LED447 87-070-278-010 LED,SLZ-738A-24-S
LED448 87-070-290-010 LED,SLZ 936-30-S
LED449 87-070-278-010 LED,SLZ-738A-24-S
LED450 87-A90-825-040 LED,SLP-9131C-81H-S-T1 RED
LED451 87-A90-825-040 LED,SLP-9131C-81H-S-T1 RED
LED452 87-A90-825-040 LED,SLP-9131C-81H-S-T1 RED
LED453 87-A90-825-040 LED,SLP-9131C-81H-S-T1 RED
LED454 87-A90-825-040 LED,SLP-9131C-81H-S-T1 RED
LED455 87-A90-825-040 LED,SLP-9131C-81H-S-T1 RED
LED456 87-A90-825-040 LED,SLP-9131C-81H-S-T1 RED
LED457 87-A90-825-040 LED,SLP-9131C-81H-S-T1 RED
LED458 87-A90-825-040 LED,SLP-9131C-81H-S-T1 RED
S101 87-A90-894-010 SW,RTRY EC12E12244 ENCODER
S102 87-A90-535-010 SW,RTRY EC16B24304
S301 87-A90-095-080 SW,TACT EVQ11G04M
S302 87-A90-095-080 SW,TACT EVQ11G04M
S303 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M
S306 87-A90-095-080 SW,TACT EVQ11G04M
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S309 87-A90-095-080 SW,TACT EVQ11G04M
S310 87-A90-095-080 SW,TACT EVQ11G04M
S311 87-A90-095-080 SW,TACT EVQ11G04M
S312 87-A90-095-080 SW,TACT EVQ11G04M
S313 87-A90-095-080 SW,TACT EVQ11G04M
S321 87-A90-095-080 SW,TACT EVQ11G04M
S322 87-A90-095-080 SW,TACT EVQ11G04M
S323 87-A90-095-080 SW,TACT EVQ11G04M
S324 87-A90-095-080 SW,TACT EVQ11G04M
S325 87-A90-095-080 SW,TACT EVQ11G04M
S326 87-A90-095-080 SW,TACT EVQ11G04M
S327 87-A90-095-080 SW,TACT EVQ11G04M
S328 87-A90-095-080 SW,TACT EVQ11G04M
S329 87-A90-095-080 SW,TACT EVQ11G04M
S330 87-A90-095-080 SW,TACT EVQ11G04M
S333 87-A90-095-080 SW,TACT EVQ11G04M
S334 87-A90-095-080 SW,TACT EVQ11G04M
S341 87-A90-095-080 SW,TACT EVQ11G04M
S342 87-A90-095-080 SW,TACT EVQ11G04M
S343 87-A90-095-080 SW,TACT EVQ11G04M
S344 87-A90-095-080 SW,TACT EVQ11G04M
S345 87-A90-095-080 SW,TACT EVQ11G04M
S346 87-A90-095-080 SW,TACT EVQ11G04M
S347 87-A90-095-080 SW,TACT EVQ11G04M
S348 87-A90-095-080 SW,TACT EVQ11G04M
S349 87-A90-095-080 SW,TACT EVQ11G04M
S350 87-A90-095-080 SW,TACT EVQ11G04M
X101 87-A70-070-080 VIB,CER 5.76MHZ CRHF
SW C.B
CN302 87-A60-131-010 CONN,6P V FE
LED438 87-070-197-080 LED,SLP7118C-51-S-T1
LED439 87-070-197-080 LED,SLP7118C-51-S-T1
LED440 87-070-197-080 LED,SLP7118C-51-S-T1
LED441 87-070-197-080 LED,SLP7118C-51-S-T1
LED442 87-070-197-080 LED,SLP7118C-51-S-T1
LED443 87-070-197-080 LED,SLP7118C-51-S-T1
S351 87-A90-095-080 SW,TACT EVQ11G04M
S352 87-A90-095-080 SW,TACT EVQ11G04M
S353 87-A90-095-080 SW,TACT EVQ11G04M
10

DESCRIPTION
REF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
S354 87-A90-095-080 SW,TACT EVQ11G04M
S355 87-A90-095-080 SW,TACT EVQ11G04M
PRO C.B
C101 87-012-368-080 C-CAP,S 0.1-50 Z F
C102 87-012-368-080 C-CAP,S 0.1-50 Z F
C103 87-010-917-090 CAP,E 3300-50 M SMG
C104 87-010-917-090 CAP,E 3300-50 M SMG
C105 87-010-196-080 C-CAP,S 0.1-25 Z F
C106 87-010-196-080 C-CAP,S 0.1-25 Z F
C109 87-010-188-080 C-CAP,S 6800P-50 K B
C112 87-012-368-080 C-CAP,S 0.1-50 FZ
C113 87-012-368-080 C-CAP,S 0.1-50 FZ
C207 87-010-402-080 CAP,E 2.2-50 M SME
C208 87-010-402-080 CAP,E 2.2-50 M SME
C209 87-010-183-080 C-CAP,S 2700P-50 K B
C210 87-010-183-080 C-CAP,S 2700P-50 K B
C211 87-010-404-080 CAP,E 4.7-50 M SME
C212 87-010-404-080 CAP,E 4.7-50 M SME
C215 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C216 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C217 87-010-408-080 CAP,E 47-50 M SME
C218 87-010-408-080 CAP,E 47-50 M SME
C219 87-A10-596-080 C-CAP,S 100P-100 J CH
C220 87-A10-596-080 C-CAP,S 100P-100 J CH
C221 87-A10-899-080 CAP,E 47-25 M BP
C222 87-A10-899-080 CAP,E 47-25 M BP
C223 87-010-544-080 CAP,E 0.1-50 M SME
C224 87-010-544-080 CAP,E 0.1-50 M SME
C225 87-010-993-080 C-CAP,S 0.056-25 K B
C226 87-010-993-080 C-CAP,S 0.056-25 K B
C227 87-010-196-080 C-CAP,S 0.1-25 Z F
C228 87-010-196-080 C-CAP,S 0.1-25 Z F
C233 87-010-263-080 CAP,E 100-10 SME
C234 87-010-263-080 CAP,E 100-10 SME
C307 87-010-402-080 CAP,E 2.2-50 M SME
C309 87-010-183-080 C-CAP, 2700P-50 K B
C311 87-010-404-080 CAP,E 4.7-50 M SME
C315 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C317 87-010-406-080 CAP,E 22-50 M SME
C319 87-A10-812-080 C-CAP,S 220P-200 J C
C321 87-A10-899-080 CAP,E 47-25 M BP
C323 87-010-544-080 CAP,E 0.1-50 M SME
C325 87-010-993-080 C-CAP,S 0.056-25 K B
C327 87-010-196-080 C-CAP,S 0.1-25 Z F
C333 87-010-263-080 CAP,E 100-10 SME
C400 87-010-378-080 CAP,E 10-16 M SME
C401 87-010-374-080 CAP,E 47-10 M SME
C402 87-010-196-080 C-CAP,S 0.1-25 Z F
C403 87-010-154-080 C-CAP,S 10P-50 D CH
C404 87-010-374-080 CAP,E 47-10 M SME
C405 87-010-196-080 C-CAP,S 0.1-25 Z F
C407 87-010-154-080 C-CAP,S 10P-50 D CH
C408 87-010-545-080 CAP,E 0.22-50 M SME
C410 87-010-546-080 CAP,E 0.33-50 SME
C413 87-010-196-080 C-CAP,S 0.1-25 Z F
C415 87-010-400-080 CAP,E 0.47-50 M SME
C416 87-010-400-080 CAP,E 0.47-50 M SME
C418 87-010-401-080 CAP,E 1-50 M SME
C419 87-010-260-080 CAP,E 47-25 SME
C421 87-010-378-080 CAP,E 10-16 M SME
C422 87-010-378-080 CAP,E 10-16 M SME
C501 87-010-176-080 C-CAP,S 680P-50 J SL
C502 87-010-176-080 C-CAP,S 680P-50 J SL
C503 87-A10-804-080 C-CAP,S 0.1-25 J B
C504 87-A10-804-080 C-CAP,S 0.1-25 J B
C505 87-A10-804-080 C-CAP,S 0.1-25 J B
C506 87-A10-804-080 C-CAP,S 0.1-25 J B
C509 87-010-112-080 CAP,E 100-16 M SME
C510 87-010-221-080 CAP,E 470-10 M SME
C511 87-A10-891-080 CAP,E 4.7-25 SME(K)
C512 87-A10-800-080 C-CAP,S 6800P-16 J B
C513 87-010-374-080 CAP,E 47-10 M SME
C514 87-010-196-080 C-CAP,S 0.1-25 Z F
C515 87-010-401-080 CAP,E 1-50 M SME
C516 87-010-401-080 CAP,E 1-50 M SME
C518 87-010-546-080 CAP,E 0.33-50 SME
C519 87-010-400-080 CAP,E 0.47-50 M SME
C520 87-010-546-080 CAP,E 0.33-50 SME
C521 87-010-546-080 CAP,E 0.33-50 SME
C522 87-018-209-080 CAP,TC U 0.1-50 Z F
C524 87-010-374-080 CAP,E 47-10 M SME
C526 87-010-196-080 C-CAP,S 0.1-25 Z F
C530 87-010-544-080 CAP,E 0.1-50 M SME
C531 87-010-546-080 CAP,E 0.33-50 SME
C532 87-010-971-080 C-CAP,S 4700P-50 J B
C533 87-012-349-080 C-CAP,S 1000P-50 J CH
C538 87-010-971-080 C-CAP,S 4700P-50 J B
C539 87-012-349-080 C-CAP,S 1000P-50 J CH
C540 87-010-401-080 CAP,E 1-50 M SME
C541 87-010-401-080 CAP,E 1-50 M SME
C542 87-A10-799-080 C-CAP,S 5600P-16 J B
C543 87-A10-802-080 C-CAP,S 0.047-16 J B
C544 87-A10-229-080 C-CAP,S 0.68-10 K
C545 87-012-393-080 C-CAP,S 0.22-16 K
C546 87-012-393-080 C-CAP,S 0.22-16 K
C547 87-010-404-080 CAP,E 4.7-50 M SME
C548 87-010-404-080 CAP,E 4.7-50 M SME
C549 87-012-393-080 C-CAP,S 0.22-16 K
C550 87-012-393-080 C-CAP,S 0.22-16 K
C551 87-016-081-080 C-CAP,S 0.1-16 K R
C552 87-A10-802-080 C-CAP,S 0.047-16 J B
C553 87-A10-802-080 C-CAP,S 0.047-16 J B
C554 87-016-081-080 C-CAP,S 0.1-16 K R
C555 87-016-081-080 C-CAP,S 0.1-16 K R
C556 87-A10-801-080 C-CAP,S 0.022-16 J B
C557 87-A10-801-080 C-CAP,S 0.022-16 J B
C558 87-016-081-080 C-CAP,S 0.1-16 K R
C579 87-010-402-080 CAP,E 2.2-50 M SME
C580 87-010-402-080 CAP,E 2.2-50 M SME
C581 87-010-196-080 C-CAP,S 0.1-25 ZF
C601 87-010-196-080 C-CAP,S 0.1-25 Z F
C602 87-010-196-080 C-CAP,S 0.1-25 Z F
C603 87-010-196-080 C-CAP,S 0.1-25 Z F
C604 87-010-196-080 C-CAP,S 0.1-25 Z F
J201 87-A60-561-010 JACK,PIN 4P W/R,B/O
J601 87-A60-562-010 JACK,PIN 6P W/R
L201 87-003-383-010 COIL,1UH K
L202 87-003-383-010 COIL,1UH K
L301 87-003-383-010 COIL,1UH K
R243 87-A00-258-080 RES,M/F 0.22-1W J
R244 87-A00-258-080 RES,M/F 0.22-1W J
R245 87-A00-258-080 RES,M/F 0.22-1W J
R246 87-A00-258-080 RES,M/F 0.22-1W J
R343 87-A00-258-080 RES,M/F 0.22-1W J
R345 87-A00-258-080 RES,M/F 0.22-1W J
R509 87-022-214-080 C-RES,S 100K-1/10W F
AC1 C.B
F101 87-035-368-010 FUSE,4A 250V
F102 87-035-368-010 FUSE,4A 250V
FC1 87-033-147-010 FUSE CLAMP,MT-20
FC2 87-033-147-010 FUSE CLAMP,MT-20
FC3 87-033-147-010 FUSE CLAMP,MT-20
FC4 87-033-147-010 FUSE CLAMP,MT-20
PT101 88-NFT-622-010 PT,8NF-26 HR
SW101 87-A90-165-010 SW,SL 1-2-3 SWS2301
T1 87-A60-317-010 TERMINAL, 1P MSC
!
!
!
!
!
!
!
!
!
11

DESCRIPTION
REF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
T2 87-A60-317-010 TERMINAL, 1P MSC
AC2 C.B
PR101 87-026-682-080 PROTECTOR,10A 60V491
PR102 87-026-682-080 PROTECTOR,10A 60V491
PR103 87-026-682-080 PROTECTOR,10A 60V491
PR104 87-026-682-080 PROTECTOR,10A 60V491
PR105 87-A90-195-080 PROTECTOR,7A 491 SERIES 60V
PR106 87-A90-195-080 PROTECTOR,7A 491 SERIES 60V
WH101 87-A90-460-010 HLDR,WIRE 2.5-7P
DECK C.B
CON105 87-099-756-019 CONN, 15P 9604 S F
SFR1 87-024-581-019 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY, 27
SOL2 82-ZM1-618-410 SOL ASSY, 27
SW1 87-A90-248-019 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-019 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-019 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-019 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-019 SW,MICRO ESE11SH2CXQ
W001 82-ZM3-601-019 RBN,CORD,4P-75
HEAD-1 C.B
85-ZM3-602-010 PWB,FLEX A
HEAD-2 C.B
85-ZM3-602-010 PWB,FLEX A
CON351 87-NF6-616-010 CONN ASSY,8P-RPB
!
!
!
!
!
!
!
12
88
1608
2125
3216
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
:A
:A
0.55
Resistor
Dimensions
CHIP RESISTOR PART CODE
Chip Resistor Part Coding
A
Resistor Code Figure
Value of resistor
Chip resistor
Wattage
1/16W
1/10W
1/8W
Type Tolerance
5%
5%
5%
Symbol
CJ
CJ
CJ
Form
Lt
W
L
W
t

TRANSISTOR ILLUSTRATION
E C B
KTA1266GR
KTC3198GR
E C B
CC5551 2SB1370
2SB1344
2SB1625
2SB1626
2SD2025
E C B
2SA933
2SA1296
CSC4115
E C B B C E
2SK2937
G D S
S
G
D
2SK2158
D
G
S
2SK543-TB(4/5)
E
B
C
2SA1235F
2SC2714
2SC3052F
CMBT5401
CMBT5551
CSD1306E
DTA114WK
DTA123EKA
DTA123JK
DTA144WK
DTC143TK
KTA1298Y
RN1410
RT1N141C
RT1N144C
RT1N441C
RT1P141C
RT1P144C
RT1P441C
2SD2494
2SD2495
FN1016
FP1016
13

BLOCK DIAGRAM - 1 (PRO)
14

15 16
BLOCK DIAGRAM - 1 (MAIN / FRONT)

17 18
WIRING - 1 (MAIN)

19 20
SCHEMATIC DIAGRAM - 1 (MAIN 1/2)

21 22
WIRING - 2.1 (FRONT)
27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R

23 24
WIRING - 2.2 (FRONT)
1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R

25 26
SCHEMATIC DIAGRAM - 2 (FRONT)
