SERVICE MANUAL
DATA
COMPACT DISC STEREO
CASSETTE RECEIVER BASIC TAPE MECHANISM : 2ZM-3MK2 PR7NM BASIC CD MECHANISM : AZG-1 ZD3RNDM
NSX-HMA86
S/M Code No. 09-005-428-3R1
REVISION
•This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
NSX-HMA86 (U), (S/M Code No. 09-004-428-3T1).
• If requiring information about the CD mechanism, see Service Manual of
AZG-1 ZD3RNDM, (S/M Code No. 09-001-335-3N8).
NSX–HMA86
SPEAKERSYSTEM CD
CASSEIVER
SX–WNAJ86
SX–R275
SX–C605
CX–NHMA86
REMOTE
CONTROLLER
RC–ZAS05
U

– 2 –
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier Front
Power output 30 W + 30 W (200 Hz - 20 kHz,
T.H.D. less than 1 %, 8 ohms)
Total harmonic distortion 0.1 % (25 W, 1 kHz, 8 ohms,
DIN AUDIO )
Low frequency amplifier
Power output 90 W + 90 W (50 Hz - 200 Hz,
T.H.D. less than 1 %, 6 ohms)
Total harmonic distortion 0.1 % (75 W, 120 Hz, 6 ohms,
DIN AUDIO)
Rear (Surround)
33 W + 33 W (1 kHz, T.H.D. less than
1%, 8 ohms)
Center
34 W (1 kHz, T.H.D. less than 1 %, 8
ohms)
Inputs VIDEO/AUX: 316 mV (adjustable)
MD: 316 mV (adjustable)
MIC 1, MIC 2: 1 mV (10 k ohms)
5.1 CH INPUT (adjustable)
FRONT (L,R): 230 mV
REAR (L,R): 230 mV
CENTER: 420 mV
SUB WOOFER: 230 mV
Outputs SPEAKERS:
accept speakers of 6 ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms tor more
SUBWOOFER: 1.1 V
LINE OUT: 210 mV
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2tape: 50 Hz – 16000 Hz
NORMAL tape: 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/Playback head
x 1, erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
SPECIFICATIONS
<General>
Power requirements 120 V AC, 60 Hz
Power consumption 210 W
Power consumption in If the power-economizing mode is
standby mode ECO OFF: 28 W
If the power-economizing mode is
ECO ON or ECO AUTO: 0.9 W
Dimensions (W xH xD) 260 x 329 x 389.6 mm
(10 1/4X 13 X 15 3/8in.)
Weight 11.8 kg (26 lbs.)
<Speaker system SX–WNAJ86>
Speaker system 3 way, built-in subwoofer (magnetic
shielded type)
Speaker units Subwoofer:
200 mm (7 7/8 in.) cone type
Full range:
120 mm (4 3/4 in.) cone type
Super tweeter:
20 mm (13/16 in.) ceramic type
Impedance 6 ohms/8 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) 240 x 324 x 285 mm
(9 1/2X 12 7/8X 11 1/4in.)
Weight 5.7 kg (12 lbs 9 oz.)
• Design and specifications are subject to change without notice.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.

– 3 –

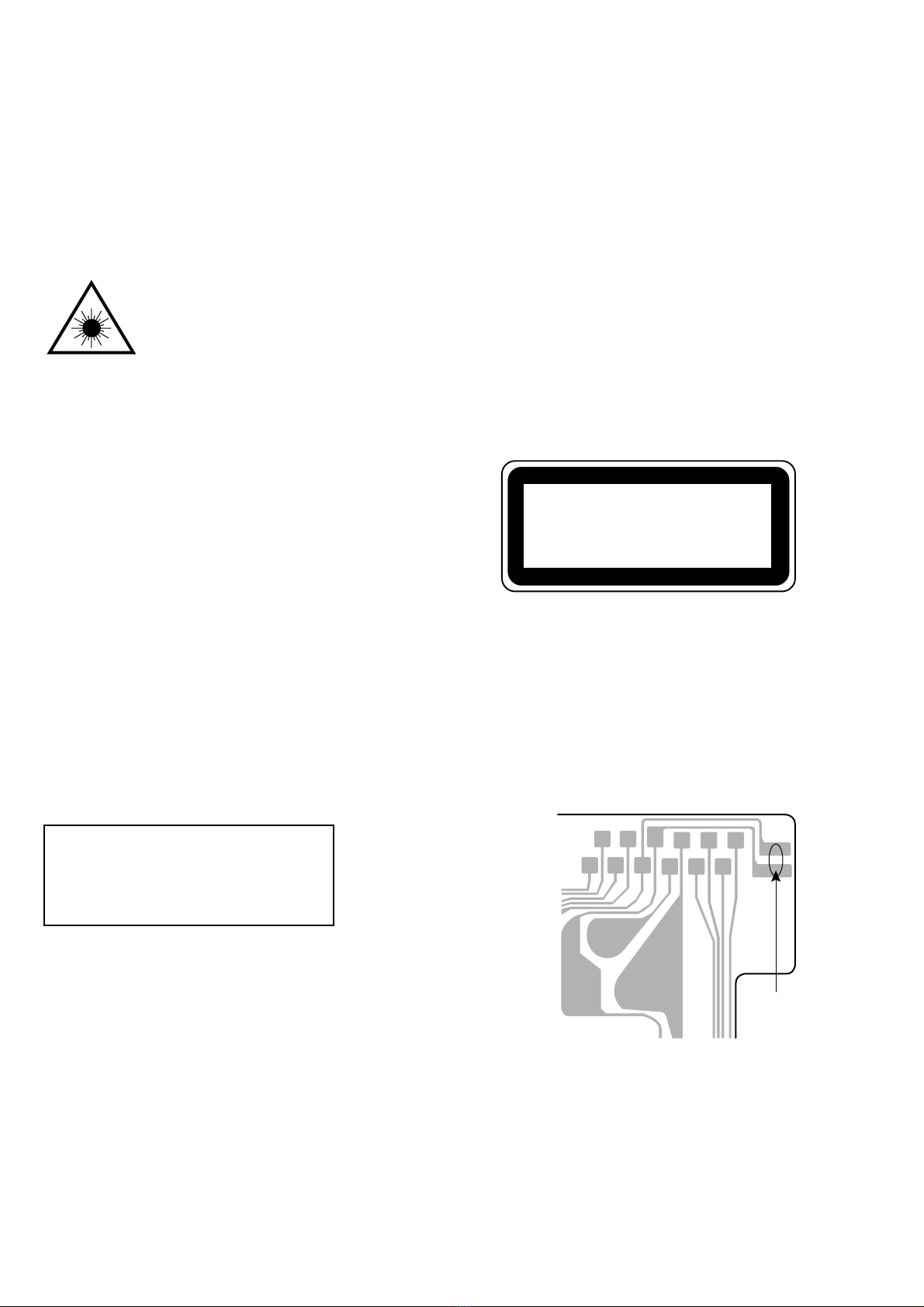

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserstålingvedåbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autresque ceuxspécifiés peutentraîner unedangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy P.C.B
Solder

– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
WhentheHOLD terminal (INPUT) of the MICROCOMPUTER is “H”,theMICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34

– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: Thereferencenumberor MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113)canchange depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.

– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8A-NF6-605-130 C-IC,LC876572V-5P63
87-A21-418-010 IC,STK490-340
87-A21-397-010 IC,STK490-070
87-A20-914-010 IC,SPS-442-1-F
87-A20-783-040 C-IC,BA7762AFS
87-A21-577-040 C-IC,M61506FP
87-A21-021-040 C-IC,BU2099FV
87-070-289-040 IC,BU 2092F
87-A21-452-030 C-IC,BD3876KS2
87-A21-560-010 IC,LA1844L-A
87-070-127-110 IC,LC72131 D
87-020-454-010 IC,DN 6851
87-A21-097-040 C-IC,M62463AFP
87-A21-015-040 C-IC,M62491FP

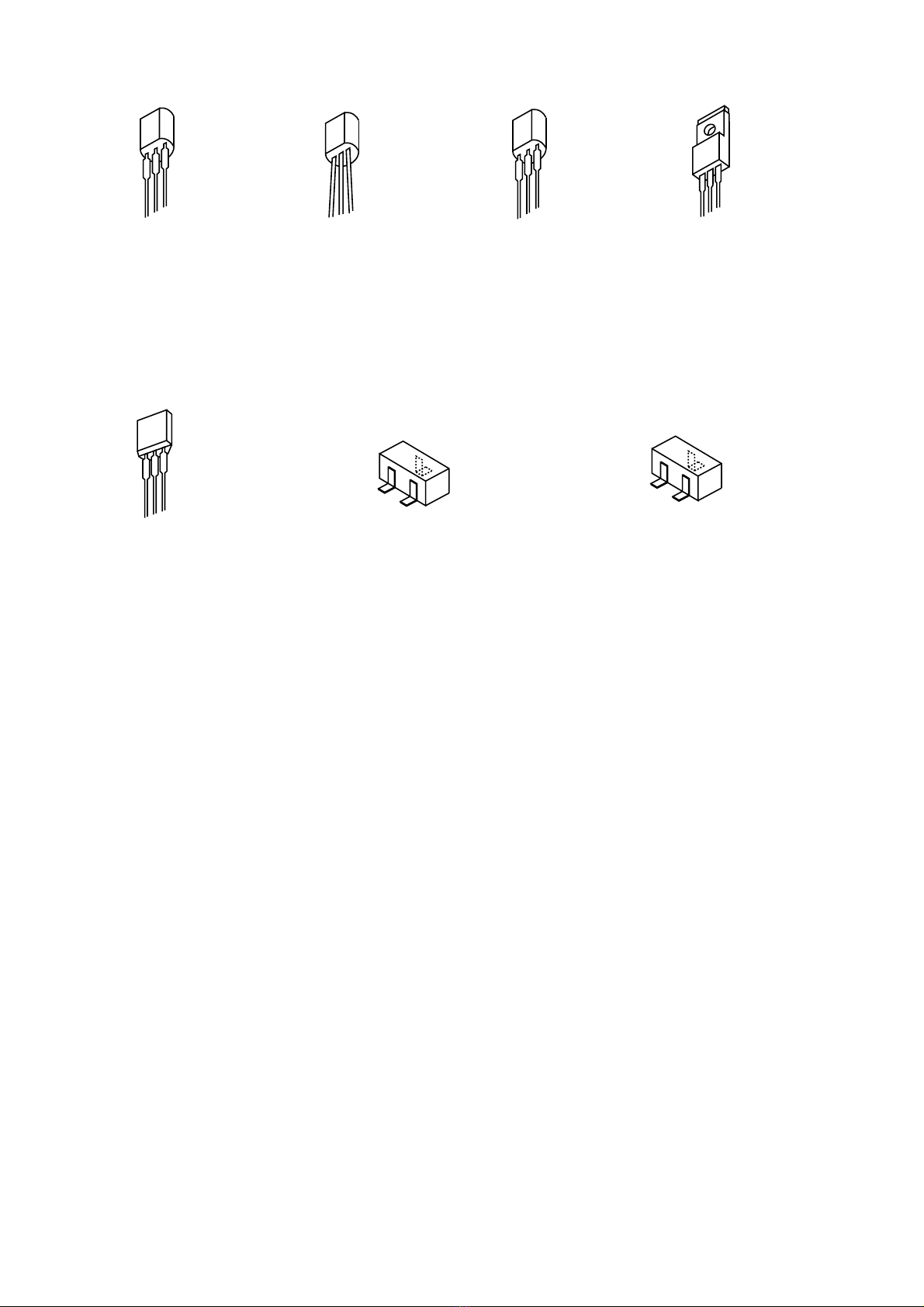

TRANSISTOR
87-026-245-080 TR,DTC114ES
87-A30-075-080 C-TR,2SA1235F
87-A30-318-080 TR,CSA952K
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-105-080 C-TR,RT1P441C
87-A30-076-080 C-TR,2SC3052F
87-026-610-080 TR,KTC3198GR
87-026-609-080 TR,KTA1266GR
87-A30-087-080 C-FET,2SK2158
87-A30-107-070 C-TR,CMBT5401
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-074-080 C-TR,RT1P141C
87-A30-269-040 C-FET,2SJ461-T1
87-A30-106-040 C-TR,CMBT5551
87-A30-256-010 TR,2SD1933
87-A30-190-080 TR,CC5551
87-A30-063-080 C-TR,KRA104S
87-A30-086-070 C-TR,CSD1306E
87-A30-255-010 TR,2SB1342
87-A30-329-080 TR,CD1585BC
89-327-143-080 TR,2SC2714 (0.1W)
87-A30-489-080 C-TR,KRA107S
87-A30-234-080 TR,CSC4115BC
87-026-463-080 TR,2SA933S
DIODE
87-A40-673-090 DIODE,D10XB20
87-020-465-080 DIODE,1SS133
87-A40-553-080 DIODE,1N4003 LES
87-A40-784-080 ZENER,UZ39BSB
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-760-080 ZENER,UZ9.1BSA
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-745-080 ZENER,UZ4.7BSA
87-017-149-080 ZENER,HZS6A2L
87-A40-535-080 DIODE,IN5393-GOODARK
87-A40-754-080 ZENER,UZ6.8BSC
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C21 87-016-658-000 CAP,E 4700-35 M SMG
C22 87-016-658-000 CAP,E 4700-35 M SMG
C25 87-010-406-080 CAP, ELECT 22-50V
C26 87-010-406-080 CAP, ELECT 22-50V
C27 87-010-406-080 CAP, ELECT 22-50V
C28 87-010-406-080 CAP, ELECT 22-50V
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C33 87-010-263-080 CAP, ELECT 100-10V
C34 87-010-247-080 CAP, ELECT 100-50V
C35 87-010-260-080 CAP, ELECT 47-25V
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-247-080 CAP, ELECT 100-50V
C39 87-010-247-080 CAP, ELECT 100-50V
C40 87-010-197-080 CAP, CHIP 0.01 DM
C60 87-010-403-080 CAP, ELECT 3.3-50V
C80 87-010-401-080 CAP, ELECT 1-50V
C81 87-010-379-080 CAP, ELECT 22-16V
C82 87-010-260-080 CAP, ELECT 47-25V
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C105 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-010-545-080 CAP, ELECT 0.22-50V
C112 87-010-545-080 CAP, ELECT 0.22-50V
C113 87-010-545-080 CAP, ELECT 0.22-50V
C114 87-010-545-080 CAP, ELECT 0.22-50V
C115 87-010-546-080 CAP, ELECT 0.33-50V
C116 87-010-546-080 CAP, ELECT 0.33-50V
C121 87-010-546-080 CAP, ELECT 0.33-50V
C152 87-010-260-080 CAP, ELECT 47-25V
C122 87-010-546-080 CAP, ELECT 0.33-50V
C171 87-012-368-080 C-CAP,S 0.1-50 F
C172 87-012-368-080 C-CAP,S 0.1-50 F
C173 87-012-368-080 C-CAP,S 0.1-50 F
C174 87-012-368-080 C-CAP,S 0.1-50 F
C301 87-010-318-080 C-CAP,S 47P-50 J CH
C302 87-010-318-080 C-CAP,S 47P-50 J CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-157-080 C-CAP,S 330P-50 CH
C306 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022
C312 87-010-198-080 CAP, CHIP 0.022
C313 87-010-179-080 CAP,CHIP S B1200P
C314 87-010-179-080 CAP,CHIP S B1200P
C315 87-010-179-080 CAP,CHIP S B1200P
C316 87-010-179-080 CAP,CHIP S B1200P
C321 87-012-142-080 CAP, S 0.33-16
C322 87-012-142-080 CAP, S 0.33-16
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP 470P
C352 87-012-140-080 CAP 470P
C354 87-010-175-080 CAP 560P
C355 87-010-178-080 CHIP CAP 1000P
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-016-083-080 C-CAP,S 0.15-16 RK
C374 87-016-083-080 C-CAP,S 0.15-16 RK

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C379 87-010-382-080 CAP, ELECT 22-25V
C380 87-010-382-080 CAP, ELECT 22-25V
C381 87-010-197-080 CAP, CHIP 0.01 DM
C382 87-010-312-080 C-CAP,S 15P-50 CH
C383 87-010-197-080 CAP, CHIP 0.01 DM
C384 87-010-402-080 CAP, ELECT 2.2-50V
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-012-145-080 CAP, CHIP S 270P CH
C388 87-012-156-080 C-CAP,S 220P-50 CH
C391 87-010-319-080 C-CAP,S 56P-50 CH
C392 87-010-319-080 C-CAP,S 56P-50 CH
C393 87-010-319-080 C-CAP,S 56P-50 CH
C394 87-010-319-080 C-CAP,S 56P-50 CH
C401 87-010-176-080 C-CAP,S 680P-50 SL
C402 87-010-176-080 C-CAP,S 680P-50 SL
C403 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C404 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C405 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C406 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C407 87-010-401-080 CAP, ELECT 1-50V
C408 87-010-401-080 CAP, ELECT 1-50V
C409 87-010-196-080 CHIP CAPACITOR,0.1-25
C410 87-010-384-080 CAP, ELECT 100-25V
C411 87-010-401-080 CAP, ELECT 1-50V
C412 87-010-401-080 CAP, ELECT 1-50V
C413 87-010-401-080 CAP, ELECT 1-50V
C414 87-010-401-080 CAP, ELECT 1-50V
C415 87-010-546-080 CAP, ELECT 0.33-50V
C416 87-010-546-080 CAP, ELECT 0.33-50V
C417 87-010-221-080 CAP, ELECT 470-10V
C418 87-A10-891-080 CAP,E 4.7-25 SME(K)
C419 87-A10-800-080 C-CAP,S 6800P-16 J B CM
C420 87-010-374-080 CAP, ELECT 47-10V
C421 87-010-196-080 CHIP CAPACITOR,0.1-25
C422 87-A10-804-080 C-CAP,S 0.1-25 J B
C424 87-010-374-080 CAP, ELECT 47-10V
C425 87-010-196-080 CHIP CAPACITOR,0.1-25
C428 87-012-156-080 C-CAP,S 220P-50 J CH
C429 87-010-545-080 CAP,E 0.22-50 V
C430 87-A10-201-080 CAP, S 0.33-16K B
C431 87-010-971-080 C-CAP,S 4700P-50 B J
C432 87-012-349-080 CHIP CAP 1000P-50 J CH
C433 87-A11-183-080 C-CAP,S 0.12-16 J B
C434 87-A11-182-080 C-CAP,S 0.27-16 J B
C435 87-A11-182-080 C-CAP,S 0.27-16 J B
C436 87-A11-183-080 C-CAP,S 0.12-16 J B
C437 87-010-971-080 C-CAP,S 4700P-50 B J
C438 87-012-349-080 CHIP CAP 1000P-50 J CH
C439 87-010-805-080 CAP, S 1-16
C440 87-010-401-080 CAP, ELECT 1-50V
C441 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C442 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C443 87-A10-229-080 C-CAP,S 0.68-10 K W5
C444 87-012-393-080 C-CAP,S 0.22-16 K
C445 87-012-393-080 C-CAP,S 0.22-16 K
C446 87-010-404-080 CAP, ELECT 4.7-50V
C447 87-010-404-080 CAP, ELECT 4.7-50V
C448 87-012-393-080 C-CAP,S 0.22-16 K
C449 87-012-393-080 C-CAP,S 0.22-16 K
C450 87-016-669-080 C-CAP,S 0.1-25 K B
C451 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C452 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C453 87-016-669-080 C-CAP,S 0.1-25 K B
C454 87-016-669-080 C-CAP,S 0.1-25 K B
C455 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C456 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C457 87-016-669-080 C-CAP,S 0.1-25 K B
C461 87-010-196-080 CHIP CAPACITOR,0.1-25
C463 87-010-196-080 CHIP CAPACITOR,0.1-25
C465 87-016-552-080 CHIP-CAPACITOR,0.082-16K B
C466 87-010-194-080 CAP, CHIP 0.047
C467 87-A10-201-080 C-CAP,S 0.33-16 KB
C468 87-A10-060-080 C-CAP,S 0.18-16 K B
C472 87-012-140-080 C-CAP,S 470P-50 J CH
C473 87-012-140-080 C-CAP,S 470P-50 J CH
C474 87-012-140-080 C-CAP,S 470P-50 J CH
C475 87-012-140-080 C-CAP,S 470P-50 J CH
C476 87-012-140-080 C-CAP,S 470P-50 J CH
C477 87-012-140-080 C-CAP,S 470P-50 J CH
C478 87-010-401-080 CAP, ELECT 1-50V
C479 87-010-179-080 CAP,CHIP S B1200P
C480 87-010-179-080 CAP,CHIP S B1200P
C481 87-010-179-080 CAP,CHIP S B1200P
C482 87-010-179-080 CAP,CHIP S B1200P
C489 87-010-402-080 CAP, ELECT 2.2-50V
C491 87-010-402-080 CAP, ELECT 2.2-50V
C492 87-010-402-080 CAP, ELECT 2.2-50V
C531 87-010-405-080 CAP, ELECT 10-50V
C532 87-010-196-080 CHIP CAPACITOR,0.1-25
C533 87-010-196-080 CHIP CAPACITOR,0.1-25
C534 87-012-156-080 C-CAP,S 220P-50 CH
C535 87-010-178-080 CHIP CAP 1000P
C536 87-010-196-080 CHIP CAPACITOR,0.1-25
C541 87-010-178-080 CHIP CAP 1000P
C609 87-010-181-080 CAP,CHIP S 1800P
C610 87-010-181-080 CAP,CHIP S 1800P
C611 87-010-956-080 CHIP-CAP,S 0.068-25B
C612 87-016-369-080 C-CAP,S 0.033-25 B K
C613 87-A11-567-080 C-CAP,S 0.01-50K B
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C616 87-010-184-080 CHIP CAPACITOR 3300P(K)
C617 87-012-369-080 C-CAP,S 0.047-50F
C618 87-010-401-080 CAP, ELECT 1-50V
C619 87-010-263-080 CAP, ELECT 100-10V
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C621 87-A11-567-080 C-CAP,S 0.01-50K B
C623 87-010-401-080 CAP, ELECT 1-50V
C624 87-010-401-080 CAP, ELECT 1-50V
C626 87-A11-590-080 CAP, S 0.047-16
C627 87-010-400-080 CAP, ELECT 0.47-50V
C628 87-010-400-080 CAP, ELECT 0.47-50V
C629 87-A11-590-080 CAP, S 0.047-16
C630 87-010-383-080 CAP, ELECT 33-25V
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-A10-307-080 CAP,M 0.1-50 J
C636 87-A10-307-080 CAP,M 0.1-50 J
C637 87-A10-307-080 CAP,M 0.1-50 J
C638 87-A10-307-080 CAP,M 0.1-50 J
C639 87-010-405-080 CAP, ELECT 10-50V
C641 87-010-401-080 CAP, ELECT 1-50V
C642 87-010-401-080 CAP, ELECT 1-50V
C643 87-010-196-080 CHIP CAPACITOR,0.1-25
C644 87-010-401-080 CAP, ELECT 1-50V
C671 87-010-322-080 C-CAP,S 100P-50 CH
C672 87-010-322-080 C-CAP,S 100P-50 CH
C675 87-016-669-080 C-CAP,S 0.1-25 K B
C673 87-010-197-080 CAP, CHIP 0.01 DM
C679 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-197-080 CAP, CHIP 0.01 DM
C682 87-010-196-080 CHIP CAPACITOR,0.1-25
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C773 87-010-184-080 CHIP CAPACITOR 3300P(K)
C774 87-010-184-080 CHIP CAPACITOR 3300P(K)
C779 87-010-426-080 C-CAP,S 0.012-25 K B
C780 87-010-426-080 C-CAP,S 0.012-25 K B
C782 87-010-197-080 CAP, CHIP 0.01 DM

– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C783 87-010-197-080 CAP, CHIP 0.01 DM
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-197-080 CAP, CHIP 0.01 DM
C786 87-010-197-080 CAP, CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A10-592-080 C-CAP,S 0.015-50 J B
C790 87-A10-592-080 C-CAP,S 0.015-50 J B
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-012-369-080 C-CAP,S 0.047-50F
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C811 87-010-403-080 CAP, ELECT 3.3-50V
C812 87-010-403-080 CAP, ELECT 3.3-50V
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C819 87-010-179-080 CAP,CHIP S B1200P
C820 87-010-179-080 CAP,CHIP S B1200P
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-404-080 CAP, ELECT 4.7-50V
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01 DM
C843 87-010-197-080 CAP, CHIP 0.01 DM
C844 87-010-197-080 CAP, CHIP 0.01 DM
C845 87-010-197-080 CAP, CHIP 0.01 DM
C846 87-010-197-080 CAP, CHIP 0.01 DM
C847 87-010-197-080 CAP, CHIP 0.01 DM
C848 87-010-197-080 CAP, CHIP 0.01 DM
C849 87-010-197-080 CAP, CHIP 0.01 DM
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-010-197-080 CAP, CHIP 0.01 DM
C852 87-010-197-080 CAP, CHIP 0.01 DM
C853 87-010-197-080 CAP, CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01 DM
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-010-152-080 C-CAP,S 8P-50 CH
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
C974 87-010-197-080 CAP, CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN91 87-A60-109-010 CONN,2P V S2M-2W
CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-099-194-010 CONN,6P 6216V
CNA1 8A-NF6-646-010 CONN ASSY,9P TID-A(460)
CNA2 8A-NF6-640-010 CONN ASSY,3P (VM) ANF-6H
CON301 87-NF6-615-010 CONN ASSY,3P PB
CON351 87-NF6-616-010 CONN ASSY,8P RPB
FC602 88-906-621-110 FF-CABLE,6P 1.25 620MM
FFE831 A8-8ZA-190-030 8ZA-1 FEUNM
J102 87-A60-238-010 TERMINAL,SP 4P (MSC)
J103 87-A60-929-010 JACK,DIA6.3 BLK ST W/S TAI
J431 87-A61-069-010 JACK,PIN 6P R/W,O/B MSC
J601 87-A60-885-010 JACK,PIN 6P R/W MSC
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DETN(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L821 87-A50-209-010 COIL,1POLE MPX(MIT)
L822 87-A50-209-010 COIL,1POLE MPX(MIT)
L832 87-005-847-080 COIL,2.2UH(CECS)
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R161 87-A00-441-050 RES,270-1/2W J RP
R162 87-A00-441-050 RES,270-1/2W J RP
R163 87-A00-441-050 RES,270-1/2W J RP
R164 87-A00-441-050 RES,270-1/2W J RP
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-30

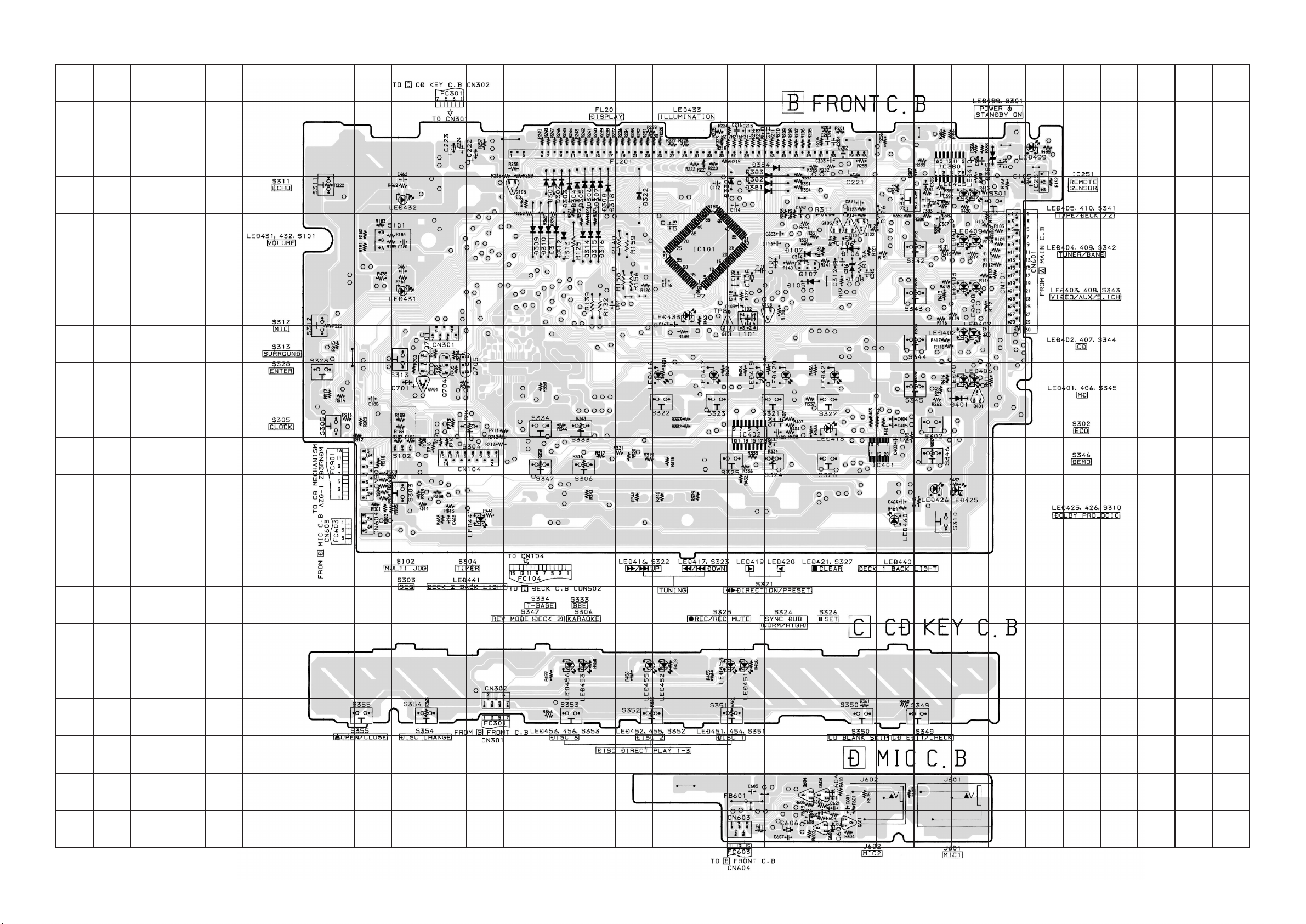

FRONT C.B
C101 87-010-197-080 CAP, CHIP 0.01 DM
C102 87-010-322-080 C-CAP,S 100P-50 CH
C103 87-010-312-080 C-CAP,S 15P-50 CH
C104 87-012-157-080 C-CAP,S 330P-50 CH
C105 87-010-415-040 CAP,E 10-50 5L
C106 87-010-493-040 CAP,E 0.47-50 GAS
C107 87-A10-189-040 CAP,E 220-10
C108 87-A10-189-040 CAP,E 220-10
C109 87-010-196-080 CHIP CAPACITOR,0.1-25
C110 87-010-178-080 CHIP CAP 1000P
C112 87-012-368-080 C-CAP,S 0.1-50 F
C113 87-010-596-080 C-CAP,S 0.047-16 K R
C114 87-010-196-080 CHIP CAPACITOR,0.1-25
C115 87-010-196-080 CHIP CAPACITOR,0.1-25
C116 87-010-196-080 CHIP CAPACITOR,0.1-25
C118 87-012-145-080 CAP, CHIP S 270P CH
C180 87-010-178-080 CHIP CAP 1000P
C181 87-010-178-080 CHIP CAP 1000P
C202 87-012-156-080 C-CAP,S 220P-50 CH
C203 87-010-322-080 C-CAP,S 100P-50 CH
C204 87-012-157-080 C-CAP,S 330P-50 CH
C205 87-012-156-080 C-CAP,S 220P-50 CH

– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C214 87-010-322-080 C-CAP,S 100P-50 CH
C215 87-010-322-080 C-CAP,S 100P-50 CH
C216 87-010-177-080 C-CAP,S 820P-50 SL
C221 87-010-421-040 CAP,E 4.7-50 5L
C222 87-010-421-040 CAP,E 4.7-50 5L
C223 87-010-408-040 CAP,E 47-50 SME
C224 87-012-369-080 C-CAP,S 0.047-50F
C312 87-010-498-040 CAP,E 10-16 GAS
C314 87-010-196-080 CHIP CAPACITOR,0.1-25
C315 87-010-196-080 CHIP CAPACITOR,0.1-25
C316 87-010-196-080 CHIP CAPACITOR,0.1-25
C321 87-012-393-080 C-CAP,S 0.22-16 R K
C382 87-010-320-080 CHIP CAP 68P
C383 87-010-196-080 CHIP CAPACITOR,0.1-25
C384 87-010-196-080 CHIP CAPACITOR,0.1-25
C385 87-010-196-080 CHIP CAPACITOR,0.1-25
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-010-196-080 CHIP CAPACITOR,0.1-25
C392 87-010-320-080 CHIP CAP 68P
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C403 87-010-322-080 C-CAP,S 100P-50 CH
C404 87-010-322-080 C-CAP,S 100P-50 CH
C405 87-010-322-080 C-CAP,S 100P-50 CH
C406 87-010-322-080 C-CAP,S 100P-50 CH
C407 87-010-322-080 C-CAP,S 100P-50 CH
C408 87-010-322-080 C-CAP,S 100P-50 CH
C461 87-010-196-080 CHIP CAPACITOR,0.1-25
C462 87-010-196-080 CHIP CAPACITOR,0.1-25
C463 87-010-196-080 CHIP CAPACITOR,0.1-25
C464 87-010-196-080 CHIP CAPACITOR,0.1-25
C465 87-010-196-080 CHIP CAPACITOR,0.1-25
C652 87-010-183-080 C-CAP,S 2700P-50 B
C653 87-010-213-080 C-CAP,S 0.015-50 B
C701 87-010-406-040 CAP,E 22-50 SME
C802 87-012-154-080 C-CAP,S 150P-50 CH
C804 87-010-187-080 CAP CHIP S5600P
C805 87-010-196-080 CHIP CAPACITOR,0.1-25
C806 87-010-401-040 CAP,E 1-50 SME
C807 87-010-196-080 CHIP CAPACITOR,0.1-25
C808 87-010-196-080 CHIP CAPACITOR,0.1-25
C809 87-012-155-080 C-CAP 180P-50CH
C810 87-010-263-040 CAP,E 100-10
C811 87-010-545-040 CAP,E 0.22-50 SME
C812 87-010-405-040 CAP,E 10-50
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN104 87-099-017-010 CONN, 15P 6216 V
CN301 87-099-195-010 CONN,7P 6216 V
CN604 87-099-210-010 CONN,5P 6216 H
CN901 87-A60-161-010 CONN,13P H FE
FB801 87-008-372-080 FILTER, EMI BL OIRNI
FC104 88-915-111-110 FF-CABLE,15P 1.25
FC301 88-907-421-110 FF-CABLE,7P 1.25 420MM
FC901 88-913-521-110 FF-CABLE,13P 1.25 520MM
FL201 8A-NF6-601-010 FL,BJ750GNK 13G-35S ANF-6
L101 87-A50-333-010 COIL,OSC 9.43MHZ
L801 87-A50-093-010 COIL,CLOCK 5.76MHZ
LED401 87-017-756-040 LED,SLR-342DCT31 ORN
LED402 87-017-756-040 LED,SLR-342DCT31 ORN
LED403 87-017-756-040 LED,SLR-342DCT31 ORN
LED404 87-017-756-040 LED,SLR-342DCT31 ORN
LED405 87-017-756-040 LED,SLR-342DCT31 ORN
LED406 87-A40-496-040 LED,SLR-342MCT31 GRN
LED407 87-A40-496-040 LED,SLR-342MCT31 GRN
LED408 87-A40-496-040 LED,SLR-342MCT31 GRN
LED409 87-A40-496-040 LED,SLR-342MCT31 GRN
LED410 87-A40-496-040 LED,SLR-342MCT31 GRN
LED416 87-A40-809-080 LED,LTL-307KK PGRN
LED417 87-A40-809-080 LED,LTL-307KK PGRN
LED418 87-A40-809-080 LED,LTL-307KK PGRN
LED419 87-A40-809-080 LED,LTL-307KK PGRN
LED420 87-A40-809-080 LED,LTL-307KK PGRN
LED421 87-A40-809-080 LED,LTL-307KK PGRN
LED425 87-A40-496-040 LED,SLR-342PCT31 GRN
LED426 87-A40-496-040 LED,SLR-342PCT31 GRN
LED431 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED432 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED433 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED440 87-A91-665-010 LED,SELU1E10 CXM-SLF55 BLUE
LED441 87-A91-665-010 LED,SELU1E10 CXM-SLF55 BLUE
LED499 87-A40-317-080 LED,SLR-342VCT31 RED
S101 87-A91-591-010 SW,RTRY RE0121PVB25FINA24
S102 87-A91-664-010 SW,RTRY RE0121PVB30F
S301 87-A91-024-180 SW,TACT KSH0611BT
S302 87-A91-024-180 SW,TACT KSH0611BT
S303 87-A91-024-180 SW,TACT KSH0611BT
S304 87-A91-024-180 SW,TACT KSH0611BT
S305 87-A91-024-180 SW,TACT KSH0611BT
S306 87-A91-024-180 SW,TACT KSH0611BT
S310 87-A91-024-180 SW,TACT KSH0611BT
S311 87-A91-024-180 SW,TACT KSH0611BT
S312 87-A91-024-180 SW,TACT KSH0611BT
S313 87-A91-024-180 SW,TACT KSH0611BT
S314 87-A91-024-180 SW,TACT KSH0611BT
S321 87-A91-024-180 SW,TACT KSH0611BT
S322 87-A91-024-180 SW,TACT KSH0611BT
S323 87-A91-024-180 SW,TACT KSH0611BT
S324 87-A91-024-180 SW,TACT KSH0611BT
S325 87-A91-024-180 SW,TACT KSH0611BT
S326 87-A91-024-180 SW,TACT KSH0611BT
S327 87-A91-024-180 SW,TACT KSH0611BT
S328 87-A91-024-180 SW,TACT KSH0611BT
S329 87-A91-024-180 SW,TACT KSH0611BT
S330 87-A91-024-180 SW,TACT KSH0611BT
S331 87-A91-024-180 SW,TACT KSH0611BT
S332 87-A91-024-180 SW,TACT KSH0611BT
S333 87-A91-024-180 SW,TACT KSH0611BT
S334 87-A91-024-180 SW,TACT KSH0611BT
S341 87-A91-024-180 SW,TACT KSH0611BT
S342 87-A91-024-180 SW,TACT KSH0611BT
S343 87-A91-024-180 SW,TACT KSH0611BT
S344 87-A91-024-180 SW,TACT KSH0611BT
S345 87-A91-024-180 SW,TACT KSH0611BT
S346 87-A91-024-180 SW,TACT KSH0611BT
S347 87-A91-024-180 SW,TACT KSH0611BT
CD KEY C.B
CN302 87-099-195-010 CONN,7P 6216 V
LED451 87-017-756-040 LED,SLR-342DCT31 ORN
LED452 87-017-756-040 LED,SLR-342DCT31 ORN
LED453 87-017-756-040 LED,SLR-342DCT31 ORN
LED454 87-A40-496-040 LED,SLR-342MCT31 GRN
LED455 87-A40-496-040 LED,SLR-342MCT31 GRN
LED456 87-A40-496-040 LED,SLR-342MCT31 GRN
S349 87-A91-024-180 SW,TACT KSH0611BT
S350 87-A91-024-180 SW,TACT KSH0611BT
S351 87-A91-024-180 SW,TACT KSH0611BT
S352 87-A91-024-180 SW,TACT KSH0611BT
S353 87-A91-024-180 SW,TACT KSH0611BT
S354 87-A91-024-180 SW,TACT KSH0611BT
S355 87-A91-024-180 SW,TACT KSH0611BT
MIC C.B
C601 87-010-186-080 CAP,CHIP 4700P
C602 87-010-405-040 CAP,E 10-50
C603 87-010-320-080 CHIP CAP 68P
C604 87-010-546-040 CAP,E 0.33-50
C605 87-012-368-080 C-CAP,S 0.1-50 ZF
C606 87-010-112-040 CAP,E 100-16

– 10 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C607 87-010-196-080 CHIP CAPACITOR,0.1-25
C608 87-010-178-080 CHIP CAP 1000P
C621 87-010-178-080 CHIP CAP 1000P
CN603 87-099-212-010 CONN,5P 6216 V
FB601 87-008-372-080 FILTER, EMI BL OIRNI
FC603 88-905-281-110 FF-CABLE, 5P 1.25 280MM
J601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
J602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM

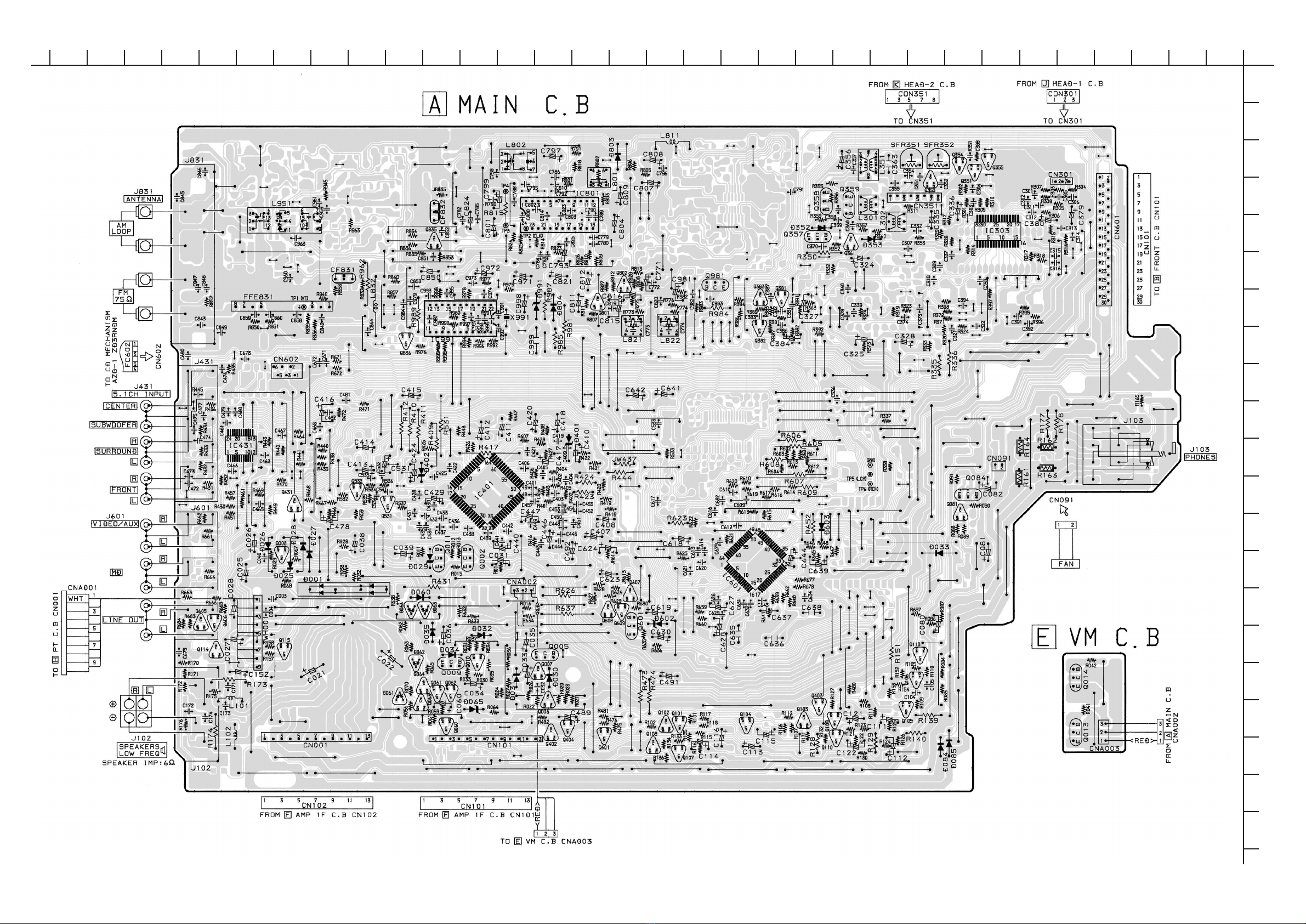

VM C.B
AMP 1F C.B
C101 87-010-181-080 C-CAP,S 1800P-50 K B
C102 87-010-181-080 C-CAP,S 1800P-50 K B
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C107 87-010-405-080 CAP, ELECT 10-50V
C108 87-010-405-080 CAP, ELECT 10-50V
C111 87-010-179-080 C-CAP,S 1200P-50 K B
C112 87-010-179-080 C-CAP,S 1200P-50 K B
C113 87-010-405-080 CAP, ELECT 10-50V
C114 87-010-405-080 CAP, ELECT 10-50V
C115 87-010-866-080 CAP, ELECT 10-63 M VX
C116 87-010-866-080 CAP, ELECT 10-63 M VX
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-190-080 C-CAP,S 0.01-50 ZF
C153 87-010-188-080 C-CAP,S 6800P-50 B
C201 87-A10-300-080 CAP,M 0.027-50 J
C202 87-A10-300-080 CAP,M 0.027-50 J
C203 87-A10-300-080 CAP,M 0.027-50 J
C204 87-A10-300-080 CAP,M 0.027-50 J
C205 87-010-180-080 C-CER 1500P
C206 87-010-180-080 C-CER 1500P
C207 87-010-401-080 CAP, ELECT 1-50V
C208 87-010-401-080 CAP, ELECT 1-50V
C209 87-010-187-080 CAP CHIP S5600P
C210 87-010-187-080 CAP CHIP S5600P
C211 87-010-403-080 CAP, ELECT 3.3-50V
C212 87-010-403-080 CAP, ELECT 3.3-50V
C215 87-010-179-080 C-CAP,S 1200P-50 K B
C216 87-010-179-080 C-CAP,S 1200P-50 K B
C217 87-010-405-080 CAP, ELECT 10-50V
C218 87-010-405-080 CAP, ELECT 10-50V
C221 87-010-405-080 CAP, ELECT 10-50V
C222 87-010-405-080 CAP, ELECT 10-50V
C223 87-010-197-080 CAP, CHIP 0.01 DM
C224 87-010-197-080 CAP, CHIP 0.01 DM
C251 87-012-368-080 C-CAP,S 0.1-50 F
C252 87-012-368-080 C-CAP,S 0.1-50 F
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C254 87-010-196-080 CHIP CAPACITOR,0.1-25
C401 87-010-260-080 CAP, ELECT 47-25V
CN101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN105 87-099-198-010 CONN,10P V BLK 6216
CNA101 8A-NF6-645-010 CONN ASSY,5P TID-A(530)
CNA103 8A-NF8-655-010 CONN ASSY,7P TID-A(250)
FC105 88-910-151-110 FF-CABLE, 10P 1.25 150MM
J202 87-A61-158-010 JACK,PIN 2P R/W/BL H(SEPA)KM
L251 87-003-383-010 COIL,1UH-S
L252 87-003-383-010 COIL,1UH-S
R129 87-A00-262-080 RES,M/F 0.15-2W J
R130 87-A00-262-080 RES,M/F 0.15-2W J
R231 87-A00-258-080 RES,M/F 0.22-1W J
R232 87-A00-258-080 RES,M/F 0.22-1W J
WH101 87-A90-459-010 HLDR,WIRE 2.5-5P
WH102 87-A90-460-010 HLDR,WIRE 2.5-7P
AMP PROLOGIC C.B
C101 87-010-181-080 CHIP CAP 1800P-50 K B
C102 87-010-181-080 CHIP CAP 1800P-50 K B
C103 87-010-400-080 CAP, ELECT 0.47-50V
C104 87-010-400-080 CAP, ELECT 0.47-50V
C107 87-010-405-080 CAP, ELECT 10-50V
C108 87-010-405-080 CAP, ELECT 10-50V
C111 87-010-179-080 C-CAP,S 1200P-50 K B
C112 87-010-179-080 C-CAP,S 1200P-50 K B
C113 87-010-405-080 CAP, ELECT 10-50V
C114 87-010-405-080 CAP, ELECT 10-50V
C115 87-010-405-080 CAP, ELECT 10-50V
C116 87-010-405-080 CAP, ELECT 10-50V
C121 87-010-197-080 C-CAP,S 0.01-25 K B
C122 87-010-197-080 C-CAP,S 0.01-25 K B
C151 87-012-368-080 C-CAP,S 0.1-50 F
C152 87-012-368-080 C-CAP,S 0.1-50 F
C153 87-012-368-080 C-CAP,S 0.1-50 F
C154 87-012-368-080 C-CAP,S 0.1-50 F
C155 87-010-190-080 S CHIP F 0.01
C156 87-010-190-080 S CHIP F 0.01
C160 87-010-190-080 S CHIP F 0.01
C161 87-010-188-080 CAP,CHIP 6800P
C201 87-010-181-080 CHIP CAP 1800P
C202 87-010-400-080 CAP,E 0.47-50
C203 87-010-322-080 C-CAP,S 100P-50 CH
C204 87-010-405-080 CAP,E 10-50
C205 87-010-260-080 CAP, ELECT 47-25V
C206 87-A10-946-080 C-CAP,S 220P-100 CH
C208 87-010-197-080 CAP, CHIP 0.01 DM
C209 87-010-260-080 CAP, ELECT 47-25V
C210 87-010-260-080 CAP, ELECT 47-25V
C211 87-010-178-080 C-CAP,S 1000P-50 K B
C212 87-010-178-080 C-CAP,S 1000P-50 K B
C251 87-012-368-080 C-CAP,S 0.1-50 F
C252 87-012-368-080 C-CAP,S 0.1-50 F
CN101 87-A61-109-010 CONN,7P V TID-A
CN102 87-099-198-010 CONN,10P V BLK 6216
J101 87-A61-159-010 JACK,PIN 4P R/W/B/0 KM
L151 87-003-383-010 COIL,1UH-K
L152 87-003-383-010 COIL,1UH-K
L251 87-003-383-010 COIL,1UH-K
R131 87-A00-258-080 RES,M/F 0.22-1W J
R132 87-A00-258-080 RES,M/F 0.22-1W J
R218 87-A00-258-080 RES,M/F 0.22-1W J
TH201 87-A91-042-080 C-THMS,100K 55001
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C6 87-010-917-000 CAP,E 3300-50 M SMG
C7 87-010-917-000 CAP,E 3300-50 M SMG
C8 87-A11-148-080 CAP,TC U 0.1-50 Z F
C9 87-A11-148-080 CAP,TC U 0.1-50 Z F
C10 87-A11-148-080 CAP,TC U 0.1-50 Z F
C11 87-A11-148-080 CAP,TC U 0.1-50 Z F
C12 87-016-520-000 CAP,E 3300-65 M SMG
C13 87-016-520-000 CAP,E 3300-65 M SMG
C16 87-010-403-080 CAP, ELECT 3.3-50V
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A61-108-010 CONN,5P V TID-A
PT2 8A-NF8-661-010 PT,SUB ANF-8 (U)
PT101 8A-NFT-621-010 PT,U EI96-60 ANF-T
RY2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
!
!
!
!
!

– 11 –
DECK C.B
CON501 87-099-756-019 CONN,15P 9604S F
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-010 RBN-CORD,4P-75
HEAD-1 C.B
HEAD-2 C.B
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

– 12 –
TRANSISTOR ILLUSTRATION
E C B
KTA1266GR
KTC3198GR
CD1585BC
CSA952K
E C B
CC5551 2SB1370
2SD1933
2SB1342
DTC114ES
2SA933S
CSC4115BC
E C B B C E
E
B
C
2SA1235F
2SC2714O
2SC3052F
CMBT5551
CMBT5401
RT1P141C
CSD1306E
KRA104S
KRC102S-RTK
KRA107S
RT1P441C
S
G
D
2SK2158
2SJ461-T1
E C B

WIRING – 1 (MAIN / VM)
– 13 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

SCHEMATIC DIAGRAM – 1 (MAIN 1 / 4: AMP SECTION / VM)
– 14 –

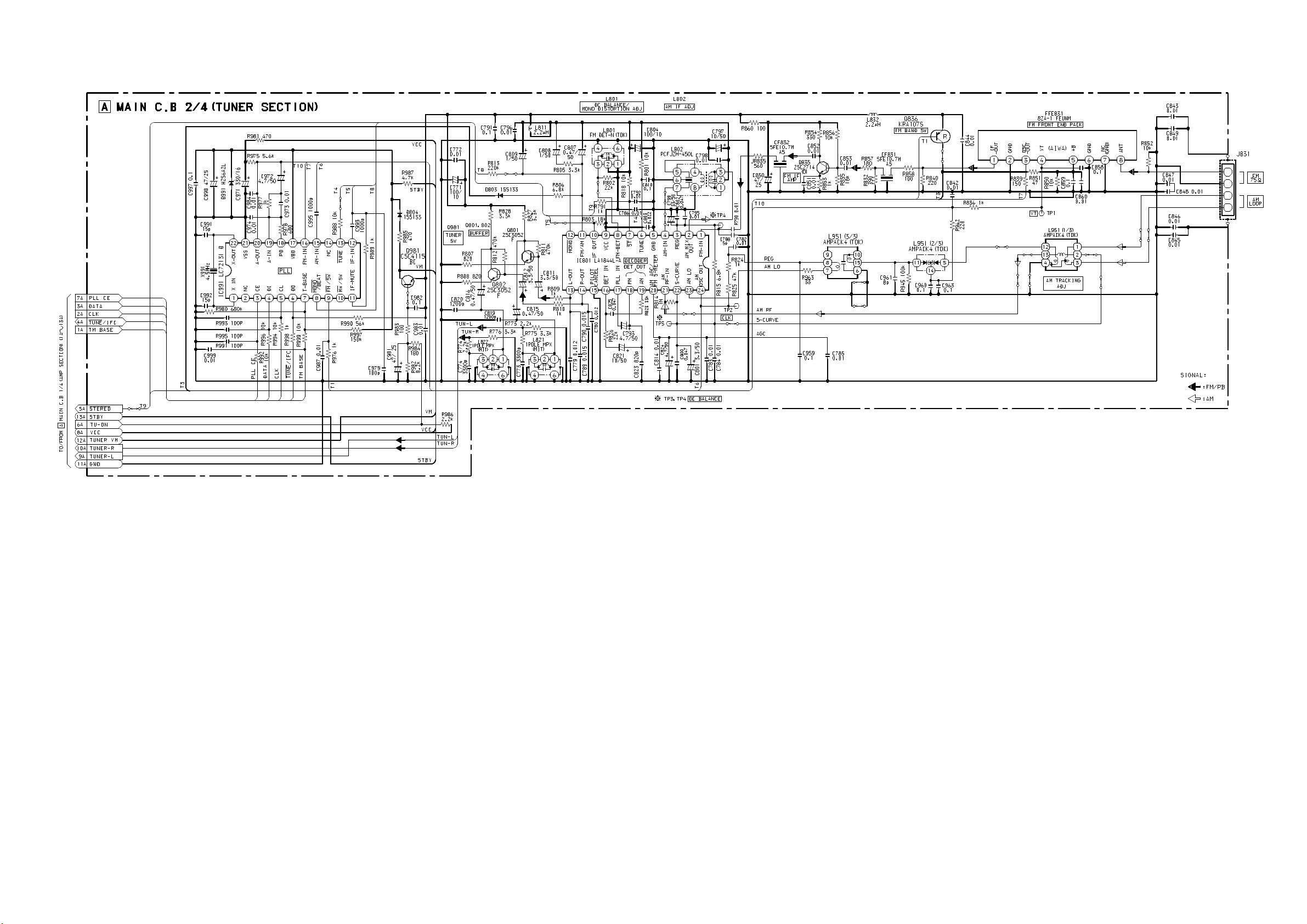

SCHEMATIC DIAGRAM – 2 (MAIN 2 / 4: TUNER SECTION)
– 15 –

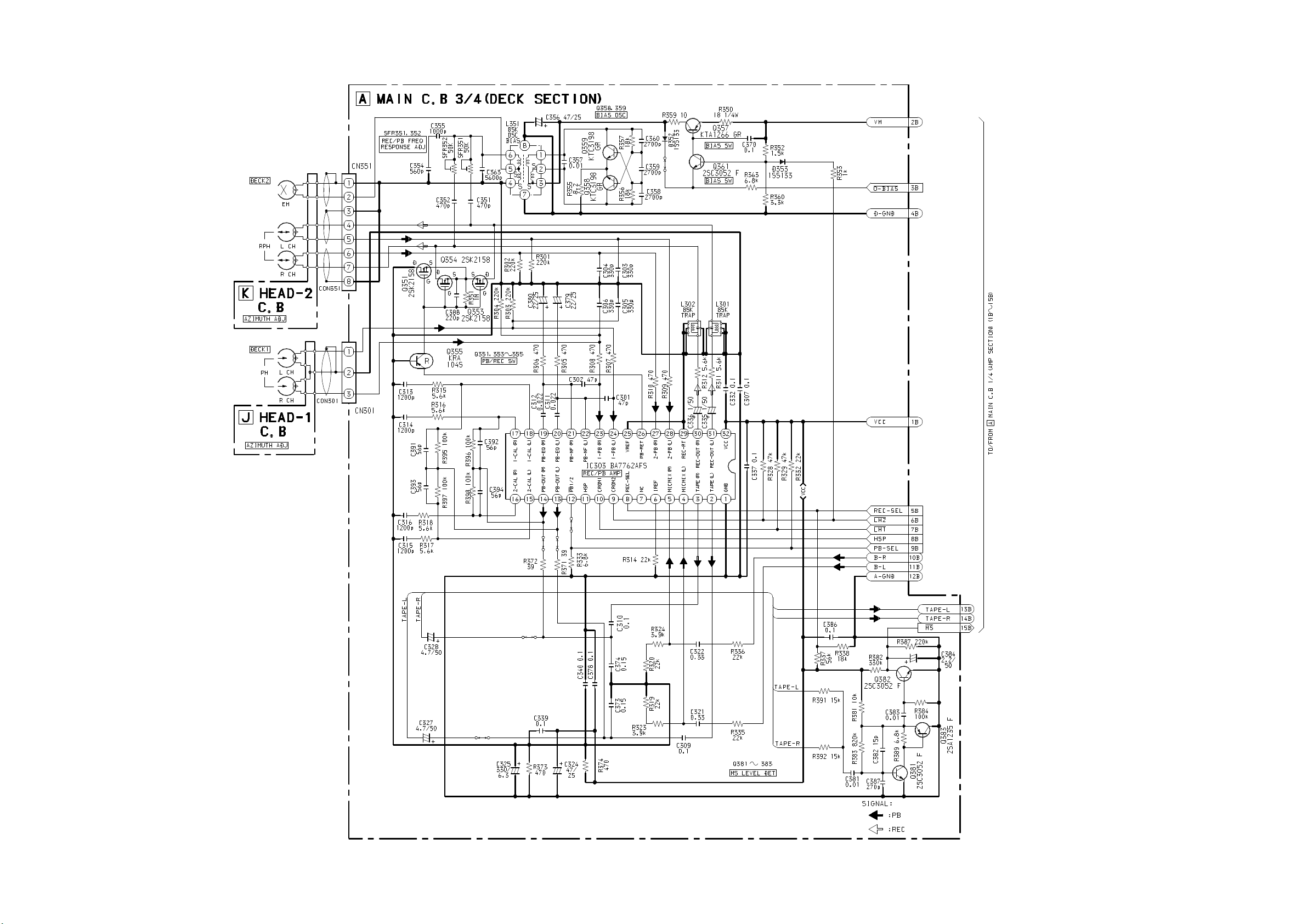

SCHEMATIC DIAGRAM – 3 (MAIN 3 / 4: DECK SECTION / HEAD – 1 / HEAD – 2)
– 16 –

SCHEMATIC DIAGRAM – 4 (MAIN 4 / 4: PROLOGIC SECTION)
– 17 –

– 18 –
WIRING – 2 (FRONT / CD KEY / MIC) <1 / 2> 181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

– 19 –
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
WIRING – 2 (FRONT / CD KEY / MIC) <2 / 2>

SCHEMATIC DIAGRAM – 5 (FRONT / CD KEY / MIC / DECK)
– 20 –
