Aiwa NSX-SZ70HT User manual

SERVICE MANUAL
DATA
COMPACT DISC STEREO
CASSETTE RECEIVER
NSX-SZ70 HT
S/M Code No. 09-008-425-3S2
SUPPLEMENT
BASIC TAPE MECHANISM: 2ZM-3MK2 PR4NM
BASIC CD MECHANISM: AZG-1 ZD3RDM
•This Service Manual is the “Supplement” and replace the “Simple Manual”
NSX-SZ70(HT) (S/M Code No. 09-005-425-3T4).
•This Service Manual contains informations about the difference between
NSX-SZ70 (HT) and NSX-SZ70 (HR). If requiring the other information,
see Service Manual of NSX-SZ70 (HR) (S/M Code No. 09-005-425-3R2).
CD-CASSEIVER
CX-NSZ70 SPEAKER
SX-WNSZ70 REMOTE CONTROLLER RC-ZAS01
SYSTEM
NSX-SZ70

SPECIFICATIONS
ACCESSORIES / PACKAGE LIST
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity(IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM Tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 uV/m
Antenna Loop antenna
<SW tuner section>
Tuning range 5.730 MHz to 17.900 MHz
Antenna Wire antenna
<Amplifier section>
Mid-high frequency amplifier
Power output Rated: 32 W + 32 W
(8 ohms, T.H.D. 1 %,1 kHz)
Reference: 40 W + 40 W
(8 ohms, T.H.D. 10 %,1 kHz)
Total harmonic distortion 0.1 % (15 W, 1 kHz, 8 ohms,
DIN AUDIO)
Low frequency amplifier
Power output Rated: 96 W + 96 W
(6 ohms, T.H.D. 1 %, 130 Hz)
Reference: 120 W + 120 W
(6 ohms, T.H.D. 10 %,130 Hz)
Total harmonic distortion 0.1 % (45 W,130 Hz,6 ohms,DIN
AUDIO)
Inputs VIDEO/AUX : 316 mV (adjustable)
MD: 316 mV (adjustable)
MIC1,MIC2: 1.0 mV (10 kohms)
Outputs SPEAKERS HIGH FREQ :
accept speakers of 8 ohms or more
SPEAKERS LOW FREQ :
accept speakers of 6 ohms or more
SURROUND SPEAKERS :
accept speakers of 8 ohms to 16 ohms
LINE OUT: 210 mV
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape: 50 Hz – 16000 Hz
Normal tape: 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/Playback head
x 1, erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<Speaker system SX–WNSZ70>
Speaker system 3 way, Built-in subwoofer(magnetic
shielded type)
Speaker units Subwoofer :
160 mm cone type
Full range:
100 mm cone type
Super Tweeter :
20 mm ceramic type
Impedance 6 ohms /8 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) 240 x 324 x 281 mm
Weight 5.2 kg
<General>
Power requirements 120 V/220-230 V/240 V AC
switchable, 50/60Hz
Power consumption 200W
Power consumption in If the power-economizing mode is
standby mode ECO OFF: 26 W
If the power-economizing mode is
ECO ON or ECO AUTO: 0.9 W
Dimensions (W xH xD) 260 x 330 x 395 mm
Weight 9.5 kg
• Design and specifications are subject to change without
notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
– 2 –
1 8A-NF7-901-110 IB,H(ECA)M
2 87-A90-119-010 ANT,WIRE SW(5M)
3 87-006-226-010 AM LOOP AM
4 87-043-115-010 FEEDER-ANT,FM
5 87-A91-017-010 PLUG,CONVERSION JT-0476
6 8Z-NF8-702-010 RC UNIT,RC-ZAS01
!

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 3 –
ELETRICAL MAIN PARTS LIST
IC
8A-NF6-610-130 C-IC,LC87654V-5R40
87-A21-018-040 C-IC,M65849BFP631D
87-A21-418-010 IC,STK490-340
87-A21-397-010 IC,STK490-070
87-A21-482-010 IC,RPM6938-H4
87-A20-783-040 C-IC,BA7762AFS
87-A21-577-040 C-IC,M61506FP
87-A21-021-040 C-IC,BU2099FV
87-070-289-040 IC,BU 2092F
87-A21-452-040 C-IC,BD3876KS2
87-A21-051-040 C-IC,BU9990-03FS
87-A21-560-010 IC,LA1844L-A
87-070-127-110 IC,LC72131 D
87-020-454-010 IC,DN6851
TRANSISTOR
87-026-245-080 TR,DTC114ES
87-026-609-080 TR,KTA1266GR
87-A30-198-080 TR,KTC3199GR
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-318-080 TR,CSA952K
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-087-080 C-FET,2SK2158
87-A30-107-070 C-TR,CMBT5401
87-A30-073-080 C-TR,RT1N 141C
87-A30-074-080 C-TR,RT1P 141C
87-A30-269-040 C-FET,2SJ461-T1
87-A30-106-070 C-TR,CMBT5551
87-A30-105-080 C-TR,RT1P 441C
87-A30-086-040 C-TR,CSD1306E
87-A30-329-080 TR,CD1585BC
89-327-143-080 TR,2SC2714 (0.1W)
87-A30-072-080 C-TR,RT1P 144C
87-A30-234-080 TR,CSC4115BC
89-503-602-080 C-FET,2SK360E
87-026-463-080 TR,2SA933SRS
87-A30-495-080 TR,2SA1981Y
DIODE
87-A40-548-090 DIODE,D3SBA20
87-017-654-060 DIODE,GBU6J
87-A40-547-090 DIODE,D5SBA20
87-020-465-080 DIODE,1SS133
87-A40-553-080 DIODE,1N4003 LES
87-A40-781-080 ZENER,UZ36BSA
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-802-080 ZENER,UZ5.1BSC
87-017-978-080 DIODE,1N4003
87-A40-745-080 ZENER,UZ4.7BSA
87-A40-748-080 ZENER,UZ5.6BSA
87-017-149-080 ZENER,HZS6A2L
87-A40-618-080 VARI-CAP,SVC348(S/T)
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C21 87-016-658-000 CAP,E 4700-35 M SMG
C22 87-016-658-000 CAP,E 4700-35 M SMG
C25 87-010-405-080 CAP,E 10-50 M 11L SME
C26 87-010-406-080 CAP, ELECT 22-50V
C27 87-010-406-080 CAP, ELECT 22-50V
C28 87-010-406-080 CAP, ELECT 10-50V
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C33 87-010-263-080 CAP, ELECT 100-10V
C34 87-010-384-080 CAP, ELECT 100-25V
C35 87-010-406-080 CAP, ELECT 22-50V
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-394-080 CAP, ELECT 220-35V
C39 87-010-394-080 CAP, ELECT 220-35V
C40 87-010-197-080 CAP, CHIP 0.01 DM
C60 87-010-403-080 CAP, ELECT 3.3-50V
C80 87-010-401-080 CAP, ELECT 1-50V
C81 87-010-260-080 CAP, ELECT 47-25V
C82 87-010-380-080 CAP, ELECT 47-16V
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C105 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-010-545-080 CAP, ELECT 0.22-50V
C112 87-010-545-080 CAP, ELECT 0.22-50V
C113 87-010-545-080 CAP, ELECT 0.22-50V
C114 87-010-545-080 CAP, ELECT 0.22-50V
C115 87-010-546-080 CAP, ELECT 0.33-50V
C116 87-010-546-080 CAP, ELECT 0.33-50V
C121 87-010-545-080 CAP, ELECT 0.22-50V
C122 87-010-545-080 CAP, ELECT 0.22-50V
C171 87-012-368-080 C-CAP,S 0.1-50 F
C172 87-012-368-080 C-CAP,S 0.1-50 F
C173 87-012-368-080 C-CAP,S 0.1-50 F
C174 87-012-368-080 C-CAP,S 0.1-50 F
C301 87-010-318-080 C-CAP,S 47P-50 CH
C302 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-157-080 C-CAP,S 330P-50 CH
C306 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022
C312 87-010-198-080 CAP, CHIP 0.022
C313 87-010-179-080 CAP,CHIP S B1200P
C314 87-010-179-080 CAP,CHIP S B1200P
C315 87-010-179-080 CAP,CHIP S B1200P
C316 87-010-179-080 CAP,CHIP S B1200P
C321 87-012-142-080 CAP, S 0.33-16
C322 87-012-142-080 CAP, S 0.33-16
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP 470P
C352 87-012-140-080 CAP 470P
C354 87-010-175-080 CAP 560P
C355 87-010-178-080 CHIP CAP 1000P
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C363 87-A10-292-080 CAP,M 5600P-50 J
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-016-083-080 C-CAP,S 0.15-16 RK
C374 87-016-083-080 C-CAP,S 0.15-16 RK

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 4 –
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C379 87-010-382-080 CAP, ELECT 22-25V
C380 87-010-382-080 CAP, ELECT 22-25V
C381 87-010-197-080 CAP, CHIP 0.01 DM
C382 87-010-312-080 C-CAP,S 15P-50 CH
C383 87-010-197-080 CAP, CHIP 0.01 DM
C384 87-010-402-080 CAP, ELECT 2.2-50V
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-012-145-080 CAP, CHIP S 270P CH
C388 87-012-156-080 C-CAP,S 220P-50 CH
C391 87-010-319-080 C-CAP,S 56P-50 CH
C392 87-010-319-080 C-CAP,S 56P-50 CH
C393 87-010-319-080 C-CAP,S 56P-50 CH
C394 87-010-319-080 C-CAP,S 56P-50 CH
C501 87-010-263-080 CAP,E 100-10 M 11L SME
C502 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C503 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C504 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C505 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C506 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C507 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C508 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C509 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C510 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C511 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C512 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C513 87-010-544-080 CAP,E 0.1-50 M 11L SME
C514 87-010-374-080 CAP,E 47-10 M 11L SME
C515 87-010-401-080 CAP,E 1-50 M 11L SME
C516 87-010-401-080 CAP,E 1-50 M 11L SME
C517 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C518 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C531 87-010-405-080 CAP,E 10-50 M 11L SME
C532 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C533 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C534 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C535 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C536 87-010-196-080 CHIP CAPACITOR,0.1-25
C538 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C541 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C609 87-010-181-080 CAP,CHIP S 1800P
C610 87-010-181-080 CAP,CHIP S 1800P
C611 87-010-956-080 CHIP-CAP,S 0.068-25B
C612 87-016-369-080 C-CAP,S 0.033-25 B K
C613 87-010-197-080 CAP, CHIP 0.01 DM
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C616 87-010-184-080 CHIP CAPACITOR 3300P(K)
C617 87-012-369-080 C-CAP,S 0.047-50F
C618 87-010-401-080 CAP, ELECT 1-50V
C619 87-010-263-080 CAP, ELECT 100-10V
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C621 87-010-197-080 CAP, CHIP 0.01 DM
C623 87-010-401-080 CAP, ELECT 1-50V
C624 87-010-401-080 CAP, ELECT 1-50V
C626 87-A10-354-080 C-CAP,S 0.047-50 K B
C627 87-010-400-080 CAP, ELECT 0.47-50V
C628 87-010-400-080 CAP, ELECT 0.47-50V
C629 87-A10-354-080 C-CAP,S 0.047-50 K B
C630 87-010-383-080 CAP, ELECT 33-25V
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C633 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-A10-307-080 CAP,M 0.1-50 J
C636 87-A10-307-080 CAP,M 0.1-50 J
C637 87-A10-307-080 CAP,M 0.1-50 J
C638 87-A10-307-080 CAP,M 0.1-50 J
C639 87-010-405-080 CAP, ELECT 10-50V
C641 87-010-401-080 CAP, ELECT 1-50V
C642 87-010-401-080 CAP, ELECT 1-50V
C643 87-010-196-080 CHIP CAPACITOR,0.1-25
C644 87-010-401-080 CAP, ELECT 1-50V
C645 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C671 87-010-322-080 C-CAP,S 100P-50 CH
C672 87-010-322-080 C-CAP,S 100P-50 CH
C673 87-010-197-080 CAP, CHIP 0.01 DM
C679 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-197-080 CAP, CHIP 0.01 DM
C682 87-010-196-080 CHIP CAPACITOR,0.1-25
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C779 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C780 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C782 87-010-197-080 CAP, CHIP 0.01 DM
C783 87-010-197-080 CAP, CHIP 0.01 DM
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-197-080 CAP, CHIP 0.01 DM
C786 87-010-197-080 CAP, CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A10-592-080 C-CAP,S 0.015-50 J B
C790 87-A10-592-080 C-CAP,S 0.015-50 J B
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-012-369-080 C-CAP,S 0.047-50F
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C806 87-010-401-040 CAP,E 1-50 SME
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C811 87-010-403-080 CAP, ELECT 3.3-50V
C812 87-010-403-080 CAP, ELECT 3.3-50V
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-404-080 CAP, ELECT 4.7-50V
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01 DM
C843 87-010-190-080 S CHIP F 0.01
C844 87-010-197-080 CAP, CHIP 0.01 DM
C845 87-010-190-080 S CHIP F 0.01
C846 87-010-190-080 S CHIP F 0.01
C847 87-010-190-080 S CHIP F 0.01
C848 87-010-190-080 S CHIP F 0.01
C849 87-010-190-080 S CHIP F 0.01
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-010-197-080 CAP, CHIP 0.01 DM
C852 87-010-197-080 CAP, CHIP 0.01 DM
C853 87-010-197-080 CAP, CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01 DM
C940 87-010-197-080 CAP, CHIP 0.01 DM
C941 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C943 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C945 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C946 87-010-971-080 C-CAP,S 4700P-50 J B
C947 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C948 87-010-148-080 C-CAP,S 4P-50 J CH GRM

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 5 –
C952 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C953 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C954 87-010-400-080 CAP,E 0.47-50 M 11L SME
C956 87-010-263-080 CAP,E 100-10 M 11L SME
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C962 87-010-401-080 CAP,E 1-50 M 11L SME
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C964 87-010-854-080 C-CAP,S 560P-50 J CH
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
C974 87-010-197-080 CAP, CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C989 87-010-197-080 CAP, CHIP 0.01 DM
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN91 87-A60-109-010 CONN,2P V S2M-2W
CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-099-194-010 CONN,6P 6216V
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
CNA2 8A-NF6-630-010 CONN ASSY,3P (VM) ANF-6
FB501 87-008-372-080 FLTR,EMI BL01 RN1
FFC602 85-NF5-617-010 CABLE,FFC 6P-1.25
FFE831 A8-8ZA-190-030 8ZA-1 FEUNM
J101 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J102 87-A60-238-010 TERMINAL,SP 4P (MSC)
J601 87-A60-885-010 JACK,PIN 6P R/W MSC
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
J940 81-754-629-010 CONNECTOR X11 2P (UL)
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-540-010 COIL,FM DET(TOK)
L802 87-A91-552-010 FLTR,CFMT-450AL (AOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L821 87-A50-027-010 COIL,1POLE MPX(TOK)
L822 87-A50-027-010 COIL,1POLE MPX(TOK)
L832 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-022-010 COIL,ANT SW (COI) 7.96MHZ
L942 87-A50-550-010 COIL,OSC SW-2N (COI)
L943 87-A50-522-080 COIL,1MH K CEC
L944 87-A50-159-010 COIL,10MH K C2B
L952 87-A50-430-010 COIL,ANT MW(3BSW)
L953 87-A50-431-010 COIL,OSC MW(3BSW)
R161 87-A00-441-050 RES,270-1/2W J RP
R162 87-A00-441-050 RES,270-1/2W J RP
R163 87-A00-441-050 RES,270-1/2W J RP
R164 87-A00-441-050 RES,270-1/2W J RP
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
TC941 87-011-254-080 TRIMMER,CER 20P 4.0X4.5 ECR
TC943 87-011-253-080 TRIMMER,CER 30P 4.0X4.5 ECR
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C101 87-010-190-080 S CHIP F 0.01
C102 87-010-322-080 C-CAP,S 100P-50 CH
C103 87-010-312-080 C-CAP,S 15P-50 CH
C104 87-012-157-080 C-CAP,S 330P-50 CH
C105 87-010-406-040 CAP,E 22-50 SME
C106 87-010-493-040 CAP,E 0.47-50 GAS
C107 87-A10-189-040 CAP,E 220-10
C108 87-A10-189-040 CAP,E 220-10
C109 87-010-196-080 CHIP CAPACITOR,0.1-25
C110 87-010-178-080 CHIP CAP 1000P
C112 87-012-368-080 C-CAP,S 0.1-50 F
C113 87-012-369-080 C-CAP,S 0.047-50F
C114 87-010-196-080 CHIP CAPACITOR,0.1-25
C115 87-010-196-080 CHIP CAPACITOR,0.1-25
C116 87-010-196-080 CHIP CAPACITOR,0.1-25
C118 87-012-145-080 CAP, CHIP S 270P CH
C119 87-010-498-040 CAP,E 10-16 GAS
C120 87-010-196-080 CHIP CAPACITOR,0.1-25
C121 87-010-196-080 CHIP CAPACITOR,0.1-25
C122 87-010-196-080 CHIP CAPACITOR,0.1-25
C123 87-012-393-080 C-CAP,S 0.22-16 R K
C181 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C182 87-010-178-080 CHIP CAP 1000P
C183 87-012-156-080 C-CAP,S 220P-50 CH
C202 87-012-157-080 C-CAP,S 330P-50 CH
C203 87-012-157-080 C-CAP,S 330P-50 CH
C204 87-012-157-080 C-CAP,S 330P-50 CH
C205 87-012-157-080 C-CAP,S 330P-50 CH
C206 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C211 87-012-140-080 CAP 470P
C221 87-010-421-040 CAP,E 4.7-50 5L
C222 87-010-404-040 CAP,E 4.7-50 SME
C223 87-010-408-040 CAP,E 47-50 SME
C224 87-012-369-080 C-CAP,S 0.047-50F
C382 87-010-320-080 CHIP CAP 68P
C383 87-010-196-080 CHIP CAPACITOR,0.1-25
C384 87-010-196-080 CHIP CAPACITOR,0.1-25
C385 87-010-196-080 CHIP CAPACITOR,0.1-25
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-010-196-080 CHIP CAPACITOR,0.1-25
C392 87-010-320-080 CHIP CAP 68P
C401 87-010-196-080 C-CAP,S 0.1-25 ZF C2012
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C403 87-010-322-080 C-CAP,S 100P-50 CH
C404 87-010-322-080 C-CAP,S 100P-50 CH
C405 87-010-322-080 C-CAP,S 100P-50 CH
C406 87-010-322-080 C-CAP,S 100P-50 CH
C407 87-010-322-080 C-CAP,S 100P-50 CH
C408 87-010-322-080 C-CAP,S 100P-50 CH
C409 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C601 87-010-186-080 CAP,CHIP 4700P
C602 87-010-405-040 CAP,E 10-50 M 11L SME
C603 87-010-320-080 CHIP CAP 68P
C604 87-010-546-040 CAP,E 0.33-50
C606 87-010-112-040 CAP,E 100-16
C607 87-010-196-080 CHIP CAPACITOR,0.1-25
C608 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C609 87-010-196-080 CHIP CAPACITOR,0.1-25
C621 87-010-178-080 CHIP CAP 1000P
C652 87-010-183-080 C-CAP,S 2700P-50 B

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 6 –
C653 87-010-213-080 C-CAP,S 0.015-50 B
C701 87-010-260-040 CAP,E 47-25 SME
C802 87-010-168-080 CAP, CHIP 150P
C804 87-010-187-080 CAP CHIP S5600P
C809 87-012-155-080 C-CAP 180P-50CH
C810 89-010-263-040 CAP,E 100-10 M 11L SME
C811 87-010-545-040 CAP,E 0.22-50 M 11L SME
C812 87-010-405-040 CAP,E 10-50 M 11L SME
C830 87-A11-148-080 CAP,TC U 0.1-50 Z F
C831 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C832 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C833 87-010-178-080 C-CAP,S 1000P-50 K B C2012
CN102 8A-NF7-605-010 CONN ASSY,4P V 80MM
CN104 87-099-017-010 CONN, 15P 6216 V
CN901 87-A60-138-010 CONN,13P V FE
CON101 87-099-720-010 CONN,30P TYK-B(P)
FB601 87-008-372-080 FILTER, EMI BL OIRNI
FB801 87-008-372-080 FILTER, EMI BL OIRNI
FFC104 88-915-111-110 FF-CABLE,15P 1.25
FFC901 85-NF5-618-010 CABLE,FFC 13P-1.25
FL201 8A-NF7-601-010 FL,BJ754GNK
J601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
J602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
JW807 87-005-847-080 COIL,2.2UH K CECS
L101 87-A50-333-010 COIL,OSC 9.43MHZ
L801 87-A50-093-010 COIL,CLOCK 5.76MHZ
L802 87-005-847-080 COIL,2.2UH(CECS)
LED401 87-017-733-080 LED,SEL1250SM
LED402 87-017-733-080 LED,SEL1250SM
LED403 87-017-733-080 LED,SEL1250SM
LED404 87-017-733-080 LED,SEL1250SM
LED405 87-017-733-080 LED,SEL1250SM
LED416 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED417 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED418 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED419 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED420 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED421 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED422 87-A40-317-080 LED,SLR-342VCT31 RED
LED423 87-A40-317-080 LED,SLR-342VCT31 RED
LED424 87-A40-317-080 LED,SLR-342VCT31 RED
LED440 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED441 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED442 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED443 87-A40-563-010 LED,SEL6515C-LF62 PGRN
LED444 87-A40-563-010 LED,SEL6215S-LF62 PGRN
LED445 87-A40-563-010 LED,SEL6215S-LF62 PGRN
LED454 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED455 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED499 87-017-733-080 LED,SEL1250SM
R211 87-012-156-080 C-CAP,S 220P-50 J CH GRM
R212 87-012-156-080 C-CAP,S 220P-50 J CH GRM
R808 87-010-198-080 C-CAP,S 0.022-25 K B C2012
S101 87-A91-709-010 SW,RTRY 1-2-24 RE012103 PV
S102 87-A91-710-010 SW,RTRY 1-2-12 RE012103 PV
S301 87-A91-024-180 SW,TACT KSHG611BT
S302 87-A91-024-180 SW,TACT KSHG611BT
S303 87-A91-024-180 SW,TACT KSHG611BT
S304 87-A91-024-180 SW,TACT KSHG611BT
S305 87-A91-024-180 SW,TACT KSHG611BT
S306 87-A91-024-180 SW,TACT KSHG611BT
S311 87-A91-024-180 SW,TACT KSHG611BT
S312 87-A91-024-180 SW,TACT KSHG611BT
S313 87-A91-024-180 SW,TACT KSHG611BT
S314 87-A91-024-180 SW,TACT KSHG611BT
S321 87-A91-024-180 SW,TACT KSHG611BT
S322 87-A91-024-180 SW,TACT KSHG611BT
S323 87-A91-024-180 SW,TACT KSHG611BT
S324 87-A91-024-180 SW,TACT KSHG611BT
S325 87-A91-024-180 SW,TACT KSHG611BT
S326 87-A91-024-180 SW,TACT KSHG611BT
S327 87-A91-024-180 SW,TACT KSHG611BT
S328 87-A91-024-180 SW,TACT KSHG611BT
S329 87-A91-024-180 SW,TACT KSHG611BT
S330 87-A91-024-180 SW,TACT KSHG611BT
S331 87-A91-024-180 SW,TACT KSHG611BT
S332 87-A91-024-180 SW,TACT KSHG611BT
S333 87-A91-024-180 SW,TACT KSHG611BT
S334 87-A91-024-180 SW,TACT KSHG611BT
S341 87-A91-024-180 SW,TACT KSHG611BT
S342 87-A91-024-180 SW,TACT KSHG611BT
S343 87-A91-024-180 SW,TACT KSHG611BT
S344 87-A91-024-180 SW,TACT KSHG611BT
S345 87-A91-024-180 SW,TACT KSHG611BT
S346 87-A91-024-180 SW,TACT KSHG611BT
S347 87-A91-024-180 SW,TACT KSHG611BT
S349 87-A91-024-180 SW,TACT KSHG611BT
S350 87-A91-024-180 SW,TACT KSHG611BT
S351 87-A91-024-180 SW,TACT KSHG611BT
S352 87-A91-024-180 SW,TACT KSHG611BT
S353 87-A91-024-180 SW,TACT KSHG611BT
S354 87-A91-024-180 SW,TACT KSHG611BT
S355 87-A91-024-180 SW,TACT KSH0611BT
AMP C.B
C101 87-010-183-080 C-CAP,S 2700P-50 B
C102 87-010-183-080 C-CAP,S 2700P-50 B
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C107 87-010-405-080 CAP, ELECT 10-50V
C108 87-010-405-080 CAP, ELECT 10-50V
C111 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C112 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C113 87-010-405-080 CAP, ELECT 10-50V
C114 87-010-405-080 CAP, ELECT 10-50V
C115 87-010-866-080 CAP, ELECT 10-63
C116 87-010-866-080 CAP, ELECT 10-63
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C153 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C201 87-A10-300-080 CAP,M 0.027-50 J
C202 87-A10-300-080 CAP,M 0.027-50 J
C203 87-A10-300-080 CAP,M 0.027-50 J
C204 87-A10-300-080 CAP,M 0.027-50 J
C205 87-010-180-080 C-CER 1500P
C206 87-010-180-080 C-CER 1500P
C207 87-010-401-080 CAP, ELECT 1-50V
C208 87-010-401-080 CAP, ELECT 1-50V
C209 87-010-187-080 CAP CHIP S5600P
C210 87-010-187-080 CAP CHIP S5600P
C211 87-010-402-080 CAP, ELECT 2.2-50V
C212 87-010-402-080 CAP, ELECT 2.2-50V
C215 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C216 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C217 87-010-403-080 CAP, ELECT 3.3-50V
C218 87-010-403-080 CAP, ELECT 3.3-50V
C221 87-010-405-080 CAP, ELECT 10-50V
C222 87-010-405-080 CAP, ELECT 10-50V
C223 87-010-197-080 CAP, CHIP 0.01 DM
C224 87-010-197-080 CAP, CHIP 0.01 DM
C251 87-010-196-080 CHIP CAPACITOR,0.1-25
C252 87-010-196-080 CHIP CAPACITOR,0.1-25
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C254 87-010-196-080 CHIP CAPACITOR,0.1-25
C255 87-010-190-080 S CHIP F 0.01
C256 87-010-190-080 S CHIP F 0.01
C257 87-010-190-080 S CHIP F 0.01
C258 87-010-190-080 S CHIP F 0.01

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
C401 87-010-260-080 CAP, ELECT 47-25
CN101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CNA101 8A-NF8-656-010 CONN ASSY,5P TID-A 400
J201 87-A61-148-010 JACK,PIN 4P R/W BLUE
R129 87-A00-262-080 RES,M/F 0.15-2W J
R130 87-A00-262-080 RES,M/F 0.15-2W J
R231 87-A00-258-080 RES,M/F 0.22-1W J
R232 87-A00-258-080 RES,M/F 0.22-1W J
WH101 87-A90-459-010 HLDR,WIRE 2.5-5P
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C6 87-A10-627-000 CAP,E 2200-50 M SMG
C7 87-A10-627-000 CAP,E 2200-50 M SMG
C8 87-A11-148-080 CAP,TC U 0.1-50 Z F
C9 87-A11-148-080 CAP,TC U 0.1-50 Z F
C10 87-A11-148-080 CAP,TC U 0.1-50 Z F
C11 87-A11-148-080 CAP,TC U 0.1-50 Z F
C12 87-016-657-090 CAP,E 3300-71
C13 87-016-657-090 CAP,E 3300-71
C16 87-010-403-080 CAP, ELECT 3.3-50V
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A61-108-010 CONN,5P V TID-A
PT1 8A-NF7-622-010 PT,ANF-7 H
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H) KAMI
RY1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
VM C.B
CNA3 87-049-919-010 CONN,3P V WHT EH
DECK C.B
CON105 87-099-756-010 CONN,15P 9604 S F
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-010 RBN,CORD,4P-75
HEAD-1 C.B
85-ZM3-602-010 PWB,FLEX A
HEAD-2 C.B
85-ZM3-602-010 PWB,FLEX A
CON351 87-NF6-616-010 CONN ASSY,8P-RPB
!
!
!
!
!
!
– 7 –
TRANSISTOR ILLUSTRATION
E C B
2SA1981

WIRING - 1 (MAIN / VM)
–8 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

SCHEMATIC DIAGRAM-1(MAIN1/3:AMP/VM)
– 9 –

– 10 –

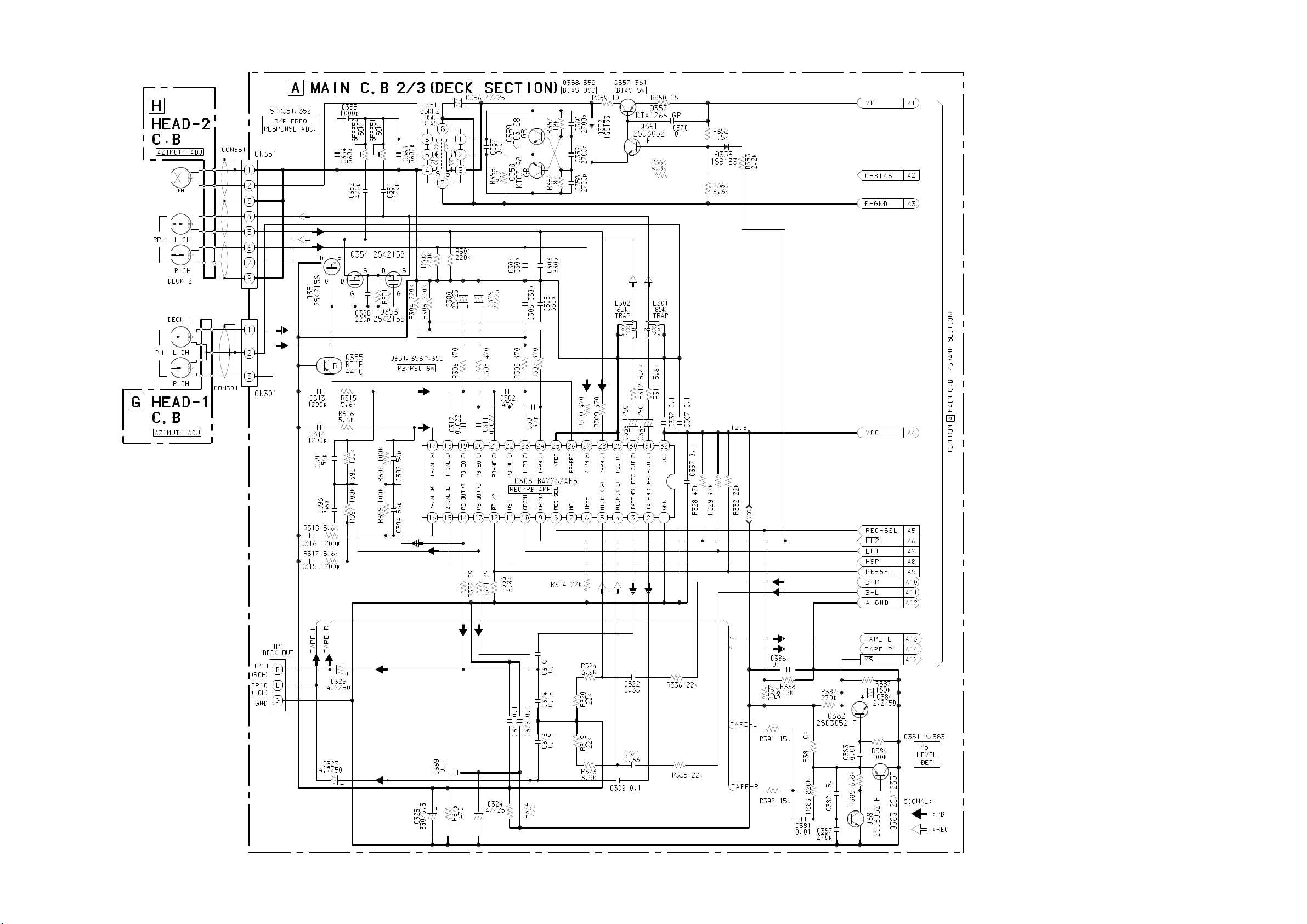

SCHEMATIC DIAGRAM - 2 (MAIN 2 / 3: DECK / HEAD-1 / HEAD-2)

SCHEMATIC DIAGRAM-3(MAIN3 /3:TUNER)
– 11 –

WIRING - 2 (FRONT)
–12 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

SCHEMATIC DIAGRAM-4(FRONT/DECK)
– 13 –

WIRING - 3 (AMP)
–14 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

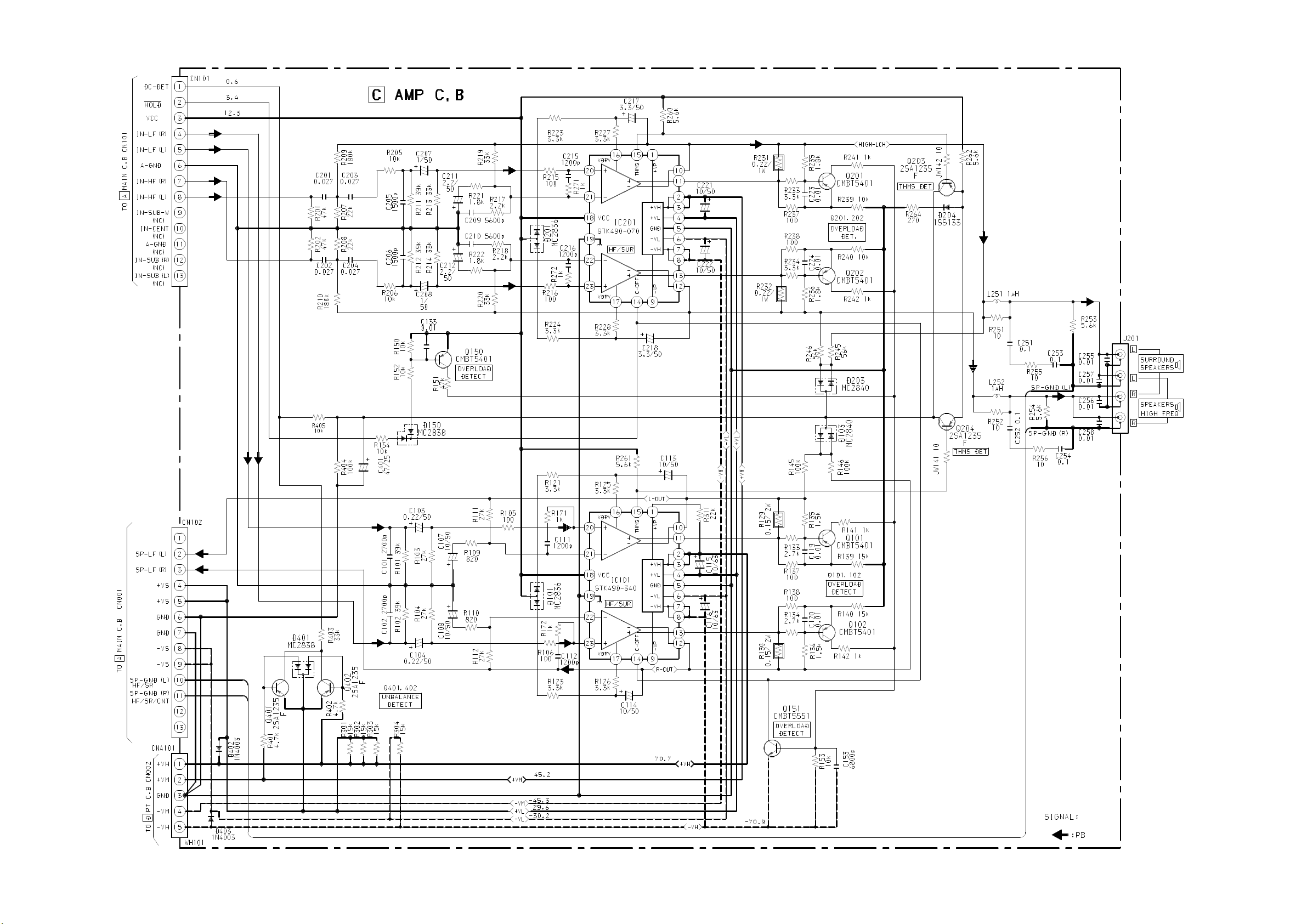

SCHEMATIC DIAGRAM - 5 (AMP)
– 15 –

WIRING - 4 (PT)
–16 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

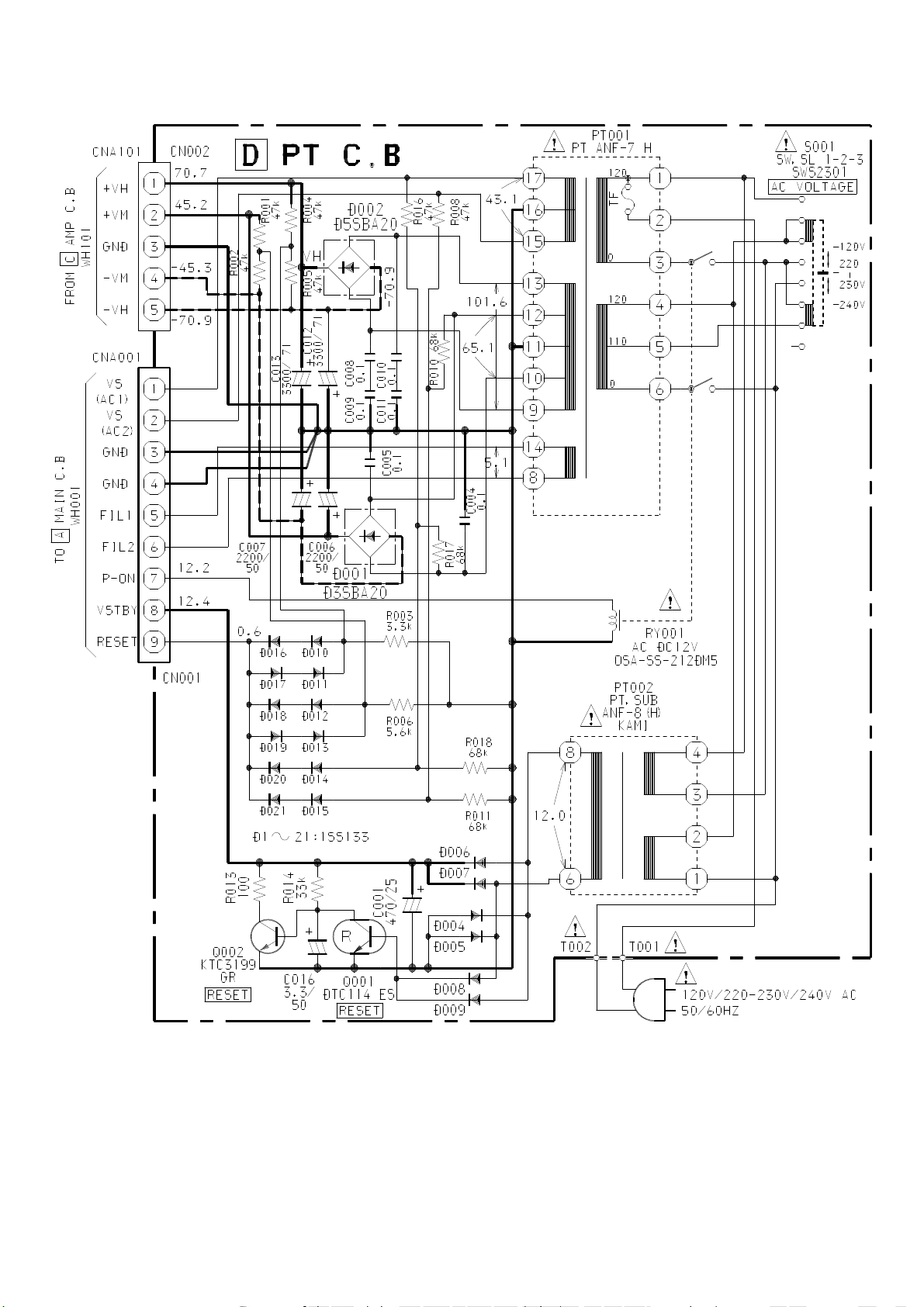

SCHEMATICDIAGRAM-6(PT)
– 17 –

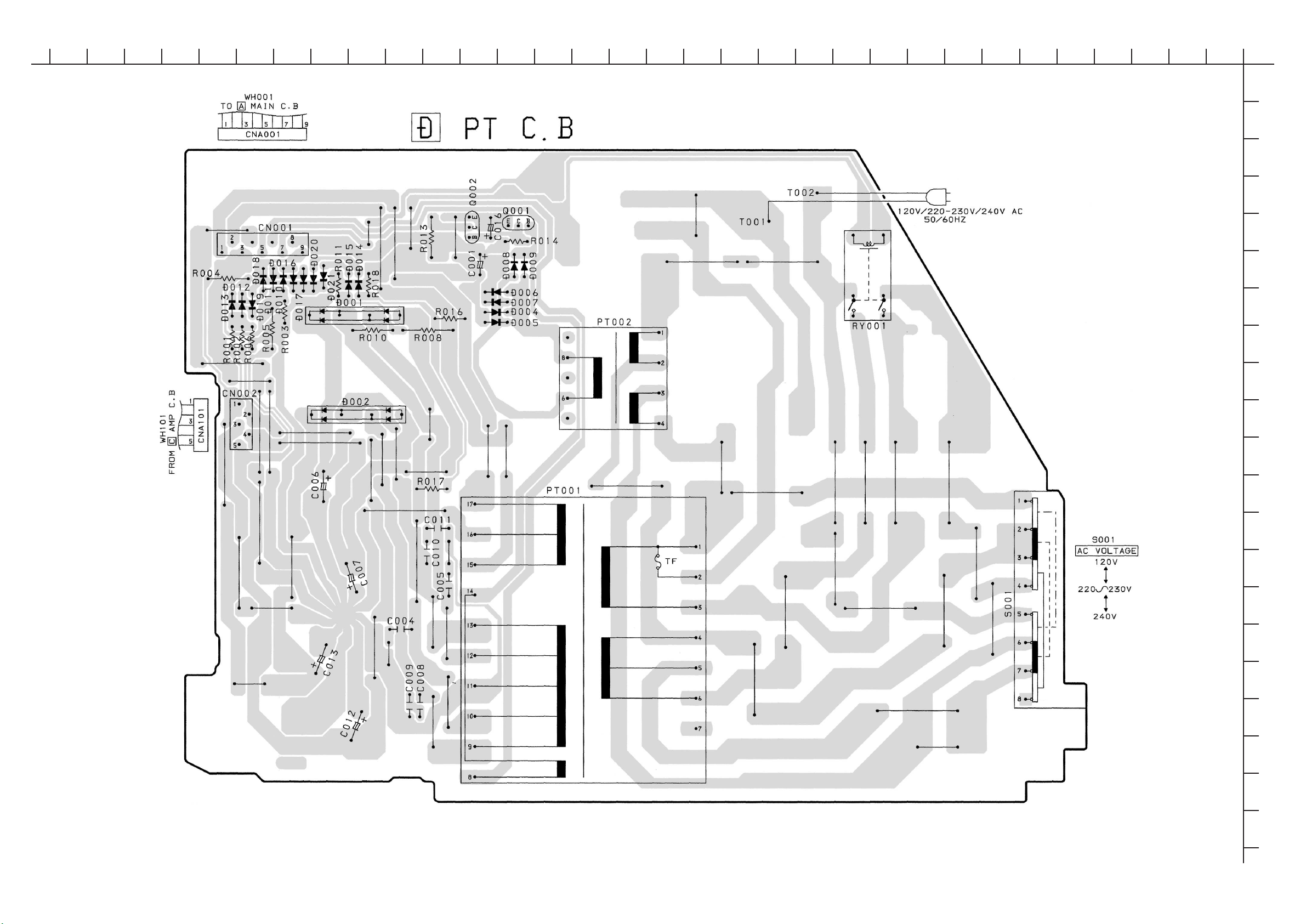

WIRING - 5 (DECK)
– 18 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

MECHANICAL EXPLODED VIEW 1 / 1
– 19 –
b
c
c
b
P.C.B
P.C.B
P.C.B
P.C.B
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
J
I
BINDER,
WIRE
BINDER,
WIRE
F
H
E
E
C
A
A
A
A
AA
AA
B
G
A
A
D
K
F
HT-SINK,VM HT-SINK
PLATE,
EARTH MECHA 2ZM-3MK2
CHAS,MAIN
1
2
3
4
5
6
7
78
9
10
10
11 12
1314
15
16
17
18
19
20
21
23
22
24
25
26
AZG-1
46
47 48 49
50
51
52
53
54
55
56
57
58
59
60
61
41
43
31
FL201
27
2829
30
32
33 34
35
3837
36
39
40
36 42
37
45
44
a
a

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
MECHANICAL PARTS LIST 1 / 1
– 20 –
1 8A-NF7-010-010 WINDOW,CASS 1
2 8A-NF7-003-010 BOX,CASS 1
3 82-NF5-218-010 SPR-T,EJECT 1 (SIN)
4 8A-NF7-011-010 WINDOW,CASS 2
5 82-NF5-219-010 SPR-T,EJECT 2 (SIN)
6 8A-NF7-004-010 BOX,CASS 2
7 86-NF6-061-010 REFLECTOR,CASS
8 8A-NF7-012-010 PANEL,DIRECT
9 8A-NF7-041-010 KEY,ASSY CD
10 8Z-NF6-210-010 DMPR,150 N
11 8A-NF7-029-010 KEY,GEQ
12 81-532-080-010 LABEL, CASS. COMPT
13 8A-NF7-048-110 KNOB,RTRY ASSY JOG
14 8A-NF7-024-110 KEY,SURROUND
15 8A-NF7-049-010 KNOB,RTRY ASSY VOL
16 8A-NF7-034-110 KEY,MIC
17 8A-NF7-023-110 KEY,ENTER
18 8A-NF7-081-010 CABI,FR HR
19 8A-NF7-101-010 PANEL,ASSY FR HR
20 8A-NF7-091-010 WINDOW,DISP HR
21 8A-NF7-005-010 PANEL,TRAY U
22 87-CE3-023-010 BADGE,AIWA 30N SILV
23 8A-NF7-008-010 PANEL,CD
24 8A-NF8-007-010 PANEL,LEFT V-2
25 8A-NF8-006-010 WINDOW,TOP
26 8A-NF8-005-010 PANEL,TOP
27 8A-NF7-035-010 KEY,ASSY FUN
28 8A-NF7-026-010 KEY,ASSY OPE
29 8A-NF7-214-010 GUIDE,OPE
30 8A-NF7-213-010 GUIDE,FUN
31 87-NF5-203-110 GUIDE,FL(*)
32 85-NF7-605-010 CONN ASSY 4P V 8MM
33 85-NF5-618-010 CABLE,FFC 13P-1.25
34 88-915-111-110 FF-CABLE,15P 1.25
35 8A-NF7-021-110 KEY,BBE
36 82-NF5-229-010 PLATE,LOCK
37 86-NF9-224-010 SPR-C,LOCK
38 87-NF4-216-010 HLDR,LOCK 1
39 8A-NF7-046-010 KEY,KARAOKE
40 8A-NF7-022-110 KEY,SPICE
41 87-NF4-221-010 HLDR,CABLE
42 87-NF4-217-110 HLDR,LOCK 2
43 8A-NF8-206-010 HLDR,PWB M
44 8A-NF8-656-010 CONN ASSY 5P TID-A 400
45 85-NF5-617-010 CABLE,FFC 6P-1.25
46 87-A91-711-010 FAN, 3110GL-B4W-B34-H02
47 8A-NF6-219-010 HLDR,FAN
48 8A-NF7-161-010 PANEL,REAR MTSM-F
49 84-ZG1-245-210 CAP,OPTICAL
50 8A-NF7-053-010 COVER, REAR H
51 8A-NF7-226-010 HLDR,IC2-T2
52 8A-NF7-207-010 HLDR,HT L
53 8A-NF7-208-010 HLDR,HT R
54 8A-NF6-217-010 HLDR,PWB PT
55 8A-NF7-112-010 PANEL,RIGHT V-2
56 87-A80-157-010 AC CORD ASSY,E BLK CC
57 87-085-185-010 BUSHING, AC CORD (E)
58 8A-NF7-110-010 FOOT,H 14.5
59 8Z-NB8-254-010 COVER, PL M3
60 8Z-NB8-240-010 COVER, PL
61 8A-NF7-209-010 HLDR,PWB-M BTM
A 87-067-703-010 TAPPING SCREW, BVT2+3-10
B 87-067-581-010 TAPPING SCREW, BVT2+3-15
C 87-067-688-010 BVTT+3-6
D 87-NF4-224-010 S-SCREW,IT3B+3-8 CU
E 87-721-097-410 QT2+3-12 GLD
F 87-067-641-010 UTT2+3-8(W/O SLOT)BL
G 87-078-191-010 S-SCREW,IT+4-10
H 87-723-096-410 QT2+3-10W/O SLOT BL
I 87-067-689-010 TAPPING SCREW, BVTT+3-8
J 87-067-579-010 TAPPING SCREW, BVT2+3-8
K 87-067-001-010 S-SCREW BWWST 2+3-12
!
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
