Aiwa NSX-D9 User manual

8Z-NF3-901-01
981 109AAS-P9
For assistance and information,
call toll Free I-800-BUVAIWA.
(United States and Puerto Rico)
~TKG
DMGITAL AUDIO

NOTE
This equipment has been tested and found to comply with the
limits for aClass Bdigital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in aresidential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in aparticular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.
IENGLISH
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. Ail warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
Installation
1
2
3
4
5
6
7
8
Water and moisture —Do not use this unit near water, such
as near abathtub, washbowl, swimming pool, or the like.
Heat —Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41‘F) or greater than 35°C (95°F).
Mounting surface —Place the unit on a flat, even surface.
Ventilation —The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side.
-Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry —Take care that objects or liquids
do not get inside the unit through the ventilation openings.
Carts and stands —When placed
or mounted on a stand or cart, the
unit should be moved with care.
Quick stops, excessive force, and @
●
uneven surfaces may cause the unit AA*
or cart to overturn or fall.
Condensation —Moisture may form on the CD pickup lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avery humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for afew hours,
then try to operate again.
Wall or ceiling mounting —The unit should not be mounted
on a wall or-ceiling, u;less specified in the Operating
Instructions.
Electric Power
1Power sources —Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
2Polarization —As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into apower outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over
and try again. If it still does not easily insert into the outlet,
please call aqualified service technician to service or replace
the outlet. Toavoid defeating the safety feature of the polarized
plug, do not force it into apower outlet.

3
4
5
AC power cord
-When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this
could result in fire or shock.
-Power cords should be routed to avoid being severely bent,
pinched, or walked upon. Pay particular attention to the cord
from the unit to the power socket.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
Extension cord —To help prevent electric shock, do not use
apolarized AC power plug with an extension cord, receptacle,
or other outlet unless the polarized plug can be completely
inserted to prevent exposure of the blades of the plug.
When not in use —Undug the AC Dower cord from the AC
power plug if the unit will n;t be used for several months or
more. When the cord is plugged in, asmall amount of current
continues to flow to the unit, even when the power is turned
off.

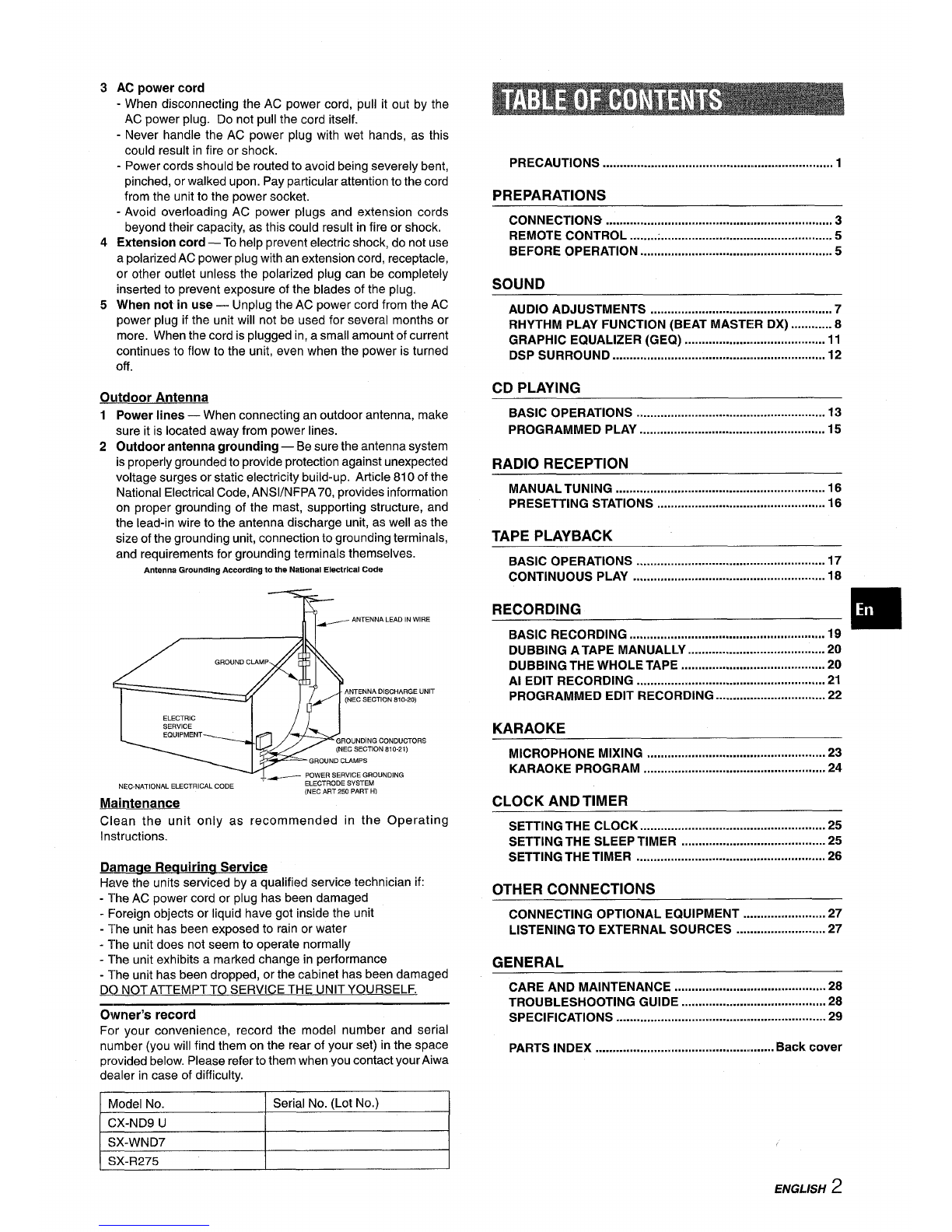

Outdoor Antenna
1Power lines —When connecting an outdoor antenna, make
sure it is located away from power lines.
2Outdoor antenna grounding —Be sure the antenna system
is properly grounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, ANSVNFPA 70, provides information
on proper grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of the grounding unit, connection to grounding terminals,
and requirements for grounding terminals themselves.
Antenna Grounding According to the NationalElectricalCode
7~ANTENNA LEAD IN WIRE
GROUNDING CONDUCTORS
(NEC SECTION S1O-21)
GROUND CLAMPS
,~POWER SERVICE GROUNDING
NEC-NATIONAL ELECTRICAL CODE ELECTRODE SYSTEM
(NEC ART 250 PART H)
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
~amaae Reauirina Service
Have the units serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have got inside the unit
-The unit has been exposed to rain or water
-The unit does not seem to operate normally
-The unit exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
D() NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact yourAiwa
dealer in case of difficulty.
PRECAUTIONS ..................................................m................ 1
PREPARATIONS
CONNECTIONS ..................................................................3
REMOTE CONTROL ...........................................................5
BEFORE OPERATION ........................................................5
SOUND
AUDIO ADJUSTMENTS ............................. ..................... 7

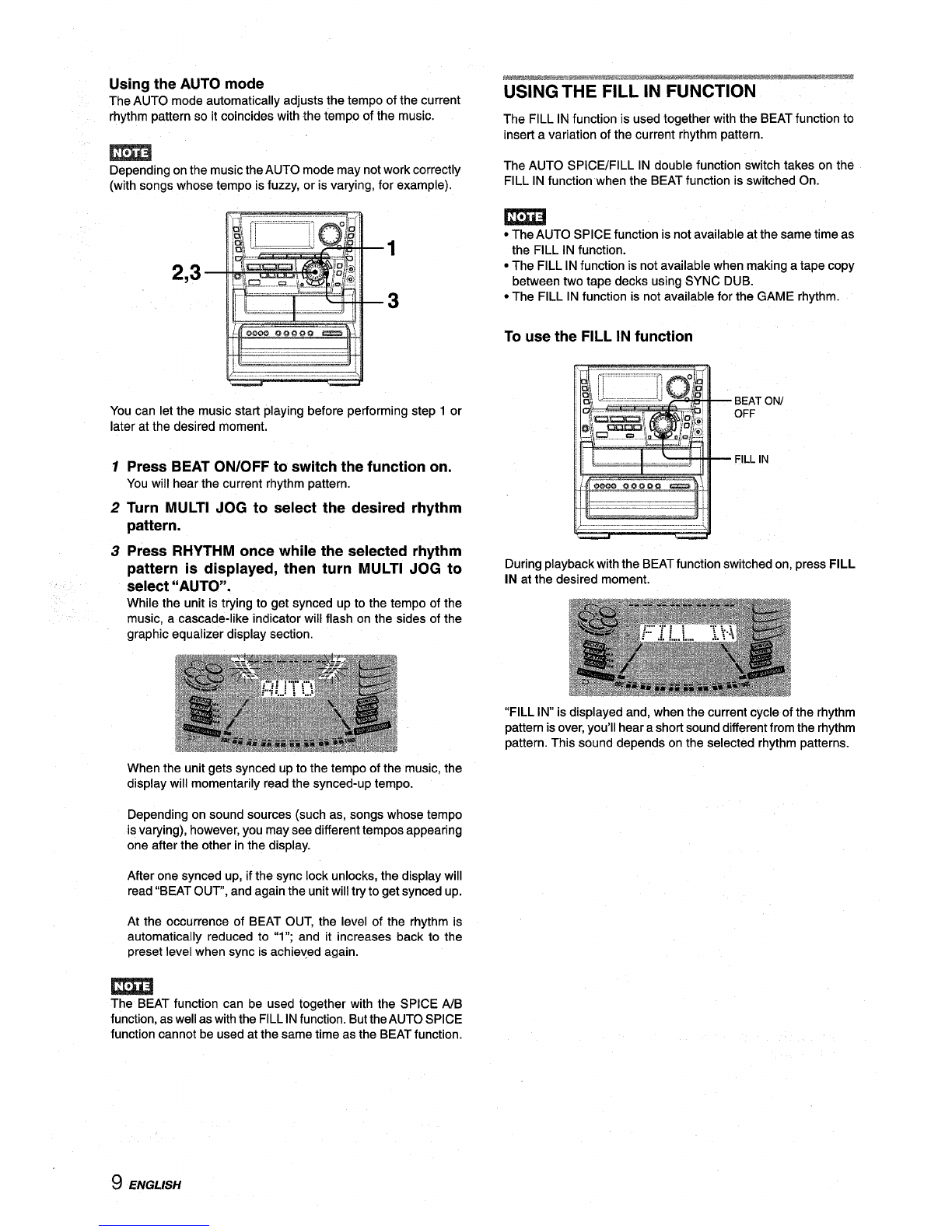

RHYTHM PLAY FUNCTION (BEAT MASTER DX) ............8
GRAPHIC EQUALIZER (GEQ) ......................................... 11
DSP SURROUND .............................................................. 12
CD PLAYING
BASIC OPERATIONS ....................................................... 13
PROGRAMMED PLAY ...................................................... 15
RADIO RECEPTION
MANUAL TUNING ............................................................. 16
PRESETTING STATIONS ................................m ................ 16
TAPE PLAYBACK
BASIC OPERATIONS ....................................................... 17
CONTINUOUS PLAY ........................................................ 18
RECORDING ❑
BASIC RECORDING ......................................................... 19
DUBBING ATAPE MANUALLY ........................................20
DUBBING THE WHOLE TAPE ..........................................20
AI EDIT RECORDING ..........................................m............21
PROGRAMMED EDIT RECORDING ................................22
KARAOKE
MICROPHONE MIXING ....................................................23
KARAOKE PROGRAM .....................................................24
CLOCK AND TIMER
SETTING THE CLOCK ......................................................25
SETTING THE SLEEP TIMER ..........................................25
SETTING THE TIMER .......................................................26
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ........................27
LISTENING TO EXTERNAL SOURCES ..........................27
GENERAL
CARE AND MAINTENANCE ............................................28
TROUBLESHOOTING GUIDE ..........................................28
SPECIFICATIONS .............................................................29
PARTS INDEX ................................................... f3ackcover
ENGLISH 2

IMPORTANT
●Connect the speakers, antennas, and all optional equipment
first. Then connect the AC cord.
●There are no differences between the front speakers. Both
Check your system and accessories. speakers can be connected as L(left) or R(right).
@@@ 1Connect the right s~eaker to the main unit.
—
@@
@)CX-ND9 Compact disc stereo cassette receiver
@SX-WND7 Front speakers
~SX-R275 Surround speakers
Remote control AM antenna FM antenna
~Connect the sp~aker ~ord with plug to SPEAKERS HIGH
FREQ Rterminal.
@Connect the speaker cord with the white stripe to the
SPEAKERS LOW FREQ R0terminals and the black cord
to the Oterminal.
Operating Instructions, etc,
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is
120 VAC. Check that the rated voltage matches your local
voltage.
2Connect the left speaker to the main unit.
Connect the speaker cord with plug to SPEAKERS HIGH
FREQ Lterminal, and another speaker cord to the
SPEAKERS LOW FREQ Lterminals in the same manner as
step 1.
4
—~ To an AC outlet
AC cord
3ENGLISH

3Connect the surround speakers to the main unit.
Connect the right surround speaker cord to the SURROUND
SPEAKERS Rterminal, and left to the SURROUND
SPEAKERS Lterminal.
p!!i$@’&iik?pp!is@’
4Connect the supplied antennas.
Connect the FM antenna to the FM 75 Qterminals and the
AM antenna to the AM LOOP terminal.
FM antenna
Y(
5Connect the AC cord to an AC outlet.
●The game Demo will begin when the AC cord is plugged

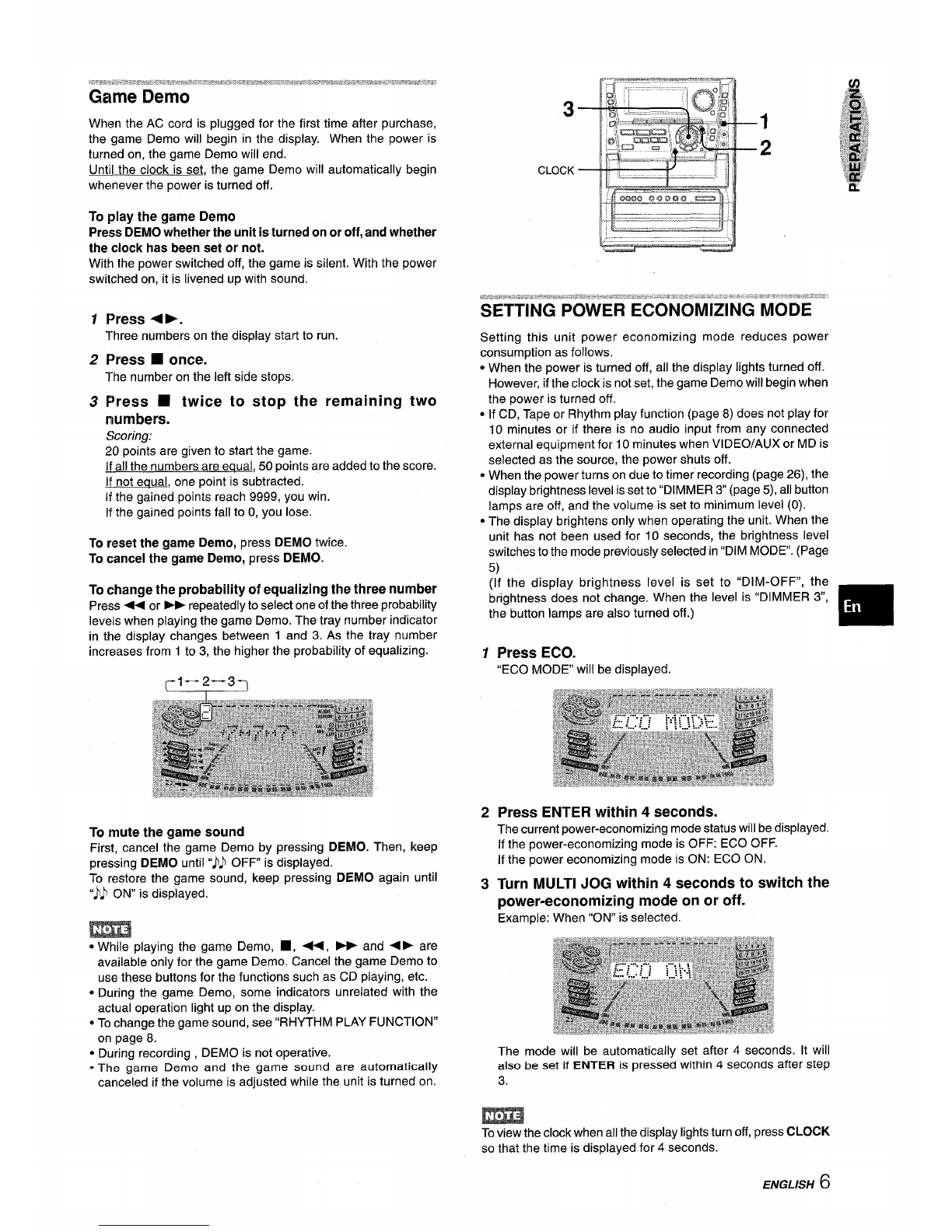

into an AC outlet. See page 6 “Game Demo” for details.
To position the antennas
Flvlfeeder antenna:
Extend this antenna horizontally in aT-shape and fix its ends to
the wall.
AM loop antenna:
Position to find the best direction.
To stand the AM antenna on asurface
Fix the claw to the slot.
@o
●Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in the SPEAKERS
terminals.
,kw=”g
Position the speakers to make the most of the SURROUND #$;
effect.
Standard positioning
@)Front speaker (Right)
@Front speaker (Left)
@Surround speakers
Place the surround speakers behind the listening area.
To mount the surround speaker on the wall
Mount each speaker on a s~ot that can hold its weight.
m
Sound is not heard from the surround speakers when the DSP
SURROUND is set to off. ❑
For better FM reception, use of an outdoor antenna is
recommended.
Connect the outdoor antenna to the FM 75 Qterminals.
To connect other optional equipment+ page 27.
●Do not leave objects generating magnetism near the speakers.
●Do not bring the FM antenna near metal objects or curtain rails.
●E)onot bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
●Do not unwind the AM antenna wire.
ENGLISH 4

Inserting batteries
Detach the batterv cover on the rear of the remote control and
insert two size AA (R6) batteries.
w-’”
(Q
/
R6(AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well.
W4 ➤PRESET on the remote control
The function is the same as that of+> on the main unit.
m
●If the unit is not going to be used for an extended period of
time, remove the batteries to prevent possible electrolyte
leakage.
●The remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
-Other remote controls are used nearby (those of atelevision,
etc.)
<F
TAPE
■
POWER
w
CD
ECO
DEMO
ENTER
MULTIJOG
To turn the power on
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX,
CD, MD).
Playback of the inserted disc or tape begins, or the previously
tuned station is received (Direct Play Function).
POWER is also available.
When the unit is turned on, the disc compartment may open and
close to reset the unit.
To turn the power off
Press POWER.
Illumination guides
Whenever one of the function buttons is pressed, the buttons for
that operation light up or flash.
Flash windows
The windows of the CD compartment and the cassette decks
light up or flash while the unit is being powered on.
To turn off the light of the CD window, press ■while pressing
CD. To turn back on, repeat the above.
To turn off the light of the cassette decks, press ■while pressing
TAPE. To turn back on, repeat the above.
●Do not perform this operation during recording.
To change the brightness level of the display
1Press ECO so that “ECO MODE is displayed.
2Within 4seconds, turn MULTI JOG to display “DIM MODE”,
and then press ENTER within 4seconds.
3Within 4seconds, turn MULTI JOG to select the dimmer mode
as below.
The mode will be automatically set after 4seconds. It will
also be set if ENTER is pressed within 4seconds after step
3.
DIM-OFF -DIMMER 1+-+ DIMMER2+-+ DIMMER3
DIM-OFF: The normal display.
DIMMER 1: The illumination of the display is dimmer than usual.
DIMMER 2: The illumination of the display is dimmer than
DIMMER 1.
DIMMER 3: The illumination of the display is dimmer than
DIMMER 2. The spectrum analyzer, the window of
the CD compartment and the button lamps light
off.
m
If the timer recording (page 26) is done with the economizing
mode (page 6) set to “ON” and the power turns off, the dimmer
mode will be set to “DIMMER 3the next time the power is turned
on.
5ENGLISH

Game Demo
When the AC cord is plugged for the first time after purchase,
the game Demo will begin in the display. When the power is
turned on, the game Demo will end.
Until the clock is set, the game Demo will automatically begin
whenever the power is turned off.
To play the game Demo
Press DEMO whether the unit is turned on or off, and whether
the clock has been set or not.
With the power switched off, the game is silent. With the power
switched on, it is livened up with sound,
1
2
3
F>~~~~ +pm
Three numbers on the display start to run.
f)~~s~ ❑Orlce,
The number on the left side stops.
Press fi twice to stop the remaining two
numbers.
Scoring:
20 points are given to start the game.
Lfall the numbers are eaual, 50 points are added to the score.
Unot eaual, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to O,you lose.
To reset the game Demo, press DEMO twice.
To cancel the game Demo, press DEMO.
To change the probability of equalizing the three number
Press ++ or PF repeatedly to select one of the three probability
Ievellswhen playing the game Demo. The tray number indicator
in the display changes between 1 and 3. As the tray number
increases from 1to 3, the higher the probability of equalizing.
To mute the game sound
First, cancel the game Demo by pressing DEMO. Then, keep
pressing DEMO until“JJ OFF is displayed.
To restore the game sound, keep pressing DEMO again until
“jj ON” is displayed.
●While playing the game Demo, ■,4+, *and +> are
available only for the game Demo. Cancel the game Demo to
use these buttons for the functions such as CD playing, etc.
●During the game Demo, some indicators unrelated with the
actual operation light up on the display.
●To change the game sound, see “RHYTHM PLAY FUNCTION”
on page 8.
●During recording ,DEMO is not operative.
-The game Demo and the game sound are automatically
canceled if the volume is adjusted while the unit is turned on.
3
CLOCK
Setting this unit power economizing mode reduces power
consumption as follows.
●When the power is turned off, all the display lights turned off.
However, if the clock is not set, the game Demo will begin when
the power is turned off.
●If CD, Tape or Rhythm play function (page 8) does not play for
10 minutes or if there is no audio input from any connected
external equipment for 10 minutes when VIDECVAUX or MD is
selected as the source, the power shuts off.
●When the power turns on due to timer recording (page 26), the
display brightness level is set to “DIMMER 3(page 5), all button
lamps are off, and the volume is set to minimum level (0).
●The display brightens only when operating the unit. When the
unit has not been used for 10 seconds, the brightness level
switches to the mode previously selected in “DIM MODE. (Page
5)
(if the display brightness level is set to “DIM-OFF”, the
brightness does not change. When the level is “DIMMER 3,
the button lamps are also turned off.) m
1Press ECO.
“ECO MODE will be displayed.
2
3
Press ENTER within 4seconds.
The current power-economizing mode status will be displayed.
If the power-economizing mode is OFF: ECO OFF.
If the power economizing mode is ON: ECO ON.
Turn MULTI JOG within 4seconds to switch the
power-economizing mode on or off.
Example: When “ON” is selected.
The mode will be automatically set after 4seconds. It will
also be set if ENTER is pressed within 4seconds after step
3.
;O view the clock when all the display lights turn off, press CLOCK
so that the time is displayed for 4seconds.
ENGLISH 6

To provide reinforcement for the ultra-low frequencies, in addition
to the Left/Right 2-channel amplifier used to reproduce mid-to-
high-range frequencies, this system incorporates asecond UR
2-channel amplifier just for reproduction of ultra-low frequencies
—making it, in effect, a4-amplifier system. By utilizing discrete
amplifiers for mid-to-high-frequencies and low frequencies, high-
quality sonic reproduction that is virtually free from distortion
can be realized.
This Multi Amplifier System, which utilizes independent circuitry
for the different frequency ranges, enables superb sonic
reproduction free from distortion.
3ww5LwLw\:*H*m=w4.w-m—mmwiwxkrw-- -*K-MWJ-W-.-S****-.*
Built-in Subwoofer System
The built-in subwoofer System has aseparate subwoofer cavity
area that is part of the loudspeaker cabinet structure, which acts
as asonic filter to cut distortion components. (In the Multi Amplifier
System, the ultra-low frequency signals transmitted from their
own independent amplifier are reproduced in this area.) This
separate construction gives aclear, rich definition to bass
reproduction and it can realize clear, well-defined mid-to-high
frequency signals.
And AlWA’s built-in subwoofer system incorporates asubwoofer
capable of powetful, satisfying bass performance with true stereo
separation.
Amplifier for Mid-to-high
range frequencies
Subwoofer Cavity Area Amplifier for Low frequencies
VOLUME
BBE
PHONES
T-BASS
T-BASS
VOL
Turn VOLUME on the main unit, or press VOL on the remote
control.
The volume level is displayed as anumber from Oto MAX (50).
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
The BBE system enhances the clarity of high-frequency sound.
It also enriches the KARAOKE function to make your voice sound
clear and pleasant.
Press BBE.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
m
When playing back atape recorded with BBE, it is recommended
that BBE be set to off to avoid distorted high frequency sound.
The T-BASS system enhances the realism of low-frequency
sound.
Press T-BASS.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
m
Low frequency sound may be distorted when the T-BASS system
is used for adisc or tape in which low frequency sound is originally
emphasized. In this case, cancel the T-BASS system.
7ENGLISH

USING THE BEAT FUNCTION
This unit has alibrary of rhythms patterns from which you can
select the desired one to add to the playback of any music
sources, thus allowing you to create your original sounds.
The mix created with the BEAT function can be recorded on tape
if you want to. Also, the mix is available at LINE OUT.
m
The BEAT function is not available when making atape copy
between two tape decks using SYNC DUB.
To select arhythm pattern
1
2
lPress BEAT ON/OFF to switch the function on.
One of the rhythm patterns is displayed.
Turn MULTI JOG to select the desired rhythm
Ipattern.
The rhythm pattern is displayed cyclically as follows.
GAME cH.ROCK 1-2
1(HardARock)
TANGO t
!BOSSANOV
WALTZ 1-2 (Bossanova)
!$
4BEAT 1-2 SAM~A 1-4
I
8BEAT 1-2 cuB #3MBA
/(Cub;n Rumba)
16 BEAT 1-3
tSAL;A 1-3 4
M<RENG 1-3 SL R#JBA 1-2
(M~rengue) (Slow+Rumba)
m
If “AUTO” shows while you are pressing RHYTHM, change it to
“MANUAL” by turning MULTI JOG to the left. In AUTO mode the
tempo is automatically set and you cannot access the display of
“Tempo”.
2Turn MULTI JOG to select the rhythm tempo.
The tempo can be changed from 81 to 160.
m
The tempo of GAME is not adjustable.
To change the volume level of the rhythm pattern
1
2
2
Press RHYTHM repeatedly until
displayed.
Turn MULTI JOG.
To adjust the tempo of the rhythm pattern
BEAT ONI
OFF
Three levels, 1-3, are available.
To stop the BEATfunction
Press BEAT ON/OFF.
BEAT toggles between On and Off.
MULTI JOG
RHYTHM
7lPress RHYTHM repeatedly until “Tempo XXX” is
displayed.
1
“LEVEL X“ is
When you interrupt or stop the playback of the sound source,
the BEAT function is automatically switched off.
These voice wave data incorporated in this product are Yamaha
Corporation’s copyrightable property and we are licensed by
Yamaha Corporation.
ENGLISH 8

Using the AUTO mode
The AUTO mode automatically adjusts the tempo of the current
rhythm pattern so it coincides with the tempo of the music.
m
Depending on the music the AUTO mode may not work correctly
(with songs whose tempo is fuzzy, or is varying, for example).
2,3
You can let the music start playing before performing step 1or
later at the desired moment.
7Press BEAT ON/OFF to switch the function on.
You will hear the current rhythm pattern.
2Turn MULTI JOG to select the desired rhythm
pattern.
3Press RHYTHM once while the selected rhythm
pattern is displayed, then turn MULTI JOG to
select “AUTO”.
While the unit is trying to get synced up to the tempo of the
music, acascade-like indicator will flash on the sides of the
graphic equalizer display section.
When the unit gets synced up to the tempo of the music, the
display will momentarily read the synced-up tempo.
Depending on sound sources (such as, songs whose tempo
is varying), however, you may see different tempos appearing
one after the other in the display.
After one synced up, if the sync lock unlocks, the display will
read “BEAT OUT”, and again the unit will try to get synced up.
At the occurrence of BEAT OUT, the level of the rhythm is
automatically reduced to “1”; and it increases back to the
preset level when sync is achieved again.
The BEAT function can be used together with the SPICE A/B
function, as well as with the FILL IN function. But the AUTO SPICE
function cannot be used at the same time as the BEAT function.
USING i=
The FILL IN function is used together with the BEAT function to
insert avariation of the current rhythm pattern.
The AUTO SPICE/FILL IN double function switch takes on the
FILL IN function when the BEAT function is switched On.
●The AUTO SPICE function is not available at the same time as
the FILL IN function.
●The FILL IN function is not available when making atape copy
between two tape decks using SYNC DUB.
●The FILL IN function is not available for the GAME rhythm.
To use the FILL IN function
During playback with the BEAT function switched on, press FILL
IN at the desired moment.
“FILL IN is displayed and, when the current cycle of the rhythm
pattern is over, you’ll hear ashort sound different from the rhythm
pattern. This sound depends on the selected rhythm patterns.
9ENGLISH

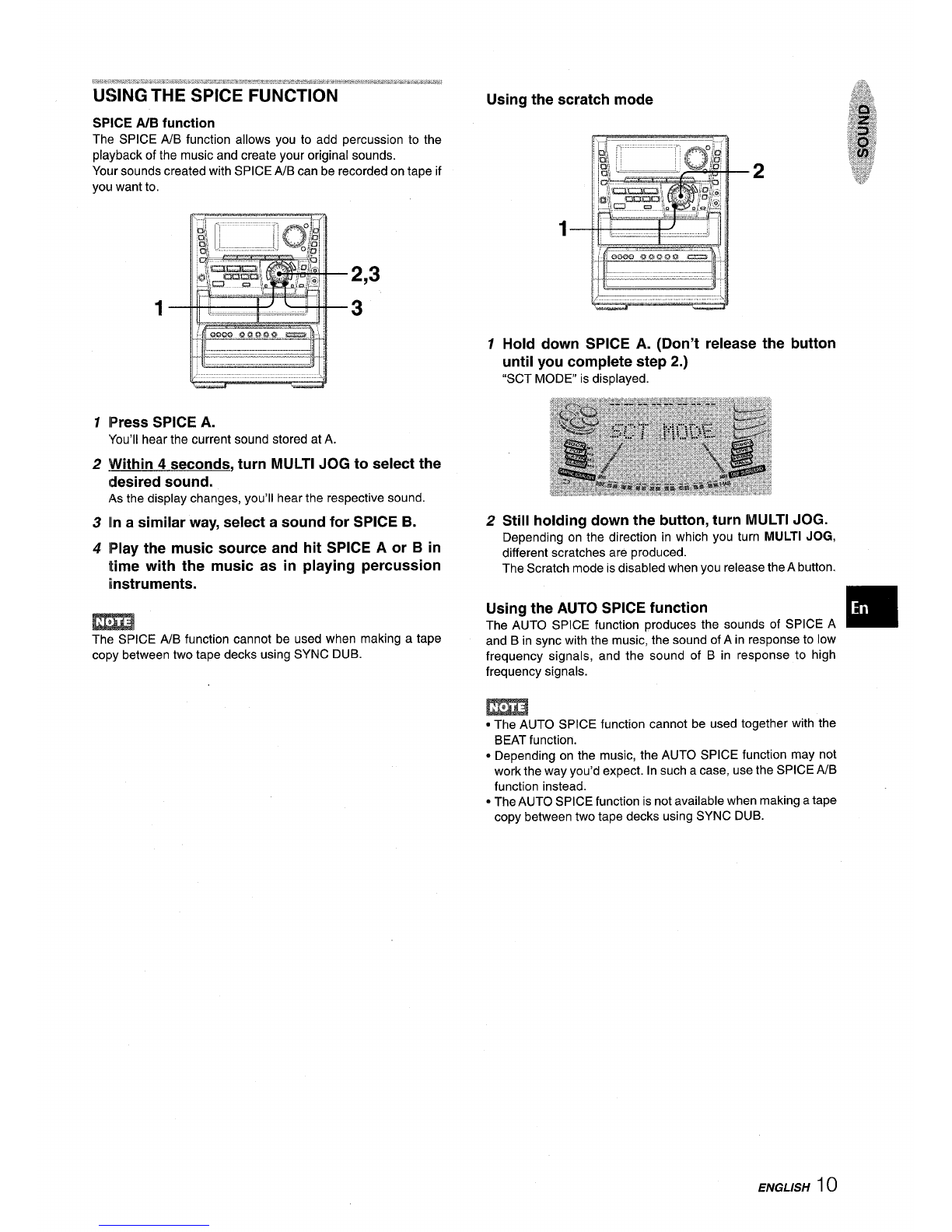

SPICE A/B function
The SPICE A/B function allows you to add percussion to the
playback of the music and create your original sounds.
Your sounds created with SPICE A/B can be recorded on tape if
you want to.
1
2
3
4
2,3
3
lPress SPICE A.
You’ll hear the current sound stored at A
.Within 4seconds, turn MULTI JOG to select the
desired sound.
As the display changes, you’ll hear the respective sound.
Ilnasimilar way, select asound for SPICE B.
lPlay the music source and hit SPICE Aor Bin
time with the music as in playing percussion
instruments.
m
The SPICE AIB function cannot be used when making atape
copy between two tape decks using SYNC DUB.
Using the scratch mode
7Hold down SPICE A. (Don’t release the button
until you complete step 2.)
“SCT MODE” is displayed.
2Still holding down the button, turn MULTI JOG.
Depending on the direction in which you turn MULTI JOG,
different scratches are produced.
The Scratch mode is disabled when you release the Abutton.
Using the AUTO SPICE function
The AUTO SPICE function produces the sounds of SPICE A❑
and Bin sync with the music, the sound of Ain response to low
frequency signals, and the sound of Bin response to high
frequency signals.
●The AUTO SPICE function cannot be used together with the
BEAT function.
*Depending on the music, the AUTO SPICE function may not
work the way you’d expect. In such acase, use the SPICE AJB
function instead.
*The AUTO SPICE function is not available when making atape
copy between two tape decks using SYNC DUB.
ENGLISH 10

1
2
3
4
5
6
Press AUTO SPICE to display “A-SPICE”.
Press SPICE A.
You’ll hear the sound currently stored in A, its name appearing
in the display.
While the sound name is displayed, turn MULTI
JOG to select the desired sound.
(Repeat step 2if sound name disappears before turning
MULTI JOG).
Press SPICE Band repeat step 3to select the
desired sound for B.
To adjust the level of the Aand Bsounds, press
RHYTHM repeatedly until “LEVEL X“ is displayed,
then turn MULTI JOG within 4seconds.
Three levels, 1, 2 and 3, are available.
The level of Aand Bis adjusted simultaneously.
Play the music source.
The sound of SPICE Awill play in sync with the bass, and the
sound of SPICE Bin sync with the treble.
SELECTING THE PROGRAMMED
EQUALIZATION CURVE
GEQ
This unit provides four different programmed equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
LATIN: Accented higher frequencies for Iatin music
CLASSIC: Enriched sound with heavy bass and fine treble
Press PRGM/MANU so that one of the PRGM indicators is
selected, snd then press ROCK, POP, LATIN or CLASSIC.
PRGM indicators
I
To cancel the selected mode
Press the selected button again. “GEQ OFF” is displayed.
To select the equalization curve with the remote control
Press GEQ repeatedly until the desired equalization curve is
displayed.
rROCK— PoP— LATIN— CLASSIC
‘---------- Programmed mode ---------- 1
‘GEQ OFF+GEQ M4+ GEQ M3+GEQ M2 +GEQ Ml~
(CEMICd) ~------- Manua[mode ----... -;
Using the headphones
Connect headphones to PHONES with astereo standard plug
(06.3 mm, ‘/, inch).
No sound is output from the speakers while the headphones are
plugged in.
1IENGLISH

:%%!. “. ??,,“% %= ,,-.’!.,.>.s k.>%-, %%> ,. %%*% ....,-.,3.? Wd!.w.. !-.. * -1. a-.-,...,. .=,. -,.-.,,, -E ,, . . . . ...4 .>..; ...*
SETTING NEW EQUALIZATION CURVES
MANUALLY
Up to four equalization curves can be stored as the manual
modes Ml -M4.
1
2
3
4
5
MI-M4
PRGhAl
MANU
ENTER
MULTI JOG
FREQUENCY
UP/DOWN
lPress FREQUENCY UP or FREQUENCY DOWN
to select afrequency.
The level indicator of the selected frequency flashes.
Turn MULTI JOG to adjust the level of the selected
frequency.
lRepeat steps 1and 2to make the desired
equalization curve.
.Within 4seconds, press ENTER.
“MEMORY” is displayed for 8seconds.
Within 8seconds, press one of the graphic
equalizer preset buttons Ml -M4.
“Theequalization curve is stored.
The equalization curve has been memorized to Ml.
To select amanual-preset GEQ
1Press PRGM/MANU to select the manual mode. One of the
MANUAL indicators is selected.
2Press one of the graphic equalizer preset buttons M1-M4.
To cancel the selected mode
Press the selected button again. “GEC?OFF is displayed.
The DSP (Digital Signal Processor) SURROUND adjusts the
reverb level and delay time to give aresonant surround sound
during playback, allowing you to enjoy the real sound presence
of different environments.
This unit has been programmed with 4different DSP
SURROUND modes.
When you select the programmed DSP SURROUND mode, the
sound Dresence of adisco (DISCO), live music performance
(LIVE), stadium (STADIUM) or concert hall (HALL) can be
obtained.
Press DISCO, LIVE, STADIUM or HALL. m
DSP indicator
Equalization curves are selected automatically to match the DSP
SURROUND modes and can also be selected or turned off to
suit your preference.
When the music source is monaural
Select LIVE or STADIUM to obtain asimulated stereo effect.
When DISCO or HALL is selected, no sound will be heard from
the surround speakers.
To cancel the selected mode
Press the selected button again. “DSP OFF” is displayed.
m
When the MIC or ECHO level is changed, the DSP SURROUND
mode is automatically canceled.
ENGLISH12

MULTI JOG
CD
4PII
9
*,FFDISC
DIRECT
PLAY
CD EDITI
CHECK
DISC
CHANGE
?J JI
,–
W—sM..d
=OPENICLOSE ~
CD EDITI
CHECK
RANDOMI
REPEAT
LOADING DISCS
Load discs.
o-9, +10
OPENI
CLOSE
DISC
DIRECT
PLAY
To play one disc only, press one of the DISC DIRECT
PLAY 1-5.
The selected disc is played once.
Press CD, then press AOPEN/CLOSE to open the
disc compartment. Load disc (s) with the label side
up.
To load one or two discs, place the disc(s) on the tray(s) inthe
direction of the arrows as illustrated.
DISC CHANGE
I
To load three to five discs, press DISC CHANGE to rotate the
trays after placing two discs. Place the next disc on the empty
tray. Each time DISC CHANGE is pressed, the trays rotate and
one disc can be placed.
After placing the disc, press =OPEN/CLOSE to close the
disc compartment.
The display shows the information of the disc to be played.
Tray number of the
disc to be played Total playing time
Total numb& of tracks
To play all discs in the disc compartment, press
+b.
All discs are played once.
Number of track being played Elapsed playing time
To play with the remote control
Press DISC DIRECT PLAY, then press one of the numbered
buttons 1-5 within 3seconds to select adisc.
To stop play, press ■.
To pause play, press II. To resume play, press again.
To search for aparticular point during playback, keep -
or >pressed and release it at the desired point.
To skip to the beginning of atrack during playback, press
-or -repeatedly or turn MULTI JOG.
To remove discs, press AOPEN/CLOSE.
You can only remove the two discs that face you. When the disc
to be removed does not face you, press DISC CHANGE
repeatedly.
To start play when the power is off (Direct Play Function)
Press CD. The power is turned on and play of the loaded disc(s)
begins.
When AOPEN/CLOSE is pressed, the power is also turned on
and the disc compartment is opened.
‘To check the remaining time
Press CD EDIT/CHECK during play. The amount of time
remaining until all tracks finish playing is displayed. To restore
the playing time display, press CD EDIT/CHECK again.
Selecting atrack with the remote control
1Press DISC DIRECT PLAY, then press one of the numbered
buttons 1-5 within 3seconds to select adisc.
2Press numbered buttons O-9 and +1Oto select atrack.
Example:
To select the 25th track, press +1O,+1Oand 5.
To select the 10th track, press +10 and O.
The selected track starts to play and play continues to the
end of that disc.
Replacing discs during play
While one disc is playing, the other discs can be replaced without
interrupting play.
1Press DISC CHANGE.
TWOdiscs can be replaced.
2Remove the discs and replace with other discs.
To replace the other two discs, press DISC CHANGE again.
3Press AOPEN/CLOSE to close the disc compartment.
13 ENGLISH

m
●While the disc compartment is opened with DISC CHANGE,
do not press buttons other than DISC CHANGE or AOPEN/
CLOSE. Doing so may cause malfunctions. In this case, reset
the unit referring “To reset” on page 28.
●When loading an 8-cm (3-inch) disc, make sure to put it onto
the inner circle of the tray precisely. Otherwise, the disc may
be damaged or the disc compartment will not open. If it does
not open, please consult your Aiwa dealer for repair.
●Do not use irregular shape CDs (example: heart-shaped,
octagonal ones). It may result in malfunctions.
●Do not place more than one compact disc on one disc tray.
●Do not tilt the unit with discs loaded. Doing so may cause
malfunctions.
●When transporting the unit, remove the discs from the trays.
●When replacing the discs during play, do not replace discs other
than those facing you.
If you place adisc on the empty right inner tray, and then press
AOPEN/CLOSE, “ERROR” is displayed and the disc
compartment may not close. Remove the disc on that tray.
BLANK SKIP PLAY
The silent portions between tracks recorded orr aCD can be
skipped during playback.
7Press CD BLANK SKIP.
“CD BLANK SKIP ON” is displayed and a small dot will appear
in the display.
Small dot
2Press +➤to start playback.
The silent portions between tracks will be skipped, and the
sound will be played back without interruption. If atrack fades
out (ends with the sound gradually decreasing), the fade-out
portion also will be skipped.
To return to normal playback
Press CD BLANK SKIP again so that “CD BLANK SKIP OFF is
displayed, and the dot in the display will disappear.
Ww”w? !.s .:*..z*,:m,3@@@7..%,&*,wM al’ ‘Ww.hw Y:w”m$x, ;mdwww.sw”#w! 4X*S4-.=@~,l.kF.*:.2’.x.,.*:!#c4*B
RANDOM/REPEAT PLAY m
●There may be a case where BLANK SKIP PLAY does not
Use the remote control. function correctly.
RANDOM play ●BLANK SKIP PLAY isautomatically canceled when performing
Al EDIT RECORDING (page 21), PROGRAMMED EDIT m
All the tracks on the selected disc or on all the discs can be RECORDING (page 22), or PROGRAMMED PLAY recording
played randomly. (page 15) or RANDOM PLAY recording (page 14).
REPEAT play
Asingle disc or all the discs can be played repeatedly.
Press RANDOM/REPEAT.
Each time it is pressed, the function can be selected cyclically.
RANDOM play —RANDOM lights upon the display.
REPEAT play —=lights upon the display.
RANDOM/REPEAT play —RANDOM and =light up on
the display
Cancel —RANDOM and =disappear from the display.
To play all discs, press +> to start play.
To play asingle disc, press DISC DIRECT PLAY, then press
one of the numbered buttons 1-5within 3seconds to start play.
m
During random play it is not possible to skip to the previously
played track with the -.
ENGLISH14

To play the programmed tracka repeatedly
Up to 30 tracks can be programmed from any of the inserted After programming the tracks, press RANDOM/REPEAT
disc. repeatedly until C& appears on the display.
1
2,3
25
44,-
■
Use the remote control.
1Press PRGM twice in stop mode.
PRGM
2
3
●When PRGM is pressed once in step 1, the unit enters
KARAOKE PROGRAM (page 24).
Press DISC DIRECT PLAY, then press one of the
numbered buttons 1-5 within 3seconds to select
adisc.
Goto the next step when the tray stops rotating.
Press the numbered buttons O-9 and +10 to
m
●During programmed play, you cannot perform random play,
check the remaining time, and select adisc or track. “Can’t
USE’ is displayed if you attempt to select atrack or random
play.
●“FULL” is displayed if you attempt to program more than 30
tracks.
program atrack.
Example:
To select the 25th track,
To select the 10th track,
Selected
track number
Program number
4Repeat steps 2and
press +10, +10 and 5.
press +1Oand O.
0
Total number of
selected tracks
Total playing time of
the selected tracks
3to program other tracks.
5Press +> to start play.
To check the program
Each time -or -is pressed in stop mode, adisc number,
track number, and program number will be displayed.
To clear the program
Press ■CLEAR in stop mode.
To add tracks to the program
Repeat steps 2 and 3 in stop mode. The track will be programmed
after the last track.
15 ENGLISH

1
2
MONO
TUNER
Press TUNER/BAND repeatedly to select the
desired band, FM or AM.
When TUNER/BAND is pressed while the power is off, the
power is turned on directly.
Press +DOWN or ~UP to select astation.
Each time the button is pressed, the frequency changes.
When astation is received, “TUNE is displayed for 2seconds.
During FM stereo reception, (1(~))] is displayed.
[(1011) TUNE
To search for astation quickly (Auto Search)
Keelp +DOWN or *UP pressed until the frequency starts
to change rapidly. After tuning into astation, the search stops.
To stop the Auto Search manually, press 4DOWN or -
UP.
●The Auto Search may not stop at stations with very weak
signals.
When an FM stereo broadcast contains noise
Press MONO TUNER on the remote control so that “MONO”
appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, press the button again so that MONO
disappears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation system
is 9kHz/step, change the tuning interval.
Press POWER while pressing 4-.
To reset the interval, repeat this procedure.
m
When the AM tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
d
o-9, +10
The unit can store atotal of 32 preset stations. When astation is
stored, apreset number is assigned to the station. Use the preset
number to tune in to apreset station directly.
1
2
3
Press the TUNER/BAND to select aband, and
press *DOWN or _UP to select astation.
Press II SET to store the station.
Astation is assigned apreset number, beginning from 1in
consecutive order for each band.
Preset number \
Repeat steps 1and 2.
The next station will not be stored if atotal of 32 preset stations
for all the bands have already been stored.
m
“FULL” is displayed if you attempt to store more than 32 preset
stations.
%%-:-:.~,,.r.:-3----.-%=.-:.-.2;.---”2’ r:.+: “-r~..-~~.~----“’.,$., ~;.-....”.b,,,..................
PRESET NUMBER TUNING
Use the remote control to select the preset number directly.
1Press TUNEIWBAND to select aband.
2Press numbered buttons O-9 and +10 to select a
preset number.
Example:
To select preset number 15, press +10 and 5.
To select preset number 20, press +10, +10 and O.
Selecting apreset number on the main unit
Press TUNER/BAND to select aband. Then, press <p
repeatedly or turn MULTI JOG.
Each time <E is pressed, the next higher number is selected.
To clear apreset station
Select the preset number of the station to be cleared. Then, press
■CLEAR, and press II SET within 4seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one.
ENGLISH16

PLAYING BACK A TAPE
————-—-P#P.-
INSE%TTN% TAPES
●On deck 1, tapes are always played back on both sides.
On deck 2, you can select areverse mode to play back one or
both sides.
●Use Type I(normal), Type II (high/CrOz) or Type IV (metal)
tapes for playback.
Press TAPE/DECK 1/2, then press =PUSH EJECT
to open the cassette holder.
~PUSH EJECT
l— I
II
Insert atape with the exposed side down. Push the cassette
holder to close.
To select areverse mode (deck 2only)
Each time REV MODE(DECK 2) is pressed, the reverse mode
changes.
To tiav one side onlv, select =.
To pla~ from front side to reverse side once only, select =>.
To play both sides repeatedly, select C=).
●When tapes are loaded in both decks, =) on the display
indicates Continuous Play.
f7ENGLISH
DOWN,
UP
Insert atape.
7Press DOLBY NR to turn Dolby NR on or off to
match the playback tape.
Dti NR
For tapes recorded with DOLBY NR, turn on DO NR.
For tapes recorded without DOLBY NR, turn off ❑0NR.
2Press +~ to start play.
Playing deck number
Playback side of the tape Tape counter
F: The front side is being played (forward).
4: The back side is being played (reverse).
When tapes are loaded in both decks
Press TAP13DECK 1/2 first to select adeck.
The selected deck number is displayed.
To stop play, press ■.
To pause play (deck 2only), press II. To resume play, press
again.
To change the plsybsck side, press <b DIRECTION/PRESET
in play or pause mode.
To fast forward or rewind, press -or >in stop mode.
Then press ■to stop the tape.
To start play when the power is off (Direct Play Function)
Press TAPE/DECK 1/2. The power is turned on and play of the
inserted tape begins.
To set the tape counter to 0000
Press HCLEAR in stop mode.
The counter is also set to 0000 when the cassette holder is
opened.

MUSIC SENSOR
If there is a4-second or longer blank between each track, a
search for the beginning of the current or next track during
playback can be done easily.
When >of 4➤button is flashing, press -to move to the
next track or -to move to the beginning of the current track.
When <of ●Fbutton is flashing, press Uto move to the
next track, or *to move to the beginning of the current track.
The search function may not be able to detect tracks under the
follwing conditions:
●Blanks of less than 4seconds between tracks
●Noisy blanks
●Long passages of low-end sound
●Low overall recording levels
After playback on one deck finishes, the tape in the other deck
will start to play without interruption.
1
2
3
4
insert tapes into deck 1and deck 2.
Press TAPE/DECKl/2 to select the deck to be
played back first.
Press REV MODE(DECK 2) to select =2.
Press +* to start playback.
Playback continues until fi is pressed.
About cassette tapes
*To preventaccidental erasure, break off the plastic tabs
on the cassette tape after recording with ascrewdriver or
other pointed tool.
1>
Type II tape Tab for side A
detection
slot
To record on the tape again, cover the tab openings with
adhesive tape, etc. (On Type II tapes, take care not to cover
the Type II tape detection slot.)
●120-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
●Take up any slack in the tape with apencil or similar tool
before use. Slack tape may break or jam in the mechanism.
DOLBY NR system
The Dolby Noise Reduction system reduces tape hiss noise.
For optimum performance when playing back atape
recorded with the DOLBY NR system, turn on the DOLBY
NR system.
ENGLISH 18

This section explains how to record from the tuner, CD player,
or external equipment.
Preparation
●Set the tape to the point where recording will start.
●Use Type I(normal) and Type II (high/CrOz) tapes for recording.
1
2
3
4
5
Insert the tape to be recorded on into deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
—=PUSH EJECT
Press REV MODE(DECK 2) to select the reverse
mode.
To record on one side only, select =.
To record on both sides, select =) or C=).
Press DOLBY NR to turn Dolby NR on or off.
To record with DOLBY NR, turn on 00 NR.
To record without DOLBY NR, turn off DO NR.
Press function (CD, TUNER/BAND, VIDEO/AUX or
MD) and prepare the source to be recorded.
To recordfrom aCD, press CD and load the disc(s).
To record from aradio broadcast, press TUNEWBAND and
tune in to astation.
To record from aconnected source, press VIDEO/AUX or
MD.
Press ●REC/REC MUTE to start recording.
When recording from aconnected source, start playback of
the source.
When the selected function is CD, playback and recording
start simultaneously.
19 ENGLISH
To stop recording, press ■.
To pause recording, press II. (Applicable when the source is
TUNEWBAND, VIDEO/AUX or MD.) To resume recording, press
again.
To start recording with the remote control
First press ●/0 REC/ REC MUTE, and then press +> within
2seconds.
The output volume of the speakers or headphones maybe freely
varied without affecting the level of the recording. But BBE and
Rhythm play function (BEAT, AUTO SPICE/FILL IN, SPICEA/B)
will affect the recording.
Recording with BBE
The desired source can be recorded with the BBE function to
enhance the clarity of high-frequency sound, When playing back
atape recorded with BBE, it is recommended that BBE be set to
off.
——t
TNSERTING BLAFK=S
Insertion of 4-second blank spaces enables you to activate the
Music Sensor function. (Applicable when the source is TUNER,
VIDEO/AUX or MD.)
1Press ●REC/REC MUTE during recording or while in
recording pause mode.
=on the display flashes for 4seconds and the tape runs
without recording. After 4seconds, the deck enters the
recording pause mode.
2Press 11 to reeume recording.
To insert ablank space of less than 4seconds, press @
REC/REC MUTE again while ~is flashing.
To insert blank spaces of more than 4seconds, after the
deck enters recording pause mode, press ●REC/REC MUTE
again, Each time the buttonis pressed, a4-second blank space
is added.
“Can’t REC is displayed if you attempt to record on a tape with
the plastic tabs broken off.
To erase arecording
Make sure the microphone(s) is(are) not connected to this unit
and set the microphone volume and the echo level to OFF. (page
23). Also, check to make sure that BEAT and AUTO SPICE are
switched off [~aae 8).
1
2
3
4
Insert the’;a~e to be erased into deck 2 and press TAPEI
DECK 1/2 to display ‘(TP2“.
Set the tape to the point where the erasure is to be started.
Set the reverse mode by pressing REV MODE (DECK 2).
Press ●REC/REC MUTE to starl the erasure.
