SERVICE MANUAL

DATA

XR-EM30

U(S)

CD STEREO SYSTEM BASIC TAPE MECHANISM : CMAL5Z213B

BASIC CD MECHANISM : KSM-213 RDM

S/M Code No. 09-023-454-8R1

REVISION

SYSTEM

XR-EM30

CD CASSEIVER

CX-SLEM30

SPEAKER

SX-SLEM30

REMOTE

CONTROLLER

RC-CAS07

• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”

XR-EM30 <U(S), EZ(S), K(S)> (S/MCode 09-023-454-8T1).

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-2-

TABLE OF CONTENTS -1/1

SPECIFICATIONS................................................................................................................................................3

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING...............................................................4

PRECAUTION TO REPALCE OPTICAL BLOCK (KSM-213 RDM).....................................................................5

ACCESSORIES PARTS LIST .............................................................................................................................6

ELECTRICAL PARTS LIST.............................................................................................................................7-20

TRANSISTOR ILLUSTRATION ..........................................................................................................................21

SCHEMATICDIAGRAM-1/5(MAIN) ....................................................................................................................22

WIRING-1/5(MAIN) ...........................................................................................................................................23

SCHEMATIC DIAGRAM -2/5 (FRONT) ..............................................................................................................24

SCHEMATIC DIAGRAM -3/5 (CD)......................................................................................................................25

WIRING -2/5 (FRONT/CD).................................................................................................................................26

SCHEMATIC DIAGRAM -4/5 (TUNER)...............................................................................................................27

WIRING -3/5 (TUNER) .......................................................................................................................................28

SCHEMATIC DIAGRAM -5/5 (PT) ......................................................................................................................29

WIRING -4/5 (PT)...............................................................................................................................................30

WIRING -5/5 (DECK) .........................................................................................................................................31

VOLTAGE CHART ........................................................................................................................................32-34

FL (HNA-08SS36T) ............................................................................................................................................35

ELECTRICAL ADJUSTMENT .......................................................................................................................36-43

CD TEST MODE................................................................................................................................................44

IC BLOCK DIAGRAM ...................................................................................................................................45, 46

IC DESCRIPTION .........................................................................................................................................47-52

MECHANICAL EXPLODED VIEW......................................................................................................................53

MECHANICAL PARTS LIST ...............................................................................................................................54

COLOR NAME TABLE.......................................................................................................................................55

TAPE MECHANISM EXPLODED VIEW (CMAL5Z213B)....................................................................................56

TAPE MECHANISM PARTS LIST (CMAL5Z213B) ............................................................................................57

SPEAKER DISASSEMBLY INSTRUCTIONS.....................................................................................................58

SPEAKER PARTS LIST.....................................................................................................................................59

OTHERS PARTS LIST (CX-SLEM30) ...............................................................................................................60

OTHERS PARTS LIST (SX-SLEM30)................................................................................................................61

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-3-

SPECIFICATIONS -1/1

•

Design and specifications are subject to change without

notice.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-4-

PROTECTIONOF EYES FROMLASER BEAM DURINGSERVICING -1/1

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-

ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-

tävälle näkymättömälle lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som specificeras i

denna bruksanvising, kan användaren utsättas för osynling

laserstrålning, som överskrider gränsen för laserklass 1.

Caution: Invisible laser radiation when

open and interlocks defeated avoid expo-

sure to beam.

Advarsel:Usynling laserståling ved åbning,

når sikkerhedsafbrydere er ude af funktion.

Undgå udsættelse for stråling.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

ATTENTION

L'utilisation de commandes, réglages ou procédures autres que

ceux spécifiés peut entraîner une dangereuse exposition aux

radiations.

ADVARSEL!

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude

af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1 LASER

product.

The CLASS 1 LASER PRODUCT label is located on the rear

exterior.

This set employs laser. Therefore, be sure to follow carefully the

instructions below when servicing.

WARNING!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT

WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO

CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE

FROM A DISTANCE OF MORE THAN 30cm FROM THE

SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL

PICK-UP BLOCK.

CLASS 1

KLASSE 1

LUOKAN 1

KLASS 1

LASER PRODUCT

LASER PRODUKT

LASER LAITE

LASER APPARAT

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-5-

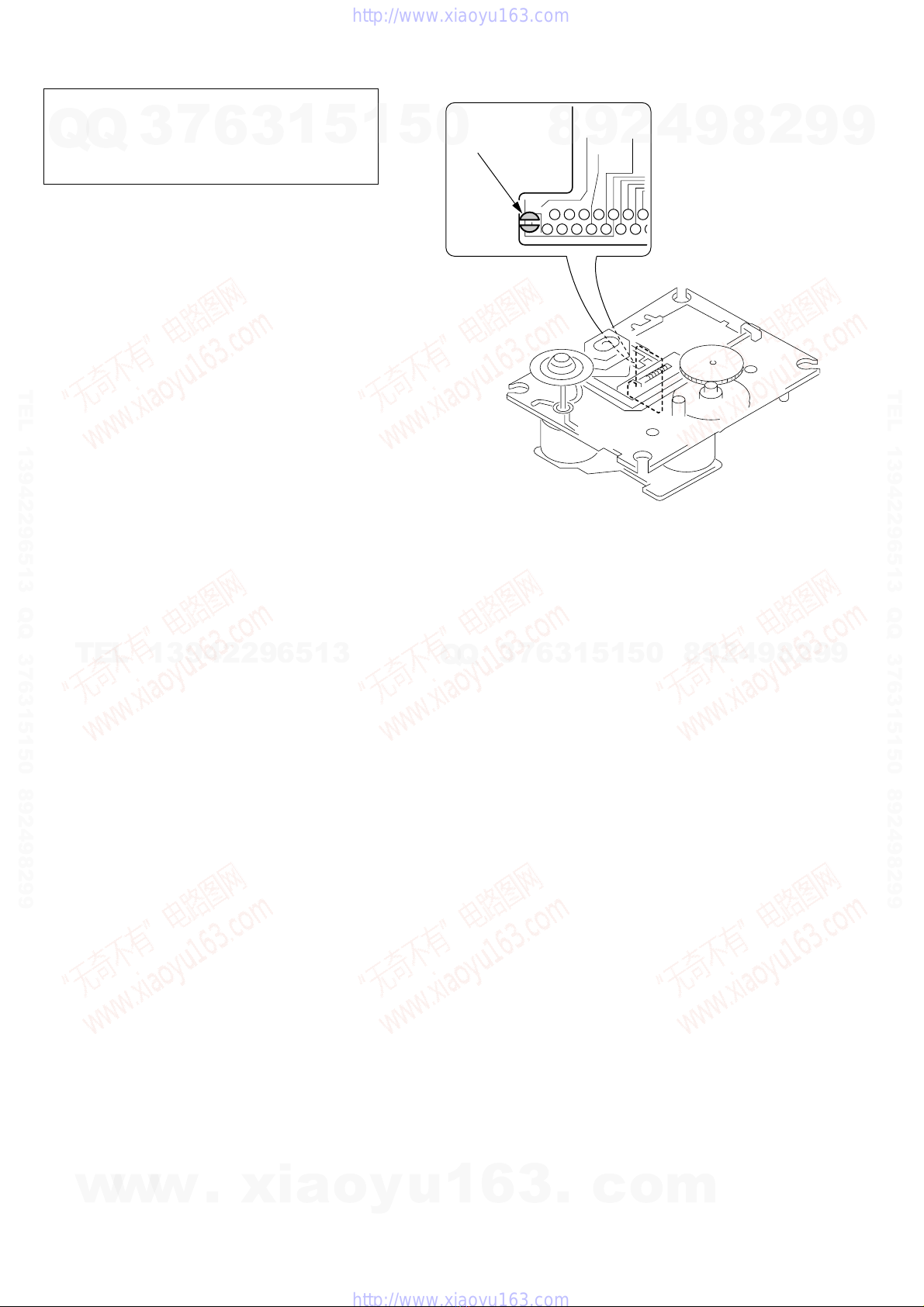

PRECAUTION TO REPALCE OPTICAL BLOCK -1/1 (KSM-213 RDM)

1) After the connection, remove solder shown in

the right figure.

Body or clothes electrostatic potential could ruin

laser diode in the optical block. Be sure ground

body and workbench, and use care the clothes

do not touch the diode. Solder

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

! = ! SAFTY PARTS

C = Components marked

All components used on this model at the production line are shown in this service manual.

However, please note that not all components will be available as spare parts for after-sales service.

Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.

Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

-6-

ACCESSORIES PARTS LIST -1/1

XR-EM30

USC

X AS1001 87-A92-345-010 ANT,WIRE FM U (SEMI-ST) L a

0 AS1002 87-A90-054-010 Ant. Loop AM-CON C a

0 AS1003 8C-CL6-903-010 IB,U (ESF)BF SIZE:(210x14 a

X AS1004 S4-015-451-000 Limited Warranty Card USA a

0 AS1005 8C-CL6-701-010 REMOTE CONTROL UNIT RC-CA a

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

! = ! SAFTY PARTS

C = Components marked

All components used on this model at the production line are shown in this service manual.

However, please note that not all components will be available as spare parts for after-sales service.

Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.

Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

-7-

ELECTRICAL PARTS LIST -1/14

XR-EM30

USC

CD 0 C 0501 87-010-263-040 ELECT. CAP. 100UF +/-20% a

CD 0 C 0502 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0503 87-010-263-040 ELECT. CAP. 100UF +/-20% a

CD 0 C 0504 87-010-263-040 ELECT. CAP. 100UF +/-20% a

CD 0 C 0505 87-010-263-040 ELECT. CAP. 100UF +/-20% a

CD 0 C 0506 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0507 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0508 87-A10-353-080 C-CAP 0.22UF 10V K B SIZE a

CD 0 C 0509 87-A11-070-080 C-CAP, U 0.033UF-16V K X7 a

CD 0 C 0510 87-012-268-080 C-CAP, U 330P-50V J C0G a

CD 0 C 0511 87-A10-201-080 C-CAP S. 0.33UF K Cer. a

CD 0 C 0512 87-010-785-080 C-CAP, U 0.015UF-25V K X7 a

CD 0 C 0513 87-A11-177-080 C-CAP,S 0.15UF-16V K CER. a

CD 0 C 0514 87-012-278-080 C-CAP, U 2200P-50V K X7R a

CD 0 C 0515 87-010-787-080 C-CAP, U 0.022UF-25V K X7 a

CD 0 C 0516 87-016-397-080 C-CAP,U 0.047UF 16V J B S a

CD 0 C 0517 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0518 87-012-197-080 C-CAP, U 150P-50V J C0G a

CD 0 C 0519 87-012-286-080 C-CAP, U 0.01UF-25V K X7R a

CD 0 C 0520 87-012-282-080 C-CAP, U 4700P-50V K X7R a

XR-EM30

USC

CD 0 C 0521 87-012-199-080 C-CAP, U 220P-50V J C0G a

CD 0 C 0522 87-A10-353-080 C-CAP 0.22UF 10V K B SIZE a

CD 0 C 0523 87-012-280-080 C-CAP, U 3300P-50V K X7R a

CD 0 C 0524 87-012-360-080 C-CAP.S 1UR 10V K CER a

CD 0 C 0525 87-010-380-080 E-CAP 47UF, +/-20% 16V a

CD 0 C 0527 87-012-170-080 C-CPA, U 8 P-50V D C0G a

CD 0 C 0529 87-012-280-080 C-CAP, U 3300P-50V K X7R a

CD 0 C 0530 87-012-195-080 C-CAP, U 100P-50V J C0G a

CD 0 C 0531 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0532 87-012-274-080 C-CAP, U 1000P-50V K X7R a

CD 0 C 0533 87-010-404-040 CAP.4.7UF M ELEC.50V P=2. a

CD 0 C 0534 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0535 87-010-380-080 E-CAP 47UF, +/-20% 16V a

CD 0 C 0536 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0537 87-010-405-040 ELECT. CAP. 10UF +/-20% 5 a

CD 0 C 0538 87-A11-070-080 C-CAP, U 0.033UF-16V K X7 a

CD 0 C 0539 87-012-360-080 C-CAP.S 1UR 10V K CER a

CD 0 C 0540 87-A11-177-080 C-CAP,S 0.15UF-16V K CER. a

CD 0 C 0541 87-010-263-040 ELECT. CAP. 100UF +/-20% a

CD 0 C 0542 87-012-274-080 C-CAP, U 1000P-50V K X7R a

XR-EM30

USC

CD 0 C 0551 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0552 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0581 87-010-221-040 CAP.E.470-10 M SMG a

CD 0 C 0582 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0583 87-010-380-080 E-CAP 47UF, +/-20% 16V a

CD 0 C 0584 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0723 87-018-131-080 CAP.0.001UF K CER. 50V B a

CD 0 C 0724 87-018-131-080 CAP.0.001UF K CER. 50V B a

CD 0 C 0725 87-018-127-080 CAP. 470pF K 50V B TYPE a

CD 0 C 0726 87-A10-039-080 C-CAP 470P 50V J C0G CER. a

CD 0 C 0727 87-018-127-080 CAP. 470pF K 50V B TYPE a

CD 0 C 0728 87-018-127-080 CAP. 470pF K 50V B TYPE a

CD 0 C 0729 87-018-131-080 CAP.0.001UF K CER. 50V B a

CD 0 C 0730 87-018-127-080 CAP. 470pF K 50V B TYPE a

CD 0 C 0755 87-012-274-080 C-CAP, U 1000P-50V K X7R a

CD 0 C 0758 87-012-274-080 C-CAP, U 1000P-50V K X7R a

CD 0 C 0783 87-010-787-080 C-CAP, U 0.022UF-25V K X7 a

CD 0 C 0801 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0802 87-012-195-080 C-CAP, U 100P-50V J C0G a

CD 0 C 0803 87-012-195-080 C-CAP, U 100P-50V J C0G a

XR-EM30

USC

CD 0 C 0804 87-012-195-080 C-CAP, U 100P-50V J C0G a

CD 0 C 0805 87-012-195-080 C-CAP, U 100P-50V J C0G a

CD 0 C 0806 87-012-195-080 C-CAP, U 100P-50V J C0G a

CD 0 C 0811 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0812 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0813 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD X C 0818 88-708-640-010 CAP.0.0018UF J Mylar 100V a

CD 0 C 0851 87-010-248-040 CAP. 220UF-10V M ELECT.P a

CD 0 C 0852 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0853 87-010-221-040 CAP.E.470-10 M SMG a

CD 0 C 0854 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0855 87-010-038-080 ELECT. CAP. 22 UF/25V M a

CD 0 C 0856 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0858 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0859 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0860 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0861 87-012-199-080 C-CAP, U 220P-50V J C0G a

CD 0 C 0862 87-012-197-080 C-CAP, U 150P-50V J C0G a

CD 0 C 0864 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0866 87-012-172-080 C-CAP, U 10P-50V D C0G a

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

! = ! SAFTY PARTS

C = Components marked

All components used on this model at the production line are shown in this service manual.

However, please note that not all components will be available as spare parts for after-sales service.

Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.

Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

-8-

ELECTRICAL PARTS LIST -2/14

XR-EM30

USC

CD 0 C 0867 87-012-170-080 C-CPA, U 8 P-50V D C0G a

CD 0 C 0868 87-010-404-040 CAP.4.7UF M ELEC.50V P=2. a

CD 0 C 0869 87-012-286-080 C-CAP, U 0.01UF-25V K X7R a

CD 0 C 0871 87-012-195-080 C-CAP, U 100P-50V J C0G a

CD 0 C 0872 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

CD 0 C 0873 87-012-274-080 C-CAP, U 1000P-50V K X7R a

CD 0 C 0881 87-A10-039-080 C-CAP 470P 50V J C0G CER. a

CD 0 C 0882 87-A10-039-080 C-CAP 470P 50V J C0G CER. a

CD 0 C 0883 87-010-400-080 CAP.0.47UF M ELEC. 50V a

CD 0 C 0884 87-010-400-080 CAP.0.47UF M ELEC. 50V a

CD 0 C 0885 87-012-274-080 C-CAP, U 1000P-50V K X7R a

CD 0 C 0886 87-012-274-080 C-CAP, U 1000P-50V K X7R a

CD 0 CN 0501 87-A60-424-010 CONN, 16P V TOC-B a

CD 0 CN 0502 8Z-CH4-667-010 6P CONN. ASSY PITCH=2.0mm a

CD 0 CN 0802 87-A90-178-010 2PINS SOCKET (150V) (DC:5 a

CD S D 0581 87-A40-553-080 DIODE,1N4003 LES a

CD S D 0851 87-A40-270-080 C-DIODE MC2838 a

CD S D 0852 87-A40-270-080 C-DIODE MC2838 a

CD 0 FF 0501 8B-CK6-612-010 FF-CABLE,16P 1.0 CD L=(4+ a

CD S IC 0501 87-A20-446-010 C-IC LA9241ML a

XR-EM30

USC

CD S IC 0551 87-017-917-080 C-IC,BU4066BCF(SOP14) a

CD S IC 0581 87-A22-256-040 C-IC CD-DRIVER BA5949FP a

CD S IC 0851 87-A21-319-010 C-IC LC78622NE DSP a

CD X JR 0501 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X JR 0502 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X JR 0503 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X JR 0505 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X JR 0506 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X JR 0601 88-108-000-080 C-JUMPER, JR 1/16W J a

CD 0 JR 0811 83-XM1-617-080 C-COIL BK2125HM601 a

CD X JW 0602 88-121-271-080 RES 270 OHM J C 1/8W 26mm a

CD X JW 0603 88-121-271-080 RES 270 OHM J C 1/8W 26mm a

CD X JW 0604 88-121-271-080 RES 270 OHM J C 1/8W 26mm a

CD X JW 0605 88-121-271-080 RES 270 OHM J C 1/8W 26mm a

CD X JW 0606 88-121-271-080 RES 270 OHM J C 1/8W 26mm a

CD 0 JW 0614 87-A90-896-080 F-BCAD 035600 STYT Taping a

CD 0 JW 0616 87-A90-896-080 F-BCAD 035600 STYT Taping a

CD 0 JW 0658 88-128-101-080 RES 100 OHM 1/8W J 52mm T a

CD X JW 0660 88-128-471-080 RES 470oHM 1/8W J C 52mm a

CD S Q 0501 89-111-625-080 C-TR 2SA1162GR (O.15W) a

XR-EM30

USC

CD S Q 0581 87-A30-495-080 TRANSISTOR 2SA1981Y (TO-9 a

CD X R 0501 88-108-479-080 C-RES, U 4R7 1/16W J a

CD X R 0502 88-108-104-080 C-RES, U 100K 1/16W J a

CD X R 0521 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X R 0523 88-108-154-080 C-RES, U 150K 1/16W J a

CD X R 0524 88-108-184-080 C-RES, U 180K 1/16W J a

CD X R 0526 88-108-154-080 C-RES, U 150K 1/16W J a

CD 0 R 0528 88-108-122-080 C-RES, U 1.2K 1/16W J a

CD X R 0529 88-108-564-080 C-RES U 560K 1/16W J a

CD X R 0540 88-108-472-080 C-RES U 4.7K 1/16W J a

CD X R 0541 88-108-104-080 C-RES, U 100K 1/16W J a

CD X R 0542 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X R 0543 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X R 0545 88-108-479-080 C-RES, U 4R7 1/16W J a

CD X R 0546 88-118-100-080 C-RES,S 10-1/10W J a

CD 0 R 0547 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 R 0551 87-022-225-080 C-RES U 2.7k ohm 1/16W F a

CD 0 R 0552 87-022-225-080 C-RES U 2.7k ohm 1/16W F a

CD 0 R 0553 87-022-225-080 C-RES U 2.7k ohm 1/16W F a

CD 0 R 0554 87-022-225-080 C-RES U 2.7k ohm 1/16W F a

XR-EM30

USC

CD 0 R 0555 88-118-683-080 C-RES,S 68 K-1/10W J a

CD 0 R 0556 87-022-284-080 C-RES U 68k ohm 1/16W F a

CD 0 R 0557 88-108-102-080 C-RES, U 1K 1/16W J a

CD 0 R 0558 88-108-102-080 C-RES, U 1K 1/16W J a

CD 0 R 0559 87-022-255-080 C-RES U 47k ohm 1/16W F a

CD 0 R 0560 87-022-255-080 C-RES U 47k ohm 1/16W F a

CD X R 0561 88-108-183-080 C-RES U 18K J 1/16W a

CD X R 0562 88-108-183-080 C-RES U 18K J 1/16W a

CD 0 R 0563 87-022-288-080 C-RES U 150k ohm 1/16W F a

CD 0 R 0564 87-022-288-080 C-RES U 150k ohm 1/16W F a

CD X R 0565 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X R 0566 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X R 0567 88-108-104-080 C-RES, U 100K 1/16W J a

CD X R 0568 88-108-104-080 C-RES, U 100K 1/16W J a

CD 0 R 0569 88-108-332-080 C-RES U 3.3K 1/16WJ a

CD 0 R 0581 88-140-229-080 RES 2.2 J C 1/2W 52mm TAP a

CD 0 R 0582 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 R 0583 88-108-333-080 C-RES.U 33K-1/16W J a

CD 0 R 0584 88-108-102-080 C-RES, U 1K 1/16W J a

CD X R 0591 88-108-472-080 C-RES U 4.7K 1/16W J a

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

! = ! SAFTY PARTS

C = Components marked

All components used on this model at the production line are shown in this service manual.

However, please note that not all components will be available as spare parts for after-sales service.

Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.

Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

-9-

ELECTRICAL PARTS LIST -3/14

XR-EM30

USC

CD 0 R 0592 88-108-822-080 C-RES U 8.2K 1/16W J a

CD X R 0593 88-108-682-080 C-RES U 6.8K 1/16W J a

CD X R 0594 88-108-000-080 C-JUMPER, JR 1/16W J a

CD 0 R 0595 88-108-223-080 C-RES U 22K J 1/16W a

CD X R 0596 88-108-000-080 C-JUMPER, JR 1/16W J a

CD 0 R 0703 88-108-153-080 C-RES, U 15K 1/16W J a

CD X R 0704 88-108-222-080 C-RES, U 2.2K 1/16W J a

CD 0 R 0705 87-022-284-080 C-RES U 68k ohm 1/16W F a

CD 0 R 0706 88-108-123-080 C-RES U 12K 1/16W J a

CD 0 R 0707 88-118-683-080 C-RES,S 68 K-1/10W J a

CD X R 0708 88-108-393-080 C-RES U 39K 1/16W a

CD 0 R 0709 88-118-683-080 C-RES,S 68 K-1/10W J a

CD 0 R 0710 88-108-821-080 C-RES, U 820 1/16W J a

CD X R 0711 88-108-182-080 C-RES, U 1.8K 1/16W J a

CD 0 R 0712 88-108-223-080 C-RES U 22K J 1/16W a

CD 0 R 0713 88-108-123-080 C-RES U 12K 1/16W J a

CD 0 R 0714 88-108-272-080 C-RES, U 2.7K 1/16W J a

CD X R 0715 88-108-682-080 C-RES U 6.8K 1/16W J a

CD 0 R 0716 88-118-683-080 C-RES,S 68 K-1/10W J a

CD 0 R 0717 88-108-333-080 C-RES.U 33K-1/16W J a

XR-EM30

USC

CD X R 0718 88-108-152-080 C-RES, U 1.5K 1/16W J a

CD X R 0719 88-108-104-080 C-RES, U 100K 1/16W J a

CD X R 0720 88-108-104-080 C-RES, U 100K 1/16W J a

CD 0 R 0727 88-108-563-080 C-RES. U 56K J 1/16W a

CD X R 0730 88-108-564-080 C-RES U 560K 1/16W J a

CD X R 0731 88-108-682-080 C-RES U 6.8K 1/16W J a

CD 0 R 0732 88-108-101-080 C-RES, U 100 1/16W J a

CD X R 0733 88-108-152-080 C-RES, U 1.5K 1/16W J a

CD 0 R 0734 88-108-103-080 C-RES U 10K 1/16W J a

CD X R 0735 88-108-393-080 C-RES U 39K 1/16W a

CD 0 R 0736 88-108-102-080 C-RES, U 1K 1/16W J a

CD X R 0737 88-108-331-080 C-RES, U 330 1/16W J a

CD 0 R 0738 88-108-223-080 C-RES U 22K J 1/16W a

CD 0 R 0739 88-108-473-080 C-RES U 47K 1/16W J a

CD 0 R 0801 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 R 0802 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 R 0803 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 R 0804 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 R 0805 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 R 0806 88-108-101-080 C-RES, U 100 1/16W J a

XR-EM30

USC

CD 0 R 0851 87-005-849-080 FIXED INDUCTOR 10UH a

CD X R 0852 88-108-220-080 C-RES, U 22 1/16W J a

CD X R 0854 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X R 0855 88-108-681-080 C-RES, U 680 1/16W J a

CD X R 0856 88-108-273-080 C-RES U 27K J 1/16W a

CD 0 R 0857 88-108-122-080 C-RES, U 1.2K 1/16W J a

CD 0 R 0858 88-108-333-080 C-RES.U 33K-1/16W J a

CD X R 0859 88-108-104-080 C-RES, U 100K 1/16W J a

CD X R 0860 88-108-104-080 C-RES, U 100K 1/16W J a

CD X R 0864 88-108-104-080 C-RES, U 100K 1/16W J a

CD X R 0865 88-108-000-080 C-JUMPER, JR 1/16W J a

CD 0 R 0866 88-108-333-080 C-RES.U 33K-1/16W J a

CD 0 R 0867 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 R 0868 88-108-102-080 C-RES, U 1K 1/16W J a

CD X R 0870 88-108-000-080 C-JUMPER, JR 1/16W J a

CD X R 0881 88-108-152-080 C-RES, U 1.5K 1/16W J a

CD X R 0882 88-108-152-080 C-RES, U 1.5K 1/16W J a

CD 0 R 0883 88-108-102-080 C-RES, U 1K 1/16W J a

CD 0 R 0884 88-108-102-080 C-RES, U 1K 1/16W J a

CD 0 R 0885 88-108-103-080 C-RES U 10K 1/16W J a

XR-EM30

USC

CD 0 R 0886 88-108-103-080 C-RES U 10K 1/16W J a

CD 0 R 0887 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 R 0888 88-108-101-080 C-RES, U 100 1/16W J a

CD 0 SFR0501 87-024-437-080 SFR, 100K H RH063MC a

CD 0 SW 0801 87-036-389-010 SW. PUSH 1-1-1 (50V DC /0 a

CD 0 X 0851 87-A70-046-010 X’ TAL 16.9344MHz CSA-309 a

FRONT 0 C 0102 87-012-278-080 C-CAP, U 2200P-50V K X7R a

FRONT 0 C 0103 87-010-263-080 ELECT. CAP. 100UF +/-20% a

FRONT 0 C 0106 87-010-260-080 CAP. 47UF M ELEC. 25V P=5 a

FRONT 0 C 0301 87-010-759-080 C-CAP, U 0.1UF-25V Z Y5V a

FRONT 0 C 0302 87-012-286-080 C-CAP, U 0.01UF-25V K X7R a

FRONT 0 C 0304 87-010-415-080 ELECT.Cap 10UF M 50V Pitc a

FRONT 0 C 0307 87-010-421-080 CAP.4.7UF M ELEC. 50V P=2 a

FRONT 0 C 0308 87-010-421-080 CAP.4.7UF M ELEC. 50V P=2 a

FRONT 0 C 0309 87-010-787-080 C-CAP, U 0.022UF-25V K X7 a

FRONT 0 C 0310 87-010-248-080 CAP.220UF-10V M ELECT. Pi a

FRONT 0 C 0312 87-A11-136-080 CAP. 0.022UF K 50V B TYP a

FRONT 0 C 0315 87-A10-025-080 C-CAP. U 0.22UF-16V Z Y5V a

FRONT 0 C 0329 87-010-787-080 C-CAP, U 0.022UF-25V K X7 a

FRONT 0 C 0330 87-012-178-080 C-CAP, U 18P-50V J C0G a

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

! = ! SAFTY PARTS

C = Components marked

All components used on this model at the production line are shown in this service manual.

However, please note that not all components will be available as spare parts for after-sales service.

Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.

Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

-10-

ELECTRICAL PARTS LIST -4/14

XR-EM30

USC

FRONT 0 C 0331 87-012-184-080 C-CAP, U 33P-50V J C0G a

FRONT 0 C 0333 87-015-694-040 E-CAP.0.47UF M ELEC. 50V a

FRONT 0 C 0338 87-012-286-080 C-CAP, U 0.01UF-25V K X7R a

FRONT 0 C 0339 87-012-286-080 C-CAP, U 0.01UF-25V K X7R a

FRONT 0 C 0340 87-012-286-080 C-CAP, U 0.01UF-25V K X7R a

FRONT 0 C 0341 87-010-260-080 CAP. 47UF M ELEC. 25V P=5 a

FRONT 0 C 0342 87-012-286-080 C-CAP, U 0.01UF-25V K X7R a

FRONT 0 C 0343 87-012-286-080 C-CAP, U 0.01UF-25V K X7R a

FRONT 0 C 0344 87-012-275-080 C-CAP, U 1200P-50V K X7R a

FRONT 0 C 0348 87-010-248-040 CAP. 220UF-10V M ELECT.P a

FRONT 0 CN 0301 87-099-720-010 CONNECTOR 30P (DC:125V/0, a

FRONT 0 CN 0302 87-A60-624-010 7PINS FFC SOCKET ANGLE TY a

FRONT S D 0104 87-A40-748-080 ZENER UZ5.6BSA 26mm TAPE a

FRONT S D 0105 87-070-345-080 DIODE IN-4148,26mm TAPE a

FRONT S D 0301 87-020-465-080 DIODE 1SS133 26mm TAPE a

FRONT S D 0302 87-020-465-080 DIODE 1SS133 26mm TAPE a

FRONT S D 0318 87-020-465-080 DIODE 1SS133 26mm TAPE a

FRONT 0 FF 0301 S1-204-182-000 FF-CABLE PITCH=1.25mm L=9 a

FRONT 0 FL 0301 8C-CL6-608-010 VACUUM FLUORESCENT DISPLA a

FRONT S IC 0301 8C-CL6-601-010 C-IC,LC876748A-5Z32 a

XR-EM30

USC

FRONT S IC 0303 87-A21-245-010 IC RPM6938-V4 REMOTE CONT a

FRONT X JR 0301 88-108-000-080 C-JUMPER, JR 1/16W J a

FRONT X JR 0302 88-108-000-080 C-JUMPER, JR 1/16W J a

FRONT X JR 0303 88-108-000-080 C-JUMPER, JR 1/16W J a

FRONT X JR 0312 88-108-000-080 C-JUMPER, JR 1/16W J a

FRONT X JR 0314 88-108-000-080 C-JUMPER, JR 1/16W J a

FRONT X JR 0316 88-108-000-080 C-JUMPER, JR 1/16W J a

FRONT X JR 0321 88-108-000-080 C-JUMPER, JR 1/16W J a

FRONT 0 L 0301 87-A50-333-010 COIL CLK 9.43 MHz KHSC-86 a

FRONT S Q 0104 89-327-125-080 C-TR 2SC2712GR (100mW) a

FRONT S Q 0109 89-327-125-080 C-TR 2SC2712GR (100mW) a

FRONT S Q 0301 87-026-210-040 C-TR, DTC114EK (0.2W) a

FRONT S Q 0302 89-112-965-080 TRANSISTOR 2SA1296GR AI R a

FRONT S Q 0303 89-112-965-080 TRANSISTOR 2SA1296GR AI R a

FRONT S Q 0306 87-A30-074-080 C-TR, RT1P 141C (150mw) a

FRONT S Q 0310 89-327-125-080 C-TR 2SC2712GR (100mW) a

FRONT S Q 0314 87-A30-494-080 TR, 2SA1980G ‘T0-92’ AI R a

FRONT 0 R 0129 88-108-471-080 C-RES, U 470 1/16W J a

FRONT 0 R 0148 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT X R 0149 88-108-000-080 C-JUMPER, JR 1/16W J a

XR-EM30

USC

FRONT X R 0150 88-108-222-080 C-RES, U 2.2K 1/16W J a

FRONT X R 0151 88-108-104-080 C-RES, U 100K 1/16W J a

FRONT 0 R 0301 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0302 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0303 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0304 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0305 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0306 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0307 88-108-101-080 C-RES, U 100 1/16W J a

FRONT 0 R 0308 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0309 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0311 88-121-222-080 RES 2K2 J C 1/8W 26mm TAP a

FRONT 0 R 0312 88-121-392-080 RES 3.9K 1/8W J C 26mm TA a

FRONT 0 R 0313 88-108-103-080 C-RES U 10K 1/16W J a

FRONT X R 0314 88-121-129-080 RES 1.2 OHM 1/8W J a

FRONT 0 R 0315 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0316 88-108-101-080 C-RES, U 100 1/16W J a

FRONT 0 R 0317 88-108-103-080 C-RES U 10K 1/16W J a

FRONT 0 R 0318 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0319 88-108-101-080 C-RES, U 100 1/16W J a

XR-EM30

USC

FRONT 0 R 0320 88-108-101-080 C-RES, U 100 1/16W J a

FRONT 0 R 0321 88-108-101-080 C-RES, U 100 1/16W J a

FRONT 0 R 0322 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0323 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT 0 R 0324 88-108-102-080 C-RES, U 1K 1/16W J a

FRONT X R 0328 88-108-682-080 C-RES U 6.8K 1/16W J a

FRONT X R 0329 88-108-392-080 C-RES U 3.9K 1/16W J a

FRONT X R 0330 88-108-392-080 C-RES U 3.9K 1/16W J a

FRONT 0 R 0331 88-108-272-080 C-RES, U 2.7K 1/16W J a

FRONT 0 R 0332 88-108-272-080 C-RES, U 2.7K 1/16W J a

FRONT X R 0333 88-108-182-080 C-RES, U 1.8K 1/16W J a

FRONT X R 0334 88-108-182-080 C-RES, U 1.8K 1/16W J a

FRONT X R 0335 88-108-152-080 C-RES, U 1.5K 1/16W J a

FRONT X R 0336 88-108-152-080 C-RES, U 1.5K 1/16W J a

FRONT 0 R 0337 88-108-103-080 C-RES U 10K 1/16W J a

FRONT 0 R 0338 88-108-103-080 C-RES U 10K 1/16W J a

FRONT 0 R 0339 88-108-103-080 C-RES U 10K 1/16W J a

FRONT 0 R 0340 88-108-103-080 C-RES U 10K 1/16W J a

FRONT X R 0341 88-108-222-080 C-RES, U 2.2K 1/16W J a

FRONT X R 0342 88-108-222-080 C-RES, U 2.2K 1/16W J a

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Other manuals for XR-EM30

Table of contents

Popular Stereo System manuals by other brands

Sony

Sony HCD-VX88 Service manual

Philips

Philips MCM398D/12 user manual

Sony

Sony CMT-SPZ90DB operating instructions

LG OM4560 owner's manual

JVC

JVC UX-G3 instructions

Odys

Odys ODYS - LOOP instruction manual

Panasonic

Panasonic SC-AK100 operating instructions

Sharp

Sharp CD-G10000V Operation manual

Bogen

Bogen NEARSCAPES 4.1 manual

Panasonic

Panasonic SCPM29 - MINI HES W/CD PLAYER operating instructions

Meyer

Meyer LD-3 operating instructions

THOMSON

THOMSON MIC302U manual

Philips

Philips MCM530 Service manual

Sony

Sony SS-CEP50 Service manual

Cetacea Sound

Cetacea Sound CVS-II user guide

Sony

Sony MHC-V21D Service manual

Denon

Denon UCD-250 Service manual

Exibel

Exibel BDX600-UK user manual

Aiwa XR-EM30 User manual

Popular Stereo System manuals by other brands
