SERVICE MANUAL
COMPACT DISC STEREO
CASSETTE RECEIVER
NSX-AJ14
NSX-AJ17
NSX-BL14
NSX-BL16
U
U
HR,HS,HT,
LH,EZ,K,V
EZ
S/M Code No. 09-00C-428-8S1
SUPPLEMENT
 Refer to MAIN C.B parts number for difference of the model.
8A-NF9-7 1- 1 is for NSX-AJ17<U>/BL14<LH> VA model,
8A-NFA-646- 1 is for NSX-AJ14<U>/BL14<HR,HS,HT,EZ,K,V>/BL16<EZ>
VA model.
DATA
BASIC TAPE MECHANISM : ZZM-2 PR1NM
BASIC CD MECHANISM : AZG-1
 This Service Manual contains information about the difference between
NSX-AJ14/AJ17/BL14/BL16 (VA Model) and NSX-AJ14/AJ17/BL14/BL16.
If requiring the other information see Service Manual as listed in Table 1 on
page 2.
If requiring information about the CD mechanism, see Service Manual
of AZG-1 ZA3RNDM/ZA4RDC/ZA4RNDC, (S/M Code No. 9- 1-335-3NC),
AZG-1 ZA7RNDC, (S/M Code No. 9- 1-335-3NL).

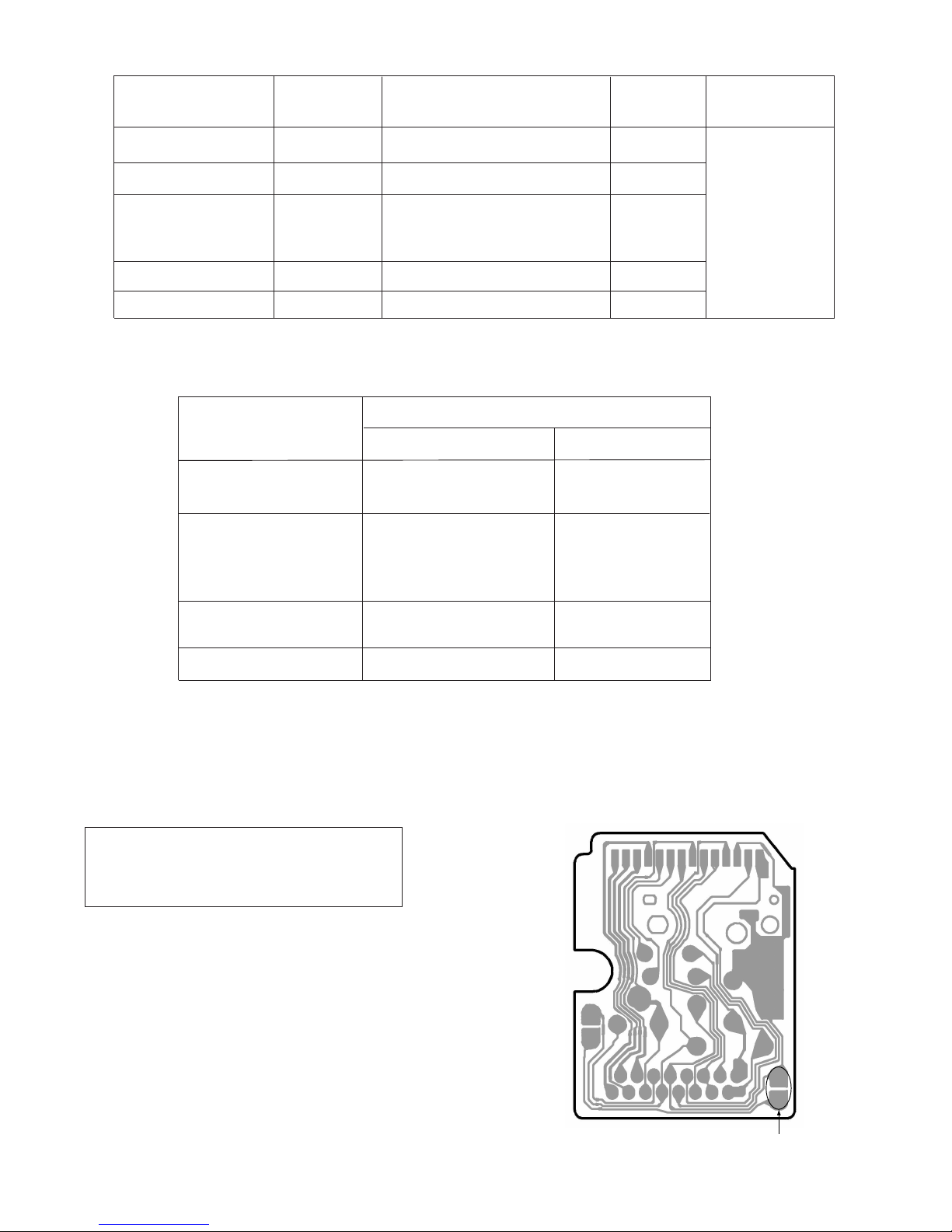

SYSTEM COMBINATION TABLE
SYSTEM CD
CASSEIVER BASIC CD
MECHANISM SPEAKER REMOTE CONTROLLER
NSX-AJ14<U> CX-NAJ14 AZG-1 ZA4RNDC SX-NAJ11
NSX-AJ17<U> CX-NAJ17 AZG-1 ZA4RDC SX-NAJ17
NSX-BL14
<HS,HR,HT,EZ,K,V> CX-NBL14 AZG-1 ZA3RNDM<HS,HR>
AZG-1 ZA4RNDC<HT,EZ,K>
AZG-1 ZA7RNDC<V> SX-NBL11
NSX-BL14<LH> CX-NBL14 AZG-1 ZA4RNDC SX-NBL17
RC-ZAS02
NSX-BL16<EZ> CX-NBL16 AZG-1 ZA4RNDC SX-NBL16
VA MODEL BASE MODEL
NSX-AJ17<U>
NSX-BL14<LH>
MODEL NAME S/M Code No.
NSX-AJ17<U>
NSX-BL14<LH> 09-003-428-8R1
NSX-AJ14<U>
NSX-BL14<HS,EZ,K>
NSX-BL16<EZ>
NSX-AJ14<U>
NSX-BL14E<HA>
NSX-BL14<HS,EZ,K>
NSX-BL16<EZ>
09-004-428-8R2
NSX-BL14<HR,V> NSX-BL14<HR,V>
NSX-BL13<LH> 09-006-428-8R3
NSX-BL14<HT> NSX-BL14<HT,G> 09-007-428-8R4
Table 1
Precaution to replace Optical block (AZG-1 ZA7RNDC)
(5ZL-3 R3)
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
PICK-UP ASSY PWB
SOLDER
– 2 –
1) After the connection, remove solder shown in
the right figure.

SPECIFICATIONS
 Design and specifications are subject to change without notice.
<FM tuner section>
Tuning range<V> FM1 (OIRT)
5 MHz to 74 MHz (10KHz step)
FM2 (CCIR)
87.5 MHz to 108 MHz (50kHz step)
Tuning range<EXCEPT V> 87.5 MHz to 108 MHz
Usable sensitivity (IHF)<V> FM1:15.3 dBf
FM2: 12.8 dBf
Usable sensitivity (IHF) U,HT,LH,HS,HR: 13.2 dBf
EZ,K: 1 .8 dBf
ntenna terminals 75 ohms (unbalanced)
< M/MW tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1 02 kHz (9 kHz step)
Usable sensitivity 350 µV/m
ntenna Loop antenna
<SW tuner section><HT,HR>
Tuning range 5.730 MHz to 17.900 MHz
Usable sensitivity 40 µV (IEC)
ntenna Wire antenna
<LW tuner section><EZ,K>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
ntenna Loop antenna
< mplifier section>
Power output Rated
14U: 10 W + 10 W (50 Hz - 20 kHz,
T.H.D. less than 1%, ohms)
15 W + 15 W (1 kHz, T.H.D. less than
10%, ohms)
17U: 30 W + 30 W (50 Hz - 20 kHz,
T.H.D. less than 1%, ohms)
40 W + 40 W (1 kHz, T.H.D. less than
10%, ohms)
LH: 28 W + 28 W (1 kHz, T.H.D. 1%,
ohms)
Reference: 35 W + 35 W
(1 kHz, T.H.D. 10%, ohms)
HR,HS,HT: 17 W + 17 W
(1 kHz, T.H.D. 1%, ohms)
Reference: 20 W + 20 W
(1 kHz, T.H.D. 10%, ohms)
EZ,K,V: 12 W + 12 W (1 kHz/DIN 45500,
T.H.D. 1%, ohms)
Reference: 15 W + 15 W
(1 kHz/DIN 45324, T.H.D. 10%, ohms)
EZ: DIN MUSIC POWER: 30 W + 30 W
Total harmonic distortion 14U,EZ,K,V: 0.1% ( W, 1 kHz, ohms,
DIN AUDIO)
17U: 0.1% (15 W, 1 kHz, ohms,DIN
AUDIO)
LH: 0.1% (14 W, 1 kHz, ohms,DIN
AUDIO)
HT,HS,HR: 0.1% (8 W, 1 kHz, ohms,
DIN AUDIO)
Inputs VIDEO/AUX: 500 mV
HR,HS: MIC 1.8 mV(10 kohms)
Outputs SPEAKERS:
accept speakers of ohms or more
17U: SURROUND SPEAKERS:
accept speakers of 8 ohms to 1 ohms
PHONES (stereo jack) :
accepts headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz - 8000 Hz
Recording system AC bias
Heads Deck 1 : Recording/Playback head
x 1, erase head x 1
Deck 2 : Playback head x 1
<Compact disc player section>
Laser Semiconductor laser (l =780 nm)
D- converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Video signal<HR> NTSC/PAL color format (selectable)
<Speaker system>SX-N J11<U>
Speaker System 2 way, bass reflex (magnetic
shielded type)
Speaker units Woofer:
120 mm (43/4 in.) cone type
Tweeter:
20 mm (13/16 in.) ceramic type
Impedance ohms
Sensitivity 87 dB/W/m
Dimensions (W x H x D) 220 x 324 x 211 mm
(83/4 x 127/8 x 83/8 in.)
Weight 2.0 kg (4 lbs 7 oz.)
<Speaker system>SX-N J17<17U>,SX-NBL11<HS,HR,14EZ,K,
HT,V>,SX-NBL16<16EZ>,SX-NBL17<LH>
Speaker System 2 way, bass reflex (magnetic shielded
type)
Speaker units Woofer:
EXCEPT U:120 mm cone type
U: 120 mm (43/4 in) cone type
Tweeter:
U: 20 (13/16 in) mm ceramic type
EXCEPT U: 20 mm ceramic type
Impedance ohms
Sensitivity EXCEPT U: 87 dB/W/m U: 8 dB/W/m
Dimensions (W x H x D) 220 x 324 x 211 mm
Weight 2.0 kg
<General>
Power requirements U: 120 V AC, 0 Hz
HR,HT,LH: 120 V/220-230 V/240 V AC
(switchable), 50/ 0 Hz
HS: 220 V AC, 0 Hz
EZ,K,V: 230 V AC, 50 Hz
Power consumption 14U: 38 W
HA,LH: 55 W
HR,17U,HS,HT: 0 W
EZ,K,V: 45 W
Power consumption 14U: With power-economizing
in standby mode mode off : 8 W
17U,LH: With power-economizing
mode off : 12 W
HR,HS,HT,EZ,K,V:
With power-economizing
mode off : 14 W
With power-economizing mode on :
0.9 W
Dimensions of main unit EXCEPT 17U:
(W x H x D) 2 0 x 324 x 348 mm
(101/4 x 127/8 x 133/4 in.)
17U: 2 0 x 330 x 34 mm
Weight of main unit 14U: 4.8 kg (10 lbs 9 oz.)
17U,LH: 5.7 kg
HR,HS,HT: 5.0 kg
EZ,K,V: 4.9 kg
 3 

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
ELECTRICAL MAIN PARTS LIST
IC
8A-NFA-615-010 C-IC,M38B57MCH-E236FP<EXCEPT 16EZ>
8A-NFA-616-010 C-IC,M38B59MFH-E251FP<16EZ>
87-A21-482-010 IC,RPM6938-H4<EXCEPT HS>
87-A21-629-010 IC,SPS-442-1-N<HS,HR>
87-A21-419-040 C-IC,NJM14558M -TE2<LH,17U>
87-017-889-010 IC,NJM4558L <EXCEPT LH,17U>
87-A21-443-040 C-IC,M62495AFP<LH,17U>
87-A21-560-010 IC,LA1844L-A
87-A21-928-010 IC,LC72131 -N<EXCEPT HS,HT,HR,V>
87-070-127-110 IC,LC72131 <HS,HT,HR,V>

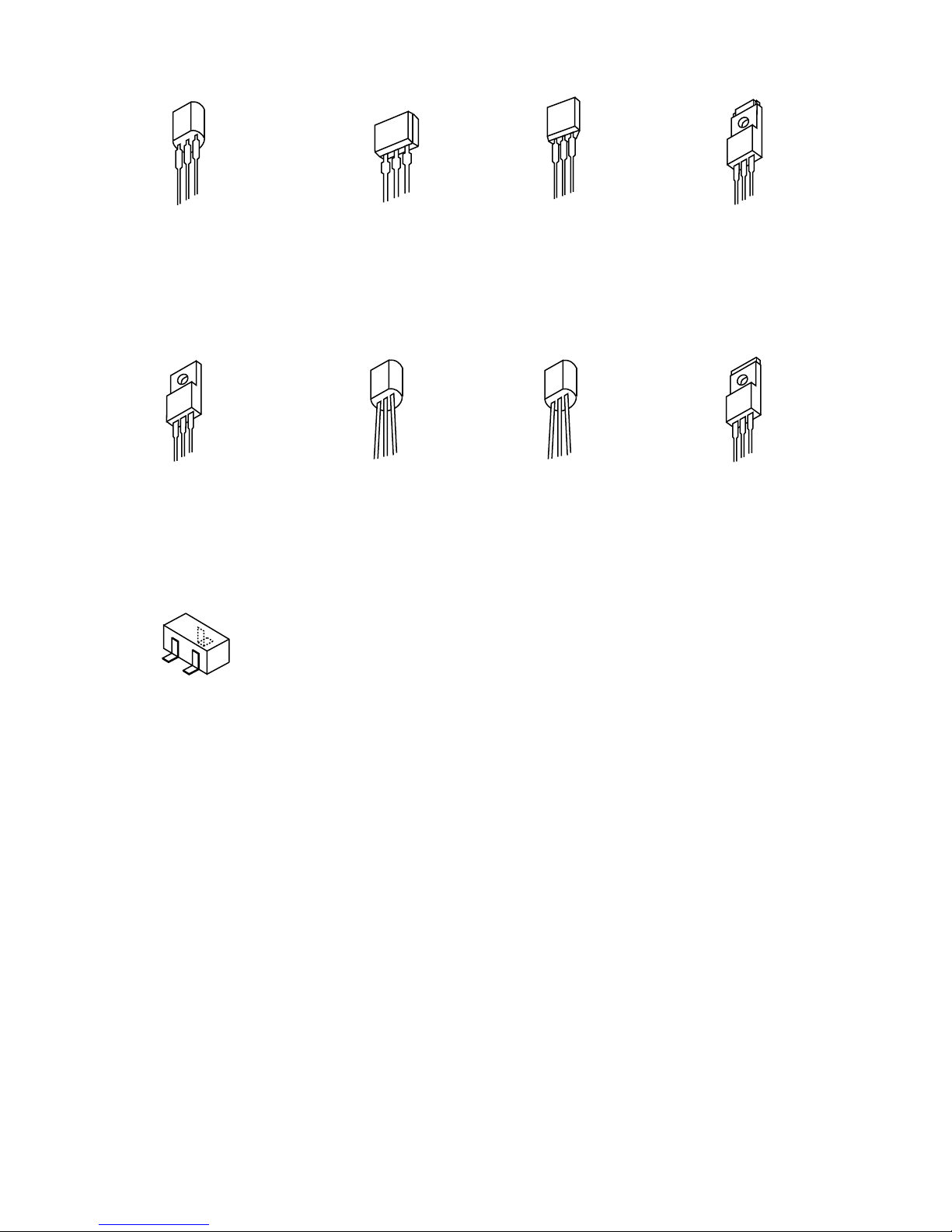

TRANSISTOR
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370 (1.8W)
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F<EXCEPT K,14EZ,16EZ,14U,V>
87-026-245-080 TR, TC114ES<EXCEPT 17U>
87-A30-198-080 TR,KTC3199GR<EXCEPT 17U,14U>
87-A30-107-070 C-TR,CMBT5401<LH,17U>
87-A30-484-080 C-TR,KRA102S
87-A30-090-080 FET,2SK2541
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-190-080 TR,CC5551<EXCEPT K,14EZ,16EZ,14U,V>
87-A30-256-010 TR,2S 1933<EXCEPT LH,17U>
87-A30-255-010 TR,2SB1342<EXCEPT LH,17U>
87-A30-528-010 TR,2SB1686<LH,17U>
87-A30-529-010 TR,2S 2642<LH,17U>
87-A30-189-080 TR,CC5401<HS,HT,HR>
87-A30-106-040 C-TR,CMBT5551<LH,17U>
87-A30-162-010 FET,2SK2937<LH,17U>
87-A30-091-080 FET,2SJ460
87-A30-062-080 C-TR,KRC104S<LH,17U>
87-026-218-080 TR, TC144ES<EXCEPT LH,17U>
87-A30-495-080 TR,2SA1981Y
87-A30-492-080 TR,2SC5343G
87-A30-234-080 TR,CSC4115BC
89-327-143-080 TR,2SC2714 (0.1W)<LH,17U>
89-305-352-380 TR,2SC535(B/C)<EXCEPT LH,17U>
87-A30-489-080 C-TR,KRA107S<LH,17U>
87-026-214-080 TR, TA114YS<EXCEPT LH,17U>
87-026-269-080 TR, TA114ES<HT,K,14EZ,16EZ,HR>
87-A30-197-080 TR,KTA1267GR<HT,HR>
89-320-011-080 TR,2SC2001K<HT,K,14EZ,16EZ,HR>
87-A30-092-080 FET,2SK439E/F<HT,K,14EZ,16EZ,HR>
IO E
87-020-465-080 IO E,1SS133 (110MA)
87-A40-535-080 IO E,1N5393-GOO ARK<14U>
87-A40-393-090 IO E,1N5402GW(F20)<LH,17U>
87-A40-455-080 IO E,RL203 GW<EXCEPT 17U,14U>
87-A40-553-080 IO E,1N4003 LES
87-A40-774-080 ZENER,UZ24BS
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C- IO E,MC 2840<LH,17U>
87-A40-270-080 C- IO E,MC2838<LH,17U>
87-A40-269-080 C- IO E,MC2836<LH,17U>
87-A40-768-080 ZENER,UZ16BSA<LH,17U>
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-749-080 ZENER,UZ5.6BSB<LH,17U>
87-A40-739-080 ZENER,UZ2.7BSA
87-A40-618-080 VARI-CAP,SVC 348(S/T)<HT,HR>
87-017-149-080 ZENER,HZS6A2L

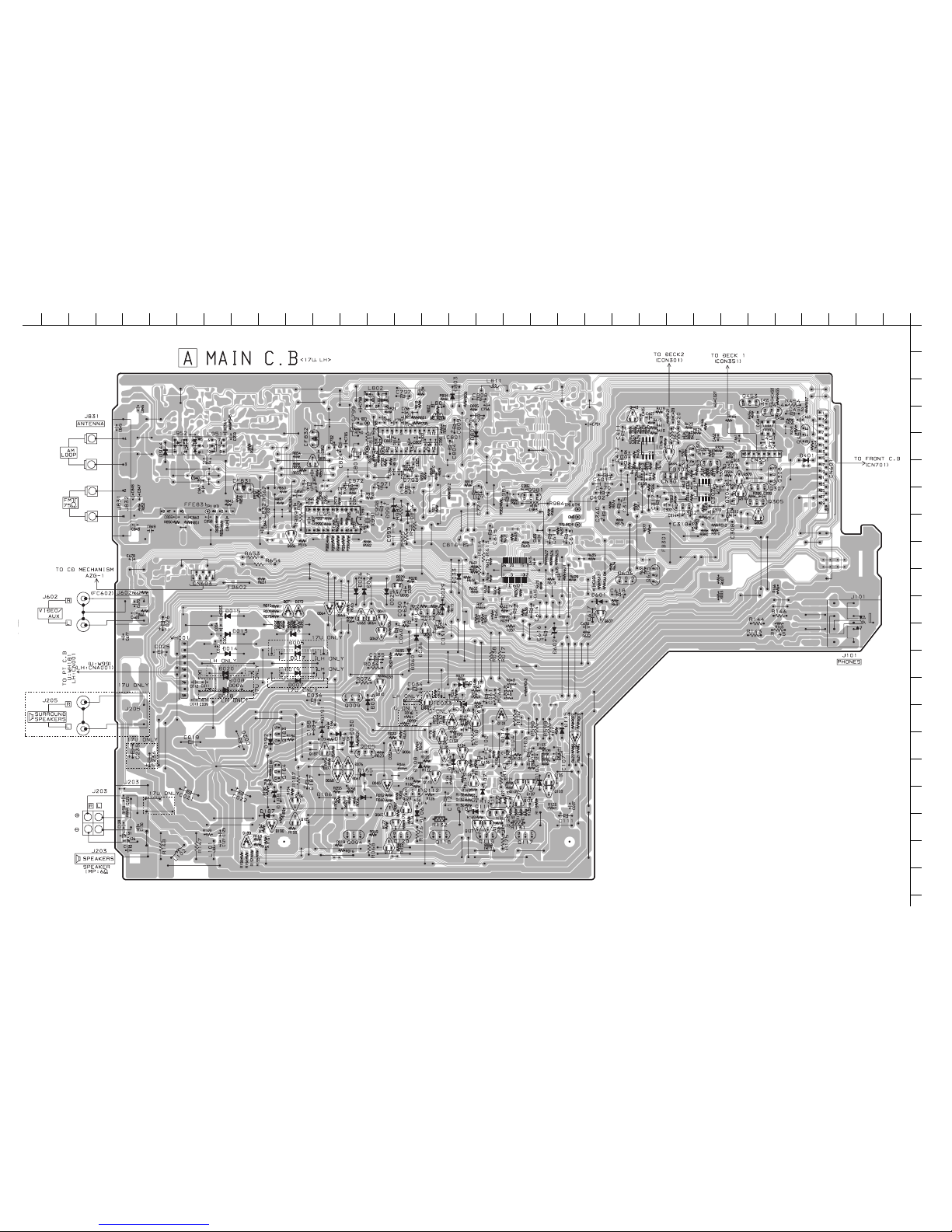

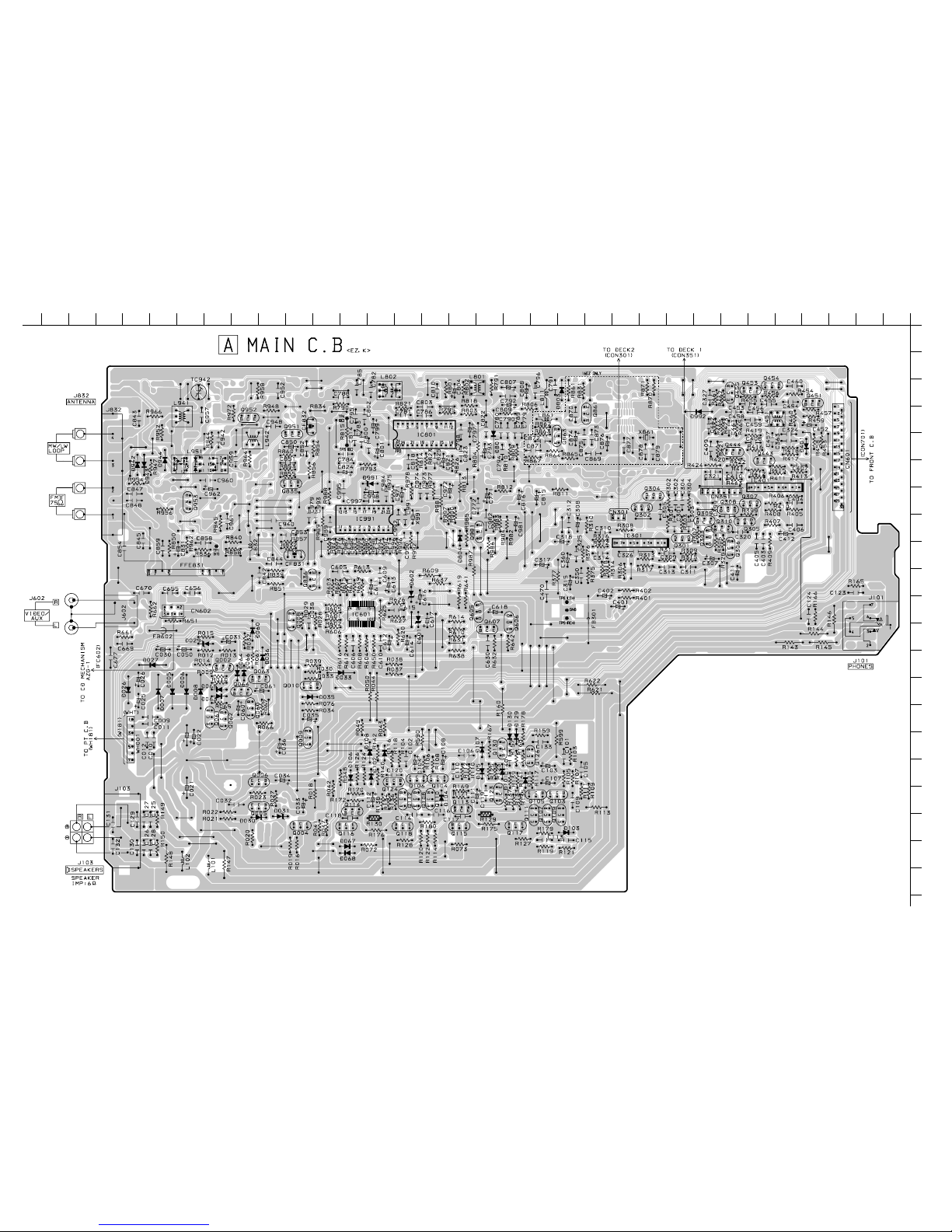

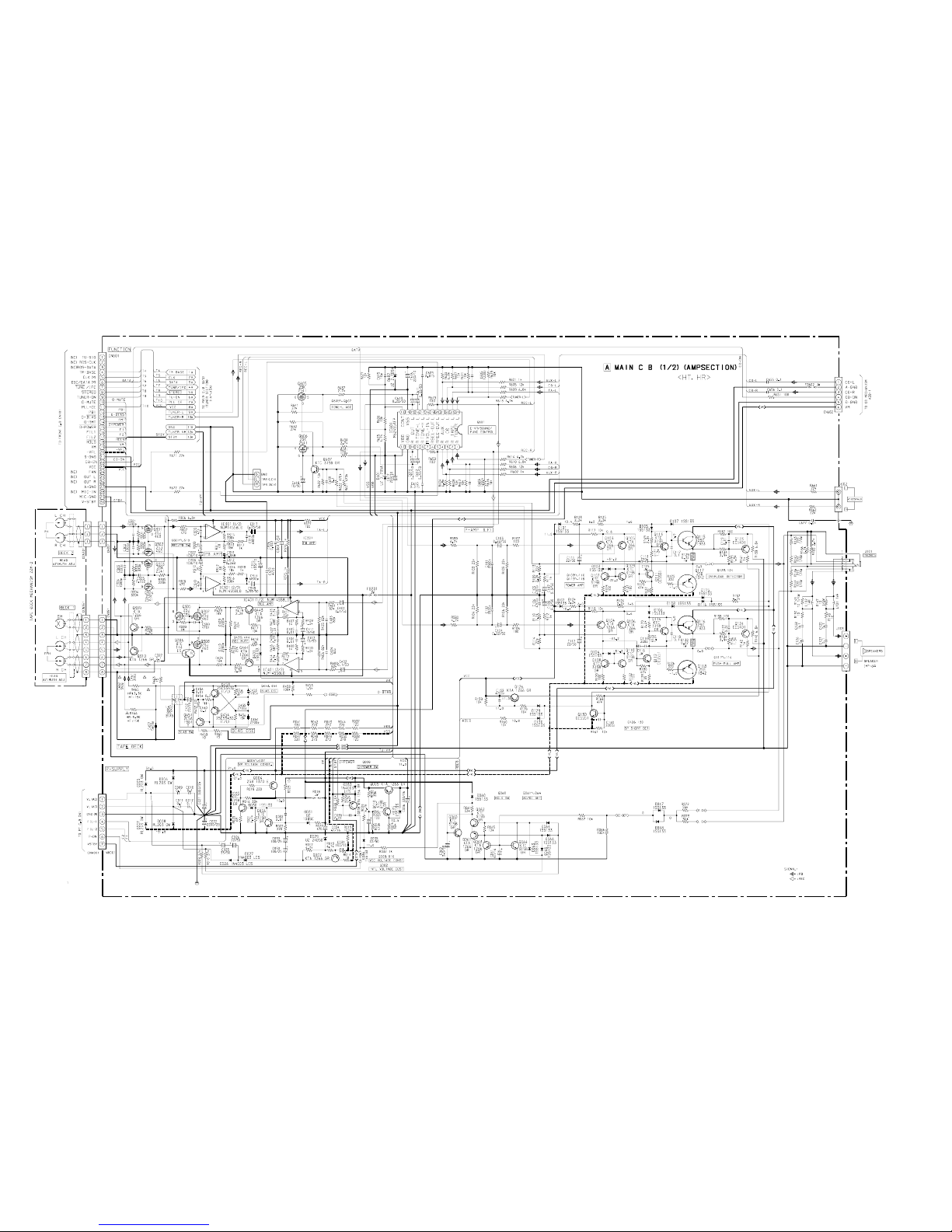

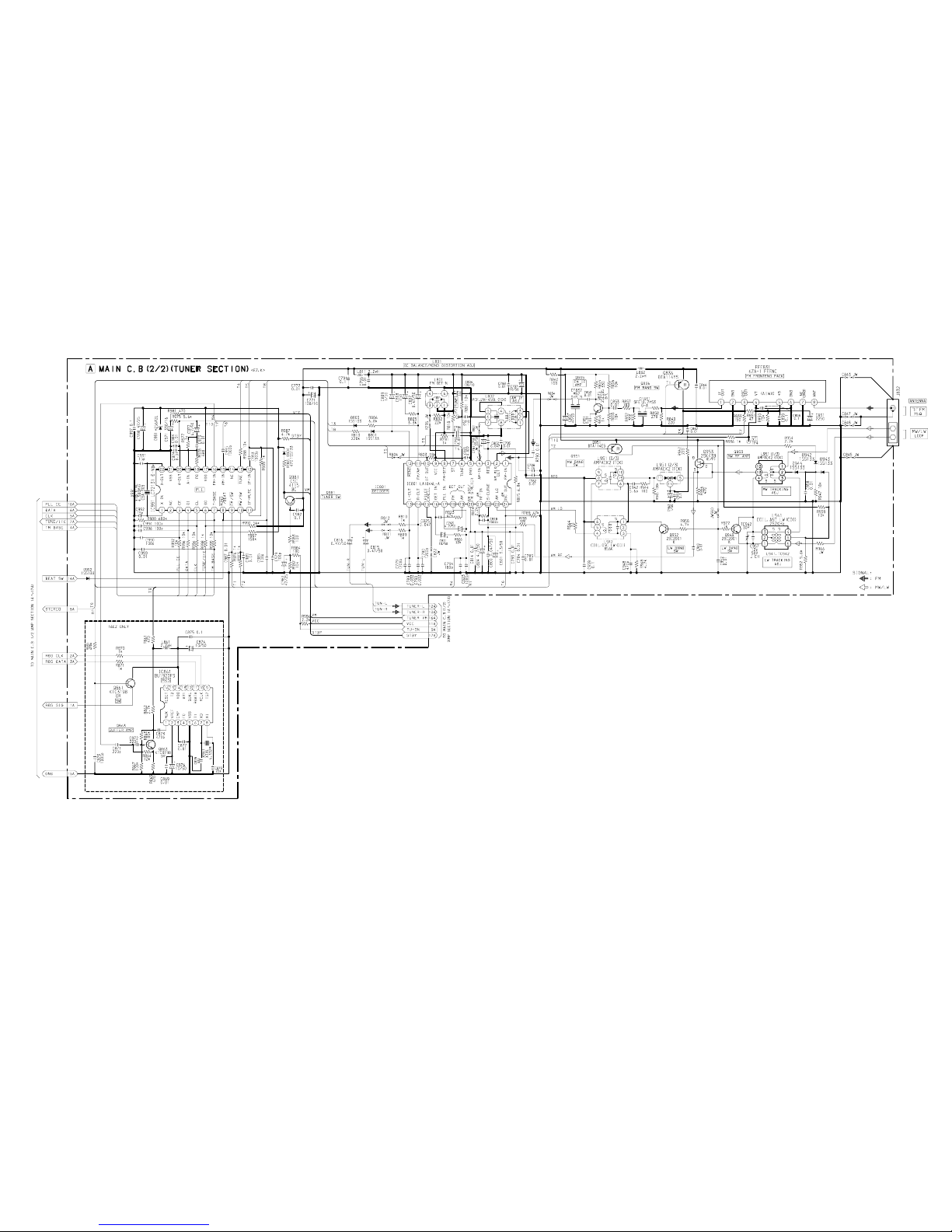

MAIN C.B
C3 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C4 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C5 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C6 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C9 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C9 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C10 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C10 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C11 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C11 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C12 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C12 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C19 87-A12-431-000 CAP,E 2200-50 M 85 IVLELON<LH,17U>
C20 87-A12-431-000 CAP,E 2200-50 M 85 IVLELON<LH,17U>
C21 87-A12-442-000 CAP,E 3300-25M85IVLELON<LH,17U,14U>
C21 87-A12-440-000 CAP,E3300-35M85IV<HT,K,14EZ,16EZ,V>
C21 87-A10-520-000 CAP,E 3300-35 M SMG<HS,HR>
C22 87-A12-381-000 CAP,E 2200-25 M 85IV<LH,17U,14U>
C22 87-A12-441-000 CAP,E2200-35M85IV<HT,K,14EZ,16EZ,V>
C22 87-016-051-000 CAP,E 2200-35 M SMG<HS,HR>
C25 87-010-385-080 CAP, ELECT 220-25V<LH,17U>
C25 87-010-407-080 CAP, ELECT 33-50V<K,14EZ,16EZ,14U,V>
C25 87-010-406-080 CAP,E 22-50M 11L SME<HS,HT,HR>
C26 87-010-247-080 CAP, ELECT 100-50V<LH,17U>
C26 87-010-406-080 CAP, ELECT 22-50<EXCEPT LH,17U>
C30 87-010-384-080 CAP, ELECT 100-25V<EXCEPT LH,17U>
C30 87-010-247-080 CAP, ELECT 100-50V<LH,17U>
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C32 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C33 87-010-263-080 CAP,E 100-10 M11L<14U>
C34 87-010-247-080 CAP, ELECT 100-50V<LH,17U>
C34 87-010-380-080 CAP, ELECT 47-16V<EXCEPT LH,17U>
C35 87-010-406-080 CAP, ELECT 22-50
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-A11-145-080 CAP,TC U 0.01-50 Z F<EXCEPT LH,17U>
C38 87-010-190-080 S CHIP F 0.01<LH,17U>
C50 87-010-384-080 CAP, ELECT 100-25V<EXCEPT LH,17U>
C60 87-010-403-080 CAP, ELECT 3.3-50V
C61 87-010-380-080 CAP, ELECT 47-16V<EXCEPT LH,17U>
C61 87-010-260-080 CAP, ELECT 47-25V<LH,17U>
C97 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C101 87-010-183-080 C-CAP,S 2700P-50 B<LH,17U>
C101 87-A11-127-080 CAP,TC U 3900P-50 K B<EXCEPT LH,17U>
C102 87-010-183-080 C-CAP,S 2700P-50 B<LH,17U>
C102 87-A11-127-080 CAP,TC U 3900P-50 K B<EXCEPT LH,17U>
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C105 87-A11-128-080 CAP,TC U 4700P-50 K B<EXCEPT LH,17U>
C105 87-010-178-080 CHIP CAP 1000P<LH,17U>
C106 87-A11-128-080 CAP,TC U 4700P-50 K B<EXCEPT LH,17U>
C106 87-010-178-080 CHIP CAP 1000P<LH,17U>
C107 87-010-403-080 CAP, ELECT 3.3-50V<EXCEPT LH,17U>
C107 87-010-404-080 CAP, ELECT 4.7-50V<LH,17U>
C108 87-010-403-080 CAP, ELECT 3.3-50V<EXCEPT LH,17U>
C108 87-010-404-080 CAP, ELECT 4.7-50V<LH,17U>
C109 87-A11-096-080 CAP,TCU220P-50J <K,HS,14EZ,16EZ>
C110 87-A11-096-080 CAP,TC U220P-50J<K,HS,14EZ,16EZ>
C111 87-010-406-080 CAP, ELECT 22-50<EXCEPT LH,17U>
C111 87-010-391-080 CAP,E 10-35 SME<LH,17U>
C112 87-010-406-080 CAP, ELECT 22-50<EXCEPT LH,17U>
C112 87-010-391-080 CAP,E 10-35 SME<LH,17U>
C113 87-A10-946-080 C-CAP,S 220P-100 J CH<LH,17U>
C113 87-A11-096-080 CAP,TC U 220P-50 J CH<EXCEPT LH,17U>
C114 87-A10-946-080 C-CAP,S 220P-100 J CH<LH,17U>
C114 87-A11-096-080 CAP,TC U 220P-50 J CH<EXCEPT LH,17U>
C117 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C118 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C119 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C119 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
 4 

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C120 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C120 87-A11-132-080 CAP,TC U 0.01-50KB<EXCEPT LH,17U>
C123 87-A11-132-080 CAP,TC U 0.01-50KB<K,14EZ,16EZ,V>
C124 87-A11-132-080 CAP,TC U 0.01-50KB<K,14EZ,16EZ,V>
C125 87-012-368-080 C-CAP,S 0.1-50 F<LH,17U>
C125 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C126 87-012-368-080 C-CAP,S 0.1-50 F<LH,17U>
C126 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C127 87-012-368-080 C-CAP,S 0.1-50 F<LH,17U>
C127 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C128 87-012-368-080 C-CAP,S 0.1-50 F<LH,17U>
C128 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C129 87-A10-592-080 C-CAP,S 0.015-50 J B<LH,17U>
C129 87-A11-132-080 CAP,TC U 0.01-50 KB<K,14EZ,16EZ>
C130 87-A10-592-080 C-CAP,S 0.015-50 J B<LH,17U>
C130 87-A11-132-080 CAP,TC U 0.01-50 KB<K,14EZ,16EZ>
C131 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C131 87-A11-132-080 CAP,TC U 0.01-50 KB<K,14EZ,16EZ>
C132 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C132 87-A11-132-080 CAP,TC U 0.01-50 KB<K,14EZ,16EZ>
C133 87-010-186-080 CAP,CHIP 4700P<LH,17U>
C133 87-A11-128-080 CAP,TC U 4700P-50 K B<EXCEPT LH,17U>
C140 87-010-182-080 C-CAP,S 2200P-50 B<LH,17U>
C140 87-A11-124-080 CAP,TC U 2200P-50 K B<EXCEPT LH,17U>
C185 87-018-209-080 CAP,TC U 0.1-50 ZF<K,14EZ,16EZ>
C186 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C187 87-010-405-080 CAP, ELECT 10-50V<LH,17U>
C188 87-010-405-080 CAP, ELECT 10-50V<LH,17U>
C235 87-010-408-080 CAP, ELECT 47-50V<17U>
C236 87-010-408-080 CAP, ELECT 47-50V<17U>
C301 87-010-179-080 CAP,CHIP S B1200P<LH,17U>
C301 87-A11-121-080 CAP,TC U 1200P-50 K B<EXCEPT LH,17U>
C302 87-010-179-080 CAP,CHIP S B1200P<LH,17U>
C302 87-A11-121-080 CAP,TC U 1200P-50 K B<EXCEPT LH,17U>
C303 87-018-131-080 CAP,TC U 1000P-50 KB<EXCEPT LH,17U>
C304 87-018-131-080 CAP,TC U 1000P-50 KB<EXCEPT LH,17U>
C305 87-010-198-080 CAP, CHIP 0.022<LH,17U>
C305 87-A11-136-080 CAP,TC U 0.022-50 K B<EXCEPT LH,17U>
C307 87-010-263-080 CAP, ELECT 100-10V
C308 87-010-263-080 CAP, ELECT 100-10V
C309 87-010-318-080 C-CAP,S 47P-50 CH<LH,17U>
C309 87-A11-075-080 CAP,TC U 27P-50 J CH<K,14EZ,16EZ>
C309 87-A11-080-080 CAP,TC U 47P-50 J CH<HS,HT,14U,HR,V>
C310 87-010-318-080 C-CAP,S 47P-50 CH<LH,17U>
C310 87-A11-075-080 CAP,TC U 27P-50 J CH<K,14EZ,16EZ>
C310 87-A11-080-080 CAP,TC U 47P-50 J CH<HS,HT,14U,HR,V>
C311 87-010-598-080 C-CAP,S 0.068-16VRK<LH,17U>
C311 87-A11-142-080 CAP,TC U 0.068-50 K B<EXCEPT LH,17U>
C312 87-010-598-080 C-CAP,S 0.068-16VRK<LH,17U>
C312 87-A11-142-080 CAP,TC U 0.068-50 K B<EXCEPT LH,17U>
C313 87-010-188-080 CAP,CHIP 6800P<LH,17U>
C313 87-A11-130-080 CAP,TC U 6800P-50 K B<EXCEPT LH,17U>
C314 87-010-188-080 CAP,CHIP 6800P<LH,17U>
C314 87-A11-130-080 CAP,TC U 6800P-50 K B<EXCEPT LH,17U>
C315 87-010-263-080 CAP, ELECT 100-10V
C317 87-010-546-080 CAP, ELECT 0.33-50V
C318 87-010-546-080 CAP, ELECT 0.33-50V
C320 87-A11-148-080 CAP,TC U 0.1-50 ZF<K,14EZ,16EZ>
C321 87-A11-148-080 CAP,TC U 0.1-50 ZF<K,14EZ,16EZ>
C324 87-A11-148-080 CAP,TC U 0.1-50 ZF<K,14EZ,16EZ>
C325 87-A11-148-080 CAP,TC U 0.1-50 ZF<K,14EZ,16EZ>
C326 87-010-198-080 CAP, CHIP 0.022<LH,17U>
C326 87-A11-136-080 CAP,TC U 0.022-50 K B<EXCEPT LH,17U>
C327 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C327 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C350 87-A11-148-080 CAP,TC U 0.1-50 ZF<K,14EZ,16EZ>
C360 87-010-401-080 CAP, ELECT 1-50V
C363 87-A11-132-080 CAP,TC U 0.01-50 KB<K,14EZ,16EZ>
C399 87-012-140-080 CAP 470P<LH,17U>
C399 87-A11-104-080 CAP,TC U 470P-50 J CH<EXCEPT LH,17U>
C401 87-010-544-080 CAP, ELECT 0.1-50V
C402 87-010-544-080 CAP, ELECT 0.1-50V
C403 87-A11-086-080 CAP,TC U 82P-50 J CH<EXCEPT LH,17U>
C403 87-010-321-080 CHIP CAPACITOR,82P(J)<LH,17U>
C404 87-A11-086-080 CAP,TC U 82P-50 J CH<EXCEPT LH,17U>
C404 87-010-321-080 CHIP CAPACITOR,82P(J)<LH,17U>
C405 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C405 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C406 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C406 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C407 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C407 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C408 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C408 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C409 87-010-182-080 C-CAP,S 2200P-50 B<LH,17U>
C409 87-A11-124-080 CAP,TC U 2200P-50 K B<EXCEPT LH,17U>
C410 87-010-182-080 C-CAP,S 2200P-50 B<LH,17U>
C410 87-A11-124-080 CAP,TC U 2200P-50 K B<EXCEPT LH,17U>
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
C452 87-010-382-080 CAP, ELECT 22-25V
C453 87-010-183-080 C-CAP,S 2700P-50 B<LH,17U>
C453 87-A11-125-080 CAP,TC U 2700P-50 K B<EXCEPT LH,17U>
C454 87-010-183-080 C-CAP,S 2700P-50 B<LH,17U>
C454 87-A11-125-080 CAP,TC U 2700P-50 K B<EXCEPT LH,17U>
C455 87-010-183-080 C-CAP,S 2700P-50 B<LH,17U>
C455 87-A11-125-080 CAP,TC U 2700P-50 K B<EXCEPT LH,17U>
C456 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C456 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-018-131-080 CAP, CER 1000P-50V<K,14EZ,16EZ,14U,V>
C459 87-A11-106-080 CAP,TC U 560P-50 J CH<K,14EZ,16EZ,V>
C460 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C460 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C461 87-012-158-080 C-CAP,S 390P-50 CH<LH,17U>
C461 87-018-126-080 CAP,TC-U 390P-50 B<EXCEPT LH,17U>
C462 87-012-158-080 C-CAP,S 390P-50 CH<LH,17U>
C462 87-018-126-080 CAP,TC-U 390P-50 B<EXCEPT LH,17U>
C470 87-018-127-080 CAP, CER 470P-50V
C605 87-010-179-080 CAP,CHIP S B1200P<LH,17U>
C605 87-A11-121-080 CAP,TC U 1200P-50 K B<EXCEPT LH,17U>
C606 87-010-179-080 CAP,CHIP S B1200P<LH,17U>
C606 87-A11-121-080 CAP,TC U 1200P-50 K B<EXCEPT LH,17U>
C609 87-010-213-080 C-CAP,S 0.015-50 B<LH,17U>
C609 87-A11-134-080 CAP,TC U 0.015-50V K B<EXCEPT LH,17U>
C610 87-010-213-080 C-CAP,S 0.015-50 B<LH,17U>
C610 87-A11-134-080 CAP,TC U 0.015-50V K B<EXCEPT LH,17U>
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-010-154-080 CAP CHIP 10P<LH,17U>
C615 87-018-147-080 CAP,TC-U 10P-50 CH<EXCEPT LH,17U>
C616 87-010-248-080 CAP, ELECT 220-10V<EXCEPT LH,17U>
C616 87-010-385-080 CAP, ELECT 220-25V<LH,17U>
C617 87-010-248-080 CAP, ELECT 220-10V<EXCEPT LH,17U>
C617 87-010-385-080 CAP, ELECT 220-25V<LH,17U>
C618 87-010-405-080 CAP, ELECT 10-50V
C630 87-016-669-080 C-CAP,S 0.1-25 K B<LH,17U>
C630 87-A11-144-080 CAP,TC U 0.1-50KB<EXCEPT LH,17U>
C655 87-A11-144-080 CAP,TC U 0.1-50 K B<EXCEPT LH,17U>
C656 87-A11-144-080 CAP,TC U 0.1-50 K B<EXCEPT LH,17U>
C669 87-010-322-080 C-CAP,S 100P-50 CH<LH,17U>
C669 87-A11-088-080 CAP,TC U 100P-50 J CH<K,14EZ,16EZ>
C670 87-010-322-080 C-CAP,S 100P-50 CH<LH,17U>
C670 87-A11-088-080 CAP,TC U 100P-50 J CH<K,14EZ,16EZ>
C677 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C677 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C702 87-010-178-080 CHIP CAP 1000P<K,14EZ,16EZ,14U>
C771 87-010-263-080 CAP, ELECT 100-10V
 5 

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C772 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C772 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C779 87-A11-121-080 CAP,TC U 1200P-50 K B<K,14EZ,16EZ>
C780 87-A11-121-080 CAP,TC U 1200P-50 K B<K,14EZ,16EZ>
C782 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C782 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C783 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C783 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C784 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C785 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C785 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C786 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C788 87-010-149-080 C-CAP,S 5P-50 CH<LH,17U>
C788 87-018-143-080 CAP,TC-U 4.7P-50 CH<EXCEPT LH,17U>
C789 87-A12-052-080 C-CAP,S 0.033-25 J B<LH,17U>
C789 87-A11-136-080 CAP,TC U 0.022-50 K B<HS,HT,HR,V>
C789 87-A11-138-080 CAP,TC U 0.033-50K B<K,14EZ,16EZ,14U>
C790 87-A12-052-080 C-CAP,S 0.033-25 J B<LH,17U>
C790 87-A11-136-080 CAP,TC U 0.022-50 K B<HS,HT,HR,V>
C790 87-A11-138-080 CAP,TC U 0.033-50K B<K,14EZ,16EZ,14U>
C791 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C791 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C792 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C792 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C793 87-010-404-080 CAP, ELECT 4.7-50V
C794 87-018-122-080 CAP 180P-50 B<K,14EZ,16EZ>
C795 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C796 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C796 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C798 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F<LH,17U>
C800 87-A11-147-080 CAP,TC U 0.047-50 Z F<EXCEPT LH,17U>
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-012-369-080 C-CAP,S 0.047-50F<LH,17U>
C802 87-A11-147-080 CAP,TC U 0.047-50 Z F<EXCEPT LH,17U>
C803 87-010-198-080 CAP, CHIP 0.022<LH,17U>
C803 87-A11-136-080 CAP,TC U 0.022-50KB<EXCEPT LH,17U>
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C814 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C814 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT LH,17U>
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C818 87-A11-122-080 CAP,TC U 1500P-50 K B<K,14EZ,16EZ>
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL<LH,17U>
C823 87-018-131-080 CAP, CER 1000P-50V<K,14EZ,16EZ>
C823 87-A11-110-080 CAP,TC U 820P-50 J CH<HS,HT,14U,HR,V>
C824 87-010-405-080 CAP, ELECT 10-50V<LH,17U>
C824 87-010-404-080 CAP, ELECT 4.7-50V<EXCEPT LH,17U>
C825 87-010-596-080 CAP, S 0.047-16<LH,17U>
C825 87-A11-140-080 CAP,TC U 0.047-50 K B<EXCEPT LH,17U>
C831 87-010-406-080 CAP, ELECT 22-50<K,14EZ,16EZ>
C842 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C842 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
C844 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C844 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
C850 87-010-260-080 CAP, ELECT 47-25V<EXCEPT LH,17U>
C851 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C851 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
C852 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C852 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
C853 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C853 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
C858 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C858 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C859 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C859 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C860 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C869 87-A11-132-080 CAP,TC U 0.01-50 K B<16EZ>
C870 87-018-131-080 CAP, CER 1000P-50V<16EZ>
C871 87-A11-096-080 CAP,TC U 220P-50 J CH<16EZ>
C872 87-A11-096-080 CAP,TC U 220P-50 J CH<16EZ>
C873 87-A11-104-080 CAP,TC U 470P-50 J CH<16EZ>
C874 87-010-405-080 CAP, ELECT 10-50V<16EZ>
C875 87-A11-148-080 CAP,TC U 0.1-50 Z F<16EZ>
C876 87-010-405-080 CAP, ELECT 10-50V<16EZ>
C877 87-A11-132-080 CAP,TC U 0.01-50 K B<16EZ>
C878 87-A11-076-080 CAP,TC U 33P-50 J CH<16EZ>
C879 87-A11-073-080 CAP,TC U 22P-50 J CH<16EZ>
C940 87-A11-132-080 CAP,TC U 0.01-50 KB<HT,HR>
C941 87-018-150-080 CAP,TC-U 18P-50 CH<HT,HR>
C942 87-018-101-080 CAP,TC-U 5.6P-50 SL<K,14EZ,16EZ>
C943 87-A11-132-080 CAP,TC U 0.01-50 KB<HT,HR>
C945 87-A11-132-080 CAP,TC U 0.01-50 KB<HT,HR>
C948 87-014-049-080 CAP,PP 470P-100 J<K,14EZ,16EZ>
C948 87-014-049-080 CAP,PP 470P-100 J PL<K,14EZ,16EZ>
C949 87-018-099-080 CAP CERA 3.9P-50<HT,HR>
C952 87-A11-132-080 CAP,TC U 0.01-50 KB<HT,HR>
C953 87-A11-132-080 CAP,TC U 0.01-50 KB<HT,HR>
C954 87-010-400-080 CAP, ELECT 0.47-50V<HT,HR>
C956 87-010-263-080 CAP, ELECT 100-10V<HT,HR>
C957 87-018-148-080 CAP,TC-U 12P-50 CH<K,14EZ,16EZ>
C958 87-A11-132-080 CAP,TC U 0.01-50KB<EXCEPT LH,17U,14U>
C959 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C959 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C960 87-A11-148-080 CAP,TC U 0.1-50ZF<EXCEPT LH,17U>
C960 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C961 87-010-152-080 C-CAP,S 8P-50 CH<LH,17U>
C961 87-018-103-080 CAP, CER 8.2P-50V<HS,14U,V>
C962 87-010-401-080 CAP, ELECT 1-50V<HT,K,14EZ,16EZ,HR>
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z<LH,17U>
C964 87-014-051-080 CAPACITOR (PP), 560P<HT,HR>
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C973 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
C974 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C974 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
C979 87-010-322-080 C-CAP,S 100P-50 J CH<LH,17U>
C979 87-A11-088-080 CAP,TC U 100P-50J CH<EXCEPT LH,17U>
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C982 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C983 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C984 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C984 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
C987 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
C987 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
C989 87-A11-132-080 CAP,TC U0.01-50K B<HT,K,14EZ,16EZ,HR>
C990 87-A11-088-080 CAP,TC U 100P-50 J CH<EXCEPT LH,17U>
C991 87-010-312-080 C-CAP,S 15P-50 CH<LH,17U>
C991 87-018-149-080 CAP,TC-U 15P-50 CH<EXCEPT LH,17U>
C992 87-010-312-080 C-CAP,S 15P-50 CH<LH,17U>
C992 87-018-149-080 CAP,TC-U 15P-50 CH<EXCEPT LH,17U>
C993 87-018-131-080 CAP, CER 1000P-50V<EXCEPT LH,17U>
C993 87-010-178-080 CHIP CAP 1000P<LH,17U>
C994 87-A11-088-080 CAP,TC U 100P-50 J CH<EXCEPT LH,17U>
C995 87-018-131-080 CAP, CER 1000P-50V<EXCEPT LH,17U>
C995 87-010-178-080 CHIP CAP 1000P<LH,17U>
C996 87-A11-088-080 CAP,TC U 100P-50 J CH<EXCEPT LH,17U>
C997 87-A11-148-080 CAP,TC U 0.1-50 Z F<EXCEPT LH,17U>
C997 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,17U>
C998 87-010-260-080 CAP, ELECT 47-25V
 

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-423-010 FILTER, SFE10.7<LH,K,17U,14EZ,16EZ>
CF831 87-008-261-010 FILTER, SFE10.7MA5-A<EXCEPT K,14EZ,16EZ>
CF832 82-785-747-010 CF MS2 GHY R<K,14EZ,16EZ>
CF832 87-008-261-010 FILTER, SFE10.7MA5-A<EXCEPT K,14EZ,16EZ>
CNA1 8A-NF8-652-010 CONN ASSY,7P TI -A(480)<HT,HS,HR>
CNA1 8A-NF8-653-010 CONN ASSY,9P TI -A(480)<LH>
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-099-194-010 CONN,6P 6216V
CON301 8A-NFA-633-010 CONN ASSY,3P(PH)
CON351 8A-NFA-634-010 CONN ASSY,8P RPB
FB301 87-008-372-080 FILTER, EMI BL OIRNI<K,14EZ,16EZ>
FB602 87-008-372-080 FILTER, EMI BL OIRNI<K,14EZ,16EZ,V>
FFE831 A8-6ZA-199-170 6ZA-1 FEENC<K,14EZ,16EZ>
FFE831 A8-8ZA-194-030 8ZA-1 FEMUNM<HS,HR>
FFE831 A8-8ZA-192-070 8ZA-1 FEUNC<LH,17U>
FFE831 A8-8ZA-192-070 8ZA-1 FEUNC<HT,14U>
FFE831 A8-6ZA-19E-170 6ZA-1 FEVNC<V>
J101 87-A60-602-010 JACK, IA6.3 BLK ST W/SW TC
J103 87-A60-238-010 TERMINAL,SP 4P (MSC)<EXCEPT LH,17U>
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)<LH,17U>
J205 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN<17U>
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERM,ANT4PMSP-154V02<EXCEPT K,14EZ,16EZ>
J832 87-A60-403-010 TERMINAL,ANT PAL2PHSP312V05<K,14EZ,16EZ>
J940 87-A60-633-010 CONN,2P H 2.5MM JMT<HT,HR>
L101 87-A50-611-010 COIL,1UH K(CS)<EXCEPT HS,HR>
L101 87-A50-610-010 COIL,1UH K(M EC)<HS,HR>
L102 87-A50-611-010 COIL,1UH K(CS)<EXCEPT HS,HR>
L102 87-A50-610-010 COIL,1UH K(M EC)<HS,HR>
L451 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM ET-N(TOK)
L802 87-A91-552-010 FLTR,CFMT-450AL (TOK)<HT,HR>
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)<EXCEPT HT,HR>
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L861 87-005-847-080 COIL,2.2UH(CECS)<16EZ>
L941 87-A50-020-010 COIL,ANT LW(COI)<K,14EZ,16EZ>
L941 87-A50-022-010 COIL,ANT SW(COI)<HT,HR>
L942 87-A50-019-010 COIL,OSC LW(COI)<K,14EZ,16EZ>
L942 87-A50-173-010 COIL,OSC SW-N(COI)<HT,HR>
L943 87-A50-522-080 COIL,1MH K CEC<HT,HR>
L944 87-A50-159-010 COIL,10MH K C2B<HT,HR>
L951 8A-NF8-668-010 COIL,AM PACK 2(TOK)<K,14EZ,16EZ>
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)<LH,HS,17U,14U,V>
L952 87-A50-430-010 COIL,ANT MW(3BSW)<HT,HR>
L953 87-A50-431-010 COIL,OSC MW(3BSW)<HT,HR>
R129 87-A00-258-080 RES,M/F0.22-1WJ<HS,HT,HR>
R129 87-A00-261-080 RES,M/F 0.56-1W J<K,14EZ,16EZ,14U,V>
R130 87-A00-258-080 RES,M/F 0.22-1W J<HS,HT,HR>
R130 87-A00-261-080 RES,M/F 0.56-1W J<K,14EZ,16EZ,14U,V>
R131 87-A00-258-080 RES,M/F 0.22-1W J<LH,17U>
R132 87-A00-258-080 RES,M/F 0.22-1W J<LH,17U>
R143 87-A00-440-050 RES,220-1/2W J RP<LH,17U>
R144 87-A00-440-050 RES,220-1/2W J RP<LH,17U>
R145 87-A00-440-050 RES,220-1/2W J RP<LH,17U>
R146 87-A00-440-050 RES,220-1/2W J RP<LH,17U>
R653 87-A11-144-080 CAP,TC U 0.1-50 K B<LH,17U>
R654 87-A11-144-080 CAP,TC U 0.1-50 K B<LH,17U>
R790 87-010-197-080 CAP, CHIP 0.01 M<LH,17U>
R790 87-A11-132-080 CAP,TC U 0.01-50 KB<EXCEPT LH,17U>
R991 87-010-322-080 C-CAP,S 100P-50 CH<LH,17U>
R993 87-010-322-080 C-CAP,S 100P-50 CH<LH,17U>
R995 87-010-322-080 C-CAP,S 100P-50 CH<LH,17U>
TC941 87-A91-773-080 TRIMMER,PLY 20P 6.8X5.4 C YL<HT,HR>
TC942 87-A91-774-080 TRIMMER,PLY 30P6.8X5.4 C YL<K,14EZ,16EZ>
TC943 87-A91-774-080 TRIMMER,PLY 30P 6.8X5.4<HT,HR>
TH101 87-A91-042-080 C-THMS,100K 55001<LH,17U>
TH102 87-A91-042-080 C-THMS,100K 55001<LH,17U>
WH1 87-A90-510-010 HL R,WIRE 2.5-9P<LH>
WH001 8A-NF8-653-010 CONN ASSY, 9P TI -A(480)<17U>
WH001 87-A90-460-010 HOL ,WIRE 2.5-7P<EXCEPT LH,17U>
W99 8A-NFA-627-010 F-CABLE,9P 2.5 260MM<17U>
W181 8A-NFA-628-010 F-CABLE,7P2.5 260MM<K,14EZ,16EZ,14U,V>
X861 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309<16EZ>
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-012-369-080 C-CAP,S 0.047-50F
C103 87-010-374-040 CAP,E 47-10
C104 87-A10-797-040 CAP,E 47-35 M 5L SRM
C105 87-010-192-080 C-CAP,S 0.022-50 F
C107 87-010-196-080 CHIP CAPACITOR,0.1-25
C108 87-010-178-080 CHIP CAP 1000P
C109 87-012-369-080 C-CAP,S 0.047-50F
C110 87-010-197-080 CAP, CHIP 0.01 M
C111 87-010-196-080 CHIP CAPACITOR,0.1-25
C113 87-010-178-080 CHIP CAP 1000P
C114 87-010-154-080 CAP CHIP 10P
C115 87-010-175-080 CAP 560P
C116 87-010-400-040 CAP,E 0.47-50
C117 87-016-460-080 C-CAP,S 0.22-16 B
C118 87-A10-189-040 CAP,E 220-10
C119 87-A10-189-040 CAP,E 220-10
C120 87-012-156-080 C-CAP,S 220P-50 CH
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C124 87-010-196-080 CHIP CAPACITOR,0.1-25
C125 87-010-405-040 CAP,E 10-50
C126 87-010-196-080 CHIP CAPACITOR,0.1-25
C129 87-010-374-040 CAP,E 47-10
C210 87-012-156-080 C-CAP,S 220P-50 CH
C212 87-010-404-040 CAP,E 4.7-50 SME
C213 87-010-404-040 CAP,E 4.7-50 SME
C401 87-010-186-080 CAP,CHIP 4700P<HT,HS,HR>
C402 87-010-060-040 CAP,E 100-16<HT,HS,HR>
C403 87-010-545-040 CAP,E 0.22-50 SME<HT,HS,HR>
C404 87-010-322-080 C-CAP,S 100P-50 CH<HT,HS,HR>
C405 87-010-545-040 CAP,E 0.22-50 SME<HT,HS,HR>
C406 87-016-669-080 C-CAP,S 0.1-25 K B<HT,HS,HR>
C407 87-010-405-040 CAP,E 10-50<HT,HS,HR>
C408 87-010-322-080 C-CAP,S 100P-50 CH<HT,HS,HR>
C409 87-010-378-040 CAP,E 10-16<HT,HS,HR>
C410 87-010-196-080 CHIP CAPACITOR,0.1-25<HT,HS,HR>
C412 87-010-177-080 C-CAP,S 820P-50 SL<HT,HS,HR>
C701 87-010-384-040 CAP,E 100-25 SME
C702 87-010-178-080 CHIP CAP 1000P<V>
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN701 87-A60-673-010 CONN,9P H 2MM JMT
CN801 87-099-015-010 CONN,13P 6216V
EMI401 87-008-372-080 FILTER, EMI BL OIRNI<HT,HS,HR>
FL201 8A-NFA-604-010 FL,10-BT-224GNK
J401 87-A61-243-010 JACK,6.3 BLK MONO W/SW V MSC<HT,HS,HR>
L101 87-A50-655-010 COIL,CLK 4.19MHZ (TOKO)7KLY
LE 101 87-A40-317-080 LE ,SLR-342VCT31 RE
S101 87-A91-555-010 SW,RTRY EC12E24504
S301 87-A90-164-080 SW,TACT SKQAB(N)
S302 87-A90-164-080 SW,TACT SKQAB(N)
S303 87-A90-164-080 SW,TACT SKQAB(N)
S304 87-A90-164-080 SW,TACT SKQAB(N)
S305 87-A90-164-080 SW,TACT SKQAB(N)
S306 87-A90-164-080 SW,TACT SKQAB(N)
S307 87-A90-164-080 SW,TACT SKQAB(N)
S308 87-A90-164-080 SW,TACT SKQAB(N)
S309 87-A90-164-080 SW,TACT SKQAB(N)
S321 87-A90-164-080 SW,TACT SKQAB(N)
S322 87-A90-164-080 SW,TACT SKQAB(N)
 7 

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
S323 87-A90-164-080 SW,TACT SKQAB(N)
S324 87-A90-164-080 SW,TACT SKQAB(N)
S325 87-A90-164-080 SW,TACT SKQAB(N)
S326 87-A90-164-080 SW,TACT SKQAB(N)
S327 87-A90-164-080 SW,TACT SKQAB(N)
S328 87-A90-164-080 SW,TACT SKQAB(N)
S329 87-A90-164-080 SW,TACT SKQAB(N)
S330 87-A90-164-080 SW,TACT SKQAB(N)
S331 87-A90-164-080 SW,TACT SKQAB(N)
SFR701 87-024-431-080 SFR,3.3K RH063EC
VR401 87-NB7-602-010 VR,RTRY 10KAX1 1 V<HT,HS,HR>
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME<LH,HT,HS,HR>
C31 87-010-403-080 CAP, ELECT 3.3-50V<LH,HT,HS,HR>
C183 87-010-387-080 CAP,E 470-25 SME<K,17U,14EZ,16EZ,14U,V>
C184 87-010-403-080 CAP, ELECT 3.3-50V<K,17U,14EZ,16EZ,14U,V>
C185 87-018-209-080 CAP, CER 0.1-50V<K,14EZ,16EZ,V>
CN1 87-A61-109-010 CONN,7P V TI -A<HT,HS,HR>
CN1 87-A61-110-010 CONN,9P V TI -A<LH>
PT001 8A-NFA-606-010 PT,ANF-A HR<HT,HS,HR>
PT001 8A-NFA-613-010 PT,ANF-A LH IS<LH>
PT001 8A-NFA-607-010 PT,ANF-AU<14U>
PT001 8A-NFA-608-010 PT,ANF-EZ<K,14EZ,16EZ,V>
PT001 8A-NFZ-612-010 PT,ANF-Z U- IS<17U>
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI<LH,HT,HS,HR>
PT181 8A-NF8-662-010 PT,SUB ANF-8 (E)<K,14EZ,16EZ,V>
PT181 8A-NF8-661-010 PT,SUB ANF-8 (U)<17U,14U>
RY1 87-A91-281-010 RELAY,AC C12V OSA-SS-212 M5<LH,HT,HS,HR>
RY181 87-A90-976-010 RELAY,AC12VS T-S-112LMR<EXCEPT LH,HT,HS,HR>
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<LH,HT,HR>
T1 87-A60-317-010 TERMINAL, 1P MSC<LH,HT,HS,HR>
T2 87-A60-317-010 TERMINAL, 1P MSC<LH,HT,HS,HR>
T181 87-A60-317-010 TERMINAL, 1P MSC<K,17U,14EZ,16EZ,14U,V>
T182 87-A60-317-010 TERMINAL, 1P MSC<K,17U,14EZ,16EZ,14U,V>
WH181 87-A90-460-010 HL R,WIRE 2.5-7P<K,14EZ,16EZ,14U,V>
WH181 87-A90-510-010 HL R,WIRE 2.5-9P<17U>
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
 8 

TRANSISTOR ILLUSTRATION
E C B
2SK439
DTA114
DTC114
DTC144
KTA1267
E C B
E C B
2SC5343
2SC2001
CC5551
CC5401
B C E
2SB1686
2SD2642
G D S
2SK2937
 9 
CSC4115
KTA1266
KTC3198
KTC3199
2SC535
2SB1342
2SB1370
2SD1933
B C E
E
B
C
2SA1235
2SC2714
2SC3052
CMBT5401
CMBT5551
2SJ460
2SK2541
S D G
KRA102
KRA107
KRC102
KRC104
E B C
2SA1981

WIRING – 1 (MAIN : 17U, LH)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 10 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
