SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
NSX-AJ700
NSX-SZ700
NSX-SZ705
U
LH
LH
S/M Code No. 09-013-441-7R1
REVISION
• If requiring information about the CD mechanism, see Service Manual of BZG-5,
(S/M Code No. 09-00C-353-3N2).
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
NSX-AJ700 (U) / NSX-SZ700 (LH) / NSX-SZ705 (LH), (S/M Code No. 09-012-441-7T1).
BASIC TAPE MECHANISM : 2ZM-3MK2 PR9NM
ZZM-3 PR1NM
BASIC CD MECHANISM : BZG-5 ZD3N1M
NSX–AJ700
SYSTEM CD
CASSEIVER
CX–NAJ700
NSX–SZ700 CX–NSZ700
NSX–SZ705 CX–NSZ705
TAPE
MECHANISM
ZZM-3 PR1NM
2ZM-3MK2 PR9NM
SPEAKER REMOTE
CONTROLLER
SX–NAJ702
RC–BAS02SX–WNSZ703
SX–NSZ7052ZM-3MK2 PR9NM

– 2 –
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Power output U : 100 W + 100 W
(50 Hz to 20 kHz, T.H.D. less than
1 %, 6 ohms)
120 W + 120 W
(1 kHz, T.H.D. less than 10 %, 6 ohms)
LH : Rated 112 W + 112 W
(1 kHz, T.H.D. 1 %, 6 ohms)
Reference : 140 W + 140 W (6 ohms,
T.H.D. 10 %, 1 kHz)
Total harmonic distortion U : 0.08 % (10 W, 1 kHz, 6 ohms,
DIN AUDIO)
LH : 0.08 % (70 W, 1 kHz, 6 ohms,
DIN AUDIO)
Inputs VIDEO / AUX: 700 mV
LH only : MIC : 1.7 mV (10 kohms)
Outputs SPEAKERS : accept speakers of 6
ohms or more
PHONES : accepts headphones of 32
ohms or more
<Compact disc player section>
Laser Semiconductor laser (λ = 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1 : Playback x 1
Deck 2 : Recording / Playback x 1,
erase x 1
<Speaker system SX–NAJ702 (U)>
Speaker system 2 way, bass reflex (magnetic shielded)
Speaker units Woofer :
160 mm (63/8in.) cone
Tweeter :
60 mm (23/8in.) cone
Impedance 6 ohms
Dimensions 230 x 324 x 253 mm
(W xH xD) (91/8x 127/8x 10 in.)
Weight 4.6 kg (10 lbs 2 oz.)
SPECIFICATIONS
<Speaker system SX–WNSZ703 (700LH)>
Speaker system 3 way, built-in subwoofer
(magnetic shielded type)
Speaker units Subwoofer :
160 mm cone type
Full range :
100 mm cone type
Super tweeter :
20 mm ceramic type
Impedance 6 ohms
Dimensions 230 x 324 x 257 mm
(W xH xD)
Weight 4.8 kg
<Speaker system SX–NSZ705 (705LH)>
Speaker system 2 way, bass reflex (magnetic shielded)
Speaker units Woofer :
160 mm cone
Tweeter :
60 mm cone
Impedance 6 ohms
Dimensions 230 x 324 x 235 mm
(W xH xD)
Weight 4.6 kg
<General>
Power requirements U : 120 V AC, 60 Hz
LH : 120 V / 220 – 230 V / 240 V AC,
(switchable), 50 / 60 Hz
Power consumption U : 100 W
LH : 130 W
Power consumption With ECO mode on : 0.6 W
in standby mode With ECO mode off : 23 W
Dimensions of main unit 260 x 326 x 345 mm
(W xH xD) (101/4x 127/8x 135/8in.)
Weight of main unit U : 7.5 kg (16 lbs 9 oz.)
LH : 8.4 kg
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.

– 3 –

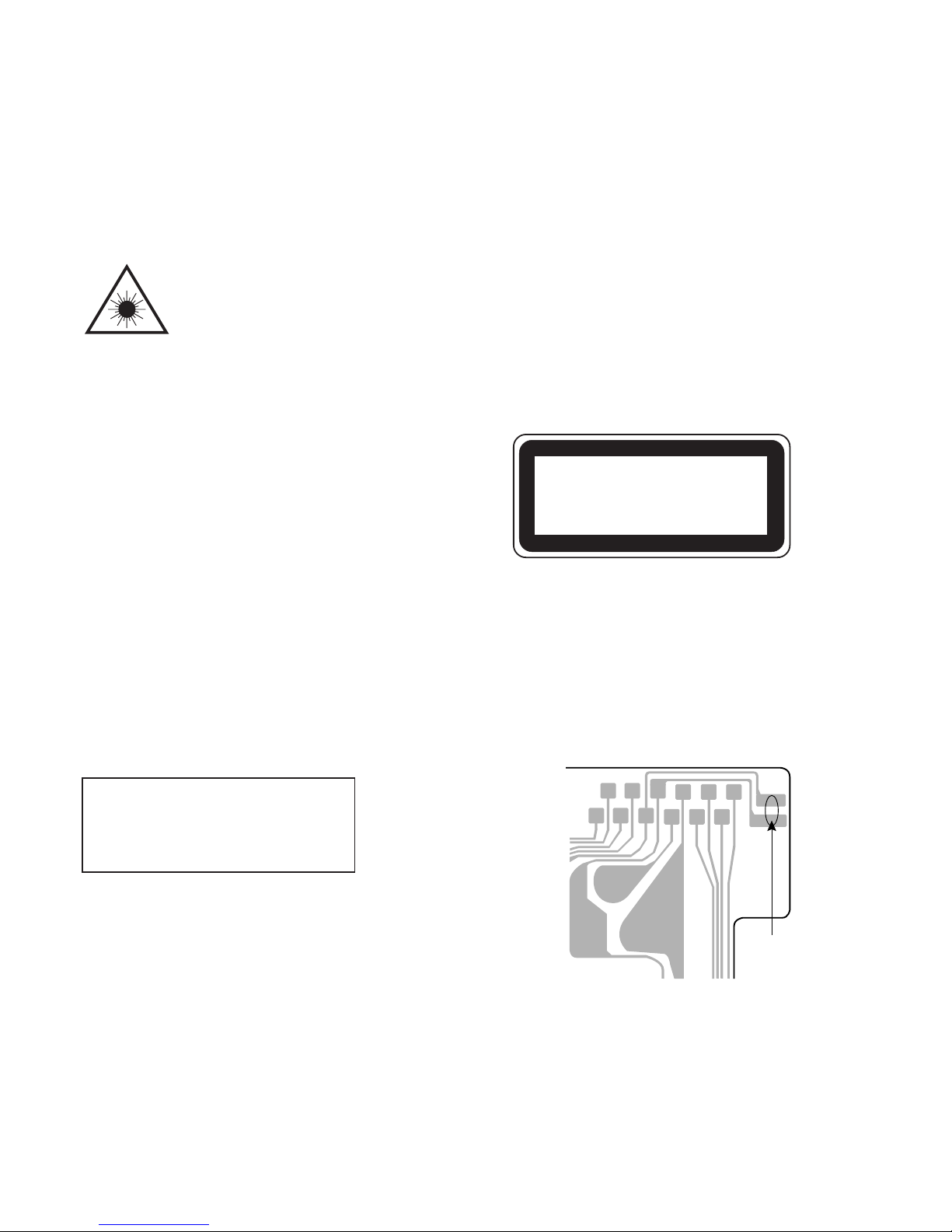

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy PWB
Solder

– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34

– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113
*
%
C113
18
15
Short with tweezers.

– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8B-NF7-631-030 C-IC,LC866560W-5V01
87-A21-831-010 IC,SPS-422-1-F1
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-893-040 C-IC,NJM14558V-TE2
87-A21-023-040 C-IC,BA3835F
87-A21-401-040 C-IC,M61503FP
87-A21-695-010 IC,LA1845L
87-070-127-110 IC,LC72131D
87-A21-269-010 IC,EW732
TRANSISTOR
87-A30-494-080 TR,2SA1980G
87-A30-559-010 TR,CSB1370EF
87-A30-492-080 TR,2SC5343G
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-107-070 C-TR,CMBT5401
87-A30-484-080 C-TR,KRA102S
87-A30-190-080 TR,CC5551
87-A30-106-040 C-TR,CMBT5551
87-A30-098-010 TR,FP 1016
87-A30-097-010 TR,FN 1016
87-026-609-080 TR,KTA1266GR
87-A30-087-080 C-FET,2SK2158
87-A30-490-080 C-TR,KRC107S
87-A30-047-080 TR,CSD655E
87-A30-074-080 C-TR,RT1P 141C
87-A30-162-010 FET,2SK2937
87-A30-582-080 TR,CDA1585BC
87-A30-495-080 TR,2SA1981Y
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-TR,KRC104S
89-327-143-080 TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-520-080 TR,2SC5342Y
87-A30-515-080 TR,2SA1979O/Y
87-A30-234-080 TR,CSC4115BC
87-A30-216-080 TR,2SA933AS(R)
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-A40-291-080 DIODE,1N4148M(CPT)
87-A40-838-090 DIODE,G3SBA60L-6088<U>
87-A40-839-090 DIODE,G5SBA60L-6088<LH>
87-A40-781-080 ZENER,UZ36BSA
87-A40-764-080 ZENER,UZ10BSC
87-A40-553-080 DIODE,1N4003 LES
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-488-080 DIODE,1SS244<LH>
87-A40-748-080 ZENER,UZ5.6BSA
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-749-080 ZENER,UZ5.6BSB
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C3 87-A12-317-080 C-CAP,U 0.1-50 Z F
C4 87-A12-317-080 C-CAP,U 0.1-50 Z F
C5 87-A12-317-080 C-CAP,U 0.1-50 Z F
C6 87-A12-317-080 C-CAP,U 0.1-50 Z F
C9 87-010-759-080 C-CAP,U, 0.1-25F
C10 87-010-759-080 C-CAP,U, 0.1-25F
C11 87-010-759-080 C-CAP,U, 0.1-25F
C12 87-010-759-080 C-CAP,U, 0.1-25F
C19 87-A12-382-000 CAP,E 2200-63 M 85 IV LELON<U>
C19 87-A12-383-000 CAP,E 3300-65 M 85 IV LELON<LH>
C20 87-A12-382-000 CAP,E 2200-63 M 85 IV LELON<U>
C20 87-A12-383-000 CAP,E 3300-65 M 85 IV LELON<LH>
C21 87-A12-780-090 CAP,E 4700-35 M 85 SKR
C22 87-A12-780-090 CAP,E 4700-35 M 85 SKR
C31 87-A12-091-080 CAP,E 10-50 SMG
C32 87-012-286-080 CAP, U 0.01-25
C33 87-A12-062-080 CAP,E 100-10 SMG<U>
C34 87-A12-072-080 CAP,E 100-25 SMG
C35 87-A12-071-080 CAP,E 47-25 SMG
C36 87-A12-067-080 CAP,E 330-16 SMG
C38 87-012-286-080 CAP, U 0.01-25
C60 87-A12-089-080 CAP,E 3.3-50 SMG
C61 87-A12-071-080 CAP,E 47-25 SMG
C83 87-A12-074-080 CAP,E 470-25 SMG
C97 87-010-831-080 C-CAP,U,0.1-16F
C101 87-012-279-080 C-CAP,U 2700P-50 B
C102 87-012-279-080 C-CAP,U 2700P-50 B
C103 87-A12-084-080 CAP,E 0.22-50 SMG
C104 87-A12-084-080 CAP,E 0.22-50 SMG
C105 87-012-277-080 C-CAP, U 1800P-50 B<LH>
C106 87-012-277-080 C-CAP, U 1800P-50 B<LH>
C107 87-A12-089-080 CAP,E 3.3-50 SMG
C108 87-A12-089-080 CAP,E 3.3-50 SMG
C111 87-A12-077-080 CAP,E 33-35 SMG
C112 87-A12-077-080 CAP,E 33-35 SMG
C113 87-A10-596-080 C-CAP,S 100P-100 J CH
C114 87-A10-596-080 C-CAP,S 100P-100 J CH
C117 87-A12-317-080 C-CAP,U 0.1-50 Z F
C118 87-A12-317-080 C-CAP,U 0.1-50 Z F
C119 87-012-286-080 CAP, U 0.01-25
C120 87-012-286-080 CAP, U 0.01-25
C123 87-010-177-080 C-CAP,S 820P-50 SL
C124 87-010-177-080 C-CAP,S 820P-50 SL
C133 87-012-282-080 CAP, U 4700P-50
C140 87-012-278-080 C-CAP,U 2200P-50 B
C186 87-010-759-080 C-CAP,U, 0.1-25F
C187 87-010-866-080 CAP, ELECT 10-63
C188 87-010-866-080 CAP, ELECT 10-63
C225 87-A12-317-080 C-CAP,U 0.1-50 Z F
C226 87-A12-317-080 C-CAP,U 0.1-50 Z F
C227 87-A12-317-080 C-CAP,U 0.1-50 Z F
C228 87-A12-317-080 C-CAP,U 0.1-50 Z F
C241 87-010-831-080 C-CAP,U,0.1-16F
C301 87-012-275-080 C-CAP,U 1200P-50 B<U>
C301 87-012-274-080 CHIP CAP,U 1000P-50B<LH>
C302 87-012-275-080 C-CAP,U 1200P-50 B<U>
C302 87-012-274-080 CHIP CAP,U 1000P-50B<LH>
C303 87-012-275-080 C-CAP,U 1200P-50 B
C304 87-012-275-080 C-CAP,U 1200P-50 B
C307 87-A12-062-080 CAP,E 100-10 SMG
C308 87-A12-062-080 CAP,E 100-10 SMG
C309 87-012-188-080 C-CAP,U 47P-50 CH
C310 87-012-188-080 C-CAP,U 47P-50 CH
C313 87-012-284-080 CAP, U 6800P-50
C314 87-012-284-080 CAP, U 6800P-50
C315 87-A12-062-080 CAP,E 100-10 SMG
C317 87-A12-085-080 CAP,E 0.33-50 SMG
C318 87-A12-085-080 CAP,E 0.33-50 SMG
C326 87-010-787-080 CAP, U 0.022-25
C327 87-010-831-080 C-CAP,U,0.1-16F
C360 87-A12-087-080 CAP,E 1-50 SMG
C399 87-A10-039-080 C-CAP,U 470P-50 J CH
C401 87-A12-083-080 CAP,E 0.1-50 SMG
C402 87-A12-083-080 CAP,E 0.1-50 SMG
C403 87-012-193-080 C-CAP,U 82P-50 CH

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
C411 87-A12-091-080 CAP,E 10-50 SMG
C412 87-A12-091-080 CAP,E 10-50 SMG
C452 87-A12-069-080 CAP,E 22-25 SMG
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-012-274-080 CHIP CAP,U 1000P-50B
C459 87-012-271-080 CAP, U 560P-50
C460 87-010-831-080 C-CAP,U,0.1-16F
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C470 87-018-127-080 CAP, CER 470P-50V
C605 87-012-280-080 CAP, U 3300P-50
C606 87-012-280-080 CAP, U 3300P-50
C609 87-010-785-080 C-CAP,U0.015-25BK
C610 87-010-785-080 C-CAP,U0.015-25BK
C611 87-A12-084-080 CAP,E 0.22-50 SMG
C612 87-A12-084-080 CAP,E 0.22-50 SMG
C613 87-A12-084-080 CAP,E 0.22-50 SMG
C614 87-A12-084-080 CAP,E 0.22-50 SMG
C615 87-012-172-080 CAPACITOR CHIP U 10P CH
C616 87-016-459-080 CAP,E 470-10 SMG
C617 87-016-459-080 CAP,E 470-10 SMG
C618 87-A12-091-080 CAP,E 10-50 SMG
C620 87-010-263-080 CAP, ELECT 100-10V
C623 87-A12-084-080 CAP,E 0.22-50 SMG<U>
C623 87-A12-087-080 CAP,E 1-50 SMG<LH>
C624 87-A12-084-080 CAP,E 0.22-50 SMG<U>
C624 87-A12-087-080 CAP,E 1-50 SMG<LH>
C630 87-A10-260-080 C-CAP,U 0.1-16 K B
C631 87-012-281-080 C-CAP,U 3900P-50 B
C632 87-012-281-080 C-CAP,U 3900P-50 B
C633 87-A11-070-080 C-CAP,U 0.033-16 K B
C634 87-A11-070-080 C-CAP,U 0.033-16 K B
C661 87-012-336-080 C-CAP,U 330P-50J SL
C662 87-012-336-080 C-CAP,U 330P-50J SL
C671 87-010-831-080 C-CAP,U,0.1-16F<LH>
C672 87-010-831-080 C-CAP,U,0.1-16F<LH>
C673 87-010-182-080 C-CAP,S 2200P-50 B<LH>
C677 87-012-286-080 CAP, U 0.01-25
C771 87-A12-062-080 CAP,E 100-10 SMG
C772 87-012-286-080 CAP, U 0.01-25
C782 87-012-286-080 CAP, U 0.01-25
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-012-286-080 CAP, U 0.01-25
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-A12-052-080 C-CAP,S 0.033-25 J B
C790 87-A12-052-080 C-CAP,S 0.033-25 J B
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 CAP, U 0.01-25
C796 87-012-286-080 CAP, U 0.01-25
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 CAP, U 0.01-25
C799 87-A12-093-080 CAP,E 33-50 SMG
C800 87-010-829-080 CAP, U 0.047-16
C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 CAP, U 0.047-16
C803 87-010-787-080 CAP, U 0.022-25
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG
C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U,0.1-16F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-A12-086-080 CAP,E 0.47-50 SMG
C816 87-A12-086-080 CAP,E 0.47-50 SMG
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-A10-978-080 C-CAP,U 820P-25 J CH
C824 87-A12-090-080 CAP,E 4.7-50 SMG
C825 87-010-596-080 CAP, S 0.047-16
C842 87-012-286-080 CAP, U 0.01-25
C844 87-012-286-080 CAP, U 0.01-25
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C858 87-010-831-080 C-CAP,U,0.1-16F
C901 87-018-145-080 CAP,TC-U 6.8P-50 CH
C904 87-012-286-080 CAP, U 0.01-25
C905 87-012-286-080 CAP, U 0.01-25
C907 87-012-286-080 CAP, U 0.01-25
C908 87-A10-915-080 C-CAP,U 1000P-25 J CH
C909 87-012-286-080 CAP, U 0.01-25
C910 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C911 87-012-170-080 C-CAP,U 8P-50 CH
C912 87-012-195-080 C-CAP,U 100P-50CH
C913 87-012-286-080 CAP, U 0.01-25
C914 87-012-166-080 C-CAP,U 4P-50 CH
C915 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C916 87-012-180-080 C-CAP,U 22P-50 CH
C917 87-012-186-080 C-CAP,U 39P-50 CH
C918 87-A10-039-080 C-CAP,U 470P-50 J CH
C921 87-012-195-080 C-CAP,U 100P-50CH
C922 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C959 87-010-831-080 C-CAP,U,0.1-16F
C960 87-010-831-080 C-CAP,U,0.1-16F
C961 87-012-167-080 C-CAP,U 5P-50 CH
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-012-286-080 CAP, U 0.01-25
C984 87-012-286-080 CAP, U 0.01-25
C987 87-012-286-080 CAP, U 0.01-25
C991 87-012-176-080 CAP 15P
C992 87-012-176-080 CAP 15P
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER,CF SFE10.7MA5-A
CF832 87-008-261-010 FILTER,CF SFE10.7MA5-A
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P H BLK TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)<U>
D902 87-A40-128-080 C-VARI-CAP,HVU202A
D903 87-A40-128-080 C-VARI-CAP,HVU202A
FC602 88-906-251-110 FF-CABLE,6P 1.25 (RVS-FACE)
J201 87-A60-488-010 JACK,DIA6.3BLK ST W/SWKM16AT<U>
J201 87-A61-480-010 JACK,DIA6.3BLK ST W/SW MSC16A<LH>

– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
JR123 87-A10-596-080 C-CAP,S 100P-100 J CH
JR124 87-A10-596-080 C-CAP,S 100P-100 J CH
L201 87-A50-610-010 COIL,1UH K(MDEC)
L202 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85K HZ BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH K CECS
L832 87-005-847-080 COIL,2.2UH K CECS
L902 88-ZA1-602-110 COIL,FM-RF-U2 2G
L903 88-ZA1-601-010 COIL,FM-RF-U1 2G
L904 87-005-847-080 COIL,2.2UH K CECS
L905 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS)
L906 88-ZA1-603-010 COIL,FM-OSC-U 2G
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R129 87-A00-262-080 RES,M/F 0.15-2W J
R130 87-A00-262-080 RES,M/F 0.15-2W J
R131 87-A00-262-080 RES,M/F 0.15-2W J
R132 87-A00-262-080 RES,M/F 0.15-2W J
R243 87-A01-001-050 RES,220-1/2W J BLT2J<U>
R243 87-A00-440-050 RES,220-1/2W J RP<LH>
R244 87-A01-001-050 RES,220-1/2W J BLT2J<U>
R244 87-A00-440-050 RES,220-1/2W J RP<LH>
R245 87-A00-999-050 RES,180-1/2W J BLT2J<U>
R245 87-A00-440-050 RES,220-1/2W J RP<LH>
R246 87-A00-999-050 RES,180-1/2W J BLT2J<U>
R246 87-A00-440-050 RES,220-1/2W J RP<LH>
R790 87-012-286-080 CAP, U 0.01-25
R991 87-012-195-080 C-CAP,U 100P-50CH
R993 87-012-195-080 C-CAP,U 100P-50CH
R995 87-012-195-080 C-CAP,U 100P-50CH
SFR451 87-A90-557-080 SFR,33K H HOKU
SFR452 87-A90-557-080 SFR,33K H HOKU
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
W99 8B-NFJ-620-010 F-CABLE,9P 2.5 280MM<U>
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST

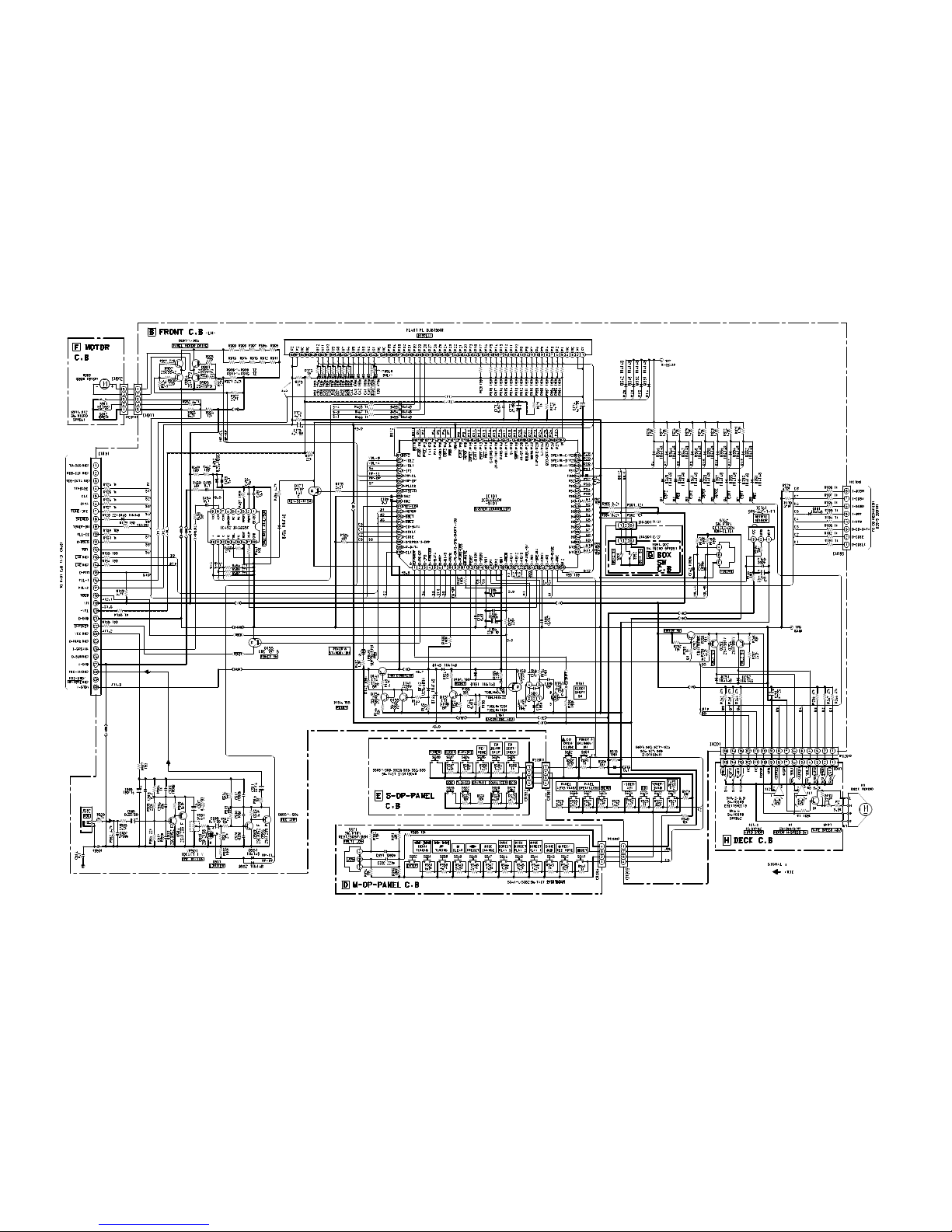

FRONT C.B
C39 87-A10-039-080 C-CAP,U 470P-50 J CH
C40 87-012-195-080 C-CAP,U 100P-50CH
C41 87-012-195-080 C-CAP,U 100P-50CH
C42 87-012-195-080 C-CAP,U 100P-50CH
C43 87-012-195-080 C-CAP,U 100P-50CH
C44 87-012-195-080 C-CAP,U 100P-50CH
C45 87-012-195-080 C-CAP,U 100P-50CH
C46 87-012-195-080 C-CAP,U 100P-50CH
C47 87-012-195-080 C-CAP,U 100P-50CH
C48 87-012-199-080 CAP 220P
C49 87-012-145-080 CAP, CHIP S 270P CH
C50 87-012-145-080 CAP, CHIP S 270P CH
C141 87-012-278-080 C-CAP,U 2200P-50 B
C142 87-010-785-080 C-CAP,U0.015-25BK
C153 87-016-083-080 C-CAP,S 0.15-16 RK<700LH>
C153 87-A11-058-080 C-CAP,U 0.22-10 KB<700U,705LH>
C154 87-A10-189-040 CAP,E 220-10
C155 87-012-176-080 CAP 15P
C156 87-012-198-080 CAP 180P
C158 87-A10-039-080 C-CAP,U 470P-50 J CH
C161 87-012-274-080 CHIP CAP,U 1000P-50B
C162 87-012-274-080 CHIP CAP,U 1000P-50B
C165 87-012-157-080 C-CAP,S 330P-50 CH
C166 87-010-552-040 CAP,E 22-16 M 5L SRE
C171 87-012-369-080 C-CAP,S 0.047-50F
C172 87-A12-094-080 CAP,E 47-50 SMG
C173 87-010-421-040 CAP,E 4.7-50 5L
C174 87-010-421-040 CAP,E 4.7-50 5L
C180 87-010-759-080 C-CAP,U, 0.1-25F
C185 87-010-759-080 C-CAP,U, 0.1-25F
C186 87-012-274-080 CHIP CAP,U 1000P-50B
C188 87-012-369-080 C-CAP,S 0.047-50F
C191 87-012-286-080 CAP, U 0.01-25
C192 87-010-759-080 C-CAP,U, 0.1-25F
C251 87-A12-094-080 CAP,E 47-50 SMG
C315 87-010-759-080 C-CAP,U, 0.1-25F
C451 87-010-759-080 C-CAP,U, 0.1-25F
C452 87-010-759-080 C-CAP,U, 0.1-25F
C453 87-010-759-080 C-CAP,U, 0.1-25F
C454 87-010-759-080 C-CAP,U, 0.1-25F
C455 87-010-759-080 C-CAP,U, 0.1-25F
C502 87-012-282-080 CAP, U 4700P-50<LH>
C503 87-010-112-040 CAP,E 100-16<LH>
C505 87-010-546-040 CAP,E 0.33-50<LH>
C506 87-012-191-080 CHIP CAP 68 PF<LH>
C507 87-010-545-040 CAP,E 0.22-50 SME<LH>
C508 87-010-544-040 CAP,E 0.1-50 SME<LH>
C510 87-012-195-080 C-CAP,U 100P-50CH<LH>
C511 87-A12-065-080 CAP,E 33-16 SMG<LH>
C512 87-012-274-080 CHIP CAP,U 1000P-50B<LH>
C514 87-010-759-080 C-CAP,U, 0.1-25F<LH>
C515 87-012-274-080 CHIP CAP,U 1000P-50B<LH>
C517 87-012-274-080 CHIP CAP,U 1000P-50B<LH>
C518 87-010-759-080 C-CAP,U, 0.1-25F<LH>
C520 87-012-273-080 C-CAP,U 820P-50 B<LH>
CN101 87-099-720-010 CONN,30P BLK TYK-B(P)
CN103 87-099-196-010 CONN,8P V BLK 6216
CN201 87-099-017-010 CONN, 15P V BLK 6216<LH>
CN202 87-099-013-010 CONN,11P V BLK 6216<U>
CN301 87-099-209-010 CONN,4P H BLK 6216
CN303 87-099-209-010 CONN,4P H BLK 6216
CN911 87-099-212-010 CONN,5P V BLK 6216
CNA901 8B-NF7-620-010 CONN ASSY,3P V 120MM
FB501 87-008-372-080 FILTER, EMI BL01 IN1<LH>
FC103 88-908-301-110 FF-CABLE,8P 1.25
FC201 88-915-101-110 FF-CABLE,15P 1.25 100MM<LH>
FC202 88-911-101-110 FF-CABLE,11P 1.25<U>
FC301 88-904-091-110 FF-CABLE,4P 1.25 90MM
FC303 88-904-091-110 FF-CABLE,4P 1.25 90MM
FC911 88-905-151-110 FF-CABLE, 5P 1.25 150MM
FL401 8B-NF7-621-010 FL,BJ815GNK
J502 87-A61-243-010 JACK,6.3 BLK MONO W/SW V MSC<LH>
L151 87-A50-656-010 COIL,CLK 5.76MHZ (TOKO)7KLY
LED401 87-A40-589-040 LED,SLR-56VCT31 RED
S162 87-A91-645-010 SW,RTRY EC12E24304NON-CLICK
S301 87-A90-095-080 SW,TACT EVQ11G04M
S302 87-A90-095-080 SW,TACT EVQ11G04M
S321 87-A90-095-080 SW,TACT EVQ11G04M
S322 87-A90-095-080 SW,TACT EVQ11G04M
S323 87-A90-095-080 SW,TACT EVQ11G04M
S324 87-A90-095-080 SW,TACT EVQ11G04M
S326 87-A90-095-080 SW,TACT EVQ11G04M
S327 87-A90-095-080 SW,TACT EVQ11G04M
S335 87-A90-095-080 SW,TACT EVQ11G04M
VR501 87-NB7-602-010 VR,RTRY 10KAX1 1 V<LH>
PT C.B
CN1 87-A61-110-010 CONN,9P V TID-A<LH>
PT1 8B-NFJ-602-010 PT,BNF-18 LH<LH>
PT1 8B-NFJ-601-010 PT,BNF-18 U<U>
PT2 8B-MA6-673-010 PT,SUB BMA H (VRK)<LH>
PT81 8B-MA6-671-010 PT,SUB BMA U (VRK)<U>
RY1 87-A91-339-010 RELAY,AC DC12V G5PA-2<LH>
RY81 87-A91-418-010 RELAY,AC12V G5PA-1-M<U>
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<LH>
!
!
!
!
!
!
!

– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
T1 87-A60-317-010 TERMINAL, 1P MSC<LH>
T2 87-A60-317-010 TERMINAL, 1P MSC<LH>
T81 87-A60-317-010 TERMINAL, 1P MSC<U>
T82 87-A60-317-010 TERMINAL, 1P MSC<U>
WH81 87-A90-510-010 HLDR,WIRE 2.5-9P<U>
M-OP-PANEL C.B
C391 87-012-274-080 CHIP CAP,U 1000P-50B
C392 87-012-199-080 CAP 220P
CN304 87-099-209-010 CONN,4P H BLK 6216
S341 87-A90-095-080 SW,TACT EVQ11G04M
S342 87-A90-095-080 SW,TACT EVQ11G04M
S343 87-A90-095-080 SW,TACT EVQ11G04M
S344 87-A90-095-080 SW,TACT EVQ11G04M
S345 87-A90-095-080 SW,TACT EVQ11G04M
S346 87-A90-095-080 SW,TACT EVQ11G04M
S347 87-A90-095-080 SW,TACT EVQ11G04M
S348 87-A90-095-080 SW,TACT EVQ11G04M
S349 87-A90-095-080 SW,TACT EVQ11G04M
S350 87-A90-095-080 SW,TACT EVQ11G04M
S351 87-A90-095-080 SW,TACT EVQ11G04M
S352 87-A90-095-080 SW,TACT EVQ11G04M
S371 87-A91-991-010 SW,RTRY REO12303PVB8H
S-OP-PANEL C.B
CN302 87-A60-083-010 CONN,04P H 9604S-04F
S303 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M<LH>
S306 87-A90-095-080 SW,TACT EVQ11G04M<LH>
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S329 87-A90-095-080 SW,TACT EVQ11G04M
S330 87-A90-095-080 SW,TACT EVQ11G04M
S332 87-A90-095-080 SW,TACT EVQ11G04M
S333 87-A90-095-080 SW,TACT EVQ11G04M
MOTOR C.B
CN912 87-099-210-010 CONN,5P H BLK 6216
S911 87-036-109-010 SW,MICRO SPPB61
S912 87-036-109-010 SW,MICRO SPPB61
BOX SW C.B
S901 87-036-252-010 SW,MICRO SPPB51
S902 87-036-252-010 SW,MICRO SPPB51
DECK C.B <U>
CN1 87-099-753-010 CONN,11P H 9604
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
SOL1 82-ZM3-627-010 SOL ASSY,27
SOL2 82-ZM3-627-010 SOL ASSY,27
SW1 87-A90-673-010 SW,MICRO ESE11SH1C
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0
SW5 87-A90-673-010 SW,MICRO ESE11SH1C
DECK C.B <LH>
CON1 87-099-756-010 CONN,15P 9604S F
M1 87-045-347-010 MOT,SHU2L 70
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
SOL1 82-ZM3-627-010 SOL ASSY 27 SO
SOL2 82-ZM3-627-010 SOL ASSY 27 SO
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
HEAD-1<LH>
CON301 87-NF6-615-010 CONN ASSY,3P PB
85-ZM3-602-010 PWB,FLEX A
HEAD-2<LH>
CON351 87-NF6-616-010 CONN ASSY,8P RPB
85-ZM3-602-010 PWB,FLEX A
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
!
!
!
!

– 10 –
TRANSISTOR ILLUSTRATION
2SJ460
2SK2541
S D G
G
D
S
2SK360E
E
B
C
2SA1235F
2SC2714O
2SC3052F
KRA102S
KRA107S
KRC104S
KRC107S
CMBT5401
CMBT5551
RT1P141C
2SA1980G
2SA1981Y
2SA1979O/Y
2SC5343G
2SC5342Y
CSD655E
E C B
CC5551
CDA1585BC
CSC4115BC
KTA1266GR
E C B
S
G
D
2SK2158
B C E
G D S
CSB1370EF
2SK2937 FN1016
FP1016
2SA933AS(R)
E C B
B C E

WIRING  1 (MAIN / PT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 11 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
TO PT C.B CN001 (CNA001)<LH> TO PT C.BWH081 (W099)<U>
<WHT>
V

– 12 –
SCHEMATIC DIAGRAM_1 (MAIN1/2:AMP SECTION)

– 13 –
SCHEMATIC DIAGRAM_2 (MAIN 2/2:TUNER SECTION)

– 14 –

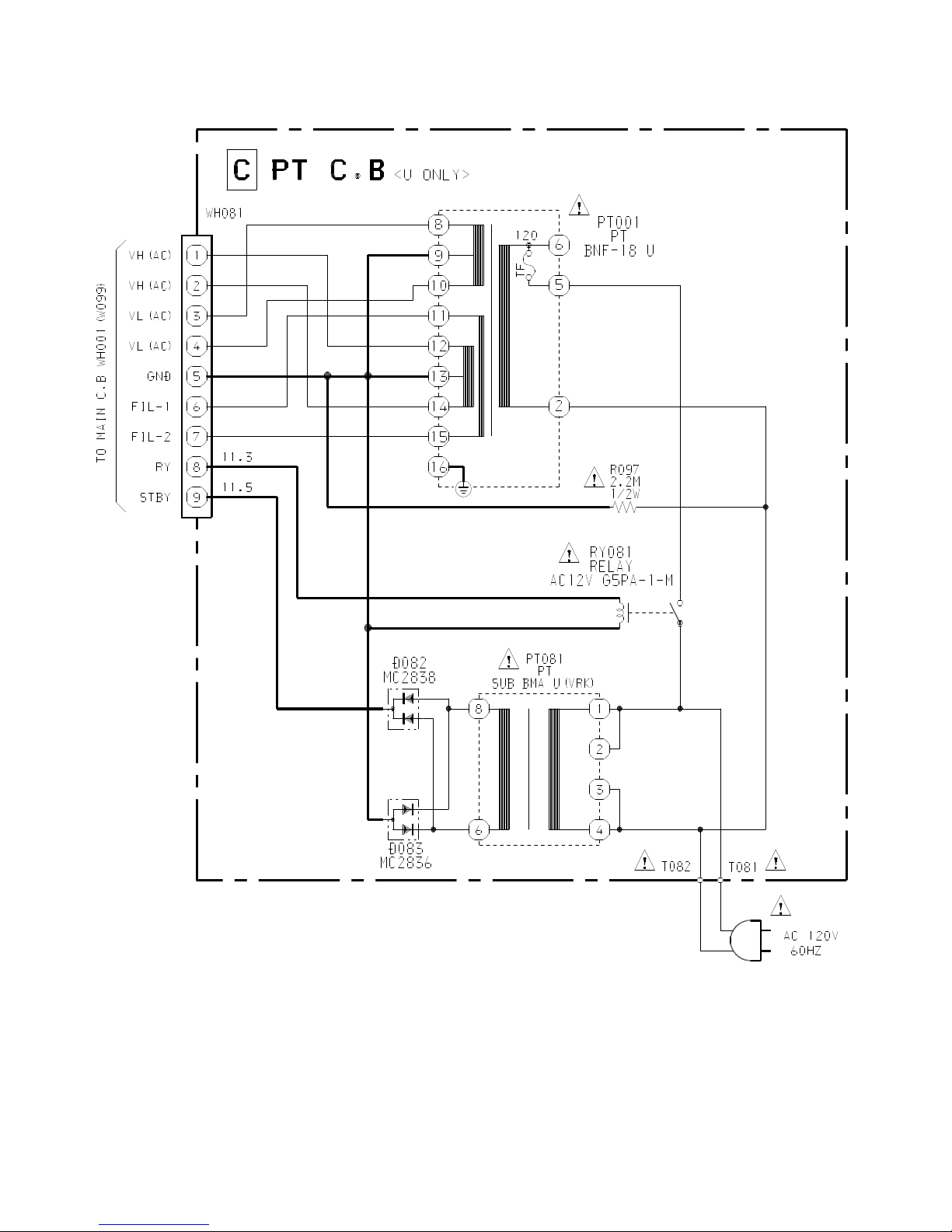

SCHEMATIC DIAGRAM_3 (PT)<U>

S901
BOX 2 SW
S902
BOX 1 SW
TP8
, LED401
WIRING  2 (FRONT / MOTOR /BOX SW )
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 15 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

WIRING – 3 (M – OP – PANEL / S – OP – PANEL)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 16 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 17 –

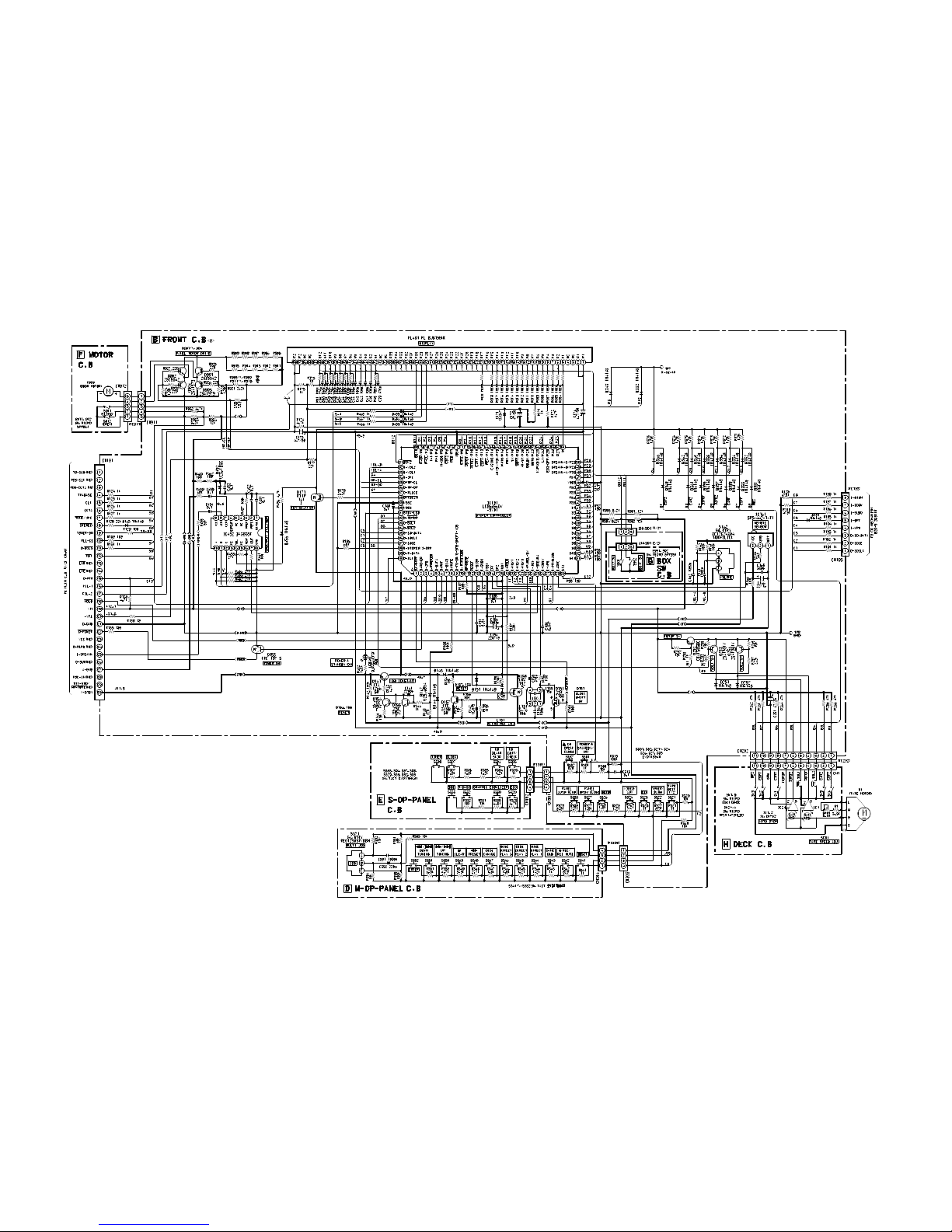

SCHEMATIC DIAGRAM _4 (U : FRONT / M-OP-PANEL / S-OP-PANEL / MOTOR / BOX SW / DECK )

– 18 –
SCHEMATIC DIAGRAM _5 (LH : FRONT / M-OP-PANEL / S-OP-PANEL / MOTOR / BOX SW / DECK )

TO MAIN C.B WH001 (CNA001)

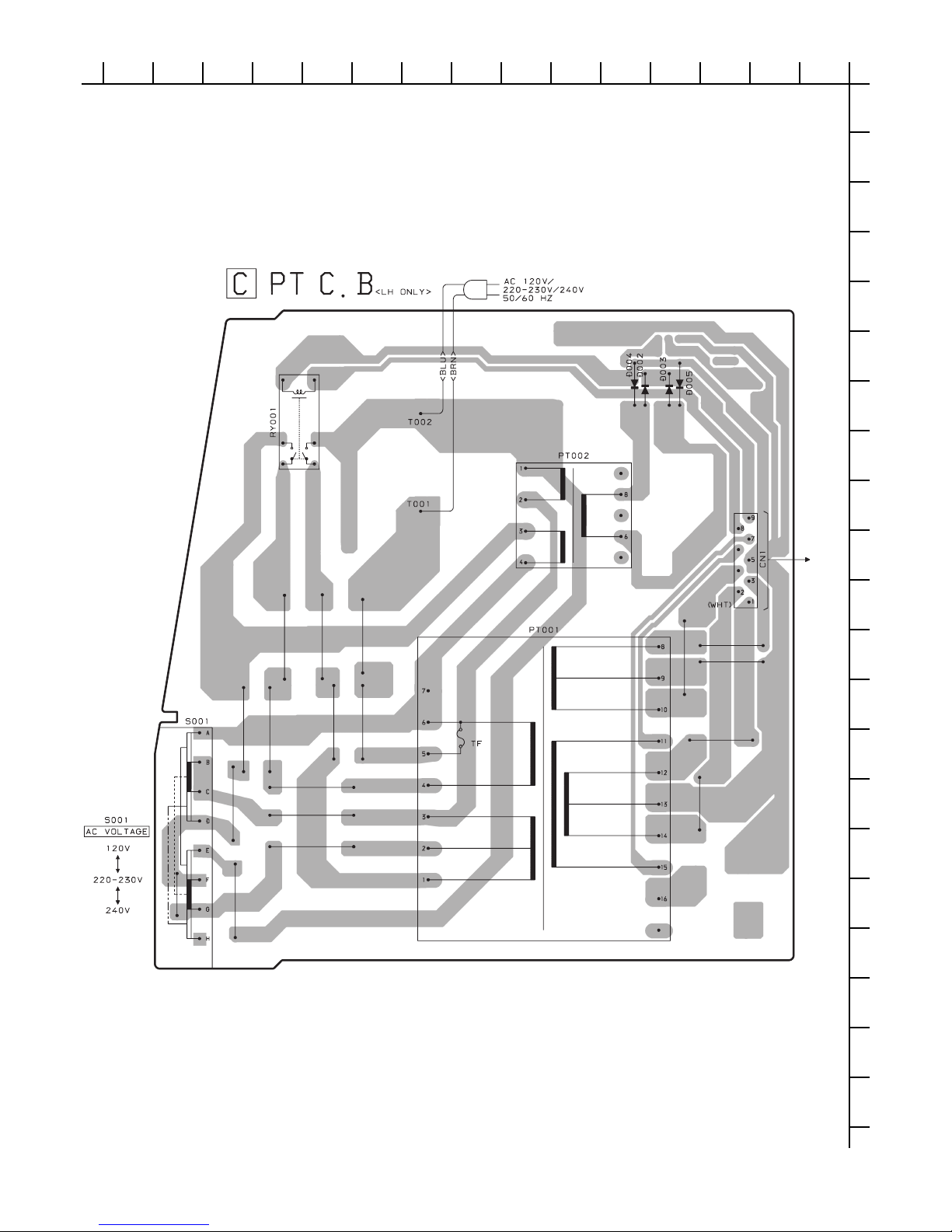

WIRING  4 (PT) <LH>
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
 19 

– 20 –

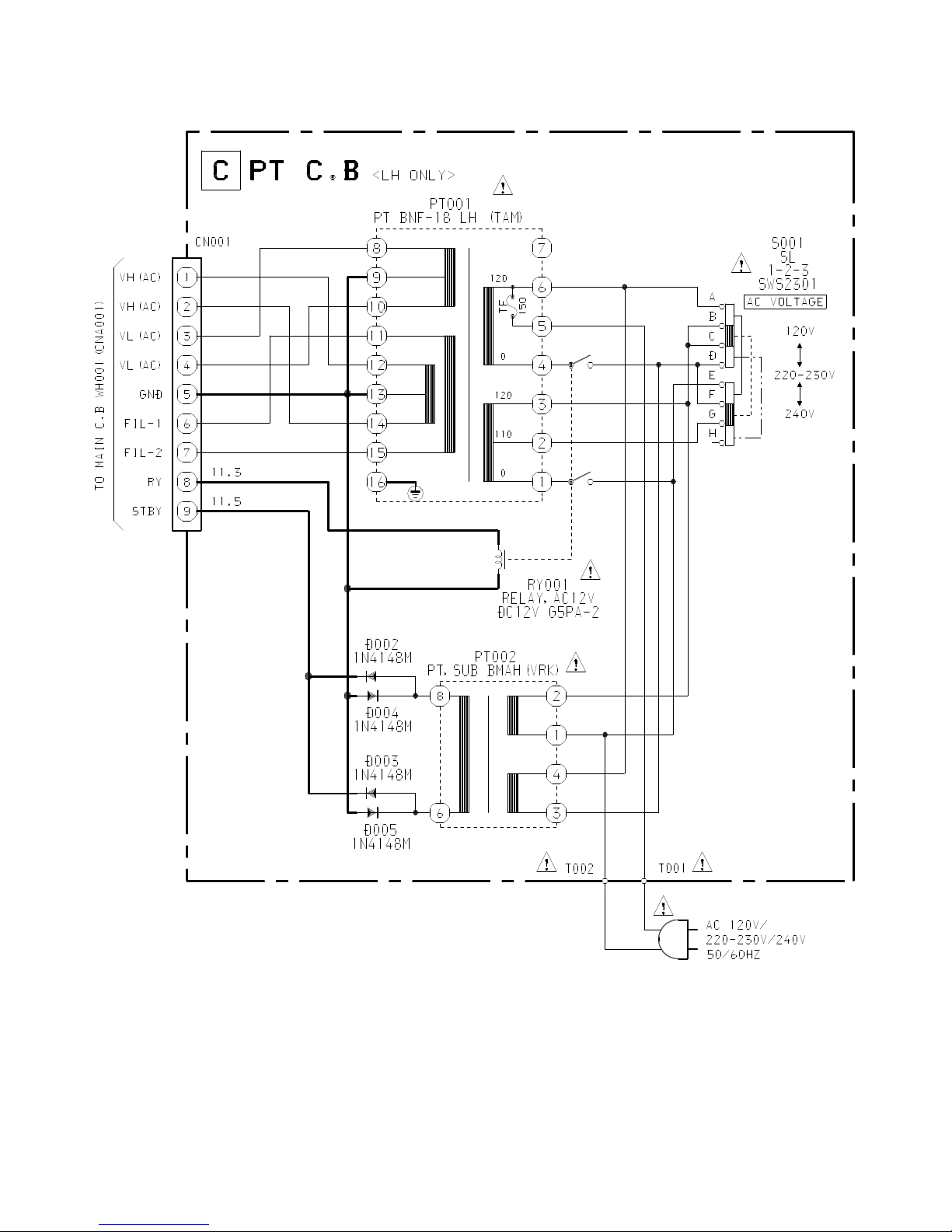

SCHEMATIC DIAGRAM_6 (PT)<LH>
