SERVICE MANUAL
DATA
CD STEREO SYSTEM
NSX-D23
NSX-D22
NSX-D20
S/M Code No. 09-025-454-0S1
U(S)
U(S),C(S)
C(S)
BASIC CD MECHANISM : BZG-2 ZD9GNC1
BASIC TAPE MECHANISM : CMAT6Z2(1+1)ALPS
This service manual is the “Supplement Publishing”.
For common sections, refer to the NSX-D20U(S)/R20LH(S) service manual
(S/M Code No. 09-024-454-0R1).
If requiring information about the CD mechanism, see Service Manual of
BZG-2, (S/M Code No. 09-023-353-2N8).
NSX-D23 CX-ND23 SX-ND30
SPEAKER
SYSTEM CD
CASSEIVER REMOTE
CONTROLLER
RC-CAS03(VS)
NSX-D22 CX-ND22
NSX-D20 CX-ND20 SX-ND20
SX-ND22
SX-R160
SUPPLEMENT
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-2-
SPECIFICATIONS -1/2
MAIN UNIT CX-ND23
TUNER
FM tuning range 87.5 MHz to 108 MHz
FM usable sensitivity (IHF) 13.2 dBf
FM antenna terminal 75 ohms (unbalanced)
AM tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
AM usable sensitivity 350 µV/m
AM antenna Loop antenna
AMPLIFIER
Power output 32 W + 32 W (40 Hz - 20 kHz, THD
less than 1 %, 6 ohms)
40 W + 40 W (1 kHz, THD less than
10 %, 6 ohms)
Total harmonic distortion 0.08 % (20 W, 1 kHz, 6 ohms, DIN
AUDIO)
Input VIDEO/AUX: 500 mV
Outputs SPEAKERS: 6 ohms or more
PHONES: 32 ohms or more
CASSETTE DECK
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz - 15 kHz
Recording system AC bias
Heads DECK 1: playback x 1
DECK 2: recording/playback x 1,
erase x 1
CD PLAYER
Laser Semiconductor laser (λ= 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
GENERAL
Power requirements 120 V AC, 60 Hz
Power consumption 61 W
Power consumption With ECO mode on: 0.6 W
in standby mode With ECO mode off: 20 W
Dimensions (W x H x D) 260 x 324 x 315 mm
(10 1/4x 12 7/8x 12 1/2in.)
Weight 5.8 kg (12 lbs 13 oz)
FRONT SPEAKERS SX-ND30
Speaker system 3 way, bass reflex (magnetic shielded)
Speaker units Woofer: 160 mm (6 3/8in.) cone
Tweeter: 60 mm (2 3/8in.) cone
Super tweeter: 20 mm ( 13 /16 in.)
ceramic x 2
Impedance 6 ohms
Dimensions (W x H x D) 230 x 324 x 227 mm
(9 1/8x 12 7/8x 9 in.)
Weight 3.5 kg (7 lbs 11 oz)
• Specifications and external appearance are subject to change
without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-3-
SPECIFICATIONS -2/2
MAIN UNIT CX-ND20/CX-ND22
TUNER
FM tuning range 87.5 MHz to 108 MHz
FM usable sensitivity (IHF) 13.2 dBf
FM antenna terminal 75 ohms (unbalanced)
AM tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
AM usable sensitivity 350 µV/m
AM antenna Loop antenna
AMPLIFIER
CX-ND20:
Power output 32 W + 32 W (40 Hz - 20 kHz, THD
less than 1 %, 6 ohms)
40 W + 40 W (1 kHz, THD less than
10 %, 6 ohms)
Total harmonic distortion 0.08 % (20 W, 1 kHz, 6 ohms, DIN
AUDIO)
CX-ND22:
Power output 32 W + 32 W (40 Hz - 20 kHz, THD
less than 1 %, 6 ohms)
50 W + 50 W (1 kHz, THD less than
10 %, Front speakers 6 ohms +
Surround speakers 8 ohms)
Total harmonic distortion 0.08 % (20 W, 1 kHz, 6 ohms, DIN
AUDIO)
Input VIDEO/AUX: 500 mV
Outputs SPEAKERS: 6 ohms or more
SURROUND SPEAKERS (only for
CX-ND22): 8 ohms to 16 ohms
PHONES: 32 ohms or more
CASSETTE DECK
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz - 15 kHz
Recording system AC bias
Heads DECK 1: playback x 1
DECK 2: recording/playback x 1,
erase x 1
CD PLAYER
Laser Semiconductor laser (λ= 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
GENERAL
Power requirements 120 V AC, 60 Hz
CX-ND20:
Power consumption 61 W
Power consumption With ECO mode on: 0.6 W
in standby mode With ECO mode off: 20 W
Dimensions (W x H x D) 260 x 324 x 315 mm
(10 1/4x 12 7/8x 12 1/2in.)
Weight 5.8 kg (12 lbs 13 oz)
CX-ND22:
Power consumption 73 W
Power consumption With ECO mode on: 0.6 W
in standby mode With ECO mode off: 20 W
Dimensions (W x H x D) 260 x 324 x 315 mm
(10 1/4x 12 7/8x 12 1/2in.)
Weight 6.0 kg (13 lbs 4 oz)
FRONT SPEAKERS SX-ND20 (for NSX-D20)
Speaker system 3 way, bass reflex (magnetic
shielded)
Speaker units Woofer: 120 mm (4 3/4in.) cone
Tweeter: 60 mm (2 3/8in.) cone
Super tweeter: 20 mm ( 13 /16 in.)
ceramic
Impedance 6 ohms
Dimensions (W x H x D) 210 x 324 x 215 mm
(8 3/8x 12 7/8x 8 1/2in.)
Weight 3.0 kg (6 lbs 10 oz)
FRONT SPEAKERS SX-ND22 (for NSX-D22)
Speaker system 2 way, bass reflex (magnetic
shielded)
Speaker units Woofer: 120 mm (4 3/4in.) cone
Tweeter: 60 mm (2 3/8in.) ceramic
Impedance 6 ohms
Dimensions (W x H x D) 210 x 324 x 215 mm
(8 3/8x 12 7/8x 8 1/2in.)
Weight 3.0 kg (6 lbs 10 oz)
SURROUND SPEAKERS SX-R160 (only for NSX-D22)
Speaker system 1 way, closed
Speaker unit Full range: 80 mm (3 1/4in.) cone
Impedance 8 ohms
Dimensions (W x H x D) 194 x 117 x 132 mm
(7 3/4x 4 5/8x 5 1/4in.)
Weight 0.8 kg (1 lbs 12 oz)
•Specifications and external appearance are subject to change
without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-4-
ACCESSORIES PARTS LIST -1/1
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
O AS1001 8C-NF9-913-010 IB,U(ESF)S NSX-D23 a . . .
O AS1001 8C-NF9-903-110 IB,U(ESF)S NSX-D20/22 . b c d
X AS1002 87-006-225-010 ANT,LOOP ANT NC2 a . c d
O AS1002 87-A92-150-010 ANT,LOOP AM NO-CONT . b . .
X AS1003 87-A92-345-010 ANT,WIRE FM(SEMI-ST) a b c d
X AS1004 8C-NF8-702-010 RC UNIT,RC-CAS03(VS) a b c d
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-5-
ELECTRICAL PARTS LIST -1/14
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT O C 0108 87-010-785-080 C-CAP,U 0.015-25 K B GRM a b c d
FRONT O C 0153 87-010-787-080 C-CAP,U 0.022-25 K B GRM a b c d
FRONT O C 0154 87-010-246-040 CAP,E 47-35 M 11L SME a b c d
FRONT O C 0155 87-010-404-040 CAP,E 4.7-50 M 11L SME a b c d
FRONT O C 0156 87-010-404-040 CAP,E 4.7-50 M 11L SME a b c d
FRONT O C 0301 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b c d
FRONT O C 0351 87-A10-353-080 C-CAP,U 0.22-10 K B a b c d
FRONT O C 0361 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b c d
FRONT O C 0362 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b c d
FRONT O C 0371 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b c d
FRONT O C 0372 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b c d
FRONT O C 0601 87-010-382-040 CAP,E 22-25 M 11L SME a b c d
FRONT O C 0801 87-A10-353-080 C-CAP,U 0.22-10 K B a b c d
FRONT O C 0803 87-012-280-080 C-CAP,U 3300P-50 K B GRM a b c d
FRONT O C 0804 87-A10-592-080 C-CAP,S 0.015-50 J B a b c d
FRONT O C 0806 87-012-273-080 C-CAP,U 820P-50 K B GRM a b c d
FRONT O C 0808 87-010-544-040 CAP,E 0.1-50 M 11L SME a b c d
FRONT O C 0809 87-010-404-040 CAP,E 4.7-50 M 11L SME a b c d
FRONT O C 0810 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
FRONT O C 0811 87-A12-052-080 C-CAP,S 0.033-25 J B a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT O C 0812 87-012-285-080 C-CAP,U 8200P-50 K B GRM a b c d
FRONT O C 0901 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0902 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0903 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0904 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0905 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0906 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0907 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0908 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0909 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0910 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0911 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b c d
FRONT O C 0912 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
FRONT O C 0913 87-A10-189-040 CAP,E 220-10 M 5L a b c d
FRONT O C 0915 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
FRONT O C 0916 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
FRONT O C 0917 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
FRONT O C 0919 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
FRONT O C 0920 87-010-829-080 C-CAP,U 0.047-16 Z F CM/CB a b c d
FRONT O C 0921 87-012-282-080 C-CAP,U 4700P-50 K B GRM a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT O C 0922 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0923 87-016-116-080 C-CAP,U 0.015-25 J B CB a b c d
FRONT O C 0924 87-016-116-080 C-CAP,U 0.015-25 J B CB a b c d
FRONT O C 0925 87-016-116-080 C-CAP,U 0.015-25 J B CB a b c d
FRONT O C 0931 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0932 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
FRONT O C 0951 87-012-172-080 C-CAP,U 10P-50 D CH GRM a b c d
FRONT O C 0952 87-010-854-080 C-CAP,S 560P-50 J CH CMC a b c d
FRONT O C 0953 87-012-349-080 C-CAP,S 1000P-50 J CH GRM a b c d
FRONT O C 0961 87-010-391-040 CAP,E 10-35 M 11L SME a b c d
FRONT O C 0962 87-012-336-080 C-CAP,U 330P-50 J SL GRM a b c d
FRONT O C 0963 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
FRONT O CN 0103 87-099-013-010 CONN,11P V BLK 6216 a b c d
FRONT O CN 0701 87-099-720-010 CONN,30P BLK TYK-B(P) a b c d
FRONT O CN 0731 87-099-196-010 CONN,8P V BLK 6216 a b c d
FRONT S D 0103 87-020-465-080 DIODE,1SS133 a b c d
FRONT S D 0104 87-020-465-080 DIODE,1SS133 a b c d
FRONT S D 0301 87-A40-234-080 ZENER,MTZJ5.6A a b c d
FRONT S D 0302 87-020-465-080 DIODE,1SS133 a b c d
FRONT S D 0601 87-A40-269-080 C-DIODE,MC2836 a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT S D 0801 87-020-465-080 DIODE,1SS133 a b c d
FRONT S D 0981 87-020-465-080 DIODE,1SS133 a b c d
FRONT O FFC0103 88-911-101-110 FF-CABLE,11P 1.25 100MM a b c d
FRONT O FFC0731 88-908-291-110 FF-CABLE,8P 1.25 290MM a b c d
FRONT O FL 0201 8C-NF9-615-010 FL,HUA-13SS09T a b c d
FRONT S IC 0901 8C-NF9-610-030 C-IC,UPD780226GF-033-3BA a b c d
FRONT S IC 0961 87-A21-831-010 IC,SPS-442-1-F1 a b c d
FRONT O L 0951 87-A50-655-010 COIL,CLK 4.19MHZ (TOKO)7KLY a b c d
FRONT O LED0201 87-A41-062-040 LED,LTL-1CHEE-012A RED a b c d
FRONT S Q 0102 87-A30-076-080 C-TR,2SC3052F a b c d
FRONT S Q 0104 87-A30-538-040 C-TR,SRA2202S a b c d
FRONT S Q 0301 87-A30-494-080 TR,2SA1980G a b c d
FRONT S Q 0302 87-A30-076-080 C-TR,2SC3052F a b c d
FRONT S Q 0303 87-A30-076-080 C-TR,2SC3052F a b c d
FRONT S Q 0601 87-A30-495-080 TR,2SA1981Y a b c d
FRONT S Q 0602 87-A30-495-080 TR,2SA1981Y a b c d
FRONT S Q 0603 87-A30-200-080 TR,2SA1585SR a b c d
FRONT S Q 0801 87-A30-076-080 C-TR,2SC3052F a b c d
FRONT S Q 0802 87-A30-075-080 C-TR,2SA1235F a b c d
FRONT S Q 0803 87-A30-076-080 C-TR,2SC3052F a b c d
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-6-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT S Q 0804 87-A30-076-080 C-TR,2SC3052F a b c d
FRONT S Q 0805 87-A30-076-080 C-TR,2SC3052F a b c d
FRONT S Q 0901 87-A30-538-040 C-TR,SRA2202S a b c d
FRONT O R 0109 88-108-224-080 C-RES,U 220K-1/16W J a b c d
FRONT O R 0110 88-108-153-080 C-RES,U 15K-1/16W J a b c d
FRONT X R 0111 88-108-333-080 C-RES,U 33K-1/16W J a b c d
FRONT O R 0112 88-108-224-080 C-RES,U 220K-1/16W J a b c d
FRONT O R 0114 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT X R 0115 88-108-000-080 C-JUMPER,U a b c d
FRONT X R 0116 88-108-124-080 C-RES,U 120K-1/16W J a b c d
FRONT X R 0151 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
FRONT X R 0152 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
FRONT X R 0153 88-128-821-080 C-RES, 820-1/8W J a b c d
FRONT X R 0154 88-128-821-080 C-RES, 820-1/8W J a b c d
FRONT O R 0155 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d
FRONT O R 0156 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d
FRONT X R 0161 88-108-000-080 C-JUMPER,U a b c d
FRONT X R 0162 88-108-000-080 C-JUMPER,U a b c d
FRONT X R 0163 88-108-000-080 C-JUMPER,U a b c d
FRONT X R 0164 88-108-000-080 C-JUMPER,U a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT X R 0165 88-108-000-080 C-JUMPER,U a b c d
FRONT X R 0166 88-108-000-080 C-JUMPER,U a b c d
FRONT X R 0208 88-128-102-080 C-RES, 1K-1/8W J a b c d
FRONT X R 0301 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0302 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
FRONT O R 0303 88-108-153-080 C-RES,U 15K-1/16W J a b c d
FRONT O R 0304 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0306 88-108-471-080 C-RES,U 470-1/16W J a b c d
FRONT O R 0321 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0322 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0323 88-108-821-080 C-RES,U 820-1/16W J a b c d
FRONT O R 0324 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0325 88-108-122-080 C-RES,U 1.2K-1/16W J a b c d
FRONT X R 0326 88-121-122-080 RES,1.2K-1/8W J a b c d
FRONT X R 0327 88-108-182-080 C-RES,U 1.8K-1/16W J a b c d
FRONT X R 0328 88-121-182-080 RES,1.8K-1/8W J a b c d
FRONT O R 0329 88-108-272-080 C-RES,U 2.7K-1/16W J a b c d
FRONT O R 0330 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d
FRONT X R 0331 88-121-472-080 RES,4.7K-1/8W J a b c d
FRONT X R 0332 88-108-682-080 C-RES,U 6.8K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT O R 0333 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT X R 0334 88-108-183-080 C-RES,U 18K-1/16W J a b c d
FRONT O R 0335 88-108-473-080 C-RES,U 47K-1/16W J a b c d
FRONT O R 0341 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0342 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0343 88-108-821-080 C-RES,U 820-1/16W J a b c d
FRONT O R 0344 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0345 88-108-122-080 C-RES,U 1.2K-1/16W J a b c d
FRONT X R 0346 88-108-122-080 C-RES,U 1.2K-1/16W J a b c d
FRONT X R 0347 88-108-182-080 C-RES,U 1.8K-1/16W J a b c d
FRONT X R 0348 88-108-182-080 C-RES,U 1.8K-1/16W J a b c d
FRONT O R 0361 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0362 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT X R 0363 88-108-100-080 C-RES,U 10-1/16W J a b c d
FRONT X R 0364 88-108-100-080 C-RES,U 10-1/16W J a b c d
FRONT O R 0371 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0372 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT X R 0373 88-108-100-080 C-RES,U 10-1/16W J a b c d
FRONT X R 0374 88-108-100-080 C-RES,U 10-1/16W J a b c d
FRONT O R 0601 88-108-103-080 C-RES,U 10K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT X R 0602 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
FRONT O R 0603 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT X R 0604 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
FRONT O R 0605 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0606 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0607 88-108-000-080 C-JUMPER,U a b c d
FRONT O R 0611 88-108-473-080 C-RES,U 47K-1/16W J a b c d
FRONT O R 0612 88-108-473-080 C-RES,U 47K-1/16W J a b c d
FRONT O R 0613 88-108-473-080 C-RES,U 47K-1/16W J a b c d
FRONT O R 0614 88-108-473-080 C-RES,U 47K-1/16W J a b c d
FRONT O R 0615 88-108-473-080 C-RES,U 47K-1/16W J a b c d
FRONT O R 0617 88-108-473-080 C-RES,U 47K-1/16W J a b c d
FRONT O R 0618 88-108-473-080 C-RES,U 47K-1/16W J a b c d
FRONT O R 0704 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT O R 0705 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT O R 0706 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT O R 0707 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0708 88-121-102-080 RES,1K-1/8W J a b c d
FRONT O R 0709 88-108-101-080 C-RES,U 100-1/16W J a b c d
FRONT X R 0710 88-128-101-080 C-RES, 100-1/8W J a b c d
ELECTRICAL PARTS LIST -2/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-7-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT O R 0711 88-108-101-080 C-RES,U 100-1/16W J a b c d
FRONT O R 0712 88-108-101-080 C-RES,U 100-1/16W J a b c d
FRONT X R 0719 88-108-100-080 C-RES,U 10-1/16W J a b c d
FRONT O R 0721 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0730 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT O R 0732 88-108-101-080 C-RES,U 100-1/16W J a b c d
FRONT O R 0733 88-108-101-080 C-RES,U 100-1/16W J a b c d
FRONT O R 0734 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT O R 0735 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT O R 0740 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT O R 0741 88-108-101-080 C-RES,U 100-1/16W J a b c d
FRONT O R 0742 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0743 88-108-474-080 C-RES,U 470K-1/16W J a b c d
FRONT O R 0744 88-108-823-080 C-RES,U 82K-1/16W J a b c d
FRONT X R 0745 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0749 88-108-474-080 C-RES,U 470K-1/16W J a b c d
FRONT O R 0803 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT O R 0804 88-108-224-080 C-RES,U 220K-1/16W J a b c d
FRONT X R 0805 88-108-273-080 C-RES,U 27K-1/16W J a b c d
FRONT O R 0806 88-108-562-080 C-RES,U 5.6K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT X R 0807 88-108-000-080 C-JUMPER,U a b c d
FRONT X R 0808 88-121-101-080 RES,100-1/8W J a b c d
FRONT O R 0809 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0810 88-108-182-080 C-RES,U 1.8K-1/16W J a b c d
FRONT O R 0811 88-108-224-080 C-RES,U 220K-1/16W J a b c d
FRONT O R 0813 88-108-224-080 C-RES,U 220K-1/16W J a b c d
FRONT O R 0815 88-108-272-080 C-RES,U 2.7K-1/16W J a b c d
FRONT X R 0816 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT O R 0818 88-108-224-080 C-RES,U 220K-1/16W J a b c d
FRONT X R 0819 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
FRONT O R 0820 88-108-101-080 C-RES,U 100-1/16W J a b c d
FRONT X R 0821 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT O R 0822 88-108-224-080 C-RES,U 220K-1/16W J a b c d
FRONT X R 0823 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
FRONT X R 0824 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
FRONT X R 0825 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
FRONT X R 0826 88-108-000-080 C-JUMPER,U a b c d
FRONT O R 0827 88-108-473-080 C-RES,U 47K-1/16W J a b c d
FRONT X R 0901 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0902 88-108-104-080 C-RES,U 100K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT X R 0903 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0904 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0905 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0906 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0907 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0908 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0909 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0910 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0911 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0912 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0913 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0914 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0915 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0916 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0917 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0918 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0919 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0920 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0921 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0922 88-108-104-080 C-RES,U 100K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT X R 0923 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0924 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0925 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0926 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0927 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0928 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0929 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0930 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0931 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0932 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0933 88-121-104-080 RES,100K-1/8W J a b c d
FRONT X R 0934 88-108-683-080 C-RES,U 68K-1/16W J a b c d
FRONT X R 0935 88-108-683-080 C-RES,U 68K-1/16W J a b c d
FRONT X R 0936 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0937 88-128-472-080 C-RES, 4.7K-1/8W J a b c d
FRONT X R 0938 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
FRONT X R 0939 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
FRONT X R 0940 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0941 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT O R 0942 88-108-103-080 C-RES,U 10K-1/16W J a b c d
ELECTRICAL PARTS LIST -3/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-8-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT X R 0943 88-121-472-080 RES,4.7K-1/8W J a b c d
FRONT X R 0946 88-108-000-080 C-JUMPER,U a b c d
FRONT X R 0947 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0948 88-121-104-080 RES,100K-1/8W J a b c d
FRONT O R 0951 88-108-102-080 C-RES,U 1K-1/16W J a b c d
FRONT X R 0955 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0956 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT X R 0957 88-108-104-080 C-RES,U 100K-1/16W J a b c d
FRONT O R 0958 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0959 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT X R 0961 88-121-181-080 RES,180-1/8W J a b c d
FRONT O R 0963 88-108-563-080 C-RES,U 56K-1/16W J a b c d
FRONT O R 0969 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0981 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0982 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0983 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0984 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT X R 0985 88-121-103-080 RES,10K-1/8W J a b c d
FRONT X R 0986 88-121-103-080 RES,10K-1/8W J a b c d
FRONT O R 0987 88-108-103-080 C-RES,U 10K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT O R 0988 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O R 0989 88-108-103-080 C-RES,U 10K-1/16W J a b c d
FRONT O S 0321 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0322 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0323 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0324 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0325 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0326 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0327 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0328 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0329 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0330 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0331 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0332 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0333 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0334 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0335 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0341 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0342 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0343 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
FRONT O S 0344 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0345 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0346 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0347 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0348 87-A90-164-080 SW,TACT SKQNAB(N) a b c d
FRONT O S 0361 87-A92-370-010 SW,RTRY RE012307PVB30F a b c d
FRONT O S 0371 87-A92-371-010 SW,RTRY RE0123PVB30F a b c d
HP X J 0201 87-A60-420-010 JACK,3.5 ST (MSC) a b c d
HP O R 0243 87-A00-439-050 RES,180-1/2W J RP a b c d
HP O R 0244 87-A00-439-050 RES,180-1/2W J RP a b c d
HP O R 0245 87-A00-439-050 RES,180-1/2W J RP a b c d
HP O R 0246 87-A00-439-050 RES,180-1/2W J RP a b c d
HP X R 0265 88-128-222-080 C-RES, 2.2K-1/8W J a b c d
HP X R 0266 88-128-222-080 C-RES, 2.2K-1/8W J a b c d
HP O WH 0201 87-A90-459-010 HLDR,WIRE 2.5-5P a b c d
MAIN O C 0003 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0004 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0005 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0006 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0009 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O C 0010 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0011 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0012 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0013 87-012-282-080 C-CAP,U 4700P-50 K B GRM a b c d
MAIN O C 0014 87-010-260-080 CAP,E 47-25 M 11L SME a b c d
MAIN O C 0015 87-010-263-080 CAP,E 100-10 M 11L SME a b c d
MAIN O C 0016 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0019 87-A12-432-000 CAP,E 3300-50 M 85 IV LELON a b c d
MAIN O C 0020 87-A12-432-000 CAP,E 3300-50 M 85 IV LELON a b c d
MAIN O C 0021 87-A12-755-000 CAP,E 4700-25 M 85 IV LELON a b c d
MAIN O C 0022 87-A12-755-000 CAP,E 4700-25 M 85 IV LELON a b c d
MAIN O C 0025 87-A12-079-080 CAP,E 100-35 SMG a b c d
MAIN O C 0026 87-010-393-080 CAP,E 100-35 M SME a b c d
MAIN O C 0027 87-010-393-080 CAP,E 100-35 M SME a b c d
MAIN O C 0028 87-010-393-080 CAP,E 100-35 M SME a b c d
MAIN O C 0030 87-010-247-080 CAP,E 100-50 M SME a b c d
MAIN O C 0031 87-010-263-080 CAP,E 100-10 M 11L SME a b c d
MAIN O C 0034 87-010-260-080 CAP,E 47-25 M 11L SME a b c d
MAIN O C 0035 87-010-405-080 CAP,E 10-50 M 11L SME a b c d
MAIN O C 0036 87-010-260-080 CAP,E 47-25 M 11L SME a b c d
ELECTRICAL PARTS LIST -4/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-9-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O C 0060 87-010-403-080 CAP,E 3.3-50 M 11L SME a b c d
MAIN O C 0061 87-010-260-080 CAP,E 47-25 M 11L SME a b c d
MAIN O C 0083 87-010-387-080 CAP,E 470-25 M SME a b c d
MAIN O C 0097 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0101 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b c d
MAIN O C 0102 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b c d
MAIN O C 0103 87-010-546-080 CAP,E 0.33-50 M 11L SME a . . .
MAIN O C 0103 87-010-544-080 CAP,E 0.1-50 M 11L SME . b c d
MAIN O C 0104 87-010-546-080 CAP,E 0.33-50 M 11L SME a . . .
MAIN O C 0104 87-010-544-080 CAP,E 0.1-50 M 11L SME . b c d
MAIN O C 0107 87-010-405-080 CAP,E 10-50 M 11L SME a b c d
MAIN O C 0108 87-010-405-080 CAP,E 10-50 M 11L SME a b c d
MAIN O C 0111 87-010-407-080 CAP,E 33-50 M 11L SME a b c d
MAIN O C 0112 87-010-407-080 CAP,E 33-50 M 11L SME a b c d
MAIN O C 0113 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
MAIN O C 0114 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
MAIN O C 0117 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0118 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0119 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0120 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O C 0121 87-010-401-080 CAP,E 1-50 M 11L SME a b c d
MAIN O C 0122 87-010-401-080 CAP,E 1-50 M 11L SME a b c d
MAIN O C 0123 87-010-177-080 C-CAP,S 820P-50 J SL C2012 a b c d
MAIN O C 0124 87-010-177-080 C-CAP,S 820P-50 J SL C2012 a b c d
MAIN O C 0125 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
MAIN O C 0126 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
MAIN O C 0133 87-012-282-080 C-CAP,U 4700P-50 K B GRM a b c d
MAIN O C 0140 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b c d
MAIN O C 0145 87-010-971-080 C-CAP,S 4700P-50 J B GRM a b c d
MAIN O C 0146 87-010-971-080 C-CAP,S 4700P-50 J B GRM a b c d
MAIN O C 0186 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0187 87-A12-890-080 CAP,E 10-63 VR a b c d
MAIN O C 0188 87-A12-890-080 CAP,E 10-63 VR a b c d
MAIN O C 0190 87-012-188-080 C-CAP,U 47P-50 J CH GRM a b c d
MAIN O C 0201 87-A10-260-080 C-CAP,U 0.1-16 K B a b c d
MAIN O C 0225 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0226 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0227 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0228 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0241 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O C 0301 87-012-275-080 C-CAP,U 1200P-50 K B GRM a b c d
MAIN O C 0302 87-012-275-080 C-CAP,U 1200P-50 K B GRM a b c d
MAIN O C 0303 87-012-275-080 C-CAP,U 1200P-50 K B GRM a b c d
MAIN O C 0304 87-012-275-080 C-CAP,U 1200P-50 K B GRM a b c d
MAIN O C 0305 87-A10-039-080 C-CAP,U 470P-50 J CH a b c d
MAIN O C 0310 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b c d
MAIN O C 0363 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0451 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0452 87-010-406-080 CAP,E 22-50 M 11L SME a b c d
MAIN O C 0453 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b c d
MAIN O C 0454 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b c d
MAIN O C 0455 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b c d
MAIN O C 0456 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0457 87-A12-361-080 CAP,M 5600P-100 J CP a b c d
MAIN O C 0458 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b c d
MAIN O C 0459 87-012-271-080 C-CAP,U 560P-50 K B GRM a b c d
MAIN O C 0460 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
MAIN O C 0461 87-012-158-080 C-CAP,S 390P-50 J CH GRM a b c d
MAIN O C 0462 87-012-158-080 C-CAP,S 390P-50 J CH GRM a b c d
MAIN O C 0463 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O C 0464 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b c d
MAIN O C 0601 87-012-188-080 C-CAP,U 47P-50 J CH GRM a b c d
MAIN O C 0602 87-012-188-080 C-CAP,U 47P-50 J CH GRM a b c d
MAIN O C 0603 87-010-263-080 CAP,E 100-10 M 11L SME a b c d
MAIN O C 0604 87-010-263-080 CAP,E 100-10 M 11L SME a b c d
MAIN O C 0605 87-A12-362-080 CAP,M 6800P-100 J CP a b c d
MAIN O C 0606 87-A12-362-080 CAP,M 6800P-100 J CP a b c d
MAIN O C 0607 87-A10-039-080 C-CAP,U 470P-50 J CH a b c d
MAIN O C 0608 87-A10-039-080 C-CAP,U 470P-50 J CH a b c d
MAIN O C 0609 87-010-401-080 CAP,E 1-50 M 11L SME a b c d
MAIN O C 0610 87-010-401-080 CAP,E 1-50 M 11L SME a b c d
MAIN O C 0611 87-A12-348-080 C-CAP,U 560P-25 J CH a b c d
MAIN O C 0612 87-A12-348-080 C-CAP,U 560P-25 J CH a b c d
MAIN O C 0613 87-012-280-080 C-CAP,U 3300P-50 K B GRM a b c d
MAIN O C 0614 87-012-280-080 C-CAP,U 3300P-50 K B GRM a b c d
MAIN O C 0615 87-010-545-080 CAP,E 0.22-50 M 11L SME a b c d
MAIN O C 0616 87-010-545-080 CAP,E 0.22-50 M 11L SME a b c d
MAIN O C 0617 87-010-545-080 CAP,E 0.22-50 M 11L SME a b c d
MAIN O C 0618 87-010-545-080 CAP,E 0.22-50 M 11L SME a b c d
MAIN O C 0625 87-012-198-080 C-CAP,U 180P-50 J CH GRM a b c d
ELECTRICAL PARTS LIST -5/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-10-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O C 0626 87-012-198-080 C-CAP,U 180P-50 J CH GRM a b c d
MAIN O C 0627 87-012-284-080 C-CAP,U 6800P-50 K B GRM a b c d
MAIN O C 0628 87-012-284-080 C-CAP,U 6800P-50 K B GRM a b c d
MAIN O C 0629 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0630 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0631 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b c d
MAIN O C 0632 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b c d
MAIN O C 0641 87-010-401-080 CAP,E 1-50 M 11L SME a b c d
MAIN O C 0642 87-010-401-080 CAP,E 1-50 M 11L SME a b c d
MAIN O C 0651 87-010-248-080 CAP,E 220-10 M 11L SME a b c d
MAIN O C 0652 87-010-260-080 CAP,E 47-25 M 11L SME a b c d
MAIN O C 0655 87-010-404-080 CAP,E 4.7-50 M 11L SME a b c d
MAIN O C 0656 87-010-784-080 C-CAP,U 0.012-25 K B GRM a b c d
MAIN O C 0663 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0664 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0665 87-A10-504-080 C-CAP,U 0.047-16 K B a b c d
MAIN O C 0666 87-A10-504-080 C-CAP,U 0.047-16 K B a b c d
MAIN O C 0677 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0771 87-010-263-080 CAP,E 100-10 M 11L SME a b c d
MAIN O C 0772 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X C 0781 88-108-000-080 C-JUMPER,U a b c d
MAIN O C 0782 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0783 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0784 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0785 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0786 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0788 87-012-167-080 C-CAP,U 5P-50 C CH GRM a b c d
MAIN O C 0789 87-A13-065-080 C-CAP,U 0.027-25 J B a b c d
MAIN O C 0790 87-A13-065-080 C-CAP,U 0.027-25 J B a b c d
MAIN O C 0791 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0792 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0793 87-010-404-080 CAP,E 4.7-50 M 11L SME a b c d
MAIN O C 0795 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0796 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0797 87-010-405-080 CAP,E 10-50 M 11L SME a b c d
MAIN O C 0798 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0799 87-010-265-080 CAP,E 33-16 M 11L SME a b c d
MAIN O C 0800 87-010-829-080 C-CAP,U 0.047-16 Z F CM/CB a b c d
MAIN O C 0801 87-010-403-080 CAP,E 3.3-50 M 11L SME a b c d
MAIN O C 0802 87-010-829-080 C-CAP,U 0.047-16 Z F CM/CB a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O C 0803 87-010-787-080 C-CAP,U 0.022-25 K B GRM a b c d
MAIN O C 0804 87-010-263-080 CAP,E 100-10 M 11L SME a b c d
MAIN O C 0807 87-010-400-080 CAP,E 0.47-50 M 11L SME a b c d
MAIN O C 0808 87-010-401-080 CAP,E 1-50 M 11L SME a b c d
MAIN O C 0809 87-010-401-080 CAP,E 1-50 M 11L SME a b c d
MAIN O C 0810 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0814 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0815 87-010-400-080 CAP,E 0.47-50 M 11L SME a b c d
MAIN O C 0816 87-010-400-080 CAP,E 0.47-50 M 11L SME a b c d
MAIN O C 0821 87-010-405-080 CAP,E 10-50 M 11L SME a b c d
MAIN X C 0822 88-108-000-080 C-JUMPER,U a b c d
MAIN O C 0823 87-010-177-080 C-CAP,S 820P-50 J SL C2012 a b c d
MAIN O C 0824 87-010-404-080 CAP,E 4.7-50 M 11L SME a b c d
MAIN O C 0825 87-010-596-080 C-CAP,S 0.047-16 K R C2012 a b c d
MAIN O C 0842 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN X C 0843 88-108-000-080 C-JUMPER,U a b c d
MAIN O C 0844 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN X C 0845 88-108-000-080 C-JUMPER,U a b c d
MAIN X C 0846 88-108-000-080 C-JUMPER,U a b c d
MAIN X C 0847 88-108-000-080 C-JUMPER,U a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X C 0848 88-108-000-080 C-JUMPER,U a b c d
MAIN X C 0849 88-108-000-080 C-JUMPER,U a b c d
MAIN O C 0850 87-010-260-080 CAP,E 47-25 M 11L SME a b c d
MAIN O C 0851 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0852 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0853 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0860 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0901 87-012-169-080 C-CAP,U 7P-50 D CH GRM a b c d
MAIN X C 0906 88-108-000-080 C-JUMPER,U a b c d
MAIN O C 0908 87-012-162-080 C-CAP,U 1P-50 C CH GRM a b c d
MAIN O C 0909 87-A10-915-080 C-CAP,U 1000P-25 J CH a b c d
MAIN O C 0911 87-012-167-080 C-CAP,U 5P-50 C CH GRM a b c d
MAIN O C 0912 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
MAIN O C 0914 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0915 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0917 87-012-164-080 C-CAP,U 2P-50 C CH GRM a b c d
MAIN O C 0920 87-012-180-080 C-CAP,U 22P-50 J CH GRM a b c d
MAIN O C 0921 87-012-186-080 C-CAP,U 39P-50 J CH GRM a b c d
MAIN O C 0922 87-012-174-080 C-CAP,U 12P-50 J CH GRM a b c d
MAIN O C 0923 87-A10-039-080 C-CAP,U 470P-50 J CH a b c d
ELECTRICAL PARTS LIST -6/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-11-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O C 0924 87-012-162-080 C-CAP,U 1P-50 C CH GRM a b c d
MAIN O C 0926 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
MAIN O C 0928 87-012-176-080 C-CAP,U 15P-50 J CH GRM a b c d
MAIN O C 0931 87-A12-319-080 C-CAP,U 0.1-25 K B a b c d
MAIN X C 0940 88-108-000-080 C-JUMPER,U a b c d
MAIN O C 0959 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0960 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0961 87-012-169-080 C-CAP,U 7P-50 D CH GRM a b c d
MAIN O C 0962 87-010-401-080 CAP,E 1-50 M 11L SME a b c d
MAIN O C 0963 87-A12-319-080 C-CAP,U 0.1-25 K B a b c d
MAIN O C 0971 87-010-381-080 CAP,E 330-16 M SME a b c d
MAIN O C 0972 87-010-404-080 CAP,E 4.7-50 M 11L SME a b c d
MAIN O C 0973 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0974 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0979 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
MAIN O C 0981 87-010-260-080 CAP,E 47-25 M 11L SME a b c d
MAIN O C 0982 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0983 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0984 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0987 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O C 0988 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O C 0991 87-012-176-080 C-CAP,U 15P-50 J CH GRM a b c d
MAIN O C 0992 87-012-176-080 C-CAP,U 15P-50 J CH GRM a b c d
MAIN O C 0993 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b c d
MAIN O C 0995 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b c d
MAIN O C 0997 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b c d
MAIN O C 0998 87-010-260-080 CAP,E 47-25 M 11L SME a b c d
MAIN O C 0999 87-A11-155-080 CAP,TC U 0.01-16 Z F a b c d
MAIN O CF 0831 87-008-261-010 FLTR,CF SFE10.7MA5 a b c d
MAIN O CF 0832 87-008-261-010 FLTR,CF SFE10.7MA5 a b c d
MAIN X CLP0303 87-A60-884-010 PIN,DIA1 COATING-SHS a b c d
MAIN X CLP0304 87-A60-884-010 PIN,DIA1 COATING-SHS a b c d
MAIN O CN 0301 87-A60-620-010 CONN,3P V 2MM JMT a b c d
MAIN O CN 0302 87-A60-625-010 CONN,8P V 2MM JMT a b c d
MAIN O CN 0601 87-099-719-010 CONN,30P H BLK TYK-B(X) a b c d
MAIN O CN 0602 87-099-194-010 CONN,6P V BLK 6216 a b c d
MAIN O CNA0301 8C-NF9-605-010 CONN ASSY,3P -PB a b c d
MAIN O CNA0302 8C-NF9-606-010 CONN ASSY,8P -RPB a b c d
MAIN S D 0001 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
MAIN S D 0002 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN S D 0003 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
MAIN S D 0004 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
MAIN S D 0005 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
MAIN S D 0006 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
MAIN S D 0007 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
MAIN S D 0008 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
MAIN S D 0011 87-A40-270-080 C-DIODE,MC2838 a b c d
MAIN S D 0021 87-A40-345-080 ZENER,MTZJ10C a b c d
MAIN S D 0025 87-A40-553-080 DIODE,1N4003 LES a b c d
MAIN S D 0026 87-A40-553-080 DIODE,1N4003 LES a b c d
MAIN S D 0027 87-A40-553-080 DIODE,1N4003 LES a b c d
MAIN S D 0028 87-A40-553-080 DIODE,1N4003 LES a b c d
MAIN S D 0029 87-A40-336-080 ZENER,MTZJ27D T-72 a b c d
MAIN S D 0030 87-020-465-080 DIODE,1SS133 a b c d
MAIN S D 0032 87-020-465-080 DIODE,1SS133 a b c d
MAIN S D 0041 87-A40-270-080 C-DIODE,MC2838 a b c d
MAIN S D 0042 87-A40-269-080 C-DIODE,MC2836 a b c d
MAIN S D 0060 87-020-465-080 DIODE,1SS133 a b c d
MAIN S D 0061 87-A40-336-080 ZENER,MTZJ27D T-72 a b c d
MAIN S D 0063 87-A40-270-080 C-DIODE,MC2838 a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN S D 0064 87-A40-269-080 C-DIODE,MC2836 a b c d
MAIN S D 0076 87-A40-269-080 C-DIODE,MC2836 a b c d
MAIN S D 0077 87-A40-270-080 C-DIODE,MC2838 a b c d
MAIN S D 0101 87-A40-269-080 C-DIODE,MC2836 a b c d
MAIN S D 0103 87-020-465-080 DIODE,1SS133 a b c d
MAIN S D 0104 87-020-465-080 DIODE,1SS133 a b c d
MAIN S D 0105 87-A40-269-080 C-DIODE,MC2836 a b c d
MAIN S D 0106 87-A40-269-080 C-DIODE,MC2836 a b c d
MAIN S D 0107 87-A40-270-080 C-DIODE,MC2838 a b c d
MAIN S D 0108 87-A40-270-080 C-DIODE,MC2838 a b c d
MAIN S D 0109 87-A40-488-080 DIODE,1SS244 a b c d
MAIN S D 0110 87-A40-488-080 DIODE,1SS244 a b c d
MAIN S D 0150 87-A40-270-080 C-DIODE,MC2838 a b c d
MAIN S D 0160 87-A40-270-080 C-DIODE,MC2838 a b c d
MAIN S D 0185 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
MAIN S D 0186 87-A40-393-090 DIODE,1N5402GW(F20) a b c d
MAIN S D 0187 87-A40-871-080 ZENER,MTZJ5.6C a b c d
MAIN S D 0188 87-017-931-080 ZENER,MTZJ5.6B a b c d
MAIN S D 0189 87-A40-270-080 C-DIODE,MC2838 a b c d
MAIN S D 0190 87-A40-269-080 C-DIODE,MC2836 a b c d
ELECTRICAL PARTS LIST -7/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-12-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN S D 0191 87-A40-345-080 ZENER,MTZJ10C a b c d
MAIN S D 0192 87-020-465-080 DIODE,1SS133 a b c d
MAIN S D 0193 87-020-465-080 DIODE,1SS133 a b c d
MAIN S D 0280 87-A40-269-080 C-DIODE,MC2836 a b c d
MAIN S D 0281 87-A40-270-080 C-DIODE,MC2838 a b c d
MAIN S D 0301 87-A40-269-080 C-DIODE,MC2836 a b c d
MAIN S D 0661 87-A40-438-080 ZENER,MTZJ4.7A a b c d
MAIN S D 0662 87-A40-438-080 ZENER,MTZJ4.7A a b c d
MAIN X D 0801 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
MAIN S D 0803 87-020-465-080 DIODE,1SS133 a b c d
MAIN O D 0902 87-A40-916-040 C-VARI-CAP,HVC202A a b c d
MAIN O D 0903 87-A40-916-040 C-VARI-CAP,HVC202A a b c d
MAIN X D 0944 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
MAIN O D 0951 87-A40-799-040 C-VARI-CAP,KV1610S a b c d
MAIN S D 0991 87-017-149-080 ZENER,HZS6A2L a b c d
MAIN S D 0994 87-020-465-080 DIODE,1SS133 a b c d
MAIN X FB 0601 88-118-000-080 C-JUMPER,S a b c d
MAIN X FB 0602 88-118-000-080 C-JUMPER,S a b c d
MAIN X FB 0603 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
MAIN O FFC0602 88-906-171-110 FF-CABLE, 6P 1.25 a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN S IC 0001 87-A21-364-010 IC,NJM7806FA(A) a b c d
MAIN S IC 0601 87-A22-236-040 C-IC,BD3881FV a b c d
MAIN S IC 0801 87-A22-060-010 IC,LA1845N-A a b c d
MAIN S IC 0991 87-A21-928-010 IC,LC72131D-N a b c d
MAIN O J 0203 87-A61-820-010 TERMINAL,SP 4P MSC(V0) a b c d
MAIN O J 0205 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN . b . d
MAIN O J 0602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN a b c d
MAIN X J 0831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 a b c d
MAIN X JR 0835 88-108-561-080 C-RES,U 560-1/16W J a b c d
MAIN O L 0201 87-A50-611-010 COIL,1UH K(CS) a b c d
MAIN O L 0202 87-A50-611-010 COIL,1UH K(CS) a b c d
MAIN O L 0451 87-007-342-010 COIL,OSC 85KHZ BIAS a b c d
MAIN O L 0801 87-A50-608-010 COIL,FM DET-N(TOK) a b c d
MAIN O L 0802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) a b c d
MAIN O L 0811 87-005-847-080 COIL,2.2UH K CECS a b c d
MAIN O L 0832 87-005-847-080 COIL,2.2UH K CECS a b c d
MAIN O L 0901 87-A50-110-010 COIL,FM BPF EX a b c d
MAIN O L 0903 86-ZA1-624-010 COIL,FM RF-1 a b c d
MAIN O L 0904 86-ZA1-622-010 COIL,FM ANT/RF-U a b c d
MAIN O L 0906 87-005-847-080 COIL,2.2UH K CECS a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O L 0907 86-ZA1-627-010 COIL,FM OSC-U a b c d
MAIN O L 0908 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS) a b c d
MAIN O L 0952 87-A50-752-010 COIL,MW ANT(2B) a b c d
MAIN O L 0953 87-A50-753-010 COIL,MW OSC(2B) a b c d
MAIN S Q 0001 87-A30-494-080 TR,2SA1980G a b c d
MAIN S Q 0002 87-A30-494-080 TR,2SA1980G a b c d
MAIN S Q 0003 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0006 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0009 87-A30-494-080 TR,2SA1980G a b c d
MAIN S Q 0010 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0011 89-213-702-010 TR,2SB1370E a b c d
MAIN S Q 0012 87-A30-630-080 TR,2SC5343GL a b c d
MAIN S Q 0015 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0060 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0061 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0062 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0063 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0064 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0101 87-A30-675-040 C-TR,2SD1306NE07TL a b c d
MAIN S Q 0102 87-A30-675-040 C-TR,2SD1306NE07TL a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN S Q 0103 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0104 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0105 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0106 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0107 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0108 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0109 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0110 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0111 87-A30-672-080 TR,2N5551C a b c d
MAIN S Q 0112 87-A30-672-080 TR,2N5551C a b c d
MAIN S Q 0113 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0114 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0115 87-A30-670-040 C-TR,SBT5551 a b c d
MAIN S Q 0116 87-A30-670-040 C-TR,SBT5551 a b c d
MAIN S Q 0117 87-A30-306-010 TR,2SB1677 a . c .
MAIN S Q 0117 87-A30-528-010 TR,2SB1686 . b . d
MAIN S Q 0118 87-A30-306-010 TR,2SB1677 a . c .
MAIN S Q 0118 87-A30-528-010 TR,2SB1686 . b . d
MAIN S Q 0119 87-A30-307-010 TR,2SD2619 a . c .
MAIN S Q 0119 87-A30-529-010 TR,2SD2642 . b . d
ELECTRICAL PARTS LIST -8/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-13-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN S Q 0120 87-A30-307-010 TR,2SD2619 a . c .
MAIN S Q 0120 87-A30-529-010 TR,2SD2642 . b . d
MAIN S Q 0123 87-A30-669-040 C-TR,SBT5401 a b c d
MAIN S Q 0124 87-A30-669-040 C-TR,SBT5401 a b c d
MAIN S Q 0126 87-A30-669-040 C-TR,SBT5401 a b c d
MAIN S Q 0127 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0128 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0130 87-A30-670-040 C-TR,SBT5551 a b c d
MAIN S Q 0183 87-A30-186-010 FET,2SK3053 a b c d
MAIN S Q 0184 87-A30-186-010 FET,2SK3053 a b c d
MAIN S Q 0185 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0186 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0187 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0235 87-A30-075-080 C-TR,2SA1235F a b c d
MAIN S Q 0280 87-A30-538-040 C-TR,SRA2202S a b c d
MAIN S Q 0281 87-A30-669-040 C-TR,SBT5401 a b c d
MAIN S Q 0301 87-A30-091-080 FET,2SJ460 a b c d
MAIN S Q 0302 87-A30-091-080 FET,2SJ460 a b c d
MAIN S Q 0303 87-A30-090-080 FET,2SK2541 a b c d
MAIN S Q 0304 87-A30-090-080 FET,2SK2541 a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN S Q 0305 87-A30-091-080 FET,2SJ460 a b c d
MAIN S Q 0306 87-A30-091-080 FET,2SJ460 a b c d
MAIN S Q 0307 87-A30-090-080 FET,2SK2541 a b c d
MAIN S Q 0308 87-A30-090-080 FET,2SK2541 a b c d
MAIN S Q 0309 87-A30-090-080 FET,2SK2541 a b c d
MAIN S Q 0451 87-A30-630-080 TR,2SC5343GL a b c d
MAIN S Q 0452 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0453 89-333-317-880 TR,2SC3331(T/U) a b c d
MAIN S Q 0454 89-333-317-880 TR,2SC3331(T/U) a b c d
MAIN S Q 0601 87-A30-538-040 C-TR,SRA2202S a b c d
MAIN S Q 0651 87-A30-087-080 C-FET,2SK2158 a b c d
MAIN S Q 0652 87-A30-087-080 C-FET,2SK2158 a b c d
MAIN S Q 0653 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN S Q 0835 87-A30-521-080 C-TR,2SC5345SF/S(O) a b c d
MAIN S Q 0836 87-A30-677-040 C-TR,SRA2207S a b c d
MAIN S Q 0901 89-503-602-080 C-FET,2SK360E a b c d
MAIN S Q 0902 87-A30-664-080 C-TR,2SC2620B a b c d
MAIN S Q 0904 87-A30-699-040 C-TR,2SC5477-T22 a b c d
MAIN S Q 0981 87-A30-494-080 TR,2SA1980G a b c d
MAIN S Q 0982 87-A30-076-080 C-TR,2SC3052F a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN S Q 0983 87-A30-076-080 C-TR,2SC3052F a b c d
MAIN X R 0001 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
MAIN X R 0005 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
MAIN O R 0009 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN O R 0010 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN X R 0011 88-118-472-080 C-RES,S 4.7K-1/10W J a b c d
MAIN X R 0012 88-118-472-080 C-RES,S 4.7K-1/10W J a b c d
MAIN X R 0013 88-118-472-080 C-RES,S 4.7K-1/10W J a b c d
MAIN X R 0014 88-118-100-080 C-RES,S 10-1/10W J a b c d
MAIN X R 0015 88-121-104-080 RES,100K-1/8W J a b c d
MAIN X R 0016 88-108-104-080 C-RES,U 100K-1/16W J a b c d
MAIN X R 0017 88-108-104-080 C-RES,U 100K-1/16W J a b c d
MAIN X R 0018 88-108-104-080 C-RES,U 100K-1/16W J a b c d
MAIN X R 0019 88-108-104-080 C-RES,U 100K-1/16W J a b c d
MAIN X R 0020 88-128-129-080 C-RES, 1.2-1/8W J a b c d
MAIN X R 0021 88-128-129-080 C-RES, 1.2-1/8W J a b c d
MAIN O R 0022 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0023 88-118-101-080 C-RES,S 100-1/10W J a b c d
MAIN X R 0024 88-118-103-080 C-RES,S 10K-1/10W J a b c d
MAIN X R 0026 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X R 0027 88-118-000-080 C-JUMPER,S a b c d
MAIN X R 0028 88-108-221-080 C-RES,U 220-1/16W J a b c d
MAIN O R 0029 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN X R 0031 88-121-154-080 RES,150K-1/8W J a b c d
MAIN X R 0032 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0035 88-118-123-080 C-RES,S 12K-1/10W J a b c d
MAIN X R 0037 88-118-102-080 C-RES,S 1K-1/10W J a b c d
MAIN X R 0038 88-118-102-080 C-RES,S 1K-1/10W J a b c d
MAIN X R 0042 88-121-331-080 RES,330-1/8W J a b c d
MAIN X R 0043 88-121-331-080 RES,330-1/8W J a b c d
MAIN X R 0044 88-121-331-080 RES,330-1/8W J a b c d
MAIN X R 0045 88-121-331-080 RES,330-1/8W J a b c d
MAIN X R 0046 88-121-471-080 RES,470-1/8W J a b c d
MAIN O R 0050 88-108-153-080 C-RES,U 15K-1/16W J a b c d
MAIN O R 0051 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN O R 0052 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN X R 0053 88-118-563-080 C-RES,S 56K-1/10W J a b c d
MAIN X R 0054 88-118-682-080 C-RES,S 6.8K-1/10W J a . c .
MAIN X R 0054 88-118-562-080 C-RES,S 5.6K-1/10W J . b . d
MAIN X R 0055 88-121-152-080 RES,1.5K-1/8W J a b c d
ELECTRICAL PARTS LIST -9/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-14-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X R 0056 88-118-680-080 C-RES,S 68-1/10W J a b c d
MAIN X R 0057 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN O R 0058 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0059 88-108-221-080 C-RES,U 220-1/16W J a b c d
MAIN X R 0060 88-108-471-080 C-RES,U 470-1/16W J a b c d
MAIN O R 0061 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0062 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN O R 0063 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN O R 0064 88-108-822-080 C-RES,U 8.2K-1/16W J a . c .
MAIN O R 0064 88-108-103-080 C-RES,U 10K-1/16W J . b . d
MAIN O R 0065 88-108-123-080 C-RES,U 12K-1/16W J a b c d
MAIN X R 0066 88-108-104-080 C-RES,U 100K-1/16W J a b c d
MAIN O R 0067 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0068 88-128-152-080 C-RES, 1.5K-1/8W J a b c d
MAIN X R 0069 88-128-152-080 C-RES, 1.5K-1/8W J a b c d
MAIN X R 0070 88-118-103-080 C-RES,S 10K-1/10W J a b c d
MAIN O R 0076 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0078 88-108-333-080 C-RES,U 33K-1/16W J a . c .
MAIN X R 0078 88-108-393-080 C-RES,U 39K-1/16W J . b . d
MAIN O R 0079 88-108-562-080 C-RES,U 5.6K-1/16W J a . c .
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O R 0079 88-108-123-080 C-RES,U 12K-1/16W J . b . d
MAIN O R 0081 88-108-101-080 C-RES,U 100-1/16W J a b c d
MAIN O R 0085 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0093 88-108-563-080 C-RES,U 56K-1/16W J a . c .
MAIN O R 0093 88-108-823-080 C-RES,U 82K-1/16W J . b . d
MAIN X R 0094 88-108-333-080 C-RES,U 33K-1/16W J a . c .
MAIN X R 0094 88-108-393-080 C-RES,U 39K-1/16W J . b . d
MAIN O R 0095 88-108-562-080 C-RES,U 5.6K-1/16W J a . c .
MAIN O R 0095 88-108-123-080 C-RES,U 12K-1/16W J . b . d
MAIN O R 0096 88-108-563-080 C-RES,U 56K-1/16W J a . c .
MAIN O R 0096 88-108-823-080 C-RES,U 82K-1/16W J . b . d
MAIN X R 0103 88-108-393-080 C-RES,U 39K-1/16W J a b c d
MAIN X R 0104 88-108-393-080 C-RES,U 39K-1/16W J a b c d
MAIN X R 0105 88-108-273-080 C-RES,U 27K-1/16W J a b c d
MAIN X R 0106 88-108-273-080 C-RES,U 27K-1/16W J a b c d
MAIN O R 0107 88-108-101-080 C-RES,U 100-1/16W J a b c d
MAIN O R 0108 88-108-101-080 C-RES,U 100-1/16W J a b c d
MAIN X R 0111 88-118-122-080 C-RES,S 1.2K-1/10W J a b c d
MAIN X R 0112 88-118-122-080 C-RES,S 1.2K-1/10W J a b c d
MAIN X R 0113 88-118-273-080 C-RES,S 27K-1/10W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X R 0114 88-118-273-080 C-RES,S 27K-1/10W J a b c d
MAIN X R 0115 88-128-222-080 C-RES, 2.2K-1/8W J a b c d
MAIN X R 0116 88-128-222-080 C-RES, 2.2K-1/8W J a b c d
MAIN O R 0117 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0118 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0119 88-118-101-080 C-RES,S 100-1/10W J a b c d
MAIN X R 0120 88-118-101-080 C-RES,S 100-1/10W J a b c d
MAIN X R 0121 88-118-101-080 C-RES,S 100-1/10W J a b c d
MAIN X R 0122 88-118-101-080 C-RES,S 100-1/10W J a b c d
MAIN X R 0123 88-128-222-080 C-RES, 2.2K-1/8W J a b c d
MAIN X R 0124 88-128-222-080 C-RES, 2.2K-1/8W J a b c d
MAIN X R 0125 88-128-102-080 C-RES, 1K-1/8W J a b c d
MAIN X R 0126 88-128-102-080 C-RES, 1K-1/8W J a b c d
MAIN X R 0127 88-118-390-080 C-RES,S 39-1/10W J a b c d
MAIN X R 0128 88-118-390-080 C-RES,S 39-1/10W J a b c d
MAIN O R 0129 87-A00-258-080 RES,M/F 0.22-1W J a . c .
MAIN O R 0129 87-A00-262-080 RES,M/F 0.15-2W J . b . d
MAIN O R 0130 87-A00-258-080 RES,M/F 0.22-1W J a . c .
MAIN O R 0130 87-A00-262-080 RES,M/F 0.15-2W J . b . d
MAIN O R 0131 87-A00-258-080 RES,M/F 0.22-1W J a . c .
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O R 0131 87-A00-262-080 RES,M/F 0.15-2W J . b . d
MAIN O R 0132 87-A00-258-080 RES,M/F 0.22-1W J a . c .
MAIN O R 0132 87-A00-262-080 RES,M/F 0.15-2W J . b . d
MAIN O R 0133 88-108-332-080 C-RES,U 3.3K-1/16W J a . c .
MAIN X R 0133 88-108-222-080 C-RES,U 2.2K-1/16W J . b . d
MAIN O R 0134 88-108-332-080 C-RES,U 3.3K-1/16W J a . c .
MAIN X R 0134 88-108-222-080 C-RES,U 2.2K-1/16W J . b . d
MAIN X R 0135 88-108-152-080 C-RES,U 1.5K-1/16W J a b c d
MAIN X R 0136 88-108-152-080 C-RES,U 1.5K-1/16W J a b c d
MAIN O R 0137 88-108-101-080 C-RES,U 100-1/16W J a b c d
MAIN O R 0138 88-108-101-080 C-RES,U 100-1/16W J a b c d
MAIN X R 0141 88-118-102-080 C-RES,S 1K-1/10W J a b c d
MAIN X R 0142 88-118-102-080 C-RES,S 1K-1/10W J a b c d
MAIN X R 0143 88-108-392-080 C-RES,U 3.9K-1/16W J a b c d
MAIN X R 0145 88-118-123-080 C-RES,S 12K-1/10W J a b c d
MAIN X R 0146 88-118-123-080 C-RES,S 12K-1/10W J a b c d
MAIN X R 0149 88-108-392-080 C-RES,U 3.9K-1/16W J a b c d
MAIN O R 0151 88-108-473-080 C-RES,U 47K-1/16W J a b c d
MAIN O R 0152 88-108-473-080 C-RES,U 47K-1/16W J a b c d
MAIN X R 0153 88-128-272-080 C-RES, 2.7K-1/8W J a b c d
ELECTRICAL PARTS LIST -10/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-15-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X R 0155 88-108-682-080 C-RES,U 6.8K-1/16W J a b c d
MAIN X R 0156 88-108-682-080 C-RES,U 6.8K-1/16W J a b c d
MAIN X R 0157 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0158 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN O R 0159 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0160 88-121-103-080 RES,10K-1/8W J a b c d
MAIN X R 0161 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0162 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0163 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0164 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0165 88-118-152-080 C-RES,S 1.5K-1/10W J a b c d
MAIN X R 0166 88-118-152-080 C-RES,S 1.5K-1/10W J a b c d
MAIN O R 0167 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0168 88-118-473-080 C-RES,S 47K-1/10W J a b c d
MAIN X R 0171 88-118-222-080 C-RES,S 2.2K-1/10W J a b c d
MAIN X R 0172 88-118-222-080 C-RES,S 2.2K-1/10W J a b c d
MAIN X R 0173 88-118-182-080 C-RES,S 1.8K-1/10W J a b c d
MAIN X R 0174 88-118-182-080 C-RES,S 1.8K-1/10W J a b c d
MAIN X R 0175 88-118-331-080 C-RES,S 330-1/10W J a b c d
MAIN X R 0176 88-118-331-080 C-RES,S 330-1/10W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X R 0177 88-128-222-080 C-RES, 2.2K-1/8W J a b c d
MAIN X R 0178 88-118-103-080 C-RES,S 10K-1/10W J a b c d
MAIN O R 0179 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN O R 0180 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN X R 0181 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
MAIN X R 0182 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
MAIN X R 0184 88-118-102-080 C-RES,S 1K-1/10W J a b c d
MAIN X R 0185 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
MAIN X R 0186 88-118-102-080 C-RES,S 1K-1/10W J a b c d
MAIN X R 0187 88-118-562-080 C-RES,S 5.6K-1/10W J a b c d
MAIN X R 0188 88-118-102-080 C-RES,S 1K-1/10W J a b c d
MAIN X R 0189 88-128-272-080 C-RES, 2.7K-1/8W J a b c d
MAIN X R 0190 88-128-272-080 C-RES, 2.7K-1/8W J a b c d
MAIN X R 0192 88-128-222-080 C-RES, 2.2K-1/8W J a b c d
MAIN O R 0193 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0194 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0195 88-108-473-080 C-RES,U 47K-1/16W J a b c d
MAIN O R 0196 88-108-473-080 C-RES,U 47K-1/16W J a b c d
MAIN O R 0197 88-108-473-080 C-RES,U 47K-1/16W J a b c d
MAIN O R 0198 88-108-473-080 C-RES,U 47K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X R 0199 88-108-225-080 C-RES,U 2.2M-1/16W J a b c d
MAIN X R 0217 88-108-683-080 C-RES,U 68K-1/16W J a b c d
MAIN X R 0218 88-108-105-080 C-RES,U 1M-1/16W J a b c d
MAIN X R 0219 88-108-000-080 C-JUMPER,U a b c d
MAIN X R 0247 88-130-100-080 RES,10-1/4W J a b c d
MAIN X R 0248 88-130-100-080 RES,10-1/4W J a b c d
MAIN X R 0249 88-128-100-080 C-RES, 10-1/8W J a b c d
MAIN X R 0250 88-128-100-080 C-RES, 10-1/8W J a b c d
MAIN X R 0280 88-118-473-080 C-RES,S 47K-1/10W J a b c d
MAIN X R 0281 88-118-222-080 C-RES,S 2.2K-1/10W J a b c d
MAIN X R 0282 88-118-103-080 C-RES,S 10K-1/10W J a b c d
MAIN X R 0283 88-118-224-080 C-RES,S 220K-1/10W J a b c d
MAIN X R 0284 88-118-224-080 C-RES,S 220K-1/10W J a b c d
MAIN O R 0285 88-118-223-080 C-RES,S 22K-1/10W J a b c d
MAIN X R 0286 88-118-473-080 C-RES,S 47K-1/10W J a b c d
MAIN X R 0287 88-118-473-080 C-RES,S 47K-1/10W J a b c d
MAIN X R 0301 88-108-393-080 C-RES,U 39K-1/16W J a b c d
MAIN X R 0302 88-108-393-080 C-RES,U 39K-1/16W J a b c d
MAIN O R 0303 88-108-823-080 C-RES,U 82K-1/16W J a b c d
MAIN O R 0304 88-108-823-080 C-RES,U 82K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O R 0305 88-108-224-080 C-RES,U 220K-1/16W J a b c d
MAIN X R 0451 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
MAIN X R 0453 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0454 88-121-829-080 RES,8.2-1/8W J a b c d
MAIN X R 0455 88-108-183-080 C-RES,U 18K-1/16W J a b c d
MAIN X R 0456 88-108-183-080 C-RES,U 18K-1/16W J a b c d
MAIN X R 0457 88-108-104-080 C-RES,U 100K-1/16W J a b c d
MAIN O R 0458 88-108-563-080 C-RES,U 56K-1/16W J a b c d
MAIN X R 0459 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0469 88-108-150-080 C-RES,U 15-1/16W J a b c d
MAIN X R 0601 88-108-680-080 C-RES,U 68-1/16W J a b c d
MAIN X R 0602 88-108-680-080 C-RES,U 68-1/16W J a b c d
MAIN X R 0603 88-108-394-080 C-RES,U 390K-1/16W J a b c d
MAIN X R 0604 88-108-394-080 C-RES,U 390K-1/16W J a b c d
MAIN X R 0605 88-108-122-080 C-RES,U 1.2K-1/16W J a b c d
MAIN X R 0606 88-108-122-080 C-RES,U 1.2K-1/16W J a b c d
MAIN X R 0607 88-108-183-080 C-RES,U 18K-1/16W J a b c d
MAIN X R 0608 88-108-183-080 C-RES,U 18K-1/16W J a b c d
MAIN X R 0609 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0610 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
ELECTRICAL PARTS LIST -11/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-16-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O R 0611 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN O R 0612 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN X R 0613 88-108-273-080 C-RES,U 27K-1/16W J a b c d
MAIN X R 0614 88-108-273-080 C-RES,U 27K-1/16W J a b c d
MAIN O R 0615 88-108-153-080 C-RES,U 15K-1/16W J a b c d
MAIN O R 0616 88-108-153-080 C-RES,U 15K-1/16W J a b c d
MAIN O R 0617 88-108-153-080 C-RES,U 15K-1/16W J a b c d
MAIN O R 0619 88-108-153-080 C-RES,U 15K-1/16W J a b c d
MAIN O R 0621 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d
MAIN O R 0622 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d
MAIN X R 0623 88-108-222-080 C-RES,U 2.2K-1/16W J a . . .
MAIN X R 0623 88-108-182-080 C-RES,U 1.8K-1/16W J . b c d
MAIN X R 0624 88-108-222-080 C-RES,U 2.2K-1/16W J a . . .
MAIN X R 0624 88-108-182-080 C-RES,U 1.8K-1/16W J . b c d
MAIN X R 0625 88-108-682-080 C-RES,U 6.8K-1/16W J a b c d
MAIN X R 0626 88-108-682-080 C-RES,U 6.8K-1/16W J a b c d
MAIN X R 0627 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
MAIN X R 0628 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
MAIN O R 0629 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0630 88-108-103-080 C-RES,U 10K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X R 0631 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
MAIN X R 0632 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
MAIN O R 0633 88-108-272-080 C-RES,U 2.7K-1/16W J a b c d
MAIN O R 0634 88-108-272-080 C-RES,U 2.7K-1/16W J a b c d
MAIN O R 0635 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN O R 0636 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN O R 0637 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN O R 0638 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN X R 0639 88-108-183-080 C-RES,U 18K-1/16W J a b c d
MAIN X R 0640 88-108-183-080 C-RES,U 18K-1/16W J a b c d
MAIN X R 0641 88-121-223-080 RES,22K-1/8W J a b c d
MAIN X R 0642 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d
MAIN X R 0643 88-108-104-080 C-RES,U 100K-1/16W J a b c d
MAIN X R 0644 88-108-104-080 C-RES,U 100K-1/16W J a b c d
MAIN O R 0649 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d
MAIN O R 0650 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d
MAIN O R 0651 88-108-101-080 C-RES,U 100-1/16W J a b c d
MAIN O R 0652 88-108-101-080 C-RES,U 100-1/16W J a b c d
MAIN X R 0656 88-121-394-080 RES,390K-1/8W J a b c d
MAIN X R 0657 88-108-274-080 C-RES,U 270K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X R 0658 88-108-274-080 C-RES,U 270K-1/16W J a b c d
MAIN X R 0659 88-108-394-080 C-RES,U 390K-1/16W J a b c d
MAIN X R 0660 88-108-274-080 C-RES,U 270K-1/16W J a b c d
MAIN X R 0661 88-108-392-080 C-RES,U 3.9K-1/16W J a b c d
MAIN X R 0662 88-108-392-080 C-RES,U 3.9K-1/16W J a b c d
MAIN O R 0672 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN X R 0673 88-108-392-080 C-RES,U 3.9K-1/16W J a b c d
MAIN X R 0674 88-108-273-080 C-RES,U 27K-1/16W J a b c d
MAIN O R 0677 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN O R 0678 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN O R 0789 88-108-473-080 C-RES,U 47K-1/16W J a b c d
MAIN O R 0790 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d
MAIN O R 0791 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN X R 0793 88-108-000-080 C-JUMPER,U a b c d
MAIN X R 0795 88-108-000-080 C-JUMPER,U a b c d
MAIN O R 0801 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0802 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN X R 0803 88-128-183-080 C-RES, 18K-1/8W J a b c d
MAIN X R 0804 88-108-000-080 C-JUMPER,U a b c d
MAIN O R 0805 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN X R 0806 88-108-682-080 C-RES,U 6.8K-1/16W J a b c d
MAIN O R 0809 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN O R 0810 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN X R 0811 88-108-000-080 C-JUMPER,U a b c d
MAIN X R 0812 88-108-000-080 C-JUMPER,U a b c d
MAIN O R 0813 88-108-224-080 C-RES,U 220K-1/16W J a b c d
MAIN X R 0814 88-108-105-080 C-RES,U 1M-1/16W J a b c d
MAIN X R 0815 88-121-682-080 RES,6.8K-1/8W J a b c d
MAIN O R 0818 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0821 88-108-000-080 C-JUMPER,U a b c d
MAIN X R 0823 88-108-333-080 C-RES,U 33K-1/16W J a b c d
MAIN O R 0826 88-108-223-080 C-RES,U 22K-1/16W J a b c d
MAIN X R 0832 88-108-391-080 C-RES,U 390-1/16W J a b c d
MAIN X R 0840 88-108-221-080 C-RES,U 220-1/16W J a b c d
MAIN O R 0850 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0851 88-118-000-080 C-JUMPER,S a b c d
MAIN O R 0852 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0853 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN X R 0854 88-108-331-080 C-RES,U 330-1/16W J a b c d
MAIN X R 0855 88-108-183-080 C-RES,U 18K-1/16W J a b c d
ELECTRICAL PARTS LIST -12/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-17-
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O R 0856 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0857 88-108-181-080 C-RES,U 180-1/16W J a b c d
MAIN O R 0858 88-108-101-080 C-RES,U 100-1/16W J a b c d
MAIN O R 0860 88-108-101-080 C-RES,U 100-1/16W J a b c d
MAIN O R 0902 87-012-162-080 C-CAP,U 1P-50 C CH GRM a b c d
MAIN X R 0903 88-108-221-080 C-RES,U 220-1/16W J a b c d
MAIN O R 0904 88-108-473-080 C-RES,U 47K-1/16W J a b c d
MAIN O R 0905 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN X R 0906 88-108-564-080 C-RES,U 560K-1/16W J a b c d
MAIN X R 0908 88-108-000-080 C-JUMPER,U a b c d
MAIN X R 0911 88-108-121-080 C-RES,U 120-1/16W J a b c d
MAIN O R 0912 88-108-473-080 C-RES,U 47K-1/16W J a b c d
MAIN X R 0913 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0914 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d
MAIN X R 0918 88-108-000-080 C-JUMPER,U a b c d
MAIN X R 0945 88-108-104-080 C-RES,U 100K-1/16W J a b c d
MAIN X R 0962 88-121-102-080 RES,1K-1/8W J a b c d
MAIN X R 0963 88-108-330-080 C-RES,U 33-1/16W J a b c d
MAIN O R 0968 88-108-822-080 C-RES,U 8.2K-1/16W J a b c d
MAIN O R 0975 88-108-562-080 C-RES,U 5.6K-1/16W J a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O R 0976 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN O R 0977 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN X R 0978 88-108-681-080 C-RES,U 680-1/16W J a b c d
MAIN O R 0979 88-108-123-080 C-RES,U 12K-1/16W J a b c d
MAIN X R 0980 88-108-684-080 C-RES,U 680K-1/16W J a b c d
MAIN X R 0981 88-121-471-080 RES,470-1/8W J a b c d
MAIN X R 0982 88-108-682-080 C-RES,U 6.8K-1/16W J a b c d
MAIN X R 0983 88-108-392-080 C-RES,U 3.9K-1/16W J a b c d
MAIN O R 0984 88-108-562-080 C-RES,U 5.6K-1/16W J a b c d
MAIN X R 0985 88-121-471-080 RES,470-1/8W J a b c d
MAIN X R 0986 88-121-221-080 RES,220-1/8W J a b c d
MAIN X R 0987 88-121-472-080 RES,4.7K-1/8W J a b c d
MAIN O R 0988 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0989 88-121-102-080 RES,1K-1/8W J a b c d
MAIN O R 0990 88-108-563-080 C-RES,U 56K-1/16W J a b c d
MAIN O R 0991 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
MAIN O R 0992 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0993 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
MAIN O R 0994 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O R 0995 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
MAIN O R 0996 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN X R 0997 88-108-154-080 C-RES,U 150K-1/16W J a b c d
MAIN O R 0998 88-108-102-080 C-RES,U 1K-1/16W J a b c d
MAIN O R 0999 88-108-103-080 C-RES,U 10K-1/16W J a b c d
MAIN O SFR0451 87-024-435-080 SFR,33K H RH063MC a b c d
MAIN O SFR0452 87-024-435-080 SFR,33K H RH063MC a b c d
MAIN X SH 0901 8B-ZA3-619-010 SHLD-CASE,BZA-3 EZ a b c d
MAIN O TH 0101 87-A91-042-080 C-THMS,100K 55001 a b c d
MAIN O TH 0102 87-A91-042-080 C-THMS,100K 55001 a b c d
MAIN O W 0099 8A-NF9-609-010 F-CABLE,9P 2.5 480MM a b c d
MAIN O W 0101 8B-NF1-640-010 F-CABLE,5P 2.5 250MM a b c d
MAIN O WH 0001 87-A90-510-010 HLDR,WIRE 2.5-9P a b c d
MAIN O WH 0101 87-A90-459-010 HLDR,WIRE 2.5-5P a b c d
MAIN O X 0992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST a b c d
PT O C 0091 87-012-368-080 C-CAP,S 0.1-50 Z F GRM a b c d
PT S D 0091 87-A40-269-080 C-DIODE,MC2836 a b c d
PT S D 0092 87-A40-270-080 C-DIODE,MC2838 a b c d
PT X PR 0003 88-100-000-010 PLATING-JW, 0.58 SN95 a b c d
PT ! O PT 0001 8C-NF9-601-010 PT,CNF-9 U a . c .
PT ! O PT 0001 8C-NF9-604-010 PT,CNF-9 U-SURR . b . d
CX-SND23 CX-SND22 CX-SND20 CX-SND22
USC1 USC1 CSC1 CSC1
PT ! O PT 0002 8B-MA6-671-010 PT,SUB BMA U (VRK) a b c d
PT O R 0090 87-A01-010-080 RES,SD 2.2M-1/2W J RCR50+ a b c d
PT ! O RY 0001 87-A91-418-010 RELAY,AC 12V G5PA-1-M a b c d
PT ! O T 0001 87-A60-317-010 TERMINAL, 1P MSC a b c d
PT ! O T 0002 87-A60-317-010 TERMINAL, 1P MSC a b c d
PT O WH 0002 87-A90-510-010 HLDR,WIRE 2.5-9P a b c d
ELECTRICAL PARTS LIST -13/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
88
A
Resistor Code

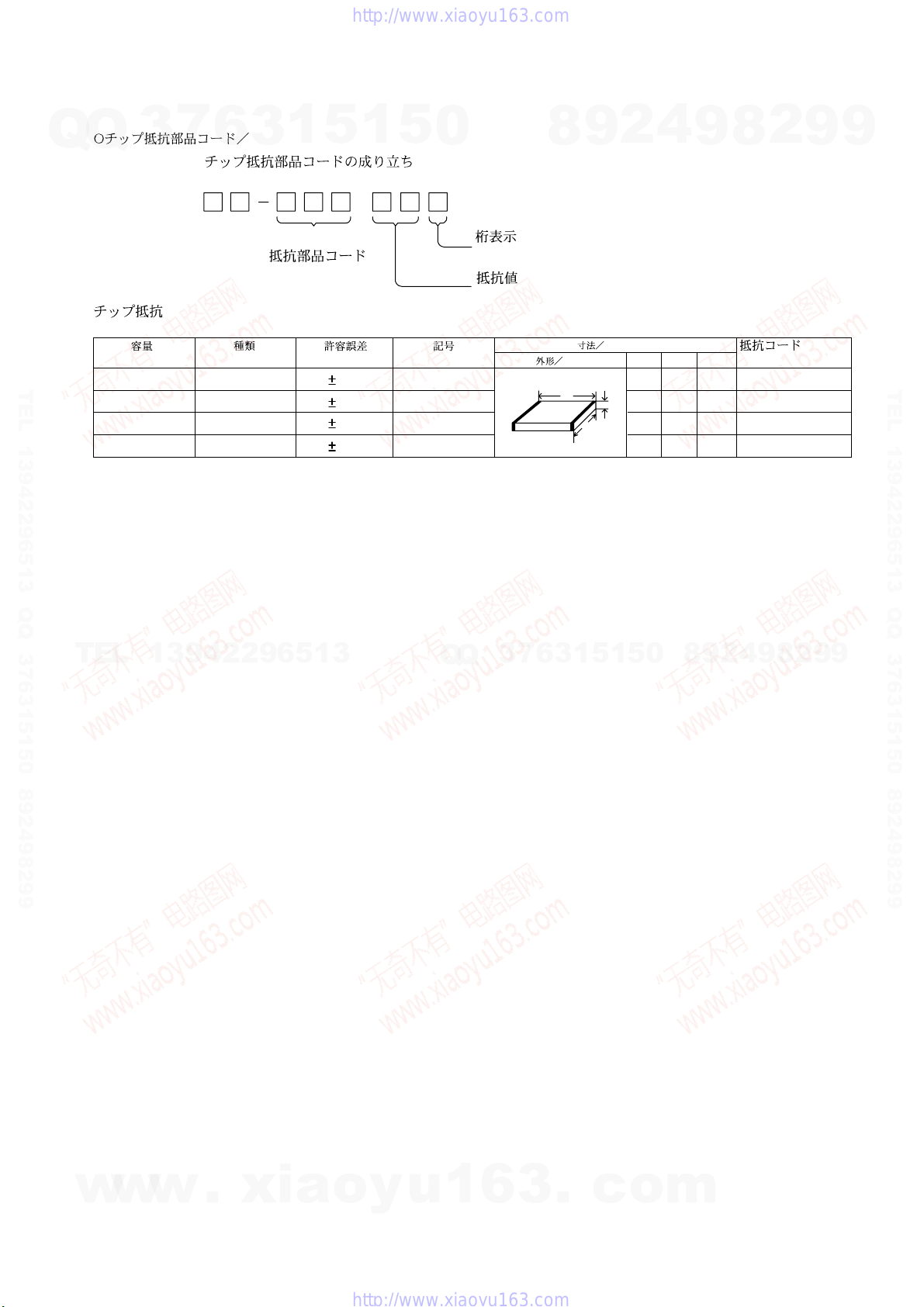

Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
-18-
ELECTRICAL PARTS LIST - 14/14
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-19-
E C B
2SA1980G
2SA1981Y
2SC3331(T/U)
2SB1370 2SA1585SR
E C B E C B
2SC5343GL
E C B
2N5551C
G D S
2SK3053
S D G
2SJ460
2SK2541
E
B
CS
2SK360E
G
D
2SA1235F
2SB792A
2SC2620B
2SC3052F
2SC3906KR
2SC5477
2SD814A
2SD1306NE
SRA2202S
SRA2207S
B C E
2SB1677
2SB1686
2SD2619
2SD2642
D
2SK2158
S
G
B C E
TRANSISTOR ILLUSTRATION -1/1
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-20-
