Aiwa Z-L720U User manual

SERVICE MANUAL
DATA
COMPACT DISC STEREO
SYSTEM BASIC TAPE MECHANISM : ZZM-3 PR1NM BASIC CD MECHANISM : 6ZG-1 ZZRNIM
Z-L720
Z-L820
U
LH
S/M Code No. 09-012-440-1R1
REVISION
•This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
Z-L720 (U) / L820 (LH), (S/M Code No. 09-011-440-1T1).
• If requiring information about the CD mechanism, see Service Manual of
6ZG-1, (S/M Code No. 09-001-338-7N8).
Z–L720
SPEAKERSYSTEM CD
CASSEIVER
SX–WZL720CX–ZL720
REMOTE
CONTROLLER
RC–ZAS02
Z–L820 CX–ZL820 SX–WZL820 RC–ZAS02

– 2 –
SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated: 160 W + 160 W (6 ohms,
T.H.D. 1 %, 1 kHz)
Reference: 200 W + 200 W (6 ohms,
T.H.D. 10 %, 1 kHz)
Total harmonic distortion U: 0.15 % (100 W, 1 kHz, 6 ohms)
LH: 0.15 % (100 W, 1 kHz, 6 ohms, DIN
AUDIO)
Inputs VIDEO/AUX: 500 mV
PHONO: 400 mV (47 kohms)
Outputs SPEAKERS:
accept speakers of 6 ohms or more
PHONES (stereo jack):
accepts headphones of 32 ohms or
more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 12500 Hz
Recording system AC bias
Heads Deck 1 : Playback head x 1
Deck 2 : Recording/playback head
x 1, erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<Speaker system SX–WZL720 / WZL820>
Cabinet type 3 way, built-in subwoofer
Speakers Subwoofer:
160 mm (63/8in.) cone type x 2
Mid range:
140 mm (55/8in.) cone type
Tweeter:
SX-WZL720: 60 mm (23/8in.)
ceramic type
SX-WZL820: 20 mm (13/16 in.)
ceramic type
Impedance 6 ohms
Output sound pressure level 89 dB/W/m
Dimensions (W xH xD) 275 x 495 x 297 mm
(107/8x 191/2x 113/4in.)
Weight 6.5 kg (14 lbs. 5 oz.)
<General>
Power requirements U: 120 V AC, 60 Hz
LH: 120 V/220 - 230 V/240 V AC,
switchable 50/60 Hz
Power consumption U: 150 W
LH: 190 W
Dimensions of main unit 360 x 395.3 x 385.5 mm
(W xH xD) (141/4x 155/8x 151/4in.)
Weight of main unit 11.5 kg (25 lbs. 6 oz.)
• Design and specifications are subject to change without notice.

– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserstålingvedåbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autresque ceuxspécifiés peutentraîner unedangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy PWB
Solder

– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
WhentheHOLD terminal (INPUT) of the MICROCOMPUTER is“H”,the MICROCOMPUTER is judged to beoperatingcorrectly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34

– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: Thereferencenumberor MICROCOMPUTER pin number of transistor (Q110) andelectrolyticcapacitor(C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.

– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8B-MA3-651-010 C-IC,LC876572V-5T94
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-577-040 C-IC,M61506FP
87-A21-893-040 C-IC,NJM14558V-TE2
87-A21-831-010 IC,SPS-442-1-F1
87-A21-443-040 C-IC,M62495AFP
87-070-289-040 IC,BU2092F
87-A21-695-010 IC,LA1845L
87-070-127-110 IC,LC72131D
87-A21-269-010 IC,EW732
TRANSISTOR
87-A30-447-040 TR,DTA114EKA
87-A30-559-010 TR,CSB1370EF
87-A30-492-080 TR,2SC5343G
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-107-070 C-TR,CMBT5401
87-A30-484-080 C-TR,KRA102S
87-026-610-080 TR,KTC3198GR
87-A30-427-040 C-TR,DTC114EKA
87-026-609-080 TR,KTA1266GR
87-A30-190-080 TR,CC5551
87-A30-106-040 C-TR,CMBT5551
87-A30-494-080 TR,2SA1980G
87-A30-087-080 C-FET,2SK2158
87-A30-204-010 TR,2SD2439
87-A30-205-010 TR,2SB1588
87-A30-162-010 FET,2SK2937
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-TR,KRC104S
87-A30-582-080 TR,CDA1585BC
87-A30-495-080 TR,2SA1981Y
87-A30-142-040 C-TR,DTA123EKA
87-A30-218-080 TR,2SB1237Q
89-327-143-080 TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-234-080 TR,CSC4115BC
DIODE
87-017-447-010 DIODE,GBU4DL-6419
87-A40-553-080 DIODE,1N4003 LES
87-A40-780-080 ZENER,UZ33BSD
87-020-465-080 DIODE,1SS133
87-A40-764-080 ZENER,UZ10BSC
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-234-080 ZENER,MTZJ5.6A
87-A40-646-010 DIODE,FMB-G16L
87-A40-224-010 DIODE,GBU8DL
87-A40-749-080 ZENER,UZ5.6BSB
87-A40-539-080 ZENER,MTZJ2.4A
87-A40-291-080 DIODE,1N4148M (CPT)
87-017-149-080 ZENER,HZS6A2L
87-A40-002-080 ZENER,MTZJ5.1C

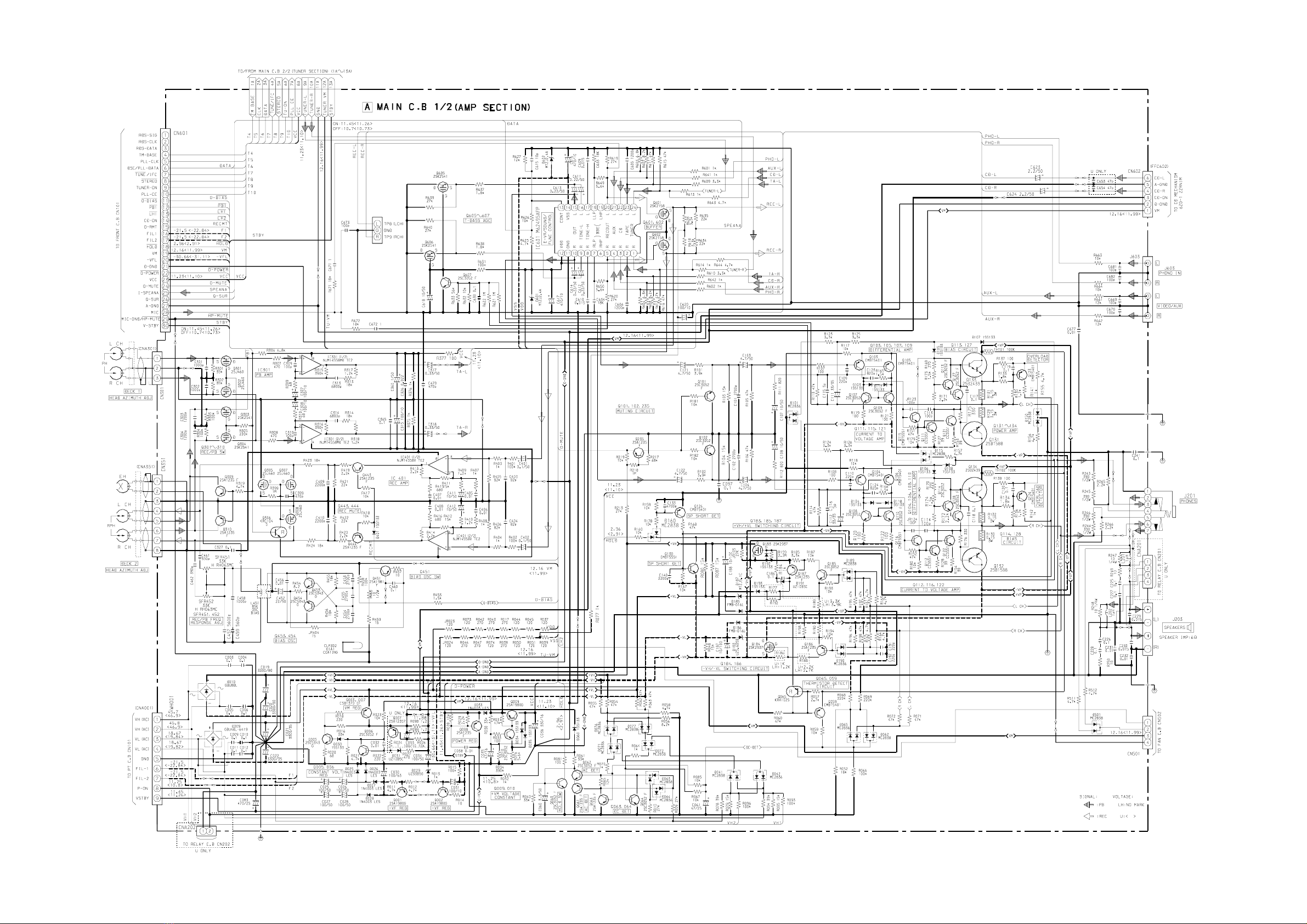

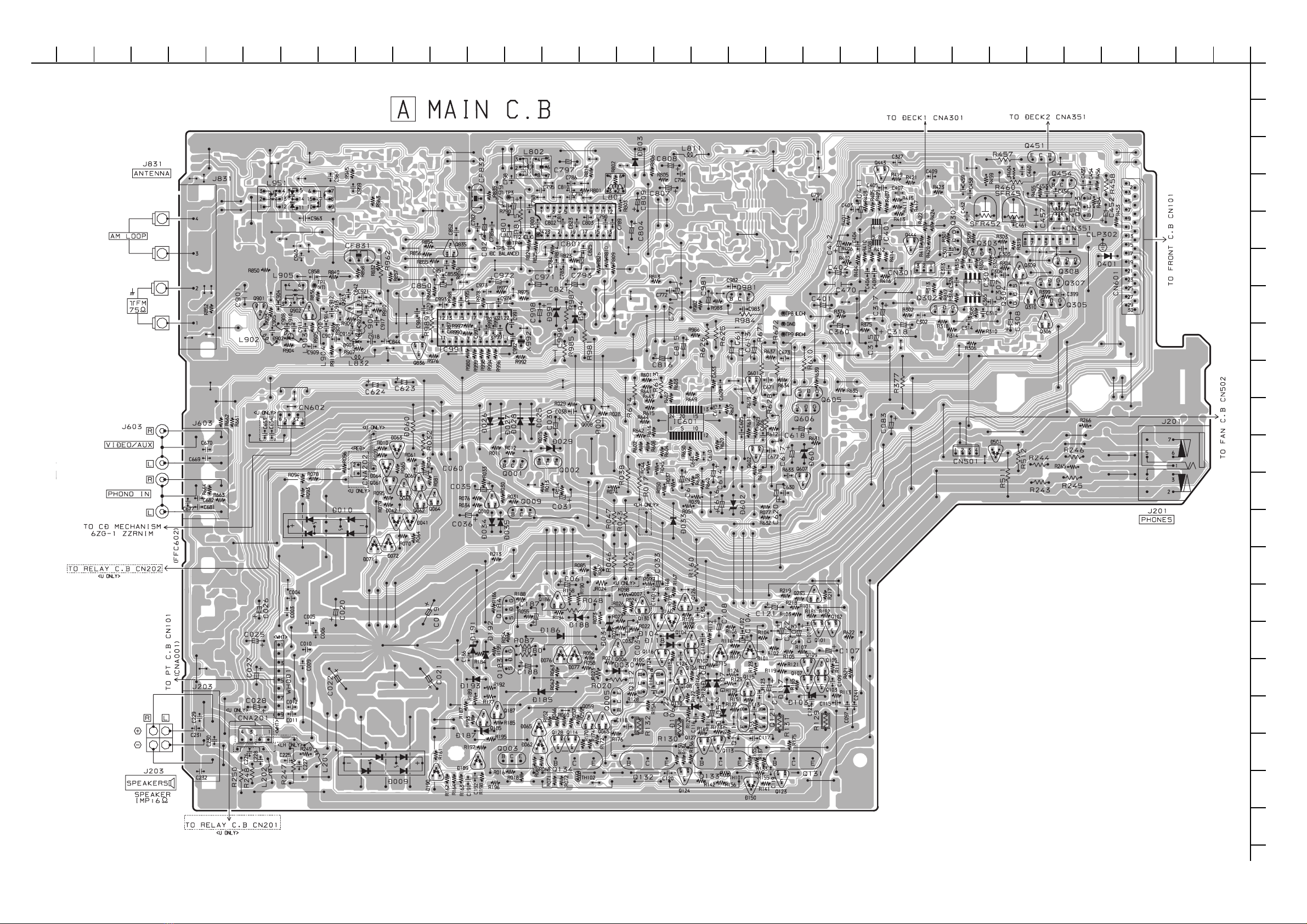

MAIN C.B
C3 87-A12-317-080 C-CAP,U 0.1-50 Z F
C4 87-A12-317-080 C-CAP,U 0.1-50 Z F
C5 87-A12-317-080 C-CAP,U 0.1-50 Z F
C6 87-A12-317-080 C-CAP,U 0.1-50 Z F
C9 87-A12-317-080 C-CAP,U 0.1-50 Z F
C10 87-A12-317-080 C-CAP,U 0.1-50 Z F
C11 87-A12-317-080 C-CAP,U 0.1-50 Z F
C12 87-A12-317-080 C-CAP,U 0.1-50 Z F
C19 87-A10-231-090 CAP,E 3300-80
C20 87-A10-231-090 CAP,E 3300-80
C21 87-A10-520-000 CAP,E 3300-35 M SMG
C22 87-A10-520-000 CAP,E 3300-35 M SMG
C25 87-010-247-080 CAP,ELECT 100-50V
C26 87-010-247-080 CAP,ELECT 100-50V
C27 87-010-247-080 CAP,ELECT 100-50V
C28 87-010-247-080 CAP,ELECT 100-50V
C30 87-010-430-080 CAP,ELECT 100-63
C31 87-A12-062-080 CAP,E 100-10 SMG
C32 87-012-286-080 CAP,U 0.01-25
C33 87-A12-062-080 CAP,E 100-10 SMG
C34 87-010-247-080 CAP,ELECT 100-50V
C35 87-A12-066-080 CAP,E 47-16 SMG
C36 87-010-381-080 CAP,ELECT 330-16V
C38 87-012-286-080 CAP,U 0.01-25
C60 87-A12-089-080 CAP,E 3.3-50 SMG
C61 87-A12-071-080 CAP,E 47-25 SMG
C83 87-A12-074-080 CAP,E 470-25 SMG
C97 87-010-759-080 C-CAP,U 0.1-25F
C101 87-012-279-080 C-CAP,U 2700P-50 B
C102 87-012-279-080 C-CAP,U 2700P-50 B
C103 87-A12-090-080 CAP,E 4.7-50 SMG
C104 87-A12-090-080 CAP,E 4.7-50 SMG
C107 87-A12-091-080 CAP,E 10-50 SMG
C108 87-A12-091-080 CAP,E 10-50 SMG
C109 87-012-199-080 C-CAP,U 220P-50 J CH
C110 87-012-199-080 C-CAP,U 220P-50 J CH
C111 87-010-392-080 CAP ELECT 33-35 SME
C112 87-010-392-080 CAP ELECT 33-35 SME
C113 87-A10-596-080 C-CAP,S 100P-100 J CH
C114 87-A10-596-080 C-CAP,S 100P-100 J CH
C115 87-012-167-080 C-CAP,U 5P-50 CH
C116 87-012-167-080 C-CAP,U 5P-50 CH
C117 87-A12-317-080 C-CAP,U 0.1-50 Z F
C118 87-A12-317-080 C-CAP,U 0.1-50 Z F
C119 87-A12-317-080 C-CAP,U 0.1-50 Z F
C120 87-A12-317-080 C-CAP,U 0.1-50 Z F
C121 87-A12-090-080 CAP,E 4.7-50 SMG
C122 87-A12-090-080 CAP,E 4.7-50 SMG
C123 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C124 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C133 87-012-282-080 CAP, U 4700P-50
C140 87-012-278-080 C-CAP,U 2200P-50 B
C186 87-010-759-080 C-CAP,U, 0.1-25F
C187 87-A10-119-080 CAP,E 10-100 REA
C188 87-A10-119-080 CAP,E 10-100 REA
C191 87-A10-812-080 C-CAP,S 220P-200 J CH
C192 87-A10-812-080 C-CAP,S 220P-200 J CH
C225 87-A12-317-080 C-CAP,U 0.1-50 Z F
C226 87-A12-317-080 C-CAP,U 0.1-50 Z F
C227 87-A12-317-080 C-CAP,U 0.1-50 Z F
C228 87-A12-317-080 C-CAP,U 0.1-50 Z F
C229 87-012-287-080 C-CAP,U 0.015-25 F
C230 87-012-287-080 C-CAP,U 0.015-25 F
C231 87-012-286-080 CAP, U 0.01-25
C232 87-012-286-080 CAP, U 0.01-25
C241 87-010-759-080 C-CAP,U, 0.1-25F
C301 87-012-274-080 C-CAP,U 1000P-50 K B
C302 87-012-274-080 C-CAP,U 1000P-50 K B
C303 87-012-275-080 C-CAP,U 1200P-50 K B
C304 87-012-275-080 C-CAP,U 1200P-50 K B
C307 87-A12-062-080 CAP,E 100-10 SMG
C308 87-A12-062-080 CAP,E 100-10 SMG
C309 87-012-195-080 C-CAP,U 100P-50CH
C310 87-012-195-080 C-CAP,U 100P-50CH
C313 87-012-284-080 CAP, U 6800P-50
C314 87-012-284-080 CAP, U 6800P-50
C315 87-A12-062-080 CAP,E 100-10 SMG

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C317 87-A12-085-080 CAP,E 0.33-50 SMG
C318 87-A12-085-080 CAP,E 0.33-50 SMG
C326 87-016-118-080 C-CAP,U0.022-25JB
C327 87-A12-317-080 C-CAP,U 0.1-50 Z F
C360 87-A12-087-080 CAP,E 1-50 SMG
C365 87-010-759-080 C-CAP,U, 0.1-25F
C399 87-012-270-080 CAP, U 470P-50
C401 87-A12-083-080 CAP,E 0.1-50 SMG
C402 87-A12-083-080 CAP,E 0.1-50 SMG
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
C411 87-A12-091-080 CAP,E 10-50 SMG
C412 87-A12-091-080 CAP,E 10-50 SMG
C452 87-A12-092-080 CAP,E 22-50 SMG
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-012-274-080 CHIP CAP,U 1000P-50B
C459 87-012-271-080 CAP, U 560P-50
C460 87-010-759-080 C-CAP,U, 0.1-25F
C461 87-012-269-080 C-CAP,U 390P-50 B
C462 87-012-269-080 C-CAP,U 390P-50 B
C470 87-018-127-080 CAP, CER 470P-50V
C605 87-012-275-080 C-CAP,U 1200P-50 B
C606 87-012-275-080 C-CAP,U 1200P-50 B
C609 87-012-287-080 C-CAP,U 0.015-25 F
C610 87-012-287-080 C-CAP,U 0.015-25 F
C611 87-A12-084-080 CAP,E 0.22-50 SMG
C612 87-A12-084-080 CAP,E 0.22-50 SMG
C613 87-A12-084-080 CAP,E 0.22-50 SMG
C614 87-A12-084-080 CAP,E 0.22-50 SMG
C615 87-012-172-080 C-CAP,U 10P-50 D CH
C616 87-010-221-080 CAP, ELECT 470-10V
C617 87-010-221-080 CAP, ELECT 470-10V
C618 87-A12-091-080 CAP,E 10-50 SMG
C620 87-010-263-080 CAP, ELECT 100-10V
C623 87-010-402-080 CAP, ELECT 2.2-50V
C624 87-010-402-080 CAP, ELECT 2.2-50V
C630 87-010-759-080 C-CAP,U, 0.1-25F
C653 87-012-188-080 C-CAP,U 47P-50 J CH<U>
C654 87-012-188-080 C-CAP,U 47P-50 J CH<U>
C669 87-012-195-080 C-CAP,U 100P-50CH
C670 87-012-195-080 C-CAP,U 100P-50CH
C671 87-010-805-080 C-CAP,S 1-16 Z F
C672 87-010-805-080 C-CAP,S 1-16 Z F
C673 87-012-195-080 C-CAP,U 100P-50 J CH
C677 87-012-286-080 CAP, U 0.01-25
C681 87-012-195-080 C-CAP,U 100P-50 J CH
C682 87-012-195-080 C-CAP,U 100P-50 J CH
C771 87-A12-062-080 CAP,E 100-10 SMG
C772 87-012-286-080 CAP, U 0.01-25
C782 87-012-286-080 CAP, U 0.01-25
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-012-286-080 CAP, U 0.01-25
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-A12-052-080 C-CAP,S 0.033-25 J B
C790 87-A12-052-080 C-CAP,S 0.033-25 J B
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 CAP, U 0.01-25
C796 87-012-286-080 CAP, U 0.01-25
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 CAP, U 0.01-25
C799 87-010-265-080 CAP,E 33-16 M 11L SME
C800 87-010-829-080 CAP, U 0.047-16
C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 CAP, U 0.047-16
C803 87-010-787-080 CAP, U 0.022-25
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG
C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U,0.1-16F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-A12-086-080 CAP,E 0.47-50 SMG
C816 87-A12-086-080 CAP,E 0.47-50 SMG
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-010-986-080 C-CAP,S 820P-50 J CH
C824 87-A12-090-080 CAP,E 4.7-50 SMG
C825 87-010-829-080 CAP, U 0.047-16
C842 87-012-286-080 CAP, U 0.01-25
C844 87-012-286-080 CAP, U 0.01-25
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C858 87-010-831-080 C-CAP,U,0.1-16F
C901 87-018-145-080 CAP,TC-U 6.8P-50 CH
C904 87-012-286-080 C-CAP,U 0.01-25
C905 87-012-286-080 C-CAP,U 0.01-25
C907 87-012-286-080 C-CAP,U 0.01-25
C908 87-A10-915-080 C-CAP,U 1000P-25 J CH
C909 87-012-286-080 C-CAP,U 0.01-25
C910 87-012-174-080 C-CAP,U 12P-50 J CH
C911 87-012-170-080 C-CAP,U 8P-50 CH
C912 87-012-195-080 C-CAP,U 100P-50CH
C913 87-012-286-080 C-CAP, U 0.01-25
C914 87-012-166-080 C-CAP,U 4P-50 C CH
C915 87-012-174-080 C-CAP,U 12P-50 J CH
C916 87-012-180-080 C-CAP,U 22P-50 CH
C917 87-012-186-080 C-CAP,U 39P-50 CH
C918 87-A10-039-080 C-CAP,U 470P-50 J CH
C921 87-012-195-080 C-CAP,U 100P-50CH
C922 87-012-174-080 C-CAP,U 12P-50-J CH
C959 87-010-831-080 C-CAP,U,0.1-16F
C960 87-010-831-080 C-CAP,U,0.1-16F
C961 87-012-167-080 C-CAP,U 5P-50 CH
C963 87-015-785-080 C-CAP,0.1-25 Z F
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-012-286-080 CAP, U 0.01-25
C984 87-012-286-080 CAP, U 0.01-25
C987 87-012-286-080 CAP, U 0.01-25
C991 87-012-176-080 C-CAP,U 15P-50 J CH
C992 87-012-176-080 C-CAP,U 15P-50 J CH
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5
CF832 87-008-261-010 FILTER, SFE10.7MA5
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT

– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
CN501 87-099-564-010 CONN,4P TUC-P4P-B1
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
CNA201 8B-MA3-656-010 CONN ASSY,5P TID-A(400)BMA3<U>
CNA202 8A-NHP-643-010 CONN ASSY,2P(FAN)ANHP-390<U>
D902 87-A40-128-080 C-VARI-CAP,HVU202A
D903 87-A40-128-080 C-VARI-CAP,HVU202A
FFC602 88-906-321-110 FF-CABLE,6P 1.25 320MM
J201 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J603 87-A60-926-010 JACK,PIN 4P R/W TC58-118
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
JR123 87-A10-596-080 C-CAP,S 100P-100 J CH
JR124 87-A10-596-080 C-CAP,S 100P-100 J CH
L201 87-A50-610-010 COIL,1UH K(MDEC)
L202 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L902 88-ZA1-602-110 COIL,FM-RF-U2 2G
L903 88-ZA1-601-010 COIL,FM-RF-U1 2G
L904 87-005-847-080 COIL,2.2UH(CECS)
L905 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS)
L906 88-ZA1-603-010 COIL,FM-OSC-U 2G
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R129 87-A00-418-010 RES,M/F 0.15-3W J
R130 87-A00-418-010 RES,M/F 0.15-3W J
R131 87-A00-418-010 RES,M/F 0.15-3W J
R132 87-A00-418-010 RES,M/F 0.15-3W J
R243 87-A00-443-050 RES,390-1/2W J RP
R244 87-A00-443-050 RES,390-1/2W J RP
R245 87-A00-443-050 RES,390-1/2W J RP
R246 87-A00-443-050 RES,390-1/2W J RP
R790 87-012-286-080 CAP, U 0.01-25
R991 87-012-195-080 C-CAP,U 100P-50CH
R993 87-012-195-080 C-CAP,U 100P-50CH
R995 87-012-195-080 C-CAP,U 100P-50CH
SFR451 87-024-435-080 SFR 33K RH 063MC
SFR452 87-024-435-080 SFR 33K RH 063MC
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST

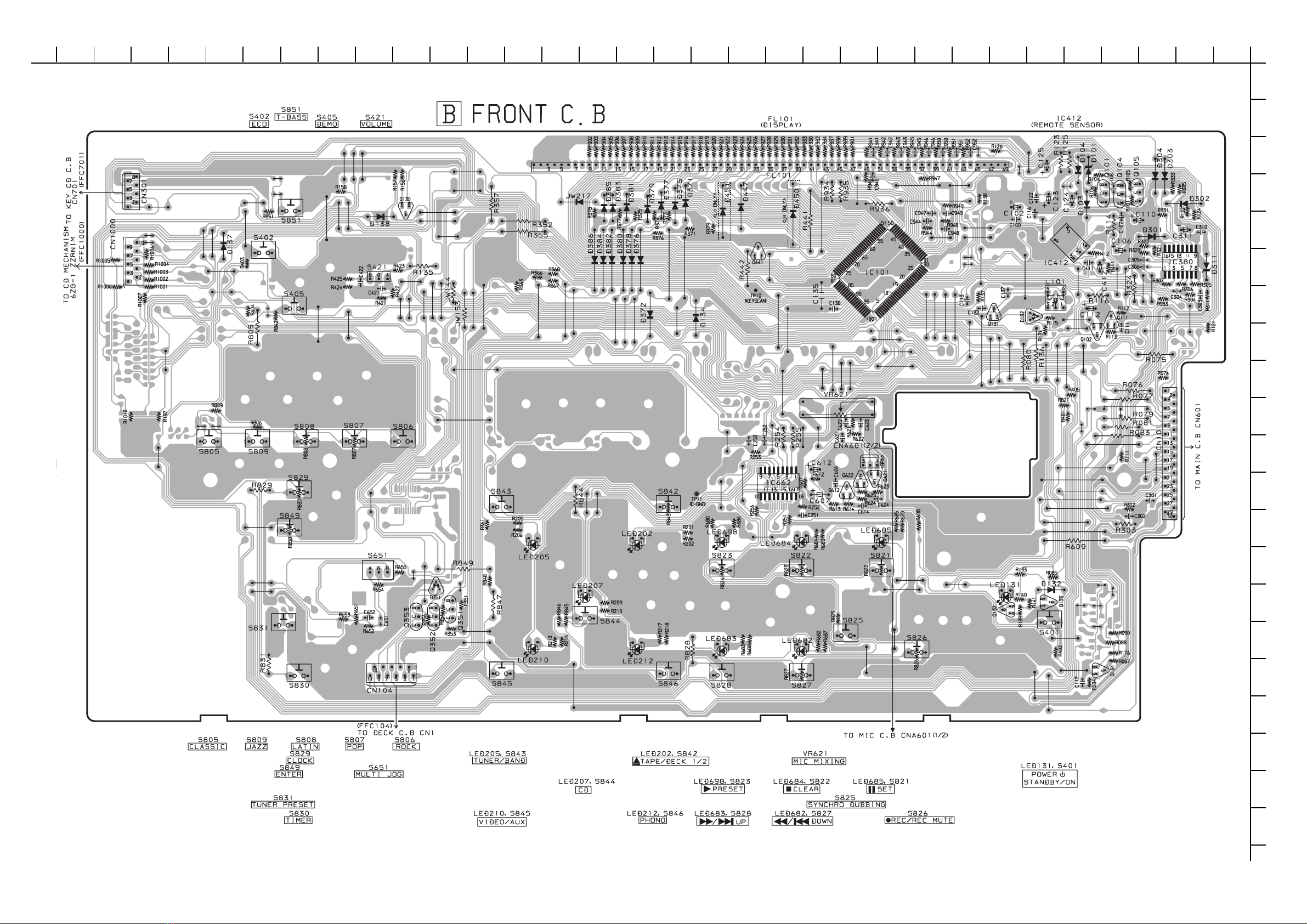

FRONT C.B
C100 87-A10-047-080 C-CAP,U 1-10 Z F
C102 87-010-498-040 CAP,E 10-16 M 5L SRE
C106 87-010-248-040 CAP,E 220-10 M 11L SME
C107 87-010-759-080 C-CAP,U, 0.1-25F
C108 87-012-278-080 C-CAP,U 2200P-50 B
C110 87-010-248-040 CAP,E 220-10 M 11L SME
C111 87-A10-260-080 C-CAP,U 0.1-16 K B
C112 87-010-493-040 CAP,E 0.47-50 M 5L SRE
C113 87-012-274-080 CHIP CAP,U 1000P-50B
C116 87-010-759-080 C-CAP,U 0.1-25F
C117 87-010-872-080 C-CAP,U 470P-50 SL
C122 87-012-369-080 C-CAP,S 0.047-50F
C123 87-010-408-040 CAP,E 47-50 SME
C124 87-010-421-040 CAP,E 4.7-50 5L
C125 87-010-421-040 CAP,E 4.7-50 5L
C132 87-012-199-080 C-CAP,U 220P-50 J CH
C133 87-012-184-080 C-CAP,U 33P-50 CH
C135 87-018-209-080 CAP, CER 0.1-50V
C137 87-012-178-080 C-CAP,U 18P-50 CH
C138 87-010-759-080 C-CAP,U, 0.1-25F
C251 87-010-759-080 C-CAP,U, 0.1-25F
C252 87-012-199-080 CAP 220P
C253 87-012-195-080 C-CAP,U 100P-50CH
C301 87-012-358-080 C-CAP,S 0.47-10 Z F
C302 87-012-335-080 C-CAP,U 270P-50 J SL
C303 87-012-358-080 C-CAP,S 0.47-10 Z F
C304 87-012-358-080 C-CAP,S 0.47-10 Z F
C305 87-010-759-080 C-CAP,U, 0.1-25F
C306 87-010-759-080 C-CAP,U, 0.1-25F
C310 87-010-759-080 C-CAP,U, 0.1-25F
C311 87-010-405-040 CAP,E 10-50
C411 87-012-157-080 C-CAP,S 330P-50 CH
C412 87-010-405-040 CAP,E 10-50
C421 87-012-274-080 C-CAP,U 1000P-50 K B
C422 87-012-274-080 C-CAP,U 1000P-50 K B
C606 87-010-759-080 C-CAP,U 0.1-25 Z F
C607 87-010-060-040 CAP,E 100-16 M 7L SRA
C612 87-015-699-040 CAP,E 10-50 M 7L SRA
C614 87-A10-047-080 C-CAP,U 1-10 Z F
C621 87-010-759-080 C-CAP,U 0.1-25 Z F
C622 87-010-759-080 C-CAP,U 0.1-25 Z F
C623 87-012-274-080 C-CAP,U 1000P-50 K B
C624 87-012-337-080 C-CAP,U 56P-50 J CH GRM
C651 87-012-274-080 C-CAP,U 1000P-50 K B
C652 87-012-274-080 C-CAP,U 1000P-50 K B
C940 87-012-145-080 C-CAP,S 270P-50 J CH
C941 87-012-145-080 C-CAP,S 270P-50 J CH
C942 87-012-145-080 C-CAP,S 270P-50 J CH
C943 87-012-145-080 C-CAP,S 270P-50 J CH
C944 87-012-145-080 C-CAP,S 270P-50 J CH
C945 87-012-145-080 C-CAP,S 270P-50 J CH
C946 87-012-145-080 C-CAP,S 270P-50 J CH
C947 87-012-145-080 C-CAP,S 270P-50 J CH
C948 87-012-145-080 C-CAP,S 270P-50 J CH
C949 87-012-145-080 C-CAP,S 270P-50 J CH
C950 87-012-145-080 C-CAP,S 270P-50 J CH
C951 87-012-145-080 C-CAP,S 270P-50 J CH
C952 87-012-145-080 C-CAP,S 270P-50 J CH
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN104 87-A60-136-010 CONN,11P V FE
CN301 87-A60-133-010 CONN,8P V FE
CN1000 87-A60-135-010 CONN,10P V FE
FFC104 88-911-151-110 FF-CABLE,11P 1.25 15
FFC1000 88-908-271-210 FF-CABLE,8P 1.25 27
FL101 8B-MA3-671-010 FL,BJ824GNK
L101 87-A50-333-010 COIL,OSC 9.43MHZ
LED131 87-A40-317-080 LED,SLR-342VCT31 RED
LED202 87-A41-056-040 LED,HLMF-D405 ORANGE
LED205 87-A41-056-040 LED,HLMF-D405 ORANGE
LED207 87-A41-056-040 LED,HLMF-D405 ORANGE
LED210 87-A41-056-040 LED,HLMF-D405 ORANGE
LED212 87-A41-056-040 LED,HLMF-D405 ORANGE
LED682 87-A41-056-040 LED,HLMF-D405 ORANGE
LED683 87-A41-056-040 LED,HLMF-D405 ORANGE
LED684 87-A41-056-040 LED,HLMF-D405 ORANGE
LED685 87-A41-056-040 LED,HLMF-D405 ORANGE
LED698 87-A41-056-040 LED,HLMF-D405 ORANGE
S401 87-A90-095-080 SW,TACT EVQ11G04M
S402 87-A90-095-080 SW,TACT EVQ11G04M
S405 87-A90-095-080 SW,TACT EVQ11G04M
S421 87-A92-071-010 SW,RTRY EC12E24508-30MM
S651 87-A91-542-010 SW,RTRY EC12E12504
S805 87-A90-095-080 SW,TACT EVQ11G04M
S806 87-A90-095-080 SW,TACT EVQ11G04M
S807 87-A90-095-080 SW,TACT EVQ11G04M
S808 87-A90-095-080 SW,TACT EVQ11G04M
S809 87-A90-095-080 SW,TACT EVQ11G04M
S821 87-A90-095-080 SW,TACT EVQ11G04M
S822 87-A90-095-080 SW,TACT EVQ11G04M
S823 87-A90-095-080 SW,TACT EVQ11G04M

– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
S825 87-A90-095-080 SW,TACT EVQ11G04M
S826 87-A90-095-080 SW,TACT EVQ11G04M
S827 87-A90-095-080 SW,TACT EVQ11G04M
S828 87-A90-095-080 SW,TACT EVQ11G04M
S829 87-A90-095-080 SW,TACT EVQ11G04M
S830 87-A90-095-080 SW,TACT EVQ11G04M
S831 87-A90-095-080 SW,TACT EVQ11G04M
S842 87-A90-095-080 SW,TACT EVQ11G04M
S843 87-A90-095-080 SW,TACT EVQ11G04M
S844 87-A90-095-080 SW,TACT EVQ11G04M
S845 87-A90-095-080 SW,TACT EVQ11G04M
S846 87-A90-095-080 SW,TACT EVQ11G04M
S849 87-A90-095-080 SW,TACT EVQ11G04M
S851 87-A90-095-080 SW,TACT EVQ11G04M
VR621 87-A92-163-010 VR,SL RS15111AA 10KB

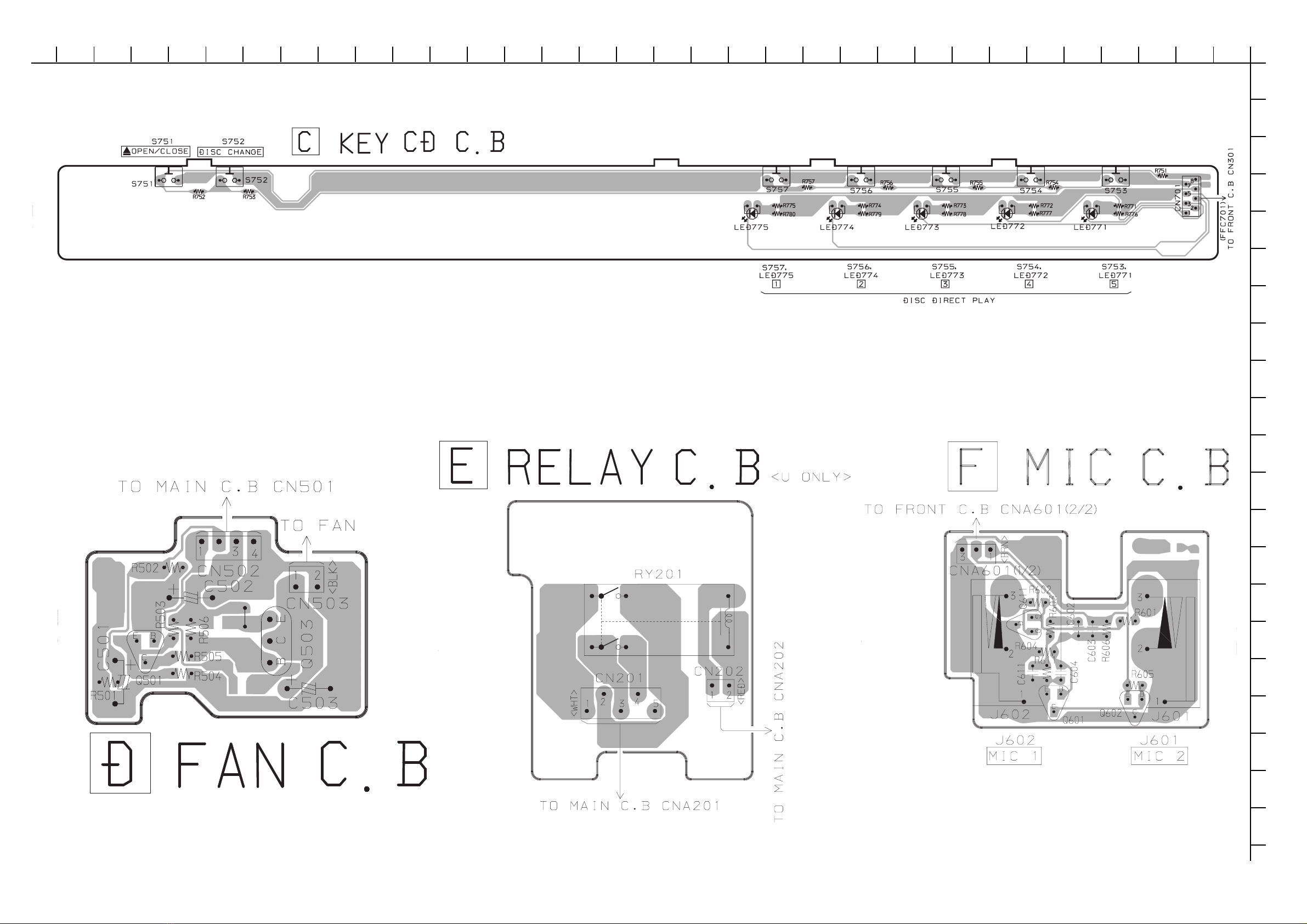

KEY CD C.B
CN701 87-A60-156-010 CONN,8P H FE
FFC701 88-908-151-110 FF-CABLE,8P 1.25-150
LED771 87-A41-055-040 LED,HLMF-K405 ORANGE
LED772 87-A41-055-040 LED,HLMF-K405 ORANGE
LED773 87-A41-055-040 LED,HLMF-K405 ORANGE
LED774 87-A41-055-040 LED,HLMF-K405 ORANGE
LED775 87-A41-055-040 LED,HLMF-K405 ORANGE
S751 87-A90-095-080 SW,TACT EVQ11G04M
S752 87-A90-095-080 SW,TACT EVQ11G04M
S753 87-A90-095-080 SW,TACT EVQ11G04M
S754 87-A90-095-080 SW,TACT EVQ11G04M
S755 87-A90-095-080 SW,TACT EVQ11G04M
S756 87-A90-095-080 SW,TACT EVQ11G04M
S757 87-A90-095-080 SW,TACT EVQ11G04M
FAN C.B
C501 87-010-401-080 CAP, ELECT 1-50V
C502 87-010-374-080 CAP, ELECT 47-10V
C503 87-010-380-080 CAP, ELECT 47-16V
CN502 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1
CN503 87-A60-619-010 CONN,2P V 2MM JMT
RELAY C.B<U ONLY>
CN201 87-A61-108-010 CONN,5P V TID-A
CN202 87-099-043-010 CONN,2P V WHT EH
RY201 87-A91-339-010 RELAY,AC DC12V G5PA-2
MIC C.B
C602 87-A10-706-080 C-CAP,U 0.33-16 Z F
C603 87-012-337-080 C-CAP,U 56P-50 J CH GRM
C604 87-012-274-080 C-CAP,U 1000P-50 K B
C611 87-012-282-080 C-CAP,U 4700P-50 K B
CNA601 8B-MA3-655-010 CONN ASSY,3P 80MM
J601 87-099-659-010 JACK,6.3 0
J602 87-099-659-010 JACK,6.3 0

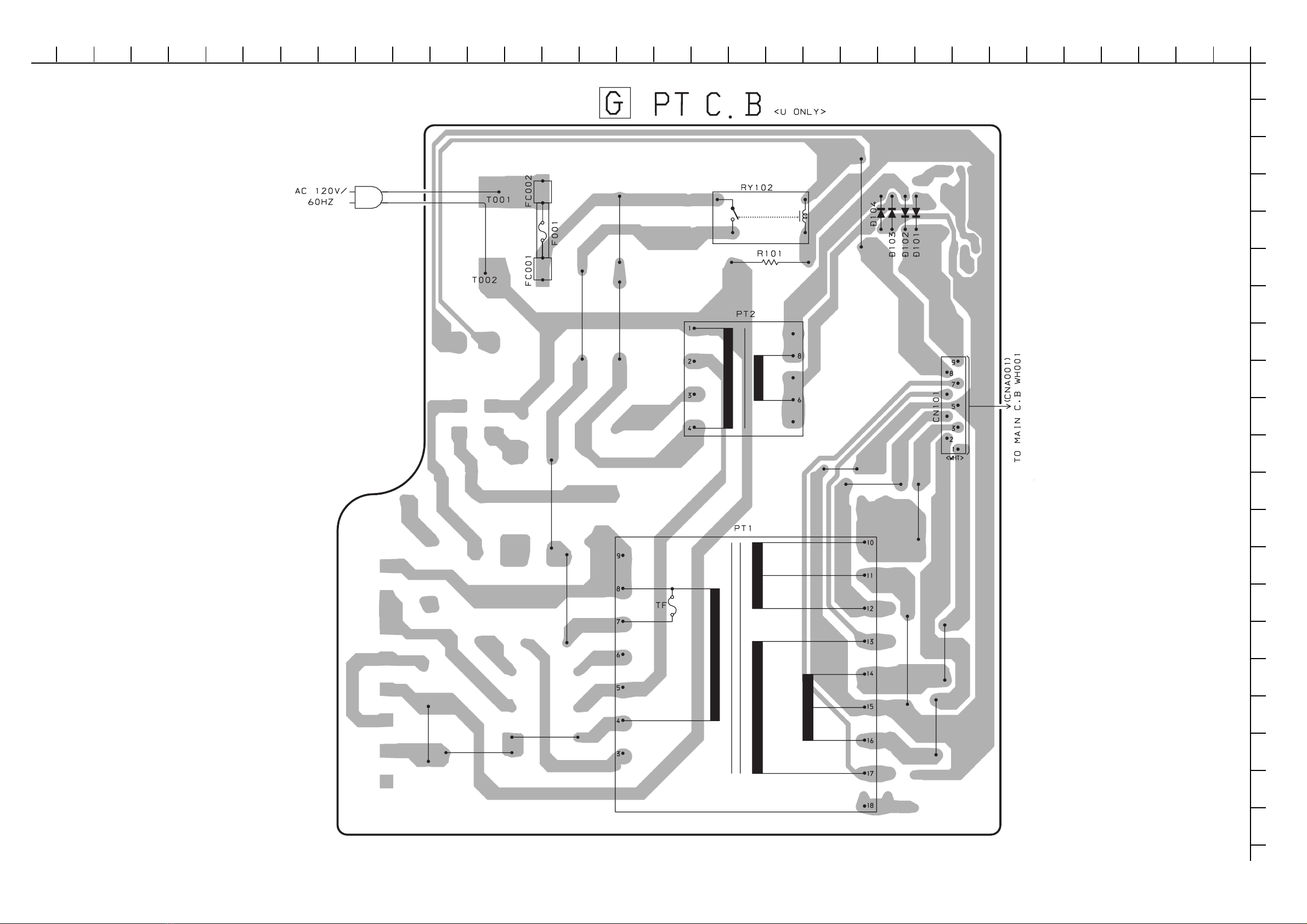

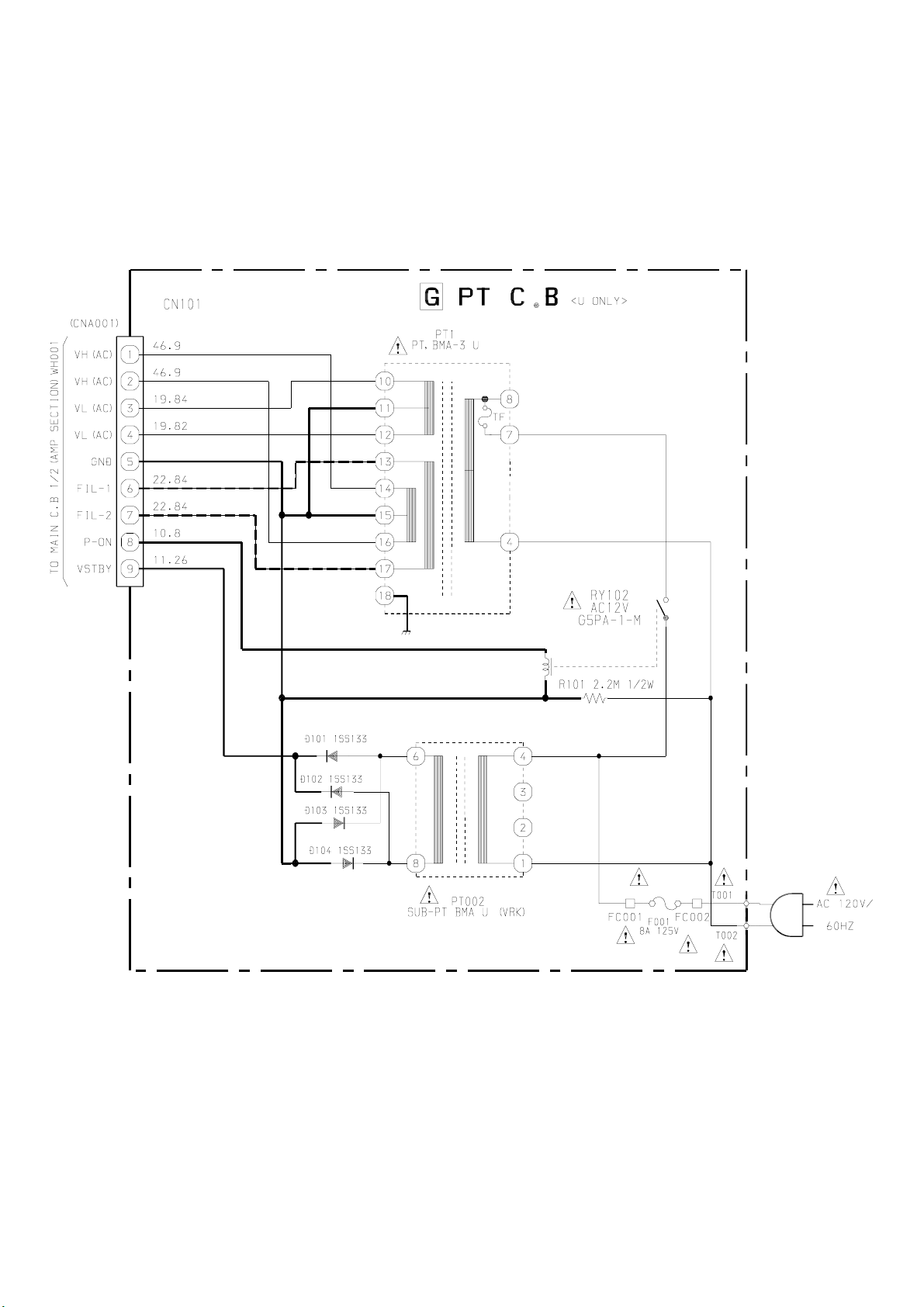

PT C.B
CN101 87-A61-110-010 CONN,9P V TID-A
F1 87-035-493-010 FUSE,8A 125V T 237<U>
F1 87-035-194-010 FUSE,6.3A 250V T 218<LH>
FC1 87-033-213-080 FUSE CLAMP,PFC5000
FC2 87-033-213-080 FUSE CLAMP,PFC5000
PT1 8B-MA3-661-010 PT,BMA-3 U<U>
PT1 8B-MA3-663-010 PT,BMA-3 LH<LH>
PT2 8B-MA6-671-010 PT,SUB BMA U (VRK)<U>
PT2 8B-MA6-673-010 PT,SUB BMA H (VRK)<LH>
RY101 87-A91-300-010 RELAY,AC 12V-ALA2PF12<LH>
RY102 87-A91-418-010 RELAY,AC12V G5PA-1-M<U>
S101 87-A90-165-010 SW,SL 1-2-3 SWS2301<LH>
T1 87-A60-317-010 TERMINAL,1P MSC
T2 87-A60-317-010 TERMINAL,1P MSC
DECK C.B
CN1 87-099-753-010 CONN,11P H 9604
CNA301 86-ZM3-604-210 CONN ASSY,3P-PB
CNA351 86-ZM3-605-110 CONN ASSY,8P-RPB
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
SOL1 82-ZM3-627-010 SOL ASSY,27 SO
SOL2 82-ZM3-627-010 SOL ASSY,27 SO
SW1 87-A90-673-010 SW,MICRO ESE11SH1C
SW2 87-A90-673-010 SW,MICRO ESE11SH1C
SW3 87-A90-673-010 SW,MICRO ESE11SH1C
SW4 87-A90-673-010 SW,MICRO ESE11SH1C
SW5 87-A90-673-010 SW,MICRO ESE11SH1C
!
!
!
!
!
!
!
!
!
!
!
!
!

– 10 –
TRANSISTOR ILLUSTRATION
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
E C B
KTA1266GR
KTC3198GR
CSC4115BC
CDA1585BC
CC5551
E C B
2SA1981Y
2SA1980G
2SC5343G
E
B
C
2SA1235F
2SC2714O
2SC3052F
CMBT5551
CMBT5401
DTA114EKA
DTC114EKA
DTA123EKA
KRA102S
KRA107S
KRC104S
2SK2158
2SJ460
2SK2541
G
D
S
2SK360E
2SD2439
2SB1588
B C EB C E
CSB1370EF
2SB1237Q
S
G
D
E C B
2SK2937
S D GG D S
