S E R V I C E M A N U A L
SIMPLE MANUAL
• Replace this Service Manual with ”Revision Publishing” when it is issued.
NSX-K980
 TYPE: HR
COMPACT DISC STEREO SYSTEM
 BASIC TAPE MECHANISM:2ZM-3MK2 PR4NM
 BASIC CD MECHANISM:4ZG-1 VOS1RNDSM
S/M Code No. 099944137T1

ELECTRICALPARTSLIST-1/9
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 606 87-010-112-040 CAP,E 100-16 A...................
C 601 87-010-186-080 CAP,CHIP 4700P A...................
C 605 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 607 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 603 87-010-320-080 CHIP CAP 68P A...................
C 602 87-010-405-040 CAP,E 10-50 A...................
C 604 87-010-546-040 CAP,E 0.33-50 A...................
C 652 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 653 87-010-213-080 C-CAP,S 0.015-50 B A...................
FB 601 87-A50-190-080 C-COIL,S BLM21A102S A...................
J 602 87-A60-651-010 JACK,3.5MONO A...................
J 601 87-A60-651-010 JACK,3.5MONO A...................
Q 604 87-A30-075-080 C-TR,2SA1235F A...................
Q 603 87-A30-076-080 C-TR,2SC3052F A...................
Q 602 87-A30-076-080 C-TR,2SC3052F A...................
Q 601 87-A30-087-080 C-FET,2SK2158 A...................
C 1 87-010-387-080 CAP,E 470-25 SME A...................
C 9 87-A10-231-090 CAP,E 3300-80 A...................
C 8 87-A10-231-090 CAP,E 3300-80 A...................
C 5 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 4 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 6 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 3 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 31 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 33 87-A10-479-080 CAP,CER 2200P-250 M E KH A...................
CN 1 87-A60-851-010 CONN,9P V VH A...................
D 5 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 1 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 3 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 4 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 6 87-A40-549-090 DIODE,RBA-1002 A...................
D 31 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 32 87-020-465-080 DIODE,1SS133 (110MA) A...................
PR 3 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 2 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 5 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 4 87-026-682-080 PROTECTOR,10A 60V491 A...................
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) A...................
Q 31 87-026-245-080 TR,DTC114ES A...................
Q 32 87-A30-198-080 TR,KTC3199GR A...................
RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 A...................
S 101 87-A90-165-010 SW,SL 1-2-3 SWS2301 A...................
T 2 87-A60-317-010 TERMINAL, 1P MSC A...................
T 1 87-A60-317-010 TERMINAL, 1P MSC A...................
* 88-NF5-204-010 GUIDE,FL A...................
* 8Z-NF5-201-010 GUIDE,FUN A...................
* 8Z-NF5-202-010 GUIDE,JOG A...................
* 8Z-NF5-208-010 GUIDE,OPE A...................
C 106 87-010-154-080 CAP CHIP 10P A...................
C 103 87-010-178-080 CHIP CAP 1000P A...................
C 105 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 108 87-010-560-040 CAP,E 10-50 GAS A...................
C 107 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 115 87-010-198-080 CAP, CHIP 0.022 A...................
C 116 87-010-493-040 CAP,E 0.47-50 GAS A...................
C 117 87-010-498-040 CAP,E 10-16 GAS A...................
C 112 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 118 87-A11-242-040 CAP,E 220-10 M 5L SRM A...................
C 113 87-A11-242-040 CAP,E 220-10 M 5L SRM A...................
C 122 87-010-178-080 CHIP CAP 1000P A...................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 124 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 126 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 121 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 153 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 154 87-010-264-040 CAP,E 100-10 5L A...................
C 151 87-012-369-080 C-CAP,S 0.047-50F A...................
C 186 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 185 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 181 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 202 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 223 87-010-408-040 CAP,E 47-50 SME A...................
C 222 87-010-421-040 CAP,E 4.7-50 5L A...................
C 221 87-010-421-040 CAP,E 4.7-50 5L A...................
C 224 87-012-369-080 C-CAP,S 0.047-50F A...................
C 384 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 381 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 387 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 385 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 383 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 382 87-012-158-080 C-CAP,S 390P-50 CH A...................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

ELECTRICALPARTSLIST-2/9
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 405 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 403 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 404 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 406 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 408 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 407 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 701 87-018-209-080 CAP, CER 0.1-50V A...................
CN 101 87-099-720-010 CONN,30P TYK-B(P) A...................
CN 104 87-A60-140-010 CONN,15P V FE A...................
CN 302 87-A60-131-010 CONN,6P V FE A...................
CN 301 87-A60-131-010 CONN,6P V FE A...................
CN 901 87-A60-138-010 CONN,13P V FE A...................
D 108 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 103 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 104 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 107 87-A40-270-080 C-DIODE,MC2838 A...................
D 109 87-A40-509-080 ZENER,MTZJ6.8C A...................
D 111 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 266 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 303 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 304 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 308 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 307 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 305 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 309 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 306 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 314 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 316 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 313 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 317 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 312 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 311 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 310 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 315 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 327 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 321 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 320 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 385 87-017-932-080 ZENER,MTJ6.2B A...................
D 382 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 383 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 384 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 381 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 701 87-A40-269-080 C-DIODE,MC2836 A...................
FL 201 8Z-NF5-611-010 FL,BJ686GK-ZNF5 A...................
IC 103 87-A20-951-010 IC,TSOP1838RF1 A...................
IC 101 8Z-NF7-605-010 C-IC,LC876572W-**** A...................
IC 380 87-A21-023-040 C-IC,BA3835F A...................
IC 401 87-A21-021-040 C-IC,BU2099FV A...................
IC 402 87-A21-021-040 C-IC,BU2099FV A...................
L 101 87-A50-333-010 COIL,OSC 9.43MHZ A...................
LED 293 87-A40-589-040 LED,SLR-56VCT31 RED A...................
LED 404 87-A40-608-040 LED,SLV-312VC RED A...................
LED 402 87-A40-608-040 LED,SLV-312VC RED A...................
LED 403 87-A40-608-040 LED,SLV-312VC RED A...................
LED 405 87-A40-608-040 LED,SLV-312VC RED A...................
LED 401 87-A40-608-040 LED,SLV-312VC RED A...................
LED 409 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 406 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 407 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 408 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 413 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 414 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 410 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 412 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 411 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 415 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 418 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 419 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 417 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 416 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 420 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 421 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 434 87-A40-563-010 LED,SEL6515C-LF62 PGRN A...................
LED 436 87-A40-563-010 LED,SEL6515C-LF62 PGRN A...................
LED 435 87-A40-563-010 LED,SEL6515C-LF62 PGRN A...................
LED 433 87-A40-563-010 LED,SEL6515C-LF62 PGRN A...................
LED 441 87-A40-608-040 LED,SLV-312VC RED A...................
LED 440 87-A40-608-040 LED,SLV-312VC RED A...................
LED 442 87-A40-608-040 LED,SLV-312VC RED A...................
LED 447 87-A40-609-040 LED,SLV-312MC PG A...................
LED 444 87-A40-609-040 LED,SLV-312MC PG A...................
LED 448 87-A40-609-040 LED,SLV-312MC PG A...................
LED 445 87-A40-609-040 LED,SLV-312MC PG A...................
LED 446 87-A40-609-040 LED,SLV-312MC PG A...................
LED 443 87-A40-609-040 LED,SLV-312MC PG A...................
LED 458 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 455 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 454 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 456 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

ELECTRICALPARTSLIST-3/9
LED 453 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 457 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 459 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 462 87-A40-564-010 LED,SEL6215S-LF62 RED A...................
LED 461 87-A40-564-010 LED,SEL6215S-LF62 RED A...................
LED 465 87-A40-609-040 LED,SLV-312MC PG A...................
LED 468 87-A40-609-040 LED,SLV-312MC PG A...................
LED 467 87-A40-609-040 LED,SLV-312MC PG A...................
LED 466 87-A40-609-040 LED,SLV-312MC PG A...................
LED 464 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 463 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 460 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 472 87-A40-608-040 LED,SLV-312VC RED A...................
LED 470 87-A40-608-040 LED,SLV-312VC RED A...................
LED 474 87-A40-608-040 LED,SLV-312VC RED A...................
LED 475 87-A40-609-040 LED,SLV-312MC PG A...................
LED 471 87-A40-609-040 LED,SLV-312MC PG A...................
LED 473 87-A40-609-040 LED,SLV-312MC PG A...................
LED 484 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 485 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 487 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 482 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 481 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 483 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 486 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
LED 488 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................
Q 102 87-026-610-080 TR,KTC3198GR A...................
Q 108 87-A30-073-080 C-TR,RT1N 141C A...................
Q 104 87-A30-087-080 C-FET,2SK2158 A...................
Q 101 87-A30-087-080 C-FET,2SK2158 A...................
Q 103 87-A30-087-080 C-FET,2SK2158 A...................
Q 262 87-A30-159-080 C-TR,KTA1298Y A...................
Q 266 87-A30-202-080 C-TR,RT1P441C A...................
Q 301 87-A30-076-080 C-TR,2SC3052F A...................
Q 703 87-A30-159-080 C-TR,KTA1298Y A...................
Q 702 87-A30-159-080 C-TR,KTA1298Y A...................
Q 701 87-A30-200-080 TR,2SA1585SR A...................
R 210 87-012-157-080 C-CAP,S 330P-50 CH A...................
R 213 87-012-157-080 C-CAP,S 330P-50 CH A...................
R 212 87-012-157-080 C-CAP,S 330P-50 CH A...................
S 101 87-A90-535-010 SW,RTRY EC16B24304 A...................
S 102 87-A91-397-010 SW,RTRY 121SL10-12T2 A...................
S 304 87-A91-024-080 SW,TACT KSH0611BT A...................
S 305 87-A91-024-080 SW,TACT KSH0611BT A...................
S 301 87-A91-024-080 SW,TACT KSH0611BT A...................
S 306 87-A91-024-080 SW,TACT KSH0611BT A...................
S 303 87-A91-024-080 SW,TACT KSH0611BT A...................
S 302 87-A91-024-080 SW,TACT KSH0611BT A...................
S 309 87-A91-024-080 SW,TACT KSH0611BT A...................
S 308 87-A91-024-080 SW,TACT KSH0611BT A...................
S 310 87-A91-024-080 SW,TACT KSH0611BT A...................
S 315 87-A91-024-080 SW,TACT KSH0611BT A...................
S 312 87-A91-024-080 SW,TACT KSH0611BT A...................
S 311 87-A91-024-080 SW,TACT KSH0611BT A...................
S 314 87-A91-024-080 SW,TACT KSH0611BT A...................
S 313 87-A91-024-080 SW,TACT KSH0611BT A...................
S 321 87-A91-024-080 SW,TACT KSH0611BT A...................
S 327 87-A91-024-080 SW,TACT KSH0611BT A...................
S 326 87-A91-024-080 SW,TACT KSH0611BT A...................
S 329 87-A91-024-080 SW,TACT KSH0611BT A...................
S 328 87-A91-024-080 SW,TACT KSH0611BT A...................
S 322 87-A91-024-080 SW,TACT KSH0611BT A...................
S 325 87-A91-024-080 SW,TACT KSH0611BT A...................
S 323 87-A91-024-080 SW,TACT KSH0611BT A...................
S 324 87-A91-024-080 SW,TACT KSH0611BT A...................
S 333 87-A91-024-080 SW,TACT KSH0611BT A...................
S 331 87-A91-024-080 SW,TACT KSH0611BT A...................
S 332 87-A91-024-080 SW,TACT KSH0611BT A...................
S 330 87-A91-024-080 SW,TACT KSH0611BT A...................
S 335 87-A91-024-080 SW,TACT KSH0611BT A...................
S 334 87-A91-024-080 SW,TACT KSH0611BT A...................
S 341 87-A91-024-080 SW,TACT KSH0611BT A...................
S 349 87-A91-024-080 SW,TACT KSH0611BT A...................
S 346 87-A91-024-080 SW,TACT KSH0611BT A...................
S 344 87-A91-024-080 SW,TACT KSH0611BT A...................
S 347 87-A91-024-080 SW,TACT KSH0611BT A...................
S 343 87-A91-024-080 SW,TACT KSH0611BT A...................
S 342 87-A91-024-080 SW,TACT KSH0611BT A...................
S 345 87-A91-024-080 SW,TACT KSH0611BT A...................
S 348 87-A91-024-080 SW,TACT KSH0611BT A...................
S 350 87-A91-024-080 SW,TACT KSH0611BT A...................
S 354 87-A91-024-080 SW,TACT KSH0611BT A...................
S 351 87-A91-024-080 SW,TACT KSH0611BT A...................
S 355 87-A91-024-080 SW,TACT KSH0611BT A...................
S 353 87-A91-024-080 SW,TACT KSH0611BT A...................
S 352 87-A91-024-080 SW,TACT KSH0611BT A...................
C 802 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 803 87-010-187-080 CAP CHIP S5600P A...................
C 807 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 805 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 804 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 806 87-010-401-040 CAP,E 1-50 SME A...................

ELECTRICALPARTSLIST-4/9
C 809 87-012-155-080 C-CAP 180P-50CH A...................
C 801 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 810 87-010-263-040 CAP,E 100-10 A...................
C 811 87-010-382-040 CAP,E 22-25 SME A...................
C 812 87-010-560-040 CAP,E 10-50 GAS A...................
D 801 87-017-931-080 ZENER,MTZJ5.6B A...................
IC 801 87-A21-051-040 C-IC,BU9990-03FS A...................
L 802 87-005-847-080 COIL,2.2UH(CECS) A...................
L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ A...................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 302 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 306 87-012-145-080 CAP, CHIP S 270P CH A...................
C 305 87-012-145-080 CAP, CHIP S 270P CH A...................
C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 316 87-010-178-080 CHIP CAP 1000P A...................
C 315 87-010-178-080 CHIP CAP 1000P A...................
C 313 87-010-181-080 CAP,CHIP S 1800P A...................
C 314 87-010-181-080 CAP,CHIP S 1800P A...................
C 312 87-010-198-080 CAP, CHIP 0.022 A...................
C 311 87-010-198-080 CAP, CHIP 0.022 A...................
C 319 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 318 87-012-142-080 CAP, S 0.33-16 A...................
C 317 87-012-142-080 CAP, S 0.33-16 A...................
C 324 87-010-260-080 CAP, ELECT 47-25V A...................
C 325 87-010-370-080 CAP,E 330-6.3 SME A...................
C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 320 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 322 87-012-142-080 CAP, S 0.33-16 A...................
C 321 87-012-142-080 CAP, S 0.33-16 A...................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 336 87-010-401-080 CAP, ELECT 1-50V A...................
C 335 87-010-401-080 CAP, ELECT 1-50V A...................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 354 87-010-175-080 CAP 560P A...................
C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 356 87-010-260-080 CAP, ELECT 47-25V A...................
C 352 87-012-140-080 CAP 470P A...................
C 351 87-012-140-080 CAP 470P A...................
C 355 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 363 87-A10-292-080 CAP,M 5600P-50 J A...................
C 371 87-010-175-080 CAP 560P A...................
C 372 87-010-175-080 CAP 560P A...................
C 374 87-010-179-080 CAP,CHIP S B1200P A...................
C 373 87-010-179-080 CAP,CHIP S B1200P A...................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 376 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 375 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 385 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 381 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 383 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 382 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 384 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 388 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 392 87-012-145-080 CAP, CHIP S 270P CH A...................
C 391 87-012-145-080 CAP, CHIP S 270P CH A...................
C 394 87-012-145-080 CAP, CHIP S 270P CH A...................
C 393 87-012-145-080 CAP, CHIP S 270P CH A...................
CN 301 87-099-827-010 CONN,3P S2M-3W A...................
CN 351 87-099-832-010 CONN,8P S2M-8W A...................
D 352 87-A40-269-080 C-DIODE,MC2836 A...................
IC 302 87-A20-355-010 IC,CXA1553P A...................
IC 303 87-A20-783-040 C-IC,BA7762AFS A...................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 351 87-007-342-010 COIL,OSC 85K BIAS A...................
Q 358 87-026-610-080 TR,KTC3198GR A...................
Q 357 87-026-610-080 TR,KTC3198GR A...................
Q 359 87-026-610-080 TR,KTC3198GR A...................
Q 353 87-A30-087-080 C-FET,2SK2158 A...................
Q 354 87-A30-087-080 C-FET,2SK2158 A...................
Q 351 87-A30-087-080 C-FET,2SK2158 A...................
Q 355 87-A30-105-080 C-TR,RT1P 441C A...................
Q 381 87-A30-076-080 C-TR,2SC3052F A...................
Q 382 87-A30-076-080 C-TR,2SC3052F A...................
SFR 305 87-A90-433-080 SFR,50K H NVZ6TLTA A...................
SFR 306 87-A90-433-080 SFR,50K H NVZ6TLTA A...................
SFR 303 87-A90-557-080 SFR,33K H HOKU A...................
SFR 301 87-A90-557-080 SFR,33K H HOKU A...................
SFR 302 87-A90-557-080 SFR,33K H HOKU A...................
SFR 304 87-A90-557-080 SFR,33K H HOKU A...................
SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA A...................
SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA A...................

ELECTRICALPARTSLIST-5/9
C 407 87-010-188-080 CAP,CHIP 6800P A...................
C 408 87-010-188-080 CAP,CHIP 6800P A...................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 402 87-010-260-080 CAP, ELECT 47-25V A...................
C 406 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 405 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 404 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 403 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 409 87-012-140-080 CAP 470P A...................
C 416 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 415 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 419 87-010-260-080 CAP, ELECT 47-25V A...................
C 411 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 413 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 414 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 412 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 418 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 417 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 410 87-012-140-080 CAP 470P A...................
D 402 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 401 87-A40-269-080 C-DIODE,MC2836 A...................
IC 401 87-A21-022-040 C-IC,BA3880FS A...................
C 507 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 509 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 505 87-012-145-080 CAP, CHIP S 270P CH A...................
C 506 87-012-145-080 CAP, CHIP S 270P CH A...................
C 504 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 503 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 502 87-A10-060-080 C-CAP,S 0.18-16 K B A...................
C 501 87-A10-060-080 C-CAP,S 0.18-16 K B A...................
C 511 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 510 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 517 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 512 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 514 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 515 87-010-263-080 CAP, ELECT 100-10V A...................
C 513 87-010-374-080 CAP, ELECT 47-10V A...................
C 527 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 521 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 523 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 522 87-016-460-080 C-CAP,S 0.22-16 B A...................
CN 502 87-099-566-010 CONN,7P TUC-P7P-B1 A...................
CN 501 87-A60-689-010 CONN,7P H GRY TUC-P07X-C1 A...................
D 501 87-070-136-080 ZENER,MTZJ5.1B A...................
IC 501 87-A20-561-040 C-IC,M65847AFP A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
C 4 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 3 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 6 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 5 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 2 87-012-369-080 C-CAP,S 0.047-50F A...................
C 1 87-012-369-080 C-CAP,S 0.047-50F A...................
C 9 87-016-658-090 CAP,E 4700-35 SMG A...................
C 10 87-016-658-090 CAP,E 4700-35 SMG A...................
C 27 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 29 87-010-247-080 CAP, ELECT 100-50V A...................
C 26 87-010-263-080 CAP, ELECT 100-10V A...................
C 21 87-010-385-080 CAP, ELECT 220-25V A...................
C 22 87-010-385-080 CAP, ELECT 220-25V A...................
C 23 87-010-385-080 CAP, ELECT 220-25V A...................
C 24 87-010-385-080 CAP, ELECT 220-25V A...................
C 25 87-010-430-080 CAP, ELECT 100-63 A...................
C 31 87-010-235-080 CAP,E 470-16 SME A...................
C 30 87-010-381-080 CAP, ELECT 330-16V A...................
C 61 87-010-260-080 CAP, ELECT 47-25V A...................
C 62 87-010-496-080 CAP,E 3.3-50 5L A...................
C 92 87-010-263-080 CAP, ELECT 100-10V A...................
C 93 87-010-380-080 CAP, ELECT 47-16V A...................
C 91 87-010-401-080 CAP, ELECT 1-50V A...................
CN 1 87-A60-739-010 CONN,13P JL-BT A...................
CN 91 87-A60-109-010 CONN,2P V S2M-2W A...................
CNA 1 8Z-NF8-669-010 CONN ASSY,9P VH A...................
D 9 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 8 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 3 87-070-274-080 DIODE,1N4003 SEM A...................
D 4 87-070-274-080 DIODE,1N4003 SEM A...................
D 5 87-070-274-080 DIODE,1N4003 SEM A...................
D 6 87-070-274-080 DIODE,1N4003 SEM A...................
D 7 87-A40-341-080 ZENER,MTZJ 36 A A...................
D 1 87-A40-549-090 DIODE,RBA-1002 A...................
D 10 87-A40-345-080 ZENER,MTZJ10C A...................
D 64 87-070-274-080 DIODE,1N4003 SEM A...................
D 63 87-A40-004-080 ZENER,MTZJ16A A...................
D 62 87-A40-269-080 C-DIODE,MC2836 A...................
D 61 87-A40-270-080 C-DIODE,MC2838 A...................
D 91 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 92 87-020-465-080 DIODE,1SS133 (110MA) A...................
JW 16 87-008-372-080 FILTER, EMI BL OIRNI A...................
Q 2 87-026-609-080 TR,KTA1266GR A...................
Q 1 87-026-609-080 TR,KTA1266GR A...................
Q 5 87-026-610-080 TR,KTC3198GR A...................
Q 8 87-A30-075-080 C-TR,2SA1235F A...................

ELECTRICALPARTSLIST-6/9
Q 6 87-A30-076-080 C-TR,2SC3052F A...................
Q 9 87-A30-234-080 TR,CSC4115BC A...................
Q 66 87-A30-075-080 C-TR,2SA1235F A...................
Q 64 87-A30-075-080 C-TR,2SA1235F A...................
Q 65 87-A30-076-080 C-TR,2SC3052F A...................
Q 67 87-A30-076-080 C-TR,2SC3052F A...................
Q 63 87-A30-076-080 C-TR,2SC3052F A...................
Q 91 87-A30-076-080 C-TR,2SC3052F A...................
Q 92 87-A30-255-010 TR,2SB1342 A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
C 102 87-010-178-080 CHIP CAP 1000P A...................
C 101 87-010-178-080 CHIP CAP 1000P A...................
C 126 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 128 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 127 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 125 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 133 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 131 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 132 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 134 87-010-406-080 CAP, ELECT 22-50 A...................
L 101 87-003-383-010 COIL,1UH-S A...................
L 102 87-003-383-010 COIL,1UH-S A...................
Q 102 87-A30-257-080 C-TR,2SD1306E A...................
Q 101 87-A30-257-080 C-TR,2SD1306E A...................
Q 127 87-A30-075-080 C-TR,2SA1235F A...................
R 145 87-A00-440-050 RES,220-1/2W J RP A...................
R 144 87-A00-440-050 RES,220-1/2W J RP A...................
R 143 87-A00-440-050 RES,220-1/2W J RP A...................
R 146 87-A00-440-050 RES,220-1/2W J RP A...................
C 204 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 203 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 229 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 230 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 235 87-016-285-080 CAP,E 47-100SME A...................
C 236 87-016-285-080 CAP,E 47-100SME A...................
C 252 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 251 87-010-402-080 CAP, ELECT 2.2-50V A...................
CN 201 87-A60-739-010 CONN,13P JL-BT A...................
D 213 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 212 87-020-465-080 DIODE,1SS133 (110MA) A...................
J 203 87-033-240-010 TERMINAL,SP 4P32SV1-05 A...................
J 201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM A...................
J 204 87-A60-750-010 JACK,PIN 4P R/W BLUE A...................
L 202 87-003-383-010 COIL,1UH-S A...................
L 201 87-003-383-010 COIL,1UH-S A...................
Q 202 87-A30-257-080 C-TR,2SD1306E A...................
Q 201 87-A30-257-080 C-TR,2SD1306E A...................
Q 221 87-A30-073-080 C-TR,RT1N 141C A...................
Q 223 87-A30-105-080 C-TR,RT1P 441C A...................
Q 230 87-A30-086-040 C-TR,CSD1306E A...................
RY 201 87-045-382-010 RELAY,OUAZ-SH-112L A...................
C 602 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 601 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 619 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 611 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 613 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 614 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 620 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 621 87-010-401-080 CAP, ELECT 1-50V A...................
C 622 87-010-401-080 CAP, ELECT 1-50V A...................
C 626 87-010-401-080 CAP, ELECT 1-50V A...................
C 625 87-010-401-080 CAP, ELECT 1-50V A...................
C 629 87-010-405-080 CAP, ELECT 10-50V A...................
C 623 87-A10-773-080 CAP,M 0.10-50 J A...................
C 624 87-A10-773-080 CAP,M 0.10-50 J A...................
C 637 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 630 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 633 87-010-263-080 CAP, ELECT 100-10V A...................
C 632 87-010-263-080 CAP, ELECT 100-10V A...................
C 636 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 631 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 640 87-010-314-080 C-CAP,S 22P-50V A...................
C 678 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 677 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 680 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 A...................
CN 601 87-099-719-010 CONN,30P TYK-B(X) A...................
CN 602 87-A60-131-010 CONN,6P V FE A...................
D 601 87-A40-002-080 ZENER,MTZJ5.1C A...................
D 603 87-A40-234-080 ZENER,MTZJ5.6A A...................
D 602 87-A40-438-080 ZENER,MTZJ4.7A A...................
IC 601 87-A21-202-040 C-IC,M62445AFP A...................
J 601 87-A60-402-010 JACK,PIN 6P R/W HSP-246V30 A...................
Q 601 87-026-609-080 TR,KTA1266GR A...................
Q 604 87-A30-142-040 C-TR,DTA123EKA A...................

ELECTRICALPARTSLIST-7/9
C 707 87-010-180-080 C-CER 1500P A...................
C 702 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 706 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 709 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 708 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 701 87-010-263-080 CAP, ELECT 100-10V A...................
C 703 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 704 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 705 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 711 87-010-181-080 CAP,CHIP S 1800P A...................
C 718 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 717 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 710 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 714 87-010-374-080 CAP, ELECT 47-10V A...................
C 716 87-010-494-080 CAP ELECT GAS 1/50 A...................
C 715 87-010-494-080 CAP ELECT GAS 1/50 A...................
C 713 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 735 87-010-178-080 CHIP CAP 1000P A...................
C 733 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 736 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 732 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 738 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 731 87-010-560-080 CAP,E 10-50 GAS A...................
C 734 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 741 87-010-178-080 CHIP CAP 1000P A...................
D 701 87-A40-234-080 ZENER,MTZJ5.6A A...................
IC 701 87-A20-613-040 C-IC,BU9262AFS A...................
JW 703 87-008-372-080 FILTER, EMI BL OIRNI A...................
L 701 87-005-448-080 COIL 220UH,K A...................
Q 732 87-A30-075-080 C-TR,2SA1235F A...................
Q 731 87-A30-076-080 C-TR,2SC3052F A...................
C 901 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 902 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 903 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 904 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 905 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 909 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 908 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 907 87-016-669-080 C-CAP,S 0.1-25 K B A...................
C 919 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 916 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 915 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 918 87-010-198-080 CAP, CHIP 0.022 A...................
C 917 87-010-198-080 CAP, CHIP 0.022 A...................
C 913 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 914 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 911 87-012-365-080 C-CAP,S 0.027-25VBK A...................
C 912 87-012-365-080 C-CAP,S 0.027-25VBK A...................
C 910 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 927 87-010-112-080 CAP, ELECT 100-16V A...................
C 923 87-010-178-080 CHIP CAP 1000P A...................
C 924 87-010-178-080 CHIP CAP 1000P A...................
C 925 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 926 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 920 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 921 87-010-188-080 CAP,CHIP 6800P A...................
C 922 87-010-188-080 CAP,CHIP 6800P A...................
C 928 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 929 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 930 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 931 87-010-322-080 C-CAP,S 100P-50 CH A...................
CN 901 87-099-568-010 CONN,11P TUC-P11P-B1 A...................
IC 901 87-A20-869-040 C-IC,M62449FP A...................
PN 901 87-A60-546-010 CONN,11P H GRY TUC-P11X-C1 A...................
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 451 87-010-401-080 CAP, ELECT 1-50V A...................
C 452 87-010-401-080 CAP, ELECT 1-50V A...................
C 453 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 454 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 456 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 455 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 459 87-A10-300-080 CAP,M 0.027-50 J A...................
C 460 87-A10-300-080 CAP,M 0.027-50 J A...................
C 466 87-A10-300-080 CAP,M 0.027-50 J A...................
C 465 87-A10-300-080 CAP,M 0.027-50 J A...................
IC 451 87-A21-031-040 C-IC,BU4551BF A...................
JW 464 87-070-136-080 ZENER,MTZJ5.1B A...................
Q 451 87-A30-105-080 C-TR,RT1P 441C A...................
C 209 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 208 87-010-408-080 CAP, ELECT 47-50V A...................
C 203 87-010-408-080 CAP, ELECT 47-50V A...................
C 207 87-010-408-080 CAP, ELECT 47-50V A...................
C 204 87-010-408-080 CAP, ELECT 47-50V A...................
C 212 87-010-260-080 CAP, ELECT 47-25V A...................
C 211 87-010-260-080 CAP, ELECT 47-25V A...................
C 210 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 219 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 213 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
C 214 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
C 222 87-010-186-080 CAP,CHIP 4700P A...................

ELECTRICALPARTSLIST-8/9
C 221 87-010-186-080 CAP,CHIP 4700P A...................
C 220 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 299 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 306 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 304 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 308 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 314 87-010-260-080 CAP, ELECT 47-25V A...................
C 310 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 312 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 322 87-010-186-080 CAP,CHIP 4700P A...................
C 320 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 405 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 409 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 407 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 403 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 413 87-010-260-080 CAP, ELECT 47-25V A...................
C 419 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 411 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 421 87-010-186-080 CAP,CHIP 4700P A...................
C 502 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 501 87-016-299-080 CAP,E 10-100 SME A...................
C 503 87-016-299-080 CAP,E 10-100 SME A...................
CN 101 87-A60-727-010 CONN,13P JL-R A...................
CN 102 87-A60-727-010 CONN,13P JL-R A...................
D 205 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 206 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 209 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 207 87-A40-488-080 DIODE,1SS244 A...................
D 208 87-A40-488-080 DIODE,1SS244 A...................
D 212 87-020-331-080 CHIP-DIODE,DAN202K A...................
D 210 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 297 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 298 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 295 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 296 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 299 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 306 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 312 87-A40-270-080 C-DIODE,MC2838 A...................
D 310 87-A40-488-080 DIODE,1SS244 A...................
D 401 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 409 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 405 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 411 87-A40-488-080 DIODE,1SS244 A...................
D 502 87-070-136-080 ZENER,MTZJ5.1B A...................
D 501 87-070-136-080 ZENER,MTZJ5.1B A...................
D 507 87-A40-274-010 DIODE,FMB-G16L A...................
D 504 87-A40-274-010 DIODE,FMB-G16L A...................
D 509 87-A40-345-080 ZENER,MTZJ10C A...................
D 503 87-A40-345-080 ZENER,MTZJ10C A...................
D 510 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 512 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 513 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 514 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 511 87-020-465-080 DIODE,1SS133 (110MA) A...................
Q 102 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 101 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 203 87-A30-076-080 C-TR,2SC3052F A...................
Q 204 87-A30-076-080 C-TR,2SC3052F A...................
Q 206 87-A30-076-080 C-TR,2SC3052F A...................
Q 205 87-A30-076-080 C-TR,2SC3052F A...................
Q 209 87-A30-190-080 TR,CC5551 A...................
Q 207 87-A30-268-040 C-TR,2SA1514K(S) A...................
Q 201 87-A30-268-040 C-TR,2SA1514K(S) A...................
Q 202 87-A30-268-040 C-TR,2SA1514K(S) A...................
Q 208 87-A30-268-040 C-TR,2SA1514K(S) A...................
Q 219 87-A30-097-010 TR,FN 1016 A...................
Q 214 87-A30-098-010 TR,FP 1016 A...................
Q 213 87-A30-098-010 TR,FP 1016 A...................
Q 210 87-A30-190-080 TR,CC5551 A...................
Q 224 87-A30-076-080 C-TR,2SC3052F A...................
Q 226 87-A30-076-080 C-TR,2SC3052F A...................
Q 223 87-A30-076-080 C-TR,2SC3052F A...................
Q 225 87-A30-076-080 C-TR,2SC3052F A...................
Q 220 87-A30-097-010 TR,FN 1016 A...................
Q 222 87-A30-106-070 C-TR,CMBT5551 A...................
Q 221 87-A30-106-070 C-TR,CMBT5551 A...................
Q 298 87-A30-268-040 C-TR,2SA1514K(S) A...................
Q 302 87-A30-075-080 C-TR,2SA1235F A...................
Q 308 87-A30-075-080 C-TR,2SA1235F A...................
Q 304 87-A30-076-080 C-TR,2SC3052F A...................
Q 306 87-A30-076-080 C-TR,2SC3052F A...................
Q 318 87-A30-119-080 C-TR,2SC3906K R A...................
Q 312 87-A30-190-080 TR,CC5551 A...................
Q 314 87-A30-214-010 TR,2SB1344 A...................
Q 316 87-A30-215-010 TR,2SD2025 A...................
Q 326 87-A30-076-080 C-TR,2SC3052F A...................
Q 324 87-A30-076-080 C-TR,2SC3052F A...................
Q 401 87-A30-075-080 C-TR,2SA1235F A...................
Q 407 87-A30-075-080 C-TR,2SA1235F A...................

ELECTRICALPARTSLIST-9/9
Q 405 87-A30-076-080 C-TR,2SC3052F A...................
Q 403 87-A30-076-080 C-TR,2SC3052F A...................
Q 417 87-A30-119-080 C-TR,2SC3906K R A...................
Q 411 87-A30-190-080 TR,CC5551 A...................
Q 413 87-A30-214-010 TR,2SB1344 A...................
Q 415 87-A30-215-010 TR,2SD2025 A...................
Q 423 87-A30-076-080 C-TR,2SC3052F A...................
Q 425 87-A30-076-080 C-TR,2SC3052F A...................
Q 503 87-A30-072-080 C-TR,RT1P 144C A...................
Q 506 87-A30-074-080 C-TR,RT1P 141C A...................
Q 505 87-A30-075-080 C-TR,2SA1235F A...................
Q 504 87-A30-076-080 C-TR,2SC3052F A...................
Q 501 87-A30-186-010 FET,2SK3053 A...................
Q 502 87-A30-186-010 FET,2SK3053 A...................
Q 507 87-A30-268-040 C-TR,2SA1514K(S) A...................
Q 601 87-A30-074-080 C-TR,RT1P 141C A...................
Q 602 87-A30-268-040 C-TR,2SA1514K(S) A...................
R 225 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 227 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 228 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 226 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 239 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 242 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 326 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 328 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 340 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 427 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 429 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 441 87-A00-258-080 RES,M/F 0.22-1W J A...................
TH 202 87-A91-042-080 C-THMS,100K 55001 A...................
TH 201 87-A91-042-080 C-THMS,100K 55001 A...................
TH 302 87-A91-042-080 C-THMS,100K 55001 A...................
TH 401 87-A91-042-080 C-THMS,100K 55001 A...................

ELECTRICAL MAIN PARTS LIST - 1/3 (TUNER: ZZA-1)
NOTE: The characters in the suffix column indicate the part usage.
HESW ...................XX......................................E...............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 701 87-010-381-080 0E CAP, ELECT 330-16V ABCDEFGH............
C 702 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............
C 711 87-010-260-080 0E CAP, ELECT 47-25V ABCD.FGH............
C 711 87-010-553-080 0E CAP,E 47-16 ....E...............
C 712 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGH............
C 718 87-012-179-080 0E C-CAP,U 20P-50 CH .BCD................
C 727 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 728 87-010-248-080 0E CAP, ELECT 220-10V ABCDEFGH............
C 721 87-012-176-080 0E CAP 15P ABCDEFGH............
C 722 87-012-176-080 0E CAP 15P ABCDEFGH............
C 720 87-012-195-080 0E C-CAP,U 100P-50CH ABCDEFGH............
C 729 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGH............
C 725 87-018-131-080 0E CAP, CER 1000P-50V .....FG.............
C 805 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 806 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
CN 701 87-A60-650-010 1A CONN,16P H GRY TUC-P16X-C1 .....F..............
CN 701 87-A60-700-010 0E CONN,13P H GRY TUC-P13X-C1 ABCDE.GH............
D 721 87-017-149-080 0E ZENER,HZS6A2L .BCDEFGH............
D 722 87-020-465-080 0E DIODE,1SS133 (110MA) .....FG.............
D 721 87-A40-234-080 0E ZENER,MTZJ5.6A A...................
IC 721 87-070-127-110 1C IC,LC72131 D ABCDEFGH............
Q 713 87-A30-072-080 0E C-TR,RT1P 144C ....E...............
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ....E...............
Q 711 87-A30-196-080 0E TR,2SC4115SRS A...................
Q 711 87-A30-234-080 0E TR,CSC4115BC .BCDEFGH............
X 721 87-A70-061-010 1A VIB,XTAL 4.500MHZ CSA-309 ABCDEFGH............
C 872 87-010-400-080 0E CAP, ELECT 0.47-50V AB.....H............
C 873 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............
C 877 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............
C 878 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............
C 889 87-010-248-080 0E CAP, ELECT 220-10V AB.....H............
C 884 87-010-260-080 0E CAP, ELECT 47-25V AB.....H............
C 883 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............
C 885 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............
C 886 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............
C 888 87-010-787-080 0E CAP, U 0.022-25 AB.....H............
C 881 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F AB.....H............
C 882 87-012-172-080 0E CAPACITOR CHIP U 10P CH AB.....H............
C 887 87-012-286-080 0E CAP, U 0.01-25 AB.....H............
C 886 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
C 885 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
IC 871 87-070-060-040 1F IC,TA2040AF AB.....H............
Q 873 87-026-226-080 0E CHIP-TR,DTA143EK AB.....H............
X 891 87-030-394-010 1B VIB,CER CSA3.6MGF228 AB.....H............
C 705 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 706 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 705 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 706 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 737 87-010-180-080 0E C-CER 1500P ....................
C 734 87-010-180-080 0E C-CER 1500P ....................
C 733 87-010-180-080 0E C-CER 1500P ....................
C 738 87-010-180-080 0E C-CER 1500P ....................
C 735 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 736 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 736 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 734 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 733 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 735 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 733 87-012-280-080 0E CAP, U 3300P-50 .....FG.............
C 734 87-012-280-080 0E CAP, U 3300P-50 .....FG.............
C 737 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 738 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 752 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............
C 751 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............
C 758 87-012-167-080 0E C-CAP,U 5P-50 CH ABCDEFGH............
C 757 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFGH............
C 753 87-012-195-080 0E C-CAP,U 100P-50CH .....FG.............
C 752 87-012-282-080 0E CAP, U 4700P-50 .....FG.............
C 756 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 752 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................
C 751 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................
C 766 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............
C 769 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............
C 765 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 768 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 764 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDE..H............
C 774 87-010-263-080 0E CAP, ELECT 100-10V ABCDEFGH............
C 771 87-010-383-080 0E CAP, ELECT 33-25V ABCDEFGH............
C 777 87-010-400-080 0E CAP, ELECT 0.47-50V ABCDE..H............
C 775 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............
C 777 87-010-493-040 0E CAP,E 0.47-50 GAS ....................
C 777 87-010-493-080 0E CAP,E 0.47-50 GAS .....FG.............
C 770 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGH............
C 780 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 785 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............
C 786 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............

ELECTRICAL MAIN PARTS LIST - 2/3 (TUNER: ZZA-1)
C 786 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............
C 785 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............
C 786 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............
C 785 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............
C 788 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............
C 787 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............
C 784 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 796 87-010-403-080 0E CAP, ELECT 3.3-50V ABCDEFGH............
C 794 87-010-406-080 0E CAP, ELECT 22-50 ABCDEFGH............
C 795 87-010-596-080 0E CAP, S 0.047-16 ..CDEFG.............
C 793 87-012-273-080 0E C-CAP,U 820P-50 B ABCDEFGH............
C 797 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............
C 798 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............
D 771 87-020-465-080 0E DIODE,1SS133 (110MA) ABCDEFGH............
D 773 87-A40-291-080 0E DIODE,1N4148 (CPT) ....................
IC 771 87-A20-913-010 1D IC,LA1837NL ABCDEFGH............
L 771 87-A50-266-010 1A COIL,FM DET-2N(TOK) ABCDEFGH............
L 772 87-A90-052-010 1C FLTR,CFMT-450A(TOK) ....E...............
L 772 87-A90-053-010 1C FLTR,PCFMT-060(TOK) AB.....H............
L 772 87-A90-733-010 1A FLTR,PCFAZH-450 (TOK) ....................
L 772 87-A91-110-010 1B FLTR,PCFJZH-450 (TOK) ..CD.FG.............
L 781 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............
L 791 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............
L 792 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............
X 771 87-030-354-010 1A VIB,CF BFU 450C ....E...............
C 859 87-012-286-080 0E CAP, U 0.01-25 .....F..............
C 865 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .....F..............
C 866 87-010-405-080 0E CAP, ELECT 10-50V .....F..............
C 864 87-010-405-080 0E CAP, ELECT 10-50V .....F..............
C 869 87-012-180-080 0E C-CAP,U 22P-50 CH .....F..............
C 868 87-012-184-080 0E C-CAP,U 33P-50 CH .....F..............
C 862 87-012-199-080 0E CAP 220P .....F..............
C 861 87-012-199-080 0E CAP 220P .....F..............
C 863 87-012-270-080 0E CAP, U 470P-50 .....F..............
C 867 87-012-286-080 0E CAP, U 0.01-25 .....F..............
IC 851 87-A20-440-040 1H C-IC,BU1920FS .....F..............
L 851 87-005-847-080 0E COIL,2.2UH(CECS) .....F..............
Q 853 87-A30-076-080 0E C-TR,2SC3052F .....F..............
X 851 87-A70-091-010 1B VIB,XTAL 4.332MHZ CSA-309 .....F..............
C 801 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 809 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 802 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 803 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 804 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 808 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 807 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 810 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 820 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............
C 893 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 894 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 942 87-012-168-080 0E C-CAP,U 6P-50 CH .....FG.............
C 942 87-012-172-080 0E CAPACITOR CHIP U 10P CH ....................
C 941 87-012-180-080 0E C-CAP,U 22P-50 CH ....E...............
C 944 87-014-049-080 0E CAP,PP 470P-100 J ....................
C 944 87-014-051-080 0E CAPACITOR (PP), 560P ....E...............
C 949 87-A10-039-080 0E C-CAP,U 470P-50 J CH .....FG.............
C 958 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............
C 956 87-010-263-080 0E CAP, ELECT 100-10V ....E...............
C 959 87-010-831-080 0E C-CAP,U,0.1-16F ....EFG.............
C 954 87-012-358-080 0E C-CAP,S 0.47-10 F Z ....E...............
C 950 87-014-073-080 0E CAP,PP 4700P-100 J ....E...............
C 963 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 962 87-010-401-080 0E CAP, ELECT 1-50V .....FG.............
C 964 87-012-170-080 0E C-CAP,U 8P-50 CH A...................
C 961 87-012-174-080 0E CAP CHIP CERA SS 12P CHJ .BCD...H............
C 960 87-012-350-080 0E C-CAP,1-25 F ....E...............
CF 802 82-785-747-010 1A CF MS2 GHY R .....FG.............
CF 802 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............
CF 801 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............
CF 801 87-008-423-010 1A CERAMIC FILTER, SFE10.7 .....FG.............
D 944 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFG.............
D 942 87-A40-270-080 0E C-DIODE,MC2838 .....FG.............
D 981 87-A40-618-080 1B VARI-CAP,SVC 348(S/T) ....E...............
FFE 801 A8-6ZA-190-030 0E 6ZA-1 FEUNM ....................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM .....FG.............
FFE 801 A8-6ZA-192-030 2Y 6ZA-1 FEJNM .B..................
FFE 801 A8-6ZA-193-130 6ZA-1 FEVNM ....................
FFE 801 A8-6ZA-199-170 6ZA-1 FEENC ....................
FFE 801 A8-6ZA-19A-070 6ZA-1 FEJNC ....................
FFE 801 A8-6ZA-19D-070 1H 6ZA-1 YFEJNC A......H............
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ..C.E...............
FFE 801 A8-8ZA-192-070 8ZA-1 FEUNC ....................
FFE 801 A8-8ZA-193-070 1E 8ZA-1 YFEUNC ...D................
J 801 87-033-241-010 1B TERMINAL,ANT AJ-2039 .....FG.............
J 801 87-A60-702-010 1B TERMINAL,ANT 4P CJ-9036 ABCD...H............
J 801 87-A60-703-010 1A TERMINAL,ANT 3P CJ-9037 ....E...............
J 940 81-754-629-010 0E CONNECTOR, 2P ....E...............
L 832 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............
L 943 87-005-372-080 0E COIL S 1MHM ....................
L 942 87-A50-019-010 0E COIL,OSC LW(COI) .....FG.............
L 941 87-A50-020-010 0E COIL,ANT LW(COI) .....FG.............
L 941 87-A50-022-010 0E COIL,ANT SW(COI) ....E...............

ELECTRICAL MAIN PARTS LIST - 3/3 (TUNER: ZZA-1)
L 944 87-A50-159-010 0E COIL,10MH K C2B ....E...............
L 942 87-A50-173-010 0E COIL,OSC SW-N(COI) ....E...............
L 943 87-A50-432-010 0E COIL,1MH K CW ....E...............
L 981 87-A50-430-010 0E COIL,ANT MW(3BSW) ....E...............
L 982 87-A50-431-010 0E COIL,OSC MW(3BSW) ....E...............
L 981 87-NF4-650-010 1D COIL,AM PACK 4N(TOK) A...................
L 981 87-NF4-651-010 1C COIL,AM PACK2N(TOM) ....................
L 981 88-NF8-625-110 1D COIL,AM PACK3N(TOK) ....................
L 981 8Z-ZA1-664-010 1D COIL,AM PACK 4(TOK) .BCD...H............
L 981 8Z-ZA1-665-010 1E COIL,AM PACK 2(TOK) .....FG.............
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ABCD.FGH............
Q 805 89-327-143-080 0E TR,2SC2714 (0.1W) ABCDEFGH............
Q 942 87-A30-075-080 0E C-TR,2SA1235F ....E...............
Q 943 87-A30-075-080 0E C-TR,2SA1235F ....E...............
Q 949 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 945 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 944 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 948 87-A30-086-070 0E C-TR,CSD1306E ....EFG.............
Q 947 89-503-602-080 1A C-FET,2SK360E ....E...............
Q 947 89-505-434-540 0E C-FET,2SK543(4/5) .....FG.............
Q 951 87-A30-074-080 0E C-TR,RT1P 141C ....EFG.............
TC 942 87-011-164-010 0E CAPACITOR,TRIMMER 30P .....FG.............
TC 941 87-011-173-010 1A CERAMIC TRIMMER 20P ....................
TC 941 87-011-220-080 1A TRIMMER CAP 20P VTC ....E...............
TC 943 87-011-221-080 1A CAP, TRIMMER 30P ....E...............

MECHANICAL PARTS LIST-1/1
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-NF5-001-010 CABI,FR U A...................
8Z-NF5-002-010 BOX,CASS 1 A...................
8Z-NF5-003-010 BOX,CASS 2 A...................
8Z-NF5-007-010 PANEL,CASS 1 A...................
8Z-NF5-008-010 PANEL,CASS 2 A...................
8Z-NF5-010-010 WINDOW,CASS 1 A...................
8Z-NF5-011-010 WINDOW,CASS 2 A...................
8Z-NF5-012-010 PANEL,CD A...................
8Z-NF5-013-010 RING,VOL A...................
8Z-NF5-015-010 PANEL,JOG A...................
8Z-NF5-032-010 CABI,STEEL HR A...................
8Z-NF5-042-010 PANEL,FUN A...................
8Z-NF5-057-010 PANEL,DIRECT A...................
8Z-NF5-073-010 PANEL,DISC A...................
8Z-NH5-003-010 PANEL,FR VCD A...................
8Z-NH5-004-010 PANEL,TRAY VCD A...................
8Z-NH5-005-010 WINDOW,DISPLAY VCD A...................
8Z-NH5-011-010 CABI,REAR HRJSNM A...................
8Z-NF5-014-010 KNOB,RTRY VOL A...................
8Z-NF5-016-010 KNOB,RTRY JOG A...................
8Z-NF5-018-010 KEY,ECHO A...................
8Z-NF5-020-010 KEY,ASSY POWER A...................
8Z-NF5-021-010 KEY,MIC A...................
8Z-NF5-022-010 KEY,OPEN A...................
8Z-NF5-030-010 KEY,DISC A...................
8Z-NF5-035-010 KEY,ASSY OPE A...................
8Z-NF5-043-010 KEY,FUN A...................
8Z-NF5-050-010 KEY,ASSY JOG A...................
8Z-NH5-010-010 KEY,VCD A...................
81-532-080-010 LABEL, CASS. COMPT A...................
86-NF6-061-010 REFLECTOR,CASS A...................
8Z-NF5-026-010 REFLECTOR,FUN A...................
8Z-NF5-027-010 REFLECTOR,CD A...................
87-NF6-616-010 CONN ASSY,8P RPB A...................
84-ZG1-245-210 CAP,OPTICAL A...................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) A...................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) A...................
82-NF5-229-010 PLATE,LOCK A...................
86-NF9-224-010 SPR-C,LOCK A...................
87-064-185-010 HLDR,WIRE A...................
87-NF4-216-010 HLDR,LOCK 1 A...................
87-NF4-217-110 HLDR,LOCK 2 A...................
87-NF4-221-010 HLDR,CABLE A...................
87-NF8-220-010 DMPR,150 A...................
88-NF5-208-010 HLDR,PWB-M N A...................
8Z-NF5-203-010 GUIDE,CD A...................
8Z-NF5-214-110 HLDR,HT F A...................
8Z-NF5-215-110 HLDR,HT R A...................
8Z-NF5-219-110 HLDR,FAN A...................
8Z-NF5-221-010 COVER, PWB PT A...................
8Z-NH8-201-010 HLDR,PWB A...................
87-067-584-010 TAPPING SCREW, BVT2+3-6 A...................
87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................
87-067-688-010 BVTT+3-6 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-758-010 BVT2+3-12 W/O SLOT A...................
87-078-191-010 S-SCREW,IT+4-10 A...................
87-591-094-410 TAPPING SCREW, QIT+3-6 A...................
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) A...................
87-721-097-410 QT2+3-12 GLD A...................
87-723-096-410 QT2+3-10W/O SLOT BL A...................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU A...................
87-085-185-010 BUSHING, AC CORD (E) A...................
87-A91-314-010 FAN,3110GL-B4W-B34-H02 A...................
88-906-301-110 FF-CABLE,6P-1.25 A...................
88-906-601-110 FF-CABLE, 6P 1.25 600MM A...................
88-913-551-110 FF-CABLE, 13P 1.25 550MM A...................
88-915-181-110 FF-CABLE,15P 1.25 A...................
PT 1 8Z-NF5-603-010 PT,HE ZNF-5 A...................
W 1 87-050-079-010 AC-CORD ASSY,E A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................

ACCESSORIES/PACKAGELIST-1/1
NOTE: The characters in the suffix column indicate the part usage.
HR .....................XX..................................A...................
KANRI-----
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-NH5-911-010 IB,H(EC-H)M A...................
87-043-115-010 ANT,FEEDER FM A...................
87-050-103-010 CORD,PIN 1PY1.5M A...................
87-A90-054-010 ANT,LOOP AM-CON C A...................
8Z-NH8-702-010 RC UNIT,RC-ZAS07 A...................
PG 0 87-A91-017-010 PLUG,CONVERSION JT-0476 A...................

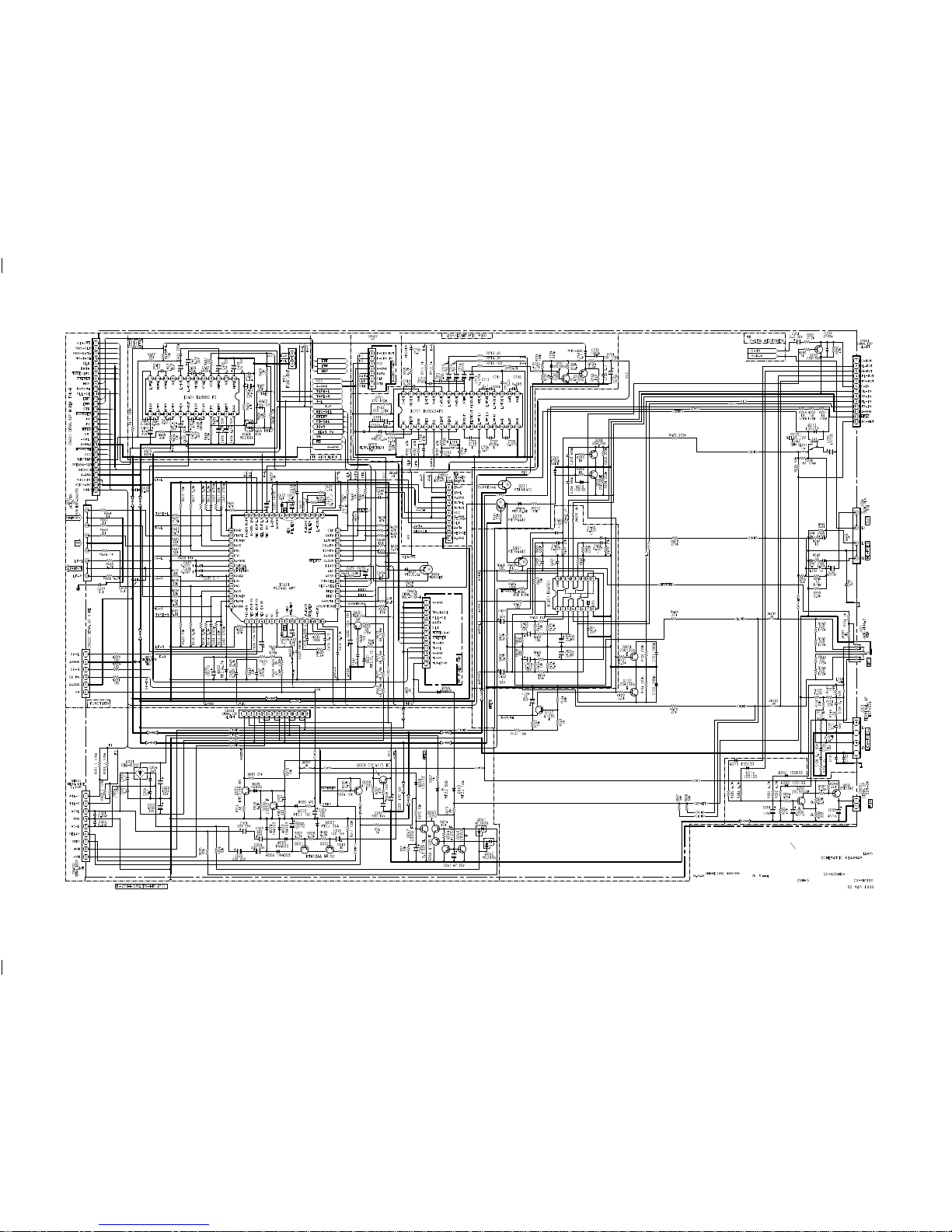

SCHEMATIC DIAGRAM _1 (MAIN)

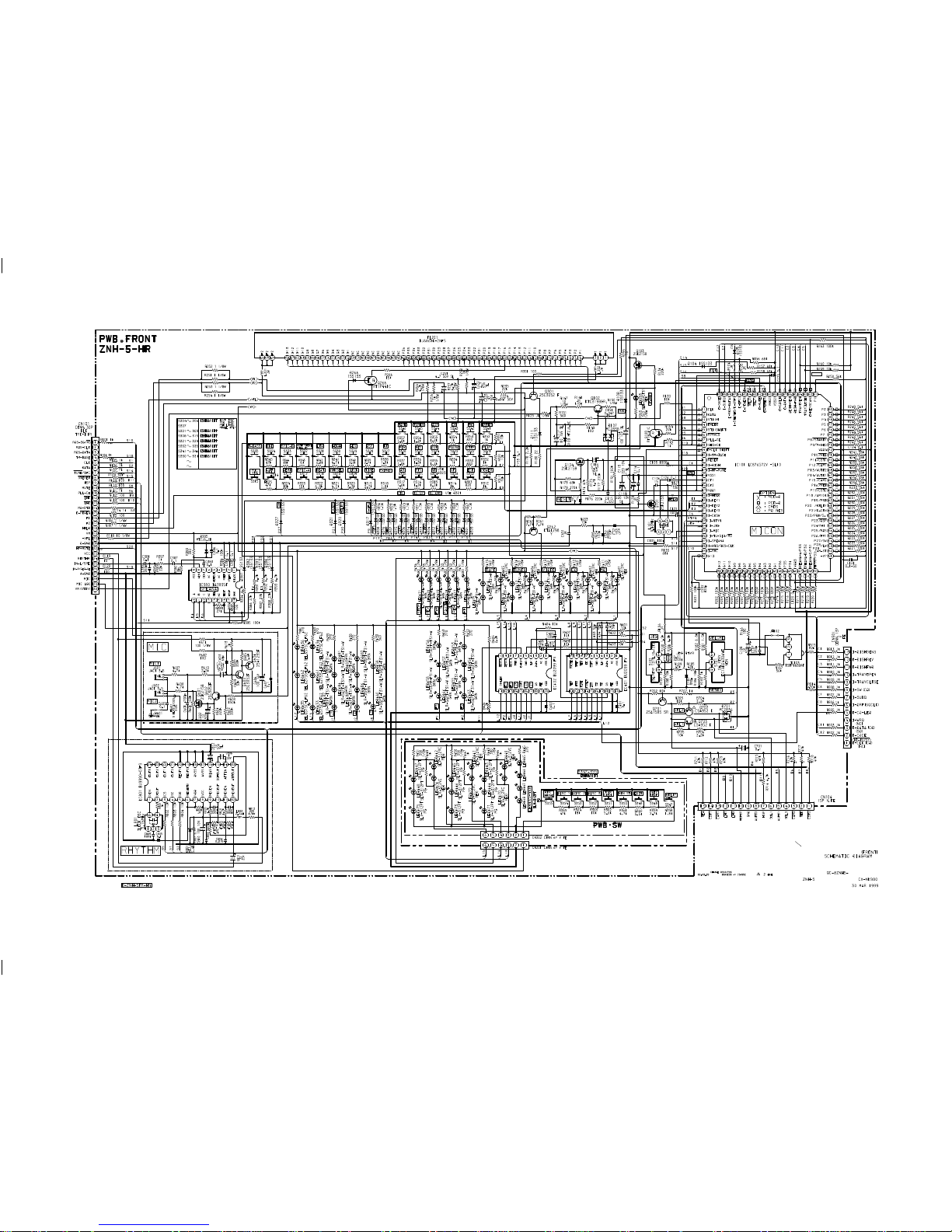

SCHEMATIC DIAGRAM _2 (FRONT)

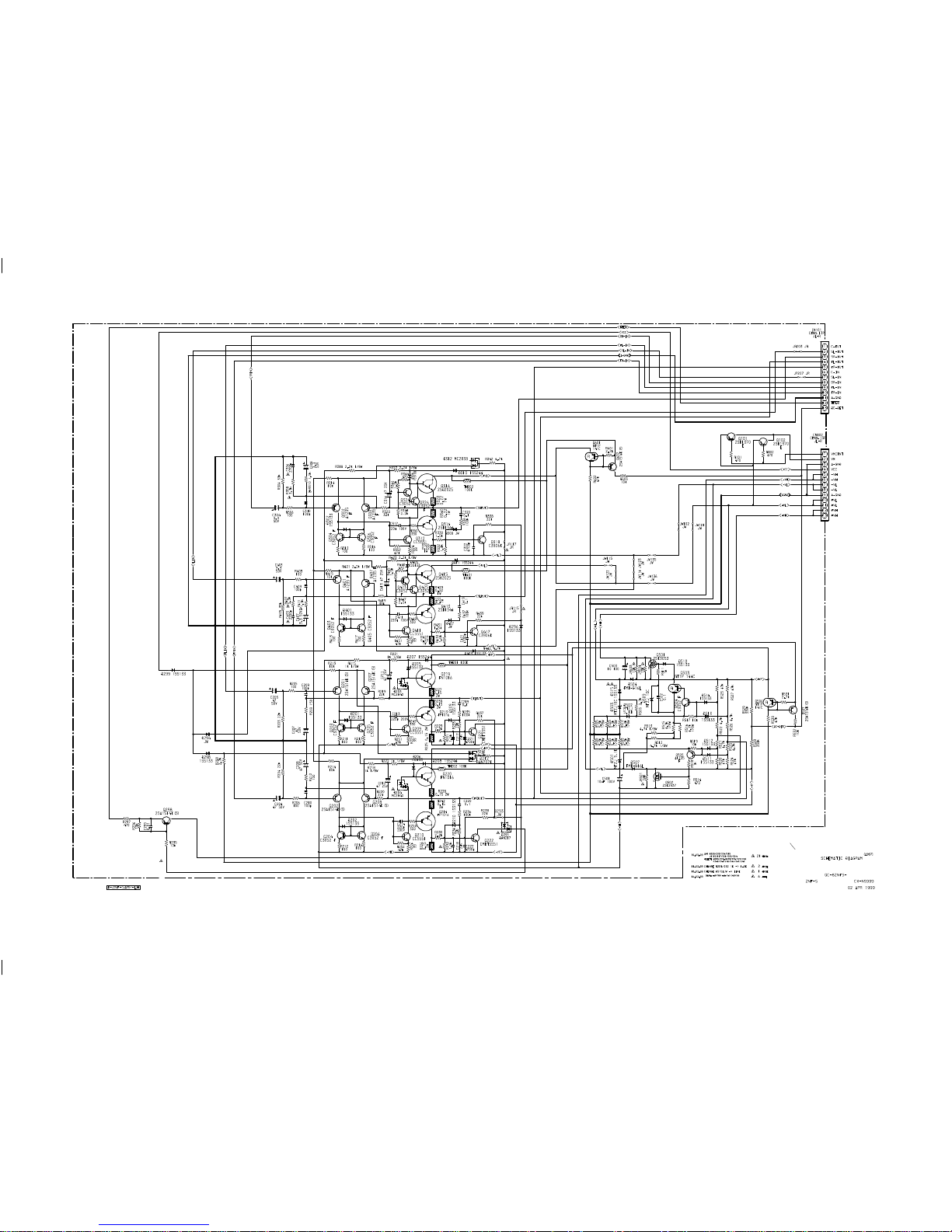

SCHEMATIC DIAGRAM _3 (AMP)

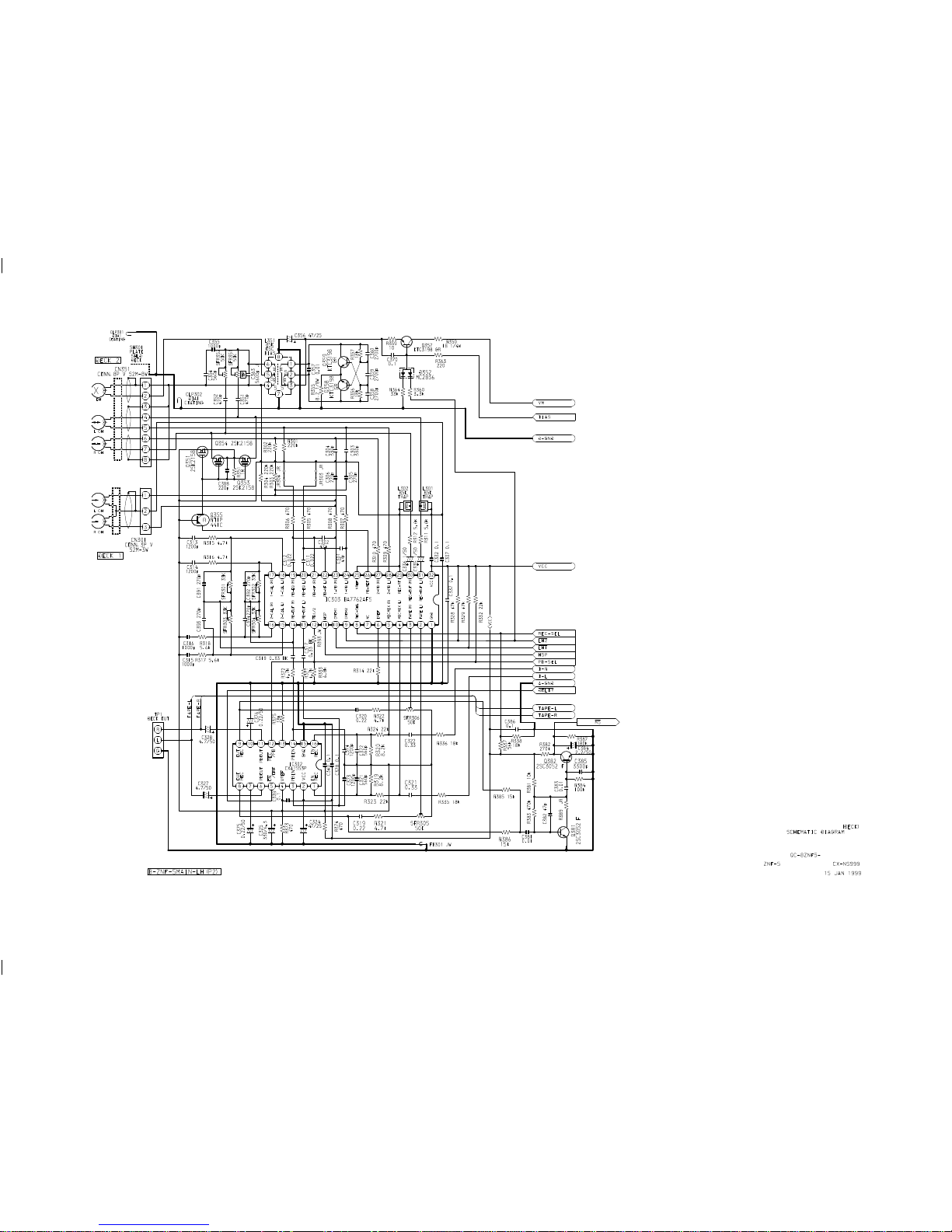

SCHEMATIC DIAGRAM _4 (DECK)

SCHEMATIC DIAGRAM _5 (TUNER)
