S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
NSX-S202
NSX-S205
• BASIC TAPE MECHANISM: TN-21ZFW-1788
• BASIC CD MECHANISM: 4ZG–1 Z3DLSH • TYPE: LH,HE,HR
S/M Code No. 09–985–265–7FE
CD STEREO SYSTEM

ELECTRICAL MAIN PARTS LIST - 1/5
NOTE: The characters in the suffix column indicate the part usage.
202LH ..................XX..................................A...................
202HR ..................XX.....................................D................
205LH ..................XX......................................E...............
205HR ..................XX........................................G.............
205HE ..................XX.........................................H............
202HE ..................XX..........................................I...........
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NF7-210-110 GUIDE,FL (*) ABCDEFGHI...........
C 201 87-010-404-040 CAP,E 4.7-50 SME ABCDEFGHI...........
C 208 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHI...........
C 202 87-015-698-040 CAP,E 4.7-50 7L ABCDEFGHI...........
C 204 87-016-513-080 CAP,E 47-35 7L ABCDEFGHI...........
C 205 87-018-205-080 CAP, CERA-SOL 0.022 ABCDEFGHI...........
C 211 87-010-248-040 CAP,E 220-10 SME ABCDEFGHI...........
C 210 87-010-263-040 CAP,E 100-10 ABCDEFGHI...........
C 213 87-010-401-040 CAP,E 1-50 SME ABCDEFGHI...........
C 214 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 219 87-018-205-080 CAP, CERA-SOL 0.022 ABCDEFGHI...........
C 218 87-018-205-080 CAP, CERA-SOL 0.022 ABCDEFGHI...........
C 212 87-018-205-080 CAP, CERA-SOL 0.022 ABCDEFGHI...........
C 216 87-018-205-080 CAP, CERA-SOL 0.022 ABCDEFGHI...........
C 226 87-018-113-080 CAP, CER 33P-50V ABCDEFGHI...........
C 221 87-018-115-080 CAP, CER 47P-50V ABCDEFGHI...........
C 225 87-018-149-080 CAP,TC-U 15P-50 CH ABCDEFGHI...........
C 220 87-018-205-080 CAP, CERA-SOL 0.022 ABCDEFGHI...........
C 224 87-018-205-080 CAP, CERA-SOL 0.022 ABCDEFGHI...........
C 220 87-018-209-080 CAP, CER 0.1-50V ......GH............
C 231 87-010-384-040 CAP,E 100-25 SME ABCDEFGHI...........
C 242 87-018-117-080 CAP,TC-U 68P-50 SL ABCDEFGHI...........
C 244 87-018-117-080 CAP,TC-U 68P-50 SL ABCDEFGHI...........
C 243 87-018-117-080 CAP,TC-U 68P-50 SL ABCDEFGHI...........
C 241 87-018-117-080 CAP,TC-U 68P-50 SL ABCDEFGHI...........
C 245 87-018-117-080 CAP,TC-U 68P-50 SL ABCDEFGHI...........
C 246 87-018-118-080 CAP,TC-U 82P-50 B ABCDEFGHI...........
C 251 87-018-205-080 CAP, CERA-SOL 0.022 ABCDEFGHI...........
CON 102 87-099-015-010 CONN,13P 6216V ABCDEFGHI...........
CON 103 87-A60-674-010 CONN,10P H 2MM JMT ABCDEFGHI...........
CON 101 88-NF9-658-010 CONN,30P BLK TYK-B(P) ABCDEFGHI...........
D 201 87-A40-304-080 ZENER,DZ6.2M ABCDEFGHI...........
D 208 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
FL 301 88-NF9-630-010 FL,10-BT-207GK ABCDEFGHI...........
IC 202 87-A20-951-010 IC,TSOP1838RF1 ABCDEFGHI...........
IC 202 87-NF8-614-010 IC,SPS-442-1-W ....................
IC 201 88-NF9-659-010 IC,M38B57MCH-P202FP ABCDEFGHI...........
Q 202 87-026-372-080 TR,RN1210 ABCDEFGHI...........
Q 201 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 231 87-A30-196-080 TR,2SC4115SRS ABCDEFGHI...........
S 201 87-A90-535-010 SW,RTRY EC16B24304 ABCDEFGHI...........
S 315 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........
S 311 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........
S 313 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........
S 312 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........
S 318 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........
S 316 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........
S 317 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........
S 314 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........
S 320 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........
SFR 201 87-A90-556-080 SFR,2.2K H HOKU ABCDEFGHI...........
X 201 87-A70-075-080 VIB,CER 4.19MHZ CRHF ABCDEFGHI...........
C 404 87-010-544-040 CAP,E 0.1-50 SME ...D..GHI...........
C 402 87-010-545-040 CAP,E 0.22-50 SME ...D..GHI...........
C 409 87-010-754-080 CAP,E220-10 SRA 7L ...D..GHI...........
C 403 87-018-118-080 CAP,TC-U 82P-50 B ...D..GHI...........
C 406 87-018-130-080 CAP,TC-U 820P-50 B ...D..GHI...........
C 412 87-010-401-040 CAP,E 1-50 SME ...D..GHI...........
C 410 87-010-405-040 CAP,E 10-50 ...D..GHI...........
IC 401 87-017-889-010 IC,NJM4558LD ...D..GHI...........
J 401 87-009-217-010 JACK,DIA3.5 ...D..GHI...........
VR 401 86-NFA-607-010 VR,RTRY 10K15AX1 1 V XV0121PVN ...D..GHI...........
FC 2 87-A90-505-080 FUSE CLAMP,TP00351-51 .BC..F..............
FC 1 87-A90-505-080 FUSE CLAMP,TP00351-51 .BC..F..............
PR 1 87-026-681-080 PROTECTOR,5A 60V 491 ....E.GH............
PR 2 87-026-681-080 PROTECTOR,5A 60V 491 ....E.GH............
T 2 87-A60-317-010 TERMINAL, 1P MSC .BC..F..............
T 1 87-A60-317-010 TERMINAL, 1P MSC .BC..F..............
WH 101 87-A90-460-010 HLDR,WIRE 2.5-7P ABCDEFGHI...........
C 108 87-010-381-080 CAP, ELECT 330-16V ABCDEFGHI...........
C 106 87-010-408-080 CAP, ELECT 47-50V ....E.GH............
C 104 87-016-051-090 CAP,E 2200-35 SMG ....E.GH............
C 101 87-016-495-090 CAP,E 3300-25 SMG ABCD.F..I...........
C 105 87-018-127-080 CAP, CER 470P-50V ABCDEFGHI...........
C 104 87-A10-011-090 CAP,E 2200-25 SMG ABCD.F..I...........
C 101 87-A10-520-090 CAP,E 3300-35 M SMG ....E.GH............
C 111 87-010-247-080 CAP, ELECT 100-50V ABCDEFGHI...........
C 112 87-010-263-080 CAP, ELECT 100-10V ABCDEFGHI...........
C 114 87-010-374-080 CAP, ELECT 47-10V ABCDEFGHI...........
C 113 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHI...........
C 123 87-010-260-080 CAP, ELECT 47-25V ABCDEFGHI...........

C 122 87-010-260-080 CAP, ELECT 47-25V ABCDEFGHI...........
C 123 87-010-384-080 CAP, ELECT 100-25V ABCDEFGHI...........
C 122 87-010-384-080 CAP, ELECT 100-25V ABCDEFGHI...........
C 130 87-018-131-080 CAP, CER 1000P-50V ....................
D 107 87-A40-336-080 ZENER,MTZJ27D T-72 ABCDEFGHI...........
D 103 87-A40-393-090 DIODE,1N5402GW(F20) ....E.GH............
D 104 87-A40-393-090 DIODE,1N5402GW(F20) ....E.GH............
D 101 87-A40-393-090 DIODE,1N5402GW(F20) ....E.GH............
D 102 87-A40-393-090 DIODE,1N5402GW(F20) ....E.GH............
D 102 87-A40-454-080 DIODE,1N5393 GW ABCD.F..I...........
D 103 87-A40-454-080 DIODE,1N5393 GW ABCD.F..I...........
D 101 87-A40-454-080 DIODE,1N5393 GW ABCD.F..I...........
D 104 87-A40-454-080 DIODE,1N5393 GW ABCD.F..I...........
D 109 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
D 108 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
D 116 87-070-274-080 DIODE,1N4003 SEM ABCDEFGHI...........
D 117 87-070-274-080 DIODE,1N4003 SEM ABCDEFGHI...........
D 110 87-A40-308-080 ZENER,DZ10M ABCDEFGHI...........
Q 105 87-026-609-080 TR,KTA1266GR ABCDEFGHI...........
Q 104 87-026-610-080 TR,KTC3198GR ABCDEFGHI...........
Q 102 87-026-610-080 TR,KTC3198GR ABCDEFGHI...........
Q 108 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 106 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 103 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 107 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 109 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 101 89-213-702-010 TR,2SB1370 (1.8W) ABCDEFGHI...........
Q 115 87-026-219-080 TR,DTA144ES (0.3W) ABCDEFGHI...........
Q 110 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
W 101 83-NE2-618-110 F-CABEL,5P-2.5 ABCDEFGHI...........
WH 102 87-A90-460-010 HLDR,WIRE 2.5-7P ABCDEFGHI...........
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDEFGHI...........
C 207 87-010-544-080 CAP, ELECT 0.1-50V ABCDEFGHI...........
C 208 87-010-544-080 CAP, ELECT 0.1-50V ABCDEFGHI...........
C 209 87-018-133-080 CAPACITOR,CER 4700P-16V ABCDEFGHI...........
C 213 87-010-260-080 CAP, ELECT 47-25V ABCD.F..I...........
C 214 87-010-260-080 CAP, ELECT 47-25V ABCD.F..I...........
C 219 87-010-544-080 CAP, ELECT 0.1-50V ABCDEFGHI...........
C 210 87-018-133-080 CAPACITOR,CER 4700P-16V ABCDEFGHI...........
C 213 87-A10-899-080 CAP,E 47-25 M BP SME ....E.GH............
C 214 87-A10-899-080 CAP,E 47-25 M BP SME ....E.GH............
C 220 87-010-544-080 CAP, ELECT 0.1-50V ABCDEFGHI...........
C 229 87-018-123-080 CAP, CER 220P-50V ABCDEFGHI...........
C 222 87-018-211-080 CAP, CER 0.01-50 .BC..F..............
C 221 87-018-211-080 CAP, CER 0.01-50 .BC..F..............
C 230 87-018-123-080 CAP, CER 220P-50V ABCDEFGHI...........
C 237 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 236 87-018-209-080 CAP, CER 0.1-50V ....E.GH............
C 235 87-018-209-080 CAP, CER 0.1-50V ....E.GH............
C 240 87-010-402-080 CAP, ELECT 2.2-50V ABCDEFGHI...........
C 256 87-018-115-080 CAP, CER 47P-50V .BC..F..............
C 257 87-018-119-080 CAP, CER 100P-50V .BC..F..............
C 254 87-018-131-080 CAP, CER 1000P-50V .BC..F..............
C 253 87-018-131-080 CAP, CER 1000P-50V .BC..F..............
D 218 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
D 219 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
D 220 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
D 222 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
D 221 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
J 202 87-A60-238-010 TERMINAL,SP 4P (MSC) ABCDEFGHI...........
J 201 88-NF9-620-010 JACK,DIA6.3 BLK ST W/SW KM16AT ABCDEFGHI...........
L 202 87-003-383-010 COIL,1UH-S ABCDEFGHI...........
L 201 87-003-383-010 COIL,1UH-S ABCDEFGHI...........
Q 209 87-026-610-080 TR,KTC3198GR ABCDEFGHI...........
Q 204 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 201 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 203 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 202 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 208 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 205 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 207 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 206 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 210 87-026-610-080 TR,KTC3198GR ABCDEFGHI...........
Q 218 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 216 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 215 87-A30-198-080 TR,KTC3199GR ABCDEFGHI...........
Q 213 88-NF9-622-010 TR,2SB1616 ABCDEFGHI...........
Q 214 88-NF9-622-010 TR,2SB1616 ABCDEFGHI...........
Q 211 88-NF9-623-010 TR,2SD2478 ABCDEFGHI...........
Q 212 88-NF9-623-010 TR,2SD2478 ABCDEFGHI...........
R 223 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFGHI...........
R 224 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFGHI...........
C 307 87-010-263-080 CAP, ELECT 100-10V ABCDEFGHI...........
C 308 87-010-263-080 CAP, ELECT 100-10V ABCDEFGHI...........
C 309 87-018-115-080 CAP, CER 47P-50V .BC..F..............
ELECTRICAL MAIN PARTS LIST - 2/5

C 301 87-018-131-080 CAP, CER 1000P-50V ABCDEFGHI...........
C 302 87-018-131-080 CAP, CER 1000P-50V ABCDEFGHI...........
C 303 87-018-196-080 CAP, CER 1500P-16V ABCDEFGHI...........
C 304 87-018-196-080 CAP, CER 1500P-16V ABCDEFGHI...........
C 302 87-018-197-080 CAP, CER 1800P-16V ABCD.F..I...........
C 301 87-018-197-080 CAP, CER 1800P-16V ABCD.F..I...........
C 315 87-010-375-080 CAP,E 330-10 SME A..DE.GHI...........
C 317 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFGHI...........
C 318 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFGHI...........
C 310 87-018-115-080 CAP, CER 47P-50V .BC..F..............
C 329 87-018-134-080 CAPACITOR,TC-U 0.01-16 A..DE.GHI...........
C 326 87-018-205-080 CAP, CERA-SOL 0.022 A..DE.GHI...........
C 322 87-018-209-080 CAP, CER 0.1-50V .BC..F..............
C 361 87-010-374-080 CAP, ELECT 47-10V ABCDEFGHI...........
C 360 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHI...........
C 401 87-010-400-080 CAP, ELECT 0.47-50V .BC..F..............
C 402 87-010-400-080 CAP, ELECT 0.47-50V .BC..F..............
C 401 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHI...........
C 402 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHI...........
C 404 87-018-118-080 CAP,TC-U 82P-50 B ABCDEFGHI...........
C 403 87-018-118-080 CAP,TC-U 82P-50 B ABCDEFGHI...........
C 411 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHI...........
C 412 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHI...........
C 452 87-010-382-080 CAP, ELECT 22-25V ABCDEFGHI...........
C 459 87-018-128-080 CAP, CERA-SOL SS 560P ABCDEFGHI...........
C 462 87-018-126-080 CAP,TC-U 390P-50 B ABCDEFGHI...........
C 461 87-018-126-080 CAP,TC-U 390P-50 B ABCDEFGHI...........
CON 301 87-A60-620-010 CONN,3P V 2MM JMT ABCDEFGHI...........
CON 351 87-A60-625-010 CONN,8P V 2MM JMT ABCDEFGHI...........
D 401 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
FB 303 87-008-372-080 FILTER, EMI BL OIRNI .BC..F..............
FB 302 87-008-372-080 FILTER, EMI BL OIRNI .BC..F..............
IC 301 87-017-889-010 IC,NJM4558LD ABCDEFGHI...........
L 451 87-007-342-010 COIL,OSC 85K BIAS ABCDEFGHI...........
Q 306 87-026-218-080 TR,DTC144ES (0.2W) ABCDEFGHI...........
Q 304 87-A30-090-080 FET,2SK2541 ABCDEFGHI...........
Q 303 87-A30-090-080 FET,2SK2541 ABCDEFGHI...........
Q 301 87-A30-091-080 FET,2SJ460 ABCDEFGHI...........
Q 302 87-A30-091-080 FET,2SJ460 ABCDEFGHI...........
Q 308 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 307 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 305 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 309 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 310 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 442 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 443 87-A30-197-080 TR,KTA1267GR ABCDEFGHI...........
Q 451 87-026-610-080 TR,KTC3198GR ABCDEFGHI...........
Q 454 87-026-610-080 TR,KTC3198GR ABCDEFGHI...........
Q 453 87-026-610-080 TR,KTC3198GR ABCDEFGHI...........
Q 455 87-A30-198-080 TR,KTC3199GR .BC..F..............
C 601 87-018-195-080 CAP, CER 1200P-16V ABCDEFGHI...........
C 602 87-018-195-080 CAP, CER 1200P-16V ABCDEFGHI...........
C 616 87-010-260-080 CAP, ELECT 47-25V ABCD.F..I...........
C 617 87-010-260-080 CAP, ELECT 47-25V ABCD.F..I...........
C 616 87-010-408-080 CAP, ELECT 47-50V ....E.GH............
C 617 87-010-408-080 CAP, ELECT 47-50V ....E.GH............
C 611 87-010-545-080 CAP, ELECT 0.22-50V ABCDEFGHI...........
C 613 87-010-545-080 CAP, ELECT 0.22-50V ABCDEFGHI...........
C 612 87-010-545-080 CAP, ELECT 0.22-50V ABCDEFGHI...........
C 614 87-010-545-080 CAP, ELECT 0.22-50V ABCDEFGHI...........
C 615 87-018-104-080 CAP,TC-U 10P-50 SL ABCDEFGHI...........
CON 602 87-099-194-010 CONN,6P 6216V ABCDEFGHI...........
CON 601 88-NF9-657-010 CONN,30P H BLK TYK-B(X) ABCDEFGHI...........
D 601 87-A40-292-080 ZENER,DZ2.7L ABCDEFGHI...........
D 602 87-A40-292-080 ZENER,DZ2.7L ABCDEFGHI...........
FB 601 87-008-372-080 FILTER, EMI BL OIRNI .BC..F..............
IC 601 88-NF9-632-010 IC,M62439SP ABCDEFGHI...........
J 601 87-A60-425-010 JACK,PIN 2P YKC21-3838 ABCDEFGHI...........
R 623 87-022-481-080 RES,NF 2.7-1/4W J ....................
C 707 87-010-112-080 CAP, ELECT 100-16V ABCDEFGHI...........
C 709 87-010-248-080 CAP, ELECT 220-10V ABCDEFGHI...........
C 701 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFGHI...........
C 706 87-018-131-080 CAP, CER 1000P-50V ABCDEFGHI...........
C 704 87-018-131-080 CAP, CER 1000P-50V ABCDEFGHI...........
C 705 87-018-131-080 CAP, CER 1000P-50V ABCDEFGHI...........
C 703 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 702 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 714 87-010-112-080 CAP, ELECT 100-16V ABCDEFGHI...........
C 710 87-010-112-080 CAP, ELECT 100-16V ABCDEFGHI...........
C 715 87-018-119-080 CAP, CER 100P-50V ABCDEFGHI...........
C 712 87-018-149-080 CAP,TC-U 15P-50 CH ABCDEFGHI...........
C 713 87-018-149-080 CAP,TC-U 15P-50 CH ABCDEFGHI...........
D 701 87-A40-302-080 ZENER,DZ5.6M ABCDEFGHI...........
D 702 87-A40-470-080 DIODE,1SS254 .BC..F..............
IC 701 88-NF9-656-010 IC,LC72131DZ ABCDEFGHI...........
L 701 87-005-847-080 COIL,2.2UH(CECS) ABCDEFGHI...........
Q 701 87-A30-196-080 TR,2SC4115SRS ABCDEFGHI...........
R 723 87-022-481-080 RES,NF 2.7-1/4W J ....................
X 701 88-NF9-654-010 VIB,XTAL 4.500MHZ CSA-309 ABCDEFGHI...........
C 738 87-010-260-080 CAP, ELECT 47-25V ....................
C 732 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 733 87-010-545-080 CAP, ELECT 0.22-50V ....................
ELECTRICAL MAIN PARTS LIST - 3/5

C 731 87-010-545-080 CAP, ELECT 0.22-50V ....................
C 734 87-010-545-080 CAP, ELECT 0.22-50V ....................
C 736 87-018-132-080 CAP, CER 2200P-16V ....................
C 735 87-018-132-080 CAP, CER 2200P-16V ....................
C 737 87-018-134-080 CAPACITOR,TC-U 0.01-16 ....................
C 743 87-010-101-080 CAP, ELECT 220-16 ....................
C 742 87-010-400-080 CAP, ELECT 0.47-50V ....................
C 741 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 740 87-018-127-080 CAP, CER 470P-50V ....................
C 746 87-018-134-080 CAPACITOR,TC-U 0.01-16 ....................
D 731 87-A40-470-080 DIODE,1SS254 ....................
IC 731 87-A20-716-010 IC,TA2040AP ....................
Q 731 87-026-269-080 TR,DTA114ES ....................
X 731 87-030-394-010 VIB,CER CSA3.6MGF228 ....................
C 758 87-010-112-080 CAP, ELECT 100-16V ABCDEFGHI...........
C 753 87-010-408-080 CAP, ELECT 47-50V ABCDEFGHI...........
C 757 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 752 87-018-143-080 CAP,TC-U 4.7P-50 CH .BC..F..............
C 762 87-010-400-080 CAP, ELECT 0.47-50V ABCDEFGHI...........
C 763 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHI...........
C 764 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHI...........
C 769 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHI...........
C 761 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFGHI...........
C 766 87-010-407-080 CAP, ELECT 33-50V ABCDEFGHI...........
C 765 87-018-115-080 CAP, CER 47P-50V ABCDEFGHI...........
C 768 87-018-208-080 CAP 0.047-50F ABCDEFGHI...........
C 774 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHI...........
C 771 87-010-406-080 CAP, ELECT 22-50 ABCDEFGHI...........
C 773 87-018-131-080 CAP, CER 1000P-50V A..DE.GHI...........
C 770 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 789 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHI...........
C 785 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHI...........
C 786 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHI...........
C 788 87-018-132-080 CAP, CER 2200P-16V A...E...............
C 787 87-018-132-080 CAP, CER 2200P-16V A...E...............
C 781 87-018-195-080 CAP, CER 1200P-16V ..C..F..............
C 782 87-018-195-080 CAP, CER 1200P-16V ..C..F..............
C 788 87-018-195-080 CAP, CER 1200P-16V ..C..F..............
C 787 87-018-195-080 CAP, CER 1200P-16V ..C..F..............
C 788 87-018-196-080 CAP, CER 1500P-16V .BCD.FGHI...........
C 787 87-018-196-080 CAP, CER 1500P-16V .BCD.FGHI...........
C 783 87-018-199-080 CAP, CER 3300P A..DE.GHI...........
C 784 87-018-199-080 CAP, CER 3300P A..DE.GHI...........
C 783 87-018-202-080 CAP.CERAM.6800PF .BC..F..............
C 784 87-018-202-080 CAP.CERAM.6800PF .BC..F..............
C 790 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHI...........
D 752 87-A40-470-080 DIODE,1SS254 ABCDEFGHI...........
IC 751 88-NF9-653-010 IC,LA1837NZ ABCDEFGHI...........
L 771 87-A50-266-010 COIL,FM DET-2N(TOK) ABCDEFGHI...........
L 772 87-A90-052-010 FLTR,CFMT-450A(TOK) ...D..GHI...........
L 772 87-A90-053-010 FLTR,PCFMT-060(TOK) ....................
L 772 87-A90-733-010 FLTR,PCFAZH-450 (TOK) ABC.EF..............
X 751 87-030-354-010 VIB,CF BFU 450C ...D..GHI...........
C 856 87-010-405-080 CAP, ELECT 10-50V .....F..............
C 855 87-010-405-080 CAP, ELECT 10-50V .....F..............
C 859 87-018-109-080 CAP, CER 22P-50V .....F..............
C 858 87-018-109-080 CAP, CER 22P-50V .....F..............
C 851 87-018-123-080 CAP, CER 220P-50V .....F..............
C 852 87-018-123-080 CAP, CER 220P-50V .....F..............
C 853 87-018-127-080 CAP, CER 470P-50V .....F..............
C 857 87-018-134-080 CAPACITOR,TC-U 0.01-16 .....F..............
C 860 87-018-134-080 CAPACITOR,TC-U 0.01-16 .....F..............
IC 851 87-A20-502-010 IC,BU1920 .....F..............
L 851 87-005-847-080 COIL,2.2UH(CECS) .....F..............
Q 851 87-A30-198-080 TR,KTC3199GR .....F..............
X 851 89-KT1-608-010 X,TAL,4.332MHZ .....F..............
C 808 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 804 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 803 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 809 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 812 87-010-408-080 CAP, ELECT 47-50V .BC..F..............
C 813 87-018-131-080 CAP, CER 1000P-50V ABCDEFGHI...........
C 811 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 810 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCDEFGHI...........
C 924 87-014-049-080 CAP,PP 470P-100 J .BC..F..............
C 922 87-018-099-080 CAP CERA 3.9P-50 .BC..F..............
C 923 87-018-102-080 CAP,TC-U 6.8P-50 SL .BC..F..............
C 931 87-010-263-080 CAP, ELECT 100-10V ...D..GHI...........
C 932 87-010-400-080 CAP, ELECT 0.47-50V ...D..GHI...........
C 939 87-014-073-080 CAP,PP 4700P-100 J ...D..GHI...........
C 940 87-014-051-080 CAPACITOR (PP), 560P ...D..GHI...........
C 944 87-018-104-080 CAP,TC-U 10P-50 SL A...E...............
C 941 87-018-109-080 CAP, CER 22P-50V ...D..GHI...........
CF 802 82-785-747-010 CF MS2 GHY R .BC..F..............
CF 801 87-008-261-010 FILTER, SFE10.7MA5-A A..DE.GHI...........
CF 802 87-008-261-010 FILTER, SFE10.7MA5-A A..DE.GHI...........
CF 801 87-008-423-010 CERAMIC FILTER, SFE10.7 .BC..F..............
D 941 87-A40-470-080 DIODE,1SS254 .BCD.FGHI...........
FEE 801 A8-8ZA-190-030 8ZA-1 FEUNM ...D..G.............
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM .....F..............
FFE 801 A8-6ZA-19C-170 6ZA-1 YFEENC .BC.................
FFE 801 A8-6ZA-19D-070 6ZA-1 YFEJNC ....................
ELECTRICAL MAIN PARTS LIST - 4/5

FFE 801 A8-6ZA-19F-070 6ZA-1 YFEVNC ....................
FFE 801 A8-8ZA-191-030 8ZA-1 YFEUNM ....................
FFE 801 A8-8ZA-193-070 8ZA-1 YFEUNC A...E..HI...........
J 801 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 A..DE.GHI...........
J 801 87-A60-427-010 TERMINAL,ANT PAL 2P YKD31-0429 .BC..F..............
J 931 81-754-629-010 CONNECTOR, 2P ...D..GHI...........
L 801 87-005-847-080 COIL,2.2UH(CECS) ABCDEFGHI...........
L 934 87-005-372-080 COIL S 1MHM ...D..GHI...........
L 933 87-A50-159-010 COIL,10MH K C2B ...D..GHI...........
L 942 87-A50-019-010 COIL,OSC LW(COI) .BC..F..............
L 941 87-A50-020-010 COIL,ANT LW(COI) .BC..F..............
L 941 87-A50-022-010 COIL,ANT SW(COI) ...D..GHI...........
L 942 87-A50-173-010 COIL,OSC SW-N(COI) ...D..GHI...........
L 981 87-NF4-651-010 COIL,AM PACK2N(TOM) .BC..F..............
L 981 88-NF8-625-010 COIL,AM PACK3N(TOK) ...D..GHI...........
L 981 88-NF9-651-010 COIL,AM PACK 4E(TOK) A...E...............
Q 802 87-026-214-080 TR,DTA114YS (0.3W) ABCDEFGHI...........
Q 803 89-305-352-380 TR,2SC535(B/C) .BC..F..............
Q 935 87-A30-092-080 FET,2SK439E/F .BCD.FGHI...........
Q 931 87-A30-164-080 TR,CSC2001K .BCD.FGHI...........
Q 938 87-A30-197-080 TR,KTA1267GR ...D..GHI...........
Q 939 87-A30-197-080 TR,KTA1267GR ...D..GHI...........
Q 934 87-A30-198-080 TR,KTC3199GR ...D..GHI...........
Q 937 87-A30-198-080 TR,KTC3199GR ...D..GHI...........
Q 932 87-A30-198-080 TR,KTC3199GR ...D..GHI...........
Q 940 87-026-269-080 TR,DTA114ES .BCD.FGHI...........
TC 941 87-011-220-080 TRIMMER CAP 20P VTC ...D..GHI...........
TC 943 87-011-221-080 CAP, TRIMMER 30P .BCD.FGHI...........
87-A60-317-010 TERMINAL, 1P MSC A..DE.GHI...........
FC 2 87-033-147-010 FUSE CLAMP A..DE.GHI...........
FC 1 87-033-147-010 FUSE CLAMP A..DE.GHI...........
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 A..DE.GHI...........
ELECTRICAL MAIN PARTS LIST - 5/5
NOTE: The characters in the suffix column indicate the part usage.
202LH ..................XX..................................A...................
202HR ..................XX.....................................D................
205LH ..................XX......................................E...............
205HR ..................XX........................................G.............
205HE ..................XX.........................................H............
202HE ..................XX..........................................I...........
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-NF9-901-010 IB,H(ECA)M ...D................
88-NF9-902-010 IB,LH(ESP)M ....................
88-NF9-903-010 IB,U(ESF)M ....................
88-NF9-905-010 IB,K(E)H .B..................
88-NF9-906-010 IB,E(9L)H ..C.................
88-NF9-907-010 IB,V(ER)H ....................
88-NF9-908-010 IB,D(J)H ....................
88-NF9-911-010 IB,H(ECA)SOL ........I...........
88-NF9-912-010 IB,LH(ESP)SOL A...................
88-NF9-913-010 IB,U(ESF)C ....................
88-NF9-914-010 IB,U(ESF)ALC ....................
88-NF9-915-010 IB,K(E)E ....................
88-NF9-916-010 IB,E(9L)203H ....................
88-NF9-921-010 IB,H(ECA)SOL 205 .......H............
88-NF9-922-010 IB,LH(ESP)SOL 205 ....E...............
88-NF9-924-010 IB,E(9L)M ....................
88-NF9-925-010 IB,E(9L)203M .....F..............
88-NF9-926-010 IB,E(9L)E ....................
88-NF9-927-010 IB,E(9L)203E ....................
88-NF9-928-010 IB,D(J)208H ....................
88-NF9-931-010 IB,H(ECA)M 205 ......G.............
88-NF9-933-010 IB,D(J)206H ....................
88-NF9-936-010 IB,D(J)80A-H ....................
88-NF9-923-010 IB,LH(P)CCE 201 ....................
87-043-095-010 WIRE ANTENNA ...D..G.............
87-043-115-010 ANT,FEEDER FM A..DE.GHI...........
87-099-789-010 PLUG,ADPTR IR44 A..DE.GHI...........
87-A90-118-010 ANT,WIRE FM (Z) .BC..F..............
87-A90-119-010 ANT,WIRE SW(5M) .......HI...........
88-NF9-660-010 RC UNIT,6AS14 ABCDEFGHI...........
ANT 0 87-006-225-010 AM LOOP ANT NC2 ABC.EF..............
ANT 0 87-006-269-010 AM LOOP ANT (UN) ...D..GHI...........
ACCESSORIES/PACKAGE LIST - 1

MECHANICAL PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
202LH ..................XX..................................A...................
202HR ..................XX.....................................D................
205LH ..................XX......................................E...............
205HR ..................XX........................................G.............
205HE ..................XX.........................................H............
202HE ..................XX..........................................I...........
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N ABCDEFGHI...........
87-NF8-045-010 PANEL,TOP ST ABCDEFGHI...........
87-NF8-050-010 PANEL,TOP STU ....................
88-NF9-001-010 CABI,FR U ....................
88-NF9-002-010 CABI,REAR USTNC ....................
88-NF9-003-110 BOX,CASS U1 ABCD.F..I...........
88-NF9-004-110 BOX,CASS U2 ABCD.F..I...........
88-NF9-018-010 PANEL,TRAY ABCDEFGHI...........
88-NF9-020-010 CABI,FR D ....................
88-NF9-021-010 CABI,FR HR ...D..GHI...........
88-NF9-022-010 CABI,FR LH ABC.E...............
88-NF9-024-010 CABI,FR RDS .....F..............
88-NF9-025-110 BOX,CASS 1H ....E.GH............
88-NF9-026-110 BOX,CASS 2H ....E.GH............
88-NF9-028-010 BOX,CASS 1D ....................
88-NF9-029-010 BOX,CASS 2D ....................
88-NF9-030-010 PANEL,LEFT ABCDEFGHI...........
88-NF9-031-010 PANEL,RIGHT ABCDEFGHI...........
88-NF9-034-010 PANEL,TRAY D ....................
88-NF9-035-010 PANEL,LEFT U ....................
88-NF9-036-010 PANEL,RIGHT U ....................
88-NF9-040-010 CABI,REAR LHSTNC A...................
88-NF9-041-010 CABI,REAR HEJSTNC ........I...........
88-NF9-042-010 CABI,REAR HRJSTNC ....................
88-NF9-044-010 CABI,REAR EZSTNC ..C.................
88-NF9-045-010 CABI,REAR KSTNC .B..................
88-NF9-046-010 CABI,REAR VJSTNC ....................
88-NF9-047-010 CABI,REAR STNC ....................
88-NF9-051-010 CABI,REAR EZSTNC RDS ....................
88-NF9-053-010 CABI,REAR HI LHSTNC ....E...............
88-NF9-054-010 CABI,REAR HI HEJSTNC .......H............
88-NF9-055-010 CABI,REAR USTNC1 ....................
88-NF9-057-010 CABI,REAR LHJSC1M ....................
88-NF9-058-010 CABI,REAR HRSTNM ...D................
88-NF9-059-010 CABI,REAR EZSTNE ....................
88-NF9-060-010 CABI,REAR EZSTNE RDS ....................
88-NF9-061-010 CABI,FR BEST ....................
88-NF9-062-010 BOX,CASS 1 BEST ....................
88-NF9-063-010 BOX,CASS 2 BEST ....................
88-NF9-064-010 PANEL,TRAY BEST ....................
88-NF9-067-010 CABI,REAR KSTNE ....................
88-NF9-068-010 CABI,REAR USTNM ....................
88-NF9-069-010 CABI,REAR LHSTNM ....................
88-NF9-070-010 CABI,REAR STNC BEST ....................
88-NF9-071-010 CABI,FR D KJ ....................
88-NF9-073-010 CABI,REAR STNC KJ ....................
88-NF9-075-010 CABI,REAR STNC YM ....................
88-NF9-076-010 CABI,REAR EZSTNM ....................
88-NF9-077-010 CABI,REAR EZSTNM RDS .....F..............
88-NF9-078-010 CABI,REAR HRJSTNM ....................
88-NF9-079-010 CABI,REAR HI HRJSTNM ......G.............
88-NF9-005-010 KEY,POWER ABCDEFGHI...........
88-NF9-006-010 KEY,CD ABCDEFGHI...........
88-NF9-007-010 KEY,GEQ ABCDEFGHI...........
88-NF9-008-010 KEY,FUN ABCDEFGHI...........
88-NF9-009-110 KEY,CASS 1 ABCDEFGHI...........
88-NF9-010-110 KEY,CASS 2 ABCD.F..I...........
88-NF9-011-010 KEY,OPE ABCDEFGHI...........
88-NF9-012-010 KNOB,RTRY VOL ABCDEFGHI...........
88-NF9-017-010 KEY,RDS .....F..............
88-NF9-027-110 KEY,CASS 2H ....E.GH............
88-NF9-056-010 KNOB,RTRY MIC ...D..GHI...........
86-NFZ-001-010 WINDOW,TOP ABCDEFGHI...........
88-NF9-013-110 WINDOW,DISP U ....................
88-NF9-014-010 WINDOW,CASS 1 ABCDEFGHI...........
88-NF9-015-010 WINDOW,CASS 2 ABCDEFGHI...........
88-NF9-016-010 WINDOW,CD ABCDEFGHI...........
88-NF9-019-010 PLATE,MIC ...D..GHI...........
88-NF9-032-110 WINDOW,DISP D ....................
88-NF9-033-110 WINDOW,DISP H A..D....I...........
88-NF9-037-110 WINDOW,DISP RDS .....F..............
88-NF9-038-110 WINDOW,DISP K .BC.................
88-NF9-039-110 WINDOW,DISP HI H ....E.GH............
88-NF9-065-110 WINDOW,DISP BEST ....................
88-NF9-072-110 WINDOW,DISP KJ ....................
88-NF9-074-110 WINDOW,DISP YM ....................
88-NF9-081-010 WINDOW,DISP LHC1 ....................
CN 0 88-NF9-634-010 CONN ASSY,8P RPB ABCDEFGHI...........
CN 0 88-NF9-635-010 CONN ASSY,10P MECHA ABCD.F..I...........
CN 0 88-NF9-636-010 CONN ASSY,10P MECHA-R ....E.GH............
84-ZG1-245-210 CAP,OPTICAL ABCDEFGHI...........

82-NF7-218-010 SPR-T,CASS ABCDEFGHI...........
86-NFZ-204-010 HLDR,BUSHING A..D....I...........
86-NFZ-231-010 DMPR,70 ABCDEFGHI...........
88-NF9-203-010 BUSHING,CORD-U ....................
88-NF9-209-010 HLDR,PWB MAIN F .BC..F..............
88-NF9-212-010 HLDR,PWB MAIN R .BC..F..............
0001 87-NF4-221-010 HLDR,CABLE .BC.EFGH............
87-067-584-010 TAPPING SCREW, BVT2+3-6 .BC..F..............
87-067-641-010 UTT2+3-8(W/O SLOT)BL ABCDEFGHI...........
87-067-688-010 BVTT+3-6 .BC.EFGH............
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDEFGHI...........
87-067-758-010 BVT2+3-12 W/O SLOT A..D....I...........
87-078-019-010 S-SCREW,IT+4-6 .BC.EFGH............
87-721-096-410 QT2+3-10 GLD ....E.GH............
87-721-097-410 QT2+3-12 GLD ABCDEFGHI...........
87-741-172-410 UT2+4-12 W/O SLOT A..D....I...........
87-NF4-224-010 S-SCREW,IT3B+3-8 CU ....E.GH............
87-003-317-010 F-BEAD,F0H2515-LG7 .BC..F..............
87-018-134-080 CAPACITOR,TC-U 0.01-16 .BCD.FGHI...........
87-050-034-010 AC CORD ASSY,E ....................
87-050-053-010 AC CORD ASSY,U-2 ....................
87-050-079-010 AC-CORD ASSY,E A.CDEFGHI...........
87-050-098-010 AC CODE ASSY,D ....................
87-085-184-010 BUSHING, AC CORD (D) ....................
87-085-185-010 BUSHING, AC CORD (E) ABCDEFGHI...........
87-A80-007-110 AC CORD ASSY,K BLK .B..................
87-A80-023-010 AC CORD,ASSY K 3P W ....................
88-906-251-110 FF-CABLE,6P 1.25 ABCDEFGHI...........
88-913-221-110 FF-CABLE, 13P 1.25 220MM ABCDEFGHI...........
F 101 87-035-217-010 FUSE, 315MAT .BC..F..............
F 101 87-035-219-010 FUSE, 500MA’T’ A..D....I...........
F 101 87-035-224-010 FUSE, 1.6AT ....E.GH............
F 101 87-035-411-010 FUSE TIA 250V UL ....................
F 101 87-A90-555-010 FUSE,800MA 250V T 239 ....................
PT 101 88-NF9-605-010 PT,8NF9-D ....................
PT 101 88-NF9-606-010 PT,8NF9-HE ...D....I...........
PT 101 88-NF9-607-010 PT,8NF9-U ....................
PT 101 88-NF9-608-010 PT,8NF9-EKZ .BC..F..............
PT 101 88-NF9-609-010 PT,8NF9-LH A...................
PT 101 88-NF9-610-010 PT,8NF-9 HI-HR ......GH............
PT 101 88-NF9-611-010 PT,8NF-9 HI-LH ....E...............
82-NF7-210-110 GUIDE,FL (*) ABCDEFGHI...........
WH 101 87-A90-460-010 HLDR,WIRE 2.5-7P ABCDEFGHI...........
W 101 83-NE2-618-110 F-CABEL,5P-2.5 ABCDEFGHI...........
WH 102 87-A90-460-010 HLDR,WIRE 2.5-7P ABCDEFGHI...........
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDEFGHI...........
87-A60-317-010 TERMINAL, 1P MSC A..DE.GHI...........
MECHANICAL PARTS LIST - 2/2

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
TAPE MECHANISM PARTS LIST 1/2
1 S1-921-030-060 HEAD BASE
2 S1-821-030-070 AZIMUTH SPRING
3 S1-921-030-090 PANEL P SPRING
4 S1-921-260-050 GEAR PLATE SPRING
5 S1-921-265-020 GEAR PLATE ASSY
6 S1-921-140-370 P ARM COLLER
7 S1-921-140-340 P ARM
8 S1-921-030-140 HEAD PANEL
9 S1-921-143-170 BASE ASSY
10 S1-921-141-8A0 M CONTROL SPRING
11 S1-921-260-4A0 SENSING LEVER
12 S1-921-043-100 PINCH ROLLER ARM ASSY
13 S1-921-130-020 EJECT SLIDE LEVER
14 S1-921-141-3A0 P CONTROL SPRING
15 S1-921-140-550 PAUSE LEVER(E)
16 S1-921-140-120 PAUSE LEVER SPRING
17 S1-921-140-110 PAUSE STOPPER
18 S1-921-140-150 BUTTON LEVER SPRING(B)
19 S1-921-140-640 E KICK LEVER
20 S1-921-140-140 BUTTON LEVER SPRING(A)
22 S1-921-140-090 SWITCH ACTUATOR
23 S1-921-140-080 PUSH BUTTON ACTUATOR
24 S1-921-140-230 PLAY BUTTON LEVER
26 S1-921-140-240 REW BUTTON LEVER
27 S1-921-140-250 FF BUTTON LEVER
28 S1-921-140-660 STOP BUTTON LEVER
29 S1-921-140-610 PAUSE BUTTON LEVER
30 S1-821-100-700 FF GEAR
31 S1-921-050-060 SENSER
32 S1-921-053-100 TAKE UP REEL ASSY
33 S1-829-100-010 PACK SPRING
34 S1-921-050-150 S REEL HUB
35 S1-921-050-220 BACK TENSION SPRING
36 S1-921-140-220 REC BUTTON LEVER
37 S1-921-140-170 P.S.LEVER SPRING
38 S1-921-073-080 RF CLUTCH ASSY
39 S1-821-070-110 RF BELT
40 S1-921-260-020 CAM GEAR
41 S1-921-140-160 E ACTUATOR SPRING
42 S1-921-093-210 FLYWHEEL ASSY
43 S1-921-090-240 MAIN BELT
46 S6-202-140-190 E,HEAD
48 S1-921-140-210 REC BUTTON LEVER SPRING
49 S1-821-100-690 RECORD SAFETY LEVER
52 S6-202-010-920 R.P HEAD MS15R-AK0N1
53 S6-401-011-490 LEAF SW MSW-1541T
54 S1-921-015-010 CHASSIS ASSY
61 S6-401-010-380 LEAF SWITCH MSW-1275
62 S1-921-020-010 REC ARM
63 S6-401-011-610 LEAF SW MSW-17820MVE1
64 S1-821-030-080 EH SPRING
A S9-P04-200-310 TAPPING SCREW 2-3
C S9-B10-200-510 P TAPPING BIND ACREW M2-5
D S9-C07-204-510 SCREW,TAPPING M2-4.5
E S9-P17-205-710 +-CAP SCREW M2-7.5
F S9-B01-200-310 + BIND SCREW M2-3
G S9-F08-200-710 AZIMUTH SCREW M2-7
I S9-W02-300-100 P WASHER CUT 1.2-3.8-0.3
J S9-W02-500-100 P WASHER CUT 1.45-3.8-0.5
K S9-W01-400-100 P WASHER 2-3.5-0.4
L S9-W01-130-200 P WASHER 2.1-4-0.13
M S9-P08-203-010 PS TAPPING SCREW M2-5
O S9-P05-200-610 S TAPPING SCREW M2-6
T S9-P04-200-410 C TAPPING SCREW M2-4
U S9-P04-200-510 C TAPPING SCREW M2-5

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
TAPE MECHANISM PARTS LIST 2/2
1 S1-921-030-4A0 HEAD BASE
2 S1-821-030-070 AZIMUTH SPRING
3 S1-921-030-090 PANEL P SPRING
4 S1-921-260-050 GEAR PLATE SPRING
5 S1-921-265-020 GEAR PLATE ASSY
6 S1-921-140-370 P ARM COLLER
7 S1-921-140-340 P ARM
8 S1-921-030-110 HEAD PANEL
9 S1-921-143-010 BASE ASSY
10 S1-921-141-8A0 M CONTROL SPRING
11 S1-921-260-4A0 SENSING LEVER
12 S1-921-043-100 PINCH ROLLER ARM ASSY
13 S1-921-130-020 EJECT SLIDE LEVER
14 S1-921-141-3A0 P CONTROL SPRING
15 S1-921-140-550 PAUSE LEVER(E)
16 S1-921-140-120 PAUSE LEVER SPRING
17 S1-921-140-110 PAUSE STOPPER
18 S1-921-140-150 BUTTON LEVER SPRING(B)
19 S1-821-011-590 E KICK LEVER
20 S1-921-140-140 BUTTON LEVER SPRING(A)
22 S1-921-140-090 SWITCH ACTUATOR
23 S1-921-140-080 PUSH BUTTON ACTUATOR
24 S1-921-140-230 PLAY BUTTON LEVER
26 S1-921-140-240 REW BUTTON LEVER
27 S1-921-140-250 FF BUTTON LEVER
28 S1-921-140-260 STOP BUTTON LEVER
29 S1-921-140-610 PAUSE BUTTON LEVER
30 S1-821-100-700 FF GEAR
31 S1-921-050-060 SENSER
32 S1-921-053-100 TAKE UP REEL ASSY
33 S1-829-100-010 PACK SPRING
34 S1-921-050-150 S REEL HUB
35 S1-921-050-220 BACK TENSION SPRING
37 S1-921-140-170 P.S.LEVER SPRING
38 S1-921-073-080 RF CLUTCH ASSY
39 S1-821-070-110 RF BELT
40 S1-921-260-020 CAM GEAR
41 S1-921-140-160 E ACTUATOR SPRING
42 S1-921-093-240 FLYWHEEL ASSY
43 S1-921-090-240 MAIN BBELT
44 S1-921-120-130 MOTOR PULLEY
45 S6-002-030-290 MOTOR EG530YD-2BH
50 S1-921-120-110 MOTOR BRACKET
52 S6-202-010-920 R.P HEAD MS15R-AK0N1
53 S6-401-011-490 LEAF SW MSW-1541T
54 S1-921-015-010 CHASSIS ASSY
59 S1-820-130-060 MOTOR RUBBER
61 S6-401-011-610 LEAF SW MSW-17820MVE1
A S9-P04-200-310 TAPPING SCREW 2-3
B S1-821-120-020 MOTOR COLLER SCREW
C S9-B10-200-510 P TAPPING BIND ACREW M2-5
D S9-C07-204-510 SCREW,TAPPING M2-4.5
E S9-P01-200-610 SCREW M2-6
F S9-B01-200-310 + BIND SCREW M2-3
G S9-F08-200-710 AZIMUTH SCREW M2-7
I S9-W02-300-100 P WASHER CUT 1.2-3.8-0.3
J S9-W02-500-100 P WASHER CUT 1.45-3.8-0.5
K S9-W01-400-100 P WASHER 2-3.5-0.4
L S9-W01-130-200 P WASHER 2.1-4-0.13
M S9-P08-203-010 PS TAPPING SCREW M2-5
O S9-P05-200-610 S TAPPING SCREW M2-6
T S9-P04-200-410 C TAPPING SCREW M2-4

X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align

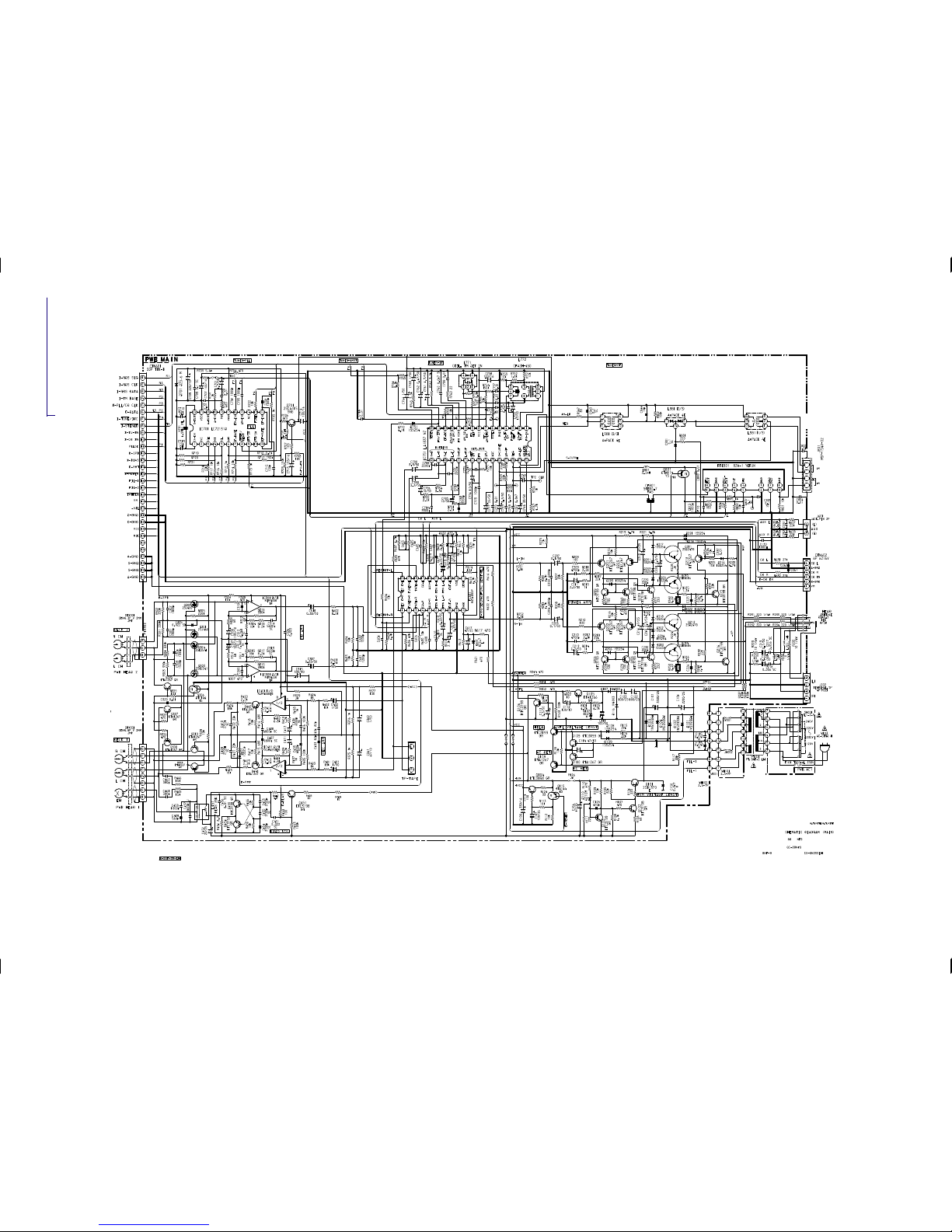

SCHEMATIC DIAGRAM _1 (MAIN : 202LH)

X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align

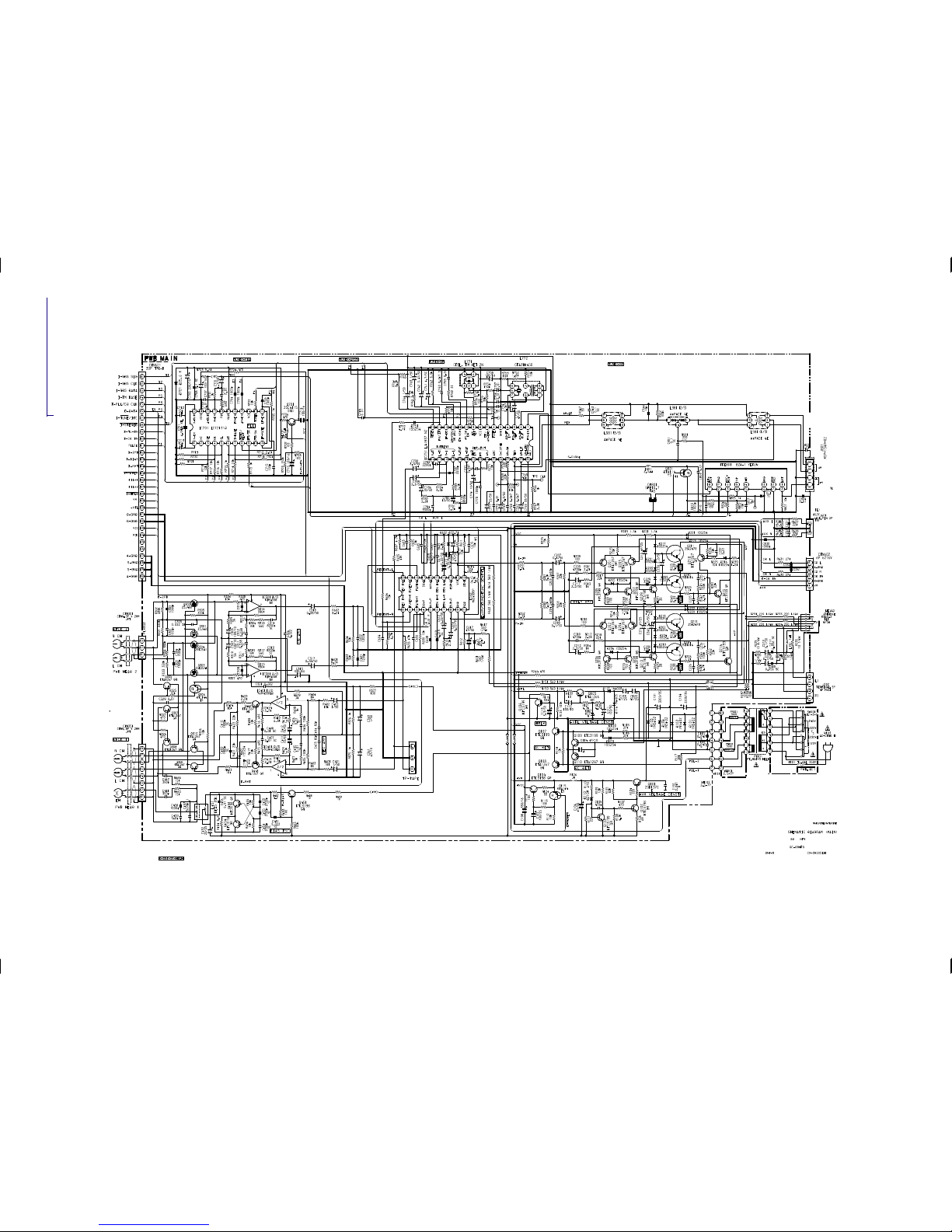

SCHEMATIC DIAGRAM _2 (MAIN : 202HE/HR)

X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align
SCHEMATIC DIAGRAM _3 (MAIN : 205LH)

X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align
SCHEMATIC DIAGRAM _4 (MAIN : 205HE/HR)

X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align
SCHEMATIC DIAGRAM _5 (FRONT)

PrintedinSingapore
Tokyo Japan
4
9301946,750038
