Aiwa NSX-AJ300 User manual
SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
BASIC TAPE MECHANISM : ZZM-3 PR1NM
BASIC CD MECHANISM : BZG-5 ZD3NM
NSX-AJ300
NSX-AJ305
NSX-SZ300
NSX-SZ305
U
U
LH,EZ
EZ
S/M Code No. 09-012-440-5R1
•This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
of NSX-AJ300<U>/SZ300<LH,EZ>/AJ305<U>, (S/M Code No. 09-011-440-5T1)
and NSX-SZ305<EZ>, (S/M Code No. 09-012-440-5T2).
• If requiring information about the CD mechanism, see Service Manual of BZG-5,
(S/M Code No. 09-00C-353-3N2).
REVISION
NSX-AJ300<U>
SPEAKERSYSTEM
CX-NAJ300 SX-NAJ302
NSX-AJ305<U>
NSX-SZ300
<LH,EZ>
NSX-SZ305<EZ>
CX-NSZ300
RC-ZAS02
CX-NAJ305
CX-NSZ305
SX-NAJ302
SX-R145
SX-NSZ302
CD
CASSEIVER
REMOTE
CONTROLLER
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2 –
SPECIFICATIONS
Main unit CX-NAJ300/CX-NSZ300/CX-NAJ305/CX-NSZ305
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) U,LH: 13.2 dBf
EZ: 16.8 dBf
Antenna terminals 75 ohms (unbalanced)
<AM/MW tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<LW tuner section><EZ>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated
U: 60 W + 60 W (50 Hz – 20 kHz,
THD less than 1%, 6 ohms)
LH: 62 W + 62 W
(1 kHz, THD 1%, 6 ohms)
EZ: 32 W + 32 W
(6 ohms, THD 1%, 1 kHz/DIN 45500)
Reference
U: 75 W + 75 W
(1 kHz, THD less than 10%, 6 ohms)
LH: 80 W + 80 W
(1 kHz, THD 10%, 6 ohms)
EZ: 40 W + 40 W
(6 ohms, THD 10%,1 kHz/DIN 45324)
EZ: DIN MUSIC POWER: 120 W + 120 W
Total harmonic distortion U: 0.08 % (30 W, 1 kHz, 6 ohms,
DIN AUDIO)
LH: 0.08 % (40 W, 1 kHz, 6 ohms,
DIN AUDIO)
EZ: 0.08 % (20 W, 1 kHz, 6 ohms,
DIN AUDIO)
Inputs VIDEO/AUX: 500 mV
Outputs SPEAKERS: 6 ohms or more
SURROUND SPEAKERS <305U>
8 ohms to 16 ohms
PHONES: 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15 kHz
Recording system AC bias
Heads Deck 1: Playback x 1
Deck 2: Recording/Playback x 1,
erase x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
<General>
Power requirements U: 120 V AC, 60 Hz
LH: 120 V/220-230 V/240 V AC
(switchable), 50/60 Hz
EZ: 230 V AC, 50 Hz
Power consumption 300U: 70 W
305U: 85 W
LH: 90 W
EZ: 75 W
Power consumption With ECO mode on: 0.6 W
in standby mode With ECO mode off:
U: 20 W
LH: 19 W
EZ: 17 W
Dimensions of main unit 260 x 324 x 351 mm
(W xH xD) (101/4x 127/8x 137/8in.)
Weight of main unit 300U: 6.4 kg (14 lbs 2 oz.)
305U: 6.5 kg (14 lbs 5 oz.)
LH: 6.9 kg
EZ: 5.8 kg
Front Speakers SX-NAJ302/SX-NSZ302
<U: SX-NAJ302>
<LH,EZ: SX-NSZ302>
Speaker system 3 way, bass reflex (magnetic
shielded type)
Speaker units Woofer: 160 mm (63/8 in.) cone
Tweeter: 60 mm (23/8in.) cone
Super tweeter: 20 mm (13/16 in.) ceramic
Impedance 6 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 230 x 324 x 235 mm
(91/8x 127/8 x 93/8in.)
Weight U: 3.5 kg (7 lbs 11 oz.)
LH: 4.5 kg
EZ: 4.3 kg
Surround Speakers SX-R145 (NSX-AJ305 only)
Speaker system 1 way, bass reflex
Speaker units Full range: 80 mm (31/4 in.) cone
Impedance 8 ohms
Dimensions (W xH xD) 100 x 132 x 116 mm
(4 x 51/4 x 45/8in.)
Weight 0.5 kg (1 lbs 2 oz.)
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Solder
(KSS – 213F)
PICKUP Assy PWB
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 4 –

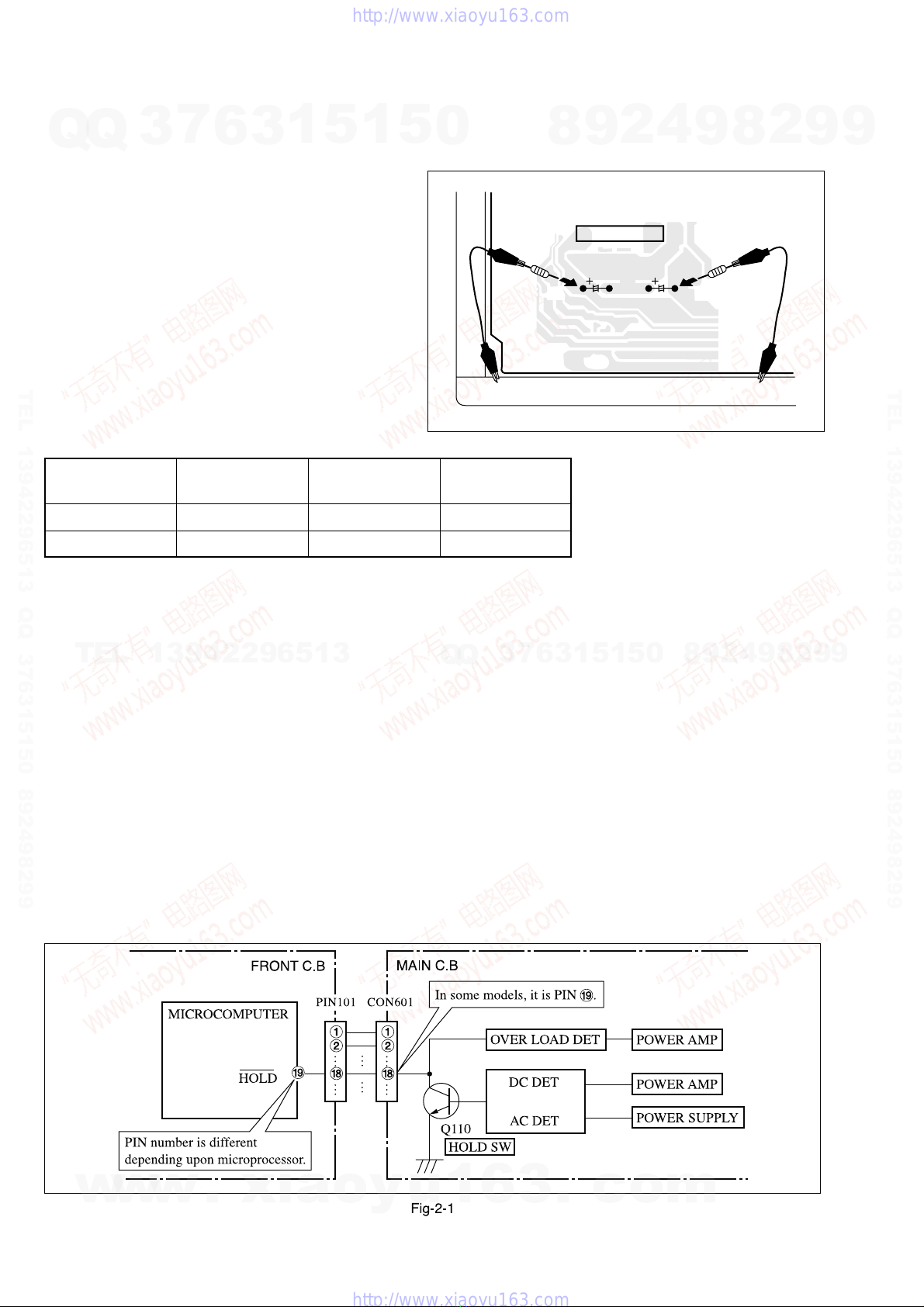

NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
WhentheHOLDterminal(INPUT)of the MICROCOMPUTER is “H”, theMICROCOMPUTERisjudgedto be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: ThereferencenumberorMICROCOMPUTERpinnumber of transistor (Q110) and electrolytic capacitor (C113)canchangedepending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-893-040 C-IC,NJM14558V-TE2
87-A21-695-010 IC,LA1845L
87-070-127-110 IC,LC72131D
87-A20-440-040 C-IC,BU1920FS<305EZ>
87-A21-218-110 IC,NJL64H380A
87-A21-401-040 C-IC,M61503FP
8B-NF9-602-030 C-IC,UPD780228GF-078-3BA<305EZ>
8B-NF9-601-030 C-IC,UPD780226GF-021-3BA<U,LH,300EZ>
87-A21-269-010 IC,EW732
TRANSISTOR
87-A30-559-010 TR,CSB1370EF
87-A30-492-080 TR,2SC5343G
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-107-070 C-TR,CMBT5401
87-A30-484-080 C-TR,KRA102S
87-026-610-080 TR,KTC3198GR
87-A30-190-080 TR,CC5551
87-A30-106-040 C-TR,CMBT5551
87-A30-162-010 FET,2SK2937
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-TR,KRC104S
87-A30-495-080 TR,2SA1981Y
87-A30-234-080 TR,CSC4115BC
89-327-143-080 C-TR,2SC2714(O)
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-086-040 C-TR,CSD1306E
87-A30-494-080 TR,2SA1980G
87-A30-528-010 TR,2SB1686
87-A30-529-010 TR,2SD2642
87-A30-087-080 C-FET,2SK2158
87-A30-074-080 C-TR,RT1P141C
87-A30-582-080 TR,CDA1585BC
87-A30-468-080 C-TR,KRC102S-RTK
87-026-213-080 C-TR,DTC114YK<U,LH,300EZ>
87-A30-288-040 C-TR,DTC114YKA<305EZ>
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-291-080 DIODE,1N4148M(CPT)
87-A40-749-080 ZENER,UZ5.6BSB
87-017-149-080 ZENER,HZS6A2L
87-A40-454-090 DIODE,1N5393 GW 12.5
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-739-080 ZENER,UZ2.7BSA
87-A40-748-080 ZENER,UZ5.6BSA
87-A40-455-090 DIODE,RL203GW<U,LH>

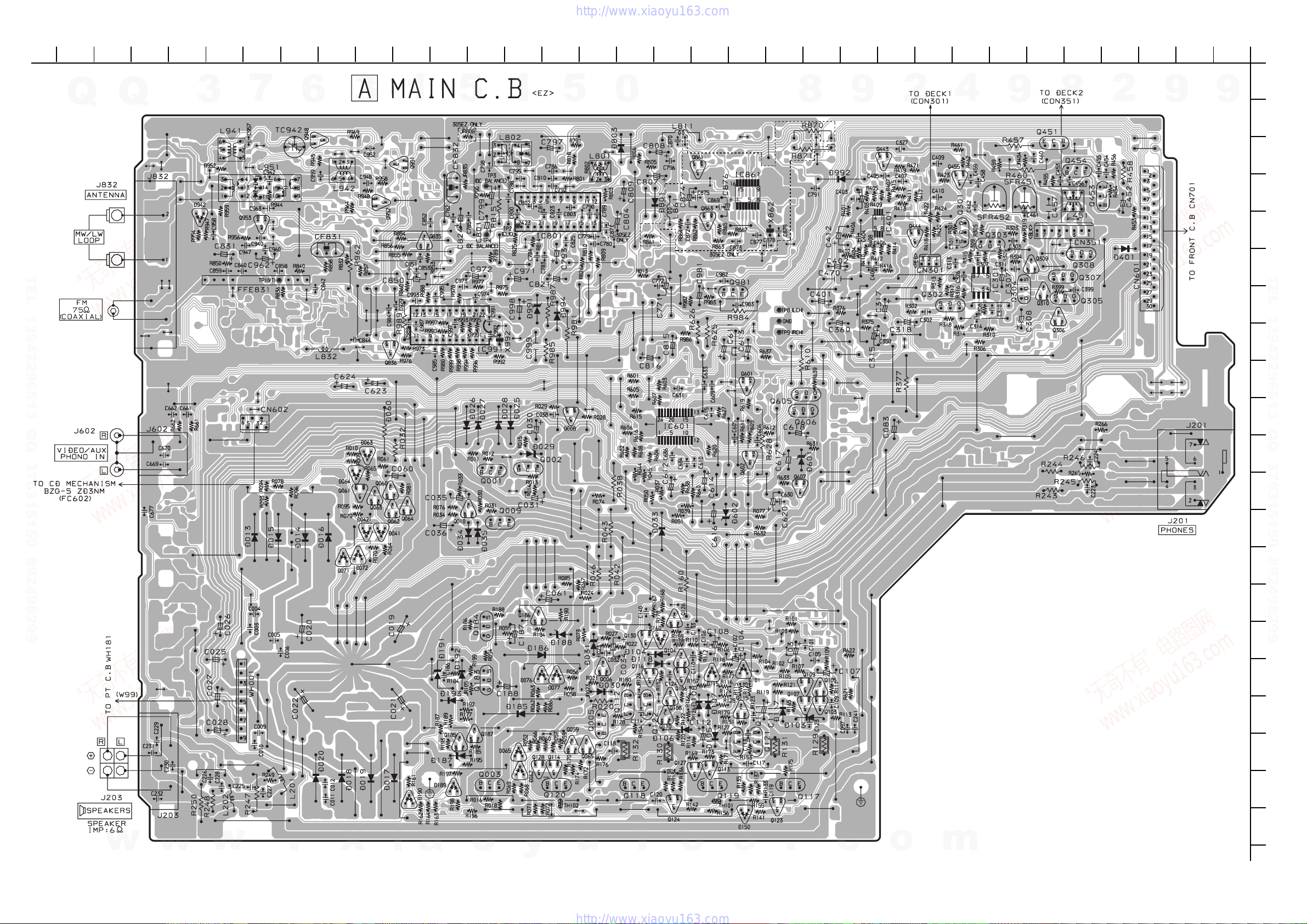

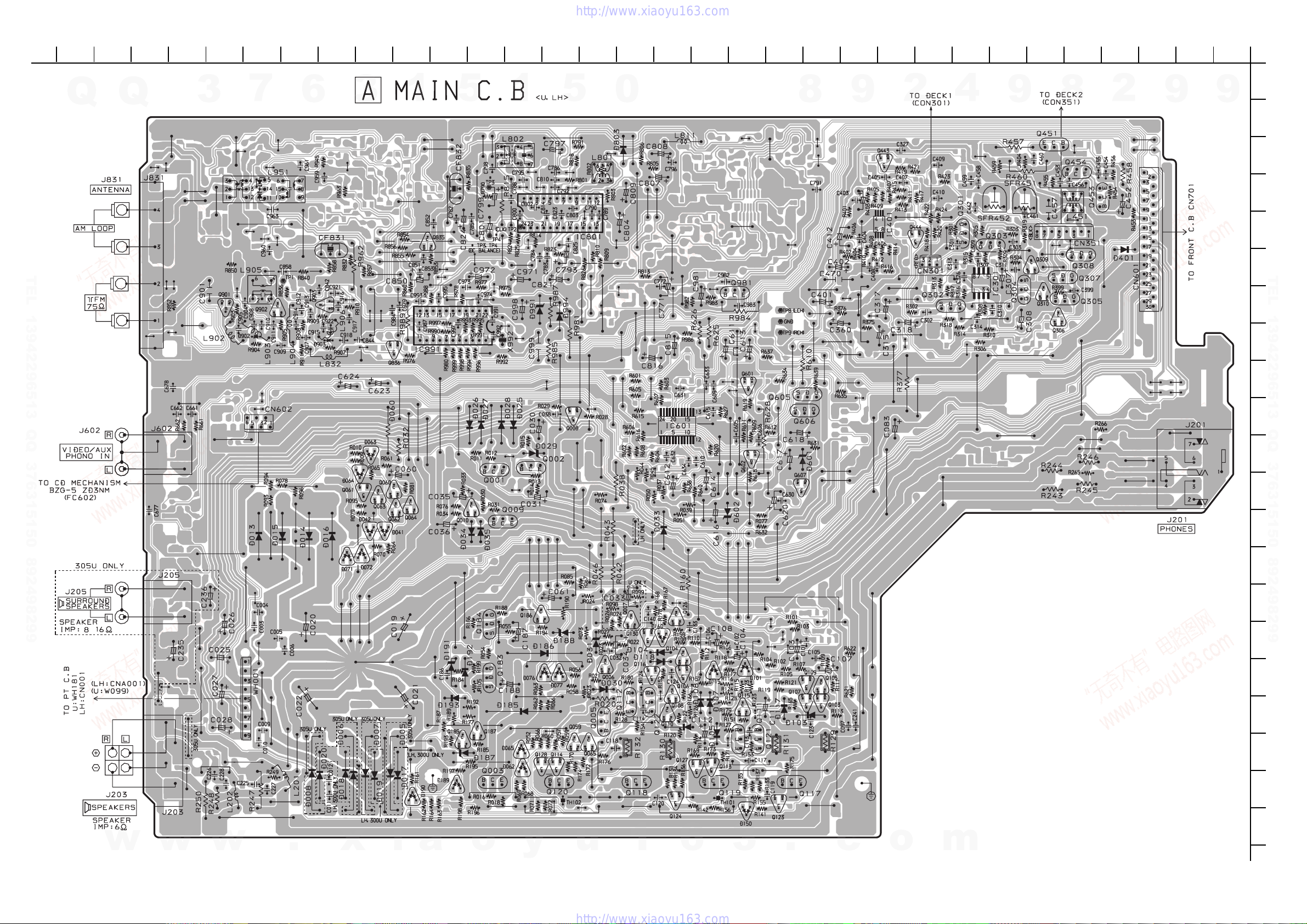

MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 Z F
C4 87-012-368-080 C-CAP,S 0.1-50 Z F
C5 87-012-368-080 C-CAP,S 0.1-50 Z F
C6 87-012-368-080 C-CAP,S 0.1-50 Z F
C9 87-010-759-080 C-CAP,U 0.1-25 Z F
C10 87-010-759-080 C-CAP,U 0.1-25 Z F
C11 87-010-759-080 C-CAP,U 0.1-25 Z F
C12 87-010-759-080 C-CAP,U 0.1-25 Z F
C19 87-A12-036-000 CAP, E 2200-63 M SMG<U,LH>
C19 87-A12-776-090 CAP, E 2200-50 M 85 SKR<EZ>
C20 87-A12-036-000 CAP, E 2200-63 M SMG<U,LH>
C20 87-A12-776-090 CAP, E 2200-50 M 85 SKR<EZ>
C21 87-A12-777-090 CAP, E 3300-25 M 85 SKR
C22 87-A12-777-090 CAP, E 3300-25 M 85 SKR
C25 87-A12-072-080 CAP, E 100-25 SMG
C26 87-A12-072-080 CAP, E 100-25 SMG
C27 87-A12-072-080 CAP, E 100-25 SMG
C28 87-A12-072-080 CAP, E 100-25 SMG
C30 87-A12-095-080 CAP, E 100-50 SMG
C31 87-A12-062-080 CAP,E 100-10 SMG
C32 87-012-286-080 C-CAP, U 0.01-25
C33 87-A12-062-080 CAP,E 100-10 SMG<U>
C34 87-A12-072-080 CAP, E 100-25 SMG
C35 87-A12-071-080 CAP, E 47-25 SMG
C36 87-A12-067-080 CAP, E 330-16 SMG
C38 87-012-286-080 C-CAP, U 0.01-25
C60 87-A12-089-080 CAP,E 3.3-50 SMG
C61 87-A12-071-080 CAP,E 47-25 SMG
C83 87-A12-074-080 CAP, E 470-25 SMG<U,LH>
C83 87-A12-068-080 CAP, E 470-16 SMG<EZ>
C97 87-010-831-080 C-CAP,U 0.1-16 Z F
C101 87-012-279-080 C-CAP,U 2700P-50 B<U,LH>
C101 87-012-278-080 C-CAP,U 2200P-50 K B<EZ>
C102 87-012-279-080 C-CAP,U 2700P-50 B<U,LH>
C102 87-012-278-080 C-CAP,U 2200P-50 K B<EZ>
C103 87-A12-084-080 CAP,E 0.022-50 SMG
C104 87-A12-084-080 CAP,E 0.022-50 SMG
C105 87-012-277-080 C-CAP,U 1800P-50 K B GRM
C106 87-012-277-080 C-CAP,U 1800P-50 K B GRM
C107 87-A12-089-080 CAP,E 3.3-50 SMG
C108 87-A12-089-080 CAP,E 3.3-50 SMG
C109 87-012-195-080 C-CAP,U 100P-50 CH<EZ>
C110 87-012-195-080 C-CAP,U 100P-50 CH<EZ>
C111 87-A12-077-080 CAP,E 33-35 SMG
C112 87-A12-077-080 CAP,E 33-35 SMG
C113 87-012-195-080 C-CAP,U 100P-50 CH<U,EZ>
C113 87-A10-596-080 C-CAP,S 100P-100 J CH<LH>
C114 87-012-195-080 C-CAP,U 100P-50 CH<U,EZ>
C114 87-A10-596-080 C-CAP,S 100P-100 J CH<LH>
C117 87-A12-368-080 C-CAP,S 0.1-50 Z F
C118 87-A12-368-080 C-CAP,S 0.1-50 Z F
C119 87-012-286-080 C-CAP,U 0.01-25
C120 87-012-286-080 C-CAP,U 0.01-25
C123 87-010-177-080 C-CAP,S 820P-25 J SL C2012
C124 87-010-177-080 C-CAP,S 820P-25 J SL C2012
C133 87-012-282-080 C-CAP,U 4700P-50
C140 87-012-278-080 C-CAP,U 2200P-50
C186 87-010-759-080 C-CAP,U, 0.1-25F
C187 87-010-866-080 CAP,E 10-63 M VX<U,LH>
C187 87-A12-091-080 CAP,E 10-50 SMG<EZ>
C188 87-010-866-080 CAP,E 10-63 M VX<U,LH>
C188 87-A12-091-080 CAP,E 10-50 SMG<EZ>
C223 87-012-272-080 C-CAP,U 680P-50 B<EZ>
C224 87-012-272-080 C-CAP,U 680P-50 B<EZ>
C225 87-012-368-080 C-CAP,S 0.1-50 Z F
C226 87-012-368-080 C-CAP,S 0.1-50 Z F
C227 87-012-368-080 C-CAP,S 0.1-50 Z F
C228 87-012-368-080 C-CAP,S 0.1-50 Z F
C229 87-012-191-080 C-CAP,U 0.015-50 Z F GRM<EZ>
C230 87-012-191-080 C-CAP,U 0.015-50 Z F GRM<EZ>
C231 87-012-286-080 CAP, U 0.01-25<EZ>
C232 87-012-286-080 CAP, U 0.01-25<EZ>
C235 87-A12-094-080 CAP,E 47-50 SMG<305U>
C236 87-A12-094-080 CAP,E 47-50 SMG<305U>
C241 87-010-831-080 C-CAP,U 0.1-16 Z F
C301 87-012-275-080 C-CAP,U 1200P-50 K B GRM
C302 87-012-275-080 C-CAP,U 1200P-50 K B GRM
C303 87-012-275-080 C-CAP,U 1200P-50 K B GRM
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C304 87-012-275-080 C-CAP,U 1200P-50 K B GRM
C307 87-A12-062-080 CAP,E 100-10 SMG
C308 87-A12-062-080 CAP,E 100-10 SMG
C309 87-012-188-080 C-CAP,U 47P-50 J CH
C310 87-012-188-080 C-CAP,U 47P-50 J CH
C313 87-012-284-080 CAP, U 6800P-50
C314 87-012-284-080 CAP, U 6800P-50
C315 87-A12-062-080 CAP,E 100-10 SMG
C317 87-A12-085-080 CAP,E 0.33-50 SMG
C318 87-A12-085-080 CAP,E 0.33-50 SMG
C326 87-010-787-080 C-CAP,U 0.022-25 K B
C327 87-010-831-080 C-CAP,U 0.1-16 Z F
C350 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C360 87-A12-087-080 CAP,E 1-50 SMG
C399 87-A10-039-080 C-CAP, U 470P-50 J CH
C401 87-A12-083-080 CAP,E 0.1-50 SMG
C402 87-A12-083-080 CAP,E 0.1-50 SMG
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
C411 87-A12-091-080 CAP,E 10-50 SMG
C412 87-A12-091-080 CAP,E 10-50 SMG
C452 87-A12-069-080 CAP,E 22-25 SMG
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-012-274-080 CHIP CAP,U 1000P-50B
C459 87-012-271-080 CAP, U 560P-50
C460 87-010-831-080 C-CAP,U 0.1-16 Z F
C461 87-012-158-080 C-CAP,S 390P-50 J CH GRM
C462 87-012-158-080 C-CAP,S 390P-50 J CH GRM
C470 87-018-127-080 CAP, CER 470P-50V
C605 87-012-280-080 C-CAP,U 3300P-50 K B
C606 87-012-280-080 C-CAP,U 3300P-50 K B
C609 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C610 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C611 87-A12-084-080 CAP,E 0.22-50 SMG
C612 87-A12-084-080 CAP,E 0.22-50 SMG
C613 87-A12-084-080 CAP,E 0.22-50 SMG
C614 87-A12-084-080 CAP,E 0.22-50 SMG
C615 87-012-172-080 CAPACITOR CHIP U 10P CH
C616 87-016-459-080 CAP,E 470-10 M SMG
C617 87-016-459-080 CAP,E 470-10 M SMG
C618 87-A12-091-080 CAP,E 10-50 SMG
C620 87-010-263-080 CAP,E 100-10 M 11L SME
C623 87-A12-372-080 CAP,M 0.047-100 JP
C624 87-A12-372-080 CAP,M 0.047-100 JP
C630 87-016-669-080 C-CAP,S 0.1-25 K B
C631 87-012-281-080 C-CAP,U 3900P-50 K B GRM
C632 87-012-281-080 C-CAP,U 3900P-50 K B GRM
C633 87-A11-070-080 C-CAP,U 0.033-16 K B
C634 87-A11-070-080 C-CAP,U 0.033-16 K B
C661 87-012-336-080 C-CAP,U 330P-50 J SL
C662 87-012-336-080 C-CAP,U 330P-50 J SL
C669 87-012-274-080 C-CAP,U 1000P-50 K B<EZ>
C670 87-012-274-080 C-CAP,U 1000P-50 K B<EZ>
C677 87-012-286-080 CAP, U 0.01-25
C771 87-A12-062-080 CAP,E 100-10 SMG
C772 87-012-286-080 CAP, U 0.01-25
C779 87-010-949-080 C-CAP,S 0.01-50 J B<EZ>
C780 87-010-949-080 C-CAP,S 0.01-50 J B<EZ>
C782 87-012-286-080 CAP, U 0.01-25
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-012-286-080 CAP, U 0.01-25
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-A12-052-080 C-CAP,S 0.033-25 J B<U,LH>
C789 87-016-118-080 C-CAP,U 0.022-25 J B GRM<EZ>
C790 87-A12-052-080 C-CAP,S 0.033-25 J B<U,LH>
C790 87-016-118-080 C-CAP,U 0.022-25 J B GRM<EZ>
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 CAP, U 0.01-25
C796 87-012-286-080 CAP, U 0.01-25
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 CAP, U 0.01-25
C799 87-A12-093-080 CAP,E 33-50 SMG<U,LH,300EZ>
C799 87-010-265-080 CAP,E 33-16 M 11L SME<305EZ>
C800 87-010-829-080 CAP, U 0.047-16
C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 CAP, U 0.047-16
C803 87-010-787-080 CAP, U 0.022-25 K B
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG
C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U,0.1-16F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-A12-086-080 CAP,E 0.47-50 SMG
C816 87-A12-086-080 CAP,E 0.47-50 SMG
C818 87-012-276-080 C-CAP,U 1500P-50 K B<EZ>
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-010-177-080 C-CAP,S 820P-50 J SL C2012<U,LH>
C823 87-012-349-080 C-CAP,S 1000P-50 J CH GRM<EZ>
C824 87-A12-090-080 CAP,E 4.7-50 SMG
C825 87-010-596-080 C-CAP,S 0.047-16 K R C2012
C831 87-A12-092-080 CAP,E 22-50 SMG<EZ>
C842 87-012-286-080 CAP, U 0.01-25
C844 87-012-286-080 CAP, U 0.01-25
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C858 87-010-831-080 C-CAP,U 0.1-16 Z F
C859 87-010-831-080 C-CAP,U 0.1-16 Z F<EZ>
C860 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C869 87-012-286-080 C-CAP,U 0.01-25 K B<305EZ>
C870 87-012-274-080 C-CAP,U 1000P-50 K B<305EZ>
C871 87-012-199-080 C-CAP,U 220P-50 J CH<305EZ>
C872 87-012-199-080 C-CAP,U 220P-50 J CH<305EZ>
C873 87-A10-039-080 C-CAP,U 470P-50 J CH<305EZ>
C874 87-A12-091-080 CAP,E 10-50 SMG<305EZ>
C875 87-010-759-080 C-CAP,U 0.1-25 Z F<305EZ>
C876 87-A12-091-080 CAP,E 10-50 SMG
C877 87-012-286-080 C-CAP,U 0.01-25 K B<305EZ>
C878 87-012-184-080 C-CAP,U 33P-50 J CH<305EZ>
C879 87-012-180-080 C-CAP,U 22P-50 J CH<305EZ>
C901 87-018-145-080 CAP,TC-U 6.8P-50 CH<U,LH>
C904 87-012-286-080 C-CAP,U 0.01-25<U,LH>
C905 87-012-286-080 C-CAP,U 0.01-25<U,LH>
C907 87-012-286-080 C-CAP,U 0.01-25<U,LH>
C908 87-A10-915-080 C-CAP,U 1000P-25 J CH<U,LH>
C909 87-012-286-080 C-CAP,U 0.01-25<U,LH>
C910 87-012-174-080 C-CAP,U 12P-50 J CH<U,LH>
C911 87-012-170-080 C-CAP,U 8P-50 CH<U,LH>
C912 87-012-195-080 C-CAP,U 100P-50CH<U,LH>
C913 87-012-286-080 C-CAP,U 0.01-25<U,LH>
C914 87-012-166-080 C-CAP,U 4P-50 C CH<U,LH>
C915 87-012-174-080 C-CAP,U 12P-50 J CH<U,LH>
C916 87-012-180-080 C-CAP,U 22P-50 CH<U,LH>
C917 87-012-186-080 C-CAP,U 39P-50 CH<U,LH>
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C918 87-A10-039-080 C-CAP,U 470P-50 J CH<U,LH>
C921 87-012-195-080 C-CAP,U 100P-50CH<U,LH>
C922 87-012-174-080 C-CAP,U 12P-50 J CH CHJ<U,LH>
C940 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C942 87-012-165-080 C-CAP,U 3P-50 C CH<EZ>
C947 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C948 87-A10-039-080 C-CAP,U 470P-50 J CH<EZ>
C952 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C957 87-012-174-080 C-CAP,U 12P-50 J CH<EZ>
C958 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C959 87-010-831-080 C-CAP,U,0.1-16F
C960 87-010-831-080 C-CAP,U,0.1-16F
C961 87-012-167-080 C-CAP,U 5P-50 CH<U,LH>
C962 87-A12-087-080 CAP,E 1-50 SMG<EZ>
C963 87-015-785-080 CHIP CAPACITOR, 0.1-25 Z F
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-012-286-080 CAP, U 0.01-25 K B
C984 87-012-286-080 CAP, U 0.01-25 K B
C985 87-012-195-080 C-CAP,U 100P-50 J CH<EZ>
C987 87-012-286-080 CAP, U 0.01-25 K B
C989 87-012-286-080 C-CAP, U 0.01-25 K B<EZ>
C991 87-012-176-080 C-CAP,U 15P-50 J CH
C992 87-012-176-080 C-CAP,U 15P-50 J CH
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A<U,LH>
CF831 87-008-423-010 FILTER, CF SFE10.7MS3G-A<EZ>
CF832 87-008-261-010 FILTER, SFE10.7MA5-A<U,LH>
CF832 82-785-747-010 CF,MS2 GHY,R<EZ>
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA001 8A-NF8-653-010 CONN ASSY,9P TID-A(480)<LH>
D902 87-A40-128-080 C-VARI-CAP,HVU202A<U,LH>
D903 87-A40-128-080 C-VARI-CAP,HVU202A<U,LH>
FC602 88-906-251-110 FF-CABLE, 6P 1.25
FFE831 A8-6ZA-19H-030 6ZA-1 FEMENM<EZ>
J201 87-A61-480-010 JACK,DIA 6.3BLK ST W/SW<U,LH,300EZ>
J201 87-A60-488-010 JACK,DIA 6.3BLK ST W/SW<305EZ>
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J205 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN<305U>
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02<U,LH>
J832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05<EZ>
JR123 87-012-195-080 C-CAP,U 100P-50 J CH<U,EZ>
JR123 87-A10-596-080 C-CAP,S 100P-100 J CH<LH>
JR124 87-012-195-080 C-CAP,U 100P-50 J CH<U,EZ>
JR124 87-A10-596-080 C-CAP,S 100P-100 J CH<LH>
L201 87-A50-610-010 COIL,1UH K(MDEC)
L202 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85KHZ BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH CECS
L832 87-005-847-080 COIL,2.2UH CECS
L861 87-005-847-080 COIL,2.2UH K CECS<305EZ>
L902 88-ZA1-602-110 COIL,FM-RF-U2 2G<U,LH>
L903 88-ZA1-601-010 COIL,FM-RF-U1 2G<U,LH>
L904 87-005-847-080 COIL,2.2UH(CECS)<U,LH>
L905 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS)<U,LH>
L906 88-ZA1-603-010 COIL,FM-OSC-U 2G<U,LH>
L941 87-A50-020-010 COIL,ANT LW (COI) 252KHZ<EZ>
L942 87-A50-019-010 COIL,OSC LW (COI) 856KHZ<EZ>
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)<U,LH>
L951 8A-NF8-668-010 COIL,AM PACK 2(TOK)<EZ>
R129 87-A00-257-080 RES,M/F 0.15-1W J<300U>
R129 87-A00-258-080 RES,M/F 0.22-1W J<EZ>
R129 87-A00-262-080 RES,M/F 0.15-2W J<LH,305U>
R130 87-A00-257-080 RES,M/F 0.15-1W J<300U>
R130 87-A00-258-080 RES,M/F 0.22-1W J<EZ>
R130 87-A00-262-080 RES,M/F 0.15-2W J<LH,305U>
R131 87-A00-257-080 RES,M/F 0.15-1W J<300U>
R131 87-A00-258-080 RES,M/F 0.22-1W J<EZ>
R131 87-A00-262-080 RES,M/F 0.15-2W J<LH,305U>
R132 87-A00-257-080 RES,M/F 0.15-1W J<300U>
R132 87-A00-258-080 RES,M/F 0.22-1W J<EZ>
R132 87-A00-262-080 RES,M/F 0.15-2W J<LH,305U>
R243 87-A00-440-050 RES,220-1/2W J RP<U,LH>
R243 87-A00-439-050 RES,180-1/2W J RP<300EZ>
R243 87-A00-999-050 RES,180-1/2W J BLT2J<305EZ>
R244 87-A00-440-050 RES,220-1/2W J RP<U,LH>
R244 87-A00-439-050 RES,180-1/2W J RP<300EZ>
R244 87-A00-999-050 RES,180-1/2W J BLT2J<305EZ>
R245 87-A00-440-050 RES,220-1/2W J RP<U>
R245 87-A00-441-050 RES,270-1/2W J RP<LH>
R245 87-A00-439-050 RES,180-1/2W J RP<300EZ>
R245 87-A00-999-050 RES,180-1/2W J BLT2J<305EZ>
R246 87-A00-440-050 RES,220-1/2W J RP<U>
R246 87-A00-441-050 RES,270-1/2W J RP<LH>
R246 87-A00-439-050 RES,180-1/2W J RP<300EZ>
R246 87-A00-999-050 RES,180-1/2W J BLT2J<305EZ>
R790 87-012-286-080 CAP, U 0.01-25
R991 87-012-195-080 C-CAP,U 100P-50CH
R993 87-012-195-080 C-CAP,U 100P-50CH
R995 87-012-195-080 C-CAP,U 100P-50CH
SFR451 87-024-435-080 SFR,33K H RH063MC
SFR452 87-024-435-080 SFR,33K H RH063MC
TC942 87-A91-774-080 TRIMMER, PLY 30P 6.8X5.4 CDYL<EZ>
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
W99 8A-NF9-609-010 F-CABLE,9P 2.5 480MM<U,EZ>
X862 87-A70-307-010 VIB,XTAL 4.332MHZ CSA-309ST<305EZ>
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST
FRONT C.B
C108 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C153 87-010-787-080 C-CAP,U 0.022-25 K B
C154 87-A12-078-040 CAP,E 47-35 SMG
C155 87-010-404-040 CAP,E 4.7-50 M 11L SME
C156 87-010-404-040 CAP,E 4.7-50 M 11L SME
C301 87-012-278-080 C-CAP,U 2200P-50 K B
C351 87-A10-353-080 C-CAP,U 0.22-10 K B
C361 87-012-274-080 C-CAP,U 1000P-50 K B
C362 87-012-274-080 C-CAP,U 1000P-50 K B
C371 87-012-274-080 C-CAP,U 1000P-50 K B
C372 87-012-274-080 C-CAP,U 1000P-50 K B
C601 87-010-382-040 CAP,E 22-25 SME
C801 87-A10-804-080 C-CAP,S 0.1-25 J B
C802 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C803 87-012-280-080 C-CAP,U 3300P-50 K B
C804 87-A10-592-080 C-CAP,S 0.015-50 J B
C805 87-012-184-080 C-CAP,U 33P-50 J CH
C806 87-012-274-080 C-CAP,U 1000P-50 K B
C807 87-012-274-080 C-CAP,U 1000P-50 K B
C808 87-010-544-040 CAP,E 0.1-50 M 11L SME
C809 87-010-404-040 CAP,E 4.7-50 SME
C810 87-012-286-080 C-CAP,U 0.01-25 K B
C811 87-A12-052-080 C-CAP,S 0.033-25 J B
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C901 87-012-195-080 C-CAP,U 100P-50 CH
C902 87-012-195-080 C-CAP,U 100P-50 CH
C903 87-012-195-080 C-CAP,U 100P-50 CH
C904 87-012-195-080 C-CAP,U 100P-50 CH
C905 87-012-195-080 C-CAP,U 100P-50 CH
C906 87-012-195-080 C-CAP,U 100P-50 CH
C907 87-012-195-080 C-CAP,U 100P-50 CH
C908 87-012-195-080 C-CAP,U 100P-50 CH
C909 87-012-195-080 C-CAP,U 100P-50 CH
C910 87-012-195-080 C-CAP,U 100P-50 CH
C911 87-012-274-080 C-CAP,U 1000P-50 K B
C912 87-010-831-080 C-CAP,U 0.1-16 Z F
C913 87-A10-189-040 CAP,E 220-10 M 5L
C914 87-A10-189-040 CAP,E 220-10 M 5L
C915 87-010-831-080 C-CAP,U 0.1-16 Z F
C916 87-010-831-080 C-CAP,U 0.1-16 Z F
C917 87-010-831-080 C-CAP,U 0.1-16 Z F
C919 87-012-286-080 C-CAP,U 0.01-25 K B
C920 87-010-829-080 C-CAP,U 0.047-16 Z F
C921 87-012-282-080 C-CAP,U 4700P-50 K B
C951 87-012-172-080 C-CAP,U 10P-50 D CH
C952 87-010-854-080 C-CAP,S 560P-50 J CH
C953 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C961 87-010-378-040 CAP,E 10-16 M 11L SME
C962 87-012-336-080 C-CAP,U 330P-50 J SL
C963 87-010-831-080 C-CAP,U 0.1-16 Z F
CN104 87-A60-057-010 CONN,11P V 9604S-11C
CN701 87-099-720-010 CONN,30P BLK TYK-B(P)
CN731 87-099-196-010 CONN,8P V BLK 6216
FC104 88-911-101-110 FF-CABLE,11P 1.25
FC731 88-908-301-110 FF-CABLE,8P 1.25
FL901 8B-NF9-605-010 FL,BJ814GNK
L951 87-A50-655-010 COIL,CLK 4.19M (TOKO)7KLY
LED209 87-A40-317-080 LED,SLR-342VCT31 RED
S321 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S321 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S322 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S322 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S323 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S323 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S324 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S324 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S325 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S325 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S326 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S326 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S327 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S327 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S328 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S328 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S329 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S329 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S330 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S330 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S331 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S331 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S332 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S332 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S333 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S333 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S334 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S334 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S341 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S341 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S342 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S342 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S343 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S343 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S344 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S344 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S345 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S345 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S346 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S346 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S347 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S347 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S348 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S348 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S349 87-A90-095-080 SW,TACT EVQ11G04M<U,LH,300EZ>
S349 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S350 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S351 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S352 87-A90-164-080 SW,TACT SKQNAB(N)<305EZ>
S361 87-A92-041-010 SW,RTRY XRE012103PVB30F-24
S371 87-A92-040-010 SW,RTRY XRE012103PVB30F-12
PT C.B
C85 87-010-831-080 C-CAP,U 0.1-16 Z F<EZ>
CN1 87-A61-110-010 CONN,9P V TID-A<LH>
PT1 8B-NFY-610-010 PT, BNF-Y U<300U>
PT1 8B-NF9-612-010 PT, BNF-9 U<305U>
PT1 8B-NF9-615-010 PT, BNF-9 LH<LH>
PT1 8B-NF9-616-010 PT, BNF-9 EZ-LOW<EZ>
PT2 8B-NF9-663-010 PT,SUB BNF H (TAM)<LH>
PT81 8B-NF9-661-010 PT,SUB BNF U (TAM)<U>
PT81 8B-NF9-665-010 PT,SUB BNF E (TAM)<300EZ>
PT81 8B-MA6-675-010 PT,SUB BMA E (VRK)<305EZ>
RY1 87-A91-339-010 RELAY,AC DC12V G5PA-2<LH>
RY81 87-A92-072-010 RELAY,AC DC12V HRM3H-S-1POLE<U>
RY81 87-A91-418-010 RELAY,AC 12V G5PA-1-M<EZ>
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<LH>
T1 87-A60-317-010 TERMINAL, 1P MSC<LH>
T2 87-A60-317-010 TERMINAL, 1P MSC<LH>
T81 87-A60-317-010 TERMINAL, 1P MSC<U,EZ>
T82 87-A60-317-010 TERMINAL, 1P MSC<U,EZ>
WH81 87-A90-510-010 HLDR,WIRE 2.5-9P<U,EZ>
DECK C.B
CN1 87-099-753-010 CONN,11P 9604
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY, 27
SOL2 82-ZM1-618-410 SOL ASSY, 27
SW1 87-A90-673-010 SW,MICRO ESE11SH1C
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0
SW5 87-A90-673-010 SW,MICRO ESE11SH1C
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 10 –
88
A

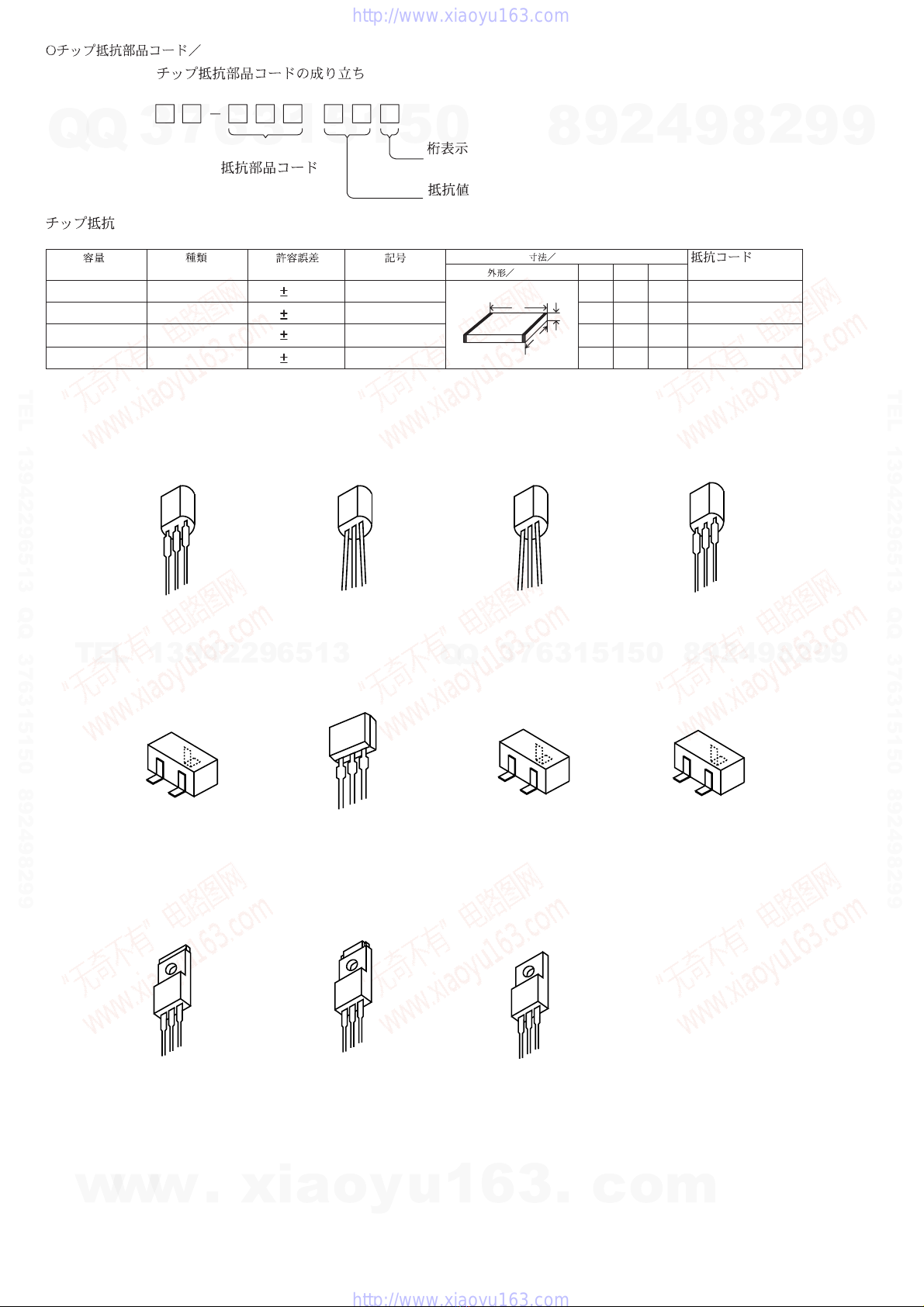

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
E C B
CDA1585BC
KTC3198GR
E C B
2SC5343G
CC5551
2SB1686
2SD2642
CSC4115BC
E C B
B C E
E
B
C
2SA1235F
2SC2714(O)
2SC3052F
CMBT5401
CMBT5551
CSD1306E
DTC114YK
S
G
D
2SK21582SJ460
2SK2541
S D G
DTC114YKA
KRA102S
KRC102S-RTK
KRC104S
KRA107S
RT1P141C
G
D
S
2SK360E
E B C
2SA1980G
2SA1981Y
G D S
2SK2937
B C E
CSB1370EF
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(VT)
~
WIRING 1 (MAIN) <U, LH>
