Aiwa CX-NA31 User manual

87-NF;7-911 -01
970120 AKY-U-9
For assistance and information
cdl toll free I-8QQ-BUY-AIWA
(United States and Puerto Rico)

PRECAUTIONS
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
NOTE
This equipment has been tested and found to comply with the
limits for aClass Bdigital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in aresidential installation,
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in aparticular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
Installation
1
2
3
4
5
6
7
8
Water and moisture —Do not use this unit near water, such
as near abathtub, washbowl, swimming pool, or the like.
Heat —Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat,
It also should not be placed in temperatures less than 5°C
(41 ‘F) or greater than 35°C (95”F).
Mounting surface —Place the unit on a flat, even surface.
Ventilation —The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in. )from each side,
-Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry —Take care that objects or liquids
do not get inside the unit through the ventilation openings.
Carts and stands —When
placed or mounted on a stand
or cart, the unit should be moved
with care.
Quick stops, excessive force, m“3
and uneven surfaces may cause AL*
the unit orcartto overturn or fall.
Condensation —Moisture may form on the CD pickup lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avery humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for afew hours,
then try to operate again.
Wall or ceiling mounting —The unit should not be mounted
on a wall or ceiling, unless specified in the Operating
Instructions.
Electric Power
1
2
3
Power sources —Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
Polarization —As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into apower outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over and
try again. If it still does not easily inserf into the outlet, please
call aqualified service technician to service or replace the
outlet. To avoid defeating the safety feature of the polarized
plug, do not force it into apower outlet.
AC power cord
-When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this
could result in fire or shock.
-Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power socket.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
1ENGLISH

TABLE OF CONTENTS
4Extension cord —TO helppreventelectric $hock, do not
use apolarized AC power plug with an extension cord,
receptacle, or other outlet unless the polarized plug can be
PRECAUTIONS ...................................................................1
PREPARATIONS
CONNECTIONS ........................................................."........ 3
REMOTE CONTROL ...........................................................6

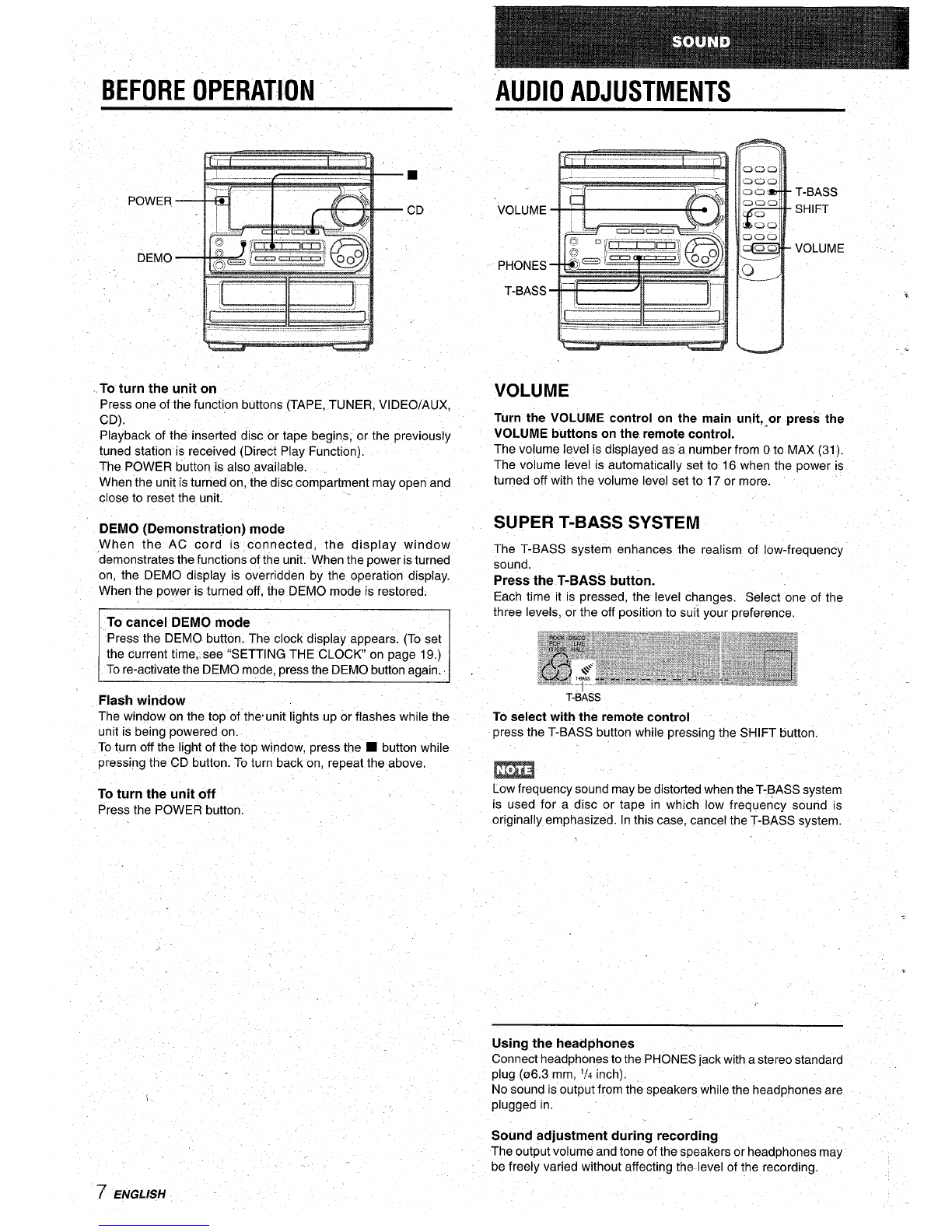

BEFORE Operation ........................................................7
completely inserted to prevent exposure of the blades of the
plug.
{j when not in use —Unplug the AC power cord from the AC
power plug if the unit will not be used for several months or
more. When the cord is plugged in, asmall amount of current
continues to flow to the unit, even when the power is turned
off
@.rtdoor Antenna SOUND
AUDIO ADJUSTMENTS .................................................... 7
GRAPHIC. EQUALIZER ......................................................8
DSP SURROUND SYSTEM ............................................... 8
“1 Power lines —When connecting an outdoor antenna, make
sure it is located away from power lines,
2Outdcjor antenna grounding —Be sure the antenna system
is properly grounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, ANS1/NFPA 70, provides information RADIO RECEPTION
on prc)per grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of the grounding unit, connection to grounding terminals,
and requirements for grounding terminals themselves.

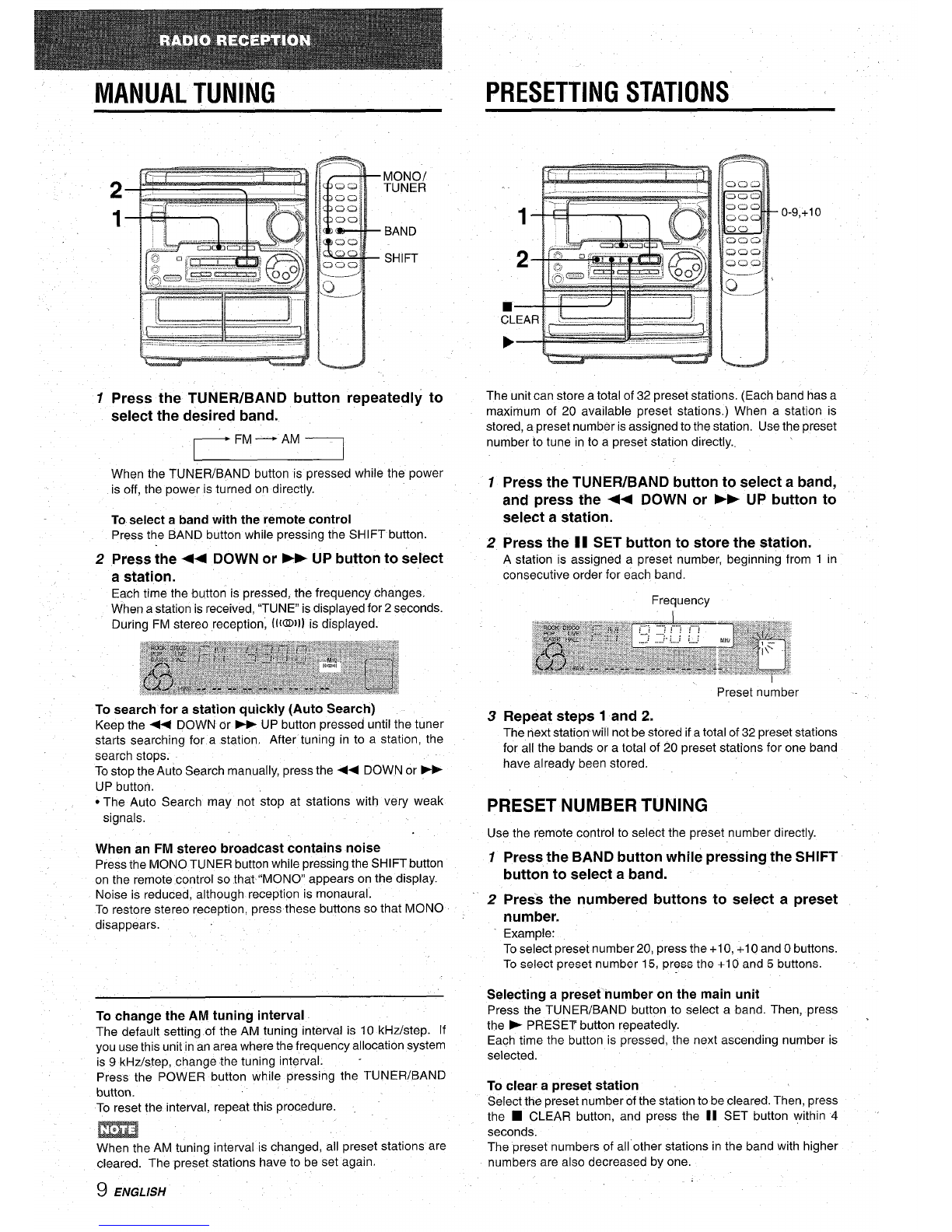

MANUAL TUNING .....m.........................................................9
PRESETTING STATIONS ...................................................9

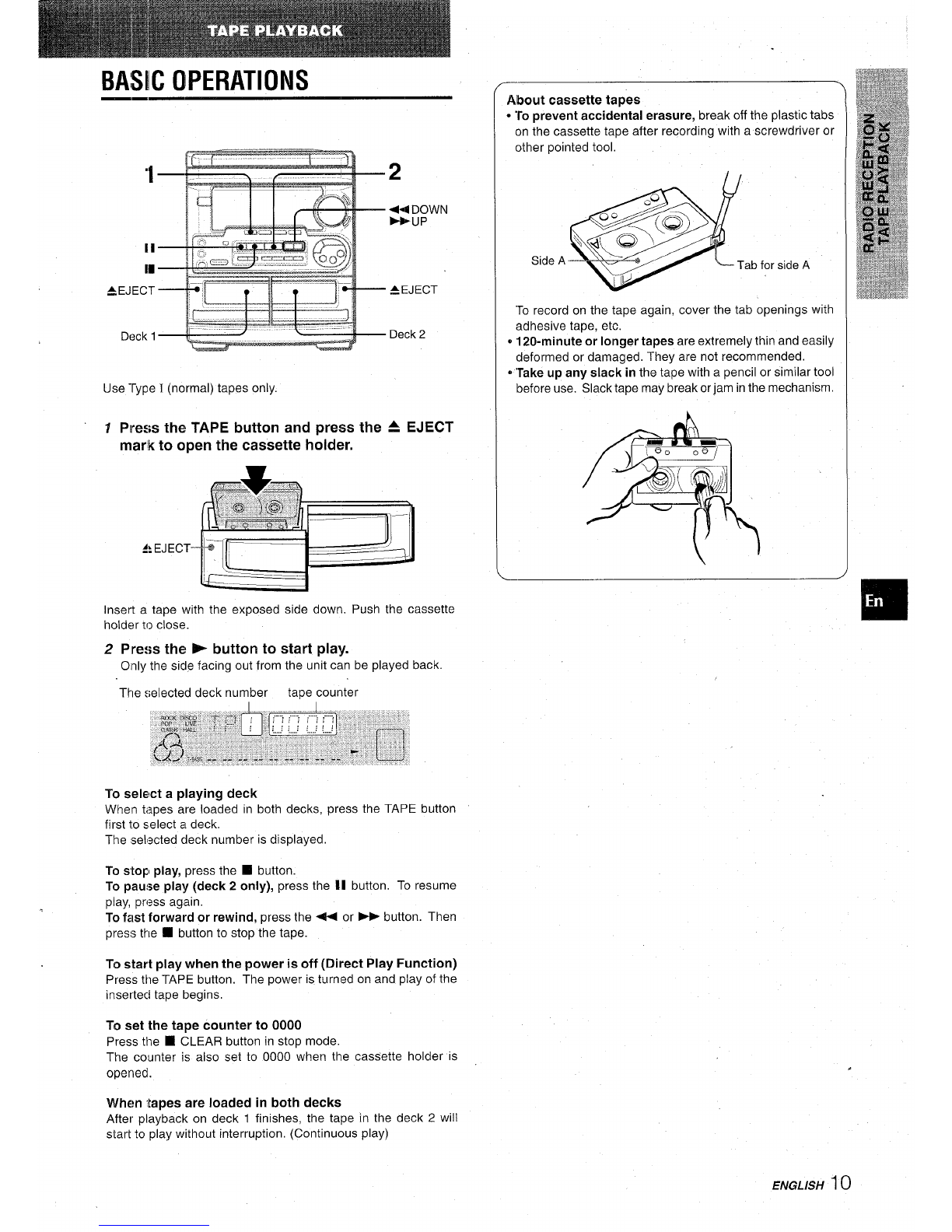

TAPE PLAYBACK
BASIC OPERATIONS ....m................................................. 10
Antenna Wounding According to the National Electrical Code
CD PLAYING

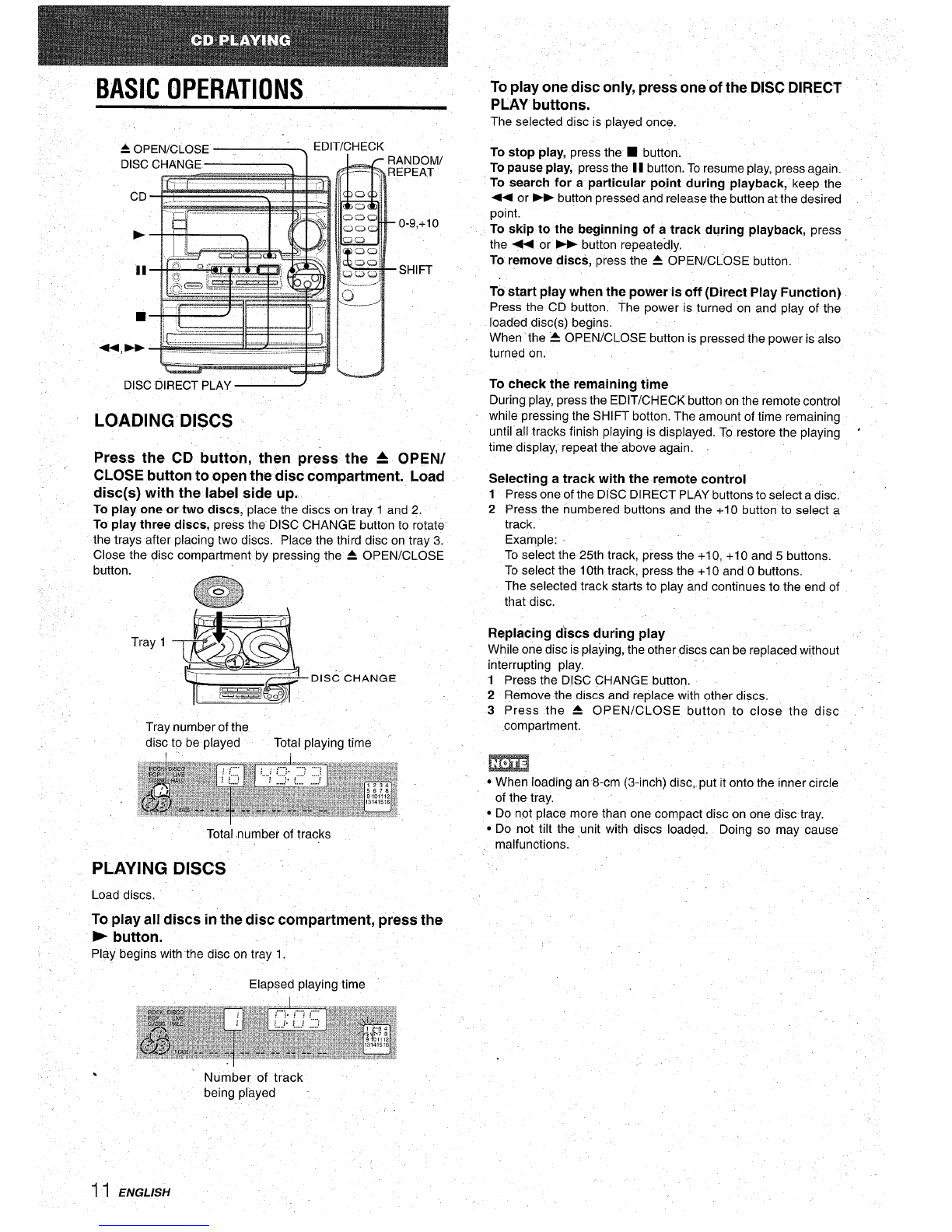

BASIC OPERATIONS .......................................................ll

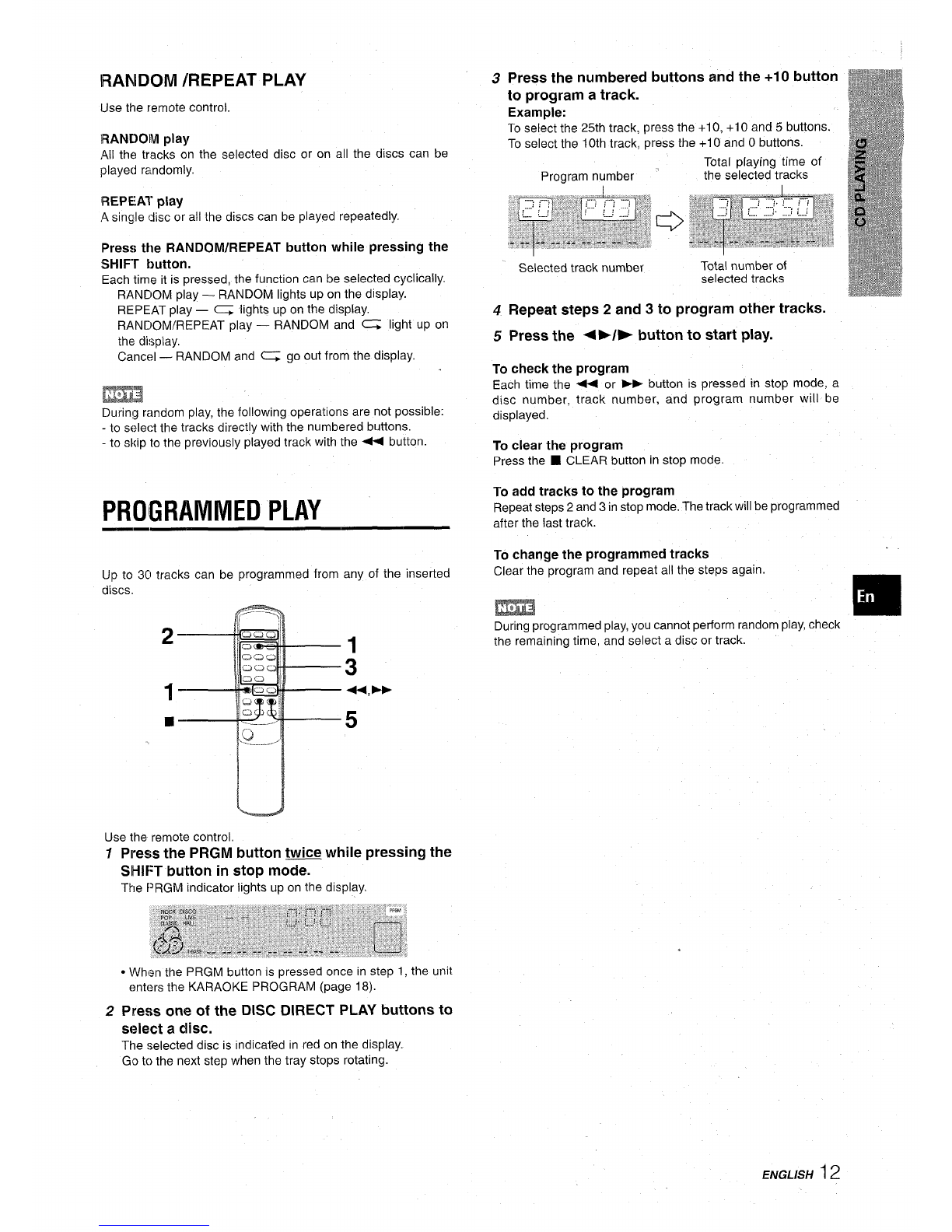

PROGRAMMED PLAY ...w..m .............................................. 12
R
~ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNI1
(NEC SECTION 810-201
GROUNDING CONDUCTORS
(NEC SECTION 810-2i )
GROUND CLAMPS
~POWER SERVICE GROUNDING
ELECTRODE SYSTEM
RECORDING

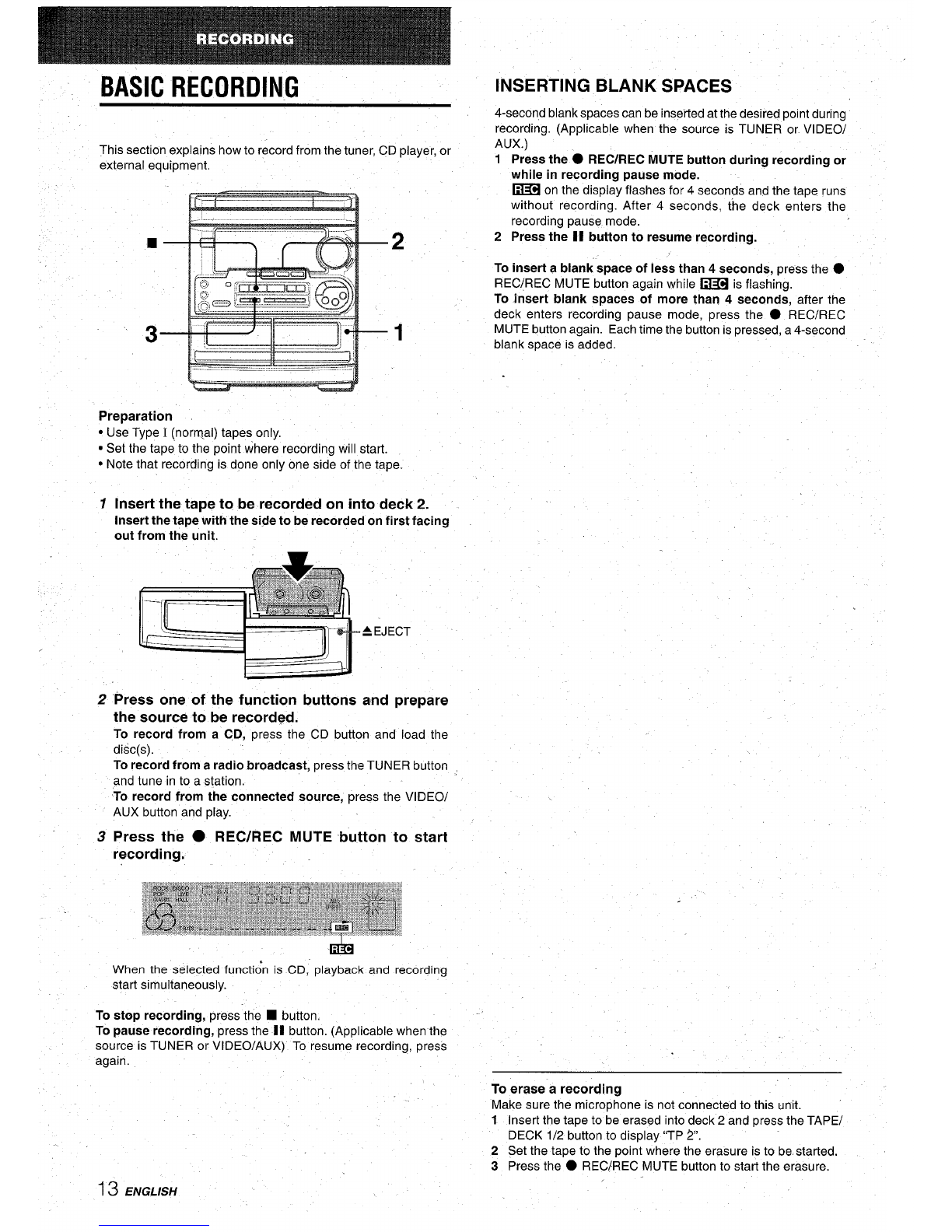

BASIC Recording ........................................................ 13

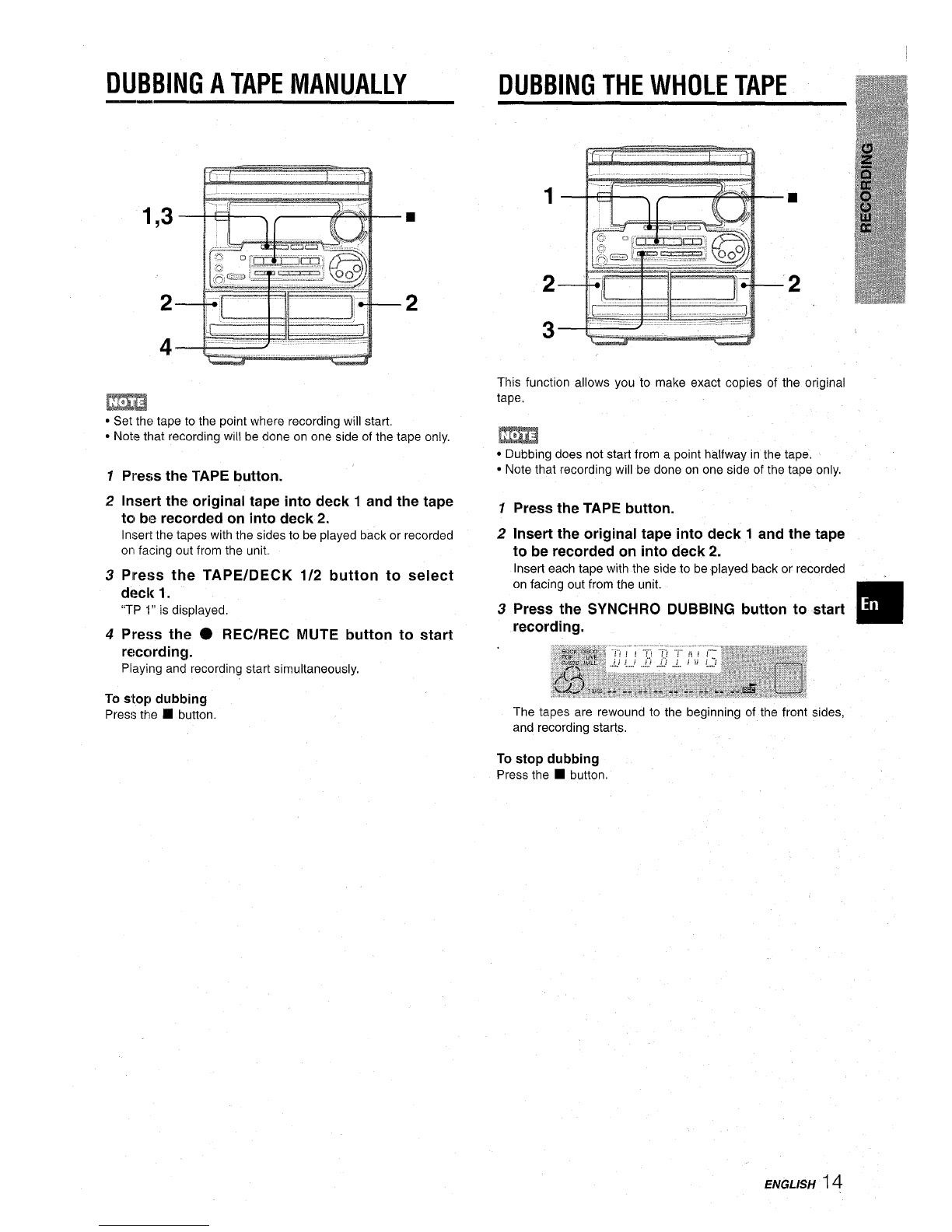

DUBBING ATAPE MANUALLY ...................................... 14
DUBBING THE WHOLE TAPE ........................................ 14

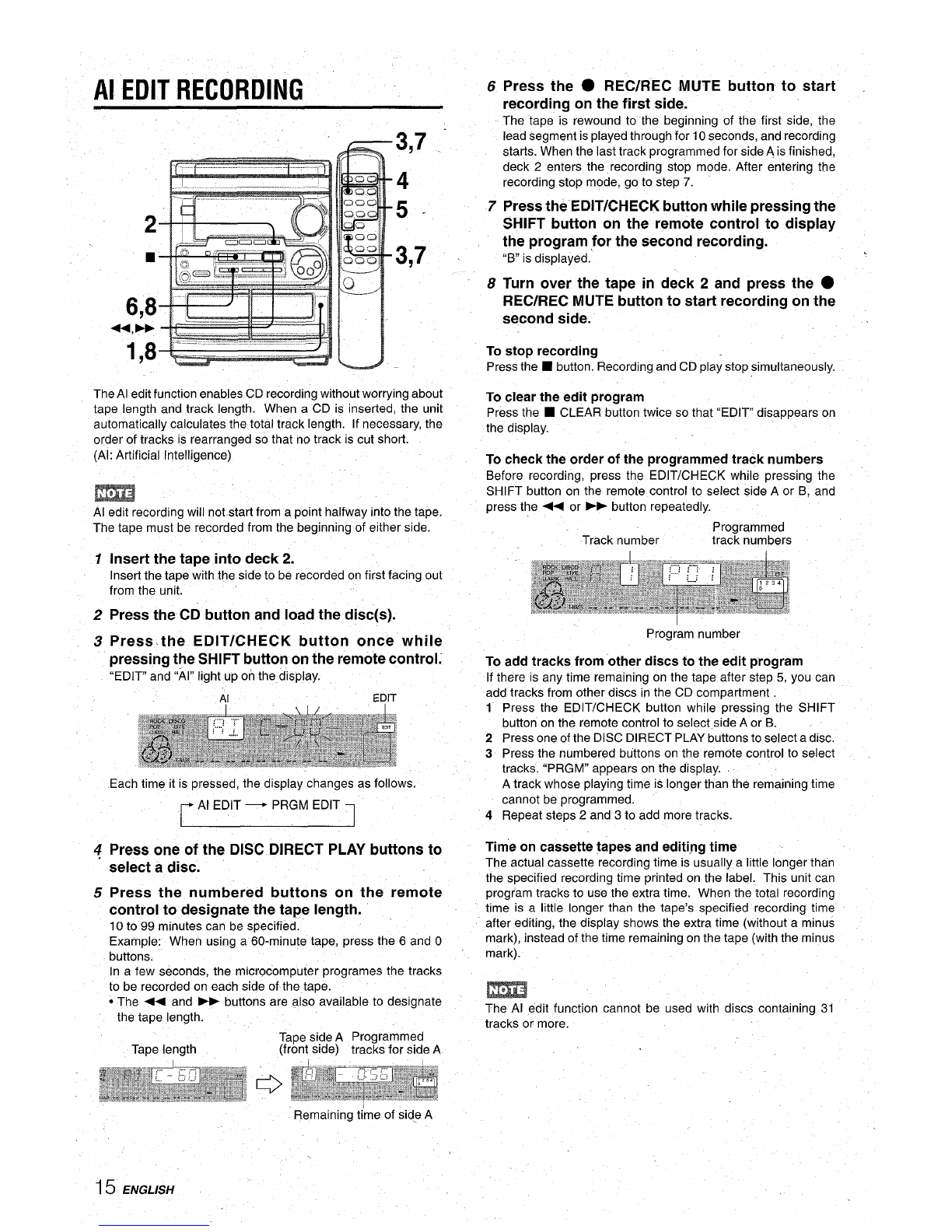

Al EDIT RECORDING ...................................................... 15

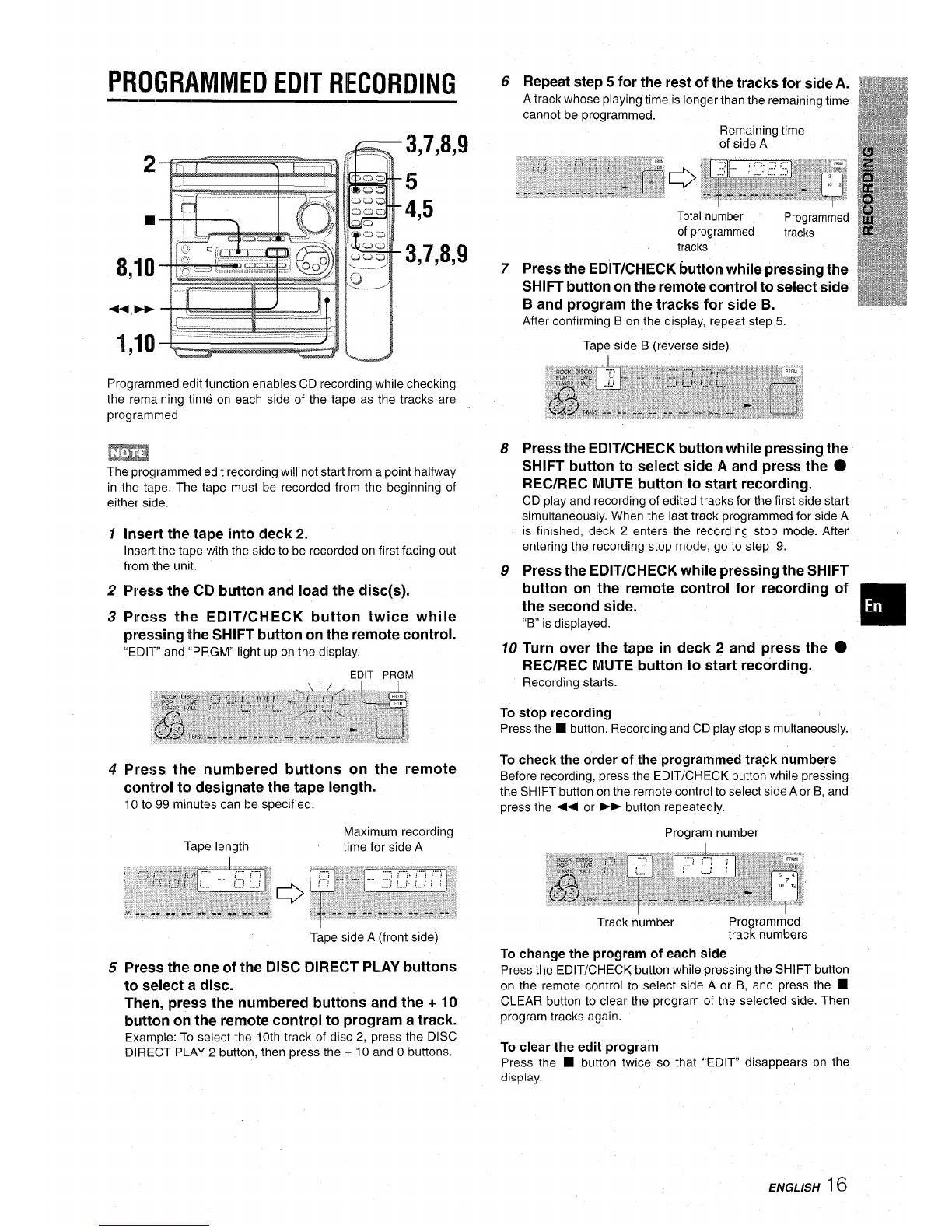

PROGRAMMED EDIT RECORDING ............................... 16 ❑
KARAOKE
(NEC ART 250 PART H)

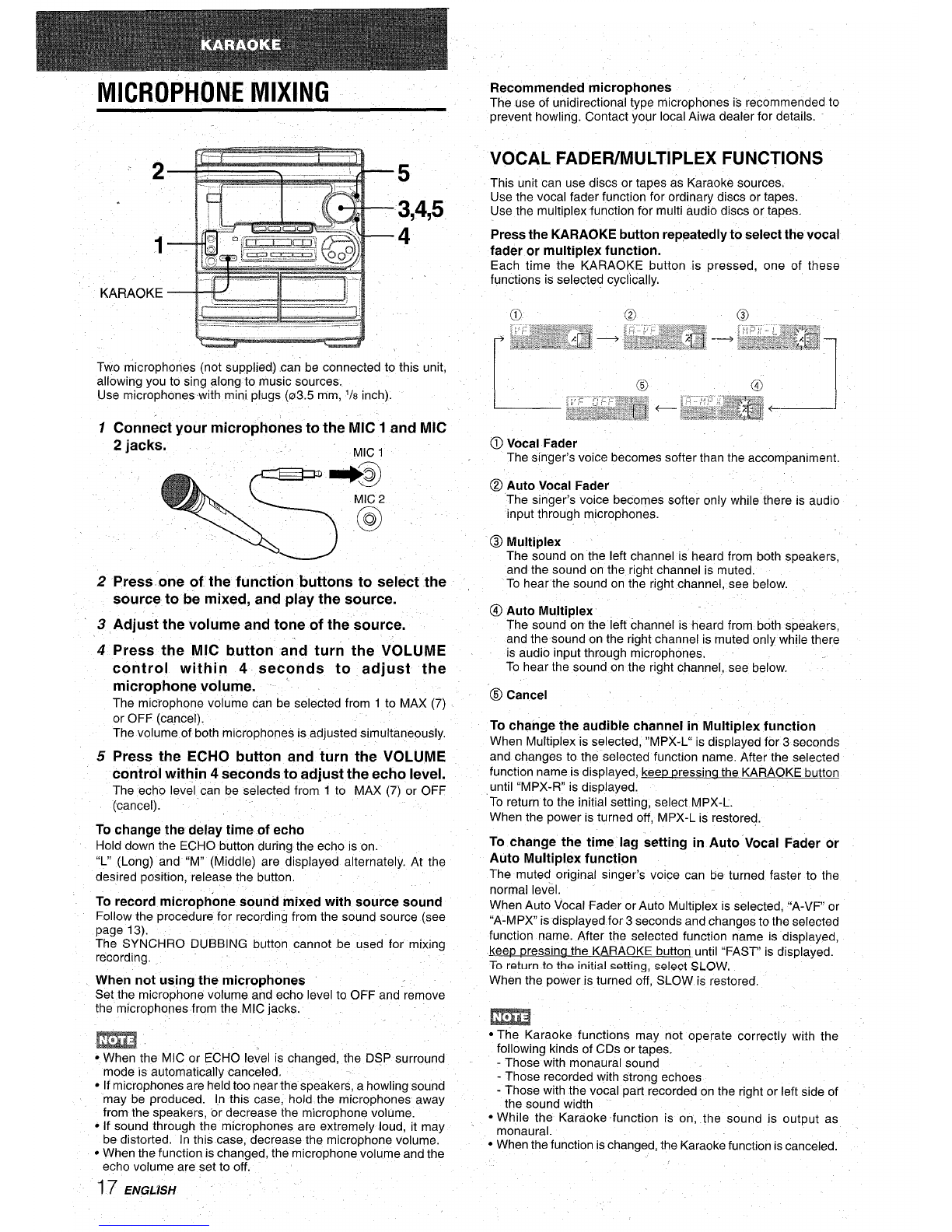

NEC-NATIONAL ELECTRICAL CODE MICROPHONE MIXING ................................................... 17
KARAOKE PROGRAM .................................................... 18
Maintenm
Clean the unit only as recommended in the Operating
Instructicms, CLOCK AND TIMER
SETTING THE CLOCK .................................................... 19
SETTING THE TIMER ...................................................... 19
SETTING THE SLEEP TIMER ......................................... 20
-Rewir’ina service
Have the units serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have gotten inside the unit
-The unit has been exposed to rain or water OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ....................... 21
LISTENING TO EXTERNAL SOURCES ......................... 21
-The unit does not seem to operate normally
-The urwf exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF, GENERAL
CARE AND MAINTENANCE ........................................... 22
TROUBLESHOOTING GUIDE .......>................................. 22
SPECIFICATIONS ............................................................ 23
PARTS INDEX ................................................... Back cover
ENGLISH 2

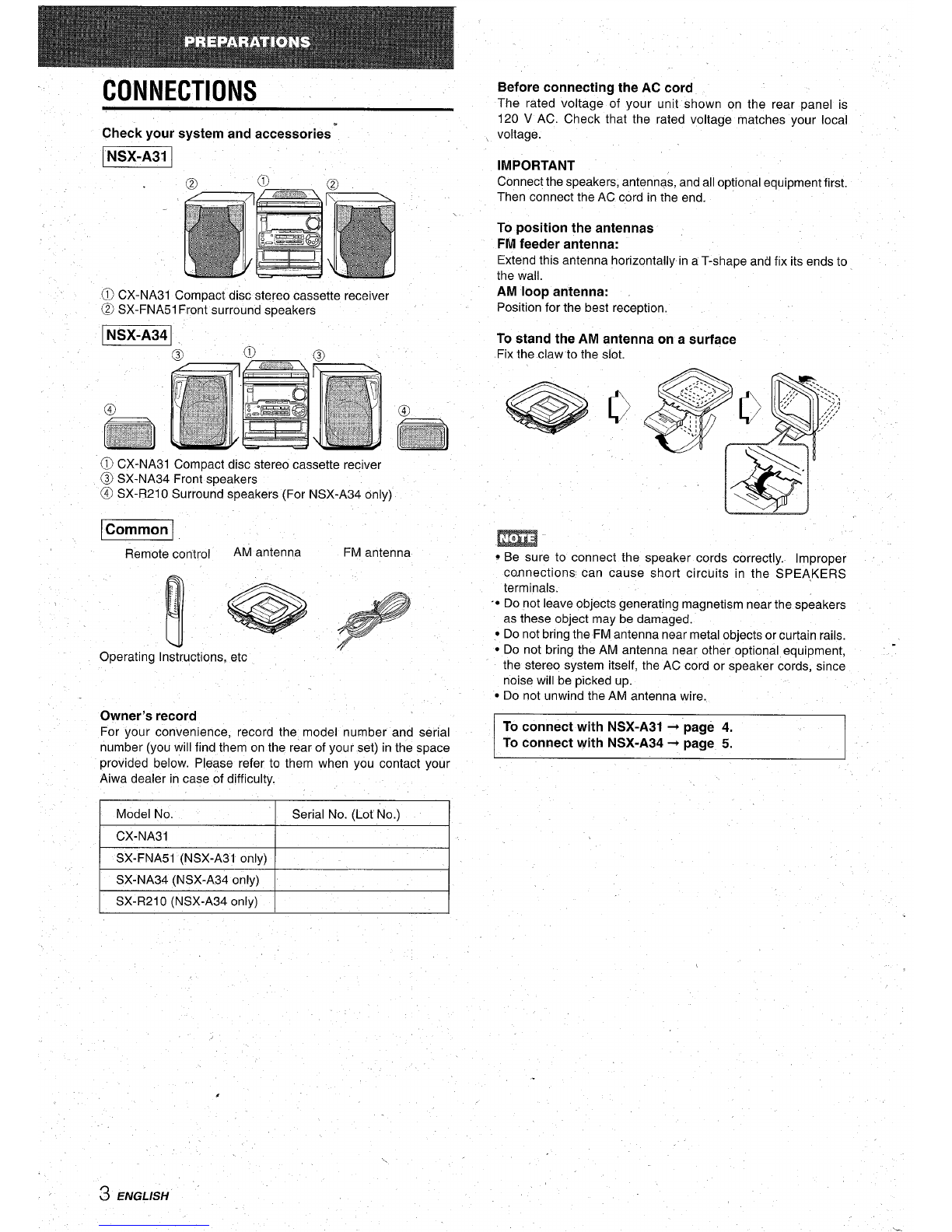

CONNECTIONS
Check your system and accessories”
11
/3 (T-! .
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is
120 VAC. Check that the rated voltage matches your local
voltage.
IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord in the end.
\
@CX-NA31 Compact disc stereo cassette receiver
@SX-FNA51 Front surround s~eakers
@CX-NA31 Compact disc stereo cassette reciver
@SX-NA34 Front speakers
@SX-R21 OSurround speakers (For NSX-A34 only)
m
Remote control AM antenna FM antenna
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact your
Aiwa dealer in case of difficulty.
Model No. Serial No. (Lot No.)
CX-NA31
SX-FNA51 (NSX-A31 only)
SX-NA34 (NSX-A34 only)
SX-R21 O(NSX-A34 only)
3ENGLISH
To position the antennas
FM feeder antenna:
Extend this antenna horizontally in aT-shape and fix its ends to
the wall.
AM loop antenna:
Position for the best reception.
To stand the AM antenna on asurface
Fix the claw to the slot,
?Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in the SPEA,KERS
terminals.
●Do not leave objects generating magnetism near the speakers
as these object may be damaged.
●Do not bring the FM antenna near metal objects or curtain rails.
●Do not bring the AM antenna near other optional equipment, -
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
●Do not unwind the AM antenna wire.
To connect with NSX-A31 +page 4.

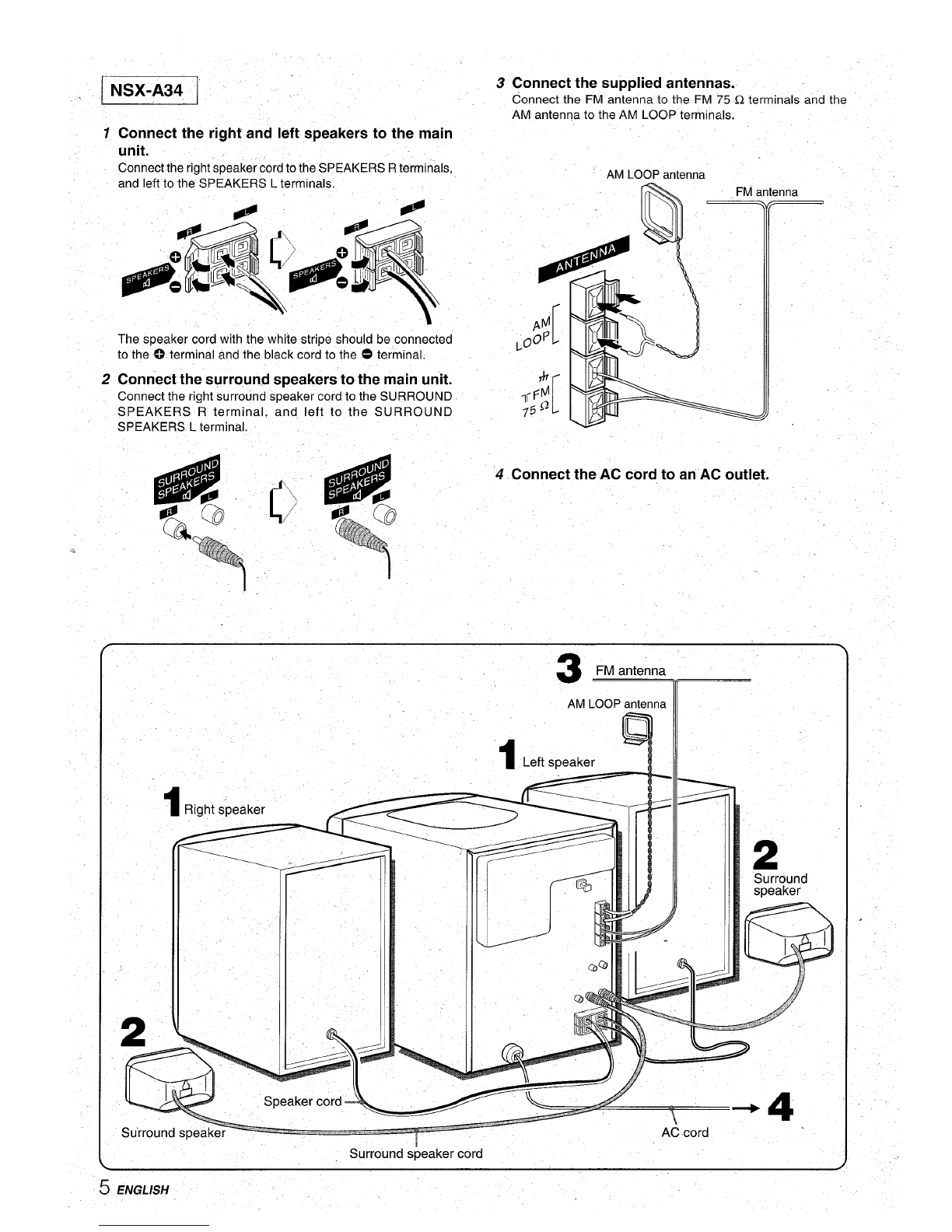

To connect with NSX-A34 +page 5. I

E!EcI 2
!Speakers
The speaker marked Ris the right speaker, and the marked Lis
the left speaker, 3
7Connect the right speaker to the main unit.
‘~ Connect the surround speaker cord to the SURROUND
SPEAKERS Rterminal.
@Connect the speaker cord to the SPEAKERS Rterminals,
The speaker cord with the white stripe should be connected 4
to the ~terminal and the black cord to the Oterminal.
Connect the left speaker to the main unit.
Connect the surround speaker cord to the SURROUND
SPEAKERS Lterminal, and speaker cord to the SPEAKERS
Lterminals in the same manner as step 1.
Connect the supplied antennas.
Connect the FM antenna to the FM 75 Qterminals and the
AM antenna to the AM LOOP terminals.
AM LOOP antenna
Connect the AC cord to an AC outlet.
3FM antenna
AM LOOP antenna
4
1AC
cord
Surround speaker cord
❑
ENGLISH 4

‘IIEEcl 3Connect the supplied antennas.
Connect the FM antenna to the FM 75 Qterminals and the
AM antenna to the AM LOOP terminals.
1Connect the right and left speakers to the main
unit.
Connect the right speaker cord to the SPEAKERS Rterminals,
and left to the SPEAKERS Lterminals. AM LOOP antenna
-r,” .--.-.--.-
1fr%+ii rwl eUILeIII ICI
The speaker cord with the white stripe should be connected
to the 0terminal and the black cord to the Oterminal. \
2Connect the surround speakers to the main un’it. rb
Connect the right surround speaker cord to the SURROUND #
SPEAKERS Rterminal, and left to the SURROUND 759 [ :‘~&
SPEAKERS Lterminal.
P
●.* ●‘4 Connect the AC cord to an AC outlet.
De
●“4 #
fQj
!.:,
6#.~>-
... ,-~
,“
‘)
,
f3FM antenn;
AM LOOP antenn
1Left speaker
1Right speaker
L.----J
Ill
111-
ISurround speaker cord
5ENGLISH

POSITIONING THE SPEAKERS (NSX-A34
only)
Position the speakers to make the most of the SURROUND effect.
Standard positioning
0Fronl speaker (Right)
@Fronl speaker (Left)
@l Surrcwnd speakers
Place the surround speakers behind the listening area.
To mount the surround speakers on the wall
Mount each speaker on a s~ot that can hold its weiaht.
e
*.
,“’:, ,.. ..
~,
4
$-’
m
Sound is not heard from the surround speakers when the
SURROUND is set to off,
COINNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is
recommended.
Connec: the outdoor antenna to the FM 75 Qterminals.
~nnect other optiorwd equipment +page 21.
REMOTE CONTROL
Inserting batteries
Detach the battery cover on the rear of the remote control and
insert two R6 (size AA) batteries. ‘
R6iAA)
When to replace the batteries
The”maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones,
To use the SHIFT button on the remote control
Buttons @have two different functions, One of these functions
is indicated on the button, and the other on the plate above the
button.
To use the function on the button, simply press the button.
To use the function on the plate above the button, press the
button while pressing the SHIFT button.
To use the FUNCTION button on the remote control
The FUNCTION button substitutes for the function buttons (TAPE/
DECK 1/2, TUNER, VIDEO/AUX,CD) on the main unit.
Each time the FUNCTION button is pressed, the next function is
selected cyclically. When tapes are inserted in both decks, both
decks are selected with the FUNCTION button.
,C.JCJU @
cl=
SHIFT :1* Qm +Flb
FUNCTION PRESET
;3--””
____...’
u
The +➤/> PRESET button on the remote control
The function is same as that of the >PRESET button on the
main unit.
●If the unit is not going to be used for an extended period of
time, remove the batteries to prevent possible electrolyte
leakage.
●The remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
-Other remote controls are used nearby (those of atelevision,
etc.)
ENGLISH6

BEFORE OPERATION
..To turn the unit on
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX,
CD).
Playback of the inserted disc or tape begins, or the previously
tuned station is received (Direct Play Function).
The POWER button is also available.
When the unit is turned on, the disc compartment may open and
close to reset the unit.
DEMO (Demonstration) mode
,When the AC cord is connected, the display window
demonstrates the functions of the unit. When the power is turned
on, the DEMO display is overridden by the operation display.
When the power is turned off, the DEMO mode is restored.
~
Press the DEMO button. The clock display appears. (To set
the current time, see SETTING THE CLOCK on page 19.)
Tore-activate the DEMO mode, press the DEMO button again. ,
Flash window
The window on the top of the’unit lights up or flashes while the
unit is being powered on.
To turn off the light of the top window, press the ■button while
pressing the CD button. To turn back on, repeat the above.
To turn the unit off
Press the POWER button.
AUDIO ADJUSTMENTS
VOLUME
Turn the VOLUME control on the main unit, or press the
VOLUME buttons on the remote control.
The volume level is displayed as anumber from Oto MAX (31).
The volume level is automatically set to 16 when the power is
turned off with the volume level set to 17 or more.
SUPER T-BASS SYSTEM
The T-BASS system enhances the realism of low-frequency
sound.
Press the T-BASS button.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
T-BASS
To select with the remote control
press the T-BASS button while pressing the SHIFT button.
m
Low frequency sound may be distorted when the T-BASS system
is used for adisc or tape in which low frequency sound is
originally emphasized. In this case, cancel the T-BASS system,
Using the headphcmes
Connect headphones to the PHONES jack with astereo standard
plug (06.3 mm, ‘/4 inch).
No sound is output from the speakers while the headphones are
plugged in,
Sound adjustment during recording
The output volume and tone of the speakers or headphones may
be freely varied without affecting the level of the recording.
7ENGLISH

GR,APHIC EQUALIZER DSP SURROUND SYSTEM
GEQ
SHIFT
This unit provides the following three different equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
CLASSIC: Enriched sound with heavy bass and fine treble
Press the GEQ button repeatedly until the desired GEQ
modle is displayed.
;?OCKIPOP ICLASSIC
To cancel the selected mode
Press the GE(2 button so that “GEQ OFF appears on the display.
To select with the remote control
Press the GEQ button repeatedly while pressing the SHIFT
button.”fhe GEQ mode is displayed cyclically as follows.
C.ROCK— POP— CLASSIC+ GEQ OFF
(cancel)
The DSP (Digital Signal Processor) surround system can recreate
the effect of sounds reflected from walls or ceilings. This system ,
enhances 3@of sound presence,
DISCO: Sound presence of adisco
LIVE: Sound presence of alive music performance
HALL: Sound presence of aconcert hall
Press the DSP button repeatedly until the desired
surround mode is displayed.
your preference.
When the music source is monaural
Select LIVE to obtain asimulated stereo effect. When DISCO or
HALL is selected, no sound will be heard from the surround
speakers,
To cancel the selected mode
Press the DSP button repeatedly so that “SUR OFF appears on
the display,
While DSP surround mode is off, no sound is heard from the
surround speakers.
&
When the MIC or ECHO level is changed, the DSP surround
mode is automatically canceled.
AIWAS FRONT SURROUND SPEAKERS SYSTEM
(NSX-A31 only)
Inside the speaker cabinet, the rear speaker section is
directed outward at an angle of 35” and upward at an angle
of 9“. Since the sound moves in three directions, aslightly
delay occurs between the sound reflecting off the wall of the
room and the direct sound. This effectively produces surround
sound effects from behind the listener. Using the DSP
SURROUND system, this system effectively produces a
broad sound presence without having to connect’optional
surround speakers.
ENGLISH 8

,’
MANUAL TUNING
BAND
SHIFT
*i------- ——
—
=U
1Press the TUNER/BAND button repeatedly to
select the desired band.
FM —AM
rl
1
When the TUNER/BAND button is pressed while the power
is off, the power is turned on directly.
To select aband with the remote control
Press the BAND button while pressing the SHIFT button.
2Press the+ DOWN or FD UP button to setect
astation.
Each time the button is pressed, the frequency changes.
When astation is received, “TUNE” is displayed for 2seconds.
During FM stereo reception; [il~ll) is displayed.
To search for astation quickly (Auto Search)
Keep the +DOWN or >UP button pressed until the tuner
starts searching for astation. After tuning in to astation, the
search stops.
To stop the Auto Search manually, press the *DOWN or FF
UP button.
●The Auto Search may not stop at stations with very weak
signals,
When an FM stereo broadcast contains noise
Press the MONO TUNER button while pressing the SHIFT button
on the remote control so that “MONO” appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, press these buttons so that MONO
disappears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation system
is 9kHz/step, change the tuning interval. -
Press the POWER button while pressing the TUNEWBAND
button.
To reset the interval, repeat this procedure.
m
When the AM tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
9ENGLISH
PRESETTING STATIONS
0-9,+1 o
The unit can store atotal of 32 preset stations. (Each band has a
maximum of 20 available preset stations. )When astation is
stored, apreset number is assigned to the station. Use the preset
number to tune in to apreset station directly.,
7Press the TUNEFVBAND button to select aband,
and press the ++ DOWN or F- UP button to
select astation.
2Press the II SET button to store the station.
Astation is assigned apreset number, beginning from 1in
consecutive order for each band.
Frequency
Preset number
3Repeat steps 1and 2.
The next statiorrwill not be stored if atotal of 32 preset stations
for all the bands or atotal of 20 preset stations for one band
have already been stored.
PRESET NUMBER TUNING
Use the remote control to select the preset number directly.
7Press the BAND button while pressing the SHIFT
button to select aband.
2Press the numbered buttons to select apreset
number. .
Example:
To select preset number 20, press the +10, +10 and Obuttons.
To select preset number 15, press the +1 Oand 5 buttons.
Selecting apreset’number on the main unit
Press the TUNER/BAND button to select aband. Then, press
the ~PRESET button repeatedly.
Each time the button is pressed, the next ascending number is
selected.
To clear apreset station
Select the preset number of the station to be cleared. Then, press
the ■CLEAR button, and press the II SET button within 4
seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one.

-,
BA:S[C OPERATIONS
2
+4 DOWN
BLIP
AEJECT
Deck 2
Use ‘rype I(normal) tapes only.
7Press the TAPE button and press the AEJECT
mark to open the cassette holder.
About cassette tat3es
●“roprevent accidental erasure, break off the plastic tabs
on the cassette tape after recording with ascrewdriver or
other pointed tool.
Side ATab for side A
To record on the tape again, cover the tab openings with
adhesive tape, etc.
M120-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
*Take up any slack in the tape with apencil or similar tool
before use. Slack tape may break or jam in the mechanism.
Insert atape with the exposed side down. Push the cassette
holder to close.
2Press the >button to start play.
Only the side facing out from the unit can be played back.
The selected deck number tape counter
To select aplaying deck
When tapes are loaded in both decks, press the TAPE button
first lo select adeck.
The .seliscted deck number is displayed.
To stop play, press the ❑button.
To pause play (deck 2only), press the II button. To resume
play, press again.
To fast forward or rewind, press the -or >button. Then
press the ❑button to stop the tape.
TCIstart play when the power is off (Direct Play Function)
Press the TAPE button. The power is turned on and play of the
insertecl tape begins.
To set the tape counter to 0000
Press the ❑CLEAR button in stop mode.
The counter is also set to 0000 when the cassette holder is
opened.
When tapes are loaded in both decks
After playback on deck 1finishes, the tape in the deck 2will
start to play without interruption. (Continuous play)
ENGLISH 10

BASIC OPERATIONS
=OPEN/CLOSE EDIT/CHECK
DISC CHANGE
H’ ;3D
RANDOM/
—. REPEAT
.-
CD ..l----- cl
-. c1
,—’ .! ...- ---
9U
DISC DIRECT PLAY
LOADING DISCS
Press the CD button, then press the 4OPEN/
CLOSE button to open the disc compartment. Load
disc(s) with the label side up,
To play one or two discs, place the discs on tray 1 and 2.
To play three discs, press the DISC CHANGE button to rotate
the trays after placing two discs. Place the third disc on tray 3.
Close the disc compartment by pressing the =OPEN/CLOSE
button.
Tray 1
CHANGE
Tray number of the
disc to be played Total playing time
I
Total number of tracks
PLAYING DISCS
Load discs.
To play all discs in the disc compartment, press the
>button.
Play begins with the disc on tray 1.
*
Elapsed playing time
Number of track
11 ENGLISH
To play one disc only, press one of the DISC DIRECT
PLAY buttons.
The selected disc is played once.
To stop play, press the ■button.
To pause play, press the II button. To resume play, press again.
To search for aparticular point during playback, keep the
+or -button pressed and release the button at the desired
point.
To skip to the beginning of atrack during playback, press
the +or -button repeatedly.
To remove discs, press the AOPEN/CLOSE button.
To start play when the power is off (Direct Play Function)
Press the CD button. The power is turned on and play of the
loaded disc(s) begins.
When the 4OPEN/CLOSE button is pressed the power is also
turned on.
To check the remaining time
During play, press the EDIT/CHECK button on the remote control
while pressing the SHIFT botton. The amount of time remaining
until all tracks finish playing is displayed. To restore the playing ‘
time display, repeat the above again.
Selecting atrack with the remote control
1Press one of the DISC DIRECT PLAY buttons to select adisc.
2Press the numbered buttons and the +10 button to select a
track.
Example: -
To select the 25th track, press the +10, +10 and 5 buttons.
To select the 10th track, press the +1 Oand Obuttons.
The selected track starts to play and continues to the end of
that disc.
Replacing discs during play
While one disc is playing, the other discs can be replaced without
interrupting play.
1Press the DISC CHANGE button.
2Remove the discs and replace with other discs.
3Press the AOPEN/CLOSE button to close the disc
compartment,
m
●When loading an 8-cm (3-inch) disc, put it onto the inner circle
of the tray.
●Do not place more than one compact disc on one disc tray.
●Do not tilt the unit with discs loaded. Doing so may cause
malfunctions.
.

IRANDOM /REPEAT PLAY
lJse the remote control.
IRANDOIM pklY
All the tracks on the selected disc or on all the discs can be
Iplayed randomly.
REPEAT play
,Asingle disc or all the discs can be played repeatedly.
Press the RANDOM/REPEAT button while pressing the
SHIFr k>utton.
Each time it is pressed, the function can be selected cyclically.
RANDOM play —RANDOM lights up on the display.
REPEAT play —clights up on the display.
RANDOM/REPEAT play —RANDOM and Clight up on
the display.
Cancel —RANDOM and Ggo out from the display.
m
During random play, the following operations are not possible:
-to select the tracks directly with the numbered buttons,
-to skip to the previously played track with the 4button.
PROGRAMMED PLAY
Up to 30 tracks can be programmed from any of the inserted
discs.
2
1
■1!
c)
..——.-
“5
u
Use the remote control
1
2
Press the PRGM button twice while pressing the
SIHIFT button in stop mode.
The PRGM indicator lights up on the display.
●When the PRGM button is pressed once in step 1, the unit
enters the KARAOKE PROGRAM (page 18).
Press one of the DISC DIRECT PLAY buttons to
s[?lect adiscm
The selected disc is indica~ed in red on the display.
Go tc) the next step when the tray stops rotating.
3
4
5
Press the numbered buttons and the +1 Obutton
to program atrack.
Example:
To select the 25th track, press the +10, +10 and 5 buttons.
To select the 10th track, press the +1 Oand Obuttons.
Total playing time of
Program number the selected tracks
t1
Selected track number Total number of
selected tracks
Repeat steps 2and 3to program other tracks.
Press the <›/* button to start play.
To check the program
Each time the Uor -button is pressed in stop mode, a
disc number, track number, and program number will be
displayed.
To clear the program
Press the ■CLEAR button in stop mode.
To add tracks to the program
Repeat steps 2 and 3 in stop mode. The track will be programmed
after the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
m
During programmed play, you cannot perform random play, check
the remaining time, and select adisc or track.
ENGLISH12

BASIC RECORDING INSERTING BLANK SPACES
4-second blank spaces can be inserted at the desired point during
recording. (Applicable when the source is TUNER or VIDEO/
AUX.)
1Press the ●REC/REC MUTE button during recording or
while in recording pause mode.
~on the display flashes for 4seconds and the tape runs
without recording. After 4seconds, the deck enters the
recording pause mode.
2Press the II button to resume recording.
To insert ablank space of less than 4seconds, press the ●
REC/REC MUTE button again while ~is flashing.
To insert blank spaces of more than 4seconds, after the
deck enters recording pause mode, press the ●REC/REC
This section explains how to record from the tuner, CD player, or
external equipment.
... –2
MUTE button again. Each time the button is pressed, a4-second
blank space is added. -.
Preparation
●Use Type I(norm,al) tapes only,
●Set the tape to the point where recording will start.
●Note that recording is done only one side of the tape.
1Insert the tape to be recorded on into deck 2.
Insert the tape with the side to be recorded on first facing
out from the unit.
2“Press one of the function buttons and prepare
the source to be recorded.
To record from aCD, press the CD button and load the
disc(s).
To record from aradio broadcast, press the TUNER button :
and tune in to astation,
To record from the connected source, press the VIDEO/
AUX button and play.
3Press the ●REC/REC MUTE button to start
recording.
.’
Elim
When the selected functi& is CD, playback and recording
start simultaneously.
To stop recording, press the ■button.
To pause recording, press the II button. (Applicable when the
source is TUNER or VIDEO/AUX) To resume recording, press
again.
I
To erase arecording
Make sure the microphone is not connected to this unit.
1Insert the tape to be erased into deck 2 and press the TAPE/ ‘
DECK 1/2 button to display ‘(TP ~.
2Set the tape to the point where the erasure is to be started.
3Press the ●REC/REC MUTE button to start the erasure.
13 ENGLISH

DUBBING ATAPE MANUALLY
●Set the tape to the point where recording will start.
*Note that recording will be done on one side of the tape only.
1
2
3
4
Press the TAPE button.
Insert the original tape into deck 1and the tape
ta be recorded on into deck 2.
Insert the tapes with the sides to be played back or recorded
orl facing out from the unit.
Plress the TAPE/DECK 1/2 button to select
d[>~k 1.
“TP 1“ is displayed.
Press the @REC/REC MUTE button to start
recording.
Playing and recording start simultaneously.
To stop dubbing
Press the ❑button.
DUBBING THE WHOLE TAPE
This function allows you to make exact copies of the original
tape.
m
●Dubbing does not start from apoint halfway in the tape.
●Note that recording will be done on one side of the tape only,
7Press the TAPE button.
2Insert the original tape into deck 1and the tape
to be recorded on into deck 2.
Insert each tape with the side to be ~layed back or recorded
on facing out from the unit.
3Press the SYNCHRO DUBBING button to start
recording. ❑
The tapes are rewound to the beginning of the front sides,
and recording starts,
To stop dubbing
Press the ■button.
ENGLISH14

Al EDIT RECORDING
3,7.-
4
5-
3,7 ~
The Al edit function enables CD recording without worrying about
tape length and track length. When aCD is inserted, the unit
automatically calculates the total track length. If necessary, the
order of tracks is rearranged so that no track is cut short.
(Al: Artificial Intelligence)
m
Al edit recording will not-start from apoint halfway into the tape.
The tape must be recorded from the beginning of either side.
7Insert the tape into deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
2Press the CD button and load the disc(s).
3Press the EDIT/CHECK button once while
pressing the SHIFT button on the remote control:
“EDIT” and “Al” light upon the display.
Each time it is pressed, the display changes as follows.
Al EDIT —PRGM EDIT
~Press one of the DISC DIRECT PLAY buttons to
select adisc.
5Press the numbered buttons on the remote
control to designate the tape length.
10 to 99 minutes can be specified.
Example: When using a60-minute tape, press the 6 and O
buttons.
In afew seconds, the microcomputer programes the tracks
to be recorded on each side of the tape.
●The <and -buttons are also available to designate
the tape length.
Tape side AProgrammed
Tape length (front side) tracks for side A
I
Remaining time of side A
15 ENGLISH
6
7
8
Press the ●REC/REC MUTE button to start .
recording on the first side.
The tape is rewound to the beginning of the first side, the
lead segment is played through for 10 seconds, and recording
starts. When the last track programmed for side Ais finished,
deck 2enters the recording stop mode. After entering the
recording stop mode, go to step 7.
Press the”EDIT/CHECK button while pressing the
SHIFT button on the remote control to display
the program for the second recording.
“B” is displayed. .
Turn over the tape in deck 2and press the ●
REC/REC MUTE button to start recording on the
second side.
To stop recording
Press the ■button. Recording and CD play stop simultaneously.
To clear the edit program
Press the ■CLEAR button twice so that “EDIT disappears on
the display.
To check the order of the programmed track numbers
Before recording, press the EDIT/CHECK while pressing the
SHIFT button on the remote control to select side Aor B, and
press the -or Ebutton repeatedly.
Programmed
Track number track numbers
1
Program number
To add tracks from other discs to the edit program
If there is any time remaining on the tape after step 5, you can
add tracks from other discs in the CD compartment
1Press the EDIT/CHECK button while pressing the SHIFT
button on the remote control to select side Aor B.
2Press one of the DISC DIRECT PLAY buttons to select adisc.
3Press the numbered buttons on the remote control to select
tracks. “PRGM” appears on the display.
Atrack whose playing time is longer than the remaining time
cannot be programmed.
4Repeat steps 2 and 3 to add more tracks.
Time on cassette tapes and editing time
The actual cassette recording time is usually alittle longer than
the specified recording time printed on the label. This unit can
program tracks to use the extra time. When the total recording
time is alittle longer than the tape’s specified recording time
after editing, the display shows the extra time (without aminus
mark), instead of the time remaining on the tape (with the minus
mark).
m
The Al edit function cannot be used with discs containing 31
tracks or more.

PROGRAMMED EDIT RECORDING 6
Programmed edit function enables CD recording while checking
the remaining time on each side of the tape as the tracks are
programmed.
The programmed edit recording will not start from apoint halfway
in the tape, The tape must be recorded from the beginning of
either side.
1
2
3
4
5
Insert the tape into deck 2.
Insert the tape with the side to be recorded on first facing out
frclm the unit,
Press the CD button and load the disc(s).
Press the EDIT/CHECK button twice while
pressing the SHIFT button on the remote control.
“ED1l-” and “PRGM” light up on the display.
Plress the numbered buttons on the remote
control to designate the tape length.
1Clto 99 minutes can be specified.
Maximum recording
Tape length time for side A
I I
Tape side A(front side)
Press the one of the DISC DIRECT PLAY buttons
tc~select adisc.
Tlhen, press the numbered buttons and the +10
button on the remote control to program atrack.
Example: To select the 10th track of disc 2, press the DISC
DIRECT PLAY 2button, then press the +10 and Obuttons.
7
8
9
Repeat step 5for the rest of the tracks for side A.
Atrack whose playing time is longer than the remaining time
cannot be programmed. Remaining time
of side A
Total number Programmed
of programmed tracks
tracks
Press the EDIT/CHECK button while pressing the
SHIFT button on the remote control to select side
Band program the tracks for side B.
After confirming Bon the display, repeat step 5,
Tape side B(reverse side)
Press the EDIT/CHECK button while pressing the
SHIFT button to select side Aand press the O
REC/REC MUTE button to start recording.
CD play and recording of edited tracks for the first side start
simultaneously. When the last track programmed for side A
is finished, deck 2enters the recording stop mode. After
entering the recording stop mode, go to step 9.
Press the EDIT/CHECK while pressing the SHIFT
button on the remote control for recording of
the second side.
“B” is displayed.
10 Turn over the tape in deck 2and press the .
REC/REC MUTE button to start recording.
Recording starts.
To stop recording
Pressthe ■button,Recordingand CD play stopsimultaneously.
To check the order of the programmed track numbers
Before recording, press the EDIT/CHECK button while pressing
the SHIFT button on the remote control to select side Aor B, and
press the 44 or ›~ button repeatedly.
Program number
Track number Programmed
track numbers
To change the program of each side
Press the EDIT/CHECK button while pressing the SHIFT button
on the remote control to select side Aor B, and press the ❑
CLEAR button to clear the program of the selected side. Then
program tracks again.
To clear the edit program
Press the ■button twice so
display. that “EDIT disappears on the
ENGLISH 16

MICROPHONE MIXING
.lb
+
;L..
1‘:,
‘A’’””-
Two microphones (not supplied) can be connected to this unit,
allowing you to sing along to music sources.
Use microphones with mini plugs (03.5 mm, 1/8 inch).
1Connect your microphones to the MIC 1and MIC
2jacks. MIC 1
‘~
2Press one of the function buttons to select the
source to be mixed, and play the source.
3Adjust the volume and tone of the source.
4Press the MIC button and turn the VOLUME
control within 4seconds to adjust the
microphone volume.
The microphone volume can be selected from 1to MAX (7)
or OFF (cancel).
The volume of both microphones is adjusted simultaneously.
5Press the ECHO button and turn the VOLUME
control within 4seconds to adjust the echo level.
The echo level can be selected from 1to MAX (7) or OFF
(cancel).
To change the delay time of echo
Hold down the ECHO button during the echo is on.
“L” (Long) and “M” (Middle) are displayed alternately. At the
desired position, release the button.
To record microphone sound mixed with source sound
Follow the procedure for recording from the sound source (see
page 13).
The SYNCHRO DUBBING button cannot be used for mixing
recording.
When not using the microphones
Set the microphone volume and echo level to OFF and remove
the microphones from the MIC jacks.
m
●When the MIC or ECHO level is changed, the DSP surround
mode is automatically canceled.
●If microphones are held too near the speakers, ahowling sound
may be produced. in this case, hold the microphones away
from the speakers, or decrease the microphone volume.
●If sound through the microphones are extremely loud, it may -
be distorted. In this case, decrease the microphone volume.
●When the function is changed, the microphone volume and the
echo volume are set to off.
~7ENGLISH
Recommended microphones
The use of unidirectional type microphones is recommended to
prevent howling. Contact your local Aiwa dealer for details.
VOCAL FADER/MULTIPLEX FUNCTIONS
This unit can use discs or tapes as Karaoke sources,
Use the vocal fader function for ordinary discs or tapes.
Use the multiplex function for multi audio discs or tapes.
Press the KARAOKE button repeatedly to select the vocal
fader or multiplex function.
Each time the KARAOKE button is pressed, one of these
functions is selected cyclically.
o@ @
@)Vocal Fader
The singer’s voice becomes softer than the accompaniment.
@Auto Vocal Fader
The singer’s voice becomes softer only while there is audio
input through microphones.
oMultiplex
The sound on the left channel is heard from both speakers,
and the sound on the rightchannel is muted.
To hear the sound on the rightchannel, see below.
@l Auto Multiplex
The sound orr the left channel is heard from both speakers,
and the sound on the right channel is muted only while there
is audio input through microphones.
To hear the sound on the right channel, see below.
@Cancel
To change the audible channel in Multiplex function
When Multiplex is selected, “MPX-L” is displayed for 3seconds
and changes to the selected function name. After the selected
function name is displayed, kee~ rxessina the KARAOKE button
until “MPX-R” is displayed.
To return to the initial setting, select MPX-L.
When the power is turned off, MPX-L is restored.
To change the time lag setting in Auto “Vocal Fader or
Auto Multiplex function
The muted original singer’s voice can be turned faster to the
normal level.
When Auto Vocal Fader or Auto Multiplex is selected, “A-VF or
“A-MPX” is displayed for 3seconds and changes to the selected
function name. After the selected function name is displayed,
kee~ pressina the KARAOKE button until “FAST is displayed.
To return to the initial setting, select SLOW,
When the power is turned off, SLOW is restored.
●The Karaoke functions may not operate correctly with the
following kinds of CDs or tapes.
-Those with monaural sound
-Those recorded with strong echoes
-Those with the vocal part recorded on the right or left side of
the sound width
●While the Karaoke function is on, the sound is output as
monaural.
●When the function is changed, the Karaoke function is canceled.

KARAOKE PROGRAM
2–1
1—-
❑–4
Before or during CD play, you can reserve up to 15 tracks to be
played after the current track. Each reservation is cleared when
it finishes playing,
Use the remote control.
Y
2
3
4
Press the PRGM button while pressing aSHIFT
button Q.!ME.
Press one of the DISC DIRECT IPLAY buttons to
s(>lect adisc.
Then, press the numbered buttons and the +10
button to program atrack.
Reserved disc number Reserved track number
Repeat step 2to reserve other tracks.
Press the 4>/- button to start play.
After atrack is played, it is cleared from the program.
track can be reserved in place of the cleared track.
Disc number of the Number of remaining
last reservation reserved tracks
I
Currently Track number of Currently playing
playing disc the last reservation track number
flashes
To add areservation during play
Repeat step 2
To check the reserved tracks
Press the EDIT/CHECK button repeatedly while pressing the
SHIFT button. Each time it is pressed, the disc number and
track number are displayed in the reserved order.
To stop play
Press the ❑button. When the ●F/E button is pressed, the
play starts from the last track again. ‘
To skip acurrent track
Press the Wbutton. The skipped track is cleared from the
program.
To clear all the reservations
Press the *button repeatedly until “K-POO”is displayed.
Press it once more to cancel the Karaoke program. The display
returns to that of CD play.
m
cIf the reserved track number does not exist on the selected
disc, the unit stops playing and the display flashes.
In this case, press the -button to skip the error track. Then
press the 4>/> button to start play with the next reserved
track.
●When the PRGM button is pressed repeatedly in step 1, PRGM
is displayed and the unit enters CD program play mode (page
12),
To cancel program play, press the ❑CLEAR button.
ENGLISH 18

SETTING THE CLOCK SETTING THE TIMER
1
2,4
6
2
—. 4U
Press the CLOCK button while pressing the The unit can be turned on at aspecified time every day with the
SHIFT button on the remote control, and press built-in timer.
the II SET button within 4seconds. Pre~aration
3
To display the current time If you press the II SET button after 4seconds, another
Press the CLOCK button while pressing the SHIFT button on operation may start.
the remote control. The time is displayed for 4seconds. 2Designate the hour of the timer-on time by
However, the time cannot be displayed during recording. pressing the <DOWN or ➤PUP button, and
To switch to the 24-hour standard press the II SET button. Repeat to designate the
Press the CLOCK button while ~ressina the SHIFT button on minute of the timer-on time.
If power is interrupted for more than approximately 24 hours,
all settings stored in memory after purchase need to be reset. 3Within 4seconds, press the FUNCTION button
repeatedly to select asource.
The selected source name flashes for 4seconds.
●If this step is not completed within 4seconds, repeat from
step 1.
●If the TUNER button is pressed, the band cannot be selected
in this step.
4Within 4seconds, select the duration for the
timer-activated period with the +4 DOWN or ~
UP button.
19 ENGLISH
