SERVICE MANUAL
DATA
COMPACT DISC STEREO
SYSTEM
BASIC TAPE MECHANISM : ZZM-3 PR1NM
2ZM-3MK2 PR4NM
BASIC CD MECHANISM : AZG-1 ZD8RDM
NSX-AJ50
NSX-SZ50
U
LH
S/M Code No. 09-003-424-6R1
REVISION
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual",
(S/M Code No. 09-99C-424-6T1).
• If requiring information about the CD mechanism, see Service Manual
of AZG-1, (S/M Code No. 09-001-335-3N6).
NSX-AJ50
SPEAKER
SYSTEM CD
CASSEIVER
REMOTE
CONTROLLER
NSX-SZ50
CX-NAJ50 SX-WNAJ50
CX-NSZ50 SX-WNSZ50
RC-ZAS02
RC-ZAS01
MC-Service

– 2 –
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM (MW) tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier
Power output U : 20 W + 20 W (200 Hz to 20 kHz,
T.H.D. less than 1 %, 8 ohms)
LH : Rated : 20 W + 20 W (8 ohms,
T.H.D. 1 %, 1 kHz)
Reference : 25 W + 25 W (8 ohms,
T.H.D. 10 %, 1 kHz)
Total harmonic distortion 0.1 % (10W, 1 kHz, 8 ohms, DIN
AUDIO)
Low frequency amplifier
Power output U : 60 W + 60 W (50 Hz to 200Hz,
T.H.D. less than 1 %, 6 ohms)
LH : Rated : 60 W + 60 W (6 ohms,
T.H.D. 1 %, 130 Hz)
Reference : 75 W + 75 W (6 ohms,
T.H.D. 10 %, 130 Hz)
Total harmonic distortion 0.1 % (30W, 130 kHz, 6 ohms, DIN
AUDIO)
Inputs VIDEO / AUX: 500 mV
LH : MIC 1.0mV(10 K ohms)
Outputs SPEAKERS HIGH FREQ:
accept speakers of 8 ohms or more
SPEAKERS LOW FREQ:
accept speakers of 6 ohms or more
U : SURROUND SPEAKERS:
accept speakers of 8 ohms to 16 ohms
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 16000 Hz
Recording system AC bias
Heads Deck 1 : Playback head x 1
Deck 2 : Recording / Playback head x 1,
erase head x 1
SPECIFICATIONS
<Compact disc player section>
Laser Semiconductor laser (λ = 780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
<General>
Power requirements U : 120 V AC, 60 Hz
LH : 120V/220 – 230V/240V AC
switchable, 50/60 Hz
Power consumption U : 110 W
LH : 130 W
Standby power consumption 20 W (power-economizing
mode set to OFF)
0.9 W (power-economizing
mode set to ON)
Dimensions of main unit U : 240 x 324.6 x 271 mm
(W xH xD) (91/2x 127/8x 103/4in.)
LH : 260 x 326 x 345 mm
Weight of main unit U : 8.0 kg (17 lbs 10 oz.)
LH : 9.0 kg
Speaker system SX-WNAJ50(U)/SX-WNSZ50(LH)
Speaker system 3 way, bass reflex (magnetic
shielded type)
Speaker units Subwoofer :
160 mm(63/8in.) cone type
Full range :
100 mm(4 in.) cone type
Super tweeter:
20 mm (13/16 in.) ceramic type
Impedance 6 ohms/8 ohms
Sensitvity 86 dB/W/m
Dimensions 240 x 324 x 271 mm
(W xH xD) (91/2in. x 127/8x 103/4in.)
Weight 4.8 kg (10 lbs 9 oz.)
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
Main unit CX-NAJ50(U)/CX-NSZ50(LH)

– 3 –
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT

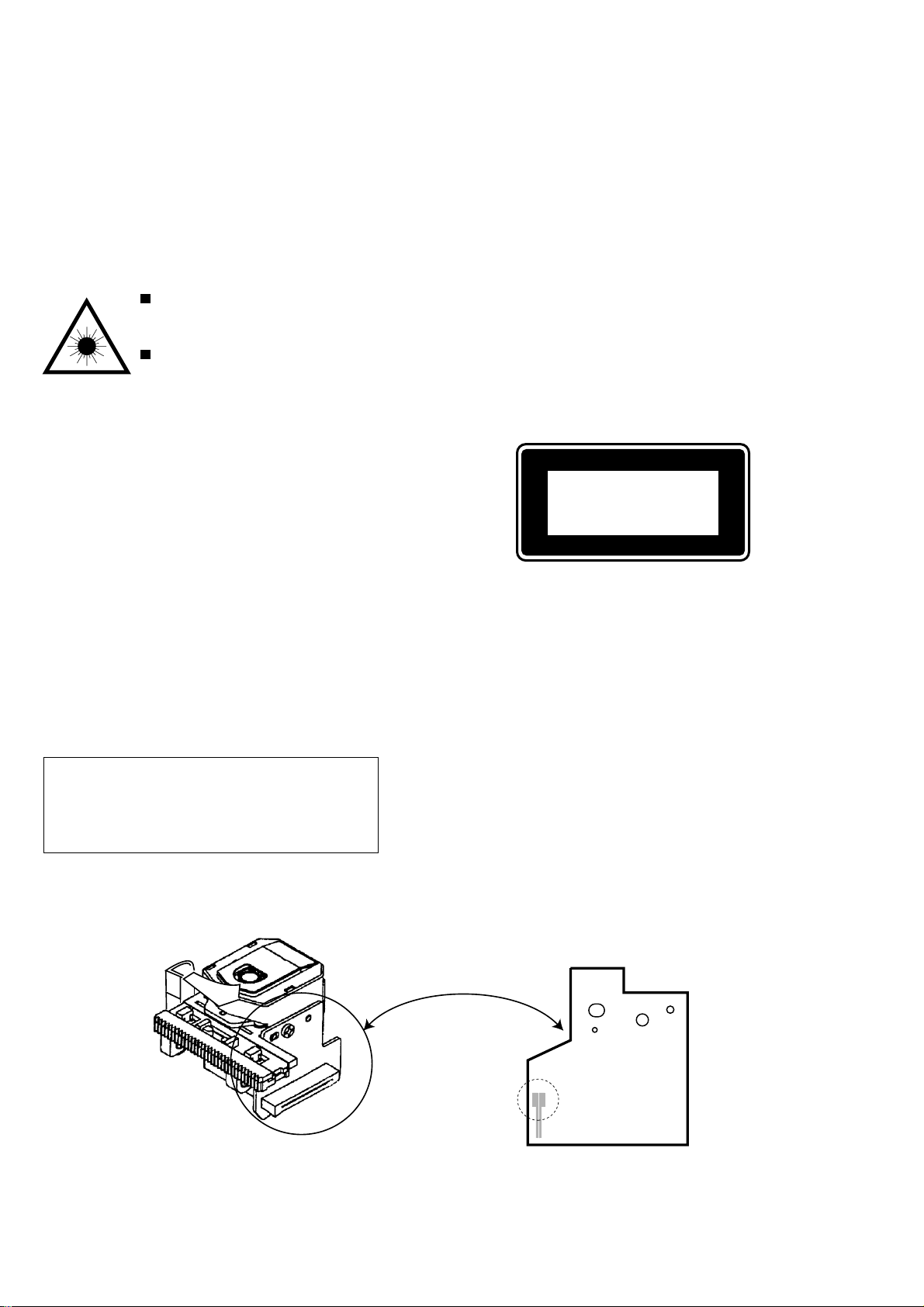

Precaution to replace Optical block
(KSM-880CAB)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
solder
PICK-UP Assy P.C.B

– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34
MC-Service

– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.

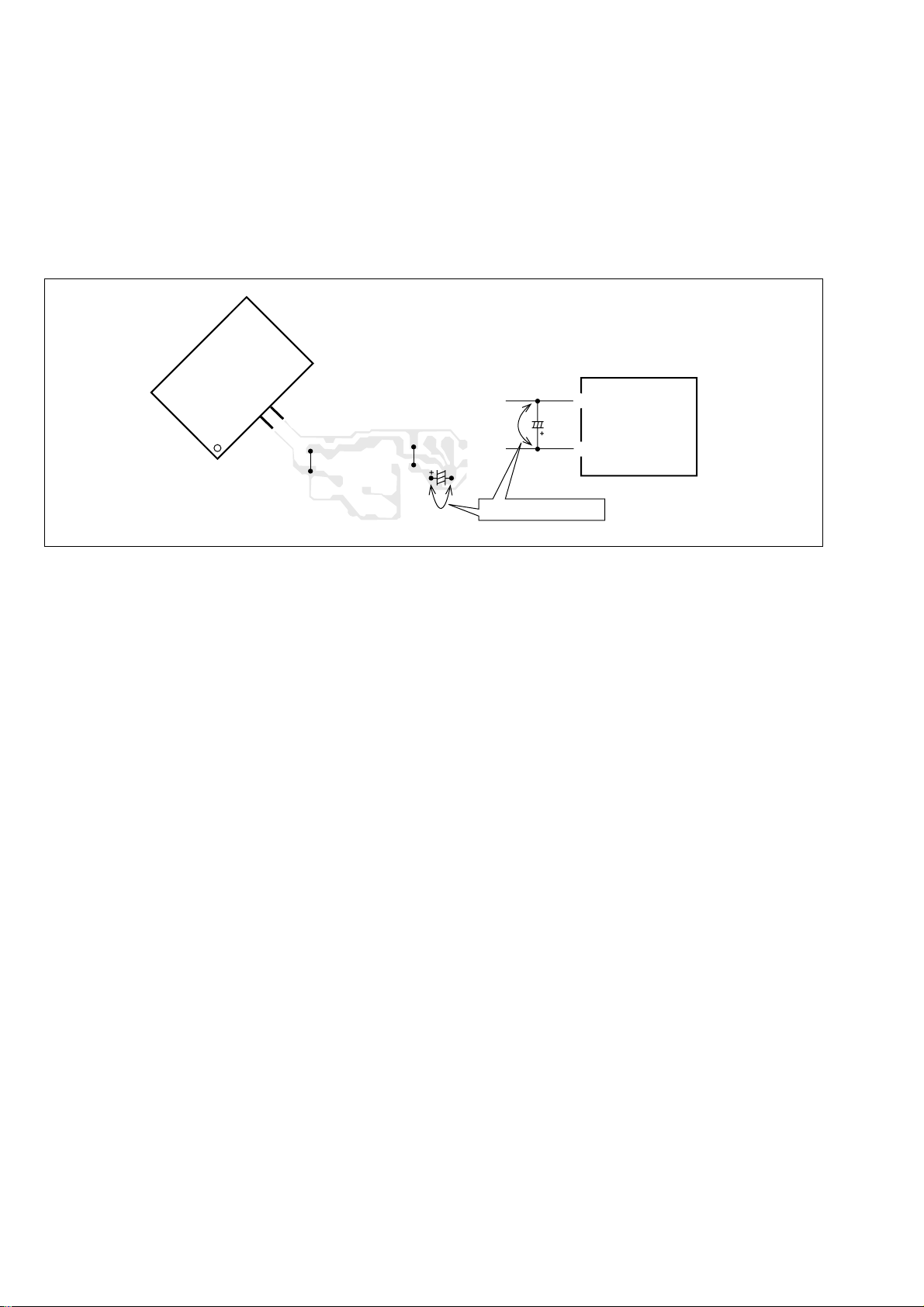

2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113
*
%
C113
18
15
Short with tweezers.

– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-417-010 IC,STK490-310
8A-NF8-610-010 C-IC,LC866548V-5P03
87-A21-396-010 IC,STK490-040
87-A21-482-010 IC,RPM6938-H4
87-A21-419-040 IC,NJM14558MD-TE2
87-A21-023-040 C-IC,BA3835F
87-A21-401-040 C-IC,M61503FP
87-070-289-040 IC,BU 2092F
87-070-127-110 IC,LC72131 D
87-A21-415-010 IC,LA1843
87-A21-269-010 IC,EW732<U>
87-020-454-010 IC,DN6851<LH>
TRANSISTOR
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370 (1.8W)
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-A30-087-080 C-FET,2SK2158
87-A30-074-080 C-TR,RT1P 141C
87-A30-091-080 FET,2SJ460
87-A30-318-080 TR,CSA952K
87-A30-090-080 FET,2SK2541
87-A30-329-080 TR,CD1585BC
87-A30-104-080 C-TR,RT1N 441C
87-A30-073-080 C-TR,RT1N 141C
89-333-317-880 TR,2SC3331 (0.5W)
87-A30-269-040 C-FET,2SJ461-T1
89-327-143-080 C-TR,2SC2714O (0.1W)
87-A30-072-080 C-TR,RT1P 144C
87-A30-234-080 TR,CSC4115BC
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-A40-736-080 DIODE,1N4148M(SEM)
87-A40-548-090 DIODE,D3SBA20<U>
87-A40-547-090 DIODE,D5SBA20<LH>
87-A40-455-080 DIODE,RL203 GW
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-012-368-080 C-CAP,S 0.1-50 F
C10 87-012-368-080 C-CAP,S 0.1-50 F
C11 87-012-368-080 C-CAP,S 0.1-50 F
C12 87-012-368-080 C-CAP,S 0.1-50 F
C15 87-012-368-080 C-CAP,S 0.1-50 F
C16 87-012-368-080 C-CAP,S 0.1-50 F
C17 87-012-368-080 C-CAP,S 0.1-50 F
C18 87-012-368-080 C-CAP,S 0.1-50 F
C19 87-016-520-000 CAP,E 3300-65 M SMG
C20 87-016-520-000 CAP,E 3300-65 M SMG
C21 87-016-051-000 CAP,E 2200-35 M SMG
C22 87-016-051-000 CAP,E 2200-35 M SMG
C23 87-016-658-000 CAP,E 4700-35 M SMG
C24 87-016-658-000 CAP,E 4700-35 M SMG
C25 87-010-408-080 CAP, ELECT 47-50V
C26 87-010-247-080 CAP, ELECT 100-50V
C30 87-010-430-080 CAP, ELECT 100-63
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C33 87-010-263-080 CAP, ELECT 100-10V<U>
C34 87-010-260-080 CAP, ELECT 47-25V
C35 87-015-682-080 CAP,E 22-16 7L
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-197-080 CAP, CHIP 0.01 DM
C60 87-010-403-080 CAP, ELECT 3.3-50V
C61 87-010-260-080 CAP, ELECT 47-25V
C101 87-010-183-080 C-CAP,S 2700P-50 B
C102 87-010-183-080 C-CAP,S 2700P-50 B
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C107 87-010-405-080 CAP, ELECT 10-50V
C108 87-010-405-080 CAP, ELECT 10-50V
C111 87-010-405-080 CAP, ELECT 10-50V
C112 87-010-405-080 CAP, ELECT 10-50V
C113 87-010-866-080 CAP, ELECT 10-63
C114 87-010-866-080 CAP, ELECT 10-63
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-197-080 CAP, CHIP 0.01 DM
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C133 87-010-186-080 CAP,CHIP 4700P
C140 87-010-182-080 C-CAP,S 2200P-50 B
C141 87-010-196-080 CHIP CAPACITOR,0.1-25
C203 87-010-182-080 C-CAP,S 2200P-50 B
C204 87-010-182-080 C-CAP,S 2200P-50 B
C209 87-010-402-080 CAP, ELECT 2.2-50V
C210 87-010-402-080 CAP, ELECT 2.2-50V
C211 87-010-184-080 CHIP CAPACITOR 3300P(K)
C212 87-010-184-080 CHIP CAPACITOR 3300P(K)
C213 87-010-402-080 CAP, ELECT 2.2-50V
C214 87-010-402-080 CAP, ELECT 2.2-50V
C217 87-010-405-080 CAP, ELECT 10-50V
C218 87-010-405-080 CAP, ELECT 10-50V
C220 87-010-405-080 CAP, ELECT 10-50V
C223 87-010-190-080 S CHIP F 0.01
C224 87-010-190-080 S CHIP F 0.01
C228 87-010-405-080 CAP, ELECT 10-50V
C229 87-010-993-080 C-CAP,S 0.056-25 B
C230 87-010-993-080 C-CAP,S 0.056-25 B
C231 87-010-196-080 CHIP CAPACITOR,0.1-25
C232 87-010-196-080 CHIP CAPACITOR,0.1-25
C239 87-010-196-080 CHIP CAPACITOR,0.1-25
C301 87-010-178-080 CHIP CAP 1000P
C302 87-010-178-080 CHIP CAP 1000P
C303 87-010-178-080 CHIP CAP 1000P
C304 87-010-178-080 CHIP CAP 1000P
C307 87-010-263-080 CAP, ELECT 100-10V
C308 87-010-263-080 CAP, ELECT 100-10V
C309 87-010-318-080 C-CAP,S 47P-50 CH
C310 87-010-318-080 C-CAP,S 47P-50 CH
C313 87-010-188-080 CAP,CHIP 6800P
C314 87-010-188-080 CAP,CHIP 6800P
C315 87-010-263-080 CAP, ELECT 100-10V
MC-Service

– 7 –
C317 87-010-546-080 CAP, ELECT 0.33-50V
C318 87-010-546-080 CAP, ELECT 0.33-50V
C326 87-010-198-080 CAP, CHIP 0.022
C327 87-012-368-080 C-CAP,S 0.1-50 F
C360 87-010-401-080 CAP, ELECT 1-50V
C399 87-012-140-080 CAP 470P
C401 87-010-544-080 CAP, ELECT 0.1-50V
C402 87-010-544-080 CAP, ELECT 0.1-50V
C403 87-010-321-080 CHIP CAPACITOR,82P(J)
C404 87-010-321-080 CHIP CAPACITOR,82P(J)
C405 87-010-197-080 CAP, CHIP 0.01 DM
C406 87-010-197-080 CAP, CHIP 0.01 DM
C407 87-010-197-080 CAP, CHIP 0.01 DM
C408 87-010-197-080 CAP, CHIP 0.01 DM
C409 87-010-182-080 C-CAP,S 2200P-50 B
C410 87-010-182-080 C-CAP,S 2200P-50 B
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
C452 87-010-382-080 CAP, ELECT 22-25V
C453 87-010-183-080 C-CAP,S 2700P-50 B
C454 87-010-183-080 C-CAP,S 2700P-50 B
C455 87-010-183-080 C-CAP,S 2700P-50 B
C456 87-010-197-080 CAP, CHIP 0.01 DM
C458 87-010-178-080 CHIP CAP 1000P
C459 87-010-175-080 CAP 560P
C460 87-010-196-080 CHIP CAPACITOR,0.1-25
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C507 87-010-196-080 CHIP CAPACITOR,0.1-25
C508 87-010-178-080 CHIP CAP 1000P
C509 87-A10-300-080 CAP,M 0.027-50 J
C510 87-A10-300-080 CAP,M 0.027-50 J
C515 87-A10-300-080 CAP,M 0.027-50 J
C516 87-A10-300-080 CAP,M 0.027-50 J
C518 87-010-196-080 CHIP CAPACITOR,0.1-25
C519 87-010-546-080 CAP, ELECT 0.33-50V
C520 87-010-546-080 CAP, ELECT 0.33-50V
C521 87-010-546-080 CAP, ELECT 0.33-50V
C522 87-010-546-080 CAP, ELECT 0.33-50V
C523 87-010-545-080 CAP, ELECT 0.22-50V
C524 87-010-545-080 CAP, ELECT 0.22-50V
C525 87-010-545-080 CAP, ELECT 0.22-50V
C526 87-010-545-080 CAP, ELECT 0.22-50V
C605 87-010-179-080 CAP,CHIP S B1200P
C606 87-010-179-080 CAP,CHIP S B1200P
C609 87-010-213-080 C-CAP,S 0.015-50 B
C610 87-010-213-080 C-CAP,S 0.015-50 B
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-010-154-080 CAP CHIP 10P
C616 87-010-385-080 CAP, ELECT 220-25V
C617 87-010-385-080 CAP, ELECT 220-25V
C618 87-010-405-080 CAP, ELECT 10-50V
C620 87-010-263-080 CAP, ELECT 100-10V
C630 87-016-669-080 C-CAP,S 0.1-25 K B
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C633 87-016-369-080 C-CAP,S 0.033-25 B K
C634 87-016-369-080 C-CAP,S 0.033-25 B K
C671 87-010-196-080 CHIP CAPACITOR,0.1-25<LH>
C672 87-010-196-080 CHIP CAPACITOR,0.1-25<LH>
C673 87-010-182-080 C-CAP,S 2200P-50 B<LH>
C677 87-010-197-080 CAP, CHIP 0.01 DM
C678 87-010-197-080 CAP, CHIP 0.01 DM
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-197-080 CAP, CHIP 0.01 DM
C783 87-010-197-080 CAP, CHIP 0.01 DM
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-197-080 CAP, CHIP 0.01 DM
C786 87-010-197-080 CAP, CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A12-052-080 C-CAP,S 0.033-25 J B
C790 87-A12-052-080 C-CAP,S 0.033-25 J B
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-010-194-080 CAP, CHIP 0.047
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-403-080 CAP, ELECT 3.3-50V
C816 87-010-403-080 CAP, ELECT 3.3-50V
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-405-080 CAP, ELECT 10-50V
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01 DM
C844 87-010-197-080 CAP, CHIP 0.01 DM
C850 87-010-408-080 CAP, ELECT 47-50V
C851 87-010-197-080 CAP, CHIP 0.01 DM
C852 87-010-197-080 CAP, CHIP 0.01 DM
C853 87-010-197-080 CAP, CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01 DM
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-010-152-080 C-CAP,S 8P-50 CH
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
C974 87-010-197-080 CAP, CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-132-080 CAP,TC U 0.01-50 K B
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA1 8A-NF8-654-010 CONN ASSY,11P TID-A(480)
FFE831 A8-8ZA-190-030 8ZA-1 FEUNM
J202 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 8 –
J204 87-A61-153-010 JACK,PIN 4P R/W(BL) (SEPA) KM<U>
J205 87-A61-157-010 JACK,PIN 2P R/W/BL V(SEPA) KM<LH>
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
L101 87-003-383-010 COIL,1UH-S
L102 87-003-383-010 COIL,1UH-S
L201 87-003-383-010 COIL,1UH-S
L202 87-003-383-010 COIL,1UH-S
L451 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-540-010 COIL,FM DET(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R129 87-A00-257-080 RES,M/F 0.15-1W J
R130 87-A00-257-080 RES,M/F 0.15-1W J
R143 87-A00-439-050 RES,180-1/2W J RP<U>
R143 87-A00-440-050 RES,220-1/2W J RP<LH>
R144 87-A00-439-050 RES,180-1/2W J RP<U>
R144 87-A00-440-050 RES,220-1/2W J RP<LH>
R145 87-A00-439-050 RES,180-1/2W J RP<U>
R145 87-A00-440-050 RES,220-1/2W J RP<LH>
R146 87-A00-439-050 RES,180-1/2W J RP<U>
R146 87-A00-440-050 RES,220-1/2W J RP<LH>
R233 87-A00-258-080 RES,M/F 0.22-1W J
R234 87-A00-258-080 RES,M/F 0.22-1W J
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR451 87-A90-432-080 SFR,30K H NVZ6TLTA
SFR452 87-A90-432-080 SFR,30K H NVZ6TLTA
WH1 87-A91-179-010 HLDR,WIRE 2.5-11P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C201 87-010-322-080 C-CAP,S 100P-50 CH
C202 87-010-322-080 C-CAP,S 100P-50 CH
C203 87-010-322-080 C-CAP,S 100P-50 CH
C204 87-010-322-080 C-CAP,S 100P-50 CH
C205 87-010-322-080 C-CAP,S 100P-50 CH
C206 87-010-322-080 C-CAP,S 100P-50 CH
C207 87-010-322-080 C-CAP,S 100P-50 CH
C208 87-010-322-080 C-CAP,S 100P-50 CH
C209 87-010-322-080 C-CAP,S 100P-50 CH
C210 87-010-322-080 C-CAP,S 100P-50 CH
C211 87-010-322-080 C-CAP,S 100P-50 CH
C251 87-010-405-040 CAP,E 10-50
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C254 87-012-369-080 C-CAP,S 0.047-50F
C255 87-010-415-040 CAP,E 10-50 5L
C256 87-010-405-040 CAP,E 10-50
C259 87-010-405-040 CAP,E 10-50
C273 87-010-178-080 CHIP CAP 1000P
C274 87-010-178-080 CHIP CAP 1000P
C301 87-010-182-080 C-CAP,S 2200P-50 B
C302 87-010-196-080 CHIP CAPACITOR,0.1-25
C312 87-010-498-040 CAP,E 10-16 GAS
C314 87-010-196-080 CHIP CAPACITOR,0.1-25
C315 87-010-196-080 CHIP CAPACITOR,0.1-25
C316 87-010-196-080 CHIP CAPACITOR,0.1-25
C321 87-A11-606-080 C-CAP,S 0.22-25 K B
C322 87-010-400-040 CAP,E 0.47-50
C325 87-A10-189-040 CAP,E 220-10
C326 87-A10-189-040 CAP,E 220-10
C332 87-010-178-080 CHIP CAP 1000P
C334 87-010-312-080 C-CAP,S 15P-50 CH
C335 87-012-140-080 CAP 470P
C336 87-012-155-080 C-CAP 180P-50CH
C339 87-012-156-080 C-CAP,S 220P-50 CH
C340 87-010-197-080 CAP, CHIP 0.01 DM
C341 87-010-194-080 CAP, CHIP 0.047
C351 87-010-382-040 CAP,E 22-25 SME
C401 87-010-197-080 CAP, CHIP 0.01 DM
C451 87-010-196-080 CHIP CAPACITOR,0.1-25
C452 87-010-196-080 CHIP CAPACITOR,0.1-25
C453 87-010-196-080 CHIP CAPACITOR,0.1-25
C454 87-010-196-080 CHIP CAPACITOR,0.1-25
C455 87-010-196-080 CHIP CAPACITOR,0.1-25
C502 87-010-186-080 CAP,CHIP 4700P<LH>
C503 87-010-112-040 CAP,E 100-16<LH>
C504 87-010-405-040 CAP,E 10-50<LH>
C505 87-010-545-040 CAP,E 0.22-50 SME<LH>
C506 87-010-320-080 CHIP CAP 68P<LH>
C507 87-010-544-040 CAP,E 0.1-50 SME<LH>
C508 87-010-544-040 CAP,E 0.1-50 SME<LH>
C509 87-010-177-080 C-CAP,S 820P-50 SL<LH>
C510 87-010-322-080 C-CAP,S 100P-50 CH<LH>
C511 87-010-265-040 CAP,E 33-16 SME<LH>
C513 87-010-196-080 CHIP CAPACITOR,0.1-25<LH>
C515 87-010-178-080 CHIP CAP 1000P<LH>
C602 87-010-322-080 C-CAP,S 100P-50 CH
C603 87-010-322-080 C-CAP,S 100P-50 CH
C604 87-010-322-080 C-CAP,S 100P-50 CH
C650 87-010-196-080 CHIP CAPACITOR,0.1-25
C699 87-010-196-080 CHIP CAPACITOR,0.1-25
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN102 87-099-015-010 CONN,13P 6216V
CN301 87-A60-140-010 CONN,15P V FE<LH>
CN302 87-A60-136-010 CONN,11P V FE<U>
FB501 87-008-372-080 FILTER, EMI BL OIRNI<LH>
FL401 8A-NF8-601-010 FL,HNA-11MM30(ANF-8)
J501 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM<LH>
L331 87-A50-408-010 COIL,OSC 5.76MHZ
LED311 87-A40-589-040 LED,SLR-56VCT31 RED
LED601 87-A40-803-010 LED,SELU1E10CXM-S LF38 BLUE
LED602 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED603 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED604 87-A40-619-080 LED,SLR-56PT-TE7-W GRN<LH>
LED605 87-A40-619-080 LED,SLR-56PT-TE7-W GRN<U>
LED606 87-A40-619-080 LED,SLR-56PT-TE7-W GRN<LH>
LED607 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED608 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
S401 87-A91-024-180 SW,TACT KSH0611BT
S402 87-A91-024-180 SW,TACT KSH0611BT
S403 87-A91-024-180 SW,TACT KSH0611BT
S404 87-A91-024-180 SW,TACT KSH0611BT
S405 87-A91-024-180 SW,TACT KSH0611BT
S406 87-A91-024-180 SW,TACT KSH0611BT
S407 87-A91-024-180 SW,TACT KSH0611BT
S408 87-A91-024-180 SW,TACT KSH0611BT
S409 87-A91-024-180 SW,TACT KSH0611BT
S410 87-A91-024-180 SW,TACT KSH0611BT
S411 87-A91-024-180 SW,TACT KSH0611BT
S412 87-A91-024-180 SW,TACT KSH0611BT<LH>
S413 87-A91-024-180 SW,TACT KSH0611BT
S414 87-A91-024-180 SW,TACT KSH0611BT
S415 87-A91-024-180 SW,TACT KSH0611BT
S416 87-A91-024-180 SW,TACT KSH0611BT
S417 87-A91-024-180 SW,TACT KSH0611BT
S418 87-A91-024-180 SW,TACT KSH0611BT
S419 87-A91-024-180 SW,TACT KSH0611BT
S420 87-A91-024-180 SW,TACT KSH0611BT<LH>
S425 87-A91-024-180 SW,TACT KSH0611BT
S426 87-A91-024-180 SW,TACT KSH0611BT
S430 87-A91-024-180 SW,TACT KSH0611BT
S431 87-A91-024-180 SW,TACT KSH0611BT
S432 87-A91-024-180 SW,TACT KSH0611BT
S433 87-A91-024-180 SW,TACT KSH0611BT
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
MC-Service

– 9 –
!
!
!
!
!
!
!
S434 87-A91-024-180 SW,TACT KSH0611BT
S435 87-A91-024-180 SW,TACT KSH0611BT
SW252 87-A91-555-010 SW,RTRY EC12E24504
SW253 87-A91-542-010 SW,RTRY EC12E12504
VR501 86-NFA-607-010 VR,RTRY 10K15AX1 1 V XV0121PVN<LH>

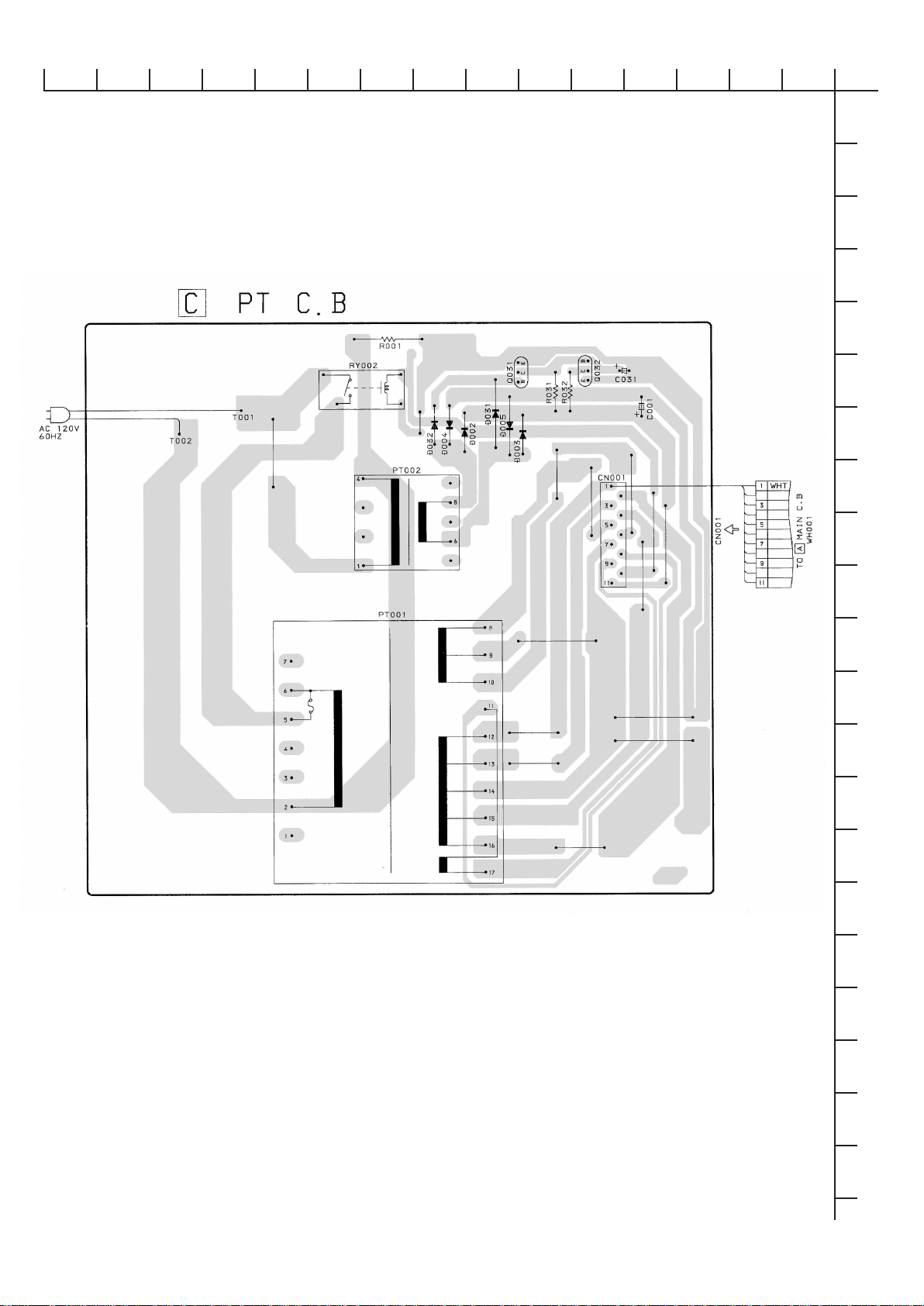

PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C31 87-010-403-040 CAP,E 3.3-50 SME
CN1 87-A61-122-010 CONN,11P V TID-A
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI<LH>
PT2 8A-NF8-661-010 PT,SUB ANF-8 (U)<U>
RY1 87-A91-339-010 RELAY,AC DC12V G5PA-2<LH>
RY2 87-A91-418-010 RELAY,AC12V G5PA-1-M<U>
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<LH>
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
DECK C.B<U>
CN1 87-099-753-010 CONN,11P H 9604
SFR1 87-024-581-010 SFR,3.3K DIA6V K0A
SW1 87-A90-673-010 SW,MICRO ESE11SH1C
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0
SW5 87-A90-673-010 SW,MICRO ESE11SH1C
DECK C.B<LH>
CON105 87-099-756-019 CONN,15P 9604 S F
SFR1 87-024-581-019 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-248-019 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-019 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-019 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-019 SW,MICRO SPPB62
SW5 87-036-110-019 SW,MICRO SPPB62
SW6 87-036-110-019 SW,MICRO SPPB62
SW8 87-A90-248-019 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-019 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-019 RBN,CORD,4P-75
HEAD-1 C.B
85-ZM3-602-010 PWB,FLEX A
HEAD-2 C.B
85-ZM3-602-010 PWB,FLEX A
CON351 87-NF6-616-010 CONN ASSY,8P-RPB
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 10 –
TRANSISTOR ILLUSTRATION
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
E C B
KTA1266GR
KTC3198GR
CD1585BC
CSA952K
E C B
2SC3331(T/U) CSC4115BC
E C B
2SB1370
B C E
DTC114ES
KTC3199GR
E C B
2SJ460
2SK2541
S D G
S
G
D
2SK2158
2SJ461-T1
E
B
C
2SA1235F
2SC3052F
CMBT5551
CMBT5401
RT1P141C
RT1N441C
RT1N141C
RT1P144C
2SC2714O
MC-Service
