Aiwa XR-X7 User manual
SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM BASIC CD MECHANISM : DA11B3
XR-X7
U, EZ, K, HR, C
S/M Code No. 09-018-445-8R2
• This Service Manual is the “Revision Publishing” and replaces
“Simple Manual” of XR-X7 <U, EZ, K>, (S/M Code No. 09-015-445-8T1).
REVISION
XR-X7
SPEAKERSYSTEM
CX-LX7 RC-BAT01(BS)
COMPACT
DISC
REMOTE
CONTROLLER
SX-LX7
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2 –
SPECIFICATIONS ...............................................................................................................................................................3
PROTECTION OF EYES FROM LASER DURING SERVICING................................................................................... 4
ELECTRICAL MAIN PARTS LIST ..............................................................................................................................5 ~ 9

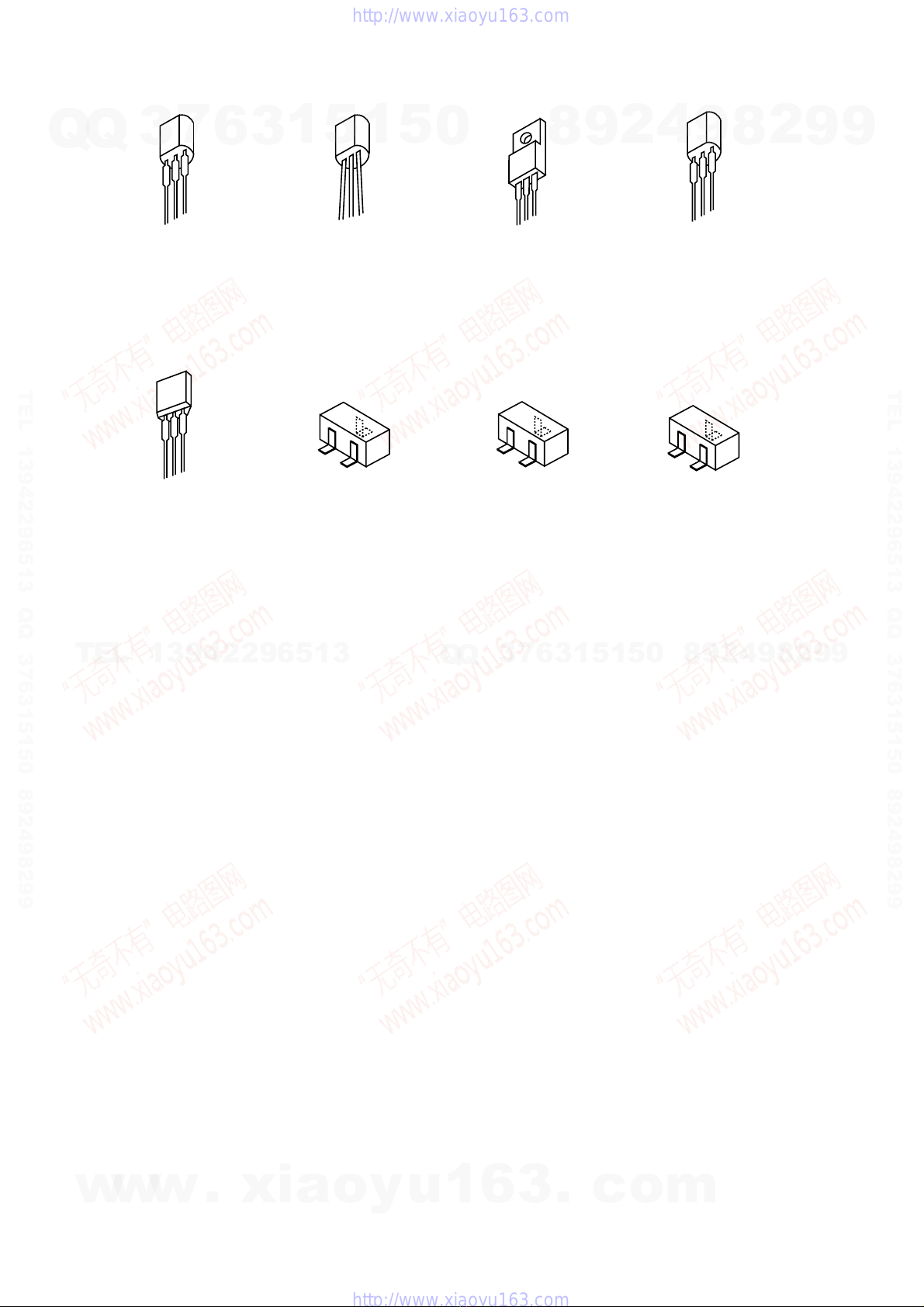

TRANSISTOR ILLUSTRATION ........................................................................................................................................10
WIRING – 1 (AMP – MICON) <U, EZ, K, HR>.................................................................................................................. 11

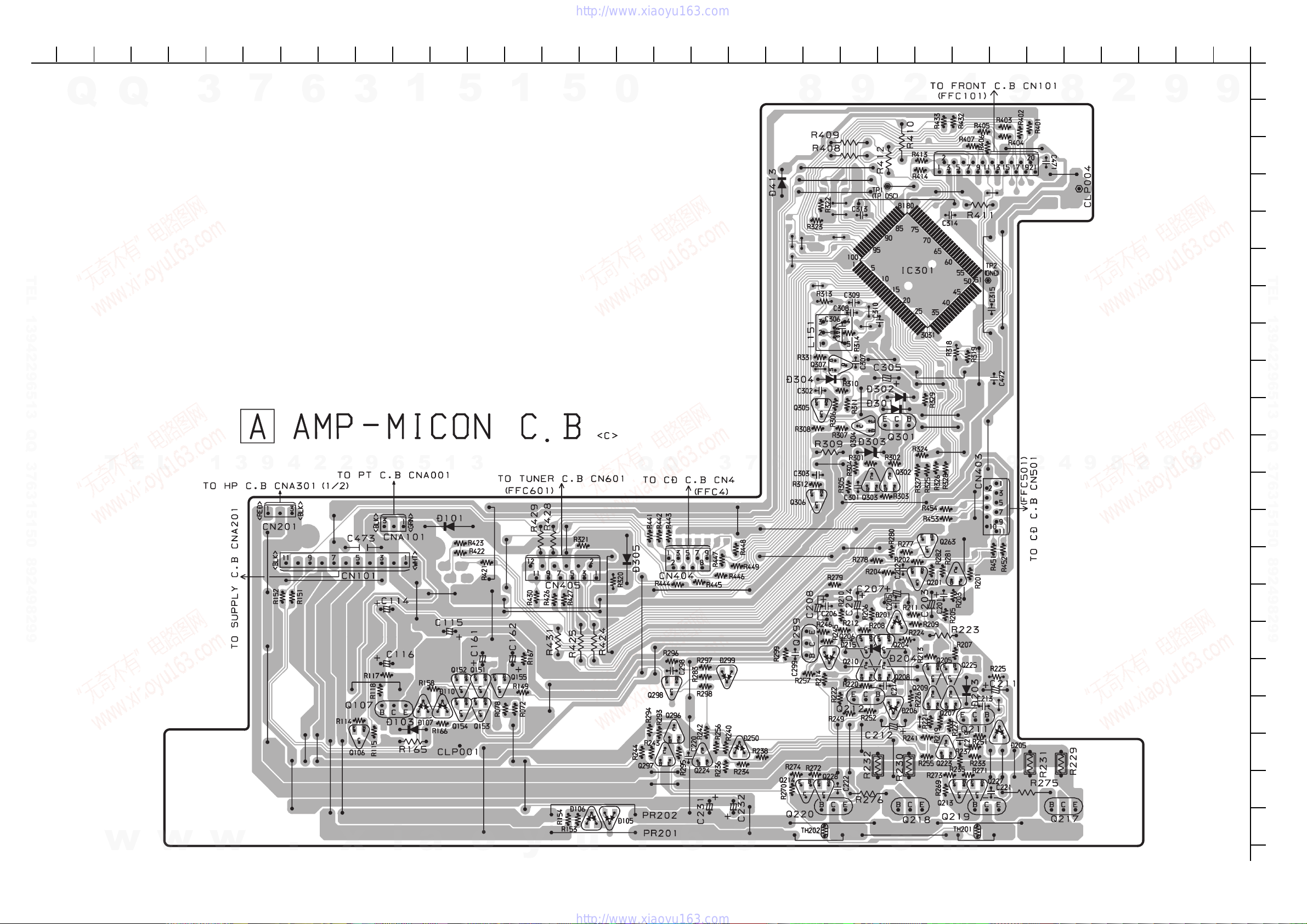

WIRING – 2 (AMP – MICON) <C>....................................................................................................................................12
SCHEMATIC DIAGRAM – 1 (AMP – MICON) .................................................................................................................. 13
WIRING – 3 (FRONT / KEY / SUPPLY / MOSW / HP) <U, EZ, K> .................................................................................. 14
WIRING – 4 (FRONT / KEY / SUPPLY / MOSW / HP) <HR, C> ...................................................................................... 15
SCHEMATIC DIAGRAM – 2 (FRONT / KEY / MOSW)..................................................................................................... 16
SCHEMATIC DIAGRAM – 3 (SUPPLY / HP).................................................................................................................... 17

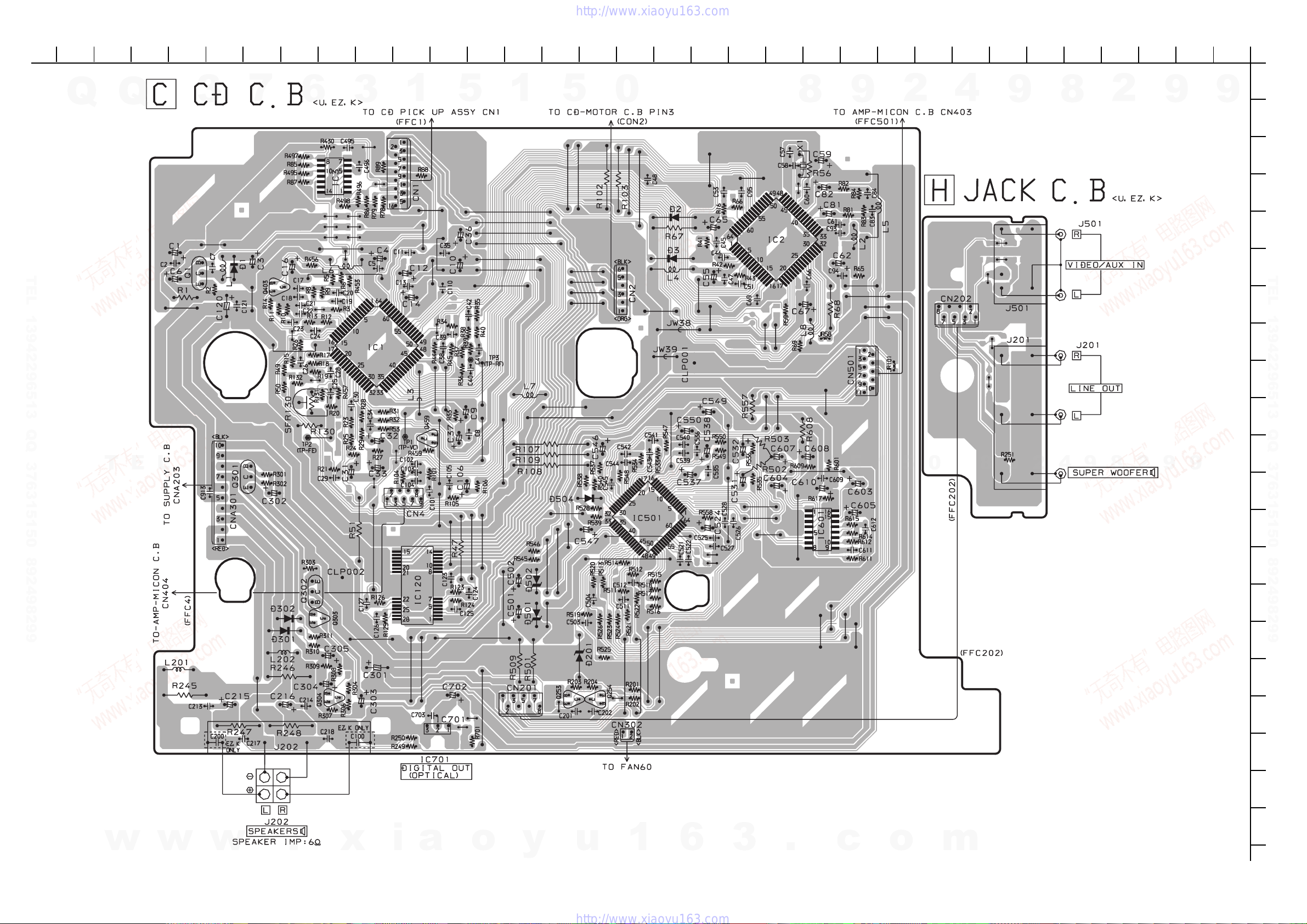

WIRING – 5 (CD / JACK) <U, EZ, K> ............................................................................................................................... 18
WIRING – 6 (CD / JACK) <HR, C> ................................................................................................................................... 19
WIRING – 7 (CD – MOTOR>............................................................................................................................................. 20
SCHEMATIC DIAGRAM – 4 (CD 1 / 2 / CD – MOTOR) ................................................................................................... 21
SCHEMATIC DIAGRAM – 5 (CD 2 / 2 / JACK) ................................................................................................................ 22
WIRING – 8 (PT) <U, EZ, K, C> ....................................................................................................................................... 23
SCHEMATIC DIAGRAM – 6 (PT) <U, EZ, K, C>............................................................................................................. 24
WIRING – 9 (PT) <HR> ....................................................................................................................................................25
SCHEMATIC DIAGRAM – 7 (PT) <HR>.......................................................................................................................... 26
WIRING – 10 (TUNER) <U, HR, C> ................................................................................................................................. 27
SCHEMATIC DIAGRAM – 8 (TUNER) <U, HR, C>......................................................................................................... 28
WIRING – 11 (TUNER) <EZ, K>....................................................................................................................................... 29
SCHEMATIC DIAGRAM – 9 (TUNER) <EZ, K> .............................................................................................................. 30
IC BLOCK DIAGRAM.................................................................................................................................................31, 32
LCD DIAGRAM .................................................................................................................................................................33
IC DESCRIPTION .....................................................................................................................................................34 ~ 39
ADJUSTMENT <TUNER / CD / AMP – MICON> .....................................................................................................40 ~ 44
CD TEST MODE .............................................................................................................................................................. 45
MECHANICAL PARTS ARRANGEMENT............................................................................................................... 46 ~ 51
MECHANICAL PARTS LIST 1 / 1 ................................................................................................................................... 52
CD MECHANISM EXPLODED VIEW 1 / 1 .................................................................................................................... 53
CD MECHANISM PARTS LIST 1 / 1 .............................................................................................................................53
GENERAL SPEAKER DISASSEMBLY INSTRUCTIONS (FOR REFERENCE) .......................................................... 54
SPEAKER PARTS LIST <SX – LX7 (YJSN, YUJSN)>.................................................................................................. 55
ACCESSORIES / PACKAGE LIST ................................................................................................................................... 55
TABLE OF CONTENTS
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 3 –
SPECIFICATIONS <EZ, K>
MAIN UNIT CX-LX7
TUNER
FM tuning range 87.5 MHz to 108 MHz
FM usable sensitivity (IHF) 16.8 dBf
FM antenna terminal 75 ohms (unbalanced)
MW tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
MW usable sensitivity 350 µV/m
LW tuning range 144 kHz to 290 kHz
LW usable sensitivity 1400 µV/m
MW/LW antenna Loop antenna
AMPLIFIER
Power output Rated: 16 W + 16 W
(6 ohms, THD 1 %, 1 kHz/DIN 45500)
Reference: 20 W + 20 W
(6 ohms, THD 10 %, 1 kHz/DIN 45324)
DIN MUSIC POWER: 30 W + 30 W
Input VIDEO/AUX: 400 mV
Outputs SPEAKERS: 6 ohms or more
PHONES: 16 ohms or more
SUB WOOFER: 1.0 V
DIGITAL OUT (OPTICAL) jack
LINE OUT jack
CD PLAYER
Laser Semiconductor laser (λ = 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.08 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
GENERAL
Power requirements 230 V AC, 50 Hz
Power consumption EZ: 50 W
K: 55 W
Power consumption in
standby mode EZ: With ECO mode on: 1.2 W
With ECO mode off: 13 W
K: With ECO mode on: 1.5 W
With ECO mode off: 15 W
Dimensions (W xH xD) 249 x 92 x 353 mm
Weight 3.5 kg
SPEAKER SYSTEM SX-LX7
Speaker system 2 way, bass reflex (magnetic shielded)
Speaker units Woofer: 80 mm cone
Tweeter: 25 mm dome
Impedance 6 ohms
Dimensions (W xH xD) 98 x 260 x 191 mm
Weight 1.6 kg
• Design and specifications are subject to change without notice.
SPECIFICATIONS <U, HR, C>
MAIN UNIT CX-LX7
TUNER
FM tuning range 87.5 MHz to 108 MHz
FM usable sensitivity (IHF) 13.2 dBf
FM antenna terminals 75 ohms (unbalanced)
AM tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
AM usable sensitivity 350 µV/m
AM antenna Loop antenna
AMPLIFIER
Power output <U, C> 16 W + 16 W
(150 Hz - 16 kHz, THD less than 1 %,
6 ohms)
20 W + 20 W
(1 kHz, THD less than 10 %, 6 ohms)
Total harmonic distortion <U, C>
0.1 % (6 W, 1 kHz, 6 ohms, DIN AUDIO)
Power output <HR> Rated: 16 W + 16 W
(6 ohms, THD 1 %, 1 kHz)
Reference: 20 W + 20 W
(6 ohms, THD 10 %, 1 kHz)
Input VIDEO/AUX: 400 mV
Outputs SPEAKERS: 6 ohms or more
PHONES: 16 ohms or more
SUB WOOFER: 1.0 V
DIGITAL OUT (OPTICAL) jack
LINE OUT jack
CD PLAYER
Laser Semiconductor laser (λ = 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.08 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
GENERAL
Power requirements U, C: 120 V AC, 60 Hz
HR: 120 / 220 - 240 V AC switchable
50 / 60 Hz
Power consumption U: 45 W
C: 50 W
HR: 60 W
Power consumption in
standby mode With ECO mode on: 1.0 W
U, C: With ECO mode off: 13 W
HR: With ECO mode off: 15 W
Dimensions (W xH xD) 249 x 92 x 350 mm
(9 7/8x 3 3/4x 13 7/8in.)
Weight 3.5 kg (7 lbs 13 oz)
SPEAKER SYSTEM SX-LX7
Speaker system 2 way, bass reflex (magnetic shielded)
Speaker units Woofer: 80 mm (3 1/4in.) cone
Tweeter: 25 mm (1 in.) dome
Impedance 6 ohms
Dimensions (W xH xD) 98 x 260 x 191 mm
(3 7/8x 10 3/8x 7 5/8in.)
Weight 1.6 kg (3 lbs 10 oz)
• Design and specifications are subject to change without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 4 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.

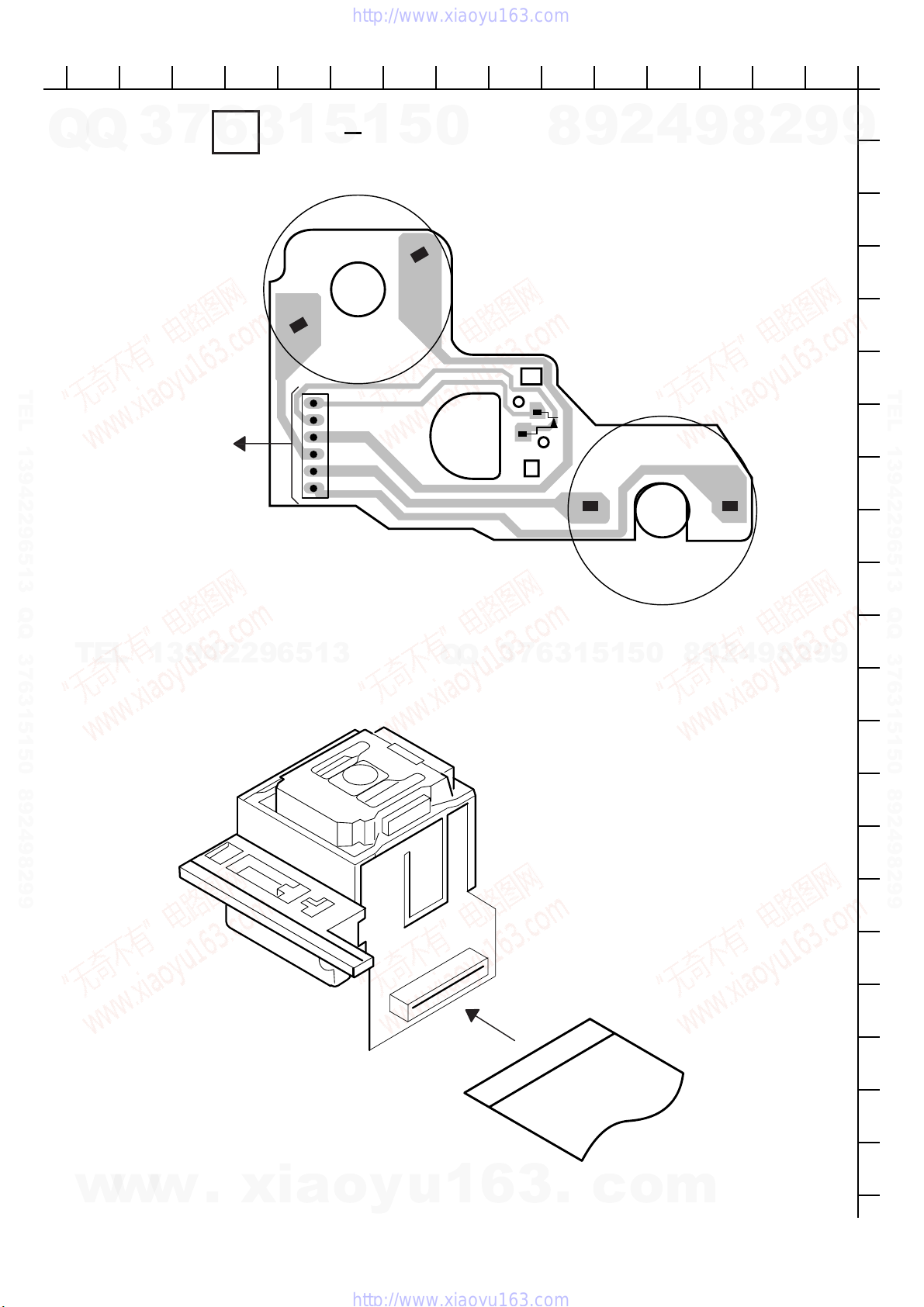

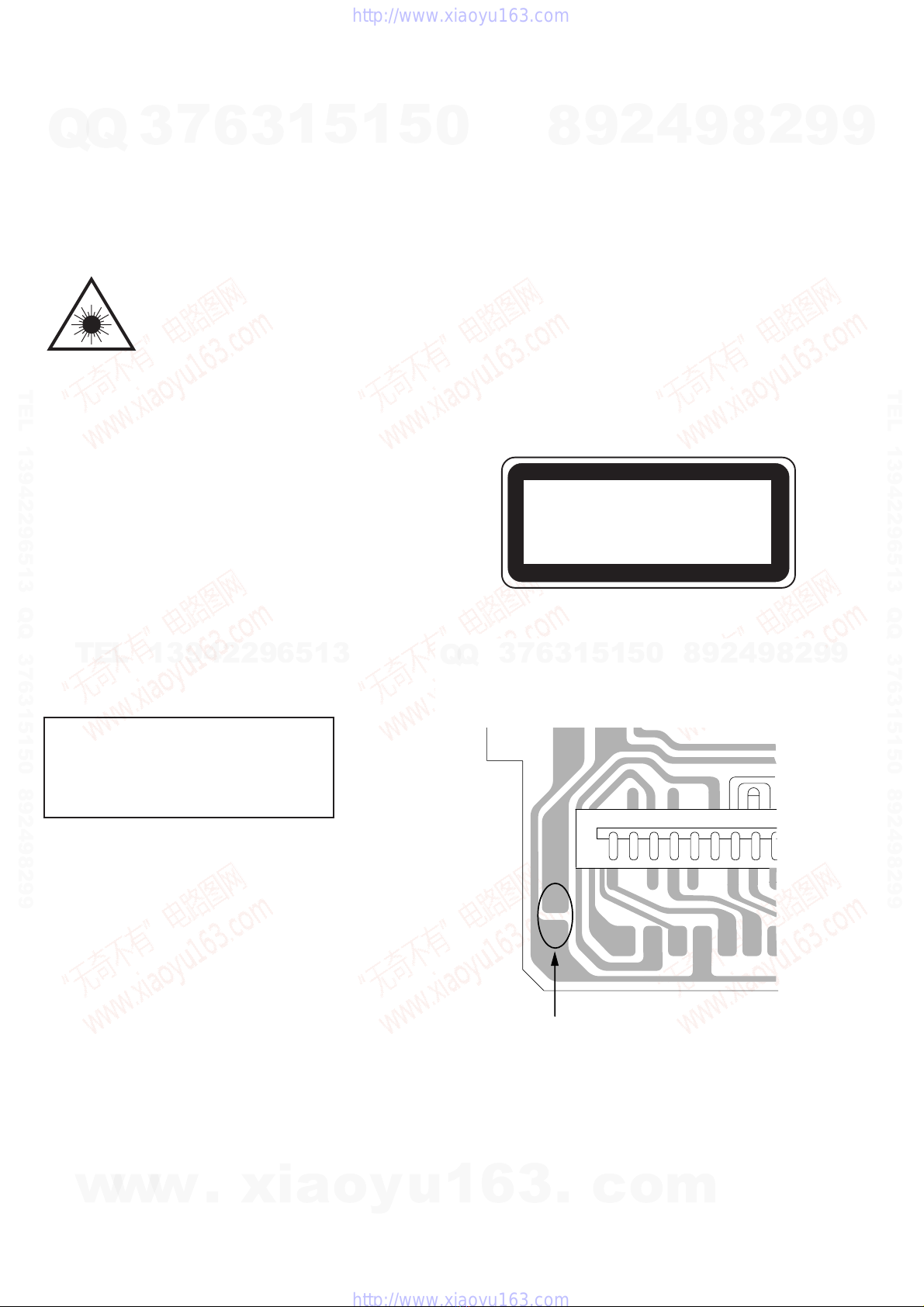

Precaution to replace Optical block
(SF-P101NR)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
Solder
PICK-UP Assy PWB
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 5 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A20-446-010 C-IC,LA9241ML
87-A21-319-010 C-IC,LC78622NE
87-017-917-080 IC,BU4066BCF
87-A21-968-030 C-IC,LC75824E
87-A22-043-010 IC,SPS-440-1-E1
87-A21-985-040 C-IC,BA5983FM
87-001-576-010 IC,MJM7812FA
87-002-349-010 IC,NJM78M06FA
87-A21-298-010 IC,SI-3050F
8B-CL2-601-030 C-IC,LC876564V-5V69
87-A21-452-130 C-IC,BD3876AKS2
87-A21-103-040 C-IC,MM1454XFBE
87-017-825-010 IC,GP1F32T
87-A21-928-010 IC,LC72131D-N
87-A20-440-040 C-IC,BU1920FS<EZ>
87-A20-913-010 IC,LA1837NL
TRANSISTOR
87-026-463-080 TR,2SA933SRS
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-026-609-080 TR,KTA1266GR
87-A30-427-040 C-TR,DTC114EKA
87-A30-075-080 C-TR,2SA1235F
87-A30-447-040 C-TR,DTA114EKA
87-A30-234-080 TR,CSC4115BC
87-A30-520-080 TR,2SC5342Y
87-A30-515-080 TR,2SA1979O/Y
87-A30-076-080 C-TR,2SC3052F
89-333-266-080 CHIP TR,2SC3326B
87-A30-107-070 C-TR,CMBT5401
87-A30-060-080 C-TR,KTC3875GR
87-A30-190-080 TR,CC5551
87-A30-306-010 TR,2SB1677
87-A30-307-010 TR,2SD2619
87-A30-257-080 C-TR,2SD1306E
87-A30-484-080 C-TR,KRA102S
87-A30-061-080 C-TR,KTA1504GR
87-A30-494-080 TR,2SA1980G
87-A30-490-080 C-TR,KRC107S
87-A30-087-080 C-FET,2SK2158
87-A30-287-040 C-TR,DTC114TKA
87-A30-196-080 TR,2SC4115SRS
89-327-143-080 C-TR,2SC2714O
87-A30-072-080 C-TR,RT1P 144C
87-A30-635-040 C-TR,SBT5401F<HR,C>
89-322-405-080 TR,2SC2240GR<C>
89-503-602-080 C-FET,2SK360E<EZ,K>
87-A30-086-070 C-TR,CSD1306E<EZ,K>
87-A30-074-080 C-TR,RT1P141C<EZ,K>
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-070-274-080 DIODE,1N4003 SEM
87-070-136-080 ZENER,MTZJ5.1B
87-A40-313-080 C-DIODE,MC2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-505-040 C-DIODE,KDS181
87-017-654-060 DIODE,GBU6JL6131
87-017-650-080 DIODE,1SS119
87-A40-504-040 C-DIODE,KDS184
87-A40-748-080 ZENER,UZ5.6BSA
87-A40-437-080 ZENER,MTZJ4.3B
87-017-148-080 ZENER,HZS6A1L
AMP-MICON C.B
C114 87-016-044-040 CAP,E 100-16 GAS
C115 87-016-044-040 CAP,E 100-16 GAS
C116 87-016-044-040 CAP,E 100-16 GAS
C161 87-010-553-040 CAP,E 47-16
C162 87-010-496-040 CAP,E 3.3-50 5L
C201 87-012-278-080 C-CAP,U 2200P-50 B
C202 87-012-278-080 C-CAP,U 2200P-50 B
C203 87-010-421-080 CAP, ELECT 4.7-50V
C204 87-A12-090-080 CAP,E 4.7-50 SMG
C205 87-012-281-080 C-CAP,U 3900P-50 B
C206 87-012-281-080 C-CAP,U 3900P-50 B
C207 87-A12-090-080 CAP,E 4.7-50 SMG
C208 87-A12-090-080 CAP,E 4.7-50 SMG
C211 87-A12-070-080 CAP,E 33-25 SMG
C212 87-A12-070-080 CAP,E 33-25 SMG
C213 87-012-266-080 C-CAP,U 220P-50 B
C214 87-012-266-080 C-CAP,U 220P-50 B
C219 87-012-286-080 C-CAP,U 0.01-25 K B
C220 87-012-286-080 C-CAP,U 0.01-25 K B
C221 87-010-831-080 C-CAP,U,0.1-16F
C222 87-010-831-080 C-CAP,U,0.1-16F
C231 87-010-490-040 CAP, ELECT 0.1-50
C232 87-010-490-040 CAP, ELECT 0.1-50
C298 87-012-282-080 C-CAP,U 4700P-50 K B
C299 87-012-286-080 C-CAP,U 0.01-25 K B
C301 87-012-278-080 C-CAP,U 2200P-50 B
C302 87-A10-781-080 C-CAP,U 0.15-10 K B
C303 87-010-785-080 C-CAP,U0.015-25BK
C305 87-A12-063-080 CAP,E 220-10 SMG
C306 87-012-195-080 C-CAP,U 100P-50CH
C307 87-012-176-080 C-CAP,U 15P-50 J CH
C308 87-012-198-080 C-CAP,U 180P-50 J CH
C309 87-012-274-080 CHIP CAP,U 1000P-50B
C310 87-010-831-080 C-CAP,U,0.1-16F
C313 87-010-831-080 C-CAP,U,0.1-16F
C314 87-010-831-080 C-CAP,U,0.1-16F
C315 87-010-831-080 C-CAP,U,0.1-16F
C471 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT C>
C471 87-012-286-080 C-CAP,U 0.01-25 KB<C>
C472 87-A11-132-080 CAP,TC U 0.01-50 K B<EXCEPT C>
C472 87-012-286-080 C-CAP,U 0.01-25 KB<C>
C473 87-A11-132-080 CAP,TC U 0.01-50 K B
CN101 87-099-411-010 CONN,11P V WHT EH
CN201 87-049-919-010 CONN,3P V WHT EH
CN401 87-A61-370-010 CONN,21P V BLK FMN-BTRK
CN403 87-A61-272-010 CONN,11P V BLK FMN-BTRK
CN404 87-A60-900-010 CONN,9P V BLK FMN-BTRK
CN405 87-099-014-010 CONN,12P V BLK 6216
CN406 87-099-211-010 CONN,4P V BLK 6216<EZ>
CNA101 87-A60-620-010 CONN,3P V 2MM JMT
L151 87-A50-333-010 COIL,OSC 9.43MHZ
R229 87-A00-258-080 RES,M/F 0.22-1W J
R230 87-A00-258-080 RES,M/F 0.22-1W J
R231 87-A00-258-080 RES,M/F 0.22-1W J
R232 87-A00-258-080 RES,M/F 0.22-1W J
R319 87-022-239-080 C-RES U 10K-1/16WF
R324 87-022-239-080 C-RES U 10K-1/16WF
TH201 87-A91-042-080 C-THMS,100K 55001
TH202 87-A91-042-080 C-THMS,100K 55001
FRONT C.B
C101 87-012-195-080 C-CAP,U 100P-50CH
C102 87-010-560-040 CAP,E 10-50 GAS
C103 87-010-829-080 CAP, U 0.047-16
C104 87-010-829-080 CAP, U 0.047-16
C105 87-012-195-080 C-CAP,U 100P-50CH
C106 87-012-195-080 C-CAP,U 100P-50CH
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C107 87-012-195-080 C-CAP,U 100P-50CH
C108 87-010-831-080 C-CAP,U,0.1-16F
C111 87-012-274-080 CHIP CAP,U 1000P-50B
C112 87-010-560-040 CAP,E 10-50 GAS
C113 87-012-286-080 C-CAP,U 0.01-25 K B
C114 87-012-286-080 C-CAP,U 0.01-25 K B
CN101 87-A61-370-010 CONN,21P V BLK FMN-BTRK
CN102 87-099-201-010 CONN,8P H BLK 6216
FFC101 8B-CL2-660-010 FF-CABLE,21P 1.0
LCD101 8B-CL2-605-010 LCD,AIW4277-30PIN BCL-2
LED101 87-A40-317-080 LED,SLR-342VCT31 RED
LED102 87-A92-077-010 LED,SMLU1BE16C-SLF73 BLU/UMB
LED103 87-A92-077-010 LED,SMLU1BE16C-SLF73 BLU/UMB
LED104 87-A41-054-010 LED,SELV1D10CXM-S GREEN<U,EZ,K>
LED104 87-A92-078-010 LED,SELU1D10CXM-SLF38 GR<HR,C>
LED105 87-A41-054-010 LED,SELV1D10CXM-S GREEN<U,EZ,K>
LED105 87-A92-078-010 LED,SELU1D10CXM-SLF38 GR<HR,C>
S101 87-A91-633-010 SW,RTRY XRE012103PVB25FINA 1-2
S111 87-A90-095-080 SW,TACT EVQ11G04M
S112 87-A90-095-080 SW,TACT EVQ11G04M
S113 87-A90-095-080 SW,TACT EVQ11G04M
S114 87-A90-095-080 SW,TACT EVQ11G04M
S115 87-A90-095-080 SW,TACT EVQ11G04M
S116 87-A90-095-080 SW,TACT EVQ11G04M
S117 87-A90-095-080 SW,TACT EVQ11G04M
CD C.B
C1 87-010-418-040 CAP,E 3.3-25 5L
C2 87-012-286-080 C-CAP,U 0.01-25 K B
C3 87-010-263-040 CAP,E 100-10
C4 87-A12-063-040 CAP,E 220-10 SMG
C5 87-012-286-080 C-CAP,U 0.01-25 K B
C6 87-010-234-040 CAP,E 47-16 5L
C7 87-012-274-080 CHIP CAP,U 1000P-50B
C8 87-010-787-080 C-CAP,U 0.022-25 K B
C9 87-A12-063-040 CAP,E 220-10 SMG
C10 87-010-263-040 CAP,E 100-10 M 11L SME
C11 87-A10-794-080 C-CAP,U 0.15-16 Z F
C12 87-010-071-040 CAP,E 1-50 M 5L SRE
C13 87-010-788-080 C-CAP,U 0.033-25 Z F
C14 87-010-405-040 CAP,E 10-50 M 11L SME
C16 87-015-962-040 CAP,E 0.22-50 M 5L SRE
C17 87-012-268-080 C-CAP,U 330P-50 B
C18 87-010-785-080 C-CAP,U0.015-25BK
C19 87-A10-706-080 C-CAP,U 0.33-16 Z F
C20 87-010-788-080 C-CAP,U 0.033-25 Z F
C21 87-A10-794-080 C-CAP,U 0.15-16 Z F
C22 87-012-280-080 C-CAP,U 3300P-50 K B
C23 87-A10-504-080 C-CAP,U 0.047-16 K B
C24 87-A10-025-080 C-CAP,U 0.22-16Z F
C25 87-012-272-080 C-CAP,U 680P-50 B
C26 87-A10-706-080 C-CAP,U 0.33-16 Z F
C28 87-012-286-080 C-CAP,U 0.01-25 K B
C29 87-012-282-080 C-CAP,U 4700P-50 K B
C30 87-012-199-080 C-CAP,U 220P-50 J CH
C31 87-010-068-040 CAP E 0.22-50 5L
C32 87-015-680-040 CAP,E 47-10 7L
C33 87-010-071-040 CAP,E 1-50 M 5L SRE
C34 87-012-280-080 C-CAP,U 3300P-50 K B
C35 87-012-286-080 C-CAP,U 0.01-25 K B
C36 87-010-374-040 CAP,E 47-10
C37 87-010-404-040 CAP,E 4.7-50 SME
C38 87-010-831-080 C-CAP,U,0.1-16F
C39 87-012-274-080 CHIP CAP,U 1000P-50B
C40 87-012-162-080 C-CAP,U 1P-50 CK
C41 87-012-280-080 C-CAP,U 3300P-50 K B
C42 87-012-176-080 C-CAP,U 15P-50 J CH
C45 87-010-831-080 C-CAP,U,0.1-16F
C46 87-010-831-080 C-CAP,U,0.1-16F
C47 87-010-831-080 C-CAP,U,0.1-16F<U,EZ,K,C>
C48 87-012-182-080 C-CAP,U 27P-50 CH
C51 87-012-199-080 C-CAP,U 220P-50 J CH
C53 87-012-195-080 C-CAP,U 100P-50CH
C55 87-010-263-040 CAP,E 100-10<U,EZ,K,C>
C57 87-012-184-080 C-CAP,U 33P-50 CH
C58 87-012-184-080 C-CAP,U 33P-50 CH
C59 87-010-263-040 CAP,E 100-10
C60 87-010-831-080 C-CAP,U,0.1-16F<U,EZ,K,C>
C61 87-010-831-080 C-CAP,U,0.1-16F<U,EZ,K,C>
C62 87-A12-058-040 CAP,E 470-6.3 SMG
C65 87-010-404-040 CAP,E 4.7-50 SME
C66 87-010-831-080 C-CAP,U,0.1-16F<U,EZ,K,C>
C67 87-010-263-040 CAP,E 100-10<U,EZ,K,C>
C69 87-012-197-080 C-CAP,U 150P-50 CH
C70 87-018-134-080 CAP,TC U 0.01-16 NY UP050<C>
C71 87-018-208-080 CAP,TC U 0.047-50 ZF<C>
C72 87-012-286-080 C-CAP,U 0.01-25 K B<C>
C73 87-010-831-080 C-CAP,U 0.1-16 ZF<C>
C74 87-018-208-080 CAP,TC U 0.047-50 ZF<C>
C75 87-010-831-080 C-CAP,U 0.1-16 ZF<C>
C76 87-010-831-080 C-CAP,U 0.1-16 ZF<C>
C81 87-010-417-040 CAP,E 2.2-35 5L
C82 87-010-417-040 CAP,E 2.2-35 5L
C83 87-012-277-080 C-CAP, U 1800P-50 B
C84 87-012-277-080 C-CAP, U 1800P-50 B
C93 87-A10-260-080 C-CAP,U 0.1-16 K B<U,EZ,K,C>
C94 87-A10-260-080 C-CAP,U 0.1-16 K B<U,EZ,K,C>
C95 87-012-286-080 C-CAP,U 0.01-25 K B
C100 87-018-131-080 CAP,TC U 1000P-50<EZ,K>
C101 87-012-195-080 C-CAP,U 100P-50CH
C102 87-012-195-080 C-CAP,U 100P-50CH
C103 87-012-195-080 C-CAP,U 100P-50CH
C104 87-012-195-080 C-CAP,U 100P-50CH
C105 87-012-195-080 C-CAP,U 100P-50CH
C106 87-010-494-040 CAP,E 1-50 GAS
C110 87-010-831-080 C-CAP,U,0.1-16F
C120 87-A12-326-080 CAP,E 1000-16 RS
C121 87-012-286-080 C-CAP,U 0.01-25 K B
C123 87-012-286-080 C-CAP,U 0.01-25 K B
C124 87-012-199-080 C-CAP,U 220P-50 K B
C125 87-012-270-080 C-CAP,U 470P-50 K B
C126 87-012-270-080 C-CAP,U 470P-50 K B
C127 87-012-199-080 C-CAP,U 220P-50 J CH
C200 87-018-131-080 CAP,TC U 1000P-50<EZ,K>
C201 87-012-199-080 C-CAP,U 220P-50 J CH
C202 87-012-199-080 C-CAP,U 220P-50 J CH
C213 87-010-758-080 C-CAP,U 0.068-25F
C214 87-010-758-080 C-CAP,U 0.068-25F
C215 87-010-544-040 CAP,E 0.1-50 SME
C216 87-010-544-040 CAP,E 0.1-50 SME
C217 87-012-278-080 C-CAP,U 2200P-50 B
C218 87-012-278-080 C-CAP,U 2200P-50 B
C301 87-010-235-080 CAP,E 470-16 SME
C302 87-010-112-040 CAP,E 100-16
C303 87-010-553-040 CAP,E 47-16 GAS
C304 87-010-404-040 CAP,E 4.7-50 SME
C305 87-010-494-040 CAP,E 1-50 GAS
C495 87-010-831-080 C-CAP,U,0.1-16F
C496 87-012-286-080 C-CAP,U 0.01-25 K B
C501 87-A12-071-040 CAP,E 47-25 SMG
C502 87-A12-071-040 CAP,E 47-25 SMG
C503 87-012-274-080 CHIP CAP,U 1000P-50B
C504 87-012-274-080 CHIP CAP,U 1000P-50B
C511 87-012-276-080 C-CAP,U 1500P-50 K B
C512 87-012-276-080 C-CAP,U 1500P-50 K B
C521 87-010-758-080 C-CAP,U 0.068-25F
C522 87-A11-070-080 C-CAP,U 0.033-16 K B
C524 87-010-401-040 CAP,E 1-50 SME
C525 87-A10-260-080 C-CAP,U 0.1-16 K B
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
C526 87-A10-260-080 C-CAP,U 0.1-16 K B
C527 87-012-286-080 C-CAP,U 0.01-25 K B
C528 87-012-286-080 C-CAP,U 0.01-25 K B
C531 87-010-421-040 CAP,E 4.7-50 5L
C532 87-010-421-040 CAP,E 4.7-50 5L
C535 87-A10-504-080 C-CAP,U 0.047-16 K B
C536 87-A10-504-080 C-CAP,U 0.047-16 K B
C537 87-010-493-040 CAP,E 0.47-50 M 5L SRE
C538 87-010-493-040 CAP,E 0.47-50 M 5L SRE
C539 87-012-281-080 C-CAP,U 3900P-50 B
C540 87-012-281-080 C-CAP,U 3900P-50 B
C541 87-A10-260-080 C-CAP,U 0.1-16 K B
C542 87-A10-260-080 C-CAP,U 0.1-16 K B
C543 87-A10-260-080 C-CAP,U 0.1-16 K B
C544 87-A10-260-080 C-CAP,U 0.1-16 K B
C545 87-A10-260-080 C-CAP,U 0.1-16 K B
C546 87-010-403-040 CAP,E 3.3-50 M 11L SME
C547 87-010-401-040 CAP,E 1-50 SME
C549 87-010-071-040 CAP,E 1-50 M 5L SRE
C550 87-010-071-040 CAP,E 1-50 M 5L SRE
C595 87-012-286-080 C-CAP,U 0.01-25 KB<HR>
C603 87-010-402-040 CAP,E 2.2-50 SME
C604 87-010-402-040 CAP,E 2.2-50 SME
C605 87-010-408-040 CAP,E 47-50 SME
C607 87-010-405-040 CAP,E 10-50
C608 87-010-405-040 CAP,E 10-50
C609 87-010-759-080 C-CAP,U, 0.1-25F
C610 87-010-384-040 CAP,E 100-25 SME
C611 87-012-286-080 C-CAP,U 0.01-25 K B
C612 87-012-286-080 C-CAP,U 0.01-25 K B
C702 87-010-374-040 CAP,E 47-10
C703 87-010-831-080 C-CAP,U,0.1-16F
C913 87-012-286-080 C-CAP,U 0.01-25 K B
CN1 87-A60-429-010 CONN,16P H TOC-A
CN2 87-A60-623-010 CONN,6P V 2MM JMT
CN4 87-A60-900-010 CONN,9P V BLK FMN-BTRK
CN201 87-A60-059-010 CONN,08P V 9604S-08C
CN302 87-A60-619-010 CONN,2P V 2MM JMT
CN501 87-A61-272-010 CONN,11P V BLK FMN-BTRK
CNA301 87-099-410-010 CONN,10P V WHT EH
CON2 86-ZG1-609-010 CONN ASSY,6P
FFC1 8B-CL2-663-010 FF-CABLE,16P 1.0
FFC4 8B-CL2-661-010 FF-CABLE,9P 1.0
FFC501 8B-CL2-662-010 FF-CABLE,11P 1.0
J202 87-YP6-608-010 TERMINAL,SPKR 4P
JR58 87-A50-189-080 C-COIL,S BLM21B272S
JR101 87-A50-189-080 C-COIL,S BLM21B272S
JW38 87-008-372-080 FLTR,EMI BL01 RN1
JW39 87-008-372-010 FLTR,EMIBL01 RN1<EZ,K>
JW43 87-008-372-010 FLTR,EMIBL01 RN1<HR>
L1 87-003-102-080 COIL,10UH J LAL02
L2 87-003-146-080 COIL,15UH J LAL02
L3 87-008-372-080 FLTR,EMI BL01 RN1
L4 87-003-102-080 COIL,10UH J LAL02
L5 87-003-152-080 COIL,100UH J LAL02
L6 87-003-102-080 COIL,10UH J LAL02
L7 87-003-102-080 COIL,10UH J LAL02
L8 87-003-102-080 COIL,10UH J LAL02
L201 87-003-383-010 COIL,1UH K
L202 87-003-383-010 COIL,1UH K
SFR130 87-024-437-080 SFR,100K H RH063MC
X1 87-A70-046-010 VIB,XTAL 16.934MHZ
KEY C.B
C100 87-018-131-080 CAP,TC U 1000P-50K
C142 87-010-553-040 CAP,E 47-16 M 5L SRE<HR,C>
CN141 87-A60-156-010 CONN,08P H FE<U>
CN141 87-A60-079-010 CONN,08P H 9604S-08F<EZ,K,HR,C>
CN142 87-A60-153-010 CONN,05P H FE<U>
CN142 87-A60-082-010 CONN,05P H 9604S-05F<EZ,K,HR,C>
FFC141 88-908-201-110 FF-CABLE,8P 1.25
FFC142 88-905-121-110 FF-CABLE, 5P 120MM
S141 87-A90-095-080 SW,TACT EVQ11G04M
S142 87-A90-095-080 SW,TACT EVQ11G04M
S143 87-A90-095-080 SW,TACT EVQ11G04M
S144 87-A90-095-080 SW,TACT EVQ11G04M
S145 87-A90-095-080 SW,TACT EVQ11G04M
S146 87-A90-095-080 SW,TACT EVQ11G04M
S147 87-A90-095-080 SW,TACT EVQ11G04M
S148 87-A90-095-080 SW,TACT EVQ11G04M
S149 87-A90-095-080 SW,TACT EVQ11G04M
SUPPLY C.B
C1 87-A11-148-080 CAP,TC U 0.1-50Z<EZ,K>
C2 87-018-104-080 CAP,TC U 10P-50<EZ,K>
C3 87-018-104-080 CAP,TC U 10P-50<EZ,K>
C201 87-A10-520-000 CAP,E 3300-35 M SMG
C202 87-016-051-000 CAP,E 2200-35 M SMG
C203 87-A12-317-080 C-CAP,U 0.1-50 Z F
C204 87-A12-317-080 C-CAP,U 0.1-50 Z F
C205 87-010-831-080 C-CAP,U,0.1-16F
C206 87-010-831-080 C-CAP,U,0.1-16F
C207 87-A12-317-080 C-CAP,U 0.1-50 Z F
C208 87-A12-317-080 C-CAP,U 0.1-50 Z F
C209 87-010-831-080 C-CAP,U,0.1-16F
C210 87-010-831-080 C-CAP,U,0.1-16F
C211 87-A12-074-080 CAP,E 470-25 SMG
C212 87-010-831-080 C-CAP,U,0.1-16F
C213 87-010-831-080 C-CAP,U,0.1-16F
C214 87-A12-068-080 CAP,E 470-16 SMG
C215 87-016-521-010 CAP,E2200-16 SMG
C216 87-010-831-080 C-CAP,U,0.1-16F
C217 87-010-380-040 CAP,E 47-16 M 11L SMG
CN201 87-009-195-010 CONN,5P V WHT EH
CN202 87-099-043-010 CONN 2P V WHT EH
CNA201 8B-CL2-671-010 CONN ASSY,11P EH
CNA203 8B-CL2-668-010 CONN ASSY,10P EH
PR201 87-A91-935-080 PROTECTOR,1A 20P 60V
PT C.B
C1 87-A10-479-080 CAP,CER 2200P-250 M E KH<EXCEPT HR>
C14 87-A10-831-080 CAP,E 1000-25 M SMG
C16 87-010-496-080 CAP,E 3.3-50 5L
CN1 87-A60-645-010 CONN,3P V VH<U,EZ,K,C>
CN1 87-A60-851-010 CONN,9P V VH<HR>
CNA1 8B-CL2-669-010 CONN ASSY,3P V STBY
CNA2 88-805-021-090 CONN ASSY,2P<HR>
CNA3 8B-CL2-673-010 CONN ASSY,7P V RY<HR>
F1 87-A91-224-010 FUSE,1.25A 125V<U>
FC1 87-033-213-080 FUSE CLAMP,PFC5000<U>
FC2 87-033-213-080 FUSE CLAMP,PFC5000<U>
PT1 8A-NF8-661-010 PT,SUB ANF-8 (U)<U,C>
PT1 8A-NF8-662-010 PT,SUB ANF-8 (E)<EZ,K>
PT1 8A-NF8-663-010 PT,SUB ANF-8 (H)<HR>
PT2 8B-CL2-650-010 PT,BCL-2 U<U>
PT2 8B-CL2-652-010 PT,BCL-2 EZ<EZ,K>
PT2 8B-CL2-653-010 PT,BCL-2 HR<HR>
PT2 8B-CL2-654-010 PT,BCL-2 C<C>
R3 87-A01-010-080 RES,SD 2.2M-1/2W J RCR50+<C>
RY1 87-A90-977-010 RELAY,AC12V DG12D1-O(M)<U,EZ,K,C>
S1 87-A90-234-010 SW,SL 1-2-2 SWS2201<HR>
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
TUNER C.B
C701 87-A12-071-080 CAP,E 47-25 SMG
!
!
!
!
!
!
!
!
!
!
!
!
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C702 87-A12-090-080 CAP,E 4.7-50 SMG
C703 87-012-286-080 C-CAP,U 0.01-25 K B
C704 87-012-286-080 C-CAP,U 0.01-25 K B
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-A12-062-080 CAP,E 100-10 SMG
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-012-286-080 C-CAP,U 0.01-25 K B
C714 87-012-286-080 C-CAP,U 0.01-25 K B
C715 87-012-195-080 C-CAP,U 100P-50 J CH<EZ,K>
C717 87-012-286-080 C-CAP,U 0.01-25 K B
C719 87-012-286-080 C-CAP,U 0.01-25 K B
C720 87-012-195-080 C-CAP,U 100P-50 J CH<EZ,K>
C721 87-012-176-080 C-CAP,U 15P-50 J CH
C722 87-012-176-080 C-CAP,U 15P-50 J CH
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-A12-063-080 CAP,E 220-10 SMG
C753 87-012-195-080 C-CAP,U 100P-50 J CH<EZ,K>
C755 87-012-286-080 C-CAP,U 0.01-25 K B
C756 87-012-286-080 C-CAP,U 0.01-25 K B
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C762 87-012-286-080 C-CAP,U 0.01-25 K B<EZ,K>
C763 87-010-829-080 C-CAP,U 0.047-16 Z F
C764 87-012-337-080 C-CAP,U 56P-50 CH<U,HR,C>
C765 87-012-286-080 C-CAP,U 0.01-25 K B
C766 87-012-286-080 C-CAP,U 0.01-25 K B
C768 87-012-286-080 C-CAP,U 0.01-25 K B<EZ,K>
C769 87-A12-071-080 CAP,E 47-25 SMG
C770 87-010-829-080 C-CAP,U 0.047-16 Z F
C771 87-A12-070-080 CAP,E 33-25 SMG
C772 87-010-829-080 C-CAP,U 0.047-16 Z F
C773 87-010-196-080 CHIP CAPACITOR,0.1-25<U,HR,C>
C773 87-015-785-080 CHIP CAPACITOR,0.1-25<EZ,K>
C774 87-A12-062-080 CAP,E 100-10 SMG
C775 87-A12-090-080 CAP,E 4.7-50 SMG
C776 87-012-286-080 C-CAP,U 0.01-25 K B
C777 87-A12-086-080 CAP,E 0.47-50 SMG
C778 87-A12-087-080 CAP,E 1-50 SMG
C779 87-A12-087-080 CAP,E 1-50 SMG
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-A12-091-080 CAP,E 10-50 SMG
C782 87-A12-091-080 CAP,E 10-50 SMG
C783 87-012-286-080 C-CAP,U 0.01-25 K B
C784 87-012-286-080 C-CAP,U 0.01-25 K B
C785 87-010-805-080 C-CAP,S 1-16 Z F
C786 87-010-805-080 C-CAP,S 1-16 Z F
C787 87-012-280-080 C-CAP,U 3300P-50 K B
C788 87-012-280-080 C-CAP,U 3300P-50 K B
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-A12-091-080 CAP,E 10-50 SMG
C793 87-012-273-080 C-CAP,U 820P-50 B<U,HR,C>
C793 87-012-274-080 C-CAP,U 1000P-50 KB<EZ,K>
C794 87-A12-092-080 CAP,E 22-50 SMG
C795 87-010-829-080 C-CAP,U 0.047-16 ZF<EZ,K>
C795 87-010-596-080 C-CAP,U 0.047-16 KR<U,HR,C>
C796 87-A12-089-080 CAP,E 3.3-50 SMG
C797 87-012-276-080 C-CAP,U 1500P-50 K B<EZ,K,HR>
C797 87-012-278-080 C-CAP,U 2200P-50 K B<U,C>
C798 87-012-276-080 C-CAP,U 1500P-50 K B<EZ,K,HR>
C798 87-012-278-080 C-CAP,U 2200P-50 K B<U,C>
C799 87-010-829-080 C-CAP,U 0.047-16 Z F
C812 87-012-286-080 C-CAP,U 0.01-25 K B
C813 87-010-197-080 CAP, CHIP 0.01 DM<U,HR,C>
C814 87-012-286-080 C-CAP,U 0.01-25 K B
C819 87-010-197-080 CAP, CHIP 0.01 DM<U,HR,C>
C820 87-A12-071-080 CAP,E 47-25 SMG
C821 87-012-286-080 C-CAP,U 0.01-25 K B
C822 87-012-286-080 C-CAP,U 0.01-25 K B
C823 87-012-286-080 C-CAP,U 0.01-25 K B
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C861 87-012-199-080 C-CAP,U 220P-50 J CH<EZ>
C862 87-012-199-080 C-CAP,U 220P-50 J CH<EZ>
C863 87-012-270-080 C-CAP,U 470P-50 KB<EZ>
C864 87-A12-091-080 CAP,E 10-50 SMG<EZ>
C865 87-010-196-080 CHIP CAPACITOR,0.1-25<EZ>
C866 87-A12-091-080 CAP,E 10-50 SMG<EZ>
C867 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C868 87-012-184-080 C-CAP,U 33P-50 J CH<EZ>
C869 87-012-180-080 C-CAP,U 22P-50 J CH<EZ>
C940 87-012-286-080 C-CAP,U 0.01-25 K B<EZ,K>
C942 87-012-172-080 C-CAP,U 10P-50 D CH<EZ,K>
C947 87-012-286-080 C-CAP,U 0.01-25 K B<EZ,K>
C949 87-A10-039-080 C-CAP,U 470P-50 J CH<EZ,K>
C952 87-012-286-080 C-CAP,U 0.01-25 K B<EZ,K>
C958 87-012-286-080 C-CAP,U 0.01-25 K B<EZ,K>
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-170-080 C-CAP,U 8P-50 CH<U,HR,C>
C962 87-A12-087-080 CAP,E 1-50 SMG<EZ,K>
CF801 87-008-261-010 FLTR,CF SFE10.7MA5<U,HR,C>
CF801 87-008-423-010 FLTR,CF SFE10.7MS3G-A<EZ,K>
CF802 87-008-261-010 FLTR,CF SFE10.7MA5<U,HR,C>
CF802 82-785-747-010 CF,MS2 GHY,R<EZ,K>
CN601 87-099-029-010 CONN,12P H BLK 6216
CN602 87-099-211-010 CONN,4P V BLK 6216<EZ>
FFC601 88-912-081-110 FF-CABLE,12P 1.25 80MM
FFC602 88-904-081-110 FF-CABLE,4P 1.25 80MM<EZ>
FFE801 A8-6ZA-19H-030 6ZA-1 FEMENM<EZ,K>
FFE801 A8-8ZA-194-030 8ZA-1 FEMUNM<U,HR,C>
J801 87-A60-657-010 TERMINAL,4P HSP-154V5-02<U,HR,C>
J802 87-033-241-010 TERMINAL,ANT 2P AJ-2040<EZ,K>
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-733-010 FLTR,PCFAZH-450(TOK)
L781 87-005-847-080 COIL,2.2UH K CECS
L791 87-A50-027-010 COIL,1 POLE MPX(TOK)<EZ,K)
L792 87-A50-027-010 COIL,1 POLE MPX(TOK)<EZ,K)
L832 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-020-010 COIL,ANT LW(COI)252KHZ<EZ,K>
L942 87-A50-019-010 COIL,OSC LW(COI)856KHZ<EZ,K>
L981 87-NF4-650-010 COIL,AM PACK4N(TOK)<U,HR,C>
L981 87-NF4-651-110 COIL,AM PACK2N(TOM)<EZ,K>
TC942 87-011-164-010 TRIMMER,CER 30P 4.5X3.9 VCT31<EZ,K>
X721 87-A70-306-010 VIB,XTAL4.5MHZ CSA-309ST<EZ,K,HR,C>
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309<U>
X750 87-030-394-010 VIB,CER 3.5498MHZ CSA MGF228<EZ,K>
X851 87-A70-091-010 VIB,XTAL 4.332MHz CSA-309<EZ>
JACK C.B
CN202 87-A60-059-010 CONN,08P V 9604S-08C
FFC202 88-908-121-110 FF-CABLE,8P 1.25 120MM
J201 87-A61-595-010 JACK,PIN 3P R/W/B
J501 87-009-610-010 JACK,PIN 2P WHT W/O SW
MOSW C.B
CN151 87-A60-153-010 CONN,05P H FE<U>
CN151 87-A60-082-010 CONN,05P H 9604S-05F<EZ,K,HR,C>
M151 87-A90-036-010 MOT ASSY,RF-300CA-11440
S151 87-A90-117-010 SW,PUSH 1-1-1 MPU10371MLB0 MIC
S152 87-A90-117-010 SW,PUSH 1-1-1 MPU10371MLB0 MIC
HP C.B
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 9 –
C301 87-012-274-080 CHIP CAP,U 1000P-50B<U,EZ,K,C>
C301 87-012-286-080 C-CAP,U 0.01-25 KB<HR>
C302 87-012-274-080 CHIP CAP,U 1000P-50B<U,EZ,K,C>
C302 87-012-286-080 C-CAP,U 0.01-25 KB<HR>
CNA301 8B-CL2-672-010 CONN ASSY,5P EH
J201 87-A60-420-010 JACK,3.5 ST (MSC)
CD-MOTOR C.B
M1 S0-M10-A09-700 MOTOR SLED ASSY
M2 9X-262-576-910 MOTOR GEAR ASSY
PIN3 S2-369-750-000 PLUG,6P
SW1 S4-S13-A01-600 SW,LEAF
RELAY C.B
C1 87-A10-479-080 CAP,CER 2200P-250 ME KH<HR>
C2 87-A10-479-080 CAP,CER 2200P-250 ME KH<HR>
CN2 87-A60-619-010 CONN,2P V 2MM JMT<HR>
RY1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5<HR>
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
!
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 10 –
TRANSISTOR ILLUSTRATION
E C B
KTA1266GR
E C B
2SA1979O/Y
2SA1980G
2SC2240GR
2SC5342Y
CC5551
CSC4115BC
E C B
E
B
C
2SA1235F
2SC2714O
2SC3052F
2SC3326B
2SD1306E
CMBT5401
CSD1306E
DTA114EKA
DTC114EKA
S
G
D
2SK2158
B C E
2SB1677
2SD2619
DTC114ES
2SC4115SRS
2SA933SRS
KTC3199GR
E C B
DTC114TKA
KRA102S
KRC107S
KTA1504GR
KTC3875GR
RT1P141C
RT1P144C
SBT5401F
G
D
S
2SK360E
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 1 (AMP – MICON) <U, EZ, K, HR>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 11 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 2 (AMP – MICON) <C>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 12 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 3 (FRONT / KEY / SUPPLY / MOSW / HP) <U, EZ, K>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 14 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 4 (FRONT / KEY / SUPPLY / MOSW / HP) <HR, C>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 15 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 5 (CD / JACK) <U, EZ, K>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 18 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 6 (CD / JACK) <HR, C>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 19 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1
3
5
6
PIN3
SW1
_
+
M1
SW1
(INSIDE LIMIT SW)
M1
(SLED MOTOR)
TO CD C.B CN2
K CD MOTOR C.B
_+
1
16
TO CD C.B CN1
PICK UP ASSY
SF-P101NR
FFC1
M2
M2
(SPINDLE MOTOR)
<ORG>
<BLK>
WIRING 7 (CD MOTOR)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
20
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for XR-X7
2
Table of contents
Other Aiwa Stereo System manuals
