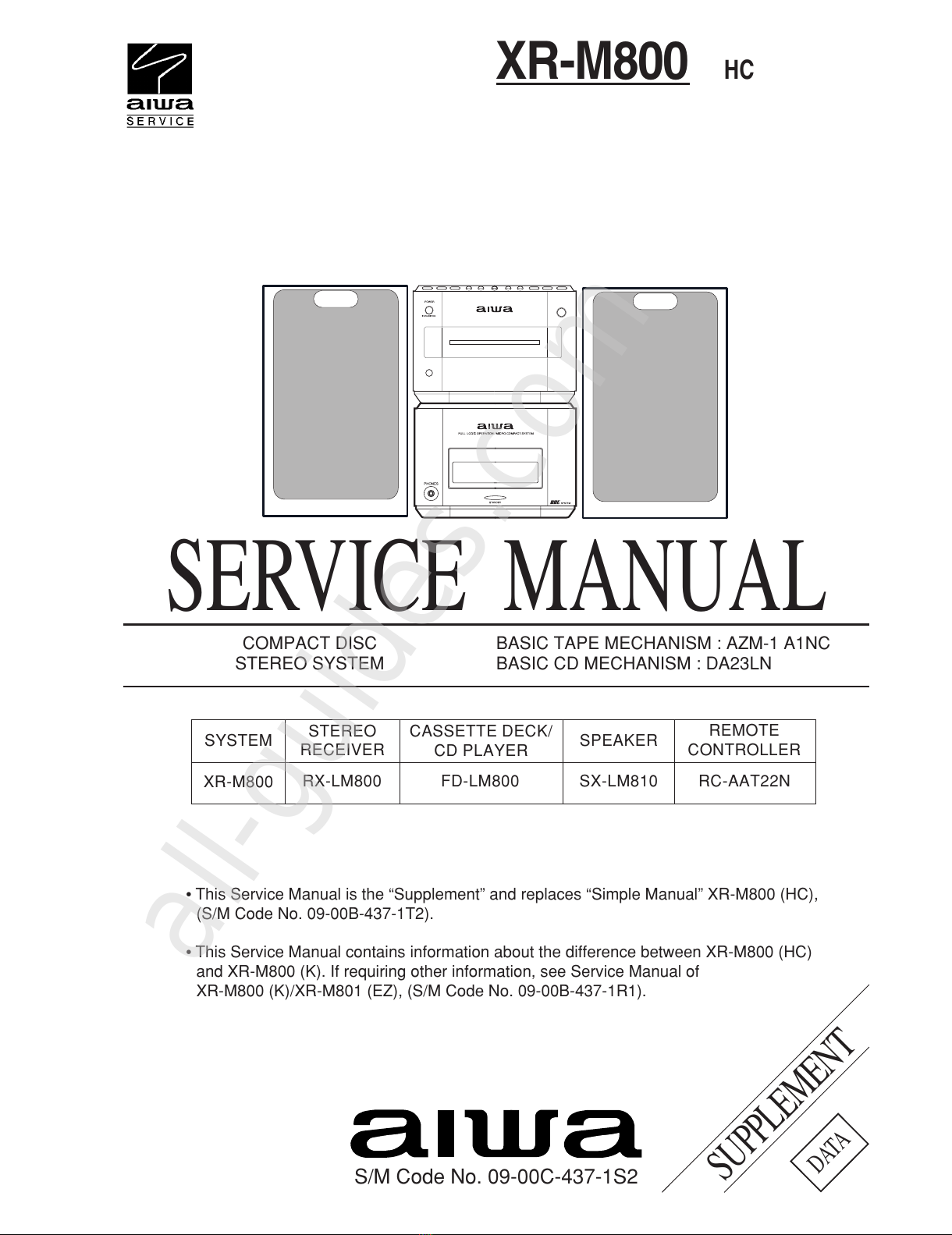

SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
BASIC TAPE MECHANISM : AZM-1 A1NC
BASIC CD MECHANISM : DA23LN
XR-M800 HC
S/M Code No. 09-00C-437-1S2
SUPPLEMENT
• This Service Manual is the “Supplement” and replaces “Simple Manual” XR-M800 (HC),
(S/M Code No. 09-00B-437-1T2).
• This Service Manual contains information about the difference between XR-M800 (HC)
and XR-M800 (K). If requiring other information, see Service Manual of
XR-M800 (K)/XR-M801 (EZ), (S/M Code No. 09-00B-437-1R1).
XR-M800
SYSTEM STEREO
RECEIVER
RX-LM800
REMOTE
CONTROLLER
RC-AAT22N
CASSETTE DECK/
CD PLAYER SPEAKER
FD-LM800 SX-LM810
All manuals and user guides at all-guides.com
all-guides.com

– 2 –

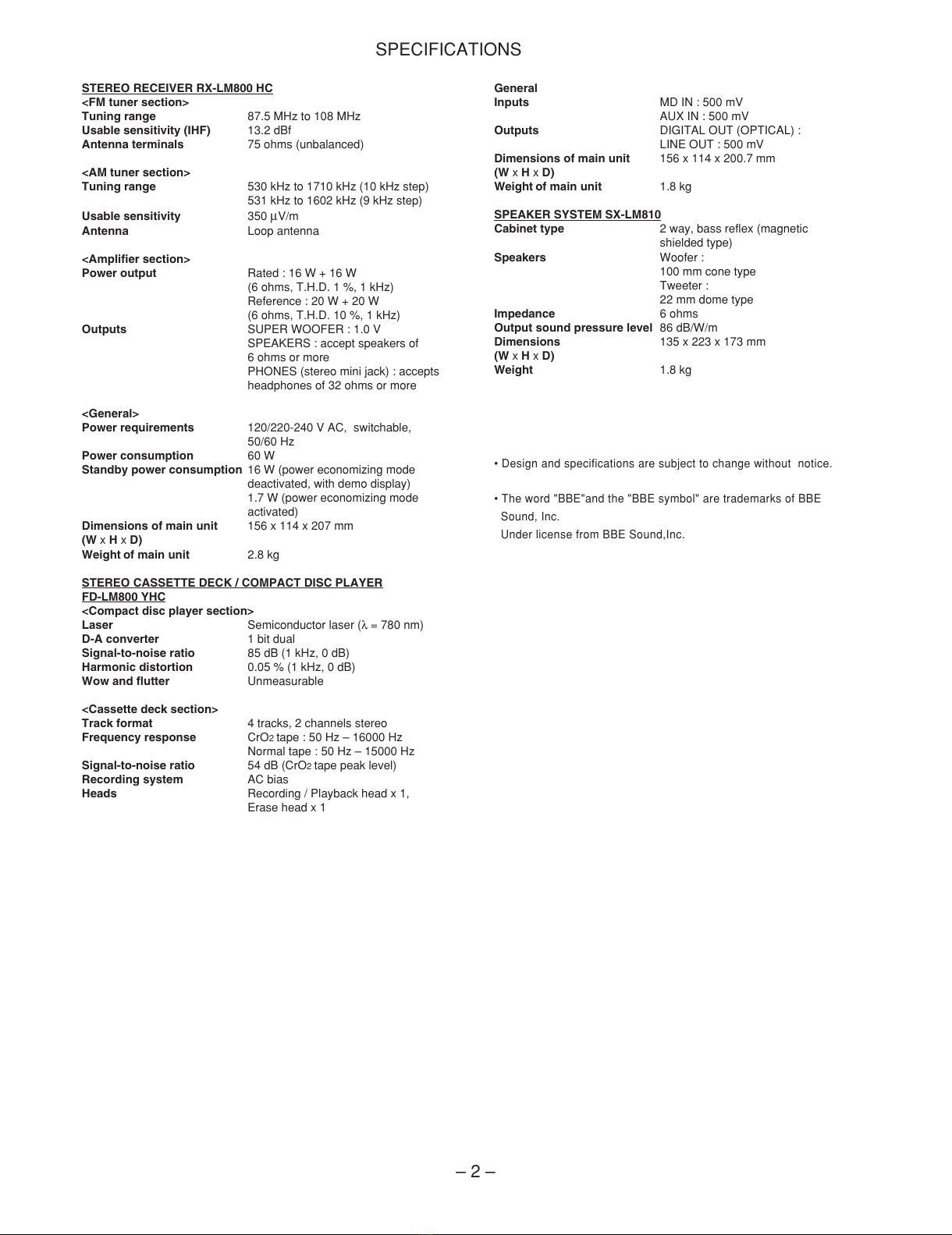

STEREO RECEIVER RX-LM800 HC
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated : 16 W + 16 W
(6 ohms, T.H.D. 1 %, 1 kHz)
Reference : 20 W + 20 W
(6 ohms, T.H.D. 10 %, 1 kHz)
Outputs SUPER WOOFER : 1.0 V
SPEAKERS : accept speakers of
6 ohms or more
PHONES (stereo mini jack) : accepts
headphones of 32 ohms or more
<General>
Power requirements 120/220-240 V AC, switchable,
50/60 Hz
Power consumption 60 W
Standby power consumption 16 W (power economizing mode
deactivated, with demo display)
1.7 W (power economizing mode
activated)
Dimensions of main unit 156 x 114 x 207 mm
(W xH xD)
Weight of main unit 2.8 kg
STEREO CASSETTE DECK / COMPACT DISC PLAYER
FD-LM800 YHC
<Compact disc player section>
Laser Semiconductor laser (λ = 780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape : 50 Hz – 16000 Hz
Normal tape : 50 Hz – 15000 Hz
Signal-to-noise ratio 54 dB (CrO2 tape peak level)
Recording system AC bias
Heads Recording / Playback head x 1,
Erase head x 1
SPECIFICATIONS
General
Inputs MD IN : 500 mV
AUX IN : 500 mV
Outputs DIGITAL OUT (OPTICAL) :
LINE OUT : 500 mV
Dimensions of main unit 156 x 114 x 200.7 mm
(W xH xD)
Weight of main unit 1.8 kg
SPEAKER SYSTEM SX-LM810
Cabinet type 2 way, bass reflex (magnetic
shielded type)
Speakers Woofer :
100 mm cone type
Tweeter :
22 mm dome type
Impedance 6 ohms
Output sound pressure level 86 dB/W/m
Dimensions 135 x 223 x 173 mm
(W xH xD)
Weight 1.8 kg
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
All manuals and user guides at all-guides.com

– 3 –

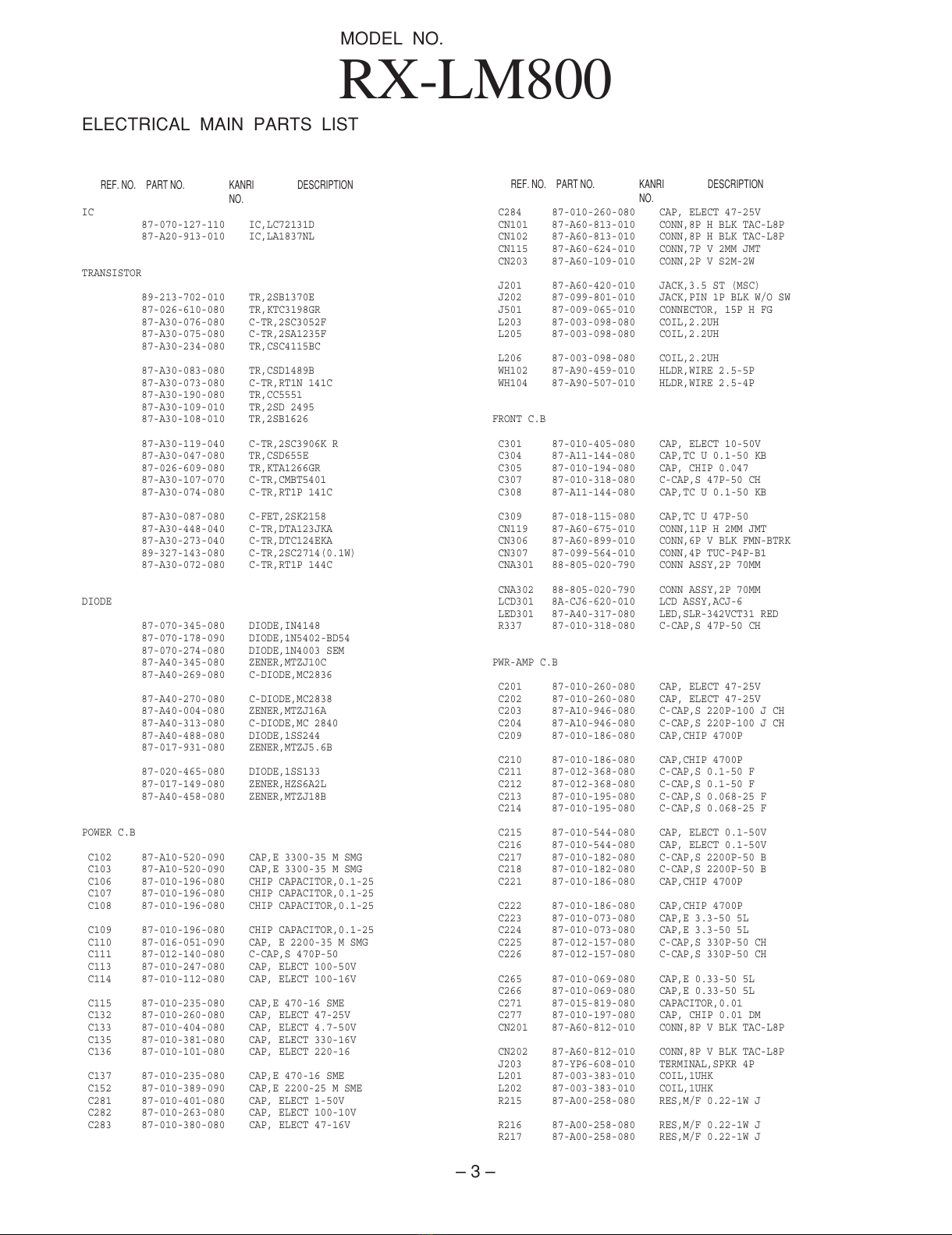

ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
MODEL NO.
RX-LM800
IC
87-070-127-110 IC,LC72131D
87-A20-913-010 IC,LA1837NL
TRANSISTOR
89-213-702-010 TR,2SB1370E
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-234-080 TR,CSC4115BC
87-A30-083-080 TR,CSD1489B
87-A30-073-080 C-TR,RT1N 141C
87-A30-190-080 TR,CC5551
87-A30-109-010 TR,2SD 2495
87-A30-108-010 TR,2SB1626
87-A30-119-040 C-TR,2SC3906K R
87-A30-047-080 TR,CSD655E
87-026-609-080 TR,KTA1266GR
87-A30-107-070 C-TR,CMBT5401
87-A30-074-080 C-TR,RT1P 141C
87-A30-087-080 C-FET,2SK2158
87-A30-448-040 C-TR,DTA123JKA
87-A30-273-040 C-TR,DTC124EKA
89-327-143-080 C-TR,2SC2714(0.1W)
87-A30-072-080 C-TR,RT1P 144C
DIODE
87-070-345-080 DIODE,IN4148
87-070-178-090 DIODE,1N5402-BD54
87-070-274-080 DIODE,1N4003 SEM
87-A40-345-080 ZENER,MTZJ10C
87-A40-269-080 C-DIODE,MC2836
87-A40-270-080 C-DIODE,MC2838
87-A40-004-080 ZENER,MTZJ16A
87-A40-313-080 C-DIODE,MC 2840
87-A40-488-080 DIODE,1SS244
87-017-931-080 ZENER,MTZJ5.6B
87-020-465-080 DIODE,1SS133
87-017-149-080 ZENER,HZS6A2L
87-A40-458-080 ZENER,MTZJ18B
POWER C.B
C102 87-A10-520-090 CAP,E 3300-35 M SMG
C103 87-A10-520-090 CAP,E 3300-35 M SMG
C106 87-010-196-080 CHIP CAPACITOR,0.1-25
C107 87-010-196-080 CHIP CAPACITOR,0.1-25
C108 87-010-196-080 CHIP CAPACITOR,0.1-25
C109 87-010-196-080 CHIP CAPACITOR,0.1-25
C110 87-016-051-090 CAP, E 2200-35 M SMG
C111 87-012-140-080 C-CAP,S 470P-50
C113 87-010-247-080 CAP, ELECT 100-50V
C114 87-010-112-080 CAP, ELECT 100-16V
C115 87-010-235-080 CAP,E 470-16 SME
C132 87-010-260-080 CAP, ELECT 47-25V
C133 87-010-404-080 CAP, ELECT 4.7-50V
C135 87-010-381-080 CAP, ELECT 330-16V
C136 87-010-101-080 CAP, ELECT 220-16
C137 87-010-235-080 CAP,E 470-16 SME
C152 87-010-389-090 CAP,E 2200-25 M SME
C281 87-010-401-080 CAP, ELECT 1-50V
C282 87-010-263-080 CAP, ELECT 100-10V
C283 87-010-380-080 CAP, ELECT 47-16V
C284 87-010-260-080 CAP, ELECT 47-25V
CN101 87-A60-813-010 CONN,8P H BLK TAC-L8P
CN102 87-A60-813-010 CONN,8P H BLK TAC-L8P
CN115 87-A60-624-010 CONN,7P V 2MM JMT
CN203 87-A60-109-010 CONN,2P V S2M-2W
J201 87-A60-420-010 JACK,3.5 ST (MSC)
J202 87-099-801-010 JACK,PIN 1P BLK W/O SW
J501 87-009-065-010 CONNECTOR, 15P H FG
L203 87-003-098-080 COIL,2.2UH
L205 87-003-098-080 COIL,2.2UH
L206 87-003-098-080 COIL,2.2UH
WH102 87-A90-459-010 HLDR,WIRE 2.5-5P
WH104 87-A90-507-010 HLDR,WIRE 2.5-4P
FRONT C.B
C301 87-010-405-080 CAP, ELECT 10-50V
C304 87-A11-144-080 CAP,TC U 0.1-50 KB
C305 87-010-194-080 CAP, CHIP 0.047
C307 87-010-318-080 C-CAP,S 47P-50 CH
C308 87-A11-144-080 CAP,TC U 0.1-50 KB
C309 87-018-115-080 CAP,TC U 47P-50
CN119 87-A60-675-010 CONN,11P H 2MM JMT
CN306 87-A60-899-010 CONN,6P V BLK FMN-BTRK
CN307 87-099-564-010 CONN,4P TUC-P4P-B1
CNA301 88-805-020-790 CONN ASSY,2P 70MM
CNA302 88-805-020-790 CONN ASSY,2P 70MM
LCD301 8A-CJ6-620-010 LCD ASSY,ACJ-6
LED301 87-A40-317-080 LED,SLR-342VCT31 RED
R337 87-010-318-080 C-CAP,S 47P-50 CH
PWR-AMP C.B
C201 87-010-260-080 CAP, ELECT 47-25V
C202 87-010-260-080 CAP, ELECT 47-25V
C203 87-A10-946-080 C-CAP,S 220P-100 J CH
C204 87-A10-946-080 C-CAP,S 220P-100 J CH
C209 87-010-186-080 CAP,CHIP 4700P
C210 87-010-186-080 CAP,CHIP 4700P
C211 87-012-368-080 C-CAP,S 0.1-50 F
C212 87-012-368-080 C-CAP,S 0.1-50 F
C213 87-010-195-080 C-CAP,S 0.068-25 F
C214 87-010-195-080 C-CAP,S 0.068-25 F
C215 87-010-544-080 CAP, ELECT 0.1-50V
C216 87-010-544-080 CAP, ELECT 0.1-50V
C217 87-010-182-080 C-CAP,S 2200P-50 B
C218 87-010-182-080 C-CAP,S 2200P-50 B
C221 87-010-186-080 CAP,CHIP 4700P
C222 87-010-186-080 CAP,CHIP 4700P
C223 87-010-073-080 CAP,E 3.3-50 5L
C224 87-010-073-080 CAP,E 3.3-50 5L
C225 87-012-157-080 C-CAP,S 330P-50 CH
C226 87-012-157-080 C-CAP,S 330P-50 CH
C265 87-010-069-080 CAP,E 0.33-50 5L
C266 87-010-069-080 CAP,E 0.33-50 5L
C271 87-015-819-080 CAPACITOR,0.01
C277 87-010-197-080 CAP, CHIP 0.01 DM
CN201 87-A60-812-010 CONN,8P V BLK TAC-L8P
CN202 87-A60-812-010 CONN,8P V BLK TAC-L8P
J203 87-YP6-608-010 TERMINAL,SPKR 4P
L201 87-003-383-010 COIL,1UHK
L202 87-003-383-010 COIL,1UHK
R215 87-A00-258-080 RES,M/F 0.22-1W J
R216 87-A00-258-080 RES,M/F 0.22-1W J
R217 87-A00-258-080 RES,M/F 0.22-1W J
All manuals and user guides at all-guides.com

– 4 –

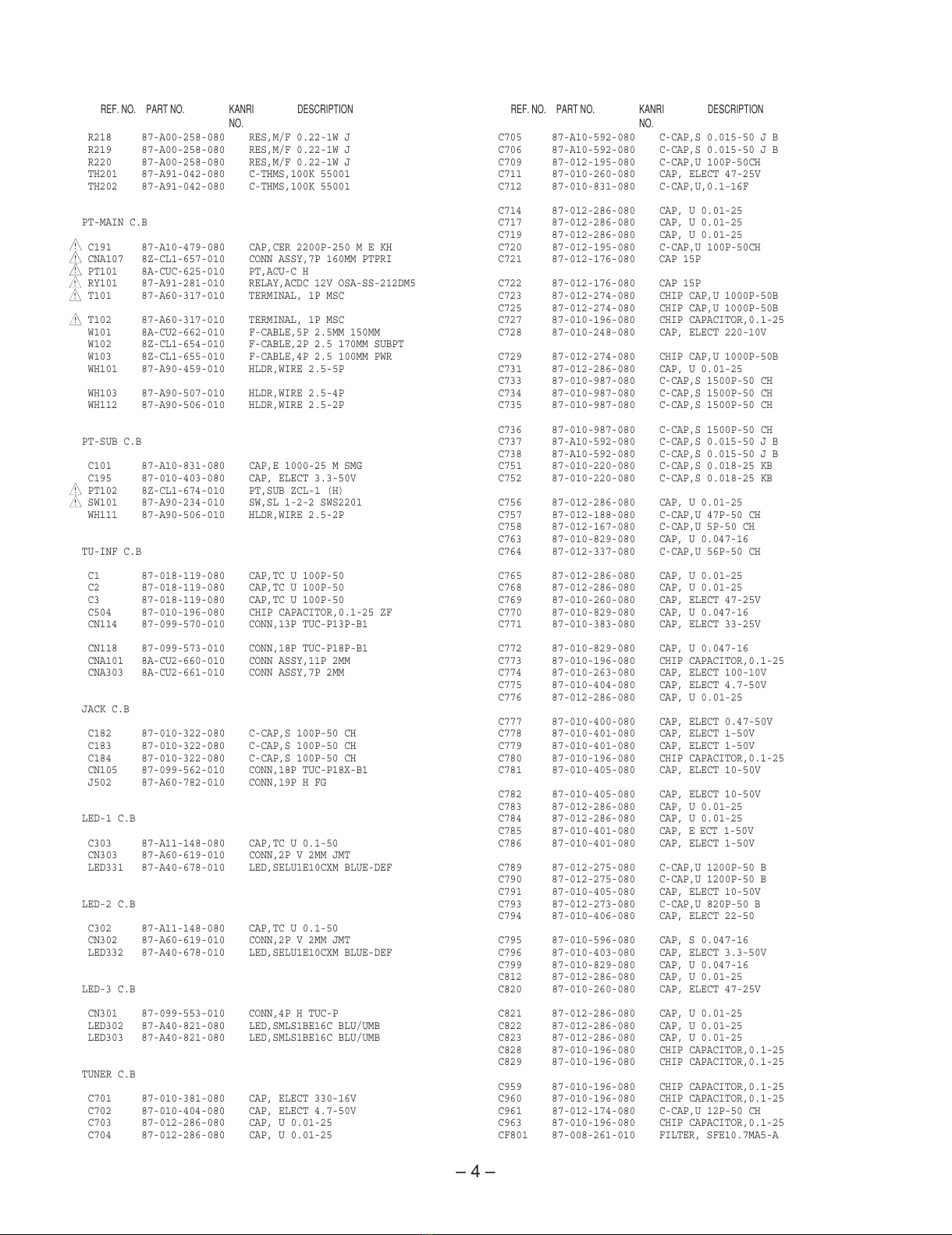

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
R218 87-A00-258-080 RES,M/F 0.22-1W J
R219 87-A00-258-080 RES,M/F 0.22-1W J
R220 87-A00-258-080 RES,M/F 0.22-1W J
TH201 87-A91-042-080 C-THMS,100K 55001
TH202 87-A91-042-080 C-THMS,100K 55001

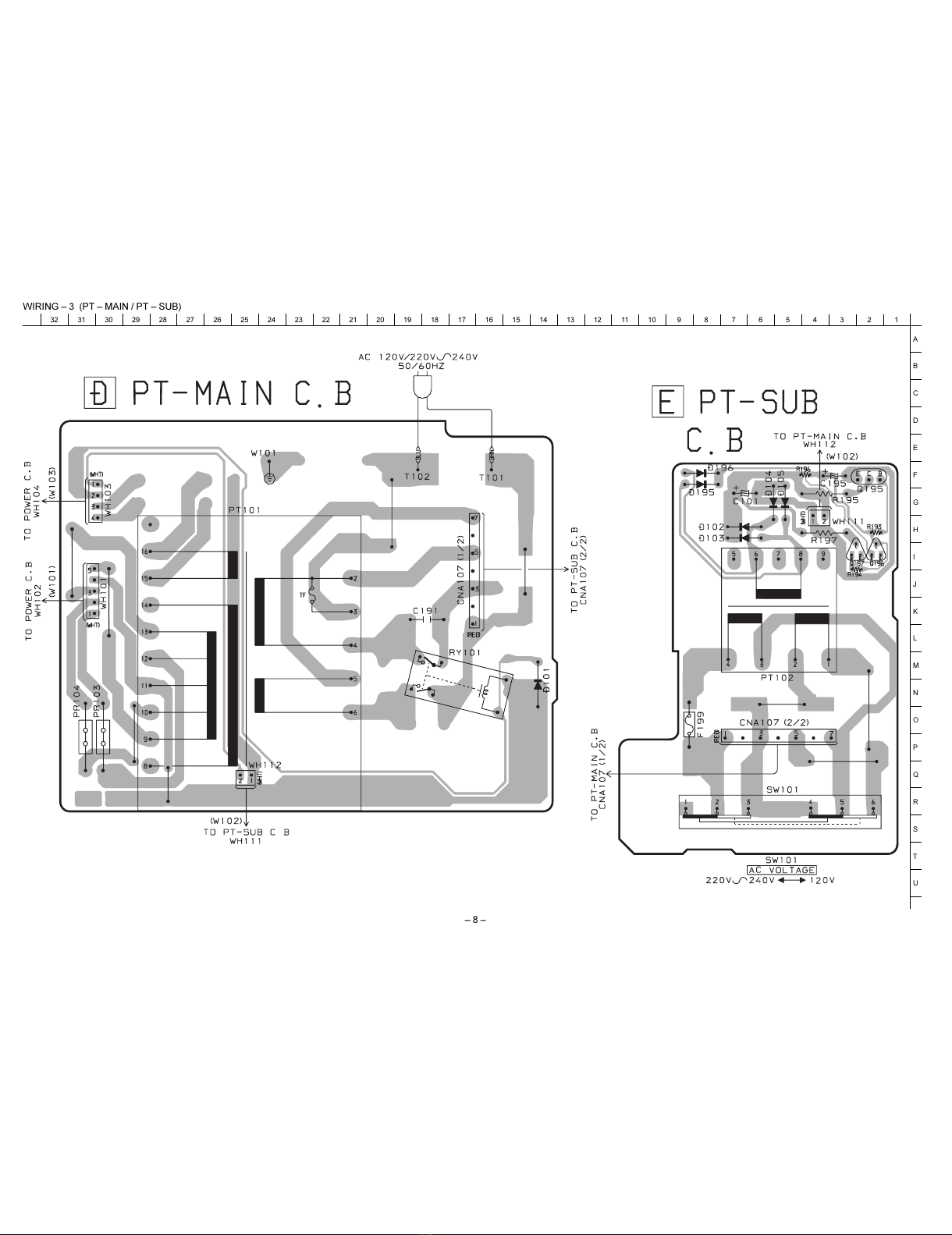

PT-MAIN C.B
C191 87-A10-479-080 CAP,CER 2200P-250 M E KH
CNA107 8Z-CL1-657-010 CONN ASSY,7P 160MM PTPRI
PT101 8A-CUC-625-010 PT,ACU-C H
RY101 87-A91-281-010 RELAY,ACDC 12V OSA-SS-212DM5
T101 87-A60-317-010 TERMINAL, 1P MSC
T102 87-A60-317-010 TERMINAL, 1P MSC
W101 8A-CU2-662-010 F-CABLE,5P 2.5MM 150MM
W102 8Z-CL1-654-010 F-CABLE,2P 2.5 170MM SUBPT
W103 8Z-CL1-655-010 F-CABLE,4P 2.5 100MM PWR
WH101 87-A90-459-010 HLDR,WIRE 2.5-5P
WH103 87-A90-507-010 HLDR,WIRE 2.5-4P
WH112 87-A90-506-010 HLDR,WIRE 2.5-2P
PT-SUB C.B
C101 87-A10-831-080 CAP,E 1000-25 M SMG
C195 87-010-403-080 CAP, ELECT 3.3-50V
PT102 8Z-CL1-674-010 PT,SUB ZCL-1 (H)
SW101 87-A90-234-010 SW,SL 1-2-2 SWS2201
WH111 87-A90-506-010 HLDR,WIRE 2.5-2P

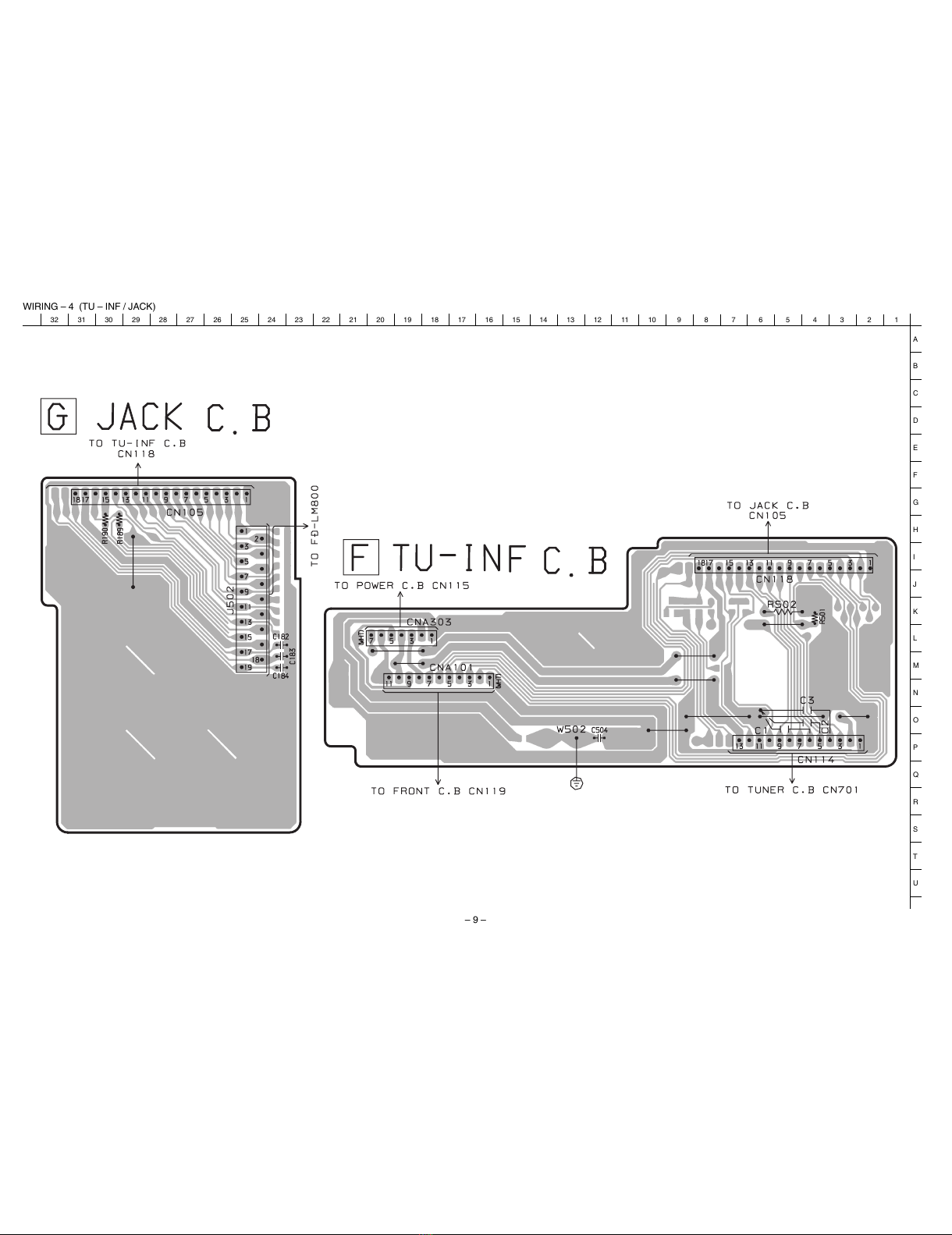

TU-INF C.B
C1 87-018-119-080 CAP,TC U 100P-50
C2 87-018-119-080 CAP,TC U 100P-50
C3 87-018-119-080 CAP,TC U 100P-50
C504 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
CN114 87-099-570-010 CONN,13P TUC-P13P-B1
CN118 87-099-573-010 CONN,18P TUC-P18P-B1
CNA101 8A-CU2-660-010 CONN ASSY,11P 2MM
CNA303 8A-CU2-661-010 CONN ASSY,7P 2MM
JACK C.B
C182 87-010-322-080 C-CAP,S 100P-50 CH
C183 87-010-322-080 C-CAP,S 100P-50 CH
C184 87-010-322-080 C-CAP,S 100P-50 CH
CN105 87-099-562-010 CONN,18P TUC-P18X-B1
J502 87-A60-782-010 CONN,19P H FG
LED-1 C.B
C303 87-A11-148-080 CAP,TC U 0.1-50
CN303 87-A60-619-010 CONN,2P V 2MM JMT
LED331 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED-2 C.B
C302 87-A11-148-080 CAP,TC U 0.1-50
CN302 87-A60-619-010 CONN,2P V 2MM JMT
LED332 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED-3 C.B
CN301 87-099-553-010 CONN,4P H TUC-P
LED302 87-A40-821-080 LED,SMLS1BE16C BLU/UMB
LED303 87-A40-821-080 LED,SMLS1BE16C BLU/UMB
TUNER C.B
C701 87-010-381-080 CAP, ELECT 330-16V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-012-286-080 CAP, U 0.01-25
C704 87-012-286-080 CAP, U 0.01-25
!
!
!
!
!
!
C705 87-A10-592-080 C-CAP,S 0.015-50 J B
C706 87-A10-592-080 C-CAP,S 0.015-50 J B
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-260-080 CAP, ELECT 47-25V
C712 87-010-831-080 C-CAP,U,0.1-16F
C714 87-012-286-080 CAP, U 0.01-25
C717 87-012-286-080 CAP, U 0.01-25
C719 87-012-286-080 CAP, U 0.01-25
C720 87-012-195-080 C-CAP,U 100P-50CH
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C729 87-012-274-080 CHIP CAP,U 1000P-50B
C731 87-012-286-080 CAP, U 0.01-25
C733 87-010-987-080 C-CAP,S 1500P-50 CH
C734 87-010-987-080 C-CAP,S 1500P-50 CH
C735 87-010-987-080 C-CAP,S 1500P-50 CH
C736 87-010-987-080 C-CAP,S 1500P-50 CH
C737 87-A10-592-080 C-CAP,S 0.015-50 J B
C738 87-A10-592-080 C-CAP,S 0.015-50 J B
C751 87-010-220-080 C-CAP,S 0.018-25 KB
C752 87-010-220-080 C-CAP,S 0.018-25 KB
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C765 87-012-286-080 CAP, U 0.01-25
C768 87-012-286-080 CAP, U 0.01-25
C769 87-010-260-080 CAP, ELECT 47-25V
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25V
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-012-286-080 CAP, U 0.01-25
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-401-080 CAP, E ECT 1-50V
C786 87-010-401-080 CAP, ELECT 1-50V
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-596-080 CAP, S 0.047-16
C796 87-010-403-080 CAP, ELECT 3.3-50V
C799 87-010-829-080 CAP, U 0.047-16
C812 87-012-286-080 CAP, U 0.01-25
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 CAP, U 0.01-25
C822 87-012-286-080 CAP, U 0.01-25
C823 87-012-286-080 CAP, U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-174-080 C-CAP,U 12P-50 CH
C963 87-010-196-080 CHIP CAPACITOR,0.1-25
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
!
!
All manuals and user guides at all-guides.com

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN701 87-A60-700-010 CONN,13P H GRY TUC-P13X-C1
FFE801 A8-8ZA-190-030 8ZA-1 FEUNM
J801 87-A60-702-010 TERMINAL,ANT 4P CJ-9036
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A91-110-010 FLTR,PCFJZH-450 (TOK)
L981 8Z-ZA1-664-010 COIL,AM PACK 4(TOM)
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309PT C.B
TRANSISTOR ILLUSTRATION
DTA123JKA
DTC124EKA
B
C
E
All manuals and user guides at all-guides.com

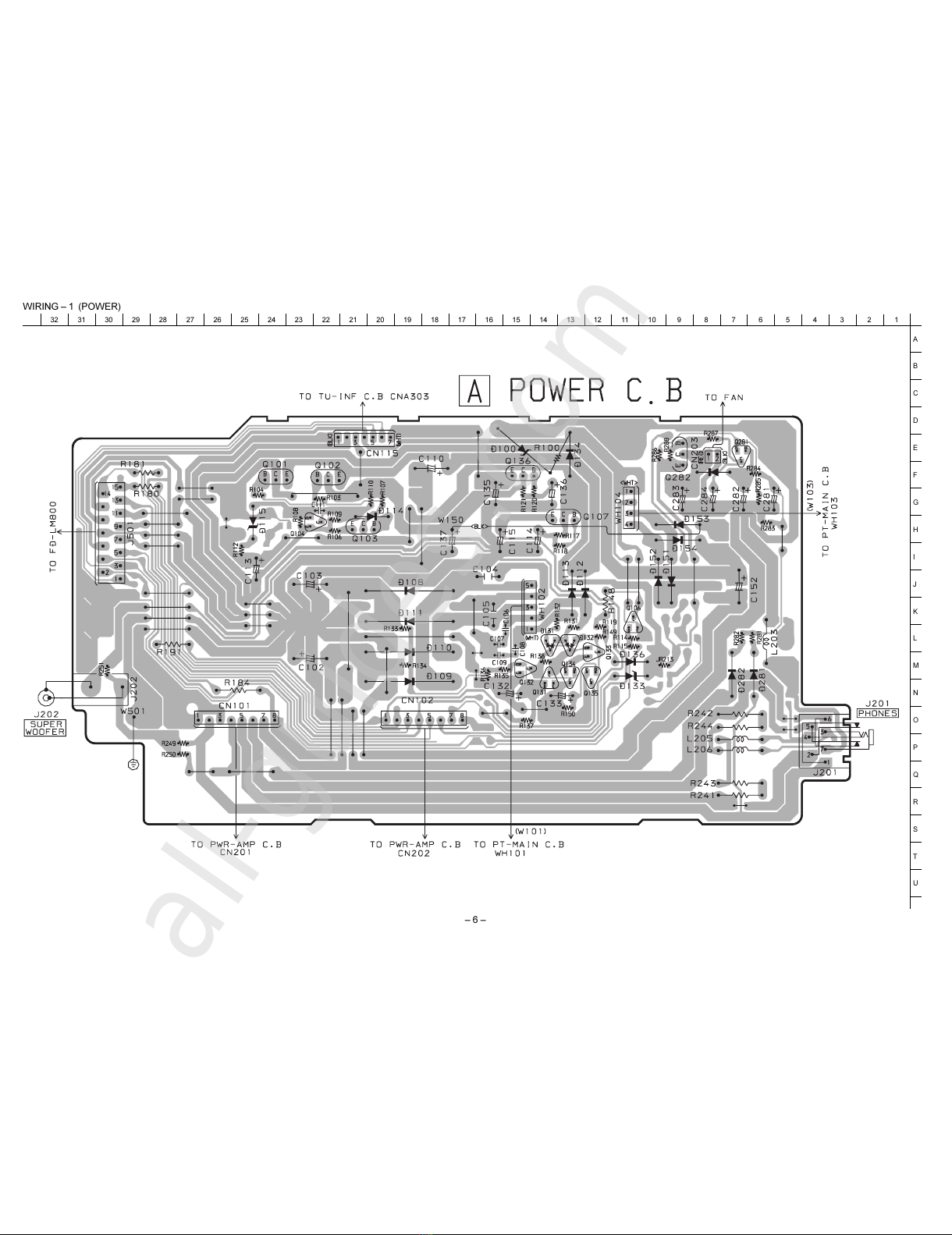

WIRING  1 (POWER)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 6 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com
all-guides.com

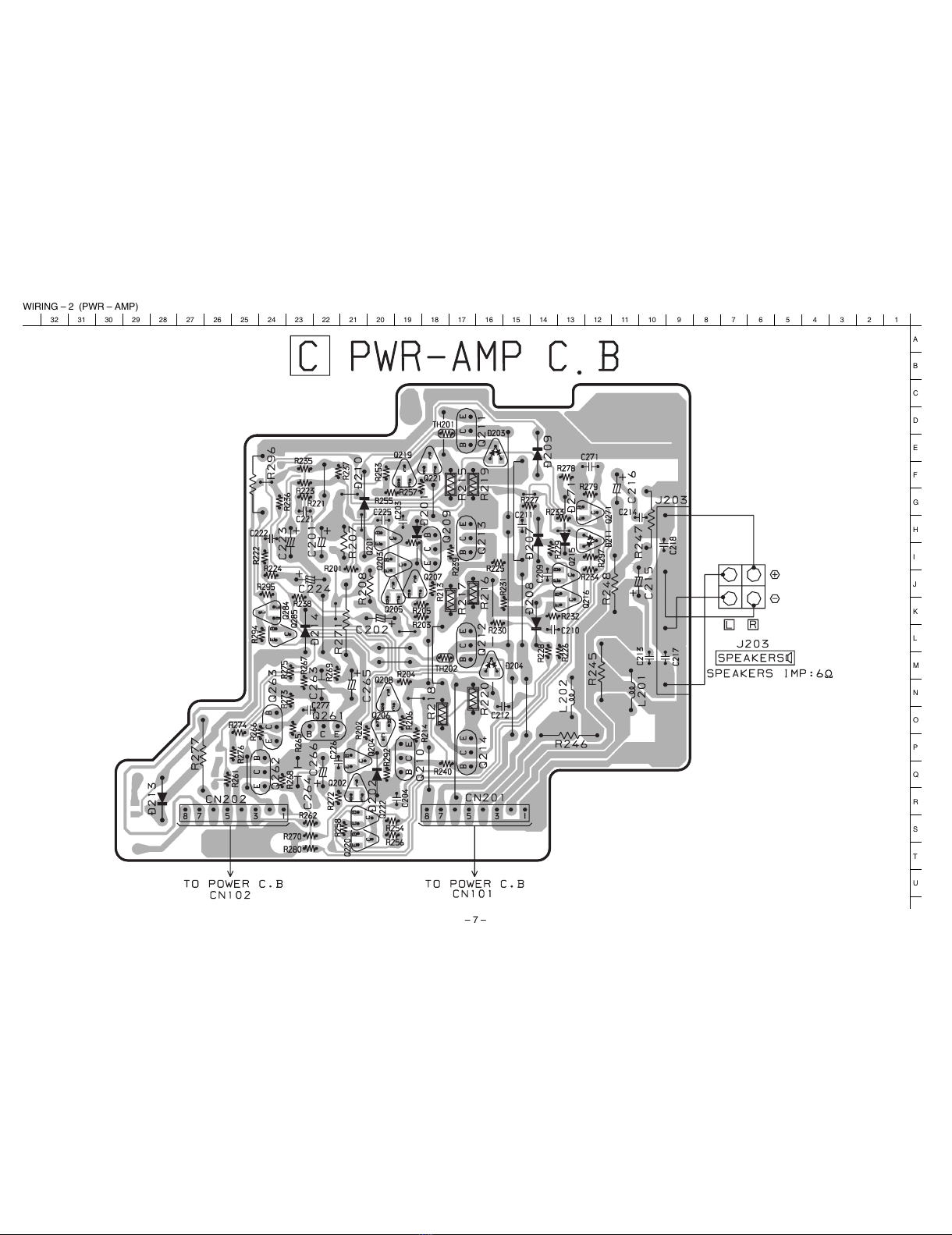

WIRING – 2 (PWR – AMP)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 7 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

WIRING  3 (PT  MAIN / PT  SUB)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 8 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

WIRING – 4 (TU – INF / JACK)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 9 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

– 10 –

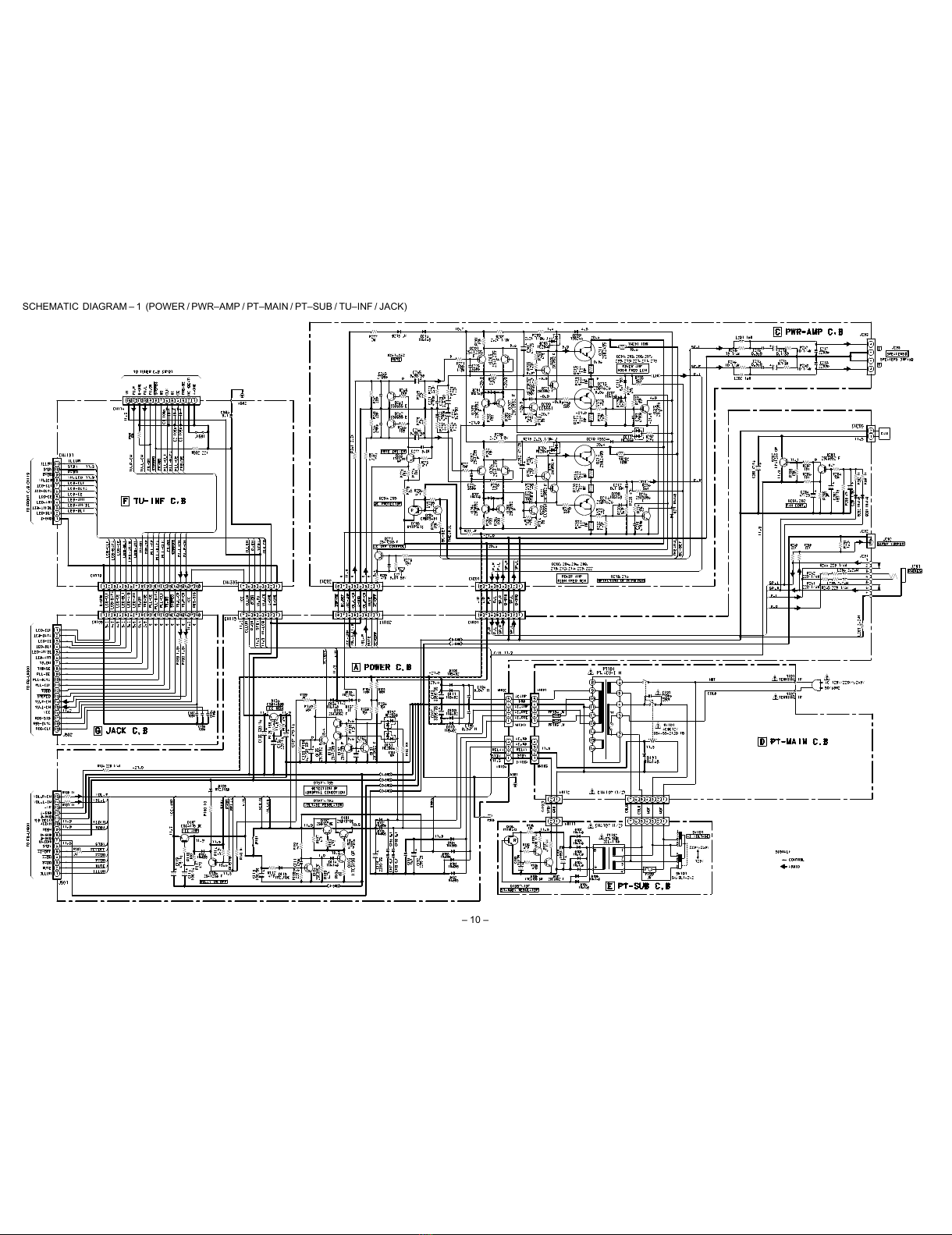

SCHEMATIC DIAGRAM – 1 (POWER / PWR–AMP / PT–MAIN / PT–SUB / TU–INF / JACK)
All manuals and user guides at all-guides.com

WIRING – 5 (FRONT / LED – 1 ~ 3)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 11 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com
all-guides.com

– 12 –
SCHEMATIC DIAGRAM – 2 (FRONT / LED – 1~3)
All manuals and user guides at all-guides.com

WIRING – 6 (TUNER)
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 13 –
All manuals and user guides at all-guides.com

– 14 –
SCHEMATIC DIAGRAM – 3 (TUNER)
All manuals and user guides at all-guides.com

– 15 –

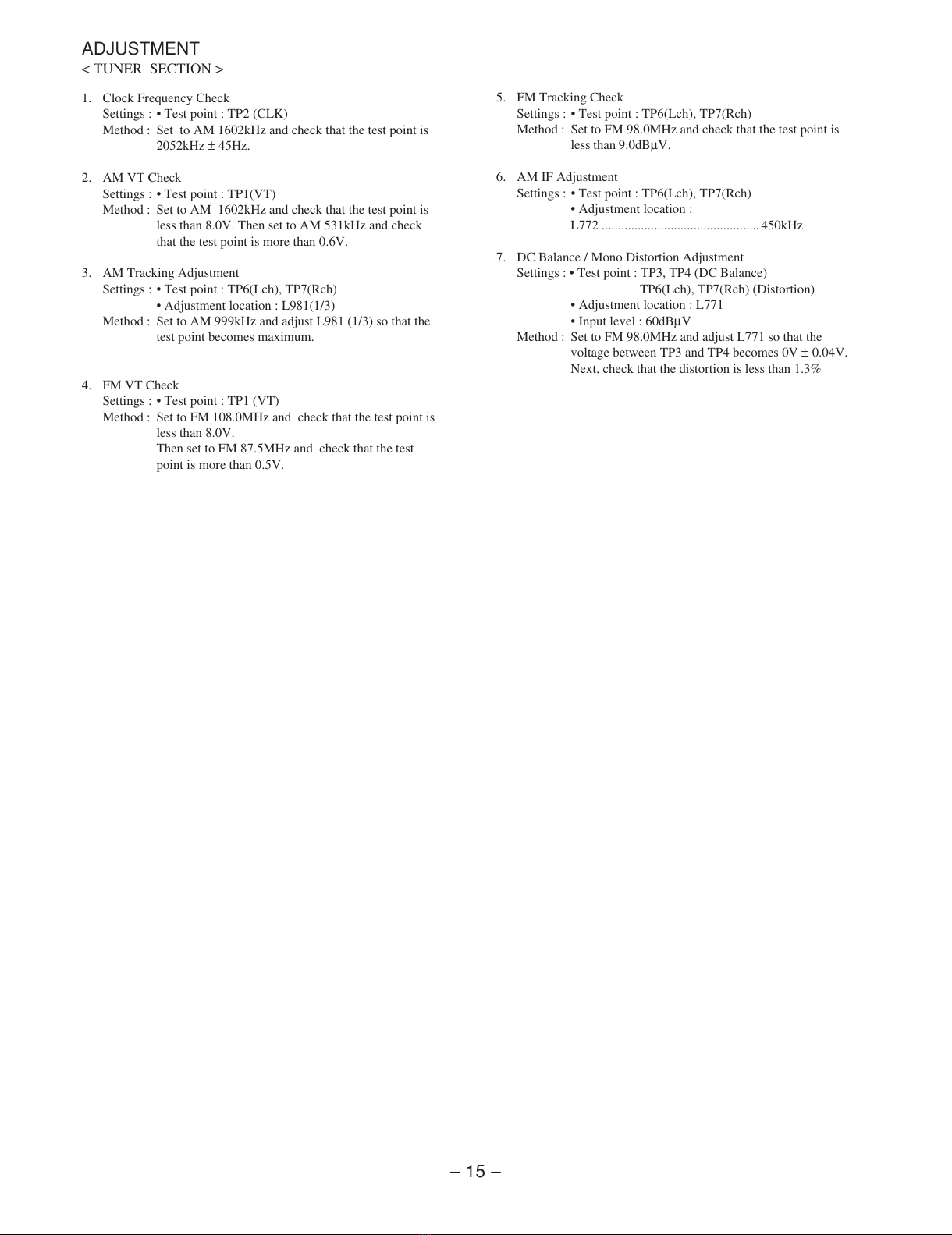

< TUNER SECTION >
1. Clock Frequency Check
Settings : • Test point : TP2 (CLK)
Method : Set to AM 1602kHz and check that the test point is
2052kHz ±45Hz.
2. AM VT Check
Settings : • Test point : TP1(VT)
Method : Set to AM 1602kHz and check that the test point is
less than 8.0V. Then set to AM 531kHz and check
that the test point is more than 0.6V.
3. AM Tracking Adjustment
Settings : • Test point : TP6(Lch), TP7(Rch)
• Adjustment location : L981(1/3)
Method : Set to AM 999kHz and adjust L981 (1/3) so that the
test point becomes maximum.
4. FM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to FM 108.0MHz and check that the test point is
less than 8.0V.
Then set to FM 87.5MHz and check that the test
point is more than 0.5V.
5. FM Tracking Check
Settings : • Test point : TP6(Lch), TP7(Rch)
Method : Set to FM 98.0MHz and check that the test point is
less than 9.0dBµV.
6. AM IF Adjustment
Settings : • Test point : TP6(Lch), TP7(Rch)
• Adjustment location :
L772 ................................................ 450kHz
7. DC Balance / Mono Distortion Adjustment
Settings : • Test point : TP3, TP4 (DC Balance)
TP6(Lch), TP7(Rch) (Distortion)
• Adjustment location : L771
• Input level : 60dBµV
Method : Set to FM 98.0MHz and adjust L771 so that the
voltage between TP3 and TP4 becomes 0V ±0.04V.
Next, check that the distortion is less than 1.3%
ADJUSTMENT
All manuals and user guides at all-guides.com

– 16 –
MECHANICAL EXPLODED VIEW 1 / 1
A
A
B
B
B
I
1
2
PWB
PWB
PWB
PWB
PWB
SH,LCD
PWB
PWB
PWB
HT-SINK,B
PWB
ZZA-1
PWB
3
3
4
12
6
7
8
9
F
J
J10 11
C
C
CE
C
D
D
PT
15
13
14
18
16
18
CHAS MAIN
(AMP)
23
25
24
PLATE,SHLD PT
17
G
C
C
C
C
C
C
SH,SUB PT
PLATE,SUB-PT
E
19
20
21
22
F
5
H
TUBU,UL
12-140
RX-SLM800 HCSC1C
(FileName:EXP.EPS)
12/11/22 ACU-C
PLATE,SHLD TOP B
PLATE,SHLD
TOP A
All manuals and user guides at all-guides.com
all-guides.com

– 17 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

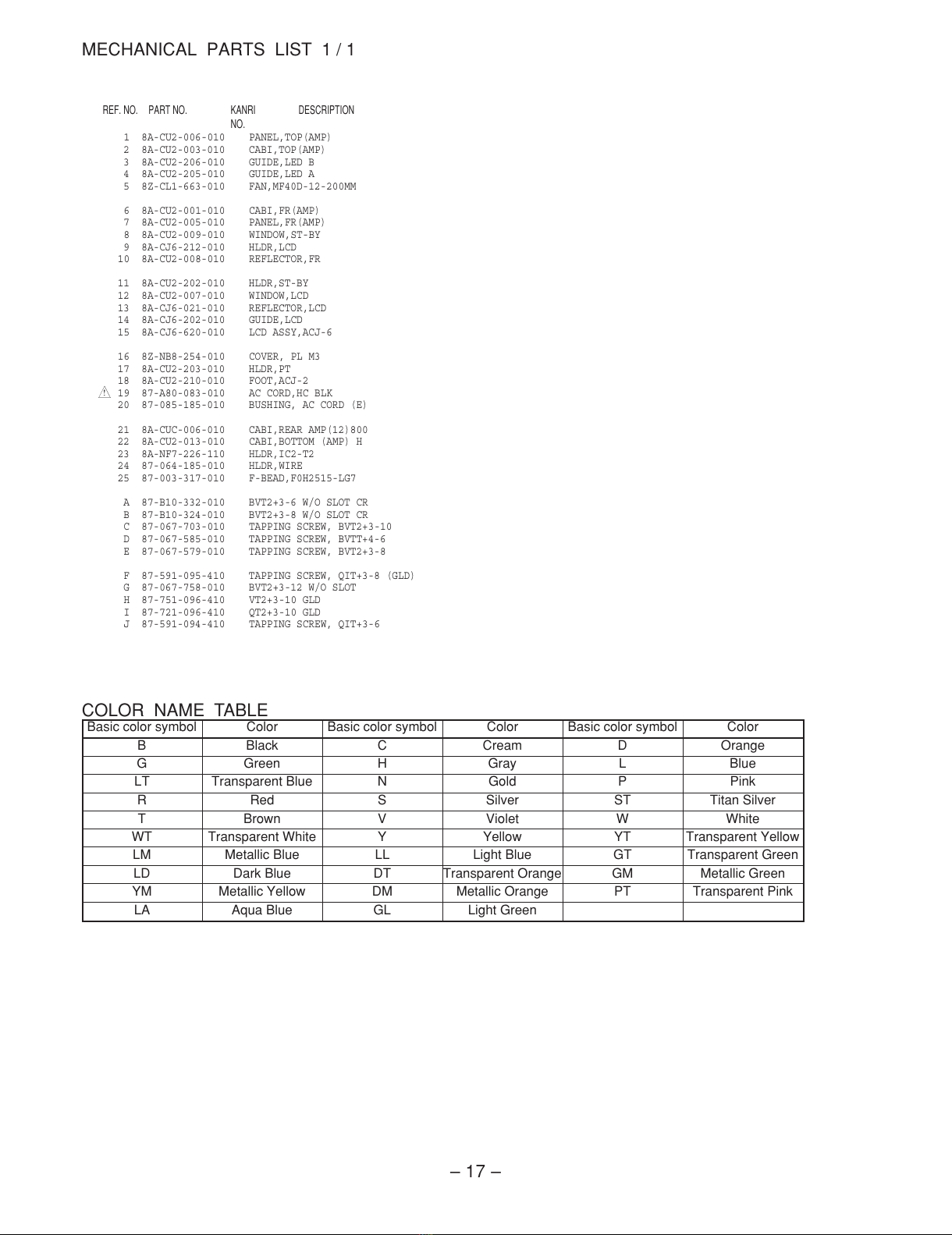

MECHANICAL PARTS LIST 1 / 1
!
1 8A-CU2-006-010 PANEL,TOP(AMP)
2 8A-CU2-003-010 CABI,TOP(AMP)
3 8A-CU2-206-010 GUIDE,LED B
4 8A-CU2-205-010 GUIDE,LED A
5 8Z-CL1-663-010 FAN,MF40D-12-200MM
6 8A-CU2-001-010 CABI,FR(AMP)
7 8A-CU2-005-010 PANEL,FR(AMP)
8 8A-CU2-009-010 WINDOW,ST-BY
9 8A-CJ6-212-010 HLDR,LCD
10 8A-CU2-008-010 REFLECTOR,FR
11 8A-CU2-202-010 HLDR,ST-BY
12 8A-CU2-007-010 WINDOW,LCD
13 8A-CJ6-021-010 REFLECTOR,LCD
14 8A-CJ6-202-010 GUIDE,LCD
15 8A-CJ6-620-010 LCD ASSY,ACJ-6
16 8Z-NB8-254-010 COVER, PL M3
17 8A-CU2-203-010 HLDR,PT
18 8A-CU2-210-010 FOOT,ACJ-2
19 87-A80-083-010 AC CORD,HC BLK
20 87-085-185-010 BUSHING, AC CORD (E)
21 8A-CUC-006-010 CABI,REAR AMP(12)800
22 8A-CU2-013-010 CABI,BOTTOM (AMP) H
23 8A-NF7-226-110 HLDR,IC2-T2
24 87-064-185-010 HLDR,WIRE
25 87-003-317-010 F-BEAD,F0H2515-LG7
A 87-B10-332-010 BVT2+3-6 W/O SLOT CR
B 87-B10-324-010 BVT2+3-8 W/O SLOT CR
C 87-067-703-010 TAPPING SCREW, BVT2+3-10
D 87-067-585-010 TAPPING SCREW, BVTT+4-6
E 87-067-579-010 TAPPING SCREW, BVT2+3-8
F 87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD)
G 87-067-758-010 BVT2+3-12 W/O SLOT
H 87-751-096-410 VT2+3-10 GLD
I 87-721-096-410 QT2+3-10 GLD
J 87-591-094-410 TAPPING SCREW, QIT+3-6
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green
All manuals and user guides at all-guides.com

– 18 –

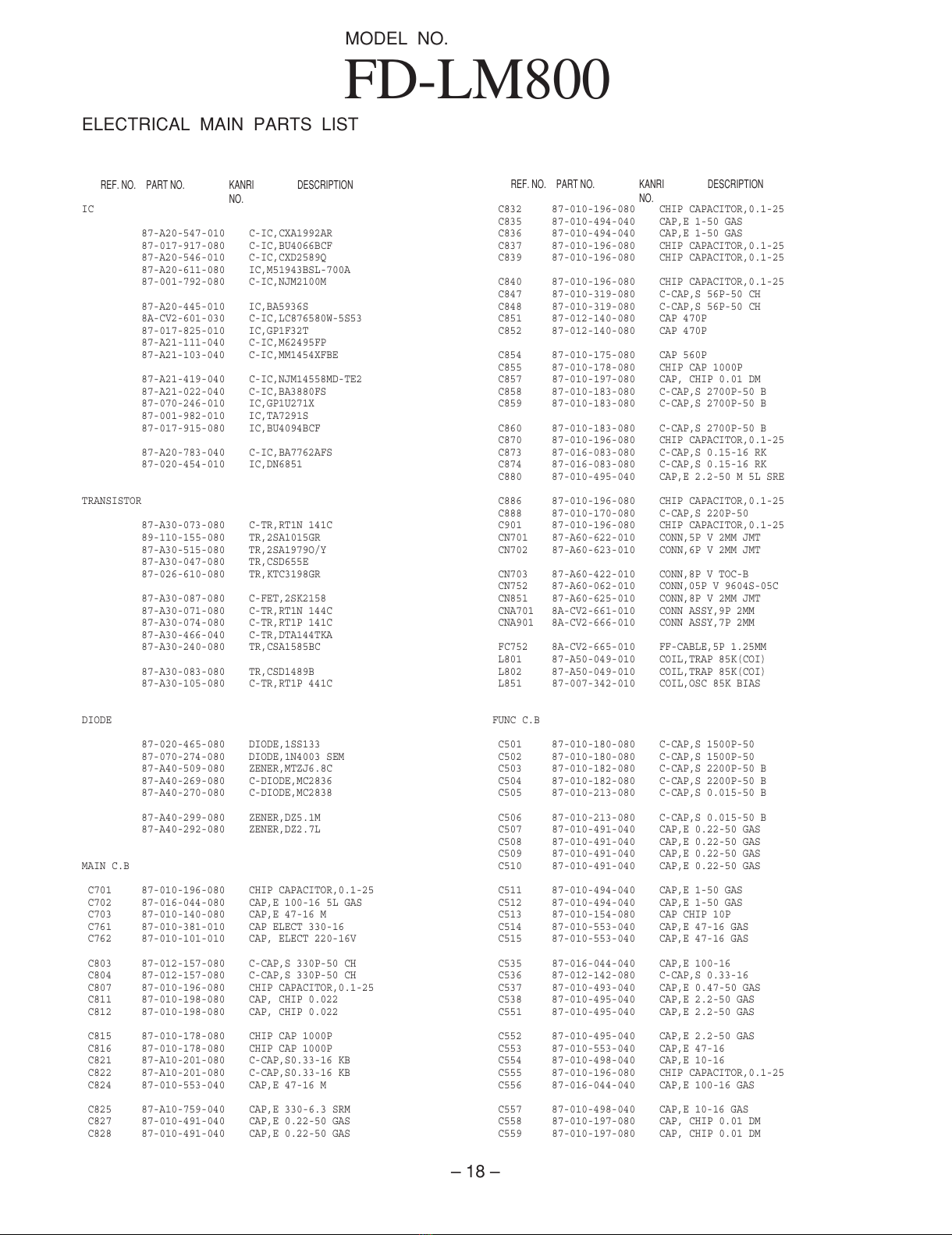

ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
MODEL NO.
FD-LM800
IC
87-A20-547-010 C-IC,CXA1992AR
87-017-917-080 C-IC,BU4066BCF
87-A20-546-010 C-IC,CXD2589Q
87-A20-611-080 IC,M51943BSL-700A
87-001-792-080 C-IC,NJM2100M
87-A20-445-010 IC,BA5936S
8A-CV2-601-030 C-IC,LC876580W-5S53
87-017-825-010 IC,GP1F32T
87-A21-111-040 C-IC,M62495FP
87-A21-103-040 C-IC,MM1454XFBE
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-022-040 C-IC,BA3880FS
87-070-246-010 IC,GP1U271X
87-001-982-010 IC,TA7291S
87-017-915-080 IC,BU4094BCF
87-A20-783-040 C-IC,BA7762AFS
87-020-454-010 IC,DN6851
TRANSISTOR
87-A30-073-080 C-TR,RT1N 141C
89-110-155-080 TR,2SA1015GR
87-A30-515-080 TR,2SA1979O/Y
87-A30-047-080 TR,CSD655E
87-026-610-080 TR,KTC3198GR
87-A30-087-080 C-FET,2SK2158
87-A30-071-080 C-TR,RT1N 144C
87-A30-074-080 C-TR,RT1P 141C
87-A30-466-040 C-TR,DTA144TKA
87-A30-240-080 TR,CSA1585BC
87-A30-083-080 TR,CSD1489B
87-A30-105-080 C-TR,RT1P 441C
DIODE
87-020-465-080 DIODE,1SS133
87-070-274-080 DIODE,1N4003 SEM
87-A40-509-080 ZENER,MTZJ6.8C
87-A40-269-080 C-DIODE,MC2836
87-A40-270-080 C-DIODE,MC2838
87-A40-299-080 ZENER,DZ5.1M
87-A40-292-080 ZENER,DZ2.7L
MAIN C.B
C701 87-010-196-080 CHIP CAPACITOR,0.1-25
C702 87-016-044-080 CAP,E 100-16 5L GAS
C703 87-010-140-080 CAP,E 47-16 M
C761 87-010-381-010 CAP ELECT 330-16
C762 87-010-101-010 CAP, ELECT 220-16V
C803 87-012-157-080 C-CAP,S 330P-50 CH
C804 87-012-157-080 C-CAP,S 330P-50 CH
C807 87-010-196-080 CHIP CAPACITOR,0.1-25
C811 87-010-198-080 CAP, CHIP 0.022
C812 87-010-198-080 CAP, CHIP 0.022
C815 87-010-178-080 CHIP CAP 1000P
C816 87-010-178-080 CHIP CAP 1000P
C821 87-A10-201-080 C-CAP,S0.33-16 KB
C822 87-A10-201-080 C-CAP,S0.33-16 KB
C824 87-010-553-040 CAP,E 47-16 M
C825 87-A10-759-040 CAP,E 330-6.3 SRM
C827 87-010-491-040 CAP,E 0.22-50 GAS
C828 87-010-491-040 CAP,E 0.22-50 GAS
C832 87-010-196-080 CHIP CAPACITOR,0.1-25
C835 87-010-494-040 CAP,E 1-50 GAS
C836 87-010-494-040 CAP,E 1-50 GAS
C837 87-010-196-080 CHIP CAPACITOR,0.1-25
C839 87-010-196-080 CHIP CAPACITOR,0.1-25
C840 87-010-196-080 CHIP CAPACITOR,0.1-25
C847 87-010-319-080 C-CAP,S 56P-50 CH
C848 87-010-319-080 C-CAP,S 56P-50 CH
C851 87-012-140-080 CAP 470P
C852 87-012-140-080 CAP 470P
C854 87-010-175-080 CAP 560P
C855 87-010-178-080 CHIP CAP 1000P
C857 87-010-197-080 CAP, CHIP 0.01 DM
C858 87-010-183-080 C-CAP,S 2700P-50 B
C859 87-010-183-080 C-CAP,S 2700P-50 B
C860 87-010-183-080 C-CAP,S 2700P-50 B
C870 87-010-196-080 CHIP CAPACITOR,0.1-25
C873 87-016-083-080 C-CAP,S 0.15-16 RK
C874 87-016-083-080 C-CAP,S 0.15-16 RK
C880 87-010-495-040 CAP,E 2.2-50 M 5L SRE
C886 87-010-196-080 CHIP CAPACITOR,0.1-25
C888 87-010-170-080 C-CAP,S 220P-50
C901 87-010-196-080 CHIP CAPACITOR,0.1-25
CN701 87-A60-622-010 CONN,5P V 2MM JMT
CN702 87-A60-623-010 CONN,6P V 2MM JMT
CN703 87-A60-422-010 CONN,8P V TOC-B
CN752 87-A60-062-010 CONN,05P V 9604S-05C
CN851 87-A60-625-010 CONN,8P V 2MM JMT
CNA701 8A-CV2-661-010 CONN ASSY,9P 2MM
CNA901 8A-CV2-666-010 CONN ASSY,7P 2MM
FC752 8A-CV2-665-010 FF-CABLE,5P 1.25MM
L801 87-A50-049-010 COIL,TRAP 85K(COI)
L802 87-A50-049-010 COIL,TRAP 85K(COI)
L851 87-007-342-010 COIL,OSC 85K BIAS
FUNC C.B
C501 87-010-180-080 C-CAP,S 1500P-50
C502 87-010-180-080 C-CAP,S 1500P-50
C503 87-010-182-080 C-CAP,S 2200P-50 B
C504 87-010-182-080 C-CAP,S 2200P-50 B
C505 87-010-213-080 C-CAP,S 0.015-50 B
C506 87-010-213-080 C-CAP,S 0.015-50 B
C507 87-010-491-040 CAP,E 0.22-50 GAS
C508 87-010-491-040 CAP,E 0.22-50 GAS
C509 87-010-491-040 CAP,E 0.22-50 GAS
C510 87-010-491-040 CAP,E 0.22-50 GAS
C511 87-010-494-040 CAP,E 1-50 GAS
C512 87-010-494-040 CAP,E 1-50 GAS
C513 87-010-154-080 CAP CHIP 10P
C514 87-010-553-040 CAP,E 47-16 GAS
C515 87-010-553-040 CAP,E 47-16 GAS
C535 87-016-044-040 CAP,E 100-16
C536 87-012-142-080 C-CAP,S 0.33-16
C537 87-010-493-040 CAP,E 0.47-50 GAS
C538 87-010-495-040 CAP,E 2.2-50 GAS
C551 87-010-495-040 CAP,E 2.2-50 GAS
C552 87-010-495-040 CAP,E 2.2-50 GAS
C553 87-010-553-040 CAP,E 47-16
C554 87-010-498-040 CAP,E 10-16
C555 87-010-196-080 CHIP CAPACITOR,0.1-25
C556 87-016-044-040 CAP,E 100-16 GAS
C557 87-010-498-040 CAP,E 10-16 GAS
C558 87-010-197-080 CAP, CHIP 0.01 DM
C559 87-010-197-080 CAP, CHIP 0.01 DM
All manuals and user guides at all-guides.com

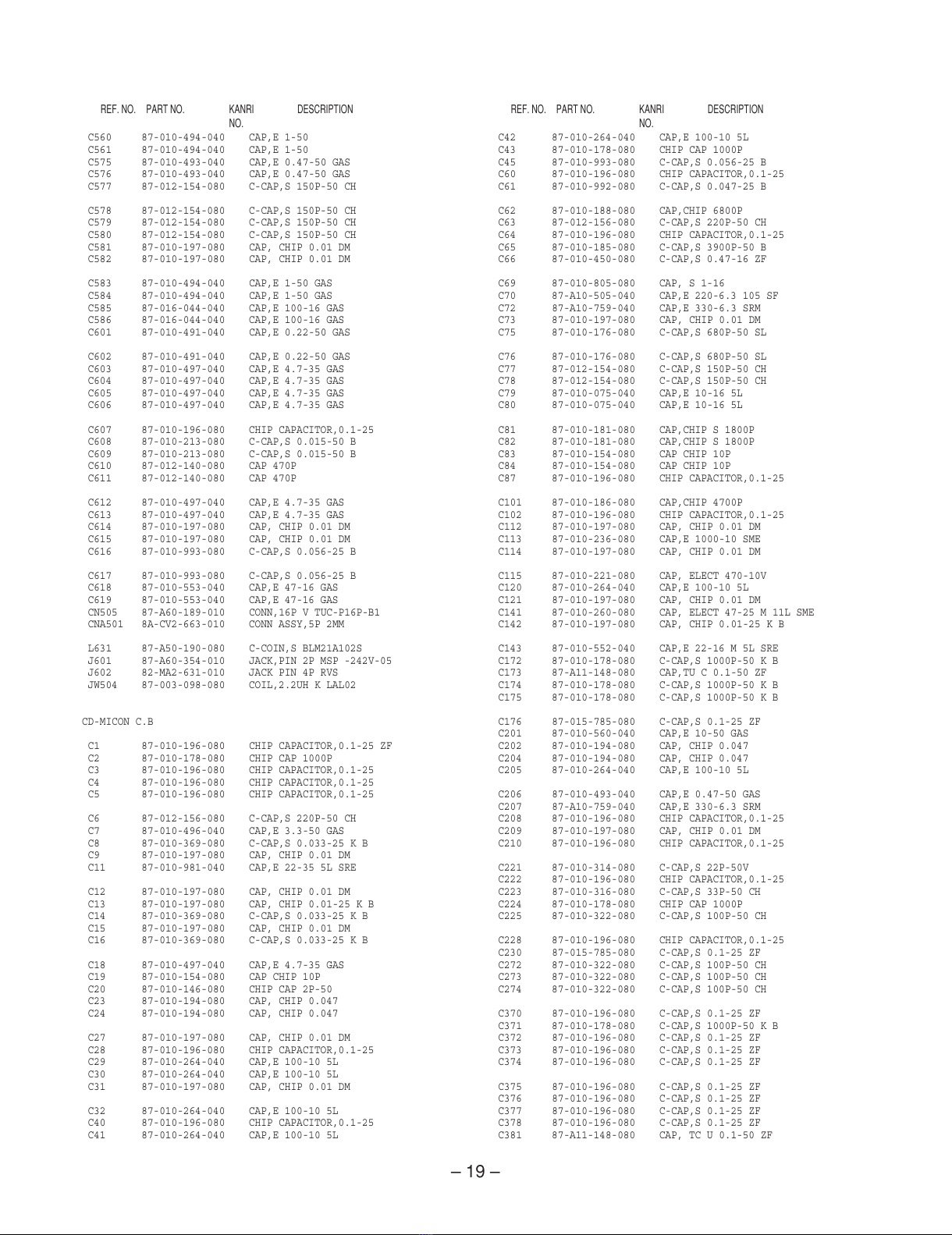

– 19 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C560 87-010-494-040 CAP,E 1-50
C561 87-010-494-040 CAP,E 1-50
C575 87-010-493-040 CAP,E 0.47-50 GAS
C576 87-010-493-040 CAP,E 0.47-50 GAS
C577 87-012-154-080 C-CAP,S 150P-50 CH
C578 87-012-154-080 C-CAP,S 150P-50 CH
C579 87-012-154-080 C-CAP,S 150P-50 CH
C580 87-012-154-080 C-CAP,S 150P-50 CH
C581 87-010-197-080 CAP, CHIP 0.01 DM
C582 87-010-197-080 CAP, CHIP 0.01 DM
C583 87-010-494-040 CAP,E 1-50 GAS
C584 87-010-494-040 CAP,E 1-50 GAS
C585 87-016-044-040 CAP,E 100-16 GAS
C586 87-016-044-040 CAP,E 100-16 GAS
C601 87-010-491-040 CAP,E 0.22-50 GAS
C602 87-010-491-040 CAP,E 0.22-50 GAS
C603 87-010-497-040 CAP,E 4.7-35 GAS
C604 87-010-497-040 CAP,E 4.7-35 GAS
C605 87-010-497-040 CAP,E 4.7-35 GAS
C606 87-010-497-040 CAP,E 4.7-35 GAS
C607 87-010-196-080 CHIP CAPACITOR,0.1-25
C608 87-010-213-080 C-CAP,S 0.015-50 B
C609 87-010-213-080 C-CAP,S 0.015-50 B
C610 87-012-140-080 CAP 470P
C611 87-012-140-080 CAP 470P
C612 87-010-497-040 CAP,E 4.7-35 GAS
C613 87-010-497-040 CAP,E 4.7-35 GAS
C614 87-010-197-080 CAP, CHIP 0.01 DM
C615 87-010-197-080 CAP, CHIP 0.01 DM
C616 87-010-993-080 C-CAP,S 0.056-25 B
C617 87-010-993-080 C-CAP,S 0.056-25 B
C618 87-010-553-040 CAP,E 47-16 GAS
C619 87-010-553-040 CAP,E 47-16 GAS
CN505 87-A60-189-010 CONN,16P V TUC-P16P-B1
CNA501 8A-CV2-663-010 CONN ASSY,5P 2MM
L631 87-A50-190-080 C-COIN,S BLM21A102S
J601 87-A60-354-010 JACK,PIN 2P MSP -242V-05
J602 82-MA2-631-010 JACK PIN 4P RVS
JW504 87-003-098-080 COIL,2.2UH K LAL02
CD-MICON C.B
C1 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
C2 87-010-178-080 CHIP CAP 1000P
C3 87-010-196-080 CHIP CAPACITOR,0.1-25
C4 87-010-196-080 CHIP CAPACITOR,0.1-25
C5 87-010-196-080 CHIP CAPACITOR,0.1-25
C6 87-012-156-080 C-CAP,S 220P-50 CH
C7 87-010-496-040 CAP,E 3.3-50 GAS
C8 87-010-369-080 C-CAP,S 0.033-25 K B
C9 87-010-197-080 CAP, CHIP 0.01 DM
C11 87-010-981-040 CAP,E 22-35 5L SRE
C12 87-010-197-080 CAP, CHIP 0.01 DM
C13 87-010-197-080 CAP, CHIP 0.01-25 K B
C14 87-010-369-080 C-CAP,S 0.033-25 K B
C15 87-010-197-080 CAP, CHIP 0.01 DM
C16 87-010-369-080 C-CAP,S 0.033-25 K B
C18 87-010-497-040 CAP,E 4.7-35 GAS
C19 87-010-154-080 CAP CHIP 10P
C20 87-010-146-080 CHIP CAP 2P-50
C23 87-010-194-080 CAP, CHIP 0.047
C24 87-010-194-080 CAP, CHIP 0.047
C27 87-010-197-080 CAP, CHIP 0.01 DM
C28 87-010-196-080 CHIP CAPACITOR,0.1-25
C29 87-010-264-040 CAP,E 100-10 5L
C30 87-010-264-040 CAP,E 100-10 5L
C31 87-010-197-080 CAP, CHIP 0.01 DM
C32 87-010-264-040 CAP,E 100-10 5L
C40 87-010-196-080 CHIP CAPACITOR,0.1-25
C41 87-010-264-040 CAP,E 100-10 5L
C42 87-010-264-040 CAP,E 100-10 5L
C43 87-010-178-080 CHIP CAP 1000P
C45 87-010-993-080 C-CAP,S 0.056-25 B
C60 87-010-196-080 CHIP CAPACITOR,0.1-25
C61 87-010-992-080 C-CAP,S 0.047-25 B
C62 87-010-188-080 CAP,CHIP 6800P
C63 87-012-156-080 C-CAP,S 220P-50 CH
C64 87-010-196-080 CHIP CAPACITOR,0.1-25
C65 87-010-185-080 C-CAP,S 3900P-50 B
C66 87-010-450-080 C-CAP,S 0.47-16 ZF
C69 87-010-805-080 CAP, S 1-16
C70 87-A10-505-040 CAP,E 220-6.3 105 SF
C72 87-A10-759-040 CAP,E 330-6.3 SRM
C73 87-010-197-080 CAP, CHIP 0.01 DM
C75 87-010-176-080 C-CAP,S 680P-50 SL
C76 87-010-176-080 C-CAP,S 680P-50 SL
C77 87-012-154-080 C-CAP,S 150P-50 CH
C78 87-012-154-080 C-CAP,S 150P-50 CH
C79 87-010-075-040 CAP,E 10-16 5L
C80 87-010-075-040 CAP,E 10-16 5L
C81 87-010-181-080 CAP,CHIP S 1800P
C82 87-010-181-080 CAP,CHIP S 1800P
C83 87-010-154-080 CAP CHIP 10P
C84 87-010-154-080 CAP CHIP 10P
C87 87-010-196-080 CHIP CAPACITOR,0.1-25
C101 87-010-186-080 CAP,CHIP 4700P
C102 87-010-196-080 CHIP CAPACITOR,0.1-25
C112 87-010-197-080 CAP, CHIP 0.01 DM
C113 87-010-236-080 CAP,E 1000-10 SME
C114 87-010-197-080 CAP, CHIP 0.01 DM
C115 87-010-221-080 CAP, ELECT 470-10V
C120 87-010-264-040 CAP,E 100-10 5L
C121 87-010-197-080 CAP, CHIP 0.01 DM
C141 87-010-260-080 CAP, ELECT 47-25 M 11L SME
C142 87-010-197-080 CAP, CHIP 0.01-25 K B
C143 87-010-552-040 CAP,E 22-16 M 5L SRE
C172 87-010-178-080 C-CAP,S 1000P-50 K B
C173 87-A11-148-080 CAP,TU C 0.1-50 ZF
C174 87-010-178-080 C-CAP,S 1000P-50 K B
C175 87-010-178-080 C-CAP,S 1000P-50 K B
C176 87-015-785-080 C-CAP,S 0.1-25 ZF
C201 87-010-560-040 CAP,E 10-50 GAS
C202 87-010-194-080 CAP, CHIP 0.047
C204 87-010-194-080 CAP, CHIP 0.047
C205 87-010-264-040 CAP,E 100-10 5L
C206 87-010-493-040 CAP,E 0.47-50 GAS
C207 87-A10-759-040 CAP,E 330-6.3 SRM
C208 87-010-196-080 CHIP CAPACITOR,0.1-25
C209 87-010-197-080 CAP, CHIP 0.01 DM
C210 87-010-196-080 CHIP CAPACITOR,0.1-25
C221 87-010-314-080 C-CAP,S 22P-50V
C222 87-010-196-080 CHIP CAPACITOR,0.1-25
C223 87-010-316-080 C-CAP,S 33P-50 CH
C224 87-010-178-080 CHIP CAP 1000P
C225 87-010-322-080 C-CAP,S 100P-50 CH
C228 87-010-196-080 CHIP CAPACITOR,0.1-25
C230 87-015-785-080 C-CAP,S 0.1-25 ZF
C272 87-010-322-080 C-CAP,S 100P-50 CH
C273 87-010-322-080 C-CAP,S 100P-50 CH
C274 87-010-322-080 C-CAP,S 100P-50 CH
C370 87-010-196-080 C-CAP,S 0.1-25 ZF
C371 87-010-178-080 C-CAP,S 1000P-50 K B
C372 87-010-196-080 C-CAP,S 0.1-25 ZF
C373 87-010-196-080 C-CAP,S 0.1-25 ZF
C374 87-010-196-080 C-CAP,S 0.1-25 ZF
C375 87-010-196-080 C-CAP,S 0.1-25 ZF
C376 87-010-196-080 C-CAP,S 0.1-25 ZF
C377 87-010-196-080 C-CAP,S 0.1-25 ZF
C378 87-010-196-080 C-CAP,S 0.1-25 ZF
C381 87-A11-148-080 CAP, TC U 0.1-50 ZF
All manuals and user guides at all-guides.com

– 20 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
C403 87-010-178-080 CHIP CAP 1000P
C404 87-010-196-080 CHIP CAPACITOR,0.1-25
C405 87-012-140-080 C-CAP,S 470P-50
C451 87-010-322-080 C-CAP,S 100P-50 CH
C452 87-010-322-080 C-CAP,S 100P-50 CH
C453 87-010-322-080 C-CAP,S 100P-50 CH
C454 87-010-322-080 C-CAP,S 100P-50 CH
C455 87-010-322-080 C-CAP,S 100P-50 CH
C456 87-010-322-080 C-CAP,S 100P-50 CH
C461 87-010-196-080 C-CAP,S 0.1-50 ZF
CN1 87-A60-429-010 CONN,16P H TOC-A
CN2 87-009-411-010 CONN,6P V B6B-ZR
CN201 87-A90-878-010 HLDR,WIRE 19P 1.5 51016
CN202 87-064-142-010 HLDR,WIRE 19P 15-1.5
CN203 87-A60-154-010 CONN,6P H FE
CN205 87-A60-190-010 CONN,16P H TUC-P16X-B1
CN701 87-A60-422-010 CONN,8P V TOC-B
CNA151 88-802-051-290 CONN ASSY,5P W
CNA206 8A-CR2-663-010 CONN ASSY,2P 2MM
CNA702 8A-CV2-662-010 CONN ASSY,6P 2MM
FC203 88-906-101-110 FF-CABLE,6P 1.25
FC701 8A-CV2-664-010 FF-CABLE,8P 1MM
L40 87-003-102-080 COIL, 10UH
L60 87-003-102-080 COIL, 10UH
L201 87-A50-333-010 COIL,OSC 9.43MHZ
L204 87-A50-189-080 C-COIL,S BLM21B272S
L370 87-003-098-080 COIL, 2.2UH K LAL02
R69 87-A50-190-080 C-COIL,S BLM21A102S
R70 87-A50-190-080 C-COIL,S BLM21A102S
R81 87-A50-190-080 C-COIL,S BLM21A102S
R120 87-A91-935-080 PROTECTOR,1A 20P 60V
R281 87-A50-190-080 C-COIL,S BLM21A102S
R282 87-A50-190-080 C-COIL,S BLM21A102S
R284 87-A50-190-080 C-COIL,S BLM21A102S
R285 87-A50-190-080 C-COIL,S BLM21A102S
W201 8A-CR2-661-010 F-CABLE,19P 1.5MM 400MM
W202 8A-CR2-660-010 F-CABLE,15P 1.5MM 400MM
X60 87-A70-046-010 VIB,XTAL 16.934MHZ
FRONT C.B
CN706 87-A60-154-010 CONN,6P H FE
CNA704 8A-CV2-667-010 CONN ASSY,2P 2MM
CNA705 8A-CV2-667-010 CONN ASSY,2P 2MM
CNA707 8A-CR2-662-010 CONN ASSY,3P 2MM
S701 87-A91-024-180 SW,TACT KSHG611BT
S702 87-A91-024-180 SW,TACT KSHG611BT
LED3 C.B
C380 87-A11-148-080 CAP, TC U 0.1-50 FZ
CN901 87-A60-624-010 CONN,7P V 2MM JMT
LED901 87-A40-228-080 LED,SLR-342PC T31 GRN
LED902 87-A40-229-080 LED,SLR-342VR TB7 RED
LED903 87-A40-228-080 LED,SLR-342PC T31 GRN
LED904 87-A40-228-080 LED,SLR-342PC T31 GRN
LED905 87-A40-228-080 LED,SLR-342PC T31 GRN
LED906 87-A40-228-080 LED,SLR-342PC T31 GRN
LED-L C.B
CN704 87-A60-109-010 CONN,2P V S2M-2W
LED907 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED-R C.B
CN705 87-A60-109-010 CONN,2P V S2M-2W
LED908 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
RM C.B
CN707 87-A60-667-010 CONN,3P H 2MM JMT
C704 87-010-075-040 CAP,E 10-16 5L
C705 87-010-322-080 C-CAP,S 100P-50 CH
KEY C.B
CN206 87-A60-666-010 CONN,2P H 2MM JMT
S301 87-A91-024-180 SW,TACT KSHG611BT
S302 87-A91-024-180 SW,TACT KSHG611BT
S303 87-A91-024-180 SW,TACT KSHG611BT
S304 87-A91-024-180 SW,TACT KSHG611BT
S305 87-A91-024-180 SW,TACT KSHG611BT
S306 87-A91-024-180 SW,TACT KSHG611BT
S307 87-A91-024-180 SW,TACT KSHG611BT
S308 87-A91-024-180 SW,TACT KSHG611BT
S309 87-A91-024-180 SW,TACT KSHG611BT
S310 87-A91-024-180 SW,TACT KSHG611BT
S311 87-A91-024-180 SW,TACT KSHG611BT
CD-DOOR C.B
CN352 87-099-827-010 CONN,3P S2M-3W
S351 87-036-109-010 SW,MICRO SPPB61
S352 87-036-109-010 SW,MICRO SPPB61
MOTOR C.B
CN151 87-A60-111-010 CONN,5P V S2M 5W
CNA352 8A-CR2-662-010 CONN ASSY,3P 2MM
M351 87-A91-069-010 MOT,RF-370CA15370
DECK C.B
CON1 87-009-352-010 CONN,9P H WHT PH
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
SOL2 82-ZM3-628-010 SOL ASSY,23SO
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW5 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW6 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 86-ZM4-601-110 RBN-CORD,4P-300MM
HEAD C.B
85-ZM3-601-210 PWB,FLEX I
CNA702 86-ZM1-605-010 CONN ASSY,AR3
DRIVE C.B
CN1 86-NFZ-675-010 CONN,5P H 6216-11H
M1 87-045-305-010 MOT,RF-500TB
S2 87-A91-662-010 SW,PUSH 1-1-1 MPU11244MLB0
W2 8Z-ZG4-614-010 F-CABLE,2P 130MM LED
FRAME C.B
S1 87-A90-948-010 SW,LVR 2-1-2 MPU11263MLB0
All manuals and user guides at all-guides.com
