Aiwa NSX-DP25 User manual

SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
BASIC TAPE MECHANISM : ZZM-3 PR1NM
BASIC CD MECHANISM : AZG-1 ZD8RDM
NSX-DP25
EZ
S/M Code No. 09-006-428-0R2
REVISION
• This Service Manual is the “Revision Publishing” and replaces
“Simple Manual”, (S/M Code No. 09-004-428-0T3).
• If requiring information about the CD mechanism, see Service Manual
of AZG-1, (S/M Code No. 09-001-335-3N6).
NSX-DP25
SPEAKER
SYSTEM CD
CASSEIVER REMOTE
CONTROLLER
CX-NDP25 SX-NDP24
SX-R277
SX-C607
RC-ZAS10
SIMPLE-2
Apartofcontentsisadequate.
Re-issuing is under request.

– 2 –
SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<LW tuner section>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Front
Rated: 50 W + 50 W (6 ohms, THD 1%,
1 kHz/DIN 45500)
Reference: 60 W + 60 W (6 ohms,
THD 10%,1 kHz/DIN 45324)
DIN MUSIC POWER: 120 W + 120 W
Rear (Surround)
Rated: 20 W + 20 W (8 ohms, THD 1%,
1 kHz/DIN 45500)
Reference: 25 W + 25 W (8 ohms,
THD 10%, 1 kHz/DIN 45324)
DIN MUSIC POWER: 50 W + 50 W
Center
Rated: 20 W (8 ohms, THD 1%,
1 kHz/DIN 45500)
Reference: 25 W (8 ohms, THD 10%,
1 kHz/DIN 45324)
DIN MUSIC POWER: 70 W
Total harmonic distortion 0.1% (25 W, 1 kHz, 6 ohms,
DIN AUDIO/Front)
Inputs VIDEO/AUX : 300 mV (adjustable)
Outputs SPEAKERS : accept speakers of 6
ohms or more
SURROUND SPEAKERS : accept
speakers of 8 ohms to 16 ohms
CENTER SPEAKER : accept speakers
of 8 ohms or more
SUBWOOFER : 1.6 V
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1 : Playback head x 1
Deck 2 : Recording/Playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
<Speaker system SX–NDP24>
Speaker system 2 way, bass reflex (magnetic
shielded type)
Speaker units Woofer: 140 mm cone type
Tweeter: 60mm cone type
Impedance 6 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 230 x 324 x 254 mm
Weight 3.8 kg
<General>
Power requiremnts 230 V AC, 50 Hz
Power consumption 140 W
Power consumption in standby mode
with power-economizing mode off: 20 W
with power-economizing mode on: 0.9 W
Dimensions of main unit 260 x 328 x 390 mm
(W xH xD)
Weight of main unit 9.0 kg
• Design and specifications are subject to change without
notice.
• The word “BBE” and the “BBE symbol” are trademarks of BBE
Sound, Inc.
Under license from BBE Sound, Inc.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are trademarks
of Dolby Laboratories Licensing Corporation.

– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSM-880CAB)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
solder
PICK-UP Assy P.C.B

– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34

– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.

– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-398-010 IC,STK490-110
87-A20-783-040 C-IC,BA7762AFS
87-A21-097-040 C-IC,M62463AFP
87-A21-452-030 C-IC,BD3876KS2
87-A21-560-010 IC,LA1844L-A
8A-NFW-601-010 C-IC,UPD780228GF-060-3BA
87-A21-482-010 IC,RPM6938-H4
87-070-127-110 IC,LC72131 D
87-A20-440-040 C-IC,BU1920FS
87-A21-269-010 IC,EW732
TRANSISTOR
87-026-245-080 TR,DTC114ES
87-026-609-080 TR,KTA1266GR
87-A30-198-080 TR,KTC3199GR
89-213-702-010 TR,2SB1370 (1.8W)
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-318-080 TR,CSA952K
87-A30-107-070 C-TR,CMBT5401
87-A30-074-080 C-TR,RT1P 141C
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-106-080 C-TR,CMBT5551
87-A30-087-080 C-FET,2SK2158
87-A30-063-080 C-TR,KRA104S
87-A30-086-040 C-TR,CSD1306E
87-A30-329-080 TR,CD1585BC
89-327-143-080 TR,2SC2714 (0.1W)
87-A30-072-080 C-TR,RT1P 144C
87-A30-234-080 TR,CSC4115BC
89-503-602-080 C-FET,2SK360E
DIODE
87-A40-548-090 DIODE,D3SBA20
87-017-447-010 DIODE,GBU4DL
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-070-274-080 DIODE,1N4003 SEM
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-854-080 ZENER, UZ15BSA
87-020-465-080 DIODE,1SS133
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-760-080 ZENER,UZ9.1BSA
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-745-080 ZENER,UZ4.7BSA
87-017-149-080 ZENER,HZS6A2L

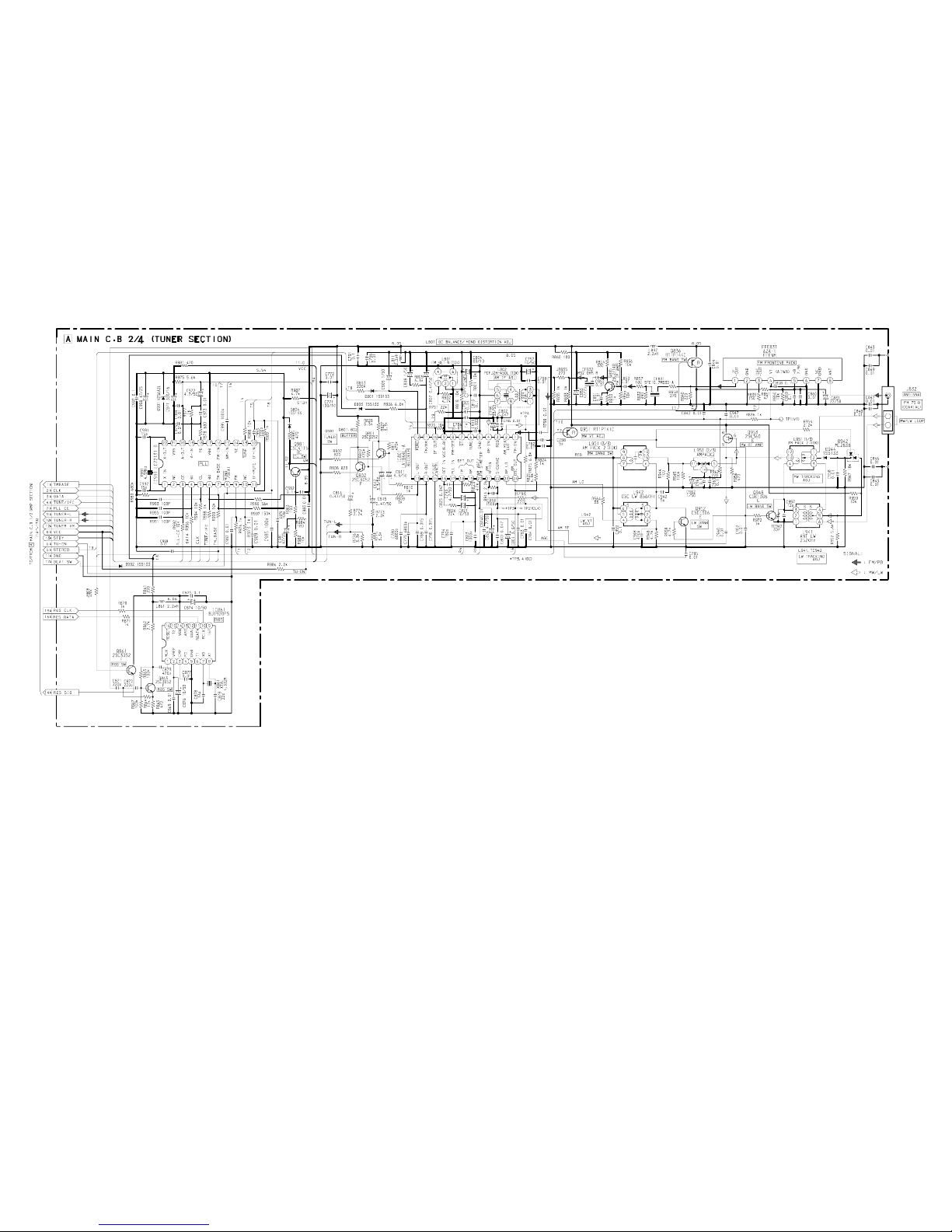

MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C21 87-016-495-000 CAP,E 3300-25 M SMG
C22 87-016-495-000 CAP,E 3300-25 M SMG
C25 87-010-382-080 CAP, ELECT 22-25V
C26 87-010-382-080 CAP, ELECT 22-25V
C27 87-010-382-080 CAP, ELECT 22-25V
C28 87-010-382-080 CAP, ELECT 22-25V
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C34 87-010-260-080 CAP, ELECT 47-25V
C35 87-010-406-080 CAP, ELECT 22-50V
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-384-080 CAP, ELECT 100-25V
C39 87-010-384-080 CAP, ELECT 100-25V
C40 87-010-197-080 CAP, CHIP 0.01 DM
C60 87-010-403-080 CAP, ELECT 3.3-50V
C115 87-010-404-080 CAP, ELECT 4.7-50V
C116 87-010-404-080 CAP, ELECT 4.7-50V
C151 87-010-382-080 CAP, E 22-25
C161 87-010-176-080 C-CAP,S 680P-50 J SL
C162 87-010-176-080 C-CAP,S 680P-50 J SL
C163 87-010-196-080 CHIP CAPACITOR,0.1-25
C171 87-012-368-080 C-CAP,S 0.1-50 F
C172 87-012-368-080 C-CAP,S 0.1-50 F
C173 87-012-368-080 C-CAP,S 0.1-50 F
C174 87-012-368-080 C-CAP,S 0.1-50 F
C175 87-010-213-080 C-CAP,S 0.015-25 KB
C176 87-010-213-080 C-CAP,S 0.015-25 KB
C177 87-010-197-080 CAP, CHIP 0.01 DM
C178 87-010-197-080 CAP, CHIP 0.01 DM
C301 87-010-318-080 C-CAP,S 47P-50 CH
C302 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-157-080 C-CAP,S 330P-50 CH
C306 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022
C312 87-010-198-080 CAP, CHIP 0.022
C313 87-010-180-080 C-CER 1500P
C314 87-010-180-080 C-CER 1500P
C315 87-010-182-080 C-CAP,S 2200P-50 B
C316 87-010-182-080 C-CAP,S 2200P-50 B
C321 87-012-142-080 CAP, S 0.33-16
C322 87-012-142-080 CAP, S 0.33-16
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP 470P
C352 87-012-140-080 CAP 470P
C354 87-010-175-080 CAP 560P
C355 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-016-083-080 C-CAP,S 0.15-16 RK
C374 87-016-083-080 C-CAP,S 0.15-16 RK
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C379 87-010-382-080 CAP, ELECT 22-25V
C380 87-010-382-080 CAP, ELECT 22-25V
C381 87-010-197-080 CAP, CHIP 0.01 DM
C382 87-010-312-080 C-CAP,S 15P-50 CH
C383 87-010-197-080 CAP, CHIP 0.01 DM
C384 87-010-402-080 CAP, ELECT 2.2-50V
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-012-145-080 CAP, CHIP S 270P CH
C388 87-012-156-080 C-CAP,S 220P-50 CH
C391 87-010-319-080 C-CAP,S 56P-50 CH
C392 87-010-319-080 C-CAP,S 56P-50 CH
C393 87-010-319-080 C-CAP,S 56P-50 CH
C394 87-010-319-080 C-CAP,S 56P-50 CH

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C401 87-010-176-080 C-CAP,S 680P-50 SL
C402 87-010-176-080 C-CAP,S 680P-50 SL
C403 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C404 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C405 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C406 87-010-958-080 CHIP -CAP,S 0.01-25BJ
C407 87-010-401-080 CAP, ELECT 1-50V
C408 87-010-401-080 CAP, ELECT 1-50V
C409 87-010-190-080 CHIP CAPACITOR,0.01-50
C410 87-010-112-080 CAP, ELECT 100-16V
C411 87-010-400-080 CAP, ELECT 0.47-50V
C412 87-010-400-080 CAP, ELECT 0.47-50V
C413 87-010-400-080 CAP, ELECT 0.47-50V
C414 87-010-401-080 CAP, ELECT 1-50V
C417 87-010-221-080 CAP, ELECT 470-10V
C418 87-A10-891-080 CAP,E 4.7-25 SME(K)
C419 87-A10-800-080 C-CAP,S 6800P-16 J B CM
C420 87-010-374-080 CAP, ELECT 47-10V
C421 87-010-190-080 CHIP CAPACITOR,0.01-50
C422 87-A11-537-080 C-CAP,S 0.1-25 J B
C424 87-010-374-080 CAP, ELECT 47-10V
C425 87-010-196-080 CHIP CAPACITOR,0.1-25
C428 87-012-156-080 C-CAP,S 220P-50J
C430 87-A10-201-080 CAP, S 0.33-16 K B
C431 87-010-971-080 C-CAP,S 4700P-50 B J
C432 87-012-349-080 C-CAP,S 1000P-50 J CH
C433 87-A11-183-080 C-CAP,S 0.12-16 J B
C434 87-A11-182-080 C-CAP,S 0.27-16 J B
C435 87-A11-182-080 C-CAP,S 0.27-16 J B
C436 87-A11-183-080 C-CAP,S 0.12-16 J B
C437 87-010-971-080 C-CAP,S 4700P-50 B J
C438 87-012-349-080 C-CAP,S 1000P-50 J CH
C439 87-A11-733-080 C-CAP,S 1-16 Z F
C440 87-010-401-080 CAP, ELECT 1-50V
C441 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C442 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C443 87-A10-229-080 C-CAP,S 0.68-10 K W5
C444 87-012-393-080 C-CAP,S 0.22-16 R K
C445 87-012-393-080 C-CAP,S 0.22-16 R K
C446 87-010-404-080 CAP, ELECT 4.7-50V
C447 87-010-404-080 CAP, ELECT 4.7-50V
C448 87-012-393-080 C-CAP,S 0.22-16 R K
C449 87-012-393-080 C-CAP,S 0.22-16 R K
C450 87-016-669-080 C-CAP,S 0.1-25 K B
C451 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C452 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C453 87-016-669-080 C-CAP,S 0.1-25 K B
C454 87-016-669-080 C-CAP,S 0.1-25 K B
C455 87-A10-801-080 C-CAP,S 0.022-16 J B
C456 87-A10-801-080 C-CAP,S 0.022-16 J B
C457 87-016-669-080 C-CAP,S 0.1-25 K B
C489 87-010-545-080 CAP, ELECT 0.22-50V
C492 87-010-402-080 CAP, ELECT 2.2-50V
C609 87-010-181-080 CAP,CHIP S 1800P
C610 87-010-181-080 CAP,CHIP S 1800P
C611 87-010-598-080 C-CAP,S 0.068-16VRK
C612 87-016-369-080 C-CAP,S 0.033-25 B K
C613 87-010-197-080 CAP, CHIP 0.01 DM
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C618 87-010-401-080 CAP, ELECT 1-50V
C619 87-010-263-080 CAP, ELECT 100-10V
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C621 87-010-197-080 CAP, CHIP 0.01 DM
C623 87-010-401-080 CAP, ELECT 1-50V
C624 87-010-401-080 CAP, ELECT 1-50V
C626 87-010-596-080 CAP, S 0.047-16
C627 87-010-400-080 CAP, ELECT 0.47-50V
C628 87-010-400-080 CAP, ELECT 0.47-50V
C629 87-010-596-080 CAP, S 0.047-16
C630 87-010-263-080 CAP, ELECT 100-10V
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-A10-307-080 CAP,M 0.1-50 J
C636 87-A10-307-080 CAP,M 0.1-50 J
C637 87-A10-307-080 CAP,M 0.1-50 J
C638 87-A10-307-080 CAP,M 0.1-50 J
C639 87-010-405-080 CAP, ELECT 10-50V
C643 87-010-196-080 CHIP CAPACITOR,0.1-25
C644 87-010-401-080 CAP, ELECT 1-50V
C671 87-010-322-080 C-CAP,S 100P-50 CH
C672 87-010-322-080 C-CAP,S 100P-50 CH
C673 87-010-197-080 CAP, CHIP 0.01 DM
C675 87-016-669-080 C-CAP,S 0.1-25 K B
C679 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-197-080 CAP, CHIP 0.01 DM
C682 87-010-196-080 CHIP CAPACITOR,0.1-25
C685 87-010-196-080 CHIP CAPACITOR,0.1-25
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C779 87-010-188-080 C-CAP,S 6800P-50 JR
C780 87-010-188-080 C-CAP,S 6800P-50 JR
C782 87-010-197-080 CAP, CHIP 0.01 DM
C783 87-010-197-080 CAP, CHIP 0.01 DM
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-197-080 CAP, CHIP 0.01 DM
C786 87-010-197-080 CAP, CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A10-592-080 C-CAP,S 0.015-50 J B
C790 87-A10-592-080 C-CAP,S 0.015-50 J B
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C794 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-010-194-080 CAP, CHIP 0.047
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-010-194-080 CAP, CHIP 0.047
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C811 87-010-403-080 CAP, ELECT 3.3-50V
C812 87-010-403-080 CAP, ELECT 3.3-50V
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C818 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C824 87-010-404-080 CAP, ELECT 4.7-50 M
C825 87-010-596-080 CAP, S 0.047-16
C831 87-010-406-080 CAP, E 22-50 M
C842 87-010-197-080 CAP, CHIP 0.01 DM
C843 87-010-197-080 CAP, CHIP 0.01 DM
C844 87-010-197-080 CAP, CHIP 0.01 DM
C845 87-010-197-080 CAP, CHIP 0.01 DM
C846 87-010-197-080 CAP, CHIP 0.01 DM
C847 87-010-197-080 CAP, CHIP 0.01 DM
C848 87-010-197-080 CAP, CHIP 0.01 DM
C849 87-010-197-080 CAP, CHIP 0.01 DM
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-010-197-080 CAP, CHIP 0.01 DM
C852 87-010-197-080 CAP, CHIP 0.01 DM

– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C853 87-010-197-080 CAP, CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01 DM
C869 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C871 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C872 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C873 87-012-140-080 C-CAP,S 470P-50 J CH
C874 87-010-405-080 CAP,E 10-50 M 11L SME
C875 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C876 87-010-405-080 CAP,E 10-50 M 11L SME
C877 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C878 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C879 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C940 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C942 87-010-149-080 C-CAP,S 5P-50 C CH GRM
C947 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C948 87-012-140-080 C-CAP,S 470P-50 J CH
C952 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C957 87-010-311-080 C-CAP,S 12P-50 J CH GRM
C958 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C962 87-010-401-080 CAP, ELECT 1-50V
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
C974 87-010-197-080 CAP, CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C985 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C989 87-010-197-080 CAP, CHIP 0.01 DM
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-423-010 FILTER, CF SFE10.7MS3G-A
CF832 82-785-747-010 CF, MS2 GHY,R
CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
D101 87-A11-148-080 CAP, TC U 0.01-50
FB161 87-008-474-080 F-BEAD, BL02RN1-R62T2 EMI
FB162 87-008-474-080 F-BEAD, BL02RN1-R62T2 EMI
FB301 87-008-372-010 FLTR,EMIBLO1 RN1
FFE831 A8-6ZA-191-130 6ZA-1 FEENM
J102 87-A60-238-010 TERMINAL,SP 4P (MSC)
J103 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J604 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP
JW416 87-008-372-010 FLTR,EMIBLO1 RN1
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L861 87-005-847-080 COIL,2.2UH(CECS)
L941 87-A50-020-010 COIL,ANT LW(COI) 252KHZ
L942 87-A50-019-010 COIL,OSC LW(COI) 856KHZ
L951 8Z-ZA1-665-010 COIL,AM PACK2 (TOK)
R161 87-A00-440-050 RES,220-1/2W J RP
R162 87-A00-440-050 RES,220-1/2W J RP
R163 87-A00-440-050 RES,220-1/2W J RP
R164 87-A00-440-050 RES,220-1/2W J RP
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X861 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-010-196-080 CHIP CAPACITOR,0.1-25
C103 87-010-498-040 CAP,E 10-16 GAS
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C107 87-010-493-040 CAP,E 0.47-50 GAS
C108 87-012-393-080 C-CAP,S 0.22-16 R K
C153 87-010-198-080 CAP, CHIP 0.022
C154 87-010-246-040 CAP,E 47-35 SME
C155 87-010-404-040 CAP,E 4.7-50 SME
C156 87-010-404-040 CAP,E 4.7-50 SME
C361 87-010-178-080 CHIP CAP 1000P
C362 87-010-178-080 CHIP CAP 1000P
C371 87-010-178-080 CHIP CAP 1000P
C372 87-010-178-080 CHIP CAP 1000P
C601 87-010-382-040 CAP,E 22-25 SME
C801 87-010-195-080 C-CAP,S 0.068-25 F
C802 87-010-195-080 C-CAP,S 0.068-25 F
C803 87-010-402-040 CAP,E 2.2-50 SME
C804 87-010-402-040 CAP,E 2.2-50 SME
C805 87-010-196-080 CHIP CAPACITOR,0.1-25
C806 87-010-196-080 CHIP CAPACITOR,0.1-25
C901 87-010-322-080 C-CAP,S 100P-50 CH
C902 87-010-322-080 C-CAP,S 100P-50 CH
C903 87-010-322-080 C-CAP,S 100P-50 CH
C904 87-010-322-080 C-CAP,S 100P-50 CH
C905 87-010-322-080 C-CAP,S 100P-50 CH
C906 87-010-322-080 C-CAP,S 100P-50 CH
C907 87-010-322-080 C-CAP,S 100P-50 CH
C908 87-010-322-080 C-CAP,S 100P-50 CH
C909 87-010-322-080 C-CAP,S 100P-50 CH
C910 87-010-322-080 C-CAP,S 100P-50 CH
C911 87-010-178-080 CHIP CAP 1000P
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-248-040 CAP,E 220-10 SME
C914 87-010-248-040 CAP,E 220-10 SME
C915 87-010-196-080 CHIP CAPACITOR,0.1-25
C916 87-010-196-080 CHIP CAPACITOR,0.1-25
C917 87-010-196-080 CHIP CAPACITOR,0.1-25
C919 87-010-197-080 CAP, CHIP 0.01 DM
C920 87-012-369-080 C-CAP,S 0.047-50F
C921 87-010-186-080 CAP,CHIP 4700P
C951 87-010-312-080 C-CAP,S 15P-50 CH
C952 87-012-155-080 C-CAP 180P-50CH
C953 87-012-140-080 CAP 470P
C961 87-010-378-040 CAP,E 10-16
C962 87-012-157-080 C-CAP,S 330P-50 CH
C963 87-010-196-080 CHIP CAPACITOR,0.1-25
CN104 87-A60-057-010 CONN,11P V 9604S-11C

– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
CN701 87-099-720-010 CONN,30P TYK-B(P)
CN731 87-099-015-010 CONN,13P 6216V
FL901 8A-NF9-605-010 FL,HNA-10SS12
L951 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED201 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED202 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED204 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED205 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED207 87-A40-266-080 LED,SLH-56VCT31 RED
LED208 87-A40-266-080 LED,SLH-56VCT31 RED
LED209 87-A40-317-080 LED,SLR-342VCT31 RED
LED210 87-A40-619-040 LED,SLR-56PT-T31-W GRN
S301 87-A90-164-080 SW,TACT SKQAB(N)
S302 87-A90-164-080 SW,TACT SKQAB(N)
S303 87-A90-164-080 SW,TACT SKQAB(N)
S304 87-A90-164-080 SW,TACT SKQAB(N)
S305 87-A90-164-080 SW,TACT SKQAB(N)
S306 87-A90-164-080 SW,TACT SKQAB(N)
S307 87-A90-164-080 SW,TACT SKQAB(N)
S308 87-A90-164-080 SW,TACT SKQAB(N)
S309 87-A90-164-080 SW,TACT SKQAB(N)
S310 87-A90-164-080 SW,TACT SKQAB(N)
S321 87-A90-164-080 SW,TACT SKQAB(N)
S322 87-A90-164-080 SW,TACT SKQAB(N)
S323 87-A90-164-080 SW,TACT SKQAB(N)
S324 87-A90-164-080 SW,TACT SKQAB(N)
S325 87-A90-164-080 SW,TACT SKQAB(N)
S326 87-A90-164-080 SW,TACT SKQAB(N)
S327 87-A90-164-080 SW,TACT SKQAB(N)
S328 87-A90-164-080 SW,TACT SKQAB(N)
S329 87-A90-164-080 SW,TACT SKQAB(N)
S341 87-A90-164-080 SW,TACT SKQAB(N)
S342 87-A90-164-080 SW,TACT SKQAB(N)
S343 87-A90-164-080 SW,TACT SKQAB(N)
S344 87-A90-164-080 SW,TACT SKQAB(N)
S345 87-A90-164-080 SW,TACT SKQAB(N)
S346 87-A90-164-080 SW,TACT SKQAB(N)
S347 87-A90-164-080 SW,TACT SKQAB(N)
S348 87-A90-164-080 SW,TACT SKQAB(N)
S349 87-A90-164-080 SW,TACT SKQAB(N)
S350 87-A90-164-080 SW,TACT SKQAB(N)
S361 87-A91-633-010 SW,RTRY XRE012103PVB25FINA 1-2
S371 87-A91-632-010 SW,RTRY XRE012103PVB25FINB 1-2
AMP 1F C.B
C101 87-010-185-080 C-CAP,S 3900P-50 B
C102 87-010-185-080 C-CAP,S 3900P-50 B
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C105 87-010-188-080 CAP,CHIP 6800P
C106 87-010-188-080 CAP,CHIP 6800P
C107 87-010-404-080 CAP, ELECT 4.7-50V
C108 87-010-404-080 CAP, ELECT 4.7-50V
C111 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C112 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C113 87-010-405-080 CAP, ELECT 10-50V
C114 87-010-405-080 CAP, ELECT 10-50V
C115 87-010-405-080 CAP, ELECT 10-50V
C116 87-010-405-080 CAP, ELECT 10-50V
C117 87-010-196-080 CHIP CAPACITOR,0.1-25
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-197-080 CAP, CHIP 0.01 DM
C153 87-010-188-080 CAP,CHIP 6800P
C205 87-010-183-080 C-CAP,S 2700P-50 B
C206 87-010-183-080 C-CAP,S 2700P-50 B
C207 87-010-545-080 CAP, ELECT 0.22-50V
C208 87-010-545-080 CAP, ELECT 0.22-50V
C209 87-010-178-080 CHIP CAP 1000P
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C210 87-010-178-080 CHIP CAP 1000P
C211 87-010-403-080 CAP, ELECT 3.3-50V
C212 87-010-403-080 CAP, ELECT 3.3-50V
C215 87-012-140-080 CAP 470P-50 J CH
C216 87-012-140-080 CAP 470P-50 J CH
C217 87-010-405-080 CAP, ELECT 10-50V
C218 87-010-405-080 CAP, ELECT 10-50V
C219 87-010-190-080 S CHIP F 0.01
C221 87-010-405-080 CAP, ELECT 10-50V
C222 87-010-405-080 CAP, ELECT 10-50V
C223 87-010-197-080 CAP, CHIP 0.01 DM
C224 87-010-197-080 CAP, CHIP 0.01 DM
C251 87-010-993-080 C-CAP,S 0.056-25 B
C252 87-010-993-080 C-CAP,S 0.056-25 B
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C254 87-010-196-080 CHIP CAPACITOR,0.1-25
C255 87-010-190-080 S CHIP F 0.01
C256 87-010-190-080 S CHIP F 0.01
C257 87-010-190-080 S CHIP F 0.01
C258 87-010-190-080 S CHIP F 0.01
C259 87-010-190-080 S CHIP F 0.01
C260 87-010-190-080 S CHIP F 0.01
C401 87-010-260-080 CAP, ELECT 47-25V
CN101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CNA101 8A-NF8-656-010 CONN ASSY,5P TID-A 400
J201 87-A61-159-010 JACK,PIN 4P R/W/B/0 KM
L251 87-A50-610-010 COIL,1UH K(MDEC)
L252 87-A50-610-010 COIL,1UH K(MDEC)
R129 87-A00-669-080 RES,M/F 0.22-2W J RA
R130 87-A00-669-080 RES,M/F 0.22-2W J RA
R181 87-A00-669-080 RES,M/F 0.22-2W J RA
R182 87-A00-669-080 RES,M/F 0.22-2W J RA
R231 87-A00-258-080 RES,M/F 0.22-1W J
R232 87-A00-257-080 RES,M/F 0.15-1W J
WH101 87-A90-459-010 HLDR,WIRE 2.5-5P
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C2 87-A11-148-080 CAP,TC U 0.1-50 Z F
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C6 87-A10-627-090 CAP,E 2200-50 M SMG
C7 87-A10-627-090 CAP,E 2200-50 M SMG
C8 87-A11-148-080 CAP,TC U 0.1-50 Z F
C9 87-A11-148-080 CAP,TC U 0.1-50 Z F
C10 87-A11-148-080 CAP,TC U 0.1-50 Z F
C11 87-A11-148-080 CAP,TC U 0.1-50 Z F
C12 87-A12-036-000 CAP,E 2200-63 SMG
C13 87-A12-036-000 CAP,E 2200-63 SMG
C14 87-A11-148-080 CAP,TC U 0.1-50 Z F
C15 87-A11-148-080 CAP,TC U 0.1-50 Z F
C16 87-010-403-080 CAP, ELECT 3.3-50V
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A61-108-010 CONN,5P V TID-A
PT1 8A-NFW-617-010 PT,ANF-29 EZ
PT2 8A-NF8-662-010 PT,SUB ANF-8(E)
RY2 87-A91-418-010 RELAY,AC12V G5PA-1-M
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
DECK C.B
CN1 87-099-753-010 CONN,11P H 9604
HL1 8Z-ZM3-214-010 HLDR,IC
SFR1 87-024-581-010 SFR,3.3K DIA6V K0A
SW1 87-A90-673-010 SW,MICRO ESE11SH1C
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0
!
!
!
!
!

– 10 –
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0
SW5 87-A90-673-010 SW,MICRO ESE11SH1C
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
TRANSISTOR ILLUSTRATION
E C B
CD1585BC
CSA952K
KTA1266GR
KTC3198GR
2SB1370
DTC114ES
KTC3199GR
B C E
E
B
C
S
G
D
E C B
2SA1235F
2SC2714
2SC3052F
CMBT5401
CMBT5551
CSD1306E
KRA104S
KRC102S-RTK
RT1P141C
RT1P144C
2SK2158
E C B
CSC4115BC
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
G
D
S
2SK360E
