SERVICE MANUAL
DATA
XG-SZ2 D
SIMPLE
S/M Code No. 09-009-433-7T2

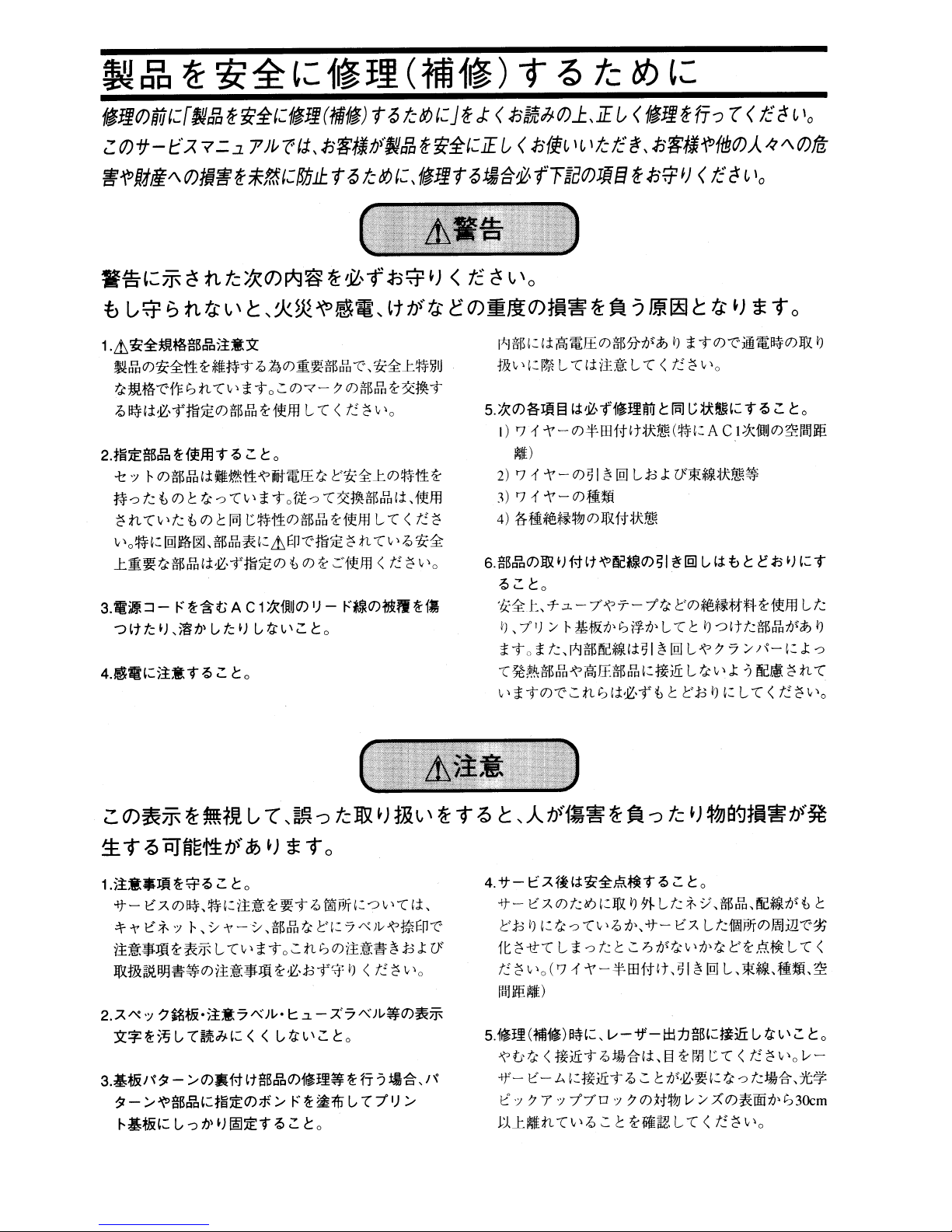

• Replace this Service manual with “Revision Publishing” when it is issued.
COMPACT DISC STEREO
CASSETTE RECEIVER BASIC TAPE MECHANISM: ZZM-2 APR1NC BASIC CD MECHANISM: 3ZG-3 E8NC

PARTS LIST
-3-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O AC FC 0101 87-A90-505-080 0E FUSE CLAMP,TP00351-51 SC1 CX-SNSZ2
O AC FC 0102 87-A90-505-080 0E FUSE CLAMP,TP00351-51 SC1 CX-SNSZ2
O AC T 0101 87-A60-317-010 0E TERMINAL, 1P MSC SC1 CX-SNSZ2
O AC T 0102 87-A60-317-010 0E TERMINAL, 1P MSC SC1 CX-SNSZ2
O ACCESSORY 87-043-115-010 1A FEEDER-ANT,FM SC1 CX-SNSZ2
O ACCESSORY 87-A90-030-010 1 ANT,LOOP AM-NC C SC1 CX-SNSZ2
X ACCESSORY 87- 30-274-010 0E AT,R6P ATC SC1 CX-SNSZ2
O ACCESSORY 8A-NEC-701-010 1E RC UNIT,RC-AAS08 SC1 CX-SNSZ2
! O APPEARANCE 87- 00-002-010 0E ADGE,AIWA 30 A S SIL SC1 CX-SNSZ2
O APPEARANCE 8A-NEC-001-010 1E CA I,FR SC1 CX-SNSZ2
O APPEARANCE 8A-NEC-002-010 1 OX,CASS 1 SC1 CX-SNSZ2
O APPEARANCE 8A-NEC-003-010 1A OX,CASS 2 SC1 CX-SNSZ2
O APPEARANCE 8A-NEC-004-010 1A PANEL,TRAY CD SC1 CX-SNSZ2
O APPEARANCE 8A-NEC-013-010 1 PANEL,LEFT SC1 CX-SNSZ2
O APPEARANCE 8A-NEC-014-010 1 PANEL,RIGHT SC1 CX-SNSZ2
O APPEARANCE 8A-NEC-015-010 1C PANEL,TOP SC1 CX-SNSZ2
O APPEARANCE 8A-NEC-029-010 1C CA I,REAR SC1 SC1 CX-SNSZ2
X CD M8-3ZG-38A-070 -- 3ZG-3 E8NC SC1 CX-SNSZ2
O CD DRIVER C 0371 87-010-221-080 0E CAP,E 470-10 M SME SC1 CX-SNSZ2
O CD DRIVER C 0372 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DRIVER C 0373 87-010-544-080 0E CAP,E 0.1-50 M 11L SME SC1 CX-SNSZ2
O CD DRIVER C 0374 87-010-236-080 0E CAP,E 1000-10 M SME SC1 CX-SNSZ2
O CD DRIVER C 0375 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DRIVER C 0376 87-010-263-080 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O CD DRIVER C 0377 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DRIVER C 0378 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DRIVER C 0379 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DRIVER C 0380 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DRIVER C 0381 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DRIVER C 0382 87-016-369-080 0E C-CAP,S 0.033-25 K GRM SC1 CX-SNSZ2
O CD DRIVER C 0391 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O CD DRIVER C 0392 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O CD DRIVER C 0393 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O CD DRIVER C 0394 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O CD DRIVER C 0395 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O CD DRIVER C 0396 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
! O CD DRIVER CN 0302 87-099-194-010 0E CONN,6P V LK 6216 SC1 CX-SNSZ2
S CD DRIVER IC 0303 87-A21-722-010 1D IC,LA6548D SC1 CX-SNSZ2
S CD DRIVER Q 0306 87-026-609-080 0E TR,KTA1266GR SC1 CX-SNSZ2
X CD DRIVER R 0371 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0372 88-128-229-080 0E C-RES, 2.2-1/8W J SC1 CX-SNSZ2
X CD DRIVER R 0373 88-121-561-080 0E RES,560-1/8W J SC1 CX-SNSZ2
X CD DRIVER R 0375 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X CD DRIVER R 0376 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X CD DRIVER R 0377 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0378 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0379 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X CD DRIVER R 0380 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0381 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X CD DRIVER R 0382 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X CD DRIVER R 0383 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X CD DRIVER R 0384 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0385 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0386 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0387 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0388 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0389 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0390 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0391 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0392 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0393 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0394 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0395 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0396 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X CD DRIVER R 0397 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
O CD DSP C 0331 87-A10-504-080 0E C-CAP,U 0.047-16 K SC1 CX-SNSZ2
O CD DSP C 0332 87-010-401-080 0E CAP,E 1-50 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0333 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DSP C 0334 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2

PARTS LIST
-4-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O CD DSP C 0335 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0336 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O CD DSP C 0337 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DSP C 0338 87-012-282-080 0E C-CAP,U 4700P-50 K SC1 CX-SNSZ2
O CD DSP C 0339 87-A10-504-080 0E C-CAP,U 0.047-16 K SC1 CX-SNSZ2
O CD DSP C 0340 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O CD DSP C 0341 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0342 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O CD DSP C 0344 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0345 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O CD DSP C 0346 87-010-248-080 0E CAP,E 220-10 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0347 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O CD DSP C 0348 87-010-263-080 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0349 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O CD DSP C 0350 87-012-176-080 0E C-CAP,U 15P-50 J CH SC1 CX-SNSZ2
O CD DSP C 0351 87-012-176-080 0E C-CAP,U 15P-50 J CH SC1 CX-SNSZ2
O CD DSP C 0352 87-010-404-080 0E CAP,E 4.7-50 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0353 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O CD DSP C 0354 87-010-401-080 0E CAP,E 1-50 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0355 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DSP C 0356 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DSP C 0357 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD DSP C 0358 87-010-405-080 0E CAP,E 10-50 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0359 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O CD DSP C 0360 87-012-349-080 0E C-CAP,S 1000P-50 J CH GRM SC1 CX-SNSZ2
O CD DSP C 0361 87-010-544-080 0E CAP,E 0.1-50 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0362 87-010-544-080 0E CAP,E 0.1-50 M 11L SME SC1 CX-SNSZ2
O CD DSP C 0363 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
S CD DSP D 0302 87-A40-747-080 0E ZENER,UZ5.1 S SC1 CX-SNSZ2
S CD DSP D 0303 87-A40-743-080 0E ZENER,UZ4.3 SA SC1 CX-SNSZ2
S CD DSP IC 0302 87-A21-591-010 2A C-IC,LC78641NE-D SC1 CX-SNSZ2
S CD DSP Q 0305 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
X CD DSP R 0331 88-118-681-080 0E C-RES,S 680-1/10W J SC1 CX-SNSZ2
X CD DSP R 0332 88-118-681-080 0E C-RES,S 680-1/10W J SC1 CX-SNSZ2
X CD DSP R 0333 88-118-395-080 0E C-RES,S 3.9M-1/10W J SC1 CX-SNSZ2
X CD DSP R 0334 88-118-123-080 0E C-RES,S 12K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0335 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0336 88-118-272-080 0E C-RES,S 2.7K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0337 88-100-000-010 0E PLATING-JW, 0.58 SN95 SC1 CX-SNSZ2
X CD DSP R 0338 88-118-331-080 0E C-RES,S 330-1/10W J SC1 CX-SNSZ2
X CD DSP R 0339 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0340 88-100-000-010 0E PLATING-JW, 0.58 SN95 SC1 CX-SNSZ2
X CD DSP R 0341 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X CD DSP R 0342 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0343 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0344 88-128-104-080 0E C-RES, 100K-1/8W J SC1 CX-SNSZ2
X CD DSP R 0345 88-118-473-080 0E C-RES,S 47K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0346 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X CD DSP R 0347 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X CD DSP R 0348 88-118-105-080 0E C-RES,S 1M-1/10W J SC1 CX-SNSZ2
X CD DSP R 0349 88-100-000-010 0E PLATING-JW, 0.58 SN95 SC1 CX-SNSZ2
X CD DSP R 0350 88-100-000-010 0E PLATING-JW, 0.58 SN95 SC1 CX-SNSZ2
X CD DSP R 0351 88-100-000-010 0E PLATING-JW, 0.58 SN95 SC1 CX-SNSZ2
X CD DSP R 0353 88-128-470-080 0E C-RES, 47-1/8W J SC1 CX-SNSZ2
X CD DSP R 0354 88-128-152-080 0E C-RES, 1.5K-1/8W J SC1 CX-SNSZ2
X CD DSP R 0355 88-128-152-080 0E C-RES, 1.5K-1/8W J SC1 CX-SNSZ2
X CD DSP R 0356 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X CD DSP R 0357 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X CD DSP R 0358 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0359 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X CD DSP R 0360 88-128-152-080 0E C-RES, 1.5K-1/8W J SC1 CX-SNSZ2
X CD DSP R 0361 88-128-152-080 0E C-RES, 1.5K-1/8W J SC1 CX-SNSZ2
X CD DSP R 0363 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0364 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0365 88-118-473-080 0E C-RES,S 47K-1/10W J SC1 CX-SNSZ2
X CD DSP R 0366 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
O CD DSP X 0301 87-A70-046-010 1 VI ,XTAL 16.934MHZ SC1 CX-SNSZ2
O CD RF AMP C 0301 87-010-374-080 0E CAP,E 47-10 M 11L SME SC1 CX-SNSZ2
O CD RF AMP C 0302 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O CD RF AMP C 0303 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2

PARTS LIST
-5-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O CD RF AMP C 0304 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
O CD RF AMP C 0305 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O CD RF AMP C 0306 87-010-405-080 0E CAP,E 10-50 M 11L SME SC1 CX-SNSZ2
O CD RF AMP C 0307 87-010-263-080 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O CD RF AMP C 0308 87-012-349-080 0E C-CAP,S 1000P-50 J CH GRM SC1 CX-SNSZ2
O CD RF AMP C 0309 87-010-546-080 0E CAP,E 0.33-50 M 11L SME SC1 CX-SNSZ2
O CD RF AMP C 0310 87-010-401-080 0E CAP,E 1-50 M 11L SME SC1 CX-SNSZ2
O CD RF AMP C 0311 87-012-193-080 0E C-CAP,U 82P-50 J CH SC1 CX-SNSZ2
O CD RF AMP C 0312 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O CD RF AMP C 0313 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
! O CD RF AMP CN 0301 87-A60-424-010 0E CONN,16P V TOC- SC1 CX-SNSZ2
S CD RF AMP IC 0301 87-A21-381-040 1E C-IC,LA9235M SC1 CX-SNSZ2
S CD RF AMP Q 0301 87-026-609-080 0E TR,KTA1266GR SC1 CX-SNSZ2
S CD RF AMP Q 0302 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S CD RF AMP Q 0303 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S CD RF AMP Q 0304 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
X CD RF AMP R 0301 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0302 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0303 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0304 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0305 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0306 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0307 88-118-820-080 0E C-RES,S 82-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0308 88-121-479-080 0E RES,4.7-1/8W J SC1 CX-SNSZ2
X CD RF AMP R 0309 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X CD RF AMP R 0310 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0311 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0312 88-118-272-080 0E C-RES,S 2.7K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0313 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0314 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0315 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0316 88-118-153-080 0E C-RES,S 15K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0317 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0318 88-118-123-080 0E C-RES,S 12K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0319 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0320 88-118-561-080 0E C-RES,S 560-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0321 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0322 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X CD RF AMP R 0323 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
! X ELECTRICAL 87-069-033-010 0E CA LE,TIE SC1 CX-SNSZ2
! X ELECTRICAL 87-069-033-010 0E CA LE,TIE SC1 CX-SNSZ2
! X ELECTRICAL 87-830-712-010 0E TU E,UL 7-120 SC1 CX-SNSZ2
X ELECTRICAL 87-A91-984-010 -- L L,FUSE 800MA T L SC1 CX-SNSZ2
O ELECTRICAL 88-905-151-110 -- FF-CA LE, 5P 1.25 150MM SC1 CX-SNSZ2
O ELECTRICAL 88-906-151-110 0E FF-CA LE, 6P 1.25 SC1 CX-SNSZ2
O ELECTRICAL 8A-NEC-603-010 0E FF-CA LE,16P -1.0 SC1 CX-SNSZ2
! O ELECTRICAL F 0101 87-035-221-010 1A FUSE,800MA 250V T 218 SC1 CX-SNSZ2
! O ELECTRICAL PT 0001 8A-NEC-615-010 -- PT,ANE-C D SC1 CX-SNSZ2
! O ELECTRICAL W 0001 87-A80-156-010 1 AC CORD ASSY,D LK CC SC1 CX-SNSZ2
! O FRC MECHA * 8A-NFA-208-010 0E GUIDE,FL 100-25 ANFA SC1 CX-SNSZ2
O FUNC/E.VR C 0605 87-012-275-080 0E C-CAP,U 1200P-50 K GRM SC1 CX-SNSZ2
O FUNC/E.VR C 0606 87-012-275-080 0E C-CAP,U 1200P-50 K GRM SC1 CX-SNSZ2
O FUNC/E.VR C 0609 87-010-785-080 0E C-CAP,U 0.015-25 K GRM SC1 CX-SNSZ2
O FUNC/E.VR C 0610 87-010-785-080 0E C-CAP,U 0.015-25 K GRM SC1 CX-SNSZ2
O FUNC/E.VR C 0611 87-010-545-080 0E CAP,E 0.22-50 M 11L SME SC1 CX-SNSZ2
O FUNC/E.VR C 0612 87-010-545-080 0E CAP,E 0.22-50 M 11L SME SC1 CX-SNSZ2
O FUNC/E.VR C 0613 87-010-545-080 0E CAP,E 0.22-50 M 11L SME SC1 CX-SNSZ2
O FUNC/E.VR C 0614 87-010-545-080 0E CAP,E 0.22-50 M 11L SME SC1 CX-SNSZ2
O FUNC/E.VR C 0615 87-012-172-080 0E C-CAP,U 10P-50 D CH SC1 CX-SNSZ2
O FUNC/E.VR C 0616 87-010-248-080 0E CAP,E 220-10 M 11L SME SC1 CX-SNSZ2
O FUNC/E.VR C 0617 87-010-221-080 0E CAP,E 470-10 M SME SC1 CX-SNSZ2
O FUNC/E.VR C 0618 87-010-405-080 0E CAP,E 10-50 M 11L SME SC1 CX-SNSZ2
O FUNC/E.VR C 0630 87-A10-248-080 0E C-CAP,U 0.1-16 K R SC1 CX-SNSZ2
X FUNC/E.VR C 0678 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
S FUNC/E.VR D 0601 87-A40-739-080 0E ZENER,UZ2.7 SA SC1 CX-SNSZ2
S FUNC/E.VR D 0602 87-A40-739-080 0E ZENER,UZ2.7 SA SC1 CX-SNSZ2
S FUNC/E.VR IC 0601 87-A21-443-040 1C C-IC,M62495AFP SC1 CX-SNSZ2
O FUNC/E.VR J 0602 87-A60-881-010 0E JACK,PIN 2P MSP 242V05 P SN SC1 CX-SNSZ2
X FUNC/E.VR JR 0601 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
S FUNC/E.VR Q 0605 87-A30-090-080 0E FET,2SK2541 SC1 CX-SNSZ2

PARTS LIST
-6-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
S FUNC/E.VR Q 0606 87-A30-090-080 0E FET,2SK2541 SC1 CX-SNSZ2
S FUNC/E.VR Q 0607 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
X FUNC/E.VR R 0590 88-121-472-080 0E RES,4.7K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0599 88-121-472-080 0E RES,4.7K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0601 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0602 88-121-102-080 0E RES,1K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0603 88-118-682-080 0E C-RES,S 6.8K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0604 88-118-682-080 0E C-RES,S 6.8K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0605 88-121-153-080 0E RES,15K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0606 88-118-153-080 0E C-RES,S 15K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0607 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0608 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0609 88-121-822-080 0E RES,8.2K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0610 88-121-822-080 0E RES,8.2K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0611 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0612 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0613 88-121-822-080 0E RES,8.2K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0614 88-121-822-080 0E RES,8.2K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0615 88-118-123-080 0E C-RES,S 12K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0616 88-118-123-080 0E C-RES,S 12K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0619 88-118-473-080 0E C-RES,S 47K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0620 88-118-473-080 0E C-RES,S 47K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0621 88-118-334-080 0E C-RES,S 330K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0622 88-121-334-080 0E RES,330K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0625 88-121-472-080 0E RES,4.7K-1/8W J SC1 CX-SNSZ2
X FUNC/E.VR R 0626 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0627 88-118-123-080 0E C-RES,S 12K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0631 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0632 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0637 88-118-152-080 0E C-RES,S 1.5K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0638 88-118-152-080 0E C-RES,S 1.5K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0641 88-118-273-080 0E C-RES,S 27K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0642 88-118-273-080 0E C-RES,S 27K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0649 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0650 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0653 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X FUNC/E.VR R 0654 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X FUNC/E.VR R 0661 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X FUNC/E.VR R 0662 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
O KNO 8A-NEC-008-010 1A KEY,POWER SC1 CX-SNSZ2
O KNO 8A-NEC-009-010 1A KEY,OPEN/CLOSE SC1 CX-SNSZ2
O KNO 8A-NEC-010-010 1A KEY,CASS 1 SC1 CX-SNSZ2
O KNO 8A-NEC-011-010 1A KEY,CASS 2 SC1 CX-SNSZ2
X L L,POP 8A-NEC-976-010 -- L L,POP D1 SC1 CX-SNSZ2
X L L,POP 8A-NEC-977-010 -- L L,POP D2 SC1 CX-SNSZ2
O MAC MECHA 87-067-001-010 0E S-SCREW, VWWST2+3-12 W/O SLOT SC1 CX-SNSZ2
O MAC MECHA 87-067-579-010 0E VT2+3-8 W/0 SL0T SC1 CX-SNSZ2
O MAC MECHA 87-NF4-224-010 0E S-SCREW,IT3 +3-8 CU SC1 CX-SNSZ2
X MAC MECHA 8A-NEC-202-110 1A HT-SINK,TR LOW SC1 CX-SNSZ2
O MECHANICAL 8A-NEC-205-010 1C CA I, OTTOM SC1 CX-SNSZ2
O MICON C 0201 87-010-401-040 0E CAP,E 1-50 M 11L SME SC1 CX-SNSZ2
O MICON C 0202 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O MICON C 0203 87-010-260-040 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
O MICON C 0204 87-016-251-040 0E CAP,E 220-16 M SMG SC1 CX-SNSZ2
O MICON C 0500 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O MICON C 0501 87-010-406-040 0E CAP,E 22-50 M 11L SME SC1 CX-SNSZ2
O MICON C 0505 87-010-829-080 0E C-CAP,U 0.047-16 Z F SC1 CX-SNSZ2
O MICON C 0506 87-010-263-040 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O MICON C 0507 87-010-246-040 0E CAP,E 47-35 M 11L SME SC1 CX-SNSZ2
O MICON C 0508 87-010-192-080 0E C-CAP,S 0.022-50 Z F C2012 SC1 CX-SNSZ2
O MICON C 0509 87-010-404-040 0E CAP,E 4.7-50 M 11L SME SC1 CX-SNSZ2
O MICON C 0510 87-010-404-040 0E CAP,E 4.7-50 M 11L SME SC1 CX-SNSZ2
O MICON C 0511 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O MICON C 0512 87-010-263-040 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O MICON C 0514 87-012-274-080 0E C-CAP,U 1000P-50 K SC1 CX-SNSZ2
O MICON C 0515 87-012-274-080 0E C-CAP,U 1000P-50 K SC1 CX-SNSZ2
O MICON C 0517 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O MICON C 0518 87-012-268-080 0E C-CAP,U 330P-50 K GRM SC1 CX-SNSZ2
O MICON C 0523 87-010-248-040 0E CAP,E 220-10 M 11L SME SC1 CX-SNSZ2
O MICON C 0524 87-010-192-080 0E C-CAP,S 0.022-50 Z F C2012 SC1 CX-SNSZ2

PARTS LIST
-7-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O MICON C 0525 87-010-401-040 0E CAP,E 1-50 M 11L SME SC1 CX-SNSZ2
O MICON C 0526 87-012-172-080 0E C-CAP,U 10P-50 D CH SC1 CX-SNSZ2
O MICON C 0527 87-012-274-080 0E C-CAP,U 1000P-50 K SC1 CX-SNSZ2
O MICON C 0528 87-010-175-080 0E C-CAP,S 560P-50 J SL SC1 CX-SNSZ2
O MICON C 0530 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O MICON C 0531 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O MICON C 0532 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O MICON C 0533 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O MICON C 0534 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O MICON C 0535 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O MICON C 0536 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O MICON C 0537 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O MICON C 0538 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O MICON C 0539 87-012-199-080 0E C-CAP,U 220P-50 J CH SC1 CX-SNSZ2
O MICON C 0540 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O MICON C 0541 87-016-459-040 0E CAP,E 470-10 M SMG SC1 CX-SNSZ2
O MICON C 0590 87-010-384-040 0E CAP,E 100-25 M 11L SME SC1 CX-SNSZ2
! O MICON CN 0201 87-A60-062-010 0E CONN,05P V 9604S-05C SC1 CX-SNSZ2
O MICON CN 0501 87-A60-673-010 0E CONN,9P H 2MM JMT SC1 CX-SNSZ2
S MICON D 0201 87-A40-758-080 0E ZENER,UZ8.2 S SC1 CX-SNSZ2
S MICON D 0202 87-A40-313-080 0E C-DIODE,MC2840 SC1 CX-SNSZ2
S MICON D 0501 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S MICON D 0503 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S MICON D 0507 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S MICON D 0540 87-A40-749-080 0E ZENER,UZ5.6 S SC1 CX-SNSZ2
S MICON D 0541 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S MICON D 0542 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S MICON D 0543 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
O MICON FL 0501 8A-NEC-601-010 1H FL,HNA-10SS15T SC1 CX-SNSZ2
S MICON IC 0501 8A-NEC-602-110 1H C-IC,M38 57MCH-E258FP SC1 CX-SNSZ2
S MICON IC 0502 87-070-083-010 1C IC,GP1U281X SC1 CX-SNSZ2
X MICON JR 0201 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X MICON JR 0202 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X MICON JR 0203 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X MICON JR 0204 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X MICON JR 0502 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X MICON JR 0503 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X MICON JR 0504 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X MICON JR 0505 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X MICON JR 0506 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X MICON JR 0509 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
O MICON L 0501 87-A50-655-010 0E COIL,CLK 4.19MHZ (TOKO)7KLY SC1 CX-SNSZ2
S MICON Q 0201 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S MICON Q 0202 87-026-609-080 0E TR,KTA1266GR SC1 CX-SNSZ2
S MICON Q 0203 87-026-609-080 0E TR,KTA1266GR SC1 CX-SNSZ2
S MICON Q 0204 87-026-609-080 0E TR,KTA1266GR SC1 CX-SNSZ2
S MICON Q 0205 87-026-609-080 0E TR,KTA1266GR SC1 CX-SNSZ2
S MICON Q 0208 87-A30-104-080 0E C-TR,RT1N 441C SC1 CX-SNSZ2
S MICON Q 0209 87-A30-104-080 0E C-TR,RT1N 441C SC1 CX-SNSZ2
S MICON Q 0210 87-A30-520-080 0E TR,2SC5342Y SC1 CX-SNSZ2
S MICON Q 0211 87-A30-520-080 0E TR,2SC5342Y SC1 CX-SNSZ2
S MICON Q 0212 87-A30-520-080 0E TR,2SC5342Y SC1 CX-SNSZ2
S MICON Q 0213 87-A30-520-080 0E TR,2SC5342Y SC1 CX-SNSZ2
S MICON Q 0501 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S MICON Q 0507 87-A30-234-080 0E TR,CSC4115 C SC1 CX-SNSZ2
X MICON R 0201 88-121-102-080 0E RES,1K-1/8W J SC1 CX-SNSZ2
X MICON R 0202 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0203 88-118-681-080 0E C-RES,S 680-1/10W J SC1 CX-SNSZ2
X MICON R 0204 88-128-392-080 0E C-RES, 3.9K-1/8W J SC1 CX-SNSZ2
X MICON R 0205 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X MICON R 0206 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X MICON R 0207 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X MICON R 0208 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X MICON R 0210 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X MICON R 0211 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X MICON R 0212 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X MICON R 0213 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X MICON R 0216 88-121-100-080 0E RES,10-1/8W J SC1 CX-SNSZ2
X MICON R 0217 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X MICON R 0218 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2

PARTS LIST
-8-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X MICON R 0219 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X MICON R 0220 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X MICON R 0221 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X MICON R 0222 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0223 88-118-182-080 0E C-RES,S 1.8K-1/10W J SC1 CX-SNSZ2
X MICON R 0224 88-118-182-080 0E C-RES,S 1.8K-1/10W J SC1 CX-SNSZ2
X MICON R 0225 88-121-101-080 0E RES,100-1/8W J SC1 CX-SNSZ2
X MICON R 0226 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X MICON R 0227 88-121-102-080 0E RES,1K-1/8W J SC1 CX-SNSZ2
X MICON R 0228 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X MICON R 0229 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X MICON R 0230 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X MICON R 0231 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0232 88-118-821-080 0E C-RES,S 820-1/10W J SC1 CX-SNSZ2
X MICON R 0233 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0234 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X MICON R 0235 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X MICON R 0236 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X MICON R 0237 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X MICON R 0238 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0239 88-118-821-080 0E C-RES,S 820-1/10W J SC1 CX-SNSZ2
X MICON R 0240 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0241 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X MICON R 0250 88-121-102-080 0E RES,1K-1/8W J SC1 CX-SNSZ2
X MICON R 0251 88-121-102-080 0E RES,1K-1/8W J SC1 CX-SNSZ2
X MICON R 0253 88-118-272-080 0E C-RES,S 2.7K-1/10W J SC1 CX-SNSZ2
X MICON R 0254 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0255 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0256 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0257 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0258 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0259 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0260 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0261 88-121-222-080 0E RES,2.2K-1/8W J SC1 CX-SNSZ2
X MICON R 0297 88-121-182-080 0E RES,1.8K-1/8W J SC1 CX-SNSZ2
X MICON R 0501 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0502 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0503 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0504 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0505 88-121-393-080 0E RES,39K-1/8W J SC1 CX-SNSZ2
X MICON R 0506 88-121-101-080 0E RES,100-1/8W J SC1 CX-SNSZ2
X MICON R 0508 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0509 88-121-101-080 0E RES,100-1/8W J SC1 CX-SNSZ2
X MICON R 0510 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0511 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0512 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0513 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X MICON R 0514 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X MICON R 0515 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X MICON R 0516 88-100-000-010 0E PLATING-JW, 0.58 SN95 SC1 CX-SNSZ2
X MICON R 0517 88-118-473-080 0E C-RES,S 47K-1/10W J SC1 CX-SNSZ2
X MICON R 0519 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X MICON R 0522 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X MICON R 0523 88-121-102-080 0E RES,1K-1/8W J SC1 CX-SNSZ2
X MICON R 0524 88-121-472-080 0E RES,4.7K-1/8W J SC1 CX-SNSZ2
X MICON R 0525 88-121-472-080 0E RES,4.7K-1/8W J SC1 CX-SNSZ2
X MICON R 0526 88-121-681-080 0E RES,680-1/8W J SC1 CX-SNSZ2
X MICON R 0527 88-121-681-080 0E RES,680-1/8W J SC1 CX-SNSZ2
X MICON R 0529 88-118-563-080 0E C-RES,S 56K-1/10W J SC1 CX-SNSZ2
X MICON R 0530 88-121-331-080 0E RES,330-1/8W J SC1 CX-SNSZ2
X MICON R 0531 88-118-100-080 0E C-RES,S 10-1/10W J SC1 CX-SNSZ2
X MICON R 0532 88-121-223-080 0E RES,22K-1/8W J SC1 CX-SNSZ2
X MICON R 0533 88-118-823-080 0E C-RES,S 82K-1/10W J SC1 CX-SNSZ2
X MICON R 0534 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X MICON R 0535 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X MICON R 0536 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X MICON R 0537 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X MICON R 0538 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X MICON R 0539 88-121-224-080 0E RES,220K-1/8W J SC1 CX-SNSZ2
X MICON R 0540 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2

PARTS LIST
-9-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X MICON R 0541 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X MICON R 0542 88-121-330-080 0E RES,33-1/8W J SC1 CX-SNSZ2
X MICON R 0543 88-121-330-080 0E RES,33-1/8W J SC1 CX-SNSZ2
X MICON R 0544 88-121-330-080 0E RES,33-1/8W J SC1 CX-SNSZ2
X MICON R 0545 88-121-330-080 0E RES,33-1/8W J SC1 CX-SNSZ2
X MICON R 0546 88-100-000-010 0E PLATING-JW, 0.58 SN95 SC1 CX-SNSZ2
X MICON R 0547 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0548 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X MICON R 0549 88-118-822-080 0E C-RES,S 8.2K-1/10W J SC1 CX-SNSZ2
X MICON R 0550 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X MICON R 0551 88-118-392-080 0E C-RES,S 3.9K-1/10W J SC1 CX-SNSZ2
X MICON R 0552 88-118-224-080 0E C-RES,S 220K-1/10W J SC1 CX-SNSZ2
X MICON R 0553 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X MICON R 0555 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0556 88-118-683-080 0E C-RES,S 68K-1/10W J SC1 CX-SNSZ2
X MICON R 0581 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X MICON R 0582 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X MICON R 0583 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X MICON R 0584 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X MICON R 0585 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X MICON R 0586 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X MICON R 0587 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X MICON R 0588 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X MICON R 0589 88-128-102-080 0E C-RES, 1K-1/8W J SC1 CX-SNSZ2
X MICON R 0591 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X MICON R 0592 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X MICON R 0593 88-118-821-080 0E C-RES,S 820-1/10W J SC1 CX-SNSZ2
X MICON R 0594 88-118-151-080 0E C-RES,S 150-1/10W J SC1 CX-SNSZ2
X MICON R 0595 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X MICON R 0596 88-118-332-080 0E C-RES,S 3.3K-1/10W J SC1 CX-SNSZ2
X MICON R 0597 88-118-331-080 0E C-RES,S 330-1/10W J SC1 CX-SNSZ2
X MICON R 0598 88-118-123-080 0E C-RES,S 12K-1/10W J SC1 CX-SNSZ2
O MICON S 0201 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0202 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0203 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0204 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0205 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0206 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0208 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0209 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0210 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0211 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0212 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON S 0213 87-A90-095-080 0E SW,TACT EVQ11G04M SC1 CX-SNSZ2
O MICON SFR0501 87-024-431-080 0E SFR,3.3K H RH063MC SC1 CX-SNSZ2
O OTHERS 82-NF7-218-010 0E SPR-T,CASS SC1 CX-SNSZ2
! O OTHERS 86-NFZ-231-010 1A DMPR,70 SC1 CX-SNSZ2
O OTHERS 8A-NEC-201-010 0E HLDR,PT SC1 CX-SNSZ2
O OTHERS 8A-NEC-203-010 0E HLDR,CD L SC1 CX-SNSZ2
O OTHERS 8A-NEC-204-010 0E HLDR,CD R SC1 CX-SNSZ2
O OTHERS 8A-NEC-206-010 0E HLDR,DECK SC1 CX-SNSZ2
X OTHERS 8A-NED-207-010 0E CUSH, 12.5-15.5-2 SC1 CX-SNSZ2
O P-AMP C 0101 87-012-284-080 0E C-CAP,U 6800P-50 K GRM SC1 CX-SNSZ2
O P-AMP C 0102 87-012-284-080 0E C-CAP,U 6800P-50 K GRM SC1 CX-SNSZ2
O P-AMP C 0103 87-010-544-080 0E CAP,E 0.1-50 M 11L SME SC1 CX-SNSZ2
O P-AMP C 0104 87-010-544-080 0E CAP,E 0.1-50 M 11L SME SC1 CX-SNSZ2
O P-AMP C 0105 87-012-282-080 0E C-CAP,U 4700P-50 K SC1 CX-SNSZ2
O P-AMP C 0106 87-012-282-080 0E C-CAP,U 4700P-50 K SC1 CX-SNSZ2
O P-AMP C 0107 87-010-403-080 0E CAP,E 3.3-50 M 11L SME SC1 CX-SNSZ2
O P-AMP C 0108 87-010-403-080 0E CAP,E 3.3-50 M 11L SME SC1 CX-SNSZ2
O P-AMP C 0111 87-010-406-080 0E CAP,E 22-50 M 11L SME SC1 CX-SNSZ2
O P-AMP C 0112 87-010-406-080 0E CAP,E 22-50 M 11L SME SC1 CX-SNSZ2
O P-AMP C 0113 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O P-AMP C 0114 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O P-AMP C 0117 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O P-AMP C 0118 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O P-AMP C 0119 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O P-AMP C 0120 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O P-AMP C 0125 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O P-AMP C 0126 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2

PARTS LIST
-10-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O P-AMP C 0127 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O P-AMP C 0128 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O P-AMP C 0140 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 SC1 CX-SNSZ2
S P-AMP D 0101 87-A40-269-080 0E C-DIODE,MC2836 SC1 CX-SNSZ2
S P-AMP D 0103 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S P-AMP D 0104 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S P-AMP D 0105 87-A40-269-080 0E C-DIODE,MC2836 SC1 CX-SNSZ2
S P-AMP D 0106 87-A40-269-080 0E C-DIODE,MC2836 SC1 CX-SNSZ2
S P-AMP D 0115 87-A40-270-080 0E C-DIODE,MC2838 SC1 CX-SNSZ2
S P-AMP D 0129 87-A40-270-080 0E C-DIODE,MC2838 SC1 CX-SNSZ2
O P-AMP J 0101 87-A60-602-010 1A JACK,DIA6.3 LK ST W/SW TC SC1 CX-SNSZ2
O P-AMP J 0103 87-A61-452-010 0E TERMINAL,SP 4P(MSC) SC1 CX-SNSZ2
X P-AMP JR 0101 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
O P-AMP L 0101 87-A50-610-010 0E COIL,1UH K(MDEC) SC1 CX-SNSZ2
O P-AMP L 0102 87-A50-610-010 0E COIL,1UH K(MDEC) SC1 CX-SNSZ2
S P-AMP Q 0103 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-AMP Q 0104 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-AMP Q 0105 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-AMP Q 0106 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-AMP Q 0107 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-AMP Q 0108 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-AMP Q 0109 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-AMP Q 0110 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-AMP Q 0111 87-026-610-080 0E TR,KTC3198GR SC1 CX-SNSZ2
S P-AMP Q 0112 87-026-610-080 0E TR,KTC3198GR SC1 CX-SNSZ2
S P-AMP Q 0113 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-AMP Q 0114 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-AMP Q 0115 87-A30-256-010 1A TR,2SD1933 SC1 CX-SNSZ2
S P-AMP Q 0116 87-A30-256-010 1A TR,2SD1933 SC1 CX-SNSZ2
S P-AMP Q 0117 87-A30-255-010 1A TR,2S 1342 SC1 CX-SNSZ2
S P-AMP Q 0118 87-A30-255-010 1A TR,2S 1342 SC1 CX-SNSZ2
S P-AMP Q 0123 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-AMP Q 0124 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-AMP Q 0126 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-AMP Q 0130 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
X P-AMP R 0103 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0104 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0105 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0106 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0107 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X P-AMP R 0108 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X P-AMP R 0109 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0110 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0111 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0112 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0113 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0114 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0115 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X P-AMP R 0116 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X P-AMP R 0117 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0118 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0119 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X P-AMP R 0120 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X P-AMP R 0121 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X P-AMP R 0122 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X P-AMP R 0123 88-121-222-080 0E RES,2.2K-1/8W J SC1 CX-SNSZ2
X P-AMP R 0124 88-121-222-080 0E RES,2.2K-1/8W J SC1 CX-SNSZ2
X P-AMP R 0125 88-121-222-080 0E RES,2.2K-1/8W J SC1 CX-SNSZ2
X P-AMP R 0126 88-121-222-080 0E RES,2.2K-1/8W J SC1 CX-SNSZ2
X P-AMP R 0127 88-118-390-080 0E C-RES,S 39-1/10W J SC1 CX-SNSZ2
X P-AMP R 0128 88-118-390-080 0E C-RES,S 39-1/10W J SC1 CX-SNSZ2
X P-AMP R 0131 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X P-AMP R 0132 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X P-AMP R 0133 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0134 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0135 88-118-182-080 0E C-RES,S 1.8K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0136 88-118-182-080 0E C-RES,S 1.8K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0137 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X P-AMP R 0138 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X P-AMP R 0139 88-121-562-080 0E RES,5.6K-1/8W J SC1 CX-SNSZ2

PARTS LIST
-11-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X P-AMP R 0140 88-121-562-080 0E RES,5.6K-1/8W J SC1 CX-SNSZ2
X P-AMP R 0141 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0142 88-121-102-080 0E RES,1K-1/8W J SC1 CX-SNSZ2
X P-AMP R 0143 88-130-221-080 0E RES,220-1/4W J SC1 CX-SNSZ2
X P-AMP R 0144 88-130-221-080 0E RES,220-1/4W J SC1 CX-SNSZ2
X P-AMP R 0145 88-130-221-080 0E RES,220-1/4W J SC1 CX-SNSZ2
X P-AMP R 0146 88-130-221-080 0E RES,220-1/4W J SC1 CX-SNSZ2
X P-AMP R 0147 88-130-100-080 0E RES,10-1/4W J SC1 CX-SNSZ2
X P-AMP R 0148 88-130-100-080 0E RES,10-1/4W J SC1 CX-SNSZ2
X P-AMP R 0149 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X P-AMP R 0150 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X P-AMP R 0151 88-130-102-080 0E RES,1K-1/4W J SC1 CX-SNSZ2
X P-AMP R 0152 88-140-471-080 0E RES,470-1/2W J SC1 CX-SNSZ2
X P-AMP R 0157 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0159 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0160 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0165 88-118-272-080 0E C-RES,S 2.7K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0166 88-118-272-080 0E C-RES,S 2.7K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0167 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0168 88-118-473-080 0E C-RES,S 47K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0169 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0170 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0171 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0172 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0175 88-118-331-080 0E C-RES,S 330-1/10W J SC1 CX-SNSZ2
X P-AMP R 0176 88-118-331-080 0E C-RES,S 330-1/10W J SC1 CX-SNSZ2
X P-AMP R 0178 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0179 88-118-473-080 0E C-RES,S 47K-1/10W J SC1 CX-SNSZ2
X P-AMP R 0180 88-118-473-080 0E C-RES,S 47K-1/10W J SC1 CX-SNSZ2
! O P-AMP RY 0101 87-045-389-010 1C RELAY,12V OSA-SS-212DM5 SC1 CX-SNSZ2
O P-AMP TH 0101 87-A91-042-080 0E C-THMS,100K 55001 SC1 CX-SNSZ2
O P-AMP TH 0102 87-A91-042-080 0E C-THMS,100K 55001 SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN 8A-NEC-640-210 1F PW ,COM MAIN SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN 8A-NEC-641-210 -- PW ,MAIN SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN 8A-NEC-642-210 -- PW ,HLDR WIRE SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN 8A-NEC-643-210 -- PW ,HLDR FFC SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0009 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0010 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0011 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0012 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0021 87-A12-442-000 1H CAP,E 3300-25 M 85 IV LELON SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0022 87-A10-831-080 1A CAP,E 1000-25 M SMG SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0023 87-010-387-080 1A CAP,E 470-25 M SME SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0025 87-010-408-080 0E CAP,E 47-50 M 11L SME SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0026 87-010-408-080 0E CAP,E 47-50 M 11L SME SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0031 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0032 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0034 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0035 87-010-406-080 0E CAP,E 22-50 M 11L SME SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0036 87-010-112-080 0E CAP,E 100-16 M 11L SME SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0050 87-010-247-080 0E CAP,E 100-50 M SME SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0051 87-010-247-080 0E CAP,E 100-50 M SME SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0060 87-010-403-080 0E CAP,E 3.3-50 M 11L SME SC1 CX-SNSZ2
O P-SUPPLY/PW /FUN C 0061 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0005 87-A40-535-080 0E DIODE,1N5393-GOODARK SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0006 87-A40-535-080 0E DIODE,1N5393-GOODARK SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0007 87-A40-535-080 0E DIODE,1N5393-GOODARK SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0008 87-A40-535-080 0E DIODE,1N5393-GOODARK SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0026 87-A40-553-080 0E DIODE,1N4003 LES SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0027 87-A40-553-080 0E DIODE,1N4003 LES SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0029 87-A40-777-080 0E ZENER,UZ30 S SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0030 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0031 87-A40-764-080 0E ZENER,UZ10 SC SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0032 87-A40-764-080 0E ZENER,UZ10 SC SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0034 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0035 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0063 87-A40-313-080 0E C-DIODE,MC2840 SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN D 0064 87-A40-313-080 0E C-DIODE,MC2840 SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN JR 0002 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0002 87-026-609-080 0E TR,KTA1266GR SC1 CX-SNSZ2

PARTS LIST
-12-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
S P-SUPPLY/PW /FUN Q 0003 89-213-702-010 1A TR,2S 1370E SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0005 87-026-610-080 0E TR,KTC3198GR SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0006 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0009 87-026-609-080 0E TR,KTA1266GR SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0010 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0058 87-A30-074-080 0E C-TR,RT1P 141C SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0059 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0060 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0061 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0062 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0063 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S P-SUPPLY/PW /FUN Q 0064 87-A30-076-080 0E C-TR,2SC3052F SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0001 88-128-159-080 0E C-RES, 1.5-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0005 88-128-109-080 0E C-RES, 1-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0009 88-121-273-080 0E RES,27K-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0010 88-118-273-080 0E C-RES,S 27K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0012 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0013 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0014 88-128-470-080 0E C-RES, 47-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0016 88-118-473-080 0E C-RES,S 47K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0018 88-118-221-080 0E C-RES,S 220-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0020 88-118-680-080 0E C-RES,S 68-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0021 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0022 88-118-221-080 0E C-RES,S 220-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0023 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0027 88-118-471-080 0E C-RES,S 470-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0030 88-118-393-080 0E C-RES,S 39K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0032 88-121-102-080 0E RES,1K-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0033 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0037 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0038 88-100-000-010 0E PLATING-JW, 0.58 SN95 SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0040 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0041 88-121-181-080 0E RES,180-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0042 88-128-181-080 0E C-RES, 180-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0043 88-128-181-080 0E C-RES, 180-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0044 88-128-221-080 0E C-RES, 220-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0045 88-128-221-080 0E C-RES, 220-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0046 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0047 88-121-181-080 0E RES,180-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0048 88-121-181-080 0E RES,180-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0049 88-128-181-080 0E C-RES, 180-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0050 88-128-221-080 0E C-RES, 220-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0051 88-128-221-080 0E C-RES, 220-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0052 88-128-682-080 0E C-RES, 6.8K-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0053 88-128-822-080 0E C-RES, 8.2K-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0057 88-118-272-080 0E C-RES,S 2.7K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0058 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0060 88-118-393-080 0E C-RES,S 39K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0061 88-121-333-080 0E RES,33K-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0065 88-118-153-080 0E C-RES,S 15K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0066 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0067 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0072 88-121-563-080 0E RES,56K-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0073 88-121-563-080 0E RES,56K-1/8W J SC1 CX-SNSZ2
X P-SUPPLY/PW /FUN R 0076 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X PACKING DU 87- 40-097-010 1A AG,PV 0.04-650-650 PL SC1 CX-SNSZ2
X PACKING DU 8A-NEC-854-010 -- CUSHION,FRONT/LHC1 SC1 CX-SNSZ2
X PACKING DU 8A-NEC-855-010 -- CUSHION,REAR/LHC1 SC1 CX-SNSZ2
X PACKING DU 8A-NEC-875-010 -- CTN,INDIV SC1 SC1 CX-SNSZ2
X PACKING DU 94-875-574-010 1A SH,FOAMED-MAT 0.31-650-450 SC1 CX-SNSZ2
X PLATE 87- 40-281-010 0E L L, AR-CODE A 35X8 SC1 CX-SNSZ2
O PLATE 8A-NEC-006-010 0E WINDOW,CASS 1 SC1 CX-SNSZ2
O PLATE 8A-NEC-007-010 0E WINDOW,CASS 2 SC1 CX-SNSZ2
O PLATE 8A-NEC-033-010 1 WINDOW,DISP D SC1 CX-SNSZ2
X PLATE 8A-NED-039-010 -- L L,CAUTION AC CODE SC1 CX-SNSZ2
X PRINTED DU 87-056-131-110 0E AG,PV WARR-D SC1 CX-SNSZ2
X PRINTED DU 87- 40-085-010 0E AG,PV 0.04-200-350 PL SC1 CX-SNSZ2
X PRINTED DU 87- 50-069-010 0E LIST,SERVICE JP-TOKYO SC1 CX-SNSZ2
O PRINTED DU 8A-NEC-908-010 -- I ,D(J) SC1 CX-SNSZ2
X PRINTED DU 8A-NEC-909-010 -- CARD,CUST XG-SZ2 SC1 CX-SNSZ2

PARTS LIST
-13-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X PRINTED DU 8A-NEC-910-010 -- WARR-CARD,XG-SZ2 SC1 CX-SNSZ2
O SCREW 87-067-641-010 0E UTT2+3-8 W/O SLOT LK SC1 CX-SNSZ2
O SCREW 87-067-703-010 0E VT2+3-10 W/0 SL0T SC1 CX-SNSZ2
O SCREW 87-067-822-010 0E VT2+3-20 W/0 SL0T SC1 CX-SNSZ2
O SCREW 87-067-975-010 0E S-SCREW,IT+4-8 SWCH12A SC1 CX-SNSZ2
O SCREW 87-571-092-410 0E VIT+3-4 SC1 CX-SNSZ2
O TAPE 8A-NEC-633-010 0E CONN ASSY,3P (PH) SC1 CX-SNSZ2
O TAPE 8A-NEC-634-010 1A CONN ASSY,8P RP SC1 CX-SNSZ2
X TAPE M8-ZZM-29C-070 2M ZZM-2 APR1NC SC1 CX-SNSZ2
O TAPE DECK C 0401 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TAPE DECK C 0402 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TAPE DECK C 0403 87-012-193-080 0E C-CAP,U 82P-50 J CH SC1 CX-SNSZ2
O TAPE DECK C 0404 87-012-193-080 0E C-CAP,U 82P-50 J CH SC1 CX-SNSZ2
O TAPE DECK C 0405 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TAPE DECK C 0406 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TAPE DECK C 0407 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TAPE DECK C 0408 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TAPE DECK C 0409 87-012-278-080 0E C-CAP,U 2200P-50 K SC1 CX-SNSZ2
O TAPE DECK C 0410 87-012-278-080 0E C-CAP,U 2200P-50 K SC1 CX-SNSZ2
O TAPE DECK C 0411 87-010-405-080 0E CAP,E 10-50 M 11L SME SC1 CX-SNSZ2
O TAPE DECK C 0412 87-010-405-080 0E CAP,E 10-50 M 11L SME SC1 CX-SNSZ2
O TAPE DECK C 0413 87-010-197-080 0E C-CAP,S 0.01-25 K C2012 SC1 CX-SNSZ2
O TAPE DECK C 0421 87-012-275-080 0E C-CAP,U 1200P-50 K GRM SC1 CX-SNSZ2
O TAPE DECK C 0422 87-012-275-080 0E C-CAP,U 1200P-50 K GRM SC1 CX-SNSZ2
O TAPE DECK C 0423 87-012-274-080 0E C-CAP,U 1000P-50 K SC1 CX-SNSZ2
O TAPE DECK C 0424 87-012-274-080 0E C-CAP,U 1000P-50 K SC1 CX-SNSZ2
O TAPE DECK C 0425 87-010-263-080 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O TAPE DECK C 0426 87-010-263-080 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O TAPE DECK C 0427 87-012-188-080 0E C-CAP,U 47P-50 J CH SC1 CX-SNSZ2
O TAPE DECK C 0428 87-012-188-080 0E C-CAP,U 47P-50 J CH SC1 CX-SNSZ2
O TAPE DECK C 0429 87-010-598-080 0E C-CAP,S 0.068-16 K R GRM SC1 CX-SNSZ2
O TAPE DECK C 0430 87-010-598-080 0E C-CAP,S 0.068-16 K R GRM SC1 CX-SNSZ2
O TAPE DECK C 0431 87-012-284-080 0E C-CAP,U 6800P-50 K GRM SC1 CX-SNSZ2
O TAPE DECK C 0432 87-012-284-080 0E C-CAP,U 6800P-50 K GRM SC1 CX-SNSZ2
O TAPE DECK C 0433 87-010-546-080 0E CAP,E 0.33-50 M 11L SME SC1 CX-SNSZ2
O TAPE DECK C 0434 87-010-546-080 0E CAP,E 0.33-50 M 11L SME SC1 CX-SNSZ2
O TAPE DECK C 0435 87-010-263-080 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O TAPE DECK C 0441 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TAPE DECK C 0442 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TAPE DECK C 0443 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TAPE DECK C 0445 87-A10-039-080 0E C-CAP,U 470P-50 J CH SC1 CX-SNSZ2
O TAPE DECK C 0452 87-010-382-080 0E CAP,E 22-25 M 11L SME SC1 CX-SNSZ2
O TAPE DECK C 0453 87-012-279-080 0E C-CAP,U 2700P-50 K GRM SC1 CX-SNSZ2
O TAPE DECK C 0454 87-012-279-080 0E C-CAP,U 2700P-50 K GRM SC1 CX-SNSZ2
O TAPE DECK C 0455 87-012-279-080 0E C-CAP,U 2700P-50 K GRM SC1 CX-SNSZ2
O TAPE DECK C 0456 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TAPE DECK C 0457 87-A12-361-080 0E CAP,M 5600P-100 J CP SC1 CX-SNSZ2
O TAPE DECK C 0460 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TAPE DECK C 0461 87-012-158-080 0E C-CAP,S 390P-50 J CH GRM SC1 CX-SNSZ2
O TAPE DECK C 0462 87-012-158-080 0E C-CAP,S 390P-50 J CH GRM SC1 CX-SNSZ2
O TAPE DECK C 0470 87-A10-039-080 0E C-CAP,U 470P-50 J CH SC1 CX-SNSZ2
X TAPE DECK CLP0302 87-A60-884-010 0E PIN,DIA1 COATING-SHS SC1 CX-SNSZ2
O TAPE DECK CN 0351 87-A60-625-010 0E CONN,8P V 2MM JMT SC1 CX-SNSZ2
O TAPE DECK CN 0401 87-A60-620-010 0E CONN,3P V 2MM JMT SC1 CX-SNSZ2
S TAPE DECK D 0401 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
X TAPE DECK F 0401 88-100-000-010 0E PLATING-JW, 0.58 SN95 SC1 CX-SNSZ2
S TAPE DECK IC 0401 87-A21-419-040 0E C-IC,NJM14558MD-TE2 SC1 CX-SNSZ2
S TAPE DECK IC 0471 87-A21-419-040 0E C-IC,NJM14558MD-TE2 SC1 CX-SNSZ2
X TAPE DECK JR 0301 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0302 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0303 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0304 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0305 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0306 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X TAPE DECK JR 0307 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0308 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X TAPE DECK JR 0309 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X TAPE DECK JR 0310 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X TAPE DECK JR 0311 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0320 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2

PARTS LIST
-14-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X TAPE DECK JR 0401 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0402 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0403 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0404 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0405 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TAPE DECK JR 0406 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
O TAPE DECK L 0451 87-007-342-010 0E COIL,OSC 85KHZ IAS SC1 CX-SNSZ2
S TAPE DECK Q 0401 87-A30-091-080 1E FET,2SJ460 SC1 CX-SNSZ2
S TAPE DECK Q 0402 87-A30-091-080 1E FET,2SJ460 SC1 CX-SNSZ2
S TAPE DECK Q 0403 87-A30-090-080 0E FET,2SK2541 SC1 CX-SNSZ2
S TAPE DECK Q 0404 87-A30-090-080 0E FET,2SK2541 SC1 CX-SNSZ2
S TAPE DECK Q 0405 87-A30-091-080 1E FET,2SJ460 SC1 CX-SNSZ2
S TAPE DECK Q 0406 87-A30-062-080 0E C-TR,KRC104S SC1 CX-SNSZ2
S TAPE DECK Q 0407 87-A30-091-080 1E FET,2SJ460 SC1 CX-SNSZ2
S TAPE DECK Q 0408 87-A30-091-080 1E FET,2SJ460 SC1 CX-SNSZ2
S TAPE DECK Q 0409 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S TAPE DECK Q 0410 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S TAPE DECK Q 0443 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S TAPE DECK Q 0444 87-A30-075-080 0E C-TR,2SA1235F SC1 CX-SNSZ2
S TAPE DECK Q 0451 87-A30-318-080 0E TR,CSA952K SC1 CX-SNSZ2
S TAPE DECK Q 0453 87-A30-492-080 0E TR,2SC5343G SC1 CX-SNSZ2
S TAPE DECK Q 0454 87-A30-492-080 0E TR,2SC5343G SC1 CX-SNSZ2
X TAPE DECK R 0401 88-121-823-080 0E RES,82K-1/8W J SC1 CX-SNSZ2
X TAPE DECK R 0402 88-121-823-080 0E RES,82K-1/8W J SC1 CX-SNSZ2
X TAPE DECK R 0403 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0404 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0405 88-118-822-080 0E C-RES,S 8.2K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0406 88-118-822-080 0E C-RES,S 8.2K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0407 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0408 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0409 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0410 88-118-122-080 0E C-RES,S 1.2K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0411 88-118-153-080 0E C-RES,S 15K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0412 88-118-153-080 0E C-RES,S 15K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0413 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0414 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0415 88-118-681-080 0E C-RES,S 680-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0416 88-118-681-080 0E C-RES,S 680-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0417 88-121-103-080 0E RES,10K-1/8W J SC1 CX-SNSZ2
X TAPE DECK R 0418 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0419 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0420 88-121-222-080 0E RES,2.2K-1/8W J SC1 CX-SNSZ2
X TAPE DECK R 0421 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0422 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0423 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0424 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0453 88-118-152-080 0E C-RES,S 1.5K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0454 88-121-829-080 0E RES,8.2-1/8W J SC1 CX-SNSZ2
X TAPE DECK R 0455 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0456 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0457 88-128-100-080 0E C-RES, 10-1/8W J SC1 CX-SNSZ2
X TAPE DECK R 0458 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0459 88-130-100-080 0E RES,10-1/4W J SC1 CX-SNSZ2
X TAPE DECK R 0460 88-121-689-080 0E RES,6.8-1/8W J SC1 CX-SNSZ2
X TAPE DECK R 0463 88-121-829-080 0E RES,8.2-1/8W J SC1 CX-SNSZ2
X TAPE DECK R 0464 88-130-150-080 0E RES,15-1/4W J SC1 CX-SNSZ2
X TAPE DECK R 0465 88-118-332-080 0E C-RES,S 3.3K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0466 88-118-332-080 0E C-RES,S 3.3K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0471 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0472 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0473 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0474 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0475 88-118-224-080 0E C-RES,S 220K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0476 88-118-682-080 0E C-RES,S 6.8K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0477 88-118-471-080 0E C-RES,S 470-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0478 88-118-471-080 0E C-RES,S 470-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0479 88-118-560-080 0E C-RES,S 56-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0480 88-118-560-080 0E C-RES,S 56-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0481 88-118-680-080 0E C-RES,S 68-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0482 88-118-680-080 0E C-RES,S 68-1/10W J SC1 CX-SNSZ2

PARTS LIST
-15-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X TAPE DECK R 0483 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0484 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0485 88-118-394-080 0E C-RES,S 390K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0486 88-118-394-080 0E C-RES,S 390K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0487 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0488 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0489 88-118-472-080 0E C-RES,S 4.7K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0490 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0491 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TAPE DECK R 0492 88-121-101-080 0E RES,100-1/8W J SC1 CX-SNSZ2
X TAPE DECK R 0493 88-118-105-080 0E C-RES,S 1M-1/10W J SC1 CX-SNSZ2
O TUNER(IF) C 0771 87-010-263-080 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0772 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
X TUNER(IF) C 0781 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
O TUNER(IF) C 0782 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0783 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0784 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0785 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0786 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0788 87-012-167-080 0E C-CAP,U 5P-50 C CH SC1 CX-SNSZ2
O TUNER(IF) C 0789 87-A10-801-080 0E C-CAP,S 0.022-16 J CM SC1 CX-SNSZ2
O TUNER(IF) C 0790 87-A10-801-080 0E C-CAP,S 0.022-16 J CM SC1 CX-SNSZ2
O TUNER(IF) C 0791 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TUNER(IF) C 0792 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0793 87-010-404-080 0E CAP,E 4.7-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0795 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0796 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0797 87-010-405-080 0E CAP,E 10-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0798 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0799 87-010-407-080 0E CAP,E 33-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0800 87-010-829-080 0E C-CAP,U 0.047-16 Z F SC1 CX-SNSZ2
O TUNER(IF) C 0801 87-010-403-080 0E CAP,E 3.3-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0802 87-010-829-080 0E C-CAP,U 0.047-16 Z F SC1 CX-SNSZ2
O TUNER(IF) C 0803 87-010-787-080 0E C-CAP,U 0.022-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0804 87-010-263-080 0E CAP,E 100-10 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0807 87-010-400-080 0E CAP,E 0.47-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0808 87-010-401-080 0E CAP,E 1-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0809 87-010-401-080 0E CAP,E 1-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0810 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TUNER(IF) C 0814 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(IF) C 0815 87-010-400-080 0E CAP,E 0.47-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0816 87-010-400-080 0E CAP,E 0.47-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0821 87-010-405-080 0E CAP,E 10-50 M 11L SME SC1 CX-SNSZ2
X TUNER(IF) C 0822 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
O TUNER(IF) C 0823 87-010-177-080 0E C-CAP,S 820P-50 J SL C2012 SC1 CX-SNSZ2
O TUNER(IF) C 0824 87-010-404-080 0E CAP,E 4.7-50 M 11L SME SC1 CX-SNSZ2
O TUNER(IF) C 0825 87-010-596-080 0E C-CAP,S 0.047-16 K R C2012 SC1 CX-SNSZ2
S TUNER(IF) D 0801 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S TUNER(IF) D 0803 87-020-465-080 0E DIODE,1SS133 SC1 CX-SNSZ2
S TUNER(IF) IC 0801 87-A21-560-010 1C IC,LA1844L-A SC1 CX-SNSZ2
X TUNER(IF) JR 0780 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X TUNER(IF) JR 0781 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X TUNER(IF) JR 0785 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(IF) JR 0786 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(IF) JR 0792 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
O TUNER(IF) L 0801 87-A50-608-010 0E COIL,FM DET-N(TOK) SC1 CX-SNSZ2
O TUNER(IF) L 0802 87-A91-553-010 1 FLTR,PCFMT-060L (TOK) SC1 CX-SNSZ2
O TUNER(IF) L 0811 87-005-847-080 0E COIL,2.2UH K CECS SC1 CX-SNSZ2
X TUNER(IF) R 0789 88-118-333-080 0E C-RES,S 33K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0790 88-118-271-080 0E C-RES,S 270-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0791 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0793 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(IF) R 0795 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(IF) R 0801 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0802 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0803 88-128-183-080 0E C-RES, 18K-1/8W J SC1 CX-SNSZ2
X TUNER(IF) R 0804 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(IF) R 0805 88-118-332-080 0E C-RES,S 3.3K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0806 88-118-682-080 0E C-RES,S 6.8K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0809 88-118-333-080 0E C-RES,S 33K-1/10W J SC1 CX-SNSZ2

PARTS LIST
-16-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X TUNER(IF) R 0810 88-118-333-080 0E C-RES,S 33K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0813 88-118-224-080 0E C-RES,S 220K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0814 88-118-105-080 0E C-RES,S 1M-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0815 88-121-682-080 0E RES,6.8K-1/8W J SC1 CX-SNSZ2
X TUNER(IF) R 0818 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0821 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(IF) R 0823 88-118-333-080 0E C-RES,S 33K-1/10W J SC1 CX-SNSZ2
X TUNER(IF) R 0826 88-118-223-080 0E C-RES,S 22K-1/10W J SC1 CX-SNSZ2
O TUNER(PLL) C 0971 87-010-381-080 0E CAP,E 330-16 M SME SC1 CX-SNSZ2
O TUNER(PLL) C 0972 87-010-404-080 0E CAP,E 4.7-50 M 11L SME SC1 CX-SNSZ2
O TUNER(PLL) C 0973 87-010-197-080 0E C-CAP,S 0.01-25 K C2012 SC1 CX-SNSZ2
O TUNER(PLL) C 0974 87-010-197-080 0E C-CAP,S 0.01-25 K C2012 SC1 CX-SNSZ2
O TUNER(PLL) C 0979 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O TUNER(PLL) C 0981 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
O TUNER(PLL) C 0982 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TUNER(PLL) C 0983 87-010-197-080 0E C-CAP,S 0.01-25 K C2012 SC1 CX-SNSZ2
O TUNER(PLL) C 0984 87-010-197-080 0E C-CAP,S 0.01-25 K C2012 SC1 CX-SNSZ2
O TUNER(PLL) C 0987 87-010-197-080 0E C-CAP,S 0.01-25 K C2012 SC1 CX-SNSZ2
O TUNER(PLL) C 0990 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O TUNER(PLL) C 0991 87-012-176-080 0E C-CAP,U 15P-50 J CH SC1 CX-SNSZ2
O TUNER(PLL) C 0992 87-012-176-080 0E C-CAP,U 15P-50 J CH SC1 CX-SNSZ2
O TUNER(PLL) C 0993 87-012-274-080 0E C-CAP,U 1000P-50 K SC1 CX-SNSZ2
O TUNER(PLL) C 0994 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O TUNER(PLL) C 0995 87-012-274-080 0E C-CAP,U 1000P-50 K SC1 CX-SNSZ2
O TUNER(PLL) C 0996 87-012-195-080 0E C-CAP,U 100P-50 J CH SC1 CX-SNSZ2
O TUNER(PLL) C 0997 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TUNER(PLL) C 0998 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
O TUNER(PLL) C 0999 87-A11-155-080 0E CAP,TC U 0.01-16 Z F SC1 CX-SNSZ2
S TUNER(PLL) D 0991 87-A40-748-080 0E ZENER,UZ5.6 SA SC1 CX-SNSZ2
S TUNER(PLL) D 0993 87-A40-760-080 0E ZENER,UZ9.1 SA SC1 CX-SNSZ2
S TUNER(PLL) IC 0991 87-070-127-110 1C IC,LC72131D SC1 CX-SNSZ2
X TUNER(PLL) JR 0972 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(PLL) JR 0973 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X TUNER(PLL) JR 0974 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(PLL) JR 0976 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(PLL) JR 0977 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(PLL) JR 0988 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
S TUNER(PLL) Q 0981 87-A30-234-080 0E TR,CSC4115 C SC1 CX-SNSZ2
X TUNER(PLL) R 0975 88-118-562-080 0E C-RES,S 5.6K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0976 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0977 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0978 88-118-681-080 0E C-RES,S 680-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0980 88-118-684-080 0E C-RES,S 680K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0981 88-121-471-080 0E RES,470-1/8W J SC1 CX-SNSZ2
X TUNER(PLL) R 0983 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0984 88-121-181-080 0E RES,180-1/8W J SC1 CX-SNSZ2
X TUNER(PLL) R 0985 88-121-471-080 0E RES,470-1/8W J SC1 CX-SNSZ2
X TUNER(PLL) R 0986 88-118-222-080 0E C-RES,S 2.2K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0988 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0989 88-121-102-080 0E RES,1K-1/8W J SC1 CX-SNSZ2
X TUNER(PLL) R 0990 88-118-563-080 0E C-RES,S 56K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0992 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0994 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0996 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0997 88-118-154-080 0E C-RES,S 150K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0998 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TUNER(PLL) R 0999 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
O TUNER(PLL) X 0991 87-A70-061-010 1A VI ,XTAL 4.500MHZ CSA-309 SC1 CX-SNSZ2
O TUNER(RF) C 0836 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(RF) C 0837 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(RF) C 0842 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
X TUNER(RF) C 0843 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
O TUNER(RF) C 0844 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
X TUNER(RF) C 0845 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) C 0846 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) C 0847 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) C 0848 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) C 0849 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
O TUNER(RF) C 0850 87-010-260-080 0E CAP,E 47-25 M 11L SME SC1 CX-SNSZ2
O TUNER(RF) C 0851 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2

PARTS LIST
-17-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O TUNER(RF) C 0852 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(RF) C 0853 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(RF) C 0858 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TUNER(RF) C 0859 87-010-759-080 0E C-CAP,U 0.1-25 Z F SC1 CX-SNSZ2
O TUNER(RF) C 0860 87-012-286-080 0E C-CAP,U 0.01-25 K SC1 CX-SNSZ2
O TUNER(RF) C 0961 87-012-170-080 0E C-CAP,U 8P-50 D CH SC1 CX-SNSZ2
O TUNER(RF) C 0962 87-010-401-080 0E CAP,E 1-50 M 11L SME SC1 CX-SNSZ2
O TUNER(RF) CF 0831 87-008-261-010 1A FLTR,CF SFE10.7MA5 SC1 CX-SNSZ2
O TUNER(RF) CF 0832 87-008-261-010 1A FLTR,CF SFE10.7MA5 SC1 CX-SNSZ2
O TUNER(RF) FFE0831 A8-6ZA-19D-070 1H 6ZA-1 YFEJNC SC1 CX-SNSZ2
! O TUNER(RF) J 0831 87-A60-202-010 1A TERMINAL,ANT 4P MSP-154V-02 SC1 CX-SNSZ2
X TUNER(RF) JR 0831 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0833 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0834 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0835 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0836 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0837 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0838 88-129-000-080 0E C-JUMPER,3216 SC1 CX-SNSZ2
X TUNER(RF) JR 0946 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0947 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0948 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0951 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0954 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0955 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) JR 0956 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
O TUNER(RF) L 0832 87-005-847-080 0E COIL,2.2UH K CECS SC1 CX-SNSZ2
O TUNER(RF) L 0951 8A-NF8-667-010 1C COIL,AM PACK 4(TOK) SC1 CX-SNSZ2
S TUNER(RF) Q 0835 89-327-143-080 0E C-TR,2SC2714O SC1 CX-SNSZ2
S TUNER(RF) Q 0836 87-A30-489-080 0E C-TR,KRA107S SC1 CX-SNSZ2
X TUNER(RF) R 0832 88-118-391-080 0E C-RES,S 390-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0836 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0839 88-118-151-080 0E C-RES,S 150-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0840 88-118-221-080 0E C-RES,S 220-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0850 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0851 88-118-470-080 0E C-RES,S 47-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0853 88-118-102-080 0E C-RES,S 1K-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0854 88-118-331-080 0E C-RES,S 330-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0855 88-118-183-080 0E C-RES,S 18K-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0856 88-118-103-080 0E C-RES,S 10K-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0857 88-118-181-080 0E C-RES,S 180-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0858 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0860 88-118-101-080 0E C-RES,S 100-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0945 88-118-104-080 0E C-RES,S 100K-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0949 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2
X TUNER(RF) R 0962 88-121-221-080 0E RES,220-1/8W J SC1 CX-SNSZ2
X TUNER(RF) R 0963 88-118-330-080 0E C-RES,S 33-1/10W J SC1 CX-SNSZ2
X TUNER(RF) R 0964 88-118-000-080 0E C-JUMPER,S SC1 CX-SNSZ2

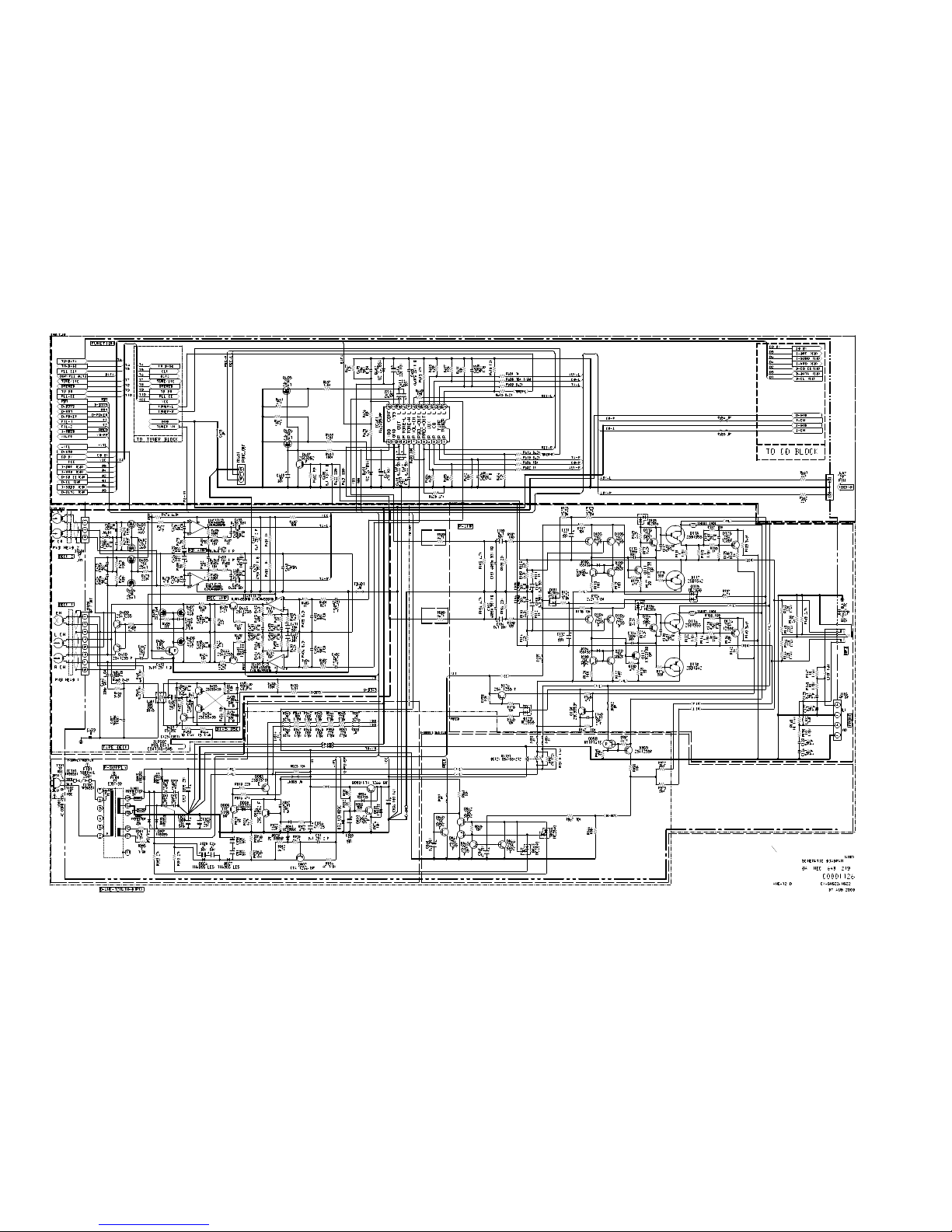

SCHEMATIC DIAGRAM_1(MAIN1/4:AMPSECTION)

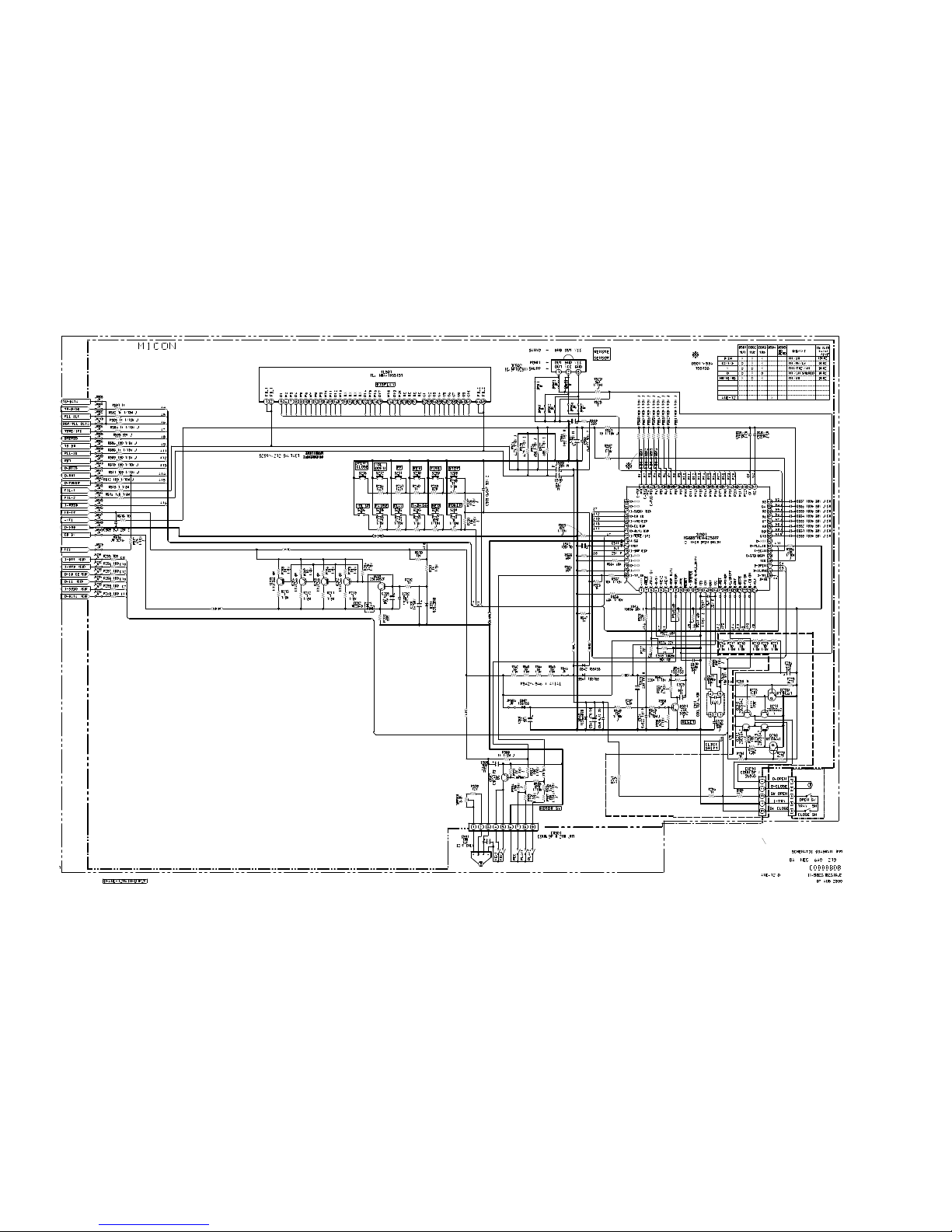

SCHEMATIC DIAGRAM_2 (MAIN 2/4 : MICONSECTION)

SCHEMATIC DIAGRAM_3 (MAIN 3/4: TUNER SECTION)
