AJA Ki PRO rack Operating instructions

www.aja.com
Installation and Operation
Guide
Because it matters.
Ki PRO
Published: 11/1/10

ii
Trademarks
AJA
®
, KONA
®
, and XENA
®
are registered trademarks of AJA Video, Inc. Ki Pro™, Io Express™,
Io HD
™
and Io
™
are trademarks of AJA Video, Inc. Apple, the Apple logo, AppleShare,
AppleTalk, FireWire, iPod, iPod Touch, Mac, and Macintosh are registered trademarks of
Apple Computer, Inc. Final Cut Pro, QuickTime and the QuickTime Logo are trademarks of
Apple Computer, Inc. All other trademarks are the property of their respective holders.
Notice
Copyright © 2010 AJA Video,Inc. All rights reserved.All information in this manual is subject
to change without notice.No part of the document may be reproduced or transmitted in
any form, or by any means, electronic or mechanical, including photocopying or recording,
without the express written permission of AJA Inc.
Contacting Support
To contact AJA Video for sales or support, use any of the following methods:
Telephone: [phone] or 530.274.2048
Fax: [phone]
Web: http://www.aja.com
Support Email: suppor[email protected]
Sales Email: [email protected]
Limited Warranty
AJA Video warrants that the product, not including hard-disk based Storage Modules
(HDD), will be free from defects in materials and workmanship for a period of three years
from the date of purchase. AJA Video warrants that the hard-disk based Storage Modules
(HDD), will be free from defects in materials and workmanship for a period of one year from
the date of purchase.If a product proves to be defective during this warranty period, AJA
Video, at its option, will either repair the defective product without charge for parts and
labor, or will provide a replacement in exchange for the defective product..
To obtain service under this warranty, the Customer must notify AJA Video of the defect
before expiration of the warranty period and make suitable arrangements for the
performance of service by contacting AJA Video support through the channels set forth on
the support contacts web page at http://www.aja.com/support/index.php. Except as stated,
the Customer shall bear all shipping, packing, insurance and other costs, excluding parts
and labor, to effectuate repair. Customer shall pack and ship the defective product to a
service center designated by AJA Video,with shipping charges prepaid. AJA Video shall pay
to return the product to Customer but only if to a location within the country in which the
AJA Video service center is located.
This warranty shall not apply to any defect, failure or damage caused by negligent,
inadequate or improper use, handling or maintenance.Without limiting the foregoing, AJA
Video shall not be obligated to furnish service under this warranty or repair any damage or
malfunction a) resulting from attempts by personnel other than AJA Video representatives
to install, repair or service the product, b) resulting from improper use or connection to
incompatible equipment, c) caused by the use of non-AJA Video parts or supplies, d) if the
product has been modified or integrated with other products when the effect of such a
modification or integration increases the time or difficulty of servicing the product, or (e)
resulting from being dropped or otherwise subjected to undue force, exposure to moisture
or other corrosive or conductive substances, exposure to strong magnetic fields, use with
improperly regulated power supplies, exposure to electric shock, use in temperatures
outside the specified operating range, or otherwise failing to treat the product in
accordance with the standard of care appropriate to sensitive and delicate electronic
equipment.
EXCEPT AS STATED ABOVE, AJA VIDEO AND ITS VENDORS DISCLAIM IN THEIR ENTIRETY ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ALL
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AJA VIDEO'S
RESPONSIBILITY TO REPAIR OR REPLACE TIMELY REPORTED DEFECTIVE PRODUCTS IS THE
WHOLE AND EXCLUSIVE REMEDY CUSTOMER IS PROVIDED.

1
iii
Ki Pro Installation and Operation Manual — Limited Warranty
THE PRODUCT IS NOT INTENDED, STATED, OR WARRANTED TO OPERATE UNINTERRUPTED OR
ERROR-FREE. YOU UNDERSTAND AND ACKNOWLEDGE THAT THE PRODUCT IS NOT INTENDED
TO BE USED AS THE SOLE OR PRIMARY DATA SOURCE OR TARGET FOR CRITICAL DATA, AND THAT
IT IS YOUR RESPONSIBILITY TO IMPLEMENT REDUNDANT CAPTURE AND BACKUP SYSTEMS AS
APPROPRIATE.
Limitation of
Liability
UNDER NO CIRCUMSTANCES SHALL AJA VIDEO BE LIABLE IN ANY WAY FOR ANY LOST,
CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR FOR ANY THIRD PARTY CLAIM, IN CONNECTION
WITH THE PRODUCT,WHETHER RESULTING FROM DEFECTS IN THE PRODUCT, SOFTWARE OR
HARDWARE FAILURE, OR ANY OTHER CAUSE WHATSOEVER, EVEN IF AJA VIDEO HAS BEEN
ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. AJA VIDEO's LIABILITY IN CONNECTION WITH
THIS PRODUCT SHALL UNDER NO CIRCUMSTANCES EXCEED THE PURCHASE PRICE PAID FOR THE
PRODUCT.

iv

1
1
Ki Pro Installation and Operation Manual — Table of Contents
Table of Contents
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Contacting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Limitation of Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Chapter 1: Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
What’s In The Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Apple ProRes 422 Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
In This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 2: Getting Started and Installation
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operator Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls and Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Displays and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Other Front Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connector Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
LTC Timecode Input And Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
SDI Input and Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Component YPbPr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CVBS Composite NTSC/PAL Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Analog 2 Channel Balanced Audio Input and Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Analog 2 Channel Unbalanced Audio Input and Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9-pin Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Host (FireWire 800) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CTRL/TC (FireWire 400) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LANC Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Lens Tap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LED Indicator for IEEE 802.11 Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Connector (back of unit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ExpressCard/34 Memory Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Removable Storage Modules (HDD or SSD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Formatting Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Using Ki Pro Media in Final Cut Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Stand-alone Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

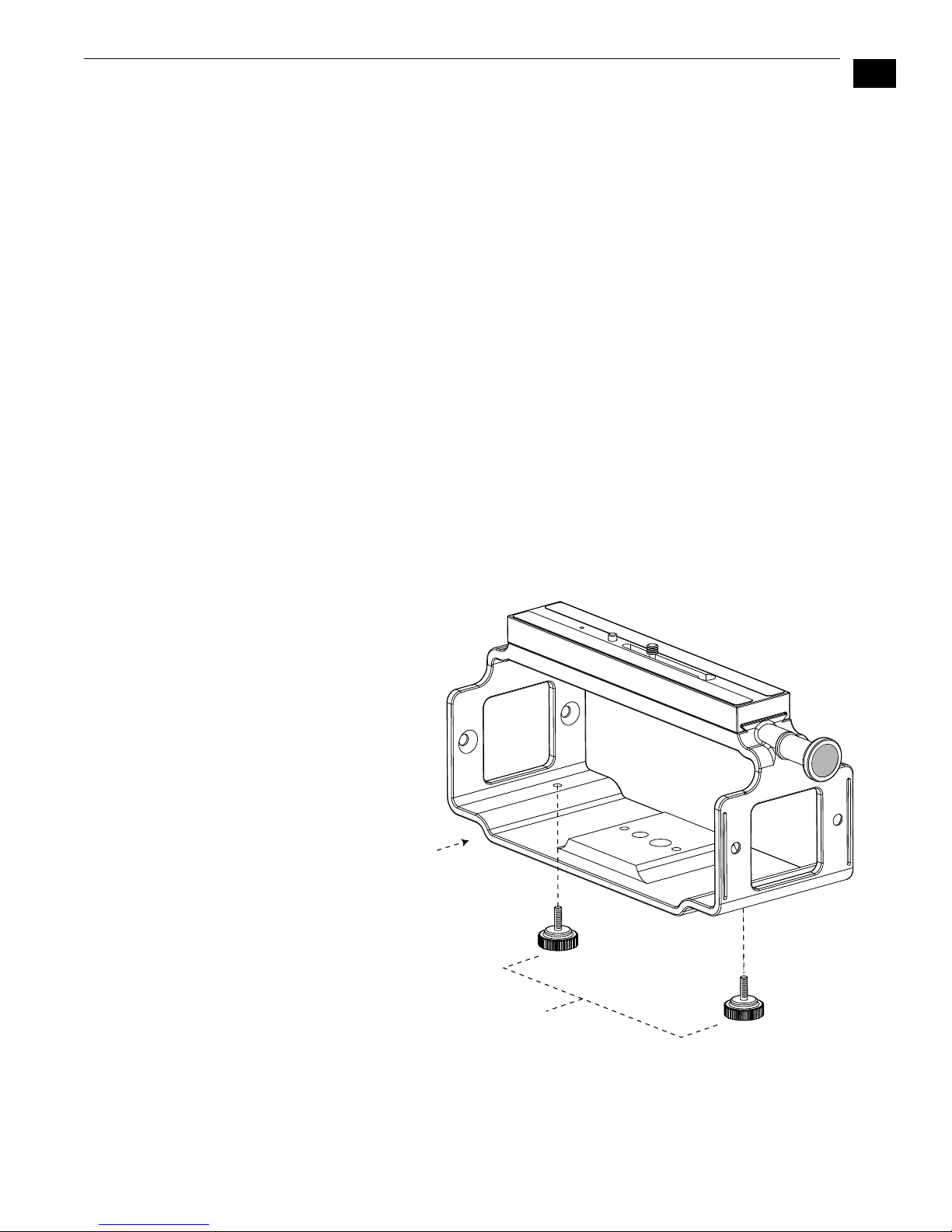

Camera Mounting with Exo-skeleton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Exo-skeleton Setup and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Applying Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using DC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Remote Network Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TCP/IP Information You’ll Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Networking via DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2
Networking Ki Pro using a Static IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Networking Ki Pro using the Factory Default IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Test Ki Pro’s Network Connection with “Ping” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Mac Ping Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Controlling Ki Pro from a web-browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Controlling Ki Pro via 802.11b/g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Chapter 3: Front Panel Operation
TRANSPORT Mode (default) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Recording a Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Recording Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Playing Back a Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Deleting Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
STATUS menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Record Mode (TRANSPORT ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Alarm Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
MEDIA menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Media Menu Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
14.1 ENCODE TYPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
15.1 PLAY MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
15.2 LOOP PLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
16.1 FORMAT MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
16.2 DELETE CLIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
17.0 REEL NAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
17.2 CLIP NAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Clip Naming—Two Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
17.3 CLIP NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
17.4 CLIP APPEND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
17.5 ALPHA APPEND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
17.8 TAKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Custom Clip Naming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
19.1 USE CUSTOM CLIP NAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
19.2 CUSTOM CLIP NAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
19.3 USE CUSTOM CLIP TAKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
19.4 CUSTOM TAKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
22.1 GANG CLIP NAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
CONFIG menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
CONFIG Menu Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
1.1 RECORD TYPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
1.3 1080p PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
1.4 IN CONVERT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
1.5 OUT CONVERT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
1.6 SDI OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
1.7 COMPONENT OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
1.8 HDMI OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
2.1 VIDEO INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2.2 AUDIO INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2.3 AUDIO CHANNELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.1 COMPONENT IN LVL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.2 COMPONENT OUT LVL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.4 NTSC CONFIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.1 ANALOG AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.1 UPCONVERSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.2 DOWNCONVERSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6.1 GENLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.0 TC IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.1 TC VALUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
8.2 TC TYPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

1
3
Ki Pro Installation and Operation Manual — Table of Contents
8.3 ARM RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
35.2 9-PIN REMOTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
41.1 VIDEO SG FRMT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
41.2 VIDEO SG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
41.3 AUDIO SG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
50.1 IP CONFIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
50.2 IP ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
50.3 SUBNET MASK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
50.4 STATIC GATEWAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
50.5 SYSTEM NAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
50.6 MAC ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
50.7 802.11 MAC ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
53.0 802.11 AVAILABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
53.1 802.11 CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
53.2 802.11 NETWORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
53.3 802.11 SECURITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
53.4 802.11 PASSWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
53.5 HIDE 802.11 PASSWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
54.1 802.11 IP CONFIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
54.2 802.11 IP ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
54.3 802.11 SUBNET MASK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
55.4 DATE SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
55.6 TIME SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
70.1 SCREEN SAVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
70.2 DISPLAY INTENSITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
70.3 FAN SPEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
80.1SERIAL NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
80.2 SW VERSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
99.0 FACTORY RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Chapter 4: Browser Remote Control
Remote Control Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Web Browser via Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
General Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Controlling Multiple Ki Pros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Gang Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Resetting Values To Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Config Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Media Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Transport Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Network Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Wireless Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Clips Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Update Firmware Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Preparing to Update Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Upload and Install the Software on your Ki Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Web Browser via Wireless Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Using Wireless Devices to Control Ki Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
iPhone Ki Pro Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
When Using an iPhone to Control Ki Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Appendix A: Specifications

4

1
1
Chapter 1: Introduction
1
Edge Shot Photo Here
Overview
Ki Pro is an all new way of connecting production and post.With it, you can now
acquire with the same codec you edit with—Apple ProRes 422—in all 4 types
(including HQ, LT and Proxy). Ki Pro simplifies the link between production and post
by acquiring on the best codec for use with Apple Final Cut Studio, from virtually any
camera, regardless of format.With its extensive analog and digital connectivity,
virtually any video and audio source can be fed into Ki Pro. Also included is AJA's
powerful 10-bit realtime up/down/cross conversion, allowing you to record in the
format you want to edit and deliver.
Small and portable, AJA’s Ki Pro was designed as a field recorder for creating“ready-
to-edit” professional digital video. Ki Pro supports an Apple “file-based”workflow by
recording standard Apple ProRes 422 QuickTime files on industry standard media. Ki
Pro supports analog and digital audio/video I/O and records on either removable
34mm ExpressCards (up to two can be mounted) or a removable storage module.
Two types of storage modules are also available for Ki Pro: a 2.5” SATA hard drive
(supplied with the base system), or a Solid-State-Drive (SSD) module you can
optionally purchase.When removed, storage modules function as a standard
FireWire 800 drive when connected to a Mac.
Note: ExpressCard storage is not currently supported with versions 1.0, 1.0.1, 1.1, or 2.0 of
firmware.
Ki Pro's multi-purpose mechanical design and small form factor allow both“stand-
alone”and camera configurations. In standalone mode, it can connect to a camera
while sitting on a desk or flat surface. In a camera configuration it mounts between
the camera and a tripod using an optional“Exo-skeleton” frame.The frame option
allows for flexible positioning of the camera and accessories and serves as an
attachment to a professional tripod.

2
Internally, Ki Pro natively supports the Apple ProRes 422 codecs in hardware,
allowing realtime capture directly to Apple ProRes 422 QuickTime files. In fact,
while the camera is recording to its own tape or file-based memory, Ki Pro can
simultaneously capture the media as ProRes so it’s instantly ready to edit when the
removable storage module is connected to a Mac.With this kind of flexibility, you
can save time, steps, and get your project done quicker and with the highest
quality.
Like AJA’s famous KONA and Io HD desktop products, Ki Pro offers unparalleled
connectivity.Within its portable and rugged form factor, Ki Pro offers SD/HD analog
I/O, SD/HD digital I/O including SDI, HD-SDI and HDMI, two channels of balanced
and unbalanced analog audio with switch selectable line/mic levels, and LTC
timecode in/out.
Control options are also varied and flexible. Ethernet 10/100/1000 connection is
possible via an RJ45 connector, allowing remote control and configuration from a
Mac or PC web browser.
Note: Though not supported in Versions 1.0, 1.0.1, 1.1 or 2.0, a future release will
support a FireWire 400 (1394a) connector that allows passing control and
timecode from the camera, while a special “AJA Lens Tap”connector provides
the unique ability to intercept lens control data for use in start/stop and
automated recording control. Plus, a FireWire 800 connector will allow a Mac
to mount Ki Pro’s storage devices (SSD, HD, and ExpressCards).
For wireless control, Ki Pro features an internal 802.11b/g antenna and radio for
connection to wireless devices such as iPhone, iPod Touch, or 802.11 equipped
computers. (For detailed illustrations and discussions of Ki Pro connectors and
control features, see Chapter 2.)
This manual covers the installation and operation of Ki Pro and its optional
accessories.
Features
Ki Pro offers a large number of unique features for optimum quality, ease of use,
and support for a wide variety of workflows and environments. Ki Pro provides
flexible standard and high definition recording, with hardware up/down/cross-
conversion for versatile operation in a mixed SD/HD environment, plus a wide
variety of control methods and storage options.
Hardware
• Apple ProRes 422, Apple ProRes 422 (HQ), Apple ProRes 422 (LT), and Apple
ProRes 422 (Proxy)—SD, HD 720/1080, full-raster 10 bit 4:2:2, realtime,
implemented in hardware
• Up/down/cross-conversion, 10-bit, realtime, implemented in hardware
• Component HD/SD analog video I/O (6 BNC)
• Composite video output (1 BNC)
• HD/SD SDI I/O (2 BNC)
• HDMI I/O (2 HDMI)
• 2 channel balanced and unbalanced analog audio I/O (4 XLR, 4 RCA)
• LTC I/O (2 BNC)
• IEEE 802.11 wireless
• 10/100/1000 Ethernet LAN

1
3
Ki Pro Installation and Operation Manual — Features
• Panel user interface features a VFD display (2 line character display), with 14
control buttons, 3 control knobs, and a power button
• Storage Module (HDD) with FireWire 800 port for use with Apple Mac®
computers (HFS+ file system)
• 12 Vdc AC adapter with industry standard 4-pin XLR connector
• 3-year warranty
Software • Remote Browser control software. When a Mac®, PC, or 802.11b/g enabled
device such as an iPhone are connected via the Ki Pro Ethernet port or its
802.11b/g connection, the device can control the Ki Pro via a web browser
• Embedded internal web server for remote control via 802.11b/g or LAN
• Gang recording via multiple Ki Pro units controlled by a master Ki Pro unit
(see CONFIG parameter 35.4 explained in Chapter 3)
• RS422 control of Ki Pro for VTR-style from an editing application (see CONFIG
parameter 35.2 explained in Chapter 3)
Options
AJA’s Ki Pro can be enhanced by purchasing several options:
• Ki Box Exo-skeleton—provides a surrounding chassis for the Ki Pro that can
both mount to a tripod and provide a mount for camera on top; this
combination allows convenient access to controls.
Ki Box Exo-skeleton Option
Base Ki Pro Exo-skeleton
chassis with camera mount
Knurled thumbscrews
secure Ki Pro chassis
to Exo-skeleton

4

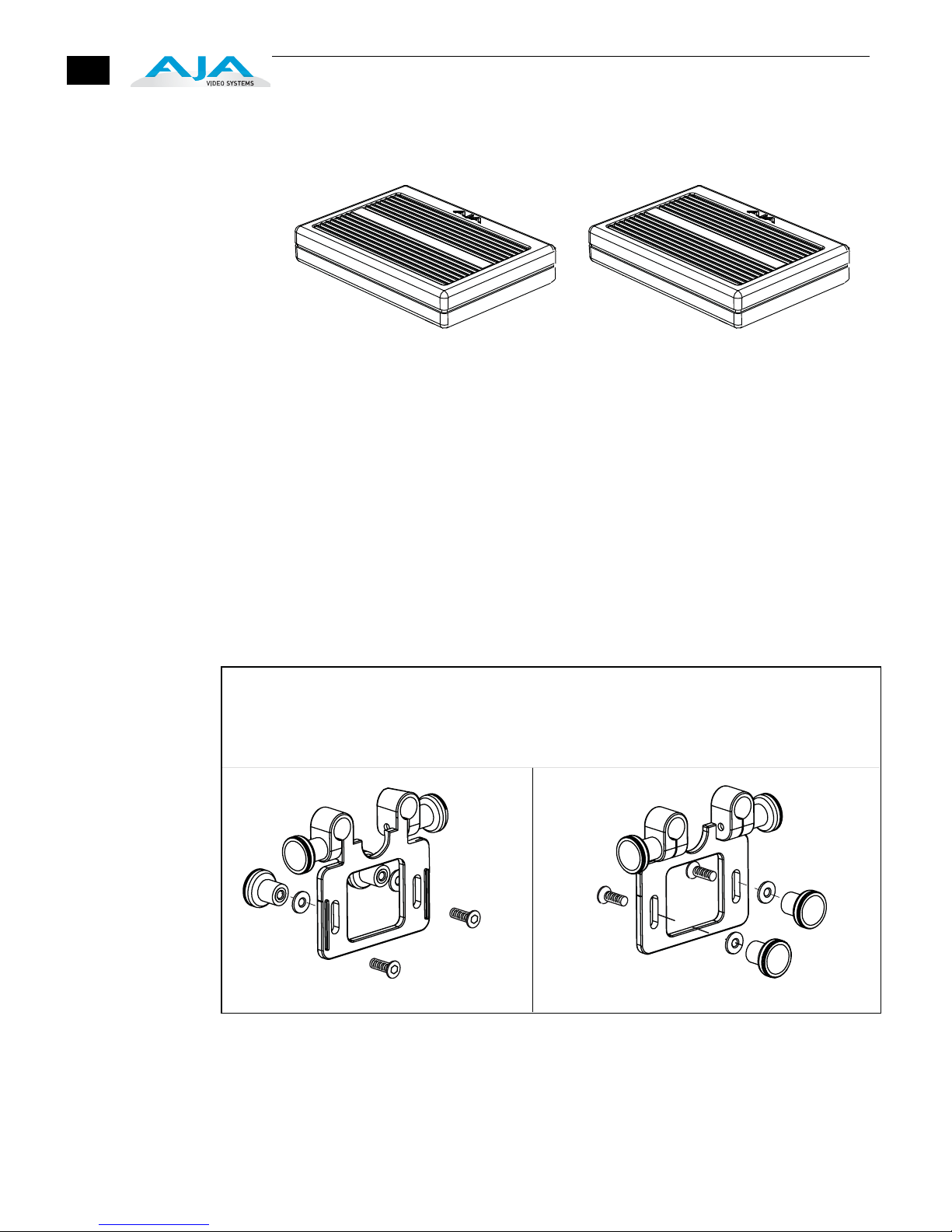

Storage Module Options: SSD or Hard Drive
• Ki Pro SSD Storage Module—although the Ki Pro comes standard with a
removable HDD Storage Module, an optional SSD Storage Module is also
available. The Ki Pro Solid State Storage Module (SSD) is recommended for
mobile environments where shock-proof sturdiness may be needed. The Ki
Pro SSD Storage Module offers the ultimate in media reliability.
• Ki Pro Hard Drive Storage Module—although Ki Pro comes with one
removable HDD Storage Module standard, you can buy extras and simply
swap them as needed.
• Ki Pro Rod Accessory Kit—this kit adds endplates to the Exo-skeleton so you
can attach two user-supplied 15mm camera accessory rods. The endplates
have knobs for adjusting the height of the rod brackets relative to the camera,
as well as a set of knobs for securing the rods in the brackets.
Rod Accessory Kit Option
• AJA Lens Tap Cable Accessory—this AJA proprietary cable allows Ki Pro to
connect between the lens tap control connector on a lens and camera body,
thereby intercepting the lens control signals for use in simple start/stop Ki Pro
recording operations. This option is not yet available.
Kit components:
2 endplates
4 screws (5/32 allen)
4 knobs with plastic washers
Optional Rod Accessory Kit Assembly

1
5
Ki Pro Installation and Operation Manual — What’s In The Box?
What’s In The Box?
When you unpack your Ki Pro, you’ll find the following components:
• Ki Pro CD-ROM—this CD contains documentation—including this manual you’re
reading (PDF format).
• Ki Pro Recorder
• Ki Pro 250GB Hard Drive Storage Module and AC Adaptor
• AC Adapter 110/220 with industry standard 4-pin XLR connector for supplying
power to the Ki Pro.
• Read Me First Notice—Contains late-breaking news and/or errata related to
Ki Pro.
• Registration Sheet—allows you to register by mail or online (details provided).
Please save all packaging for shipping the Ki Pro should you wish to do so when
moving or sending it in for service.
Ki Pro Shipping Box Contents
Warning!
Only use attachments and accessories specified and/or sold by the manufacturer,
such as the Exo-skeleton.
Warning!
Read and follow all warning notices and instructions marked on the product or
included in the documentation.
Warning!
Do not use this device near water and clean only with a dry cloth.
Ki Pro Documentation CD
Read Me First Notice
and Registration Sheets
Ki Pro Recorder
AC Adaptor and Line Cord
Storage Module AC Adaptor
HDD Storage Module
Ki Pro
Installation and Operation
Manual
in PDF format on CD

6
System Requirements
AJA Video recommends that the Mac Pro or MacBook Pro used with the Ki Pro offer a
FireWire 800 port and support Apple ProRes 422 with a satisfactory level of
performance. Consult Final Cut Pro documentation when setting up and configuring
your system for editing; ensure you have an adequate storage system (RAID array)
and any needed video/audio interfaces.
Apple ProRes 422 Advantages
Data rates: 220 Mb/second Apple ProRes 422 (HQ), 145 Mb/second Apple ProRes 422,
100 Mb/second Apple ProRes 422 (LT), and 36 Mb/second Apple ProRes 422
(Proxy)—all supported by internal system drive or attached storage.
Note: Apple ProRes 422 (Proxy) is for high-quality offline editing at the original frame
size, frame rate, and aspect ratio.
Quality: Excellent, broadcast quality
Captured media is virtually indistinguishable from pristine uncompressed sources.
Better yet, ProRes maintains the quality during editing, surviving multiple encoding/
decoding generations without degradation. It was designed by Apple for editing,
rather than as a transmission/distribution codec as are most popular codecs. Some of
the advantages include:
• Full-size 1920-by-1080 and 1280-by-720 HD resolutions.
• Full-size 720-by-486 and 720-by-576 SD resolutions.
• 4:2:2 chroma sampling. Provides precise compositing and blending at sharp
saturated-color boundaries.
• 10-bit sample depth. Preserves subtle gradients of 10-bit sources (perfect for
green-screen compositing, graphics or color correction) with no visible banding
artifacts.
• I frame-only encoding. Ensures consistent quality in every frame and no artifacts
from complex motion.
• Variable bit-rate (VBR) encoding. “Smart” encoding analyzes the image and
allocates more bits to complex frames.
• Low data rate requirements make for more storage options and require less
drive space to store high quality video.
• Optimized for efficient Real-Time effects
In This Manual
Chapter 1 is the introduction you’re reading, listing features, box contents, and
system requirements.
Chapter 2 gets you started with Ki Pro, introducing the front and rear panel features,
connections and indicators, and all the options available.
Chapter 3 provides complete instructions for operating the Ki Pro from the front
panel.
Chapter 4 discusses remote web browser control of Ki Pro via Ethernet or 802.11b/g.

1
1
Chapter 2: Getting Started
2
Overview
When using Ki Pro, you’ll make media cable connections to a variety of equipment
based on how it’s being used.Chapters 2 and 3 discuss how to operate and use the Ki
Pro in its many configurations—this chapter introduces the operating configurations,
power supply options, plus all indicators, controls, and connections so you’ll have a
working knowledge of how it can be used to tie together the worlds of acquiring
media (production) and post-production. For ease of explanation, we’ll talk about
these two ways of using the Ki Pro:
• Stand-alone—in standalone use for acquiring media , the Ki Pro unit is placed on
a desktop or surface and connected by cable to video/audio sources, usually a
camera or camcorder. After acquiring media, you can use the media on a Mac,
by removing the Ki Pro storage module and directly connecting it to the Mac via
FireWire 800. Alternatively, the whole Ki Pro unit can be connected to a Mac via a
FireWire 800 cable (this feature is not yet enabled).
• Camera Mount with Exo-skeleton—for the optimum in onset flexibility, an
optional Ki Pro Exo-skeleton camera mount can be attached to a tripod, the Ki
Pro mounted within it, and the camera mounted on top of the Exo-skeleton. This
creates a complete self contained acquisition system for acquiring Apple ProRes
422 media in realtime as the camera is shooting. As in the standalone mode, the
storage media can be easily inserted or removed for shooting and shuttling to
your editing system—without having to remove Ki Pro from the tripod. The Exo-
skeleton offers many adjustments and an optional rod accessory kit is available
for vertical/horizontal camera adjustment with respect to the rod and
accessories.
Learning about the front panel indicators will be useful in selecting operational
modes and monitoring what is happening on Ki Pro as well as troubleshooting
problems that can occur. Becoming familiar with the Ki Pro operator-side and
connectors will simplify installation, setup, and operation of the system.
On the following pages are front and rear panel illustrations with notations that
summarize all of the connectors and indicators. Detailed descriptions of each of the
connectors and indicators follow afterward.
Caution!
This device is a Class A product. Operation of this equipment in a residential area
is likely to cause harmful interference,in which case users will be required to take
whatever measures may be necessary to correct the interference at their own
expense.
Caution!
The AJA Ki Pro contains a lithium battery soldered in place
permanently (it is not user replaceable). If you ever dispose of
the Ki Pro, ensure you follow local regulations for safe disposal.
The lithium battery shall not be exposed to excessive heat, such
as sunshine or fire.

8
Operator Side
Ki Pro Operator Side (front panel)
Controls and
Displays
The Operator Side of Ki Pro features a variety of buttons, knobs, jacks, and
indicators for operating Ki Pro directly. Each of the items found on the“Operator
Side”are described here and on the following pages.This side is referred to as the
“Operator Side” because when mounted in the Exo-skeleton, it matches the
operator side of the camera.When controlling camera features, you’ll also be
looking at all the Ki Pro control features for ease of use.
The front panel of Ki Pro operates in two modes: the “TRANSPORT”mode (default),
and the“MENU”mode. Some controls have different functions in these two modes.
The TRANSPORT mode (shown above) controls basic play, record, clip select, etc.
functions.The MENU mode is for set-up and configuration of Ki Pro.There are three
menu groups: STATUS, CONFIG, and MEDIA - these menus are accessed by
depressing the corresponding Menu buttons on the left of the panel.
Buttons
Power ON/OFF Button—Controls system power on/off and shows whether power
is ON (when illuminated) or OFF. To turn power on, press the button once.It
isn’t necessary to press hard or depress the button—it’s a “soft” button sensed
by the processor inside. When OFF, and the button is touched, it will begin
powering up and display start-up progress on the alphanumeric display.
To power down, you must press and hold the power button down for 2
seconds. This action prevents accidental power-off during normal operation.
When the unit is powering down you can abort the power-down process by
simply removing your finger from the power button before 2 seconds have
elapsed.
STATUS
DELETE
CLIP SLOT
ADJUSTSELECT
CONFIG
MEDIA
CLIP xxxxxxxx
REEL xxx
01 1 4% S
00:01:21:13
Storage Module (slides into slot)
Slot LED Status Indicators show:
Media Selected—Green
Not-Selected—not illuminated
Recording—flashes Green, On and Off
Expresscard Memory Slots (2) — 34mm 1-lane PCIe
(press card in to mount; press again to eject)
4-pin XLR
Battery Power
Connector
(on side)
VU
Meters
(2 Channel)
Audio
Input
Level
Adjust
(Press in and
knob will pop out
for easy adjustment)
Mic/Line Phones
L R
1
2
Head
Phone
Jack
Head
Phone
Volume
(Press in and
volume adjust
knob will pop out
for easy adjustment)
Storage Module
Release
Button
(press and hold button down
while removing Disk Storage
Cartridge)
140 x 16 pixel
Alphanumeric
and Graphics Display
(typically 2 x 20 characters)
Transport Control Buttons
(Reverse/Stop/Play/Record/Fast Forward)
Power
ON/OFF
(Press to power up,
press and hold for 2 seconds to
power-down; abort power-down
by removing finger before 2 seconds)
Cover Plate
over 802.11 b/g
Antenna

1
9
Ki Pro Installation and Operation Manual — Operator Side
STATUS Button—Pressing the STATUS button, when not lit, enters the I/O Status
menu. Pressing STATUS when it is lit turns off the Status menu and returns
you to Transport mode. STATUS menus can be accessed at any time—
including when the machine is in an active transport mode (PLAY, RECORD,
FF, REV). The ALARM state displayed on the display shares functionality with
STATUS. The Select buttons can be used to cycle through alarms and I/O
status. All menus and front panel operations are described in Chapter 3.
CONFIG Button—Pressing CONFIG when not lit, enters the CONFIG menu.
Pressing CONFIG when it is lit turns Off the CONFIG menu (returning you to
the default TRANSPORT menu). The CONFIG menu can only be entered from
the STOP mode. The CONFIG menu remembers which parameter it is set to
when exited, and will return to that same parameter when the menu is re-
entered.
MEDIA Button—Pressing MEDIA when not lit, enters the MEDIA menu. Pressing
MEDIA when it is lit will turn Off the MEDIA menu (returning to the default
TRANSPORT menu). The MEDIA menu can only be entered from the STOP
mode. The MEDIA menu remembers which parameter it is set to when
exited, and will return to that same parameter when the menu is re-entered.
Transport Control Buttons—The transport buttons are always active.
STOP  : The STOP button has a dual function. When playing back a clip
(PLAY, FF, or REV) the first push of STOP acts as a “pause” mode: the
playback is paused, the current point of the clip is displayed, and the STOP
button flashes. A second push of STOP completely stops the playback and
directs Ki Pro's outputs into an “E to E” mode (the currently selected inputs
bypass to the outputs). To determine at a glance if the STOP button is in a
“pause” mode, note that the stop button will flash if media playback is
paused. The STOP button is fully illuminated in “stop” mode.
PLAY  : Press PLAY to begin forward playback of the current clip at
normal speed.
RECORD  : Press the red button to begin recording. Once in RECORD
mode, all other transport buttons are locked-out except the STOP button.
FFWD  : Press button to begin fast playback of the current clip at 2x
speed. Successive pushes increase the speed to 4x, 8x, and 16x. (Pushing
the button after 16x speed is reached has no further effect.) When fast-
forwarding, audio is muted.
REV : Pressing REV when not lit, begins playback of the current clip in
reverse at 1x speed. Successive pushes increase the speed to 2x, 4x, 8x, and
16x. (Pushing the button after 16x speed is reached has no further effect.)
When playing in reverse, audio is muted for all speeds.
SELECT (up/down): The SELECT up/down buttons operate differently
depending on whether Ki Pro is in the TRANSPORT mode or the MENU
mode. In the TRANSPORT mode, the SELECT buttons select clips and
operate like “previous” and “next” keys. When a clip is selected, Ki Pro
“cues” it to the beginning. Note that ordering and playback of clips is
based on timestamp order (creation date), not clip name. In the MENU
mode, the SELECT buttons select parameters for adjustment. Holding
down either of the SELECT buttons causes them to repeat.
ADJUST (up/down): ): The ADJUST up/down buttons operate differently
depending on whether Ki Pro is in TRANSPORT mode or MENU mode. In
TRANSPORT mode, and in the “Pause” mode (single push of STOP from
PLAY mode), the ADJUST buttons “single step” the current clip at a rate of
one frame per button push (up=forward, down=reverse). In the MENU
mode, the ADJUST buttons adjust the selected parameter. Holding down
either of the ADJUST buttons causes them to repeat
ADJUSTSELECT

10
DELETE CLIP Button—Dedicated button that when pressed, deletes the currently
selected clip. When pressed, the system displays a precautionary “ARE YOU
SURE?” prompt. Press the up-arrow ADJUST button to say “Yes” and delete the
clip, or the down-arrow ADJUST button to abort the deletion. When a clip is
deleted, the next clip is then cued for deletion. Pressing DELETE CLIP, STOP or
any other button—while the “ARE YOU SURE” prompt is displayed—cancels
the delete operation. Pressing any button other than up-arrow ADJUST always
aborts deletion.
DELETE CLIP can be used in either the TRANSPORT menu or the MEDIA menu.
When pressed in the TRANSPORT menu with a current clip active (PLAY, REV,
FF, RECORD), the active mode will continue until the DELETE CLIP is confirmed.
SLOT Button—The SLOT button serves two purposes. First, it selects which storage
is accessed by the system—either the storage module slot or one of the
ExpressCard slots. Second, the SLOT button is used to unmount a currently
selected piece of media.
Caution!
Not using the SLOT button to unmount the media can lead to issues with the
media if the media is removed prior to this action.
Pushing the slot button cycles between unmounting media and selecting
media. This function is only active when in the “STOP” mode and requires a
“PRESS STOP TO CONFIRM” if not stopped. After you select a slot, the system
returns to the last selected clip and timecode for that slot. If the media has
been changed since the slot was last selected (physically removed/media
replaced), then the “first” clip on the media will be “cued” to its start point. If
inserted media has any issues, additional prompts may be displayed as
appropriate such as: “WARNING Backup and Reformat” or “WARNING Media
Unrecognized.”
Note: On power up, the storage module is the initial storage system selected and accessed
by Ki Pro.
Disk Storage Module Release Button—Press and hold to physically release a
storage module from the unit; you must pull out the storage module while
pressing the button. This action prevents a storage module from accidental
removal while recording/playing. For safe removal of any media, either storage
module or Expresscards, the corresponding slot LED must be unlit. Note: the
ExpressCard/34 media is push-to-eject media and does not require this release
button to be pressed for removal.
Caution!
Removing any media with the slot LED lit, or while flashing, can result in
corrupted media or potential damage to the SSD, hard drive or ExpressCard/34
media.
Analog Audio Input Level Adjust Knobs—Knobs underneath the VU meters
allow you to adjust the analog input levels for each of the two audio channels.
Note: Digital audio via embedded SDI and HDMI is not affected by the adjustment knobs.
To adjust an analog audio level, press the knob inward and the knob will
then pop out for easy adjustment. This feature allows the knobs to be
recessed, preventing accidental changes in a production environment.

1
11
Ki Pro Installation and Operation Manual — Operator Side
Head Phone Volume Knob—To adjust headphone listening level, press the knob
inward and the knob will then pop out for easy adjustment—just like the audio
input level knobs.
Displays and Indicators
Alphanumeric and Graphics Display—Display details: The display is a 140x16 Graphics
display. Normally, it will be configured in a 2x20 character format. All menus are
designed to fit into this format, so some words may be truncated to fit the display
limits.
Operational note: The display power consumption is directly related to the number
of pixels that are turned on and the intensity. Therefore, the default brightness is
an intensity value of 6 (on a scale of 1-8) and users will be able to diminish this
value as they see fit in order to conserve as much as 22% power consumption for
the VFD. The intensity setting of the VFD also correlates to the backlit buttons on
the unit (play, select up, select down, etc.)
During a period of 3 minutes of inactivity, the VFD will go to a screensaver mode—
if the Screen Saver parameter has been set in the CONFIG menu.
VU Meters—7-segment LEDs show audio input levels for the 2 analog audio channels
(respectively). Knobs underneath the VU meters allow you to adjust the input
levels independently to prevent clipping and ensure proper signal amplitude.
Green—audio source signal level is in the “safe” area (no clipping). Vertically, the
green LEDs also show the signal strength, so you can see if the signal level is low.
Generally, it’s preferred to have the signal near the top of the green or even
occasionally peaking into the yellow LEDs.
Yellow—audio source signal levels are at the peak edge of the safe area before
clipping will occur.
Red—audio source amplitude is too hot and the signal is clipping at its signal
peaks. You should reduce the input gain at its source (camera, mixer or source
equipment supplying the signal).
ExpressCard Slot LED Status Indicators—Each of the 3 media slots (S1, S2, D1) have an
associated LED status indicator. The following states for the LED indicator denote
the status of the media:
LED lit/on: selected media
LED unlit/off: inactive media, okay to eject or no media inserted
LED flashing: recording in progress
Disk Storage Module LED Status Indicator—The following states for the LED indicator
denote the status of the media:
LED lit/on: selected media
LED unlit/off: inactive media, okay to eject or no media inserted
LED flashing: recording in progress
Other Front Panel Features
ExpressCard Memory Slots (2)—Both of these slots support ExpressCard/34 (34 mm
wide) memory cards (not ExpressCard/54). Cards must be very fast to be used with
Ki Pro.

12
Note: ExpressCard Memory is not supported in Ki Pro versions 1.0 through 2.0.
Visit the Ki Pro support page on our website for a list of AJA-qualified cards:
http://www.aja.com/support/ki-pro/ki-pro.php
Head Phone Jack—1/8” (3.5mm) miniature stereo TRS connection for standard
stereo headphones.
Connector Side
Connect any camcorder, camera, or audio source—digital or analog—regardless of
brand or format, to Ki Pro’s many connectors.The connector side of Ki Pro contains
almost all of the available connections,protected by handles that extend out for easy
grip while protecting the connectors when out of the Exo-skeleton. On the back side
of the unit is a single power connector for supplying the 12-Volt DC operating
voltage (see installation later in this chapter).
The function of Ki Pro’s inputs and outputs depend on the operational mode. Ki Pro’s
active input (the one to be recorded) is selected by front panel, web browser, or
wireless device browser. Ki Pro’s outputs are active all the time. In other words, the
same output video appears simultaneously on the HDMI, SDI, component, and
composite outputs. (Note: composite is an SD only format, so it will not output HD
material.) This method of operation allows simultaneous connection to source
devices, onset monitoring displays, and audio equipment.
Ki Pro Connector Side and Back Side
Connections • HDMI—video with embedded audio, 2 channel input and recording support as
of v2.0 firmware. 1x connector for input and 1x connector for output.
• HD/SD-SDI Input and Output, with 2 or 8 channel embedded audio as of v2.0
firmware (2x BNC)
• HD/SD Component YPbPr/RGB Video, 3x BNCs for input, and 3x BNCs for output.
• Composite video output (CVBS, 1x BNC)
