Akai DV R3300SS User manual

SERVICE MANUAL
Model:
DVR3300SS
DVD HOME THEATRE SYSTEM
www.akai.ru

Page
CONTENTS
DVD HOMETHEATRE SYSTEM
DV-R3300SS
PRODUCT SAFETY NOTICE
Specifications ........................................................................................................................................ 1
Performance Specifications ..................................................................................................................... 2
Electrical Parts List ................................................................................................................................ 7

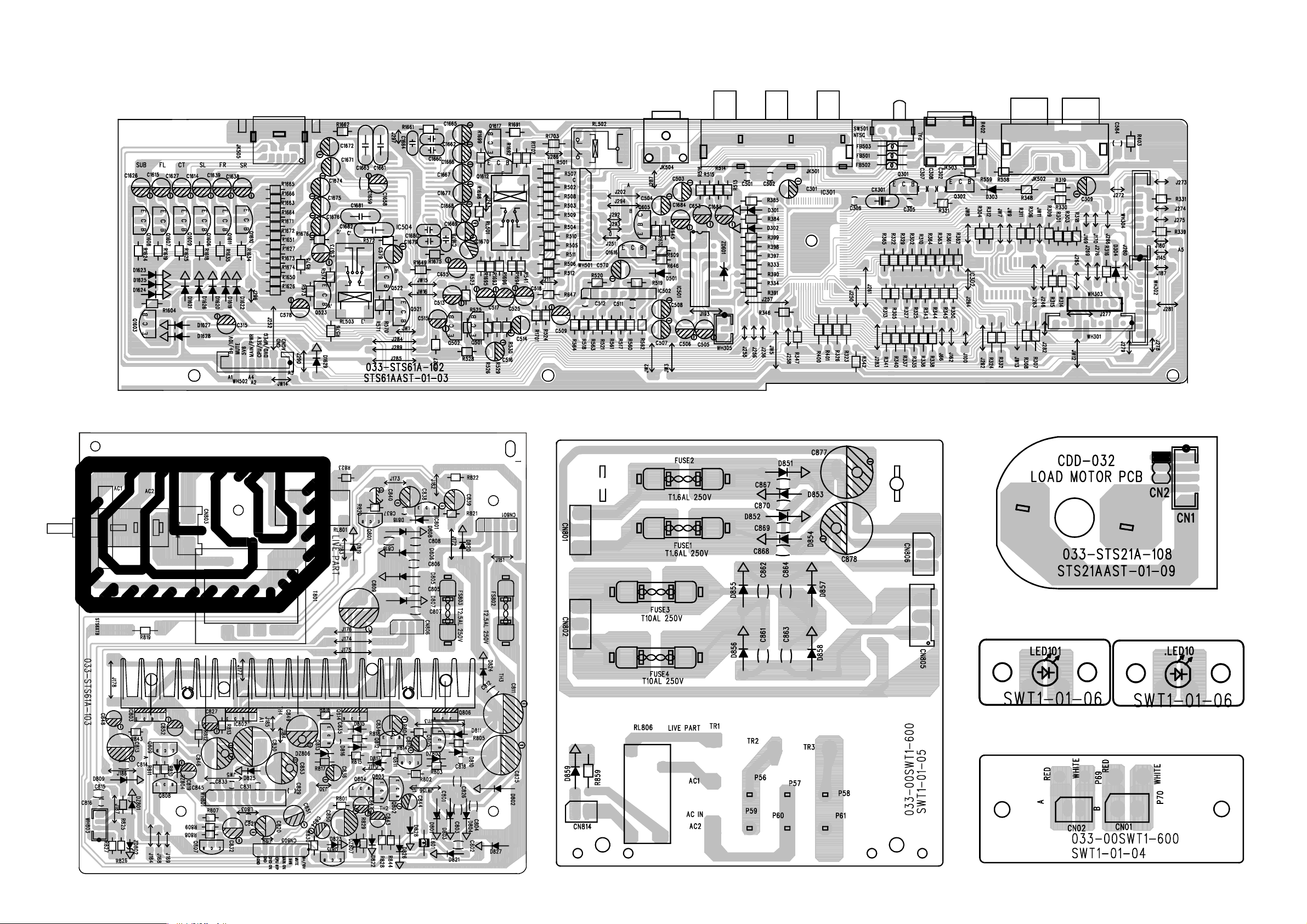

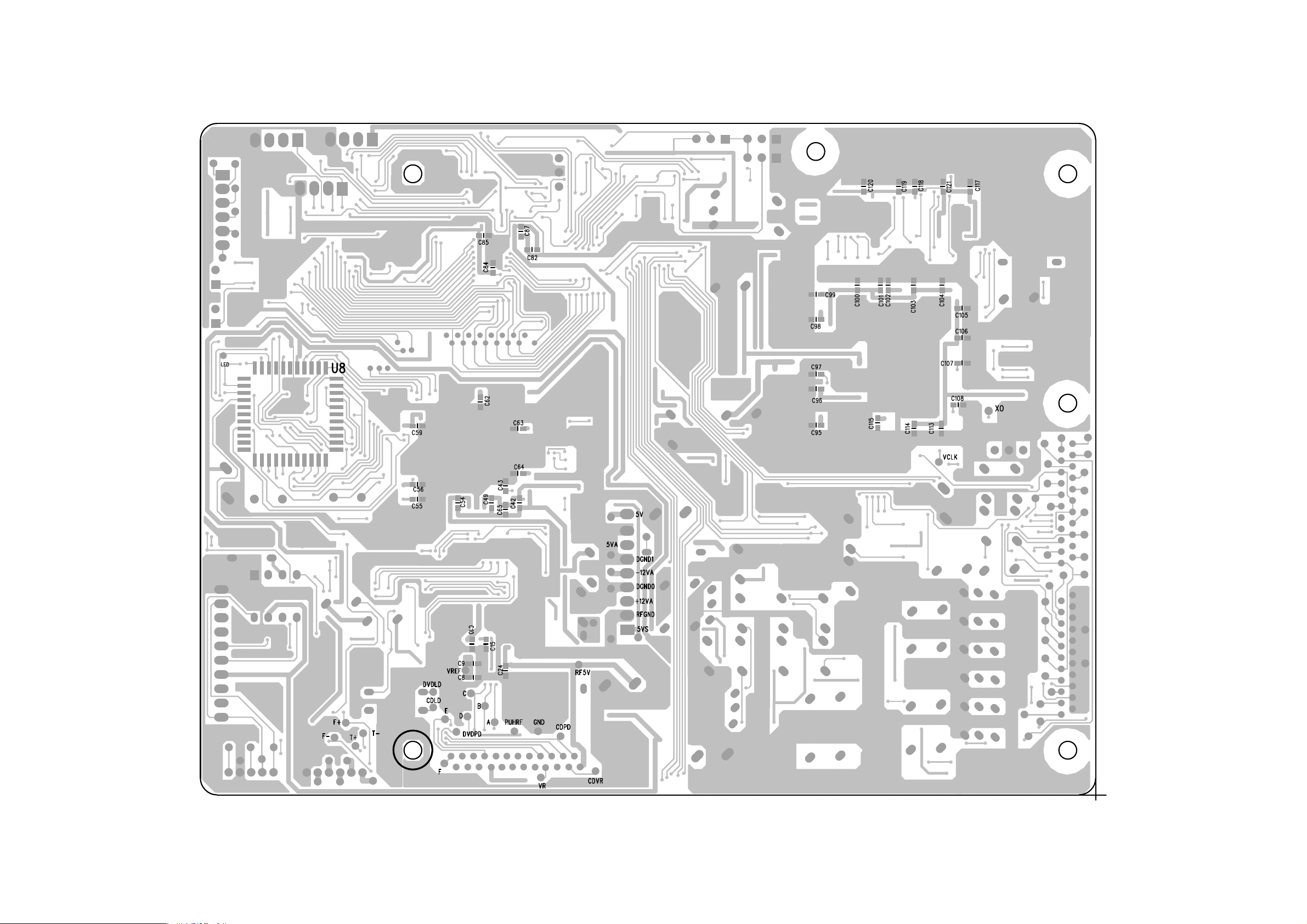

Printed Circuit Boards ........................................................................................................................... 23
Wiring Diagram ..................................................................................................................................... 33
Schematic Diagrams ............................................................................................................................. 37
Alignment Set-up Procedures ................................................................................................................ 54
Equipment Connection Diagram ............................................................................................................. 54
Voltage Chart ....................................................................................................................................... 55
IC Block Diagrams & IC Pins Description ............................................................................................... 62
Block Diagrams .................................................................................................................................... 79
Exploded Drawing Parts List .................................................................................................................. 85
Exploded Drawing ................................................................................................................................. 90
Many electrical and mechanical parts in this chassis have special safety characteristics.
These safety characteristics often pass unnoticed and the protection afforded by them cannot
necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
Replacement parts that have these special safety characteristics are identified in this manual
and its supplements; electrical components having such features are identified by in the
schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully.
The use of substitute replacement parts that do not have the same safety characteristics as
specified in the parts list may create shock, fire or other hazards.
1
VCR

1 2
Unit
Powersupply AC 230V ~ 50Hz
Powerconsumption 25W
Signal system StandardPAL
Laser Semiconductorlaser, wavelength 650/780nm
Signal-to-noise Morethan 95dB
Audio dynamic range Morethan 93dB
Harmonicdistortion Less than 1%
Operating temperature 41°F to 95°F (+5°C to 35°C)
Operating humidity 5% to 85% ( no condensation)
Video Output / Input
Output level 1Vp-p(75Ω)
Input level 750mV input (5Ω10%THDoutput)
Jack RCA/Pin jack
Audio Output / Input
Output level 1.80 ± 0.2 Vrms (1 kHz, 0dB)
Input level 750mV input (5Ω10%THDoutput)
Jack RCA/Pin jack
Speakers Section
Speakers(Front/Center/Rear)
Speaker system Bass reflex
Speakerunit 70 mm dia. cone type
Ratedimpedance 8 ohms
SubwooferSection
Powerconsumption 230W
Speaker system Bass reflex
Speakerunit 165 mm dia. cone type
Ratedimpedance 4 ohms
SPECIFICATIONS
Specifications and external appearance are subject to change without notice.
PERFORMANCE SPECIFICATIONS
Power Supply :AC 230V 50Hz
Output Load : 8 ohm non-reactive x5 Subwoofer 4ohm x1
Reference Output :500 mW
Input Signal Source :External AM Loop Antenna
75 ohm Dummy Antenna for FM
Modulation :30% 400Hz for AM 80% for Power
75kHz Deviation 1000Hz for FM
7.5kHz Pilot Tone
67.5kHz L+R 1000Hz
GENERAL TEST CONDITION
AUX IN DOLBY PRO LOGIC SECTION
UNIT NOMINAL LIMIT
110% THD Power AC (FL, FR) W30 26
2Frequency Response (CT) 1K=0dB 20Hz dB -10 ±5
100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±6
3Frequency Response (RR, RL) 20Hz dB -10 ±5
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±5
4Frequency Response (FL, FR) 20Hz dB -10 ±5
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±3
5Frequency Response 20Hz dB 43 35
(Subwoofer) 1K=0dB 100Hz dB 43 35
610% THD Power AC (Subwoofer) W50 45
7Subwoofer THD (100Hz Ref O/P) %0.5 1.0
8THD (1kHz, Ref O/P) FR, FL %0.5 0.8
9Channel Unbalance (L&R) 1kHz dB ±1 ±3
10 Minimum Vol Hum (UNWGTD/WGTD) mV 3 8
11 Maximium Vol Hum (UNWGTD/WGTD) mV 8 15
12 S/N (UNWGTD/CCIR-ARM2K) (L&R) 1kHz dB 60 55
13 Separation (FL & FR) dB 48 ±5
REMARKS:
NOTE: All measurement should be done at bypass mode withou EQ effects.
More audio prologic : on
ITEM 1,2,3,4 Should be set up at DVD mode, and set subwoofer as off,
speaker as large.
TEST ITEMS

3 4
PERFORMANCE SPECIFICATIONS - CONTINUED PERFORMANCE SPECIFICATIONS - CONTINUED
MW/FM STEREO & RDS TUNING WITH DVD PLAYER
FM STEREO & RDS SECTION 37.5kHz UNIT NOR LIMIT
(MAIN+SUB 75 kHz (PILOT) 1.2K (RDS) DEV & 1kHz INPUT
1Stereo Separation L/R dB 30 25
1mV Input R/L dB 30 25
L/R dB 30 25
R/L dB 30 25
L/R dB 25 18
R/L dB 25 18
298MHz dB 5<18
398MHz dB 34 34±8
498MHz dB 28 <36
598MHz dB 28 <36
698MHz dB 28 <36
798MHz dB 28 <36
MOD FREQ 100Hz
MOD FREQ 1kHz
MOD FREQ 10kHz
Stereo On Sensitivity
TA Seek Sensitivity
S.N.C (SEP=10dB)
RDS Indicator Sensitivity
RDS Seek Sensitivity
TA Indicator Sensitivity
(FM) SECTION, FREQUENCY, MODULATION
UNIT NOMINAL LIMIT
1Tuning Range MHz 87.5 - 108 -
2I. F. MHz 10.7 ±0.3
330dB S/N 90MHz µV 20 25
98MHz µV 20 25
106MHz µV 20 25
4-3dB Limit Sens. dB 16 30
5I. F. Rej. 98MHz dB 60 50
6Image Rej. 106MHz dB 30 26
7Spurious Rejection (F+0.535 MHz) dB 40 35
(Max. Sens. + 6dB)
8AM Suppression (60dB I/P) dB 45 30
9Mod. Hum (60dB I/P) dB 48 42
10 Distortion at 1mV/m (Mono) 22.5kHz %1 2
100 mV/m 75kHz %3 5
11 Audio Fidelity, (-3dB) (Pre-emphass) (75µS) (FR.FL) Hz 60/9000 120/6000
Subwoofer 1kHz=0dB 100Hz dB 36 30
12 Power Out, 10% THD (75K DEV) 1K=1mV W30 26
Subwoofer Power Out, 10% THD (75K DEV) 100Hz=1mV W50 45
13 Low Voltage AC %80 85
14 S/N Ratio at 1mV 98MHz dB 50 42
(Stereo) Dev. 10% Pilot with "19" Filter dB - -
15 Alternate Channel Selective ±400 kHz dB 25 18
16 Stereo Separation dB 26 22
17 19 kHz Leak Carrier dB 32 27
18 Stereo LED Indication dB 26 30
19 Step Frequency kHz -100
20 Auto Stop Sens. dB 26 32
21 Minimum Vol Hum mV 1.0 3.0
REMARKS:
NOTE: All measurement should be done at bypass mode withou EQ effects.
TEST ITEMS
VIDEO SECTION
UNIT NOMINAL LIMIT
1Signal Level (LT2-1) Composite V(pp) 1.0 ±0.2
75
Terminate S-Y V(pp) 0.714 ±0.2
Oscilloscope S-C (BURST) V(pp) 0.286 ±0.05
75% Color Bar Component-Y V(pp) 0.714 ±0.2
2Frequency Char. Composite 1.0/0.5MHz dB 0±2.0
(LT2-1, REF=0dB 0.5MHz, L156 VM700A 2.0/0.5MHz dB 0±2.0
Composite) 4.0/0.5MHz dB 0±2.5
4.75/0.5MHz dB 0±3.5
5.75/0.5MHz dB -2.0 +3-4
3Frequency Chap. S-Y 1.0/0.5MHz dB 0±2.0
(LT2-1, REF=0dB 0.5MHz, L156 VM700A) 2.0/0.5MHz dB 0±2.0
S-Y 4.0/0.5MHz dB 0±2.5
4.75/0.5MHz dB 0±2.5
5.75/0.5MHz dB -2.0 +3-4
4Composite Video-S/N 100K-4.2MHz dB 60 50
(LT2-1) One Line Only (SC TR ON)
L131 VM700A
5S-Y S/N (LT2-1 One Line Only)
100K-4.2MHz (SC TR ON)
dB 60 50
6Color-AM Color-PM (One Lone Only) 100Hz-500kHz dB >40
(LT2-1, L131 VM700A) dB >40
TEST ITEMS
(AM) SECTION, AMPLITUDE, MODULATION
UNIT NOMINAL LIMIT
1Tuning Range kHz 531 - 1602 -
2I. F. kHz 450 ±3
3S/N 10mV/m 1MHz dB 36 30
4Sens. (at S/N 20dB) 0.6MHz dB 60 64
1MHz dB 60 64
1.4MHz dB 60 64
5I. F. Rej. 0.6MHz dB 50 46
6Image Rej. 1.4MHz dB 30 24
7Spurious Rejection dB 35 25
8Bandwidth, 1MHz kHz 64 - 9
(Max. Sens. +6 dB)
9ACA (±9 kHz) Input 1MHz dB 20 15
10 AGC Figure Merit 100mV/m dB 45 40
11 Distortion, 5mV/m, 30% %1 3
80% %3 6
12 a.10% THD Power AC DEV 80% W30 26
b. Woofer 10% DEV 80% W50 45
13 a. Tweet (2nd 910kHz & 3rd 1350kHz) dB 15 10
at 75 dB I/P
14 Audio Fidelity, Centre ±(6) dB Hz 60/2200 120/2000
15 Low Voltage AC %80 85
16 a. Mod. Hum 10mV/M dB 36 30
b. Hum at Min. Vol. mV 1 3
17 Auto Stop Sens. dB 64 70
18 Step Frequency kHz -10
REMARKS:
NOTE: All measurement should be done at bypass mode withou EQ effects.
TEST ITEMS
Ω

5 6
PERFORMANCE SPECIFICATIONS - CONTINUED
DVD AUDIO SECTION (LINE OUTPUT)
UNIT NOMINAL LIMIT
1THD+N ( LT2-1, 3-1 20kHz LPF On ) %0.05
2Output Level (LT2-1, 3-1) V2±0.3
3S/N ( LT2-1, 3-20 JIS-A Filter On ) dB 80 70
4Crosstalk ( LT2-1, 3-21.22 1kHz, BPF On ) dB 70
5Frequency Range
(48kHz / 24BIT ) (LT2-1. 3-1~19) 31Hz dB 0±1.0
(FL, FR) 499Hz dB 0±1.0
1kHz dB 0±1.0
10kHz dB 0±1.0
22kHz dB 0±1.0
6Frequency Range 20Hz dB 0±3.0
(96kHz / 24BIT LT2-1, 6-1~12) 400Hz dB 0±3.0
(FL, FR) 1kHz dB 0±3.0
12.8kHz dB 0±3.0
20kHz dB 0±3.0
7Digital Output Level mV 500 ±100
(LT2-1, 1-1 75 Loading On )
8Dynamic Range dB -80
9Black Band (TDV 545) µM -600
10 Finger Print (TDV 545) µM -No.13
11 Eccentric (MDVD142 TEAC) µM -200
12 Vertical (MDVD151 TEAC) mm -0.6
CD SECTION
1Interruption (Philips SBC444A) µM -600
2Black Dot µM -600
3Fingerprint µM -No.18
4Eccentric (TCO-712 ABEX) µM -140
5Vertical (TCO-713R ABEX)) mm -0.8
CD-R SECTION
1Black Band (TCD-R025W ) µM 800 600
2Finger Printers (TCD-R025W ) µM -65
3Scratch (TCD-R021W ) mm 1.8 1.6
4Eccentric (TCD-R012W ) µM -140
5Deviation (TCD-R032W ) µM -810
CD-RW SECTION
1Black Band (TCD-W025W ) µM 600 500
2Finger Printers (TCD-W025W ) µM -65
3Scratch (TCD-W021W ) mm -1.0
4Eccentric (TCD-W012W ) µM -140
5Deviation (TCD-W032W ) µM -810
TEST ITEMS
AMPLIFIER SECTION
UNIT NOMINAL LIMIT
110% THD Power AC (FL, FR) W30 26
2Frequency Response (CT) 1K=0dB 20Hz dB -10 ±5
100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±6
3Frequency Response (RR, RL) 20Hz dB -10 ±5
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±5
4Frequency Response (FL, FR) 20Hz dB -10 ±3
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±3
5Frequency Response 20Hz dB 36 30
(Subwoofer) 1K=0dB 100Hz dB 36 30
610% THD Power AC (Subwoofer) W50 45
7Subwoofer THD (100Hz Ref O/P) %0.5 1.0
8THD (1kHz, Ref O/P) FR, FL %0.5 0.8
9Channel Unbalance (L&R) 1kHz dB ±1 ±3
10 Minimum Vol Hum (UNWGTD/WGTD) mV 5 8
11 Maximium Vol Hum (UNWGTD/WGTD) mV 8 15
12 S/N (UNWGTD/CCIR-ARM2K) (L&R) 1kHz dB 60 55
13 Bass Effect FL, FR dB ±10 ±4
14 Ttreble Effect FL, FR dB ±10 ±4
15 Middle Effect FL, FR dB ±10 ±4
16 Separation (FL & FR) dB -45
17 Crosstalk For Input (AUX/CD-REF) W/BPF dB -45
REMARKS:
Level Matching CD -10dB REF
AM 55% 5mV ±3
FM 40kHz 1mV ±3
AUX IN 750mV ±3
NOTE: All measurement should be done at bypass mode without EQ effects.
Audio others: 6ch
More audio prologic: on
ITEM 1,2,3,4 Set up Subwoofer as off Speaker as large.
TEST ITEMS
PERFORMANCE SPECIFICATIONS - CONTINUED
Ω

Ref. No. Description Mfr's Part No. Qty.
PCB
OUTPUT PCB PCB STS61AAST-01-03 282x94x1.6mm (94HB) 033-STS61A-102 1
DISPLAY & KEY PCB PCB STS61AAST-01-02 179x169x1.6mm/3 (94HB) 033-STS61A-101 1
RECTIFIER PCB PCB STS61AAST-01-04 150x140x1.6mm (94V0) 033-STS61A-103 1
MPEG+SERVO PCB PCB STS21AAST-01-02 150x120x1.6mm (FR4) 033-STS21A-101 1
LOAD MOTOR PCB PCB STS21AAST-01-09 171x88.5x1.6mm/12 (94V0) 033-STS21A-108 1
SCART PCB PCB STS21AAST-01-05 140x95x1.6mm/4 (94V0) 033-STS21A-104 1
TUNER PCB PCB STS21AAST-01-04 141x130x1.6mm/3 (94V0) 033-STS21A-103 1
SUB-WOOFER AMPLIFIER PCB PCB SWT1-01-01,02,03 (94V0) 033-00SWT1-600 1
CONNECTION PCB PCB SWT1-01-04 (94V0) 033-00SWT1-600 1
SUB-WOOFER RECTIFIER PCB PCB SWT1-01-05 (94V0) 033-00SWT1-600 1
LED PCB PCB SWT1-01-06 (94V0) 033-00SWT1-600 1
SHIELDING PCB PCB SWT1-01-07 200x86x0.8mm (94HB) 033-00SWT1-100 1
ACCESSORY PORTION
RM CONTROL HANDSET (AKAI/DV-R3100/3110/ 043-R15448-051 1
3300SS) w/CAM0122 SPY(FOR STS25/61)
FFC CABLE 22 PINS L=158mm 4+150+4 P:1mm 040-220158-100 1
UL2896 0.035x0.7
JP WIRE AWG26#UL1007 1500mm BLK CRIMPED 054-010A50-090 1
w/TERMINAL SHS #STV8-TE AND TUBE (75ohm)
AV CABLE 1.5M COAXIAL BK CABLE w/3 RCA 122-004220-151 1
PLUG RED,WHT,YEL #3C RCA&RCA-1500BK
SCART CABLE 2000mm w/3 PIN RCA HS02038-20-20 122-00A020-200 1
BATTERY #GP15G 1.5V 'AA' SIZE (GP) 130-615004-001 2
MERCURY & CADMIUM FREE (2PCS/PACKAGE)
AM LOOP ANT.388-88 & 388-89 MOLD BK (ABS) 132-020388-882 1
5264-2 2.54mm w/5750mm BK AWG26#UL1007
AUX-IN (2.1CH) PORTION
RESISTORS
R517,518,523,524,609 *CdF RESISTOR 10 Kohm +-5% 1/16W (1/8W) 001-010351-016 5
R561,563 *CdF RESISTOR 100 Kohm +-5% 1/16W (1/8W) 001-010451-016 2
R513,514 RESISTOR 18 Kohm +-5% 1/16W (1/8W) 001-018351-016 2
R515,516,521,527,528,562 *CdF RESISTOR 22 Kohm +-5% 1/16W (1/8W) 001-022351-016 6
R525,526 RESISTOR 220 Kohm +-5% 1/16W (1/8W) 001-022451-016 2
R519,520 RESISTOR 27 Kohm +-5% 1/16W (1/8W) 001-027351-016 2
R541 *CdF RESISTOR 33 Kohm +-5% 1/16W (1/8W) 001-033351-016 1
R529,530,558,559 *CdF RESISTOR 4.7 Kohm +-5% 1/16W (1/8W) 001-047251-016 4
R501,502,503,504,505,506 *CdF RESISTOR 47 Kohm +-5% 1/16W (1/8W) 001-047351-016 6
R507,508,509,510,511,512 RESISTOR 8.2 Kohm +-5% 1/16W (1/8W) 001-082251-016 6
CAPACITORS
C501,502 CERAMIC CAP 100 pF/50V +-10% 003-010110-050 2
C584 CERAMIC CAP 0.002 uF/50V +80%-20% 003-020280-050 1
C511,512 CERAMIC CAP 220 pF/50V +-10% 003-022110-050 2
C503,504,505,506,507,508,513, ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 11
514,515,517,518
C516,525 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 2
C509 *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 1
C570 ELECT CAP 470 MFD/16V +-20% (10x12.5) 006-047100-16D 1
TRANSISTORS
Q501,502 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 2
INTEGRATED CIRCUIT
IC502 IC BA4558N O.AMP 010-404558-000 1
DIODE
ZD601 ZENER BZX55C6V8CECCL, 6.8V, 1/2W (ROHM) 011-010068-120 1
SGS-THOMSON
Ref. No. Description Mfr's Part No. Qty.
SWITCH
SW501 SLIDE SW 1P2T SS12F47G9 025-120091-003 1
INDUCTORS
FB501,502,503 *CdF FERRITE BEAD INDUCTOR #BL01RN1-A62 032-101162-000 3
0.45 uH/7A (5x3.6mm) (87-008-372-01)
MISCELLANEOUS
JK501 PIN JACK HSP-253V-14 (KUNMING) 118-020253-000 1
YELLOW,RED,WHITE/BODY WHITE
WH501 FFC CONN 6232 22 PINS w/o LOCK PITCH:1mm 135-006232-220 1
00 6232 022 006 800 VERTICAL TYPE
VOLUME PORTION
RESISTORS
R1604 *CdF RESISTOR 10 ohm +-5% 1/16W (1/8W) 001-010051-016 1
R610,1693,1694, J290 *CdF RESISTOR 1 Kohm +-5% 1/16W (1/8W) 001-010251-016 4
R570,571,1691,1692 *CdF RESISTOR 10 Kohm +-5% 1/16W (1/8W) 001-010351-016 4
R645,646,647 *CdF RESISTOR 150 ohm +-5% 1/16W (1/8W) 001-015151-016 3
R1702,1703 *CdF RESISTOR 22 ohm +-5% 1/16W (1/8W) 001-022051-016 2
R1650,1651,1663,1665,1671,1673 *CdF RESISTOR 2.2 Kohm +-5% 1/16W (1/8W) 001-022251-016 6
R1618,1619,1624,1625,1626, *CdF RESISTOR 22 Kohm +-5% 1/16W (1/8W) 001-022351-016 12
1627,1634,1635,1664,1666,1672,
1674
R1661,1675 *CdF RESISTOR 3.3 Kohm +-5% 1/16W (1/8W) 001-033251-016 2
R1701 *CdF RESISTOR 4.7 Kohm +-5% 1/16W (1/8W) 001-047251-016 1
R1649 RESISTOR 56 ohm +-5% 1/16W (1/8W) 001-056051-016 1
R1662,1676 RESISTOR 6.2 Kohm +-5% 1/16W (1/8W) 001-062251-016 2
R1695,1696,1698,1699 RESISTOR 68K +-5% 1/16W (1/8W) 001-068351-016 4
CAPACITORS CERAMIC CAP 0.002 uF/50V +80%-20% 003-020280-050 5
C1660,1680 #MYLAR CAP 0.01 uF/100V +-10% 004-010310-100 2
C1661,1663,1681,1682 #MYLAR CAP 0.1 uF/50V +-10% 004-010410-050 4
C1662,1679 #MYLAR CAP 0.015 uF/100V +-5% 004-015350-100 2
C1664,1678 #MYLAR CAP 0.0022 uF/100V +-10% 004-022210-100 2
C1614,1615,1626,1627,1638, ELECT CAP 1 MFD/50V +-20% (5x11) 006-001000-50D 17
1639,1665,1666,1667,1668,1669,
1670,1671,1672,1674,1675,1676
C1673,1677 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 2
C315,653,655 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 3
C1658 ELECT CAP 470 MFD/16V +-20% (10x12.5) 006-047100-16D 1
TRANSISTORS
Q522,523,1606,1607,1608,1609, TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 10
1610,1611,1612,1617
Q1616 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 1
Q605 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 1
Q521 TR NPNSST-RAD&SC-072 DTA114TS/A (ROHM) 008-801142-000 1
KRA-111M (KEC)
Q1603 TR PNPSST-BUK&SC-072 DTA114YSTP/DTA114YS 008-801144-000 1
INTEGRATED CIRCUIT
IC504 ICAUDIOLEVELSENSOR PT2322-S (SOP) 010-142322-000 1
6-CHANNEL AUDIO PROCESSOR (ANGUS)
DIODES
D501,1619,1620,1621,1622,1623, DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 12
1624,1625,1626,1627,1628,1629 KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
WIRES JP WIRE AWG26#1007 3x3mm 100mm BLACK 051-673100-009 1
JP WIRE AWG26#1007 3x3mm 150mm BLACK 051-673150-009
1
ELECTRICAL PARTS LIST - CONTINUEDELECTRICAL PARTS LIST
7 8

Ref. No. Description Mfr's Part No. Qty.
A' B' JP WIRE AWG26#1007 5x5mm 220mm BLACK 051-675220-009 2
JP WIRE AWG26#1007 5x5mm 280mm BLACK 051-675280-009 1
MISCELLANEOUS
JK505 MINI DIN SOCKET MDSL-09SC0A (LEOCO) 119-000090-000 1
RL502 RELAY 12V 200mW ME-1-12BS 1P2T 128-120112-001 1
RL501 RELAY 12V 200mW ME-2-12 2P2T 128-120212-001 1
WH502 *CdF HEADER CTL 8 PINS PHS-08 PITCH 2mm 135-PHS080-080 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
*CdF SOLDERING LUG 137-300000-000 2
CPU PORTION
RESISTORS
R301,302,303,304,305,306,307, *CdF RESISTOR 10 Kohm +-5% 1/16W (1/8W) 001-010351-016 35
308,309,316,318,319,321,322,
330,331,333,334,337,338,339,
342,343,344,345,346,347,350,
361,364,384,398,399,400,401
R348 *CdF RESISTOR 15 Kohm +-5% 1/16W (1/8W) 001-015351-016 1
R313,314,315 *CdF RESISTOR 220 ohm +-5% 1/16W (1/8W) 001-022151-016 3
R325 *CdF RESISTOR 2.2 Kohm +-5% 1/16W (1/8W) 001-022251-016 1
R340,341 *CdF RESISTOR 22 Kohm +-5% 1/16W (1/8W) 001-022351-016 2
R402,403 RESISTOR 27 Kohm +-5% 1/16W (1/8W) 001-027351-016 2
R332,335,336 *CdF RESISTOR 33 ohm +-5% 1/16W (1/8W) 001-033051-016 3
R326,385,391 *CdF RESISTOR 4.7 Kohm +-5% 1/16W (1/8W) 001-047251-016 3
R560,564 RESISTOR 5.6 Kohm +-5% 1/16W (1/8W) 001-056251-016 2
R324 RESISTOR 8.2 Kohm +-5% 1/16W (1/8W) 001-082251-016 1
CAPACITORS
C302 CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 1
C307,308 CERAMIC CAP 68 pF/50V +-10% 003-068010-050 2
C305,306 CERAMIC CAP 30 pF/50V +-5% (NPO) 003-430050-050 2
(CC45-CH1H300J/RBU04CH300J-L)
C309 ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 1
C301 ELECT CAP 47000 MFD/5.5V DC +80-20% 006-747300-05C 1
(STAR CAP) (SC-DA5R5 473 H)
TRANSISTORS
Q301 TR NPNSST-&&&&&&-&&& 3DG1417 008-601417-000 1
Q302 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 1
INTEGRATED CIRCUITS
IC302 IC 74HC373(SOL)/SN74HC373D/DW TC74HC373AF 010-070373-000 1
IC301 ICMCU-48K-LCD TMP87EP26F-3D72 010-918726-000 1
(ALDIAUS-DVD32) FLASH MCU
DIODES
D301,302,303,304 DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 4
KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
RESONATOR
CX301 CERAMIC RESONATOR 8 MHz CSA 8.00 MTZ 020-000800-000 1
(MURATA) (87-A70-120-08C)
MISCELLANEOUS FERRITE CORE B15 UH 26x30x13 (LF-130) 032-226030-013 1
OD:26mm ID:13mm T=30mm
R385 TO R390 JP WIRE AWG28#1007 4x4mm 40mm BLACK 051-874040-009 1
JK502 PIN JACK BOARD MSP-244V1-34 NI YEL,ORN, 118-020244-000 1
WHT,RED
JK503 DIN JACK HDC-056 (KUNMING) 119-000056-000 1
WH305 *CdF HEADER CTL 3 PINS PHS-03 PITCH 2mm 135-PHS030-030 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
Ref. No. Description Mfr's Part No. Qty.
WH301,302,304 HEADER CTL 10 PINS PHS-10 PITCH 2mm 135-PHS100-100 3
STRAIGHT TYPE WHT COLOR (MARKING:HR)
WH303 HSG (2.54mm) MOLEX 5264-06 TO JST 6P-SAN 136-KZ0626-000 1
w/260mm R,BK,Y,OR,GR,BL AWG28#UL1007
FRONT PANEL PORTION
RESISTORS
R367,368,369,375,376,377,378 *CdF RESISTOR 100 ohm +-5% 1/16W (1/8W) 001-010151-016 7
R358 *CdF RESISTOR 10 Kohm +-5% 1/16W (1/8W) 001-010351-016 1
R354 *CdF RESISTOR 1.5K +-5% 1/16W (1/8W) 001-015251-016 1
R373 *CdF RESISTOR 220 ohm +-5% 1/16W (1/8W) 001-022151-016 1
R355 *CdF RESISTOR 2.2 Kohm +-5% 1/16W (1/8W) 001-022251-016 1
R353 *CdF RESISTOR 22 Kohm +-5% 1/16W (1/8W) 001-022351-016 1
R356 *CdF RESISTOR 3.3 Kohm +-5% 1/16W (1/8W) 001-033251-016 1
R359 *CdF RESISTOR 33 Kohm +-5% 1/16W (1/8W) 001-033351-016 1
R370 RESISTOR 390 ohm +-5% 1/16W (1/8W) 001-039151-016 1
R352,372 *CdF RESISTOR 4.7 Kohm +-5% 1/16W (1/8W) 001-047251-016 2
R351 *CdF RESISTOR 47 Kohm +-5% 1/16W (1/8W) 001-047351-016 1
R379 RESISTOR 51 Kohm +-5% 1/16W (1/8W) 001-051351-016 1
R357 RESISTOR 5.6 Kohm +-5% 1/16W (1/8W) 001-056251-016 1
R383 RESISTOR 68 ohm +-5% 1/16W (1/8W) 001-068051-016 1
CAPACITORS
C312 CERAMIC CAP 0.001 uF/50V +80%-20% 003-010280-050 1
C311 CERAMIC CAP 0.1 uF/16V +80%-20% 003-010480-016 1
C310 ELECT CAP 47 MFD/10V +-20% (SMALL SIZE) (5x7) 006-147000-10D 1
INTEGRATED CIRCUIT
IC304 ICDISPLAYDRIVER-VFD PT6311/PT6318 (ANGUS) 010-146311-001 1
TP6311Q
SWITCHES
SW301,302,303,304,305,306,307, TACT SWITCH 4P 5mm 100G #1102A-4/ 021-110200-002 9
309,311 EVQ PAC 05R (=021-KHH901-000)
WIRES JP WIRE AWG26#1007 3x3mm 160mm BLACK 051-673160-009 1
HSG CD363-4A PIN JST PHR 2mm w/250mm RED 136-040363-200 1
BLK,WHT,BLUE JP AWG28#1007 SLDG 4mm
HSG CD668R-10 JST PHR 2mm WITH 250mm RED 136-100668-200 1
BK,W,Y,BL,OR,R,BK,W,Y AWG28#1095 SLDG4mm
MISCELLANEOUS
LED302,303,304 LED-G-2X5M-N-&&&-&&& SE-6221AT 2x5mm 110-003421-205 3
GREEN, 21mm LEAD
LED301 LED-G-2X5&-S-&&&-&&& W25319GSC 2x5mm 110-253191-215 1
GREEN SUPER BRIGHT
SR301 REMOTE/CONTROL PHOTO RECEIVER 111-007138-000 1
ROHM/RPM7138-V4
VFD301 VFD-2COL100x20.5SM-033P VACUUM 115-001002-000 1
FLUORESCENT DISPLAY #VFD20-1002 (ZEC)
*CdF SOLDERING LUG 137-300000-000 1
LINEAR PORTION
RESISTORS
R822 *CdF RESISTOR 10 ohm +-5% 1/16W (1/8W) 001-010051-016 1
R828 *CdF RESISTOR 1 Kohm +-5% 1/16W (1/8W) 001-010251-016 1
R805,807,808,812,813,814,817, *CdF RESISTOR 10 Kohm +-5% 1/16W (1/8W) 001-010351-016 10
818,830,843
R820 *CdF RESISTOR 100 Kohm +-5% 1/16W (1/8W) 001-010451-016 1
R811 RESISTOR 1.8 Kohm +-5% 1/16W (1/8W) 001-018251-016 1
R802,815 *CdF RESISTOR 220 ohm +-5% 1/16W (1/8W) 001-022151-016
2
910
ELECTRICAL PARTS LIST - CONTINUED
ELECTRICAL PARTS LIST - CONTINUED

Ref. No. Description Mfr's Part No. Qty.
R803 *CdF RESISTOR 22 Kohm +-5% 1/16W (1/8W) 001-022351-016 1
R821,823,825 *CdF RESISTOR 33 ohm +-5% 1/16W (1/8W) 001-033051-016 3
R804,816,826,827 *CdF RESISTOR 470 ohm +-5% 1/16W (1/8W) 001-047151-016 4
R801,819,844 *CdF RESISTOR 4.7 Kohm +-5% 1/16W (1/8W) 001-047251-016 3
R809,829 RESISTOR 5.6 Kohm +-5% 1/16W (1/8W) 001-056251-016 2
R810 RESISTOR 680 ohm +-5% 1/16W (1/8W) 001-068151-016 1
CAPACITROS
C815,816 CERAMIC CAP 0.1 uF/16V +80%-20% 003-010480-016 2
C801,802,803,804,805,806,807, CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 20
808,810,812,814,818,821,826,
829,831,833,835,837,845
C843,844 ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 2
C827,840,848,851,852,854 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 6
C817 ELECT CAP 100 MFD/25V +-20% (6.3x11) 006-010100-25D 1
C813 ELECT CAP 100 MFD/35V +-20% (8x11.5) 006-010100-35D 1
C846,849,853 ELECT CAP 1000 MFD/10V +-20% (10x16) 006-010200-10D 3
C820,832,838 ELECT CAP 220 MFD/16V +-20% (8x11.5) 006-022100-16D 3
C834,839 ELECT CAP 220 MFD/25V +-20% (8x11.5) 006-022100-25D 2
C830 ELECT CAP 2200 MFD/10V +-20% (VX/12.5x20) 006-022200-10C 1
C809,825 ELECT CAP 2200 MFD/16V +-20% (12.5x25) 006-022200-16D 2
C811 ELECT CAP 3300 MFD/25V +-20% (16x31.5) 006-033200-25D 1
C819,836 *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 2
C847 ELECT CAP 47 MFD/25V +-20% (5x11) 006-047000-25D 1
C850 ELECT CAP 470 MFD/10V +-20% (8x11.5) 006-047100-10D 1
TRANSISTORS
Q807,815 TR PNPSST-RAD&SC-043 2SA1015-GR TOSHIBA 008-110150-000 2
Q806,814 (F008-211850-005) TRANSISTOR 2SB1566E/F (ROHM) 008-201566-000 2
Q801,805,813 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 3
Q808 TRLNPNPWR-TAP&TO-092 3DA8050 008-680500-000 1
Q809 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 1
Q804,812 TR PNPGEN-TAP&SC-072 DTA123ESA (ROHM) 008-800123-003 2
(88-WA2-662-08)
Q802,803,811 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 3
INTEGRATED CIRCUITS
IC801 (F010-207805-001) TR &&&VOL-REG&TO-092 008-V07805-000 1
LM78L05ACZ 5V VOLTAGE REGULATOR
IC802,803 ICREGULA-P-005V001A BA05ST (ROHM) 010-400005-002 2
DIODES
D810,811,815,816,817,818,822, DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 8
823 KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
DZ801 ZENER DIODE #MTZJT-7224D 24V 1/2W 011-010024-120 1
DZ802 ZENER IN-5231B, HZ5C1, 5.1V, 1/2W 011-010051-120 1
DZ807 ZENER DIODE 6.2V #MTZJ6.2C 011-010062-005 1
DZ803,804,806 ZENER DIODE 10V #MTZJ10D 1/2W (ROHM) 011-010100-122 3
D809,819,820,821,824,825,826, RECTIFIER IN-4001B 011-024001-000 9
827,828
D801,802,803,804 (F011-005401-000) RECTIFIER IN-5401BL 011-025401-000 4
D805,806,807,808 RECTIFIER IN5822 011-025822-000 4
SWITCH PUSH SWITCH 2P2T PS3-22SP-W4CW-3.2 021-032222-000 1
w/UL.VDE SEMKO APPROVAL (LUP FUNG)
INDUCTOR
L601 *CdF FERRITE BEAD INDUCTOR #BL01RN1-A62 032-101162-000 1
0.45 uH/7A (5x3.6mm) (87-008-372-01)
MISCELLANEOUS
Ref. No. Description Mfr's Part No. Qty.
PT003WEI35/14&&&WEN& 230V:12.4V EN STD 123-A33032-100 1
w/o FUSE (P3512-A14E)
PT035WEI57/35&F&WVDE 230V:8V/13V/22V/ 123-D53521-400 1
4.2V w/FUSE 130°C (L5735-P01E)
F804,805 MICRO FUSE #251.630 630mA/125V WFF-215.630 124-006310-000 2
FS802,803 *CdF FUSE #S5.6 2.5A/250V 5x20mm TIME LAG 124-025020-001 2
(CUL/VDE/SEMKO/BSI APP.)
RL801 RELAY 9V SDT-S-109LMR 128-090109-000 1
PLA-ULN-7'05"-VDE-MG VDE APP.CORD 134-B11331-006 1
2250mm MIGRATION (HARVEST)
CN806 *CdF HEADER MOLEX 4 PINS 5267-04A PITCH 135-005267-040 1
2.5mm STRAIGHT TYPE
CN801 HEADER MOLEX 5 PINS 5267-05A PITCH 2.5mm 135-005267-050 1
STRAIGHT TYPE
CN803 PIN HEADER 2 PINS TJC6-02P3 PITCH:7.92mm 135-00TJC6-020 1
VERTICAL 1.14mm SQUARE PIN
WH803 HEADER CTL 4 PINS PHS-04 PITCH 2mm 135-PHS040-040 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
WIRES
TH3 TO C813+ JP WIRE AWG26#1007 5x5mm 180mm BLACK 051-675180-009 1
CN805 TO WH502 HSG (2mm) JST PHR-08 TO 8P-SAN w/180mm 136-F00818-001 1
RED,BLACKx7 AWG26#UL1007
WH801 HSG (2.5mm) PEC 2507H-09 TO 2501H-09 136-J10935-001 1
w/350mm WHITE,GREYx8 AWG24#UL1007
MPEG+SERVO PORTION
RESISTORS
R10,12,230 CHIP RESISTOR 10 ohm +-5% 1/16W (0603/1608) 001-310052-016 3
R1,109,132 CHIP RESISTOR 100 ohm +-5% 1/16W (0603/1608) 001-310152-016 3
R14,29,39,58,100,101,120,153, CHIP RESISTOR 0 ohm +-5% 1/16W (0603/1608) 001-300052-016 19
177,227,229,234,236,237,241,
243, FB18,19,20
R9,11,97,106,107,122,134,135, CHIP RESISTOR 1 Kohm +-5% 1/16W (0603/1608) 001-310252-016 9
232
R5,6,19,20,21,22,23,56,95,102, CHIP RESISTOR 10 Kohm +-5% 1/16W (0603/1608) 001-310352-016 26
123,124,126,130,131,141,142,143,
144,145,146,147,148,157,163,200
R31,47,48,91,94,201,202,203,204 CHIP RESISTOR 100 Kohm +-5% 1/16W (0603/1608) 001-310452-016 9
R32,33,34,35 CHIP RESISTOR 1 ohm +-5% 1/16W (0603/1608) 001-310852-016 4
R180,183,188,191,194,197 CHIP RESISTOR 12 Kohm +-5% 1/16W (0603/1608) 001-312352-016 6
R125,218,219 CHIP RESISTOR 180 ohm +-5% 1/16W (0603/1608) 001-318152-016 3
R208,209,212,213,216,217 CHIP RESISTOR 2 Kohm +-5% 1/16W (0603/1608) 001-320252-016 6
R164 CHIP RESISTOR 22 ohm +-5% 1/16W (0603/1608) 001-322052-016 1
R15,16,206,207,210,211,214,215 CHIP RESISTOR 220 ohm +-5% 1/16W (0603/1608) 001-322152-016 8
R223 CHIP RESISTOR 2.2 Kohm +-5% 1/16W (0603/1608) 001-322252-016 1
R24,25,26,30,50,105 CHIP RESISTOR 22 Kohm +-5% 1/16W (0603/1608) 001-322352-016 6
R231 CHIP RESISTOR 2.4 Kohm +-5% 1/16W (0603/1608) 001-324252-016 1
R182,185,190,193,196,199 CHIP RESISTOR 30 Kohm +-1% 1/16W (0603/1608) 001-330312-016 6
R59,65,66,67,68,69,70,71,73,74, CHIP RESISTOR 33 ohm +-5% 1/16W (0603/1608) 001-333052-016 26
75,77,79,80,110,111,127,128,165,
166,167,168,169,170,171,175
R129,224 CHIP RESISTOR 330 ohm +-5% 1/16W (0603/1608) 001-333152-016 2
R3,4,52,53,54,55,60,181,184,192, CHIP RESISTOR 3.3 Kohm +-5% 1/16W (0603/1608) 001-333252-016 13
195,198
R155 CHIP RESISTOR 392 ohm +-1% 1/16W (0603/1608) 001-339112-016 1
R13,205 CHIP RESISTOR 470 ohm +-5% 1/16W (0603/1608) 001-347152-016
2
11 12
ELECTRICAL PARTS LIST - CONTINUED
ELECTRICAL PARTS LIST - CONTINUED

Ref. No. Description Mfr's Part No. Qty.
R17,18,43,45,61,96,104,112,113, CHIP RESISTOR 4.7 Kohm +-5% 1/16W (0603/1608) 001-347252-016 19
114,115,116,117,118,119,133,
139,140,174
R27,51,57,76,93,98,137,138,154 CHIP RESISTOR 47 Kohm +-5% 1/16W 001-347352-016 9
(0603/1608) (MCR03EZHJ-473)
R222 CHIP RESISTOR 470 Kohm +-5% 1/16W (0603/1608) 001-347452-016 1
R136 CHIP RESISTOR 5.6 Kohm +-5% 1/16W (0603/1608) 001-356252-016 1
R186,187 CHIP RESISTOR 68 ohm +-5% 1/16W 001-368052-016 2
(0603/1608) (TSB#G5101100Y101)
R158,159,160,161 CHIP RESISTOR 75 ohm +-1% 1/16W 001-375012-016 4
(0603/1608) (TSB#G5101104G105)
R149,162 CHIP RESISTOR 75 ohm +-5% 1/16W (0603/1608) 001-375052-016 2
R8 CHIP RESISTOR 8.2 Kohm +-5% 1/16W (0603/1608) 001-382252-016 1
R225 CHIP RESISTOR 91 ohm +-5% 1/16W (0603/1608) 001-391052-016 1
CAPACITORS
C11,16,39,44,52,53 CHIP CAP 0.001 uF/25V +-10% (0603/1608) 003-510212-025 6
(GRM39B102K50) (MURATA)
C112 CHIP CAP 0.01 uF/25V +-10% (0603/1608) 003-510312-025 1
(MCH185C103KK/GRM39X7R103K25PT)
C135,137,141,143,147,149 CHIP CAP 0.0022 uF/50V +-10% (0603/1608) 003-522212-050 6
(UMK107B222KZ-TM)
C66 CHIP CAP 0.022 uF/25V +-10% (0603/1608) 003-522312-025 1
(MCH182C223KK/GRM39X7R223K25PT)
C2,8,9,10,14,15,21,22,23,24,25, CHIP CAP 0.1 uF/16V +-10% (0603/1608) 003-510412-016 94
26,27,28,29,30,31,32,33,34,35,36, (87-A10-260-08G) (C1608JB1C104K) (TDK)
37,38,40,41,42,43,49,50,51,54,55,
56,59,62,63,64,65,68,69,71,72,73,
74,75,78,79,80,82,84,85,86,87,92,
95,96,97,98,99,100,101,102,103,
104,105,106,107,108,113,114,115,
117,118,119,120,121,122,123,124,
128,129,130,133,134,139,140,145,
146,151,152,153,166,171
C83 CHIP CAP 0.22 uF/16V +80-20% (0603/1608) 003-522482-016 1
C144 CHIP CAP 0.033 uF/25V +-10% (0603/1608) 003-533312-025 1
C17,47 CHIP CAP 0.047 uF/25V +-10% (0603/1608) 003-547312-025 2
C48 CHIP CAP 0.47 uF/16V +80-20% (0603/1608) 003-547482-016 1
(EMK107F474ZA)
C1,4,5,6,7 CHIP CAP 680 pF/50V +-10% (0603/1608) 003-568112-050 5
C12 CHIP CAP 0.0068 uF/50V +-10% (0603/1608) 003-568212-050 1
C3,13,131,132 (F003-610112-050) CHIP CAP 100 pF/50V 003-610152-050 4
+-5% NPO (0603/1608)
C57,58,67 CHIP CAP 12 pF/50V +-5% NPO (0603/1608) 003-612052-050 3
C136,138,142,148,150 CHIP CAP 150 pF/50V +-5% NPO (0603/1608) 003-615152-050 5
(GRM39COG151J50PT/MCH185A151JK)
C88,89,90,91,116,156,159,162 (F003-622051-050) CHIP CAP 22 pF/50V 003-622052-050 9
165 +-5% NPO (0603/1608)(GRM39C0G220J50PT)
C111 CHIP CAP 220 pF/50V +-5% NPO (0603/1608) 003-622152-050 1
(UMK107CH221JZ-T)
C109,110 (F003-527012-050) CHIP CAP 27 pF/50V 003-627052-050 2
+-5% NPO (0603/1608) (UMK107CH270JZ-TM)
C154,157,160,163 CHIP CAP 270 pF/50V +-5% NPO (0603/1608) 003-627152-050 4
R2 CHIP CAP 33 pF/50V +-5% NPO (0603/1608) 003-633052-050 1
(GRM39COG330J50PT/MCH185A330JK)
C70
CHIP CAP 47 pF/50V +-5% NPO (0603/1608) 003-647052-050
1
Ref. No. Description Mfr's Part No. Qty.
C155,158,161,164 (F003-633151-050) CHIP CAP 330 pF/50V 003-633152-050 4
+-5% NPO (0603/1608) (GRM39C0G331J50PT)
C45,46 CHIP CAP 470 pF/50V +-5% NPO (0603/1608) 003-647152-050 2
CE39,40 ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 2
CE13,18,22,24,E25,26,29,30,31, ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 16
32,33,34,35,36,37,38
CE5,6,27,28,45 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 5
CE16 *CdF ELECT CAP 1000 MFD/10V +-20% (VX/10x12) 006-010200-10C 1
CE41 ELECT CAP 220 MFD/16V +-20% (6.3x11) 006-022101-16D 1
(SA16V221M)
CE3 ,15,42,44 ELECT CAP 47 MFD/25V +-20% (5x11) 006-047000-25D 4
CE14 ELECT CAP 470 MFD/10V +-20% (8x11.5) 006-047100-10D 1
CE4,8 ELECT CAP 470 MFD/16V +-20% (VX/10x12.5) 006-047100-16C 2
CE49,51,52,53,54 ELECT CAP 100 MFD/6.3V +-20% (SMALL SIZE) (5x7) 006-210100-06D 5
TRANSISTORS
Q4,7,8,9,10,11,12 TR NPNGEN-BUK&SC-043 2N3904 008-939040-000 7
Q5,6 TR NPNGEN-BUK&SC-043 2N3906 008-939060-000 2
Q3 CHIP TRANSISTOR DTC124TKA-TLB 008-A00124-B00 1
Q1,2 TR PNPPWR-TAP&&S-MT& 2SB1197K-T146R 008-A01197-000 2
(SMT) (ROHM)
INTEGRATED CIRCUITS
U7 ICMCU-512K-NIL W29EE512P-70 (WINBOND) 010-032951-001 1
U25 ICSPECIAL WM8739EDS 24BIT 96kHz 010-038739-000 1
STEREO AUDIO ADC
U31 ICSPECIAL WM8746EDS 32BIT 192KHz 6CH DAC 010-038746-000 1
w/VOLUME CONTROL
U9 IC-VOLTAGE REGULATOR XC61AN1902MR/ 010-151902-000 1
XC61CN1902MR
U1 IC-RF AMP M5703T (SP3721AAA-OPM) 010-245703-000 1
(64-PIN VQFP)
U5 IC&&&&&&&&&&&&&&&&&& M5705 DVD-ROM 010-245705-000 1
CONTROLLER (176-PIN LQFP)
U22,23,24 ICAMP-OP-02CH-DUALV NJM4580E-T1 010-274580-002 3
(TSB#G5147100L105)
U17 ICRAMS-01X016M K4S161622D-TC/L60/L80 010-310416-002 1
HY57V161610DTC-8/M12L16161A-7T
U3 ICREGULA-P-3.3V001A BA033FP(SOP) (ROHM) 010-400033-000 1
U29 ICREGULA-P-005V001A BA17805FP (TO252-3) 010-401780-000 1
(ROHM)
U2 ICMOTORDRIVER-04CH BA5983FM (ROHM) 010-405983-000 1
U12 ICRAMF-01X001K S-24C01BFJ-TB-01/ 010-512401-001 1
24LC01BT-I/SN/M24C01-WMN6T/BR24C01AF-WE2
U27 ICREGULA-P-&&&V&&&A LD1117S/LM117MPX-ADJ 010-721117-000 1
RT9164CG(SOT-223) (ST/NATIONAL/RICHTEK)
U28 ICREGULA-P-3.3V&&&A LD1117S33C/LM1117MPX 010-721117-001 1
-3.3/RT9164-33CG (ST/NATIONAL/RICHTEK)
U4 ICMOTORDRIVER-&&CH FAN8082 (FAIRCHILD) 010-748082-000 1
U26 ICLOGIC TC74HCU04AF-EL HEX INVERTER 010-847404-001 1
(TSB#G51451014108)
U11 ICDIALER-NON-00 ZR36705TQC (ZORAN) 010-893670-002 1
ATAPI INTERFACE
U13 ICRAMF-01X008M 8M BIT(512Kx16) FLASH RAM 010-993908-000 1
SST39VF800A-70-4C-EK/SST39VF800-70-4C-EK
U6 (F010-474116-000) IC-DRAM M11B416256A-35J 045-D00035-100 1
(SOJ) (SW034)
13 14
ELECTRICAL PARTS LIST - CONTINUED
ELECTRICAL PARTS LIST - CONTINUED

Ref. No. Description Mfr's Part No. Qty.
U16 ICMPEG ZR36732PQC 010-893673-000 1
DIODES
ZD1 ZENER DIODE 6.8V #MTZJ6.8B 011-010068-001 1
D10 RECTIFIER IN-4002,100V 011-024002-990 1
D1,2,3,4,5,6,7 CHIP DIODE (SMT) RLS4148 (ROHM) 011-044148-000 7
INDUCTORS
L2,4,5,13 *CdF INDUCTOR 10 uH CEC-100K +-10% 018-010016-000 4
L26,27,28,29 C.COIL 1.8uH +-10% TAPE&REEL LK1608 1R8K-T/ 018-040187-002 4
MGFI1608C1R8/SDFL1608Q1R8KT
L6 C.COIL 2.7 uH +-10% TAPE&REEL LK2125 2R7K-T/ 018-040277-001 1
MGFI2012C2R7/SDFL2012Q2R7KT
FB1,2,3,4,5,6,7,8,9,10,11,12,13, FERRITE BEAD #BLM11A102S (MURATA) 032-111102-000 17
14,15,16,21
CRYSTALS & RESONATOR
Y3 CRYSTAL 12.5 MHz +-30ppm HC-49/U/ALCCBEG 009-612500-000 1
Y4 CRYSTAL 27 MHz HC-49/U/ALCCGBE 009-627000-003 1
Y1 RESONATOR 33.8688 MHz 30ppm-50ppm 020-338688-000 1
ZTA33.86MX (CHEQUERS)
WIRES FFC CABLE L=240mm P=1mm SEPH02-01960(3) 040-240240-100 1
24P-4+232+4-P1-CF/90 UL2896 0.035x0.7
U2 GND TO U29 GND *CdF JP WIRE AWG26#1007 3x3mm 70mm BLACK 051-673070-009 1
J3 HSG (2mm) JST PHR-05 TO PHR-05 w/258mm BR, 136-C00525-800 1
RED,ORN,YEL,GN AWG28#UL1095
J2 HSG (2mm) JST PHR-06 TO PHR-06 w/188mm BR, 136-C00618-800 1
RED,ORN,YEL,GN,BL AWG28#UL1095
MISCELLANEOUS
J5 HEADER MOLEX 6 PINS 5267-06A PITCH 2.5mm 135-005267-060 1
STRAIGHT TYPE
J10 FFC CONN 6232 22 PINS w/o LOCK PITCH:1mm 135-006232-220 1
00 6232 022 006 800 VERTICAL TYPE
J1 FFC CONNECTOR 24 PINS PITCH:1mm LG BRAND 135-0GF106-240 1
GF106-24S-LS HORIZONTAL UPPER CONTACT
J6 HEADER 4 PINS PEC #2507-WS-4 PITCH 2.5mm 135-2507WS-040 1
VERTICAL REPLACE:135-005267-040
J9 HEADER 9 PINS PEC #2507-WS-9 PITCH 2.5mm 135-2507WS-090 1
VERTICAL REPLACE:135-005267-090
J3 HEADER CTL 5 PINS PHS-05 PITCH 2mm 135-PHS050-050 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
J2 *CdF HEADER CTL 6 PINS PHS-06 PITCH 2mm 135-PHS060-060 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
DVD MECHANISM - STSD-010SMT
DVD-FLC-01-SAMG-N DVD MECHANISM FOR CD-R 163-000216-000 1
CMS-S21MG6 (SAMSUNG)
LEAF SWITCH LS-121-0A (LUP FUNG) 022-001210-001 1
CONN PIN 3 PINS (3.5+58+3.5) PITCH 2mm 050-030065-200 1
UL AWG26#2651
CN1 (F135-2001WR-051) HEADER 5 PINS 135-2001WR-050 1
#A2001WR2-05/2001-WR-5 P:2mm HORIZONTAL
MOTOR-DC-006V-NORMAL 6V #RF-500TB-12560 151-061256-000 1
(MABUCHI) 10gm (KSM-2101-ABM-AL)
RDS PORTION
RESISTORS
R458 CHIP RESISTOR 1 Kohm +-5% 1/16W (0603/1608) 001-310252-016 1
R471
CHIP RESISTOR 18 Kohm +-5% 1/16W (0603/1608) 001-318352-016
1
Ref. No. Description Mfr's Part No. Qty.
R454,456 CHIP RESISTOR 2.2 Kohm +-5% 1/16W (0603/1608) 001-322252-016 2
R457 CHIP RESISTOR 330 Kohm +-5% 1/16W (0603/1608) 001-333452-016 1
R455 CHIP RESISTOR 470 Kohm +-5% 1/16W (0603/1608) 001-347452-016 1
R453 CHIP RESISTOR 560 ohm +-5% 1/16W (0603/1608) 001-356152-016 1
CAPACITORS
C459 CHIP CAP 0.1 uF/16V +-10% (0603/1608) 003-510412-016 1
(87-A10-260-08G) (C1608JB1C104K) (TDK)
C454 CHIP CAP 0.0022 uF/50V +-10% (0603/1608) 003-522212-050 1
(UMK107B222KZ-TM)
C456 CHIP CAP 0.047 uF/25V +-10% (0603/1608) 003-547312-025 1
C452,453 CHIP CAP 0.022 uF/25V +-10% (0603/1608) 003-522312-025 2
(MCH182C223KK/GRM39X7R223K25PT)
C460 CHIP CAP 560 pF/50V +-10% (0603/1608) 003-556112-050 1
C457,458 CHIP CAP 33 pF/50V +-5% NPO (0603/1608) 003-633052-050 2
(GRM39COG330J50PT/MCH185A330JK)
C461 ELECT CAP 2.2 MFD/50V +-20% (5x11) 006-002000-50D 1
C451 ELECT CAP 100 MFD/10V +-20% (5x11) 006-010100-10D 1
TRANSISTORS
Q412,413 TR NPNSST-RAD&SC-059 2SC2712GR 008-A02712-000 2
(89-327-125-08)
CRYSTAL
CX402 CRYSTAL 4.332 MHz CSA309 CL=16pF CITIZEN 009-604332-000 1
(87-A70-091-01G)
INTEGRATED CIRCUIT
IC403 ICRDS DECODER BU1923F (ROHM) 010-351923-001 1
DIODES
DZ402 ZENER IN-5231B, HZ5C1, 5.1V, 1/2W 011-010051-120 1
INDUCTOR
L402 *CdF INDUCTOR 100 uH /1128/CEC-101K+-10% 018-010014-000 1
LAL03 TB 101K
SCART PORTION
RESISTORS
R715 *CdF RESISTOR 100 ohm +-5% 1/16W (1/8W) 001-010151-016 1
R717,718,720 *CdF RESISTOR 10 Kohm +-5% 1/16W (1/8W) 001-010351-016 3
R702,703 *CdF RESISTOR 12 Kohm +-5% 1/16W (1/8W) 001-012351-016 2
R721 RESISTOR 2 Kohm +-5% 1/16W (1/8W) 001-020251-016 1
R701,706,722 RESISTOR 2.7 Kohm +-5% 1/16W (1/8W) 001-027251-016 3
R708,709 *CdF RESISTOR 33 Kohm +-5% 1/16W (1/8W) 001-033351-016 2
R707,710,711,712,719 *CdF RESISTOR 4.7 Kohm +-5% 1/16W (1/8W) 001-047251-016 5
CAPACITORS
C701,702 ELECT CAP 0.22 MFD/50V +-20% (VX/5x11) 006-000200-50C 2
C703,704 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 2
C711,712 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 2
TRANSISTORS
Q701,702,708,709 TR NPNGEN-BUL&TO-092 3DG9014 (9014) 008-609014-000 4
INDUCTORS
FB701,702,703,704,705,706,707 *CdF FERRITE BEAD INDUCTOR #BL01RN1-A62 032-101162-000 7
0.45 uH/7A (5x3.6mm) (87-008-372-01)
FFC CABLE 22 PINS L=200mm 4+192+4 P:1mm 040-220200-100 1
UL2896 0.035x0.7 (TUNG HING)
MISCELLANEOUS
WH702, J11 FFC CONN 6232 22 PINS w/o LOCK PITCH:1mm 135-006232-220 2
00 6232 022 006 800 VERTICAL TYPE
JK701 RGB CONNECTOR SOCKET 21 PINS 135-HRC021-210 1
HRC-021V-07 (KUNMING)/MRC-021V-04 (HONDA)
15 16
ELECTRICAL PARTS LIST - CONTINUED
ELECTRICAL PARTS LIST - CONTINUED
