Akai DVR4200SS User manual

SERVICE MANUAL
Model:
DVR4200SS
DVD HOME THEATER SYSTEM
www.akai.ru

Page
CONTENTS PRODUCT SAFETY NOTICE
Performance Specifications ..................................................................................................................... 1
Electrical Parts List ................................................................................................................................ 7

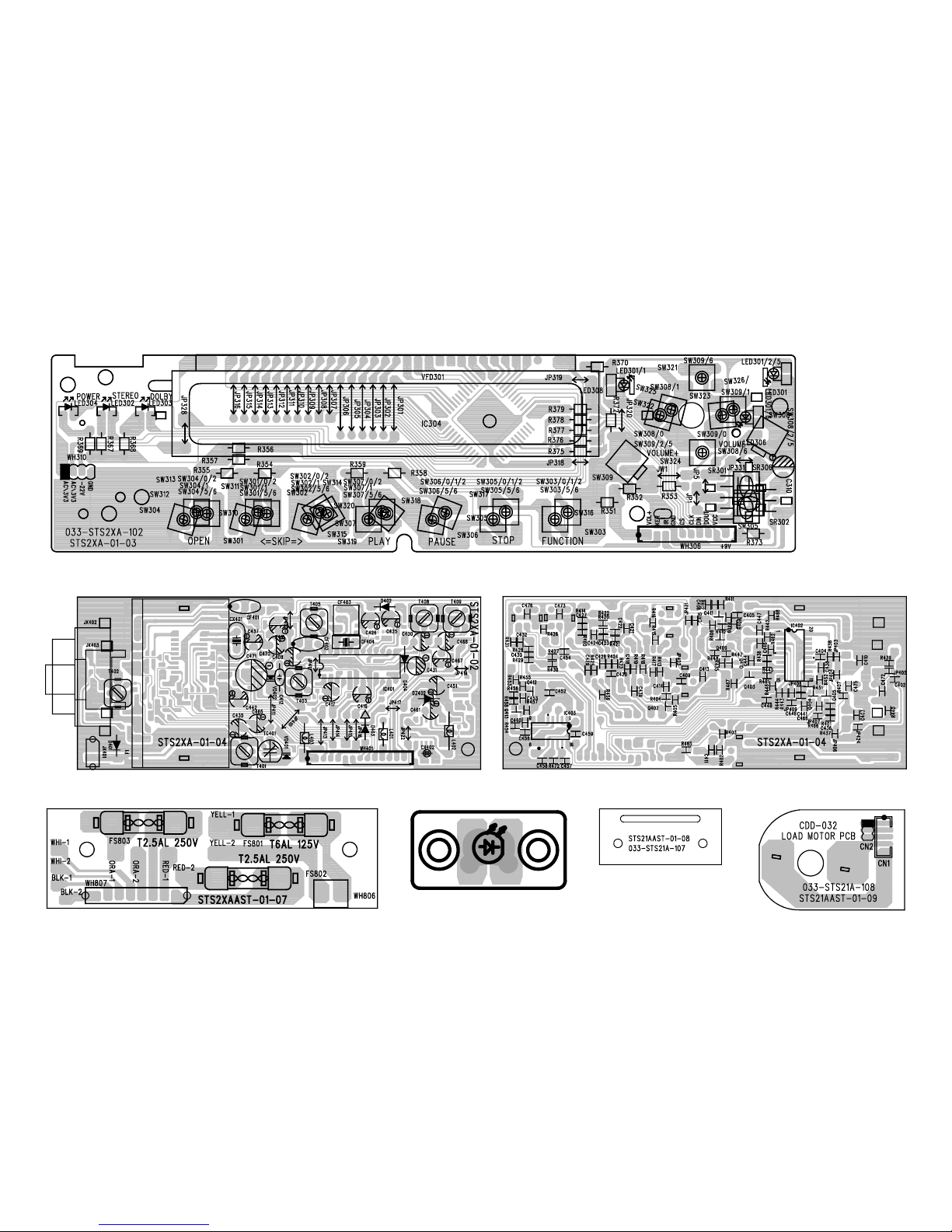

Printed Circuit Boards ........................................................................................................................... 24

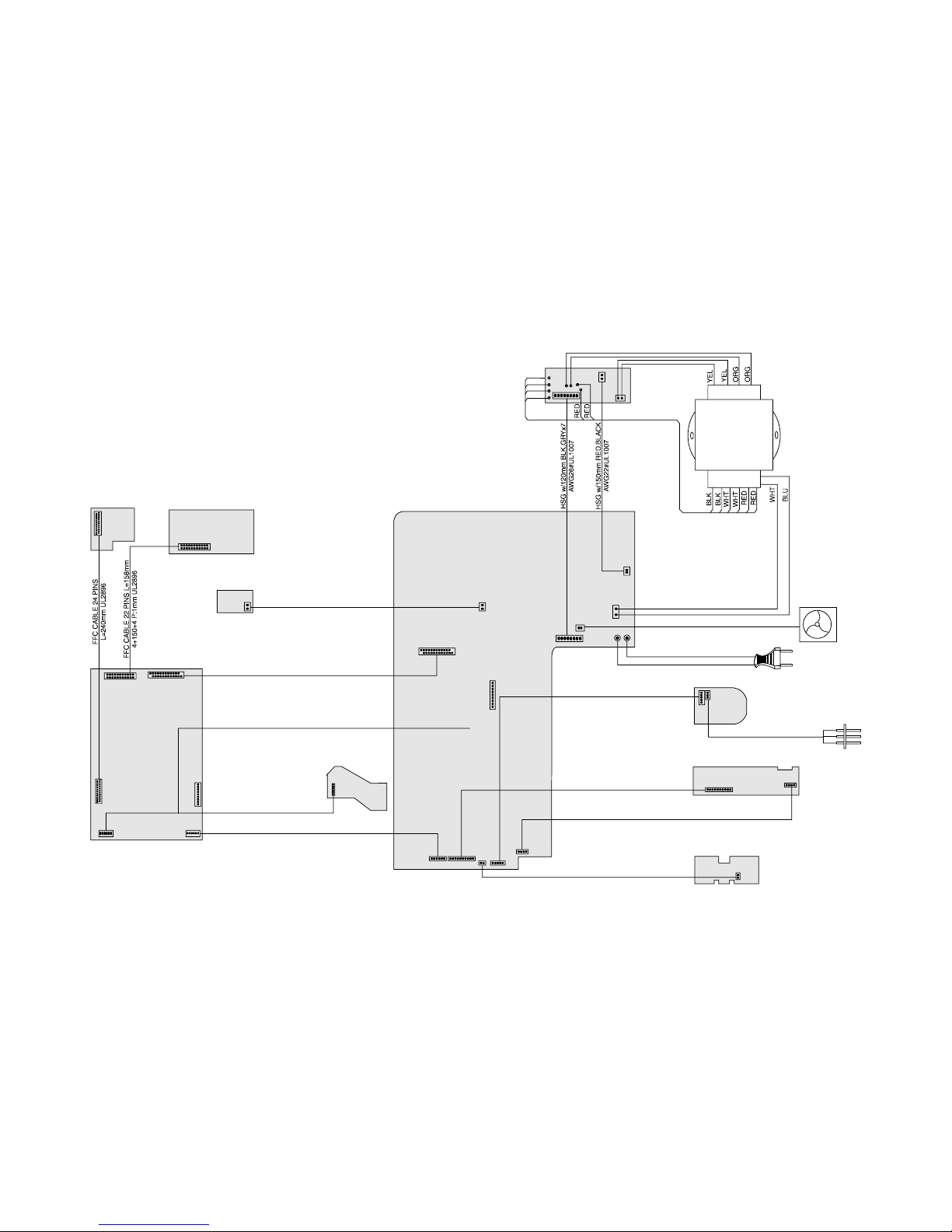

Wiring Diagrams ................................................................................................................................... 35
Schematic Diagrams ............................................................................................................................. 39
Alignment Set-up Procedures ................................................................................................................ 63
Equipment Connection Diagram ............................................................................................................. 63
Voltage Chart ....................................................................................................................................... 64
IC Block Diagrams & IC Pins Description ............................................................................................... 70
Block Diagrams .................................................................................................................................... 79
Exploded Drawing Parts List .................................................................................................................. 86
Exploded Drawings ............................................................................................................................... 91
Many electrical and mechanical parts in this chassis have special safety characteristics.
These safety characteristics often pass unnoticed and the protection afforded by them cannot
necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
Replacement parts that have these special safety characteristics are identified in this manual
and its supplements; electrical components having such features are identified by in the
schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully.
The use of substitute replacement parts that do not have the same safety characteristics as
specified in the parts list may create shock, fire or other hazards.
DVD HOMETHEATRE SYSTEM
DV-R4200SS

Power Supply :AC 230V 50Hz
Output Load :6ohm Non-reactive x 5 Subwoofer 4ohm x 1
Reference Output :500mW
Input Signal Source :External AM Loop Antenna
75ohm Dummy Antenna for FM
Modulation :30% 400Hz for AM
40kHz Deviation 1000Hz for FM Mono
7.5kHz Pilot Tone: Stereo
47.5kHz L+R 1000Hz: Stereo
GENERAL TEST CONDITION
AMPLIFIER SECTION
UNIT NORMAL LIMIT
1. 10% THD Power AC (FL, FR) W20 17
2. Frequency Response (CT) 1K=0dB 100Hz dB -3 ±3
10kHz dB 0±3
20kHz dB 0±6
3. Frequency Response (RR, RL) 100 Hz dB -3 ±3
1K=0dB 10kHz dB 0±3
20kHz dB 0±5
4. Frequency Response (FL, FR) 20Hz dB -6 ±3
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±3
5. Frequency Response 20Hz dB 40 35
(Subwoofer) 1K=0dB 100Hz dB 40 35
6. 10% THD Power AC (Subwoofer) W50 45
7. Subwoofer THD (100Hz Ref O/P) %0.5 1.0
(5.1 CH Disk 2.1 CH Play)
8. THD (1kHz, Ref O/P) FR, FL %0.5 0.8
9. Channel Unbalance (L&R) 1kHz dB ±1 ±3
10. Vol. Hum (UNWGTD/WGTD) (FL FR CT RR RL) mV 1 2
11. Vol. Hum (UNWGTD/WGTD) (Woofer) mV 3 10
12. S/N (UNWGTD/CCIR-ARM2K) (L&R) 1kHz dB 60 55
13. Bass Effect FL, FR dB ±14 ±3
14. Treble Effect FL, FR dB ±14 ±3
15. Separation (FL & FR) dB -45
16. Cross Talk For Input (AUX/CD-REF) W/BPF dB -45
REMARKS:
Level Matching AM: 55% 5mV/m ±3
FM: 40kHz 1mV ±3
CD -6dB/1kHz REF 0
AUX IN: 750mV ±3
NOTE: All measurement should be done at bypass mode without EQ effects.
Audio others :6ch
More audio prologic: on
Item 1.2.3.4 Set up subwoofer for off speaker for large.
TEST ITEMS
DVD AUDIO SECTION (LINE OUTPUT)
UNIT NORMAL LIMIT
1. THD+N (LT2-1, 3-1 20kHz LPF ON) %0.05
2. Output Level (LT2-1, 3-1) V2.0 ±0.3
3. S/N ( LT2-1, 3-20 JIS-A Filter On ) dB 80 70
4. Crosstalk (LT2-1, 3-21.22 1kHz, BPF ON) dB 70
5. Frequency Range
(48kHz / 24BIT) (LT2-1. 3-1~19) 31Hz dB 0±1.0
(FL, FR) 499Hz dB 0±1.0
1kHz dB 0±1.0
10kHz dB 0±1.0
22kHz dB 0±1.0
6. Frequency Range 20Hz dB 0±3.0
(96kHz / 24BIT LT2-1, 6-1~12) 400Hz dB 0±3.0
(FL, FR) 1kHz dB 0±3.0
12.8kHz dB 0±3.0
20kHz dB 0±3.0
7. Digital Output Level mV 500 ±100
(LT2-1, 1-1 75 Loading On)
8. Dynamic Range (20kHz LPF is ON) dB 85
9. Black Band (TDV 545) µM -600
10. Finger Print µM -No.13
11. Eccentric (MDVD142 TEAC) µM -200
12. Vertical mm -0.6
CD SECTION
1. Interruption (Philips SBC444A) µM -600
2. Black Dot µM -600
3. Finger Print µM -No.18
4. Eccentric (TCO-712 ABEX) µM -140
5. Vertical (TCO-731R ABEX) mm -0.8
CD - R SECTION
1. Blackband (TCD-R025W ) µM 800 600
2. Finger Printers (TCD-R025W ) µM -65
3. Scratch (TCD-R021W ) mm 1.8 1.6
4. Eccentric (TCD-R012W ) µM -140
5. Deviation (TCD-R032W ) µM -810
CD - RW SECTION
1. Black Band (TCD-W025W ) µM 600 500
2. Finger Printers (TCD-W025W ) µM -65
3. Scratch (TCD-W021W ) mm -1.0
4. Eccentric (TCD-W012W ) µM -140
5. Deviation (TCD-W032W ) µM -810
TEST ITEMS
Ω
PERFORMANCE SPECIFICATIONS
12
PERFORMANCE SPECIFICATIONS - CONTINUED

VIDEO SECTION - 1
ITEMS TEST CONDITIONS SPEC.
1. Video level Equipment: Waveform Monitor (except VM700) 714-71/+107mV
Test Signal: LT2-1, 1-1, SAMPTE color bar
Test Point: complex or S(Y) output
Method: 1. Connect TP to waveform monitor
2. Play test disc and test output level from
pedestal of H display to 100IRE
(S terminal without load when test complex output)
2. SYNC level Equipment: Waveform Monitor (except VM700) 286±50mV
Test Signal: LT2-1, 1-1, SAMPTE color bar
Test Point: complex or S(Y) output
Method: 1. Connect TP to waveform monitor
2. Play test disc and test SYNC signal
(S terminal without load when test complex output)
3. Chroma burst level Equipment: Waveform Monitor (except VM700) 286±50mV
C-BURST Test Signal: LT2-1,1-1,SAMPTE color bar
Test Point: complex or S(Y) output
Method: 1. Connect TP to waveform monitor
2. Play test disc and test chroma burst level
(S terminal without load when test complex output)
4. Chromatism signal Equipment: Waveform Monitor (VM700) Y=714-71/+107mV
output level Test Signal: LT2-1,1-1,SAMPTE color bar SYNC=286±50mV
Test Point: chromatism output (Y/CB/CR) CB,CR=
Method: 1. Connect TP to waveform monitor 525-53/+79mV
2. Play test disc and test output level and B-Y=286±50mV
PP value of CB,CR R-Y=286±50mV
5. Frequency response Equipment: Waveform Monitor (VM700)
Test Signal: LT2-1, 1-1, multi burst 0.5MHz=0dB
Test Point: complex or S(Y) output 2MHz=0±1.0dB
Method: 1. Connect TP to waveform monitor 4MHz=0±1.5dB
2. Play test disc and test various frequencies 5.75MHz=0=4/-5dB
output level
3. Set level of 0.5MHz to be 0dB. Compare
output level of others with 0dB.
6. Luminance S/N Equipment: Waveform Monitor (expect VM700) play 50% IRE:
Video Noise Meter noise level <-60dB
Test Signal: LT2-1, 1-3, 50% whirt (50IRE)
Test Point: complex or S(Y) and component(Y) output
Method: 1 Connect TP to Video Noise Meter
2. Play test disc signal portion (50% IRE)
and test noise level.
(Test L131 when using VM700)
Test equipment condition:
(4.2MHz LPF, SC trap, 100kHz HFP. ON)
7Chroma signal AM,PM Equipment: Video Noise Meter (expect VM700) chroma signal
S/N Test Signal: LT2-1, 1-3 noise level
Test Point: complex or S(C) output <-50dB
Method: 1. Connect TP to Video Noise Meter
2. Play test disc signal portion and test
noise level of chroma signal.
(Test L131 when using VM700)
Test equipment condition:
(100Hz~1MHz BPF, SC trap,. ON)
(VM700: 100kHz HPF,1MHz LPF, Single Line)
VIDEO SECTION - 2
ITEMS TEST CONDITIONS SPEC.
8. Color phase Equipment: Video Analyser (expect VM700) YEL.=167.6°
Test Signal: LT2-1, 1-1, SMPTE color bar CYAN=283.5°
Test Point: complex or S(C) output GRN.=240.6°
Method: 1. Connect TP to Video Analyser MAG.=60.6°
2. Test phase of various colors in color bar. RED=103.5°
BLU.=347.6°
within+9°/-1°
9. RGB output Equipment: Waveform monitor 700-70/+105mV
(only for w/RGB model) Test Signal: LT2-1,1-1,SMPTE color bar
Test Point: RGB output
Method: 1. Connect TP to waveform monitor
2. Convert to RGB output mode
3. Play test disc signal portion and test
100 IRC (100% whirt) output level.
(AM) SECTION, AMPLITUDE, MODULATION
UNIT NORMAL LIMIT
1. Tuning Range kHz 531 - 1602 -
2. I. F. kHz 450 ±3
3. S/N 10mV/m 999kHz dB 36 30
4. Sens. (at S/N 20dB) 603kHz dB 60 64
dB 60 64
1404kHz dB 60 64
5. I. F. Rejection 603kHz dB 50 46
6. Image Rejection 1404kHz dB 30 22
7. Spurious Rejection dB 35 25
8. Bandwidth, -6dB, at 999kHz kHz 64 - 9
(Max. Sens. +6dB)
9. ACA (±9kHz) Input 999kHz dB 20 15
10. AGC Figure Merit 100mV/m dB 45 40
11. Distortion, 5mV/m, 30% %1 3
80% %3 6
12. 10% THD Power AC DEV 80% W20 17
13. Tweet (2nd 910kHz & 3rd 1350kHz) dB 15 10
at 75 dB I/P
14. Audio Fidelity, Centre ±(6)dB Hz 60/2200 120/2000
15. Low Voltage AC %80 85
16. a. Mod. Hum 100mV/M dB 36 30
b. Hum at Min. (FR, FL) mV 1 3
c. Hum at Min. (Woofer) mV 5 10
17. Auto Stop Sens. dB 64 70
18. Step Frequency kHz -9
REMARKS:
NOTE: All measurement should be done at bypass mode without EQ effects.
TEST ITEMS
PERFORMANCE SPECIFICATIONS - CONTINUED
34
PERFORMANCE SPECIFICATIONS - CONTINUED

(FM) SECTION, FREQUENCY, MODULATION UNIT NORMAL LIMIT
1. Tuning Range MHz 87.5 - 108 -
2. I. F. MHz 10.7 ±0.3
3. 30dB S/N 90MHz µV 20 25
98MHz µV 20 25
106MHz µV 20 25
4. -3dB Limit Sens. dB 16 30
5. I. F. Rejection 98MHz dB 60 50
6. Image Rejection 106MHz dB 30 23
7. Spurious Rejection (F+0.535MHz) dB 40 35
(Max. Sens. +6dB)
8. AM Suppression (60dB I/P) dB 45 30
9. Mod. Hum (60dB I/P) dB 48 42
10. Distortion at 1mV/m (Mono) 22.5kHz %1 2
100mV/m 75kHz %3 5
11. Audio Fidelity, (-3dB) (Pre-emphass) (50µS) Hz 60/9000 120/6000
Subwoofer 1K=0 100Hz 36 30
12. Power Out, 10% THD (55K DEV) 1K=1mV W20 17
Subwoofer Power Out, 10% THD (55K DEV) 100Hz=1mV W50 45
13. Low Voltage AC %80 85
14. S/N Ratio at 1mV 98MHz dB 52 46
15. Alternate Channel Selective ±400kHz dB 25 18
16. Stereo Separation dB 26 22
17. 19kHz Leak Carrier dB 32 27
18. Stereo LED Indication dB 26 30
19. Step Frequency kHz -50
20. Auto Stop Sens. dB 26 32
21. Minimum Vol. Hum (FL, FR) mV 1.0 3.0
Minimum Vol. Hum (Woofer) mV 5 10
REMARKS:
NOTE: All measurement should be done at bypass mode without EQ effects.
TEST ITEMS
AM/FM STEREO & RDS TUNING with DVD PLAYER
FM STEREO & RDS SECTION 37.5kHz (MAIN+SUB.) UNIT NOR LIMIT
7.5kHz (PILOT) 1.2K (RDS) DEV. & 1KHz INPUT
1. RDS Indicator Sensitivity 98MHz dB 28 < 36
2. RDS Seek Sensitivity 98MHz dB 28 < 36
AV IN 750mV INPUT 100Hz (with 20kHz B.P.F) 100Hz=0dB 1kHz=0dB
(Speaker for small)
BY PASS :
UNIT
NORMAL
LIMIT
10% THD Power AC ( FL, FR )
W
20
17
(1kHz) = 1V
10% THD Power AC (Subwoofer)
W
50
45
100Hz = 1V
Speake for Small
BY PASS R=L= -2dB
R
L
C
SR
SL
SW
Unit
R
0
<
- 50
<
- 50
<
- 50
<
- 50
9±3
dB
L
<
- 50
±3
<
- 50
<
- 50
<
- 50
9±3
dB
Phase
±3
±3
<
- 45
<
- 50
<
- 50
12±3
dB
Antiphase
±3
±3
<
- 50
<
- 50
<
- 50
-
dB
FREQUENCY RESPONSE 1K=0dB
L/R
100Hz
-3±3
20kHz
±3
dB
Prologic
R
L
C
SR
SL
SW
Unit
R
-2±3
<
- 50
<
- 35
<
- 35
<
- 35
5±3
dB
L
<
- 50
-2±3
<
- 35
<
- 35
<
- 35
5±3
dB
Phase
<
- 35
<
- 35
±3
<
- 35
<
- 35
5±6
dB
Antiphase
<
- 30
<
- 30
<
- 40
-3±3
-3±3
-
dB
FREQUENCY RESPONSE 1K=0dB
L/R
100Hz
±6
20kHz
±3
dB
C (Phase)
100Hz
±6
20kHz
-20±3
dB
SR/SL (Antiphase)
100Hz
±6
8K
-6±3
dB
Movie
R
L
C
SR
SL
SW
Unit
R
-3±3
<
- 50
<
- 35
<
- 35
<
- 35
5±3
dB
L
<
- 50
-3±3
<
- 35
<
- 35
<
- 35
5±3
dB
Phase
<
- 35
<
- 35
±3
<
- 35
<
- 35
5±6
dB
Antiphase
<
- 35
<
- 35
<
- 35
-3±3
-3±3
dB
FREQUENCY RESPONSE 1K=0dB
C (Phase)
100Hz
-3±3
8kz
-3±3
dB
SR/SL (Antiphase)
100Hz
-3±3
8kHz
-3±3
dB
L/R
100Hz
-3±3
20kHz
±3
dB
Music
R
L
C
SR
SL
SW
Unit
R
-9±3
<
- 50
<
- 50
-10±3
<
- 35
±3
dB
L
<
- 50
-9±3
<
- 50
<
- 35
-10±3
±3
dB
Phase
<
- 35
<
- 35
-6±3
<
- 35
<
- 35
±6
dB
Antiphase
<
- 35
<
- 35
<
- 35
-3±3
-3±3
<
- 35
dB
FREQUENCY RESPONSE 1K=0dB
L/R
100Hz
-3±3
20KHz
±3
dB
C (Phase)
100Hz
-3±3
8KHz
-3±3
dB
SR/SL (Antiphase)
100Hz
-3±3
8K
-3±3
dB
Matrix
R
L
C
SR
SL
SW
Unit
R
-6±3
<
- 50
-10±3
-6±3
-20±3
5±3
dB
L
<
- 50
-6±3
-10±3
-20±3
-6±3
5±3
dB
Phase
-10±3
-10±3
-6±3
-10±3
-10±3
5±6
dB
Antiphase
-10±3
-10±3
<
- 35
-6±3
-6±3
-
dB
FREQUENCY RESPONSE 1K=0dB
L/R
100Hz
-3±3
20kHz
±3
dB
C (Phase)
100Hz
-3±3
8kHz
±3
dB
SR/SL (Antiphase)
100Hz
-3±3
8K
-3±3
dB
TEST ITEMS
PERFORMANCE SPECIFICATIONS - CONTINUED
5 6
PERFORMANCE SPECIFICATIONS - CONTINUED

Ref. No. Description Mfr's Part No. Qty.
PCB
MAIN PCB PCB STS21EAAST-01-02 (94V0) 033-STS21E-200 1
SUB-WOOFER OUTPUT PCB PCB STS21EAAST-01-03 (94V0) 033-STS21E-200 1
DISPLAY & KEY PCB PCB STS21AAST-01-03 202x174.5x1.6mm/4 (94HB) 033-STS21A-102 1
POWER KEY PCB PCB STS21EAAST-01-01 43x16x1.6mm (94HB) 033-STS21E-100 1
FUSE PCB PCB STS21AAST-01-07 166x132x1.6mm/12 (94V0) 033-STS21A-106 1
MPEG+SERVO PCB PCB STS71AAST-01-05 153x184.5x1.6mm/2 FR4 033-STS71A-100 1
DOUBLE SIDED w/PATH THROUGH HOLE
SCART PCB PCB STS21AAST-01-05 140x95x1.6mm/4 (94V0) 033-STS21A-104 1
BLANK PCB PCB STS21AAST-01-08 197x46x1.6mm/9 (94V0) 033-STS21A-107 1
LOAD MOTOR PCB PCB STS21AAST-01-09 171x88.5x1.6mm/12 (94V0) 033-STS21A-108 1
TUNER PCB PCB STS21AAST-01-04 141x130x1.6mm/3 (94V0) 033-STS21A-103 1
SUBWOOFER MAIN PCB PCB ASW3-01-01 215x170x1.6mm/2 (94V0) 033-00ASW3-101 1
SUBWOOFER IN PCB PCB ASW3-01-02 (94V0) 033-00ASW3-400 1
AC IN PCB PCB ASW3-01-05 (94V0) 033-00ASW3-400 1
LED PCB PCB ASWT1-01-01 80x100x1.6mm/40 (94HB) 033-ASWT1A-100 1
REMOTE CONTROL SECTION
REMOTE CONTROL HANDSET RC54-48 043-R15448-120 1
w/CAM-0122 SPY (FOR AKAI/STS2x/7x)
ACCESSORY SECTION
WIRE JP WIRE AWG26#UL1007 1500mm BLK CRIMPED 054-010A50-090 1
w/TERMINAL SHS #STV8-TE AND TUBE (75ohm)
MISCELLANEOUS SCART CABLE 2000mm w/3 PIN RCA 122-00A020-200 1
HS02038-20-20
BATTERY #GP15G 1.5V 'AA' SIZE (GP) 130-615004-001 1
MERCURY & CADMIUM FREE (2PCS/PACKAGE)
AM LOOP ANT.388-88 & 388-89 MOLD BK(ABS) 132-020388-882 1
5264-2 2.54mm w/5750mm BK AWG26#UL1007
AUDIO SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R603,611,612,613,663,665, *CdF RESISTOR 1 Kohm 001-010251-016 10
667,669,671,673
R534,609,690 *CdF RESISTOR 10 Kohm 001-010351-016 3
R656,657,664,666,668,670, *CdF RESISTOR 100 Kohm 001-010451-016 8
672,674
R660 *CdF RESISTOR 150 ohm 001-015151-016 1
R608 *CdF RESISTOR 15 Kohm 001-015351-016 1
R602,616,617,618,619,624, *CdF RESISTOR 2.2 Kohm 001-022251-016 15
625,628,629,634,635,638,639,
654,650
R606,607,658,659 *CdF RESISTOR 22 Kohm 001-022351-016 4
R620,621,631,640,641 RESISTOR 2.2 ohm 001-022851-016 5
R622,623,633,642,643 RESISTOR 2.7 Kohm 001-027251-016 5
R652,687,688 RESISTOR 27 Kohm 001-027351-016 3
R661,675 *CdF RESISTOR 3.3 Kohm 001-033251-016 2
R655 *CdF RESISTOR 33 Kohm 001-033351-016 1
R683,684 RESISTOR 3.9K 001-039251-016 2
R501,502,503,504,505,506, *CdF RESISTOR 4.7 Kohm 001-047251-016 21
507,508,509,510,511,512,571,
572,605,614,615,626,627,636,
637
R601 *CdF RESISTOR 47 Kohm 001-047351-016 1
Ref. No. Description Mfr's Part No. Qty.
R649 RESISTOR 56 ohm 001-056051-016 1
R662,676 RESISTOR 6.2 Kohm 001-062251-016 2
R651,677,678,679,680 *CdF RESISTOR 6.8 Kohm 001-068251-016 5
R654 RESISTOR 8.2 Kohm 001-082251-016 1
CAPACITORS
C647 CERAMIC CAP 100 pF/50V +-10% 003-010110-050 1
CERAMIC CAP 0.002 uF/50V +80%-20% 003-020280-050 2
C659 CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 1
C893 CERAMIC CAP 0.04 uF/50V +80-20% 003-040380-050 1
C612,613,625,636,637 CERAMIC CAP 470 pF/50V +-10% 003-047110-051 5
TAPING (B TYPE/4mm)
C660,680 #MYLAR CAP 0.01 uF/100V +-10% 004-010310-100 2
C618,619,631,642,643,661, #MYLAR CAP 0.1 uF/50V +-10% 004-010410-050 9
663,681,682
C662,679 #MYLAR CAP 0.015 uF/100V +-5% 004-015350-100 2
C664,678 #MYLAR CAP 0.0022 uF/100V +-10% 004-022210-100 2
C646 #MYLAR CAP 0.033 uF/100V +-10% 004-033310-100 1
C648 #MYLAR CAP 0.068 uF/100V +-10% 004-068310-100 1
C614,615,627,638,639,645, ELECT CAP 1 MFD/50V +-20% (5x11) 006-001000-50D 17
665,666,668,669,670,671,672,
674,675,676,684
C644,667,673,683,685 ELECT CAP 2.2 MFD/50V +-20% (5x11) 006-002000-50D 5
C677 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 1
C610,611,622,623,634,635, ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 7
650
C658 ELECT CAP 1000 MFD/16V +-20% (10x20) 006-010200-16D 1
C616,617,629,640,641 ELECT CAP 1000 MFD/25V +-20% (12.5x20) 006-010200-25D 5
C601,602,603 ELECT CAP 1000 MFD/50V +-20%(16x25) 006-010200-50D 3
C604 ELECT CAP 220 MFD/16V +-20% (6.3x11) 006-022101-16D 1
(SA16V221M)
C605,606,607,608,609,620, *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 10
621,632,633,649
TRANSISTORS
Q522,523,602,606,607,608, TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 10
609,610,611,613
Q603 TR PNPGEN-TAP&SC-072 DTA123ESA 008-800123-003 1
(ROHM) (88-WA2-662-08)
Q601 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 1
Q571,615 TR PNPSST-RAD&SC-072 DTA114TS/A 008-801142-000 2
(ROHM) KRA-111M (KEC)
INTEGRATED CIRCUITS
IC605 ICAUDIOLEVELSENSOR PT2322-S (SOP) 010-142322-000 1
6-CHANNEL AUDIO PROCESSOR (ANGUS)
IC604 ICAMP-OP-02CH-DUALV D4558 (DIP8) 010-334558-000 1
IC601,602,603 ICAMP-POWR-&&-&&&&&W TA8258H (TOSHIBA) 010-838258-000 3
DIODES
D601,602,603,604,605,606, DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 8
607,608 KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
INDUCTORS
L601 INDUCTOR 47uH CEC-470K/708032 +-10% 018-010476-000 1
LAL03TB470K/AL0305-470K
FB501,502,503,504 FERRITE BEAD INDUCTOR #PI0243NL 032-100243-000 4
R6H 5x3.6
WIRES
87
ELECTRICAL PARTS LIST ELECTRICAL PARTS LIST - CONTINUED

Ref. No. Description Mfr's Part No. Qty.
FFC CABLE 24 PINS L=88mm PITCH:1mm 040-240088-100 1
0.035x0.7 UL2896
TH3 TO TH4 JP WIRE AWG22#1007 5x5mm 90mm BLK 051-275090-009 1
TH1 *CdF JP WIRE AWG26#1007 5x5mm 100mm RED 051-675100-006 1
TH2, C *CdF JP WIRE AWG26#1007 5x5mm 100mm BLK 051-675100-009 2
TH15 TO JK502GND JP WIRE AWG26#1007 5x5mm 220mm BLK 051-675220-009 1
WH506 HSG 99MD4-2A(R) PEC 2001-H2 P=2mm w/180mm 136-029MD4-B00 1
ZERO WIRE GREY UL1533 AWG28x1C SLDG 2mm
MISCELLANEOUS
SPK602 10P PUSH TERMINAL BOARD MSP-3610V-24 LF 118-003610-000 1
RED,BLUE,YEL,GRN,WHT,BKx5
JK504 RCA JACK MTJ-032-12B-01 BLACK(MSC) 118-020032-008 1
HTJ-032-08BB (KUNMING)
JK505 PIN JACK HTJ-032-08B0 ORANGE (KUNMING) 118-020032-009 1
MTJ-032-12B-05(MSC)/RCA-115V-051
JK502 RCA JACK MSP-226V24-23 NI ALE/ 118-020226-000 1
RCA-616AV-211 GREEN,YEL,BLUE,REDx2,WHT
JK503 DIN JACK HDC-056 (KUNMING) (DS-28) 119-000056-000 1
(LINKTECH)
RTM801 THERMISTOR T5D410K45JBPDA-0/100KD-5K/ 124-205410-001 1
JTR5T104K52PU5
WH501 FFC CONNECTOR 24 PINS PITCH:1mm 135-009615-240 1
9615S-24A-PP-A/D100-SSA-24/S10024V VERT.
WH854 HEADER 2 PINS PEC #2001-WS-2 PITCH 2mm 135-2001WS-020 1
VERTICAL REPLACE:135-PHS020-020
JK506 TO REAR PANEL SOLDERING LUG 137-300000-000 2
AUX-IN (2.1CH) SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R515,516 RESISTOR 27 Kohm 001-027351-016 2
R513,514 *CdF RESISTOR 4.7 Kohm 001-047251-016 2
CAPACITORS
C501,502 CERAMIC CAP 100 pF/50V +-10% 003-010110-050 2
C503,504 ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 2
MISCELLANEOUS
JK506 PIN JACK HSP-253V-14 (KUNMING) 118-020253-000 1
RCA-314V-104 YEL,RED,WHT/BODY WHT
RL504 RELAY 12V 200mW ME-1-12BS 1P2T 128-120112-001 1
CPU SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R907,908 *CdF RESISTOR 100 ohm 001-010151-016 2
R909,910 *CdF RESISTOR 1 Kohm 001-010251-016 2
R301,302,303,304,305,306, *CdF RESISTOR 10 Kohm 001-010351-016 42
307,308,309,310,311,312,316,
318,319,321,322,323,325,329,
330,331,333,334,337,338,339,
343,344,345,350,361,364,382,
383,386,387,388,389,905,911,
912
R348 *CdF RESISTOR 15 Kohm 001-015351-016 1
R340 RESISTOR 20 Kohm 001-020351-016 1
R313,314,315 *CdF RESISTOR 220 ohm 001-022151-016 3
R381,384 *CdF RESISTOR 2.2 Kohm 001-022251-016 2
R341 *CdF RESISTOR 22 Kohm 001-022351-016 1
JP308 RESISTOR 27 ohm +-5% 1/4W 001-027050-014 1
Ref. No. Description Mfr's Part No. Qty.
R327 RESISTOR 2.7 Kohm 001-027251-016 1
R332,335,336 *CdF RESISTOR 33 ohm 001-033051-016 3
R326,328,390,391 *CdF RESISTOR 4.7 Kohm 001-047251-016 4
R346,347 *CdF RESISTOR 47 Kohm 001-047351-016 2
R342 RESISTOR 5.6 Kohm 001-056251-016 1
R324 *CdF RESISTOR 6.8 Kohm 001-068251-016 1
CAPACITORS
C302 CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 1
C307,308 CERAMIC CAP 68 pF/50V +-10% 003-068010-050 2
C305,306 CERAMIC CAP 30 pF/50V +-5% (NPO) 003-430050-050 2
(CC45-CH1H300J/RBU04CH300J-L)
C309 *CdF (F006-010000-16C) ELECT CAP 006-010000-50C 1
10 MFD/50V +-20% (VX/5x11)
C315 ELECT CAP 22 MFD/25V +-20% (5x11) 006-022000-25D 1
C301 ELECT CAP 47000 MFD/5.5V DC +80-20% 006-747300-05C 1
(STAR CAP) (SC-DA5R5 473 H)
TRANSISTORS
Q301 TR NPNSST-&&&&&&-&&& 3DG1417 008-601417-000 1
Q901,902 TRLNPNPWR-TAP&TO-092 3DA8050 008-680500-000 2
Q903,904 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 2
Q302 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 1
INTEGRATED CIRCUIT
IC301 ICMCU-48K-LCD TMP87EP26F-3D72 010-918726-000 1
(ALDIAUS-DVD32) FLASH MCU
DIODES
D301,302,303,304 DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 4
KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
RESONATOR
CX301 CERAMIC RESONATOR 8 MHz ZTA08.00MT (CQ) 020-000800-003 1
WIRES FFC CABLE L=240mm P=1mm SEPH02-02121 040-240240-100 1
24P-4+232+4-P1-CF/90 UL2896 0.035x0.7
WH303 HSG (2.5mm) MOLEX 5264-06 TO JST 6P-SAN 136-JZ0616-000 1
w/160mm R,BK,YEL,O,GR,BL AWG28#UL1007
MISCELLANEOUS
L603,605,609,612,613,615 TOROIDAL COIL T953628/TX2409033628 037-953628-261 6
LEAD WIRE 18mm
WH854 HEADER CTL 2 PINS PHS-02 P:2mm 135-PHS020-020 1
STRAIGHT TYPE WHT COLOR (MARKING:HR) (CdF)
WH901 HEADER CTL 5 PINS PHS-05 PITCH 2mm 135-PHS050-050 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
WH304 HEADER CTL 10 PINS PHS-10 PITCH 2mm 135-PHS100-100 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
EMC SECTION
INDUCTORS FERRITE CORE SH40x10x6.5 032-206040-100 2
FERRITE CORE FYE-T-062/T25x15x10/ 032-225015-010 3
F2515100D OD:25mm, ID:15mm, T:10mm
FAN SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R884 RESISTOR 10 ohm +-5% 1/4W 001-010050-014 1
R882,885,887,894,895,896 *CdF RESISTOR 100 Kohm 001-010451-016 6
R881 RESISTOR 120 ohm 001-012151-016 1
R890,891,892 *CdF RESISTOR 3.3 Kohm 001-033251-016 3
109
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED

Ref. No. Description Mfr's Part No. Qty.
R883,886 *CdF RESISTOR 4.7 Kohm 001-047251-016 2
CAPACITORS
C881,886 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 2
C909 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 1
C883,884,885,905,906,907 ELECT CAP 22 MFD/25V +-20% (5x11) 006-022000-25D 6
TRANSISTORS
Q852 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 1
Q851 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 1
DIODES
D882,883,884,889,890,891 DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 6
KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
INDUCTOR
L881 INDUCTOR 47uH CEC-470K/708032 +-10% 018-010476-000 1
LAL03TB470K/AL0305-470K
WIRE
WH802 HSG 3CD4-3A JST PHR 2mm w/330mm RED, 136-033CD4-200 1
BLK,WHT AWG28#UL1571 SLDG 5mm
MISCELLANEOUS COOLING FAN DC9V 0.14A DC BRUSHLESS 100-090009-000 1
#5010H12S NF1 50x50x10mm
WH806 HEADER 3 PINS PEC #2001-WS-3 PITCH 2mm 135-2001WS-030 1
VERTICAL REPLACE:135-PHS030-030
FRONT PANEL SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R368,369,375,376,377,378 *CdF RESISTOR 100 ohm 001-010151-016 6
R372 TO R379 *CdF RESISTOR 1 Kohm 001-010251-016 1
R358 *CdF RESISTOR 10 Kohm 001-010351-016 1
R354 *CdF RESISTOR 1.5K 001-015251-016 1
R373 *CdF RESISTOR 220 ohm 001-022151-016 1
R355 *CdF RESISTOR 2.2 Kohm 001-022251-016 1
R353 *CdF RESISTOR 22 Kohm 001-022351-016 1
R356 *CdF RESISTOR 3.3 Kohm 001-033251-016 1
R359 *CdF RESISTOR 33 Kohm 001-033351-016 1
R370 RESISTOR 390 ohm 001-039151-016 1
JP319 RESISTOR 47 ohm 001-047051-016 1
R352,372 *CdF RESISTOR 4.7 Kohm 001-047251-016 2
R351 *CdF RESISTOR 47 Kohm 001-047351-016 1
R379 RESISTOR 51 Kohm 001-051351-016 1
R357 RESISTOR 5.6 Kohm 001-056251-016 1
CAPACITORS
JP319 TO GND CERAMIC CAP 0.1 uF/16V +80%-20% 003-010480-016 1
C310 ELECT CAP 47 MFD/10V +-20% 006-147000-10D 1
(SMALL SIZE) (5x7)
INTEGRATED CIRCUIT
IC304 ICDISPLAYDRIVER-VFD PT6311/PT6318 010-146311-001 1
(ANGUS) TP6311Q
SWITCHES
SW308,309 TACT SWITCH 4P 3.85mm 100G #1102VA-4 021-110200-000 2
(=021-KHH913-000)
SW301,302,303,304,305,306, TACT SWITCH 4P 5mm 100G #1102A-4/ 021-110200-002 8
307,312 EVQ PAC 05R (=021-KHH901-000)
WIRES
WH308 HSG CD668R-2B JST PHR 2mm w/300mm RED 136-020668-201 1
BLK AWG28#1095 UL JP SLDG 4mm (CdF)
Ref. No. Description Mfr's Part No. Qty.
WH310 HSG VCD30D-4A JST PHR-04 w/150mm 136-04V30D-200 1
BLK,BRN,RED,ORG AWG28#UL1007 SLDG 3mm
HSG CD363-10D PIN JST PHR w/150mm R,BK, 136-100363-203 1
W,Y,BL,O,R,BK,W,Y JP AWG28#1095 SLDG 5mm
MISCELLANEOUS
LED303,304 LED-G-2X5M-N-&&&-&&& SE-6221AT/W25153GHD 110-003421-205 2
2x5mm GREEN 21mm LEAD
LED301 LED-B-5MM&-S-STP-&&& W05315BSC-3T/ 110-053152-005 1
W05310BSC-V 5mm SUPER BRIGHT BLUE
SR301 REMOTE/CONTROL PHOTO RECEIVER 111-007138-000 1
ROHM/RPM7138-V4
VFD-2COL100x20.5SM-033P VACUUM 115-001002-000 1
FLUORESCENT DISPLAY #VFD20-1002 (ZEC)
WH301 HEADER CTL 10 PINS PHS-10 PITCH 2mm 135-PHS100-100 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
LINEAR POWER SUPPLY SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R821,822,823,824 *CdF RESISTOR 10 ohm 001-010051-016 4
R811,828 *CdF RESISTOR 1 Kohm 001-010251-016 2
R805,808,812,818,819,830, *CdF RESISTOR 10 Kohm 001-010351-016 7
843
R807,820 *CdF RESISTOR 100 Kohm 001-010451-016 2
R802,815,825,835 *CdF RESISTOR 220 ohm 001-022151-016 4
R803,813,831 *CdF RESISTOR 22 Kohm 001-022351-016 3
R806 *CdF RESISTOR 33 ohm 001-033051-016 1
R829 *CdF RESISTOR 3.3 Kohm 001-033251-016 1
R804,816,826,827 *CdF RESISTOR 470 ohm 001-047151-016 4
R801 *CdF RESISTOR 4.7 Kohm 001-047251-016 1
R809,814,817 RESISTOR 5.6 Kohm 001-056251-016 3
R810 RESISTOR 680 ohm 001-068151-016 1
CAPACITORS
C815,816 CERAMIC CAP 0.1 uF/16V +80%-20% 003-010480-016 2
C801,802,803,804,805,806, CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 19
807,808,810,812,814,818,821,
829,831,833,835,837,845
C842 #MYLAR CAP 0.1 uF/50V +-10% 004-010410-050 1
C827,848 *CdF (F006-010000-16C) ELECT CAP 10 MFD/ 006-010000-50C 2
50V +-20% (VX/5x11)
C840,843,844,847,850 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 5
C817 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 1
C813,865 ELECT CAP 100 MFD/35V +-20% (8x11.5) 006-010100-35D 2
C849 ELECT CAP 1000 MFD/10V +-20% (10x16) 006-010200-10D 1
C820,832,839,851,836 ELECT CAP 220 MFD/16V +-20% (8x11.5) 006-022100-16D 5
C834 ELECT CAP 220 MFD/25V +-20% (8x11.5) 006-022100-25D 1
C830 ELECT CAP 2200 MFD/10V +-20% (VX/12.5x20) 006-022200-10C 1
C809,825 ELECT CAP 2200 MFD/16V +-20% (12.5x25) 006-022200-16D 2
C811 ELECT CAP 3300 MFD/25V +-20% (16x31.5) 006-033200-25D 1
C841 ELECT CAP 3300 MFD/50V +-20% (20x40) 006-033200-50D 1
C819 *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 1
C856 ELECT CAP 47 MFD/35V +-20% (6.3x11) 006-047000-35D 1
C828,838,846,855 ELECT CAP 470 MFD/10V +-20% (8x11.5) 006-047100-10D 4
TRANSISTORS
Q806,814 TRANSISTOR B1566E (LIGHTNING) 008-201566-100 2
Q807,815 TRLPNPSST-TAP&TO-092 3CG1015/2SA1015 008-610150-000 2
1211
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED

Ref. No. Description Mfr's Part No. Qty.
Q801,805,813 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 3
Q808 TRLNPNPWR-TAP&TO-092 3DA8050 008-680500-000 1
Q809 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 1
Q804,812 TR PNPGEN-TAP&SC-072 DTA123ESA 008-800123-003 2
(ROHM) (88-WA2-662-08)
Q802,803,811 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 3
INTEGRATED CIRCUITS
IC801 (F010-207805-001) TR &&&VOL-REG&TO-092 008-V07805-000 1
LM78L05ACZ 5V VOLTAGE REGULATOR
IC802,803 ICREGULA-P-005V001A BA05ST (ROHM) 010-400005-002 2
DIODES
D810,811,815,816,817,818, DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 10
821,822,823,885 KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
DZ801 ZENER DIODE #MTZJT-7224D 24V 1/2W 011-010024-120 1
DZ802 ZENER IN-5231B, HZ5C1, 5.1V, 1/2W 011-010051-120 1
DZ807 ZENER DIODE 6.2V #MTZJ6.2C 011-010062-005 1
ZENER DIODE 10V #MTZJ10D 1/2W (ROHM) 011-010100-122 3
D825 BRIDGE RECTIFIER RS602(GOODWORK)/ 011-020602-001 1
RS602(DC)
D809,819,820,824,892 RECTIFIER IN-4001B/IN-4001(DC) 011-024001-000 5
D801,802,803,804 (F011-005401-000) RECTIFIER IN-5401BL/ 011-025401-000 4
IN-5401(DC)
D805,806,807,808 RECTIFIER IN5822/IN5822(DC) 011-025822-000 4
INDUCTORS
L801,802,803,804 INDUCTOR 3.3 uH WIRE:D=0.6mm +-20% 018-010337-300 4
(R0002-CW68-3R3M-852243)/+-10%(RL6080-3R3K)
L805 INDUCTOR 47 uH CEC-470K/708032 +-10% 018-010476-000 1
LAL03TB470K/AL0305-470K
WIRES
HEATSINK TO CAB. JP WIRE AWG26#1007 3x3mm 60mm BLACK (CdF) 051-673060-009 1
HSG (2.5mm) MOLEX 5264-08 TO JST 8P-SCN 136-J00812-001 1
w/120mm BLACK,GREYx7 AWG26#UL1007
HSG (2.5mm) PEC 2507H-09 TO 2501H-09 136-J10922-000 1
w/220mm RED,GREYx8 AWG24#UL1007
HSG (3.96mm) YS TJ6-2Y w/150mm 136-MZ0215-000 1
RED,BLACK AWG22#UL1007 SLDG 4mm
MISCELLANEOUS PT1.5WEI28/12&F&WVDE 230V:12.4V 123-053531-100 1
w/FUSE 115°C (P2812-A15E)
PT090WEI66/50&F&BVDE 230V:28V/6.5V/ 123-E53591-500 1
12.5V/24V/4V w/FUSE 133C (ALCO 6650-230V)
F804 MICRO FUSE #251.630 630mA/125V WFF-215.630 124-006310-000 1
FS802,803 *CdF FUSE #S5.6 2.5A/250V 5x20mm, 124-025020-001 2
TIME LAG (CUL/VDE/SEMKO/BSI APP.)
FS801 FUSE #21806.3 6.3A/250V 5x20mm TIME LAG 124-063020-001 1
(CUL/SEMKO/VDE/BSI/CCC/JIS/KOR)
RELAY 9V SDT-S-109LMR 128-090109-000 1
HEATSINK TO CAB. SOLDERING LUG 137-300000-000 2
PLA-ULN-7'05"-VDE-MG VDE APP. CORD 134-B11331-006 1
2250mm w/CUSHION MIGRATION (HARVEST)
CN803 HEADER 2 PINS #TJ6-2A PITCH:3.96mm 135-000TJ6-020 1
VERTICAL 1.14mm AQURE PIN
CN802 HEADER 2 PINS YSVH-02P3 PITCH:7.92mm 135-00YSVH-020 1
VERTICAL 1.14mm SQUARE PIN
Ref. No. Description Mfr's Part No. Qty.
WH805 HEADER 8 PINS PEC #2507-WS-8 PITCH 2.5mm 135-2507WS-080 1
VERTICAL REPLACE:135-005267-080
WH803 HEADER CTL 4 PINS PHS-04 PITCH 2mm 135-PHS040-040 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
MPEG+SERVO SECTION
RESISTORS
R2,3,26,27,36,44,67,176,172, CHIP RESISTOR 0 ohm +-5% 1/16W (0603/1608) 001-300052-016 21
187, RT204,209,210,212,213,
214,215, FB21,23,25,26
R166,167 CHIP RESISTOR 10 ohm +-5% 1/10W 001-310050-010 2
(0805/2012) (MCR10EZHJ-100)
R78,149,155 CHIP RESISTOR 10 ohm +-5% 1/16W (0603/1608) 001-310052-016 3
R10,47,48,151,154,197 CHIP RESISTOR 1 Kohm +-5% 1/16W (0603/1608) 001-310252-016 6
R150,153,168 CHIP RESISTOR 10 Kohm +-1% 1/16W (0603/1608) 001-310312-016 3
R16,49,131,174,192,195 CHIP RESISTOR 10 Kohm +-5% 1/16W (0603/1608) 001-310352-016 6
R116,128,130,198 CHIP RESISTOR 100 Kohm +-5% 1/16W (0603/1608) 001-310452-016 4
R28,179,189 CHIP RESISTOR 1 Mohm +-5% 1/16W (0603/1608) 001-310552-016 3
R6,7,8,9 CHIP RESISTOR 1 ohm +-5% 1/16W (0603/1608) 001-310852-016 4
R29,30,69,157 CHIP RESISTOR 11 Kohm +-5% 1/16W (0603/1608) 001-311352-016 4
R135 CHIP RESISTOR 12 Kohm +-1% 1/16W (0603/1608) 001-312312-016 1
R72,84,95,106,117 CHIP RESISTOR 12 Kohm +-5% 1/16W (0603/1608) 001-312352-016 5
R140,141,142 CHIP RESISTOR 1.3 Kohm +-5% 1/16W (0603/1608) 001-313252-016 3
R139,143 CHIP RESISTOR 13 Kohm +-1% 1/16W 001-313312-016 2
R191,194 CHIP RESISTOR 1.5 Kohm +-5% 1/16W (0603/1608) 001-315252-016 2
R56,59 CHIP RESISTOR 180 ohm +-5% 1/16W (0603/1608) 001-318152-016 2
R146 CHIP RESISTOR 1.8 Mohm +-5% 1/16W (0603/1608) 001-318552-016 1
R74,86,98,108,119,133,170 CHIP RESISTOR 2 Kohm +-5% 1/16W (0603/1608) 001-320252-016 7
R57,58 CHIP RESISTOR 20 Kohm +-5% 1/16W (0603/1608) 001-320352-016 2
R62,63,71,83,94,102,111,125 CHIP RESISTOR 220 ohm +-5% 1/16W (0603/1608) 001-322152-016 8
R68 CHIP RESISTOR 2.2 Kohm +-5% 1/16W (0603/1608) 001-322252-016 1
R61,190,193 CHIP RESISTOR 22 Kohm +-5% 1/16W (0603/1608) 001-322352-016 3
R199 CHIP RESISTOR 2.4 Kohm +-5% 1/16W (0603/1608) 001-324252-016 1
R147 CHIP RESISTOR 27 Kohm +-1% 1/16W (0603/1608) 001-327312-016 1
R52,54 CHIP RESISTOR 27 Kohm +-5% 1/16W (0603/1608) 001-327352-016 2
R70,82,88,101,110 CHIP RESISTOR 30 Kohm +-5% 1/16W (0603/1608) 001-330352-016 5
R33,34,35,55,180,181,182, CHIP RESISTOR 33 ohm +-5% 1/16W (0603/1608) 001-333052-016 11
183,184,185,188
R64,134 CHIP RESISTOR 330 ohm +-5% 1/16W (0603/1608) 001-333152-016 2
R73,85,96,107,118,132 CHIP RESISTOR 3.3 Kohm +-5% 1/16W (0603/1608) 001-333252-016 6
R123 CHIP RESISTOR 33 Kohm +-5% 1/16W (0603/1608) 001-333352-016 1
R15 CHIP RESISTOR 392 ohm +-1% 1/16W (0603/1608) 001-339112-016 1
R144,148 CHIP RESISTOR 470 ohm +-1% 1/16W 001-347112-016 2
(0603/1608) (MCR03MZSJ471)
R1,65 CHIP RESISTOR 470 ohm +-5% 1/16W (0603/1608) 001-347152-016 2
R21,24,38,39,40,43,45,46,136, CHIP RESISTOR 4.7 Kohm +-5% 1/16W (0603/1608) 001-347252-016 22
137,138,145,152,156,160,161,
162,163,165,169,177,178
R51 CHIP RESISTOR 470 Kohm +-5% 1/16W (0603/1608) 001-347452-016 1
R23,60 CHIP RESISTOR 51 Kohm +-5% 1/16W (0603/1608) 001-351352-016 2
R158,159,164,171,173,175 CHIP RESISTOR 5.6 Kohm +-5% 1/16W (0603/1608) 001-356252-016 6
R50 CHIP RESISTOR 68 ohm +-5% 1/16W 001-368052-016 1
(0603/1608) (TSB#G5101100Y101)
R31,32 CHIP RESISTOR 6.8 Kohm +-5% 1/16W (0603/1608) 001-368252-016 2
R66 CHIP RESISTOR 91 ohm +-5% 1/16W (0603/1608) 001-391052-016 1
1413
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED

Ref. No. Description Mfr's Part No. Qty.
R17,18,19,20 CHIP RESISTOR 75 ohm +-1% 1/16W 001-375012-016 4
(0603/1608) (TSB#G5101104G105)
CAPACITORS
C20,21,41,42,43,55,56,154 CHIP CAP 0.001 uF/25V +-10% (0603/1608) 003-510212-025 8
(GRM39B102K50) (MURATA)
C18,19,35,36,37,38,40,53,60, CHIP CAP 0.01 uF/25V +-10% (0603/1608) 003-510312-025 13
61,107,110,111 (MCH185C103KK/GRM39X7R103K25PT)
C1,4,5,6,7,9,10,14,15,16,17, CHIP CAP 0.1 uF/16V +-10% (0603/1608) 003-510412-016 81
22,23,24,25,26,27,28,29,30, (87-A10-260-08G) (C1608JB1C104K) (TDK)
31,34,39,46,47,48,49,50,51,
52,57,58,59,62,64,65,66,67,
68,70,74,75,76,77,78,79,81,
83,85,87,93,94,95,96,97,98,
99,100,104,105,108,112,116,
118,125,130,163,164,172,173,
175,177,189,190,191,192,193,
194,196,197,198
C91,103,109,115,122,129, CHIP CAP 0.0022 uF/50V +-10% (0603/1608) 003-522212-050 10
157,158,159,161 (UMK107B222KZ-TM)
C44,45 CHIP CAP 0.027 uF/25V +-10% (0603/1608) 003-527312-025 2
C127,146,170 CHIP CAP 0.033 uF/25V +-10% (0603/1608) 003-533312-025 3
C2 CHIP CAP 0.33 uF/10V +-10% (0603/1608) 003-533412-010 1
C145,147,148,150,151,152, CHIP CAP 0.0047 uF/50V +-10% (0603/1608) 003-547212-050 7
153
C165,166,167 CHIP CAP 0.0056 uF/50V +-10% (0603/1608) 003-556212-050 3
C169 CHIP CAP 0.0068 uF/50V +-10% (0603/1608) 003-568212-050 1
C63,86 (F003-610112-050) CHIP CAP 100 pF/50V 003-610152-050 2
+-5% NPO (0603/1608)
C131,132,133,134 CHIP CAP 11 pF/50V +-5% NPO (0603/1608) 003-611052-050 4
(MCH185A110JK)
C88,101,106,113,119,135,137, CHIP CAP 150 pf/50V +-5% NPO (0603/1608) 003-615152-050 9
139,141 (GRM39COG151J50PT/MCH185A151JK)
C136,138,140,142 CHIP CAP 160 pF/50V +-5% NPO (0603/1608) 003-616152-050 4
(MCH185A161JK)
C13,171,180,187 CHIP CAP 220 pF/50V +-5% NPO (0603/1608) 003-622152-050 4
(UMK107CH221JZ-T)
C11,12 CHIP CAP 24 pF/50V +-5% NPO (0603/1608) 003-624052-050 2
C162 CHIP CAP 33 pF/50V +-5% NPO (0603/1608) 003-633052-050 1
(GRM39COG330J50PT/MCH185A330JK)
C160 CHIP CAP 470 pF/50V +-5% NPO (0603/1608) 003-647152-050 1
C168 CHIP CAP 560 pF/50V +-5% NPO (0603/1608) 003-656152-050 1
CE23,25 ELECT CAP 0.47 MFD/50V +-20% (5x11) 006-000400-50D 2
CE9,22,24,26,27,28,29,30,31, ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 15
32,33,34,35,36,37
CE7,8,19,42,43,45,46,56,58 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 9
CE3,4,6,44,47,52,53,54,55,60, ELECT CAP 22 MFD/25V +-20% (5x11) 006-022000-25D 12
64,65
CE20 ELECT CAP 220 MFD/16V +-20% (6.3x11) 006-022101-16D 1
(SA16V221M)
CE10,11,12,13,14,21,48,50, *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 15
51,57,59,61,62,63,66
CE1,2 ELECT CAP 470 MFD/10V +-20% (8x11.5) 006-047100-10D 2
CE18 ELECT CAP 100 MFD/6.3V +-20% 006-210100-06D 1
(SMALL SIZE) (5x7)
Ref. No. Description Mfr's Part No. Qty.
TRANSISTORS
Q17 TR PNP&&&-TAP&8Q-ST8 TSMT6 QST8 008-A00006-000 1
LOW FREQ AMP
Q1,2,3,5,6,7,11,12,16 (F008-039040-000) CHIP TRANSISTOR MMBT3904 008-A03904-000 9
Q8,15 (F008-039060-000) CHIP TRANSISTOR MMBT3906 008-A03906-000 2
CRYSTAL
Y1 CRYSTAL 27MHZ +-30ppm ALCCJBJ/HC-49/U 009-627000-007 1
INTEGRATED CIRCUITS
U10 ICSPECIAL WM8772EDS (28 PIN SSOP) 010-038772-000 1
U11 ICAMP-OP-02CH-DUALV NJM4580E-T1 010-274580-002 1
(TSB#G5147100L105)
U15 ICMOTORDRIVER-04CH BA5983FM (ROHM) 010-405983-000 1
U19 ICREGULA-P-&&&V&&&A LD1117S/LM117MPX-ADJ 010-721117-000 1
RT9164CG(SOT-223)(ST/NATIONAL/RICHTEK)
U17,18 ICREGULA-P-3.3V LD1117S33C/LM1117MPX-3.3/ 010-721117-001 2
MP-3.3/RT9164-33CG (ST/NATIONAL/RICHTEK
U12,13 ICAMP-OP-02CH-DUALV LS4580F (SOP-8) 010-734580-000 2
U1 ICAMP-OP-&&CH-SINGV TL3472CD/R 010-823472-000 1
U9 ICLOGIC TC74HCU04AF-EL HEX INVERTER 010-847404-001 1
(TSB#G51451014108)
U14 ICSPECIAL ZR36707TQC 010-893670-003 1
U2 ICMPEG ZR36768PQC 010-893676-000 1
U5 ICRAMF-01X008M 8M BIT(512Kx16) 045-F01008-202 1
FLASH RAM SST39VF800A-70-4C-EK (0.25u)
U3,4 ICRAMS-01x016M W981616BH-7 045-Q01016-205 2
DIODES
D1,2,3,4 RECTIFIER IN-4001B/IN-4001(DC) 011-024001-000 4
D7,8,11,12,13,14,15,16,17,18 CHIP DIODE (SMT) DL4148(DC)/LS4148(KT) 011-044148-002 10
INDUCTORS
L2,3,4,5 CHIP COIL 1.1 uH +-10% SDFL1608Q1R1KT/ 018-040117-200 4
ZHFCI1608B1R1KT (0603/1608) (TAPE & REEL)
L1 C.COIL 2.7uH +-10% TAPE&REEL LK2125 2R7K-T/ 018-040277-001 1
CI201209-2R7K/SDFL2012Q2R7KT
FB30,33 CHIP FERRITE BEAD #SZ1005K750T 032-101005-000 2
@100MHZ (1005) (SUNLORD)
FB1,2,3,4,5,6,7,8,9,10,11,12, CHIP FERRITE BEAD GZ1608Y102T 032-101608-015 16
13,14,16,17 (0603/1608) (SUNLORD)
FB15,18,19,22,27,28,29,31,32, CHIP FERRITE BEAD PZ2012U601-1R5T 032-102012-002 19
36,38,39,40,41,42,44,45,46,47 (0805/2012) (SUNLORD)
MISCELLANEOUS
J3 *CdF HEADER MOLEX 6 PINS 5267-06A 135-005267-060 1
PITCH 2.5mm STRAIGHT TYPE
J5 FFC CONNECTOR 24 PINS PITCH:1mm 135-009615-240 1
9615S-24A-PP-A/D100-SSA-24/S10024V VERT.
J1 FFC CONNECTOR 24 PINS PITCH:1mm LG BRAND 135-0GF106-240 1
GF106-24S-LS/9615S-24C-PP HORIZONTAL
J9 HEADER 9 PINS PEC #2507-WS-9 PITCH 2.5mm 135-2507WS-090 1
VERTICAL REPLACE:135-005267-090
J4 *CdF HEADER CTL 6 PINS PHS-06 PITCH 2mm 135-PHS060-060 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
RDS SECTION
RESISTORS
R458 CHIP RESISTOR 1 Kohm +-5% 1/16W (0603/1608) 001-310252-016 1
R471 CHIP RESISTOR 18 Kohm +-5% 1/16W (0603/1608) 001-318352-016 1
1615
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
