Akai DV-R3500SS User manual

SERVICE MANUAL
Model:
DVR3500SS
3 DVD / CD
HOME THEATRE SYSTEM
www.akai.ru

Page
CONTENTS
3 DVD / CD HOMETHEATRE SYSTEM
DV-R3500SS
PRODUCT SAFETY NOTICE
Specifications ........................................................................................................................................ 1
Performance Specifications ..................................................................................................................... 2
Electrical Parts List ................................................................................................................................ 8

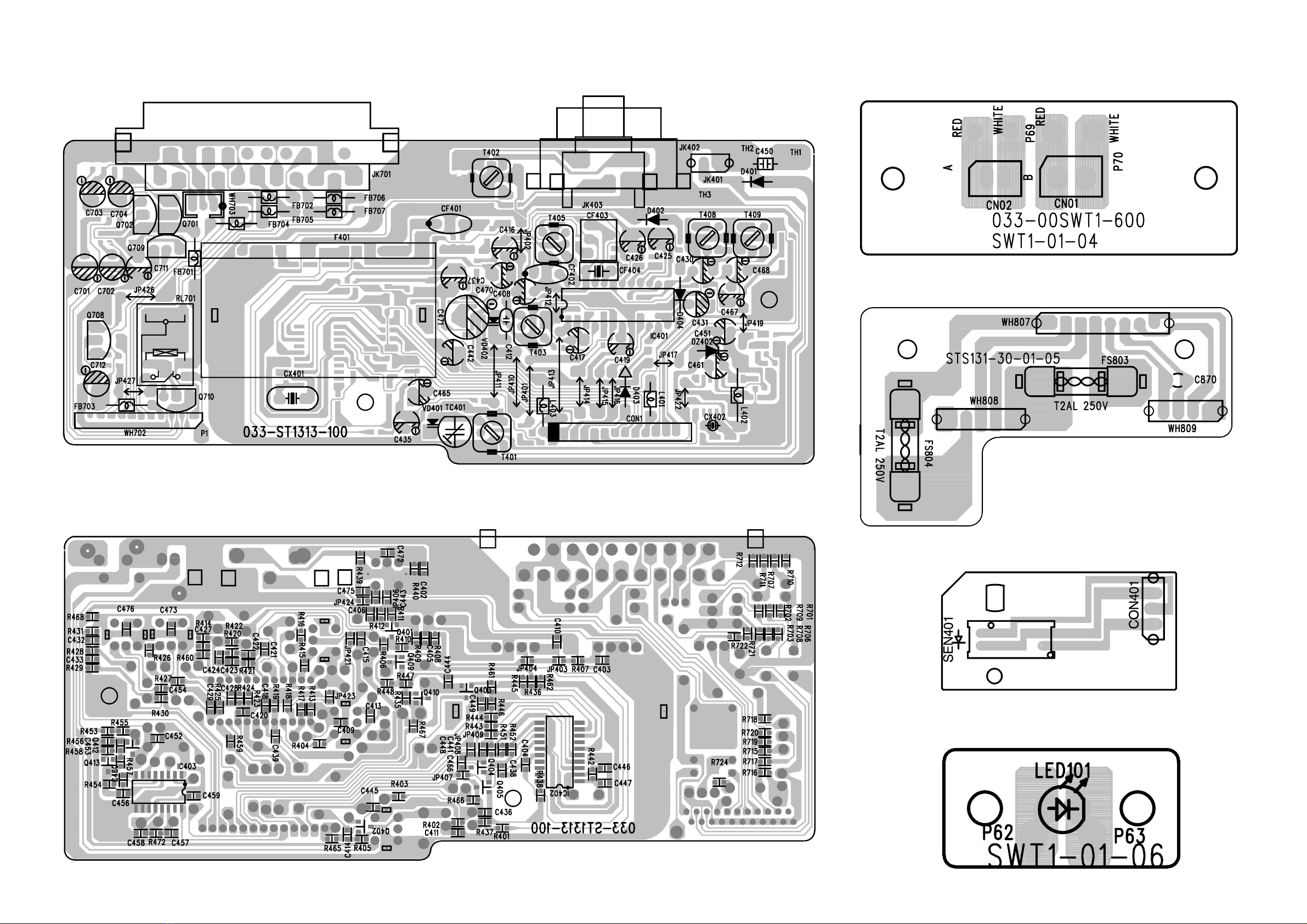

Printed Circuit Boards ........................................................................................................................... 27
Wiring Diagrams ................................................................................................................................... 39
Schematic Diagrams ............................................................................................................................. 43
Alignment Set-up Procedurecs ............................................................................................................... 60
Equipment Connection Diagram ............................................................................................................. 60
Voltage Chart ....................................................................................................................................... 61
IC Block Diagrams & IC Pins Description ............................................................................................... 69
Block Diagrams .................................................................................................................................... 87
Exploded Drawing Parts List .................................................................................................................. 95
Exploded Drawing ............................................................................................................................... 100
Many electrical and mechanical parts in this chassis have special safety characteristics.
These safety characteristics often pass unnoticed and the protection afforded by them cannot
necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
Replacement parts that have these special safety characteristics are identified in this manual
and its supplements; electrical components having such features are identified by in the
schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully.
The use of substitute replacement parts that do not have the same safety characteristics as
specified in the parts list may create shock, fire or other hazards.

Power Supply :AC 230V 50Hz
Output Load : 8 ohm Non-reactive x5 Subwoofer 4ohm x1
Reference Output :500mW
Input Signal Source :External AM Loop Antenna
75 ohm Dummy Antenna for FM
Modulation :30% 400Hz for AM 80% for Power
75kHz Deviation 1000Hz for FM
7.5kHz Pilot Tone
67.5kHz L+R 1000Hz
GENERAL TEST CONDITION
SPECIFICATIONS
Unit
Powersupply AC 230V ~ 50Hz
Powerconsumption 25W
Signal system StandardPAL
Laser Semiconductorlaser, wavelength 650/780nm
Signal-to-noise Morethan 95dB
Audio dynamic range Morethan 93dB
Harmonicdistortion Less than 1%
Operatingtemperature 41°F to 95°F (+5°C to 35°C)
Operatinghumidity 5% to 85% (no condensation)
Video Output / Input
Output level 1Vp-p(75Ω)
Input level 750mV input (5W 10%THD output)
Jack Pin jack
Audio Output / Input
Output level 1.80 ± 0.2 Vrms (1 kHz, 0dB)
Input level 750mV input (5W 10%THD output)
Jack RCA/Pin jack
SpeakersSection
Speakers(Front/Center/Rear)
Speaker system Bass reflex
Speakerunit 70 mm dia. cone type
Ratedimpedance 8 ohms
SubwooferSection
Powersupply AC 230V ~ 50 Hz
Powerconsumption 230W
Speaker system Bass reflex
Speakerunit 165 mm dia. cone type
Ratedimpedance 4 ohms
Specifications and external appearance are subject to change without notice.
PERFORMANCE SPECIFICATIONS
12
(AM) SECTION, AMPLITUDE, MODULATION
UNIT NOMINAL LIMIT
1. Tuning Range kHz 531 - 1602 -
2. I. F. kHz 450 ±3
3. S/N 10mV/m 1MHz dB 36 30
4. Sens. (at S/N 20dB) 0.6MHz dB 60 64
1MHz dB 60 64
1.4MHz dB 60 64
5. I. F. Rej. 0.6MHz dB 50 46
6. Image Rej. 1.4MHz dB 30 24
7. Spurious Rejection dB 35 25
8. Bandwidth, 1MHz kHz 64 - 9
(Max. Sens. +6 dB)
9. ACA (±9kHz) Input 1MHz dB 20 15
10. AGC Figure Merit 100mV/m dB 45 40
11. Distortion, 5mV/m, 30% %1 3
80% %3 6
12. a. 10% THD Power AC DEV 80% W30 26
b. Woofer 10% DEV 80% W50 45
13. a. Tweet (2nd 910kHz & 3rd 1350kHz) dB 15 10
at 75 dB I/P
14. Audio Fidelity, Centre ±(6) dB Hz 60/2200 120/2000
15. Low Voltage AC %80 85
16. a. Mod. Hum 10mV/M dB 36 30
b. Hum at Min. Vol. mV 1 3
17. Auto Stop Sens. dB 64 70
18. Step Frequency kHz -10
REMARKS:
NOTE: All measurement should be done at bypass mode without EQ effects.
TEST ITEMS

DVD AUDIO SECTION (LINE OUTPUT)
UNIT NOMINAL LIMIT
1. THD+N ( LT2-1, 3-1 20kHz LPF On ) %0.05
2. Output Level (LT2-1, 3-1) V2±0.3
3. S/N ( LT2-1, 3-20 JIS-A Filter On ) dB 80 70
4. Crosstalk ( LT2-1, 3-21.22 1kHz, BPF On ) dB 70
5. Frequency Range
(48kHz / 24BIT ) (LT2-1. 3-1~19) 31Hz dB 0±1.0
(FL, FR) 499Hz dB 0±1.0
1kHz dB 0±1.0
10kHz dB 0±1.0
22kHz dB 0±1.0
6. Frequency Range 20Hz dB 0±3.0
(96kHz / 24BIT LT2-1, 6-1~12) 400Hz dB 0±3.0
(FL, FR) 1kHz dB 0±3.0
12.8kHz dB 0±3.0
20kHz dB 0±3.0
7. Digital Output Level mV 500 ±100
(LT2-1, 1-1 75 Loading On )
8. Dynamic Range dB -80
9. Black Band (TDV 545) µM -600
10. Finger Print (TDV545) µM -No.13
11. Eccentric (MDVD142 TEAC) µM -200
12. Vertical (MDVD151 TEAC) mm -0.6
CD SECTION
1. Interruption (PHILIPS SBC444A) µM -600
2. Black Dot µM -600
3. Finger Print µM -No.18
4. Eccentric (TCO-712 ABEX) µM -140
5. Vertical (TCO-713R ABEX)) mm -0.8
CD- R SECTION
1. Black Band (TCD-R025W ) µM 800 600
2. Finger Printers (TCD-R025W ) µM -65
3. Scratch (TCD-R021W ) mm 1.8 1.6
4. Eccentric (TCD-R012W ) µM -140
5. Deviation (TCD-R032W ) µM -810
CD- RW SECTION
1. Black Band (TCD-W025W ) µM 600 500
2. Finger Printers (TCD-W025W ) µM -65
3. Scratch (TCD-W021W ) mm -1.0
4. Eccentric (TCD-W012W ) µM -140
5. Deviation (TCD-W032W ) µM -810
TEST ITEMS
PERFORMANCE SPECIFICATIONS - CONTINUED PERFORMANCE SPECIFICATIONS - CONTINUED
34
Ω
(FM) SECTION, FREQUENCY, MODULATION
UNIT NOMINAL LIMIT
1. Tuning Range MHz 87.5 - 108 -
2. I. F. MHz 10.7 ±0.3
3. 30dB S/N 90MHz µV 20 25
98MHz µV 20 25
106MHz µV 20 25
4. -3dB Limit Sens. dB 16 30
5. I. F. Rej. 98MHz dB 60 50
6. Image Rej. 106MHz dB 30 26
7. Spurious Rejection (F + 0.535 MHz) dB 40 35
(Max. Sens. + 6dB)
8. AM Suppression (60dB I/P) dB 45 30
9. Mod. Hum (60dB I/P) dB 48 42
10. Distortion at 1mV/m (Mono) 22.5kHz %1 2
100mV/m 75kHz %3 5
11. Audio Fidelity, (-3dB) (Pre-emphass) (75µS) (FR.FL) Hz 60/9000 120/6000
Subwoofer 1K = 0 100 Hz 36 30
12. Power Out, 10% THD (75K DEV) 1K=1mV W30 26
Subwoofer 'Power out, 10% THD (75K DEV) 100Hz=1mV W50 45
13. Low Voltage AC %80 85
14. S/N Ratio at 1mV 98MHz dB 50 42
(Stereo) Dev. 10% Pilot with "19" Filter dB - -
15. Alternate Channel Selective ±400kHz dB 25 18
16. Stereo Separation dB 26 22
17. 19kHz Leak Carrier dB 32 27
18. Stereo LED Indication dB 26 30
19. Step Frequency kHz -100
20. Auto Stop Sens. dB 26 32
21. Minimum Vol Hum mV 1.0 3.0
REMARKS:
NOTE: All measurement should be done at bypass mode without EQ effects.
TEST ITEMS

VIDEO SECTION
UNIT NOMINAL LIMIT
1. Signal Level (LT2-1) COMPOSITE V(pp) 1.0 ±0.2
75 Terminated S-Y V(pp) 0.714 ±0.2
Oscilloscope S-C (BURST) V(pp) 0.286 ±0.05
75% Color Bar COMPONENT-Y V(pp) 0.714 ±0.2
2. Frquency Char. Composite 1.0/0.5MHz dB 0±2.0
(LT2-1, REF=0dB 0.5MHz, L156 VM700A 2.0/0.5MHz dB 0±2.0
Composite) 4.0/0.5MHz dB 0±2.5
4.75/0.5MHz dB 0±3.5
5.75/0.5MHz dB -2.0 +3-4
3. Frquency Chap. S-Y 1.0/0.5MHz dB 0±2.0
(LT2-1, REF=0dB 0.5MHz, L156 VM700A S-Y) 2.0/0.5MHz dB 0±2.0
4.0/0.5MHz dB 0±2.5
4.75/0.5MHz dB 0±2.5
5.75/0.5MHz dB -2.0 +3-4
4. Composite VIDEO-S/N 100K-4.2MHz dB 60 50
(LT2-1) One Line Only (SC TR ON)
L131 VM700A
5. S-Y S/N (LT2-1 One Line Only) 100K-4.2MHz (SC TR ON) dB 60 50
6. COLOR-AM COLOR-PM (One Lone Only) 100Hz -500KHz dB >40
(LT2-1, L131 VM700A) dB >40
TEST ITEMS
AMPLIFIER SECTION
UNIT NOMINAL LIMIT
1. 10% THD Power AC (FL, FR) W30 26
2. Frequency Response (CT) 1K=0dB 20Hz dB -10 ±5
100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±6
3. Frequency Response (RR, RL) 20Hz dB -10 ±5
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±5
4. Frequency Response (FL, FR) 20Hz dB -10 ±3
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±3
5. Frequency Response 20Hz dB 36 30
(Snbwoofer) 1K=0dB 100Hz dB 36 30
6. 10% THD Power AC (Subwoofer) W50 45
7. Subwoofer THD (100Hz Ref O/P) %0.5 1.0
8. THD (1kHz, Ref O/P) FR, FL %0.5 0.8
9. Channel Unbalance (L&R) 1kHz dB ±1 ±3
10. Minimum Vol Hum (UNWGTD/WGTD) mV 5 8
11. Maximium Vol Hum (UNWGTD/WGTD) mV 8 15
12. S/N (UNWGTD/CCIR-ARM2K) (L&R) 1kHz dB 60 55
13. Bass Effect FL, FR dB ±10 ±4
14. Treble Effect FL, FR dB ±10 ±4
15. Middle Effect FL, FR dB ±10 ±4
16. Separation (FL & FR) dB -45
17. Cross Talk for Input (AUX/CD-REF) w/BPF dB -45
REMARKS:
Level Matching CD -10dB REF
AM 55% 5mV ±3
FM 40kHz 1mV ±3
AUX IN 750mV ±3
NOTE: All measurement should be done at bypass mode without EQ effects.
Audio others: 6ch
More audio prologic: on
ITEM 1.2.3.4. Set up Subwoofer as off Speaker as large.
TEST ITEMS
MW/FM STEREO & RDS TUNING WITH DVD PLAYER
FM STEREO & RDS SECTION 37.5kHz UNIT NOR LIMIT
(MAIN+SUB 75kHz (PILOT)1 .2K (RDS) DEV & 1kHz INPUT
1. Stereo Separation L/R dB 30 25
1mV Input R/L dB 30 25
L/R dB 30 25
R/L dB 30 25
L/R dB 25 18
R/L dB 25 18
2. 98MHz dB 5<18
3. 98MHz dB 34 34±8
4. 98MHz dB 28 <36
5. 98MHz dB 28 <36
6. 98MHz dB 28 <36
7. 98MHz dB 28 <36
MOD FREQ 100Hz
MOD FREQ 1KHz
MOD FREQ 10KHz
Stereo on Sensitivity
S.N.C (SEP=10dB)
RDS Indicator Sensitivity
RDS Seek Sensitivity
TA Indicator Sensitivity
TA Seek Sensitivity
PERFORMANCE SPECIFICATIONS - CONTINUED
PERFORMANCE SPECIFICATIONS - CONTINUED
56
Ω

AUX IN DOLBY PRO LOGIC SECTION
UNIT NOMINAL LIMIT
1. 10% THD Power AC (FL, FR) W30 26
2. Frequency Response (CT) 1K=0dB 20Hz dB -10 ±5
100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±6
3. Frequency Response (RR, RL) 20Hz dB -10 ±5
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±5
4. Frequency Response (FL, FR) 20Hz dB -10 ±5
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±3
5. Frequency Response 20Hz dB 43 35
(Subwoofer) 1K=0dB 100Hz dB 43 35
6. 10% THD Power AC (Subwoofer) W50 45
7. Subwoofer THD (100Hz Ref O/P) %0.5 1.0
8. THD (1kHz, Ref O/P) FR, FL %0.5 0.8
9. Channel Unbalance (L&R) 1kHz dB ±1 ±3
10. Minimum Vol Hum (UNWGTD/WGTD) mV 3 8
11. Maximium Vol Hum (UNWGTD/WGTD) mV 8 15
12. S/N (UNWGTD/CCIR-ARM2K) (L&R) 1kHz dB 60 55
13. Separation (FL & FR) dB 48 ±5
REMARKS:
NOTE: All measurement should be done at bypass mode withou EQ effects.
More audio prologic: on
ITEM 1.2.3.4.Should be set up at DVD mode, and set subwoofer as off,
speaker as large.
TEST ITEMS
PERFORMANCE SPECIFICATIONS - CONTINUED ELECTRICAL PARTS LIST
78
Ref. No. Description Mfr's Part No. Qty.
PCB
TUNER BOARD PCB STS131-30-01-02 144x147x1.6mm/2 (94V0) 033-ST1313-100 1
DISPLAY & KEY BOARD PCB STS131-30-01-03 120x135.5x1.6mm/2 (94HB) 033-ST1313-101 1
MOTOR DRIVER BOARD PCB STS131-30-01-04 170x167x1.6mm/2 (94V0) 033-ST1313-102 1
MAIN BOARD PCB STS131-30-01-01 (94V0) 033-ST1313-300 1
FUSE BOARD PCB STS131-30-01-05 (94V0) 033-ST1313-300 1
DISC INDICATION BOARD PCB STS131-30-01-06 (94V0) 033-ST1313-300 1
MPEG+SERVO BOARD PCB STS21AAST-01-02 150x120x1.6mm (FR4) 033-STS21A-101 1
SENSOR BOARD PCB 3CD3-01-01 97x150x1.6mm/20 (94HB) 033-003CD3-100 1
POWER AMPLIFIER BOARD PCB SWT1-01-01,02,03 (94V0) 033-00SWT1-600 1
CONNECTION BOARD PCB SWT1-01-04 (94V0) 033-00SWT1-600 1
SUB-WOOFER RECTIFIER BOARD PCB SWT1-01-05 (94V0) 033-00SWT1-600 1
LED BOARD PCB SWT1-01-06 (94V0) 033-00SWT1-600 1
SHIELDING BOARD PCB SWT1-01-07 200x86x0.8mm (94HB) 033-00SWT1-100 1
REMOTE PORTION REMOTE CONTROL HANDSET (STS131) 043-R15453-030 1
w/SILVER SPY (FOR AKAI/DV-R3500SS)
ACCESSORY PORTION
WIRE
JP WIRE AWG26#UL1007 1500mm BLK CRIMPED 054-010A50-090 1
w/TERMINAL SHS #STV8-TE AND TUBE (75ohm)
MISCELLANEOUS
AV CABLE 1.5M COAXIAL BK CABLE w/3 RCA 122-004220-151 1
PLUG R,W,Y#3C RCA&RCA-1500BK (#9863800700)
SCART CABLE 2000mm w/3 PIN RCA 122-00A020-200 1
HS02038-20-20
BATTERY #GP15G 1.5V 'AA' SIZE (GP) 130-615004-001 2
MERCURY & CADMIUM FREE (2PCS/PACKAGE)
AM LOOP ANT. 388-88 & 388-89 MOLD BK (ABS) 132-020388-882 1
5264-2 2.54mm w/5750mm BK AWG26#UL1007
AUDIO PORTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R510,534,580,609,690 *CdF RESISTOR 10 Kohm 001-010351-016 5
R663,665,667,669,671,673 *CdF RESISTOR 2.2 Kohm 001-022251-016 6
R618,619,624,625,634,635,664, *CdF RESISTOR 22 Kohm 001-022351-016 12
666,668,670,672,674
R687,688 RESISTOR 27 Kohm 001-027351-016 2
R661,675 *CdF RESISTOR 3.3 Kohm 001-033251-016 2
R535,536,683,684 *CdF RESISTOR 4.7 Kohm 001-047251-016 4
R501,502,503,504,505,506,681,682 *CdF RESISTOR 47 Kohm 001-047351-016 8
R649 RESISTOR 56 ohm 001-056051-016 1
R662,676 RESISTOR 6.2 Kohm 001-062251-016 2
R507,508,509,511,512 RESISTOR 8.2 Kohm 001-082251-016 5
CAPACITORS
C584 CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 1
C660,680 #MYLAR CAP 0.01 uF/100V +-10% 004-010310-100 2
C661,663,681,682 #MYLAR CAP 0.1 uF/50V +-10% 004-010410-050 4
C662,679 #MYLAR CAP 0.015 uF/100V +-5% 004-015350-100 2
C664,678 #MYLAR CAP 0.0022 uF/100V +-10% 004-022210-100 2
C614,615,627,638,639,671,672,674, ELECT CAP 1 MFD/50V +-20% (5x11) 006-001000-50D 15
665,666,668,669,670,675,676

ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
Ref. No. Description Mfr's Part No. Qty.
C626,667,673,677,685 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 5
C658 ELECT CAP 1000 MFD/16V +-20% (10x20) 006-010200-16D 1
TRANSISTORS
Q606,607,608,609,610,611,613 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 7
Q615 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 1
INTEGRATED CIRCUIT
IC504 ICAUDIOLEVELSENSOR PT2322-S(SOP) 010-142322-000 1
6-CHANNEL AUDIO PROCESSOR (ANGUS)
DIODES
D601,602,603,604,605,606,607, DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 11
608,609,610,611 KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
INDUCTORS
L601 INDUCTOR 47uH CEC-470K/708032 +-10% 018-010476-000 1
LAL03TB470K/AL0305-470K
FB501,502,503 *CdF FERRITE BEAD INDUCTOR #BL01RN1-A62 032-101162-000 3
0.45 uH/7A (5x3.6mm) (87-008-372-01)
WIRES
FFC CABLE 22 PINS L=200mm 4+192+4 P:1mm 040-220200-100 1
UL2896 0.035x0.7 (TUNG HING)
JK502 TO JK506GND JP WIRE AWG26#1007 3x3mm 80mm BLACK 051-673080-009 1
TH1 TO JK506 GND JP WIRE AWG26#1007 5x5mm 80mm BLACK 051-675080-009 1
TH14 TO TH13 *CdF JP WIRE AWG26#1007 5x5mm 100mm 051-675100-009 1
BLACK
WH315 HSG CD1894-6C(C) PEC 2001H-6 w/350mm R, 136-060189-B02 1
BLK,W,YEL,BLK,BLUE AWG28#UL1571 SLDG.3mm
MISCELLANEOUS
JK502 PIN JACK BOARD MSP-244V1-34 NI 118-020244-000 1
YEL,ORN,WHT,RED
JK503 DIN JACK HDC-056 (KUNMING) 119-000056-000 1
JK501 MINI DIN SOCKET MDSL-09SC0A (LEOCO) 119-000090-000 1
WH501 FFC CONN 6232 22 PINS w/o LOCK PITCH:1mm 135-006232-220 1
00 6232 022 006 800 VERTICAL TYPE
JK506 TO REAR PANEL SOLDERING LUG 137-300000-000 1
AUX-IN (2.1CH) PORTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R572,573 *CdF RESISTOR 1 Kohm 001-010251-016 2
R517,518,523,524,533,574,575, *CdF RESISTOR 10 Kohm 001-010351-016 10
575,592,593,610
R561,563 *CdF RESISTOR 100 Kohm 001-010451-016 2
R646,647 *CdF RESISTOR 150 ohm 001-015151-016 2
R513,514,521,562 *CdF RESISTOR 22 Kohm 001-022351-016 4
R525,526 RESISTOR 220 Kohm 001-022451-016 2
R515,516,519,520 RESISTOR 27 Kohm 001-027351-016 4
R527,528 *CdF RESISTOR 3.3 Kohm 001-033251-016 2
R541 *CdF RESISTOR 33 Kohm 001-033351-016 1
R529,530,591,905,906 *CdF RESISTOR 4.7 Kohm 001-047251-016 5
CAPACITORS
C501,502 CERAMIC CAP 100 pF/50V +-10% 003-010110-050 2
C501,502 CERAMIC CAP 220 pF/50V +-10% 003-022110-050 2
C503,504,505,506,513,514,515, ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 11
516,525,902,903
Ref. No. Description Mfr's Part No. Qty.
C507,508,517,518,519,520 ELECT CAP 1 MFD/50V +-20% (5x11) 006-001000-50D 6
C891,892 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 2
C654,655 ELECT CAP 100 MFD/10V +-20% (5x11) 006-010100-10D 2
C509 *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 1
TRANSISTORS
Q501,502,522,523,612 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 5
Q604 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 1
Q571,605 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 2
INTEGRATED CIRCUIT
IC502 IC BA4558N O.AMP 010-404558-000 1
WIRES
B TO B1, C TO C1 JP WIRE AWG26#1007 5x5mm 60mm BLACK 051-675060-009 2
A TO A1 JP WIRE AWG26#1007 5x5mm 180mm BLACK 051-675180-009 1
MISCELLANEOUS
JK506 PIN JACK HSP-253V-14 (KUNMING) 118-020253-000 1
YELLOW, RED, WHITE/BODY WHITE
RL504 RELAY 12V 200mW ME-1-12BS 1P2T 128-120112-001 1
RL501,503 RELAY 12V 200mW ME-2-12 2P2T 128-120212-001 2
WH505 *CdF HEADER CTL 3 PINS PHS-03 PITCH 2mm 135-PHS030-030 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
CPU PORTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R301,302,303,304,305,306,307, *CdF RESISTOR 10 Kohm 001-010351-016 51
308,309,316,317,318,319,321,322,
323,325,329,330,331,333,334,337,
338,339,343,344,345,350,361,364,
372,380,381,382,383,384,385,386,
387,388,389
R348 *CdF RESISTOR 15 Kohm 001-015351-016 1
R340 RESISTOR 20 Kohm 001-020351-016 1
R313,314,315 *CdF RESISTOR 220 ohm 001-022151-016 3
R391,392,393,394 *CdF RESISTOR 2.2 Kohm 001-022251-016 4
R341 *CdF RESISTOR 22 Kohm 001-022351-016 1
R324,327 RESISTOR 2.7 Kohm 001-027251-016 2
R332,335,336 *CdF RESISTOR 33 ohm 001-033051-016 3
R560,564 *CdF RESISTOR 3.3 Kohm 001-033251-016 2
R326,328 *CdF RESISTOR 4.7 Kohm 001-047251-016 2
R346,347 *CdF RESISTOR 47 Kohm 001-047351-016 2
R342 RESISTOR 5.6 Kohm 001-056251-016 1
CAPACITORS
C302 CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 1
C307,308 CERAMIC CAP 68 pF/50V +-10% 003-068010-050 2
C305,306 CERAMIC CAP 30 pF/50V +-5% (NPO) 003-430050-050 2
(CC45-CH1H300J/RBU04CH300J-L)
C309 ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 1
C901 ELECT CAP 22 MFD/25V +-20% (5x11) 006-022000-25D 1
C301 ELECT CAP 47000 MFD/5.5V DC +80-20% 006-747300-05C 1
(STAR CAP) (SC-DA5R5 473 H)
TRANSISTORS
Q301 TR NPNSST-&&&&&&-&&& 3DG1417 008-601417-000 1
Q853,854,855 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000
3
9
10

ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
11 12
Ref. No. Description Mfr's Part No. Qty.
Q302 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 1
INTEGRATED CIRCUIT
IC301 ICMCU-48K-LCD TMP87EP26F-3D72 010-918726-000 1
(ALDIAUS-DVD32) FLASH MCU
DIODES
D301,302,303,304 DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 4
KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
RESONATOR
CX301 CERAMIC RESONATOR 8 MHz CSA 8.00 MTZ 020-000800-000 1
(MURATA) (87-A70-120-08C)
INDUCTORS
FERRITE CORE #B29 FPL 40x10x6.5mm 032-240010-065 3
WIRES
WH752 TO WH755 FFC CABLE 16 PINS L=160mm P:1mm UL20624 040-160160-100 1
BNCD-P=1.0-K-16-152 4/8LUL
WH307 HSG (2mm) JST PHR-09 w/290mm R,BK,Y,O,V, 136-F00929-000 1
GR,BR,BL,WHT AWG28#UL1571 SLDG 4mm
WH303 HSG(2.54mm)MOLEX 5264-06 TO JST 6P-SAN 136-KZ0626-000 1
w/260mm R,BK,Y,OR,GR,BL AWG28#UL1007
MISCELLANEOUS
WH752 FFC/FPC CONNECTOR 16 PINS PITCH:1mm 135-D100SS-160 1
#D100-SSA-16 VERTICAL/TOP CONTACT
WH862 *CdF HEADER CTL 6 PINS PHS-06 PITCH 2mm 135-PHS060-060 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
WH852 *CdF HEADER CTL 8 PINS PHS-08 PITCH 2mm 135-PHS080-080 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
WH301 (F135-000009-090) HEADER CTL 9PINS PHS-09 135-PHS090-090 1
P:2mm STRAIGHT TYPE WHT COLOR
(MARKING:HR)
WH304 HEADER CTL 10 PINS PHS-10 PITCH 2mm 135-PHS100-100 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
FRONT PANEL PORTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R375,376,377,378 *CdF RESISTOR 100 ohm 001-010151-016 4
R357 *CdF RESISTOR 10 Kohm 001-010351-016 1
R354,359 *CdF RESISTOR 1.5K 001-015251-016 2
R310,311,312,369,373 *CdF RESISTOR 220 ohm 001-022151-016 5
R355,360 *CdF RESISTOR 2.2 Kohm 001-022251-016 2
R353 *CdF RESISTOR 22 Kohm 001-022351-016 1
R371 *CdF RESISTOR 3.3 Kohm 001-033251-016 1
R358 *CdF RESISTOR 33 Kohm 001-033351-016 1
R352 *CdF RESISTOR 4.7 Kohm 001-047251-016 1
R351 *CdF RESISTOR 47 Kohm 001-047351-016 1
R379 RESISTOR 51 Kohm 001-051351-016 1
R380 RESISTOR 68 ohm 001-068051-016 1
R356 RESISTOR 9.1 Kohm 001-091251-016 1
CAPACITORS
C383 CERAMIC CAP 0.1 uF/16V +80%-20% 003-010480-016 1
C382 ELECT CAP 47 MFD/10V +-20% 006-147000-10D 1
(SMALL SIZE) (5x7)
INTEGRATED CIRCUIT
Ref. No. Description Mfr's Part No. Qty.
IC304 ICDISPLAYDRIVER-VFD PT6311/PT6318 010-146311-001 1
(ANGUS) TP6311Q
WIRE
WH310 HSG 5CD1-4B JST PHR-04 w/310mm BLACK, 136-045CD1-201 1
RED,BLUE,YELLOW AWG28#UL1571 SLDG 4mm
SWITCHES
SW308,309 TACT SWITCH 4P 3.85mm 100G #1102VA-4 021-110200-000 2
(=021-KHH913-000)
SW301,302,303,304,305,306,310, TACT SWITCH 4P 5mm 100G #1102A-4/ 021-110200-002 10
311,312,313 EVQ PAC 05R (=021-KHH901-000)
MISCELLANEOUS
LED304,305,306,307 LED WLEDS03304G0HD0 3mm GREEN 110-033041-003 4
(HIGH BRIGHT)
SR301 REMOTE/CONTROL PHOTO RECEIVER 111-007138-000 1
ROHM/RPM7138-V4
VFD-2COL100x20.5SM-033P VACUUM 115-001002-000 1
FLUORESCENT DISPLAY #VFD20-1002 (ZEC)
HEATSINK TO FNT SOLDERING LUG 137-300000-000 2
LINEAR POWER SUPPLY PORTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R821,822 *CdF RESISTOR 10 ohm 001-010051-016 2
R828,811 *CdF RESISTOR 1 Kohm 001-010251-016 2
R805,807,808,812,813,814,818, *CdF RESISTOR 10 Kohm 001-010351-016 9
830,843
R820 *CdF RESISTOR 100 Kohm 001-010451-016 1
R802,815,825,835 *CdF RESISTOR 220 ohm 001-022151-016 4
R803 *CdF RESISTOR 22 Kohm 001-022351-016 1
R823,824 *CdF RESISTOR 33 ohm 001-033051-016 2
R829 *CdF RESISTOR 3.3 Kohm 001-033251-016 1
R804,816,826,827 *CdF RESISTOR 470 ohm 001-047151-016 4
R801,819 *CdF RESISTOR 4.7 Kohm 001-047251-016 2
R809,817 RESISTOR 5.6 Kohm 001-056251-016 2
R810 RESISTOR 680 ohm 001-068151-016 1
CAPACITORS
C815,816 CERAMIC CAP 0.1 uF/16V +80%-20% 003-010480-016 2
JK506 TO GND CERAMIC CAP 0.002 uF/50V +80%-20% 003-020280-050 2
C801,802,803,804,805,833,806, CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 20
807,808,810,812,835,837,814,818,
821,829,831,845,904
C827,848 *CdF (F006-010000-16C) ELECT CAP 10 MFD/ 006-010000-50C 2
50V +-20% (VX/5x11)
C840,843,844,847,850 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 5
C813,865 ELECT CAP 100 MFD/35V +-20% (8x11.5) 006-010100-35D 2
C849,855 ELECT CAP 1000 MFD/10V +-20% (10x16) 006-010200-10D 2
C817,820,832,839,851 ELECT CAP 220 MFD/16V +-20% (8x11.5) 006-022100-16D 5
C834 ELECT CAP 220 MFD/25V +-20% (8x11.5) 006-022100-25D 1
C830 ELECT CAP 2200 MFD/10V +-20% (VX/12.5x20) 006-022200-10C 1
C825,894 ELECT CAP 2200 MFD/16V +-20% (12.5x25) 006-022200-16D 2
C811 ELECT CAP 3300 MFD/25V +-20% (16x31.5) 006-033200-25D 1
C819,836 *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 2
C828,838,846 ELECT CAP 470 MFD/10V +-20% (8x11.5) 006-047100-10D
3

ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
13 14
Ref.No. Description Mfr's Part No. Qty.
TRANSISTORS
Q806,814 TRANSISTOR B1566E (LIGHTNING) 008-201566-100 2
Q807,815 TRLPNPSST-TAP&TO-092 3CG1015 008-610150-000 2
Q801,805,813 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 3
Q808 TRLNPNPWR-TAP&TO-092 3DA8050 008-680500-000 1
Q809 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 1
Q804,812 TR PNPGEN-TAP&SC-072 DTA123ESA 008-800123-003 2
(ROHM) (88-WA2-662-08)
Q802,803,811 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 3
INTEGRATED CIRCUITS
IC801 (F010-207805-001) TR &&&VOL-REG&TO-092 008-V07805-000 1
LM78L05ACZ 5V VOLTAGE REGULATOR
IC802,803 ICREGULA-P-005V001A BA05ST (ROHM) 010-400005-002 2
DIODES
D810,811,815,816,817,818,822, DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 9
823,885 KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
DZ804,806 ZENER DIODE MTZJT-72-12B 12V 1/2W 011-010012-120 2
(TSB#G51421015104)
ZD801 ZENER DIODE #MTZJT-7224D 24V 1/2W 011-010024-120 1
ZD802 ZENER IN-5231B,HZ5C1,5.1V,1/2W 011-010051-120 1
DZ807 ZENER DIODE 6.2V #MTZJ6.2C 011-010062-005 1
DZ803 ZENER DIODE 10V #MTZJ10D 1/2W (ROHM) 011-010100-122 1
D887 RECTIFIER HER102 011-020102-000 1
D618,809,819,820,821,824 RECTIFIER IN-4001B 011-024001-000 6
D801,802,803,804 (F011-005401-000) RECTIFIER IN-5401BL 011-025401-000 4
D805,806,807,808 RECTIFIER IN5822 011-025822-000 4
INDUCTORS
L801,802,803,804 INDUCTOR 3.3uH WIRE:D=0.6mm +-20% 018-010337-300 4
(R0002-CW68-3R3M-852243)/+-10%
(RL6080-3R3K)
L805 INDUCTOR 47uH CEC-470K/708032 +-10% 018-010476-000 1
LAL03TB470K/AL0305-470K
SWITCHES
PUSH SWITCH 2P2T PS3-22SP-W4CW-3.2 021-032222-000 1
w/UL.VDE SEMKO APPROVAL (LUP FUNG)
SW501 SLIDE SW 1P2T SS12F47G9 025-120091-003 1
WIRES
WH807 HSG (2.5mm) PEC 2507H-08 TO PEC 2501H-08 136-J10812-000 1
w/120mm RED,BLACKx7 AWG22#UL1007
WH801 HSG (2.5mm) PEC 2507H-09 TO 2501H-09 136-J10935-000 1
w/350mm BLUE,GREYx8 AWG26#UL1007
TO SW801 HSG (3.5mm) MOLEX 51067-0300 w/450mm 136-L00345-000 1
BLK,NC,WHT AWG18#UL1672 SLDG.12mm
MISCELLANEOUS
RL801 RELAY 9V SDT-S-109LMR 128-090109-000 1
PT003WEI35/14&&&WEN& 230V:12.4V EN STD 123-A33032-100 1
w/o FUSE (P3512-A14E)
PT035WEI57/35&F&WVDE 230V:8V/13V/22V/ 123-D53521-400 1
4.2V w/FUSE 130°C (L5735-P01E)
FS804 MICRO FUSE #251.630 630mA/125V 124-006310-000 1
WFF-215.630
Ref. No. Description Mfr's Part No. Qty.
FS802,803 FUSE #618002 2A/250V 5x20mm TIME LAG 124-020020-007 2
(UL/VDE/CSA APP.)
PLA-ULN-7'05"-VDE-MG VDE APP.CORD 134-B11331-006 1
2250mm MIGRATION (HARVEST)
CN802 PIN HEADER 2 PINS TJC6-02P3 PITCH:7.92mm 135-00TJC6-020 1
VERTICAL 1.14mm SQUARE PIN
CN801 HEADER MOLEX 2 PINS 53265-0210 V 135-053265-020 1
PITCH 7mm (87-099-623-01)
WH809 HEADER 4PINS PEC #2507-WS-4 P:2.5mm 135-2507WS-040 1
VERTICAL REPLACE:135-005267-040
WH808 *CdF HEADER 5 PINS PEC #2507-WS-5 135-2507WS-050 1
P:2.5mm VERTICAL REPLACE:135-005267-050
WH805 HEADER 8 PINS PEC #2507-WS-8 PITCH 2.5mm 135-2507WS-080 1
VERTICAL REPLACE:135-005267-080
WH865 HEADER CTL 2 PINS PHS-02 P:2mm STRAIGHT 135-PHS020-020 1
TYPE WHT COLOR (MARKING:HR) (CdF)
WH803 HEADER CTL 4 PINS PHS-04 PITCH 2mm 135-PHS040-040 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
MPEG+SERVO PORTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R14,29,39,58,100,101,120,153,177, CHIP RESISTOR 0 ohm +-5% 1/16W (0603/1608) 001-300052-016 19
241,243,227,229,234,236,237,
FB18,19,20
R10,12,230 CHIP RESISTOR 10 ohm +-5% 1/16W (0603/1608) 001-310052-016 3
R1,109,132 CHIP RESISTOR 100 ohm +-5% 1/16W (0603/1608) 001-310152-016 3
R9,11,97,106,107,122,134,135,232 CHIP RESISTOR 1 Kohm +-5% 1/16W (0603/1608) 001-310252-016 9
R5,6,19,20,21,22,23,56,95,102,123, CHIP RESISTOR 10 Kohm +-5% 1/16W (0603/1608) 001-310352-016 26
124,126,130,131,141,142,143,144,
145,146,147,148,157,163,200
R31,47,48,91,94,201,202,203,204, CHIP RESISTOR 100 Kohm +-5% 1/16W (0603/1608) 001-310452-016 9
R32,33,34,35 CHIP RESISTOR 1 ohm +-5% 1/16W (0603/1608) 001-310852-016 4
R180,183,188,191,194,197 CHIP RESISTOR 12 Kohm +-5% 1/16W (0603/1608) 001-312352-016 6
R125,218,219 CHIP RESISTOR 180 ohm +-5% 1/16W (0603/1608) 001-318152-016 3
R208,209,212,213,216,217 CHIP RESISTOR 2 Kohm +-5% 1/16W (0603/1608) 001-320252-016 6
R164 CHIP RESISTOR 22 ohm +-5% 1/16W (0603/1608) 001-322052-016 1
R15,16,206,207,210,211,214,215 CHIP RESISTOR 220 ohm +-5% 1/16W (0603/1608) 001-322152-016 8
R223 CHIP RESISTOR 2.2 Kohm +-5% 1/16W (0603/1608) 001-322252-016 1
R24,25,26,30,50,105 CHIP RESISTOR 22 Kohm +-5% 1/16W (0603/1608) 001-322352-016 6
R231 CHIP RESISTOR 2.4 Kohm +-5% 1/16W (0603/1608) 001-324252-016 1
R182,185,190,193,196,199 CHIP RESISTOR 30 Kohm +-1% 1/16W (0603/1608) 001-330312-016 6
R59,65,66,67,68,69,70,71,73,74,75, CHIP RESISTOR 33 ohm +-5% 1/16W (0603/1608) 001-333052-016 26
77,79,80,110,111,168,169,127,128,
165,166,167,170,171,175
R129,224 CHIP RESISTOR 330 ohm +-5% 1/16W (0603/1608) 001-333152-016 2
R3,4,52,53,54,55,60,181,184,189, CHIP RESISTOR 3.3 Kohm +-5% 1/16W (0603/1608) 001-333252-016 13
192,195,198
R155 CHIP RESISTOR 392 ohm +-1% 1/16W (0603/1608) 001-339112-016 1
R13,205 CHIP RESISTOR 470 ohm +-5% 1/16W (0603/1608) 001-347152-016 2
R17,18,43,45,61,96,104,112,113, CHIP RESISTOR 4.7 Kohm +-5% 1/16W (0603/1608) 001-347252-016 19
114,115,116,117,118,119,133,139,
140,174

ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
15 16
Ref. No. Description Mfr's Part No. Qty.
R27,51,57,76,93,98,137,138,154 CHIP RESISTOR 47 Kohm +-5% 1/16W 001-347352-016 9
(0603/1608) (MCR03EZHJ-473)
R222 CHIP RESISTOR 470 Kohm +-5% 1/16W (0603/1608) 001-347452-016 1
R136 CHIP RESISTOR 5.6 Kohm +-5% 1/16W (0603/1608) 001-356252-016 1
R186,187 CHIP RESISTOR 68 ohm +-5% 1/16W 001-368052-016 2
(0603/1608) (TSB#G5101100Y101)
R158,159,160,161 CHIP RESISTOR 75 ohm +-1% 1/16W 001-375012-016 4
(0603/1608) (TSB#G5101104G105)
R149,162 CHIP RESISTOR 75 ohm +-5% 1/16W (0603/1608) 001-375052-016 2
R8 CHIP RESISTOR 8.2 Kohm +-5% 1/16W (0603/1608) 001-382252-016 1
R225 CHIP RESISTOR 91 ohm +-5% 1/16W (0603/1608) 001-391052-016 1
CAPACITORS
C11,16,39,44,52,53 CHIP CAP 0.001 uF/25V +-10% (0603/1608) 003-510212-025 6
(GRM39B102K50) (MURATA)
C112 CHIP CAP 0.01 uF/25V +-10% (0603/1608) 003-510312-025 1
(MCH185C103KK/GRM39X7R103K25PT)
C2,8,9,10,14,15,21,22,23,234,25,26, CHIP CAP 0.1 uF/16V +-10% (0603/1608) 003-510412-016 94
27,28,29,30,31,32,33,34,35,36,37, (87-A10-260-08G) (C1608JB1C104K) (TDK)
38,40,41,42,43,49,50,51,54,55,56,
59,62,63,64,65,68,69,71,72,73,74,
75,78,79,80,82,84,85,86,87,92,95,
96,97,98,99,100,101,102,103,104,
105,106,107,108,113,114,115,117,
118,119,120,121,122,123,124,128,
129,130,133,134,139,140,145,146,
151,152,153,166,171
C135,137,141,143,147,149 CHIP CAP 0.0022 uF/50V +-10% (0603/1608) 003-522212-050 6
(UMK107B222KZ-TM)
C66 CHIP CAP 0.022 uF/25V +-10% (0603/1608) 003-522312-025 1
(MCH182C223KK/GRM39X7R223K25PT)
C83 CHIP CAP 0.22 uF/16V +80-20% (0603/1608) 003-522482-016 1
C144 CHIP CAP 0.033 uF/25V +-10% (0603/1608) 003-533312-025 1
C17,47 CHIP CAP 0.047 uF/25V +-10% (0603/1608) 003-547312-025 2
C48 CHIP CAP 0.47 uF/16V +80-20% (0603/1608) 003-547482-016 1
(EMK107F474ZA)
C1,4,5,6,7 CHIP CAP 680 pF/50V +-10% (0603/1608) 003-568112-050 5
C12 CHIP CAP 0.0068 uF/50V +-10% (0603/1608) 003-568212-050 1
C3,13,131,132 (F003-610112-050) CHIP CAP 100 pF/ 003-610152-050 4
50V +-5% NPO (0603/1608)
C57,58,67 CHIP CAP 12 pF/50V +-5% NPO (0603/1608) 003-612052-050 3
C136,138,142,148,150 CHIP CAP 150 pF/50V +-5% NPO (0603/1608) 003-615152-050 5
(GRM39COG151J50PT/MCH185A151JK)
C88,89,90,91,116,156,159,162,165 (F003-622051-050) CHIP CAP 22 pF/50V 003-622052-050 9
+-5% NPO (0603/1608)(GRM39C0G220J50PT)
C111 CHIP CAP 220 pF/50V +-5% NPO (0603/1608) 003-622152-050 1
(UMK107CH221JZ-T)
C109,110 (F003-527012-050) CHIP CAP 27 pF/50V 003-627052-050 2
+-5% NPO (0603/1608)(UMK107CH270JZ-TM)
C154,157,160,163 CHIP CAP 270 pF/50V +-5% NPO (0603/1608) 003-627152-050 4
R2 CHIP CAP 33 pF/50V +-5% NPO (0603/1608) 003-633052-050 1
(GRM39COG330J50PT/MCH185A330JK)
Ref. No. Description Mfr's Part No. Qty.
C155,158,161,164 (F003-633151-050) CHIP CAP 330 pF/50V 003-633152-050 4
+-5% NPO (0603/1608) (GRM39C0G331J50PT)
C70 CHIP CAP 47 pf/50V +-5% NPO (0603/1608) 003-647052-050 1
C45,46 CHIP CAP 470 pF/50V +-5% NPO (0603/1608) 003-647152-050 2
CE39,40 ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 2
CE13,18,22,24,25,26,29,30,31,32, ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 16
33,34,35,36,37,38
CE5,6,27,28,45 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 5
CE16 *CdF ELECT CAP 1000 MFD/10V +-20% 006-010200-10C 1
(VX/10x12)
CE41 ELECT CAP 220 MFD/16V +-20% (6.3x11) 006-022101-16D 1
(SA16V221M)
CE3,15,42,44 ELECT CAP 47 MFD/25V +-20% (5x11) 006-047000-25D 4
CE14 ELECT CAP 470 MFD/10V +-20% (8x11.5) 006-047100-10D 1
CE4,8 ELECT CAP 470 MFD/16V +-20% (VX/10x12.5) 006-047100-16C 2
CE49,51,52,53,54 ELECT CAP 100 MFD/6.3V +-20% 006-210100-06D 5
(SMALL SIZE) (5x7)
TRANSISTORS
Q4,7,8,9,10,11,12 TR NPNGEN-BUK&SC-043 2N3904 008-939040-000 7
Q5,6 TR NPNGEN-BUK&SC-043 2N3906 008-939060-000 2
Q3 CHIP TRANSISTOR DTC124TKA-TLB 008-A00124-B00 1
Q1,2 TR PNPPWR-TAP&&S-MT& 2SB1197K-T146R 008-A01197-000 2
(SMT) (ROHM)
CRYSTALS
Y3 CRYSTAL 12.5 MHz +-30ppm HC-49/U/ 009-612500-000 1
ALCCBEG
Y4 CRYSTAL 27 MHz HC-49/U/ALCCGBE 009-627000-003 1
INTEGRATED CIRCUITS
U7 ICMCU-512K-NIL W29EE512P-70 (WINBOND) 010-032951-001 1
U25 ICSPECIAL WM8739EDS 24BIT 96kHz 010-038739-000 1
STEREO AUDIO ADC
U31 ICSPECIAL WM8746EDS 32BIT 192KHz 010-038746-000 1
6CH DAC w/VOLUME CONTROL
U9 IC-VOLTAGE REGULATOR XC61AN1902MR/ 010-151902-000 1
XC61CN1902MR
U1 IC-RF AMP SP3721AAA-OPM (64-PIN VQFP) 010-245703-000 1
U5 IC&&&&&&&&&&&&&&&&&& M5705 DVD-ROM 010-245705-000 1
CONTROLLER (176-PIN LQFP)
U22,23,24 ICAMP-OP-02CH-DUALV NJM4580E-T1 010-274580-002 3
(TSB#G5147100L105)
U17 ICRAMS-01X016M K4S161622D-TC/L60/L80 010-310416-002 1
HY57V161610DTC-7/8/M12L16161A-7T
U3 ICREGULA-P-3.3V001A BA033FP(SOP) (ROHM) 010-400033-000 1
U29 ICREGULA-P-005V001A BA17805FP(TO252-3) 010-401780-000 1
(ROHM)
U12 ICRAMF-01X001K S-24C01BFJ-TB-01/ 010-512401-001 1
24LC01BT-I/SN/M24C01-WMN6T/
BR24C01AF-WE2
U27 ICREGULA-P-&&&V&&&A LD1117S/ 010-721117-000 1
LM117MPX-ADJ RT9164CG (SOT-223)
(ST/NATIONAL/RICHTEK)
