SERVICE MANUAL
Model:
DVR4000SS / DVR4000VSS
DVD HOME THEATRE SYSTEM
www.akai.ru

Page
CONTENTS PRODUCT SAFETY NOTICE
Performance Specifications ..................................................................................................................... 1
Electrical Parts List ................................................................................................................................ 8

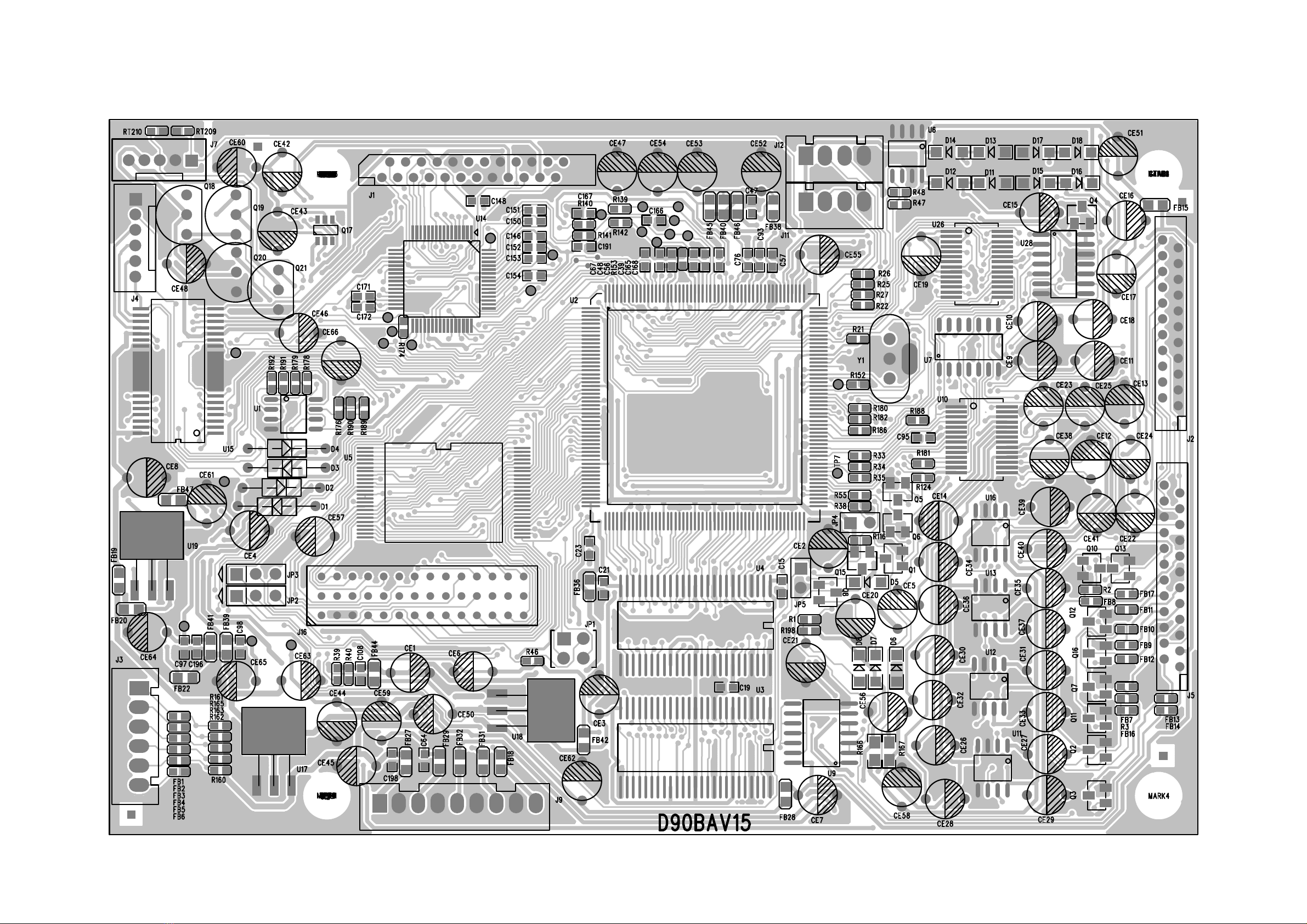

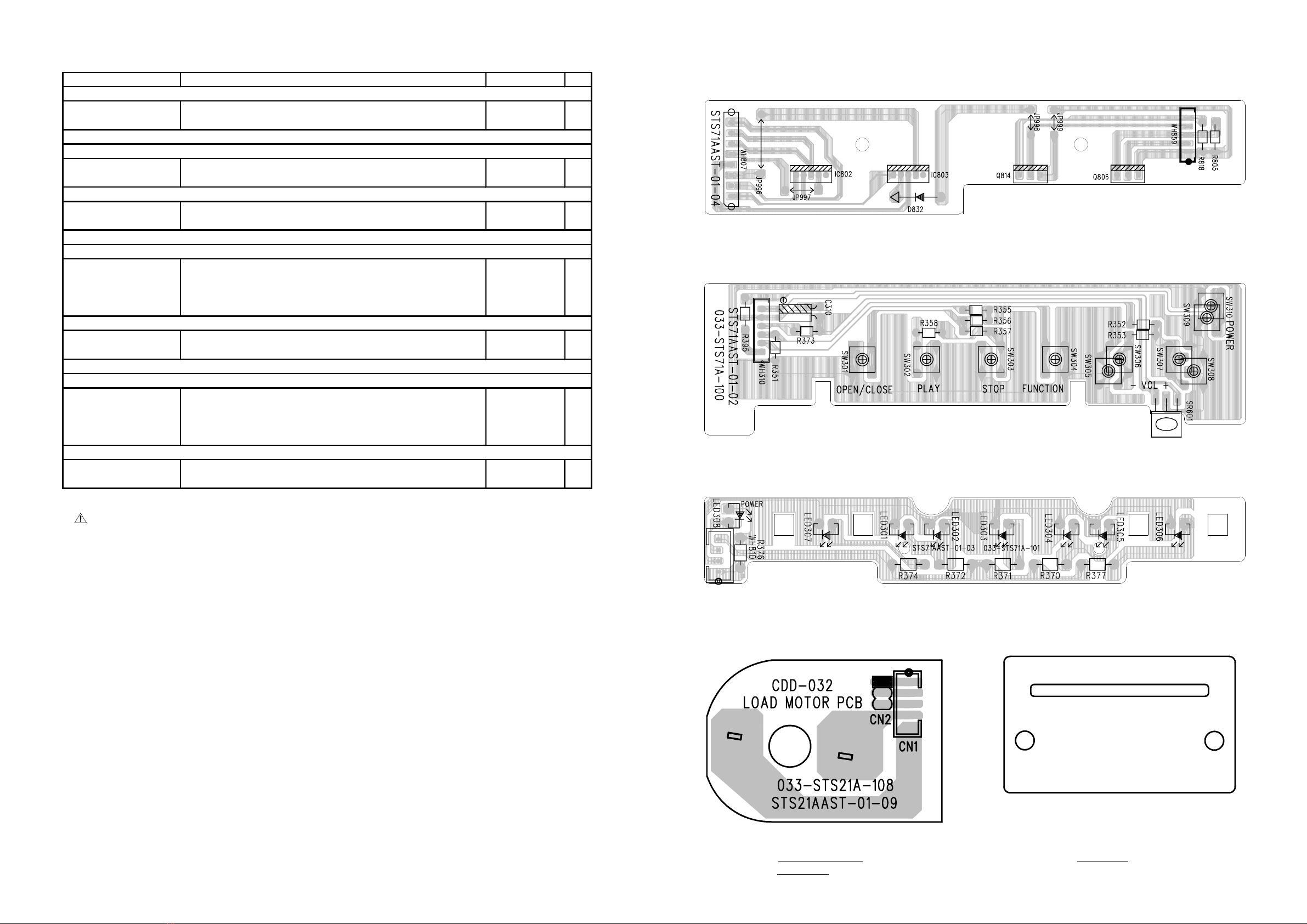

Printed Circuit Boards ........................................................................................................................... 22
Wiring Diagram ..................................................................................................................................... 31
Schematic Diagrams ............................................................................................................................. 33
Alignment Set-up Procedures ................................................................................................................ 55
Equipment Connection Diagram ............................................................................................................. 55
Voltage Chart ....................................................................................................................................... 56
IC Block Disgrams & IC Pins Description ............................................................................................... 62
Block Diagrams .................................................................................................................................... 69
Exploded Drawing Parts List .................................................................................................................. 75
Exploded Drawings ............................................................................................................................... 79
Many electrical and mechanical parts in this chassis have special safety characteristics.
These safety characteristics often pass unnoticed and the protection afforded by them cannot
necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
Replacement parts that have these special safety characteristics are identified in this manual
and its supplements; electrical components having such features are identified by in the
schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully.
The use of substitute replacement parts that do not have the same safety characteristics as
specified in the parts list may create shock, fire or other hazards.
DVD HOMETHEATRE SYSTEM
DV-R4000SS / DV-R4000VSS

12
PERFORMANCE SPECIFICATIONS PERFORMANCE SPECIFICATIONS - CONTINUED
Power Supply
:
AC 230V/240V 50Hz
Output Load
:
8ohm non-reactive x 5; Subwoofer 6ohm x 1
Reference Output
:
500mW
Input Signal Source
:
External AM Loop Antenna
75 ohm Dummy Antenna for FM
Modulation
:
30% 400Hz for AM 60% for Power
40kHz Deviation 1000Hz for FM
7.5kHz Pilot Tone
47.5kHz L+R 1000Hz
GENERAL TEST CONDITION
(FM) SECTION, FREQUENCY, MODULATION
UNIT NOMINAL LIMIT
1. Tuning Range MHz 87.5-108 -
2. I. F. MHz 10.7 ±0.3
3. 30dB S/N 90MHz dB 20 25
98MHz dB 20 25
106MHz dB 20 25
4. -3dB Limit Sens. dB 16 30
5. I. F. Rej. 98MHz dB 60 50
6. Image Rej. 106MHz dB 30 23
7. Spurious Rejection (F + 0.535 MHz) dB 40 35
(Max. Sens. + 6dB)
8. AM Suppression (60dB I/P) dB 45 30
9. Mod. Hum (60dB I/P) dB 48 42
10. Distortion at 1mV/m (Mono) 22.5kHz %1 2
100mV/m 75kHz %3 5
11. Audio Fidelity, (-3dB) (Pre-emphass) (50µS) (FR.FL) Hz 60/9000 120/6000
Subwoofer 1K=0 100 Hz 36 30
12. Power Out, 10% THD (55K Dev.) 1K=1mV W15 13
Subwoofer 'Power Out, 10% THD (55K Dev.) 100Hz=1mV W22 18
13. Low Voltage AC %80 85
14. S/N Ratio at 1mV 98MHz dB 52 46
15. Alternate Channel Selective ±400kHz dB 25 18
16. Stereo Separation dB 26 22
17. 19kHz Leak Carrier dB 32 27
18. Stereo LED Indication dB 26 30
19. Step Frequency kHz -50
20. Auto Stop Sens. dB 26 32
21. Minimum Vol. Hum mV 1.0 3.0
REMARKS:
NOTE: All measurement should be done in bypass mode without EQ effects.
TEST ITEMS
(AM) SECTION, AMPLITUDE, MODULATION
UNIT NOMINAL LIMIT
1. Tuning Range kHz 531-1602 -
2. I. F. kHz 450 ±3
3. S/N 10mV/m 999kHz dB 36 30
4. Sens. (at S/N 20dB) 603kHz dB 60 64
dB 60 64
1404kHz dB 60 64
5. I. F. Rej. 603kHz dB 50 46
6. Image Rej. 1404kHz dB 30 22
7. Spurious Rejection dB 35 25
8. Bandwidth, -6 dB, at 999kHz kHz 64 - 9
(Max. Sens. +6 dB)
9. ACA (±9kHz) Input 999kHz dB 20 15
10. AGC Figure Merit 100mV/m dB 45 40
11. Distortion, 5mV/m, 30% %1 3
80% %3 6
12. a. 10% THD Power AC DEV 80% W15 13
b. Woofer 10% DEV 80% W22 18
13. a. Tweet (2nd 910kHz & 3rd 1350kHz) dB 15 10
at 75 dB I/P
14. Audio Fidelity, Centre ±(6) dB Hz 60/2200 120/2000
15. Low Voltage AC %80 85
16. a. Mod. Hum 10mV/M dB 36 30
b. Hum at Min. Vol. mV 1 3
17. Auto Stop Sens. dB 64 70
18. Step Frequency kHz -9
REMARKS:
NOTE: All measurement should be done in bypass mode without EQ effects.
TEST ITEMS

VIDEO SECTION - 2
SPEC.
8. Color Phase Equipment: Video Analyser (Expect VM700) YEL.=167.6°
Test Signal: LT2-1,1-1, SMPTE Color Bar CYAN=283.5°
Test Point: Complex or S(C) Output GRN.=240.6°
Method: 1. Connect TP to Video Analyser MAG.=60.6°
2. Test Phase of Various Colors in Color Bar. RED=103.5°
BLU.=347.6°
within+9°/-1°
9. RGB Output Equipment: Waveform Monitor 700-70/+105mV
(only for w/RGB Model) Test Signal: LT2-1,1-1, SMPTE Color Bar
Test Point: RGB Output
Method: 1.Connect TP to Waveform Monitor
2. Convert to RGB Output Mode
3. Play Test Disc Signal Portion and Test
100IRE (100% Whirt) Output Level.
10. Sub Carrier Frequency Equipment: Video Analyser (Expect VM700) or NTSC=
Spectral Analyser 3579545±160Hz
Test Signal: LT2-1,1-1, SMPTE Color Bar
Test Point: Complex or S(C) Output
Method: 1. Connect TP to Video Analyser PAL=
2. Play Test Disc Signal Portion and Test Sub 4433619±200Hz
Carrier Frequency.
NOTE: Test Data After Power ON 25~35 Seconds.
REMARK: 1. The initial picture of TV shape is 4:3 Normal.
2. Black level is Enhanced.
3. Audio output select is Analog 2CH.
TEST CONDITIONS
VIDEO SECTION - 1
SPEC.
1. Video Level Equipment: Waveform Monitor (Except VM700) 714-71/+107 mV
Test Signal: LT2-1,1-1, SAMPTE Color Bar
Test Point: Complex or S(Y) Output
Method: 1. Connect TP to Waveform Monitor
2. Play Test Disc and Test Output Level from
Pdestal of H display to 100IRE
(S Terminal without Load When Test complex Output)
2. SYNC Level Equipment: Waveform Monitor (Except VM700) 286-29/+43 mV
Test Signal: LT2-1,1-1, SAMPTE Color Bar
Test Point: Complex or S(Y) Output
Method: 1. Connect TP to Waveform Monitor
2. Play Test Disc and Test SYNC Signal
(S Terminal without Load When Test Complex Output)
3. Chroma Burst Level Equipment: Waveform Monitor (Except VM700) 286-29/+43 mV
C-BURST Test Signal: LT2-1,1-1, SAMPTE Color Bar
Test Point: Complex or S(Y) Output
Method: 1. Connect TP to Waveform Monitor
2. Play Test Disc and Test Chroma Burst Level
(S Terminal without Load When Test Complex Output)
4. Chromatism Signal Equipment: Waveform Monitor (VM700) Y=714-71/+107mV
Output Level Test Signal: LT2-1,1-1, SAMPTE Color Bar SYNC=286-29/+43mV
Test Point: Chromatism Output (Y/CB/CR) CB,CR=
Method: 1.Connect TP to Waveform Monitor 525-53/+79mV
2. Play Test Disc and Test Output Level and B-Y=286-29/+43mV
PP Value of CB,CR R-Y=286-29/+43mV
5. Frequency Response Equipment: Waveform Monitor (VM700)
Test Signal: LT2-1,1-1, Multi Burst 0.5MHz=0dB
Test Point: Complex or S(Y) Output 2MHz=0±1.0dB
Method: 1.Connect TP to waveform monitor 4MHz=0±1.5dB
2. Play Test Disc and Test Various 5.75MHz=0=4/-5dB
Frequencies Output level
3. Set Level of 0.5MHz to be 0dB. Compare
Output Level of others with 0dB.
6. Luminance S/N Equipment: Waveform Monitor (Expect VM700) Play 50% IRE:
Video Noise Meter Noise level -60dB
Test Signal: LT2-1,1-3, 50% Whirt (50IRE)
Test Point: Complex or S(Y) and Component(Y) Output
Method: 1.Connect TP to Video Noise Meter
2. Play Test Disc Signal Portion (50% IRE)
and Test Noise Level.
(Test L131 when Using VM700)
Test Equipment Condition: (4.2MHz LPF, SC Trap,
100kHz HFP. ON)
7. Chroma Signal AM, PM Equipment: Video Noise Meter (Expect VM700) Chroma Signal
S/N Test Signal: LT2-1,1-3 Noise Level
Test Point: Complex or S(C) Output - 50dB
Method: 1. Connect TP to Video Noise Meter
2. Play Test Disc Signal Portion and Test
Noise Level of Chroma Signal.
(Test L131 When Using VM700)
Test Equipment Condition:
(100Hz~1MHz BPF, SC Trap,. ON)
(VM700: 100kHz HPF,1MHz LPF, Single Line)
TEST CONDITIONS
3 4
PERFORMANCE SPECIFICATIONS - CONTINUED PERFORMANCE SPECIFICATIONS - CONTINUED

AMPLIFIER SECTION
UNIT NOMINAL LIMIT
1. 10% THD Power AC (FL, FR) W15 13
2. Frequency Respone (CT) 1K=0dB 100Hz dB -3 ±3
10kHz dB 0±3
20kHz dB 0±6
3. Frequency Respone (RR, RL) 100Hz dB -3 ±3
1K=0dB 10kHz dB 0±3
20kHz dB 0±5
4. Frequency Response (FL, FR) 20Hz dB -3 ±3
1K=0dB 100Hz dB 0±3
10kHz dB 0±3
20kHz dB 0±3
5. Frequency Response 20Hz dB 40 35
(Subwoofer) 1K=0dB 100Hz dB 40 35
6. 10% THD Power AC (Subwoofer) W22 18
7. Subwoofer THD (100Hz Ref O/P) %0.5 1.0
8. THD (1kHz, Ref O/P) FR, FL %0.5 0.8
9. Channel Unbalance (L&R) 1kHz dB ±1 ±3
10. Minimum Vol Hum (UNWGTD/WGTD) mV 1 3
11. Maximium Vol Hum (UNWGTD/WGTD) mV 3 10
12. S/N (UNWGTD/CCIR-ARM2K) (L&R) 1kHz dB 60 55
13. Bass Effect FL, FR dB ±10 ±4
14. Treble Effect FL, FR dB ±10 ±4
15. Separation (FL & FR) dB -45
16. Cross Talk for Input (AUX/CD-REF) w/BPF dB -45
REMARKS:
Level Matching AM: 55% 5mV/m ±3
FM: 40kHz 1mV ±3
CD -6dB REF ±3
AUX IN: 750mV ±3
NOTE: All measurement should be done at bypass mode without EQ effects.
Audio others :6ch
More audio prologic :on
ITEM 1.2.3.4 Set up subwoofer for off speaker for large.
TEST ITEMS
DVD AUDIO SECTION (LINE OUTPUT)
UNIT NOMINAL LIMIT
1. THD+N ( LT2-1, 3-1 20kHz LPF ON ) %0.05
2. Output Level (LT2-1, 3-1) V2.0 ±0.3
3. S/N ( LT2-1, 3-20 JIS-A Filter ON ) dB 80 70
4. Crosstalk ( LT2-1, 3-21.22 1KHz, BPF ON ) dB 70
5. Frequency Range
(48kHz / 24BIT ) (LT2-1. 3-1~19) 31Hz dB 0±1.0
(FL, FR) 499Hz dB 0±1.0
1kHz dB 0±1.0
10kHz dB 0±1.0
22kHz dB 0±1.0
6. Frequency Range 20Hz dB 0±3.0
(96kHz / 24BIT LT2-1, 6-1~12) 400Hz dB 0±3.0
(FL, FR) 1kHz dB 0±3.0
12.8kHz dB 0±3.0
20kHz dB 0±3.0
7. Digital Output Level mV 500 ±100
8. Dynamic Range (20kHz LPF is ON) dB 85
9. Black Band (TDV 545) dB -600
10. Finger Print dB -No.10
11. Eccentric (MDVD142 TEAC) dB -200
12. Vertical mm -0.6
CD SECTION
1. Interruption (PHILIPS SBC444A) dB -600
2. Black Dot dB -600
3. Finger Print dB -No.18
4. Eccentric (TCO-712 ABEX) dB -140
5. Vertical (TCO-731R ABEX) mm -0.8
CD - R SECTION
1. Black Band (TCD-R025W ) dB 800 600
2. Finger Printers (TCD-R025W ) dB -65
3. Scratch (TCD-R021W ) mm 1.8 1.6
4. Eccentric (TCD-R012W ) dB -140
5. Deviation (TCD-R032W ) dB -810
CD - RW SECTION
1. Black Band (TCD-W025W ) dB 600 500
2. Finger Printers (TCD-W025W ) dB -65
3. Scratch (TCD-W021W ) mm -1.0
4. Eccentric (TCD-W012W ) dB -140
5. Deviation (TCD-W032W ) dB -810
TEST ITEMS
5 6
PERFORMANCE SPECIFICATIONS - CONTINUED PERFORMANCE SPECIFICATIONS - CONTINUED

7 8
PERFORMANCE SPECIFICATIONS - CONTINUED ELECTRICAL PARTS LIST
Ref. No. Description Mfr's Part No. Qty.
PCB
MAIN PCB PCB STS71AAST-01-01(94V0) 033-STS71A-300 1
KEY PCB PCB STS71AAST-01-02 (94V0) 033-STS71A-300 1
LED PCB PCB STS71AAST-01-03 (94V0) 033-STS71A-300 1
FAN CONTROL PCB PCB STS31AAST-01-06 136x91.2x1.6mm/6 (94V0) 033-STS31A-100 1
REGULATOR PCB PCB STS71AAST-01-04 120x112x1.6mm/7 (94HB) 033-STS71A-101 1
MPEG + SERVO PCB PCB STS71AAST-01-05 153x184.5x1.6mm/2 033-STS71A-100 1
FR4 DOUBLE SIDED, w/PATH THROUGH HOLE
SCART PCB PCB STS21AAST-01-05 140x95x1.6mm/4 (94V0) 033-STS21A-104 1
BLANK PCB PCB STS71AAST-01-06 167x39x1.6mm/7 (94V0) 033-STS71A-102 1
LOAD MOTOR PCB PCB STS21AAST-01-09 171x88.5x1.6mm/12 (94V0) 033-STS21A-108 1
TUNER PCB PCB STS21AAST-01-04 141x130x1.6mm/3 (94V0) 033-STS21A-103 1
REMOTE CONTROL SECTION
REMOTE CONTROL HANDSET, w/CAM-0122 SPY, 043-R15448-120 1
(FOR AKAI/STS2x/7x)
ACCESSORY SECTION
WIRE JP WIRE AWG26#UL1007 1500mm BLK CRIMPED 054-010A50-090 1
w/TERMINAL SHS #STV8-TE AND TUBE (75ohm)
MISCELLANEOUS SCART CABLE 2000mm w/3 PIN RCA 122-00A020-200 1
HS02038-20-20
BATTERY #GP15G 1.5V 'AA' SIZE (GP) 130-615004-001 1
MERCURY & CADMIUM FREE (2PCS/PACKAGE)
AM LOOP ANT.388-88 & 388-89 MOLD BK (ABS) 132-020388-882 1
5264-2 2.54mm w/5750mm BK AWG26#UL1007
AUDIO SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R603,611,612,613,675 *CdF RESISTOR 1 Kohm 001-010251-016 5
R609 *CdF RESISTOR 10 Kohm 001-010351-016 1
R656,664,666,668,670,672, *CdF RESISTOR 100 Kohm 001-010451-016 7
674
R660 *CdF RESISTOR 150 ohm 001-015151-016 1
R608 *CdF RESISTOR 15 Kohm 001-015351-016 1
R614,615,626,627,636,637 RESISTOR 18 Kohm 001-018351-016 6
R649 *CdF RESISTOR 220 ohm 001-022151-016 1
R602,616,617,618,619,624, *CdF RESISTOR 2.2 Kohm 001-022251-016 19
625,628,629,634,635,638,
639,650,651,677,678,679,
680
R606,607,652 *CdF RESISTOR 22 Kohm 001-022351-016 3
R620,621,630,631,640,641 RESISTOR 2.2 ohm 001-022851-016 6
R622,623,632,633,642,643 RESISTOR 2.7 Kohm 001-027251-016 6
R687,688 RESISTOR 27 Kohm 001-027351-016 2
R558,559 RESISTOR 3.9K 001-039251-016 2
R501,502,503,504,505,506, *CdF RESISTOR 4.7 Kohm 001-047251-016 12
570,571,605,654,661,662
R601 *CdF RESISTOR 47 Kohm 001-047351-016 1
R507,508,509,510,511,512 RESISTOR 5.6 Kohm 001-056251-016 6
CAPACITORS
C612,613,625,636,637 CERAMIC CAP 470 pF/50V +-10% TAPING 003-047110-051 5
(B TYPE/4mm)
C618,619,630,631,642,643, #MYLAR CAP 0.1 uF/50V +-10% 004-010410-050 10
660,661,662,663
AV IN 750mV INPUT 100Hz (with 20kHz B.P.F) 100Hz=0dB 1kHz=0dB
(Speaker for Small)
BY PASS R=L= -2dB RLCSR SL SW Unit
R0<-50 <-50 <-50 <-50 5±3 dB
L<-50 ±3 <-50 <-50 <-50 5±3 dB
Phase ±3 ±3 <-50 <-50 <-50 8±3 dB
Antiphase ±3 ±3 <-50 <-50 <-50 -dB
10% THD Power 15±2 15±2 18±2 W
100Hz 1V Input dB
L/R 100Hz -3±3 20kHz ±3 dB
Prologic RLCSR SL SW Unit
R-2±3 <-55 <-35 <-35 <-35 ±3 dB
L<-55 -2±3 <-35 <-35 <-35 ±3 dB
Phase <-35 <-35 ±3 <-35 <-35 ±6 dB
Antiphase <-35 <-30 - 40 -3±3 -3±3 <-32 dB
dB
L/R 100Hz -3±3 20kHz ±3 dB
C (Phase) 100Hz -3±3 20kHz -20/±3 dB
SR/SL (Antiphase) 100Hz -3±3 8K -6/±3 dB
Movie RLCSR SL SW Unit
R-3±3 <-55 <-35 <-35 <-35 ±3 dB
L<-55 -3±3 <-35 <-35 <-35 ±3 dB
Phase <-35 <-35 ±3 <-35 <-35 ±6 dB
Antiphase <-35 <-35 <-35 -3±3 -3±3 <-32 dB
dB
C (Phase) 100Hz -3±3 8kHz -3±3 dB
SR/SL (Antiphase) 100Hz -3±3 8kHz -3±3 dB
L/R 100Hz -3±3 20kHz -3±3 dB
Music RLCSR SL SW Unit
R-9±3 <-55 <-55 -10±3 <-35 -5±3 dB
L<-55 -9±3 <-55 <-35 -10±3 -5±3 dB
Phase <-35 <-35 -6±3 <-35 - 35 ±6 dB
Antiphase <-35 <-35 <-35 -3±3 -3±3 <-35 dB
dB
L/R 100Hz -3±3 20kHz -3±3 dB
C (Phase) 100Hz -3±3 8kHz -3±3 dB
SR/SL (Antiphase) 100Hz -3±3 8K -3±3 dB
MATRIX RLCSR SL SW Unit
R-6±3 <-55 -10±3 -6±3 -20±2 ±3 dB
L<-55 -6±3 -10±3 -20±2 -6±3 ±3 dB
Phase -10±3 -10±3 -6±3 -10±3 -10±3 ±6 dB
Antiphase -10±3 -10±3 <-35 -6±3 -6±3 -dB
dB
L/R 100Hz -3±3 20kHz -3±3 dB
C (Phase) 100Hz -3±3 8kHz -3±3 dB
SR/SL (Antiphase) 100Hz -3±3 8K -3±3 dB
FREQUENCY RESPONSE 1K=0dB
FREQUENCY RESPONSE 1K=0dB
FREQUENCY RESPONSE 1K=0dB
FREQUENCY RESPONSE 1K=0dB
FREQUENCY RESPONSE 1K=0dB

910
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
Ref. No. Description Mfr's Part No. Qty.
C646 (F004-015310-050) #MYLAR CAP 0.015 uF/ 004-015310-100 1
100V +-10%
C678,679 #MYLAR CAP 0.0047 uF/100V +-10% 004-047210-100 2
C624,648 #MYLAR CAP 0.068 uF/100V +-10% 004-068310-100 2
C614,615,627,638,639,666, ELECT CAP 1 MFD/50V +-20% (5x11) 006-001000-50D 12
669,672,674,675,684,690
C626,644,665,670,671,673, ELECT CAP 2.2 MFD/50V +-20% (5x11) 006-002000-50D 9
676,683,685
C658,680 ELECT CAP 100 MFD/10V +-20% (5x11) 006-010100-10D 2
C610,611,622,623,634,635, ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 7
650
C616,617,629,640,641 ELECT CAP 1000 MFD/25V +-20% (12.5x20) 006-010200-25D 5
C651 ELECT CAP 220 MFD/16V +-20% (8x11.5) 006-022100-16D 1
C628 ELECT CAP 2200 MFD/25V +-20% (16x25) 006-022200-25D 1
C601 ELECT CAP 2200 MFD/50V +-20% (16x31.5) 006-022200-50D 1
C605,606,607,608,609,620, *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 9
621,632,633
C604 ELECT CAP 470 MFD/10V +-20% (8x11.5) 006-047100-10D 1
TRANSISTORS
Q522,523,602,606,607,608, TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 10
609,610,611,613
Q603 TR PNPGEN-TAP&SC-072 DTA123ESA (ROHM) 008-800123-003 1
(88-WA2-662-08)
Q601 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 1
Q571,615 TR NPNSST-RAD&SC-072 DTA114TS/A (ROHM) 008-801142-000 2
KRA-111M (KEC)
INTEGRATED CIRCUITS
IC605 ICAUDIOLEVELSENSOR BD3814FV (SSOP-B40) 010-263814-000 1
(ROHM)
IC502 ICAMP-OP-02CH-DUALV LS4558N 010-404558-003 1
IC601,602,603 ICAMP-POWR-&&-&&&&&W TA8258H (TOSHIBA) 010-838258-000 3
DIODES
D601,602,603,604,605,606, DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 8
607,608 KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
DZ602,603 ZENER BZX55C7V5 7.5V 1/2W 011-010075-121 2
DZ808 ZENER DIODE 10V #MTZJ10D 1/2W (ROHM) 011-010100-122 1
INDUCTORS
FB501,502,503,504 FERRITE BEAD INDUCTOR #PI0243NL R6H 5x3.6 032-100243-000 4
WIRES FFC CABLE 24 PINS L=88mm PITCH:1mm 040-240088-100 1
0.035x0.7 UL2896
JM2 TO JM3 JP WIRE AWG22#1007 5x5mm 90mm BLACK 051-275090-009 1
G3 *CdF JP WIRE AWG26#1007 5x5mm 100mm RED 051-675100-006 1
G2 *CdF JP WIRE AWG26#1007 5x5mm 100mm BLACK 051-675100-009 1
MISCELLANEOUS
SPK601 12P PUSH TER.BD PST-1206V-231/MSP-3612V-24LF 118-001206-000 1
R,BL,BR,Y,GN,W,BKx6 =118-003612-000
JK502 PIN JACK HTJ-032-08B0 ORANGE (KUNMING) 118-020032-009 1
MTJ-032-12B-05(MSC)/RCA-115V-051
JK501 RCA JACK MSP-226V24-23 NI ALE/ 118-020226-000 1
RCA-616AV-211 GREEN,YEL,BLUE,REDx2,WHT
JK503 DIN JACK HDC-056 (KUNMING) DS-28 (LINKTECH) 119-000056-000 1
RTM801 THERMISTOR T5D410K45JBPDA-0/100KD-5K/ 124-205410-001 1
JTR5T104K52PU5
Ref. No. Description Mfr's Part No. Qty.
WH501 FFC CONNECTOR 24 PINS PITCH:1mm 135-009615-240 1
9615S-24A-PP-A/D100-SSA-24/S10024V VERT.
AUX-IN (2.1CH) SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R515,516 RESISTOR 27 Kohm 001-027351-016 2
R513,514 RESISTOR 8.2 Kohm 001-082251-016 2
CAPACITORS
C501,502 CERAMIC CAP 100 pF/50V +-10% 003-010110-050 2
CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 3
C503,504 ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 2
MISCELLANEOUS
JK506 PIN JACK HSP-253V-14 (KUNMING) 118-020253-000 1
RCA-314V-104 YEL,RED,WHT/BODY WHT
RL504 RELAY 12V 200mW ME-1-12BS 1P2T 128-120112-001 1
SOLDERING LUG 137-300000-000 3
CPU SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R902,904 *CdF RESISTOR 100 ohm 001-010151-016 2
R901,903 *CdF RESISTOR 1 Kohm 001-010251-016 2
R301,302,303,304,306,307, *CdF RESISTOR 10 Kohm 001-010351-016 37
308,309,310,311,312,316,
318,319,321,322,323,325,
329,330,331,333,334,337,
338,339,343,344,345,350,
361,364,378,379,380,381,
382
R348 *CdF RESISTOR 15 Kohm 001-015351-016 1
R340 RESISTOR 20 Kohm 001-020351-016 1
R305,905 *CdF RESISTOR 2.2 Kohm 001-022251-016 2
R341 *CdF RESISTOR 22 Kohm 001-022351-016 1
R911 RESISTOR 27 ohm +-5% 1/2W 001-027050-012 1
R332 *CdF RESISTOR 33 ohm 001-033051-016 1
R326,328,375,390,391 *CdF RESISTOR 4.7 Kohm 001-047251-016 5
R346,347 *CdF RESISTOR 47 Kohm 001-047351-016 2
R327,342 RESISTOR 5.6 Kohm 001-056251-016 2
R324 RESISTOR 8.2 Kohm 001-082251-016 1
CAPACITORS
C302 CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 1
C318,319 CERAMIC CAP 470 pF/50V +-10% 003-047110-051 2
TAPING (B TYPE/4mm)
C307,308 CERAMIC CAP 68 pF/50V +-10% 003-068010-050 2
C305,306 CERAMIC CAP 30 pF/50V +-5% (NPO) 003-430050-050 2
(CC45-CH1H300J/RBU04CH300J-L)
C309 ELECT CAP 10 MFD/50V +-20%(5x11) 006-010000-50D 1
C315 ELECT CAP 22 MFD/25V +-20%(5x11) 006-022000-25D 1
C301 ELECT CAP 47000 MFD/5.5V DC +80-20% 006-747300-05C 1
(STAR CAP) (SC-DA5R5 473 H)
TRANSISTORS
Q301 TR NPNSST-&&&&&&-&&& 3DG1417 008-601417-000 1
Q306,307 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 2
Q903,904 TRLNPNPWR-TAP&TO-092 3DA8050 008-680500-000 2
Q901,902 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 2
Q305 TR PNPGEN-TAP&SC-072 DTA123ESA (ROHM) 008-800123-003 1
(88-WA2-662-08)

11 12
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
Ref. No. Description Mfr's Part No. Qty.
Q302 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 1
INTEGRATED CIRCUITS
IC301 ICMCU-48K-LCD TMP87EP26F-3D72 010-918726-000 1
(ALDIAUS-DVD32) FLASH MCU
DIODES
D301,302,303,304 DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 4
KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
RESONATOR
CX301 CERAMIC RESONATOR 8 MHz ZTA08.00MT (CQ) 020-000800-003 1
WIRES FFC CABLE L=240mm P=1mm SEPH02-02121 040-240240-100 1
24P-4+232+4-P1-CF/90 UL2896 0.035x0.7
WH303 HSG (2.5mm) MOLEX 5264-06 TO JST 6P-SAN 136-JZ0616-000 1
w/160mm R,BK,YEL,O,GR,BL AWG28#UL1007
MISCELLANEOUS
WH302 HEADER CTL 4 PINS PHS-04 PITCH 2mm 135-PHS040-040 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
WH803 HEADER CTL 5 PINS PHS-05 PITCH 2mm 135-PHS050-050 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
WH301 *CdF HEADER CTL 6 PINS PHS-06 PITCH 2mm 135-PHS060-060 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
WH304 HEADER CTL 10 PINS PHS-10 PITCH 2mm 135-PHS100-100 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
FAN SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R854 *CdF RESISTOR 10 ohm 001-010051-016 1
R852,857,855,863,864,865 *CdF RESISTOR 100 Kohm 001-010451-016 6
R859,860,861 *CdF RESISTOR 3.3 Kohm 001-033251-016 3
R853,856 *CdF RESISTOR 4.7 Kohm 001-047251-016 2
R851 RESISTOR 68 ohm 001-068051-016 1
CAPACITORS
C856 ELECT CAP 2.2 MFD/50V +-20% (5x11) 006-002000-50D 1
C851,852,853,854,855,857, ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 7
858
C859 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 1
TRANSISTORS
Q852 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 1
Q851 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 1
DIODES
D851,852,853,854,855,856 DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 6
KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
INDUCTOR
L101 INDUCTOR 47 uH CEC-470K/708032 +-10% 018-010476-000 1
LAL03TB470K/AL0305-470K
WIRES
WH851 *CdF HSG CD170-2A JST PHR 2mm w/110mm 136-020170-200 1
BLK,RED JP WIRE AWG28#1095 SLDG.5mm
WH853 HSG (2mm) JST PHR-03 w/90mm RED,BLK,WHT 136-F00309-000 1
AWG28#UL1571 SLDG.5mm
MISCELLANEOUS COOLING FAN DC9V 0.14A DC BRUSHLESS 100-090009-000 1
#5010H12S NF1 50x50x10mm
WH853 HEADER 3 PINS PEC #2001-WS-3 PITCH 2mm 135-2001WS-030 1
VERTICAL REPLACE:135-PHS030-030
Ref. No. Description Mfr's Part No. Qty.
FRONT PANEL SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R376 *CdF RESISTOR 1 Kohm 001-010251-016 1
R370,372,374,377 RESISTOR 1.2 Kohm 001-012251-016 4
R354 *CdF RESISTOR 1.5K 001-015251-016 1
R373 *CdF RESISTOR 220 ohm 001-022151-016 1
R353 *CdF RESISTOR 22 Kohm 001-022351-016 1
R355,356 *CdF RESISTOR 3.3 Kohm 001-033251-016 2
R358 RESISTOR 43 Kohm 001-043351-016 1
R352 *CdF RESISTOR 4.7 Kohm 001-047251-016 1
R351 *CdF RESISTOR 47 Kohm 001-047351-016 1
R357 RESISTOR 5.6 Kohm 001-056251-016 1
R822,824 *CdF RESISTOR 10 ohm 001-010051-016 2
R811,828,906 *CdF RESISTOR 1 Kohm 001-010251-016 3
R805,807,808,812,814,817, *CdF RESISTOR 10 Kohm 001-010351-016 12
818,830,843,847,848,849
R820 *CdF RESISTOR 100 Kohm 001-010451-016 1
R802,815,845 *CdF RESISTOR 220 ohm 001-022151-016 3
R803,813,831 *CdF RESISTOR 22 Kohm 001-022351-016 3
R836,837 RESISTOR 2.7 Kohm +-5% 1/4W 001-027250-014 2
R806,821,823 *CdF RESISTOR 33 ohm 001-033051-016 3
R829 *CdF RESISTOR 3.3 Kohm 001-033251-016 1
R804,816 *CdF RESISTOR 470 ohm 001-047151-016 2
R801,819,846,850,851 *CdF RESISTOR 4.7 Kohm 001-047251-016 5
R809 RESISTOR 5.6 Kohm 001-056251-016 1
R810 RESISTOR 680 ohm 001-068151-016 1
CAPACITORS
LED302,304,306,307 (F003-010380-025) CERAMIC CAP 0.01 uF/ 003-010380-050 4
50V +80%-20%
C310 ELECT CAP 47 MFD/10V +-20% (SMALL SIZE) (5x7) 006-147000-10D 1
SWITCHES
SW301,302,303,304,305, *CdF TACT SWITCH 4P 4.3mm 100G #1102-4 021-110200-001 7
306,307 (=021-008300-000)
C805,806,807,808,818,821, CERAMIC CAP 0.02 uF/50V +80%-20% 003-020380-050 12
829,831,833,835,837,845
C827,840,843,844,848,850, ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 7
860
C817,836 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 2
C813,865 ELECT CAP 100 MFD/35V +-20% (8x11.5) 006-010100-35D 2
C855 ELECT CAP 1000 MFD/10V +-20% (10x16) 006-010200-10D 1
C820,832,839 ELECT CAP 220 MFD/16V +-20% (8x11.5) 006-022100-16D 3
C834 ELECT CAP 220 MFD/25V +-20% (8x11.5) 006-022100-25D 1
C830 ELECT CAP 2200 MFD/10V +-20% (VX/12.5x20) 006-022200-10C 1
C809,825 ELECT CAP 2200 MFD/16V +-20% (12.5x25) 006-022200-16D 2
C811 ELECT CAP 3300 MFD/25V +-20% (16x31.5) 006-033200-25D 1
C841 ELECT CAP 3300 MFD/50V +-20% (20x40) 006-033200-50D 1
C819,847 *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 2
C828,838,846,849 ELECT CAP 470 MFD/10V +-20% (8x11.5) 006-047100-10D 4
TRANSISTORS
Q806,814 TRANSISTOR B1566E (LIGHTNING) 008-201566-100 2
Q807,815 TRLPNPSST-TAP&TO-092 3CG1015 008-610150-000 2
Q801,805,813 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 3
Q808 TRLNPNPWR-TAP&TO-092 3DA8050 008-680500-000 1
Q809 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 1

13 14
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
Ref. No. Description Mfr's Part No. Qty.
Q804,810 TR PNPGEN-TAP&SC-072 DTA123ESA (ROHM) 008-800123-003 2
(88-WA2-662-08)
Q802,803,811 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 3
INTEGRATED CIRCUITS
IC801 (F010-207805-001) TR &&&VOL-REG&TO-092 008-V07805-000 1
LM78L05ACZ 5V VOLTAGE REGULATOR
IC802,803 ICREGULA-P-005V001A BA05ST (ROHM) 010-400005-002 2
DIODES
D810,811,815,816,817,818, DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 10
821,822,823,831 KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
DZ807 ZENER DIODE 6.2V #MTZJ6.2C 011-010062-005 1
DZ803,804,806 ZENER DIODE 10V #MTZJ10D 1/2W (ROHM) 011-010100-122 3
D801 BRIDGE RECTIFIER RS201 SINGLE PHASE 011-020201-000 1
2.0 AMP/RS201(DC)
D825 BRIDGE RECTIFIER RS602(GOODWORK)/ 011-020602-001 1
RS602(DC)
D809,819,820,824,832 RECTIFIER IN-4001B/IN-4001(DC) 011-024001-000 5
D805,806,807,808 RECTIFIER IN5822/IN5822(DC) 011-025822-000 4
INDUCTORS
L801,802,803,804 INDUCTOR 3.3 uH WIRE:D=0.6mm +-20% 018-010337-300 4
(R0002-CW68-3R3M-852243)/+-10%(RL6080-3R3K)
L805 INDUCTOR 47 uH CEC-470K/708032 +-10% 018-010476-000 1
LAL03TB470K/AL0305-470K
WIRES
WH810 HSG CD868-4A(C) PEC 2001H-4 w/70mm 136-040868-B00 1
RED,BLK,WHT,YEL AWG26#UL1007 SLDG.5mm
WH301 HSG CD189-55-6B(C)PEC 2001H-6 w/180mm 136-060189-B01 1
R,BK,BL,W,O,Y AWG30#UL1571 SL.3mm (CdF)
WH859 HSG 2CD9-5A (REV) JST-PHR 5PIN TO 5PIN 136-057238-201 1
JST-SAN w/80mm W,BKx4 JP WIRE AWG30#1571
WH807 HSG (2.5mm) PEC 2507H-08 TO PEC 2501H-08 136-J10826-000 1
w/260mm BLUE,GREYx7 AWG26#UL1007
WH801 HSG (2.5mm) PEC 2507H-09 TO 2501H-09 136-J10922-000 1
w/220mm RED,GREYx8 AWG24#UL1007
MISCELLANEOUS
LED308 LED-B-3MM&-S-&&&-&&& W03317BSW-W13mm 110-033172-003 1
BLUE SUPER BRIGHT (MILKY)
LED302,304,306,307 LED-B-2x5&-S-&&&-&&& W25319BSC-BKL 2x5mm 110-253192-205 4
SUPER BRIGHT BLUE (WAITRONY)
SR301 REMOTE CONTROL PHOTO RECEIVER 111-007138-001 1
RPM7138 (ROHM)
LCD-P-08D-8716SM040P 87x16x2.7mm 112-003061-000 1
JT4-03061/SDT-DA275-TP-1 TRANS./POSITIVE
PT1.5WEI28/12&F&WVDE 230V:12.8V 123-053531-100 1
w/FUSE 115°C (P2812-A15E)
PT090WEI66/62&G&WVDE 230V:29V/8V/13V/ 123-E53521-400 1
23V w/FUSE 130°C (L6662-P04E)
FS801 MICRO FUSE #251.630 630mA/125V WFF-215.630 124-006310-000 1
FS802,803 *CdF FUSE #218002 2A/250V 5x20mm 124-020020-001 2
TIME LAG (CUL/VDE/SEMKO/BSI/CCC/JIS/KOR)
FS804 FUSE #21806.3 6.3A/250V 5x20mm TIME LAG 124-063020-001 1
(CUL/SEMKO/VDE/BSI/CCC/JIS/KOR)
PLA-ULN-7'05"-VDE-MG VDE APP. CORD 134-B11331-006 1
2250mm w/CUSHION MIGRATION (HARVEST)
Ref. No. Description Mfr's Part No. Qty.
RL801 RELAY 9V SDT-S-109LMR 128-090109-000 1
CN803 HEADER 2 PINS #TJ6-2A PITCH:3.96mm 135-000TJ6-020 1
VERTICAL 1.14mm AQURE PIN
CN802 PIN HEADER 2 PINS TJC6-02P3 PITCH:7.92mm 135-00TJC6-020 1
VERTICAL 1.14mm SQUARE PIN
WH802 HEADER 6 PINS PEC #2507-WS-6 PITCH 2.5mm 135-2507WS-060 1
VERTICAL REPLACE:135-005267-060
WH805 HEADER 8 PINS PEC #2507-WS-8 PITCH 2.5mm 135-2507WS-080 1
VERTICAL REPLACE:135-005267-080
WH809 HEADER CTL 2 PINS PHS-02 P:2mm STRAIGHT 135-PHS020-020 1
TYPE WHT COLOR (MARKING:HR) (CdF)
WH808 HEADER CTL 5 PINS PHS-05 PITCH 2mm 135-PHS050-050 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
MPEG+SERVO SECTION
RESISTORS
R2,3,26,27,36,44,67,176, CHIP RESISTOR 0 ohm +-5% 1/16W (0603/1608) 001-300052-016 21
178,187, RT204,209,210,
212,213,214,215, FB21,23,
25,26
R166,167 CHIP RESISTOR 10 ohm +-5% 1/10W 001-310050-010 2
(0805/2012) (MCR10EZHJ-100)
R78,149,155 CHIP RESISTOR 10 ohm +-5% 1/16W (0603/1608) 001-310052-016 3
R10,47,48,151,154,197 CHIP RESISTOR 1 Kohm +-5% 1/16W (0603/1608) 001-310252-016 6
R150,153,168 CHIP RESISTOR 10 Kohm +-1% 1/16W (0603/1608) 001-310312-016 3
R16,49,131,174,192,195 CHIP RESISTOR 10 Kohm +-5% 1/16W (0603/1608) 001-310352-016 6
R116,128,130,198 CHIP RESISTOR 100 Kohm +-5% 1/16W (0603/1608) 001-310452-016 4
R28,179,189 CHIP RESISTOR 1 Mohm +-5% 1/16W (0603/1608) 001-310552-016 3
R6,7,8,9 CHIP RESISTOR 1 ohm +-5% 1/16W (0603/1608) 001-310852-016 4
R29,30,69,157 CHIP RESISTOR 11 Kohm +-5% 1/16W (0603/1608) 001-311352-016 4
R135 CHIP RESISTOR 12 Kohm +-1% 1/16W (0603/1608) 001-312312-016 1
R72,84,95,106,117 CHIP RESISTOR 12 Kohm +-5% 1/16W (0603/1608) 001-312352-016 5
R140,141,142 CHIP RESISTOR 1.3 Kohm +-5% 1/16W (0603/1608) 001-313252-016 3
R139,143 CHIP RESISTOR 13 Kohm +-1% 1/16W 001-313312-016 2
R191,194 CHIP RESISTOR 1.5 Kohm +-5% 1/16W (0603/1608) 001-315252-016 2
R56,59 CHIP RESISTOR 180 ohm +-5% 1/16W (0603/1608) 001-318152-016 2
R146 CHIP RESISTOR 1.8 Mohm +-5% 1/16W (0603/1608) 001-318552-016 1
R74,86,98,108,119,133,170 CHIP RESISTOR 2 Kohm +-5% 1/16W (0603/1608) 001-320252-016 7
R57,58 CHIP RESISTOR 20 Kohm +-5% 1/16W (0603/1608) 001-320352-016 2
R62,63,71,83,94,102,111, CHIP RESISTOR 220 ohm +-5% 1/16W (0603/1608) 001-322152-016 8
125
R68 CHIP RESISTOR 2.2 Kohm +-5% 1/16W (0603/1608) 001-322252-016 1
R61,190,193 CHIP RESISTOR 22 Kohm +-5% 1/16W (0603/1608) 001-322352-016 3
R199 CHIP RESISTOR 2.4 Kohm +-5% 1/16W (0603/1608) 001-324252-016 1
R147 CHIP RESISTOR 27 Kohm +-1% 1/16W (0603/1608) 001-327312-016 1
R52,54 CHIP RESISTOR 27 Kohm +-5% 1/16W (0603/1608) 001-327352-016 2
R70,82,88,101,110 CHIP RESISTOR 30 Kohm +-5% 1/16W (0603/1608) 001-330352-016 5
R33,34,35,55,180,181,182, CHIP RESISTOR 33 ohm +-5% 1/16W (0603/1608) 001-333052-016 11
183,184,185,188
R64,134 CHIP RESISTOR 330 ohm +-5% 1/16W (0603/1608) 001-333152-016 2
R73,85,96,107,118,132 CHIP RESISTOR 3.3 Kohm +-5% 1/16W (0603/1608) 001-333252-016 6
R123 CHIP RESISTOR 33 Kohm +-5% 1/16W (0603/1608) 001-333352-016 1
R15 CHIP RESISTOR 392 ohm +-1% 1/16W (0603/1608) 001-339112-016 1
R144,148 CHIP RESISTOR 470 ohm +-1% 1/16W (0603/1608) 001-347112-016 2
R1,65 CHIP RESISTOR 470 ohm +-5% 1/16W (0603/1608) 001-347152-016 2

15 16
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
Ref. No. Description Mfr's Part No. Qty.
R21,24,38,39,40,43,45,46, CHIP RESISTOR 4.7 Kohm +-5% 1/16W (0603/1608) 001-347252-016 22
136,137,138,145,152,156,
160,161,162,163,165,169,
177,178
R51 CHIP RESISTOR 470 Kohm +-5% 1/16W (0603/1608) 001-347452-016 1
R23,60 CHIP RESISTOR 51 Kohm +-5% 1/16W (0603/1608) 001-351352-016 2
R158,159,164,171,173,175 CHIP RESISTOR 5.6 Kohm +-5% 1/16W (0603/1608) 001-356252-016 6
R50 CHIP RESISTOR 68 ohm +-5% 1/16W 001-368052-016 1
(0603/1608) (TSB#G5101100Y101)
R31,32 CHIP RESISTOR 6.8 Kohm +-5% 1/16W (0603/1608) 001-368252-016 2
R17,18,19,20 CHIP RESISTOR 75 ohm +-1% 1/16W 001-375012-016 4
(0603/1608) (TSB#G5101104G105)
R66 CHIP RESISTOR 91 ohm +-5% 1/16W (0603/1608) 001-391052-016 1
CAPACITORS
C20,21,41,42,43,55,56,154 CHIP CAP 0.001 uF/25V +-10% (0603/1608) 003-510212-025 8
(GRM39B102K50) (MURATA)
C18,19,35,36,37,38,40,53, CHIP CAP 0.01 uF/25V +-10% (0603/1608) 003-510312-025 13
60,61,107,110,111 (MCH185C103KK/GRM39X7R103K25PT)
C1,4,5,6,7,9,10,14,15,16,17, CHIP CAP 0.1 uF/16V +-10% (0603/1608) 003-510412-016 81
16,17,22,23,24,25,26,27,28, (87-A10-260-08G) (C1608JB1C104K) (TDK)
29,30,31,34,39,46,47,48,49,
50,51,52,57,58,59,62,64,65,
66,67,68,70,74,75,76,77,78,
79,83,81,85,87,93,94,95,96,
97,98,99,100,104,105,108,
112,116,118,125,130,163,
164,172,173,175,177,189,
190,191,192,193,194,196,
197,198
C91,103,109,115,122,129, CHIP CAP 0.0022 uF/50V +-10% (0603/1608) 003-522212-050 10
157,158,159,161 (UMK107B222KZ-TM)
C44,45 CHIP CAP 0.027 uF/25V +-10% (0603/1608) 003-527312-025 2
C127,146,170 CHIP CAP 0.033 uF/25V +-10% (0603/1608) 003-533312-025 3
C2 CHIP CAP 0.33 uF/10V +-10% (0603/1608) 003-533412-010 1
C145,147,148,150,151,152, CHIP CAP 0.0047 uF/50V +-10% (0603/1608) 003-547212-050 7
153
C165,166,167 CHIP CAP 0.0056 uF/50V +-10% (0603/1608) 003-556212-050 3
C169 CHIP CAP 0.0068 uF/50V +-10% (0603/1608) 003-568212-050 1
C63,86 (F003-610112-050) CHIP CAP 100 pF/50V 003-610152-050 2
+-5% NPO (0603/1608)
C131,132,133,134 CHIP CAP 11 pF/50V +-5% NPO (0603/1608) 003-611052-050 4
(MCH185A110JK)
C88,101,106,113,119,135, CHIP CAP 150 pF/50V +-5% NPO (0603/1608) 003-615152-050 9
137,139,141 (GRM39COG151J50PT/MCH185A151JK)
C136,138,140,142 CHIP CAP 160 pF/50V +-5% NPO (0603/1608) 003-616152-050 4
(MCH185A161JK)
C13,171,180,187 CHIP CAP 220 pF/50V +-5% NPO (0603/1608) 003-622152-050 4
(UMK107CH221JZ-T)
C11,12 CHIP CAP 24 pF/50V +-5% NPO (0603/1608) 003-624052-050 2
C162 CHIP CAP 33 pF/50V +-5% NPO (0603/1608) 003-633052-050 1
(GRM39COG330J50PT/MCH185A330JK)
C160 CHIP CAP 470 pF/50V +-5% NPO (0603/1608) 003-647152-050 1
C168 CHIP CAP 560 pF/50V +-5% NPO (0603/1608) 003-656152-050 1
CE23,25 ELECT CAP 0.47 MFD/50V +-20% (5x11) 006-000400-50D 2
Ref. No. Description Mfr's Part No. Qty.
CE9,22,24,26,27,28,29,30, ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 15
31,32,33,34,35,36,37
CE7,8,19,42,43,45,46,56,58 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 9
CE3,4,6,44,47,52,53,54,55, ELECT CAP 22 MFD/25V +-20% (5x11) 006-022000-25D 12
60,64,65
CE20 ELECT CAP 220 MFD/16V +-20% (6.3x11) 006-022101-16D 1
(SA16V221M)
CE10,11,12,13,14,21,48,50, *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 15
51,57,59,61,62,63,66
CE1,2 ELECT CAP 470 MFD/10V +-20% (8x11.5) 006-047100-10D 2
CE18 ELECT CAP 100 MFD/6.3V +-20% (SMALL SIZE) (5x7) 006-210100-06D 1
TRANSISTORS
Q17 TR PNP&&&-TAP&8Q-ST8 TSMT6 QST8 008-A00006-000 1
LOW FREQ AMP
Q1,2,3,5,6,7,11,12,16 (F008-039040-000) CHIP TRANSISTOR MMBT3904 008-A03904-000 9
Q8,15 (F008-039060-000) CHIP TRANSISTOR MMBT3906 008-A03906-000 2
CRYSTAL
Y1 CRYSTAL 27MHZ +-30ppm ALCCJBJ/HC-49/U 009-627000-007 1
INTEGRATED CIRCUITS
U10 ICSPECIAL WM8772EDS (28 PIN SSOP) 010-038772-000 1
U15 ICMOTORDRIVER-04CH BA5983FM (ROHM) 010-405983-000 1
U19 ICREGULA-P-&&&V&&&A LD1117S/LM117MPX-ADJ 010-721117-000 1
RT9164CG(SOT-223)(ST/NATIONAL/RICHTEK)
U17,18 ICREGULA-P-3.3V LD1117S33C/LM1117MPX-3.3/ 010-721117-001 2
MP-3.3/RT9164-33CG (ST/NATIONAL/RICHTEK)
U11,12,13 ICAMP-OP-02CH-DUALV LS4580F (SOP-8) 010-734580-000 3
U1 ICAMP-OP-&&CH-SINGV TL3472CD/R 010-823472-000 1
U9 ICLOGIC TC74HCU04AF-EL HEX INVERTER 010-847404-001 1
(TSB#G51451014108)
U14 ICSPECIAL ZR36707TQC 010-893670-003 1
U2 ICMPEG ZR36768PQC 010-893676-000 1
DIODES
D1,2,3,4 RECTIFIER IN-4001B/IN-4001(DC) 011-024001-000 4
D7,8,11,12,13,14,15,16,17, CHIP DIODE (SMT) DL4148(DC)/LS4148(KT) 011-044148-002 10
18
INDUCTORS
L2,3,4,5 CHIP COIL 1.1 uH +-10% SDFL1608Q1R1KT/ 018-040117-200 4
ZHFCI1608B1R1KT (0603/1608) (TAPE & REEL)
L1 C.COIL 2.7 uH +-10% TAPE&REEL LK2125 2R7K-T/ 018-040277-001 1
CI201209-2R7K/SDFL2012Q2R7KT
FB30,33 CHIP FERRITE BEAD #SZ1005K750T 032-101005-000 2
@100MHZ (1005) (SUNLORD)
FB1,2,3,4,5,6,7,8,9,10,11, CHIP FERRITE BEAD GZ1608Y102T (0603/1608) 032-101608-015 16
12,13,14,16,17 (SUNLORD)
FB15,18,19,22,27,28,29,31, CHIP FERRITE BEAD PZ2012U601-1R5T 032-102012-002 19
32,36,38,39,40,41,42,44,45, (0805/2012) (SUNLORD)
46,47
INTEGRATED CIRCUITS
U5 ICRAMF-01X008M 8M BIT(512Kx16) FLASH RAM 045-F01008-202 1
SST39VF800A-70-4C-EK (0.25u)
U3,4 ICRAMS-01x016M W981616BH-7 045-Q01016-205 2
MISCELLANEOUS
J3 *CdF HEADER MOLEX 6 PINS 5267-06A 135-005267-060 1
PITCH 2.5mm STRAIGHT TYPE

17 18
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
Ref. No. Description Mfr's Part No. Qty.
J5 FFC CONNECTOR 24 PINS PITCH:1mm 135-009615-240 1
9615S-24A-PP-A/D100-SSA-24/S10024V VERT.
J1 FFC CONNECTOR 24 PINS PITCH:1mm LG BRAND 135-0GF106-240 1
GF106-24S-LS/9615S-24C-PP HORIZONTAL
J9 HEADER 9 PINS PEC #2507-WS-9 PITCH 2.5mm 135-2507WS-090 1
VERTICAL REPLACE:135-005267-090
J4 *CdF HEADER CTL 6 PINS PHS-06 PITCH 2mm 135-PHS060-060 1
STRAIGHT TYPE WHT COLOR (MARKING:HR)
RDS SECTION
RESISTORS
R458 CHIP RESISTOR 1 Kohm +-5% 1/16W (0603/1608) 001-310252-016 1
R472 CHIP RESISTOR 18 Kohm +-5% 1/16W (0603/1608) 001-318352-016 1
R454,456 CHIP RESISTOR 2.2 Kohm +-5% 1/16W (0603/1608) 001-322252-016 2
R457 CHIP RESISTOR 330 Kohm +-5% 1/16W (0603/1608) 001-333452-016 1
R455 CHIP RESISTOR 470 Kohm +-5% 1/16W (0603/1608) 001-347452-016 1
R453 CHIP RESISTOR 560 ohm +-5% 1/16W (0603/1608) 001-356152-016 1
CAPACITORS
C459 CHIP CAP 0.1 uF/16V +-10% (0603/1608) 003-510412-016 1
(87-A10-260-08G) (C1608JB1C104K) (TDK)
C454 CHIP CAP 0.0022 uF/50V +-10% (0603/1608) 003-522212-050 1
(UMK107B222KZ-TM)
C452,453 CHIP CAP 0.022 uF/25V +-10% (0603/1608) 003-522312-025 2
(MCH182C223KK/GRM39X7R223K25PT)
C456 CHIP CAP 0.047 uF/25V +-10% (0603/1608) 003-547312-025 1
C460 CHIP CAP 560 pF/50V +-10% (0603/1608) 003-556112-050 1
C457,458 CHIP CAP 33 pF/50V +-5% NPO (0603/1608) 003-633052-050 2
(GRM39COG330J50PT/MCH185A330JK)
C461 ELECT CAP 2.2 MFD/50V +-20% (5x11) 006-002000-50D 1
C451 ELECT CAP 100 MFD/10V +-20% (5x11) 006-010100-10D 1
TRANSISTORS
Q412,413 TR NPNSST-RAD&SC-059 2SC2712GR 008-A02712-000 2
(CHIP) (89-327-125-08)
CRYSTAL
CX402 CRYSTAL 4.332 MHz CSA309 CL=16pF CITIZEN 009-604332-000 1
(87-A70-091-01G)
INTEGRATED CIRCUITS
IC403 ICRDS DECODER BU1924F (ROHM) 010-351924-000 1
DIODE
DZ402 ZENER IN-5231B, HZ5C1, 5.1V, 1/2W 011-010051-120 1
INDUCTOR
L402 *CdF INDUCTOR 100 uH /1128/CEC-101K 018-010014-000 1
+-10% LAL03 TB 101K
SCART SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R715 *CdF RESISTOR 100 ohm 001-010151-016 1
R717,718,720 *CdF RESISTOR 10 Kohm 001-010351-016 3
R702,703 *CdF RESISTOR 12 Kohm 001-012351-016 2
R701,706,722 RESISTOR 2.7 Kohm 001-027251-016 3
R721 *CdF RESISTOR 3.3 Kohm 001-033251-016 1
R708,709 *CdF RESISTOR 33 Kohm 001-033351-016 2
R710,711,712,707,719 *CdF RESISTOR 4.7 Kohm 001-047251-016 5
CAPACITORS
C701,702 ELECT CAP 0.22 MFD/50V +-20% (VX/5x11) 006-000200-50C 2
C703,704 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 2
Ref. No. Description Mfr's Part No. Qty.
C711,712 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 2
TRANSISTORS
Q701,702,708,709 TR NPNGEN-BUL&TO-092 3DG9014 (9014) 008-609014-000 4
INDUCTORS
FB701,702,703,704,705, FERRITE BEAD INDUCTOR #PI0243NL R6H 5x3.6 032-100243-000 7
706,707
WIRE FFC CABLE 22 PINS L=158mm 4+150+4 P:1mm 040-220158-100 1
UL2896 0.035x0.7
MISCELLANEOUS
WH702, J11 FFC CONN 6232 22 PINS w/o LOCK PITCH:1mm 135-006232-220 2
00 6232 022 006 800 VERTICAL TYPE
JK701 RGB CONNECTOR SOCKET 21 PINS 135-HRC021-210 1
HRC-021V-07(KUNMING)/MRC-021V-04(HONDA)
DVD MECHANISM - (STSD-010SMT)
SWITCH LEAF SWITCH LS-121-0A (LUP FUNG) 022-001210-001 1
WIRES HSG (2mm) JST PHR-05 TO PHR-05 w/258mm BR, 136-F00525-800 1
RED,ORN,YEL,GN AWG28#UL1095
HSG (2mm) JST PHR-06 TO PHR-06 w/188mm BR, 136-F00618-800 1
RED,ORN,YEL,GN,BL AWG28#UL1095
CONN PIN 3 PINS (3.5+58+3.5) PITCH 2mm 050-030065-200 1
UL AWG26#2651
MISCELLANEOUS DVD-FLC-01-SAMG-N DVD MECHANISM 163-000216-000 1
FOR CD-R CMS-S21MG6 (SAMSUNG)
CN1 (F135-2001WR-051) HEADER 5 PINS 135-2001WR-050 1
#A2001WR2-05/2001-WR-5 P:2mm HORIZONTAL
MOTOR-DC-006V-NORMAL 6V #RF-500TB-12560 151-061256-002 1
(MABUCHI) 10gm (VA TYPE MOTOR)
TUNER SECTION
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R531,532,610 *CdF RESISTOR 1 Kohm 001-010251-016 3
R523,524,533,534,541,690, *CdF RESISTOR 10 Kohm 001-010351-016 7
695
R646,647 *CdF RESISTOR 150 ohm 001-015151-016 2
R539 *CdF RESISTOR 15 Kohm 001-015351-016 1
R535,536 RESISTOR 2 Kohm 001-020251-016 2
R517,518 *CdF RESISTOR 2.2 Kohm 001-022251-016 2
R519,520,658,659 *CdF RESISTOR 22 Kohm 001-022351-016 4
R525,526 RESISTOR 220 Kohm 001-022451-016 2
R527,528 *CdF RESISTOR 3.3 Kohm 001-033251-016 2
R907,908 *CdF RESISTOR 33 Kohm 001-033351-016 2
R529,530 *CdF RESISTOR 4.7 Kohm 001-047251-016 2
R538,560,563 *CdF RESISTOR 47 Kohm 001-047351-016 3
R537,540 RESISTOR 68K 001-068351-016 2
JP403,404,405,406,407, CHIP RESISTOR 0 ohm +-5% 1/16W (0603/1608) 001-300052-016 10
408,409,421,423,425
R415,430,431 CHIP RESISTOR 100 ohm +-5% 1/16W (0603/1608) 001-310152-016 3
R401,410,443,444,445,459, CHIP RESISTOR 1 Kohm +-5% 1/16W (0603/1608) 001-310252-016 7
465
R451,461,409 CHIP RESISTOR 10 Kohm +-5% 1/16W (0603/1608) 001-310352-016 3
R402,403,435,448 CHIP RESISTOR 100 Kohm +-5% 1/16W (0603/1608) 001-310452-016 4

19 20
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
Ref. No. Description Mfr's Part No. Qty.
R420 CHIP RESISTOR 12 Kohm +-5% 1/16W (0603/1608) 001-312352-016 1
R467 CHIP RESISTOR 15 ohm +-5% 1/16W (0603/1608) 001-315052-016 1
R426,427 CHIP RESISTOR 1.5 Kohm +-5% 1/16W 001-315252-016 2
R421,442 CHIP RESISTOR 18 Kohm +-5% 1/16W (0603/1608) 001-318352-016 2
R406,416 CHIP RESISTOR 220 ohm +-5% 1/16W (0603/1608) 001-322152-016 2
R405,422,438 CHIP RESISTOR 2.2 Kohm +-5% 1/16W (0603/1608) 001-322252-016 3
R413,417,423 CHIP RESISTOR 22 Kohm +-5% 1/16W (0603/1608) 001-322352-016 3
R418 CHIP RESISTOR 2.7 Kohm +-5% 1/16W (0603/1608) 001-327252-016 1
R411,419,424,425,452 CHIP RESISTOR 3.3 Kohm +-5% 1/16W (0603/1608) 001-333252-016 5
R404,407 CHIP RESISTOR 47 ohm +-5% 1/16W (0603/1608) 001-347052-016 2
R408 CHIP RESISTOR 470 ohm +-5% 1/16W (0603/1608) 001-347152-016 1
R436,447 CHIP RESISTOR 4.7 Kohm +-5% 1/16W (0603/1608) 001-347252-016 2
R446 CHIP RESISTOR 47 Kohm +-5% 1/16W 001-347352-016 1
(0603/1608) (MCR03EZHJ-473)
R414 CHIP RESISTOR 56 ohm +-5% 1/16W (0603/1608) 001-356052-016 1
R437 CHIP RESISTOR 560 ohm +-5% 1/16W (0603/1608) 001-356152-016 1
R428,429,460 CHIP RESISTOR 5.6 Kohm +-5% 1/16W (0603/1608) 001-356252-016 3
R412 CHIP RESISTOR 680 ohm +-5% 1/16W (0603/1608) 001-368152-016 1
R466 CHIP RESISTOR 8.2 Kohm +-5% 1/16W (0603/1608) 001-382252-016 1
CAPACITORS
C511,512 CERAMIC CAP 100 pF/50V +-10% 003-010110-050 2
C421 CHIP CAP 0.001 uF/50V +-10% (0603/1608) 003-510212-050 1
(MCH185C102KK/GRM39X7R102K50PT)
C403,404,409,410,415 CHIP CAP 0.01 uF/50V +-10% (0603/1608) 003-510312-050 5
(GRM39B103K50PT)
C418,427,436 CHIP CAP 0.1 uF/16V +-10% (0603/1608) 003-510412-016 3
(87-A10-260-08G) (C1608JB1C104K) (TDK)
C422,428,429,432,433 CHIP CAP 0.015 pF/50V +-10% (0603/1608) 003-515312-050 5
C438 CHIP CAP 0.0022 uF/50V +-10% (0603/1608) 003-522212-050 1
(UMK107B222KZ-TM)
C402,405,411,414,439,441, CHIP CAP 0.022 uF/50V +-10% (0603/1608) 003-522312-050 8
444,466
C473,476 CHIP CAP 0.0047 uF/50V +-10% (0603/1608) 003-547212-050 2
C406 CHIP CAP 0.047 uF/25V +-10% (0603/1608) 003-547312-025 1
C423 CHIP CAP 0.47 uF/10V +-10% (0603/1608) 003-547412-010 1
(LMK107BL474KA-T)
C424 (F003-556382-016) CHIP CAP 0.056 uF/16V 003-556312-016 1
+-10 (0603/1608)
C420,448,449 (F003-610112-050) CHIP CAP 100 pF/50V 003-610152-050 3
+-5% NPO (0603/1608)
C413 CHIP CAP 15 pF/50V +-5% NPO (0603/1608) 003-615052-050 1
(UMK107CH150JZ-TM)
C446,447 CHIP CAP 24 pF/50V +-5% NPO (0603/1608) 003-624052-050 2
C475 (F003-527012-050) CHIP CAP 27 pF/50V 003-627052-050 1
+-5% NPO (0603/1608) (UMK107CH270JZ-TM)
C523,524 #MYLAR CAP 0.033 uF/100V +-5% 004-033350-100 2
C412 POLY CAP 350 pF/100V +-5% (RADIAL TYPE) 005-035100-100 1
(1A351J/MILOSONIC) (PSR351J/HONJU)
C425 *CdF ELECT CAP 0.47 MFD/50V +-20% (VX/5x11) 006-000400-50C 1
C426 *CdF ELECT CAP 1 MFD/50V +-20% (VX/5x11) 006-001000-50C 1
C467,468,505,506,521,522 ELECT CAP 0.47 MFD/50V +-20% (5x11) 006-000400-50D 6
C417,430,431,517,518,867, ELECT CAP 1 MFD/50V +-20% (5x11) 006-001000-50D 13
868,869,870,871,872,873,
874
Ref. No. Description Mfr's Part No. Qty.
C875,876 ELECT CAP 2.2 MFD/50V +-20% (5x11) 006-002000-50D 2
C513,514,515,516,525 ELECT CAP 4.7 MFD/50V +-20% (5x11) 006-004000-50D 5
C435,645 ELECT CAP 10 MFD/50V +-20% (5x11) 006-010000-50D 2
C437,465,654,655 ELECT CAP 100 MFD/16V +-20% (5x11) 006-010100-16D 4
C419 ELECT CAP 22 MFD/25V +-20% (5x11) 006-022000-25D 1
C416,442,470 ELECT CAP 220 MFD/10V +-20% (6.3x11) 006-022100-10D 3
C471 ELECT CAP 330 MFD/25V +-20% (10x12) 006-033100-25D 1
C408,649 *CdF ELECT CAP 47 MFD/16V +-20% (5x11) 006-047000-16D 2
TC401 TRIMMER CAP CVN610 3-10pF WHITE 007-200610-000 1
(6x6x5mm) (JIN MYOUNG) (CdF)
TRANSISTORS
Q501,502 TRLNPNSST-TAP&TO-092 3DG1815 008-618150-000 2
Q604 TRLPNPPWR-TAP&TO-092 3CA8550 008-685500-000 1
Q605 TR NPNSST-RAD&SC-072 DTC114ES (ROHM) 008-801141-000 1
Q402 CHIP NJFET SST201/SST201B-T1 (SILICONIX) 008-A00201-010 1
TAPE & WHEEL 2SK208Y TOSHIBA
Q409,410 TR PNPPWR-RAD&SC-059 2SA1036K (CHIP) 008-A01036-000 2
Q403,404,405,411 TR NPNSST-RAD&SC-059 2SC2712GR 008-A02712-000 4
(CHIP) (89-327-125-08)
CRYSTAL
CX401 CRYSTAL 7.2 MHz HC-49/U/ALCCCAK 009-607200-000 1
INTEGRATED CIRCUITS
IC606 ICANALOGSWT-4P2T BU4551BF QUAD 2 CHANNEL 010-354551-000 1
ANALOG MULTIPLEXER/DEMULTIPLEXERS
IC506 ICAMP-OP-02CH-DUALV LS4558N 010-404558-003 1
IC401 ICRDS TA2099N (TOSHIBA) (87-A21-173-01) 010-832099-000 1
IC402 ICPLL TC9257F 010-849257-000 1
DIODES
VD401,402 VARI CAP DIODE 2CC149 011-000149-001 2
D401,402,403,404 DIODE IN-4148 ROHM/TELEFUNKEN TAP**50 011-004148-000 4
KEL(NS)(TAP:52mm)/NS(FAIRCHILD)/SEMTECH
INDUCTORS
T408,409 IFT 7PF038C 7.8mm BLACK =012-000022-078 012-000038-078 2
T405 IFT 7M4A1772R 7.5mm YELLOW =012-001720-075 012-001772-075 1
T403 IFT 7M1A1959R 7.5mm RED =012-001905-075 012-001959-075 1
T401 IFT 7M1A1961R 7.5mm BLACK =012-001950-075 012-001961-075 1
L401,403 *CdF INDUCTOR 100 uH /1128/CEC-101K 018-010014-000 2
+-10% LAL03 TB 101K
FILTERS
CF401,402 CERAMIC FILTER SFE10.7MS3-A 019-000107-006 2
CF404 CERAMIC FILTER CDA10.7MG82-A 019-000107-028 1
CF403 (F019-000450-002) CERAMIC FILTER LTU450G2 019-000450-012 1
MISCELLANEOUS TUNER-FM&&&00STATION FM FRONT END TUNER 042-103010-000 1
PET-3010F/H (EU) (TAE BONG)
JACK COAXIAL JACK HTR-401V 118-030401-000 1
JK401 HEADER MOLEX 2 PINS 5268-02A PITCH 2.5mm 135-005268-020 1
HORIZONTAL TYPE
PIN HEADER 13 PINS S40R20 PITCH:2mm 135-S40R20-130 1
SINGLE ROW RIGHT ANGLE
CENTER SPEAKER SECTION - (SSQCE1)
WIRE SPK WIRE UL/CSA 2468 2x22AWG (17/0.16mm) 122-002120-407 1
TRANS. w/BK LINE 4M w/TUBE 1xYEL,BLK

LOADMOTORPCB
STS21AAST-01-09
KEYPCB
STS71AAST-01-02
LEDPCB
STS71AAST-01-03
REGULATORPCB
STS71AAST-01-04
NOTES:
PCBPartNo.:ofthismodelareassembledandalignedinandaresuppliedin
forserving.
033-STS71A-300FULLSET
FULLSET
BLANKPCB
STS71AAST-01-06
NOTES:
1. “ # “ Mylar is a registered trademark of E.I. Du Pont de Nemours and Company.
2. Symbol in parts list represent safety parts.
Ref. No. Description Mfr's Part No. Qty.
MISCELLANEOUS SPK00003"008OHM0030W w/BLACK DOME CAP 131-308030-017 1
(#LF77SZ4409G40 C8K14PDB)
SUB-WOOFER SECTION - (SWS1)
WIRE
FOR SW SPK WIRE UL/CSA 2468 2x22 AWG 17/0.16mm 122-002120-406 1
TRANS. w/BK LINE 4M w/TUBE 1xBRN,BLK
MISCELLANEOUS SPK006.5"006OHM0060W w/BK DOME PAPER CAP 131-656060-011 1
#LW165KZ5804G70F6A26PDB K0626
2-SPEAKER SECTION - (MTS6801)
WIRES
FOR FL SPK WIRE UL/CSA 2468 2x22 AWG 17/0.16mm 122-002120-404 1
TRANS. w/BK LINE 4M w/TUBE 1xWHT,BLK
FOR FR SPK WIRE UL/CSA 2468 2x22 AWG 17/0.16mm 122-002120-405 1
TRANS. w/BK LINE 4M w/TUBE 1xRED,BLK
MISCELLANEOUS SPK00004"008OHM0030W w/BK DOME MYLAR CAP 131-408030-011 2
(#LF100SZ9201G45 C8K14MDB)
2-SPEAKER SECTION - (SSQE1)
WIRES
FOR SR SPK WIRE UL/CSA 2468 2x22 AWG 17/0.16mm 122-002121-006 1
TRANS. w/BK LINE 10M w/TUBE 1xGREEN,BLK
FOR SL SPK WIRE UL/CSA 2468 2x22 AWG 17/0.16mm 122-002121-007 1
TRANS. w/BK LINE 10M w/TUBE 1xBLUE,BLK
MISCELLANEOUS
SL, SR SPK00003"008OHM0030W w/BLACK DOME CAP 131-308030-018 2
(#LF77SZ4401G40 C8K14PDB) w/o SHIELDING
21 22
ELECTRICAL PARTS LIST - CONTINUED PRINTED CIRCUIT BOARDS

23 24
MAINPCB
STS71AAST-01-01

26
25
MPEG+SERVOSECTION(TOPVIEW)
STS71AAST-01-05

28
27
MPEG+SERVOSECTION(BOTTOMVIEW)
STS71AAST-01-05

FANCONTROLPCB
STS31AAST-01-06
SCARTPCB
STS21AAST-01-05
29 30
TUNERPCB(TOPVIEW)
STS21AAST-01-04
TUNERPCB(BOTTOMVIEW)
STS21AAST-01-04

HSGw/258mmBR,RED,ORN,YELGNAWG28#UL1095
CONNPIN3PINS(3.5+58+3.5)ULAWG26#2651
YEL
YEL
BLU
BLU
BLK
WHT
[C]CDPICKUPPCB
[E]MPEG+SERVOPCB
[I]LOADMOTORPCB
LEAFSW
ACPLUG
TRANSFORMER
[F]CDMOTORPCB
FFCCABLE24PINSL=88mm
UL2896
HSGw/220mmRED,GREYx8
AWG24#UL1007
HSGw/160mmR,BK,YEL,O,GR,BL
AWG28#UL1007
HSGw/180mm
R,BK,BL,W,O,YAWG30#UL1571
HSGw/70mmRED,BLK,WHT,YEL
AWG26#UL1007
GREYx7,BLUE
[A]MAINPCB
[G]KEYPCB [H]LEDPCB
[J]REGULATORPCB
BLACKx4,WHT
FAN
[B]FANCONTROLPCB
[D]SCARTPCB
32
31
WIRINGDIAGRAM

NC
ADJ
PN33
M12V
M5V
PN33
M12V M8V
PD5V
PD5V
PD5V
SGND VGND AFEGNDRFGND
MGND
MGND
MGND
MGND
+
CE64
22uF/16V
+
CE53
22uF/16V
C6
0.1uF
FB41 C97
0.1uF
GTAB1
1.
C68
0.1uF
H1
1
.
C14
0.1uF
R199
2.4K
+
CE61
47uF/16V
FB38
H3
1.
H2
1.
FB40
+ CE60
22uF/16V
D3
1N4001
D2
1N4001
D4
1N4001
C98
0.1uF
FB39
+ CE65
22uF/16V
+
CE57
47uF/16V
C75
0.1uF
R196 NM
+
CE59
47uF/16V
C64
0.1uF
MARK2
1.
MARK4
1.
MARK3
1.
+ CE8
100uF/16V
FB47
C65
0.1uF
R197
1K
+
CE50
47uF/16V
U18
B1117-N33-M142
1 2 3 4
ADJ/GND OUT2 IN OUT1
U19
B1117-NM142
1 2 3 4
ADJ/GND OUT2 IN OUT1
C1
0.1uF
FB45
C76
0.1uF
+
CE54
22uF/16V
MARK1
1.
R166 10( 0805)
FB46
GTAB4
1.
GTAB3
1.
C77
0.1uF
GTAB2
1.
+ CE55
22uF/16V
GTAB6
1.
GTAB5
1.
C24
0.1uF
+
CE63
47uF/16V
U17
B1117-N33-M142
1 2 3 4
ADJ/GND OUT2 IN OUT1
FB22
C112
0.1uF
+
CE58
100uF/25V
+
CE45
100uF/16V
C125
0.1uF
FB20
C96
0.1uF
+
CE62
47uF/16V
C198
0.1uF
+
CE52
22uF/16V
FB19
C47
0.1uF C67 0.1uF
C57
0.1uF
FB44
D1
1N4001
+
CE56
100uF/25V
R167 10( 0805)
FB42
C74
0.1uF
C93
0.1uF
PA5V
GND
VCC33
A3V
A5V
PA+12V A+12V
PA-12V
AA-12V
A-12V
M12V
M5V
PD5V
VDDDACS
VDDDAC
VDDAFERF
VDDAFES
DSPVCC33
D5V
DSPVCC18
F33
RFA5V
M8V
+12VAA
PRF5V
MGND
3433
NOTES:1.Allresistancevaluesareindicatedin"ohms"(k=1000ohms.M=1000Kohms).
2.Allcapacitancevaluesareindicatedin"µF"(p=10µF).
-6
MPEG&SERVOPOWERSUPPLYSECTIONSCHEMATICDIAGRAMS

DSP JTAG
JP2,JP3 settings:
1) play mode : all Jumps off
2) burn flash mode : JP3's 1-2 short only
3)debug mode: JP2's 1-2 short only
Reset
circuit
PCLK
GCLKP
FPCCLK
MIRR
DEFECT
NMI
AMUTE
AIN
FS1
FS3
FS2
MD
MC
ML
DUPTD1
DUPRD1
I2CCLK
I2CDAT
RAMADD5
RAMADD0
RAMADD4
RAMDAT4
RAMADD8
RAMDAT9
RAMRAS- RAMDAT1
RAMADD6
RAMADD10
RAMDAT14
RAMDAT6 RAMDAT2 RAMDAT13 RAMWE- RAMDQM RAMDAT0
RAMDAT8
RAMDAT11 RAMDAT12
RAMDQM
RAMADD3 RAMADD1 RAMADD7 RAMADD2
RAMBA RAMDAT7
RAMADD9
RAMCAS- RAMCS0-
RAMDAT15
PCLK
RAMDAT5 RAMDAT10 RAMDAT3
RAMDAT12
RAMCS1-
RAMADD1
RAMDAT0
RAMADD7RAMADD0
RAMDAT11 RAMDAT10
RAMDAT3 RAMDAT2 RAMDAT6
PCLK
RAMDAT13
RAMDQM
RAMDAT1 RAMDQM RAMCAS-
RAMDAT8
RAMADD10
RAMDAT15
RAMDAT4
RAMADD2
RAMWE- RAMBA RAMRAS-
RAMADD9 RAMADD4 RAMADD5
RAMDAT9
RAMDAT7
RAMADD3
RAMDAT14
RAMADD6 RAMADD8
RAMDAT5
MEMDA8
AOUT1
MEMDA7
DJTDO
RAMADD1
MEMDA15 TRAY_CLOSE
HOME
ICETDI
DUPRD0
RAMDAT14
RAMDAT3
MEMAD4
RAMDAT4 RAMADD3
MEMCS1-
RAMCS1-
RAMADD7
MEMDA9
MEMAD20
MEMDA13
MEMAD16
DJTDI
MEMAD5
AOUT0
XO
RAMDAT2 RAMDAT8
MEMDA2
MEMDA11
MEMCS0- MEMAD2
RAMWE-
RAMBA
RESET_
RAMDAT0
RAMCAS- RAMRAS-
RAMADD0
MEMDA4
MEMDA12
MEMAD12 PLLCFGA
GCLKP
ICETMS
AOUT2
RAMDAT13 RAMDAT11
RAMDAT6 RAMADD9 RAMADD4
MEMAD6
MEMDA3
DJTMS
ICETDO
IALRCLK
IABCLK
LDON
MEMDA14
MEMAD10
TOUT_SW
ICETCK
RAMDAT15
RAMDAT9 RAMADD2
MEMAD17
MEMAD9
MEMAD11 PLLCFGP
MEMAD13
MEMAD3
RAMDAT10
MEMDA0
SPDIF
IAMCLK
RAMDAT7 RAMADD8
MEMAD8
MEMDA6
MEMAD14
MEMAD15
FPCSTRB
IRRCV
MEMAD1
GPAIO
RAMDAT5
IPCLK
RAMDQM
RAMADD10
RAMADD5
DUPTD0
SMUTE
RAMCS0-
TIN_SW
MEMRD-
CJTCK
RAMDAT12
MEMDA1
MEMAD18
MEMDA10
MEMWR-
RAMDAT1 RAMADD6
MEMAD7
MEMDA5
FPCRX
TRAY_OPEN
MEMAD19
MEMAD0
XO
FPCTX
AOUT3
SPLD_PULSE
MVREF2A
FOCUS_OUT
TRACK_OUT
DSPVCC18
VDDAFES
VDDAFERF
VDDDACS
VDDDACS
VDDAFERF
VDDAFES
DSPVCC33
DSPVCC33
SDRAMVCC
SGND
VDDDAC
VDDDAC
VGND AFEGND SGND
VGND
SDRAMVCC
DSPVCC18
DSPVCC33
AFEGND
DSPVCC33
DSPVCC18
VGND
SDRAMVCC
DSPVCC33
DSPVCC33
DSPVCC33
DSPVCC33
C53
10nF
+
CE2
470uF/16V
R24 4.7K
C55
1nF
R27 0R
C56
1nF
R26 0R
R22 NC
+
CE3
22uF/16V
R25 NC
+ CE1
470uF/16V
R21 4.7K
TP98
1.
R188 33
D6
RLS4148 (NC)
U2
ZR36768
12
1
2
3
4
5
6
7
8
9
10
11
50
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
51
52
53 54 55 62 56 57 58 59 60 61 72 63 64 65 66 67 68 69 70 71 83 73 74 75 76 77 78 79 80 81 82 91 84 85 86 87 88 89 90 101 92 93 94 95 96 97 98 99 100 102 103 104
105
156
155
154
152
151
145
136
144
143
142
141
140
139
138
127
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
205 204 202 192 190 200 187 195 197 186 185 184 175 174 173 172 171 157 169 160 167 165 164 163 162 161 159 158
39
40
41
42
43
44
45
46
47
48
49
106
107
108
109
126
128
129
130
131
132
133
134
135
137
146
147
148
149
150
153
166 168 170 183 182 181 180 179 178 177 176 188 189 191 193 194 196 198 199 201 203 206 207 208
GNDP
SSCRXD/GPCIO[17]
MEMCS[1]#/GPCIO[18]
VDDP
MEMAD[15]/PLLPROG[0]
MEMAD[16]/PLLPROG[1]
MEMAD[14]/PLLPROG[2]
MEMAD[13]/AFETESTEN
MEMAD[12]/[PLLCFGA]
MEMDA[15]
MEMAD[11]/[PLLCFGP]
MEMDA[7]
GNDP
MEMAD[10]/[TESTMODE]
MEMDA[14]
MEMAD[9]
MEMDA[6]
MEMAD[8]
MEMDA[13]
MEMDA[5]
MEMAD[20]/[GPCIO19]/[MEMCS#2]
VDDP
MEMDA[12]
MEMWR#
MEMDA[4]
VDDC
MEMDA[11]
MEMDA[3]
MEMAD[19]/[PLLSEL]
GNDC
MEMDA[10]
MEMAD[18]
GNDP
MEMDA[2]
MEMAD[17]
MEMDA[9]
MEMAD[7]
MEMDA[1]
MEMAD[6]
VDD-IP
VDDP
RAMADD[4] RAMADD[3] RAMADD[5] GNDP RAMADD[2] RAMADD[6] VDDP RAMADD[1] RAMADD[7] RAMADD[0] GNDP RAMADD[8] VDDC RAMADD[10] GNDC RAMADD[9] VDDP RAMADD[11] RAMCS[0]#/RAMBA[1] RAMBA[0] GNDP RAMCS[1]# RAMRAS# RAMCAS# VDDP RAMWE# RAMDQM GNDPCLK PCLK VDDPCLK RAMDAT[8] GNDP RAMDAT[7] RAMDAT[9] RAMDAT[6] VDDP RAMDAT[10] RAMDAT[5] RAMDAT[11] GNDP RAMDAT[4] VDDC RAMDAT[12] GNDC RAMDAT[3] VDDP RAMDAT[13] RAMDAT[2] RAMDAT[14] RAMDAT[1] RAMDAT[15] RAMDAT[0]
VDDP
DUPTD1/GPCIO38
DUPRD1/GPCIO37
VDD-IP
DUPRD0/GPCIO35
GNDP
GPCI/O[32]
GPCI/O[31]
VDDP
GCLKA
GCLKP
XO
VDDA
RESET#
GNDA
VDDP
GNDP
HSYNC/GPCIO25/[CJTDO]
VDDC
VSYNC/GPCIO24/[CJTDI]
GNDC
AIN/[GPCIO23/CJTCK]
VDDP-A2
AMCLK
GNDP-A2
ABCLK
ALRCLK
GPAIO/[AOUT3]
AOUT[0]
AOUT[1]/[GPCIO22]
AOUT[2]/[GPCIO21]
SPDIF
SLEDPULSE/IDGPCIO6
VDDP
GNDP
VDDC
GNDC
DEFECT/IDGPCIO5
PWMACT[0]/GPCIO39
GNDPWM
VDDPWM
GNDAFES
VBIASS1 VBIASS0
VDDAFES
GNDAFERF
RFINN
RFINP
VDDAFERF
GNDDACD
DACDRIVE[1]
VDDDAC
DACDRIVE[0]
GNDDACBS2
GNDDACP
RSET
C/B/U
Y/R/V/[C]
CVBS/C/[Y]
CVBS/G/Y
MEMDA[8]
MEMAD[5]
VDDP
MEMDA[0]
MEMAD[4]
MEMRD#
MEMAD[3]
MEMAD[2]
MEMCS[0]#
MEMAD[1]/[BOOTSEL2]
MEMAD[0]/[A]PLLSEL/[BOOTSEL1]
CPUNMI/GPCIO[20]
GNDP
[A]GPCIO110/BOOTSEL1/[AOUT3/ICGPCIO0]
[A]GPCIO111/BOOTSEL2/[IDGPCIO0]
COSYNC/GPCIO120/[ICGPCIO1/CJTMS]
GPCIO26/ICETMS/[DJTMS]
ICETDI/GPCIO122/[ICGPCIO2/DJTDI]
ICETDO/GPCIO123/[IDGPCIO1/DJTDO]
ICETCK/GPCIO27/[DJTCK]
GPCIO28/DJTMS
GPCIO29/DJTDI
GPCIO30/DJTDO
GPCIO128/DJTCK/[ICGPCIO3]
GPCI/O[130]/[IDGPCIO2]
GPCI/O[135]/[ICGPCIO4]
GPCI/O[33]
GPCI/O[137]/[ICGPCIO5]
GPCI/O[34]
GPCI/O[139]/[IDGPCIO3]
DUPTD0/GPCIO36
GNDDACPS
VDDDACS
GNDDACDS
ADCIN0 ADCIN1 ADCIN2 ADCIN3 ADCIN4 ADCIN5 ADCIN6 ADCIN7
PWMACT[1]/GPCIO40
PWMCO[0]/GPCIO41 PWMCO[1]/GPCIO42 PWMCO[2]/GPCIO43 PWMCO[3]/GPCIO44 PWMCO[4]/GPCIO45 PWMCO[5]/GPCIO46
PWMCO[6]/GPCIO152/[IDGPCIO4]
ICGPCIO6
GPCIO159/[ICGPCIO7]
SPINDLEDPULSE/IDGPCIO7
SSCCLK/GPCIO47
SSCTXD/GPCIO16
TP24
1.
C25
0.1uF
C8
0.22uF (NC)
JP4
JUMPER
1
2
R17 75R/1%
C15
0.1uF C16 0.1uF
R18 75R/1%
C27
0.1uF
C17
0.1uF
R19 75R/1%
R134 330R
TP7
1.
R77
10K (NC)
TP3
1.
C11 24pF
C18
10nF
C23
0.1uF C28 0.1uF
R20 75R/1%
C19
10nF
C13
220pF
C20
1nF
TP6
1.
C29
0.1uF
TP2
1.
R28
1M
C21
1nF
CE5
10u/16V(NC)
L1
2.7uH
C30
0.1uF
R75 10K (NC)
R38 4.7K
Q6
2N3904
C31
0.1uF
R187 0R
C32
0.1uF C33 0.1uF
C36
10nF
TP4
1.
C37
10nF
U3
K4S161622C-TC/L70
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26
VDD DQ0 DQ1 VSSQ DQ2 DQ3 VDDQ DQ4 DQ5 VSSQ DQ6 DQ7 VDDQ LDQM WE
CAS RAS CS BA A10/AP A0 A1 A2 A3 VDD
VSS
DQ15 DQ14
VSSQ
DQ13 DQ12
VDDQ
DQ11 DQ10
VSSQ
DQ9 DQ8
VDDQ
NC
UDQM
CLK
CKE
NC
A9 A8 A7 A6 A5 A4
VSS
R170
2k
R169
4.7k
Q5
2N3904
R145
4.7k
C38
10nF
JP3
CN2.54MM3P-M(BOOTSEL1)
1 2 3
JP2
CN2.54MM3P-M(BOOTSEL2)
1 2 3
C40
10nF
C12 24pF
+ CE4
22uF/16V
C41
1nF
R33 33
U4
K4S161622C-TC/L70
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26
VDD DQ0 DQ1 VSSQ DQ2 DQ3 VDDQ DQ4 DQ5 VSSQ DQ6 DQ7 VDDQ LDQM WE
CAS RAS CS BA A10/AP A0 A1 A2 A3 VDD
VSS
DQ15 DQ14
VSSQ
DQ13 DQ12
VDDQ
DQ11 DQ10
VSSQ
DQ9 DQ8
VDDQ
NC
UDQM
CLK
CKE
NC
A9 A8 A7 A6 A5 A4
VSS
C42
1nF
R39
4.7K
C43
1nF
R40
4.7K
R34 33
JP5
JUMPER
1
2
R37 75
R35 33
C48
0.1uF C51 0.1uF C52 0.1uF
FB36
R182 33
R181 33
R180 33
R15 392R/1%
R184 33
R183 33
R185 33
R186 33
C49
0.1uF
C35
10nF
C50
0.1uF
Y1 27.000MHz
MEMDA[15:0]
MEMAD[20:0]
MEMCS0-
MEMRD-
AIN
AMCLK
ABCLK
ALRCLK
AOUT0
AOUT1
AOUT2
SPDIF
CVBS_G_Y
CVBS_C
Y_R_V
C_B_U
VDDAFERF
VDDAFES
DSPVCC18
GND
VDDDACS
SPINDLE_PWM
SLED_PWM
LDON
RFA_SDEN
VDDDAC
DUPTD1
DUPTD0
DUPRD0
DUPRD1
DSPVCC33
VBIASS0
AAF_PI
AAF_CE
RFINN RFINP
FPCTX
IRRCV
FOCUS_DAC
MEMCS1-
FPCSTRB
FPCCLK
FPCRX
RFA_DATA
AAF_FE
TRACK_DAC
VBIASS1
AAF_TE
MIRR
DEFECT
MEMWR-
RFA_SCLK
AMUTE
FS1
FS2
FS3
MD
MC
ML
SMUTE
HOME
I2CCLK
I2CDAT
TRAY_CLOSE
TIN_SW
TOUT_SW
TRAY_OPEN
LINK
SPDIF_IN_AUTO
SPDIF_IN_ERF
SPDIF_CS
SPDIF_IN_FS96
SPDIF_IN_SEL
AOUT3
SPDIF_DTO
RESET_
SPLD_PULSE
MVREF2A
FOCUS_OUT
TRACK_OUT
3635
NOTES:1.Allresistancevaluesareindicatedin"ohms"(k=1000ohms.M=1000Kohms).
2.Allcapacitancevaluesareindicatedin"µF"(p=10µF).
-6
DECODESECTION
