Akai AK3220HD User manual

32" HD TV
MODEL: AK3220HD
User Manual

2
Welcome
Congratulations on your purchase!
This manual tells you all you need to know about using your new AKAI product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by AKAI are manufactured to the highest standards of performance and safety and, as
part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.
We hope you will enjoy using your purchase for many years to come.

3
On-Screen Set Up 16
TV Setting Menus 17
Channel 19
Picture 21
Sound 23
Time 25
Lock 26
Setup 28
PVR File System 30
TV Guide 31
Recording 32
Recording Live TV 33
Scheduled Recording 33
Playback 33
Pause Live TV (Time-shift) 34
Contents
Welcome 2
Unpack and Prepare 4
What's in the Box 4
Important Tips 5
Attaching the Stand 6
Wall-Mounting the TV 7
Connect to Power 8
Connect your Antenna 8
Controls and Connections 9
Get to know your TV 9
Buttons on the TV 9
Ports on the TV 10
Remote Control 12
Setup 12
Using the Remote Control 13
Buttons on the Remote 14
USB Mode 35
Set up 35
Troubleshooting 38
Specications 41
Compliance and
Responsible Disposal 42

4 | UNPACK AND PREPARE
Unpack and Prepare
What's in the Box
In the box you will find:
A. 32" HD TV
B. Remote Control
C. AAA Batteries
D. Mini Component Adaptor
E. Mini Composite Adaptor
F. TV Stands
G. Screws for TV Stands
H. Warning Sheet
I. TV Toppling Safety Message
J. Quick Start Guide
K. Warranty Certificate
L. General Safety Warnings
M. User Manual
Before installing your new TV, check you have everything needed.
You will need:
• Phillips-head screwdriver (for stand installation)
• Antenna cable (to watch live TV)
FG
M
D
E
H
IJK L

UNPACK AND PREPARE | 5
Important Tips
• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.

6 | UNPACK AND PREPARE
Unless you are wall-mounting the TV, you will need to
attach its stands/legs.
1. Lay the TV face-down on a soft, flat surface (like the
sofa, or a towel on a table) larger than the TV itself.
2. Match the stands to the installation points on the
underside of the TV.
3. Attach the stand to the TV at the installation points
using the screws provided. (Grab a screwdriver for
this bit). Make sure the legs are facing away from
each other (not leaning inwards).
Attaching the Stand
• This TV is heavy! We recommend asking
someone to help you lift it.
• Unplug the TV from the power outlet before
installing or removing the stand.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for
securing the TV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.
1
2
3

UNPACK AND PREPARE | 7
200mm
100mm
Back of the TV
Wall-Mounting the TV
The TV comes with holes on the back panel for use with
wall-mounting brackets (bracket not included).
Use four standard M6*10mm screws (or longer,
depending on the mounting bracket) to wall-mount this
TV (screws are not included).
• Unplug the TV from the power outlet
before wall-mounting.
• Contact a professional for assistance with
wall-mounting the TV.
Required
• VESA Mounting
Bracket
• 4 x M6*10mm
screws (or longer
as required)
The screws in the package are for securing the TV stand
only. If you are wall-mounting the TV, consult a qualified
installer for advice on bracket support and wall support.

8 | UNPACK AND PREPARE
Free-to-airTVinHD(HighDenition)
High Definition (HD) channels
provide the best viewing quality and
are available with a digital antenna
connection.
Connect to Power
Connect your Antenna
Antenna cable not included.
Don't forget to plug in the TV
to the power outlet. Leave
the power switched off until
installation is finished.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels
Make sure the TV is switched off at the power outlet
until you have finished connecting your cables.

CONTROLS AND CONNECTIONS | 9
See next page for more info on the connections.
1. : Switch the TV ON or to Standby.
2. VOL + : Increase the volume level.
3. VOL - : Decrease the volume level.
4. CH + : Select the next channel.
5. CH - : Select the previous channel.
6. SOURCE : Change the input source.
7. MENU : Enter the settings menu.
Controls and Connections
1
4
2
6
5
7
3

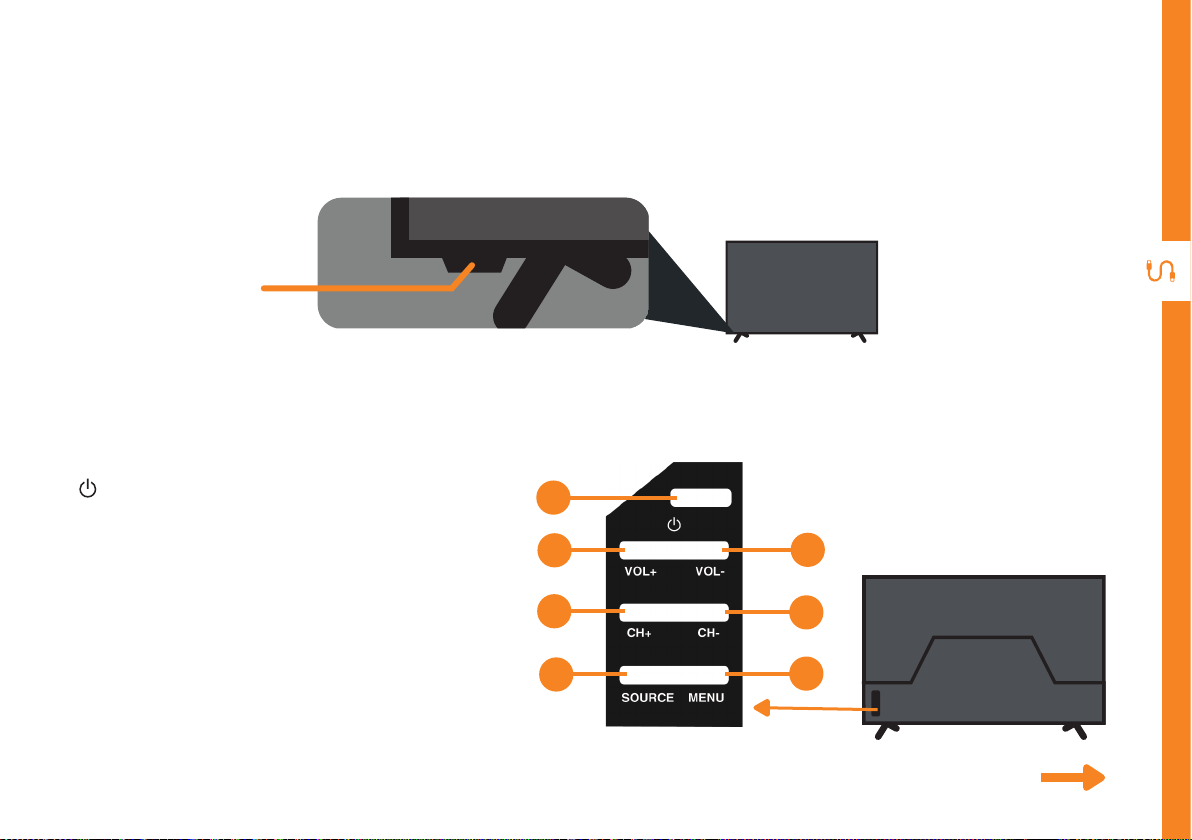

Buttons on the TV
Get to know your TV
On/Standby light and
Remote sensor

10 | CONTROLS AND CONNECTIONS
1ANTENNA IN
FREE-TO-AIR
TV
Connect your antenna for live TV. (Antenna cable not included).
2
OPTICAL
OUT
SOUND
Connect an external digital audio device. Use an Optical cable
(not included) to connect the unit with an amplifier, soundbar or
other audio decoding device for digital audio signal output.
3USB
STORAGE
»PVR record and pause live TV
»Play your stored media files (supported file codecs and
extensions may vary)
»Software updates
4MINI AV IN
You can use this to connect your DVD player. Supports Standard
Definition (SD) picture quality. Requires an AV cable (a mini
composite adaptor is included).
5
MINI
COMPONENT
IN
You can use this to connect your DVD player. Supports High
Definition (HD) picture quality. This also requires a component
cable (a mini component adaptor is included).

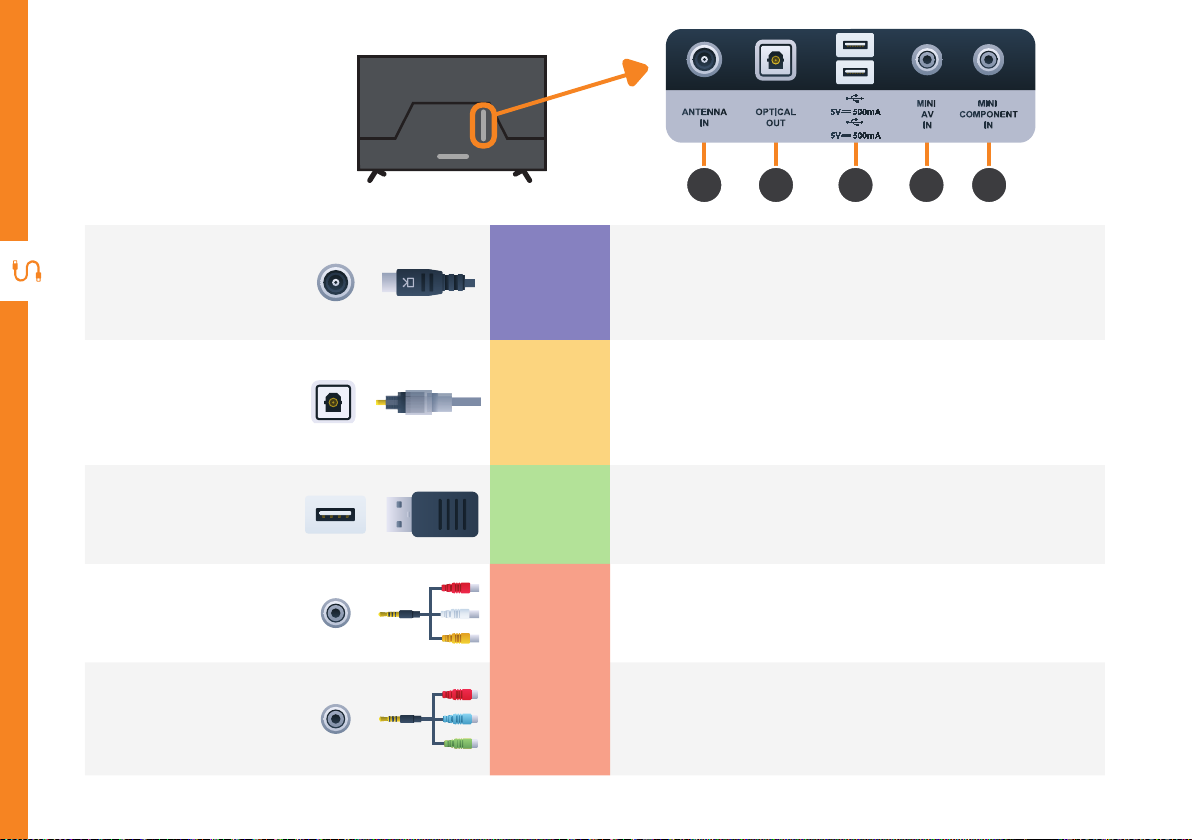

Ports on the TV
1 2 3 4 5
ANTENNA
IN
MINI
AV
IN
MINI
COMPONENT
IN

CONTROLS AND CONNECTIONS | 11
6
Headphone
Jack
SOUND
Connect to your headphones, amplifier or audio device, using an
AUX cable (not included).
7HDMI IN
SOUND
COMPUTER
All-digital connection between the TV and any HDMI device.
Supports HD. Requires a HDMI cable (not included).
8PC IN
SOUND
COMPUTER
Connect your PC and its Audio to your TV. Requires VGA and
AUX Cable (not included).
6 7 8
HDMI IN 1 HDMI IN 2
AUDIOVGA
PC IN

12 | REMOTE CONTROL
Setup

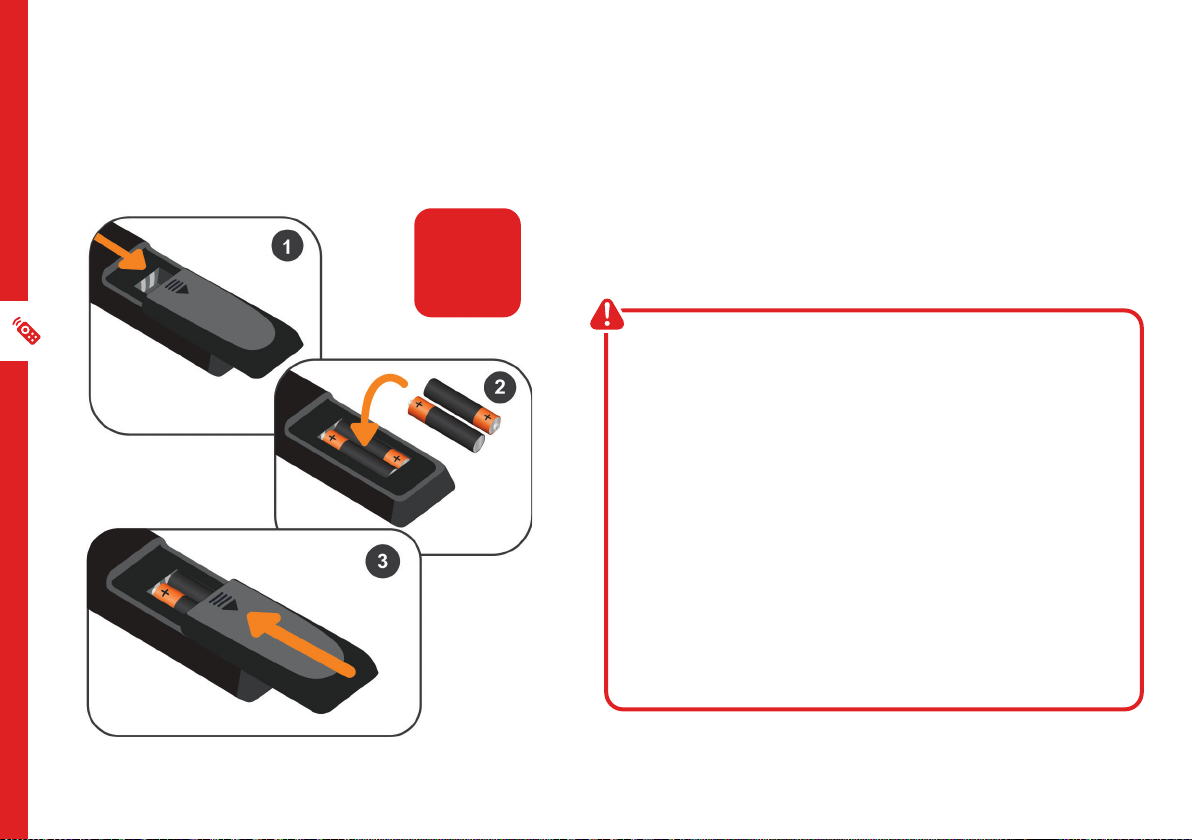

Insert two AAA size batteries according to the polarity
markings (+ / -) inside the compartment. Make sure the
batteries are correctly aligned and properly pushed into
place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not
intend to use it for a long time.
• When discarding used batteries, follow any
guidelines for recycling and disposal of batteries
that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to
extreme heat.
Remote Control
AAA size
batteries
included

REMOTE CONTROL | 13
Using the Remote Control
To use the remote, point it towards the remote sensor
at the front of the TV. The remote will not operate if its
path is blocked.

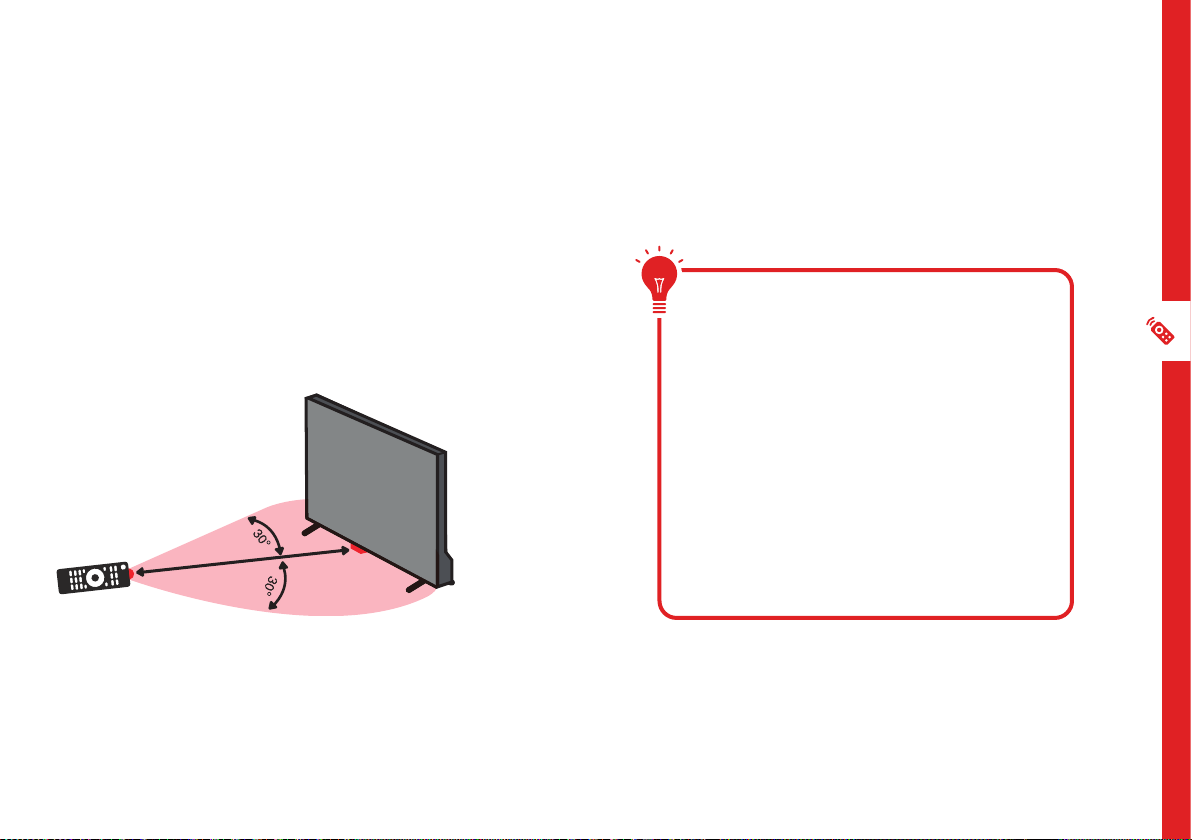

The remote has a range of up to about 5 metres from
the TV at an angle of up to 30 degrees to either side of
the sensor, as illustrated below.
Image is an
example only.
Remote sensor
location on TV
may vary.
Remote Hints and Tips
• Do not drop, step on or otherwise
impact the remote control. This
may damage the parts or lead to
malfunction.
• Do not place objects between the
remote control and the remote
sensor.
• Do not use this remote control while
simultaneously operating a remote
control for other devices.
5m

14 | REMOTE CONTROL
/STANDBY: Switch the TV to On or Standby
/GOTO: Jump to a different chapter of the DVD*
/ANGLE: View DVD playback from different
angles, if the DVD has this feature*
FAV: Press to display your favourite program in DTV
mode
TEXT: Switch between TV and Teletext mode**
SUBTITLE: Enable/disable subtitles
SIZE/ZOOM: Change the picture size
MEDIA: Select USB mode
: PLAY/PAUSE in TIMESHIFT and USB mode
REC/D.SETUP: Record program in DTV mode/
Display the main disc menu
: Stop playback
MENU: Display the main TV menu
/ / / : Press the UP/DOWN/LEFT/RIGHT
buttons to navigate the on-screen menus and adjust
the system settings
OK: Display the channels list (DTV)
Buttons on the Remote
TV/RADIO / EJECT: Switch between TV or radio
/ Eject a disc (DVD)*
A-B: Repeat selected DVD scenes*
/REPEAT: Repeat playback of a selected
chapter, title, or the entire DVD*
SLEEP: Set the TV sleep timer
FREEZE/HOLD: Hold the picture temporarily
SUBPAGE: Manually jump to the previous or
next subpage of Teletext**
ASPECT: Change the size of the image on your
screen
: Fast forward
: Rewind
/INDEX: Play next file./ Display the recorded
programs list (DTV)
: Play the previous file
TITLE/EXIT: Display the DVD title menu. Exit
from the main TV menu displayed on screen *

REMOTE CONTROL | 15
SOURCE: Switch the input source.
/MUTE: Mute the sound. Press again or
press VOL+ to restore the sound.
VOL +/-: Turn the volume up/down.
DISPLAY: Display information of the current
program.
NUMBER BUTTONS (0-9): Press to select a
TV channel directly when watching TV.
-/--: Switch the digits.
AUDIO/LANG: Switch the available
soundtrack language (DTV/DVD).
GUIDE/D.MENU: Launch the TV Guide (DTV).
CH +/-: Change to the next or previous channel.
: Return to the previous channel.
S-MODE: Cycle through the different sound modes.
P-MODE: Cycle through the different picture
modes.
* DVD-related function do not apply to this model TV
** Teletext is no longer available in Australia

16 | ON-SCREEN SET UP
Make sure the TV is plugged in at
the power socket and switched
on. Press the (STANDBY)
button to turn on the TV.
First Time Setup menu
When you turn the TV on for the first time, the First Time
Setup menu will appear.
Follow the prompts using the / / / / OK buttons
to select your preferences. You will be able to adjust:
If you make an error, you can update your preferences in
the settings menu later.
On-Screen Set Up
Make sure equipment is properly connected (as shown on pages
10-11) before connecting the TV to power.
On/Standby light is RED
in standby mode.
On/Standby light is OFF
when the TV is on.

TV SETTING MENUS | 17
Menus Index
Once you have programed any
settings, the unit will retain them in
its memory until you change them,
even after turning the TV off.
TV Setting Menus
Menu Navigation Buttons
Function Remote Button
Display the main menu
Select different sub-menus /
Enter a sub-menu
Select preferred option /
Adjust a value /
Return to the previous menu
Exit a menu
Press the MENU button to display the TV settings menu.
See the guide below for all the other buttons you'll need
to use to adjust and change your settings.
Channel 19
• Auto Tuning
• ATV Manual Tuning
• DTV Manual Tuning
• Program Edit
• Schedule List
• Recorded List
• Signal Information

18 | TV SETTING MENUS
Picture 21
• Picture Mode
• Personal Mode settings:
• Brightness
• Contrast
• Sharpness
• Tint
• Colour Temp
• Noise Reduction
• Screen Mode (VGA mode only)
• Dynamic Contrast
Sound 23
• Sound Mode
• Personal Mode settings:
• Treble
• Bass
• Balance
• Auto Volume
• Surround Sound
• S/PDIF Mode
• AD (Auto Description) Switch
Time 25
• Clock
• Time Zone
• Off Time
• On Time
• Sleep Timer
• Auto Standby
• OSD Timer
Lock 26
• System Lock
• Set Password
• Channel Lock
• Parental Guidance
• Key Lock
• Hotel Mode
Setup 28
• OSD Language
• Audio Language
• Subtitle Language
• Hearing Impaired
• Aspect Ratio
• PVR File System
• Blue Screen
• First Time Installation
• Store Mode
• Reset
• Software Update (USB)
• HDMI CEC

TV SETTING MENUS | 19
Channel
Option Description
Auto Tuning Automatically tune all available free-to-air TV channels. Adjust settings (default settings are set for
Australia). Press OK to start scanning.
ATV Manual Tuning
Manually select and tune analog TV channels. (Analog TV is no longer supported in Australia).
Current channel: Press the / buttons to select the channel number to save the tuned signal.
Colour System: Select the colour system (PAL in Australia).
Sound System: Select the sound system (BG in Australia).
Fine-Tune: View the file tune setting.
Search: Press the OK button to start tuning.
DTV Manual Tuning Manually select and tune digital TV channels. Use / to select the broadcast channel. Press OK to
begin scanning.
Program Edit See the next page for more information.
Schedule List Manage scheduled recordings. Press REPEAT to add a new program to record.
Press A-B to edit an existing schedule. Press GOTO to delete an existing schedule.
Recorded List Display previously recorded programs.
Signal Information Display current signal information (DTV mode only).

20 | TV SETTING MENUS
Program Edit
Use the / buttons to highlight a channel.
Option Description
Move Move the channel location on the list. Press REPEAT to enter Move Mode.
Use the / buttons to select a position and press REPEAT to confirm it.
Delete Press GOTO to delete the highlighted channel.
Skip Press A-B to skip the highlighted channel.
