Akai LT-2211HD User manual

22” WIDESCREEN LED TV
MODEL NO.: LT-2211HD
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.

1
SAFETY INSTRUCTIONS
The lightning flash and
arrow head within the
triangle is a warning
sign alerting you of
“dangerous voltage”
inside the product.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation
point within the
triangle is a warning
sign alerting you of
important
instructions
accompanying the
product.
WARNING – TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK, OR
SERIOUS PERSONAL INJURY:
●If the cord is damaged, have it repaired by the manufacturer, its service or a similarly
qualified person in order to avoid any hazard.
●The cord should always be readily accessible.
●The apparatus shall not be exposed to dripping or splashing of water or liquids and that
no objects filled with liquids such as flowers vases shall be placed on the product.
●The normal ventilation of the product shall not be impended for intended use.
●Always leave a minimum distance of 10 cm around the unit to ensure sufficient
ventilation.
●Naked flame sources, such as candles, should not be placed on top of the device.
●The device is intended for use only in a temperate climate.
●Situate this product away from heat sources such as radiators, heat registers, stoves, or
other appliances (including amplifiers) that produce heat.
●Clean the product only as recommended by the manufacturer (see “Maintenance”
section for details). Unplug the power plug from the wall outlet before cleaning,
●Unplug the power plug from the wall outlet when left unused for an extended period.
●Prevent objects/liquids from falling or spilled on the product.
●Operate the product only with the supplied power cord. Route power cords so they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to plugs, convenience receptacles, and the point where they exit from
the product.
●Where the MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
IMPORTANT INSTRUCTIONS

2
●Do not operate this product under the following conditions.
- When the power-supply cord or plug is damaged.
- If liquid has been spilled into or objects have fallen into the product.
- If the product has been exposed to rain or water.
- If the product does not operate when used according to the operating instructions.
- If the product has been dropped or damaged in any way.
●Do not attempt to service the product; take it to the electronics repair shop of your choice
for any servicing or repair.
●Do not overload wall outlets, extension cords, or integral convenience receptacles.
●Connect this product to the power outlet which has protective earth connection.
CAUTION- TO REDUCE THE RISK OR PERSONAL INJURY OR
PRODUCT/PROPERTY DAMAGE:
●This product is intended solely for non-commercial, non-industrial, personal use as a
television. Do not use this product for any other purpose.
●Do not subject the product to violent shocks, extreme temperatures, or lengthy periods of
direct sunlight.
●Keep the product away from magnetic objects, motors, and transformers.
●Do not use outdoors in inclement weather.
●Do not use the TV while driving; this is dangerous and is illegal in some areas.
BATTERY HANDLING AND USAGE:
●CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the
same type or equivalent.
●The battery should not be exposed to excessive heat such as sunshine, fire or similar.
●Different types of batteries, new and used batteries should not be mixed.
●The battery must be installed according to the polarity.
●If the battery is worn, it must be removed from the product.
●The battery must be disposed of safely. Always use the collection bins provided (check
with your dealer) to protect the environment.
●Keep batteries away from children and pets. Only adults should handle batteries.
●Never throw batteries into a fire or expose them to fire or other heat sources.
●Follow the battery safety and usage instructions.

3
DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE),
requires that old household electrical appliances must not be disposed of in the normal
unsorted municipal waste stream. Old appliances must be collected separately in order to
optimize the recovery and recycling of the materials they contain, and reduce the impact on
human health and the environment. The crossed out “wheeled bin” symbol on the product
reminds you of your obligation, that when you dispose of the appliance, it must be
separately collected.
User Manual……………………………………………………………………………………1
Remote Control……………………………….………………………………………………1
All the pictures in this manual are just for your reference, appearance and display should
subject to the final product.
ACCESSORIES
To avoid possible hearing damage, do not listen at
high audio volume for long periods of time.

4
TABLE OF CONTENTS
GETTING STARTED
IMPORTANT INSTRUCTIONS...................................................................................1-3
ACCESSORIES……….......................................................................................................3
FEATURES....................................................................................................................5
GENERAL PARTS..............................................................................................................6-7
REMOTE CONTROL........................................................................................................8-9
REMOTE CONTROL PREPARATION.................................................................................10
BASIC CONNECTION....................................................................................................11-15
OPERATIONS
BASIC OPERATIONS.............................................................................................16-23
MAIN MENU...........................................................................................................24-36
FIRST TIME INSTALLATION……..………………….……………………………..…………24
DTV MODE.................................................................................................................25-35
ATV AND OTHER MODES..............................................................................................35
PC/VGA MODE................................................................................................................36
FOR REFERENCE
MAINTENANCE..................................................................................................................37
WALL MOUNTING…………………………………………………………………………..........37
STAND INSTALLATION…………………………………………………………………………..38
SPECIFICATIONS...............................................................................................................39
TROUBLESHOOTING.........................................................................................................40

5
22" LED Display
This unit has a built-in LED display window to provide clear vision and low
radiation.
With Hotel Lock
Support Auto TV Scanning
Support Digital Broadcasting Reception
Support TV Guide Function
Support TELETEXT (Europe) Function
Support USB Multimedia Playback
Support Multi-languages On Screen Display
Support Full Function Remote Control
Support HDMI, SCART, YPBPR, AV, VGA, PC AUDIO and CI Input
Support EARPHONE and COAXIAL Output
Support PVR Function
Support TIME SHIFT Function
With Detachable Stand Holder
With External Antenna Jack
With Built-in Speakers
FEATURES

6

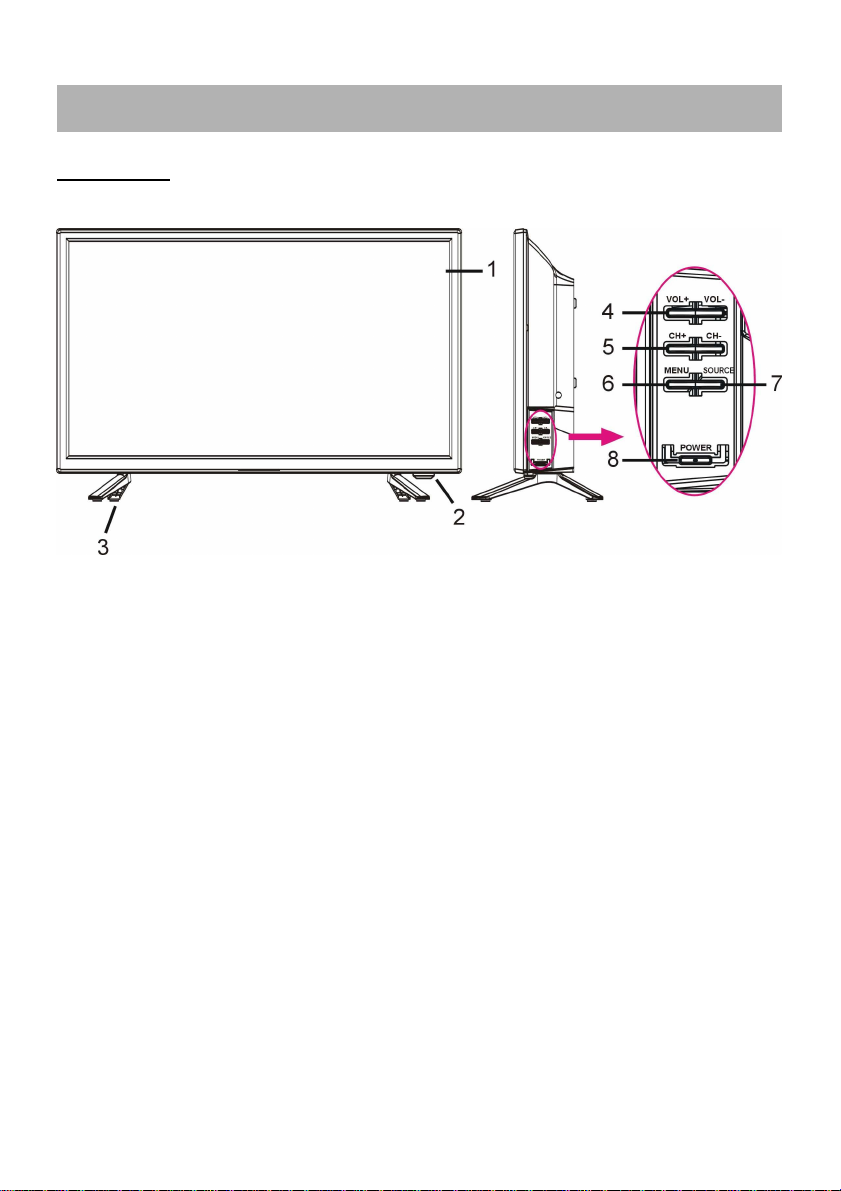

MAIN UNIT
1. LED display screen
2. Remote control sensor / Power indicator- In standby mode the indicator light will display red
color; when switching on the unit the indicator light will display blue color.
3. Stand holder
4. VOL+/- button- To increase/decrease the volume level or move left/right.
5. CH +/- button- To select next/previous channel or move up/down.
6. MENU button-To entermenu setting page.
7. SOURCE button- To select the input source.
8. POWER button- To turn ON/OFF the TV.
GENERAL PARTS

7
1. AC Power cord

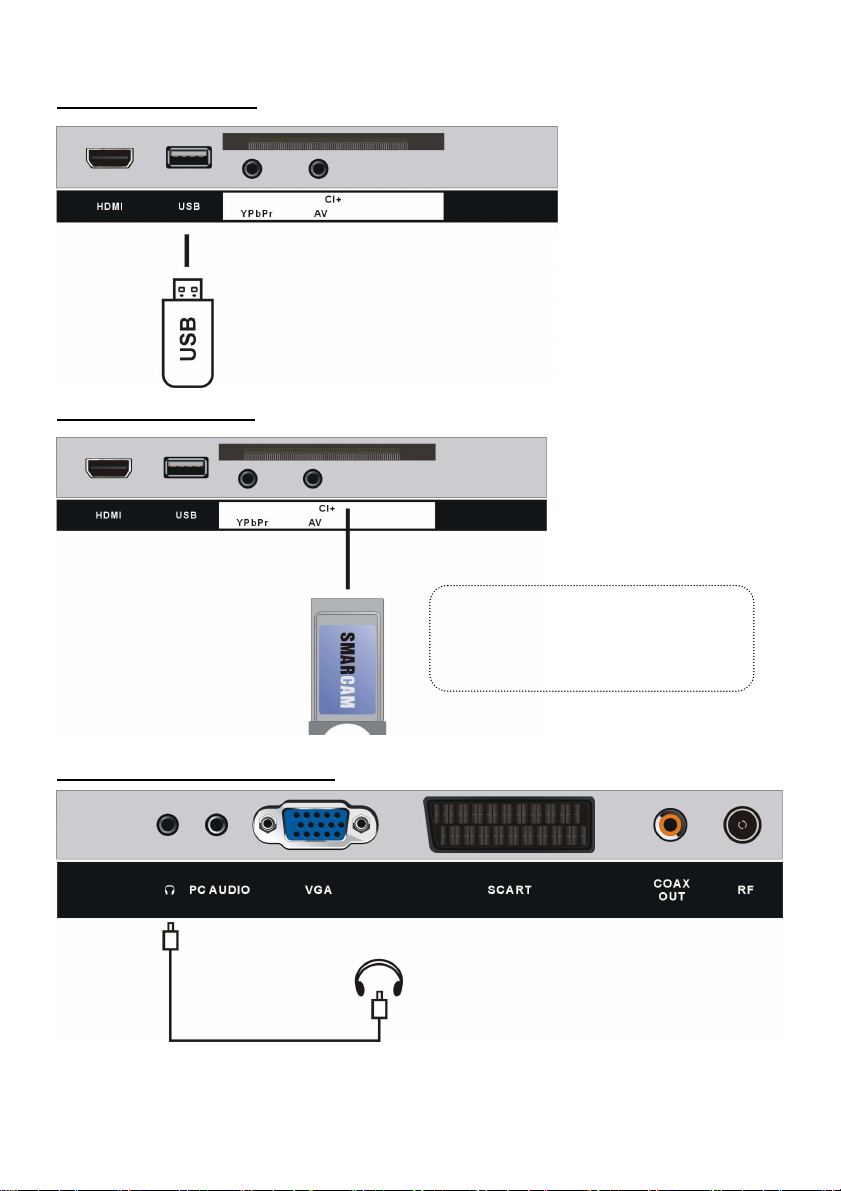

2. HEADPHONES output terminal
3. PC AUDIO input terminal
4. VGA input terminal
5. SCART input terminal
6. COAXIAL output terminal
7. RF input terminal- To connect the external antenna.
8. CI+ input terminal
9. Mini AV input terminal
10. Mini YPbPr input terminal
11. USB input terminal
12. HDMI input terminal
GENERAL PARTS
Back View

8

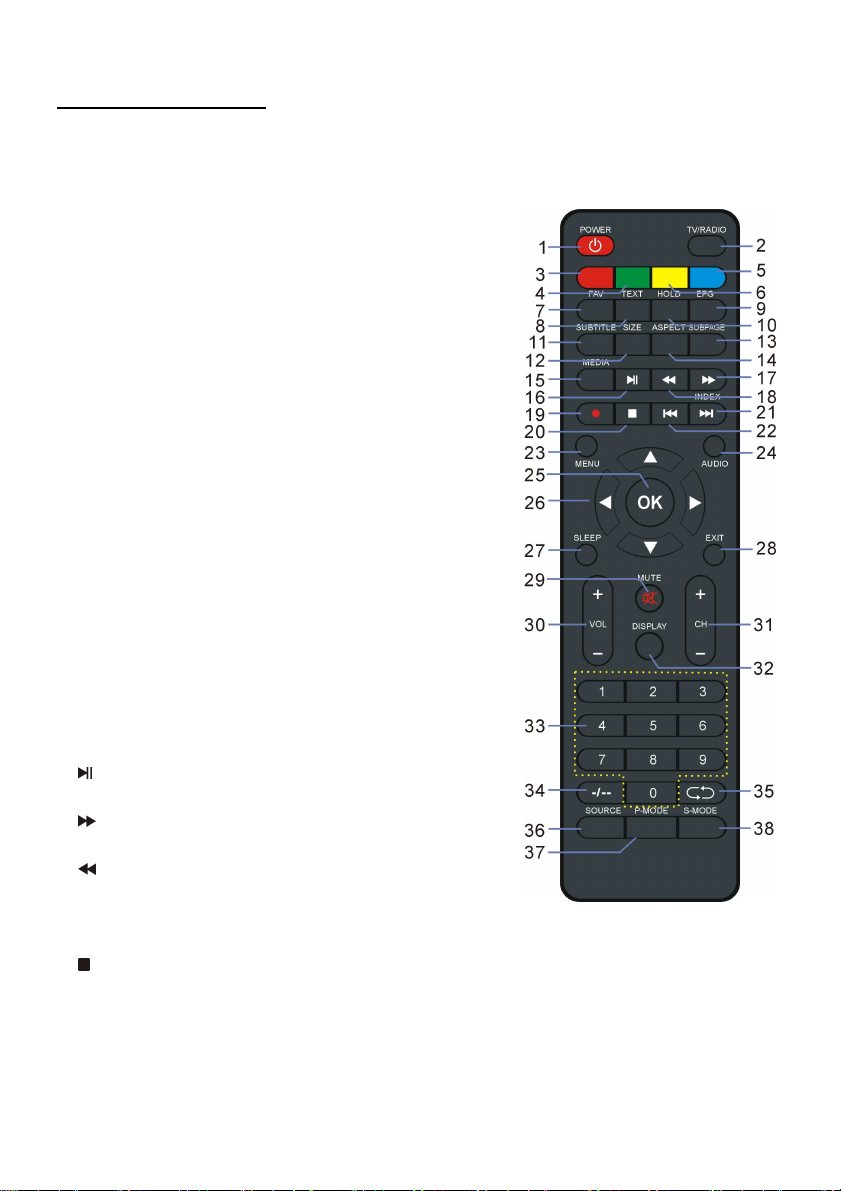

REMOTE CONTROL
1 POWER
Set the unit in standby mode; press it again to switch it on.
2 TV/RADIO
Switch the unit between TV and Radio.
3 RED button
4 GREEN button
5 BLUE button
6 YELLOW button
7 FAV
Display the favorite channels list.
8 TEXT
Display the available Teletext.

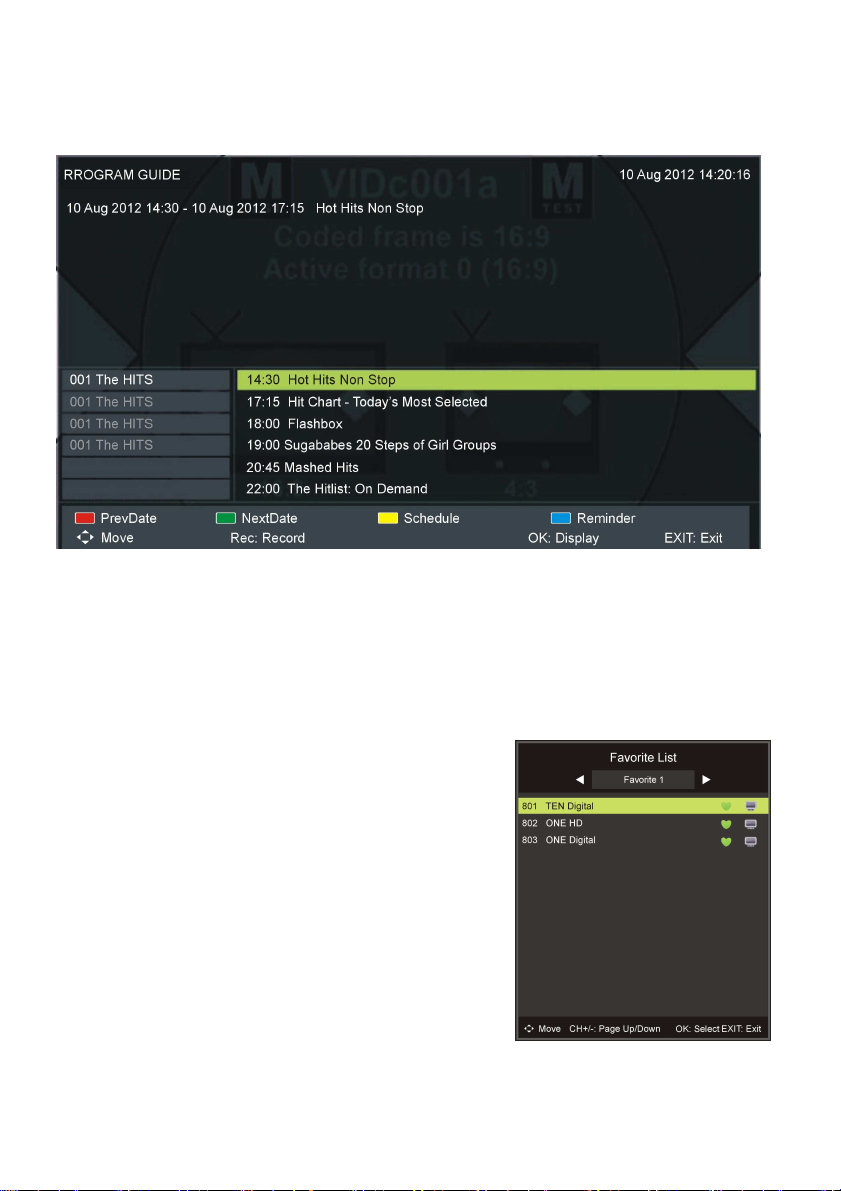

9 EPG
Display electronic program guide.
10 HOLD
Hold the Teletext.
11 SUBTITLE
Enable/disable subtitles.
12 SIZE
Switch Teletext size.
13 SUBPAGE
Enter Teletext sub-page.
14 ASPECT
Press it repeatedly to select desired screen size.
15 MEDIA
Enter Media (USB) mode directly.
16
Start/pause playing.
17
Move fast forward.
18
Move fast backward.
19 ●
●●
●(DTV)
Start RECORDING when watching available digital programs.
20
Stop playing.

9
REMOTE CONTROL
21
Play the next file.
INDEX
Display the record list or Teletext index.
22
Play the previous file.
23 MENU
Call out the main menu or return to previous menu.
24 AUDIO
Switch the available sound-track.
25 OK
Confirm selection.
26 ▲/▼/◄/►
Navigation buttons
27 SLEEP
Set desired sleep time.
28 EXIT
Exit the menu page.
29 MUTE
Mute the sound.
30 VOL +/-
Increase/decrease the volume level.
31 CH +/-
Play the next/previous program.
32 DISPLAY
Display the available program information.
33 Number buttons (0-9)
Input the number information, such as channel
number and so on.
34 -/--
Switch the digit when watching TV programs.
35
Return to previous channel.
36 SOURCE
Select desired input source.
37 P-MODE
Switch the picture mode.
38 S-MODE
Switch the sound mode.

10
REMOTE CONTROL PREPARATION

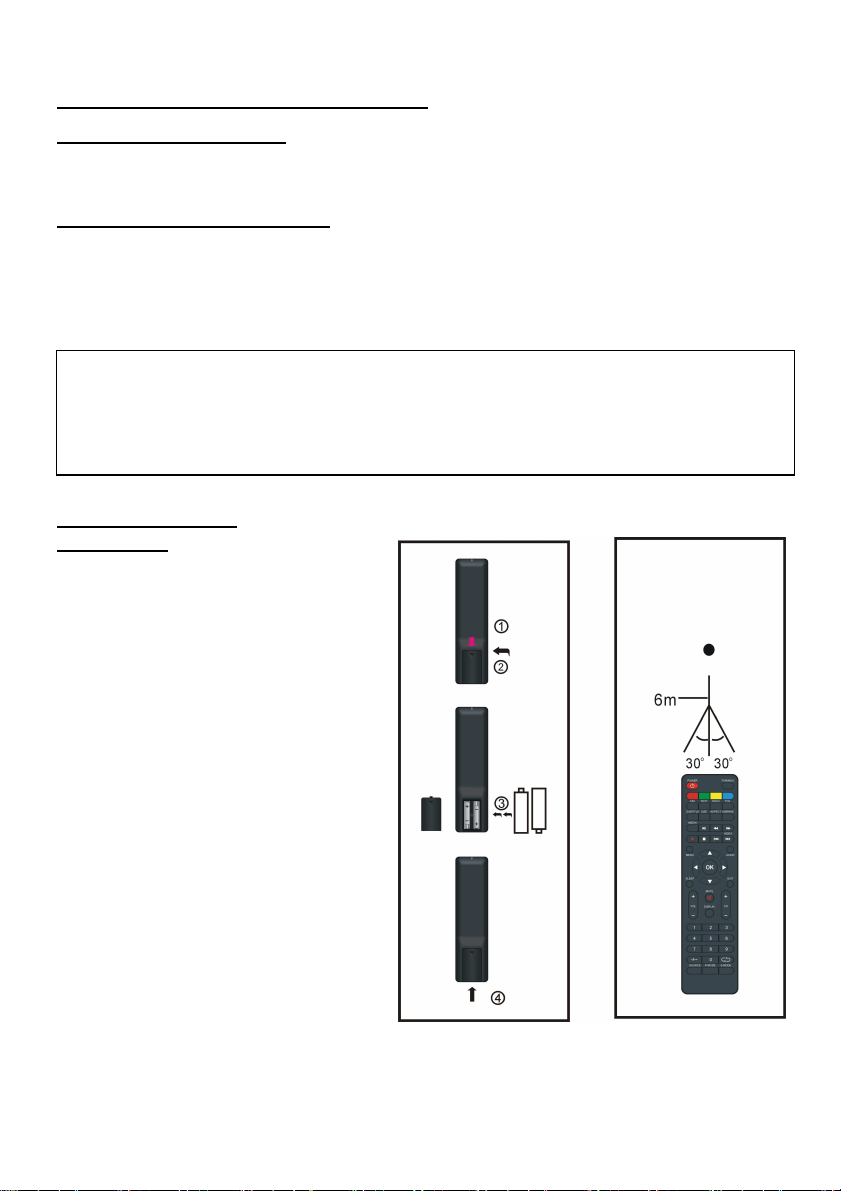

BATTERY INSTALLATION
Install the batteries as the following pictures. Be sure + and – terminals are positioned
as indicated in the battery compartment (Fig1).
SERVICE LIFE OF BATTERIES
- The batteries normally last for one year although this depends on how often the
remote control is used.
- If the remote control fails to work even when it is operated near the player, replace the
batteries.
- Use two size AAA dry batteries.
NOTE:
●Do not drop, step on or otherwise impact the remote control. This may damage the
parts or lead to malfunction.
●If the remote control is not going to be used for a long time, remove the batteries.
REMOTE CONTROL
OPERATION
Point the remote control from no more
than about 6m from the remote control
sensor and within about 60°of the
front of the player (Fig2).
NOTES:
- The operating distance may vary
according to the brightness of the
room.
- Do not point bright light at remote
control sensor.
- Do not place objects between the
remote control and the remote control
sensor.
- Do not use this remote control while
simultaneously operating the remote
control of any other equipments.
Fig1 Fig2
Remote Control
Sensor
Push
Open
Press

11
●Ensure all the cables are disconnected from the main unit before connecting to AC
power source.
●Read through the instructions before connecting other equipments.
CONNECTING TO AC POWER SOURCE
CONNECT EXTERNAL ANTENNA TO UNIT
Install external antenna into antenna jack for best picture.
BASIC CONNECTION
Antenna
Outdoor
antenna
amplifier
Indoor
antenna
amplifier
Power plug
of antenna
amplifier
75 OHM
antenna
plug
To power outlet

12
HDMI CONNECTION
PC/VGA CONNECTION
HDMI cable
(Not included) Use HDMI cable to connect the unit with
other devices to receive high-definition
multimedia signal.
Back of DVD/VCR
Back of PC
Use VGA cable and Audio cable to
connect the unit with TV or PC, and
use this product as a monitor.
VGA cable
(Not included)
Audio cable
(Not included)

13
SCART CONNECTION
COAXIAL CONNECTION
Back of DVD/VCR
SCART cable
(Not included)
Use coaxial cable to connect the unit with amplifier or other
audio decoding devices for coaxial audio signal output.
(Coaxial cable is not included.)

14

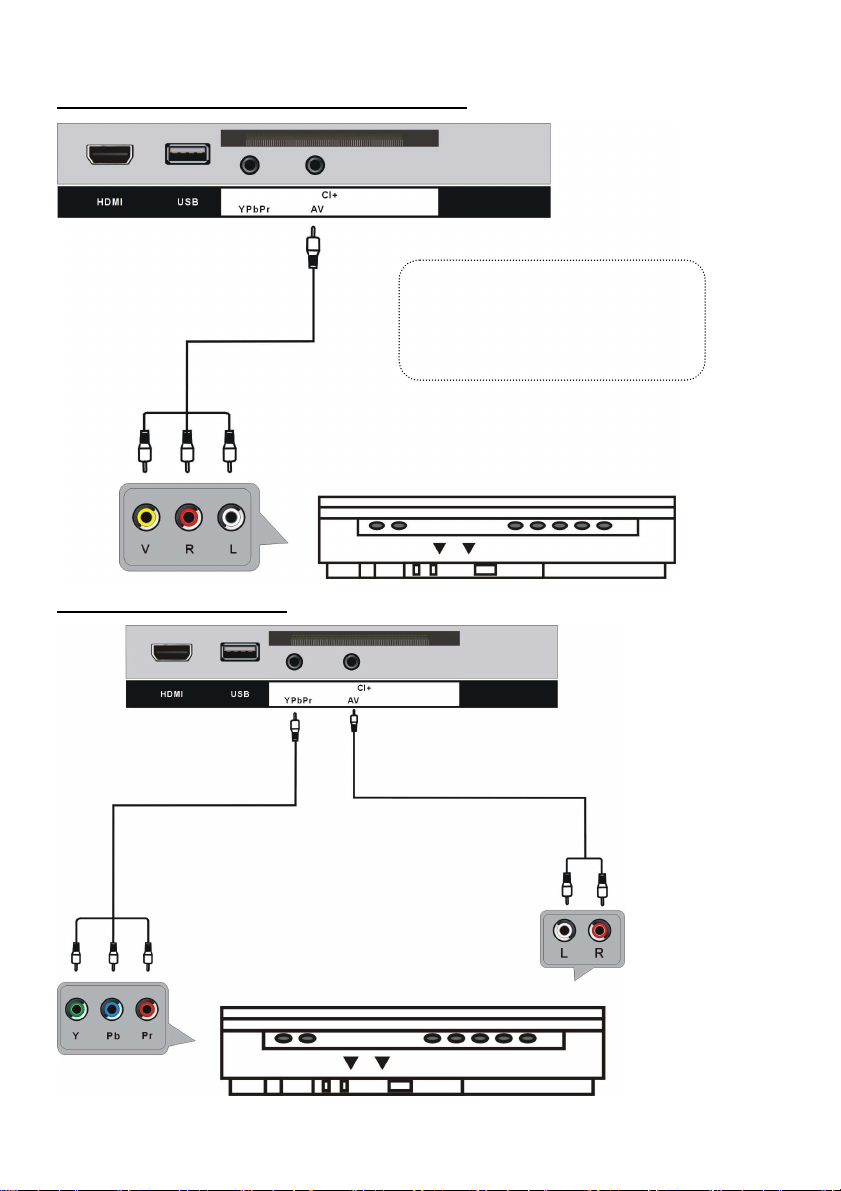

AV (COMPOSITE VIDEO) CONNECTION
YPBPR CONNECTION
YPbPr cable
(Not included)
Back of DVD/VCR
For basic connection, use the
compositeAudio L/R (white/red) and
CVBS (yellow) cable to connect the
unit with other devic
es.
AV cable
(Not included)
Back of DVD/VCR
Audio L/R of AV
cable (Not included)

15
USB CONNECTION
INSERT A CI CARD
EARPHONE CONNECTION
Insert your CI card (Conditional
Access Module) to watch special
digital channels in your area.
EARPHONE cable
(Not included)
(Not included)
USB Memory Device
(Not included)

16
MAKE SURE ALL THE EQUIPMENTS AND POWER PLUG ARE
CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE
BEFORE KINDS OF OPERATIONS.
- Press POWER button on the unit or remote control to power ON the unit (indicator
will glow blue); press it again to power OFF (standby mode) the unit (indicator will
glow red).
- Press SOURCE button on the unit or remote control to set the unit in DTV or ATV
mode.
SELECT DESIRED PROGRAM
1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.
NOTE: Press -/-- button repeatedly to switch the digit.
VOLUME CONTROL
- Press VOL+ or VOL- to adjust the level of current volume.
Available range: 0-100.
MUTE CONTROL
- Press MUTE button to mute the sound, press it again to turn on the sound.
SOURCE SETTING
- Press SOURCE button on the unit or remote control to display the sources list.
- Press UP or DOWN navigation button to select desired input source, and then press OK
button to confirm selection.
Available options: DTV, ATV, AV, SCART, YPBPR, HDMI, PC, Media.
MULTIAUDIO SETTING
- Press AUDIO button on remote control repeatedly to select desired audio language.
NOTE: To enable this function, make sure that the channel you are viewing supports
multi-audio languages.
INFORMATION DISPLAY
- Press DISPLAY button on remote control to display information of current program.
BASIC OPERATIONS

17
TV GUIDE (FOR DTV MODE ONLY)
- Press EPG button on remote control to enter Program Guide menu page.
- Press UP/DOWN navigation button to select preferred program
- Press LEFT/RIGHT navigation button to switch between left column and right column.
- Press RED button to display the TV guide of previous day.
- Press GREEN button to display the TV guide of next day.
- Press YELLOW button to enter schedule list page.
- Press BLUE button to enter reminder setting page.
FAVORITE LIST
If some channels are inserted before in the favorite list,
press FAV button on remote control to enter Favorite
List menu page.
- Press LEFT/RIGHT navigation button to select
favorite list.
- Press CH+/-/UP/DOWN button to select favorite
channel.
- Press OK button to confirm selection.

18

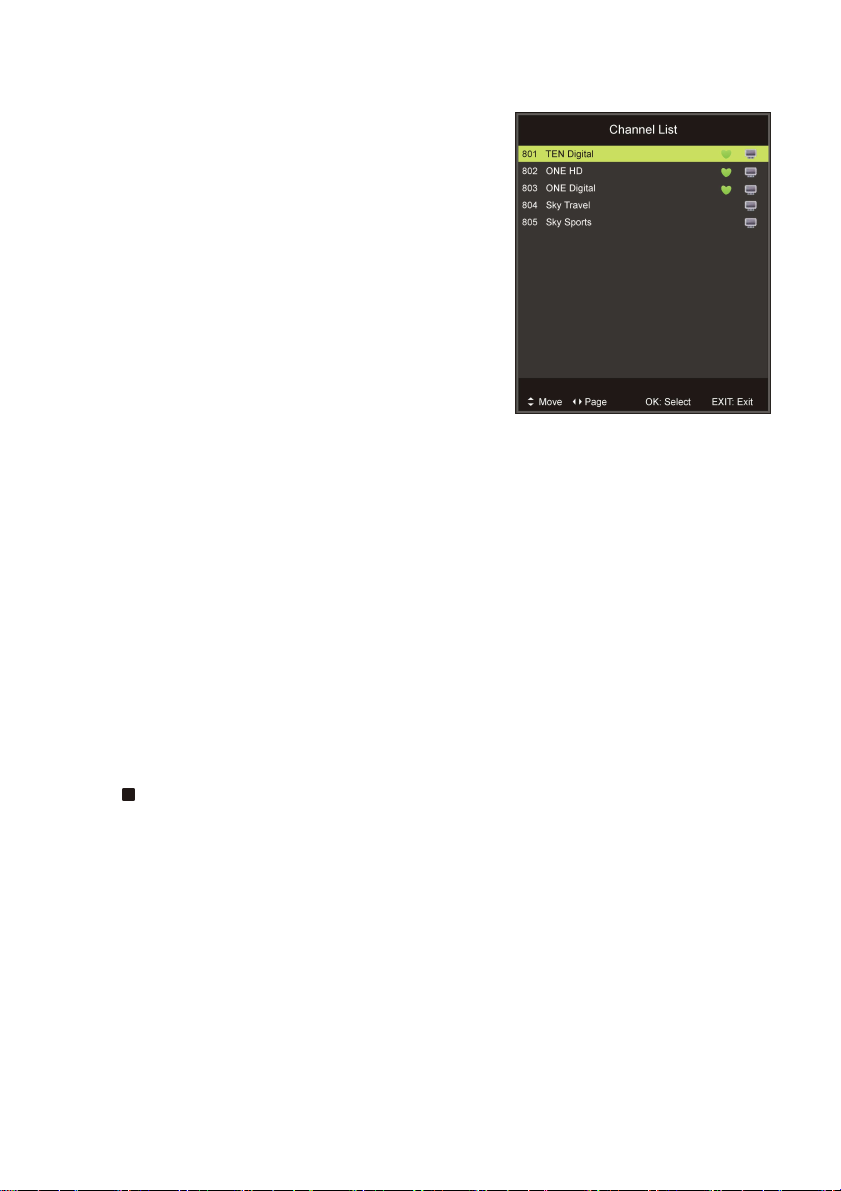

QUICK SELECT
When viewing an available channel, press OK button
on remote control to enter Channel List menu page.
- Press UP or DOWN navigation button to select
preferred channel.
- Press OK button to confirm selection.
TELETEXT
- Press TEXT button on remote control to display the
available teletext information and press it repeatedly to
stop playing the teletext.
TV/RADIO (FOR DTV MODE ONLY)
- Press TV/RADIO button on remote control to switch the
unit between TV and radio mode.
SUBTITLE
- Press SUBTITLE button on remote control repeatedly to select desired subtitle.
NOTE: To enable this function, make sure that the channel you are viewing supports
multi-subtitle.
RECORDER (FOR DTV MODE ONLY)
- Insert your USB memory device into USB slot first.
When watching a digital program:
- Press ●button on remote control to start recording directly, if pressing REC button again
during recording it will be displayed the max time of recording based on the USB device
inserted.
- Press button on remote control to call out a dialog box, and select Yes to stop recording;
select No to dismiss the dialog box.

19

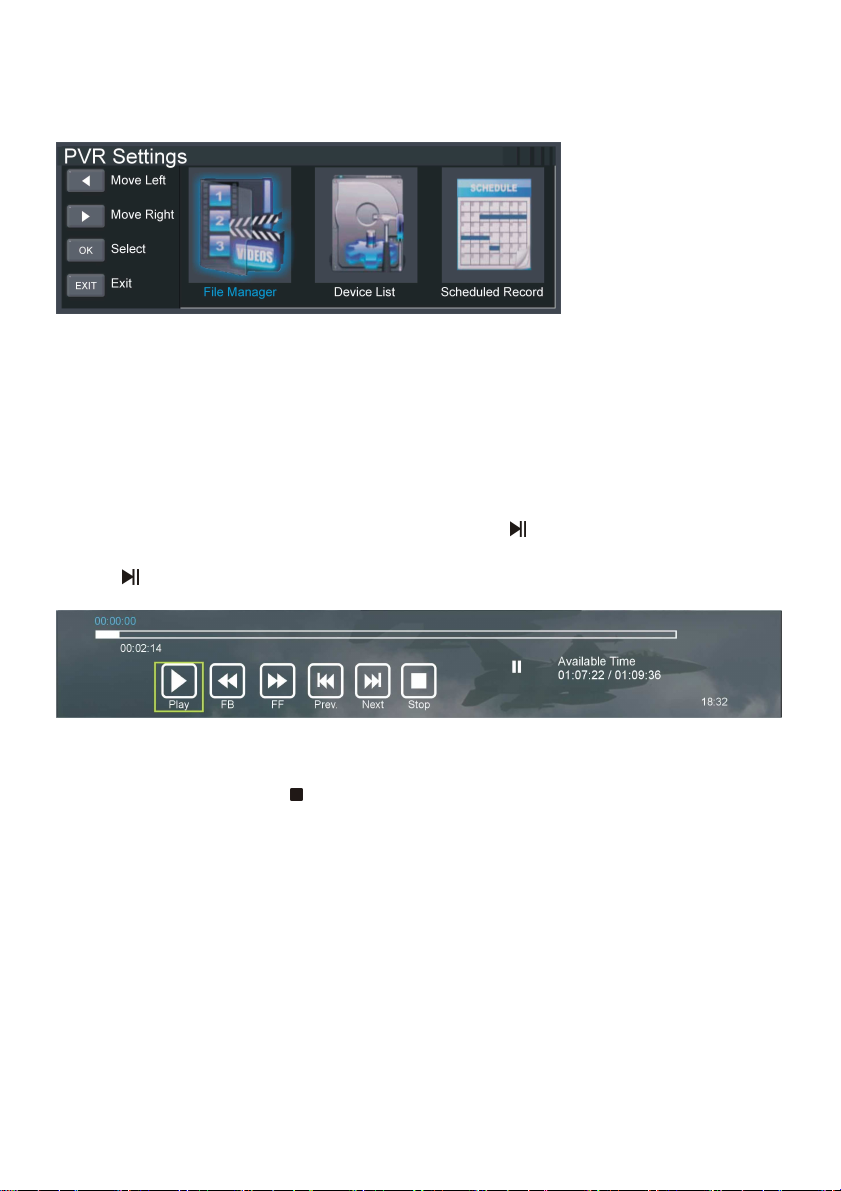

To watch recorded programs:
- Press INDEX button on remote control to call out the PVR Settings page.
- Highlight File Manager and press OK button to enter it.
- Then press UP/DOWN navigation button to select recorded files and press OK button to
start playback.
TIME SHIFT (FOR DTV MODE ONLY)
- Insert your USB memory device into USB slot first.
When watching a digital program:
-If you don’t want to miss any programs when left, press button on remote control to
enter TIME SHIFT mode.
- Press button again when you’re back to display the tool bar.
- Press LEFT/RIGHT navigation button to select “Play” and press OK button to play the
program in TIME SHIFT mode.
- To stop TIME SHIFT, press on remote control to call out a dialog box. Select Yes to exit
TIME SHIFT mode and select No to dismiss the dialog box.
