Preface
This document is intended to assist the service technician in the operation,
maintenance and repair of the Akai Professional device. Together with the User
Reference Manual, this document provides a complete description of the
functionality and serviceability of the Device. Any comments or suggestions you
may have pertaining to the document are welcome and encouraged.
READ THIS!
In addition to any purchase price that Akai Professional may charge as consideration for Akai
Professional selling or otherwise transferring this service manual (“Manual”) to you, if you are not
a service and repair facility (“Service Center”) authorized by Akai Professional in writing to be an
authorized Service Center, Akai Professional sells or transfers the Manual to you on the following
terms and conditions:
Only Service Centers authorized by Akai Professional in writing are authorized to perform service
and repairs covered by an Akai Professional warranty (if any), and transfer of the Manual to you
does not authorize you to be an authorized Service Center. Therefore, if you perform, or if the
Manual is used to perform, any service or repairs on any Akai Professional product or part
thereof, any and all warranties of Akai Professional as to that product and any service
contract with Akai Professional for that product shall be voided and shall no longer apply
for such product, even if your services or repairs were done in accordance with the
Manual.
All service or repairs done by you or with reference to the Manual shall be solely your
responsibility, and Akai Professional shall have no liability for any such repairs or service work.
All such service or repairs are performed at the sole risk of the person performing the
service or repairs. You agree that all such work will be performed in a competent, professional
and safe manner at all times and to indemnify and fully hold Akai Professional and its successors
and assigns harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of
resale or other transfer.
As the owner of the copyright to the Manual, Akai Professional does not give you the right to copy
the Manual, and you agree not to copy the Manual without the written authorization of Akai
Professional. Akai Professional has no obligation to provide to you any correction of, or
supplement to, the Manual, or any new or superseding version thereof.
Akai Professional shall have the right to refuse to sell or otherwise transfer repair parts or
materials to you in its sole discretion. You shall not use, sell or otherwise transfer spare or
replacement parts supplied by Akai Professional to you (i) to repair or be used in products
manufactured for or by third parties or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of Akai
Professional or the use thereof on behalf of Akai Professional or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you,
and no other terms shall apply unless in a writing signed by an authorized representative of Akai
Professional.
All Trademarks are property of their respective companies.
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE
THIS PRODUCT TO WATER OR MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is
intended to alert the user to the presence of un-insulated
"dangerous voltage" within the enclosed product which may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user
to the presence of important operating, maintenance and servicing
instructions in the literature which accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED
AKAI PROFESSIONAL SERVICE CENTER WILL VOID THE AKAI
PROFESSIONAL WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO
COMPETE WITH ANY AKAI PROFESSIONAL DISTRIBUTOR OR
AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF REPAIR
SERVICES OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE
CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED AKAI
PROFESSIONAL SERVICE CENTER SHALL BE SOLELY THE
RESPONSIBILITY OF THAT ENTITY, AND AKAI PROFESSIONAL SHALL
HAVE NO LIABILITY TO THAT ENTITY OR TO ANY OTHER PARTY FOR
ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
CAUTION: The product under service may employ the use of a
replaceable fuse. Danger of fire or electrocution if fuse is
incorrectly replaced. Replace with only the same type or
equivalent type recommended by the equipment manufacturer.
Regarding the Internal Battery
CAUTION: The product under service may employ the use of a
internal battery. Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer's instruction.
Confidential Akai Professional Service Manual
Confidential Akai Professional Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety
suggestions before using this product. Use extra care to follow the warnings
written on the product itself and in the operating instructions. Keep the operating
instructions and safety suggestions for reference in the future.
1. Power Source. The product should only be connected to a power supply which is described
either in the operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to
step on the cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the product's
AC power supply cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any
openings of the product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or
other heat producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate
ventilation. Improperly ventilating the product may cause overheating, which may damage the
product.
8. Mounting. The product should only be used with a rack which the manufacturer
recommends. The combination of the product and rack should be moved carefully. Quick
movements, excessive force or uneven surfaces may overturn the combination which may
damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in
the operating instructions for the user. For any other service required, the product should be
taken to an authorized service center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain
situations including without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate
normally, or
e. The enclosure of the product has been damaged.
Confidential Akai Professional Service Manual
Confidential Akai Professional Service Manual
Confidential Akai Professional Service Manual
AKAI
PROFESSIONAL
LPD8 (AD01)
TEST
PROCEDURE
Equipment Required:
oLPD8
oUSB cable

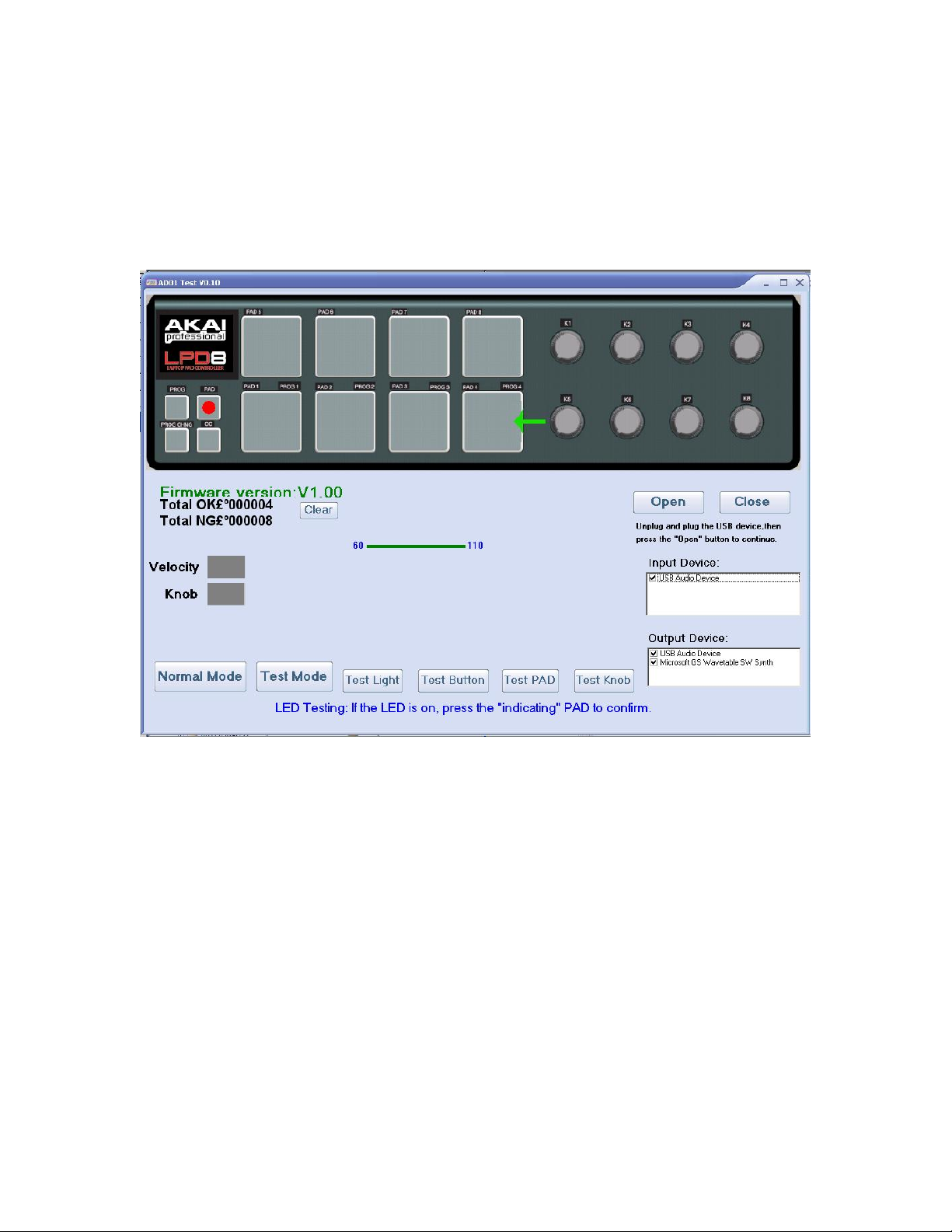

oAD01 Test Application
Setup
oAttach USB cable between the LPD8 and PC.
oStart the AD01 Test Application
oEnsure the correct input and out devices are selected to properly communicate
with the LPD8
When connected the unit should automatically enter TEST mode. The operator can change
whether the unit is in Test mode or Normal mode by pressing the associated mode button.
Pressing these buttons is NOT required to run the test.
The application keeps a running total of units that pass the test and units that fail the test.
Pressing the [Clear] button will reset these counts. When the unit has completed the test, press
[Close] and then connect the next unit for test and then press [Open] to begin testing the next
unit.
The test will step through all the sub-tests automatically but the operator can jump to a selected
sub-test by pressing the sub-test button (such as [Test Light]).
Operation:
The LED Test is first. The operator will confirm that each LED lights as expected and no other
LED is on. When correct, the operator will press the indicated Pad 4 to progress through the sub-
test.
Confidential Akai Professional Service Manual
The next test is the Button Test. The operator should press the button indicated on the
application. The application will advance to the next button provided that only the indicated
button is pressed.
Confidential Akai Professional Service Manual
The Pad Test is next. There is a minimum and maximum allowable velocity in order to pass a
pad hit. These values can be edited. They default to a range of 60 to 110. The application will
indicate to the operator which pad to press.

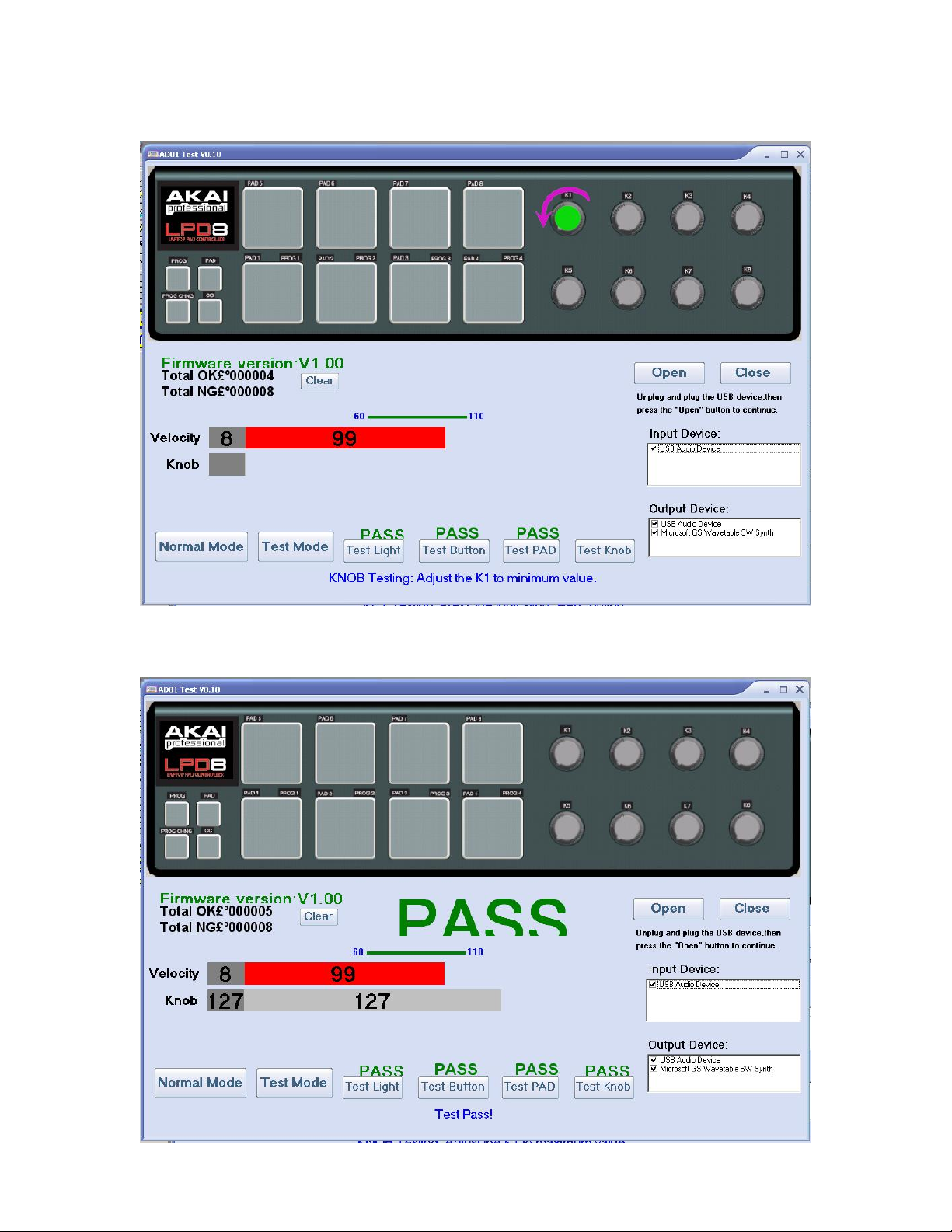

The last test is the Knob Test. The operator should turn the indicated knob as indicated. Each
knob should be turned to the minimum position and then turned fully clockwise.
Confidential Akai Professional Service Manual
Confidential Akai Professional Service Manual
AKAI
PROFESSIONAL
LPD8 (AD01)

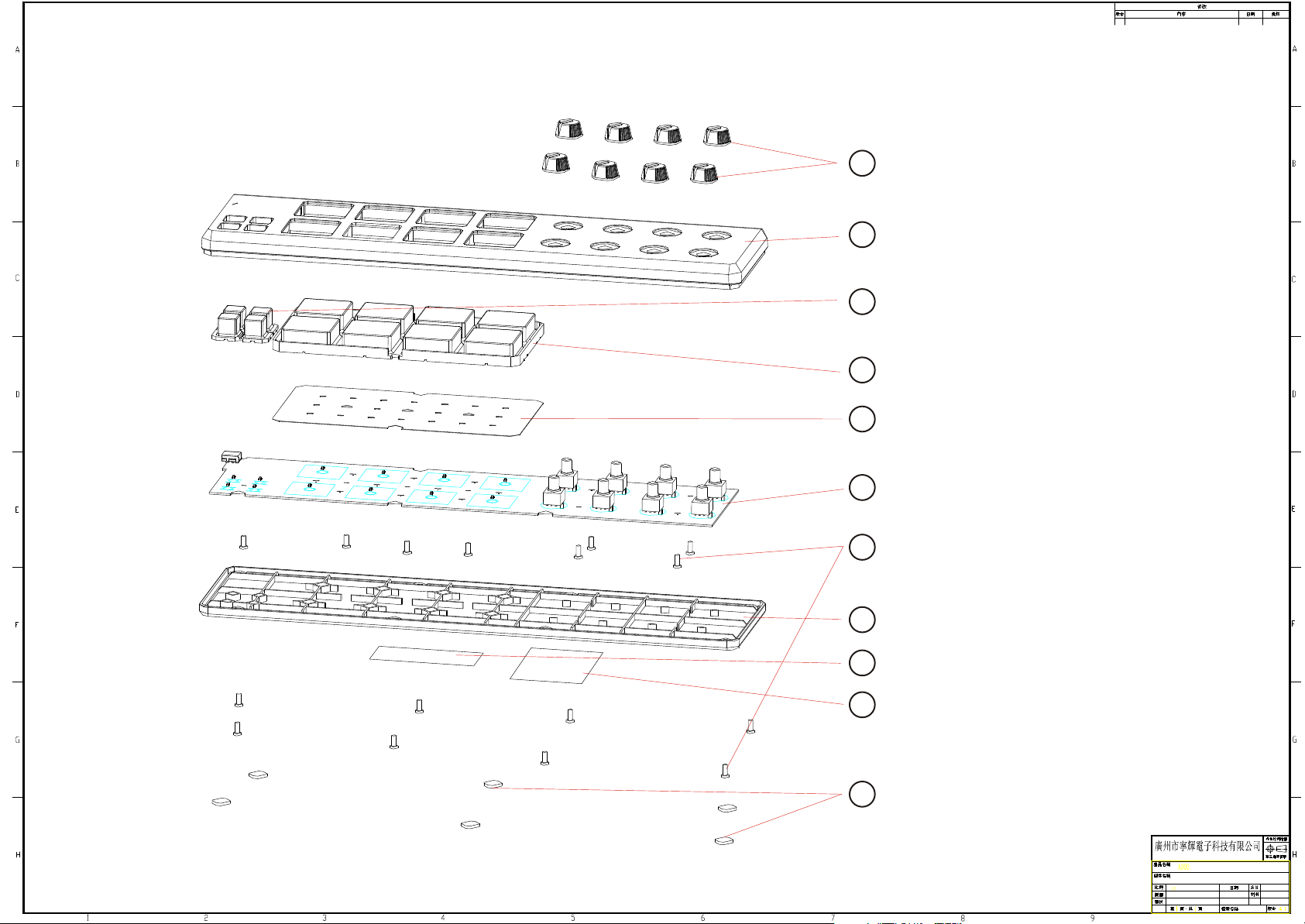

Exploded View &
BOM
18 pieces plastic caps with white silkscreen
indication on it;
2Top plastic housing;
34keys rubber switch with electric carbon,1 is
black and other 3 is white and black silkscreen
on the top surface;
48keys rubber PAD with black silkscreen
on the top surface;
white
5High resistance carbon membrane;
6PCB assembly;
716pieces screws M2.5*7.0mm P/C black zinc;
8Bottom plastic housing;
9Serial number label;
10 Compliance sticker label;
11 6pieces rubber feet;
TO : AKAI professional
ATTN :
C.C. :
FROM :
MODEL: AD01
PN DES QTY Vendor MOQ Leadtime Note
041184000 LABEL FOR BOTTOM AD01,AD02 "ROHS" compliance Sticker 1.00 YOURUN 2K 3days
041184100 LABEL FOR CARTON AD01 "ROHS" Serial number 3.00 YONGHU
A
2K 1-2weeks
041184200 LABEL FOR CARTON AD01 "ROHS" Big sticker 1.00 YONGHU
A
2K 1-2weeks
041184300 LABEL FOR CARTON AD01 "ROHS" JAN UPC code 0.20 YONGHU
A
2K 1-2weeks
041184400 LABEL FOR CD AD01,02 "ROHS" 1.00 YONGHU
A
2K 1-2weeks
043184000 WARRANTY CARD FOR AD01 "ROHS" 1.00 DONGHE
N
1K 1-2weeks
051184000 SHIPPING CARTON FOR AD01 "ROHS" 1.00 ANFA 2K 1-2weeks
051184100 OUTER CARTON FOR AD01 "ROHS" 0.10 ZHITONG 2K 1-2weeks
056184000 BUBBLE BAG DUAL LAYER RED FOR AD01 "ROHS" 1.00 XIELI 1K 1-2weeks
074184000 CD FOR AD01 "ROHS" 1.00 JIAYINWA
N
0.5K 5-7weeks
061184000 CABLE USB W/FERRITE 1 METER L=1500mm BLACK "HONGYUN" USBAM-MINI5P "ROHS" 1.00 HY05
021184600 FOOT RUBBER BLACK FOR AD01 "ROHS" 4.00 JINGXI 1K 5days
023184002 PCB'A MAIN REV.2 AD01 "ROHS" 1.00 SY04
812127000 SCREW M2.5*7.0mm P/C BLACK ZINC "ROHS" 16.00 LIGONG 5K 1-2weeks
021184500 HIGH-RESISTANCE CARBON FILM PVC FOR AD01 "ROHS" 1.00
021184000 TOP COVER ABS FOR AD01 NONE-5907-13 "ROHS" 1.00
021184100 BOTTOM COVER ABS FOR AD01 NONE-5716-6 "ROHS" 1.00
021184200 KNOB ROTARY ABS FOR AD01 "ROHS" 8.00
021184300 BUTTON RUBBER WHITE 4KEY FOR AD01 "ROHS" 1.00
021184400 BUTTON RUBBER WHITE 8KEY AD01 "ROHS" 1.00
MIDIPLUS Co., Ltd.
4F., No.82, Sec. 1, Hankou St. Taipei City, 100 Taiwan
TEL: +886-3-3873500 FAX: +886-3-3872558
BOM
Confidential Akai Professional Service Manual
AKAI
PROFESSIONAL
LPD8 (AD01)

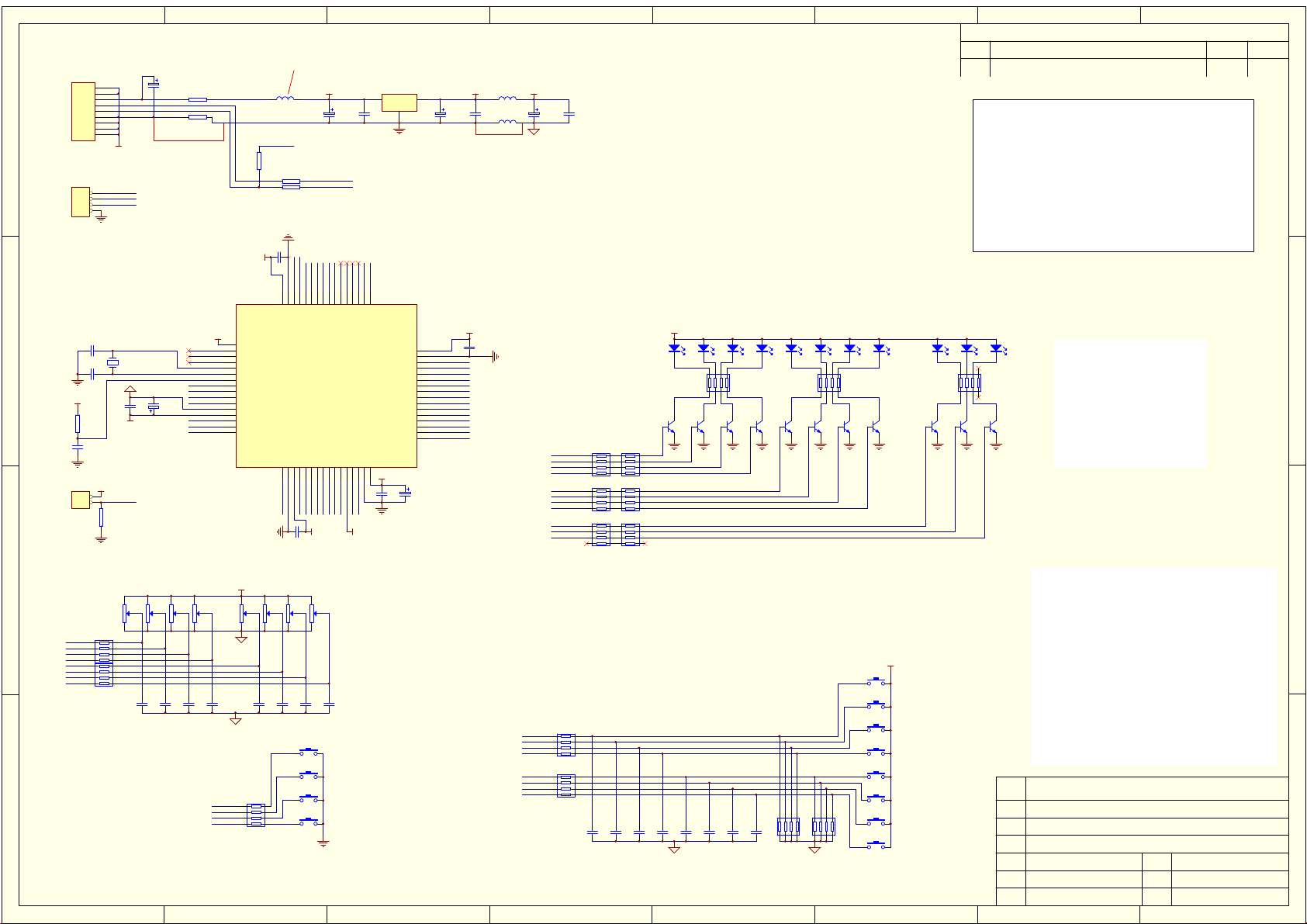

SCHEMATIC
AND

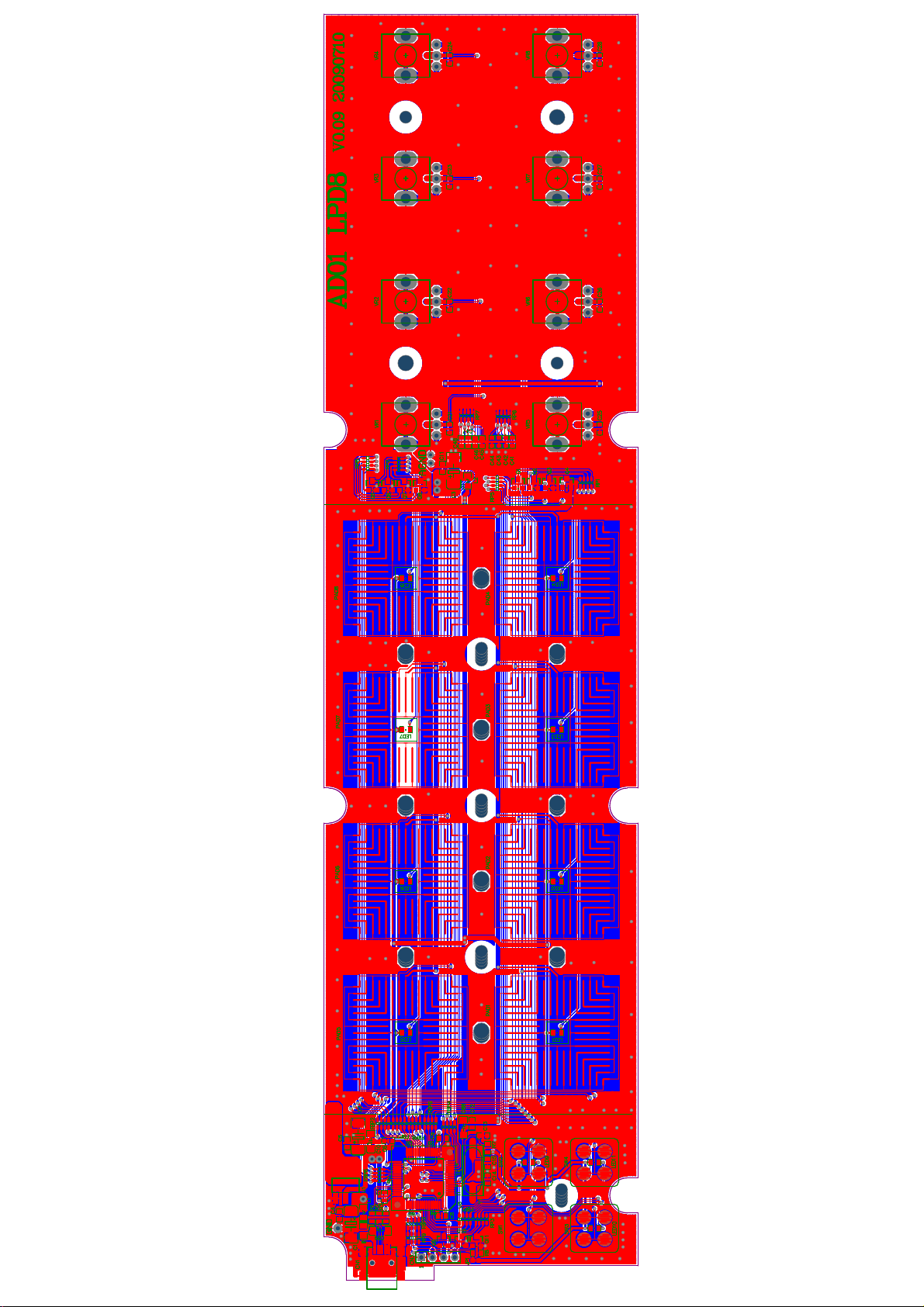

PCB
FILES
!"#$## %&
! "
!
!!
!
"#
$
$
$
$
$
$
%!
%&
'
'
$&
%&
%!
&
$
(
!!
&
$
!!
)"
)"
#
# !
#
*+,-
*+,-
*+,-
*+,-
$
,-./012/.30-45
$22226/-.327,./81,72+42 9
$222(2-,*0:,23;,22# 22<011,<30-926=7,-2<;=18,2302>10+?.023;,-,2=-,
2>10+.9>,4226-0*22<;=18,2302$2(26-0*2>2302>$2@2<;=18,2/12302=2=<>=8,?.023;=32
;=:,2@A$
$222((22-,*0:,2@@?-,*0:,2@?<;=18,226-0*22302?<;=18,2B
6-0*2@ 22302# 2?=CC2260-*22302=*+,-?-,*0:,2(?D.2/12
<011,<32302$?<;=18,226-0*22302)@"?<;=18,2260-*22302?=7722E)@"F
302$2=172?2=772(E)@"F23022<011,<30-?<;=18,226-0*2 $2302$?
<;=18,226-0*2>2302?=7722$&2302)2/1?
$222(2-,*0:,23;,2 2!?).,23;,2 D.26C=.;2-0*2/1.3,=792-,*0:,2
3;,2 2<011,<30-922-,*0:,23;,2B2# ?2).,2=2 2/12302<013-0C92<;=18,23;,2!!
G)*,-922,:,-422=772=27-/:,-H2<;=18,23;,26)13/012012 D.2/12H
$222(222@(2<;=18,2302(2$&?2*0:,2$&2)CC)2-,./.30-23023;,2C=<,2+,3I,,12
2=1723;,22G=<>H2 @ 2<;=18,2302 @ ?201C42>26C=.;2!$
$22(222D.20I,-26-0*22<;=18,2302$?2=1723;,2C/*/32-,./.30-222
60-*22<;=18,2302?22<;=18,2302$2@2@2@2*0:,23023;,22<013-0C2!2
.023;=321,=-23;,2$227)*22=772(2<==</34$2,*0:,22&2)CC2)2-,./.30-.$2
2%2# 26-0*22<;=18,2302?2-,*0:,23;,20I,-2/1$2,*0:,22)$22
2(2<;=18,26-0*2$&2302&$
$2(2=<<0-7/182302&D.26,,7+=<>?2=CC22=-,2?22<;=18,2302?
=17222(2<;=18,2+=<>2302$&$2172=772+=<>22)?/1220I,-2.)C4$
$2((22$**
!"#$%&'&()
(260-23;,2@?2.;0-3222@
"
"!
"!!
"!
"!!
"
"
(
"
"
"%&"
"
"
"
(
"
"
"
"
"
"
"
"(
"!!
" '
(
" '
"
&"
!"
!"
"
"
" (
"(
"
'"(
'"
"'"
" '"
# "%!"
# &"%&" (
# "
"
# !"
# "
C"
"
" (
!!
"
"(
@
)
)
)"
$
(
$
%
%
%
%
%
%
%
%
*+,-
*+,-
*+,-
*+,-
(
*+,-
*+,-
*+,-
&
&
&
&
$
(
(
(
(
(
(
(
&
&
&
&
&
&
&
&
(
&
&
)*
)*
)*
)*
)*
)*
)*
)*
$
(
@
(
@
(
&
&
&
&
(
@
(
@
(
@
(
@
(
@
(
@
(
@
(
@
(
#)*,-2/122302.,C,<32003
$
)@"
)@"
(
)@"
$
#
#
!" #
B
B
B
B
B
B
B
B
B(
B
B
$&
$&
(
(
$&
$%&'()" *+,-./0123"456
$%&/078,9:,;<=>?@ABCDEF,GHI
&D.2.)88,.32/122C=40)3
F2C=<,*,13206227,<0)C/182<==</30-.2.;0)C72+,2/*-0:,7$222/.230026=-26-0*23;,2$2
;,28-0)172:/=260-22/.230026=-2=I=426-0*23;,2<==</30-$!)-2-/*=-42<01<,-12/.2$22
.2C0182=.23;,2D.2<=12=..223,.3.?23;,2<==</30-.2<=12.3=42I;,-,23;,42=-,$
F2!123;,22C=+,C,72(?26,--/3,2+,=72=<>.2@2=172@2=-,2C=<,72*)<;2
30026=-26-0*23;,22302+,2=+C,2302<013-0C228,1,-=3,72+423;,2$22
C,=.,2C=<,23;,.,2=-3.2<C0.,-23023;,22/620../+C,$
(
(
(
(
(
(
(
(
2E2F2J2$(
2E# D.2F2J2$
.022EF2J2$22$(22$2J2$
.022E2F2J22EF2J2$2"22J2$2J$2*
.022EF2J$2K2$2"22J22$%
=1720I,-2=3/1820621,3I0->2-,./.30-2/.2"%2J2$%
.02/123;/.27,./81?23;,22-,./.30-2/1222<=12I0->28007$
E02.3)66F
#$%&
#'
((
#$%&()*&+
)
,-./01023.45
46-7380.)'(%-9
:-./01023.;<
Confidential Akai Professional Service Manual
AKAI
PROFESSIONAL
LPD8 (AD01)
ECN
HISTORY
Other manuals for LPD8
4
This manual suits for next models
1
Table of contents
Other Akai Music Equipment manuals
Akai
Akai Professional MPC 1000 User manual
Akai
Akai MPK225 User manual
Akai
Akai MPD218 User manual
Akai
Akai Professional LPK25 User manual
Akai
Akai MPD 32 Manual
Akai
Akai AD21 User manual
Akai
Akai MPD 32 User manual
Akai
Akai Professional MPC 1000 Installation guide
Akai
Akai MAX25 User manual
Akai
Akai SG01v User manual
