Akai MPC 2500 User manual

/IAUSIC PRODUCTION CENTER
25CJCJ
= I --1 r-"-'
IIAUSIC PRODUCTION CENTER
1=1
i25CJCJ
@·link ICJI
C:J r7 CJI
I.CJ! ICJ. ~ .CJI
ICJI ICJI
1.l_lJ 1.l_lJ
1.CJI □
•=
ERASE REPEAT
- -







SAFETY INSTRUCTIONS
1 . Parts identified by the ;?; symbol are critical for safety.
Replace them only with the parts number specified.
2. In addition to safety, other parts and assemblies are
specified for conformance with such regulations as those
applying to spurious radiation.
These must also be replaced only with the specified
replacements.
Examples : Noise blocking capacitors, noise blocking filters,
etc.
3. Use specified internal wiring. Note especially :
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
4. Use specified insulating materials for hazardous live parts.
Note especially:
1) Insulation Tape
2) PVC tubing
3) Spacers (insulating barriers)
4) Insulation sheets for transistors
5) Plastic screws for fixing micro switches
5. When replacing AC primary side components (trans-
formers, power cords, noise blocking capacitors, etc.),
wrap the ends of the wires securely around the terminals
before soldering.
:fr
...
...
6. Make sure that wires do not contact heat producing parts
(heat sinks, oxide metal film resistors, fusible resistors,
etc.).
7. Check that replaced wires do not contact sharp edged or
pointed parts.
8. Also check areas surrounding repaired locations.
9. Make sure that foreign objects (screws, solder droplets,
etc.) do not remain inside the set.
SAFETY CHECK AFTER SERVICING
After servicing, make measurements of leakage-current or
resistance in order to determine that exposed parts are
acceptably insulated from the supply circuit. The leakage-
current measurement should be done between accessible
metal parts (such as chassis, ground terminal, microphone
jacks, signal inpuVoutput connectors, etc.) and the earth ground
through a resistor of 1500 ohms paralleled with a 0.15 F
capacitor, under the unit's normal working conditions.
The leakage-current should
be less than 0.5 mA rms AC. The
resistance measurement should be done between accessible
exposed metal parts and power cord plug prongs with the
power switch (if included) "ON". The resistance should be
more than 2.2 M ohms.
INFORMATIONS
SYMBOLS FOR PRIMARY DESTINATION
Unit destinations are indicated with letters as shown below.
Symbols Principal Destinations
[Al U.S.A
[[]
England
w Europe
QJ
Japan
[J[] Germany
Dru
Japan
[Ml Universal Area
MAKE YOUR CONTRIBUTION TO PROTECT THE
ENVIRONMENT
Used batteries with the ISO symbol for recycling as
well as small accumulators (rechargeable batteries), ~
mini-batteries (cells) and starter batteries should not '0<7
be thrown into the garbage can.
Please leave them at an appropriate depot.
PRECAUTIONS FOR LITHIUM BATTERY
The lithium battery may explode when incorrectly replaced.
[OBSERVE THE FOLLOEING WHEN REPLACING]
Replace
with the same make and type or equivalent recom
mended by manufacturer .
Place battery in correct polarity.
Do not short the terminals.
Do not charge battery.
Do not dispose of battery in fire.
-------------------SERVICE MANUAL-------------------
2

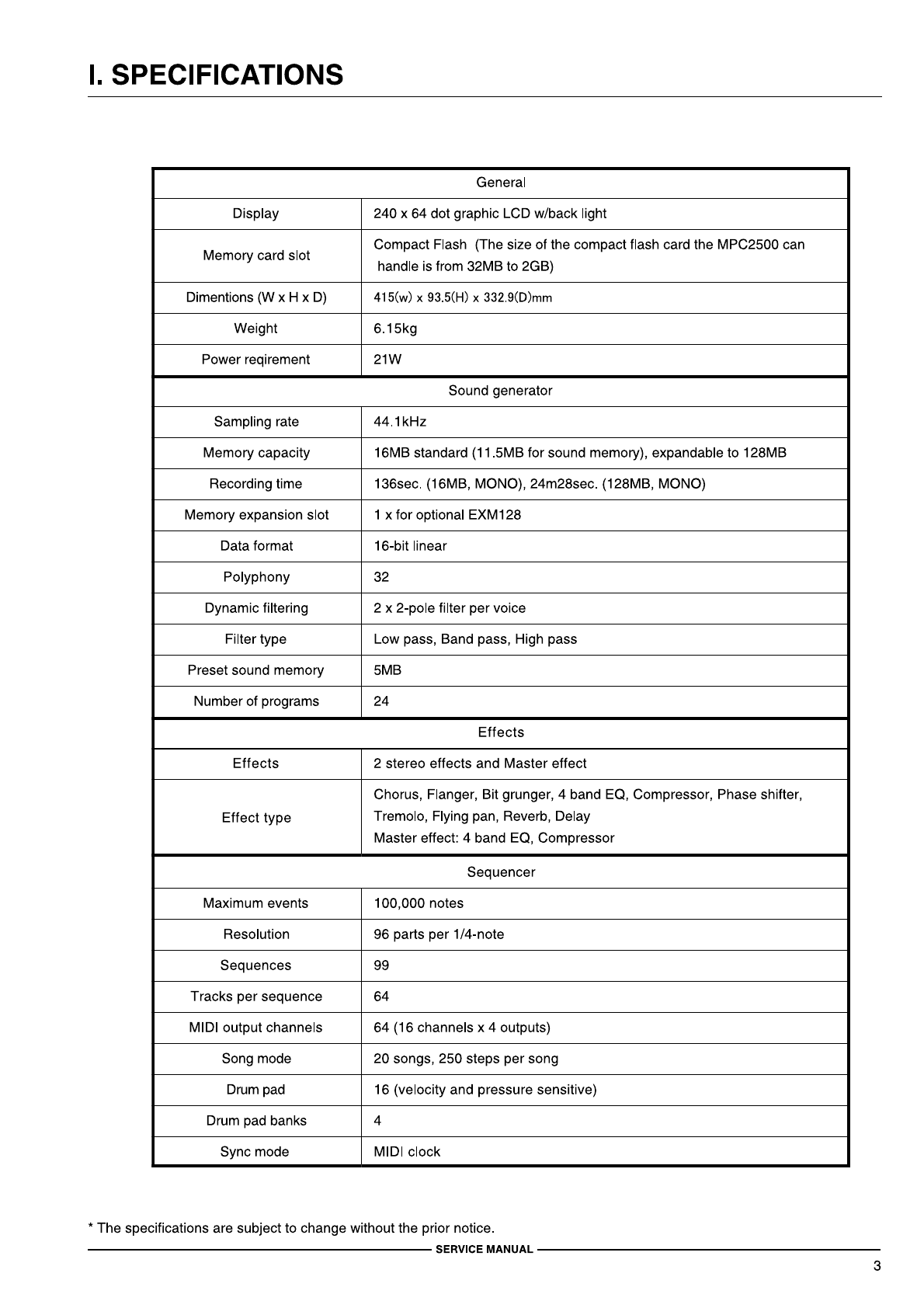

I. SPECIFICATIONS
General
Display 240 x 64 dot graphic LCD w/back light
Memory card slot Compact Flash (The size of the compact flash card the MPC2500 can
handle
is from 32MB to 2GB)
Dimentions (W x H x
D)
415(w) x 93.5(H) x 332.9(D)mm
Weight 6.15kg
Power reqirement 21W
Sound generator
Sampling rate 44.1kHz
Memory capacity 16MB standard (11.5MB for sound memory), expandable to 128MB
Recording time 136sec. (16MB, MONO), 24m28sec. (128MB, MONO)
Memory expansion slot 1 x for optional EXM 128
Data format 16-bit linear
Polyphony 32
Dynamic filtering 2 x 2-pole filter per voice
Filter type Low pass, Band pass, High pass
Preset sound memory 5MB
Number of programs 24
Effects
Effects
2 stereo effects and Master effect
Chorus, Flanger, Bit grunger, 4 band
EQ, Compressor, Phase shifter,
Effect type Tremolo, Flying pan, Reverb, Delay
Master effect: 4 band EQ, Compressor
Sequencer
Maximum events 100,000 notes
Resolution 96 parts per 1/4-note
Sequences 99
Tracks per sequence
64
MIDI output channels 64 (16 channels x 4 outputs)
Song mode 20 songs, 250 steps per song
Drum pad 16 (velocity and pressure sensitive)
Drum pad banks 4
Sync mode MIDI clock
* The specifications are subject to change without the prior notice.
-------------------SERVICE MANUAL-------------------
3

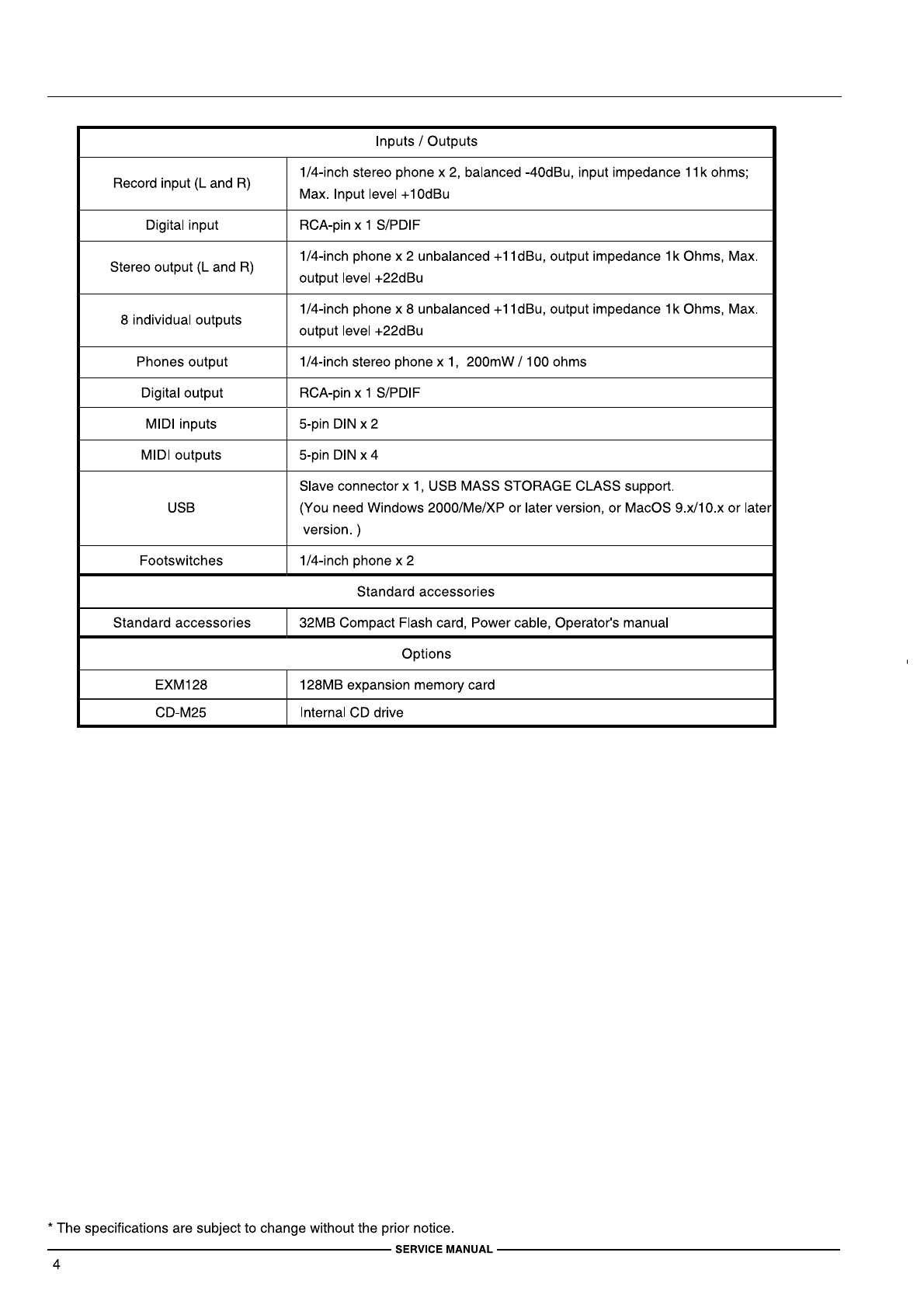

Inputs/ Outputs
Record input (L and
R)
1/4-inch stereo phone x 2, balanced -40dBu, input impedance 11 k ohms;
Max. Input level +10dBu
Digital input RCA-pin x 1 S/PDIF
Stereo output (L and
R)
1/4-inch phone x 2 unbalanced + 11 dBu, output impedance 1 k Ohms, Max.
output level +22dBu
8 individual outputs 1/4-inch phone x 8 unbalanced +
11 dBu, output impedance 1 k Ohms, Max.
output level +22dBu
Phones output 1/4-inch stereo phone x
1, 200mW I 100 ohms
Digital output RCA-pin x 1 S/PDIF
MIDI inputs 5-pin DIN x 2
MIDI outputs 5-pin DIN x 4
Slave connector x
1, USB MASS STORAGE CLASS support.
USB (You need Windows 2000/Me/XP or later version,
or MacOS 9.x/1 0.x or later
version.)
Footswitches 1/4-inch phone x 2
Standard accessories
Standard accessories 32MB Compact Flash card, Power cable, Operator's manual
Options
EXM128 128MB expansion memory card
CD-M25 Internal CD drive
* The specifications are subject to change without the prior notice.
-------------------SERVICE MANUAL-------------------
4

II. DISASSEMBLY
In case of trouble, etc., necessitating dismantling, please dismantle in the order shown in the illustrations. Reassemble in the
reverse order.
ZS-404181J
ZS-822429X
ZS-822727X
ZS-404225J ZS-404181
J---
--------------------SERVICE MANUAL--------------------
5

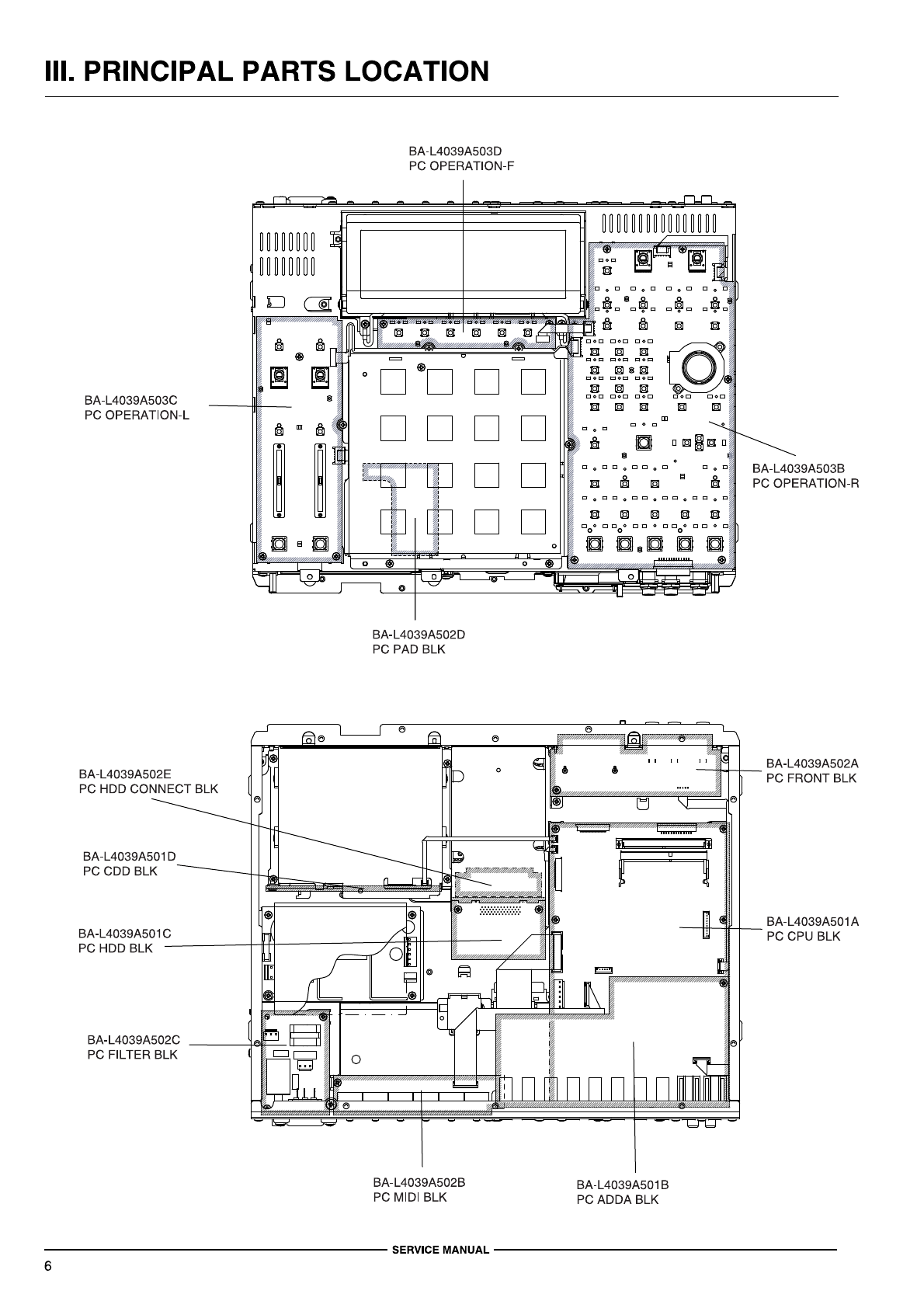

Ill. PRINCIPAL PARTS LOCATION
BA-L4039A503C
PC OPERATION-L
ii
BA-L4039A503D
PC OPERATION-F
0 □ ®o □ □
□□□□
□□
□□
ijc
11
cijc cijc cijc
i!li i!li llll llll
coc coc coc @
llll llll llll
c~c c~c !! c~c 0
ClOCl ClOCl ClOCl
llll llll llll o
CJOCJ CJOCJ CJOCJ CJOCJ CJOCJ
llll llll llll llll llll
Ill
C 0 C
i!li
!!
llll i!li llll 8 i!li
□ 0 □□ 0 □□ 0 □□ 0 □□ 0 □
llll llll llll llll llll
C]OC]C]OC]C]OC]C]OC]C]OC]
0 0 0
BA-L4039A5038
PC OPERATION-A
~ C~ ei ~C~ ~ ~~ :::::=::=~~
0
~ D C II D D C
BA-L4039A501 D
PCCDD BLK
0
BA-L4039A502D
PC PAD BLK
BA-L4039A5028
PC MIDI BLK
0
BA-L4039A501 B
PC ADDA BLK
BA-L4039A501 A
-;,i--,t---t- PC CPU BLK
-----------------SERVICEMANUAL-----------------
6

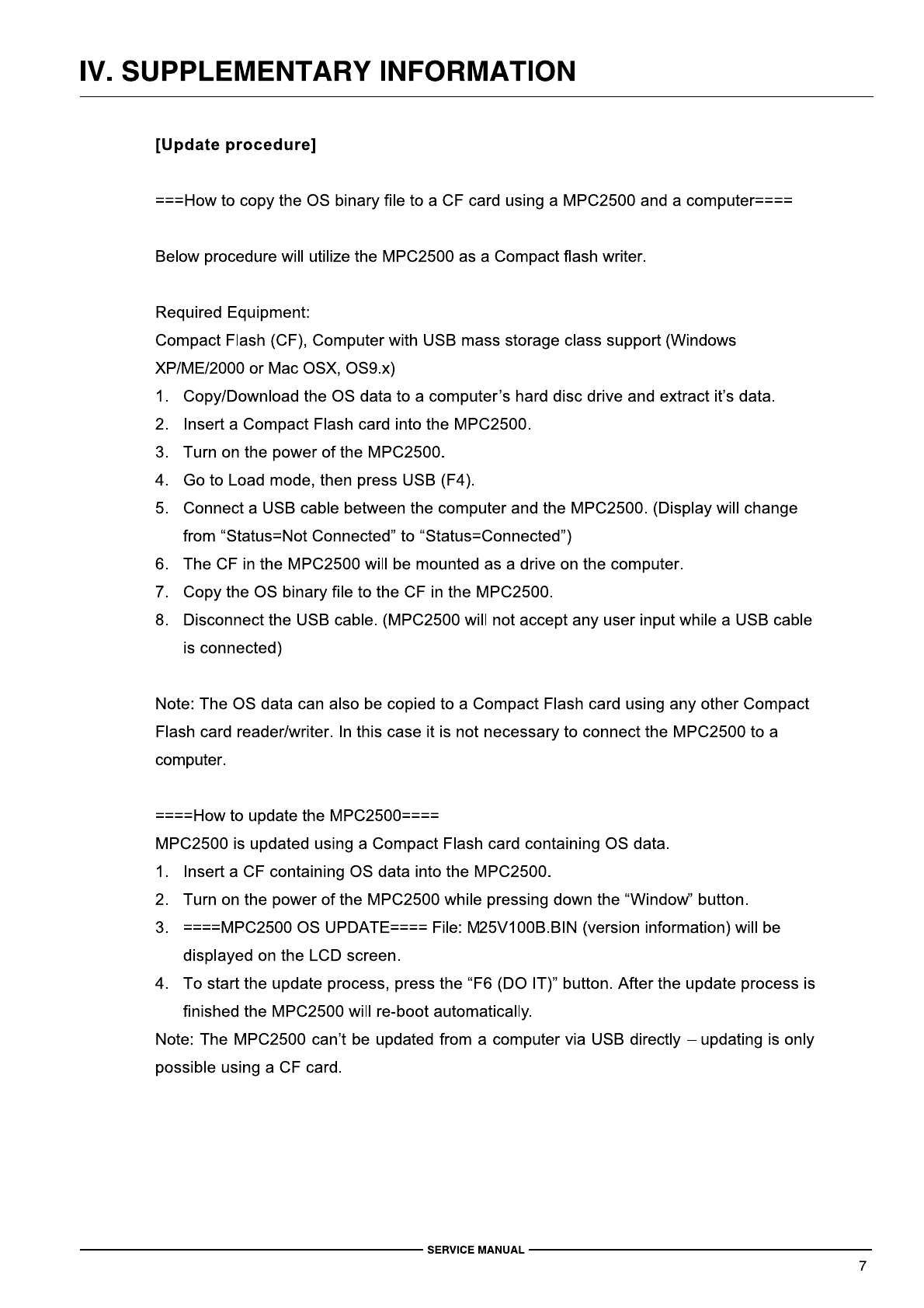

IV. SUPPLEMENTARY INFORMATION
[Update procedure]
===How to copy the
OS binary file to a CF card using a MPC2500 and a computer====
Below procedure will utilize the MPC2500 as a Compact flash writer.
Required Equipment:
Compact Flash (CF), Computer with USB mass storage class support (Windows
XP/ME/2000 or Mac OSX, OS9.x)
1. Copy/Download the OS data to a computer's hard disc drive and extract it's data.
2. Insert a Compact Flash card into the MPC2500.
3. Turn on the power of the MPC2500.
4. Go to Load mode, then press USB (F4 ).
5. Connect a USB cable between the computer and the MPC2500. (Display will change
from "Status=Not Connected" to "Status=Connected")
6. The CF in the MPC2500 will be mounted as a drive on the computer.
7. Copy the OS binary file to the CF in the MPC2500.
8. Disconnect the USB cable. (MPC2500 will not accept any user input while a USB cable
is connected)
Note: The
OS data can also be copied to a Compact Flash card using any other Compact
Flash card reader/writer.
In this case it is not necessary to connect the MPC2500 to a
computer.
====How to update the MPC2500====
MPC2500
is updated using a Compact Flash card containing OS data.
1. Insert a CF containing OS data into the MPC2500.
2. Turn on the power of the MPC2500 while pressing down the "Window" button.
3. ====MPC2500 OS UPDATE==== File: M25V100B.BIN (version information) will be
displayed
on the LCD screen.
4. To start the update process, press the "F6 (DO IT)" button. After the update process is
finished the MPC2500 will re-boot automatically.
Note: The MPC2500 can't
be updated from a computer via USB directly -updating is only
possible using a CF card.
-----------------SERVICEMANUAL-----------------
7

[Test program]
Test programs on the MPC2500 can be run either using a Test OS or a JIG PC Flash Rom.
[Running the test Program using a Test OS]
A test program can be installed on the MPC2500 by updating it with a Test OS. The Test OS
must be copied to a CF card from which it will be written to the Flash ROM of the MPC2500.
The installation procedure is the same as for a normal OS update. For a description of the
test mode functions, refer to the "MPC2500 Test Program list".
Note: Once the Test OS is installed, the unit will always start up using the Test OS, until the
regular OS is re-installed.
[Running the test Program using a JIG PC Flash ROM MPC2.5K (AJ-771314J)]
The PC Flash ROM is used during repair for the testing jig and boot block recovery.
To access the test program on the PC Flash ROM MPC2.5K follow this procedure:
1. Turn off the MPC2500 and open the unit.
2. Insert the PC Flash MPC2.5K ROM into J110 on the CPU board.
3. Turn on the MPC2500 to start up the Test OS from the PC Flash ROM.
[Hidden modes]
The MPC2500 has the following hidden modes, which can be accessed by certain input
sequences or holding down a key while powering on the unit.
[Owner Name]
Mode > Other > F3/FOOTSW > F6 > Enter owner name
In the startup screen, "Owner Name" will be displayed.
[Initialize parameter]
Hold down the ERASE button while powering on the unit.
[Demo mode]
Hold down the Bank "D" button while powering on the unit.
In this mode "Internal memory" on the Save page can not be selected. In the startup screen
"Demo" will be displayed instead of "MPC2500". Once demo mode has been activated it will
remain active even if power is turned off and on again. To turn off the Demo mode, hold
down the Bank "D" button while powering on the unit.
----------------- SERVICEMANUAL-----------------
8

(Cl
CJ)
m
:JI
<
c'i
m
s:
)>
z
C:
)>
I'"
Starting Display
F1 PANEL
F2 MEMOR)
F3 AUDIO
F4 MIDI
F5 F.SW
F6 -----
PANEL TEST
MEMORY TEST
AUDIO TEST
MIDI TEST
FOOT SW TEST
F1 KEY
F2 JOG
F3 PAD
F4 LCD
F5 LED
F6 EXIT
F1 SDRAM
F2 CF
F3 HDD
F4 CDD
F5
F6 EXIT
F1 AID
F2 SPDIF
F3 TONE
F4
-----
F5 -----
F6 EXIT
F1 START
F2
-----
F3
-----
F4
-----
F5 -----
F6 EXIT
F1
-----
F2
-----
F3
-----
F4
-----
F5 -----
F6 EXIT
KEY TEST
Q-LINK AND JOG TEST
PAD TEST
LCD TEST
LED TEST
SDRAMTEST
CF CARD TEST
HDD TEST
CDDTEST
FLASH WRITING
AID selected
SPDIF selected
TEST TONE
MIDI OUTA > MIDI
IN 1 -- OK
(Connect MIDI cable OUT to IN, Each
connection result dislayed)
F.SW1 : ON F.SW2 : OFF
( Foot SW status displayed )
F1 VELO/PEEK
F5 RESET
F6 EXIT
F6 EXIT
F6 EXIT
F1 SIMPL
F2
F3 FULL
F4 -----
F5 -----
F6 EXIT
F1 SIMPL
F2 DETEC
F3
F4 BACUP
F5 ERASE
F6 EXIT
F1 SIMPL
F2 DETEC
F3
F4 BACUP
F5 ERASE
F6 EXIT
F1 SIMPL
F2 DETEC
F6 EXIT
F1 P OS
F2 USB
F3 LIBC
F4 LISH
F6 EXIT
By Pressing Keys correspond button boxes change to negative.(Press
F6 twice: EXIT)
Q-Link, Jog input value displyed
Each Pad input Velocity/Peek value displayed.
Reset Value
All dot
of LCD change to Black. Contrast adjusting by JOG
Contrast adjusting by SHIFT +JOG
All LEDs light
SDRAM simple check
SDRAM all area READ/WRITE check
CF card simple check
Type
of CF card display
For development
Delete CF card data
HDD simple check
Type
of HDD displayed
For development
Delete HDD dataHDD
No function
Type
of CD drive displayed
Write Test OS to Flash ROM
USB TEST
No function
No function
AID
In => Out Main, 12,34,56, 78
DIGITAL
In=> Out Main,12,34,56,78
FULL bit signal output to all OUTPUT.
Start Loop back Test, MIDI OUT AIB/C/D --> MIDI
IN 1/2

ˇˇ
ˇˇ
ˇ
ˇˇ
ˇˇ
ˇ
V. PARTS LIST
ATTENTION
1. When placing an order for parts, be sure to list the Part No., Model No. and the description of each part.
Otherwise, the non-delivery of the part or the delivery of a wrong part may result.
2. Please make sure that Part No. is correct when ordering.
If not, a part different from the one you ordered may be delivered.
3. Since the parts shown in Parts List or Preliminary Service Manual may have been the subject of changes,
please use this Parts List for all future reference.
HOW TO USE THIS PARTS LIST
1. This Parts List lists those parts which are considered necessary for repairs.
2. Parts not shown
in the Parts List will not in principle be supplied.
3. How to read the Parts List.
1. PC MAIN BOARD BLK
Ref. No. Part No.
D5 ED-431276C
D110 ED-431276C
Description
D
SCH OT 1 S30-J T05
D
SCH OT 1 S30-J T05
IC5 El-811073J ICTRC-6593
IC10 El-811068J
IC HD74HC157FP
L f SeMoo perts cl=mrauoo
These reference symbols correspond with component
symbols
in the Schematic Diagrams.

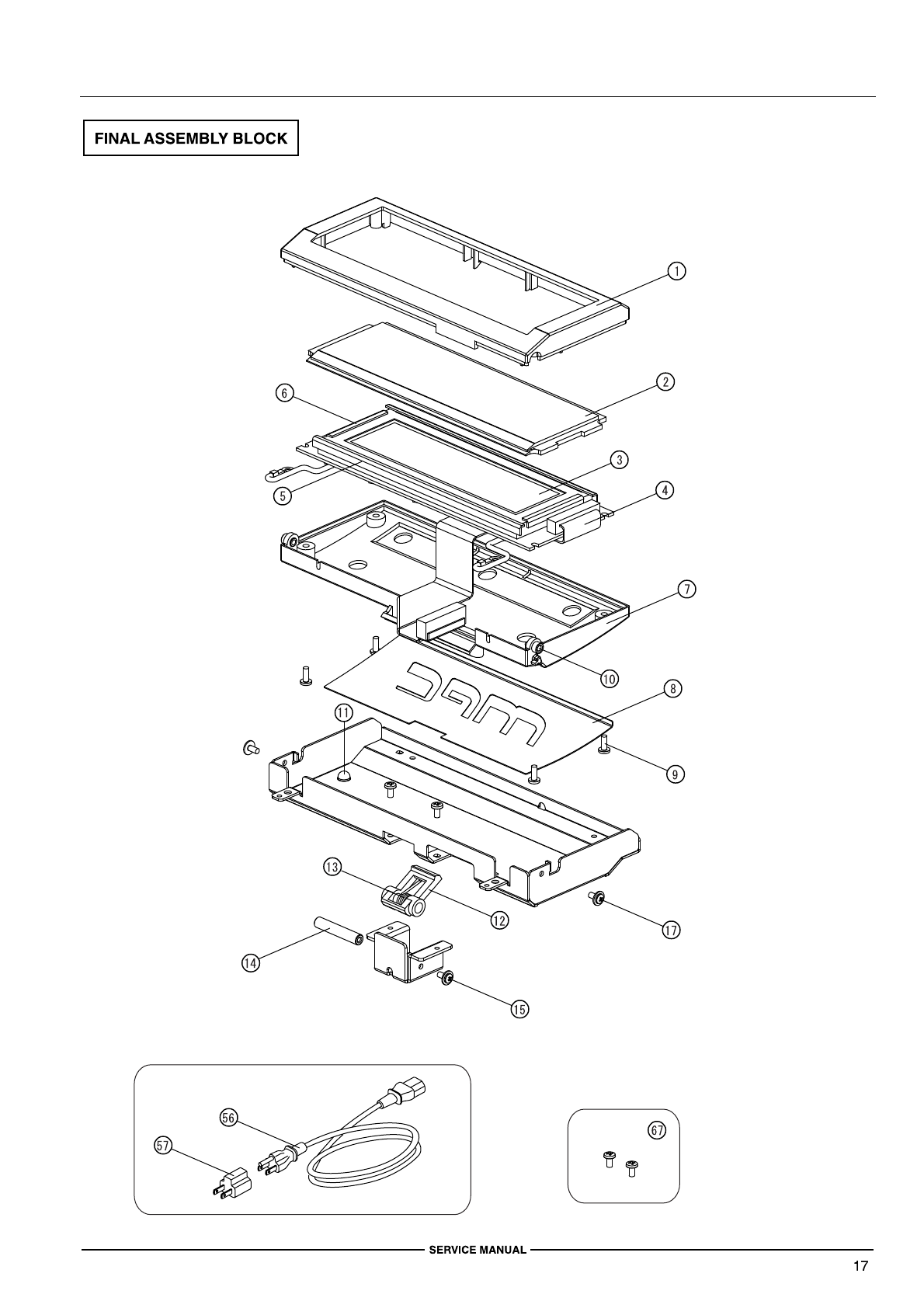

2. FINAL ASSEMBLY BLK
Ref. No. Part No.
1 . SA-349332
2. ZS-344754C
44. SP-417333J
45. ZS-418385J
46-A
J; EW-380905J
46-8
J; EW-368420J1
16:Q
J; EW-410608J
Description
FOOT
ST PAN30x06STL CMT
COVER TOP
BT BID30X06STL
BNI EATRH LOCK
AC CORD 250S KP300 KS16A
H
BJ [J]
AC CORD 200SKP30KS B AC
[A]
AC CORD 250 KP4819D KS31A BE
[.E,Y]
l Symbols for primary destination
[A] U.S.A.
[J] Japan
[BJ England [V] Germany
[E] Europe [x1] Japan
[X4] Universal Area
Safety critical component
WARNING
This number corresponds with the individual parts index number
in the figure.
INDICATES SAFETY CRITICAL COMPONENTS. FOR CONTINUED SAFETY, REPLACE SAFETY CRITICAL
COMPONENTS ONLY WITH MANUFACTURER'S RECOMMENDED PARTS.
AVERTISSEMENT
IL INDIQUE LES COMPOSANTS CRITIQUES DE SECURITE. POUR MAINTENIR LE DEGRE DE SECURITEDE
L'APPAREIL,
NE REMPLACER QUE DES PIECES RECOMMANDEES PAR LE FABRICANT.
-------------------SERVICE MANUAL-------------------
10

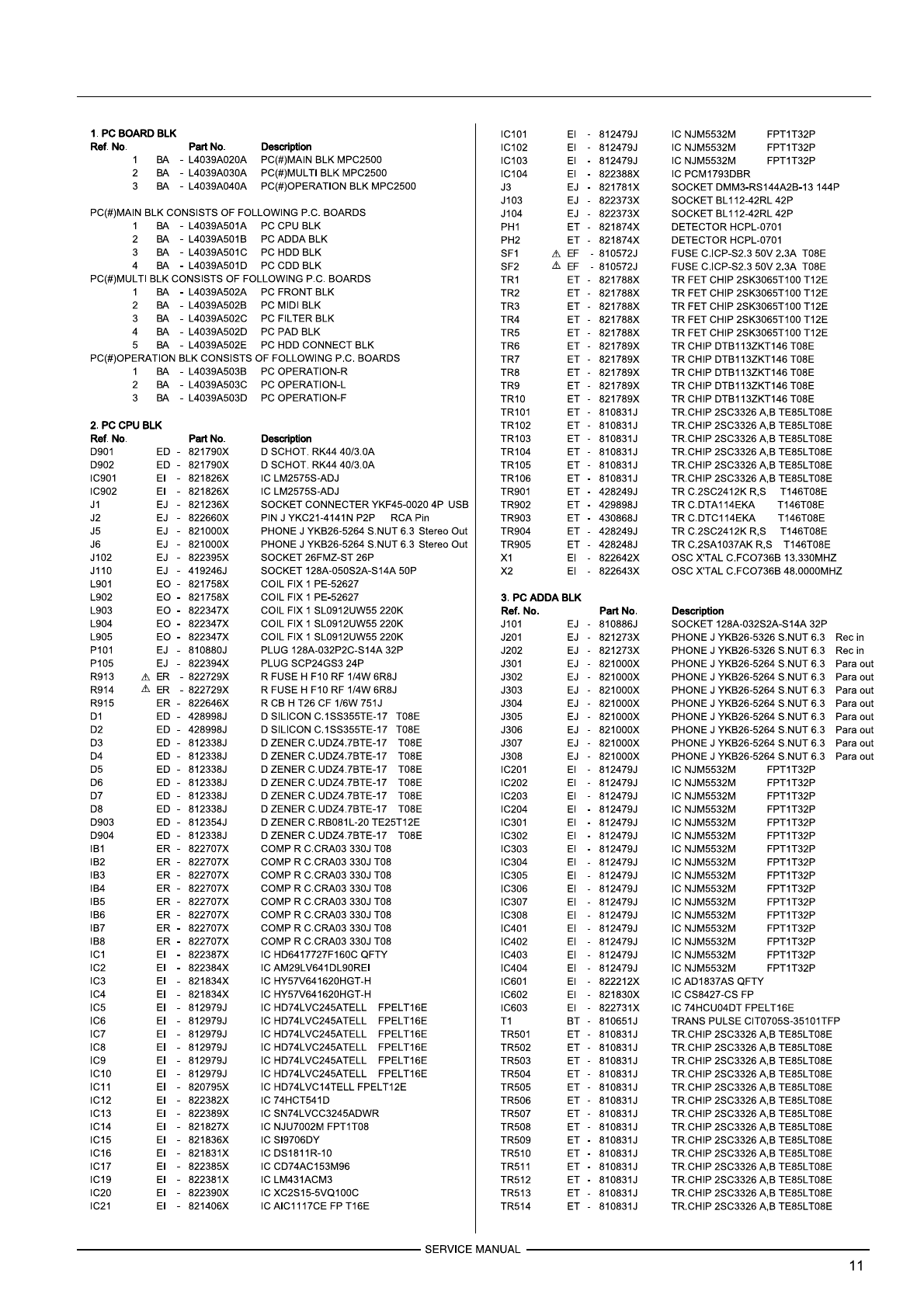

1. PC BOARD BLK
Ref. No. Part No. Description
1 BA -L4039A020A PC(#)MAIN BLK MPC2500
2
BA -L4039A030A PC(#)MUL Tl BLK MPC2500
3
BA -L4039A040A PC(#)OPERATION BLK MPC2500
PC(#)MAIN BLK CONSISTS OF FOLLOWING P.C. BOARDS
1
BA -L4039A501A PC CPU BLK
2
BA -L4039A501 B PC ADDA BLK
3
BA -L4039A501C PC HDD BLK
4
BA -L4039A501D PC CDD BLK
PC(#)MUL Tl BLK CONSISTS OF FOLLOWING P.C. BOARDS
1
BA -L4039A502A PC FRONT BLK
2
BA -L4039A502B PC MIDI BLK
3
BA -L4039A502C PC FILTER BLK
4
BA -L4039A502D PC PAD BLK
5
BA -L4039A502E PC HDD CONNECT BLK
PC(#)OPERATION BLK CONSISTS OF FOLLOWING P.C. BOARDS
1
BA -L4039A503B PC OPERATION-R
2
BA -L4039A503C PC OPERATION-L
3
BA -L4039A503D PC OPERATION-F
2. PC CPU BLK
Ref. No.
D901
D902
Part No.
ED -B21790X
ED -B21790X
IC901
El B21 B26X
IC902
El B21B26X
J1 EJ B21236X
J2
J5
J6
J102
J110
L901
L902
L903
L904
L905
P101
P105
R913
R914
R915
D1
D2
D3
D4
D5
D6
D7
DB
D903
D904
IB1
IB2
IB3
IB4
IB5
IB6
IB7
IBB
IC1
IC2
IC3
IC4
IC5
IC6
IC7
ICB
IC9
IC10
IC11
IC12
IC13
IC14
IC15
IC16
IC17
IC19
IC20
IC21
EJ B22660X
EJ B21000X
EJ B21000X
EJ B22395X
EJ 419246J
EO -B2175BX
EO -B2175BX
EO -B22347X
EO -B22347X
EO -B22347X
EJ B10BBOJ
EJ B22394X
A>. ER -B22729X
A>. ER -B22729X
ER -B22646X
ED -42B99BJ
ED -42B99BJ
ED -B1233BJ
ED -B1233BJ
ED -B1233BJ
ED -B1233BJ
ED -B1233BJ
ED -B1233BJ
ED -B12354J
ED -B1233BJ
ER -B22707X
ER -B22707X
ER -B22707X
ER -B22707X
ER -B22707X
ER -B22707X
ER -B22707X
ER -B22707X
El
El
El
El
El
El
El
El
El
El
El
El
El
El
El
El
El
El
El
El
B223B7X
B223B4X
B21B34X
B21B34X
B12979J
B12979J
B12979J
B12979J
B12979J
B12979J
B20795X
B223B2X
B223B9X
B21B27X
B21B36X
B21B31X
B223B5X
B223B1X
B22390X
B21406X
Description
D SCHOT. RK44 40/3.0A
D SCHOT. RK44 40/3.0A
IC LM2575S-ADJ
IC LM2575S-ADJ
SOCKET CONNECTER YKF45-0020 4P USB
PIN J YKC21-4141N P2P RCA Pin
PHONE J YKB26-5264 S.NUT 6.3 Stereo Out
PHONE J YKB26-5264 S.NUT 6.3 Stereo Out
SOCKET 26FMZ-ST 26P
SOCKET 12BA-050S2A-S14A 50P
COIL FIX 1 PE-52627
COIL FIX 1 PE-52627
COIL FIX 1 SL0912UW55 220K
COIL FIX 1 SL0912UW55 220K
COIL FIX 1 SL0912UW55 220K
PLUG 12BA-032P2C-S14A 32P
PLUG SCP24GS3 24P
R FUSE H F10
RF 1/4W 6RBJ
R FUSE H F10
RF 1/4W 6RBJ
R CB H T26 CF 1/6W 751J
D SILICON C.1SS355TE-17
TOBE
D SILICON C.1SS355TE-17 TOBE
D ZENER C.UDZ4.7BTE-17 TOBE
D ZENER C.UDZ4.7BTE-17 TOBE
D ZENER C.UDZ4.7BTE-17 TOBE
D ZENER C.UDZ4.7BTE-17 TOBE
D ZENER C.UDZ4.7BTE-17 TOBE
D ZENER C.UDZ4.7BTE-17 TOBE
D ZENER C.RBOB1L-20 TE25T12E
D ZENER C.UDZ4.7BTE-17
TOBE
COMP R C.CRA03 330J TOB
COMP R C.CRA03 330J TOB
COMP R C.CRA03 330J TOB
COMP R C.CRA03 330J TOB
COMP R C.CRA03 330J TOB
COMP R C.CRA03 330J TOB
COMP R C.CRA03 330J TOB
COMP R C.CRA03 330J TOB
IC HD6417727F160C QFTY
IC AM29LV641 DL90REI
IC HY57V641620HGT-H
IC HY57V641620HGT-H
IC HD74LVC245ATELL FPELT16E
IC HD74LVC245ATELL FPELT16E
IC HD74LVC245ATELL FPELT16E
IC HD74LVC245ATELL FPELT16E
IC HD74LVC245ATELL FPELT16E
IC HD74LVC245ATELL FPELT16E
IC HD74LVC14TELL FPELT12E
IC 74HCT541D
IC SN74LVCC3245ADWR
IC NJU7002M
FPT1TOB
IC Sl9706DY
IC DS1B11R-10
IC CD74AC153M96
IC LM431ACM3
IC XC2S15-5VQ100C
IC AIC1117CE FP T16E
IC101
IC102
IC103
IC104
J3
J103
J104
PH1
PH2
SF1
SF2
TR1
TR2
TR3
TR4
TR5
TR6
TR7
TRB
TR9
TR10
TR101
TR102
TR103
TR104
TR105
TR106
TR901
TR902
TR903
TR904
TR905
X1
X2
El B12479J
El B12479J
El B12479J
El B223BBX
EJ B217B1X
EJ B22373X
EJ B22373X
ET B21B74X
ET B21B74X
A>. EF -B10572J
A>. EF -B10572J
ET
B217BBX
ET B217BBX
ET B217BBX
ET B217BBX
ET B217BBX
ET B217B9X
ET B217B9X
ET B217B9X
ET B217B9X
ET B217B9X
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET 42B249J
ET 429B9BJ
ET 430B6BJ
ET 42B249J
ET 42B24BJ
El B22642X
El B22643X
3. PC ADDA BLK
Ref. No.
J101
J201
J202
J301
J302
J303
J304
J305
J306
J307
J30B
IC201
IC202
IC203
IC204
IC301
IC302
IC303
IC304
IC305
IC306
IC307
IC30B
IC401
IC402
IC403
IC404
IC601
IC602
IC603
T1
TR501
TR502
TR503
TR504
TR505
TR506
TR507
TR50B
TR509
TR510
TR511
TR512
TR513
TR514
Part No.
EJ B10BB6J
EJ B21273X
EJ B21273X
EJ B21000X
EJ B21000X
EJ B21000X
EJ B21000X
EJ B21000X
EJ B21000X
EJ B21000X
EJ B21000X
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B12479J
El B22212X
El B21B30X
El B22731X
BT B10651J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
ET B10B31J
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC PCM1793DBR
FPT1T32P
FPT1T32P
FPT1T32P
SOCKET DMM3-RS144A2B-13 144P
SOCKET
BL 112-42RL 42P
SOCKET
BL 112-42RL 42P
DETECTOR HCPL-0701
DETECTOR HCPL-0701
FUSE C.ICP-S2.3 50V 2.3A
TOBE
FUSE C.ICP-S2.3 50V 2.3A TOBE
TR FET CHIP 2SK3065T100 T12E
TR FET CHIP 2SK3065T100 T12E
TR FET CHIP 2SK3065T100 T12E
TR FET CHIP 2SK3065T100 T12E
TR FET CHIP 2SK3065T100 T12E
TR CHIP DTB113ZKT146 TOBE
TR CHIP DTB113ZKT146 TOBE
TR CHIP DTB113ZKT146 TOBE
TR CHIP DTB113ZKT146 TOBE
TR CHIP DTB113ZKT146 TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR C.2SC2412K R,S T146TOBE
TR C.DTA114EKA T146TOBE
TR C.DTC114EKA T146TOBE
TR C.2SC2412K R,S T146TOBE
TR C.2SA1037AK R,S T146TOBE
OSC X'TAL C.FCO736B 13.330MHz
OSC X'TAL C.FCO736B
4B.OOOOMHZ
Description
SOCKET 12BA-032S2A-S14A 32P
PHONE J YKB26-5326 S.NUT 6.3 Rec
in
PHONE J YKB26-5326 S.NUT 6.3 Rec in
PHONE J YKB26-5264 S.NUT 6.3 Para out
PHONE J YKB26-5264 S.NUT 6.3 Para out
PHONE J YKB26-5264 S.NUT 6.3 Para out
PHONE J YKB26-5264 S.NUT 6.3 Para out
PHONE J YKB26-5264 S.NUT 6.3 Para out
PHONE J YKB26-5264 S.NUT 6.3 Para out
PHONE J YKB26-5264 S.NUT 6.3 Para out
PHONE J YKB26-5264 S.NUT 6.3 Para out
IC NJM5532M FPT1T32P
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC NJM5532M
IC AD1B37AS QFTY
IC CSB427-CS FP
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
FPT1T32P
IC 74HCU04DT FPEL T16E
TRANS PULSE CIT0705S-35101TFP
TR.CHIP 2SC3326 A,B TEB5L
TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
TR.CHIP 2SC3326 A,B TEB5L TOBE
----------------------- SERVICE MANUAL -----------------------
11

TR515 ET B10B31J TR.CHIP 2SC3326 A,B TEB5L TOBE
D759 ED B2237BX D LED L-169XQWC-C WHITE
TR516 ET B10B31J TR.CHIP 2SC3326 A,B TEB5L
TOBE
D760 ED B22379X D LED L-169XSURDK RED
X601 El B22641X OSC X'TAL C.FCO736B 11.2B96MHZ
D761 ED B22379X D LED L-169XSURDK RED
D762 ED B22379X D LED L-169XSURDK RED
4. PC HDD BLK D763 ED B22379X D LED L-169XSURDK RED
Ref. No. Part No. Description D764 ED B22379X D LED L-169XSURDK RED
PB12
EJ B21777X PLUG DHB-PA50-R131N 50P D765 ED B22379X D LED L-169XSURDK RED
J104
EJ B22373X SOCKET BL 112-42RL 42P D766 ED B22379X D LED L-169XSURDK RED
J10B
EJ B22373X SOCKET BL 112-42RL 42P D767 ED B22379X D LED L-169XSURDK RED
J102
EJ B22395X SOCKET 26FMZ-ST 26P
5. PC CDD BLK SW701 ES 415015J SW TACT SKQEAD
Ref. No. Part No. Description SW702 ES 41S01SJ SW TACT SKQEAD
J10B
EJ B22373X SOCKET BL 112-42RL 42P SW703 ES 41S015J SW TACT SKQEAD
PB13
EJ B22376X SOCKET KX14-50K5D 50P SW704 ES 41S01SJ SW TACT SKQEAD
SW705 ES 41S015J SW TACT SKQEAD
6. PC FRONT BLK SW706 ES 349474 SW TACT SKHHAM004A
Ref. No. Part No. Description SW707 ES 349474 SW TACT SKHHAM004A
ICB01 El B12705J IC NJM4556AL SW70B ES 349474 SW TACT SKHHAM004A
JB01 EJ B213B6X PHONE J YKB22-S264 NUT 6.3 SW709 ES 349474 SW TACT SKHHAM004A
JB02
EJ B213B6X PHONE J YKB22-S264 NUT 6.3 SW710 ES 349474 SW TACT SKHHAM004A
JB03
EJ B213B6X PHONE J YKB22-S264 NUT 6.3 SW711 ES 349474 SW TACT SKHHAM004A
RB07
LL ER -B2272BX R OMF H F12 FS MOF 1W 101J SW712 ES 349474 SW TACT SKHHAM004A
RB0B
LL ER -B2272BX R OMF H F12 FS MOF
1W 101J SW713 ES 349474 SW TACT SKHHAM004A
J103
EJ B22373X SOCKET BL 112-42RL 42P SW714 ES 349474 SW TACT SKHHAM004A
JB04
EJ -B22374X SOCKET CFHD-19-0034 50P SW715 ES 349474 SW TACT SKHHAM004A
SW716 ES 349474 SW TACT SKHHAM004A
7. PC MIDI BLK SW717 ES 41S015J SW TACT SKQEAD
Ref. No. Part No. Description SW71B ES 349474 SW TACT SKHHAM004A
JB0S EJ 427B01J DIN J TCS50B4-4S-41
S1 SP
SW719 ES 349474 SW TACT SKHHAM004A
JB06
EJ 427B01J DIN J TCS50B4-4S-41 S1 SP
SW720 ES 349474 SW TACT SKHHAM004A
JB07
EJ 427B01J DIN J TCS50B4-4S-41
S1 SP
SW721 ES 349474 SW TACT SKHHAM004A
JB0B
EJ 427B01J DIN J TCS50B4-4S-41 S1 SP
SW722 ES 349474 SW TACT SKHHAM004A
JB09
EJ 427B01J DIN J TCS50B4-4S-41
S1 SP
SW723 ES 349474 SW TACT SKHHAM004A
JB10
EJ 427B01J DIN J TCS50B4-4S-41 S1 SP
SW724 ES 349474 SW TACT SKHHAM004A
SW725 ES 349474 SW TACT SKHHAM004A
8. PC FILTER BLK SW726 ES 349474 SW TACT SKHHAM004A
Ref. No. Part No. Description SW727 ES 349474 SW TACT SKHHAM004A
L951
LL EO -B22706X COIL LF ET24-S62U-EH4 SW72B ES 349474 SW TACT SKHHAM004A
SW901
LL ES
-B12750J SW PUSH SDKEC 02-1 Power SW
SW729 ES 349474 SW TACT SKHHAM004A
SW730 ES 349474 SW TACT SKHHAM004A
9. PC PAD BLK SW731 ES 349474 SW TACT SKHHAM004A
Ref. No. Part No. Description SW732 ES 349474 SW TACT SKHHAM004A
JB11 EJ B210B0X SOCKET S229-20APB 20P SW733 ES 349474 SW TACT SKHHAM004A
DBS0 ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
SW734 ES 349474 SW TACT SKHHAM004A
DBS1 ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
SW735 ES 349474 SW TACT SKHHAM004A
DBS2 ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
SW736 ES 349474 SW TACT SKHHAM004A
DBS3 ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
SW737 ES 349474 SW TACT SKHHAM004A
DBS4 ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
SW73B ES 349474 SW TACT SKHHAM004A
DBSS ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
SW739 ES 349474 SW TACT SKHHAM004A
DBS6 ED -42B99BJ D SILICON C.1SS355TE-17 TOBE SW740 ES 349474 SW TACT SKHHAM004A
DBS7 ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
SW741 ES 349474 SW TACT SKHHAM004A
DBSB ED -42B99BJ D SILICON C.1SS355TE-17 TOBE SW742 ES 349474 SW TACT SKHHAM004A
DBS9 ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
SW743 ES 349474 SW TACT SKHHAM004A
DB60 ED -42B99BJ D SILICON C.1SS355TE-17
TOBE SW756 ES B223S2X SW R.ENCORDER SRGPSJ0S00
DB61 ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
VR701 EV B22422X VR ROTARY RD14K12D L20 C203X2
DB62 ED -42B99BJ D SILICON C.1SS355TE-17
TOBE VR702 EV B22377X VR ROTARY RD14K12D L20 3B103X2
DB63 ED -42B99BJ D SILICON C.1SS355TE-17
TOBE
D701 ED B114S5J D SILICON H 1SS133T-77 T26
DB64 ED -42B99BJ D SILICON C.1SS355TE-17
TOBE D702 ED B114S5J D SILICON H 1SS133T-77 T26
DB6S ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
D703 ED B114S5J D SILICON H 1SS133T-77 T26
DB66 ED -42B99BJ D SILICON C.1SS355TE-17
TOBE D704 ED B114S5J D SILICON H 1SS133T-77 T26
DB67 ED -42B99BJ D SILICON C.1SS355TE-17
TOBE
D705 ED B114S5J D SILICON H 1SS133T-77 T26
DB6B ED -42B99BJ D SILICON C.1SS355TE-17 TOBE
D706 ED B114S5J D SILICON H 1SS133T-77 T26
DB69 ED -42B99BJ D SILICON C.1SS355TE-17
TOBE D707 ED B114S5J D SILICON H 1SS133T-77 T26
DB70 ED -B223B0X D SCHOT.
C. RB751V-40 TOBE
D70B ED B114S5J D SILICON H 1SS133T-77 T26
DB71 ED -B223B0X D SCHOT.
C. RB751V-40 TOBE
D709 ED B114S5J D SILICON H 1SS133T-77 T26
DB72 ED -B223B0X D SCHOT.
C. RB751V-40 TOBE
D710 ED B114S5J D SILICON H 1SS133T-77 T26
DB73 ED -B223B0X D SCHOT.
C. RB751V-40 TOBE
D711 ED B114S5J D SILICON H 1SS133T-77 T26
ICB50 El B20659X IC NJM20B2M FPTE1T16E D712 ED B114S5J D SILICON H 1SS133T-77 T26
ICB51 El B20659X IC NJM20B2M FPTE1T16E D713 ED B114S5J D SILICON H 1SS133T-77 T26
ICB52 El B223B6X IC CD74HCT04M96 D714 ED B114S5J D SILICON H 1SS133T-77 T26
ICB53 El B21B29X IC CD74HCT40S1M96 D715 ED B114S5J D SILICON H 1SS133T-77 T26
D716 ED B114S5J D SILICON H 1SS133T-77 T26
10. PC HDD CONNECT BLK
D717 ED B114S5J D SILICON H 1SS133T-77 T26
Ref. No. Part No. Description D71B ED B114S5J D SILICON H 1SS133T-77 T26
JB12
EJ B217B0X SOCKET DHB-RAS0-R131N
SOP
D719 ED B114S5J D SILICON H 1SS133T-77 T26
JB14
EJ B22375X SOCKET PTRZ-S0R1-B-R1
SOP
D720 ED B114S5J D SILICON H 1SS133T-77 T26
D721 ED B114S5J D SILICON H 1SS133T-77 T26
11. PC OPERATION-R BLK
D722 ED B114S5J D SILICON H 1SS133T-77 T26
Ref. No. Part No. Description D723 ED B114S5J D SILICON H 1SS133T-77 T26
D7S6 ED -B120B7J D LED L-934SRD-G RED D724 ED B114S5J D SILICON H 1SS133T-77 T26
D7S7 ED -B120B7J D LED L-934SRD-G RED D725 ED B114S5J D SILICON H 1SS133T-77 T26
D7SB ED -B120B6J D LED L-934SGD GREEN D726 ED B114S5J D SILICON H 1SS133T-77 T26
SERVICE MANUAL
12

D727 ED -811455J D SILICON H 1SS133T-77 T26
21 SP -822294X PANEL REAR MPC2500
D728
ED -811455J D SILICON H 1SS133T-77 T26 22 !
EJ -358632J2 SOCKET INLET SOT-16 3P
D729
ED -811455J D SILICON H 1SS133T-77 T26 23 ZS 820481X BT PAN30X0BSTL BZN
COBO
D730 ED -811455J D SILICON H 1SS133T-77 T26 24 ZS 822425X BID40X10STL BZN
D731 ED -811455J D SILICON H 1SS133T-77 T26 25 ZS 822662X TWB40
D732
ED -811455J D SILICON H 1SS133T-77 T26 26 ZS 413267 N FRANGE 40STL GMT
D733
ED -811455J D SILICON H 1SS133T-77 T26 27 ZS 394414J BT BID30X0BSTL BZN
D734
ED -811455J D SILICON H 1SS133T-77 T26 28 ZS 822426X BID30X0BSTL BZN
D735
ED -811455J D SILICON H 1SS133T-77 T26 29 ZS 822427X PAN26X06STL BZN
D736
ED -811455J D SILICON H 1SS133T-77 T26 30
EJ 821236X SOCKET CONNECTER YKF45-0020 4P USB
D737
ED -811455J D SILICON H 1SS133T-77 T26
31 EJ 822660X PIN J YKC21-4141N P2P RCA Pin
D738 ED -811455J D SILICON H 1SS133T-77 T26 32
EJ 821000X PHONE J YKB26-5264 S.NUT 6.3 Stereo Out
D739
ED -811455J D SILICON H 1SS133T-77 T26 33
EJ 821273X PHONE J YKB26-5326 S.NUT 6.3 Rec In
D740 ED -811455J D SILICON H 1SS133T-77 T26 34
EJ 821000X PHONE J YKB26-5264 S.NUT 6.3 8 para
D741 ED -811455J D SILICON H 1SS133T-77 T26 35
EJ 427801J DIN J TCS5084-45-4151 5P MIDI
D742
ED -811455J D SILICON H 1SS133T-77 T26 36 SP 822293X COVER FRONT
D743
ED -811455J D SILICON H 1SS133T-77 T26 37 SP 822300X COVER CD BLANK
MH -322581X PC SUPPORT MCBS-5P 38 SP 822334X PANEL SLOT (B)
39 ZS 822429X CTS30X06STL BZN
12. PC OPERATION-L
40 EJ 821386X PHONE J YKB22-5264 NUT 6.3
Ref. No. Part No. Description
41 Lt. BP -822391X
SW POW SNP-9541-M1
D768
ED -822379X D LED L-169XSURDK RED 42
EW-
822369X CORD FFC P0.50 L220 42P
D769
ED -822379X D LED L-169XSURDK RED 43
EW-
822368X CORD FFC P0.50 L 170 42P
D770
ED -822379X D LED L-169XSURDK RED 44 ZS 822428X N20STL Nl3 2
D771 ED -822379X D LED L-169XSURDK RED 45 ZS -356861 PAN20X06STL Nl3
P703
EJ 822715X PLUG JM24181-R6 WHT 6P 46
EJ -822406X SOCKET ACCE EJECT CFHP-00-0023
SW744 ES 415015J SW TACT SKQEAD 47
EW-
822367X CORD FFC P0.50 L60 42P
SW745 ES 415015J SW TACT SKQEAD 48 SE -822401X
PADTW-LG
SW746 ES 349474 SW TACT SKHHAM004A 49 BA -379695J1 PC PAD SENSOR
SW747 ES 349474 SW TACT SKHHAM004A 50 SE -821143X SHEET FFC
SW748 ES 349474 SW TACT SKHHAM004A
51
EW-
822370X CORD FFC P1.00 L 100 26P
SW749 ES 349474 SW TACT SKHHAM004A 52 SB 822298X BUTTON PUSH M (A) Clear
VR703 EV -822423X VR SLIDE RF45112P6 L 15 B103X2 ES 349474
SW TACT SKHHAM004A
VR704 EV -822423X VR SLIDE RF45112P6 L 15 B103X2 53 SB 822299X BUTTON PUSH M (B) White
VR705 EV -822377X VR ROTARY RD14K12D L20 3B103X2 ES 349474
SW TACT SKHHAM004A
VR706 EV -822377X VR ROTARY RD14K12D L20 3B103X2 54 SB 822333X BUTTON PUSH B (7) Red
D744
ED -811455J D SILICON H 1SS133T-77 T26 ES 415015J
SW TACT SKQEAD
D745
ED -811455J D SILICON H 1SS133T-77 T26 55 SB 821897X BUTTON PUSH B (6) White
D746
ED -811455J D SILICON H 1SS133T-77 T26 ES 415015J
SW TACT SKQEAD
D747
ED -811455J D SILICON H 1SS133T-77 T26 56 SB 822331X BUTTON PUSH (B)-8 Gray
D748
ED -811455J D SILICON H 1SS133T-77 T26 ES 349474
SW TACT SKHHAM004A
D749
ED -811455J D SILICON H 1SS133T-77 T26 57 SB 822330X BUTTON PUSH (B)-7 White
MH -322581X
PC SUPPORT MCBS-5P ES 349474
SW TACT SKHHAM004A
58 SB 822307X BUTTON CURSOR (5) Gray
13. PC OPERATION-F ES 349474
SW TACT SKHHAM004A
Ref. No. Part No. Description
59 SK -822297X KNOB JOG
SW750 ES -349474 SW TACT SKHHAM004A ES -822352X
SW R.ENCORDER SRGPSJ0500
SW751 ES -349474 SW TACT SKHHAM004A 60 SE -822579X
MASKVR
SW752 ES 349474 SW TACT SKHHAM004A
61 SP 822288X PANEL TOP MPC2500
SW753 ES 349474 SW TACT SKHHAM004A 62 SE 810353J LENS LED
SW754 ES 349474 SW TACT SKHHAM004A 63 SP 822289X PANEL SIDE (L)
SW755 ES 349474 SW TACT SKHHAM004A 64 SP 822290X PANEL SIDE (R)
D750
ED -811455J D SILICON H 1SS133T-77 T26 65 ZS 822727X BT CTS30X06STL BZN
D751 ED -811455J D SILICON H 1SS133T-77 T26 66 ZS 404225J ST BID40X0BSTL BZN
D752
ED -811455J D SILICON H 1SS133T-77 T26 67 ZS 417137 BID30X04STL GMT for HD
D753
ED -811455J D SILICON H 1SS133T-77 T26 68 SP 822269X COVER BOTTOM
D754
ED -811455J D SILICON H 1SS133T-77 T26 69 SP 821799X COVER MEMORY
D755
ED -811455J D SILICON H 1SS133T-77 T26 70
SA -812668J FOOTB
71 SK -822308X KNOB VOL PART (17) Red
14. FINAL ASSENBL Y BLK EV -822422X VR ROTARY RD14K12D L20 C203X2
Ref. No. Part No. Description
72 SK -822311X KNOB VOL PART (18) Silver
1
SP -822292X PANEL LCD EV -822377X
VR ROTARY RD14K12D L20 3B103X2
2
SP -822296X WINDOW LCD 73
SK -822313X KNOB VOL PART (19) Black
3
EM -822661X IND LCD BY-MG24064DL YS-02H EV -822377X
VR ROTARY RD14K12D L20 3B103X2
4
EW -822353X WIRE ASSY L4039 W105 24P 74
SK -821679X SPACER SLIDE
5
sz
-821800X SHIELD LCD(1) 75
SK -822332X KNOB SLIDE (E)
6
sz -821801X SHIELD LCD(2) EV -822423X
VR SLIDE RF45112P6 L 15 B103X2
7
SP -822291X PANEL LCD BOTTOM 76
Lt. EW
-822664X AC CORD 250SSP30IS14 A J
8
SP -822295X PLATE LCD BOTTOM 76
Lt. EW -822665X AC CORD 200SSP301 IS14 A AC
9 ZS -394414J BT BID30X0BSTL BZN 76
Lt. EW
-822666X AC CORD 183SLP33LS60 A E
10 ZG -822279X BUSH PANEL LCD 76
Lt. EW -822667X AC CORD 200SSP60IS14 AB
11 MB -822286X CUSHION RUBBER 76
Lt. EW
-822576X AC CORD 180SSP502BIS14 AS
12 ML -822277X LEVER 77 Lt. EJ
-405424J PLUG ADAPTOR KPR-25
13 ZG -822281X SP TORSION LEVER
14 MH -820655X PROP 1 F.SCREW L=27
15 ZS 428277J PAN30X06STL GMT POLY WAVE
16 ZS 404181J BT BID30X06STL BZN
17 ZS 428277J PAN30X06STL GMT POLY WAVE
18 ZS 404181J BT BID30X06STL BZN
19 MH -822280X PROP M.SCREW L=15.1
20 SB 810525J BUTTON POWER Knob
Lt. ES -812750J SW PUSH SDKEC 02-1 SW Power
SERVICE MANUAL
13

I FINAL ASSEMBLY BLOCK I
c:::::::::::, c::::::::::::, c::::::::::::, c::::::::::::, =
c=,c=,c:::::::::::,c=,
=
c:::::::::::, c::::::::::::, c::::::::::::, c::::::::::::,
====
c::::::::::::, c::::::::::::, c::::::::::::, c::::::::::::,
177~L
CJ
MUSIC PRODUCTION CENTER
61
25CJCJ
@·link
Cl CJ CJ Cl
Cl CJ CJ Cl
Cl Cl
c:::J CJ CJ
G
3 . .
c:::J CJ CJ
M .. • •,..,.
□ □ □
----
c:J
Cl Cl
CJ
□
CJ Cl Cl
Cl
D
IIE~EAT
□ □
-:;;;-
jn EiP
MIDIIN
A '
ee
• •
-----------------SERVICEMANUAL-----------------
14

I FINAL ASSEMBLY BLOCK I
60
74
+
□
hr----=----! ~rf"t= ~==:~~~==ffl==:7~~~
6
~
l~lffi ®~~~~~
8 [fJl
'-'
6 6 lbdlf::::c~..J.-JI
6 °D □□□
□□□□
.a.!. ~ ~ □~~
19
-lo?\ @
~
~~
~~6~
~~~
~~~
47
SERVICE MANUAL------------
15

I FINAL ASSEMBLY BLOCK I
0 0
---------SERVICEMANUAL---------
16

I FINAL ASSEMBLY BLOCK I
SERVICE MANUAL
17

AKA Iprofessional M. I. Corp.
4-7-3, KITA-YAMATA, TSYZUKI-KU, YOKOHAMA, JAPAN
SERVICE
SECT. PHONE: [phone] FAX: [phone]

rn
,----- - -
~
lt)t.fJLTl
D)
-----
PC(#)MAIN
(CPU)
Expansion Memory
Compact Flash
,----- - - -- - - -----i
PC (#l OPERATION
(OPERATION-Fl.NCTION)
El
L
-'
X
~
8 ' !7
..,.,
REC GAIN
MAIN VOLUME
PC(#)OPERATION
L_ - - -- - - -- - - -- - - -- - - -- - - (OPERATICN-R)_J
-- ;:@F --------------~~~
(FRONT)
PCUllMULTI _J
~-----~-------------------------
Foot SW Head Phone

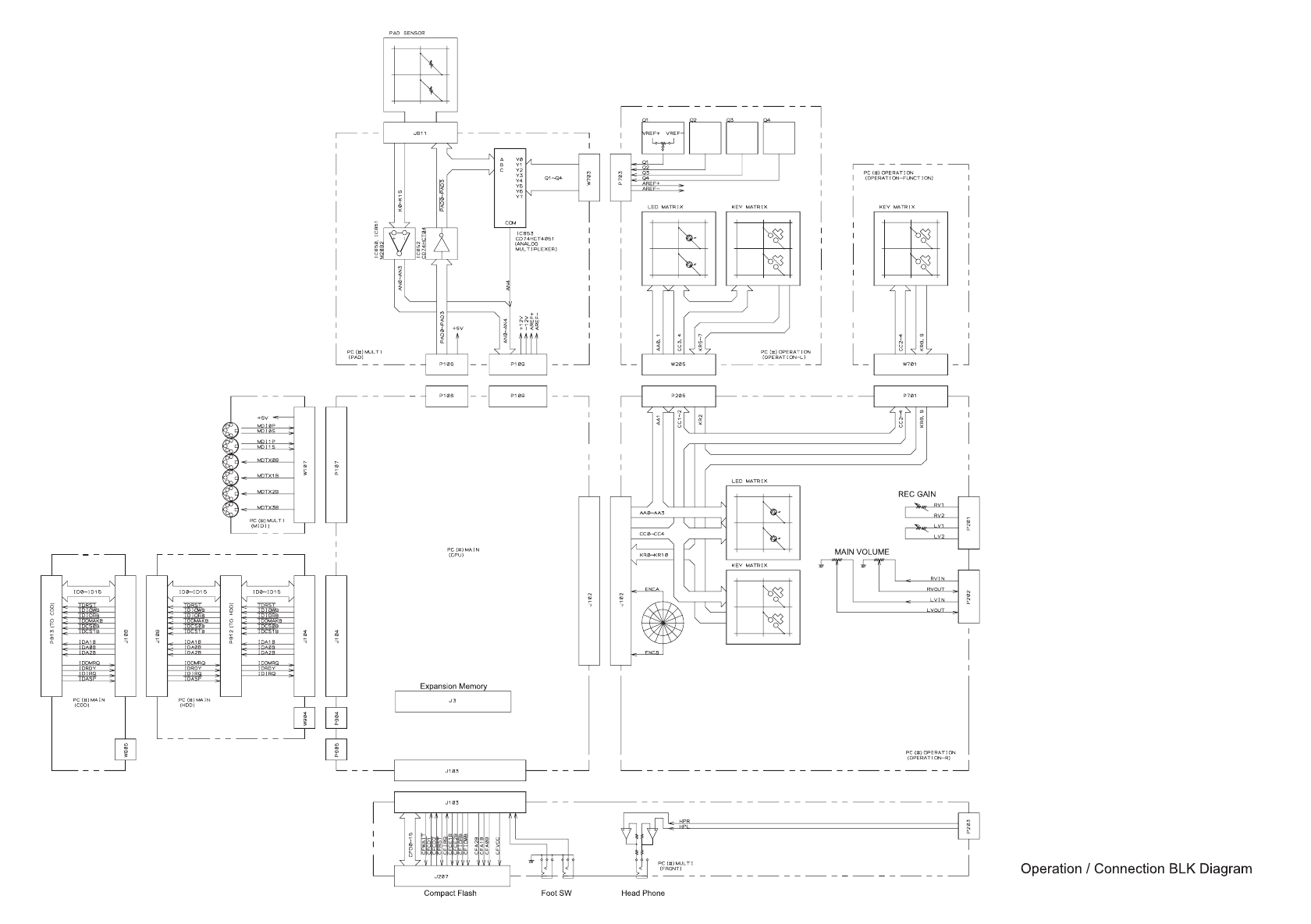

Operation / Connection BLK Diagram

i5
:E
CFVCC
IC5
l-07<1-LVC245AT
(TRANSCEIVER)
IC5
I-IJ74LVC246AT
(TRANSCEIVER>
IC16
51970BDY
(CF INTERFACE SWITCH)
PH1
HCPLDB71111
(PHOTO COJPLER)
+6V
+3. ~
.,.....,
~
~:=~ ~MDRXO
HCPLD1!171Z11
(PHOTO COUPLER)
~::~ =fl=r MDRX1
MDTX0B
MDTX1B
MDTX2B
t.1DTX3B
Cl
Cl
I
.9
Cl
0
...J
.9
I t 1~DD+5V
I ~ I ;DD+5V
i
ICO
HD74LVC245AT
(TRANSCEIVER)
IC9
HD74LVC245AT
CTRANSCE I VER>
IC10
,,,..,.
HD74LVC245AT
CTRANSCE I VER)
~
OOMUU
OOMUL
=-•
=
IDA1B
IOAilB A2-A4
IDA2B
TiSi:508 =
IOCS1B ""fiScsf"
I
DDMRQ -----------1>-- ~
IDRDV
IDIRQ
CAlB
PWRGDB
-WAIT
-----------1>-- =
IC13
SN74LVCC:524!1A
(TRANSC.E I VER)
IC12
74HCTM1D
(BUFFER)
DOMUU
DOMUL
=
A2
""RGD
+o. ,v
VO LCONT
VEEOUT
SLK ~ IC14
0
I
0
~
LRCK
BTCK
TXDAC
SCKSIO
P,VRGD
,c,
HV67V641 62IZIHGT-H
(RES I DENT SO RAM t.EMORV)
Dlil-016
A2-A15
DCM-L
~u
~
SOCKE
~~~K
IC<
HV57V64162111HGT-H
(RES I DENT SD RAM t.EMORY)
IC104
PCM17B5
(24-bl t DAC)
015-031
A2-A15
DGMA_
llGMJJ
""""
.....
=
SDCKE
SDCLK
=
Dllr031
IOPC0-IOPC2
SCOTS
IOPC3-IOPC7
A1-A26
IPM0-JPMB
ill" IPG2.
5. 4.. B
gsJ
lPFl!I
]PF1
=
=
,.,.,,.
EXTAL
RAS3
CAS
w..-
~ AN2
WE3 AN3
.,.,
AN4
CKE AN5
CLKI02 ANO
WAIT
=
AN7
,.,_
=
IOPJ3
ICPJ4-
IOPDlit lOPJEi
IOPD1 IOPJ6
JOPD2
IOPD3 CAP1
IOPDEi
JOPD7 VSSPLL1
JOPEB CAP2
IOPE3
JOPE6 VSSPLL2
JOPE6
IOPE7 TXDSIO
RXDSIO
,PHO
SCKSIO
IPH1
EXTAL2
IPH2 USB2PO.'JE
IPH,
IPM7
IPH4
IPH5
JOPH7
TXCO
RXCO
TXC2
RXC2 SJOFSYNC
SC'°
SICMCLK
IPG0 101S18
IPG1
""'
..,,
USB1P
""'
USB1M
""'
""""'
..,.
VBUS ""'
JO
DiHl7 JO
JO
JO
JO
JO
WR
Jo
P31
JO
JO
"""
JO
TITTr Jo
CCLK
,0
~
GCK0 JO
OCK1 JO
OCK2 Jo
GCKO JO
TROY JO
10 JO
10 JO
10 JO
10 JO
lo Jo
,o ,0
10 JO
10 JO
10 JO
Jo
JO
JO
,.,..,.,.,,,
BTCK
LRCK
FSSIO
TXDAC
SCKSIO
TXDSIO
SIOFSVNc
~
mr
TocS0"
=
=CFCE1
CFIRQ
1'"l'Ri<IT
=
-
~
=
D<MJL
D<MJU
=
=
cSR2
E1i5R
""'"
=
X1
c::
I
C:
0
~
(I)
C.
0
.9
+12v
-12v
AREF+
AREF-
c3
0
<(
.9
1C901
LM2157EiS
(STEP-DOM-I REGULATOR)
+1 XV ----e----- +3 ,v
IC902
L.M25755
(STEP-Oc:MN REGULATOR)
+1ZV ----e----- +,. av
PC CPU BLK Diagram
